A Novel Expanding Mechanism of Gastrointestinal Microrobot: Design, Analysis and Optimization

1
School of electronic information and electrical engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
Institute of Medical Robotics, Shanghai Jiao Tong University, Shanghai 200240, China
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(11), 724; https://doi.org/10.3390/mi10110724
Received: 13 September 2019 / Revised: 23 October 2019 / Accepted: 24 October 2019 / Published: 26 October 2019

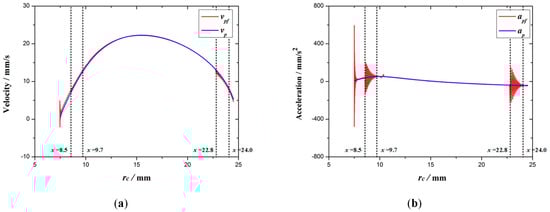

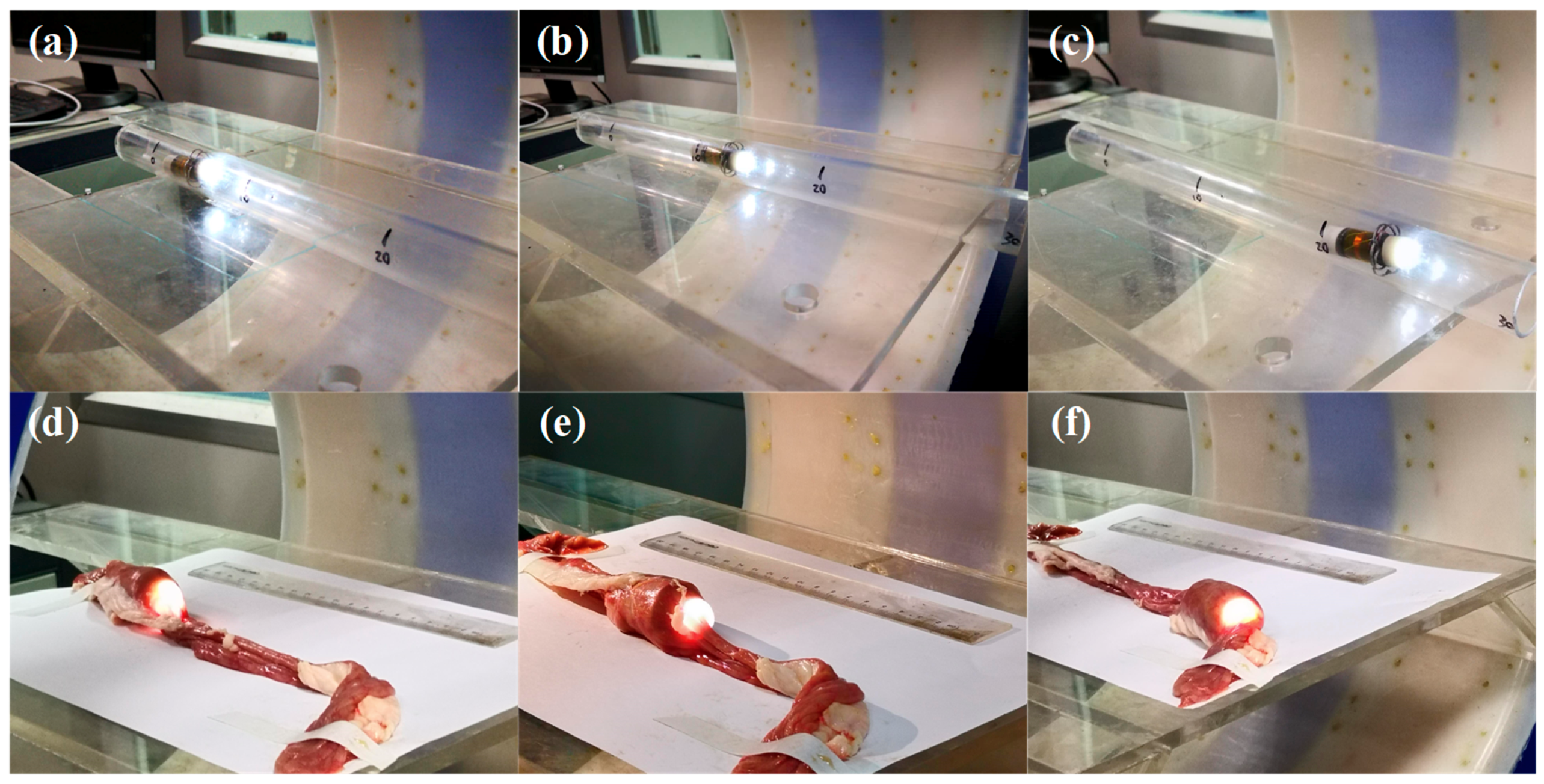

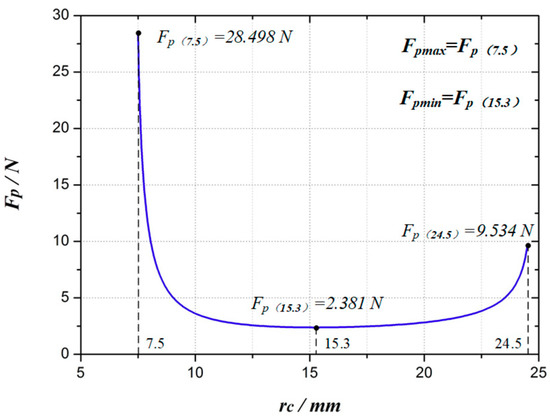

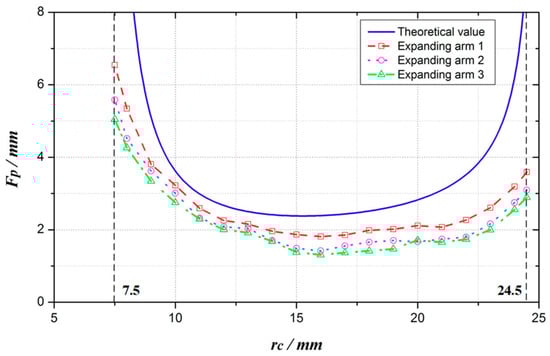

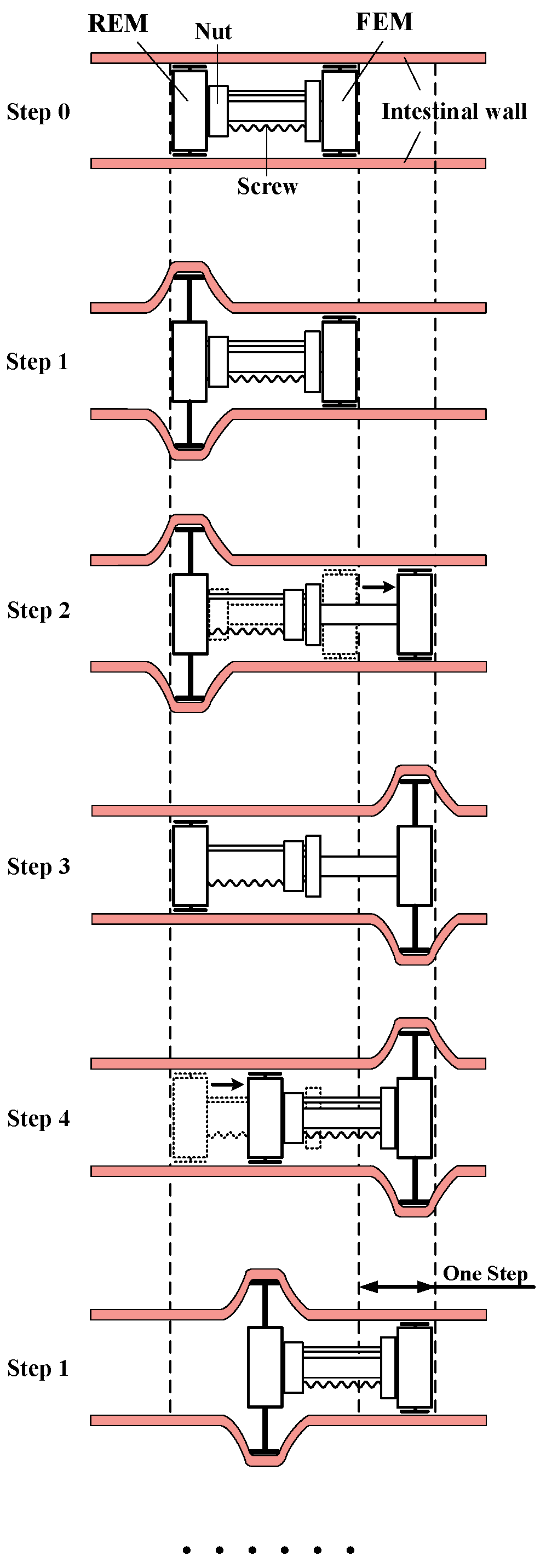

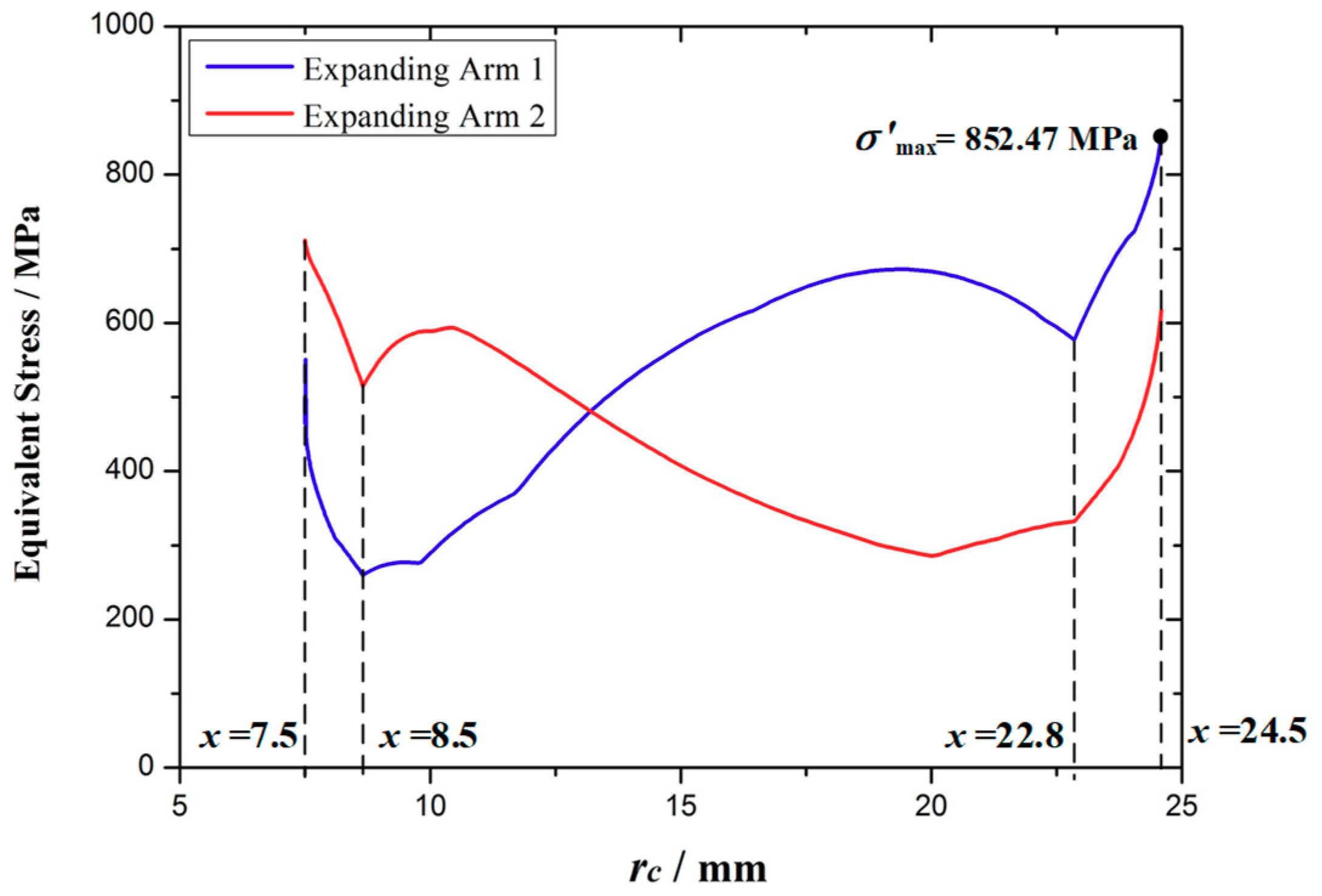

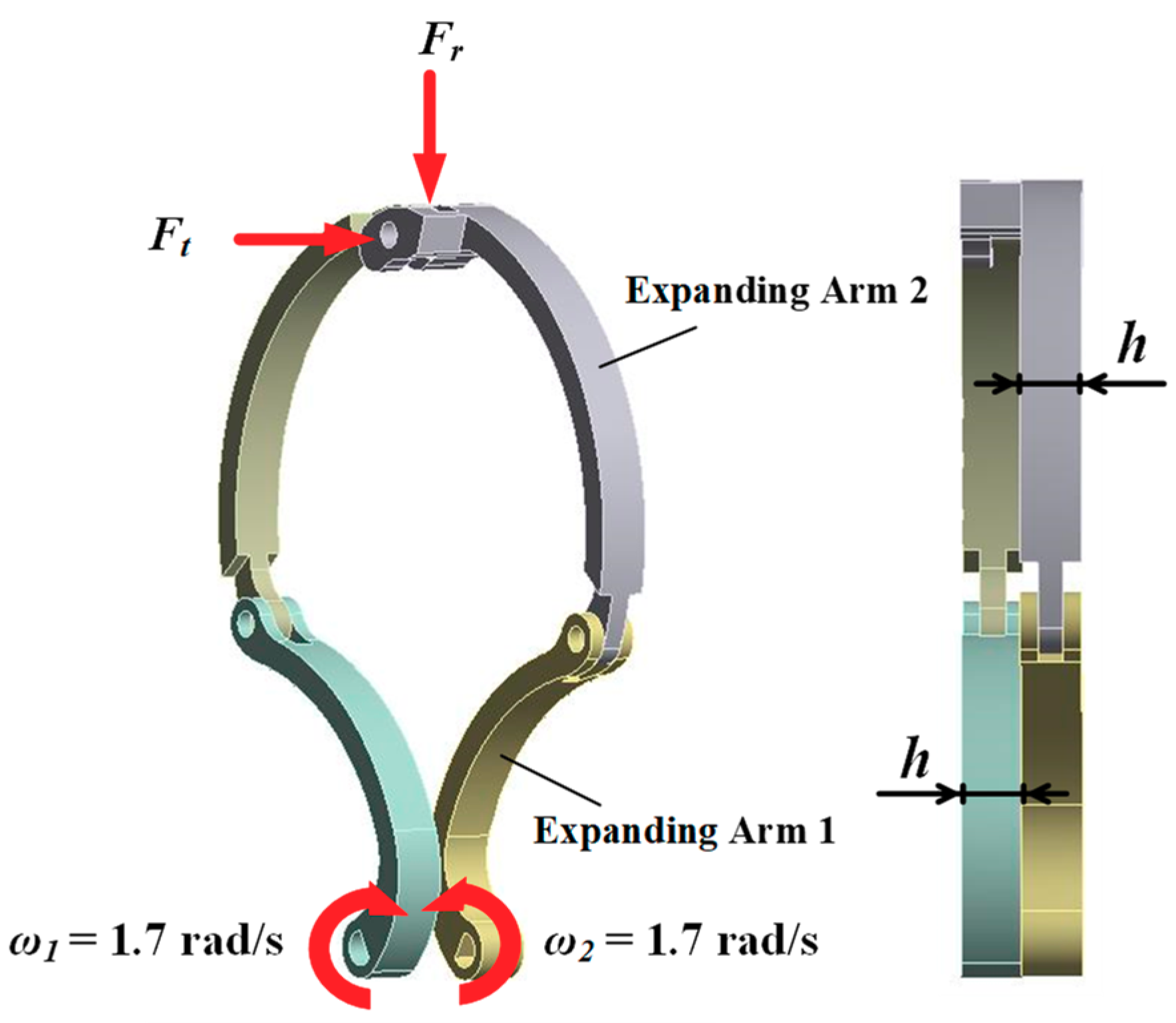

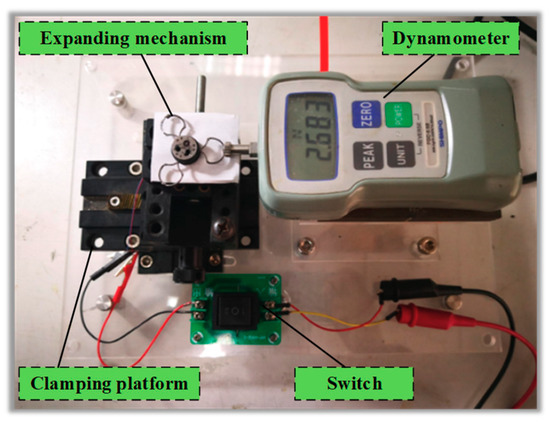

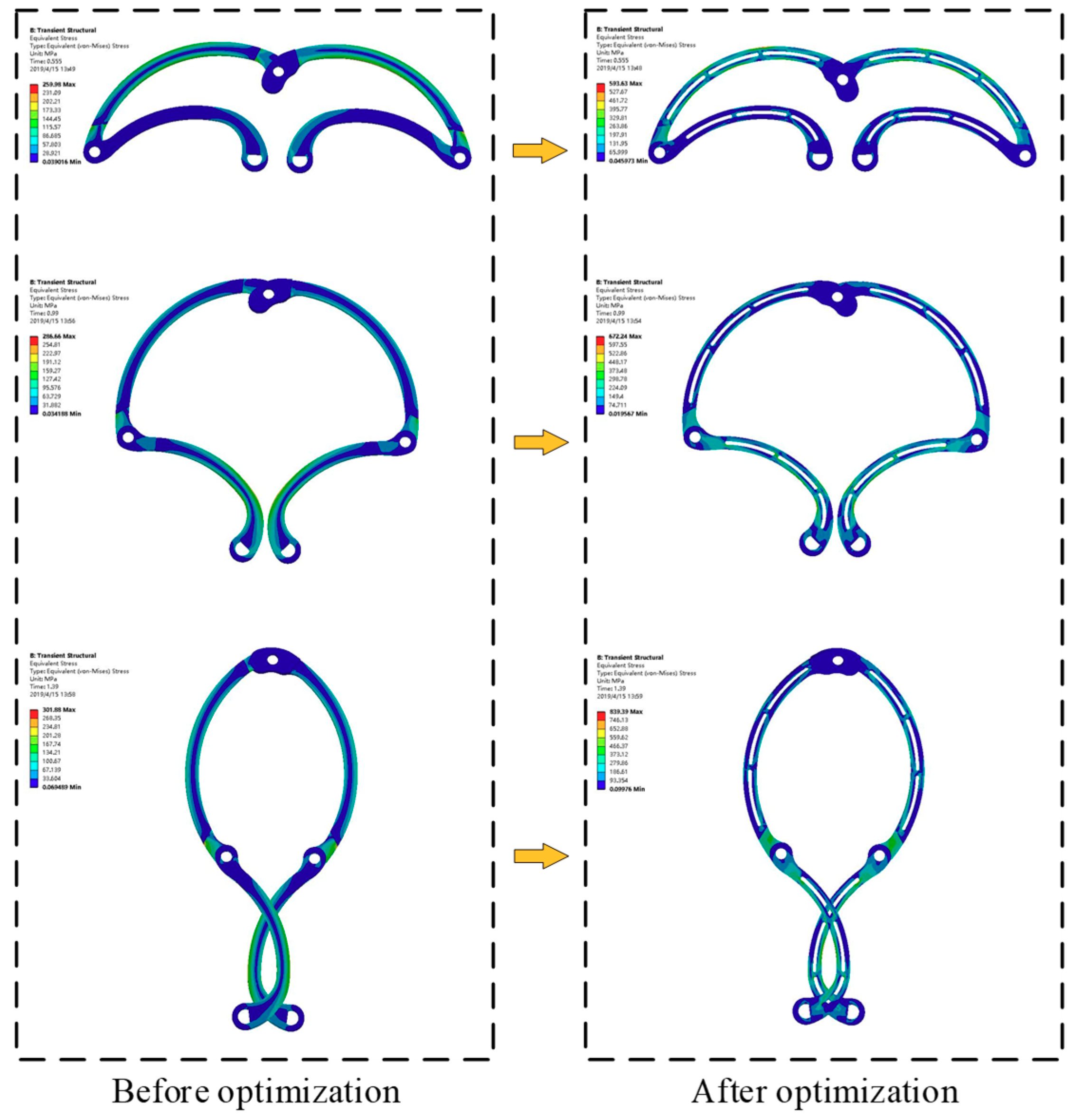

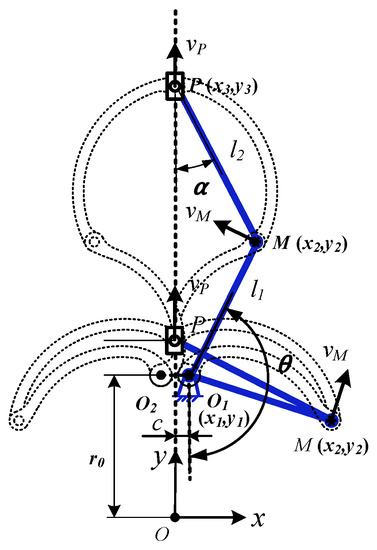

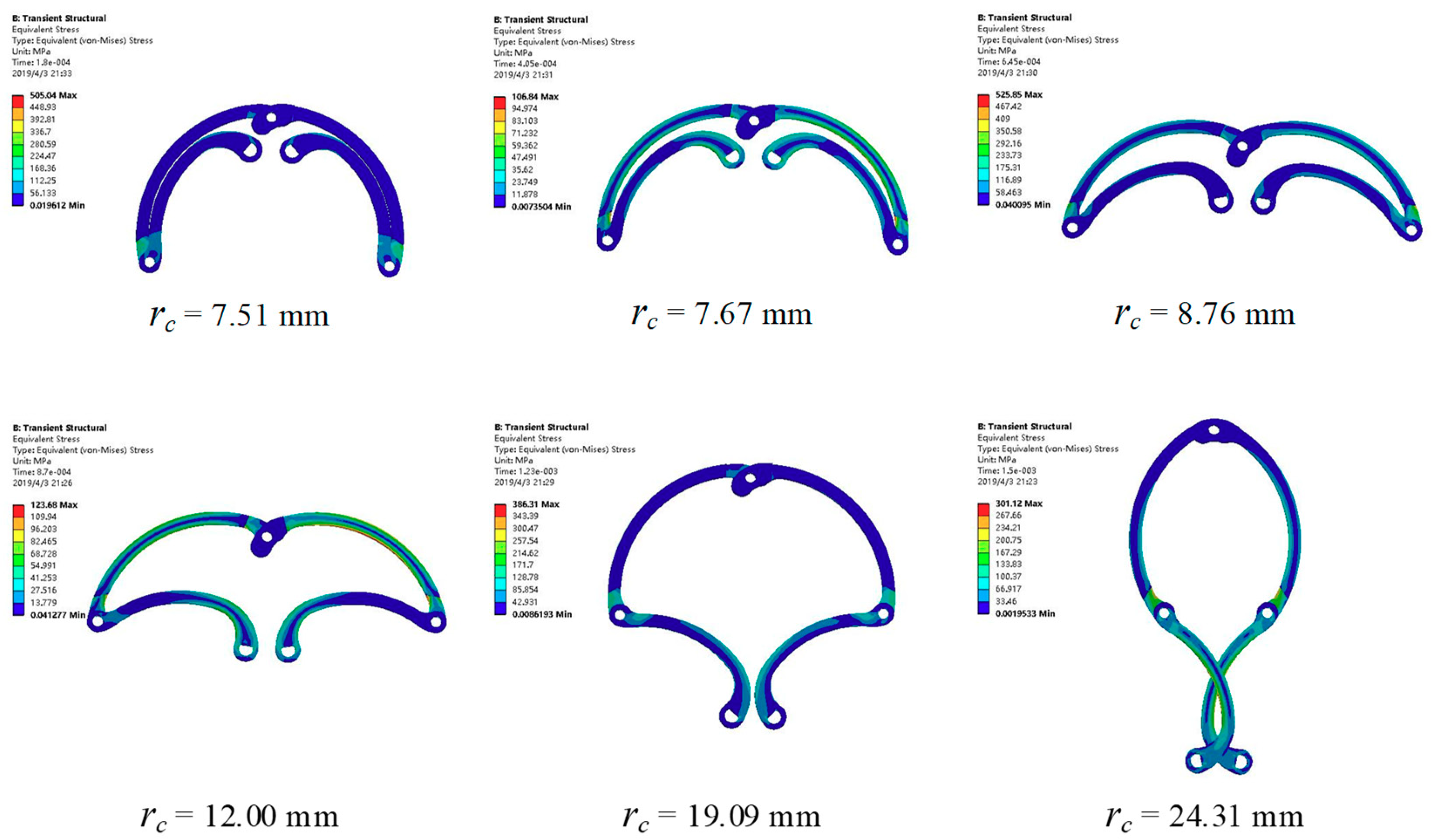

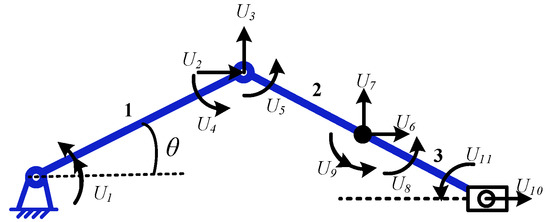

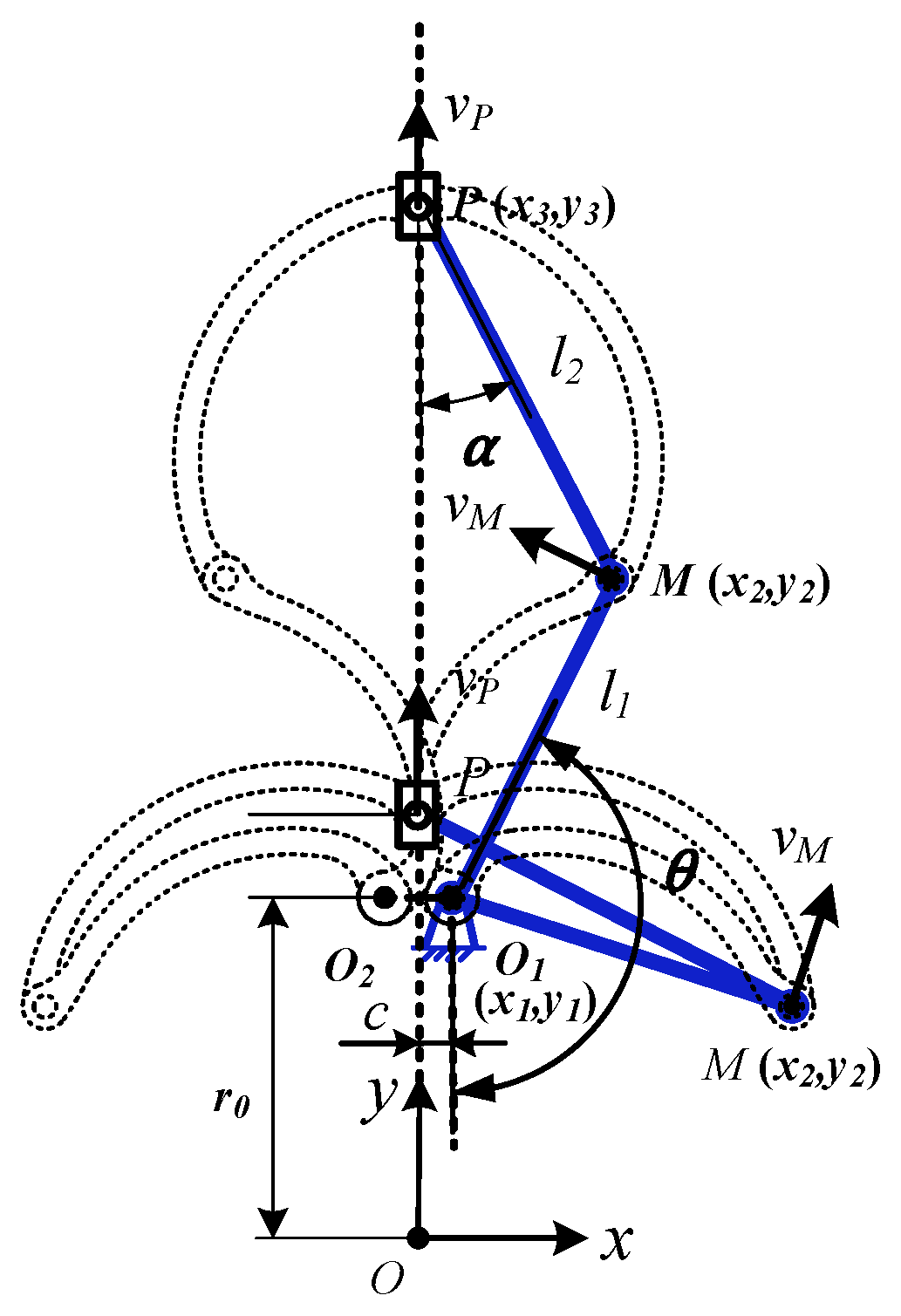

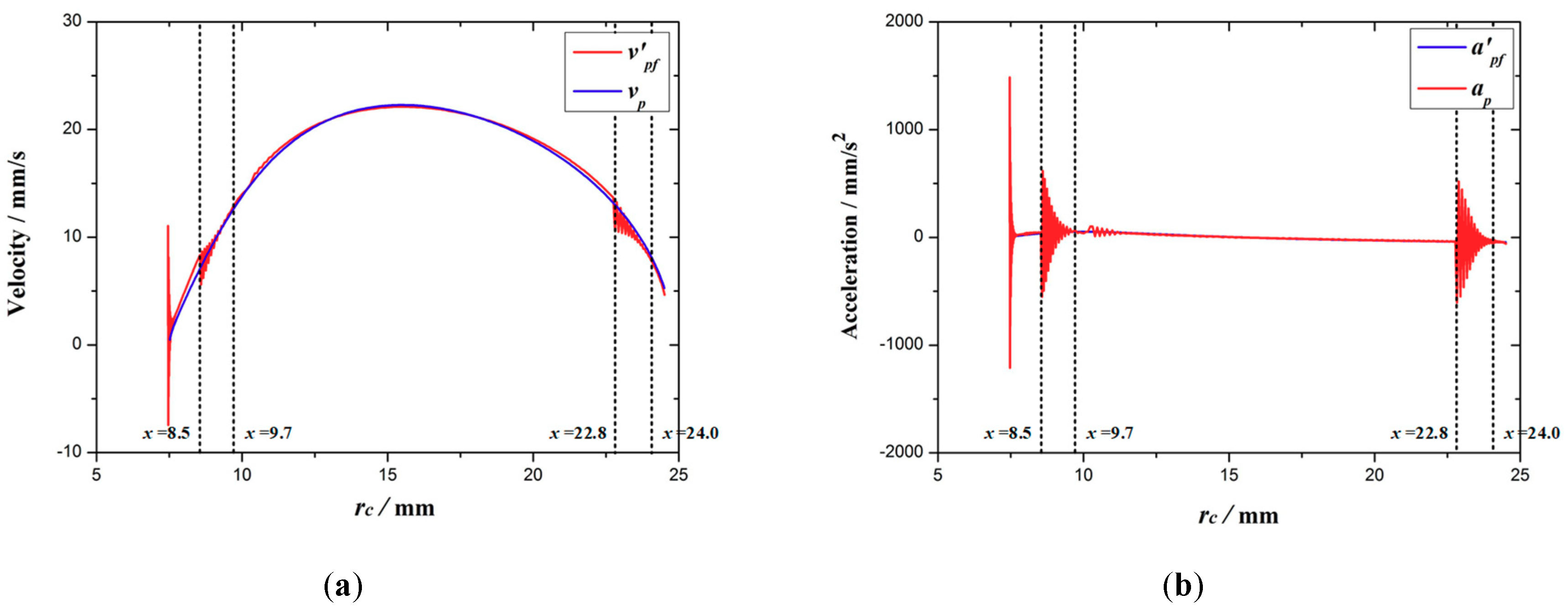

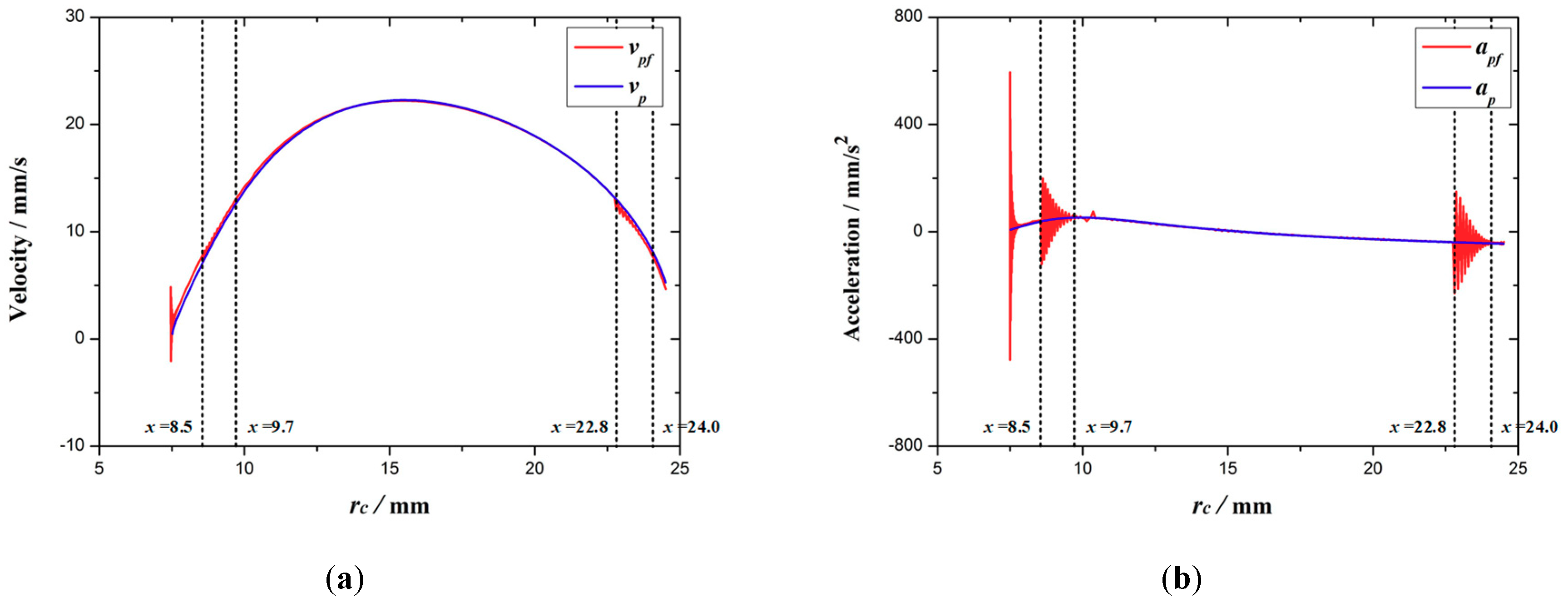

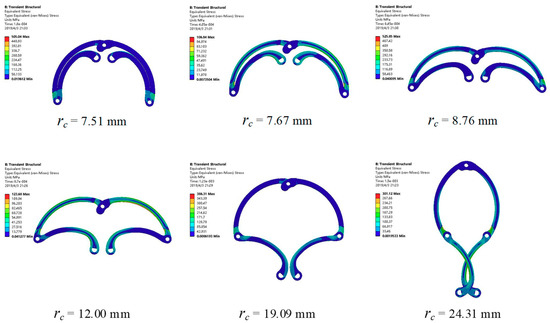

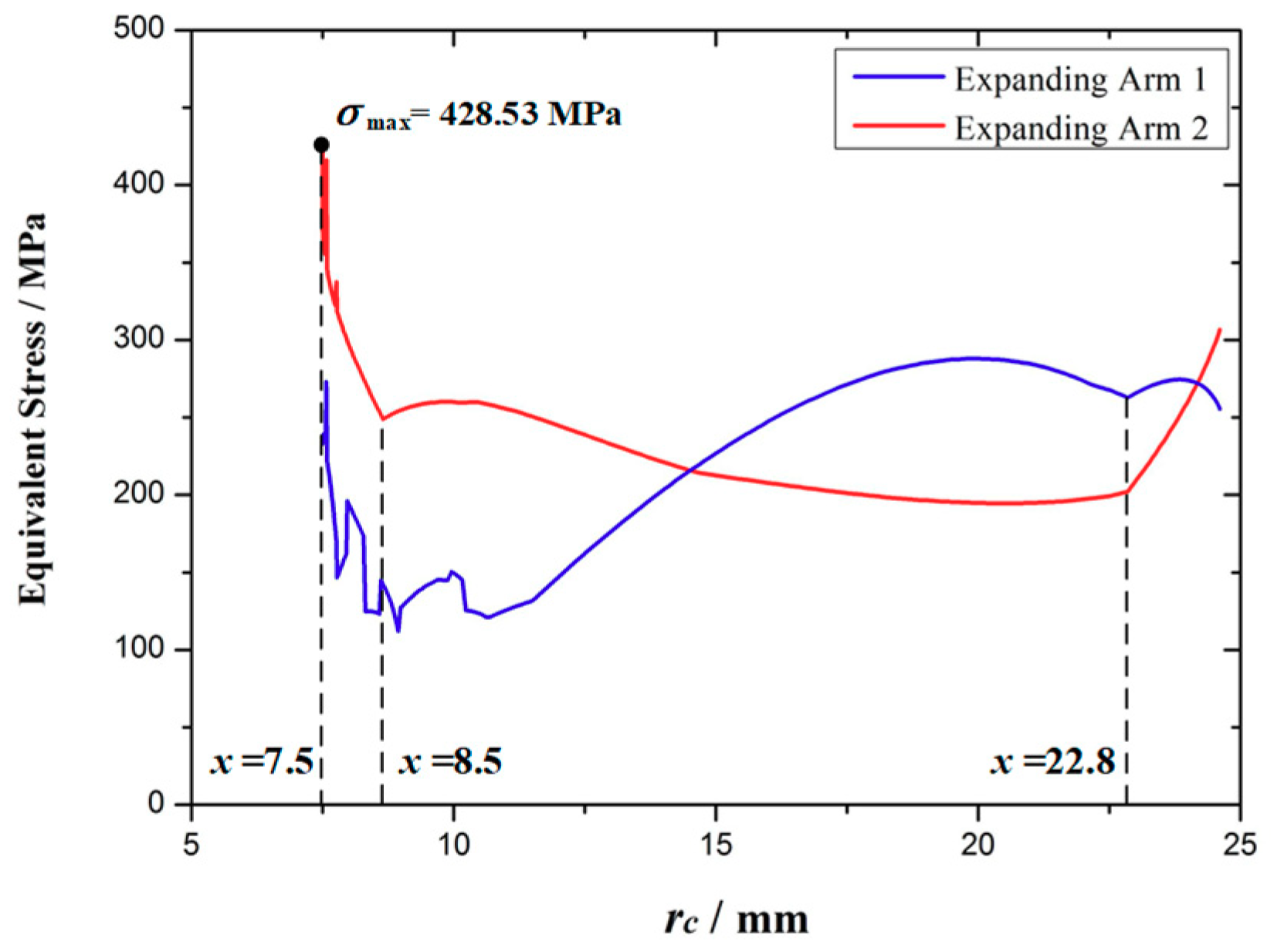

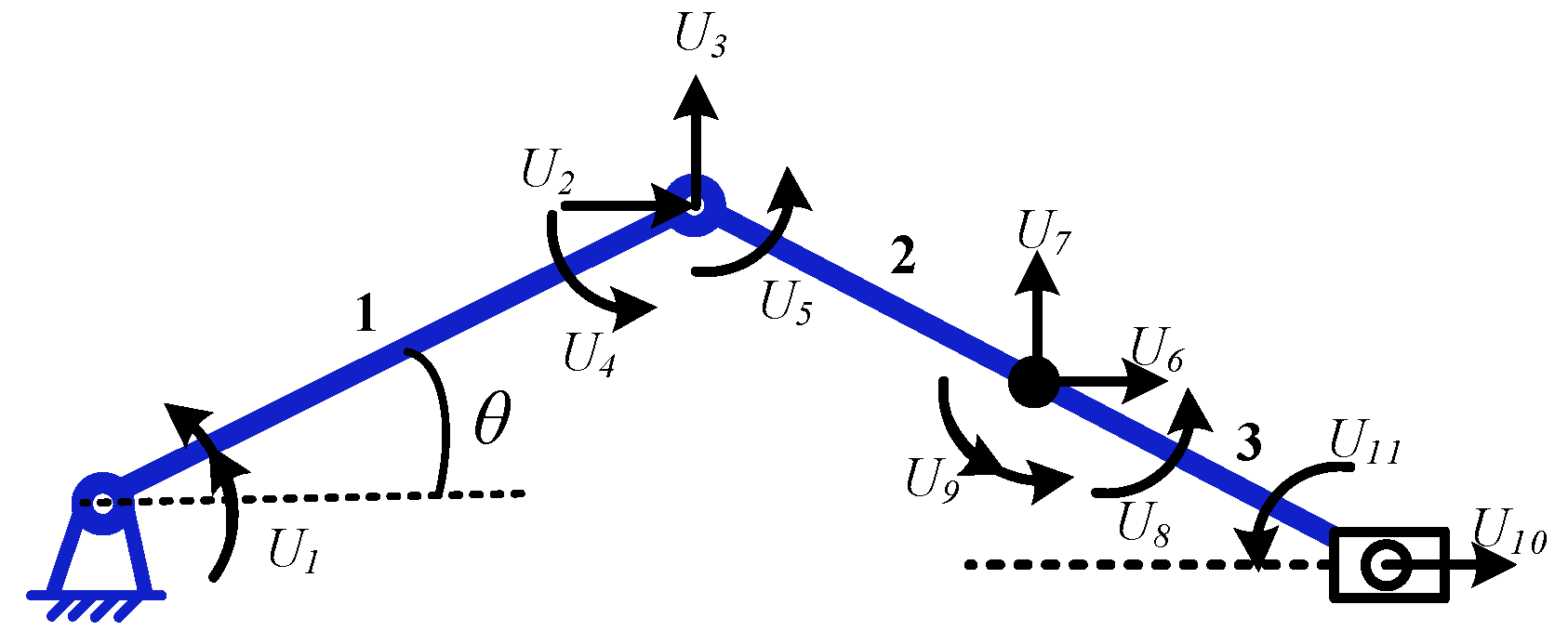

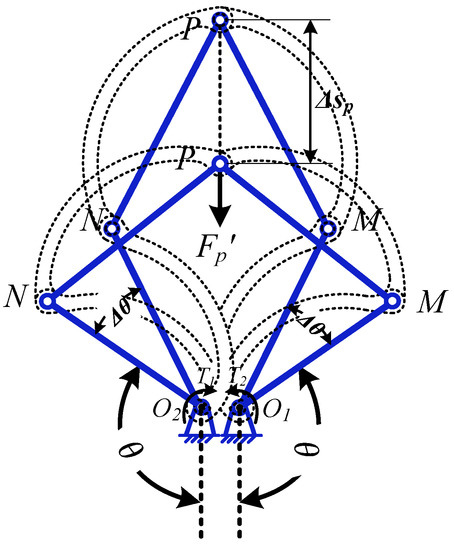

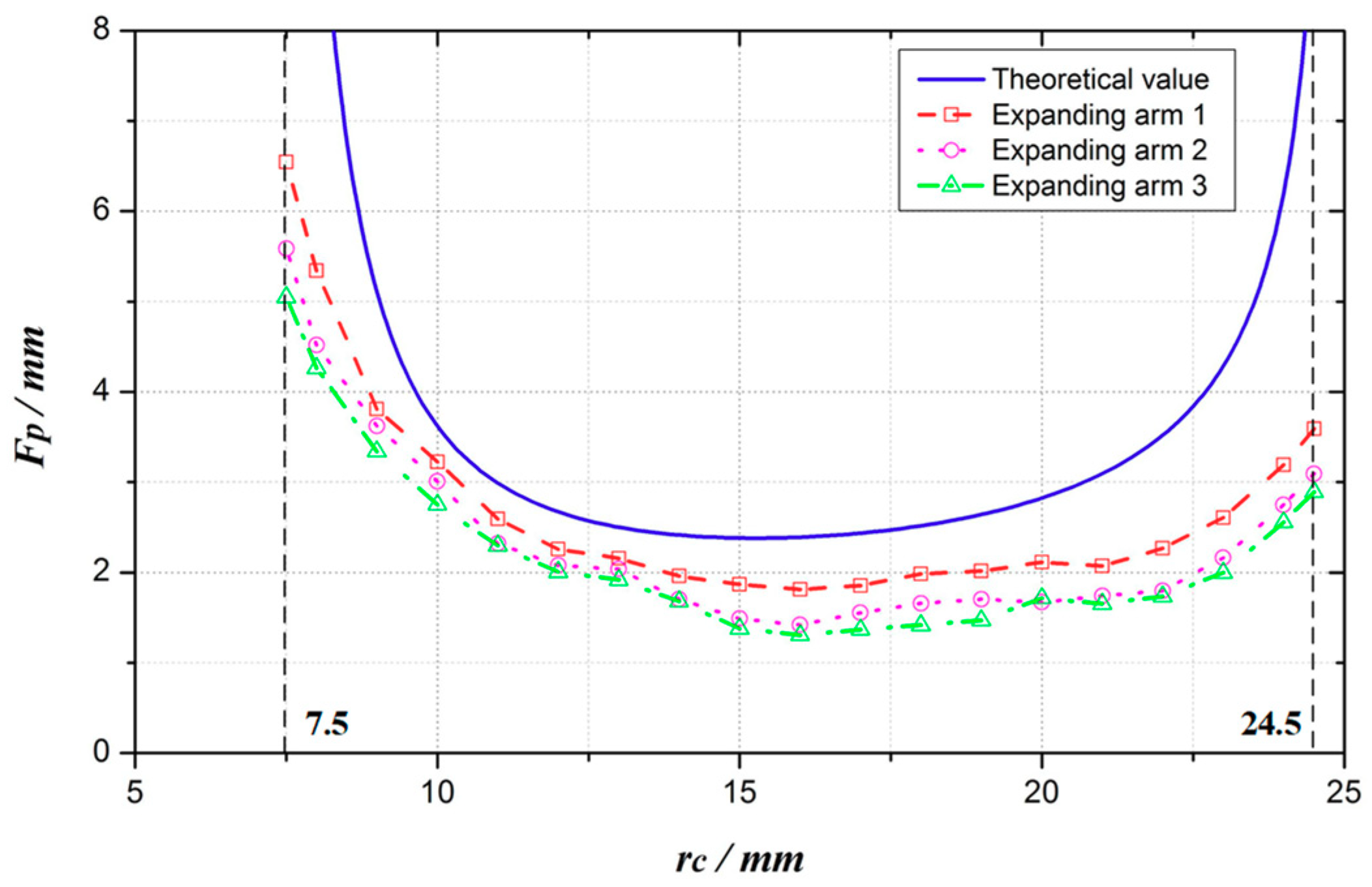

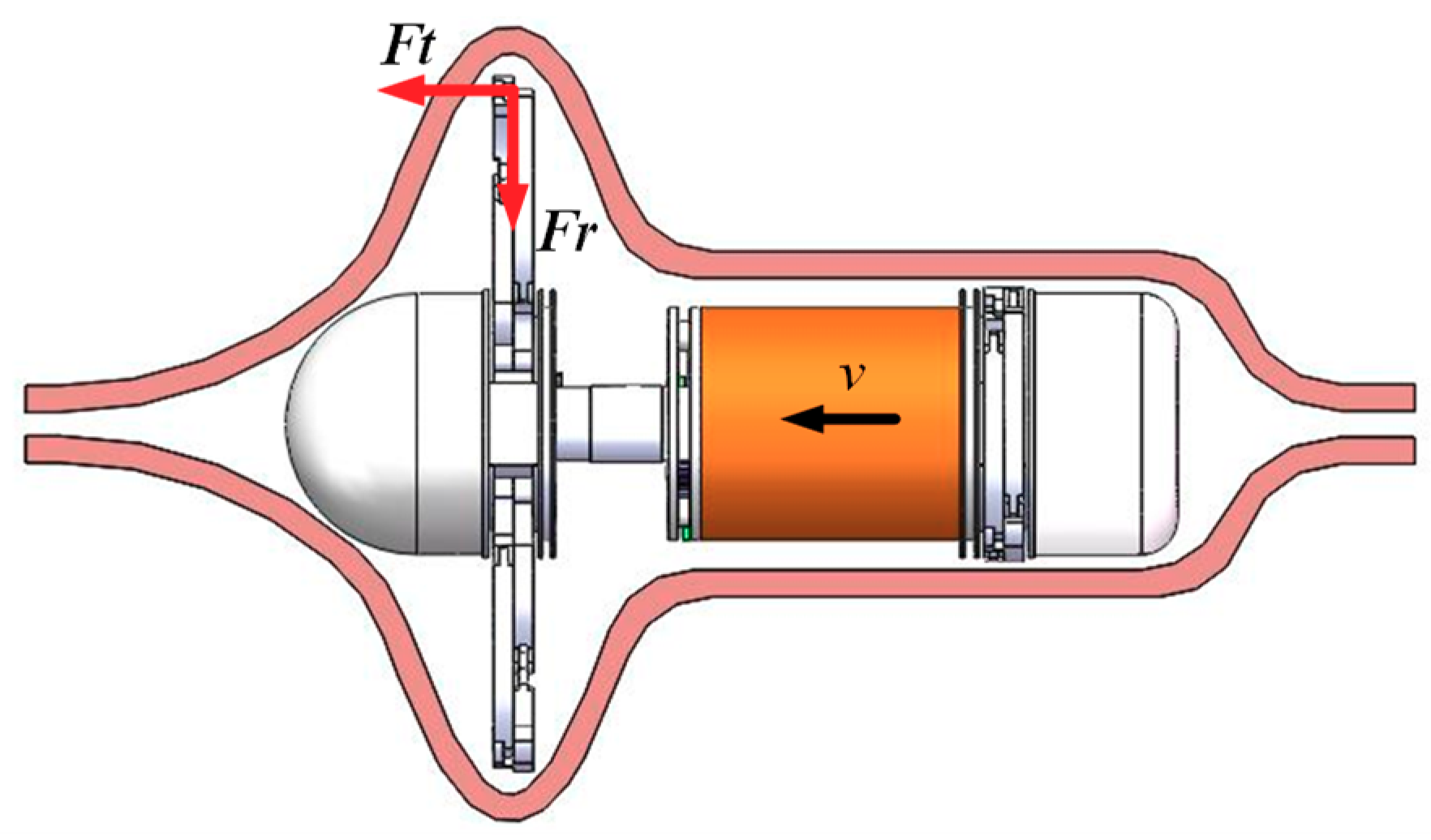

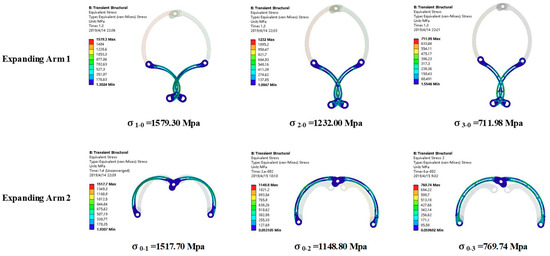

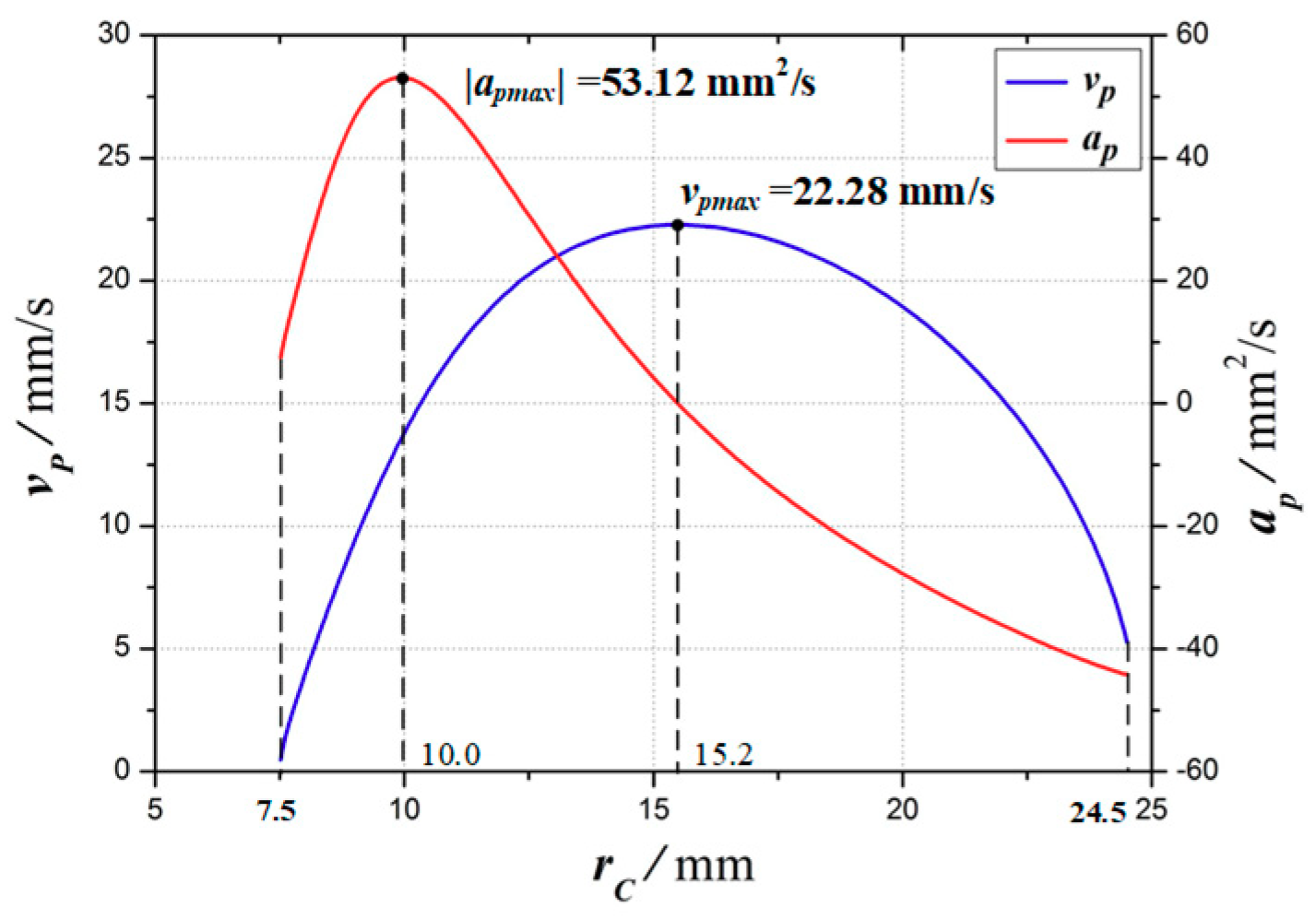

In order to make the gastrointestinal microrobot (GMR) expand and anchor in the gastrointestinal tract reliably, a novel expanding mechanism of the GMR is proposed in this paper. The overlapping expanding arm is designed to be used to increase the variable diameter ratio (ratio of fully expanded diameter to fully folded diameter) to 3.3, which makes the robot more adaptable to the intestinal tract of different sections of the human body. The double-layer structure of the expanding arm increases the contact area with the intestine, reducing the risk of intestinal damage. The kinematics and mechanical model of the expanding arm are established, and the rigid velocity, rigid acceleration, and expanding force of the expanding arm are analyzed. The elastodynamics model of the expanding arm is established. Through the finite element analysis (FEA), the velocity, acceleration, and the value and distribution of the stress of the expanding arm under elastic deformation are obtained. Based on the elastodynamics analysis, the structure of the expanding arm is optimized. By the structure optimization, the thickness of the expanding mechanism is reduced by 0.4mm, the weight is reduced by 31%, and the stress distribution is more uniform. Through the mechanical test, the minimum expanding force of the expanding mechanism is 1.3 N and the maximum expanding force is 6.5 N. Finally, the robot is tested in the rigid pipeline and the isolated intestine to verify the reliability and safety of the expanding mechanism. View Full-Text
Keywords: gastrointestinal microrobot; expanding mechanism; elastodynamics; finite element analysis; structure optimization gastrointestinal microrobot; expanding mechanism; elastodynamics; finite element analysis; structure optimization
Show Figures

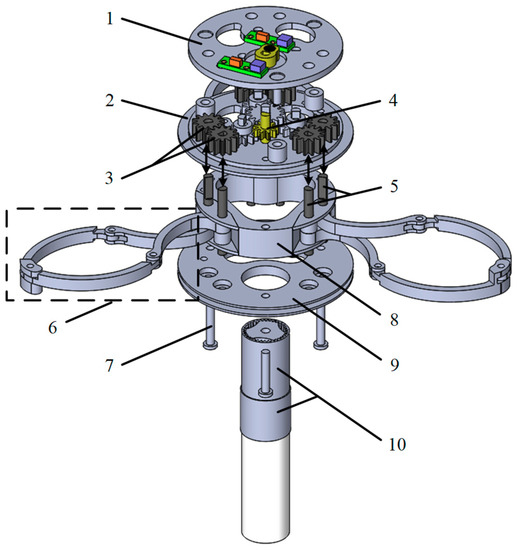

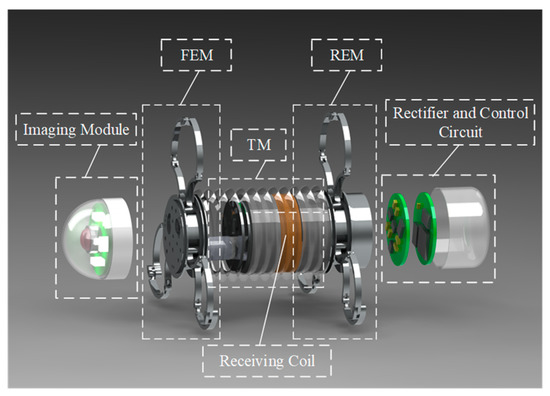

Figure 1
