Snakebite envenomation constitutes a highly relevant public health problem with worldwide annual mortality estimated to be at least 20,000, although the exact death figure could soar as high as 94,000 yearly [1
]. Clinically, snakebite envenomation is a medical emergency needing specialized treatment in which antivenom remains the only proven and accepted antidote for use [2
]. Antivenom is derived from animal immunoglobulins (commonly from horses or mules) and acts by forming immunocomplexes with toxins, thereby rendering them biologically inactive. Good-quality antivenom, when used appropriately, can effectively reduce the mortality and morbidity associated with snakebite envenomation [3
]. Therefore, antivenom is included in the World Health Organization (WHO) Model List of Essential Medicine and is expected to be available in countries affected by snakebites, typically in the tropics and subtropics. However, unlike most drugs for other tropical diseases that can be genericized, the use of a particular antivenom product is very much limited to only one or several species of a certain region because of unique biogeographical distribution of snakes and diverse variations in snake venoms [3
]. This creates a local market that is rather limited for an antivenom, accompanied by high manufacturing cost and a lack of global interest in research for the improvement of the product.
The production of antivenom with good quality and high efficacy is one of the critical steps that are needed to address the challenge of snakebite envenomation in the 21st century [5
]. Antivenoms of lower efficacy are likely to be used at higher doses (involving a larger number of vials or ampoules of antivenom), leading to higher medical expenses and faster exhaustion of antivenom stock in the hospital. In addition, patients are also exposed to a larger amount of foreign proteins (antivenom) and thus at a greater risk of hypersensitive reactions that can be fatal in the worst-case scenario [6
]. Therefore, studies on antivenom efficacy are essential to elucidate the neutralization profile of antivenom, and to shed light on how various limitations can be overcome for the production of a more effective antivenom. Earlier, it was shown that the neutralization potency values (P
) of different commercial as well as experimental antivenoms toward the elapid venoms are consistently low, being in the range of less than 1 to 2 mg/mL, while values for viperid venoms are generally higher, up to 10 mg/mL [7
]. The limitation of elapid antivenom efficacy has been suggested to be due to the presence of abundant low molecular mass toxins (in venom) that are poorly immunogenic, resulting in a low titer of effective anti-toxins. This was supported by a recent study that reported the low potency of a polyvalent antivenom (Neuro Polyvalent Antivenom) against the low molecular mass cobra neurotoxins and cytotoxins [9
]. Considering that the amount of cobra venom per bite is huge (up to a few hundred milligrams), cobra antivenoms available in this region are usually required in high doses for effective neutralization. From the clinical standpoint, this is well reflected in the recommendation or practice guideline of cobra antivenom use in the region, where the initial dose of antivenom for cobra envenomation is typically a total of 10 vials of either monospecific or polyspecific antivenom [2
On the other hand, it has been proposed that in order to cover a large range of snakes, antivenom use can be optimized according to specific toxin groups based on the principle of cross-neutralization [10
]. The development of toxin-specific antivenom is also promising to provide better neutralization capacity by acting against the principal toxic effect of venom [10
]. In this regard, investigating antivenom neutralization against individual toxins becomes indispensable to gain insight into the toxin-specific effectiveness of antivenom and understand how limitations can be overcome in antivenom production. In this study, the effectiveness of neutralization against the principal toxins in the venoms of the monocled cobra (Naja kaouthia
, Thailand) and the beaked sea snake (Hydrophis schistosus
, Malaysia) by N. kaouthia
Monovalent Antivenom (NKMAV) and CSL Sea Snake Antivenom (SSAV) were investigated and compared. The venom of N. kaouthia
(Thailand) contains a relatively higher amount of long neurotoxins (LNTX, up to 40%) but a moderate amount of short neurotoxins (SNTX) [13
], in contrast to H. schistosus
venom, which is predominated by SNTX (up to 60%) but moderate in LNTX content in its venom proteome [14
]. Hence, the two antivenoms could potentially demonstrate meaningful variations in their immunoreactivity and neutralization profiles against the purified toxins. It is hypothesized that SSAV is more effective than NKMAV in neutralizing SNTX in addition to toxic phospholipase A2
, also present abundantly in the immunogen for SSAV), regardless of the species origin of the toxins. It is hoped that the findings will provide deeper understanding on the toxin specificity of antivenom neutralization, thereby contributing to the improvement of manufacturing and the use of antivenom in the region.
Cobra venoms are highly toxic due to the effects of rapid neuromuscular paralysis and extensive tissue necrosis [2
]. These complications are mainly attributed to the two largest protein families, i.e.
, three-finger toxins (3FTxs) and phospholipase A2
s), which are the major constituents of most cobra venoms [18
]. The current study demonstrated the correlation between the high abundance of alpha-neurotoxins (3FTx family) and the lethality of the Thai N. kaouthia
venom, supported by the high toxicity score (TS) values of LNTX and SNTX in the venom. In general, alpha-neurotoxins are post-synaptic nicotinic blockers that are responsible for the rapid onset of flaccid paralysis clinically [19
]. Cytotoxins or cardiotoxins (CTXs) are the other 3FTx subtypes abundantly present in Nk-T venom (>20%). These toxins are less lethal when given intravenously (with higher LD50
and lower TS) but they play a major role in local tissue destruction (necrosis) attributable to their in situ
cytolytic activities [20
]. On the other hand, the major phospholipase A2
isolated from Nk-T venom is an acidic isoform that exhibits negligible lethality when given intravenously to mice, consistent with the findings of non-toxic acidic PLA2
from N. kaouthia
venom of Indian origin [22
]. The potentially toxic role of the acidic PLA2
remains to be further investigated. Of note, lethal neutral PLA2
has been reported from the venom of the equatorial spitting cobra (Naja sumatrana
, Malaysia) [9
], while myotoxic basic PLA2
s, although rarely reported for cobra venoms, are important lethal principles of venoms of some elapids such as sea snakes [14
]. In view of its potent lethality and high abundance, the basic PLA2
of H. schistosus
(Hs-M basic PLA2
) also exhibits a high toxicity score comparable to those of the long and short neurotoxins in the venom. It should be noted that although toxicity scoring can serve as an indicator to gauge the significance of a toxin in contributing to venom lethality [16
], the usefulness of this approach is generally confined to elapid venoms, particularly those dominated by low molecular mass toxins. Viperid or crotalid venoms, on the contrary, are composed of various proteins of moderate to high molecular mass that generally have higher LD50
but act in synergy. Hence, for viperid and crotalid venoms, the toxicity scoring system is unlikely to reflect the true contribution of an individual toxin to venom lethality.
The capacity of two antivenoms to neutralize the major toxins of N. kaouthia
and H. schistosus
venoms was further examined and compared with their capacity to neutralize the whole venom. Earlier, cobra antivenoms were reported to confer cross-neutralization against sea snake venom [15
], although the potency of neutralization is rather low (P
= 0.03 mg/mL, or 0.67 mg/g) in comparison with its neutralization potency against the homologous Nk-T venom (P
= 0.92 mg/mL, or 20.44 mg/g) [13
]. In this study, the ability of CSL Sea Snake Antivenom (SSAV) to effectively cross-neutralize N. kaouthia
venom is therefore unsurprising and supports the fact that common toxin antigens or immunological determinants are shared between the cobra and sea snake venoms, as also suggested by a few earlier studies [15
]. Of note, both N. kaouthia
and H. schistosus
venoms act primarily by neuromuscular paralysis, attributable to the high content of alpha-neurotoxins in both venoms, which likely exhibit similar epitopes. In addition, the cross-reactivity of SSAV with cobra venom might be also contributed by the inclusion of the Australian tiger snake venom in the sea snake venom immunogen during antivenom production. Earlier, O’Leary et al.
] showed that horses used in the production of some CSL antivenoms (for instance, the Australian brown snake antivenom and tiger snake antivenom) were injected with multiple snake venoms. Where SSAV is concerned, this antivenom is known as a bivalent product raised against the venoms of H. schistosus
and N. scutatus
, and the efficacy of this antivenom against the in vitro
neurotoxic effect of the two venoms (from sea snake and tiger snake) has been previously examined, with the findings indicating that SSAV is more effective against sea snakes compared to N. scutatus
]. Nonetheless, commercial Australian tiger snake antivenom was shown to be able to cross-neutralize the neurotoxic effect of Egyptian cobra venom in mice, as reported by Kornhauser [10
]. These reports support the idea that N. scutatus
venom, which contains abundant PLA2
, might play a role in enhancing the potency of SSAV, especially in cross-neutralizing the toxic PLA2
of sea snake, as observed in this study.
The composition of neurotoxin subtypes, i.e.
, short neurotoxins (SNTX) and long neurotoxins (LNTX), is known to be quite different between the venoms of Thai N. kaouthia
(Nk-T) and Malaysian H. schistosus
(Hs-M). Nk-T venom is predominated by LNTX (33.3%) and has less SNTX (7.7%) [13
], while Hs-M venom is predominated by SNTX (55.8%) and has less LNTX (14.7%) [14
]. The lack of SNTX in Nk-T venom may be the reason for NKMAV consistently exhibiting low neutralization potency against the SNTXs of homologous (Nk-T SNTX, P
= 1.33 mg/g) and heterologous (Hs-M SNTX, P
= 2.49 mg/g) origins. This observation is in agreement with previous reports on low immunoreactivity and the weak neutralization effect of cobra antivenom against neurotoxins of short-chain isoforms [9
], and indicates that short neurotoxins of different species origin can vary in subtle structures, resulting in alteration of protein antigenicity. In addition, the poor cross-neutralization of Hs-M basic PLA2
by NKMAV correlates with the absence of basic PLA2
in the immunization process to produce NKMAV. Nonetheless, the small discrepancy between the neutralization potencies of NKMAV against the LNTX of both species suggests that the antigenic sites of the Hs-M LNTX are likely conserved between the two lineages.
On the other hand, SSAV neutralized Hs-M LNTX and Hs-M basic PLA2
value up to 6.35 mg/g) but was less potent against its Hs-M SNTX (P
= 2.49 mg/mL), indicating that SNTX is a relatively poor immunogen among the few toxins in the venom. Nevertheless, SSAV still outperformed NKMAV in neutralizing the short neurotoxins of both species (Nk-T SNTX and Hs-M SNTX) several fold over in term of potency. The higher immunoreactivity and neutralizing capacity of SSAV against SNTX suggest the possibility of overcoming the limitation of cobra antivenom in neutralizing venoms that contain abundant SNTX. SSAV neutralization against the long neurotoxin of N. kaouthia
(Nk-T LNTX) is, however, less effective compared to neutralization by the homologous NKMAV, indicating that Nk-T LNTX may exhibit unique epitopes not shared by Hs-M LNTX. This may also contribute to the lower potency of SSAV in neutralizing Nk-T venom, which predominantly contains LNTXs (>30% of total venom proteins) as its lethalprinciple. It is also known that the immunogen mix of SSAV consists of primarily SNTX, LNTX, and basic PLA2
while lacking cobra cytotoxins (CTX); therefore, it is not surprising that SSAV was ineffective against the two CTXs of N. kaouthia
= 0.00–0.41 mg/g). Moreover, it is important to note that the low neutralization potency against the CTXs (Nk-T CTX-I and Nk-T CTX-II, apart from SNTX) by NKMAV indicates that weak neutralization against CTX may further restrict the potency and efficacy of a cobra antivenom [9
], although in general CTXs show lower toxicity scores due to their higher LD50
values. Often, the effect of CTX is implicated in local tissue destruction, which leads to crippling disability in the survivors, while the role of antivenom in neutralizing the local effect of venom has not been very well established. Meanwhile, SSAV was much more potent than NKMAV against the toxic (basic) PLA2
of H. schistosus
venom, consistent with the substantial presence of this enzyme in SSAV immunogen (H. schistosus
and N. scutatus
venoms). Naja kaouthia
venom, used for the production of NKMAV, lacks toxic (basic) PLA2
Taken together, the current study showed that the relatively poor immunogenicity of the low molecular mass toxins, especially SNTX, is the main limiting factor on the efficacy of cobra antivenom. Also, we demonstrated that SSAV exhibited higher potency in neutralizing the lethal effect of short neurotoxins and lethal PLA2
compared to NKMAV. It is likely possible that the higher immunoreactivity of SSAV toward short neurotoxins is attributed at least partly to the high SNTX content of the sea snake venom [14
] used as immunogen in the production of SSAV. Other factors such as the intrinsic structure of each toxin may also contribute to variations in venom immunogenicity.
5. Materials and Methods
5.1. Venoms and Antivenoms
The pooled venom of Thai Naja kaouthia (Nk-T) was a generous gift from Professor Kavi Ratanabanangkoon of the Chulabhorn Graduate Institute, Bangkok, Thailand. Hydrophis schistosus venom was collected and pooled from 20 adult specimens in the northwestern waters of Peninsular Malaya (State of Penang). All venoms were in lyophilized form and stored at −20 °C until use. The antivenoms used were as follows: (a) Naja kaouthia Monovalent Antivenom (NKMAV, produced by Queen Saovabha Memorial Institute (QSMI), Bangkok, Thailand; batch: 0080210; expiry date: 9 August 2015) that contains purified F(ab′)2 derived from horse IgG, indicated as the treatment of N. kaouthia envenoming; (b) Australian CSL Sea Snake Antivenom (SSAV, produced by CSL Limited, Parkville, Victoria, Australia, recently operates under the brand Seqirus; batch: 0549-08201; expiry date: April 2015). SSAV contains purified F(ab′)2 derived from horses immunized with the venoms of Hydrophis schistosus (formerly Enhydrina schistosa) and the Australian tiger snake (Notechis scutatus) and is indicated as the treatment for envenoming by Hydrophis schistosus and other sea snakes. NKMAV (lyophilized) was reconstituted according to the attached product leaflet: 10 mL of normal saline was added to one vial of the lyophilized antivenom. According to the product leaflet, 1 mL of NKMAV antivenom is able to neutralize 0.6 mg of N. kaouthia venom. SSAV used in this study was packaged as 25 mL liquid in an ampoule containing 1000 units of neutralizing capacity against the target venom of H. schistosus.
5.2. Animals and Ethics Clearance
Mice used in this study were of albino ICR strain (20–25 g) supplied by the Animal Experimental Unit, University of Malaya. The protocol of animal studies was based on the Council for International Organizations of Medical Sciences (CIOMS) guidelines [33
] on animal experimentation and was approved by the Institutional Animal Care and Use Committee of the University of Malaya (Ethics clearance number: 2014-09-11/PHAR/R/TCH, date of approval: 11 September 2014).
5.3. Chemicals and Materials
All chemicals and reagents used were of analytical grade. Ammonium bicarbonate, dithiothreitol (DTT) and iodoacetamide were purchased from Sigma-Aldrich (St. Louis, MO, USA). MS grade trypsin protease, Spectra™ Multicolor Broad Range Protein Ladder (10 to 170 kDa), and HPLC grade solvents used in the studies were purchased from Thermo® Scientific Pierce (Waltham, MA, USA). Resource® S cation-exchange column (1 mL) was purchased from GE Healthcare (Uppsala, Sweden). LiChroCART® 250-4 LiChrospher® WP 300 and Millipore ZipTip® C18 Pipette Tips were purchased from Merck (Kenilworth, NJ, USA).
5.4. Estimation of Protein Concentration in Antivenom
Protein concentrations in antivenoms (NKMAV and CSL SSAV) were determined using Thermo Scientific™ Pierce™ BCA (bicinchoninic acid) Protein Assay Kit. The protein concentrations were expressed as means ± SEM of triplicates.
5.5. Isolation and Purification of Major Toxins from the Venom of Naja kaouthia and Hydrophis schistosus
The isolation and purification of the major toxins from Naja kaouthia
venom were conducted as described previously [9
] through sequential fractionation using Resource®
S cation-exchange liquid chromatography followed by reverse-phase high performance liquid chromatography (RP-HPLC) on a Shimadzu LC-20AD High Performance Liquid Chromatography system (Shimadzu, Kyoto, Japan). The isolation of toxins from Hydrophis schistosus
venom was carried out according to the protocol on reverse-phase high performance liquid chromatography (RP-HPLC) reported recently [14

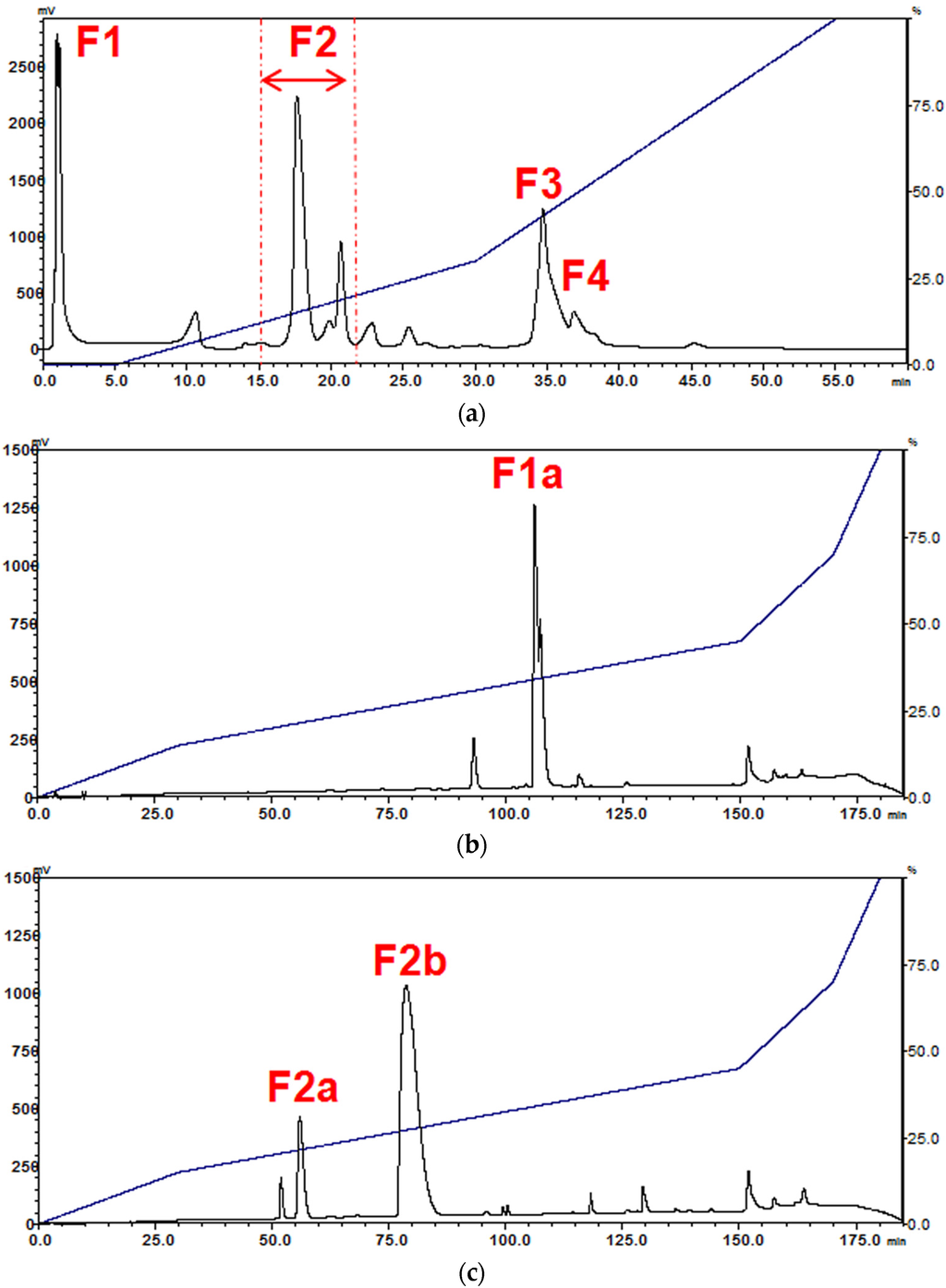

5.5.1. Fractionation of N. kaouthia Venom Using Resource S Ion-Exchange Chromatography
Venom was reconstituted and subjected to cation-exchange chromatography using a Resource® S column pre-equilibrated with 20 mM 2-(N-morpholino)ethanesulfonic acid (MES), pH 6.0 as eluent A. Elution was achieved with 0.8 M NaCl in 20 mM MES, pH 6.0 as eluent B, using a linear gradient flow of 0%–30% B from 5 to 40 min followed by 30%–100% B from 40 to 55 min. The flow rate was set at 1.0 mL/min and the venom fractions were collected manually at absorbance detection of 280 nm.

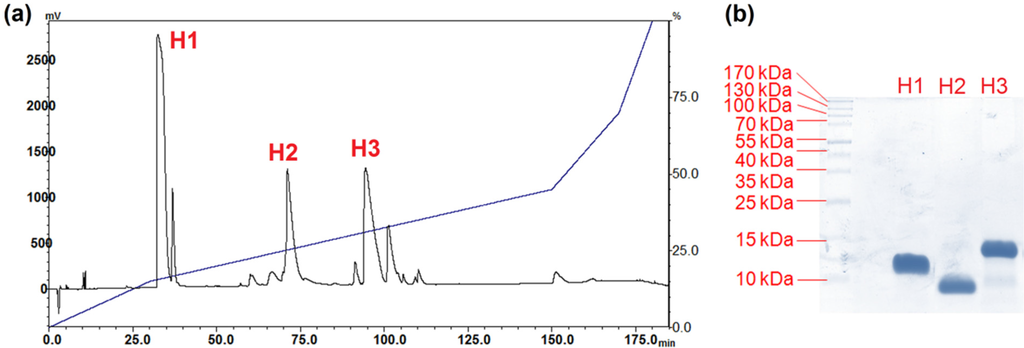

5.5.2. Purification of Venom Toxins Using Reverse-Phase HPLC
The protein fractions collected from cation-exchange chromatography were concentrated and subjected to further purification by reverse-phase high performance liquid chromatography (RP-HPLC) with a C18 reverse-phase column (5 µm). The fractions were eluted at 1 mL/min with a linear gradient of 0.1% trifluoroacetic acid (TFA) in water (Solvent A) and 0.1% of TFA in acetonitrile (Solvent B) (0%–5% B for 10 min, 5%–15% B over 20 min, 15%–45% B over 120 min and 45%–70% B over 20 min). Purified toxins were detected at absorbance 215 nm, collected manually, subsequently lyophilized, and stored at −20 °C until use.
5.6. SDS-PAGE and In-Solution Tryptic Digestion of Purified Toxins
The purified toxins were subjected to 15% sodium dodecyl sulphate polyacrylamide gel electrophoresis (SDS-PAGE) under reducing condition as described by Laemmli [34
] and calibrated with the Thermo™ Scientific™ PageRuler Prestained Protein Ladder (10–170 kDa). Separately, the purified toxins were subjected to reduction with DTT, alkylation with iodoacetamide, and in-solution digestion with mass-spectrometry grade trypsin protease according to the manufacturer’s protocol (Thermo Scientific™ Pierce™). The trypsin-digested peptides were desalted with Millipore ZipTip®
Pipette Tips (Merck) according to the manufacturer’s protocol to enhance the performance of mass spectrometry.
5.7. Protein Identification by Liquid Chromatography-Tandem Mass Spectrometry
Samples were loaded in a large capacity chip 300 Å, C18, 160 nL enrichment column and 75 μm × 150 mm analytical column (Agilent part No. G4240-62010) with a flow rate of 4 μL/min from a capillary pump and 0.4 μL/min from a Nano pump of Agilent 1200 series. The digested peptide eluates were then subjected to nano-electrospray ionization (ESI) MS/MS experiments using an Agilent 1200 HPLC-Chip/MS Interface, coupled with Agilent 6550 Accurate-Mass Q-TOF LC/MS system. Injection volume was adjusted to 2 μL per sample and the mobile phases were 0.1% formic acid in water (A) and 100% acetonitrile with 0.1% formic acid (B). The gradient applied was: 5%–50% solution B for 11 min, 50%–70% solution B for 4 min, and 70% solution B for 3 min, using Agilent 1200 series nano-flow LC pump. Ion polarity was set to positive ionization mode. Drying gas flow rate was 11 L/min and drying gas temperature was 290 °C. Fragmentor voltage was 175 V and the capillary voltage was set to 1800 V. Spectra were acquired in a MS/MS mode with an MS scan range of 200–3000 m/z and MS/MS scan range of 50–3200 m/z. Precursor charge selection was set as doubly charged state and above with the exclusion of precursors 1221.9906 m/z (z = 1) and 299.2944 (z = 1) set as reference ions. Data were extracted with MH+ mass range between 50 and 3200 Da and processed with Agilent Spectrum Mill MS Proteomics Workbench software packages (Version B.04.00, Agilent Technologies, Santa Clara, USA, 2012). Carbamidomethylation of cysteine was set as a fixed modification. The peptide finger mapping was modified to specifically search against non-redundant NCBI database with taxonomy set to Serpentes (taxid: 8570). Protein identifications were validated with the following filters: protein score > 20, peptides score > 6 and scored peak intensity (SPI) > 70%. False discovery rate (FDR) was less than 1% for peptides and 0% for protein identification.
5.8. Estimation of the Relative Protein Abundance of Purified Toxin
The relative abundance of individual protein fraction from ion-exchange or reverse-phase HPLC was estimated based on the peak area measurement using Shimadzu LCsolution Software (Version 1.23, Shimadzu, Kyoto, Japan, 2007). The total area under the curve for each chromatogram (ion-exchange or reverse-phase) was represented as 100%. The final abundance of a purified toxin was the product of multiplying the percentage of the peak areas implicated based on its sequential elution profiles involving the two chromatographic columns.
5.9. Determination of Lethality of Venoms and Their Purified Toxins
The determination of intravenous (i.v.
) median lethal dose (LD50
) for venoms or toxins was performed in mice according to a recent in vivo
]. The venoms or toxins were injected intravenously (via the tail caudal vein) into albino mice of ICR strain (20–25 g) at appropriate doses (n
= 4 per dose). The mice were allowed ad libitum
access to food and water, and the survival ratio of mice at each dose was recorded at 48 h post-injection. Median lethal doses (LD50
) were estimated using the Probit analysis method [35
]. Toxicity Score of purified toxins was estimated as previously defined [16
], representing the ratio of toxin abundance (%) to its LD50
5.10. Neutralization of Venoms and Purified Toxins in a Mouse Model
This was adapted from the venom/toxin-antivenom immunocomplexation method reported in mice [13
]. Venom or toxin at a challenge dose of 5× LD50
was mixed with antivenom of different concentrations to give a total volume of 200 µL. The mixtures were pre-incubated at 37 °C for 30 min and then injected intravenously into the mice (n
= 4 per dose). The mice were allowed ad libitum
access to food and water, and the ratio of survival was recorded at 24 h post injection. Neutralizing capacity was expressed as ED50
defined as the amount of reconstituted antivenom that gives 50% survival in the venom-challenged animals. If 200 µL of reconstituted antivenom failed to give the mice full protection, a lower challenge dose (2.5× or 1.5× LD50
) was used. All challenge doses were proven to be above 100% lethal dose (LD100
) when given intravenously, as observed in the LD50
determination assay as well as in the neutralization (quantal dose-response) study where lethality occurred at lower doses of antivenom, used dose-dependently. In addition, based on the total amount of venom or toxin injected, ER50
values were calculated (ER50
, median effective ratio, was defined as the ratio of the amount of venom (mg) to the volume dose of antivenom (mL) to give 50% survival in the mice challenged). Neutralization capacity was also expressed in term of “neutralization potency” (P
, defined as the amount of venom neutralized completely by a unit of antivenom) according to the calculation of Morais et al.
]. The neutralization potency is a more direct indicator of antivenom neutralizing capacity, and is theoretically unaffected by the number of LD50
in the challenge dose. For comparative purposes, P
values of different antivenoms were normalized by their respective protein amount and expressed as milligram of venom neutralized per gram of antivenom protein.
