Article

Detection of N-(1-deoxy-d-fructos-1-yl) Fumonisins B2 and B3 in Corn by High-Resolution LC-Orbitrap MS

1
National Agriculture and Food Research Organization (NARO), National Food Research Institute, 2-1-12 Kannon-dai, Tsukuba-shi, Ibaraki 305-8642, Japan
2
Thermo Fisher Scientific, C-2F, 3-9 Moriya-cho, Yokohama-shi, Kanagawa 221-0022, Japan
*
Author to whom correspondence should be addressed.
Toxins 2015, 7(9), 3700-3714; https://doi.org/10.3390/toxins7093700
Received: 30 June 2015 / Revised: 3 September 2015 / Accepted: 7 September 2015 / Published: 16 September 2015
(This article belongs to the Collection Fusarium Toxins – Relevance for Human and Animal Health)

Abstract

:
The existence of glucose conjugates of fumonisin B2 (FB2) and fumonisin B3 (FB3) in corn powder was confirmed for the first time. These “bound-fumonisins” (FB2 and FB3 bound to glucose) were identified as N-(1-deoxy-d-fructos-1-yl) fumonisin B2 (NDfrc-FB2) and N-(1-deoxy-d-fructos-1-yl) fumonisin B3 (NDfrc-FB3) respectively, based on the accurate mass measurements of characteristic ions and fragmentation patterns using high-resolution liquid chromatography-Orbitrap mass spectrometry (LC-Orbitrap MS) analysis. Treatment on NDfrc-FB2 and NDfrc-FB3 with the o-phthalaldehyde (OPA) reagent also supported that d-glucose binding to FB2 and FB3 molecules occurred to their primary amine residues.

Graphical Abstract

1. Introduction

Fusarium fungi are known as plant pathogen infecting cereals such as wheat, barley, and corn, and some of these fungi produce mycotoxins (e.g., trichothecenes, zearalenone, and fumonisins) [1]. In Japan, Fusarium fungi infection is occasionally serious, as these crops are usually planted through the rainy season. Among Fusarium mycotoxins, fumonisins are a group of naturally-occurring mycotoxins which are typically produced by Fusarium verticillioides and F. proliferatum [2]. The most abundant fumonisin is fumonisin B1 (FB1), followed by fumonisin B2 (FB2), and fumonisin B3 (FB3). FB1 is a causative compound of equine leukoencephalomalacia [3] and porcine pulmonary oedema syndrome [4], and has also been confirmed to be hepatotoxic and hepatocarcinogenic in rats and mice [5,6]. Fumonisins are widely distributed geographically, and their natural occurrence in maize has been reported in various regions throughout the world [6]. A particular concern regarding fumonisins involves the higher concentrations occasionally found in maize produced and consumed by some subpopulations, such as subsistence farmers [6]. Considerable annual variations in contamination have been noted. Fumonisins also occur infrequently in other foods, including sorghum, asparagus, rice beer, and mung beans. In 2002, the FAO/WHO Joint Expert Committee on Food Additives (JECFA) established a provisional maximum tolerable daily intake (PMTDI) as 2 μg kg−1 bw day−1 for FB1, FB2, and FB3, either alone or in combination [6]. The European Committee concluded the establishment of a group PMTDI of 2 μg kg−1 bw day−1 for FB1, FB2, and FB3, combined [7].
Recently, a glucosylated derivative of deoxynivalenol (DON), DON-3-glucoside (DON3Glc) was found in cereal grain and beer [8,9], and similar compounds have also been found for several other mycotoxins [10,11]. Because these glucosylated derivatives are not detected by conventional analytical methods due to their higher polarity [12,13], they are referred to as “masked (modified) mycotoxins”. Hydrolysis of masked mycotoxins to their aglycons has also been reported [14,15], and it has been suggested that they present an additional potential risk to consumers. In the case of fumonisins, the presence of “bound-fumonisin” has been suggested by several researchers [16,17]. For instance, N-(1-deoxy-d-fructos-1-yl) fumonisin B1 (NDfrc-FB1) was found in corn, and was reportedly formed through a d-glucose binding reaction to the primary amine residue of the FB1 molecule [18]. Although proven under laboratory conditions, the NDfrc-FB1 occurrence at significant levels in processed samples is still controversial [19]. In addition, in vivo stability of this conjugate has not yet been definitively proven [17]. In order to understand the total fumonisin in foods and feeds correctly, there is a need to clarify the presence of these series of fumonisin conjugates. In this paper, authors report the existence of new glucose conjugates derived from type B fumonisins (FB2 and FB3) (Figure 1). These species were detected and identified via high resolution liquid chromatography-Orbitrap mass spectrometry (LC-Orbitrap MS), in combination with treatment using a specific reagent (o-phthalaldehyde, OPA).

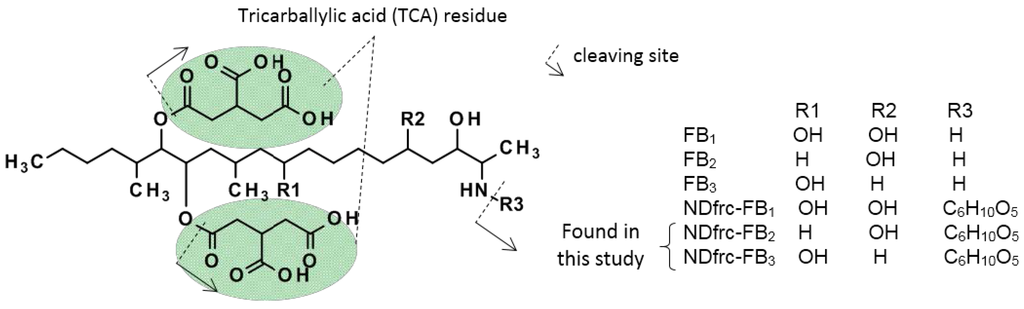

Figure 1. Chemical structures of FBs and their glucose conjugates.
Figure 1. Chemical structures of FBs and their glucose conjugates.
Toxins 07 03700 g001

2. Materials and Methods

2.1. Chemicals

FB1 and FB2 were purchased from Wako pure chemical Industries Ltd. (Osaka, Japan). FB3 was purchased from PROMEC (Tygerberg, South Africa). All other chemicals used were commercially available and of a chemically pure grade. OPA and D-glucose (>98% of chemically pure grade) were obtained from Wako. Acetonitrile (LCMS grade) was from Fisher Scientific (Waltham, MA, USA), and distilled water (LCMS grade) was obtained from Kanto Chemical (Tokyo, Japan). Ammonium acetate (chemically pure grade) was from Kanto, and acetic acid (>99.9% of chemically pure grade, not glacial) was from Wako.

2.2. Corn Powder Sample Contaminated with Fumonisins

Mycotoxin reference material of corn powder (batch number MTC-9999C) was purchased from Trilogy Co. Ltd (Washington, MO, USA). This material was contaminated with FB1, FB2, FB3, aflatoxin B1, aflatoxin B2, aflatoxin G1, DON, zearalenone, HT-2 toxin, and T-2 toxin. The origin of this corn was from the USA. This was a crop naturally contaminated with the above toxins. There was no inoculation of any of the toxins in this sample. The manufacturer-warranted concentrations of FB1, FB2, and FB3 were 19.8 ± 4.8 mg·kg−1 (FB1), 6.6 ± 2.1 mg·kg−1 (FB2), and 2.2 ± 1.6 mg·kg−1 (FB3), respectively. This material was stored at −20 °C in the dark until analysis.

2.3. Preparation of Stock and Working Solutions

FB1 and FB2 obtained as powder were accurately weighed on an aluminum boat on a micro scale, placed in a 10 mL brown volumetric flask, and dissolved in acetonitrile/water (1:1, v/v). FB3, obtained as a crystalline sample, was directly dissolved in acetonitrile/water (1:1, v/v). The concentration was normally adjusted to 100–200 mg·L−1, and stored in brown glass containers at 4 °C as the stock solutions. For preparation of the working solutions, each stock solution was taken in brown volumetric flasks, diluted appropriately with acetonitrile/water/acetic acid (5:94:1, v/v/v), and stored at 4 °C.

2.4. Extraction and Purification of Mycotoxins

Corn powder (8 g), 40 mL of methanol/water (75:25, v/v), and 0.4 mL of acetic acid (>99.9%) were homogenized with a POLYTRON PT3100 homogenizer (Kinematica AG., Lucerne, Switzerland) at a rate of 7000 rpm for 5 min, and centrifuged at 2000× g for 10 min. A portion of the supernatant (5 mL) was loaded onto a strong anion exchange column (Sep-Pak Accell Plus QMA Short Cartridge (360 mg), Waters, Milford, MA, USA) with no conditioning. Then 5 mL methanol/water (3:1, v/v) and 5 mL methanol were successively loaded on the column for washing. The FBs were eluted with 5 mL of a solution methanol/acetic acid (98:2, v/v). All of the eluent was collected in a glass tube, and the solvent was evaporated under a nitrogen gas stream at 50 °C. The residue was dissolved in 0.25 mL of acetonitrile/water/acetic acid (5:94:1, v/v/v) and subjected to LC-MS analysis.

2.5. Synthesis of N-(1-deoxy-d-fructos-1-yl) Fumonisins (NDfrc-FBs)

NDfrc-FBs was chemically prepared essentially following the procedure reported by Poling et al. [18]. In a glassware amber vial (2 mL volume), 0.1 mg of each fumonisin (stock solution of each was appropriately taken and evaporated), 40 mg of d-glucose, five or six beads of molecular sieve (pore size; 0.4 nm) (Millipore, Darmstadt, Germany), and 2 mL of methanol were taken, mixed, and further heated in an incubator with shaking (120 rpm) at 60 °C overnight. After the reaction, the solvent was evaporated under a nitrogen gas stream at 40 °C. The residue was re-dissolved in 2.5 mL of acetonitrile/water/acetic acid (5/94/1, v/v/v), and cleaned using a solid phase extraction column according to the reported procedure, with a slight modification. The re-dissolved residue (2.5 mL) was loaded on an OASIS HLB (3 cc) column (Waters), that was conditioned in advance with 3 mL of methanol and 3 mL of acetonitrile/water/acetic acid (5/94/1, v/v/v), successively. The column was washed with 6 mL of acetonitrile/water/acetic acid (5/94/1, v/v/v), and further eluted with 3 mL of methanol. This eluate was collected and evaporated to dryness under nitrogen gas at 40 °C, re-dissolved in 0.25 mL of acetonitrile/water/acetic acid (5/94/1, v/v/v), and subjected to LC-MS analysis.

2.6. LC-MS Analysis

Detection and identification of FB-glucose conjugate was conducted in accordance with author’s previous studies with the LC-Orbitrap MS instrument, “Exactive” (Thermo Fisher Scientific) [20]. LC was performed by using 0.5 mM ammonium acetate and 0.1% acetic acid aqueous solution as solvent A and 0.1% acetic acid in acetonitrile as solvent B [11]. The gradient profile used was 10% B (0–3.0 min), 90% B (18.0–22.0 min), and 10% B (22.1–29.0 min). The flow rate was set to 0.3 mL/min and the column temperature was maintained at 40 °C. The chromatographic separation was carried out on a HyPURITY C18 column (250 × 3 mm i.d., 5 μm particle size) (Thermo Fisher) with an injection volume of 0.02 mL. The Exactive mass spectrometer was operated in negative mode with a heated electrospray ionization source (HESI-II) and a spray voltage of 4.50 kV. As a typical and common fragment ion of fumonisins, ketene form of tricarballylic acid (TCA) ion [TCA−H2O−H] (TCAK ion [TCAK−H]) was detected with higher sensitivity in negative mode than positive mode. The ion of [TCAK−H] is often selected as the primary fragment for the detection of fumonisins. The capillary and the heater temperature was 350 °C and 300 °C, respectively. The sheath gas and the auxiliary gas flow rate was adjusted as 40 and 5 (in arbitrary units), respectively. The system was operated in the range of 150–1100 m/z at a resolving power of 100,000 FWHM (full width at half maximum) (m/z 200) with an accurate mass/high resolution (AM/HR) full scan (scan event 1) and all ion fragmentation spectrum acquisition with collision energy in a single run. Fragmentation was achieved with optional CID (collision-induced dissociation) equipment, using a collision energy of 60 eV (scan event 2), that was optimized with the chemical standard of FB1. The external mass axis calibration without the use of specific lock mass was employed. For the mass accuracy estimation, the mass value observed as an abundant ion extracted at the apex of the chromatographic peak was used. The exact mass values (calculated and observed) of the analysts’ ions are summarized in Table 1, Table 2 and Table 3. The mass deviation is expressed either in terms of millimass units (mmu) or parts per million (ppm). The latter is calculated with the equation: ppm = 106 × Δm/m; where Δm is the difference between theoretical (calculated) and observed mass, and m is the mass. In accordance with the European Commission guideline [21], mass deviation < 5 ppm from the calculated value was used as the criterion for compound identification. LC-Orbitrap MS is a special type of ion trap [22], and achieves a mass resolving power of up to 100,000 FWHM (m/z 200) and maintains mass accuracy (<5 ppm) even without the use of continuous internal mass correction. Therefore, it can detect and identify the various chemical compounds based on their accurate mass values calculated from the corresponding compositional formula even if those chemical standards are not available.
Table 1. Exact mass values of fumonisin B1 (FB1) and fumonisin B2(NDfrc-FB1) and relative fragment ions (calculated and observed) at negative polarity.
Table 1. Exact mass values of fumonisin B1 (FB1) and fumonisin B2(NDfrc-FB1) and relative fragment ions (calculated and observed) at negative polarity.
IonFB1 (RT: 15.09 min)NDfrc-FB1 (RT: 14.87 min)
FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))
[TCA-H2O−H] ([TCAK−H])C6H6O5157.0142157.0137 c−0.59 (−3.76)C6H6O5157.0142157.0140 c−0.28 (−1.81)
157.0135−0.70 (−4.44)157.0138−0.41 (−2.59)
[M−Glc−2TCAK−H]----C22H47NO5404.3381404.3378 c−0.32 (−0.78)
--404.33830.20 (0.50)
[M−2TCAK−H]C22H47NO5404.3381404.3379 c−0.29 (−0.71)C22H51NO5408.3695--
404.3380−0.16 (−0.41)--
[M−Glc−TCAK−H]----C28H53NO10562.3597562.3607 c0.99 (1.67)
--562.36070.99 (1.67)
[M−TCAK−H]C28H53NO10562.3597562.3597 c0.01 (0.02)C34H63NO15724.4125724.4136 c1.14 (1.58)
562.36000.32 (0.56)724.41371.20 (1.66)
[M−Glc−H]----C34H59NO15720.3812720.3824 c1.19 (1.65)
--720.38231.13 (1.57)
[M−H]C34H59NO15720.3812720.3805 c−0.70 (−0.97)C40H69NO20882.4340882.4349 c0.92 (1.04)
720.38130.09 (0.13)882.43622.20 (2.50)
a Mass values calculated based on elemental formulas; b Mass values detected with the all ions fragmentation with collision energy (scan event 2); c Mass values detected by full scan (scan event 1).

2.7. Treatment of Fumonisins and FBs-Glucose Conjugate by OPA Reagent

For confirmation of the D-glucose binding position in the fumonisin molecule structures, treatment with the OPA reagent was performed. Since OPA reacts specifically with primary amines, this reagent is often used for the derivatization of fumonisin molecules, when they are analyzed by the conventional method with HPLC-fluorescence detection [23]. The OPA reagent was composed of 8 mg of OPA, successively dissolved in 0.2 mL of methanol, 0.01 mL of 2-mercaptoethanol, and 1 mL of 100 mM sodium tetraborate aqueous solution. The reagent was freshly prepared each week and stored in brown glass containers at 4 °C for protection from light exposure. The corn powder extract (0.05 mL) was reacted with OPA reagent (0.05 mL) by mixing, and immediately subjected to LC-MS analysis.
Table 2. Exact mass values of FB2 and NDfrc-FB2 and relative fragment ions (calculated and observed) at negative polarity.
Table 2. Exact mass values of FB2 and NDfrc-FB2 and relative fragment ions (calculated and observed) at negative polarity.
IonFB2 (RT: 16.78 min)NDfrc-FB2 (RT: 16.40 min)
FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))
[TCAK−H]C6H6O5157.0142157.0140 c−0.28 (−1.81)C6H6O5157.0142157.0141 c−0.16 (−1.04)
157.0138−0.44 (−2.79)157.0140−0.27 (−1.72)
[M−Glc−TCAK−H]----C22H47NO4388.3432388.3430 c−0.22 (−0.55)
--388.34390.70 (1.80)
[M−2TCAK−H]C22H47NO4388.3432--C22H51NO4392.3745--
388.3434 c0.18 (0.47)--
[M−Glc−TCAK−H]----C28H53NO9546.3648546.3652 c0.48 (0.88)
--546.36550.78 (1.44)
[M−TCAK−H]C28H53NO9546.3648546.3650 c0.23 (0.43)C34H63NO14708.4176708.4188 c1.24 (1.76)
546.36570.97 (1.77)708.41830.70 (0.98)
[M−Glc−H]----C34H59NO14704.3863704.3875 c1.17 (1.66)
--704.38791.60 (2.27)
[M−H]C34H59NO14704.3863704.3865 c0.20 (0.28)C40H69NO19866.4391866.4410 c1.88 (2.17)
704.38781.54 (2.18)866.44112.00 (2.31)
a Mass values calculated based on elemental formulas; b Mass values detected with the all ions fragmentation with collision energy (scan event 2); c Mass values detected by full scan (scan event 1).
Table 3. Exact mass values of FB3 and NDfrc-FB3 and relative fragment ions (calculated and observed) at negative polarity.
Table 3. Exact mass values of FB3 and NDfrc-FB3 and relative fragment ions (calculated and observed) at negative polarity.
IonFB3 (RT: 16.09 min)NDfrc-FB3 (RT: 15.68 min)
FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))FormulaCal. Mass (m/z) aObs. Mass (m/z) bError (mmu (ppm))
[TCAK−H]C6H6O5157.0142157.0139 c−0.33 (−2.11)C6H6O5157.0142157.0142 c−0.03 (−0.16)
157.0139−0.38 (−2.40)157.01430.02 (0.13)
[M−Glc−2TCAK−H]----C22H47NO4388.3432388.3437 c0.49 (1.25)
--388.34441.13 (2.91)
[M−2TCAK−H]C22H47NO4388.3432--C22H51NO4392.3745--
388.3430 c−0.21 (−0.55)--
[M−Glc−TCAK−H]----C28H53NO9546.3648546.3655 c0.78 (1.44)
--546.36520.42 (0.77)
[M−TCAK−H]C28H53NO9546.3648546.3657 c0.97 (1.77)C34H63NO14708.4176708.4200 c2.40 (3.39)
546.36581.03 (1.88)708.41921.61 (2.27)
[M−Glc−H]----C34H59NO14704.3863704.3880 c1.72 (2.44)
--704.38872.39 (3.40)
[M−H]C34H59NO14704.3863704.3871 c0.81 (1.14)C40H69NO19866.4391866.4417 c2.55 (2.94)
704.38791.66 (2.36)866.44202.91 (3.36)
a Mass values calculated based on elemental formulas; b Mass values detected with the all ions fragmentation with collision energy (scan event 2); c Mass values detected by full scan (scan event 1).

3. Results

3.1. Detection of FB1 and NDfrc-FB1

Authors first confirmed the existence of FB1 and NDfrc-FB1 in the corn powder extract, based on the full scan results using the calculated masses. In the full scan data (scan event 1), peaks corresponding to the monitor ions [FB1−H] (720.3812) and [NDfrc-FB1−H] (882.4340) were detected at 15.09 min and 14.87 min, respectively. The same peaks were observed when standard FB1 and authentic NDfrc-FB1 were injected into the LC-MS system. Regarding detection of NDfrc-FB1, abundant [NDfrc-FB1−H] (882.4349) ion was detected with a deviation of 0.92 mmu (1.04 ppm) (Figure 2B). In addition, the fragment ions [NDfrc-FB1−TCAK−H] (724.4136), [NDfrc-FB1−Glc−H] (720.3824), [NDfrc-FB1−Glc−TCAK−H] (562.3607), and [NDfrc-FB1−Glc−2TCAK−H] (404.3378) were observed, with deviations of 1.14 mmu (1.58 ppm), 1.19 mmu (1.65 ppm), 0.99 mmu (1.67 ppm) and −0.32 mmu (−0.78 ppm), respectively (Figure 2B,C). During the scan event 2, the latter two fragment ions, as well as [TCAK−H] (157.0138) provided dual peaks (at 15.11 min and 14.88 min) (Figure 2A, Table 1), indicating that similar fragmentation was occurring for FB1 and NDfrc-FB1. Although [NDfrc-FB1−2TCAK−H] (408.3695) was suggested as a fragment of NDfrc-FB1 (Table 1), a corresponding ion was not detected for NDfrc-FB1 (chemically synthesized or contained in corn extract). The observed mass values and their respective mass deviations from the calculated values are summarized in Table 1.

3.2. Detection and Identification of NDfrc-FB2 and NDfrc-FB3

Figure 3 shows the results of screening for NDfrc-FB2 and NDfrc-FB3 in the corn powder extract. Using the same procedure as adopted for NDfrc-FB1, the existence of FB2 and FB3 was first confirmed based on the full scan results (scan event 1) using the calculated mass of [FB2−H] (704.3863). A major peak corresponding to [FB2−H] was detected at 16.78 min, as shown at the top of Figure 3A, and the same peak was found for the FB2 standard. As fragment ions of FB2, [FB2−TCAK−H], [FB2−2TCAK−H], and [TCAK−H] were observed (Table 2). When the full-scan results (scan event 1) were scrutinised with the calculated mass of [NDfrc-FB2−H] (866.4391), a major peak was detected for [NDfrc-FB2−H] at 16.40 min (Figure 3A), and abundant [NDfrc-FB2–H] (866.4410) was detected with a mass deviation of 1.88 mmu (2.17 ppm) (Figure 3B). In addition, the fragment ions [NDfrc-FB2–TCAK−H] (708.4188), [NDfrc-FB2−Glc−H] (704.3875), [NDfrc-FB2−Glc−TCAK−H] (546.3652), [NDfrc-FB2−Glc−2TCAK−H] (388.3430) were observed with deviations of 1.24 mmu (1.76 ppm), 1.17 mmu (1.66 ppm), 0.48 mmu (0.88 ppm), and −0.22 mmu (−0.55 ppm), respectively (Figure 3B, Table 2). Due to the low intensities of the signals, several fragment ions (Figure 3C) were observed only in the magnified spectra. Two peaks at 16.79 min and 16.39 min were detected for the monitor ions [NDfrc-FB2−Glc−TCAK−H] (546.3648) and [NDfrc-FB2−Glc−2TCAK−H] (388.3432) with scan event 2 (Figure 3A), suggesting that similar fragmentation was occurring for FB2 and NDfrc-FB2. During scan event 2, fragments corresponding to [NDfrc-FB2−TCAK−H] and [NDfrc-FB2−Glc−2TCAK−H] were observed (Table 2). The respective mass values of these fragments were 708.4183 mmu and 388.3439 mmu, with mass deviations from the calculated values of 0.70 mmu (0.98 ppm) and 0.70 mmu (1.80 ppm), respectively. In the case of screening for NDfrc-FB3, a major peak for [NDfrc-FB3−H] was observed at 15.68 min (scan event 1) (Figure 3A), and a fragmentation pattern similar to that of NDfrc-FB2 was also confirmed (details shown in Table 3). There was no difference in the fragmentation patterns of FB2 and FB3, as [FB3−TCAK−H], [FB3−2TCAK−H], and [TCAK−H] were observed as the corresponding fragment ions. Based on the data described above, authors were convinced that both NDfrc-FB2 and NDfrc-FB3 were contained in the corn powder extract.

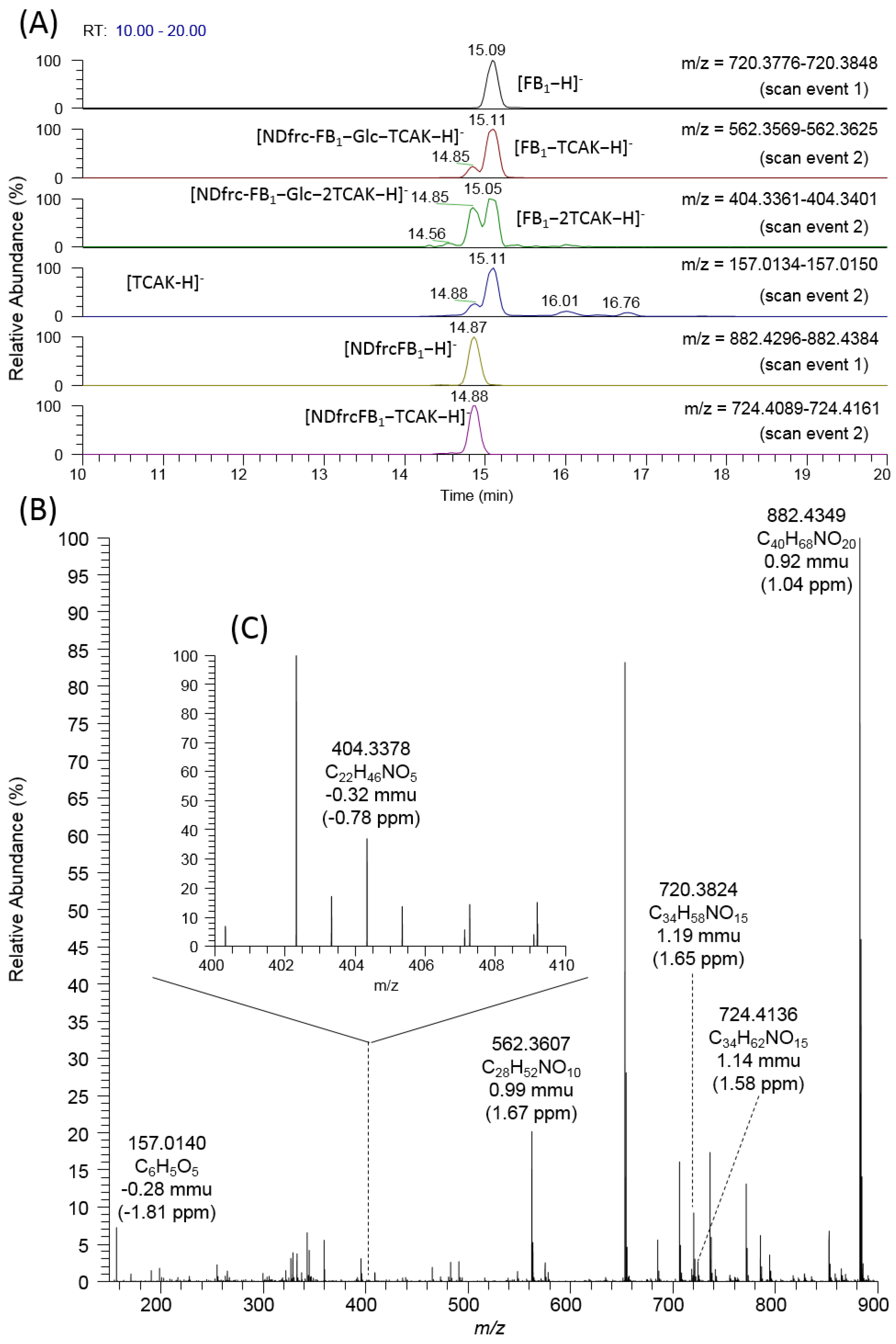

Figure 2. Detection and identification of NDfrc-FB1. Mass chromatogram with scan results (scan events 1 and 2) (A); full mass spectrum obtained at 14.87 min (scan event 1) (B); and mass range magnification of full mass spectrum (m/z: 400–410) obtained at 14.87 min (scan event 1) (C).
Figure 2. Detection and identification of NDfrc-FB1. Mass chromatogram with scan results (scan events 1 and 2) (A); full mass spectrum obtained at 14.87 min (scan event 1) (B); and mass range magnification of full mass spectrum (m/z: 400–410) obtained at 14.87 min (scan event 1) (C).
Toxins 07 03700 g002

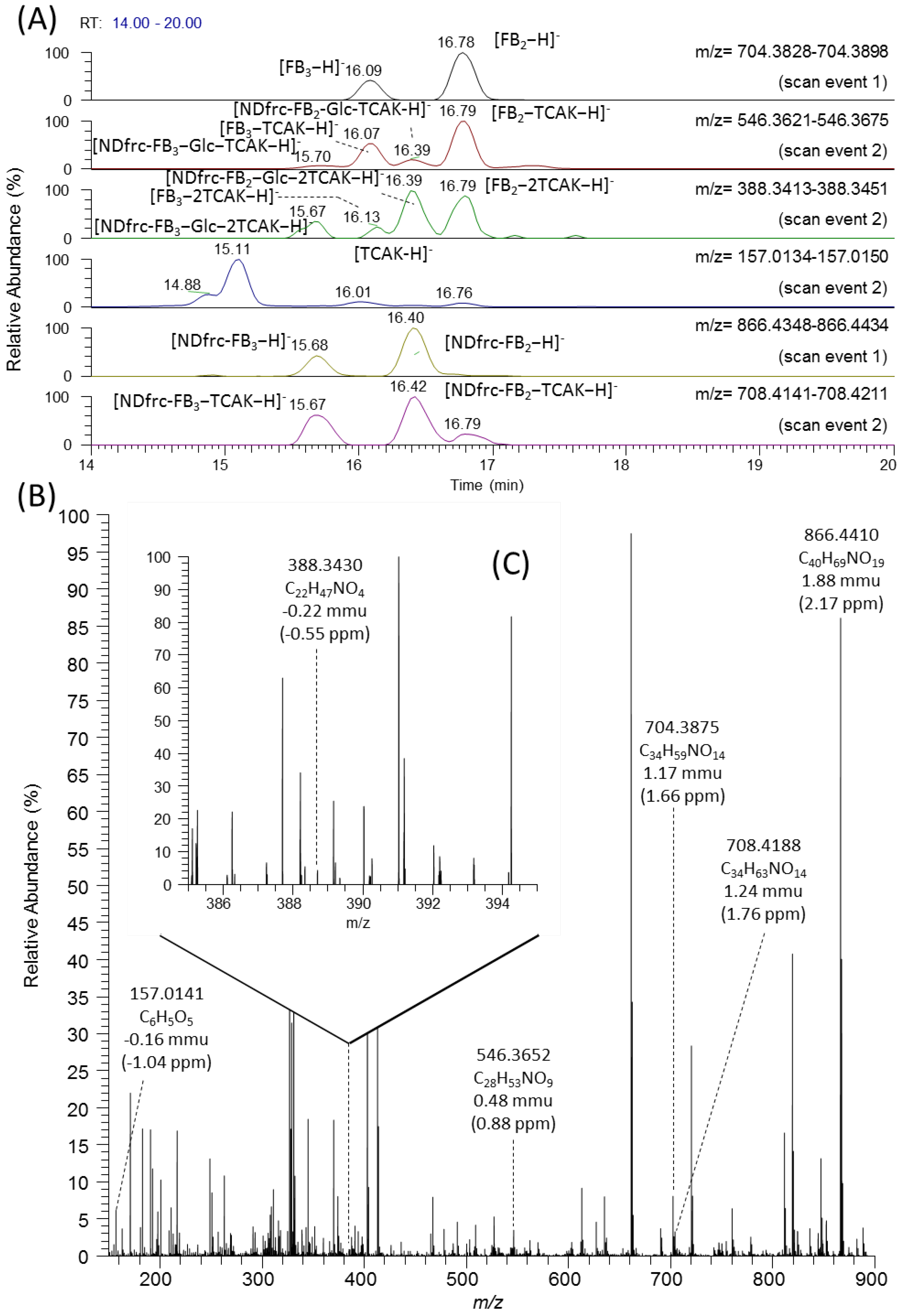

Figure 3. Detection and identification of NDfrc-FB2. Mass chromatogram with scan results (scan events 1 and 2) (A); full mass spectrum obtained at 16.40 min (scan event 1) (B); and mass range magnification of full mass spectrum (m/z: 385–395) obtained at 16.40 min (scan event 1) (C).
Figure 3. Detection and identification of NDfrc-FB2. Mass chromatogram with scan results (scan events 1 and 2) (A); full mass spectrum obtained at 16.40 min (scan event 1) (B); and mass range magnification of full mass spectrum (m/z: 385–395) obtained at 16.40 min (scan event 1) (C).
Toxins 07 03700 g003

3.3. Structures of NDfrc-FB2 and NDfrc-FB3

Figure 4 shows the LC-MS chromatograms of the NDfrc-FB2 (NDfrc-FB3) and FB2 (FB3) detected in the corn powder extract before and after treatment with OPA reagent (scan event 1). If the structures of NDfrc-FB2 and NDfrc-FB3 were similar to that of NDfrc-FB1 (glucose bound to the primary amine of the fumonisin molecule), it was considered that OPA would not react with these species. As shown in Figure 4, the signal intensities of FB2 and FB3 were decreased by the OPA treatment, whereas those of NDfrc-FB2 and NDfrc-FB3 were not. The peak area ratios of NDfrc-FB2 (NDfrc-FB3), before to after the OPA reaction, were 1.44–1.46. On the other hand, these ratios of FB2 (FB3), before to after the OPA reaction were 281.4–1372.1. These results indicate that the primary amine residue was occupied by glucose conjugation in the molecules of NDfrc-FB2 (NDfrc-FB3). The slight shift observed for the fumonisin peaks was attributed to the increase in methanol concentration in the samples following the OPA treatment.

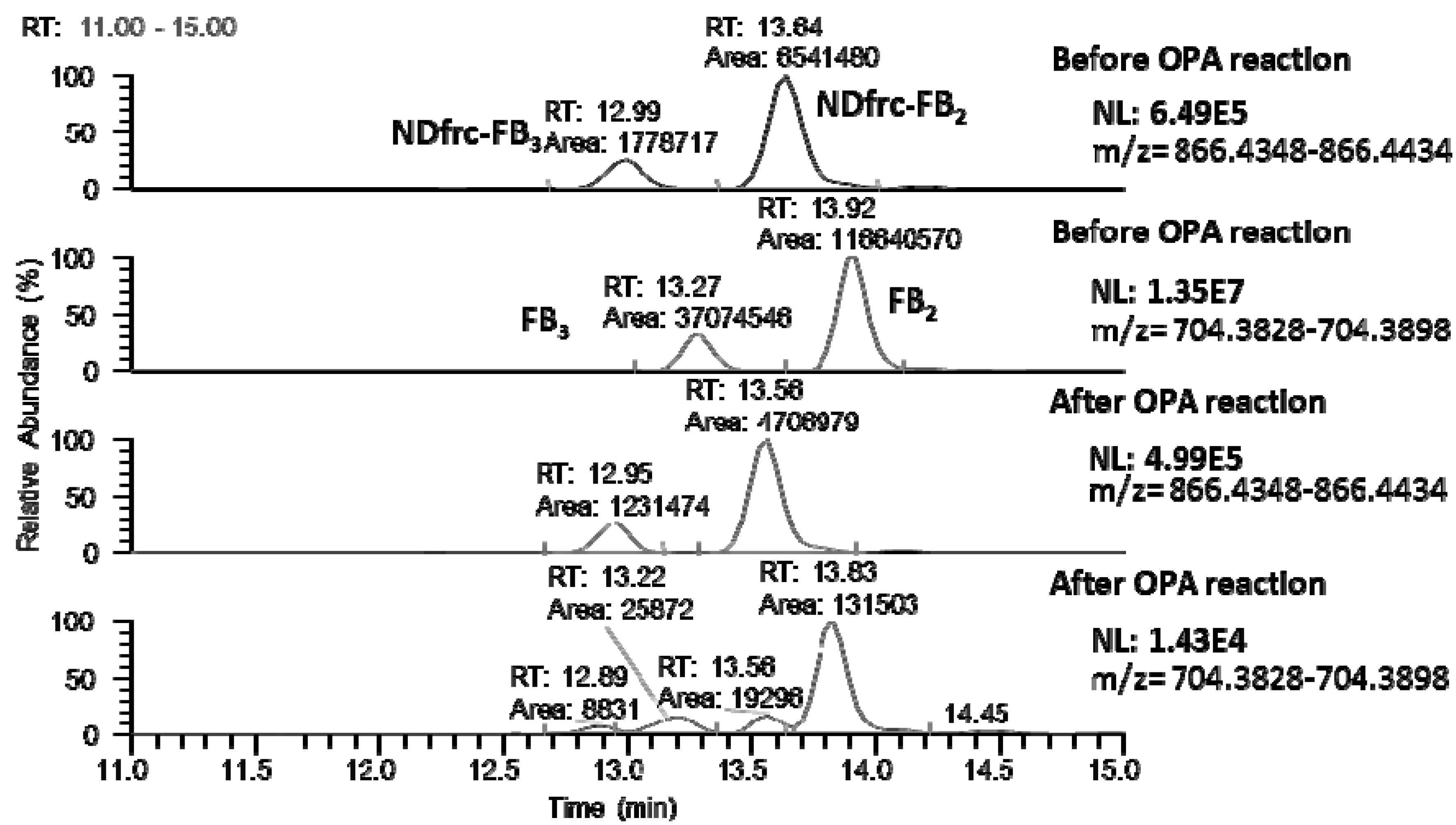

Figure 4. Chromatograms of NDfrc-FB2 (NDfrc-FB3) and FB2 (FB3) in corn powder extract before and after the treatment with OPA reagent (scan event 1).
Figure 4. Chromatograms of NDfrc-FB2 (NDfrc-FB3) and FB2 (FB3) in corn powder extract before and after the treatment with OPA reagent (scan event 1).
Toxins 07 03700 g004
In order to confirm the retention time and fragmentation profiles of NDfrc-FB2 and NDfrc-FB3 during the LC-Orbitrap MS analysis, these compounds were chemically synthesized with the standards of FB2 and FB3 with reference to the Poling et al. [18] report. Figure 5 shows the chromatograms of NDfrc-FB2 and NDfrc-FB3 in the corn powder extract and for chemically synthesized species. The mass fragmentation profiles of the synthesized NDfrc-FB2 (NDfrc-FB3) were in agreement with those of NDfrc-FB2 (NDfrc-FB3) detected in the corn sample extract (Figure S1). These results indicate that NDfrc-FB2 (and NDfrc-FB3) appear to be formed though a non-enzymatic reaction between FB2 (and FB3) and D-glucose. In addition, these synthesized NDfrc-FB2 and NDfrc-FB3 did not react with the OPA reagent (details not shown). Because the synthesized NDfrc-FB2 (and NDfrc-FB3) were not sufficiently pure, and contained remaining FB2 (and FB3), they could not be used for performing the quantitative analysis.

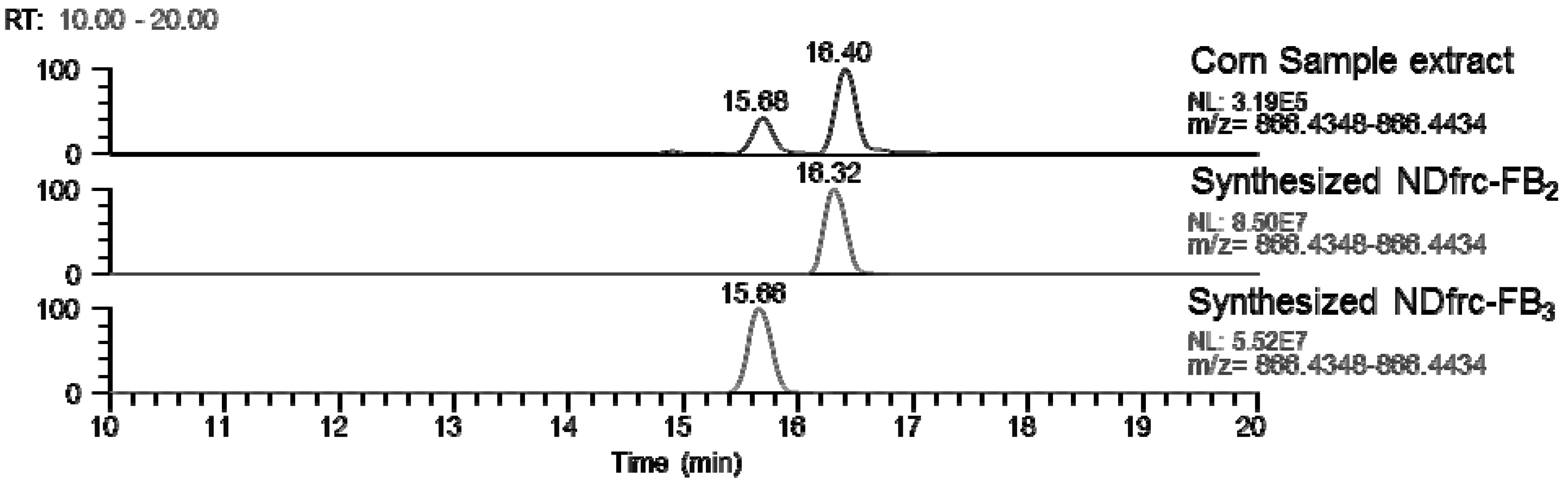

Figure 5. Chromatograms of NDfrc-FB2 and NDfrc-FB3 in corn powder extract in comparison with the chemically synthesized species (scan event 1).
Figure 5. Chromatograms of NDfrc-FB2 and NDfrc-FB3 in corn powder extract in comparison with the chemically synthesized species (scan event 1).
Toxins 07 03700 g005

4. Discussion

In 2002, Poling et al. [18] reported that NDfrc-FB1 was formed through a non-enzymatic reaction between FB1 and glucose. Hence, authors presumed that FB2 and FB3 could also react with d-glucose non-enzymatically to form glucose conjugates such as NDfrc-FB1. In the current study, the existence of FB2-glucose and FB3-glucose conjugates (suggested to be NDfrc-FB2 and NDfrc-FB3) in corn powder extract was confirmed by LC-Orbitrap MS. In order to confirm that the glucose conjugation occurred at the amine residue of the FB1 molecule, Lu et al. [24] treated the FB1-glucose conjugate with OPA reagent. In the same manner, NDfrc-FB2 (and NDfrc-FB3) was treated with OPA in the current study. When analyzed by LC-Orbitrap MS, the peaks suggested to be NDfrc-FB2 and NDfrc-FB3 were scarcely reduced after OPA treatment, whereas those of FB2 and FB3 were reduced substantially. Based on these observations, accompanied with the high-resolution MS spectrum data described above, authors became convinced that the conjugates detected in this study should correctly correspond to NDfrc-FB2 and NDfrc-FB3. Additionally, NDfrc-FB2 and NDfrc-FB3 were observed at a different lot number of Trilogy mycotoxin reference materials (MTC-9999A and MTC-9999E) (Figure S2).
In our previous studies, several trichothecene glucosides (O-glucoside conjugates) were detected in a corn reference material sample of the same line from Trilogy Co. Ltd (although the batch number was different) [11,20,22]. Therefore, authors initially screened for the presence of O-glucoside conjugates of FB1–FB3. After treating the corn powder extract with the OPA reagent, the full MS scan data was scrutinized with the calculated mass values of C50H77NSO21 (FB1-O-glucoside-OPA) and C50H77NSO20 (FB2 (FB3)-O-glucoside-OPA), respectively. However, no peaks were detected. Based on these results, it appears that fumonisins are not enzymatically glucosylated, but chemically bound to glucose in-plant, which differs from the case of trichothecenes.
Among the fumonisin isomers, there are several different groups, such as fumonisin A (FA) [25] and fumonisin C (FC) [26] in addition to fumonisin B (FB1–FB3). It is suggested that FA hardly reacts with d-glucose, because its amine residue is acetylated. In contrast, FC appears to react with d-glucose non-enzymatically via the free primary amine harbored in its structure. NDfrc-FB1 was found from the cooked maize with heat [27], whereas NDfrc-FB1, NDfrc-FB2, and NDfrc-FB3 were found in the corn powder (not cooked sample) used in this study. These conjugates appeared to be formed through a non-enzymatic reaction between fumonisins (FB2 and FB3) and glucose, as reported for FB1 [18]. Therefore, it seems likely that high temperature (around the cooking conditions) is not indispensable for the formation of NDfrc-FBs. Once the corn grains are harvested, they are normally dried, stored at the keeping place, and ground if necessary. In the drying process, if the corn grains containing fumonisins were subjected to some heat (for promoting to eliminate the moisture), NDfrc-FB might be formed. From the standpoint of toxicity, NDfrc-FB1 has been reported as less toxic, compared to FB1 [28]. The toxicity of NDfrc-FB2 and NDfrc-FB3 is suggested to be lower than FB2 and FB3 with reference to NDfrc-FB1. It was also reported that NDfrc-FB1 was partly converted back to FB1 in the gastrointestinal tract of rats [29]. On the other hand, Cirlini et al. [30] reported that NDfrc-FB1 was not reduced to FB1 in vitro digestion model [30]. As one possible factor reducing NDfrc-FB1 to FB1, the involvement of rat microbiota is inferred. Although crucial microbes reducing NDfrc-FB1 are unknown, the microbiota in the gastrointestinal tract is greatly different amongst host species, area, and age [31,32]. Another important question concerns the amount of these fumonisin conjugates that are present. However, in the current study, it was not possible to estimate the amounts of these compounds due to a lack in the pure (purified) chemical standards.

5. Conclusions

In conclusion, new glucose conjugates of FB2 and FB3 (NDfrc-FB2 and NDfrc-FB3) were detected for the first time in the corn sample in this study. These conjugates appeared to be formed through a non-enzymatic reaction between fumonisins (FB2 and FB3) and glucose. Although these reactions are similar to Maillard reaction, NDfrc-FBs are not reduced to FBs in contrast to the conjugate reaction of amino acid and D-glucose [33] even if they are treated with alkali. Considering that NDfrc-FB seems to be less toxic than FB, some food processing procedures (for example, promotion of Maillard reaction) can be suggested to mitigate the fumonisin toxicity, as examined previously [19]. The existence of acyl-fumonisin B1 [17] and fumonisins bound to starch (hidden fumonisins) [34] has also been reported by other researchers. Although the use of the hydrolyzed FBs (HFBs) obtained with either alkaline or enzymatic treatment has been proposed for quantitation of the total fumonisins in starch [17], NDfrc-FBs should not be determined with these methods. Since the PMTDI value was designated as 2 μg·kg−1 bw·day−1 in the JECFA [6], the existence of those fumonisin conjugates may be taken into account for the establishment of this value. In order to estimate the potential risk of fumonisins, further studies on the prevalence of these and other conjugates in foods, as well as their relevance for human health is needed.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/2072-6651/7/9/3700/s1.

Acknowledgments

A part of this work was supported by a grant from the Ministry of Agriculture, Forestry and Fisheries of Japan (research project for improving food safety and animal health).

Author Contributions

Yosuke Matsuo, Hiroyuki Nakagawa, and Masayo Kushiro conceived and designed the experiments. Yosuke Matsuo and Yuki Sago prepared all kinds of samples from the crop extract, and Masayo Kushiro administrated the OPA treatment experiments for the structure determination of fumonisin conjugates. Yosuke Matsuo, Hiroyuki Nakagawa, and Kentaro Takahara conducted the LC-Orbitrap MS experiments and analyzed the data. Yosuke Matsuo and Hiroyuki Nakagawa mainly constructed the manuscript under the support of all co-authors. Masayo Kushiro, Hitoshi Nagashima and Hiroyuki Nakagawa supervised the work and revised the manuscript for important intellectual content.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Placinta, C.M.; D’mello, J.P.F.; Macdonald, A.M.C. A review of worldwide contamination of cereal grains and animal feed with Fusarium mycotoxins. Anim. Feed Sci. Tech. 1999, 78, 21–37. [Google Scholar] [CrossRef]
  2. Rheeder, J.P.; Marasas, W.F.O.; Vismer, H.F. Production of fumonisin analogs by Fusarium species. Appl. Environ. Microb. 2002, 68, 2101–2105. [Google Scholar] [CrossRef]
  3. Kellerman, T.S.; Marasas, W.F.O.; Thiel, P.G.; Gelderblom, W.C.A.; Cawood, M.; Coetzer, J.A.W. Leukoencephalomalacia in two horses induced by oral dosing of fumonisin B1. Onderstepoort J. Vet. 1990, 57, 269–275. [Google Scholar]
  4. Harrison, L.R.; Colvin, B.M.; Greene, J.T.; Newman, L.E.; Cole, J.R., Jr. Pulmonary edema and hydrothorax in swine produced by fumonisin B1, a toxic metabolite of Fusarium moniliforme. J. Vet. Diagn. Investig. 1990, 2, 217–221. [Google Scholar] [CrossRef]
  5. Voss, K.A.; Plattner, R.D.; Bacon, C.W.; Norred, W.P. Comparative studies of hepatotoxicity and fumonisin B1 and B2 content of water and chloroform/methanol extracts of Fusarium moniliforme strain MRC 826 culture material. Mycopathologia 1990, 112, 81–92. [Google Scholar] [CrossRef] [PubMed]
  6. World Health Organization. WHO Food Additives Series 47: Safety Evaluation of Certain Mycotoxins in Food. Available online: http://www.inchem.org/documents/jecfa/jecmono/v47je03.htm (accessed on 22 June 2015).
  7. European Commission. Updated Opinion of the Scientific Committee on Food on Fumonisin B1, B2 and B3. 2003. Available online: http://ec.europa.eu/food/fs/sc/scf/out185_en.pdf (accessed on 22 June 2015).
  8. Berthiller, F.; Dall’Asta, C.; Schuhmacher, R.; Lemmens, M.; Adam, G.; Krska, R. Masked mycotoxins:  Determination of a deoxynivalenol glucoside in artificially and naturally contaminated wheat by liquid chromatography-tandem mass spectrometry. J. Agric. Food Chem. 2005, 53, 3421–3425. [Google Scholar] [CrossRef] [PubMed]
  9. Lancova, K.; Hajslova, J.; Poustka, J.; Krplova, A.; Zachariasova, M.; Dostalek, P.; Sachambula, L. Transfer of Fusarium mycotoxins and “masked” deoxynivalenol (deoxynivalenol-3-glucoside) from field barley through malt to beer. Food Addit. Contam. 2008, 25, 732–744. [Google Scholar] [CrossRef] [PubMed]
  10. Schneweis, I.; Meyer, K.; Engelhardt, G.; Bauer, J. Occurrence of zearalenone-4-β-d-glucopyranoside in wheat. J. Agric. Food Chem. 2002, 50, 1736–1738. [Google Scholar] [CrossRef] [PubMed]
  11. Nakagawa, H.; Sakamoto, S.; Sago, Y.; Nagashima, H. Detection of masked mycotoxins derived from type A trichothecenes in corn by high-resolution LC-Orbitrap mass spectrometer. Food Addit. Contam. 2013, 30, 1407–1414. [Google Scholar] [CrossRef] [PubMed]
  12. Berthiller, F.; Crews, C.; Dall’Asta, C.; Saeger, S.D.; Haesaert, G.; Karlovsky, P.; Oswald, I.P.; Seefelder, W.; Speijers, G.; Stroka, J. Masked mycotoxins: A review. Mol. Nutr. Food Res. 2013, 57, 165–186. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Rychlik, M.; Humpf, H.; Marko, D.; Dänicke, S.; Mally, A.; Berthiller, F.; Klaffke, H.; Lorenz, N. Proposal of a comprehensive definition of modified and other forms of mycotoxins including “masked” mycotoxins. Mycotoxin Res. 2014, 30, 197–205. [Google Scholar] [CrossRef] [PubMed]
  14. Gareis, M.; Bauer, J.; Thiem, J.; Plank, G.; Grabley, S.; Gedek, B. Cleavage of zearalenone-glycoside, a “Masked” mycotoxin, during digestion in swine. J. Vet. Med. B 1990, 37, 236–240. [Google Scholar] [CrossRef]
  15. Berthiller, F.; Krska, R.; Domig, K.J.; Kneifel, W.; Juge, N.; Schuhmacher, R.; Adam, G. Hydrolytic fate of deoxynivalenol-3-glucoside during digestion. Toxicol. Lett. 2011, 206, 264–267. [Google Scholar] [CrossRef] [PubMed]
  16. Seefelder, W.; Knecht, A.; Humpf, H.U. Bound fumonisin B1: Analysis of fumonisin-B1 glyco and amino acid conjugates by liquid chromatography-electrospray ionization-tandem mass spectrometry. J. Agric. Food. Chem. 2003, 51, 5567–5573. [Google Scholar] [CrossRef] [PubMed]
  17. Falavigna, C.; Cirlini, M.; Galaverna, G.; Dall’Asta, C. Masked fumonisins in processed food: Co-occurrence of hidden and bound forms and their stability under digestive conditions. World Mycotoxin J. 2012, 5, 325–334. [Google Scholar] [CrossRef]
  18. Poling, S.M.; Plattner, R.D.; Weisleder, D. N-(1-deoxy-d-fructos-1-yl) fumonisin B1, the initial reaction product of fumonisin B1 and d-glucose. J. Agric. Food Chem. 2002, 50, 1318–1324. [Google Scholar] [CrossRef] [PubMed]
  19. Humpf, H.U.; Voss, K.A. Effects of thermal food processing on the chemical structure and toxicity of fumonisin mycotoxins. Mol. Nutr. Food Res. 2004, 48, 255–269. [Google Scholar] [CrossRef] [PubMed]
  20. Nakagawa, H.; Sakamoto, S.; Sago, Y.; Kushiro, M.; Nagashima, H. The use of LC-Orbitrap MS for the detection of Fusarium masked mycotoxins: The case of type A trichothecenes. World Mycotoxin J. 2012, 5, 271–280. [Google Scholar] [CrossRef]
  21. European Commission. Method Validation and Quality Control Procedures for Pesticide Residues Analysis in Food and Feed. Available online: http://ec.europa.eu/food/plant/pesticides/guidance_documents/docs/qualcontrol_en.pdf (accessed on 22 June 2015).
  22. Nakagawa, H.; Sakamoto, S.; Sago, Y.; Kushiro, M.; Nagashima, H. Detection of type A trichothecene di-glucosides produced in corn by high-resolution liquid chromatography-Orbitrap mass spectrometry. Toxins 2013, 5, 590–604. [Google Scholar] [CrossRef] [PubMed]
  23. AOAC 49.5.01, AOAC Official Method 995.15. Fumonisins B1, B2, and B3 in corn. In Liquid Chromatographic Method, Official Methods of Analysis of AOAC International, 17th ed.; AOAC International: Rockville, MD, USA, 2003.
  24. Lu, Y.; Clifford, L.; Hauck, C.C.; Hendrich, S.; Osweiler, G.; Murphy, P.A. Characterization of fumonisin B1-glucose reaction kinetics and products. J. Agric. Food. Chem. 2002, 50, 4726–4733. [Google Scholar] [CrossRef] [PubMed]
  25. Musser, S.M.; Eppley, R.M.; Mazzola, E.P.; Hadden, C.E.; Shockcor, J.P.; Crouch, R.C.; Martin, G.E. Identification of an N-acetyl keto derivative of fumonisin B1 in corn cultures of Fusarium proliferatum. J. Nat. Prod. 1995, 58, 1392–1397. [Google Scholar] [CrossRef] [PubMed]
  26. Abbas, H.K.; Shier, W.T.; Seo, J.A.; Lee, Y.W.; Musser, S.M. Phytotoxicity and cytotoxicity of the fumonisin C and P series of mycotoxins from Fusarium spp. fungi. Toxicon 1998, 36, 2033–2037. [Google Scholar] [CrossRef]
  27. Voss, K.A.; Poling, S.M.; Meredith, F.I.; Bacon, C.W.; Saunders, D.S. Fate of fumonisins during the production of fried tortilla chips. J. Agric. Food Chem. 2001, 49, 3120–3126. [Google Scholar] [CrossRef] [PubMed]
  28. Jackson, L.S.; Voss, K.A.; Ryu, D. Effects of different extrusion conditions on the chemical and toxicological fate of fumonisin B1 in maize: A short review. World Mycotoxin J. 2012, 5, 251–260. [Google Scholar] [CrossRef]
  29. Hahn, I.; Nagl, V.; Schwartz-Zimmermann, H.E.; Varga, E.; Schwarz, C.; Slavik, V.; Reisinger, N.; Malachová, A.; Cirlini, M.; Generotti, S.; et al. Effects of orally administered fumonisin B1 (FB1), partially hydrolysed FB1, hydrolysed FB1 and N-(1-deoxy-d-fructos-1-yl) FB1 on the sphingolipid metabolism in rats. Food Chem. Toxicol. 2015, 76, 11–18. [Google Scholar] [CrossRef] [PubMed]
  30. Cirlini, M.; Hahn, I.; Varga, E.; Dall’Asta, M.; Falavigna, C.; Calani, L.; Berthiller, F.; Rio, D.D.; Dall’Asta, C. Hydrolysed fumonisin B1 and N-(deoxy-D-fructos-1-yl)-fumonisin B1: Stability and catabolic fate under simulated human gastrointestinal conditions. Int. J. Food. Sci. Nutr. 2015, 66, 98–103. [Google Scholar] [CrossRef] [PubMed]
  31. Spor, A.; Koren, O.; Ley, R. Unravelling the effects of the environment and host genotype on the gut microbiome. Nat. Rev. Microbiol. 2011, 9, 279–290. [Google Scholar] [CrossRef] [PubMed]
  32. Nakayama, J.; Watanabe, K.; Jiang, J.; Matsuda, K.; Chao, S.; Haryono, P.; La-ongkham, O.; Sarwoko, M.; Sujaya, I.N.; Zhao, L.; et al. Diversity in gut bacterial community of school-age children in Asia. Sci. Rep. 2015, 5, 8397–8407. [Google Scholar] [CrossRef] [PubMed]
  33. Davidenk, T.; Clety, N.; Aubin, S.; Blank, I. Degradation of the amadori compound N-(1-deoxy-d-fructos-1-yl) glycine in aqueous model systems. J. Agric. Food Chem. 2002, 50, 5472–5479. [Google Scholar] [CrossRef]
  34. Kim, E.K.; Scott, P.M.; Lau, B.P. Hidden fumonisin in corn flakes. Food Addit. Contam. 2003, 20, 161–169. [Google Scholar] [CrossRef] [PubMed]
