Isolation and Characterization of Two New Deoxynivalenol-Degrading Strains, Bacillus sp. HN117 and Bacillus sp. N22

by
Beibei Li
1,2,†,
Jiaqi Duan
1,†,
Jie Ren
1,
Frédéric Francis
2,* and
Guangyue Li
1,*
1
State Key Laboratory for Biology of Plant Diseases and Insect Pests—Key Laboratory of Control of Biological Hazard Factors (Plant Origin) for Agri-Product Quality and Safety, Ministry of Agriculture, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100081, China
2
Functional and Evolutionary Entomology, Gembloux Agro-Bio Tech, University of Liège, B-5030 Gembloux, Belgium
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxins 2022, 14(11), 781; https://doi.org/10.3390/toxins14110781
Submission received: 4 October 2022 / Revised: 2 November 2022 / Accepted: 8 November 2022 / Published: 10 November 2022
(This article belongs to the Section Mycotoxins)
Browse Figures
Versions Notes

Abstract

:
Deoxynivalenol (DON), produced by Fusarium species, is one of the most common trichothecenes detected in cereals pre- and post-harvest, which poses a great threat to the health of livestock and human beings due to its strong toxicity. In this study, we isolated and characterized two DON-degrading bacterial strains, Bacillus sp. HN117 and Bacillus sp. N22. Both strains could degrade DON efficiently in a wide range of temperatures (from 25 °C to 42 °C) and concentrations (from 10 mg/L to 500 mg/L). After optimization of the degradation conditions, 29.0% DON was eliminated by HN117 in 72 h when it was incubated with 1000 mg/L DON; meanwhile, the DON degradation rate of N22 was boosted notably from 7.41% to 21.21% within 120 h at 500 mg/L DON. Degradation products analysis indicated HN117 was able to transform DON into a new isomer M-DOM, the possible structure of which was deduced based on LC-MS and NMR analysis, and N22 could convert DON into potential low-toxic derivatives norDON E and 9-hydroxymethyl DON lactone. These two strains have the potential to be developed as new biodegrading agents to control DON contamination in food and feed industries.
Keywords:
deoxynivalenol; biological detoxification; DON derivatives; Bacillus sp.
Key Contribution: Two Bacillus sp. strains, which could transform DON into lower toxic derivatives, were isolated and characterized.

Graphical Abstract

1. Introduction

Trichothecenes, containing a 12,13-epoxytrichothec-9-ene ring as the basic structure, are a group of sesquiterpene mycotoxins [1,2]. Feed and food are frequently found to be contaminated by trichothecenes, which leads to a broad spectrum of adverse effects on animal and human health [3]. Deoxynivalenol (DON), widely known by the alternative name “vomitoxin”, which often contaminates wheat and other cereals accompanied by the prevalence and occurrence of Fusarium head blight (FHB) [4,5,6], belongs to the group of type B trichothecenes. DON can have severe health damage on livestock and humans by leading to nausea, vomiting, abdominal pain, diarrhea, chromosomal aberration, body weight loss, and other adverse impacts [7,8,9,10,11,12]. For the horrible effects of DON, China stipulates that the maximum residual amount of DON in cereals and associated products must be no more than 1000 μg/kg to protect the health of humans and animals [13]. Furthermore, the World Health Organization Joint Expert Committee on Food Additives (JECFA) established that provisional maximum tolerable daily intake (PMTDI) values of DON should be no more than 1.0 µg/kg body weight/day [14]. However, DON is highly soluble in water, ethanol, ethyl acetate, and other polar solvents [15], and it could keep toxicity in contaminated cereals for several years due to its stability against high pressure, heat, and acid environments [16]; addressing the issue of DON contamination is still a challenge. Thus, it is significant to propose and develop effective and efficient strategies to remove DON or reduce its toxicity in cereals.
To date, physical, chemical, and biological methods have been utilized in DON detoxification. Physical detoxification mainly involves milling, washing, dehulling, heating, adsorption, and radiation [17,18,19,20]. Chemical detoxification procedures could convert DON into low-toxic or even entirely non-toxic compounds by strong acids, alkalis, and ozone [16,21,22,23]. However, both physical and chemical detoxification have disadvantages, such as materials quality and taste reduction, secondary contamination, and cost increase. Instead, biological detoxification based on microorganisms is considered to be a more promising approach to resolve the DON contamination problems, owing to its mild reaction conditions (moderate temperature, pressure, and pH), environmental soundness, and adaptability to different food and feed processing stages. Thus far, numerous fungi and bacteria have been reported for detoxifying DON [24,25,26,27,28,29]. The main mechanisms of biological detoxification include absorption and enzymatic degradation. Some microorganisms are capable of adsorbing DON because they could secrete specific compounds, e.g., β-D-glucans secreted by microorganisms could cover their cell surface for DON adsorption through non-covalent interactions, hydrogen bonds, or ionic interactions [30,31]. Therefore, distinct from physical adsorption, biological adsorption relies on the binding capacity of the cells, with Lactobacillus being the typical representative [32,33,34]. The enzymatic degradation approach mainly depends on the enzymes produced by microorganisms, which could convert DON to less or non-toxic substances by disrupting the toxic groups. To date, multiple types of modifications on DON, including acetylation, oxidation, reduction, isomerization, and glycosylation, have been reported [35,36,37,38,39,40,41]. With the increasing interest in the enzymatic degradation of DON, more and more new microorganisms and enzymes were identified [42,43], which facilitated various new degradation processes and mechanisms to be uncovered [44,45,46,47,48].
Although lots of approaches had been attempted and utilized to solve the problem of DON contamination, there is still a gap for a complete solution. Therefore, it is necessary to invest more efforts to search for new microorganism resources for DON degradation. In this study, we isolated two DON-degrading bacteria, Bacillus sp. HN117 and Bacillus sp. N22, evaluated their DON degradation capability, and investigated the corresponding products converted by these bacteria.

2. Results

2.1. Isolation and Identification of DON-Degrading Bacteria

For the isolation of DON-degrading microorganisms, eight soil samples and six wheat grain samples were sampled from winter wheat fields in China. Among these samples, only the soil sample obtained from the Henan province (SHN3) and the wheat grain sample from the Nei Mongol province (WNM1) showed significant DON-degrading capability according to the evaluated results by HPLC. As demonstrated in Figure 1a,b, culturing SHN3 and WNM1 with 10 mg/L DON in MM medium for 4 days resulted in 10.1 ± 2.0% and 29.1 ± 1.6% DON degradation, respectively. Consequently, these two cultures were plated on LB agar plates, and then 289 different bacterial colonies were isolated and individually examined for their DON-degrading ability. Finally, two DON-degrading bacterial strains, HN117 and N22, isolated from the soil sample SHN3 and grain sample WNM1, respectively, were obtained for further study.
To identify the bacterial genus or species, we determined the 16S rRNA gene sequence of HN117 (1407 bp) and N22 (1406 bp), which were then employed for sequence alignment based on NCBI Nucleotide BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 26 June 2022). A phylogenetic tree of HN117, N22, and their related species was constructed by the neighbor-joining method according to the results of sequence alignment. As displayed in Figure 2, HN117 and N22 were grouped with Bacillus subtilis strain JCM 1465 (NR113265) in the highly supported phylogenetic clade with maximal bootstrap value (100%). According to the phylogenetic tree, HN117 and N22 are mostly likely speciated as Bacillus subtilis, however, more physiological and biochemical experiments were required to corroborate the results. So, at this stage, we classify HN117 and N22 as Bacillus sp., hereafter refer to as strain HN117 or strain N22.

2.2. Optimization of DON Degradation Conditions

To investigate the DON-degrading potential of strains HN117 and N22, we screened for optimal degrading conditions. Excessive DON might inhibit the degradation capability of microorganisms; thus, we evaluated the effects of different concentrations of DON (10 mg/L, 50 mg/L, 100 mg/L, 300 mg/L, and 500 mg/L) on degradation at 30 °C. As expected, the DON degradation rates of both strains decreased to some extent with the increase in DON concentrations (Figure 3a and Figure 4a). The degradation rates of N22 remarkably reduced from initial 30.0 ± 1.8% at 10 mg/L to 7.4 ± 0.4% at 500 mg/L, whereas HN117 demonstrated better tolerance for DON, keeping more than 20% degradation rate even at 500 mg/L, which prompted us to further explore the potential of HN117 at higher DON concentrations. Therefore, we tested the degrading ability of HN117 at 1000 mg/L DON. To our surprise, no significant negative effects on the DON degradation ability of HN117 was observed, more than 20% (224.9 ± 9.5 mg/L) of DON was eliminated. From another perspective, considering the absolute amount of DON degradation in high concentrations, the degradation capability of both strains, in fact, enhanced significantly, for instance, 37.0 ± 2.0 mg/L DON at 500 mg/L and 224.9 ± 9.5 mg/L DON at 1000 mg/L were degraded by N22 and HN117, respectively (Figure 3a and Figure 4a).
Because the incubation temperature is critical for bacteria growth and DON degradation, we, thus, determined the degradation rate of DON at 10 mg/L by strain HN117 and strain N22 at 25 °C, 30 °C, 37 °C, and 42 °C, respectively. Figure 3b and Figure 4b show that both strains have the capacity to grow and degrade DON in all the testing temperatures. Interestingly, although N22 had better growth status at 42 °C than 37 °C (OD600 value 2.8 versus 2.6) (Figure S1), it illustrated the highest DON degradation rate at 37 °C, with about 36.8 ± 2.8% of DON at 10 mg/L being eliminated (Figure 4b). We attributed the discrepancy to the enzymes inside N22, which displayed optimal catalytic activity for DON degradation at 37 °C instead of 42 °C. In contrast, the highest DON degradation rate of HN117 (41.3 ± 2.2%) was achieved at 30 °C (Figure 3b), demonstrating an obviously different temperature preference from N22.
We further investigated DON degradation activity of strains HN117 and N22 in the presence of DON versus time, HN117 and N22 were grown in MM containing 100 mg/L DON, and the changes in DON concentration were monitored every 24 h by HPLC. For HN117, the degradation rate reached a plateau at 72 h, then a slight decrease trend was observed in the following 72 h (Figure 3c). For N22, the level of DON was significantly reduced within 72 h after inoculation, then DON degradation efficiency was slightly decreased in the following 48 h, and the highest degradation rate was detected at 120 h (Figure 4c). In summary, the optimal DON degradation time for HN117 and N22 were 72 h and 120 h, respectively.
To explore the DON degradation potential of strains HN117 and N22, as well as to identify the corresponding degradation products, scale-up bioconversion reactions were performed separately, namely HN117 and N22 were cultured with 1000 mg/L and 500 mg/L DON, respectively, at their optimized conditions. As anticipated, the DON degradation rate of HN117 was significantly increased from 22.5% (224.9 ± 9.5 mg/L) to 29.0% (305.5 ± 21.9 mg/L) (Figure 3d). More interestingly, the DON degradation rate of N22 was boosted notably from 7.41% (37.0 ± 2.0 mg/L) to 21.2% (106.1 ± 5.7 mg/L) (Figure 4d).

2.3. Isolation and Identification of DON Degradation Products

To isolate and purify the DON degradation products of strains HN117 and N22, different optimized HPLC procedures were applied separately. As shown in Figure 5, the DON degradation products of HN117 and N22 were detected at 3.73 min (compound a) (Figure 5a) and 4.25 min (compound b) (Figure 5b), respectively, which further led to the purification of the corresponding degradation products for high-resolution UPLC-MS analysis.
According to the results of high-resolution UPLC-MS, compound a was identified with m/z of 297.1363 ([M + H]+) (Figure 6b), and the corresponding chemical formula was calculated as C15H20O6, the same as DON (Figure 6, (1)). Because it demonstrated the same molecular weight but different retention time with DON (Figure 6a,b), we speculated compound a should be an epimer of DON. For further proof of the speculation, proton nuclear magnetic resonance (1H NMR) was utilized to analyze the structure of compound a. Compared with the standard NMR spectra of DON, the NMR data of compound a illustrated a significant chemical shift on the hydrogen atoms of C-2, C-11, and C-13 (Figure S2); it indicated that compound a is not an epimer of DON but a new degradation product of DON, named as M-DON. The deduced chemical structure of M-DON, which had never been reported before, was illustrated in Figure 6 (2) based on MS and NMR data.
High-resolution UPLC of degradation product b indicated two compounds were detected at 2.32 min (compound b1) and 2.50 min (compound b2), respectively (Figure 7). According to ESI-MS data, compound b1 (Figure 7a) was detected with m/z of 283.1777 ([M + H]+) and 305.1594 ([M+ Na]+), so the chemical formula was calculated as C15H22O5. Similarly, based on the m/z 327.2040 ([M + H]+) and 349.1856 ([M + Na]+) of compound b2 (Figure 7b), the corresponding chemical formula was calculated as C16H22O7. Compared with previously reported DON degradation products, we reasoned that compounds b1 and b2 might be norDON E (Figure 7, (3)) and 9-hydroxymethyl DON lactone (Figure 7, (4)), respectively, with the molecular weights and formulas being highly matched. More experiments are in progress to corroborate the conclusion.

3. Discussion

Bacillus species have always been deemed as a useful microbial resource, which shows great application potential in various fields, e.g., agriculture, medicine, food, industrial production, and environmental protection [49,50,51]. Notably, Bacillus species have also been found to decrease the toxicity or production of DON, for example, B. licheniformis YB9 could degrade more than 82.67% of 1 mg/L DON and attenuated the damages caused by DON in mice [52]; B. natto 16 could remove the DON in wheat flour by adsorption and biodegradation [53]; B. subtilis ATCC6633 could inhibit conidial spore formation and germination of F. graminearum, and, therefore, decreased the production of DON in infected grains [54]; B. subtilis ANSB060- and B. subtilis ANSB01G-based mycotoxin biodegradation agent have been used as microbial additive to counteract DON, aflatoxin (AF), and zearalenone (Zen) in food and feed [55]; B. subtilis NHIBC 006D was found to secrete a kind of extracellular protein to degrade DON [56]. Recently, B. subtilis ASAG 216 isolated from the intestine of a donkey was reported to be a potential feed ingredient in daily feed to attenuate the damage of DON on piglets [57,58]. Moreover, B. cereus B. JG05, B. amyloliquefaciens CPLK1314, and other strains of Bacillus species have the capacity of degrading DON [59,60,61]. Bacillus species have great potential to be developed as food and feed additives for DON degradation, but the degradation mechanisms and corresponding degrading products are rarely reported. In this study, we isolated two strains with DON degradation ability from grain and soil samples infected by F. graminearum. Bacillus sp. HN117 and N22 could degrade DON in a wide range of temperatures (25–42 °C) and concentrations (10–500 mg/L), demonstrating good application potential. Interestingly, HN117 was able to transform DON into a new isomer, M-DON. The ether bond between C2, C11, and 12,13-epoxy ring was cleaved and recycled to form the oxo-octahydroindene structure. Wang et al. found that glutathione S-transferase (GST) could catalyze the conjugation of glutathione (GSH) onto the epoxide moiety of DON [62], which provided some insights to allow us to reveal the complicated structure changes from DON to M-DON. Based on the available information, we presumed the converting process from DON to M-DON (Figure 8). However, much information is still missing, and more detailed studies are in progress.
The major toxicity group of DON is C12,13-epoxide, which promotes the binding of DON with ribosomes, and thus blocking protein synthesis. Therefore, significant efforts had been invested to isolate microorganisms capable of destroying the epoxide structure of DON, which could reduce the toxicity of DON remarkably. One typical case is De-epoxy-DON (DOM-1), in which the 12,13-epoxide group is reduced to a carbon–carbon double bond. DOM-1 is also one of the most reported DON biodegradation products [27,63,64,65,66,67,68], which is 54 times less toxic than DON, according to the results determined in porcine peripheral blood mononuclear cells and 5-bromo-20-deoxyuridine (BrdU) incorporation assay [68,69,70]. Furthermore, a study about diet contaminated with 3 mg kg−1 DON and DOM-1 revealed that DOM-1 is not toxic for twenty-four-week-old piglets [71] As observed in Figure 6 and Figure 7, the epoxide group of the DON degradation products by HN117 and N22 showed considerable changes, so they should be expected to have lower toxicity. Nevertheless, this cannot be proven by chemical structure itself, more experimental evidence on cellular or animal models is required to draw a solid conclusion.

4. Conclusions

We isolated two DON-degrading bacteria, Bacillus sp. HN117 and N22, from Fusarium-contaminated soil and wheat grain samples. HN117 and N22 were able to efficiently transform DON into potential low-toxic derivatives in the optimized conditions, which provided useful information for the studies concerning DON biological degradation (Figure 9). In summary, HN117 and N22 provided good models and a basis for an in-depth study of DON degradation. However, there is still a large gap for them to be used in practical applications, and the degradation mechanism is largely unknown. In the following work, on one side, we try to domesticate these two strains to improve their DON degradation capability and efficacy; on the other side, the identification of the enzymes responsible for DON degradation and revealing the degradation mechanism are the urgent tasks. Hopefully, the strains HN117 and N22 could be developed as a new food or feed additive to efficiently control DON contamination.

5. Materials and Methods

5.1. Samples

For screening DON-degrading microorganisms, 8 soil samples (SLN1, SLN2, SHN3, SNH4, SJS5, SJS6, SNM7, and SBJ8), and 6 wheat grain samples (WNM1, WNM2, WLN3, WJS4, WHN5, and WHN6) were collected from winter wheat fields of China with the outbreak of FHB in 2017, including Jiangsu province, Henan province, Liaoning province, Nei Mongol province, and Beijing.

5.2. Media and Chemicals

Luria-Bertani (LB) liquid and solid media were used for initial bacteria enrichment and isolation, respectively. The modified mineral salt medium (MM), which contains Na2HPO4 (2.44 g/L), KH2PO4 (1.52 g/L), (NH4)2SO4 (0.5 g/L), MgSO4·7H2O (0.2 g/L), CaCl2 (0.05 g/L), and glucose (5 g/L) (pH = 7), was applied to screen DON-degrading bacteria. DON standard was purchased from Pribolab (Qingdao, China).

5.3. Enrichment and Isolation of the DON-Degrading Bacteria

1 g sample was mixed with 9 mL sterilized water and incubated at 30 °C for 1 h, then 1 mL incubation solution was diluted to 10−4 with sterilized water. Thereafter, 0.1 mL diluent was added into 10 mL LB medium and cultured at 30 °C with shaking (220 rpm). After 12 h, DON was added into each culture flask with final concentration of 10 mg/L and incubated in the same conditions for 4 days. The cultures displaying remarkable degradation capability were diluted to 10−5, 10−6, and 10−7, and then plated on LB agar plates. All candidate strains were inoculated into LB medium and cultured at 30 °C for 12 h, and then 20 μL of each culture were transferred into MM medium containing 10 mg/L DON for testing their DON-degrading capability. To achieve highly efficient degradation of DON, the culture temperature and time of selected strains, as well as DON concentrations were further optimized. Specifically, the strains were cultured with different concentrations of DON (from 10 mg/L to 500 mg/L) at 30 °C for 96 h to evaluate the tolerance to DON. Cultivating the strains with 10 mg/L DON at different temperatures (25 °C, 30 °C, 37 °C, and 42 °C) for 96 h to determine the optimal degrading temperature. The strains were cultured with 100 mg/L DON for 144 h; the optimal degrading time was determined by monitoring the DON degradation rate every 24 h.

5.4. Phylogenetic Analysis

The genetic analysis of N22 and HN117 was performed through the 16S ribosomal RNA (16S rRNA) gene sequence. Total genomic DNA was extracted using TIANamp Bacteria DNA Kit (TIANGEN Biotech, Beijing, China), according to the instruction. The sequence of 16S rRNA gene was amplified by PCR using the following primers: 27F (5′-GAGTTTGATCCTGGCTCAG-3′) and 1492R (5′-GTTACCTTGTTACGACT-3′), and the program was as follows: 95 °C for 3 min; 30 cycles of 95 °C for 30 s, 55 °C for 30 s, and 72 °C for 1 min 30 s; 72 °C for 10 min. The amplified fragment was sequenced in Sangon Biotech Company (Beijing, China), and then sequence alignment was performed by BLAST searching in the NCBI database (http://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 26 June 2022). The 16S rRNA sequences obtained in this study had been uploaded to GenBank under nucleotide sequence accession numbers OP536007 (HN117) and OP536008 (N22). The phylogenetic tree was constructed, according to the neighbor-joining algorithms, using MEGA-X software (version 10.0.5) [72,73].

5.5. DON Quantification Analysis and Degradation Product Purification

After being heated at 95 °C for 10 min for removing proteins, the sample was centrifuged at 13,000× g for 15 min, then the supernatant was extracted and mixed with equal volume of 40% methanol. Thereafter, the solution was filtered through 0.22 μm membrane for HPLC analysis. The condition for DON analysis was as follows: Agilent ZORBAX Eclipse Plus C18 (4.6 × 150 mm, 5 μm) column was applied at 30 °C; the mobile phase methanol: water (20:80, v/v) was kept at a flow rate of 1.0 mL/min; the detection wavelength was set at 218 nm.
To purify the DON-degrading products, the sample was treated similarly, as described above, except the supernatant was mixed with 100% methanol to obtain the final samples containing 15% methanol for LC-MS analysis. The products were purified and collected by Agilent 1260 Infinity HPLC system equipped with a fraction collector. To isolate and purify the DON degradation product of HN117, the mobile phase was optimized as methanol and water (20:80, v/v), whereas the mobile phase containing methanol and water (15:85, v/v) was used for purifying the DON degradation product of N22.

5.6. High-Resolution UPLC-MS Analysis

The DON-degrading products were identified by the high-resolution UPLC-MS system (Xevo G2-XS QTOF, Waters, Milford, MA, USA) equipped with an ACQUITY UPLC BEH C18 column (2.1 × 100 mm, 1.7 μm, Waters, USA). The gradient elution condition was as follows: the mobile phase was gradually altered from acetonitrile/water (5/95, v/v) to acetonitrile/water (30/70, v/v) in 3 min, and then kept at 100% acetonitrile for 4 min at a flow rate of 0.3 mL/min. MS scans were carried out using the following settings: mass range of 100–500 Da, ESI source in positive ion mode, collision energy (CE) of 15–40 V.

5.7. NMR Analysis

The 1H NMR spectra was recorded on a Bruker Avance III HD spectrometer (Brucker Daltonic Inc., Bremen, Germany) using a 9.4 T magnet, corresponding to 1H resonance frequency of 400 MHz. A Bruker BBFO probe equipped with z gradients was used to accomplish automatic tuning and matching. Spectra were recorded with the following settings: pulse program (zg30) 30 pulse, TD = 64 K, 16 scans, the acquisition time of 3.98 s, relaxation delay of 1.0 s, and a sample temperature of 298.15 K. Spectra were processed using Bruker Topspin v2.1 (Bruker BioSpin AG). Free induction decay was multiplied by an exponential window with LB = 0.3 Hz.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxins14110781/s1, Figure S1: OD600 value of N22 (a) and HN117 (b) at different temperatures; Figure S2: 1H NMR spectra of M-DON.

Author Contributions

Conceptualization, B.L., J.D. and G.L.; methodology, B.L. and J.D.; formal analysis, B.L., J.D. and J.R.; investigation, B.L. and J.D.; resources, G.L.; writing—original draft preparation, B.L.; writing—review and editing, G.L., F.F. and J.R.; supervision, G.L. and F.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No.31972327) and the Agricultural Science and Technology Innovation Program of CAAS (CAAS- ZDRW202011).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the support from the National Natural Science Foundation of China (Grant No.31972327) and the Agricultural Science and Technology Innovation Program of CAAS (CAAS-ZDRW202011), and also thank the financial support of the China Scholarship Council (CSC, 202103250078) to Beibei Li. We greatly appreciate the valuable suggestions from Tongtong Wang.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rotter, B.A.; Prelusky, D.B.; Pestka, J.J. Toxicology of deoxynivalenol (vomitoxin). J. Toxicol. Environ. Health 1996, 48, 1–34. [Google Scholar] [CrossRef] [PubMed]
  2. McCormick, S.P.; Stanley, A.M.; Stover, N.A.; Alexander, N.J. Trichothecenes: From simple to complex mycotoxins. Toxins 2011, 3, 802–814. [Google Scholar] [CrossRef] [PubMed]
  3. Khaneghah, A.M.; Farhadi, A.; Nematollahi, A.; Vasseghian, Y.; Fakhri, Y. A systematic review and meta-analysis to investigate the concentration and prevalence of trichothecenes in the cereal-based food. Trends Food Sci. Tech. 2020, 102, 193–202. [Google Scholar] [CrossRef]
  4. Foroud, N.A.; Eudes, F. Trichothecenes in cereal grains. Int. J. Mol. Sci. 2009, 10, 147–173. [Google Scholar] [CrossRef] [Green Version]
  5. Mishra, S.; Srivastava, S.; Dewangan, J.; Divakar, A.; Kumar Rath, S. Global occurrence of deoxynivalenol in food commodities and exposure risk assessment in humans in the last decade: A survey. Crit. Rev. Food Sci. Nutr. 2020, 60, 1346–1374. [Google Scholar] [CrossRef] [PubMed]
  6. Khan, M.K.; Pandey, A.; Athar, T.; Choudhary, S.; Deval, R.; Gezgin, S.; Hamurcu, M.; Topal, A.; Atmaca, E.; Santos, P.A.; et al. Fusarium head blight in wheat: Contemporary status and molecular approaches. 3Biotech 2020, 10, 172. [Google Scholar] [CrossRef] [PubMed]
  7. Pestka, J.J. Deoxynivalenol: Toxicity, mechanisms and animal health risks. Anim. Feed Sci. Technol. 2007, 137, 283–298. [Google Scholar] [CrossRef]
  8. Pestka, J. Toxicological mechanisms and potential health effects of deoxynivalenol and nivalenol. World Mycotoxin J. 2010, 3, 323–347. [Google Scholar] [CrossRef]
  9. Debouck, C.; Haubruge, E.; Bollaerts, P.; van Bignoot, D.; Brostaux, Y.; Werry, A.; Rooze, M. Skeletal deformities induced by the intraperitoneal administration of deoxynivalenol (vomitoxin) in mice. Int. Orthop. 2001, 25, 194–198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Abdel-Wahhab, M.A.; El-Nekeety, A.A.; Salman, A.S.; Abdel-Aziem, S.H.; Mehaya, F.M.; Hassan, N.S. Protective capabilities of silymarin and inulin nanoparticles against hepatic oxidative stress, genotoxicity and cytotoxicity of Deoxynivalenol in rats. Toxicon 2018, 142, 1–13. [Google Scholar] [CrossRef]
  11. Savard, C.; Gagnon, C.A.; Chorfi, Y. Deoxynivalenol (DON) naturally contaminated feed impairs the immune response induced by porcine reproductive and respiratory syndrome virus (PRRSV) live attenuated vaccine. Vaccine 2015, 33, 3881–3886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Goyarts, T.; Danicke, S. Bioavailability of the Fusarium toxin deoxynivalenol (DON) from naturally contaminated wheat for the pig. Toxicol. Lett. 2006, 163, 171–182. [Google Scholar] [CrossRef] [PubMed]
  13. GB 2761-2017. National Food Safety Standard-Limits of Mycotoxins in Food. National Health and Family Planning Commission of PRC. China Food and Drug: Beijing, China, 2017.
  14. World Health Organization. Evaluation of Certain Mycotoxins in Food; Fifty-Sixth Report of the Joint FAO/WHO Expert Committee on Food Additives 9241209062; World Health Organization: Geneva, Switzerland, 2002; pp. 35–42. [Google Scholar]
  15. Yang, D.; Geng, Z.M.; Yao, J.B.; Zhang, X.; Zhang, P.P.; Ma, H.X. Simultaneous determination of deoxynivalenol, and 15- and 3-acetyldeoxynivalenol in cereals by HPLC-UV detection. World Mycotoxin J. 2013, 6, 117–125. [Google Scholar] [CrossRef]
  16. Lauren, D.R.; Smith, W.A. Stability of the Fusarium mycotoxins nivalenol, deoxynivalenol and zearalenone in ground maize under typical cooking environments. Food Addit. Contam. 2001, 18, 1011–1016. [Google Scholar] [CrossRef]
  17. Abbas, H.; Mirocha, C.; Pawlosky, R.; Pusch, D. Effect of cleaning, milling, and baking on deoxynivalenol in wheat. Appl. Environ. Microbiol. 1985, 50, 482–486. [Google Scholar] [CrossRef] [Green Version]
  18. Yumbe-Guevara, B.E.; Imoto, T.; Yoshizawa, T. Effects of heating procedures on deoxynivalenol, nivalenol and zearalenone levels in naturally contaminated barley and wheat. Food Addit. Contam. 2003, 20, 1132–1140. [Google Scholar] [CrossRef]
  19. Zhang, Q.; Zhang, Y.; Liu, S.; Wu, Y.; Zhou, Q.; Zhang, Y.; Zheng, X.; Han, Y.; Xie, C.; Liu, N. Adsorption of deoxynivalenol by pillared montmorillonite. Food Chem. 2021, 343, 128391. [Google Scholar] [CrossRef]
  20. Kalagatur, N.K.; Kamasani, J.R.; Siddaiah, C.; Gupta, V.K.; Krishna, K.; Mudili, V. Combinational Inhibitory Action of Hedychium spicatum L. Essential Oil and gamma-Radiation on Growth Rate and Mycotoxins Content of Fusarium graminearum in Maize: Response Surface Methodology. Front. Microbiol. 2018, 9, 1511. [Google Scholar] [CrossRef]
  21. Yu, C.; Lu, P.; Liu, S.; Li, Q.; Xu, E.; Gong, J.; Liu, S.; Yang, C. Efficiency of Deoxynivalenol Detoxification by Microencapsulated Sodium Metabisulfite Assessed via an In Vitro Bioassay Based on Intestinal Porcine Epithelial Cells. ACS Omega 2021, 6, 8382–8393. [Google Scholar] [CrossRef]
  22. Wang, L.; Shao, H.; Luo, X.; Wang, R.; Li, Y.; Li, Y.; Luo, Y.; Chen, Z. Effect of Ozone Treatment on Deoxynivalenol and Wheat Quality. PLoS ONE 2016, 11, e0147613. [Google Scholar] [CrossRef]
  23. Yao, Y.; Long, M. The biological detoxification of deoxynivalenol: A review. Food Chem. Toxicol. 2020, 145, 111649. [Google Scholar] [CrossRef] [PubMed]
  24. Franco, T.S.; Garcia, S.; Hirooka, E.Y.; Ono, Y.S.; dos Santos, J.S. Lactic acid bacteria in the inhibition of Fusarium graminearum and deoxynivalenol detoxification. J. Appl. Microbiol. 2011, 111, 739–748. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Yu, Z.; Liu, S.; Li, S.; Ding, K. Isolation and identification of a Penicillium strain degraded deoxynivalenol. Feed Ind. 2015, 36, 42–45. [Google Scholar] [CrossRef]
  26. El-Nezami, H.S.; Chrevatidis, A.; Auriola, S.; Salminen, S.; Mykkanen, H. Removal of common Fusarium toxins in vitro by strains of Lactobacillus and Propionibacterium. Food Addit. Contam. 2002, 19, 680–686. [Google Scholar] [CrossRef] [PubMed]
  27. Gao, X.; Mu, P.; Wen, J.; Sun, Y.; Chen, Q.; Deng, Y. Detoxification of trichothecene mycotoxins by a novel bacterium, Eggerthella sp. DII-9. Food Chem. Toxicol. 2018, 112, 310–319. [Google Scholar] [CrossRef] [PubMed]
  28. Gao, X.; Mu, P.; Zhu, X.; Chen, X.; Tang, S.; Wu, Y.; Miao, X.; Wang, X.; Wen, J.; Deng, Y. Dual Function of a Novel Bacterium, Slackia sp. D-G6: Detoxifying Deoxynivalenol and Producing the Natural Estrogen Analogue, Equol. Toxins 2020, 12, 85. [Google Scholar] [CrossRef] [Green Version]
  29. Wang, Y.; Zhang, H.H.; Zhao, C.; Han, Y.T.; Liu, Y.C.; Zhang, X.L. Isolation and characterization of a novel deoxynivalenol-transforming strain Paradevosia shaoguanensis DDB001 from wheat field soil. Lett. Appl. Microbiol. 2017, 65, 414–422. [Google Scholar] [CrossRef]
  30. Yiannikouris, A.; François, J.; Poughon, L.; Dussap, C.G.; Bertin, G.; Jeminet, G.; Jouany, J.P. Adsorption of Zearalenone by β-d-Glucans in the Saccharomyces cerevisiae Cell Wall. J. Food Prot. 2004, 67, 1195–1200. [Google Scholar] [CrossRef]
  31. Yiannikouris, A.; André, G.; Poughon, L.; François, J.; Dussap, C.G.; Jeminet, G.; Bertin, G.; Jouany, J.P. Chemical and Conformational Study of the Interactions Involved in Mycotoxin Complexation with β-d-Glucans. Biomacromolecules 2006, 7, 1147–1155. [Google Scholar] [CrossRef]
  32. Zhai, Y.; Hu, S.; Zhong, L.; Lu, Z.; Bie, X.; Zhao, H.; Zhang, C.; Lu, F. Characterization of Deoxynivalenol Detoxification by Lactobacillus paracasei LHZ-1 Isolated from Yogurt. J. Food Prot. 2019, 82, 1292–1299. [Google Scholar] [CrossRef]
  33. Adami Ghamsari, F.; Tajabadi Ebrahimi, M.; Bagheri Varzaneh, M.; Iranbakhsh, A.; Akhavan Sepahi, A. In Vitro reduction of mycotoxin deoxynivalenol by organic adsorbent. J. Food Process. Preserv. 2021, 45, e15212. [Google Scholar] [CrossRef]
  34. Niderkorn, V.; Boudra, H.; Morgavi, D.P. Binding of Fusarium mycotoxins by fermentative bacteria in vitro. J. Appl. Microbiol. 2006, 101, 849–856. [Google Scholar] [CrossRef] [PubMed]
  35. Kimura, M.; Kaneko, I.; Komiyama, M.; Takatsuki, A.; Koshino, H.; Yoneyama, K.; Yamaguchi, I. Trichothecene 3-O-acetyltransferase protects both the producing organism and transformed yeast from related mycotoxins. Cloning and characterization of Tri101. J. Biol. Chem. 1998, 273, 1654–1661. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Islam, R.; Zhou, T.; Young, J.C.; Goodwin, P.H.; Pauls, K.P. Aerobic and anaerobic de-epoxydation of mycotoxin deoxynivalenol by bacteria originating from agricultural soil. World J. Microbiol. Biotechnol. 2012, 28, 7–13. [Google Scholar] [CrossRef]
  37. He, W.J.; Yuan, Q.S.; Zhang, Y.B.; Guo, M.W.; Gong, A.D.; Zhang, J.B.; Wu, A.B.; Huang, T.; Qu, B.; Li, H.P.; et al. Aerobic De-Epoxydation of Trichothecene Mycotoxins by a Soil Bacterial Consortium Isolated Using In Situ Soil Enrichment. Toxins 2016, 8, 277. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, G.; Wang, Y.; Ji, F.; Xu, L.; Yu, M.; Shi, J.; Xu, J. Biodegradation of deoxynivalenol and its derivatives by Devosia insulae A16. Food Chem. 2019, 276, 436–442. [Google Scholar] [CrossRef]
  39. He, W.J.; Zhang, L.; Yi, S.Y.; Tang, X.L.; Yuan, Q.S.; Guo, M.W.; Wu, A.B.; Qu, B.; Li, H.P.; Liao, Y.C. An aldo-keto reductase is responsible for Fusarium toxin-degrading activity in a soil Sphingomonas strain. Sci. Rep. 2017, 7, 9549. [Google Scholar] [CrossRef] [Green Version]
  40. Carere, J.; Hassan, Y.I.; Lepp, D.; Zhou, T. The Identification of DepB: An Enzyme Responsible for the Final Detoxification Step in the Deoxynivalenol Epimerization Pathway in Devosia mutans 17-2-E-8. Front. Microbiol. 2018, 9, 1573. [Google Scholar] [CrossRef]
  41. Tian, Y.; Tan, Y.; Liu, N.; Yan, Z.; Liao, Y.; Chen, J.; de Saeger, S.; Yang, H.; Zhang, Q.; Wu, A. Detoxification of Deoxynivalenol via Glycosylation Represents Novel Insights on Antagonistic Activities of Trichoderma when Confronted with Fusarium graminearum. Toxins 2016, 8, 335. [Google Scholar] [CrossRef] [Green Version]
  42. Zhang, J.; Qin, X.; Guo, Y.; Zhang, Q.; Ma, Q.; Ji, C.; Zhao, L. Enzymatic degradation of deoxynivalenol by a novel bacterium, Pelagibacterium halotolerans ANSP101. Food Chem. Toxicol. 2020, 140, 111276. [Google Scholar] [CrossRef]
  43. Yu, H.; Zhou, T.; Gong, J.; Young, C.; Su, X.; Li, X.Z.; Zhu, H.; Tsao, R.; Yang, R. Isolation of deoxynivalenol-transforming bacteria from the chicken intestines using the approach of PCR-DGGE guided microbial selection. BMC Microbiol. 2010, 10, 182. [Google Scholar] [CrossRef] [Green Version]
  44. Li, X.; Shin, S.; Heinen, S.; Dill-Macky, R.; Berthiller, F.; Nersesian, N.; Clemente, T.; McCormick, S.; Muehlbauer, G.J. Transgenic Wheat Expressing a Barley UDP-Glucosyltransferase Detoxifies Deoxynivalenol and Provides High Levels of Resistance to Fusarium graminearum. Mol. Plant. Microbe Interact. 2015, 28, 1237–1246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Garda-Buffon, J.; Kupski, L.; Badiale-Furlong, E. Deoxynivalenol (DON) degradation and peroxidase enzyme activity in submerged fermentation. Food Sci. Technol. 2011, 31, 198–203. [Google Scholar] [CrossRef] [Green Version]
  46. He, J.W.; Hassan, Y.I.; Perilla, N.; Li, X.Z.; Boland, G.J.; Zhou, T. Bacterial Epimerization as a Route for Deoxynivalenol Detoxification: The Influence of Growth and Environmental Conditions. Front. Microbiol. 2016, 7, 572. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Ito, M.; Sato, I.; Ishizaka, M.; Yoshida, S.; Koitabashi, M.; Yoshida, S.; Tsushima, S. Bacterial cytochrome P450 system catabolizing the Fusarium toxin deoxynivalenol. Appl. Environ. Microbiol. 2013, 79, 1619–1628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. He, W.J.; Shi, M.M.; Yang, P.; Huang, T.; Zhao, Y.; Wu, A.B.; Dong, W.B.; Li, H.P.; Zhang, J.B.; Liao, Y.C. A quinone-dependent dehydrogenase and two NADPH-dependent aldo/keto reductases detoxify deoxynivalenol in wheat via epimerization in a Devosia strain. Food Chem. 2020, 321, 126703. [Google Scholar] [CrossRef]
  49. Arnaouteli, S.; Bamford, N.C.; Stanley-Wall, N.R.; Kovacs, A.T. Bacillus subtilis biofilm formation and social interactions. Nat. Rev. Microbiol. 2021, 19, 600–614. [Google Scholar] [CrossRef]
  50. Shao, Y.; Wang, X.Y.; Qiu, X.; Niu, L.L.; Ma, Z.L. Isolation and Purification of a New Bacillus subtilis Strain from Deer Dung with Anti-microbial and Anti-cancer Activities. Curr. Med. Sci. 2021, 41, 832–840. [Google Scholar] [CrossRef]
  51. Tahir, H.A.; Gu, Q.; Wu, H.; Raza, W.; Hanif, A.; Wu, L.; Colman, M.V.; Gao, X. Plant Growth Promotion by Volatile Organic Compounds Produced by Bacillus subtilis SYST2. Front. Microbiol. 2017, 8, 171. [Google Scholar] [CrossRef] [Green Version]
  52. Wang, S.; Hou, Q.; Guo, Q.; Zhang, J.; Sun, Y.; Wei, H.; Shen, L. Isolation and Characterization of a Deoxynivalenol-Degrading Bacterium Bacillus licheniformis YB9 with the Capability of Modulating Intestinal Microbial Flora of Mice. Toxins 2020, 12, 184. [Google Scholar] [CrossRef]
  53. Zhang, C.; Yu, X.; Xu, H.; Cui, G.; Chen, L. Action of Bacillus natto 16 on deoxynivalenol (DON) from wheat flour. J. Appl. Microbiol. 2021, 131, 2317–2324. [Google Scholar] [CrossRef] [PubMed]
  54. Yu, C.; Liu, X.; Zhang, X.; Zhang, M.; Gu, Y.; Ali, Q.; Mohamed, M.S.R.; Xu, J.; Shi, J.; Gao, X.; et al. Mycosubtilin Produced by Bacillus subtilis ATCC6633 Inhibits Growth and Mycotoxin Biosynthesis of Fusarium graminearum and Fusarium verticillioides. Toxins 2021, 13, 791. [Google Scholar] [CrossRef] [PubMed]
  55. Guo, Y.; Huo, X.; Zhao, L.; Ma, Q.; Zhang, J.; Ji, C.; Zhao, L. Protective Effects of Bacillus subtilis ANSB060, Bacillus subtilis ANSB01G, and Devosia sp. ANSB714-Based Mycotoxin Biodegradation Agent on Mice Fed with Naturally moldy Diets. Probiotics Antimicrob. Proteins 2020, 12, 994–1001. [Google Scholar] [CrossRef] [PubMed]
  56. Tan, J.; Yang, S.; Su, H.B.; Wu, Y.D.; Tong, Y. Identification of a Bacillus subtilis Strain With Deoxynivalenol Degradation Ability. Contemp. Chem. Ind. 2018, 47, 548–551. [Google Scholar] [CrossRef]
  57. Jia, R.; Cao, L.; Liu, W.; Shen, Z. Detoxification of deoxynivalenol by Bacillus subtilis ASAG 216 and characterization the degradation process. Eur. Food Res. Technol. 2020, 247, 67–76. [Google Scholar] [CrossRef]
  58. Jia, R.; Sadiq, F.A.; Liu, W.; Cao, L.; Shen, Z. Protective effects of Bacillus subtilis ASAG 216 on growth performance, antioxidant capacity, gut microbiota and tissues residues of weaned piglets fed deoxynivalenol contaminated diets. Food Chem. Toxicol. 2021, 148, 111962. [Google Scholar] [CrossRef]
  59. Yu, Z.H.; Ding, K.; Liu, S.B.; Li, Y.F.; Li, W.; Li, Y.X.; Cao, P.H.; Liu, Y.C.; Sun, E.G. Screening and Identification of a Bacillus cereus Strain Able to Degradate Deoxynivalenol. Food Sci. 2016, 37, 121–125. [Google Scholar] [CrossRef]
  60. Cao, K.; Guan, M.; Chen, K.; Hu, T.; Lin, Y.; Luo, C.P. Screening of Probiotic Bacillus amyloliquefaciens CPLK1314 with Function of Antagonizing Fusarium graminearum and Degrading Vomiting Toxin and its Application in Forage Storing. Jiangsu Agric. Sci. 2019, 8, 179–183. [Google Scholar] [CrossRef]
  61. Liang, H.; Ma, S.W.; Yu, S.Y.; Li, W. Screening, identification and application of DON degrading bacteria. Chin. J. Anim. Sci. 2019, 55, 115–119. [Google Scholar] [CrossRef]
  62. Wang, H.; Sun, S.; Ge, W.; Zhao, L.; Hou, B.; Wang, K.; Lyu, Z.; Chen, L.; Xu, S.; Guo, J.; et al. Horizontal gene transfer of Fhb7 from fungus underlies Fusarium head blight resistance in wheat. Science 2020, 368, eaba5435. [Google Scholar] [CrossRef]
  63. He, P.; Young, L.; Forsberg, C. Microbial transformation of deoxynivalenol (vomitoxin). Appl. Environ. Microbiol. 1992, 58, 3857–3863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Swanson, S.; Rood, H., Jr.; Behrens, J.; Sanders, P. Preparation and characterization of the deepoxy trichothecenes: Deepoxy HT-2, deepoxy T-2 triol, deepoxy T-2 tetraol, deepoxy 15-monoacetoxyscirpenol, and deepoxy scirpentriol. Appl. Environ. Microbiol. 1987, 53, 2821–2826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Li, X.Z.; Zhu, C.; de Lange, C.F.; Zhou, T.; He, J.; Yu, H.; Gong, J.; Young, J.C. Efficacy of detoxification of deoxynivalenol-contaminated corn by Bacillus sp. LS100 in reducing the adverse effects of the mycotoxin on swine growth performance. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2011, 28, 894–901. [Google Scholar] [CrossRef] [PubMed]
  66. Pierron, A.; Mimoun, S.; Murate, L.S.; Loiseau, N.; Lippi, Y.; Bracarense, A.P.; Schatzmayr, G.; He, J.W.; Zhou, T.; Moll, W.D.; et al. Microbial biotransformation of DON: Molecular basis for reduced toxicity. Sci. Rep. 2016, 6, 29105. [Google Scholar] [CrossRef] [Green Version]
  67. Li, P.; Su, R.; Yin, R.; Lai, D.; Wang, M.; Liu, Y.; Zhou, L. Detoxification of Mycotoxins through Biotransformation. Toxins 2020, 12, 121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Feizollahi, E.; Roopesh, M.S. Mechanisms of deoxynivalenol (DON) degradation during different treatments: A review. Crit. Rev. Food Sci. Nutr. 2022, 62, 5903–5924. [Google Scholar] [CrossRef] [PubMed]
  69. Danicke, S.; Hegewald, A.K.; Kahlert, S.; Kluess, J.; Rothkotter, H.J.; Breves, G.; Doll, S. Studies on the toxicity of deoxynivalenol (DON), sodium metabisulfite, DON-sulfonate (DONS) and de-epoxy-DON for porcine peripheral blood mononuclear cells and the Intestinal Porcine Epithelial Cell lines IPEC-1 and IPEC-J2, and on effects of DON and DONS on piglets. Food Chem. Toxicol. 2010, 48, 2154–2162. [Google Scholar] [CrossRef]
  70. Sundstol Eriksen, G.; Pettersson, H.; Lundh, T. Comparative cytotoxicity of deoxynivalenol, nivalenol, their acetylated derivatives and de-epoxy metabolites. Food Chem. Toxicol. 2004, 42, 619–624. [Google Scholar] [CrossRef]
  71. Bracarense, A.; Pierron, A.; Pinton, P.; Gerez, J.R.; Schatzmayr, G.; Moll, W.D.; Zhou, T.; Oswald, I.P. Reduced toxicity of 3-epi-deoxynivalenol and de-epoxy-deoxynivalenol through deoxynivalenol bacterial biotransformation: In vivo analysis in piglets. Food Chem. Toxicol. 2020, 140, 111241. [Google Scholar] [CrossRef]
  72. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  73. Tamura, K.; Nei, M.; Kumar, S. Prospects for inferring very large phylogenies by using the neighbor-joining method. Proc. Natl. Acad. Sci. USA 2004, 101, 11030–11035. [Google Scholar] [CrossRef] [PubMed]
Toxins 14 00781 g001 550

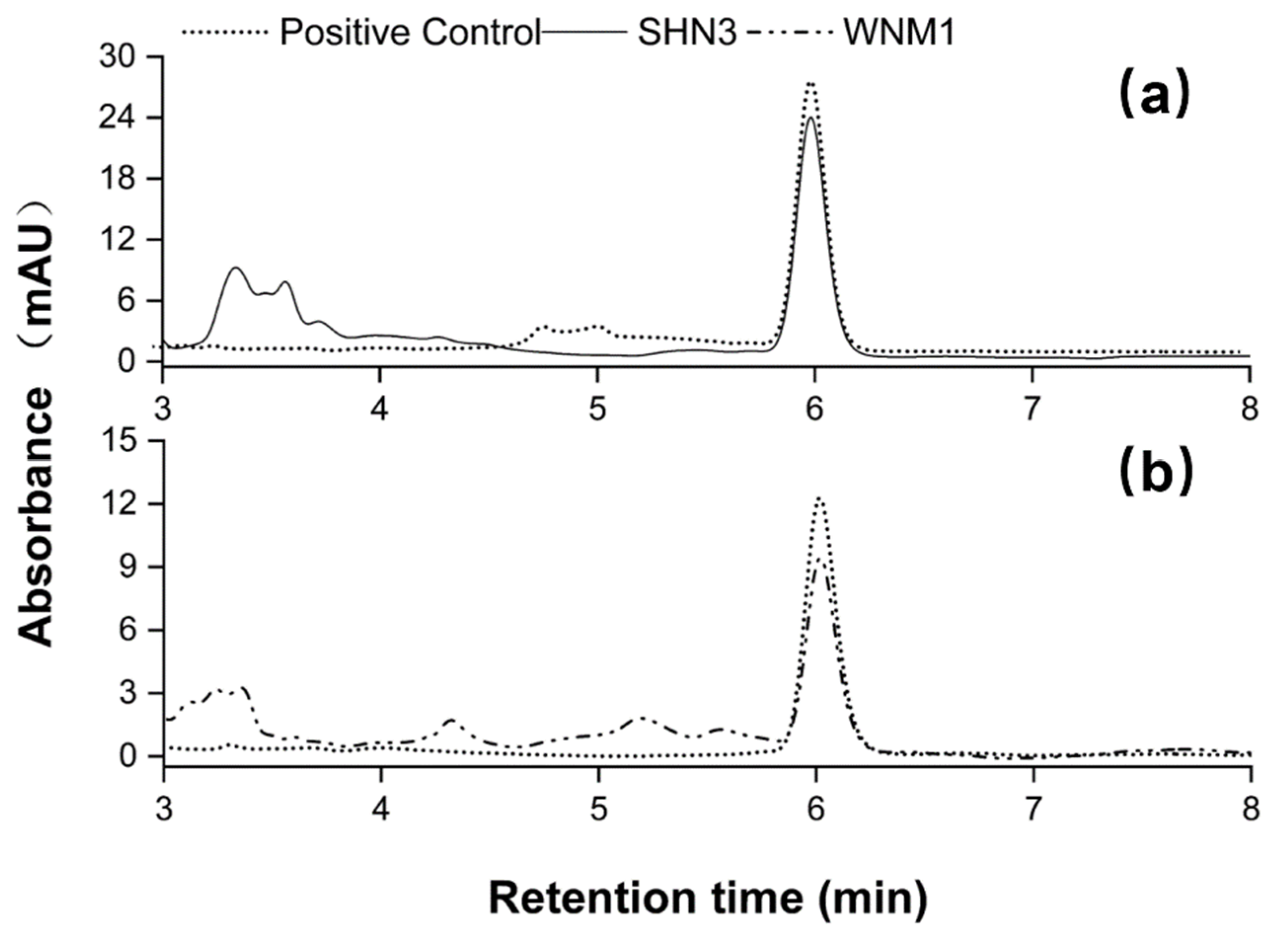

Figure 1. HPLC profiles of DON degradation by SHN3 (a) and WNM1 (b). Positive control represents MM medium supplemented with DON but without inoculation; SHN3 and WNM1 indicate MM medium supplemented with DON and inoculated with SHN3 and WNM1 strains separately.
Figure 1. HPLC profiles of DON degradation by SHN3 (a) and WNM1 (b). Positive control represents MM medium supplemented with DON but without inoculation; SHN3 and WNM1 indicate MM medium supplemented with DON and inoculated with SHN3 and WNM1 strains separately.
Toxins 14 00781 g001
Toxins 14 00781 g002 550

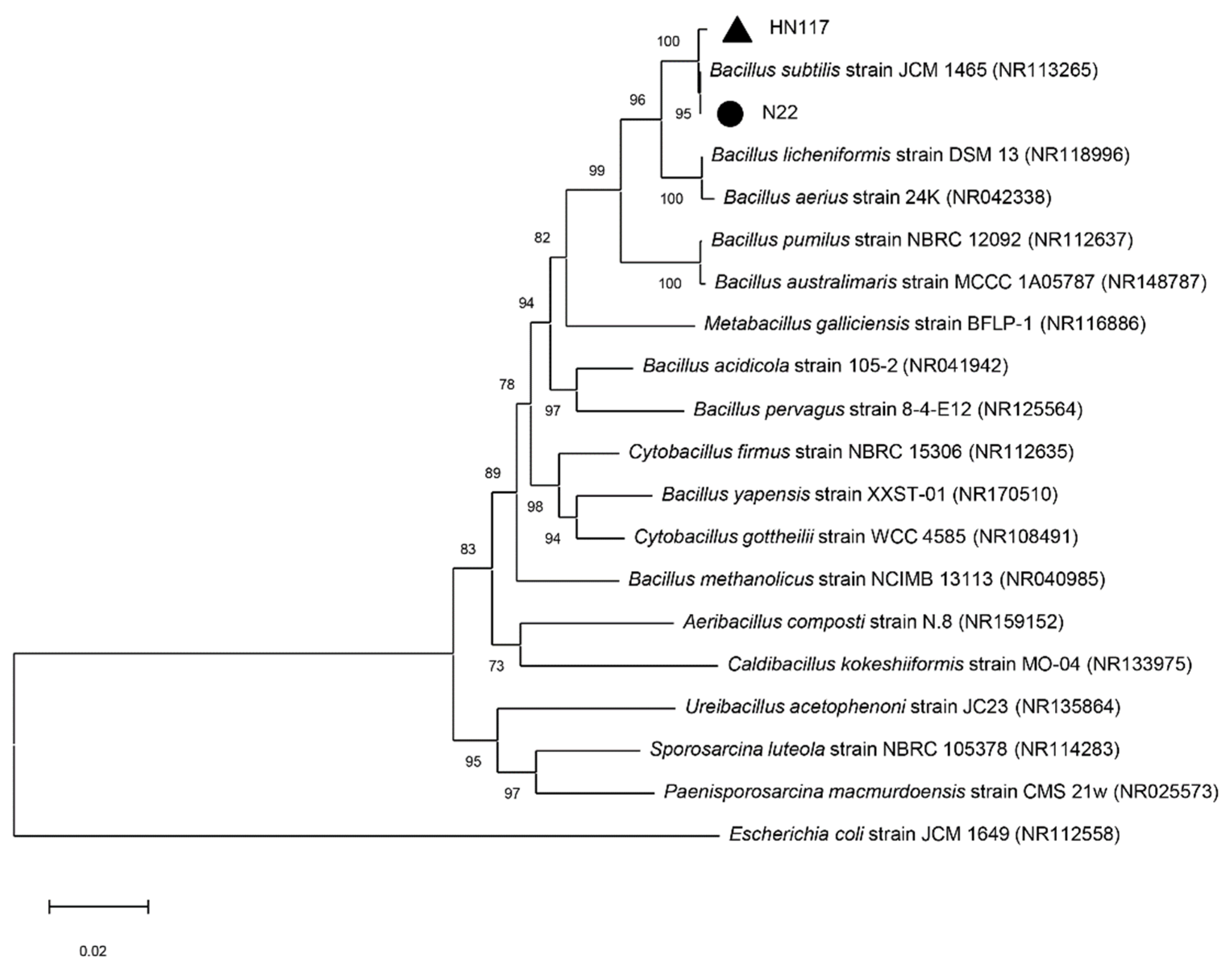

Figure 2. The neighbor-joining phylogenetic tree of Bacillus sp. HN117 and N22 was constructed based on their 16S rRNA gene sequences. Bootstrap values are shown at the branch points based on 1000 re-samplings. The scale bar represents the number of substitutions per site.
Figure 2. The neighbor-joining phylogenetic tree of Bacillus sp. HN117 and N22 was constructed based on their 16S rRNA gene sequences. Bootstrap values are shown at the branch points based on 1000 re-samplings. The scale bar represents the number of substitutions per site.
Toxins 14 00781 g002
Toxins 14 00781 g003 550

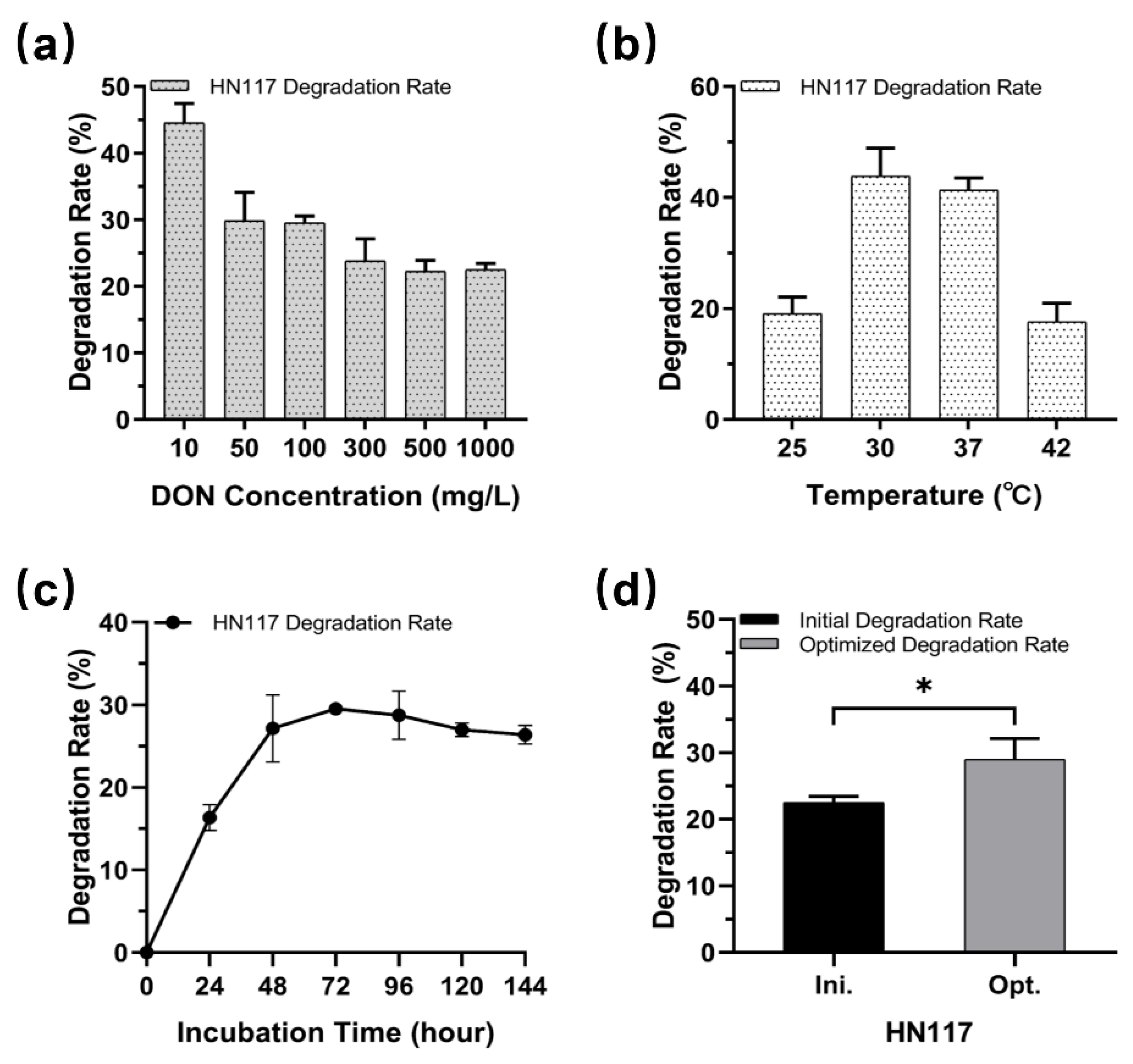

Figure 3. Optimization of DON degradation conditions of HN117 and testing the effects on its DON degradation rate. (a) The DON degradation rates of HN117 in different DON concentrations; (b) The DON degradation rates of HN117 at different temperatures; (c) The DON degradation rates of HN117 at different incubation times. (d) Comparison of the DON degradation rates of HN117 under initial and optimized conditions. The black bar shows the initial degradation rate, and the grey bar represents the degradation rate under optimized conditions. t-test between two groups was analyzed by GraphPad Prism 8.0.2, *: p < 0.05.
Figure 3. Optimization of DON degradation conditions of HN117 and testing the effects on its DON degradation rate. (a) The DON degradation rates of HN117 in different DON concentrations; (b) The DON degradation rates of HN117 at different temperatures; (c) The DON degradation rates of HN117 at different incubation times. (d) Comparison of the DON degradation rates of HN117 under initial and optimized conditions. The black bar shows the initial degradation rate, and the grey bar represents the degradation rate under optimized conditions. t-test between two groups was analyzed by GraphPad Prism 8.0.2, *: p < 0.05.
Toxins 14 00781 g003
Toxins 14 00781 g004 550
Figure 4. Optimization of DON degradation conditions of N22 and testing the effects on its DON degradation rate. (a) The DON degradation rates of N22 in different DON concentrations; (b) The DON degradation rates of N22 at different temperatures; (c) The DON degradation rates of N22 at different incubation times. (d) Comparison of the DON degradation rates of N22 under initial and optimized conditions. The white bar shows the initial degradation rate, and the grey bar represents the degradation rate under optimized conditions. t-test between two groups was analyzed by GraphPad Prism 8.0.2, ***: p < 0.001.
Figure 4. Optimization of DON degradation conditions of N22 and testing the effects on its DON degradation rate. (a) The DON degradation rates of N22 in different DON concentrations; (b) The DON degradation rates of N22 at different temperatures; (c) The DON degradation rates of N22 at different incubation times. (d) Comparison of the DON degradation rates of N22 under initial and optimized conditions. The white bar shows the initial degradation rate, and the grey bar represents the degradation rate under optimized conditions. t-test between two groups was analyzed by GraphPad Prism 8.0.2, ***: p < 0.001.
Toxins 14 00781 g004
Toxins 14 00781 g005 550

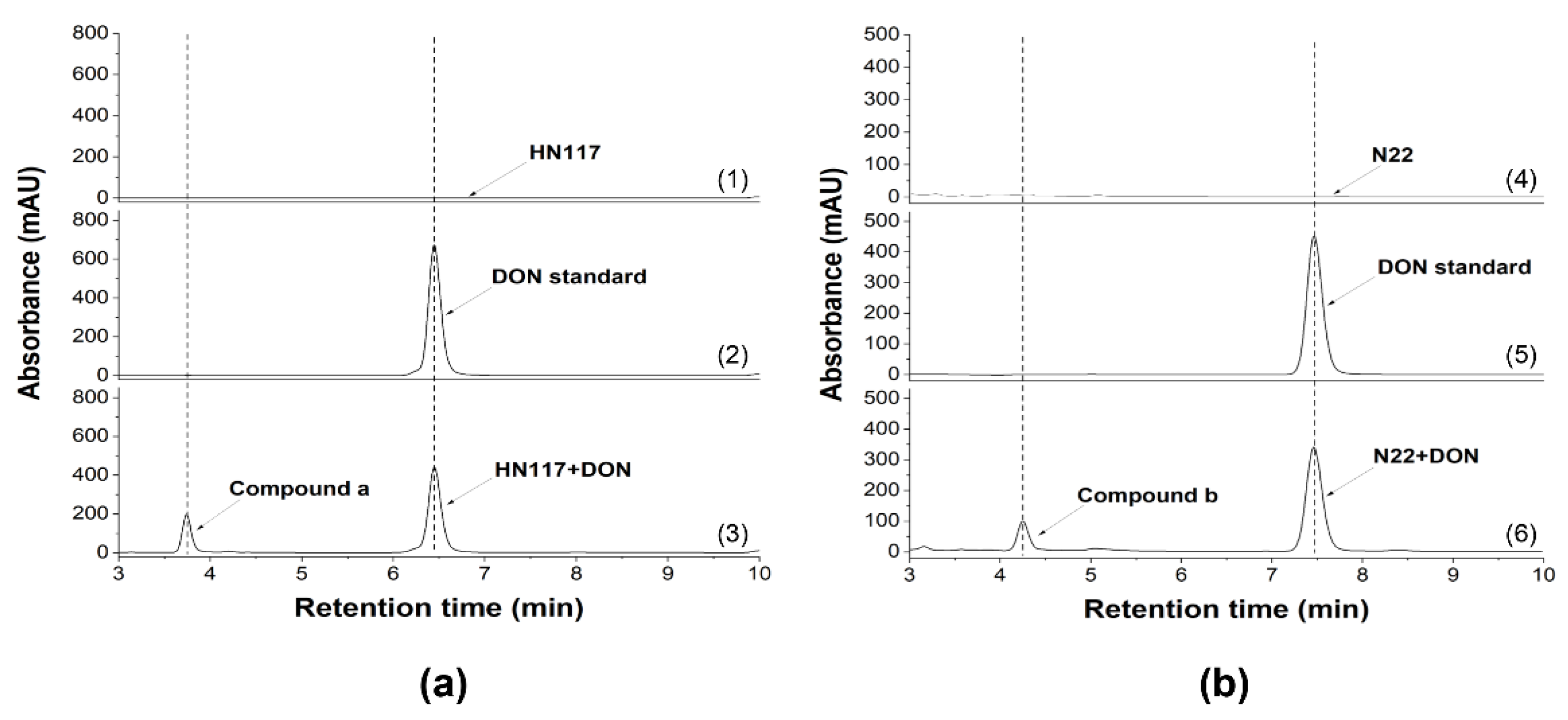

Figure 5. Scale-up bioconversion of DON by HN117 (a) and N22 (b) (1) MM medium inoculated with HN117; (2) MM medium supplemented with 1000 mg/L DON; (3) MM medium inoculated with HN117 and supplemented with 1000 mg/L DON; a new peak was identified at 3.73 min; (4) MM medium inoculated with N22; (5) MM medium supplemented with 500 mg/L DON, (6) MM medium inoculated with N22 and supplemented with 500 mg/L DON; a new peak was identified at 4.25 min.
Figure 5. Scale-up bioconversion of DON by HN117 (a) and N22 (b) (1) MM medium inoculated with HN117; (2) MM medium supplemented with 1000 mg/L DON; (3) MM medium inoculated with HN117 and supplemented with 1000 mg/L DON; a new peak was identified at 3.73 min; (4) MM medium inoculated with N22; (5) MM medium supplemented with 500 mg/L DON, (6) MM medium inoculated with N22 and supplemented with 500 mg/L DON; a new peak was identified at 4.25 min.
Toxins 14 00781 g005
Toxins 14 00781 g006 550

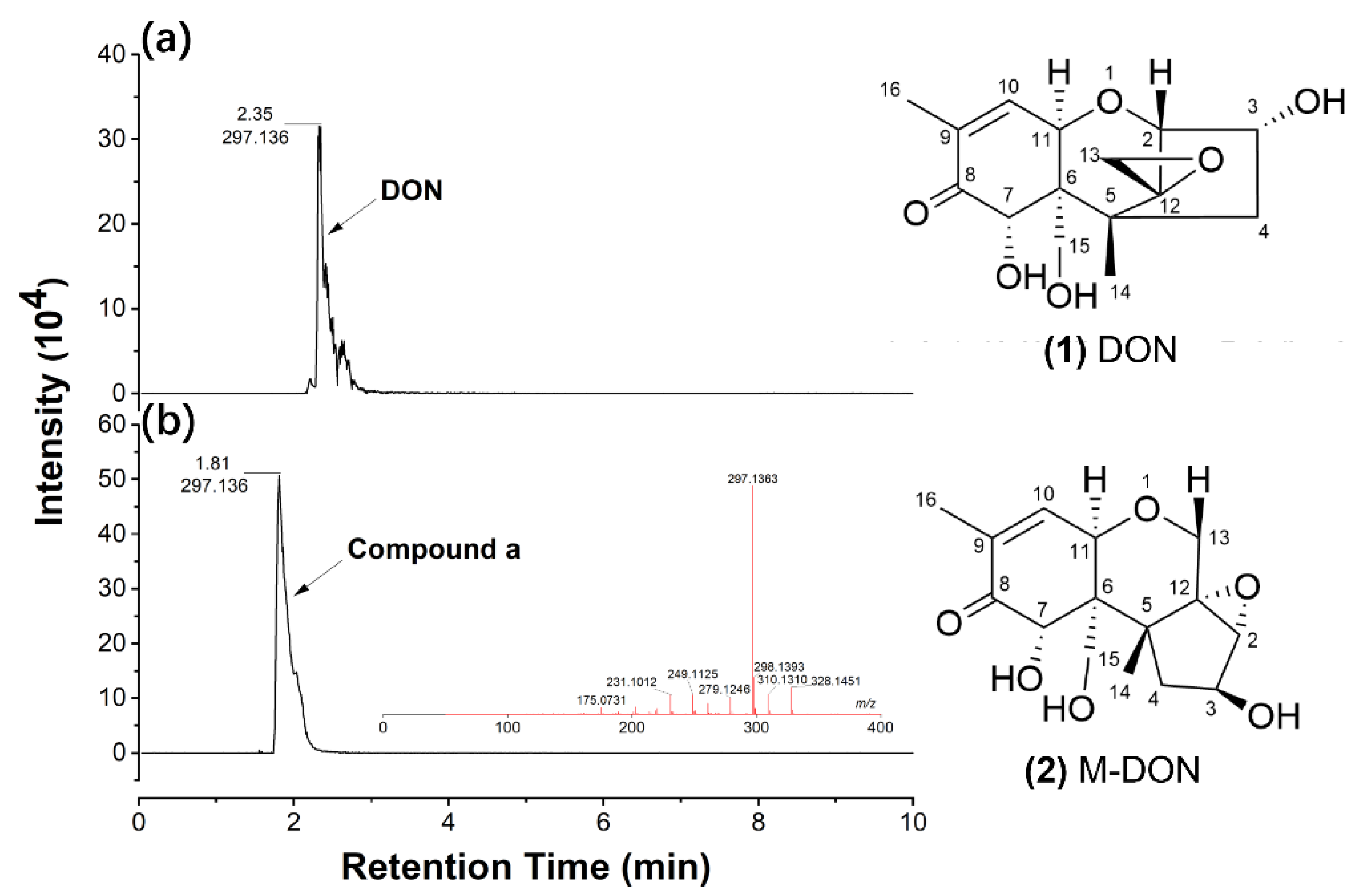

Figure 6. The profiles of high-resolution UPLC-MS of compound a. (a) The UPLC peak of DON was found at 2.35 min; (b) The UPLC peak of compound a appeared at 1.81min, the inserted picture shows the mass spectrum of compound a. (1) Structure of DON; (2) The deduced structure of compound a (M-DON).
Figure 6. The profiles of high-resolution UPLC-MS of compound a. (a) The UPLC peak of DON was found at 2.35 min; (b) The UPLC peak of compound a appeared at 1.81min, the inserted picture shows the mass spectrum of compound a. (1) Structure of DON; (2) The deduced structure of compound a (M-DON).
Toxins 14 00781 g006
Toxins 14 00781 g007 550
Figure 7. The profiles of high-resolution UPLC-MS of components of compound b. (a) The UPLC peak of compound b1 was identified at 2.32 min, the inserted picture shows mass spectrum of compound b1; (b) The UPLC peak of compound b2 was detected at 2.50 min, the inserted picture shows mass spectrum of compound b2. (3) Structure of norDON E; (4) Structure of 9-hydroxymethyl DON lactone.
Figure 7. The profiles of high-resolution UPLC-MS of components of compound b. (a) The UPLC peak of compound b1 was identified at 2.32 min, the inserted picture shows mass spectrum of compound b1; (b) The UPLC peak of compound b2 was detected at 2.50 min, the inserted picture shows mass spectrum of compound b2. (3) Structure of norDON E; (4) Structure of 9-hydroxymethyl DON lactone.
Toxins 14 00781 g007
Toxins 14 00781 g008 550
Figure 8. Putative mechanism of converting DON to M-DON.
Figure 8. Putative mechanism of converting DON to M-DON.
Toxins 14 00781 g008
Toxins 14 00781 g009 550

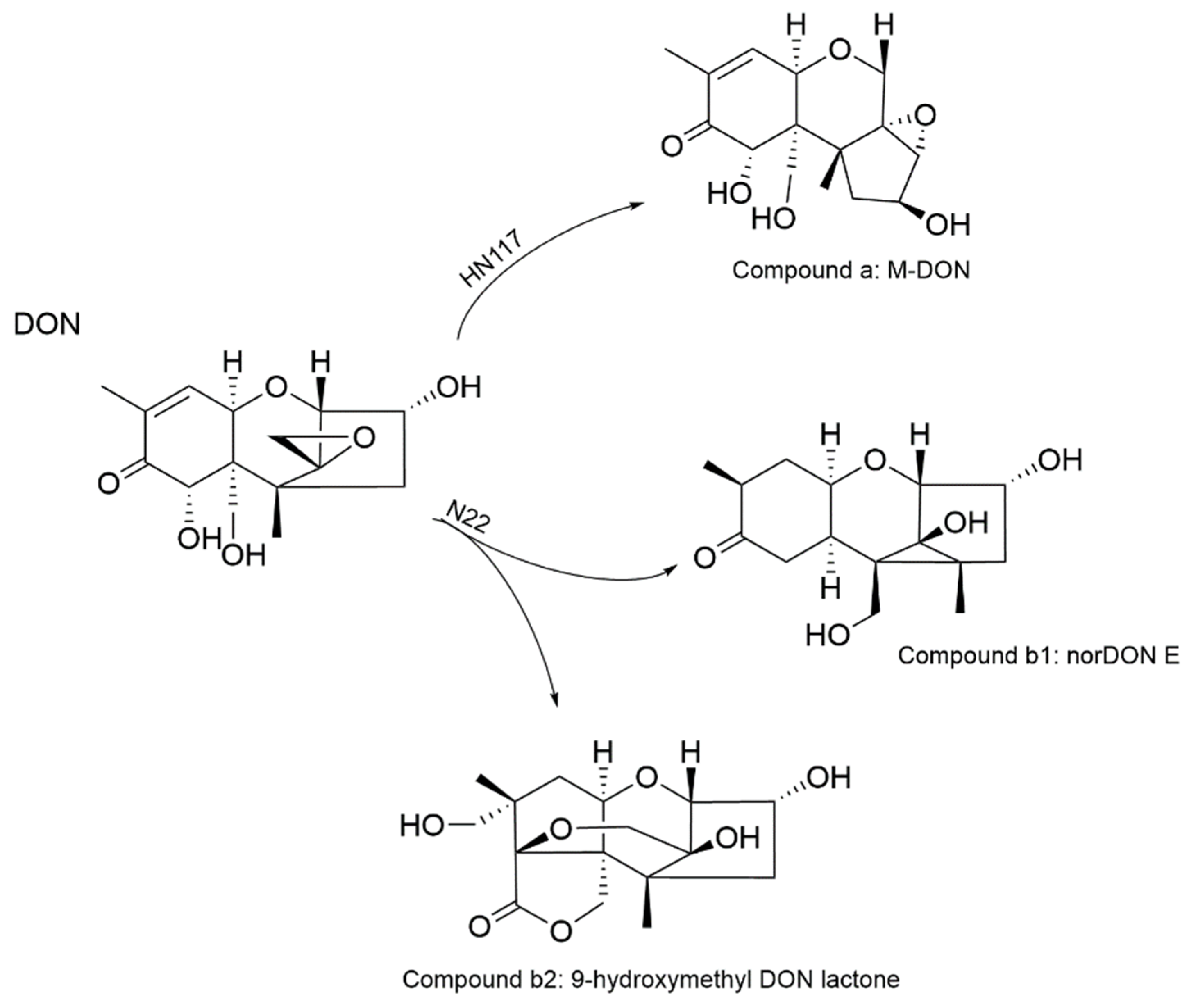

Figure 9. Tentative structures of degradation products of DON by Bacillus sp. HN117 and N22.
Figure 9. Tentative structures of degradation products of DON by Bacillus sp. HN117 and N22.
Toxins 14 00781 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, B.; Duan, J.; Ren, J.; Francis, F.; Li, G. Isolation and Characterization of Two New Deoxynivalenol-Degrading Strains, Bacillus sp. HN117 and Bacillus sp. N22. Toxins 2022, 14, 781. https://doi.org/10.3390/toxins14110781

AMA Style

Li B, Duan J, Ren J, Francis F, Li G. Isolation and Characterization of Two New Deoxynivalenol-Degrading Strains, Bacillus sp. HN117 and Bacillus sp. N22. Toxins. 2022; 14(11):781. https://doi.org/10.3390/toxins14110781

Chicago/Turabian Style

Li, Beibei, Jiaqi Duan, Jie Ren, Frédéric Francis, and Guangyue Li. 2022. "Isolation and Characterization of Two New Deoxynivalenol-Degrading Strains, Bacillus sp. HN117 and Bacillus sp. N22" Toxins 14, no. 11: 781. https://doi.org/10.3390/toxins14110781

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
