Mycotoxin Profile and Phylogeny of Pathogenic Alternaria Species Isolated from Symptomatic Tomato Plants in Lebanon

by
Wassim Habib
1,2,†,
Mario Masiello
3,*,†,
Romy El Ghorayeb
2,
Elvis Gerges
1,
Antonia Susca
3,
Giuseppe Meca
4,
Juan M. Quiles
4,
Antonio F. Logrieco
3 and
Antonio Moretti
3
1
Laboratory of Mycology, Department of Plant Protection, Lebanese Agricultural Research Institute, P.O. Box 90-1965, 1202 Fanar, Lebanon
2
Department of Nutrition and Food Sciences, Faculty of Arts and Sciences, Holy Spirit University of Kaslik, P.O. Box 446, 1200 Jounieh, Lebanon
3
Institute of Science of Food Production—ISPA, Research National Council—CNR, Via Amendola, 122/O, 70126 Bari, Italy
4
Department of Preventive Medicine, Nutrition and Food Science Area, University of Valencia, Avenida Vicent Andres Estelles s/n, 46100 Valencia, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxins 2021, 13(8), 513; https://doi.org/10.3390/toxins13080513
Submission received: 1 July 2021 / Revised: 16 July 2021 / Accepted: 20 July 2021 / Published: 22 July 2021
(This article belongs to the Special Issue Phytotoxins and Mycotoxins: Two Different Sides of the Same Coin - the Memory of Prof. Antonio Bottalico)
Browse Figures
Versions Notes

Abstract

:
The tomato is one of the most consumed agri-food products in Lebanon. Several fungal pathogens, including Alternaria species, can infect tomato plants during the whole growing cycle. Alternaria infections cause severe production and economic losses in field and during storage. In addition, Alternaria species represent a serious toxicological risk since they are able to produce a wide range of mycotoxins, associated with different toxic activities on human and animal health. Several Alternaria species were detected on tomatoes, among which the most important are A. solani, A. alternata, and A. arborescens. A set of 49 Alternaria strains isolated from leaves and stems of diseased tomato plants were characterised by using a polyphasic approach. All strains were included in the recently defined phylogenetic Alternaria section and grouped in three well-separated sub-clades, namely A. alternata (24 out of 49), A. arborescens (12 out of 49), and A. mali morpho-species (12 out of 49). One strain showed high genetic similarity with an A. limoniasperae reference strain. Chemical analyses showed that most of the Alternaria strains, cultured on rice, were able to produce alternariol (AOH), alternariol methyl ether (AME), altenuene (ALT) and tenuazonic acid (TA), with values up to 5634, 16,006, 5156, and 4507 mg kg−1, respectively. In addition, 66% of the strains were able to co-produce simultaneously the four mycotoxins investigated. The pathogenicity test carried out on 10 Alternaria strains, representative of phylogenetic sub-clades, revealed that they were all pathogenic on tomato fruits. No significant difference among strains was observed, although A. alternata and A. arborescens strains were slightly more aggressive than A. mali morpho-species strains. This paper reports new insights on mycotoxin profiles, genetic variability, and pathogenicity of Alternaria species on tomatoes.
Keywords:
multilocus gene sequencing; toxigenic fungi; Alternaria alternata; Alternaria arborescens; Alternaria mali morpho-species
Key Contribution: We studied a set of Alternaria strains isolated from tomato plants in Lebanon. The polyphasic approach used in this study showed that all strains belonged to the recently defined Alternaria section and that A. solani species was not detected in all samples. Pathogenicity tests and mycotoxin analyses revealed that Alternaria contamination represents both a phytopathological issue and a potential toxicological risk for human consumption. The capability of Alternaria strains to produce mycotoxins in field conditions and the capability of mycotoxins to translocate from leaves or stems to tomato fruits needs to be further investigated.

1. Introduction

The tomato is one of the most important agricultural crops produced and consumed in Lebanon. Grown on about 3800 hectares, in open fields or in greenhouses, after potato the tomato is considered the second biggest agro-food crop in terms of production and consumption, with a volume of about 300,000 tons [1]. Almost all tomato production is consumed in Lebanon, and about 5000 tons per year are exported to the Arab gulf countries.
The tomato is highly susceptible to several fungal pathogens, especially necrotrophic agents such as Alternaria species [2,3], which are the causal agents of early blight, a destructive disease that compromises the yield [4].
Alternaria is a ubiquitous fungal genus that includes endophytic, saprophytic and pathogenic species commonly found in soil, air, food commodities, and on decaying plant tissues [5]. As plant pathogens, Alternaria species have been reported on important crops, including cereals, oil crops, ornamentals, vegetables and fruits [5,6]. Alternaria survives as mycelium or conidia on decaying plant debris for a long time, or as a latent infection in seeds [7]. Moreover, weakened or wounded tissues are more prone to being colonised by Alternaria species [7,8].
Several Alternaria species have been reported on tomato plants and fruits. In particular, A. solani is considered the most important pathogen associated with early blight disease of tomato and potato plants [9,10], whereas A. arborescens and A. alternata are considered to be the most important species associated with stem canker and black spots of tomato fruits [11,12,13]. Moreover, other Alternaria species have been reported to be isolated from symptomatic tomato plants or fruits, such as A. brassicicola, A. tenuissima, A. consortialis, A. linariae, and A. grandis [14,15,16]. Nevertheless, the pathogenic impact of A. alternata on tomatoes is controversially discussed, since some researchers considered both A. solani and A. alternata as causal agents of early blight disease [9], whereas others reported that A. alternata is only a secondary invader [10,17].
Based primarily on morphological characters, Simmons organised the genus complexity of Alternaria by launching a species–group concept, and identified more than 270 Alternaria morpho-species [18,19]. Recently, severe taxonomic studies, based on the analyses of informative genes, including the major allergen alt-a1 (alt-a1), glyceraldehyde-3-phosphate dehydrogenase (gpd), translation elongation factor (tef), and calmodulin allowed the redefinition of Alternaria species into 27 phylogenetic sections [20,21]. All small-spored Alternaria species, such as A. alternata, A. arborescens, and A. tenuissima, were grouped together in the Alternaria section, in addition to several other species, all synonymised with A. alternata species, considered as type species [22]. Conversely, the large-spored A. solani was included in section Porri [22,23,24,25,26], while recently a new section, named Omanenses, has been proposed [27]. The importance of well-defined species boundaries in this genus is also related to the high capability of several Alternaria species to produce mycotoxins and define a species–specific risk profile [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28].
Indeed, the occurrence of Alternaria species on tomatoes is often associated with the production of mycotoxins in the fruit, which can be dangerous to human health [29,30,31]. Several studies reported that the accumulation of these mycotoxins in agri-food products is influenced by several environmental conditions that affect both the pre-harvest mould development and the consequent mycotoxin production [32,33]. Alternaria species produce several toxic metabolites, such as alternariol (AOH), alternariol methyl ether (AME), altertoxin-I (AT-I), altertoxin-II (AT-II) and tenuazonic acid (TA) [5,13,29,34,35,36,37]. Wang et al. [34] reported AAL-toxin produced by A. arborescens [11] as phytotoxic compounds responsible for the apoptosis of tomato cells by inhibiting ceramide biosynthesis [38]. Studies have shown that TA was responsible for some changes in the oesophageal mucosa of mice [39], and was reported as a cytotoxic, phytotoxic, antitumoral, antiviral, antibiotic and antibacterial compound [40]. Furthermore, AT-I was identified as toxic in mice and mutagenic to mammalian cell lines [41], and AOH and AME were identified as genotoxic and mutagenic, with immune modulating effects [42]. In addition, more recently, Huybrechts et al. [43] associated Alternaria mycotoxins to colon rectal cancer in humans.
Despite the widespread occurrence of early blight on tomatoes in Lebanon, no data are currently available on the population of Alternaria species occurring on tomatoes. Therefore, in order to evaluate the Alternaria mycotoxin risk and achieve knowledge for improving the disease management strategy and increasing the quality of the production, this work aimed to: (a) identify the main Alternaria species causing early blight of tomatoes in Lebanon and establish their phylogenetic relationships by using a multilocus sequence approach; (b) define their mycotoxin profiles; (c) assess their pathogenicity on the tomato fruits.

2. Results

2.1. Phylogenetic Analysis

The sequences of each gene were aligned and cut at the ends to analyse a common fragment for all of the strains. In particular, for the alt-a1 gene a fragment of about 440 nucleotides (nt) was considered; for the gpd gene a fragment of 510 nt, for the calmodulin gene a fragment of 750 nt, and for the β-tubulin gene a fragment of 500 nt. All genes were very informative for discriminating between Alternaria species, although alt-a1 and calmodulin genes showed the highest degree of variability.
The final sequence alignment of the combined dataset comprising 67 taxa included 49 Alternaria strains isolated from tomatoes, 17 Alternaria reference sequences and one strain of Stemphylium isolated also from tomatoes (Altern1357) as the outgroup taxon (Figure 1). The phylogenetic analysis of the concatenated sequences of the four fragments (alt-a1, gpd, calmodulin and β-tubulin genes) resulted in a phylogenetic tree that allowed us to discriminate between three well-separated clades, supported by high bootstrap values (>90), corresponding to Section Alternaria, Section Porri and Section Brassicicola.
All field strains grouped with the Alternaria reference sequences of the species belonged to the Alternaria section (Figure 1). In detail, 25 strains (sub-clade A1) grouped with A. alternata, A. turkisafria, and A. tenuissima species, showed a high homology with references and among themselves (Figure 1). The Alternaria strain Altern1350 clustered with the A. limoniasperae reference sequence (Figure 1). In the Alternaria section, a sub-clade (sub-clade A2) of 12 field strains clustered with the A. arborescens reference strain. In particular, three strains (Altern1364, Altern1368, and Altern1359) were very close to the reference (Figure 1). In this sub-group, a high variability was observed. In particular, the strains Altern1354, Altern1355 and Altern1358, were similar among them, and further away from A. arborescens reference strains, due to an insertion of 8 nt in the Calmodulin fragment. In the sub-clade A3, including A. longipes, A. tangelonis, A. citriarbusti, A. mali reference strains, one strain (Altern1367) was very close to A. citriarbusti; 11 strains, showing high homology among them, were closely related to both A. mali and A. citriarbusti references but did not cluster with any reference strain.

2.2. Mycotoxin Production

Thirty-five Alternaria strains were selected as representative of the three phylogenetic sub-clades (Figure 1) to evaluate their capacity to produce AME, AOH, ALT, and TA. The mycotoxin production of each strain and the mean values of each Alternaria phylogenetic sub-clade are reported in Table 1. The majority of the strains tested produced AOH (94.3%), AME (94.3%), and ALT (91.4%), whereas TA was produced by 68.6% of the strains tested. In addition, as a reason of particular concern, 65.7% of the strains were able to co-produce simultaneously the four mycotoxins investigated.
In the A. alternata group (sub-clade A1), with the exception of the Alternaria strain Altern1360, that produced only TA (2035 mg kg−1), all strains were able to produce simultaneously AOH, AME, and ALT with mean values of 1422, 4576, and 1498 mg kg−1, respectively. However, the mycotoxin quantities produced were dramatically variable for all mycotoxins, ranging between 26 and 4567, 20 and 15,070, and 1 and 5156 mg kg−1, for AOH, AME, and ALT, respectively (Table 1). These data showed a high intraspecific variability within this group. Tenuazonic acid was produced by 10 out of 16 strains included in this group, with values very variable, ranging between 145 and 4442 mg kg−1, with a mean value of 1890 mg kg−1. The strain Altern1350, showing a high phylogenetic homology with the A. limoniasperae bmp2335 strain, produced a low quantity of AME (102 mg kg−1) and ALT (4 mg kg−1).
All of the strains belonging to sub-clade A2, assigned to A. arborescens species-group, with the exception of Altern1354 that produced only AOH (3501 mg kg−1), were able to produce the mycotoxins analysed. As observed in sub-clade A1, the quantity of mycotoxins was very variable, ranging between 27 and 5634 mg kg−1 (mean value 2075) for AOH, between 25 and 16,006 mg kg−1 (mean value 4761) for AME, between 28 and 1560 mg kg−1 (mean value 529) for ALT, and between 75 and 3777 mg kg−1 (mean value 1290) for TA.
With regard to Alternaria strains included in the sub-clade A3, all strains were able to produce AOH and AME, with values ranging between 92 and 2367 mg kg-1 (mean value 802) and between 23 and 10,998 mg kg−1 (mean value 5967), respectively. For ALT and TA production, only one out of six strains (Altern1344) and two out of six (Altern1342, Altern1344), were not producers.
Among the four mycotoxins, AME was the highest mycotoxin produced in all phylogenetic groups, with values up to 16,006 mg kg−1 (A. arborescens Altern1349 strain) and ranging from 20 to 16,006 mg kg−1. Tenuazonic acid was the least mycotoxin produced, since 37% of A. alternata strains, 16% of A. arborescens strains, and 33% of A. mali morpho-species strains did not produce it (Table 1).

2.3. Pathogenicity Test

The pathogenicity test on Grappe Randala tomato cultivar revealed that Alternaria representative strains of each sub-clade are all pathogenic on tomato fruits (Figure 2). During the first week of evaluation, the lesions caused by the Alternaria strains phylogenetically grouped in A. mali sub-clade (sub-clade A3) were slightly larger than lesions caused by Alternaria strains grouped in A. alternata and A. arborescens sub-clades (Figure 2). However, after 14 days, A. alternata and A. arborescens species produced larger lesions (34.3 mm and 34.7 mm, respectively) than the A. mali morpho-species (30.7 mm). Nevertheless, no significant difference between the strains of each sub-clade was observed.

3. Discussion

Alternaria is an economically important fungal genus able to colonise a wide range of crops, including cereals, fruits and vegetables [44]. Severe Alternaria infections cause both economic losses for producers and health risk for consumers, due to the accumulation of toxic metabolites in agri-food products [45]. Several Alternaria species, such as A. solani, A. alternata, A. arborescens, and A. tenuissima have been reported worldwide as causal agents of important tomato diseases, as early blight or leaf spot diseases [8,46]. Tomato plants can be colonised by Alternaria species during the whole growth cycle, with damage to leaves, stems and fruits. In particular, at fruit growth time, environmental conditions suitable for Alternaria infections can cause severe yield losses [47,48,49].
For a long time, the most important concern of phytopathogenic Alternaria species was the yield and economic losses in pre- and post-harvest conditions. In the last years, more emphasis has been posed on the mycotoxigenic risk of Alternaria species, since several studies have shown the haemato-toxic, genotoxic, and mutagenic activities of the most important Alternaria mycotoxins: AOH, AME, and TA [41,42,45]. In addition, the investigations carried out worldwide on the mycotoxin profile at a species level have provided information widely used as a chemotaxonomic approach along the genus. Indeed, chemotaxonomy has been considered a highly useful tool to be integrated in a poly-phasic approach for defining species boundaries in Alternaria [21,28,50,51]. Therefore, in the present study, a set of representative Alternaria strains, isolated from tomato plants grown in greenhouses in Lebanon, were characterized by using a polyphasic approach aimed at evaluating the genetic, chemical and pathogenic differences among Alternaria species detected on tomatoes. The phylogenetic relationship among Alternaria strains was evaluated based on the sequence analyses of four informative genes, gpd, alt-a1, calmodulin, and β-tubulin [21,24]. All Alternaria strains were genetically grouped in the recently defined Alternaria section [22], in which 35 small-spore morphological Alternaria species were all synonymised with A. alternata species based on phylogenetic studies [22].
Alternaria alternata was the most frequently detected species, with a frequency of around 50%. Similar results were previously reported in studies carried out in other countries, such as Egypt [52], Algeria [15], and Russia [16]. However, in Russian regions, A. alternata was detected alone or in a complex with A. infectoria and A. solani, which represented 30% of the strains detected [16]. In this study, 25% of the field strains were identified as A. arborescens. Since these strains were isolated from leaves and stems showing Alternaria symptoms, the importance of the role of A. arborescens species as a cause of stem canker in tomatoes in Lebanon has been confirmed.
A group of 12 Alternaria strains (25%), genetically very close to A. citriarbusti and A.mali reference strains, were for the first time isolated from infected tomato tissues. In the last years, genetic investigations have allowed the detection of A. mali morpho-species on different crops, including wheat [53,54], and Cakile maritima, a spontaneous halophyte plant growing on Tunisian sandy coasts [55]. Surprisingly, no A. solani strain was detected in Lebanon, although this Alternaria species has been reported worldwide as the most predominant pathogen associated with solanaceous plants, such as potatoes and tomatoes [9,10].
We investigated the capability of Alternaria strains isolated from leaves and stems of tomato plants to colonise fruits. Indeed, in addition to the phytopathogenic role of Alternaria species, nowadays the most important concern is the toxicological risk of Alternaria mycotoxins and their accumulation on fruits and vegetable-based products. All tested Alternaria representative strains, belonging to the three phylogenetic sub-clades, showed a great capability to colonise fruits. Pathogenicity tests carried out in this study showed that the level of aggressiveness of all Alternaria strains showed a similar degree of pathogenicity, with no significant differences between the species. However, A. alternata and A. arborescens species seemed more capable of infecting tomato fruits, suggesting that these two species are more prone to colonising them. Wenderoth et al. [56] showed a strict correlation between AOH production and the capability of A. alternata strains to colonise tomatoes, apples and citrus fruits, supporting the role of AOH as a virulence factor [57,58]. The results of our pathogenicity assay can corroborate this role, since all strains tested, all producing AOH in vitro conditions, were able to colonize tomato tissues.
The potential capacity of Alternaria strains to produce mycotoxins has also been evaluated. Almost all strains were able to synthesise the four mycotoxins tested (TA, AME, ALT and AOH), although a great quantitative variability in their production was observed. This is due to both inter- and intra-species differences, as well as to the peculiar conditions required by each species for the optimal production. A great variability to produce mycotoxin has been observed, although almost all strains were able to produce mycotoxins. Alternariol monomethyl ether was the most dominantly produced toxin (up to 16006 mg kg−1), since all Alternaria tested strains, except a single A. alternata strain and a single A. arborescens strain, were able to synthetise this mycotoxin. The toxic effects of this mycotoxin could be emphasised by the occurrence of sulphate and glucoside conjugate forms that Alternaria strains were showed to produce when cultured on tomatoes [59]. Tenuazonic acid, reported as the most produced mycotoxin by Alternaria species [52,60] was produced by around 70% of the Alternaria strains, with a dramatic variability of production levels (up to 4507 mg kg−1). In addition, the co-production of TA, AME, ALT and AOH by most of the strains should be taken into account, since the toxicological risk caused by possible additive and/or synergistic effects on target organisms could be exacerbated [61]. These values are higher than those found naturally in tomatoes (mg/kg vs. ug/kg) due to both ideal conditions of temperature and humidity used, and inoculated substrate that trigger the optimal synthesis of the mycotoxins targeted. Indeed, when grown in vivo on autoclaved rice, in which no mechanical barriers occur and many of the grain defences, that are thermolabile, have been suppressed, the strains could synthesize mycotoxins, providing a sort of ontological risk evaluation.
The identification of a set of Alternaria strains, using a polyphasic approach, can provide useful knowledge on the Alternaria population affecting tomato plants in the most important Lebanese areas allocated to solanaceous crops. Alternaria alternata and A. arborescens were the most dominant species detected, both showing a strict association with the destructive tomato disease in Lebanon. In addition, the great capability of these strains to produce mycotoxins poses evidence of the potential toxicological risk of tomato-based products, largely consumed worldwide. Finally, these results will be functional in developing integrated strategies for disease management and breeding programs to reduce Alternaria infection on tomatoes and highlight that the mycotoxin profile of Alternaria species associated with tomato disease can greatly vary according with geographical areas, likely due to the continuous changes of environmental conditions.

4. Materials and Methods

4.1. Tomato Sampling and Fungal Isolation

Samples of leaves and stems showing characteristic symptoms of early blight were collected during the 2017 crop season from tomato plants, grown under greenhouses, in the four most important Lebanese tomato producing areas: Metn (6 samples), Jbeil (48 samples), North District (26 samples), and Chouf (11 samples). After a surface-disinfection with 2% sodium hypochlorite solution for 2 min, 70% ethanol for 30 s, and two washings with sterile distilled water for 1 min, portions of tomato plant shoots were dried on sterile filter paper in a laminar flow cabinet. Small pieces (2 × 2 mm) were then placed on potato dextrose agar (PDA, Laboratorios Conda S.A., Madrid, Spain) amended with 0.10 g L−1 streptomycin sulphate salt and 0.05 g L−1 neomycin. Petri dishes were incubated for 5 days at 25 ± 1 °C under an alternating light/darkness cycle of a 12 h photoperiod. Alternaria colonies originating from tomato tissues were selected to obtain mono-conidial cultures [62]. A set of 49 representative Alternaria strains (Metn: 3 strains; Jbeil: 24 strains; North District: 15 strains; Chouf: 7 strains), together with one outgroup Stemphylium strain (ALT-1357) were selected for phylogenetic and mycotoxin profile analyses.

4.2. DNA Extraction

Genomic DNA was extracted and purified, according to Murray and Thompson [63], from two-day-old colonies grown at 25 ± 1 °C on cellophane disks overlaid on PDA. Briefly, mycelium was collected by scraping the cellophane, powdered under liquid nitrogen and added with 600 μL of CTAB buffer (100 mM Tris-Cl, pH 8.0; 1.4 M NaCl; 20 mM EDTA, pH 8.0; 2% cetyldimethylethylammonium bromide (w/v); 0.2% β-mercaptoethanol (v/v)). The samples were frozen and de-frozen three times using liquid nitrogen and a water bath at 75 °C, and then incubated at 75 °C for 1 h. Following the use of 1 volume chloroform, the clear supernatant was transferred to a new tube and precipitated with 2 volumes of isopropanol at –80 °C per 30 min. The samples were then centrifuged at 14,000 rpm for 15 min, and the nucleic acid pellet was washed with cold 70% ethanol stored at −20 °C, air-dried, and dissolved in TE (10 mM Tris-Cl; 1 mM EDTA, pH 8). The suspension was then added with 0.1 μg μL−1 DNase-free pancreatic RNase (Sigma-Aldrich, Milan, Italy) and incubated for 2 h at 37 °C, precipitated by the addition of 0.6 volume of 5 M ammonium acetate and 2 volumes of cold absolute ethanol. The final DNA pellet, washed with 70% ethanol and air-dried, was dissolved in nuclease free water and stored at –80 °C until use. Quantity and integrity of DNA were checked with Thermo-Scientific Nanodrop (LabX, Midland, ON, Canada), and on 0.8% agarose gel, by electrophoretic separation, using a standard 1 kb DNA Ladder (Invitrogen, Thermo Fisher Scientific, Carlsbad, CA, USA).

4.3. PCR Amplification

For each Alternaria strain, four informative target genes, allergen alt 1a (alt-a1), glyceraldeyde-3-phosphate dehydrogenase (gpd), calmodulin (calm), and β-tubulin (tub), were amplified with the primer pairs alt-for/alt-rev [64], gpd1/gpd2 [65], CALDF1/CALDR1 [24], and T1/T2 [66,67], respectively.
Amplification of alt-a1 gene was performed using a Takara (Takara Bio Inc., Otsu, Shiga, Japan) kit in mixture with 1× Takara PCR Buffer, 0.075 μL of Hot Master Taq DNA Polymerase (1 U/μL), 0.3 μL of dNTPs (10 mM), 0.45 µM of each primer and 15 ng of DNA template. Amplification of gpd genes was performed using GoTaq G2 Colorless Master Mix (Promega Corporation, Madison, WI, USA) in mixture with a final concentration of 1× ready Master Mix, 2 mM MgCl2, 0.4 µM of each primer, and 25 ng of DNA template. Calmodulin and tub genes were amplified using 50 ng of DNA template, 0.45 µL of each primer (10 mM), 0.3 µL of dNTPs (10 mM), and 0.075 µL of Hot Master Taq DNA Polymerase (1 U/µL; 5 Prime).
Amplifications were carried out in the GeneAmp PCR System 9700 thermal cycler (Applied Biosystems, Foster City, CA, USA). The PCR reactions for alt-a1, gpd, and tub were carried out by using thermal cycler parameters reported by Somma et al. [21]. To amplify the calm gene, thermal cycler parameters were: initial denaturation for 4 min at 95°C followed by 35 cycles of 95 °C for 30 s, 58.5 °C for 30 s, 72 °C for 60 s, and a final extension for 5 min at 72 °C. For each reaction, a no-template control was included to ascertain the absence of contamination. The PCR products, stained with GelRed® (GelRed® Nucleic Acid Gel Stain, 10,000X, Biotium Inc., Fremont, CA, USA) were visualised with UV after electrophoretic separation in 1× TAE buffer, on 1.5% agarose gel and sized by comparison with 100 bp DNA Ladder (Invitrogen, Thermo Fisher Scientific, Carlsbad, CA, US).

4.4. Sequencing and Phylogenetic Analysis

Each PCR product was purified with the enzymatic mixture Exo/FastAP (Exonuclease I, FastAP thermosensitive alkaline phosphatase, Thermo Fisher Scientific, Vilnius, Lithuania) and then sequenced with a Big Dye Terminator Cycle Sequencing Ready Reaction Kit (Applied Biosystems, Foster City, CA, USA), according to the manufacturer’s recommendations for both strands of each gene. The fragments were purified by filtration through Sephadex G-50 (5%) (Sigma-Aldrich, Saint Louis, MO, USA) and sequenced in an “ABI PRISM 3730 Genetic Analyzer” (Applied Biosystems, Foster City, CA, USA). Partial sequences were assembled using the BioNumerics v. 5.1 software (Applied Maths, Inc., Austin, TX, USA). A phylogenetic tree of concatenated gene sequences was generated by using maximum a likelihood statistical method and bootstrap analysis (1000 replicates, removing gaps) with MEGA7 [68].
Gene sequences of the reference strains A. alternata E.G.S.34.016, A. tenuissima E.G.S.34.015, A. arborescens E.G.S.39.128, A. brassicicola ATCC96836, A. capsici BMP0180, A. carthami BMP1963, A. citriarbusti BMP2343, A. crassa BMP0172, A. limoniasperae BMP2335, A. longipes BMP0313, A. macrospora BMP1949, A. mali BMP3064, A. solani BMP0185, A. tagetica BMP0179, A. tangelonis BMP2327, A. tomotophila BMP2032, and A. turkisafria BMP3436 were downloaded from the National Center for Biotechnology Information (NCBI) and “Alternaria Genomes Database” (AGD) and included in the phylogenetic analysis.
Sequences derived in this study were deposited in the GenBank database (Supplemental Table S1).

4.5. Mycotoxin Production and Analysis

Thirty-five Alternaria strains selected as representative of the population were inoculated, using three small plugs from 1-week-old colonies, on 30 g of autoclaved rice with 40% moisture in 250 mL of flasks [69]. Flasks were incubated for 21 days at 25 °C in darkness, and then the samples were finely ground with an Oster Classic grinder (220–240 V, 50/60 Hz, 600 W; Madrid, Spain).
The method used for mycotoxin extraction was based on that described by Rubert et al. [70], with some modifications. Briefly, 5 g of each ground sample was transferred into a 50 mL plastic tube containing 25 mL of methanol. The extraction was carried out using an Ultra Ika T18 basic Ultra-turrax, Ika, (Staufen, Germany), for 3 min at 1000 rpm. The extract was centrifuged at 4000× rpm for 5 min at 5 °C. One millilitre of the supernatant was filtered through a 0.22 µm nylon filter and diluted before injection into high performance liquid chromatography associated with a diode array detector (LC-DAD). Tenuazonic acid, AME and AOH standards were provided by SIGMA Chemical Company (St. Louis, MO, USA). Altenuene standard was provided by ChemCruz (Dallas, TX, USA). The method used for mycotoxin analysis was based on that described by Myresiotis et al. [71], with some modifications. Tenuazonic acid, AME, ALT and TA were determined using Merk HPLC with a LC-DAD L-7455 (Merk, Darmstadt, Germany) at 256 nm and a Hitachi Software Model D-7000 version 4.0 ((Merck KGaA, Darmstadt, Germania) was used for data analysis. A Gemini C18 column (Phenomenex, Torrance, CA, USA) 4.6 × 150 mm, 3 µm particle size was used as the stationary phase. The mobile phase consisted of two eluents, namely eluent A (water with 50 µL/L trifluoroacetic acid) and eluent B (acetonitrile with 50 µL/L trifluoroacetic acid). A gradient program with a constant flow rate of 1 mL/min was used, starting with 90% A and 10% B, reaching 50% B after 15 min and 100% B after 20 min. Then, 100% B was maintained for 1 min. Thereafter, the gradient was returned to 10% B in 1 min and allowed to equilibrate for 3 min before the next analysis [71].
This analytical method was validated by calculating, for each mycotoxin analysed, linearity, recovery, repeatability, reproducibility, limits of detection (LOD), limits of quantification (LOQ), and matrix effect. Linearity was evaluated using paired matrix calibrations in triplicate at concentrations between 5 and 500 μg kg−1. All of the mycotoxins showed good linearity in the working range, with resolution determination coefficients (R2) greater than 0.9922. LODs and LOQs were calculated by analysing blank samples enriched with the standard mycotoxins. These two parameters were assessed as the lowest concentration of the evaluated mycotoxins that gave a chromatographic peak at a signal-to-noise ratio (S/N) of 3 and 10 for LOD and LOQ, respectively. The recovery value was carried out in triplicate for three consecutive days using three addition levels: LOQ, 2 × LOQ, and 10 × LOQ. To calculate the matrix effect (ME), the calibration slope from the matrix calibration curve was divided by the slope of the standard calibration curve and multiplied by 100. All of these results are shown in Table 2.
In particular, LOD and LOQ of the method used were of 0.01 and 0.1 mg kg−1, respectively.

4.6. Pathogenicity Test

The pathogenicity test for a set of 10 previously identified isolates, selected as representative of the phylogenetic groups, was carried out on six-week-old plants of ‘Grappe Randala’ tomato cultivar grown in the experimental greenhouse of the agricultural research station of the Holy Spirit University of Kaslik, located in Hboub, Jbeil. In detail, a conidial suspension was prepared for each isolate by gently scrapping the surface of a 10-day-old culture grown on PDA using a bacteriological loop after adding sterile distilled water containing Tween 20 (0.05%), and then filtered on glass fibre and diluted to a final concentration of 106 spores mL−1. For each isolate, 10 fruits growing on two plants were inoculated by placing 2 µL of the suspension on an injury artificially made by the tip of a sterile blade. A negative control was conducted by inoculating 10 fruits with sterile distilled water containing Tween 20 (0.05%). The pathogenicity of the isolates was determined by measuring the diameter of the observed lesions each three to four days for a period of two weeks.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/toxins13080513/s1, Table S1: GenBank accession numbers of Alternaria strain sequences obtained in the present study.

Author Contributions

Conceptualisation, W.H., M.M. and A.M.; data curation, W.H., M.M. and R.E.G.; formal analysis, W.H., M.M., R.E.G., E.G., A.S. and J.M.Q.; funding acquisition, A.F.L.; investigation, W.H., M.M., R.E.G., E.G., A.S., G.M., J.M.Q. and A.M.; methodology, W.H., M.M., A.S. and G.M.; project administration, A.F.L. and A.M.; supervision, A.M.; validation, W.H., M.M., A.S. and G.M.; visualisation, W.H., M.M. and A.M.; writing—original draft, W.H., M.M., R.E.G., A.S., G.M. and A.M.; writing—review & editing, W.H., M.M., A.S., A.F.L. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in “Habib, W.; Masiello, M.; El Ghorayeb, R.; Gerges, E.; Susca, A.; Meca, G.; Quiles, J.M.; Logrieco, A.F.; Moretti, A. Mycotoxin Profile and Phylogeny of Pathogenic Alternaria Species Isolated from Symptomatic Tomato Plants in Lebanon. Toxins 2021, 13, x. https://doi.org/10.3390/xxxxx”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Food and Agriculture Organization Statistics Division (FAOSTAT). Available online: www.fao.org/faostat (accessed on 13 June 2021).
  2. Prusky, D.; Eshel, D.; Kobiler, I.; Yakoby, N.; Beno-Moualem, D.; Ackerman, M.; Zuthji, Y.; Ben Arie, R. Postharvest chlorine treatments for the control of the persimmon black spot disease caused by Alternaria alternata. Postharvest Biol. Technol. 2001, 22, 271–277. [Google Scholar] [CrossRef]
  3. Smith, J.E.; Mengesha, B.; Tang, H.; Mengiste, T.; Bluhm, B.H. Resistance to Botrytis cinerea in Solanum lycopersicoides involves widespread transcriptional reprogramming. BMC Genom. 2014, 15, 1–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Derbalah, A.; Shenashen, M.; Hamza, A.; Mohamed, A.; El Safty, S. Antifungal activity of fabricated mesoporous silica nanoparticles against early blight of tomato. Egypt. J. Basic Appl. Sci. 2018, 5, 145–150. [Google Scholar] [CrossRef] [Green Version]
  5. Logrieco, A.F.; Moretti, A.; Solfrizzo, M. Alternaria toxins and plant diseases: An overview of origin, occurrence and risks. World Mycotoxin J. 2009, 2, 129–140. [Google Scholar] [CrossRef]
  6. Mamgain, A.; Roychowdhury, R.; Tah, J. Alternaria pathogenicity and its strategic controls. Res. J. Biol. 2013, 1, 1–9. [Google Scholar]
  7. Rotem, J. The Genus Alternaria: Biology, Epidemiology and Pathogenicity; APS Press: St. Paul, MN, USA, 1994. [Google Scholar]
  8. Pegg, G.S.; Giblin, F.R.; McTaggart, A.; Guymer, G.P.; Taylor, H.; Ireland, K.; Shivas, R.G.; Perry, S. Puccinia psidiiin Queensland, Australia: Disease symptoms, distribution and impact. Plant Pathol. 2013, 63, 1005–1021. [Google Scholar] [CrossRef] [Green Version]
  9. Chaerani, R.; Voorrips, R.E. Tomato early blight (Alternaria solani): The pathogen, genetics, and breeding for resistance. J. Gen. Plant Pathol. 2006, 72, 335–347. [Google Scholar] [CrossRef]
  10. Stammler, G.; Bohme, F.; Philippi, J.; Miessner, S.; Tegge, V. Pathogenicity of Alternaria species on potatoes and tomatoes. Fourteenth Euroblight Workshop PPO Spec. Rep. 2014, 16, 85–96. [Google Scholar]
  11. Caldas, E.; Jones, A.D.; Ward, B.; Winter, C.K.; Gilchrist, D.G. Structural characterization of three new AAL toxins produced by Alternaria alternata f. sp. lycopersici. J. Agric. Food Chem. 1994, 42, 327–333. [Google Scholar] [CrossRef]
  12. Soleimani, M.; Esmailzadeh, M.; Rouhani, H. Exogenous Applications of Salicylic Acid for Inducing Systemic Acquired Resistance Against Tomato Stem Canker Disease. J. Biol. Sci. 2008, 8, 1039–1044. [Google Scholar] [CrossRef] [Green Version]
  13. Somma, S.; Pose, G.; Pardo, A.; Mulè, G.; Pinto, V.F.; Moretti, A.; Logrieco, A.F. AFLP variability, toxin production, and pathogenicity of Alternaria species from Argentinean tomato fruits and puree. Int. J. Food Microbiol. 2011, 145, 414–419. [Google Scholar] [CrossRef] [PubMed]
  14. Rodrigues, T.; Berbee, M.; Simmons, E.; Cardoso, C.; Reis, A.; Maffia, L.; Mizubuti, E. First report of Alternaria tomatophila and A. grandis causing early blight on tomato and potato in Brazil. New Dis. Rep. 2010, 22, 28. [Google Scholar] [CrossRef] [Green Version]
  15. Bessadat, N.; Berruyer, R.; Hamon, B.; Kihal, M.; Henni, D.E.; Simoneau, P.; Bataille-Simoneau, N.; Benichou, S. Alternaria species associated with early blight epidemics on tomato and other Solanaceae crops in northwestern Algeria. Eur. J. Plant Pathol. 2016, 148, 181–197. [Google Scholar] [CrossRef] [Green Version]
  16. Kokaeva, L.Y.; Belosokhov, A.F.; Doeva, L.Y.; Skolotneva, E.S.; Elansky, S.N. Distribution of Alternaria species on blighted potato and tomato leaves in Russia. J. Plant Dis. Prot. 2017, 125, 1–8. [Google Scholar] [CrossRef]
  17. Turkensteen, J.; Spoelder, J.; Mulder, A. Will the real Alternaria stand up please—Experiences with Alternaria-like diseases on potatoes during the 2009 season in the Netherlands. In PPO-Special Report no. 14. DLO Foundation; Schepers, H.T.A.M., Ed.; DLO Foundation: Wageningen, The Netherlands, 2010; pp. 165–170. [Google Scholar]
  18. Simmons, E.G. Alternaria taxonomy: Current status, viewpoint, challenge. In Alternaria Biology, Plant Diseases and Metabolites; Chelkowski, J., Visconti, A., Eds.; Elsevier Science Publishers: Amsterdam, The Netherlands, 1992; pp. 1–35. [Google Scholar]
  19. Simmons, E.G. Alternaria: An. Identification Manual; CBS Fungal Biodiversity Centre: Utrecht, The Netherlands, 2007. [Google Scholar]
  20. Lawrence, D.P.; Rotondo, F.; Gannibal, P.B. Biodiversity and taxonomy of the pleomorphic genus Alternaria. Mycol. Prog. 2015, 15, 1–22. [Google Scholar] [CrossRef]
  21. Somma, S.; Amatulli, M.T.; Masiello, M.; Moretti, A.; Logrieco, A.F. Alternaria species associated to wheat black point identified through a multilocus sequence approach. Int. J. Food Microbiol. 2019, 293, 34–43. [Google Scholar] [CrossRef]
  22. Woudenberg, J.; Seidl, M.F.; Groenewald, J.; de Vries, M.; Stielow, J.; Thomma, B.; Crous, P. Alternaria section Alternaria: Species, formae speciales or pathotypes? Stud. Mycol. 2015, 82, 1–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Lawrence, D.P.; Gannibal, P.B.; Dugan, F.M.; Pryor, B.M. Characterization of Alternaria isolates from the infectoria species-group and a new taxon from Arrhenatherum, Pseudoalternaria arrhenatheria sp. nov. Mycol. Prog. 2013, 13, 257–276. [Google Scholar] [CrossRef]
  24. Lawrence, D.P.; Gannibal, P.; Peever, T.L.; Pryor, B.M. The sections of Alternaria: Formalizing species-group concepts. Mycologia 2013, 105, 530–546. [Google Scholar] [CrossRef] [Green Version]
  25. Lawrence, D.P.; Park, M.S.; Pryor, B.M. Nimbya and Embellisia revisited, with nov. comb for Alternaria celosiae and A. perpunctulata. Mycol. Prog. 2011, 11, 799–815. [Google Scholar] [CrossRef]
  26. Woudenberg, J.H.C.; Groenewald, J.Z.; Binder, M.; Crous, P.W. Alternaria redefined. Stud. Mycol. 2013, 75, 171–212. [Google Scholar] [CrossRef] [Green Version]
  27. Al Ghafri, A.; Maharachchikumbura, S.S.N.; Hyde, K.D.; Al-Saady, N.A.; Al-Sadi, A.M. A new section and a new species of Alternaria encountered from Oman. Phytotaxa 2019, 405, 279–289. [Google Scholar] [CrossRef]
  28. Patriarca, A.; Cabral, L.D.C.; Pavicich, M.A.; Nielsen, K.F.; Andersen, B. Secondary metabolite profiles of small-spored Alternaria support the new phylogenetic organization of the genus. Int. J. Food Microbiol. 2019, 291, 135–143. [Google Scholar] [CrossRef]
  29. Hasan, H.A.H. Alternaria toxins in black rot lesion of tomato fruit: Conditions and regulation of their production. Mycopathologia 1995, 130, 171–177. [Google Scholar] [CrossRef]
  30. Pitt, J.I.; Hocking, A.D. Fungi and Food Spoilage, 2nd ed.; Blackie Academic and Professional: London, UK, 1997. [Google Scholar]
  31. Van de Perre, E.; Deschuyffeleer, N.; Jacxsens, L.; Vekeman, F.; Van Der Hauwaert, W.; Asam, S.; Rychlik, M.; Devlieghere, F.; De Meulenaer, B. Screening of moulds and mycotoxins in tomatoes, bell peppers, onions, soft red fruits and derived tomato products. Food Control 2014, 37, 165–170. [Google Scholar] [CrossRef]
  32. Rosenzweig, C.I.A.; Yang, X.; Epstein, P.R.; Chivian, E. Climate change and extreme weather events: Implications for food production, plant diseases and pests. Glob. Chang. Hum. Health 2001, 2, 90–104. [Google Scholar] [CrossRef]
  33. Magan, N.; Medina-Vaya, A.; Aldred, D. Possible climate-change effects on mycotoxin contamination of food crops pre- and postharvest. Plant Pathol. 2011, 60, 150–163. [Google Scholar] [CrossRef]
  34. Wang, W.; Jones, C.; Ciacci-Zanella, J.; Holt, T.; Gilchrist, D.G.; Dickman, M.B. Fumonisins and Alternaria alternata lycopersici toxins: Sphinganine analog mycotoxinsinduce apoptosis in monkey kidney cells. Proc. Natl. Acad. Sci. USA 1996, 93, 3461–3465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Thomma, B.P.H.J. Alternaria spp.: From general saprophyte to specific parasite. Mol. Plant. Pathol. 2003, 4, 225–236. [Google Scholar] [CrossRef] [PubMed]
  36. Andersen, B.; Frisvad, J. Natural Occurrence of Fungi and Fungal Metabolites in Moldy Tomatoes. J. Agric. Food Chem. 2004, 52, 7507–7513. [Google Scholar] [CrossRef] [PubMed]
  37. Logrieco, A.; Bottalico, A.; Mulè, G.; Moretti, A.; Perrone, G. Epidemiology of Toxigenic Fungi and Their Associated Mycotoxins for Some Mediterranean Crops; Springer: Dordrecht, The Netherlands, 2003; pp. 645–667. [Google Scholar] [CrossRef]
  38. Yamagishi, D.; Akamatsu, H.; Otani, H.; Kodama, M. Pathological evaluation of host-specific AAL-toxins and fumonisin mycotoxins produced by Alternaria and Fusarium species. J. Gen. Plant. Pathol. 2006, 72, 323–327. [Google Scholar] [CrossRef]
  39. Yekeler, H.; Bitmiş, K.; Ozçelik, N.; Doymaz, M.Z.; Çalta, M. Analysis of Toxic Effects of Alternaria Toxins on Esophagus of Mice by Light and Electron Microscopy. Toxicol. Pathol. 2001, 29, 492–497. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Asam, S.; Habler, K.; Rychlik, M. Determination of tenuazonic acid in human urine by means of a stable isotope dilution assay. Anal. Bioanal. Chem. 2013, 405, 4149–4158. [Google Scholar] [CrossRef] [Green Version]
  41. Ostrý, V. Alternaria mycotoxins: An overview of chemical characterization, producers, toxicity, analysis and occurrence in foodstuffs. World Mycotoxin J. 2008, 1, 175–188. [Google Scholar] [CrossRef]
  42. Solhaug, A.; Wisbech, C.; Christoffersen, T.E.; Hult, L.; Lea, T.; Eriksen, G.S.; Holme, J.A. The mycotoxin alternariol induces DNA damage and modify macrophage phenotype and inflammatory responses. Toxicol. Lett. 2015, 239, 9–21. [Google Scholar] [CrossRef] [Green Version]
  43. Huybrechts, I.; De Ruyck, K.; De Saeger, S.; De Boevre, M. Uniting large-scale databeses to unravel the impact of chronic multi-mycotoxins exposures on colorectal cancer incidence in Europe. In Proceedings of the 2nd MycoKey International Conference, Wuhan, China, 16–18 September 2018; China Agricultural Science and Technology Press: Beijing, China, 2018; pp. 181–183. [Google Scholar]
  44. Patriarca, A. Alternaria in food products. Curr. Opin. Food Sci. 2016, 11, 1–9. [Google Scholar] [CrossRef]
  45. Cabral, L.D.C.; Terminiello, L.; Pinto, V.F.; Nielsen, K.F.; Patriarca, A. Natural occurrence of mycotoxins and toxigenic capacity of Alternaria strains from mouldy peppers. Int. J. Food Microbiol. 2016, 236, 155–160. [Google Scholar] [CrossRef] [PubMed]
  46. Laemmlen, F. Alternaria Diseases. University of California Cooperative Extension Farm Advisor, Santa Barbara and San Luis Obispo Counties. 2001. Available online: https://anrcatalog.ucanr.edu/pdf/8040.pdf. (accessed on 15 October 2019).
  47. Nash, A.F.; Gardner, R.G. Tomato early blight resistance in a breeding line derived from Lycopersicon hirsutum PI 126445. Plant Dis. 1988, 72, 206–209. [Google Scholar] [CrossRef]
  48. Hassanein, N.; Zeid, M.; Youssef, K.; Mahmoud, D. Control of tomato early blight and wilt using aqueous extract of neem leaves. Phytopathol. Mediterr. 2010, 49, 143–151. [Google Scholar]
  49. Singh, H.K.; Srivastava, S.; Singh, R.B.; Singh, A.K. Management of Alternaria blight of rapeseed-mustard. J. Plant Dis. Prot. 2013, 8, 131–136. [Google Scholar]
  50. Andersen, B.; Sørensen, J.L.; Nielsen, K.F.; Ende, B.G.V.D.; De Hoog, S. A polyphasic approach to the taxonomy of the Alternaria infectoria species–group. Fungal Genet. Biol. 2009, 46, 642–656. [Google Scholar] [CrossRef] [PubMed]
  51. Zwickel, T.; Kahl, S.M.; Rychlik, M.; Müller, M.E.H. Chemotaxonomy of Mycotoxigenic Small-Spored Alternaria Fungi—Do Multitoxin Mixtures Act as an Indicator for Species Differentiation? Front. Microbiol. 2018, 9, 1368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. El Gobashy, S.F.; Mikhail, W.; Ismail, A.M.; Zekry, A.; Moretti, A.; Susca, A.; Soliman, A.S. Phylogenetic, toxigenic and virulence profiles of Alternaria species causing leaf blight of tomato in Egypt. Mycol. Prog. 2018, 17, 1269–1282. [Google Scholar] [CrossRef]
  53. Ramires, F.A.; Masiello, M.; Somma, S.; Villani, A.; Susca, A.; Logrieco, A.F.; Luz, C.; Meca, G.; Moretti, A. Phylogeny and Mycotoxin Characterization of Alternaria Species Isolated from Wheat Grown in Tuscany, Italy. Toxins 2018, 10, 472. [Google Scholar] [CrossRef] [Green Version]
  54. Masiello, M.; Somma, S.; Susca, A.; Ghionna, V.; Logrieco, A.F.; Franzoni, M.; Ravaglia, S.; Meca, G.; Moretti, A. Molecular Identification and Mycotoxin Production by Alternaria Species Occurring on Durum Wheat, Showing Black Point Symptoms. Toxins 2020, 12, 275. [Google Scholar] [CrossRef] [Green Version]
  55. Chalbi, A.; Sghaier-Hammami, B.; Meca, G.; Quiles, J.M.; Abdelly, C.; Marangi, C.; Logrieco, A.F.; Moretti, A.; Masiello, M. Characterization of mycotoxigenic Alternaria species isolated from the Tunisian halophyte Cakile maritima. Phytopathol. Mediterr. 2020, 59, 107–118. [Google Scholar] [CrossRef]
  56. Wenderoth, M.; Garganese, F.; Schmidt-Heydt, M.; Soukup, S.T.; Ippolito, A.; Sanzani, S.M.; Fischer, R. Alternariol as virulence and colonization factor of Alternaria alternata during plant infection. Mol. Microbiol. 2019, 112, 131–146. [Google Scholar] [CrossRef]
  57. Graf, E.; Schmidt-Heydt, M.; Geisen, R. HOG MAP kinase regulation of alternariol biosynthesis in Alternaria alternata is important for substrate colonization. Int. J. Food Microbiol. 2012, 157, 353–359. [Google Scholar] [CrossRef]
  58. Wojciechowska, E.; Weinert, C.; Egert, B.; Trierweiler, B.; Schmidt-Heydt, M.; Horneburg, B.; Graeff-Hönninger, S.; Kulling, S.E.; Geisen, R. Chlorogenic acid, a metabolite identified by untargeted metabolome analysis in resistant tomatoes, inhibits the colonization by Alternaria alternata by inhibiting alternariol biosynthesis. Eur. J. Plant Pathol. 2014, 139, 735–747. [Google Scholar] [CrossRef] [Green Version]
  59. Soukup, S.T.; Kohn, B.N.; Pfeiffer, E.; Geisen, R.; Metzler, M.; Bunzel, M.; Kulling, S.E. Sulfoglucosides as Novel Modified Forms of the Mycotoxins Alternariol and Alternariol Monomethyl Ether. J. Agric. Food Chem. 2016, 64, 8892–8901. [Google Scholar] [CrossRef] [Green Version]
  60. Garganese, F.; Schena, L.; Siciliano, I.; Prigigallo, M.I.; Spadaro, D.; De Grassi, A.; Ippolito, A.; Sanzani, S.M. Characterization of Citrus-Associated Alternaria Species in Mediterranean Areas. PLoS ONE 2016, 11, e0163255. [Google Scholar] [CrossRef] [Green Version]
  61. Crudo, F.; Varga, E.; Aichinger, G.; Galaverna, G.; Marko, D.; Dall’Asta, C.; Dellafiora, L. Co-Occurrence and Combinatory Effects of Alternaria Mycotoxins and other Xenobiotics of Food Origin: Current Scenario and Future Perspectives. Toxins 2019, 11, 640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Simmons, E.G.; Roberts, R. Alternaria themes and variations (73). Mycotaxon 1993, 48, 109–140. [Google Scholar]
  63. Murray, M.; Thompson, W. Rapid isolation of high molecular weight plant DNA. Nucleic Acids Res. 1980, 8, 4321–4326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Hong, S.G.; Cramer, R.A.; Lawrence, C.B.; Pryor, B.M. Alt a 1 allergen homologs from Alternaria and related taxa: Analysis of phylogenetic content and secondary structure. Fungal Genet. Biol. 2005, 42, 119–129. [Google Scholar] [CrossRef] [PubMed]
  65. Berbee, M.L.; Pirseyedi, M.; Hubbard, S. Cochliobolus phylogenetics and the origin of known, highly virulent pathogens, inferred from ITS and glyceraldehyde-3-phosphate dehydrogenase gene sequences. Mycologia 1999, 91, 964–977. [Google Scholar] [CrossRef]
  66. Glass, N.L.; Donaldson, G.C. Development of primer sets designed for use with the PCR to amplify conserved genes from filamentous ascomycetes. Appl. Environ. Microbiol. 1995, 61, 1323–1330. [Google Scholar] [CrossRef] [Green Version]
  67. O’Donnell, K.; Cigelnik, E. Two divergent intragenomic rDNA ITS2 types within a monophyletic lineage of the fungus Fusarium are nonorthologous. Mol. Phylogenet. Evol. 1997, 7, 103–116. [Google Scholar] [CrossRef]
  68. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  69. Li, F.-Q.; Yoshizawa, T.; Kawamura, O.; Luo, X.-Y.; Li, Y.-W. Aflatoxins and Fumonisins in Corn from the High-Incidence Area for Human Hepatocellular Carcinoma in Guangxi, China. J. Agric. Food Chem. 2001, 49, 4122–4126. [Google Scholar] [CrossRef]
  70. Rubert, J.; Dzuman, Z.; Vaclavikova, M.; Zachariasova, M.; Soler, C.; Hajslova, J. Analysis of mycotoxins in barley using ultra high liquid chromatography high resolution mass spectrometry: Comparison of efficiency and efficacy of different extraction procedures. Talanta 2012, 99, 712–719. [Google Scholar] [CrossRef] [PubMed]
  71. Myresiotis, C.K.; Testempasis, S.; Vryzas, Z.; Karaoglanidis, G.S.; Papadopoulou-Mourkidou, E. Determination of mycotoxins in pomegranate fruits and juices using a QuEChERS-based method. Food Chem. 2015, 182, 81–88. [Google Scholar] [CrossRef] [PubMed]
Toxins 13 00513 g001 550

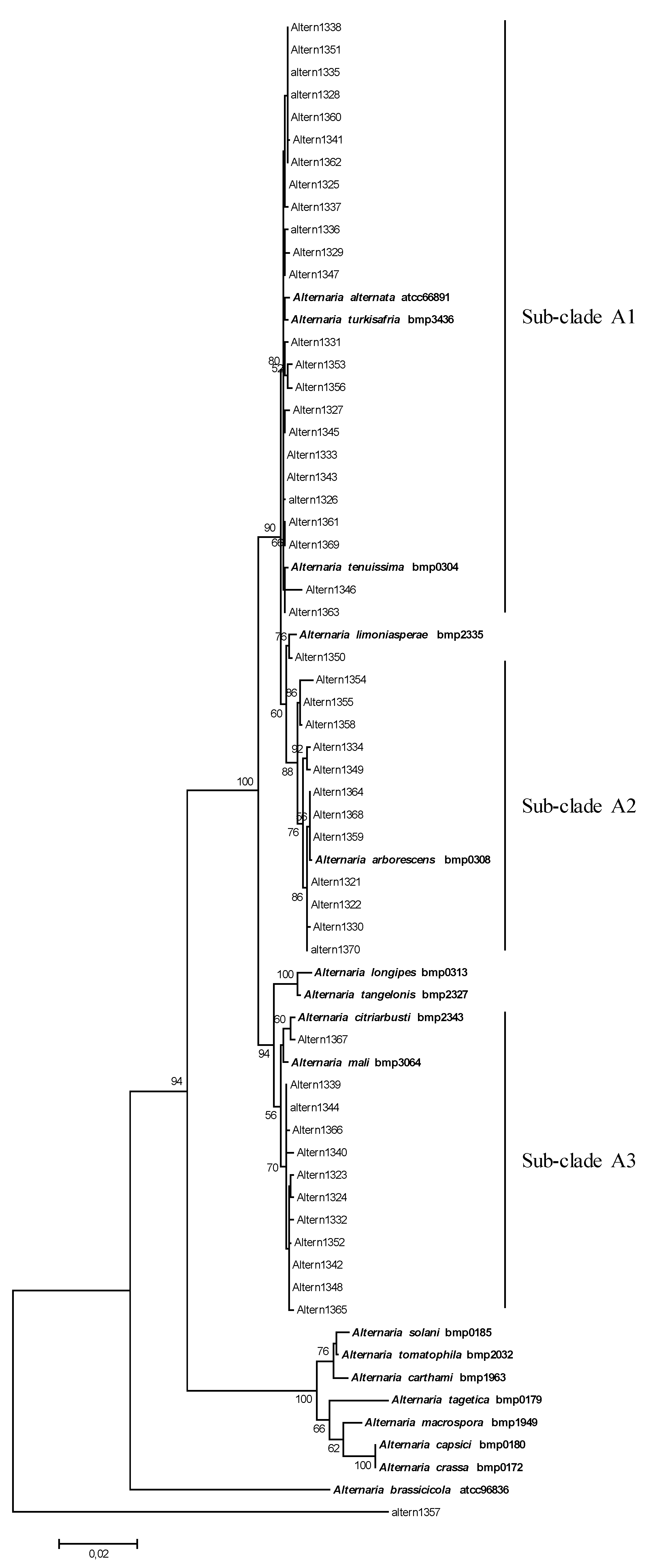

Figure 1. Phylogenetic tree generated and obtained by maximum likelihood method (bootstrap 1000 replicates) of combined alt-a1, gpd, cal and tub gene sequences of 50 fungal strains isolated from infected tomato plants.
Figure 1. Phylogenetic tree generated and obtained by maximum likelihood method (bootstrap 1000 replicates) of combined alt-a1, gpd, cal and tub gene sequences of 50 fungal strains isolated from infected tomato plants.
Toxins 13 00513 g001
Toxins 13 00513 g002 550

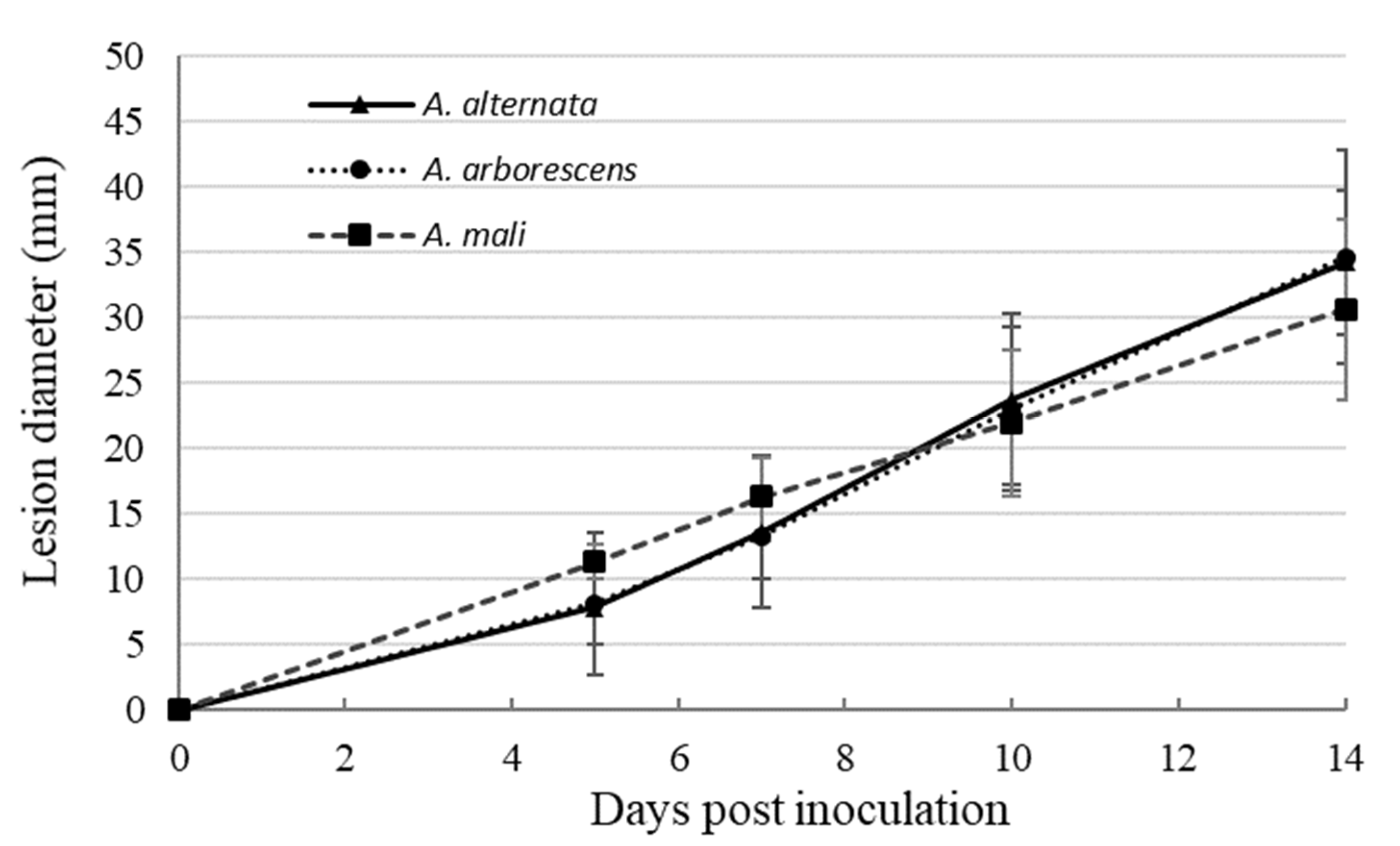

Figure 2. Mean values of the progression of the lesions caused on tomato fruits by a set of 10 Alternaria strains included in A. alternata (4 strains), A. arborescens (3 strains), and A. mali morpho-species (3 strains) sub-clades. Bars represent the standard errors.
Figure 2. Mean values of the progression of the lesions caused on tomato fruits by a set of 10 Alternaria strains included in A. alternata (4 strains), A. arborescens (3 strains), and A. mali morpho-species (3 strains) sub-clades. Bars represent the standard errors.
Toxins 13 00513 g002
Table
Table 1. Production of alternariol (AOH), alternariol methyl ether (AME), altenuene (ALT), and tenuazonic acid (TA), expressed in (mg kg−1), evaluated on 35 strains of Alternaria species from tomato leaves and stems affected by early blight.
Table 1. Production of alternariol (AOH), alternariol methyl ether (AME), altenuene (ALT), and tenuazonic acid (TA), expressed in (mg kg−1), evaluated on 35 strains of Alternaria species from tomato leaves and stems affected by early blight.
StrainAlternaria SpeciesMycotoxin (mg·kg−1)
AOHAMEALTTA
Altern1325A. alternata262014442
Altern1327 *A. alternata908690015382658
Altern1328A. alternata456749671025Nd **
Altern1329 *A. alternata12714967558Nd
Altern1331A. alternata102516462603
Altern1333A. alternata848219591331
Altern1336A. alternata12685574532
Altern1337A. alternata6766324097Nd
Altern1341 *A. alternata400291722143938
Altern1343 *A. alternata1316602687Nd
Altern1345A. alternata164611,021394Nd
Altern1351A. alternata309086781114145
Altern1353A. alternata441271812382066
Altern1360A. alternataNdNdNd2035
Altern1362A. alternata306215,07051561155
Altern1346A. alternata119923851950Nd
Mean value1422457614981890
Min26201145
Max456715,07051564442
Altern1350A. limoniasperaeNd102.513.86Nd
Altern1321A. arborescens2725422083
Altern1322A. arborescens333249134283
Altern1330 *A. arborescens20596395570Nd
Altern1334A. arborescens6104053872713
Altern1349A. arborescens563416,0067351251
Altern1354A. arborescens3501NdNdNd
Altern1355 *A. arborescens461257375971008
Altern1358 *A. arborescens26414228456
Altern1359A. arborescens17863026550754
Altern1364A. arborescens327166621560496
Altern1368A. arborescens6986032875
Altern1370A. arborescens273112,8688943777
Mean value207547615291290
Min27252875
Max563416,00615603777
Altern1323 *A. mali92232864507
Altern1332A. mali25410,1821153649
Altern1340 *A. mali38489320461896
Altern1342A. mali236710,9982722Nd
Altern1344A. mali7966593NdNd
Altern1352 *A. mali91571111326452
Mean value802596715071876
Min9223286452
Max236710,99827224507
*: Alternaria strains used in pathogenicity test; **: Nd: Not detected.
Table
Table 2. Analytical parameters calculated for each mycotoxin tested.
Table 2. Analytical parameters calculated for each mycotoxin tested.
MycotoxinLOD (mg/kg)LOQ (mg/kg)Recovery (%)ME (%)
AOH0.010.17179
AME0.010.17078
ALT0.010.16275
TA0.010.16573
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Habib, W.; Masiello, M.; El Ghorayeb, R.; Gerges, E.; Susca, A.; Meca, G.; Quiles, J.M.; Logrieco, A.F.; Moretti, A. Mycotoxin Profile and Phylogeny of Pathogenic Alternaria Species Isolated from Symptomatic Tomato Plants in Lebanon. Toxins 2021, 13, 513. https://doi.org/10.3390/toxins13080513

AMA Style

Habib W, Masiello M, El Ghorayeb R, Gerges E, Susca A, Meca G, Quiles JM, Logrieco AF, Moretti A. Mycotoxin Profile and Phylogeny of Pathogenic Alternaria Species Isolated from Symptomatic Tomato Plants in Lebanon. Toxins. 2021; 13(8):513. https://doi.org/10.3390/toxins13080513

Chicago/Turabian Style

Habib, Wassim, Mario Masiello, Romy El Ghorayeb, Elvis Gerges, Antonia Susca, Giuseppe Meca, Juan M. Quiles, Antonio F. Logrieco, and Antonio Moretti. 2021. "Mycotoxin Profile and Phylogeny of Pathogenic Alternaria Species Isolated from Symptomatic Tomato Plants in Lebanon" Toxins 13, no. 8: 513. https://doi.org/10.3390/toxins13080513

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
