Agronomic Approach of Zinc Biofortification Can Increase Zinc Bioavailability in Wheat Flour and thereby Reduce Zinc Deficiency in Humans

by
Dunyi Liu
,
Yumin Liu
,
Wei Zhang
,
Xinping Chen
and
Chunqin Zou
*
Key Laboratory of Plant-Soil Interactions, Ministry of Education, Center for Resources, Environment and Food Security, China Agricultural University, Beijing 100193, China
*
Author to whom correspondence should be addressed.
Nutrients 2017, 9(5), 465; https://doi.org/10.3390/nu9050465
Submission received: 10 April 2017 / Revised: 28 April 2017 / Accepted: 3 May 2017 / Published: 6 May 2017
Browse Figures
Versions Notes

Abstract

:
Zinc (Zn) deficiency is a common disorder of humans in developing countries. The effect of Zn biofortification (via application of six rates of Zn fertilizer to soil) on Zn bioavailability in wheat grain and flour and its impacts on human health was evaluated. Zn bioavailability was estimated with a trivariate model that included Zn homeostasis in the human intestine. As the rate of Zn fertilization increased, the Zn concentration increased in all flour fractions, but the percentages of Zn in standard flour (25%) and bran (75%) relative to total grain Zn were constant. Phytic acid (PA) concentrations in grain and flours were unaffected by Zn biofortification. Zn bioavailability and the health impact, as indicated by disability-adjusted life years (DALYs) saved, increased with the Zn application rate and were greater in standard and refined flour than in whole grain and coarse flour. The biofortified standard and refined flour obtained with application of 50 kg/ha ZnSO4·7H2O met the health requirement (3 mg of Zn obtained from 300 g of wheat flour) and reduced DALYs by >20%. Although Zn biofortification increased Zn bioavailability in standard and refined flour, it did not reduce the bioavailability of iron, manganese, or copper in wheat flour.

1. Introduction

Zinc (Zn) is one of the most abundant trace elements in human bodies, with 1.5–2.5 g present in the average adult [1]. As a catalytic and an important structural component in an estimated 3000 zinc proteins, Zn is essential for carbohydrate metabolism, DNA and RNA synthesis, and other processes [2,3]. Zinc deficiency, however, is prevalent in many parts of the world and especially in developing countries [4]. Zinc deficiency results in retarded growth, anorexia, and hypogeusia in children [5], and in pregnancy problems and several chronic diseases in adults [6,7].
In more than 22 developing countries, at least 60% of the Zn in human diets is derived from C3 grains and legumes [8]. Wheat is one of the three leading cereal crops worldwide and is the dominant crop used for human food [9]. Worldwide wheat production exceeds 720 million tons per year, and most of which is used as food for humans [9,10]. Wheat can be processed into a rich variety of flours depending on the milling procedure. Whole grain flour and coarse flour are valuable sources of dietary fiber, and standard flour and refined flour are commonly used to make bread and noodles. Wheat has a low Zn concentration, with only about 20–35 mg/kg of whole grain [4]. The low concentration of Zn in wheat results in part from the low Zn content of soils where wheat is grown, i.e., more than 40% of the worldwide wheat crop is cultivated on soils with very low levels of Zn [11]. Furthermore, a substantial percentage of the Zn in grain is lost with the removal of the aleurone layer and embryo during milling [12]. Zinc concentrations were reported to be less than 15 mg/kg in wheat endosperm and in refined flour [13].
An important approach to preventing Zn deficiency in humans is Zn biofortification, i.e., the use of agronomic practices, conventional plant breeding, or biotechnology to increase the Zn content of food crops [4]. Rosado et al. [14], for example, reported that Zn intake was substantially higher for humans who consumed biofortified wheat than non-biofortified control wheat. Qin et al. [15] indicated that Zn-biofortified rice increases dietary Zn intake and reduces the risk of Zn deficiency. At least in the short term, Zn biofortification can be achieved more rapidly by an agronomic approach (i.e., by fertilizer application) than by conventional breeding or biotechnology [4].
In addition to being inherently low in Zn, wheat is rich in phytic acid (PA), a compound that limits Zn bioavailability [16]. Phytic acid is a powerful chelator that bind metals into insoluble compounds [17]. Fredlund et al. [18] concluded that the inhibitory effect of PA on the absorption of Zn was dose dependent, and that only 50 mg of phytate-P (269 mmol phytate) could significantly decrease the absorption of Zn in human meals. The PA:Zn molar ratio has been widely used as a simplified measure of Zn bioavailability in the human diet [19]. The human body regulates Zn homeostasis through gastrointestinal secretion and excretion of endogenous Zn in addition to absorption of exogenous Zn [20]. A trivariate model that considers Zn homeostasis in the human intestine has been widely used to evaluate the effects of Zn bioavailability in humans [21].
The burden of disease and injury in human populations is usually quantified in terms of disability-adjusted life years (DALYs) [22]. DALYs have been used to assess the burden of Zn deficiency and the benefits of Zn-biofortified wheat [23,24]. In calculating DALYs, however, researchers have sometimes used roughly estimated values for certain parameters. For example, the percentage of Zn retained in flour after milling is sometimes assumed to be 60% [23], but this percentage differs greatly depending on the kind of flour. Also, the Zn bioavailability in humans has previously been ignored in the calculation of the daily Zn intake [23,24]. In fact, the health impact of biofortified flour can be reliably assessed while taking Zn bioavailability into consideration.
Micronutrients such as iron (Fe), manganese (Mn), and copper (Cu) are also essential for wheat growth and human health. Research on the relationship between Zn and other micronutrients in wheat and in humans has produced inconsistent results. Majid et al. [25], for example, reported that Zn application to wheat generally increased the concentrations of Zn, Fe, and Mn in grain, while Zhao et al. [26] indicated that Zn application to wheat reduced Fe concentrations but did not affect Cu and Mn concentrations in grain. Kabata-Pendias and Pendias [27] reported that the Zn–Cu interaction was antagonistic. These discrepancies in results might be due to differences in environmental factors or plant genotypes. Such discrepancies have also been reported in humans [20]. For example, some studies have indicated that levels of serum or plasma ferritin decreased with Zn supply [28]; other studies found that these levels increased with Zn supply [29], and a meta-analysis indicated that Zn supply did not affect levels of serum or plasma ferritin [30]. The effects of Zn application in the field on the bioavailability of Fe, Cu, and Mn in wheat flour fractions have not been previously reported.
The objectives of this study were (1) to quantify the effects of Zn biofortification via fertilizer application on Zn and PA concentrations in wheat grain and in different kinds of flours; (2) to estimate the resulting bioavailability of Zn in humans; and (3) to assess the health impact of Zn-biofortified flours. The relationship between Zn biofortification and the bioavailability of other micronutrients was also evaluated.

2. Materials and Methods

2.1. Wheat Grain Biofortification

A field experiment was conducted in 2013–2014 and 2014–2015 at the Quzhou Experiment Station (36.9° N, 115.0° E) in China. In both cropping seasons, wheat was grown from October to the following June in a winter wheat–summer maize rotation system. The soil pH (1:2.5 w/v in water) was about 8.0, and the diethylene triamine pentaacetic acid (DTPA)-extractable Zn, Fe, Cu, and Mn concentrations before sowing were 0.45, 5.52, 0.82, and 5.30 mg/kg, respectively. The same winter wheat (Triticum aestivum L.) cultivar (Liangxing 99, Dezhou, China) was used in both cropping seasons. Six Zn application rates were assessed: 0, 10, 25, 50, 100, and 150 ZnSO4·7H2O (22% Zn) kg/ha. The experiment had a randomized complete block design with four block and 24 plots; each plot was 75 m2. Before sowing, a compound fertilizer (N-P2O5-K2O: 15-15-15; 75 kg/ha) was applied. Another 150 kg of N/ha was supplied as urea at the stem elongation stage. The plots were irrigated at the pre-wintering, stem elongation, and flowering stages in both cropping seasons. At maturity, wheat plants aboveground were removed by hand from a 6-m2 (2 m × 3 m) area in each plot. About 1 kg of grain from these plants was sampled and rapidly washed with deionized water before milling and analysis.

2.2. Flour Fractions and Analysis

Wheat samples were milled in a Bühler laboratory experimental mill (MLU-202) according to Approved Method 26-21A [31]. Three break streams (B1, B2, and B3), three reduction streams (R1, R2, and R3), and two brans (coarse bran and fine bran) were obtained after milling. Different percentages of break, reduction, and bran fractions were combined to make the different kinds of flour (Table 1). In this report, “whole flour” was the flour that contained all milling fractions (100% of the grain). “Coarse flour” contained the coarse bran fraction and included 86.4% of the grain. “Standard flour” represented the ordinary flour sold in markets; it was a mixture of B1, R1, B2, R2, B3, and R3 fractions and included 75.7% of the grain. “Refined flour” refers to the highly refined and purified endosperm and is usually used to make Chinese fine noodles; refined flour was a mixture of B1 and R1 fractions and included 47.1% of the grain. The term “bran” refers to the combination of coarse bran and fine bran and is usually used to feed animals. All stream samples were digested with HNO3-H2O2 in a microwave-accelerated reaction system (CEM, Matthews, NC, USA), and the nutrients in the digested solution were determined by inductively coupled plasma optical emission spectroscopy (ICP-OES, OPTIMA 7300 DV, Perkin-Elmer, Houston, TX, USA). PA concentrations in different fractions were determined calorimetrically (at 519 nm) as described by Haug andLantzsch [32].

2.3. Estimation of Zn Bioavailability

A trivariate model based on Zn homeostasis in the human intestine was used to evaluate Zn bioavailability [21]:
T A Z = 0.5 × 65 × 100 × { A M A X + T D Z + K R × ( 1 + T D P K P ) − ( A M A X + T D Z + K R × ( 1 + T D P K P ) ) 2 − 4 × A M A X × T D Z }
where TAZ = total daily absorbed Zn (mg Zn/day); AMAX = maximum Zn absorption; TDZ = total daily dietary Zn (mmol Zn/day); KR = equilibrium dissociation constant of the Zn-receptor binding reaction; TDP = total daily dietary PA (mmol PA/day); and KP = equilibrium dissociation constant of the Zn–PA binding reaction. According to Hambidge et al. [33], the parameters related to Zn homeostasis in the human intestine, AMAX, KR, and KP, have constant values of 0.091, 0.680, and 0.033, respectively. TAZ was based on reference adults consuming wheat flour (300 g/day) as a sole daily source of Zn and phytate [14] and was termed “estimated Zn bioavailability”. Molar concentrations of phytate and Fe, Mn, and Cu in wheat grain were used to calculate the PA:Fe, PA:Mn, and PA:Cu molar ratios, which in turn were used to estimate the bioavailability of Fe, Mn, and Cu in wheat grain [34].

2.4. Health Impact of Zn Biofortification in Wheat

The DALYs equation was used to estimate the health burden of Zn deficiency and to assess the health impact of Zn-biofortified flours. The current burdens due to Zn deficiency were calculated based on a recent study in China, which indicated that years of life lost (YLL) was 151 million and years lived with disability (YLD) was 202 million years, resulting in a total DALYs value of 352 million years [24]. The status quo of daily Zn intake was 4.90 mg/day for infants and 6.00 mg/day for children [35]. The recommended nutrition intake (RNI) levels for Zn in developing countries was 6.90 mg/day for infants and 8.00 mg/day for children [36]. Relative to the reference daily flour consumption of 300 g/day, consumption by infants is about 25% (75 g/day) and consumption by children is about 50% (150 g/day). Daily Zn intake through biofortified flours was the current daily Zn intake (4.90 and 6.00 mg/day) plus the increased TAZ calculated by the above trivariate model. The “coverage rate” of biofortified wheat and flour (i.e., the percentage of the population that consumed biofortified wheat and flour) was set at 60%, which represents an optimistic scenario. We then calculated the health impact (DALYs saved) of the biofortified flour by the method ofStein et al. [37] and De Steur et al. [24]. We also calculated the health impact of Zn biofortification as follows: Health impact = health burden saved by Zn biofortification/health burden without biofortification × 100. In this equation, health burden is equivalent to DALYs.

2.5. Statistical Analysis

One-way ANOVAs were used for many comparisons; means were separated by Fisher’s protected least significance difference (LSD) test at p < 0.05. Statistical Analysis System software (SAS 8.0, Raleigh, NC, USA) was used for the statistical analysis.

3. Results

3.1. Zn and PA Concentrations in Grain Milling Fractions

In both cropping years, Zn concentrations in grain milling fractions were significantly greater in the Zn-biofortified treatments than in the no-Zn treatment, and the increases in Zn concentrations were closely related to the quantity of Zn applied (Table 2). The Zn concentrations were much greater in coarse bran and fine bran than in the break and reduction flour, and were 8–10 fold higher in bran than in standard flour. Zn concentrations in whole flour, coarse flour, standard flour, and refined flour increased with the rate of Zn fertilization. Among the four kinds of flour, the Zn concentrations were generally higher in whole flour and coarse flour than in standard flour and refined flour (Figure 1). Regardless of the quantity of Zn applied, the Zn content in bran accounted for 75% of the whole grain Zn while in standard flour it accounted for 25% (Figure 2). The PA concentration in the flours and bran was generally not significantly affected by Zn biofortification. The PA concentration was also much higher in the bran than in the other flours (Table 2).

3.2. Estimated Zn Bioavailability in Wheat Flours

The estimated Zn bioavailability in whole flour, coarse flour, standard flour, refined flour, and bran increased with the quantity of Zn applied in both cropping seasons (Figure 3). The estimated Zn bioavailability was generally higher in standard flour and refined flour than in whole flour and coarse flour (Figure 3).

3.3. Health Impact of Zn Biofortified Flours in China

In all four of the most commonly used flours (whole, coarse, standard, and refined), the daily Zn intake, the percentage of the recommended intake, and the DALYs saved for both infants and children were progressively increased as the rate of Zn fertilization increased (Table 3). The reductions in the current health burden of consuming biofortified whole flour and coarse flour were almost the same, ranging from 6.17% to 18.66%. Among the four flours, the health impacts (DALYs saved) of Zn biofortification of standard and refined flour were better than that of the other two flours. The estimated reductions in the current health burden by consumption of Zn biofortified standard flour and refined flour ranged from 10.57% to 28.38% (Table 3).

3.4. Bioavailability of Other Micronutrients in Wheat Flours

Zinc biofortification did not significantly affect the concentrations (Table 4) and bioavailability of Fe, Mn, or Cu in the four flours or bran as indicated by the PA:Fe, PA:Mn, and PA:Cu molar ratios (Figure 4). Like Zn bioavailability, the bioavailability of Fe and Cu were higher in standard flour and refined flour than in whole flour and coarse flour. Mn bioavailability, however, did not significantly differ among the flours and bran (Figure 4).

4. Discussion

Zinc biofortification significantly increased Zn concentrations in grain and in all of the milling fractions (Table 2 and Figure 1). The target Zn concentration in wheat grain required to prevent Zn deficiency in humans was estimated to be 45 mg/kg [38,39]. In the current study, this target concentration was generally achieved by application of 25 kg of ZnSO4·7H2O/ha (Figure 1). The Zn concentrations were lower in standard and refined flour than in whole or coarse flour. This was mainly due to the higher Zn concentration in brans than in other fractions (Table 2). The current results were consistent with a previous finding that Zn occurs largely in the aleurone layer, in the lateral and dorsal parts of the grain [40]. The large difference in Zn concentration between bran and flour might be inherent to these fractions. That increasing Zn application rates did not increase the percentage of Zn in standard flour or bran relative to the total quantity of Zn in the wheat grain (Figure 2) indicates that the Zn application simultaneously increased the Zn concentration in all fractions of wheat grain.
During milling, the wheat grain was separated layer-by-layer, and the layers were separated into coarse bran, fine bran, and flour. These layers, however, do not precisely coincide with the layers of aleurone, endosperm, and embryo. Though there was a limitation for Zn transferred from crease, the Zn concentration in the flour increased as the Zn concentration in the grain increased. Zhang et al. [41] also reported a linear, positive correlation between Zn concentrations in wheat grain and flour. These results indicate that the higher Zn concentrations in flour and in grain can be synergistically achieved by Zn fertilization.
Although indigestible for humans and many animals, the PA and its metabolites in seeds and grains are important to the plant. PA functions as a phosphorus and energy store and as a source of cations and myoinositol (a cell wall precursor). The only undesirable property of PA is that it limits the availability of micronutrients [42]. Erdal et al. [43] found that Zn biofortification reduced PA concentrations in the seeds of 20 wheat cultivars growing in a severely Zn-deficient soil. These decreases in PA were explained by a dilution effect that occurred as a consequence of increases in grain yield in response to Zn fertilization. A needless Zn application to Zn-sufficient soils could also decrease PA concentrations in wheat grain [44]. Zhang et al. [45] reported, however, that ZnSO4·7H2O applied to soil at 50 kg/ha did not significantly affect PA concentrations in wheat products. Consistent with Zhang et al. [45], the current results indicated that the PA concentration in grain and different fractions of grain remained unchanged in response to Zn biofortification (Table 2). The DTPA-Zn of the soil in this study was 0.45 mg/kg, which indicates that the soil was not extremely Zn deficient. Because Zn biofortification increased the yield by only 6–10%, PA concentrations in grain were not substantially reduced by a dilution effect. It seems reasonable to expect that the effect of Zn fertilizers on PA concentrations in wheat grain will depend on both the levels of Zn in the soil and the Zn fertilization rate. It is also possible that wheat plants are able to regulate the PA concentration in grain under Zn stress [44].
The chemical forms of Zn and its bioavailability in food influence the amount of Zn absorbed through the gastrointestinal tract and into the bloodstream [20]. For human nutrition, Zn bioavailability in grain and flour is more important than Zn concentration. High levels of PA in food are thought to reduce the bioavailability of Zn, Fe, and other minerals [46]. Therefore, the PA:Zn molar ratio has been used to evaluate the bioavailability of Zn in food [19]. A trivariate mathematical model of Zn absorption as a function of dietary Zn, which was recently developed and tested [21], accounted for 80% of the variability in the quantity of Zn absorbed [33]. The current study showed that the estimated Zn bioavailability in grain and flour significantly increased with the rate of Zn fertilization (Figure 3), which is consistent with a previous study [47]. A daily net intestinal absorption of about 3 mg of Zn from 300 g of wheat flour consumed is required for humanhealth [14,48]. In the present study, this requirement was met only by the biofortified standard flour and refined flour (Figure 3). This is because the biofortified standard flour and refined flour contained relatively high Zn concentrations and relatively low PA concentrations. Compared with intensively processed cereals, whole grain flour and coarse flour have been traditionally thought to provide better mineral nutrition because of the higher nutrient concentration in the bran [49].
The Zn levels in the blood plasma, liver, and tibia of rats fed for 3 weeks on diets based on white wheat flour or whole flour were not significantly different, indicating that the whole flour did not reduce Zn absorption or bioavailability [50]. According to Hussain et al. [47], Zn bioavailability was higher in whole grain flour than in the other kinds of flour. In the current study, however, the estimated Zn bioavailability was lower in whole grain and coarse flour than in standard and refined flour because of the extremely high PA concentrations in the bran. The Zn concentrations were 9.5-fold higher and the PA concentrations were 15.6-fold higher in bran than in standard flour (Table 2). Thus, the whole grain flour and coarse flour, which contain more parts of the bran, had lower Zn bioavailability than standard or refined flour. This is consistent with Ryan et al. [51], who indicated that the PA:Zn and Ca × PA:Zn molar ratios were lower for flour than for whole grain. The reasons of these different findings may include differences in yield, experimental conditions, and variety. For example, the PA and Zn concentrations in wheat grain and its different fractions differ substantially among varieties [43,49].
DALYs are commonly used by the World Bank, the World Health Organization (WHO), and the HarvestPlus program [37] to assess the health burden of Zn deficiency and the health impact of biofortified wheat [23]. However, the health impact of biofortified wheat was overestimated if available Zn intake is not considered. The current study used available Zn intake as estimated by “the trivariate model” to calculate the health impact (DALYs saved) of biofortified flour and its reduction of the current health burden (Table 3). The health impacts are smaller than previously reported [23], even with the optimistic scenario of a 60% coverage rate, but might be more realistic. Still, the biofortified standard and refined flour (obtained by applying >50 kg of ZnSO4·7H2O/ha) could reduce the current healthy burden (DALYs) of Zn deficiency by more than 20%. Among all the four biofortified flours, the effects of Zn biofortification on the estimated Zn bioavailability and on human health impact (DALYs saved) were greatest for standard flour (Table 3). This was because the more available Zn intake increased with biofortification of standard and refined flour even though the total Zn concentration was lower in standard and refined flour than in whole or coarse flour. Overall, these results indicate that, like the genetic biofortification of wheat [14], the agronomic biofortification of wheat with Zn will mitigate the health burden caused by Zn deficiency among infants and children.
Unlike other studies [25,27], the present study failed to detect antagonism or synergism between Zn biofortification and the Fe, Cu, and Mn contents of wheat grain (Table 4). The soil DTPA-Fe, DTPA-Cu, and DTPA-Mn concentrations in the current study were 5.52, 0.82, and 5.30 mg/kg, respectively, all of which are higher than the critical values, indicating that the soil was not deficient in these micronutrients. The estimated bioavailability of Fe, Mn, and Cu (as indicated by the PA:Fe, PA:Mn, and PA:Cu molar ratios) was unaffected by Zn biofortification (Figure 4). Like Zn bioavailability, Fe and Cu bioavailability were higher in standard and refined flour than in whole and coarse flour. The Mn bioavailability in the four flours were not significantly different and it might be due to the similar distribution of Mn and PA in grain.

5. Conclusions

In the current study, Zn biofortification increased both the concentration and bioavailability of Zn in wheat grain and flours. Although Zn concentrations in wheat whole flour and coarse flour were high, Zn bioavailability and the calculated health impact (DALYs saved or reduction in the current health burden) were lower in wheat whole flour and coarse flour than in standard flour and refined flour because of the extremely high concentrations of PA in the bran. In addition, Zn biofortification did not influence the bioavailability of Fe, Mn, and Cu. The results indicate that Zn biofortification of wheat by the application of a Zn fertilizer can substantially increase the Zn bioavailability and health impact of wheat flour.

Acknowledgments

This research was funded by the National Science Foundation of China (NSFC 31672240), the 973 Project (2015CB150402), and the Innovative Group Grant of National Science Foundation of China (31421092). We thank Bruce Jaffee from the USA for improving the English of the manuscript.

Author Contributions

C.Z. and X.C. conceived and designed the experiments; D.L., W.Z. and Y.L. performed the experiments; D.L. and C.Z. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. King, J.; Cousins, R. Zinc. Modern Nutrition in Health and Disease, 10th ed.; Shils, M., Ed.; Lippincott Williams & Wilkins: Philadelphia, PA, USA, 2006; pp. 271–285. [Google Scholar]
  2. Maret, W. Molecular aspects of human cellular zinc homeostasis: Redox control of zinc potentials and zinc signals. Biometals 2009, 22, 149–157. [Google Scholar] [CrossRef] [PubMed]
  3. Prasad, A.S. Clinical, immunological, anti-inflammatory and antioxidant roles of zinc. Exp. Gerontol. 2008, 43, 370–377. [Google Scholar] [CrossRef] [PubMed]
  4. Cakmak, I. Enrichment of cereal grains with zinc: Agronomic or genetic biofortification? Plant Soil 2008, 302, 1–17. [Google Scholar] [CrossRef]
  5. Brown, K.H.; Peerson, J.M.; Rivera, J.; Allen, L.H. Effect of supplemental zinc on the growth and serum zinc concentrations of prepubertal children: A meta-analysis of randomized controlled trials. Am. J. Clin. Nutr. 2002, 75, 1062–1071. [Google Scholar] [PubMed]
  6. Mahomed, K.; Bhutta, Z.; Middleton, P. Zinc supplementation for improving pregnancy and infant outcome. Cochrane Database Syst. Rev. 2012, 7, CD000230. [Google Scholar]
  7. Prasad, A.S. Discovery of human zinc deficiency: Impact on human health. Nutrition 2001, 17, 685–687. [Google Scholar] [CrossRef]
  8. Myers, S.S.; Zanobetti, A.; Kloog, I.; Huybers, P.; Leakey, A.D.B.; Bloom, A.J.; Carlisle, E.; Dietterich, L.H.; Fitzgerald, G.; Hasegawa, T.; et al. Increasing CO2 threatens human nutrition. Nature. 2014, 510, 139–142. [Google Scholar] [CrossRef] [PubMed]
  9. Shewry, P.R. Wheat. J. Exp. Bot. 2009, 60, 1537–1553. [Google Scholar] [CrossRef] [PubMed]
  10. FAO. FAOSTAT–Agriculture Database. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 18 May 2014).
  11. Alloway, B.J. Zinc in Soils and Crop Nutrition. In International Zinc Association; Brussels International Fertilizer Industry Association: Paris, France, 2008. [Google Scholar]
  12. Ozturk, L.; Yazici, M.A.; Yucel, C.; Torun, A.; Cekic, C.; Bagci, A.; Ozkan, H.; Braun, H.J.; Sayers, Z.; Cakmak, I. Concentration and localization of zinc during seed development and germination in wheat. Physiol. Plant. 2006, 128, 144–152. [Google Scholar] [CrossRef]
  13. Li, M.; Wang, S.X.; Tian, X.H.; Zhao, J.H.; Li, H.Y.; Guo, C.H.; Chen, Y.L.; Zhao, A.Q. Zn distribution and bioavailability in whole grain and grain fractions of winter wheat as affected by applications of soil n and foliar Zn combined with n or p. J. Cereal Sci. 2014, 61, 26–32. [Google Scholar] [CrossRef]
  14. Rosado, J.L.; Hambidge, K.M.; Miller, L.V.; Garcia, O.P.; Westcott, J.; Gonzalez, K.; Conde, J.; Hotz, C.; Pfeiffer, W.; Ortizmonasterio, I. The quantity of zinc absorbed from wheat in adult women is enhanced by biofortification. J. Nutr. 2009, 139, 1920–1925. [Google Scholar] [CrossRef] [PubMed]
  15. Qin, Y.; Melse-Boonstra, A.; Yuan, B.; Pan, X.; Dai, Y.; Zhou, M.; Wegmueller, R.; Zhao, J.; Kok, F.J.; Shi, Z. Zinc biofortification of rice in China: A simulation of zinc intake with different dietary patterns. Nutrients 2012, 4, 517–528. [Google Scholar] [CrossRef] [PubMed]
  16. Welch, R.M.; Graham, R.D. A new paradigm for world agriculture: Meeting human needs—Productive, sustainable, nutritious. Field Crops Res. 1999, 60, 1–10. [Google Scholar] [CrossRef]
  17. Kumar, V.; Sinha, A.K.; Makkar, H.P.S.; Becker, K. Dietary roles of phytate and phytase in human nutrition: A review. Food Chem. 2010, 120, 945–959. [Google Scholar] [CrossRef]
  18. Fredlund, K.; Isaksson, M.; Rossander-Hulthen, L.; Almgren, A.; Sandberg, A.S. Absorption of zinc and retention of calcium: Dose-dependent inhibition by phytate. J. Trace Elem. Med. Biol. 2006, 20, 49–57. [Google Scholar] [CrossRef] [PubMed]
  19. Morris, E.R.; Ellis, R. Usefulness of the dietary phytic acid/zinc molar ratio as an index of zinc bioavailability to rats and humans. Biol. Trace Elem. Res. 1989, 19, 107–117. [Google Scholar] [CrossRef] [PubMed]
  20. Lim, K.; Riddell, L.; Nowson, C.; Booth, A.; Szymlek-Gay, E. Iron and zinc nutrition in the economically-developed world: A review. Nutrients 2013, 5, 3184–3211. [Google Scholar] [CrossRef] [PubMed]
  21. Miller, L.V.; Krebs, N.F.; Hambidge, K.M. A mathematical model of zinc absorption in humans as a function of dietary zinc and phytate. J. Nutr. 2007, 137, 135–141. [Google Scholar] [PubMed]
  22. Murray, C.J. Quantifying the burden of disease: The technical basis for disability-adjusted life years. Bull. World Health Organ. 1994, 72, 429–445. [Google Scholar] [PubMed]
  23. Wang, Y.H.; Zou, C.Q.; Mirza, Z.; Li, H.; Zhang, Z.Z.; Li, D.P.; Xu, C.L.; Zhou, X.B.; Shi, X.J.; Xie, D.T.; et al. Cost of agronomic biofortification of wheat with zinc in China. Agron. Sustain. Dev. 2016, 36, 44. [Google Scholar] [CrossRef]
  24. Steur, H.D.; Gellynck, X.; Blancquaert, D.; Lambert, W.; Straeten, D.V.D.; Qaim, M. Potential impact and cost-effectiveness of multi-biofortified rice in China. New Biotechnol. 2012, 29, 432–442. [Google Scholar] [CrossRef] [PubMed]
  25. Majid, A.; Ezatollah, E.; Behzad, S.; Seyed-Bahman, M. Zinc application methods affect agronomy traits and grain micronutrients in bread and durum wheat under zinc-deficient calcareous soil. Yuzuncu Yil. Univ. J. Agric. Sci. 2016, 26, 202–214. [Google Scholar]
  26. Zhao, A.Q.; Bao, Q.L.; Tian, X.H.; Lu, X.C.; William, J.G. Combined effect of iron and zinc on micronutrient levels in wheat (Triticum. aestivum L.). J. Environ. Biol. 2011, 32, 235–239. [Google Scholar] [PubMed]
  27. Kabata-Pendias, A.; Pendias, H.K. Trace Elements in Soils and Plants; CRC Press: Boca Raton, FL, USA, 1984; Volume 34, pp. 951–974. [Google Scholar]
  28. Carmenm, D.; Leslier, W.; Sarahm, K.; Fernandoe, V.; Janetc, K. Supplemental zinc lowers measures of iron status in young women with low iron reserves. J. Nutr. 2002, 132, 1860–1864. [Google Scholar]
  29. Penny, M.E.; Marin, R.M.; Duran, A.; Peerson, J.M.; Lanata, C.F.; Bo, L.; Black, R.E.; Brown, K.H. Randomized controlled trial of the effect of daily supplementation with zinc or multiple micronutrients on the morbidity, growth, and micronutrient status of young peruvian children. Am. J. Clin. Nutr. 2004, 79, 457–465. [Google Scholar] [PubMed]
  30. Brown, K.H.; Peerson, J.M.; Baker, S.K.; Hess, S.Y. Preventive zinc supplementation among infants, preschoolers, and older prepubertal children. Food Nutr. Bull. 2009, 30, S12–S40. [Google Scholar] [CrossRef] [PubMed]
  31. American Association for Clinical Chemistry (AACC). Approved Methods of the American Association of Cereal Chemists, 10th ed.; Methods 26–21a; The Association: St. Paul, MN, USA, 2000. [Google Scholar]
  32. Haug, W.; Lantzsch, H.J. Sensitive method for the rapid determination of phytate in cereals and cereal products. J. Sci. Food Agric. 1983, 34, 1423–1426. [Google Scholar] [CrossRef]
  33. Hambidge, K.M.; Miller, L.V.; Westcott, J.E.; Sheng, X.; Krebs, N.F. Zinc bioavailability and homeostasis. Am. J. Clin. Nutr. 2010, 91, 1478S–1483S. [Google Scholar] [CrossRef] [PubMed]
  34. Abizari, A.R.; Moretti, D.; Schuth, S.; Zimmermann, M.B.; Armar-Klemesu, M.; Brouwer, I.D. Phytic acid-to-iron molar ratio rather than polyphenol concentration determines iron bioavailability in whole-cowpea meal among young women. J. Nutr. 2012, 142, 1950–1955. [Google Scholar] [CrossRef] [PubMed]
  35. Chai, W. Chinese Dietary Vitamin Intake and Deficiency in Recent Ten Years Based on Systematic Analysis. In Proceedings of the 2nd International Meeting of the Micronutrient Forum Micronutrients, Beijing, China, 12–15 May 2009. [Google Scholar]
  36. Allen, L.; de Benoist, B.; Dary, O.; Hurrell, R. Guidelines on Food Fortification with Micronutrients; WHO: Geneva, Switzerland, 2006. [Google Scholar]
  37. Stein, A.J.; Meenakshi, J.V.; Qaim, M.; Nestel, P.; Sachdev, H.P.S.; Bhutta, Z.A. Analyzing the Health Benefits of Biofortified Staple Crops by Means of the Disability-Adjusted Life Years Approach: A Handbook Focusing on Iron, Zinc and Vitamin A; Harvest Plus Technical Monograph Series; Food and Agriculture Organization of the United Nations: Rome, Italy, 2005; pp. 1–32. [Google Scholar]
  38. Liu, D.Y.; Zhang, W.; Pang, L.L.; Zhang, Y.Q.; Wang, X.Z.; Liu, Y.M.; Chen, X.P.; Zhang, F.S.; Zou, C.Q. Effects of zinc application rate and zinc distribution relative to root distribution on grain yield and grain Zn concentration in wheat. Plant Soil 2017, 411, 167–178. [Google Scholar] [CrossRef]
  39. Ortiz-Monasterio, J.I.; Palacios-Rojas, N.; Meng, E.; Pixley, K.; Trethowan, R.; Peña, R.J. Enhancing the mineral and vitamin content of wheat and maize through plant breeding. J. Cereal Sci. 2007, 46, 293–307. [Google Scholar] [CrossRef]
  40. Lombi, E.; Smith, E.; Hansen, T.H.; Paterson, D.; de Jonge, M.D.; Howard, D.L.; Persson, D.P.; Husted, S.; Ryan, C.; Schjoerring, J.K. Megapixel imaging of (micro) nutrients in mature barley grains. J. Exp. Bot. 2011, 62, 273–282. [Google Scholar] [CrossRef] [PubMed]
  41. Zhang, Y.Q.; Shi, R.L.; Rezaul, K.M.; Zhang, F.S.; Zou, C.Q. Iron and zinc concentrations in grain and flour of winter wheat as affected by foliar application. J. Agric. Food Chem. 2010, 58, 12268–12274. [Google Scholar] [CrossRef] [PubMed]
  42. Harland, B.F.; Morris, E.R. Phytate—A good or a bad food component. Nutr. Res. 1995, 15, 733–754. [Google Scholar] [CrossRef]
  43. Erdal, I.; Yilmaz, A.; Taban, S.; Eker, S.; Torun, B.; Cakmak, I. Phytic acid and phosphorus concentrations in seeds of wheat cultivars grown with and without zinc fertilization. J. Plant Nutr. 2002, 25, 113–127. [Google Scholar] [CrossRef]
  44. Wang, Z.M.; Liu, Q.; Pan, F.; Yuan, L.X.; Yin, X.B. Effects of increasing rates of zinc fertilization on phytic acid and phytic acid/zinc molar ratio in zinc bio-fortified wheat. Field Crops Res. 2015, 184, 58–64. [Google Scholar] [CrossRef]
  45. Zhang, Y.Q.; Sun, Y.X.; Ye, Y.L.; Karim, M.R.; Xue, Y.F.; Yan, P.; Meng, Q.F.; Cui, Z.L.; Cakmak, I.; Zhang, F.S.; et al. Zinc biofortification of wheat through fertilizer applications in different locations of China. Field Crops Res. 2012, 125, 1–7. [Google Scholar] [CrossRef]
  46. Ma, G.S.; Jin, Y.; Piao, J.H.; Kok, F.; Guusje, B.; Jacobsen, E. Phytate, calcium, iron, and zinc contents and their molar ratios in foods commonly consumed in China. J. Agric. Food Chem. 2005, 53, 10285–10290. [Google Scholar] [CrossRef] [PubMed]
  47. Hussain, S.; Maqsood, M.A.; Rengel, Z.; Aziz, T.; Abid, M. Estimated zinc bioavailability in milling fractions of biofortified wheat grains and in flours of different extraction rates. Int. J. Agric. Biol. 2013, 15, 383–388. [Google Scholar]
  48. Hotz, C.; Brown, K.H. International zinc nutrition consultative group (IZINCG) technical document #1. Assessment of the risk of zinc deficiency in populations and options for its control. Food Nutr. Bull. 2004, 25, S99–S203. [Google Scholar]
  49. Tang, J.W.; Zou, C.Q.; He, Z.H.; Shi, R.L.; Ivan, O.M.; Qu, Y.Y.; Zhang, Y. Mineral element distributions in milling fractions of Chinese wheats. J. Cereal Sci. 2008, 48, 821–828. [Google Scholar] [CrossRef]
  50. Levrat-Verny, M.A.; Coudray, C.; Bellanger, J.; Lopez, H.W.; Demigne, C.; Rayssiguier, Y.; Remesy, C. Whole wheat flour ensures higher mineral absorption and bioavailability than white wheat flour in rats. Br. J. Nutr. 1999, 82, 17–21. [Google Scholar] [PubMed]
  51. Ryan, M.H.; McInerney, J.K.; Record, I.R.; Angus, J.F. Zinc bioavailability in wheat grain in relation to phosphorus fertilizer, crop sequence and mycorrhizal fungi. J. Sci. Food Agric. 2008, 88, 1208–1216. [Google Scholar] [CrossRef]
Nutrients 09 00465 g001 550

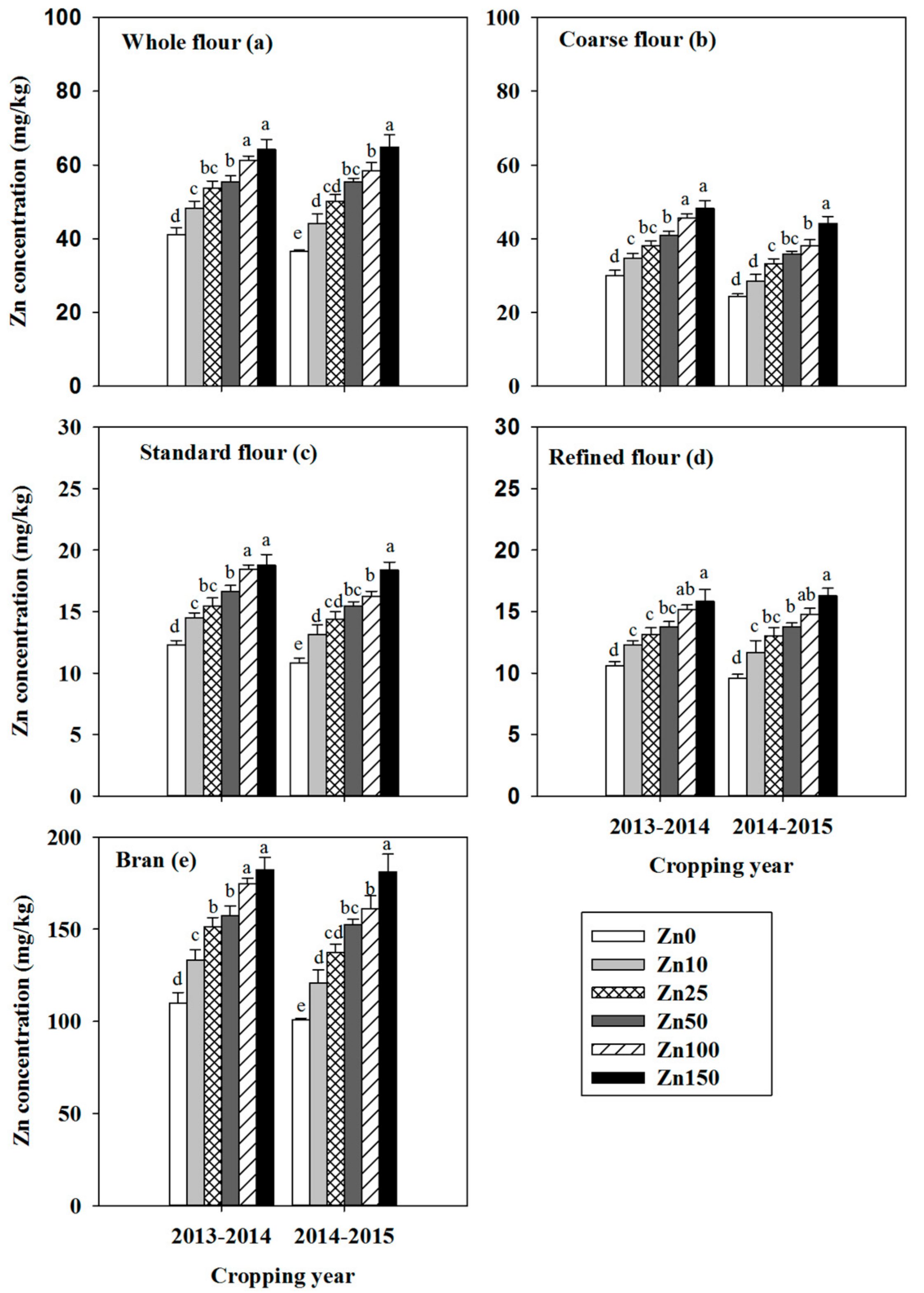

Figure 1. Zinc concentration in wheat whole flour (a); coarse flour (b); standard flour (c); refined flour (d); and bran (e) as affected by the quantity of Zn fertilizer applied (0 to 150 kg of ZnSO4·7H2O/ha) in 2013–2014 and 2014–2015. Values are means + SE (n = 4). Within each panel and cropping year, means with different letters are significantly different at p < 0.05. Note that the Y-axis scale is not constant among panels.
Figure 1. Zinc concentration in wheat whole flour (a); coarse flour (b); standard flour (c); refined flour (d); and bran (e) as affected by the quantity of Zn fertilizer applied (0 to 150 kg of ZnSO4·7H2O/ha) in 2013–2014 and 2014–2015. Values are means + SE (n = 4). Within each panel and cropping year, means with different letters are significantly different at p < 0.05. Note that the Y-axis scale is not constant among panels.
Nutrients 09 00465 g001
Nutrients 09 00465 g002 550

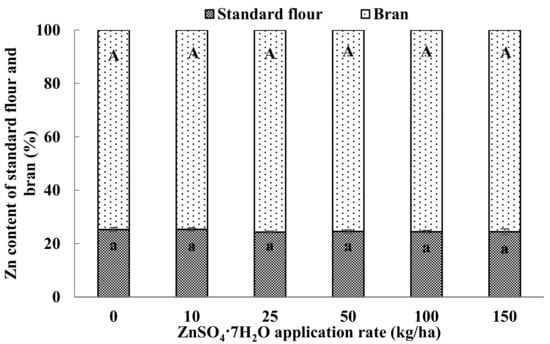

Figure 2. Zn content in standard flour and bran expressed as a percentage of the total Zn content in grain and as affected by the rate of Zn fertilization. Values are means (+SE) of two cropping years. Same letters in lower-case (a) and capital letters (A) means neither the percentages in standard flour nor in bran were significantly affected by the rate of Zn fertilization (p > 0.05).
Figure 2. Zn content in standard flour and bran expressed as a percentage of the total Zn content in grain and as affected by the rate of Zn fertilization. Values are means (+SE) of two cropping years. Same letters in lower-case (a) and capital letters (A) means neither the percentages in standard flour nor in bran were significantly affected by the rate of Zn fertilization (p > 0.05).
Nutrients 09 00465 g002
Nutrients 09 00465 g003 550

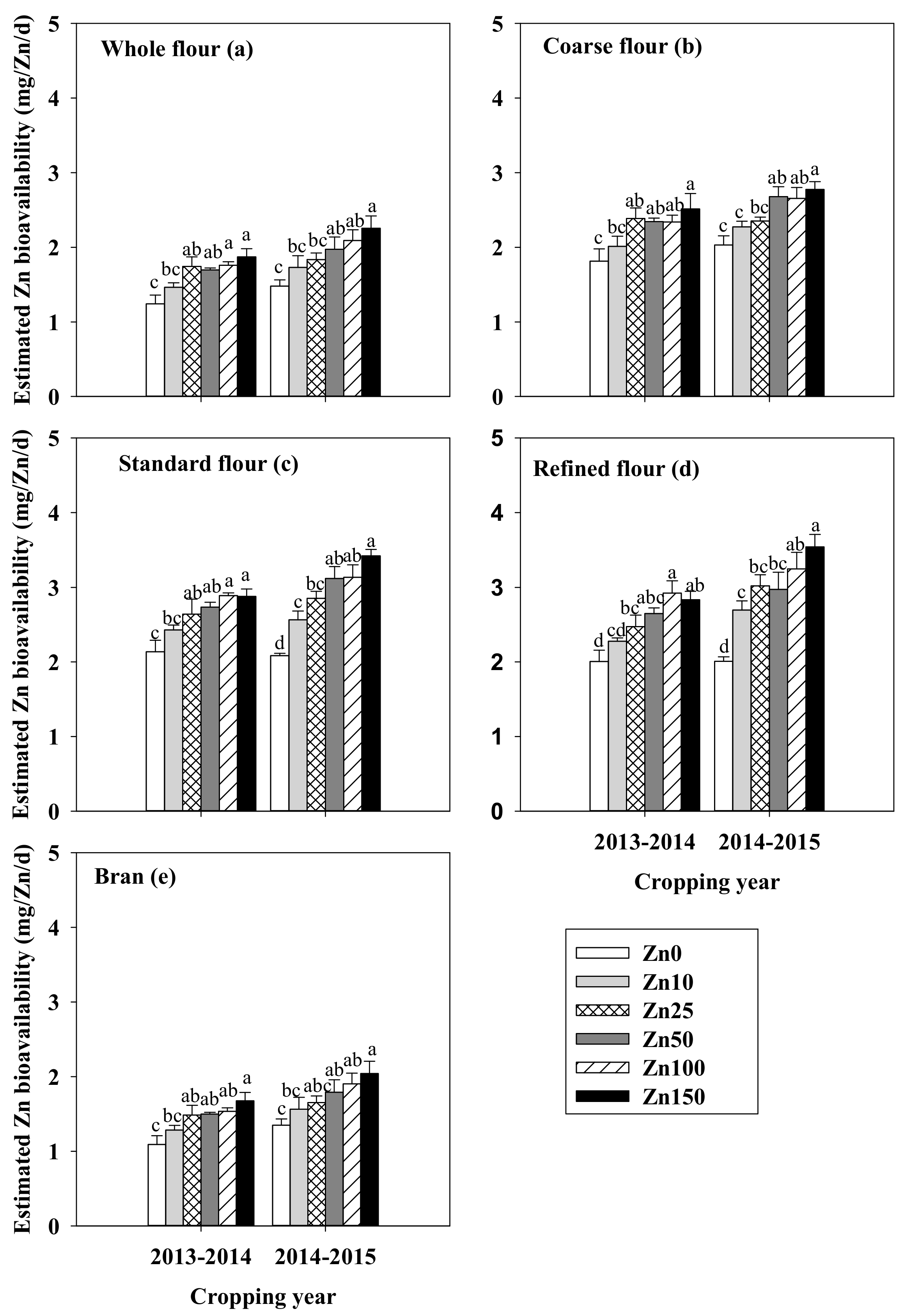

Figure 3. Estimated bioavailability of the Zn in whole flour (a); coarse flour (b); standard flour (c); refined flour (d); and bran (e) as affected by the rate of Zn fertilization (0 to 150 kg of ZnSO4·7H2O/ha) in 2013–2014 and 2014–2015. Values are means + SE (n = 4). Within each panel and cropping year, means with different letters are significantly different at p < 0.05.
Figure 3. Estimated bioavailability of the Zn in whole flour (a); coarse flour (b); standard flour (c); refined flour (d); and bran (e) as affected by the rate of Zn fertilization (0 to 150 kg of ZnSO4·7H2O/ha) in 2013–2014 and 2014–2015. Values are means + SE (n = 4). Within each panel and cropping year, means with different letters are significantly different at p < 0.05.
Nutrients 09 00465 g003
Nutrients 09 00465 g004 550

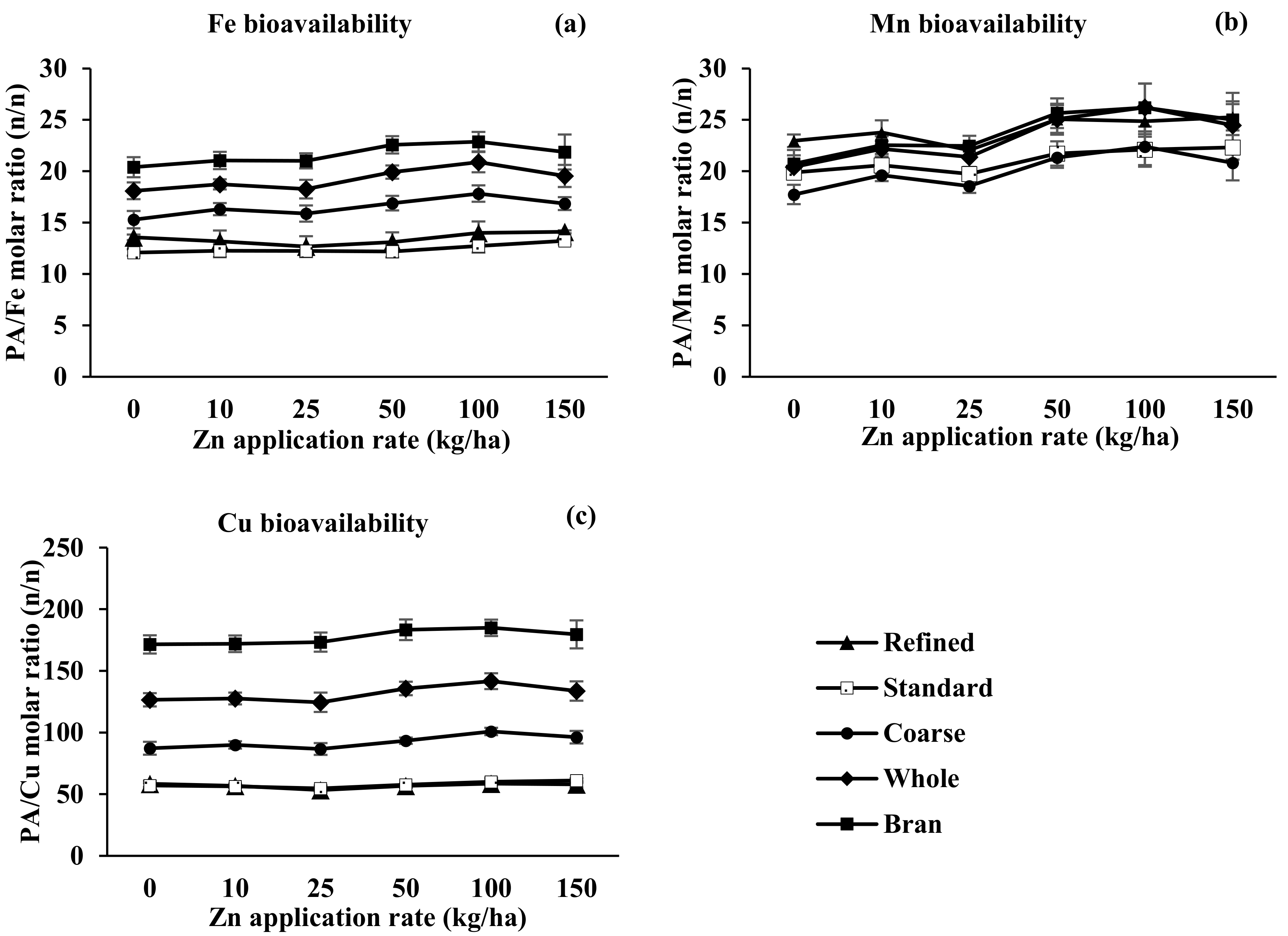

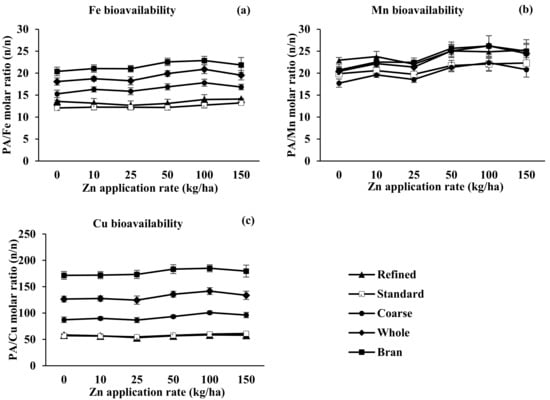

Figure 4. Bioavailability of Fe (a), Mn (b), and Cu (c) in wheat whole flour, coarse flour, standard flour, refined flour, and bran as affected by the rate of Zn fertilization. Values are means (±SE) of two cropping years (n = 8). PA: phytic acid.
Figure 4. Bioavailability of Fe (a), Mn (b), and Cu (c) in wheat whole flour, coarse flour, standard flour, refined flour, and bran as affected by the rate of Zn fertilization. Values are means (±SE) of two cropping years (n = 8). PA: phytic acid.
Nutrients 09 00465 g004
Table
Table 1. The weights and percentages of milling fractions (B1, B2, B3, R1, R2, R3, coarse bran, and fine bran) and flours in wheat grain.
Table 1. The weights and percentages of milling fractions (B1, B2, B3, R1, R2, R3, coarse bran, and fine bran) and flours in wheat grain.
B1B2B3R1R2R3Coarse BranFine BranCoarse Flour bStandard Flour cRefined Flour dBran e
Weight (g) a
2014117.171.924.1392.1157.136.6129.8118.0916.9798.9509.2247.8
2015124.481.124.6449.8216.649.9186.3126.71073.2946.5574.2313.0
Percentage in grain (%)
201411.26.92.337.515.03.512.411.387.676.348.723.7
20159.96.42.035.717.24.014.810.185.275.145.624.9
Average10.56.62.136.616.13.713.610.786.475.747.124.3
a The Bühler laboratory experimental mill (MLU-202) required about a 1-kg sample to produce different milling fractions. The average weight of total wheat grain was 1046.8 and 1259.5 g in 2014 and 2015, respectively; b A mixture of B1, B2, B3, R1, R2, R3, and fine bran fractions; c A mixture of B1, B2, B3, R1, R2, and R3 fractions; d A mixture of B1 and R1 fractions; e A mixture of coarse bran and fine bran fractions.
Table
Table 2. Zinc and phytic acid concentrations in milling fractions (B1, B2, B3, R1, R2, R3, coarse bran, and fine bran) of winter wheat as affected by the rate of Zn biofortification via fertilizer application.
Table 2. Zinc and phytic acid concentrations in milling fractions (B1, B2, B3, R1, R2, R3, coarse bran, and fine bran) of winter wheat as affected by the rate of Zn biofortification via fertilizer application.
ZnSO4·7H2O Rate (kg/ha)B1B2B3R1R2R3Coarse BranFine Bran
2014201520142015201420152014201520142015201420152014201520142015
Zn concentration (mg/kg)
011.4 d10.8 d13.2 d5.7 e22.2 d18.9 c10.3 d9.2 d12.4 d12.0 d24.6 c26.7 c106 e98.3 e114 d105 e
1013.1 cd12.4 cd15.1 c7.6 de25.9 c25.5 b12.0 c11.5 c15.2 c13.7 cd32.2 b31.4 b128 d120 d140 c123 de
2513.9 c13.5 cd16.1 c9.4 cd26.5 bc24.4 b12.9 c12.9 bc16.4 bc14.9 bc37.9 b32.3 b142 cd137 cd163 b138 cd
5014.2 bc14.9 bc16.4 bc10.7 bc28.1 abc27.5 b13.6 bc13.5 b18.5 b15.7 b46.4 a34.3 b149 bc152 bc166 b154 bc
10016.1 ab17.0 ab17.8 ab11.6 b28.6 ab27.5 b14.9 ab14.2 ab21.1 a16.1 b49.7 a34.2 b165 ab163 ab185 a159 b
15017.4 a19.1 a18.4 a13.8 a29.6 a31.5 a15.4 a15.5 a21.2 a18.2 a45.8 a41.9 a171 a177 a193 a186 a
Phytic acid concentration (g/kg)
01.68 a1.63 a2.11 b1.76 bc1.85 a1.38 a1.62 a1.20 a1.94 b1.47 a2.40 a3.06 a28.1 a26.2 a22.4 b15.6 a
101.91 a1.60 a2.21 ab1.77 bc1.69 a1.53 a1.56 a1.05 a2.09 b1.49 a3.07 a2.86 a26.5 a26.0 a25.3 ab17.3 a
251.80 a1.58 a2.16 b1.67 c1.82 a1.47 a1.57 a1.05 a2.05 b1.39 a3.28 a3.46 a25.6 a27.9 a22.0 b19.3 a
501.83 a1.63 a2.18 ab1.70 c1.62 a1.52 a1.51 a1.19 a2.45 a1.39 a3.30 a2.85 a28.1 a30.1 a25.0 ab18.5 a
1001.91 a1.66 a2.20 ab1.91 ab1.90 a1.64 a1.49 a1.14 a2.55 a1.32 a3.70 a3.25 a29.1 a28.7 a29.0 a19.3 a
1502.03 a1.70 a2.40 a2.06 a1.75 a1.51 a1.60 a1.14 a2.62 a1.46 a3.72 a3.07 a28.8 a29.0 a27.1 ab22.1 a
Values are means of four replications for each of two growing seasons (2014 and 2015). Means followed by different letters are significantly different at p < 0.05.
Table
Table 3. Health impact of Zn biofortified flours in China.
Table 3. Health impact of Zn biofortified flours in China.
ParameterPopulationFertilization Rate (kg of ZnSO4·7H2O/ha)
0102550100150
Whole flour
Daily Zn intake (mg per day)Infants4.904.965.015.025.045.08
Children6.006.126.216.246.286.35
% of recommended nutrition intake (RNI)Infants71.0071.8772.5772.7373.0673.56
Children71.5076.4777.6877.9678.5279.39
Health impact (DALYs saved)Infants-35,45163,34369,79382,377101,367
Children-196,418345,503379,258444,317540,416
% reduction in the current health burden a-6.5811.6012.7414.9418.21
Coarse flour
Daily Zn intake (mg per day)Infants4.904.965.015.055.045.08
Children6.006.116.226.296.296.36
% of recommended nutrition intake (RNI)Infants71.0071.8172.6373.1573.1073.63
Children71.5076.3877.7978.6978.6079.51
Health impact (DALYs saved)Infants-33,18865,98286,04284,009104,023
Children-184,104359,348463,061452,676553,656
% reduction in the current health burden-6.1712.0715.5815.2318.66
Standard flour
Daily Zn intake (mg per day)Infants4.905.005.065.105.135.16
Children6.006.196.326.416.456.52
% of recommended nutrition intake (RNI)Infants71.0072.4273.3273.9774.2974.79
Children71.5077.4278.9880.1180.6581.51
Health impact (DALYs saved)Infants-57,56692,482116,774128,089145,901
Children-315,033495,770616,480671,209755,339
% reduction in the current health burden-10.5716.6920.8122.6825.57
Refined flour
Daily Zn intake (mg per day)Infants4.905.025.085.105.175.20
Children6.006.246.376.406.546.59
% of recommended nutrition intake (RNI)Infants71.0072.7573.6273.9174.9375.36
Children71.5078.0079.6380.0081.7582.38
Health impact (DALYs saved)Infants-70,694103,797114,507150,744165,688
Children-383,952565,899605,399777,772834,668
% reduction in the current health burden-12.9019.0020.4326.3528.38
a % reduction in the current health burden = Health impact (DALYs saved) of Zn biofortified flour/health burden without biofortification × 100. In this equation, health burden is equivalent to DALYs.
Table
Table 4. Fe, Mn, and Cu concentrations in whole flour, coarse flour, standard flour, refined flour, and bran as affected by the Zn fertilization rate. Values are the means of four replications for each of two growing seasons (2014 and 2015). Means in a column followed by different letters are significantly different at p < 0.05.
Table 4. Fe, Mn, and Cu concentrations in whole flour, coarse flour, standard flour, refined flour, and bran as affected by the Zn fertilization rate. Values are the means of four replications for each of two growing seasons (2014 and 2015). Means in a column followed by different letters are significantly different at p < 0.05.
ZnSO4·7H2O Application Rate (kg/ha)Whole FlourCoarse FlourStandard FlourRefined FlourBran
2014201520142015201420152014201520142015
Fe concentration (mg/kg)
039.6 a34.5 a27.3 a22.0 a12.7 a10.3 a10.5 a8.0 a106.3 a95.3 a
1038.3 a34.0 a26.0 a20.8 a12.0 a10.2 a9.3 a9.2 a104.0 a93.0 a
2540.0 a34.4 a26.6 a21.2 a12.8 a9.5 a10.8 a8.4 a106.6 a95.0 a
5037.3 a34.5 a26.2 a20.8 a12.6 a10.3 a9.5 a9.3 a101.1 a93.0 a
10038.2 a32.4 a27.2 a19.9 a13.0 a9.3 a9.3 a8.1 a104.1 a88.5 a
15039.0 a33.1 a28.0 a20.8 a13.1 a9.3 a10.0 a8.5 a105.3 a92.9 a
Mn concentration (mg/kg)
037.0 a28.9 a24.0 a17.9 a7.3 a5.9 a5.8 a4.9 a110.2 a86.9 a
1035.8 ab25.3 ab22.9 a15.2 ab7.4 a5.6 a5.6 a4.2 a109.5 a75.1 ab
2537.6 a26.4 ab24.4 a16.3 ab7.8 a5.7 a6.1 a4.5 a111.5 a77.9 ab
5034.0 ab23.7 b23.4 a14.1 b7.7 a5.1 a5.7 a4.0 a104.7 a69.6 b
10033.2 b23.7 b23.1 a14.7 b7.6 a5.1 a5.5 a4.1 a102.5 a69.8 b
15033.5 b24.7 ab23.5 a16.1 ab7.4 a5.6 a5.5 a4.3 a102.5 a73.4 ab
Cu concentration (mg/kg)
06.9 a5.5 a5.8 a4.2 a3.3 a2.3 a2.9 a2.0 a14.5 a13.0 a
106.7 a5.4 a5.6 a4.0 a3.3 a2.3 a2.8 a2.0 a14.6 a12.9 a
256.9 a5.6 a5.8 a4.3 a3.3 a2.4 a3.0 a2.1 a15.2 a13.1 a
506.5 a5.6 a5.5 a4.2 a3.2 a2.4 a2.8 a2.1 a14.3 a12.9 a
1006.6 a5.3 a5.6 a4.0 a3.3 a2.1 a2.9 a1.9 a14.4 a12.7 a
1506.7 a5.4 a5.8 a4.1 a3.4 a2.2 a3.1 a1.9 a14.4 a13.0 a

Share and Cite

MDPI and ACS Style

Liu, D.; Liu, Y.; Zhang, W.; Chen, X.; Zou, C. Agronomic Approach of Zinc Biofortification Can Increase Zinc Bioavailability in Wheat Flour and thereby Reduce Zinc Deficiency in Humans. Nutrients 2017, 9, 465. https://doi.org/10.3390/nu9050465

AMA Style

Liu D, Liu Y, Zhang W, Chen X, Zou C. Agronomic Approach of Zinc Biofortification Can Increase Zinc Bioavailability in Wheat Flour and thereby Reduce Zinc Deficiency in Humans. Nutrients. 2017; 9(5):465. https://doi.org/10.3390/nu9050465

Chicago/Turabian Style

Liu, Dunyi, Yumin Liu, Wei Zhang, Xinping Chen, and Chunqin Zou. 2017. "Agronomic Approach of Zinc Biofortification Can Increase Zinc Bioavailability in Wheat Flour and thereby Reduce Zinc Deficiency in Humans" Nutrients 9, no. 5: 465. https://doi.org/10.3390/nu9050465

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
