Choline is an essential water-soluble nutrient, which can be formed by de novo synthesis but needs to be additionally obtained via the diet to meet the body’s requirements [1
]. Choline and its metabolites play a key role in various mammalian biological processes [2
]. They serve as components of structural lipoproteins and membrane lipids and thus promote structural integrity and the signaling functions of cells. Furthermore, choline serves as a precursor of the neurotransmitter acetylcholine, which is crucial for brain function [3
]. Choline was officially recognized as an essential nutrient by the Institute of Medicine (IOM) in 1998.
Choline absorption and metabolism in the gut strongly depends on its biochemical formulation, as well as on the present gut microbiota [4
]. An estimated 90% of the US population is not meeting the choline intake recommendations of 550 mg/day for men and 425 mg/day for women, as issued by the Institute of Medicine [1
]. More recently, the European Food and Safety Authority (EFSA) recommended a slightly lower adequate intake (AI) of 400 mg choline per day for all adults. Still, the average choline intake of healthy adults in the EU (370 mg/day) remains below this level [7
]. Low intake levels of choline may lead to fatigue and muscle dysfunction and can impair brain function and memory. In the long term, lacking choline can increase the risk of neurological disorders like Alzheimer’s disease [8
]. In severe cases, choline deficiency promotes kidney necrosis and fatty liver disease [10
], and a deficiency in phosphatidylcholine in the gut mucus layer is discussed as a causative factor for ulcerative colitis [12
]. Furthermore, findings in rodents show that choline deficiency can promote heart dysfunction [13
]. Also, pregnant women should ensure adequate levels of choline due to its importance in fetal development [14
Thus, suitable choline dietary supplements are required where choline is well absorbed and is available in the circulation in meaningful amounts. Krill oil is an acknowledged dietary supplement to provide omega-3 fatty acids, but it is increasingly recognized to also be a useful source of the phospholipid phosphatidylcholine, and thus also for choline [15
krill oil is the major marine oil on the market with high concentrations of phosphatidylcholine. SuperbaBoostTM
contains particularly high levels of phospholipids (≥56%), out of which phosphatidylcholine makes up the major share (approximately 90%). In the intestinal tract, phosphatidylcholine may either be absorbed intact or after hydrolysis by phospholipase D, by which free choline is liberated from the structure [17
]. In contrast, free choline is immediately available from the commonly supplemented choline salts, such as choline bitartrate or choline chloride, without the need for an enzymatic conversion step.
Besides being available as free choline for various requirements of the body, choline from choline supplements is further converted into different metabolites. Betaine is an oxidation product of free choline and is important, for the formation of the essential amino acid methionine, among others [18
]. Dimethylglycine (DMG) is a metabolite of betaine and serves as an important source of the amino acid glycine and of methyl groups for biochemical reactions [19
]. Trimethylamine N-oxide (TMAO) is metabolized in the host liver from trimethylamine (TMA) [20
], which is, in turn, primarily generated from dietary choline, betaine, l
-carnitine, and its metabolite, y-butyrobetaine, by the action of gut microbiota [21
]. Recent findings implicate that TMAO is not merely a non-functional waste product of choline metabolism, but emerges as a risk factor and prognostic marker in the development and outcome of many diseases and disorders, including renal disease [23
], cardiovascular disease [22
], colorectal cancer [30
], type II diabetes and neurological disorders [31
]. Moreover, high TMAO levels seem to be related to inflammation, for instance by activating the NLRP3 inflammasome [32
], or by correlating with elevated plasma tumor necrosis factor (TNF)-α levels in an otherwise healthy population [35
Circulating TMAO levels show high inter- and intra-individual variation and are determined by a number of influencing factors [6
]. As such, TMAO levels appear to increase with age [37
], and are influenced by kidney function, especially by the activity of hepatic flavin monooxygenases. Of note, the diet also plays a key role in TMAO formation by impacting the gut microbial flora [4
]. Western or high fat diets where shown to increase plasma TMAO levels [6
], while there is reduced TMA production from l
-carnitine in vegetarians [41
]. Furthermore, intake of antibiotics, especially broad-spectrum antibiotics, can almost completely suppress TMA and TMAO production, but levels return back to normal within one month after withdrawal of the antibiotic [22
Overall, bioavailability data of choline from different sources are rather limited and do not provide a full picture, including further metabolites which can exert independent physiologic effects. In this context, TMAO formation in particular is evolving as a topic of high interest. Previous studies have already demonstrated that phosphatidylcholine is only limitedly converted to undesirable trimethylamines in contrast to choline salts [21
]; however, less is known regarding the other metabolites. Further, these studies did not investigate TMAO formation after phosphatidylcholine intake in form of krill oil, or, in particular, in the form of SuperbaBoostTM
. Since SuperbaBoostTM
is discussed as a suitable choline source, circulating levels of choline and choline metabolites, especially TMAO, remain to be investigated.
Thus, the aim of the current study was to investigate the kinetics of choline and the generation of choline metabolites from two different choline sources. Concentration and plasma kinetics of choline and its metabolites betaine, DMG and TMAO were investigated after intake of SuperbaBoostTM krill oil and choline bitartrate.
The study was performed in a randomized cross-over design with an additional control group receiving fish oil containing comparable amounts of the omega-3 fatty acids eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA) present in the SuperbaBoostTM
krill oil product, but no choline. In fish oil, however, EPA and DHA are bound to triglycerides, while they are mainly bound to phospholipids in krill oil. The fish oil control group allowed the estimation of potential confounding factors by standardized meals or by other regulatory mechanisms such as the circadian rhythm. In a study by Park et al., endogenous choline levels increased during the daytime in between meals, but not immediately after food intake, suggesting that additional mechanisms like the circadian rhythm may influence circulating choline levels [44
2. Materials and Methods
2.1. Study Subjects

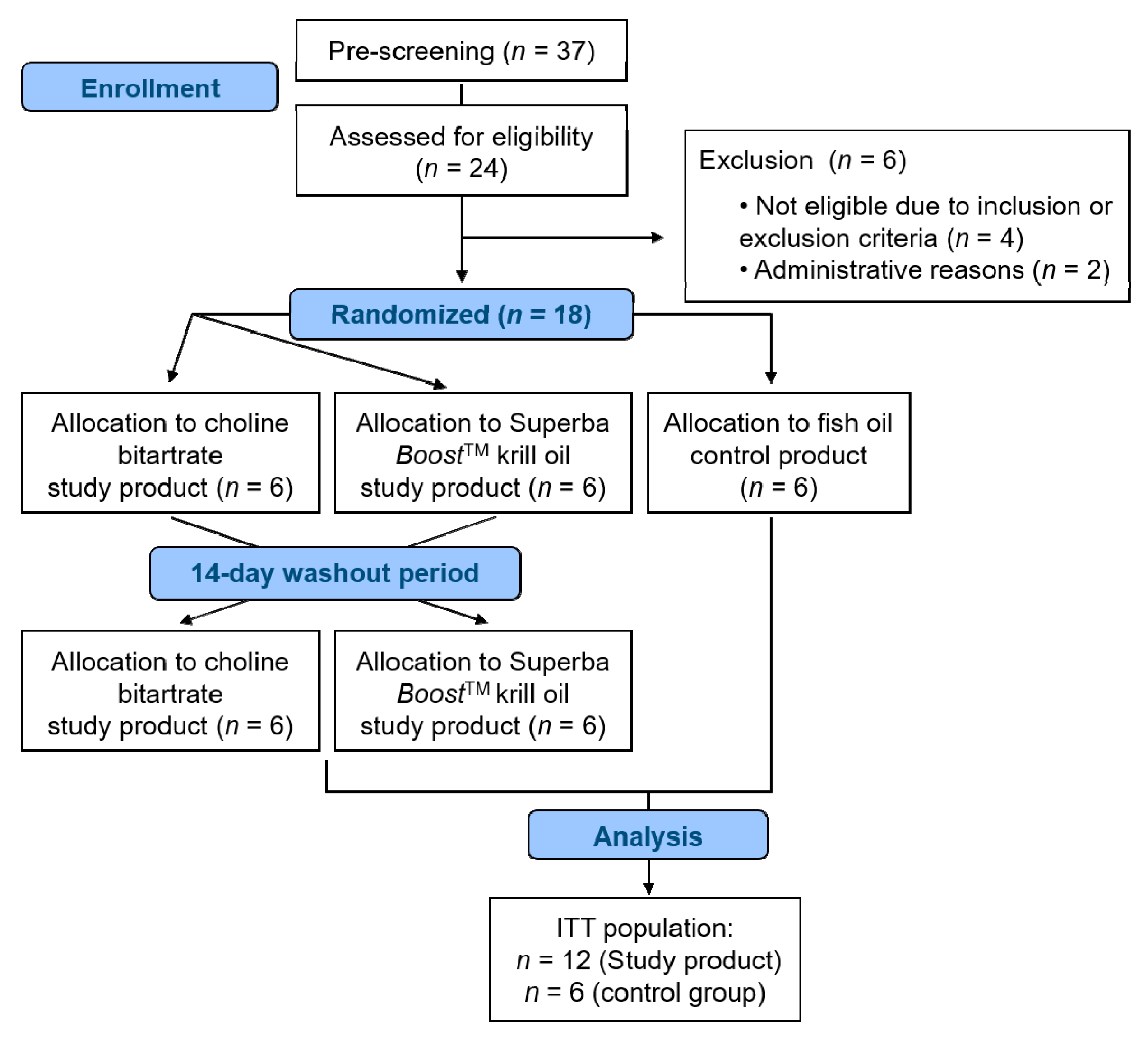

The study cohort consisted of 18 healthy males and females (1:1), where 12 subjects received the study products and 6 subjects received the control product (Figure 1
). All included subjects were recruited between October and November 2018. Overall, 24 subjects, aged 18–65 years with a body mass index (BMI) of 18–30 kg/m2
, were screened for eligibility. Subjects were excluded from study participation in case of a relevant history of any medical disorder potentially interfering with the study (e.g., malabsorption, chronic gastro-intestinal diseases, heavy depression, diabetes, etc.), in case of a regular intake of drugs or dietary supplements interfering with the study (e.g., omega-3 fatty acids, krill oil, etc.), in case of drug, alcohol, or medication abuse, or in case of pregnancy and breastfeeding. In addition, reasons for non-inclusion were low hemoglobin, platelet and leukocyte levels, as well as markers of liver damage exceeding the normal limit unless related to primary disease. Study participants had a low habitual consumption of fatty fish and seafood, not exceeding a frequency of twice per month. Medications for the treatment of chronic diseases that did not affect the metabolism of the study product were permitted.
Subjects gave written informed consent to participate in the study prior to screening evaluations. Ethical approval was obtained from the Institutional Review Board (IRB) of Landesärztekammer Baden-Württemberg with the approval code F-2018-076. The study was conducted in accordance with the guidelines set forth by the International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use (ICH), the guidelines for Good Clinical Practice (GCP), and the Declaration of Helsinki regarding the treatment of human subjects in a study. The present study was registered with the German Clinical Trials Register (DRKS; ID: DRKS00015828).
2.2. Study Design
The study was performed as a randomized, placebo-controlled, monocentric, two-way cross-over pharmacokinetic study. In total, 18 healthy volunteers took part in the study, where 12 subjects received the study products and 6 subjects received the placebo control product. The study was conducted at the study site of BioTeSys GmbH (Esslingen, Germany). Blood sampling was performed at two kinetic intervention days, over a time period of 24 h each, after a single dose of the study products. There was a wash-out phase of 14 days between the kinetic days. Blood samples were taken before (0 h), and 0.5 h, 1 h, 2 h, 4 h, 8 h, 12 h and 24 h after intake of the study products to obtain concentration-time profiles of free choline and its metabolites in plasma. During the kinetic days, fluid and calorie intake was standardized and meals with low choline content were served. In addition, subjects were asked to adhere to a diet poor in choline three days prior to the kinetic days and to consume a standardized dinner on the evening before the kinetic days.
The investigational product was SuperbaBoostTM krill oil (#1198530200, Aker BioMarine Antarctic AS, Lysaker, Norway), a choline source with phosphatidylcholine. The product was administrated orally as a single dose provided in softgel capsules containing in total 8 g SuperbaBoostTM krill oil, equivalent to 572 mg choline. Choline bitartrate (#CHB:C18060079, ZeinPharma®, Nauheim, Germany) was used as a reference product that was similarly administered orally as a single dose provided in capsules (vegetable fiber), containing a total of 620 mg choline according to an actual analysis certificate. Fish oil (#L14006818:12, Omega-3 Seefischöl 100, Doppelherz®, Queisser Pharma, Flensburg, Germany) was used as placebo. Six grams of fish oil contained 1800 mg of the omega-3 fatty acids EPA and DHA, a dose comparable to the EPA and DHA content (1840 mg) in 8 g of SuperbaBoostTM krill oil. The intake of study products occurred under supervision of the study personnel. Manufacturing of the study products was carried out in compliance with Good Manufacturing Practice (GMP) conditions and all ingredients and capsules were of food grade quality and met European food regulations. SuperbaBoostTM krill oil capsules were provided by Aker BioMarine. Capsules containing choline bitartrate or fish oil were obtained commercially.
2.4. Sample Collection, Processing and Analysis
Venous blood samples were taken at screening and study visits at the study site of BioTeSys GmbH (Esslingen, Germany). Samples were analyzed the same day or the next day for safety and blood routine parameters (differentiated hemogram and clinical laboratory) at an accredited laboratory (Synlab Medizinisches Versorgungszentrum, Leinfelden-Echterdingen, Germany). Blood samples were centrifuged at 3000× g
for 10 min at 4 °C. Plasma aliquots were taken and stored at −80 °C until analysis of choline and its metabolites, which was performed by HPLC-MS/MS at Bevital AS (Bevital AS, Bergen, Norway) in a high throughput, low-volume, multianalyte fashion, as described by Holm et al. [45
2.5. Methods for Safety (Adverse Events, Concomitant Medication and Tolerability)
During the study intervention, the subjects documented any adverse events (AEs) and concomitant medication in diaries. Tolerability of the study products was assessed at the end of the kinetic days.
2.6. Data Analysis and Statistics
All statistical tests were performed two-sided. A p-value < 0.05 was considered as statistically significant. Non-normality was evaluated with the Shapiro–Wilk test using a significance level of 0.10. Plasma concentrations of the analytes and their increase over time were analyzed using ANOVA with repeated measures or Friedman test, if appropriate. To allow direct comparison of free choline from the different sources, SuperbaBoostTM and choline bitartrate, data sets were dose adjusted for free choline, but not for the metabolites betaine, DMG and TMAO. This takes into account that the choline content of the SuperbaBoostTM product was 8.4% lower than the choline bitartrate product. All concentration–time curves show baseline-corrected values. Pharmacokinetic parameters were individually calculated based on the plasma concentration–time curves. The area under the observed concentration–time curve (AUC) above baseline, within 12 h (AUC0-12 h) and within 24 h (AUC0–24 h) were calculated by applying the trapezoidal rule with the y-axis defined by choline plasma concentration, and the x-axis defined by sampling time points. After log transformation, AUC0-12 h, AUC0–24 h and peak concentration (Cmax) were evaluated using a linear mixed model, taking into account sequence, period, and product. Differences between the time to reach maximum concentration (Tmax) were evaluated by the Wilcoxon rank sum test using the intra-individual differences between the outcomes in both periods as the raw data with consideration of the cross-over analysis by strict separation of treatment effects from period effects.
Descriptive comparison of fish oil uptake pattern with the uptake pattern from SuperbaBoostTM or choline bitartrate were evaluated by pairwise comparison using Student t-test or Wilcoxon rank sum test, if appropriate. Statistical evaluation, summary tables and graphs were generated using GraphPad Prism software (GraphPad Software, La Jolla, CA, USA) and SAS v9.3 statistical software (SAS Institute, Cary, NC, USA).
In the present study, the absorption pattern and pharmacokinetic pattern of free choline from SuperbaBoostTM krill oil and choline bitartrate were investigated. In SuperbaBoostTM, choline is bound in a lipid-soluble form as phosphatidylcholine, while it is present as a water-soluble salt structure in choline bitartrate. Results show that free choline levels in plasma were comparable between SuperbaBoostTM and choline bitartrate, but peak choline concentrations were reached significantly later upon intake of SuperbaBoostTM compared to choline bitartrate. Moreover, levels of the choline metabolites betaine and DMG were higher, while levels of TMAO were lower upon intake of SuperbaBoostTM compared to choline bitartrate.
The dependency between choline intake and circulating levels of free choline and its metabolites is concealed by homeostatic regulations and rapid tissue uptake [46
]. Thus, concentrations of choline and its metabolites are usually within a narrow range. In the literature, endogenous free fasting choline levels under physiological conditions range between 7–12 µmol/L [2
], which could be confirmed in the present study with a mean choline concentration of 9.6 µmol/L before product intake. Moreover, baseline values were highly comparable within all groups and within the two kinetic days.
It is well known that choline levels are influenced by nutrition, and choline sources depend on the diet [6
], In a normal Western diet, choline can be obtained from eggs, liver, soybeans and pork [6
], where choline is present primarily as phosphatidylcholine. It was shown that the consumption of a small breakfast led to 25–30% higher choline levels compared to the fasting condition [45
], and that a high choline-containing diet resulted in an up to two-fold increase in plasma choline [49
]. In a recent study by Cho et al., eggs were provided as a choline source, which contained comparable amounts of choline (479 mg) as the herein investigated study products (choline bitartrate: 620 mg; SuperbaBoostTM
: 572 mg). Cho et al. reported a 1.6-fold increase in free choline after consumption of the egg meal, in comparison to the fruit control meal [47
]. Correspondingly, the choline increase in the current study upon supplement intake was comparable (choline bitartrate: 1.35-fold; SuperbaBoostTM
To control for confounding factors of food, subjects of the present study adhered to a diet low in choline three days before the study intervention and consumed standardized meals during the kinetic days. In addition, a parallel study arm was included, whose subjects underwent a single kinetic dose after the intake of fish oil as a placebo control that was devoid of choline. Of note, we observed a minor increase in choline levels in the placebo group after the 4 h time point; thus, the standardized lunch served after four hours could have contributed to this elevation. However, no such effect was seen in the study groups receiving choline supplements. In addition, by implementing the control group, we were able to exclude possible circadian rhythm-dependent variations in choline levels, in contrast to Park et al., who observed a slight elevation of free choline levels in the afternoon during a 12 h-lasting observation of endogenous choline levels [44
Krill oil is increasingly recognized as a useful source of phosphatidylcholine [15
], in addition to its acknowledged role in providing the omega-3 fatty acids EPA and DHA. In a former study, phosphatidylcholine was shown to raise plasma choline levels more efficiently compared to ingestion of free choline as choline chloride [50

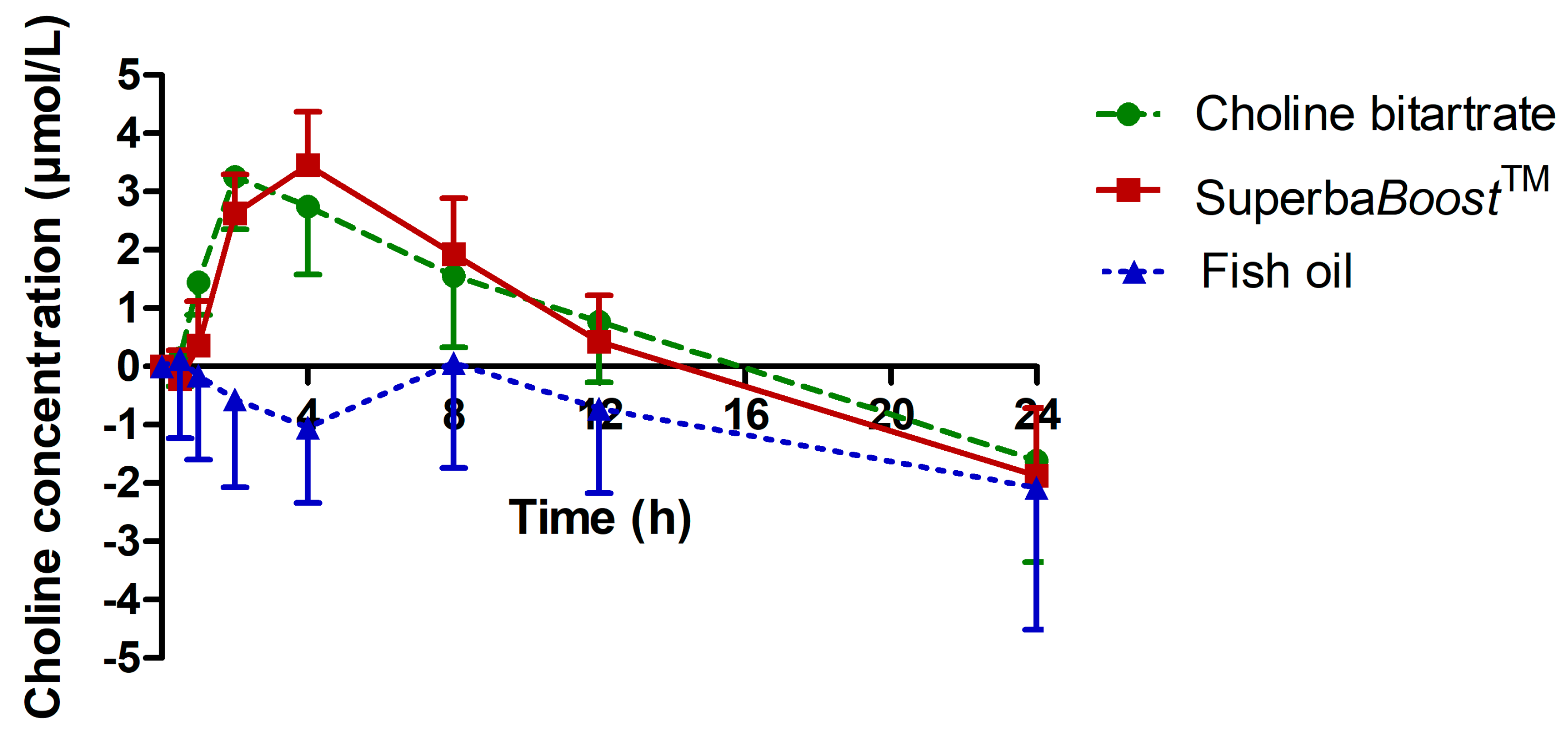

]. In the current study we observed a significant increase of choline after single doses of both phosphatidylcholine and the reference product choline bitartrate; however, phosphatidylcholine was not more efficient, since there were no significant differences in the pharmacokinetic endpoints AUC and Cmax
. This discrepancy compared to the former study could be due to possible differences in the bioavailability of the chosen choline salts. However, to the best of our knowledge, choline bitartrate and choline chloride bioavailability has not been directly compared to date. Still, the uptake profile of free choline in the current study indicated a slower increase upon phosphatidylcholine (SuperbaBoostTM
) intake compared to choline bitartrate. This difference in Tmax
between the study products could result from the structural differences between the choline forms and from the associated differences in absorption and metabolism. Phosphatidylcholine and/or its isoforms may be absorbed intact and can also be hydrolyzed into phosphatidic acid and free choline by phospholipase D [17
]. Due to this conversion step, it supposedly takes longer to obtain free choline from phosphatidylcholine compared to choline bitartrate, where free choline from the salt structure is more rapidly available. Our findings are in agreement with former findings showing that choline levels after choline chloride reached peak levels earlier and were reduced to baseline earlier than after phosphatidylcholine intake, where levels remained elevated for 12 h [50
After intake, choline is extensively transformed into different metabolites, such as betaine. Betaine is an oxidation product of free choline and serves as substrate in the betaine–homocysteine methyltransferase reaction, which links choline and betaine to folate-dependent one-carbon metabolism. Thus, choline and folate levels are closely interconnected, and deficiencies in either of these compounds might aggravate the nutrition status of the counterpart [52
]. Therefore, betaine is an important choline metabolite, but is also present itself in various foods such as cereals, spinach, quinoa or noodles. Betaine can be further metabolized to DMG, which is a crucial methyl group donor for many biochemical reactions in the body. Both metabolites are usually present in plasma prior to a choline challenge from supplements. Respective mean values in plasma of different healthy cohorts are reported to range between 30–39 µmol/L (betaine) and 2.5–4.0 µmol/L (DMG) [45
]. Comparable betaine and DMG levels were measured in the current study cohort under baseline conditions (Table 1
). Substantial amounts of the ingested choline were converted into betaine and DMG, raising the pre-challenge levels both upon choline bitartrate intake and upon phosphatidylcholine intake from krill oil. Similar results were presented in a recent study by Bjørndal and colleagues, showing that krill oil supplementation significantly induced fasting plasma levels of choline, betaine and DMG [57
]. As a study limitation, the authors named the missing placebo control devoid in phosphatidylcholine but containing omega-3 fatty acids in similar amounts as the krill oil product. This control group was included in the present study, confirming that the pharmacokinetic effects were attributable to phosphatidylcholine only, without confounding influences by omega-3 fatty acids.
The extent of the betaine (choline bitartrate: 1.5-fold; SuperbaBoostTM

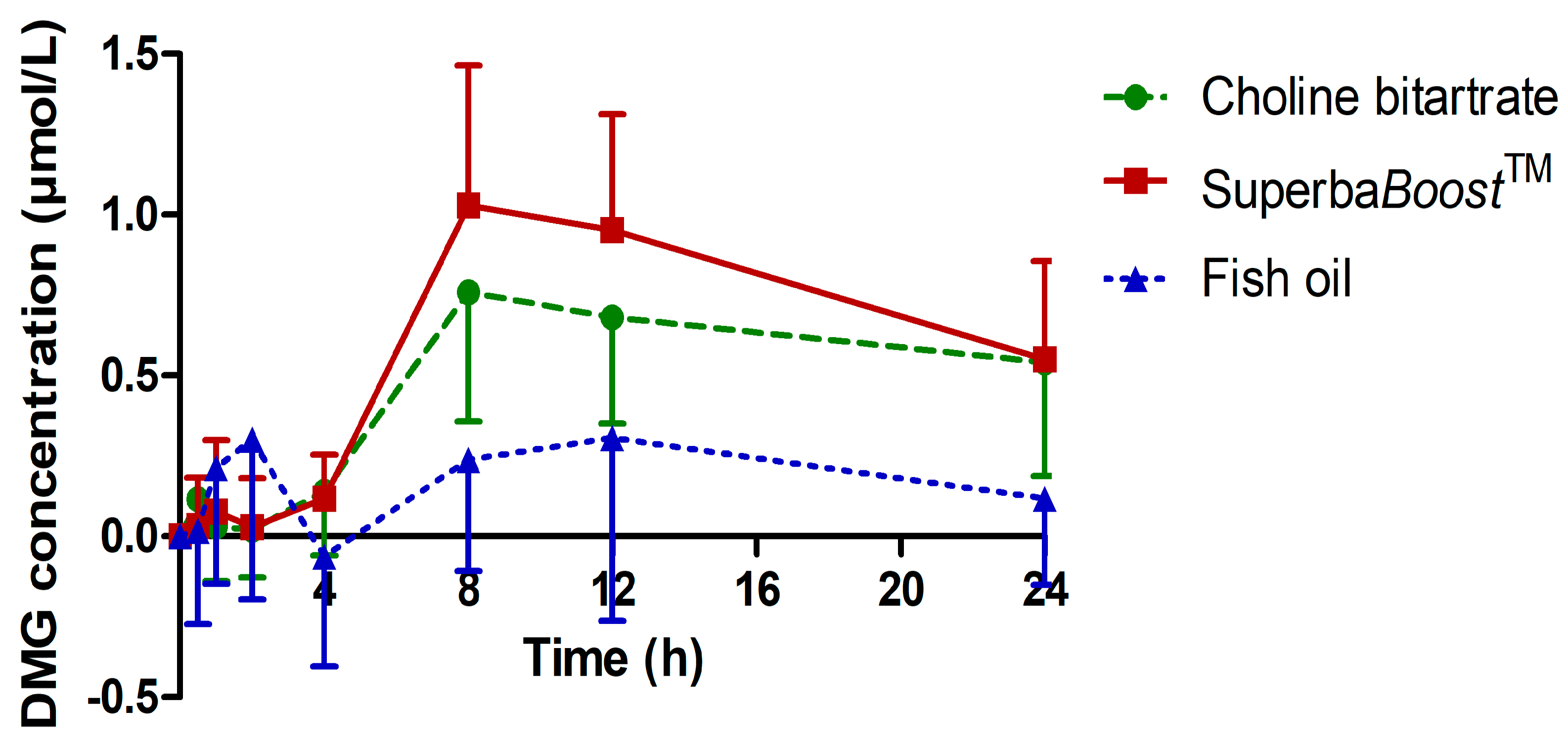

: 1.88-fold) and DMG (choline bitartrate: 1.31-fold; SuperbaBoostTM
: 1.35-fold) increase observed in the present study was comparable to earlier results by Cho et al., with 1.2-fold and 1.3-fold increases, respectively [47
]. Of note, we demonstrated differences in the pharmacokinetic parameters AUC0–12 h
of betaine, which were higher after intake of SuperbaBoostTM
compared to choline bitartrate. Also, the AUC0-12 h
of DMG was slightly higher upon SuperbaBoostTM
compared to choline bitartrate. However, these differences in both betaine and DMG were not confirmed for AUC0-24 h
. Again, a delayed conversion from phosphatidylcholine to free choline could have contributed to higher and longer maintained levels of choline metabolites in the circulation in comparison to a faster choline metabolism upon choline bitartrate intake. Moreover, plasma phosphatidylcholine levels after SuperbaBoostTM
intake were not measured in the current study, but could have served as some kind of depot from which further betaine and DMG was generated, in contrast to choline bitartrate.
On the other hand, possible differences between the study products in regard to the Tmax of betaine and DMG might have been missed due to the limited sampling times between 4 and 12 hours after dosing. Of note, a slight elevation in betaine levels after breakfast, and a more substantial elevation after lunch, was observed in the fish oil control group, which could have been due to the betaine content in the served oatmeal and noodles, respectively. Thus, similar lunch-mediated effects on betaine levels in the study groups cannot be excluded. Yet, Cmax levels were significantly elevated in the study groups compared to the control group (choline bitartrate: p = 0.0042; SuperbaBoostTM: p = 0.0002).

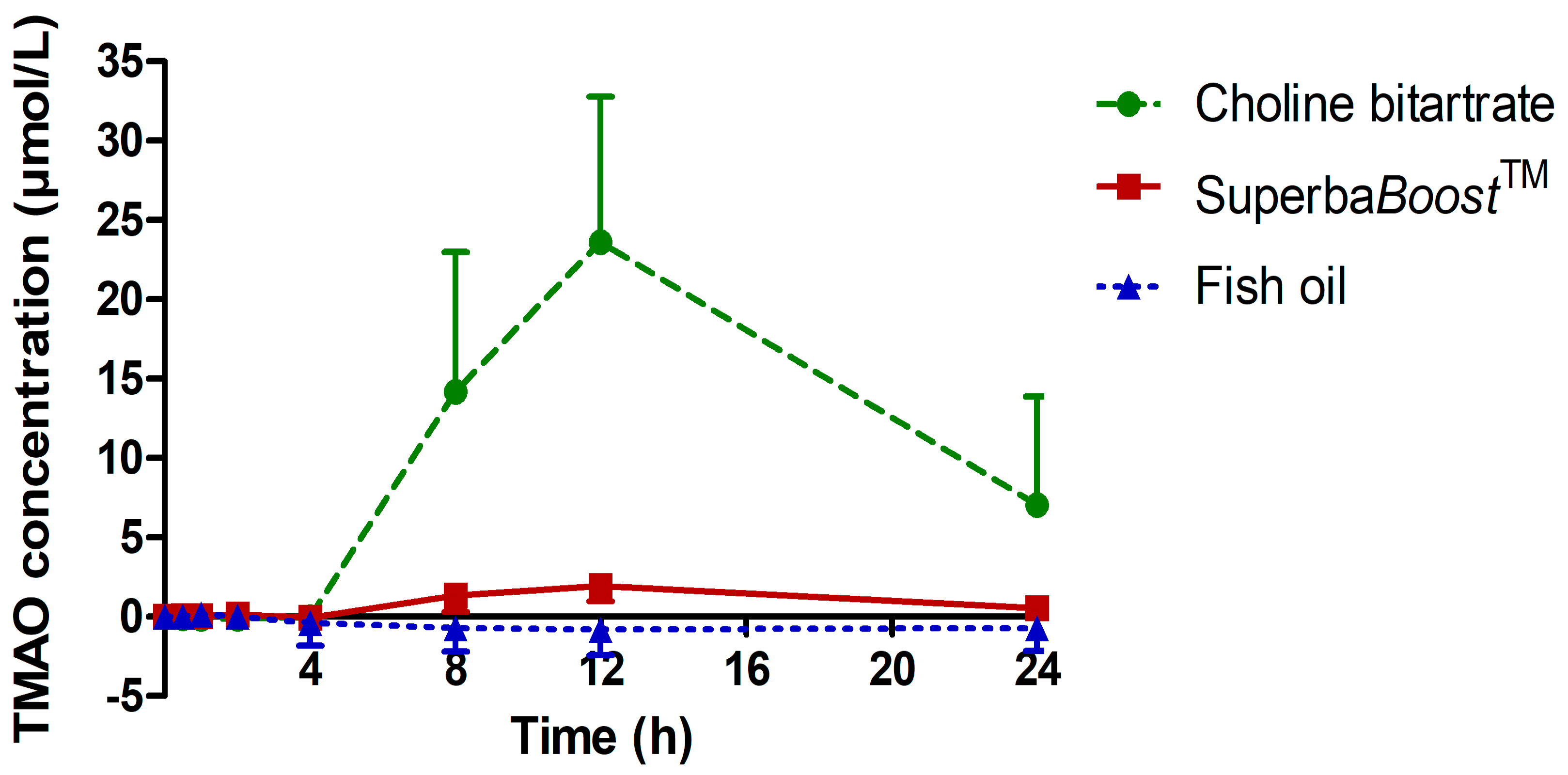

The most prominent difference observed between phosphatidylcholine and choline bitartrate was observed in regard to TMAO plasma levels after intake of the study products. Substantially higher TMAO concentrations were measured after intake of the choline bitartrate salt, compared to phosphatidylcholine from SuperbaBoostTM
. This finding was recently confirmed in healthy young adults, where krill oil supplementation resulted in increased choline and betaine but not TMAO levels [58
]. TMAO is a metabolite of TMA, which is generated primarily by the action of gut microbiota from dietary choline, betaine, l
-carnitine and its metabolite y-butyrobetaine [21
]. In addition, TMAO is a major osmolyte in fish and other seafoods and is detectable in low levels in healthy people, as also demonstrated in this study. A recent meta-analysis of 11 studies demonstrated that elevated TMAO levels, higher than levels ranging from 5 to 70 µmol/L, were associated with the risk of cardiovascular disease [59
]. The fasting concentrations of TMAO in our study (mean TMAO: 2.1 µmol/L) were below this range, and currently there are no studies to link short-termed elevated TMAO levels after a choline bolus to cardiovascular risks.
