Application of Landsat High Spatial Resolution Phenological Synthesized Data in Mountainous Land Cover Classification

Abstract

Classifying land cover in mountainous areas has always been challenging due to the high diversity of ecosystems and the complexity of the spectral–temporal–spatial relationships caused by the rugged terrain. This paper introduces multi-year synthesized phenology data to improve land cover classification in these regions. Using the Shennongjia Forestry District in Hubei Province, China, as a case study, we investigate how incorporating multi-year synthesized phenology data enhances the accuracy of land cover classification with single-temporal and multi-temporal remote sensing imagery, as well as how it aids in identifying different vegetation types in shaded areas of the mountains. The research results indicate that incorporating multi-year synthesized phenology data significantly improves the accuracy of land cover classification for single summer imagery, single autumn imagery, multi-temporal summer–autumn imagery, and mountain shadow areas. The Kappa coefficient (Kappa) increased by 1.57% to 9.93%, while overall accuracy (OA) improved by 1.4% to 8.75%. Notably, the improvement in classification accuracy was most pronounced for single summer imagery. Furthermore, the results demonstrate that, in the absence of terrain data, multi-year synthesized phenology data provide even greater enhancements in land cover classification accuracy using remote sensing imagery.

1. Introduction

Mountainous environments are characterized by unique and extensive biodiversity, with numerous endemic species playing integral roles in maintaining local ecological equilibrium and ecosystem functions [1]. The profusion of vegetation in such regions significantly contributes to climate regulation, water resource preservation, soil erosion mitigation, and biodiversity conservation [2,3]. However, the inherent vulnerability of mountain ecosystems cannot be ignored. Threats such as climate change, deforestation, land use alterations, and human activities endanger these ecosystems [4,5]. To enhance the protection and management of mountain ecosystems and sustain their ecological services and biodiversity, it is imperative to accurately classify and monitor land cover in these areas.

Due to the unique geographical and environmental characteristics of mountainous regions, researchers face significant challenges in achieving precise analysis of land cover information [6,7]. The complex and variable terrain, rich biodiversity, and uneven lighting in mountainous areas often result in satellite data that fail to fully capture the distinct features of land cover types [8,9]. Particularly in transitional zones of mountainous regions, the spectral identification of vegetation types from remote sensing imagery is severely limited [10,11]. The high heterogeneity of mountain environments frequently leads to the phenomenon of “same object, different spectrum,” where the same type of land cover exhibits different spectral characteristics under different environmental conditions [12,13]. A typical example is the variation in phenological stages of vegetation, which causes even the same type of vegetation to have different spectral characteristics at different growth stages [14,15]. For instance, within mountainous forest ecosystems, a given vegetation type can exhibit substantial seasonal variations in both canopy structure and spectral reflectance characteristics, directly affecting the land cover classification results in remote sensing imagery. The differences in vegetation phenology along altitudinal gradients are a significant cause of the “same object, different spectrum” phenomenon observed in mountainous vegetation on remote sensing imagery.

To address the challenges in land cover classification in mountainous areas, researchers have made numerous attempts in recent years. For instance, some researchers integrated features and textures from multi-source, multi-resolution, and multi-temporal remote sensing data to capture the characteristics and dynamic changes of different mountain vegetation types, thereby enhancing their differentiation and achieving classification of different land use types. However, this approach fails to utilize the topographic information contained in the data or vegetation knowledge graphs, resulting in limitations in finer vegetation classification [7]. Others have attempted to incorporate topographic data into their analysis, hoping to improve classification accuracy by considering elevation, slope, and aspect. However, relying solely on traditional topographic indicators is still insufficient to fully capture the complex relationship between mountain vegetation and terrain, leading to less than ideal results in land cover classification [16]. The relationship between vegetation and terrain is far more complex than imagined, and the ideal vertical vegetation belt structure may become blurred due to terrain undulations and microclimate differences, making it more difficult to distinguish vegetation types in mountainous areas. In tropical montane rainforests, vegetation distribution is not only controlled by topographic conditions, but also contributes to terrain evolution through long-term eco-geomorphological interactions.

The introduction of phenology data provides a new approach to addressing this issue. Phenology data record key events in the plant growth cycle, such as budburst, flowering, and leaf fall, offering crucial temporal supplements to remote sensing imagery [17,18]. Studies have shown that, although many vegetation types share similar visible spectral characteristics, they exhibit significant differences in important life cycle events [19]. Therefore, by examining the spectral differences of different vegetation types at specific phenological stages, the identification of vegetation types in mountainous land cover can be improved. Currently, research on using phenology data to assist land cover classification primarily focuses on identifying different vegetation types through spectral differences. For example, S. Saquella used phenological information extracted from Sentinel-2 time series data to classify crop fields, while Peter J. Weisberg utilized UAV imagery and phenological information to analyze the phenological differences of plants at different stages of the growing season, thereby distinguishing two invasive annual grass species [20,21]. Although these studies have attempted to apply phenology to classification, there is still limited exploration of the issue of the same vegetation type exhibiting different spectral characteristics due to factors such as terrain in mountainous environments. In land cover classification, mountain shadows are often overlooked; most researchers choose to exclude shadowed areas or perform topographic correction [22,23]. The role of phenology data in identifying vegetation types in mountainous shadow areas remains unclear.

This study is conducted in the Shennongjia Forestry District, aiming to explore the potential of synthesized phenology data in improving land cover classification in mountainous areas, as well as their role in interpreting vegetation information in shadowed regions. The Shennongjia Forestry District, as a transitional alpine zone, features significant elevation differences, rich species diversity, and distinct vertical vegetation zoning [24]. This paper uses pixel-based synthesized Landsat imagery from 2000 to 2022 to extract phenology data with a spatial resolution of 30 m. The research focuses on the following three main questions: investigating the feasibility of extracting multi-year synthesized phenology data at a 30 m spatial resolution; whether combining multi-year synthesized phenology data with single-temporal and multi-temporal spectral data, vegetation index data, and topographic data is an effective method to improve land cover classification accuracy in mountainous areas; and whether multi-year phenological information has the potential to classify and identify vegetation types in mountainous shadow areas.

2. Materials and Methods

2.1. Study Area

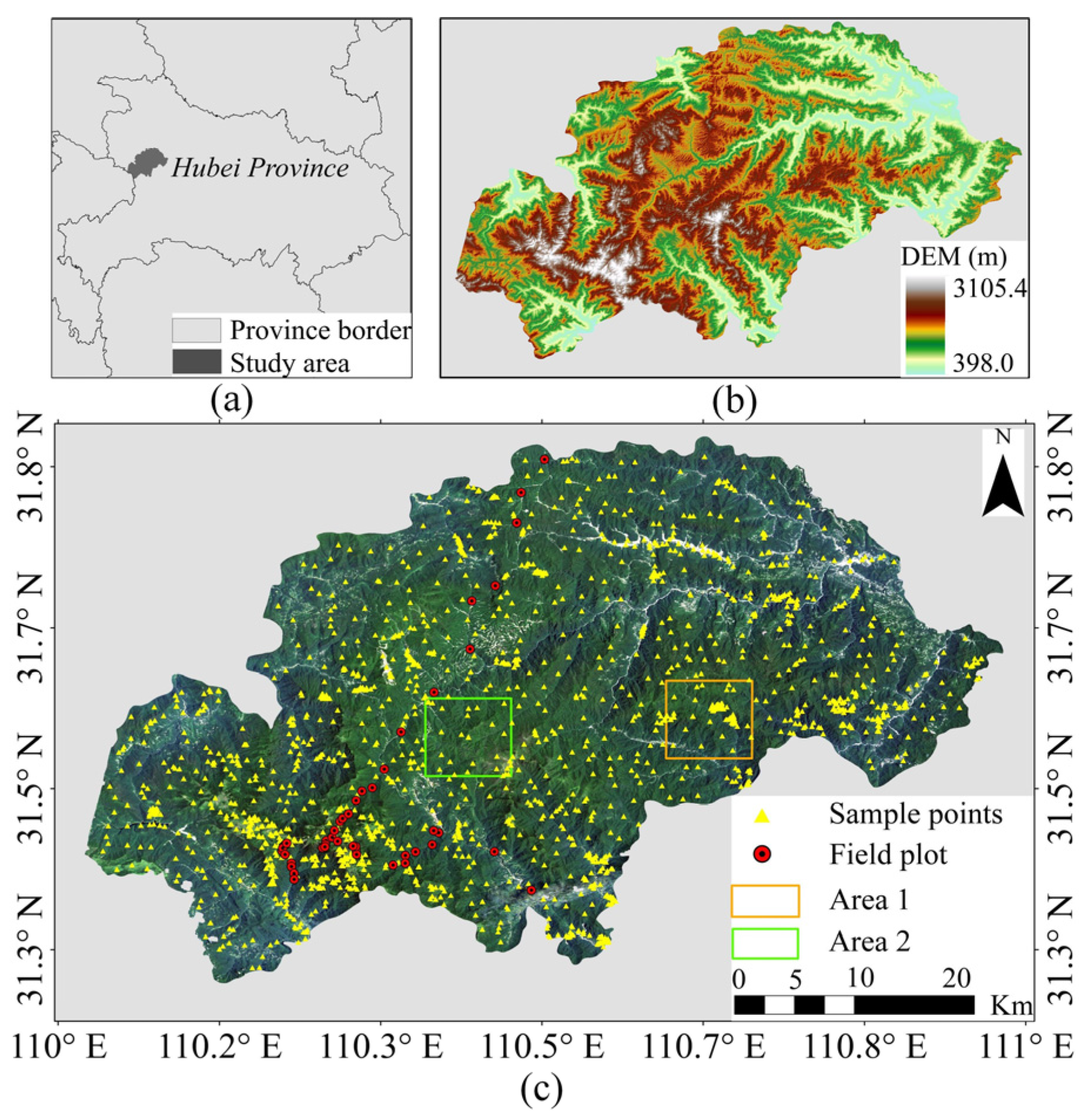

The Shennongjia Forestry District, situated in the northwestern region of Hubei Province, China, encompasses an area of 3253 km² and is geographically located between 31–32°N latitude and 110–111°E longitude, as illustrated in Figure 1. The National Nature Reserve has well-preserved primary forests and is a key ecological functional area [25]. Subtropical monsoon weather is the climate of Shennongjia National Nature Reserve, which gradually transitions from subtropical to temperate. Summers are humid and rainy, while winters are mild and dry, and annual rainfall varies between 800 and 2500 m and increases with elevation [26]. The Shennongjia Mountain range runs nearly east–west in the southwestern part of the district, with Shennong Peak being the highest at 3105.4 m, making it the highest point in central China. The lowest point in the district is at an elevation of 398.0 m, resulting in a relative height difference of 2707.4 m, as shown in Figure 1b.

2.2. Data Source

2.2.1. Data Used for Land Cover Classification

• The spectral data were obtained from the “LANDSAT/LC08/C02/T1_L2” dataset on the US Geological Survey (USGS) website, following atmospheric correction, radiometric correction, and cloud removal. To better distinguish between various vegetation types, we selected images from two seasons, Summer Imagery dated 9 July 2023, and Autumn Imagery dated 31 October 2018; the spatial resolution is 30 m. We also used specific vegetation indices and terrain data to assist in land cover classification. The calculation methods for each index are shown in

  Table 1. Equations for calculating various spectral indices used in the supervised classification of mountain land cover types are provided.

  Data Type	Name	Band Content/Formula
  Vegetation Index Data (vegetation index)	NDMVI	${\displaystyle \frac{\left(\mathrm{NIR}-\mathrm{Red}\right)+\left({\mathrm{Red}}_{\min }-{\mathrm{NIR}}_{\min }\right)}{\left(\mathrm{NIR}+\mathrm{Red}\right)+\left({\mathrm{Red}}_{\min }{+\mathrm{NIR}}_{\min }\right)}}$
  	EWI	${\displaystyle \frac{\mathrm{Green}-(\mathrm{NIR}+\mathrm{MIR})}{\mathrm{Green}+(\mathrm{NIR}+\mathrm{MIR})}}$
  	NDB BI	${\displaystyle \frac{1.5\times \mathrm{MIR}-\left(\frac{\mathrm{NIR}+\mathrm{Green}}{2}\right)}{1.5\times \mathrm{MIR}+(\frac{\mathrm{NIR}-\mathrm{Green}}{2})}}$
  Shady Vegetation Index (SVI)	SVI	$({\displaystyle \frac{\mathrm{NIR}-\mathrm{Red}}{\mathrm{NIR}+\mathrm{Red}}})\times \mathrm{NIR}$

  . The Terrain data include DEM, slope, and aspect, with the DEM sourced from the “USGS/SRTMGL1_003” dataset on the USGS website, also with a spatial resolution of 30 m.
• The phenology data validated in this study were sourced from the USGS’s ‘MODIS/006/MCD12Q2′ dataset, which provides annual data at a spatial resolution of 500 m. We calculated the average of the MCD12Q2 imagery data from 2000 to 2022 to serve as the comparative data for the multi-year synthesized phenology data.
• High-resolution remote sensing satellite images were used to establish a training sample library. We utilized high-resolution remote sensing images from the ZY-3 and GF-1 satellites, captured from July to November, combined with Google Earth imagery.
• In establishing the sample library, we referenced data from the eastern transect obtained during the 2017–2019 field surveys of the Qinling-Daba Mountains. This field plot includes 69 plant community sample species. The data cover a total of 47 field plots in the Shennongjia Forestry District, providing information on species types, individual numbers, tree height, diameter at breast height (DBH), crown width, canopy cover, plot coordinates, and elevation. Figure 1c shows the location of the field plots in the Shennongjia Forestry District.

2.2.2. Land Cover Classification System and Establishment of Sample Library

China’s national land cover classification system, which was established in 2013, is the basis of the land cover classification system for the Shennongjia Forestry District. The training data selection was made in a way that was convenient, considering the fact that Google Earth provided high-resolution images, the ZY-3 satellite provided high-resolution remote sensing images, and the GF-1 satellite provided high-resolution remote sensing images, and the selection was also made by comparing the Landsat reference images acquired in two epochs [27]. The Chinese Academy of Sciences released the 2015 China Land Use Status Remote Sensing Monitoring Dataset, and we also used descriptions of vegetation types in the Shennongjia Forestry District from the “Vegetation map of the People’s Republic of China (1:1,000,000)” published by Beijing Science Press in 2001. By combining this with data from field plots, we were able to finish building the sample library for the entire Shennongjia Forestry District. The land cover types in the study area are divided into the following 11 categories: evergreen broadleaf forest, deciduous broadleaf forest, evergreen coniferous forest, coniferous and broadleaved mixed forest, evergreen broadleaf shrubland, deciduous broadleaf shrubland, grassland, meadow, water bodies, farmland, and artificial land. In this assay, we extracted the mountain shadow areas and non-shadow areas of the Shennongjia Forestry District using the SVI threshold method on autumn imagery and then separately extracted samples for classification.

There are two sample libraries. One is the sample library for non-shadow areas, which includes 11 classes and a total of 10,418 sample points, the number of points per land cover type ranges from 400 to 2000, and it was selected based on the distribution of each land cover type. The other one is the sample library for shadow areas, which includes the following 4 types of samples: evergreen broadleaf forest, deciduous broadleaf forest, evergreen coniferous forest, and coniferous and broadleaved mixed forest, with a total of 915 sample points. Each sample type has approximately 100 to 300 points. Additionally, we selected two sample areas in the Shennongjia Forestry District to present the classification results, namely Area 1 and Area 2. The locations of the sample points and the sample areas are shown in Figure 1c.

2.3. Methology

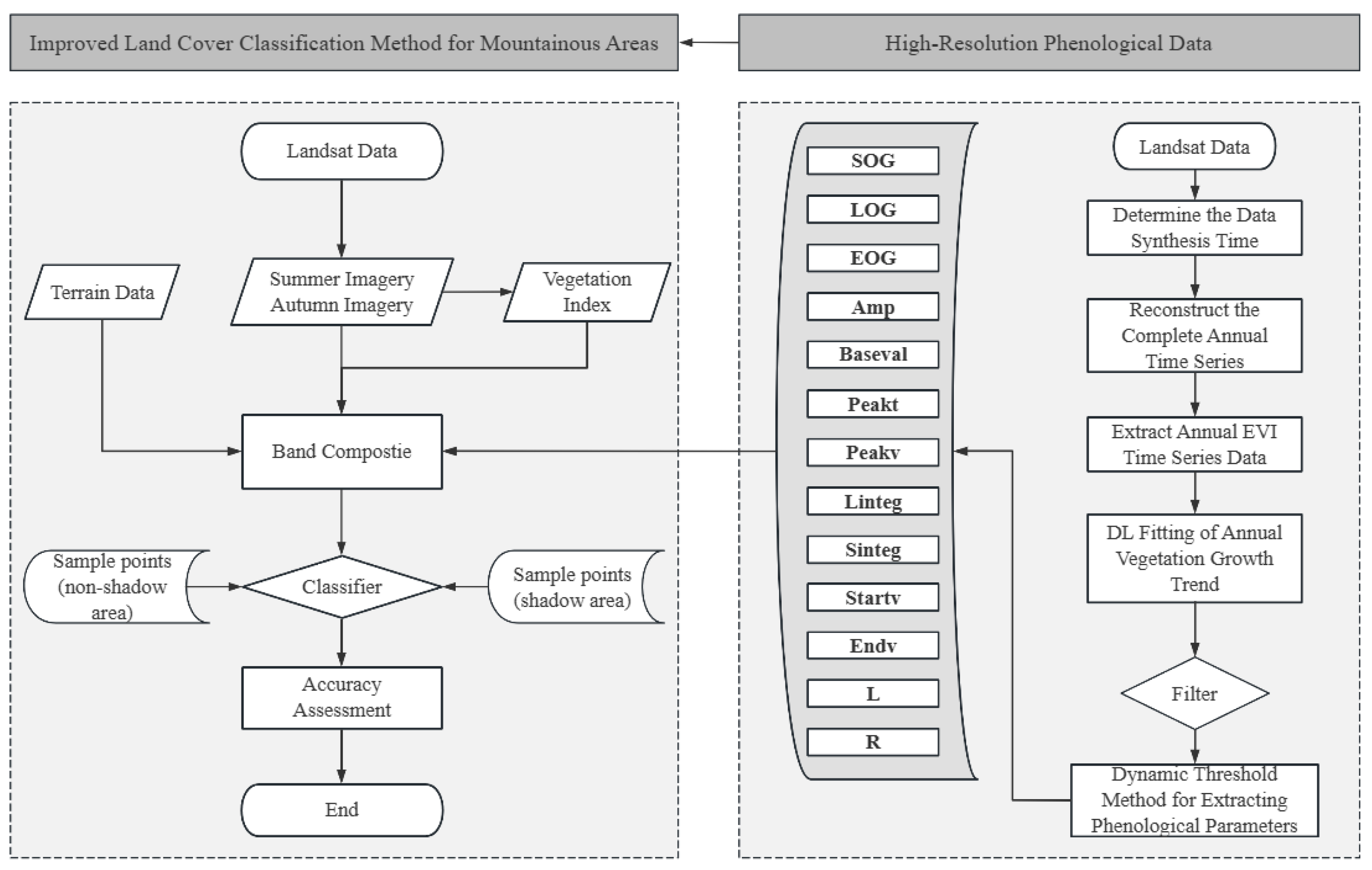

Traditional land cover classification methods primarily rely on the spectral reflectance of visible and near-infrared bands, as well as topographic data, to identify and classify different land cover types [28]. However, these methods show significant limitations when facing the complex terrain of mountainous areas and the vertical zonation of vegetation. Relying solely on visible spectral data and topographic information is insufficient to accurately reflect the spectral differences in vegetation types caused by changes in their growth periods at different altitudes [29]. In this context, this study introduces vegetation phenological characteristics into land cover classification in mountainous environments. Phenological information can provide the dynamic ability to capture changes in the vegetation growth cycle, which traditional methods relying on static data lack. More importantly, phenology also exhibits an altitude-dependent pattern, and multiple phenological parameters are crucial for distinguishing vegetation types with similar spectral characteristics but differing growth cycles. Therefore, this study attempts to integrate phenology data into traditional land cover classification methods.

A key limitation in applying phenology data to land cover classification in mountainous areas is the resolution of the data [30,31]. Due to the complexity of mountain vegetation, the spatial resolution requirements for phenology data are higher than those for flatland areas [32]. Existing remote sensing phenological products, such as MODIS data with spatial resolutions of 500 m or 250 m, often fail to meet the needs of small-scale phenological change research required for mountain land cover classification [33]. In mountainous environments, smaller horizontal distances are often accompanied by significant altitude differences, and altitude is a primary factor driving changes in vegetation phenological periods [29]. Therefore, when conducting land cover classification, the spatial resolution of phenology data is far more critical than the temporal resolution. There are significant differences in phenological periods among different vegetation types, and these differences are reflected in the high spatial resolution of the phenological patterns, which can reveal more information about vegetation types and states. This is because vegetation type changes in mountainous areas tend to fluctuate less, especially in regions with many nature reserves, which are subject to minimal human disturbance, and studies have shown that the land cover type changes in the Shennongjia Forestry District have been relatively small over the years [34]. Therefore, this study proposes an improved land cover classification algorithm that attempts to disregard the temporal characteristics of phenology data and instead emphasizes their spatial features. By synthesizing high-resolution phenology data from multi-year Landsat imagery, the method aims to assist traditional land cover classification in the Shennongjia Forestry District.

Extraction of High Spatial Resolution Multi-Year Synthesized Phenological Indicators

Vegetation phenology data are typically extracted using the Normalized Difference Vegetation Index (NDVI) [35]. However, in regions with high vegetation cover, the NDVI often suffers from saturation issues. To mitigate this problem, we utilized the Enhanced Vegetation Index (EVI) to extract vegetation phenology in the study area [36]. Due to the 16-day revisit cycle of Landsat imagery and frequent cloud cover in mountainous areas, resulting in poor image quality, we considered the data availability and selected all Landsat images from the past 23 years as the base data for synthesized phenology data. Using the GEE platform, we extracted all available cloud-free images from the Landsat5,Landsat7, and Landsat8 datasets covering the Shennongjia Forestry District with cloud cover less than 10% from 2000 to 2022. The images were sorted based on DOY, and if multiple images existed for a day, then the average value was taken. We calculated the EVI for each pixel in the study area and synthesized annual EVI time series data based on DOY. The entire dataset for the study area was then concatenated. By integrating 23 years of data, we established an annual EVI time series with an average interval of 3–4 days within the Shennongjia Forestry District.

This assay used the TIMESAT3.3 software to fit the synthesized annual EVI data using the Double Logistic (DL) algorithm provided within the software [37]. After importing the 365-day EVI time series into TIMESAT, the study first defined the valid data range as −1 to 1 and applied the STL-Replace filtering method for noise reduction. The logistic functional fitting method has advantages for estimating phenology with noisy data, and many researchers use it to fit phenology curves [38]. This study selected the Double Logistic function to fit the upper envelope of the phenological curve, with the number of fitting iterations set to three, to ensure that the modeled seasonal trajectory closely followed the annual vegetation dynamics. As shown in Figure 2, the calculation formula of the Double Logistic (DL) method is as follows:

$$g(t;x_1,...,x_4)={\displaystyle \frac{1}{1+\exp (\frac{x_1-t}{x_2})}}-{\displaystyle \frac{1}{1+\exp (\frac{x_3-t}{x_4})}}$$

(1)

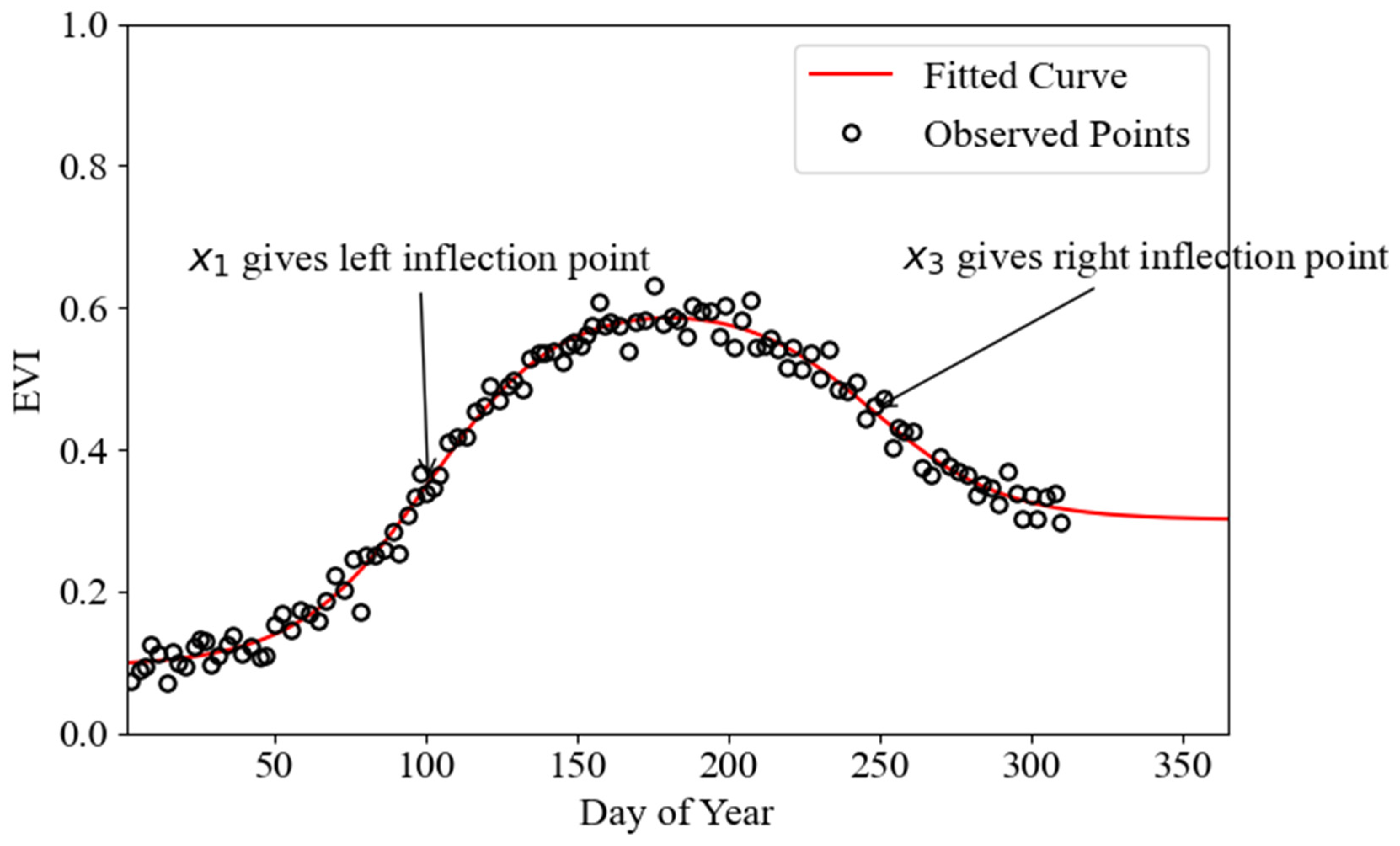

where $x_1$ determines the position of the left inflection point, while $x_2$ gives the rate of change. Similarly, $x_3$ determines the position of the right inflection point, while $x_4$ gives the rate of change at this point. Also for this function, the parameters are restricted in range to ensure a smooth shape.

For phenological metric extraction, the study adopted the dynamic threshold method, using 0.2 and 0.8 of the seasonal EVI peak as thresholds to determine the SOG and EOG, respectively. This assay tested several parameter combinations and evaluated the resulting fitted curves against the original EVI observations across multiple representative sample pixels. The final parameters were selected based on the best visual and statistical agreement. Using this approach, 13 phenological parameters were extracted for the study area. The phenological parameters and their definitions are shown in

Table 2. Calculation method and interpretation of multi-year synthesized phenology data bands.

Abbreviation	Name	Definition
SOG	time for the start of the season	time for which the left edge has increased to a user defined level, measured from the left minimum level.
LOG	length of the season	time from the start to the end of the season.
EOG	time for the end of the season	time for which the right edge has decreased to a user defined level measured from the right minimum level.
Amp	seasonal amplitude	difference between the maximum value and the base level
Baseval	base level	given as the average of the left and right minimum values.
Peakt	time for the mid of the season	computed as the mean value of the times for which, respectively, the left edge has increased to the 80% level and the right edge has decreased to the 80% level.
Peakv	largest data value for the fitted function during the season	may occur at a different time compared with Peakt.
Linteg	large seasonal integral	integral of the function describing the season from the season start to the season end.
Sinteg	small seasonal integral	integral of the difference between the function describing the season and the base level from season start to season end.
Startv	value for the start of the season	value of the function at the start of the season.
Endv	value for the end of the season	value of the function at the end of the season.
L	rate of increase at the beginning of the season	calculated as the ratio of the difference between the left 20% and 80% levels and the corresponding time difference.
R	rate of decrease at the end of the season	calculated as the absolute value of the ratio of the difference between the right 20% and 80% levels and the corresponding time difference.

.

Some researchers have attempted to classify phenology data based on the differences in phenology across different vegetation types. Compared to previous studies that only used partial parameters such as SOG and LOG, this paper retains all phenological parameters to maximize the display of differences among different land cover types [39]. This study attempts to use 13 high spatial resolution phenological bands as multi-spectral input to traditional land cover classification models, enhancing the spectral information of the original imagery to improve land cover classification accuracy in mountainous areas. By applying random forest classification to different data input combinations, this study explores how the inclusion of high spatial resolution phenology data enhances the performance of traditional land cover classification. Figure 3 shows the improved land cover classification model for mountainous areas, with the inclusion of high spatial resolution phenological parameters used in this study, and

Table 3. Different combinations of data inputs in the article.

	Name	Band Composite
Non-shadow Area	Su1	Summer Imagery + Vegetation Index + Terrain Data
	Su2	Summer Imagery + Vegetation Index + Phenology Data
	Su3	Summer Imagery + Vegetation Index + Terrain Data + Phenology Data
	Au1	Autumn Imagery + Vegetation Index + Terrain Data
	Au2	Autumn Imagery + Vegetation Index + Phenology Data
	Au3	Autumn Imagery + Vegetation Index + Terrain Data + Phenology Data
	SA1	Summer Imagery + Autumn Imagery + Vegetation Index
	SA2	Summer Imagery + Autumn Imagery + Vegetation Index + Terrain Data
	SA3	Summer Imagery + Autumn Imagery + Vegetation Index + Phenology Data
	SA4	Summer Imagery + Autumn Imagery + Vegetation Index + Terrain Data + Phenology Data
Shadow Area	M1	Autumn Imagery + Vegetation Index
	M2	Autumn Imagery + Vegetation Index + Terrain Data
	M3	Autumn Imagery + Vegetation Index + Phenology Data
	M4	Autumn Imagery + Vegetation Index + Terrain Data + Phenology Data

presents the different data input combinations tested in this study.

3. Results

3.1. Extraction Results of Multi-Year Synthesized Phenology

Due to the synthesized multi-year nature of our phenology data extraction and the limited availability of ground-validated phenology data for vegetation in the Shennongjia Forestry District, this study opted to compare the extracted phenology data with commonly used MODIS data product MCD12Q2 from previous research. Figure 3 presents comparative graphs of SOG (Start of the Growing Season) and LOG (Length of the Growing Season) extracted from Landsat phenology data and MCD12Q2 phenology product data used in this study.

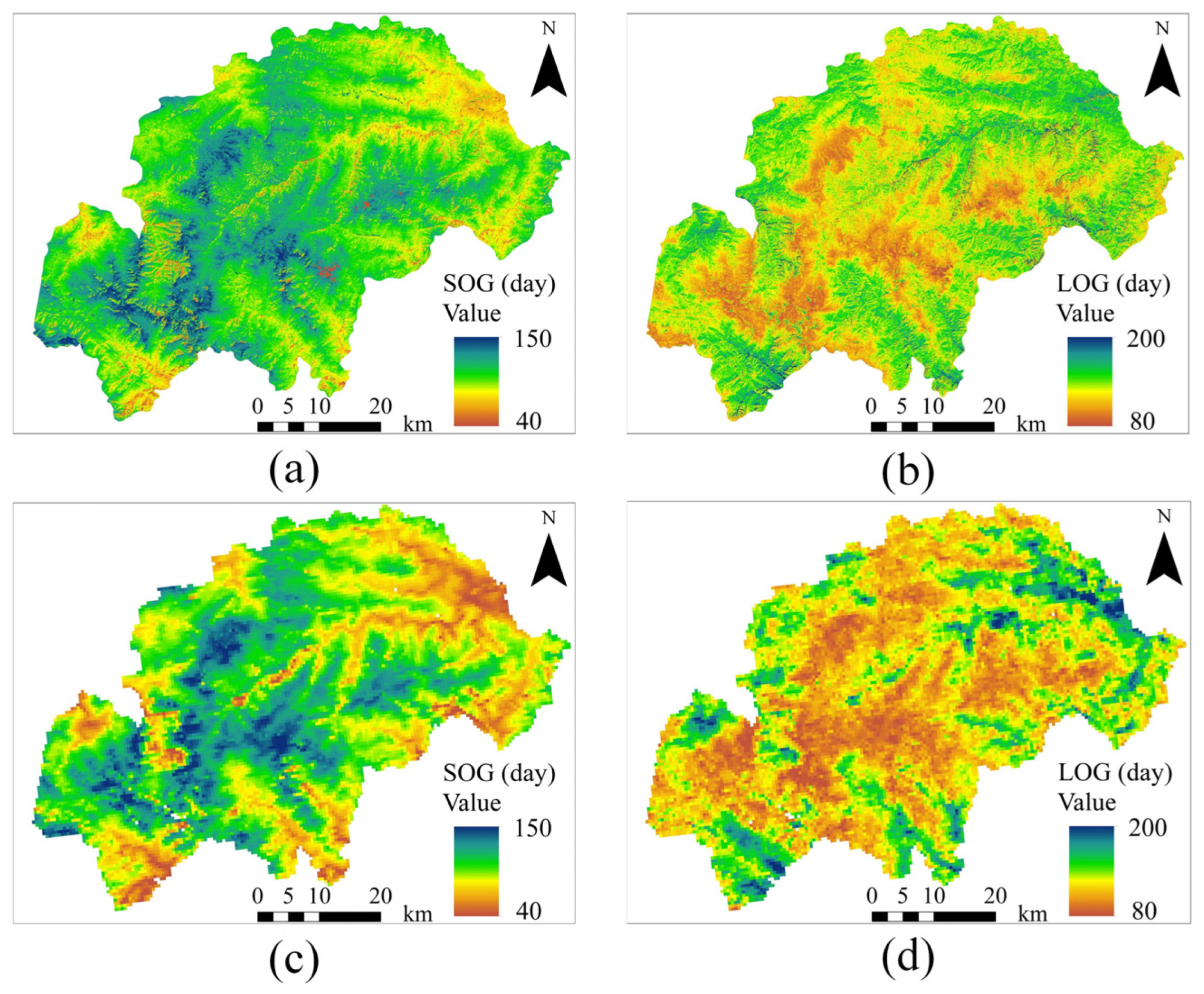

Figure 4 shows that the multi-year average phenology data extracted for the Shennongjia Forestry District demonstrates overall spatial consistency with the multi-year average data from the MCD12Q2 product. The correlation coefficient for Start of Growing Season (SOG) is 0.70 and for Length of Growing Season (LOG) is 0.54, both passing the Pearson coefficient test, indicating significant spatial correlation between the two phenology datasets. In mountainous environments, slight changes in the horizontal gradient can correspond to significant changes in the vertical gradient, and phenology is very sensitive to vertical gradient changes. Compared to the 500 m spatial resolution of the MCD12Q2 phenology product, the phenology data we extracted, with a spatial resolution of 30 m, better capture the subtle phenological differences in mountainous areas, which is more conducive to distinguishing vegetation types in mountainous land cover classification.

3.2. Improvement in Classification Accuracy of Summer Imagery Due to Phenological Data

In this study, the random forest algorithm was used for classification, which is a powerful machine learning technique that has been proven to achieve high predictive accuracy in various scenarios [21,40]. Based on previous research, we compared the following four mainstream classification algorithms commonly used in remote sensing: random forest (RF) [41], maximum likelihood (ML) [42], support vector machine (SVM) [32], and convolutional neural network (CNN) [43].

To evaluate the effectiveness of classification methods in complex mountainous environments, the following four representative classifiers were applied: random forest (RF), support vector machine (SVM), convolutional neural network (CNN), and maximum likelihood classification (MLC). All feature data were normalized to the [0, 1] range using Min–Max scaling. A stratified 70–30% training–testing split was performed, and the process was repeated 10 times with different random seeds (0–9) to ensure the robustness of results. The average and standard deviation of classification performance were computed.

Model Configuration: random gorest (RF): n_estimators = 80, min_samples_split = 8, random_state = 1; support vector machine (SVM): linear kernel, C = 0.5, gamma = 0.001, random_state = 1; convolutional neural network (CNN): implemented using Keras with three convolutional layers, ReLU activation, and fully connected layers; optimizer = Adam, learning_rate = 0.001, epochs = 50, batch_size = 32; maximum likelihood classifier (MLC): implemented using pixel-wise multivariate Gaussian probability estimation; no hyperparameter tuning required.

Evaluation Metrics: Model performance was comprehensively evaluated using the following: overall accuracy (OA), kappa coefficient (Kappa), user’s accuracy (UA) per class, and producer’s accuracy (PA) per class. Among all tested models, the random forest classifier demonstrated the highest overall classification accuracy and the most stable performance, as indicated by both accuracy and Kappa values across the 10 randomized experiments. This confirms its robustness and suitability for land cover classification in mountainous environments.

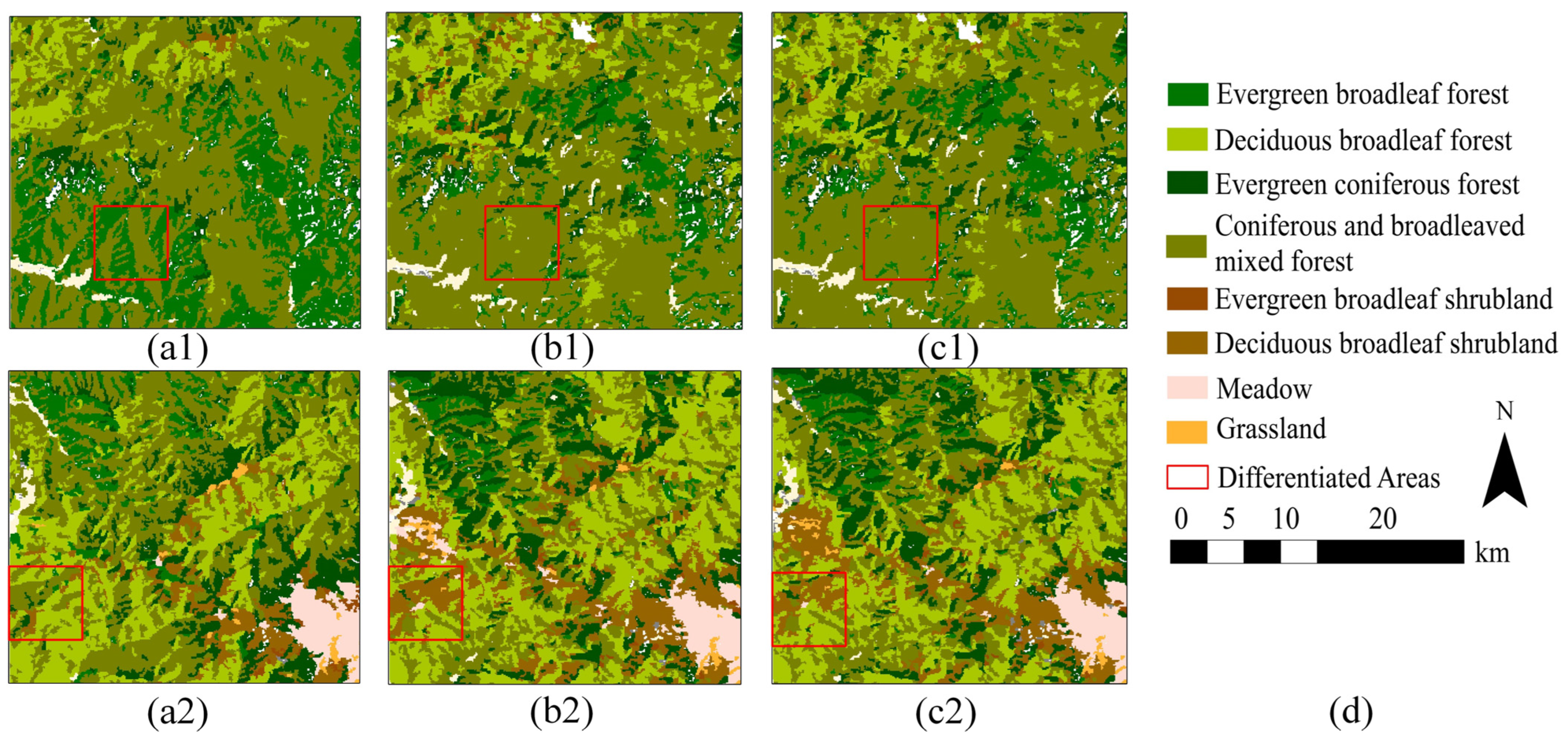

By comparing a1, b1, and c1 in Figure 5, it can be found that the area of broad-leaved evergreen forests in the summer imagery is obviously reduced and most of them are converted to mixed coniferous and broad-leaved forests after adding multi-year synthesized phenology data, indicating that it is difficult to recognize evergreen broadleaf forests and mixed coniferous and broadleaf forests by relying on the summer imagery alone. The comparison of a2 b2, and c2 in Figure 5 shows that the inclusion of multi-year synthesized phenology data improves the recognition of deciduous broadleaf shrub forests in summer imagery. Obviously, the inclusion of phenology data greatly improved the classification accuracy of the summer image on deciduous broadleaf shrub forests, improved the ability of the summer image to distinguish between evergreen broadleaf forests and mixed coniferous broadleaf forests, and reduced the phenomenon of mixing coniferous broadleaf forests and evergreen broadleaf forests.

Table 4. PA, UA, Kappa, and OA for each class in the non-shadow area classification results of summer imagery.

Accuracy Assessment	Different Data Combinations of Summer Imagery
Class Name	Su1		Su2		Su3
	PA	UA	PA	UA	PA	UA
Evergreen broadleaf forest	75.41%	76.37%	85.71%	91.68%	87.52%	91.23%
Deciduous broadleaf forest	74.90%	69.87%	87.68%	77.81%	86.49%	79.61%
Evergreen coniferous forest	94.66%	90.97%	93.28%	97.13%	93.52%	96.98%
Coniferous and broadleaved mixed forest	54.28%	62.54%	71.39%	79.46%	73.48%	80.40%
Evergreen broadleaf shrubland	90.28%	94.10%	86.21%	96.27%	90.72%	97.66%
Deciduous broadleaf shrubland	80.12%	68.84%	84.41%	80.04%	89.08%	82.64%
Grassland	82.13%	86.74%	90.00%	81.50%	89.57%	86.98%
Meadow	87.65%	76.38%	88.86%	89.67%	92.47%	88.47%
Water bodies	90.58%	96.42%	89.01%	86.68%	91.03%	96.44%
Farmland	82.88%	83.58%	88.62%	85.33%	88.31%	86.06%
Artificial land	78.68%	77.80%	82.23%	82.76%	84.41%	78.31%
Kappa	74.19%		82.76%		84.12%
OA	77.29%		84.85%		86.04%

shows the land cover classification accuracy results for the non-shadow areas of summer imagery. Su1, Su2, and Su3 correspond to different combinations of summer imagery, summer imagery with phenology, and summer imagery, phenology, and terrain data, respectively. The Su1 combination had the lowest recognition accuracy for mixed coniferous and broadleaf forests, with a PA of only 54.28% and a UA of just 62.54%. The second lowest was for deciduous broadleaf forests, with a PA of only 74.90% and a UA of just 69.87%. When only phenology data were included without terrain data, the Su2 combination increased the producer’s accuracy of mixed coniferous and broadleaf forests to 71.39%, an improvement of 17.11 percentage points, and raised the producer’s accuracy of deciduous broadleaf forests to 87.68%, an increase of 12.78 percentage points. The vegetation cover types with the greatest improvements in user’s accuracy were mixed coniferous and broadleaf forests and evergreen broadleaf forests, which improved by 16.92% and 15.31%, respectively. In comparison to Su1 and Su3, simply by adding phenology data, the Su3 combination increased the producer’s accuracy of mixed coniferous and broadleaf forests by 19.20% and user’s accuracy by 17.86%, while the producer’s accuracy of evergreen broadleaf forests increased by 12.11% and user’s accuracy improved by 14.86%.

In terms of OA, the Su3 combination improved OA from 77.29% to 86.04% and increased the Kappa from 74.19% to 84.12%, a rise of 9.93% compared to Su1. This indicates that the inclusion of phenology data can significantly enhance the accuracy of land cover classification in the Shennongjia Forestry District using summer imagery. Comparing the classification accuracies of Su1, Su2, and Su3 reveals that the addition of phenology data significantly improves the accuracy of different land cover classifications, particularly in the identification of evergreen broadleaf forests and mixed coniferous and broadleaf forests (Table 4).

3.3. Improvement in Classification Accuracy of Autumn Imagery Due to Phenology Data

With the addition of multi-year synthesized phenology data, the presence of deciduous broadleaf shrub forests was identified in both Figure 6(b1) and Figure 6(c1) compared to Figure 6(a1), and in the labeled area in Area 2, the identification of deciduous broadleaf shrub forests was more accurate in Figure 6(b2) and Figure 6(b3), which suggests that the multi-year synthesized phenology data still improve the identification of deciduous broadleaf shrub forests in the autumn imagery.

Table 5. PA, UA, Kappa, and OA for each class in the non-shadow area classification results of autumn imagery.

Accuracy Assessment	Different Data Combinations of Autumn Imagery
Class Name	Au1		Au2		Au3
	PA	UA	PA	UA	PA	UA
Evergreen broadleaf forest	96.11%	94.24%	95.30%	93.94%	95.30%	93.86%
Deciduous broadleaf forest	81.52%	93.75%	84.63%	89.49%	85.40%	90.26%
Evergreen coniferous forest	95.30%	95.77%	94.57%	97.82%	94.66%	97.91%
Coniferous and broadleaved mixed forest	88.61%	85.11%	88.40%	87.60%	88.72%	88.01%
Evergreen broadleaf shrubland	95.79%	94.83%	94.48%	95.31%	96.08%	95.80%
Deciduous broadleaf shrubland	90.64%	66.81%	89.47%	76.63%	91.81%	77.72%
Grassland	84.68%	92.77%	87.02%	96.01%	87.45%	94.92%
Meadow	90.36%	84.27%	93.07%	85.12%	93.98%	91.23%
Water bodies	89.24%	91.49%	89.01%	85.93%	89.46%	92.79%
Farmland	90.71%	89.96%	93.01%	89.46%	93.95%	90.54%
Artificial land	82.23%	86.86%	83.36%	87.61%	84.98%	84.57%
Kappa	87.74%		88.52%		89.31%
OA	89.19%		89.89%		90.59%

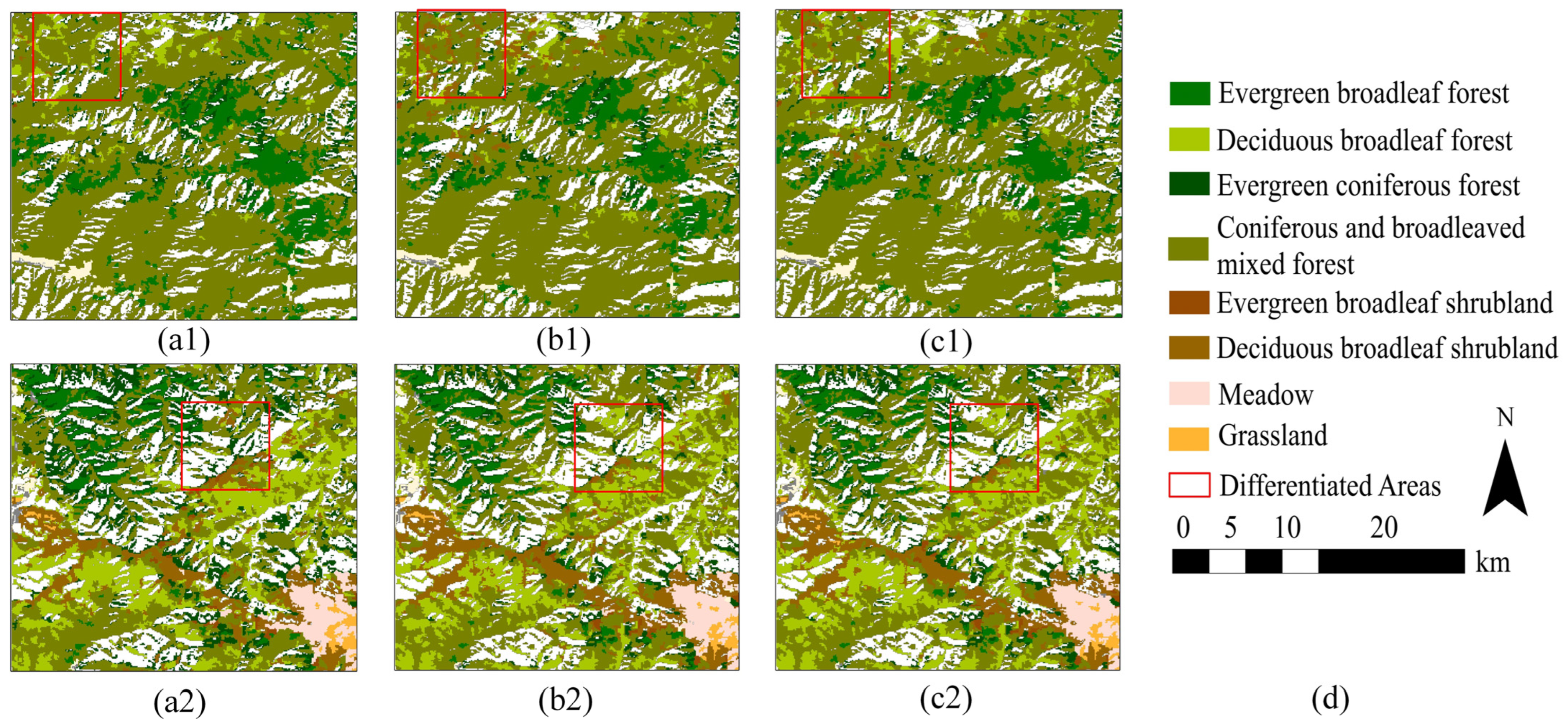

shows that the inclusion of phenology data also enhances the classification accuracy of autumn imagery for land cover in the Shennongjia Forestry District. After adding phenology data, the two land cover types with the greatest increase in PA in Au1 are deciduous broadleaf forest and meadow. Au2 increases the PA of deciduous broadleaf forest by 3.11%, raising the PA of meadows to 87.02%, an increase of 2.71%; the UA for deciduous broadleaf shrub has the highest increase at 9.82%.

Au3 shows even greater improvements compared to Au1, with the PA for deciduous broadleaf forest and meadow increasing by 3.88% and 3.62%, respectively, while the UA for deciduous broadleaf shrub improves by 10.91%. A comparison of the OA and Kappa indicates that the inclusion of both phenology data and terrain data can enhance the classification accuracy of remote sensing imagery. However, the improvement in classification accuracy for various vegetation types is more significant with the addition of multi-year synthesized phenology data than with the inclusion of terrain data (Table 4 and Table 5). The best combination for land cover classification in the Shennongjia Forestry District using autumn imagery is Au3 (Table 5), with the highest Kappa of 89.31% and an OA of 90.59%

3.4. Improvement in Classification Accuracy of Summer and Autumn Imagery Due to Phenology Data

Compared to the single summer imagery and autumn imagery, the multi-year synthesized phenology data did not improve the classification accuracy of the summer–autumn imagery significantly, but it still showed the advantage of multi-year synthesized phenology data in identifying deciduous broadleaf shrub forests as well as distinguishing between evergreen broadleaf forests and mixed coniferous and broadleaf forests in Figure 7.

In

Table 6. PA, UA, Kappa, and OA for each class in the non-shadow area classification results of summer–autumn imagery.

Accuracy Assessment	Different Data Combinations of Summer–Autumn Imagery
Class Name	SA1		SA2		SA3		SA4
	PA	UA	PA	UA	PA	UA	PA	UA
Evergreen broadleaf forest	95.21%	94.78%	95.75%	95.66%	95.12%	95.20%	95.84%	95.32%
Deciduous broadleaf forest	86.65%	90.05%	86.75%	92.75%	88.56%	89.91%	88.20%	90.64%
Evergreen coniferous forest	95.22%	95.53%	95.63%	95.63%	95.47%	97.44%	95.55%	97.76%
Coniferous and broadleaved mixed forest	89.36%	85.21%	89.36%	85.56%	88.56%	87.76%	89.09%	87.92%
Evergreen broadleaf shrubland	95.07%	96.89%	95.65%	96.63%	95.94%	97.21%	96.08%	97.35%
Deciduous broadleaf shrubland	80.90%	82.02%	89.28%	81.64%	89.67%	87.45%	92.98%	88.17%
Grassland	89.36%	92.92%	90.00%	94.21%	90.85%	94.26%	90.00%	95.70%
Meadow	90.96%	92.07%	92.17%	94.44%	92.17%	96.23%	93.67%	97.19%
Water bodies	89.91%	95.48%	91.70%	96.46%	91.03%	92.91%	92.83%	95.83%
Farmland	90.29%	86.41%	90.40%	88.19%	93.01%	90.27%	93.63%	90.33%
Artificial land	79.48%	84.25%	82.88%	84.65%	84.49%	83.81%	84.01%	82.80%
Kappa	88.29%		89.39%		89.96%		90.43%
OA	89.71%		90.67%		91.17%		91.58%

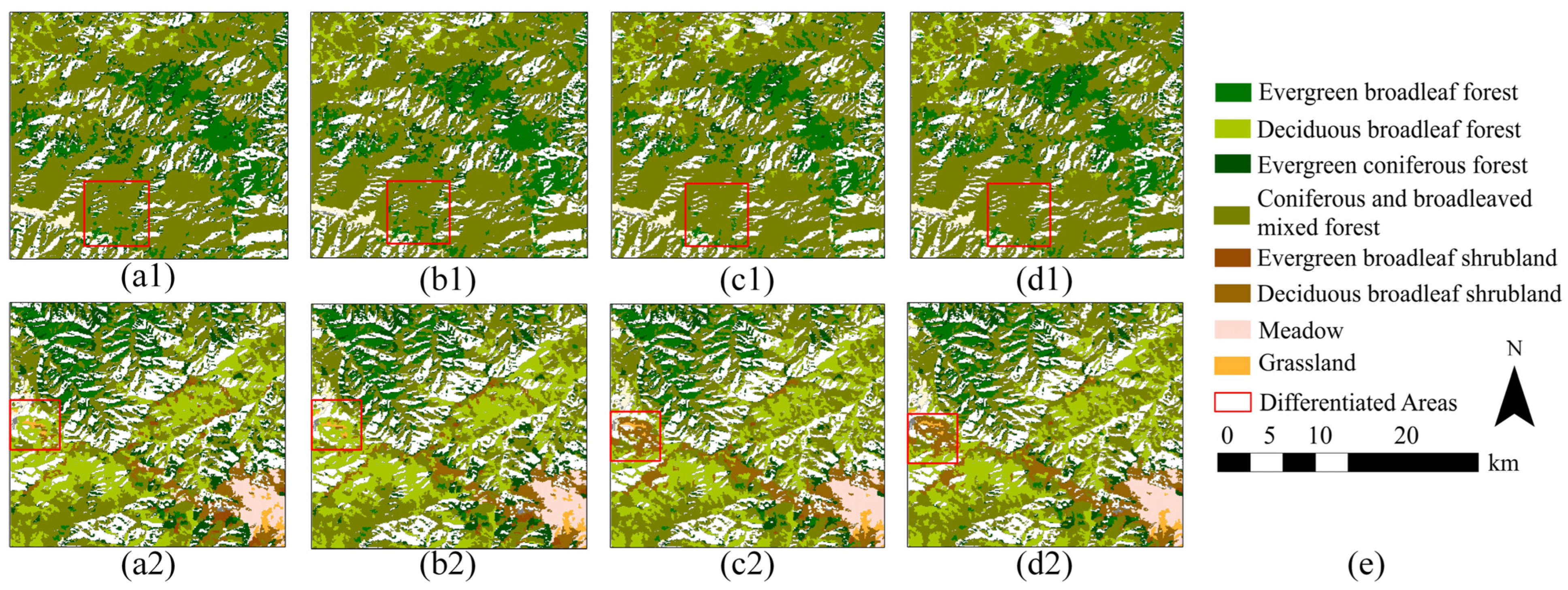

, it can be seen that the inclusion of multi-year synthesized phenology data slightly improves the accuracy of classification results for summer and autumn imagery. Without considering terrain factors, the results for SA1 and SA3 indicate that phenology data significantly enhance the PA for the classification of deciduous broadleaf shrub, increasing it by 8.77%, while the UA improves by 5.43%. The next highest improvement is for Artificial land, with a PA increase of 5.01%. The OA increases by 1.46%, and the Kappa rises by 1.67%.

When terrain factors are considered, the results for SA1 and SA3 show that the addition of phenology data has the greatest impact on improving the PA for deciduous broadleaf shrub, which increases by 3.70%, while the UA improves by 6.53%. The second highest improvement is for farmland, with a PA increase of 3.23%. The OA increases by 0.91%, and the Kappa improves by 1.04% (Table 6).

A comparison of the classification results for SA2 and SA3 reveals that the inclusion of phenology data leads to a greater improvement in OA and Kappa for land cover types in the Shennongjia Forestry District than terrain factors, with Kappa improving by 0.57% and OA increasing by 0.50%.

3.5. Land Cover Classification Results for Mountain Shadow Areas

Compared to land cover classification in flat terrains, the complex terrain of mountainous areas presents unique challenges for land cover classification [44]. The slope and aspect of mountainous terrain surfaces affect the reception of visible light spectra from remote sensing satellites, leading to prominent mountain shadows in the images and reducing the accuracy of specific classifications [45,46].

To adjust the classification results and analyze the effectiveness of multi-year synthesized phenology data in classifying mountain shadow areas, we separately extract the mountain shadow areas from the autumn imagery, re-establish the sample library, and perform the classification again. Additionally, we extracted the prominent mountain shadow areas from autumn data imagery in the Shennongjia Forestry District using the Shady Vegetation Index (SVI) with a threshold segmentation method. The SVI was calculated based on autumn imagery and subsequently normalized. To distinguish between shaded and non-shaded areas, this assay applied a thresholding approach using the histogram distribution of the SVI image. Specifically, the study referred to the mean value (approximately 0.2) and standard deviation (approximately 0.1) of the SVI histogram and selected 0.13 as the threshold for separating shadowed regions.

This threshold was empirically determined by visually comparing the resulting segmentation with clearly visible shadowed areas in the original imagery. The classification accuracy for each category using machine learning is calculated as shown in the

Table 7. PA, UA, Kappa, and OA for each class in the classification results for the mountain shadow areas.

Accuracy Assessment	Different Data Combinations of Autumn Imagery
Class Name	M1		M2		M3		M4
	PA	UA	PA	UA	PA	UA	PA	UA
Evergreen broadleaf forest	96.18%	82.44%	96.40%	85.43%	94.79%	91.63%	95.37%	95.37%
Deciduous broadleaf forest	88.25%	92.35%	89.54%	91.11%	90.69%	93.50%	91.98%	94.27%
Evergreen coniferous forest	73.65%	95.82%	82.26%	98.31%	89.20%	96.66%	89.59%	97.35%
Coniferous and broadleaved mixed forest	78.19%	79.67%	81.44%	84.99%	89.21%	85.83%	91.42%	87.07%
Kappa	80.24%		84.30%		88.38%		89.83%
OA	85.76%		88.65%		91.54%		92.59%

.

By comparing Table 7, it is evident that the inclusion of multi-year phenological synthesized data significantly improves the classification accuracy of autumn imagery in the mountain shadow areas of the Shennongjia Forestry District. Without considering terrain factors, a comparison between M3 and M1 shows that the use of Phenology data increases the PA for evergreen coniferous forest in the shadow areas by 15.55%, while the UA for mixed coniferous and broadleaf forest improves by 5.32%. The OA and Kappa increase by 5.78% and 8.14%, respectively.

When terrain factors are considered, comparing M4 and M2 indicates that the addition of phenology data yields the greatest improvement in PA for mixed coniferous and broadleaf forest in the mountain shadow areas, with an increase of 9.98%. The PA for evergreen coniferous forest improves by 7.33%, and the UA for evergreen coniferous forest increases by 9.94%. The OA improves by 3.94%, and the Kappa coefficient increases by 9.98%. This suggests that the inclusion of phenology data effectively enhances the spectral differences of various vegetation types in the mountain shadow areas.

A comparison of the results between M4 and M2 indicates that the addition of phenology data provides a more significant improvement in classification accuracy for remote sensing imagery than the inclusion of terrain factors, with OA increasing by 2.89% and Kappa improving by 4.08%. Figure 8 shows the overall land cover classification results for the Shennongjia Forestry District. The classification results show that the forest types in the Shennongjia forest region are primarily coniferous and broadleaf mixed forests and deciduous broadleaf forests, followed by evergreen broadleaf forests and evergreen coniferous forests. The distribution of vegetation types exhibits distinct regional differences and significant vertical zonality. For example, evergreen coniferous forests are generally found near higher altitudes, such as around Shennongding, while evergreen broadleaf forests are mainly distributed below 1000 m in elevation. Deciduous broadleaf forests and coniferous–broadleaf mixed forests have a wide distribution, primarily occurring in the elevation range of 1000–2800 m.

4. Discussion

4.1. Feasibility of Applying Multi-Year Phenological Synthesized Data to Land Cover Classification

Integrating multi-source data is highly beneficial for land cover classification studies in mountainous areas. Researchers have found that using a random forest classifier, spectral vegetation indices, and auxiliary geographic data to create vegetation maps can accurately depict hard-to-reach mountainous landscapes in their study of mountainous classification in Ecuador [47]. Temporal phenological information can assist classifiers in identifying species at various phenological stages. This characteristic has led many researchers to use vegetation phenological information to aid in distinguishing different vegetation types [48].

Although 250 m or coarser resolution phenology data have contributed to regional and global phenological studies, their spatial resolution is insufficient to reveal the fine-scale variability of vegetation phenology in mountainous areas [30]. Therefore, it is challenging to use them to improve land cover classification accuracy in mountainous regions. The combination of multiple years of Landsat acquisitions into a single ‘synthetic’ year is particularly useful for areas with high image density [49]. Based on this concept, we extract multi-year synthesized phenology data for the Shennongjia forest district by synthesizing multi-year Landsat imagery. The phenology data, combined with data from different phases, are used to reveal the role of multi-year synthesized phenology data in mountainous land cover classification and their differential identification of various vegetation types in shadowed areas.

There are many studies related to the use of phenology data to assist in land cover classification [46]. For example, some researchers combined Sentinel-2 imagery with DEM and climatic zone data to form a framework, then input spectral phenological features into a random forest model to improve the accuracy of grassland classification [50]. Other researchers used a random forest algorithm based on Sentinel-2 pixels difference time series (PDTS) phenological parameters to classify six common plant species in three representative coastal areas of China. The results showed that PDTS-based classification improved accuracy by 5.1% compared to single-image classification [51]. These findings are similar to our study, indicating that phenology data are effective in improving classification accuracy.

4.2. The Effectiveness of Multi-Year Synthesized Phenology Data in Identifying Vegetation in Mountain Shadow Areas

The problem of mountain shadows is a significant obstacle to the application of remote sensing data in land cover classification studies in mountainous areas. The accuracy of land use sub-pixel mapping is substantially hindered by the presence of mountain shadows, according to Hao et al. [23]. Wang et al. pointed out that remote sensing images have a harder time handling mountain shadows than natural images because there are larger shadow areas and more complex land cover information [52]. To address the mountain shadow issue, researchers have employed various methods. Matched filtering techniques have been used by some to remove shadows from hyperspectral data for atmospheric correction, for example [53]. To replace the images of shadowed areas, some have chosen to use multi-source data fusion [47]. Prior knowledge is required to build a mountain shadow model using geometric correction, which significantly limits the applicability of geometric correction methods [52].

All 13 phenological parameters mentioned in the study were used in model training. These parameters correspond to key phenological stages and dynamic features during the vegetation growing season (e.g., start of season, peak timing, rate of greening, duration), with each possessing distinct ecological meaning and discriminatory capability. Although some parameters may be numerically correlated, they provide complementary information from different perspectives, thereby enhancing the classification accuracy of land cover types.

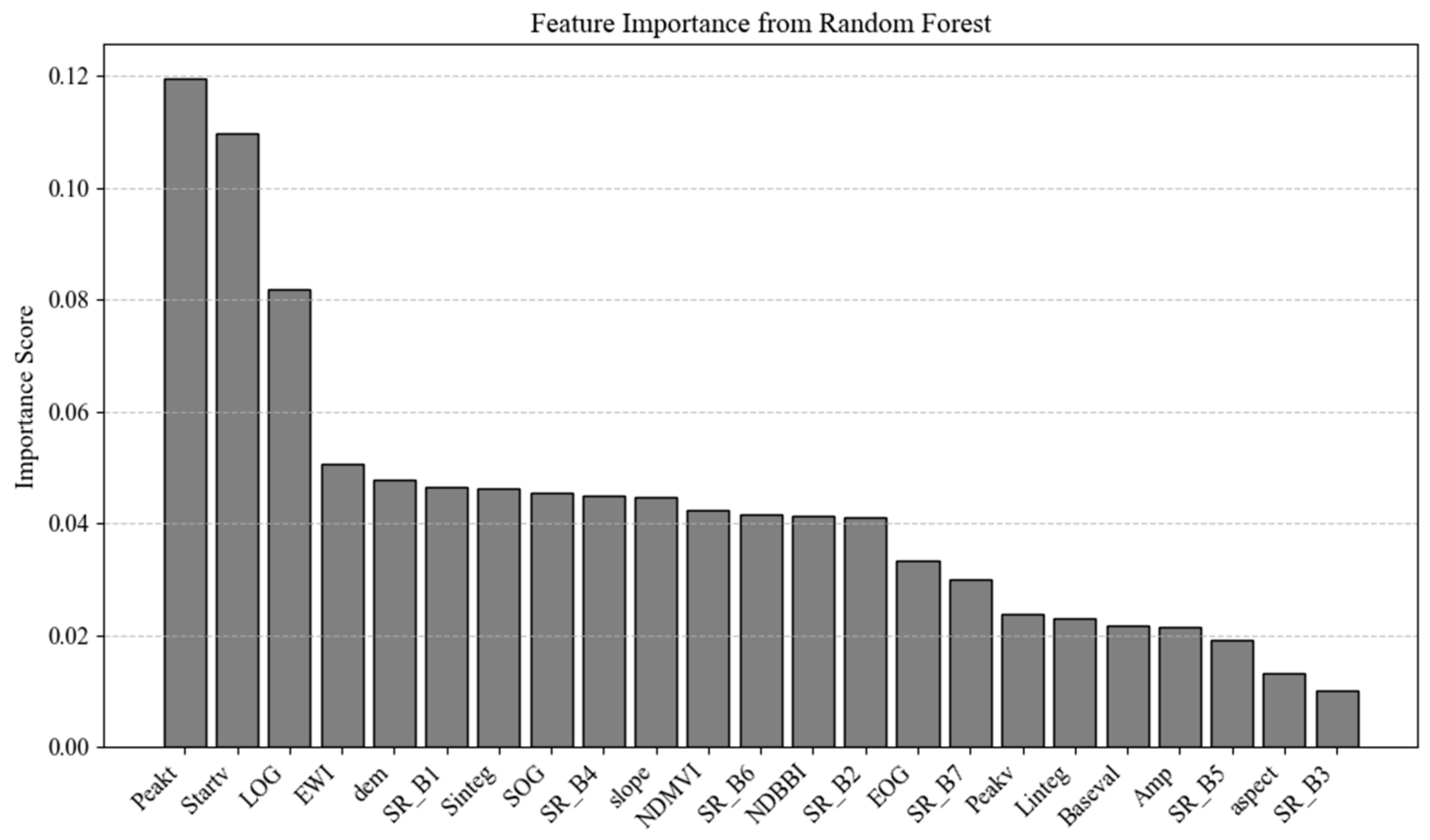

To evaluate the contribution of each parameter to classification performance, we employed the Gini importance metric from the random forest model. As shown in Figure 9, parameters such as Peakt and Startv exhibited the highest importance scores, indicating strong discriminatory power in distinguishing vegetation types. It is worth noting that this study primarily aimed to assess the effectiveness of incorporating multi-year synthesized phenological information into multi-temporal remote sensing classification. As such, a detailed analysis of the individual contribution of each phenological parameter was not the focus of this paper and will be considered in future work.

Unlike previous studies, we provide a new solution to the challenges posed by mountain shadows by incorporating multi-year synthesized phenology data to identify different vegetation types in shadowed areas of the images. The research results indicate that the inclusion of multi-year synthesized phenology data significantly improves the accuracy of land cover classification in mountain shadow areas, with OA increasing by up to 6.83% and Kappa by up to 9.59%. The addition of these data also proved effective in distinguishing different vegetation types, with experimental results showing significant improvements in the PA for evergreen coniferous forests and coniferous and broadleaved mixed forests in shadow areas, reaching up to 15.94% and 13.23%, respectively.

4.3. Deficiencies and Improvements in Research

This study relies mainly on Landsat imagery, utilizing multi-temporal remote sensing image data spanning five years and multi-year average climate data over a longer period of time. The extraction of phenology data and land cover classification will inevitably be affected by land cover changes. However, due to the vigorous ecological conservation efforts in the Shennongjia forestry district, the land resources remain relatively intact, and the degree of human development in the mountainous areas is extremely low; thus, the land cover changes are tiny. The research questions are as follows:

• Data Resolution and Temporal Gaps: This study utilized multi-year Landsat imagery to construct daily EVI time series and extract phenological parameters. Although Landsat provides extensive spatial and historical coverage, its 30 m spatial resolution may be insufficient for capturing fine-scale land cover patterns, especially in heterogeneous mountainous areas. Moreover, the 16-day revisit cycle and frequent cloud cover result in limited valid observations for any given pixel. In practice, most days in a year contain only 1–3 usable images per pixel, and some may have none. These limitations constrain the accuracy and temporal fidelity of phenology reconstruction, especially when using data from sensors with slightly different spectral characteristics (Landsat 5, 7, and 8) without cross-sensor calibration.
• Bias from Multi-year Averaging and Lack of Detrending: The multi-year averaging strategy was adopted to enhance temporal stability by suppressing short-term fluctuations caused by clouds, shadows, or sensor noise. However, this approach inherently suppresses long-term phenological trends, which are increasingly prominent under global climate change. For example, if vegetation green-up has advanced steadily from 2000 to 2022, averaging across the full period will underestimate this shift, potentially generating representative phenology curves that lag behind current ecological conditions. Moreover, a simple mean can conflate typical seasonal signals with anomalies induced by drought, extreme weather, or human disturbance, thus reducing the biological interpretability and classification reliability of the extracted parameters. Given these issues, the absence of detrending methods (e.g., STL decomposition or segmented regression) may introduce biases that merit further investigation. Future work could address this limitation by applying phenology reconstruction methods that integrate climate trend separation, or by stratifying the multi-year composite into shorter epochs (e.g., 2000–2010, 2011–2022) for temporal comparison. Additionally, incorporating higher-frequency data sources such as Sentinel-2, with its 5-day revisit cycle, could improve intra-annual sampling density and reduce reliance on averaging.
• Challenges in Shadowed Area Classification: Accurately extracting and classifying land cover within mountain shadow regions remains a significant technical challenge. Shaded areas exhibit altered reflectance characteristics and often contain mixed spectral signals due to low illumination, resulting in reduced model performance. In this study, a Shady Vegetation Index (SVI)-based method was applied to isolate shadow areas from autumn imagery, followed by independent sample library construction and classification. While this strategy enables a focused assessment of shadowed zones, the representativeness and scale of the shadow sample library could still influence classification accuracy. Improvements could include incorporating topographic data (e.g., slope, aspect), solar angle models, or shadow-invariant indices to enhance classification performance in such complex terrain.

5. Conclusions

This study explores the potential of using multi-year synthesized vegetation phenology data based on Landsat imagery to improve land cover classification accuracy in the Shennongjia Forest District, characterized by complex mountainous terrain and diverse vegetation types. This study found that the multi-year synthesized phenology data extracted using Landsat have spatial patterns consistent with the existing MODIS MCD12Q2 data, but with an improved spatial resolution of 30 m. By incorporating multi-year synthesized phenology data into summer imagery, autumn imagery, and combined summer–autumn imagery, the results showed that the inclusion of multi-year synthesized phenology data significantly improved the classification accuracy of the original imagery. This improvement was especially notable in the identification of coniferous and broadleaved mixed forests, evergreen broadleaf forests, and deciduous broadleaf shrubs. The enhancement was greatest for single summer imagery, in which OA increased by 8.75% and Kappa rose by 9.93%, followed by autumn imagery, and it was least for combined summer–autumn imagery. It also significantly improved the identification of different vegetation types in mountain shadow areas, with the Kappa increasing by 9.59% and the OA by 6.83%. This study further indicates that, in the absence of terrain data, phenology data have a greater impact on enhancing the accuracy of land cover classification from remote sensing imagery.
