Mapping Ecosystem Functional Groups in the Republic of Korea Based on the IUCN Global Ecosystem Typology

Abstract

This study presents a national-scale mapping of Ecosystem Functional Groups (EFGs) in the Republic of Korea using the International Union for Conservation of Nature (IUCN) Global Ecosystem Typology (GET), a hierarchical classification system, integrated with spatial datasets, satellite imagery, and a random forest (RF) classifier. By incorporating locally relevant ecological data, the original typology was refined to resolve issues of overgeneralization and spatial overlap. The resulting map delineates 20 distinct ecosystem types, offering improved spatial accuracy and better alignment with the actual land extent. To evaluate the potential of EFG classification, the RF model was trained on seasonal satellite composites and environmental variables, achieving an overall accuracy of 80%. Elevation and temperature were found to be the most influential predictors, effectively distinguishing ecological patterns across diverse landscapes. This integrated approach supports consistent tracking of ecosystem changes and helps address the limitations of static or infrequently updated spatial datasets. The developed EFG map supports biodiversity conservation by providing a practical foundation for national spatial planning and contributing to the Red List of Ecosystems assessments, which is in line with the goals of the Global Biodiversity Framework.

1. Introduction

Biodiversity plays a critical role in maintaining ecosystem functioning and stability by promoting efficient resource utilization and strengthening resilience to environmental heterogeneity through the differential functional responses of species [1]. The adoption of the post-2020 global biodiversity framework (GBF) under the Convention on Biological Diversity [2] and the 2030 Sustainable Development Goals [3] constitutes a pivotal global policy response to address the primary drivers of biodiversity loss. In line with global trends, habitats for wildlife such as forested areas are also gradually declining in the Republic of Korea (ROK) [4]. In response, based on legal grounds and in alignment with the specific targets outlined in the GBF, ROK has developed its National Biodiversity Strategies and Action Plans (NBSAP), reflecting the national context.

Both the GBF and Korea’s NBSAP emphasize spatial planning as a foundational strategy for identifying ecologically significant areas and setting conservation priorities. Monitoring the spatial extent and configuration of ecosystem types is essential to support this approach, requiring robust indicators and methodologies that capture ecosystem structure, function, and composition [5]. Moreover, this objective also supports ecosystem condition assessments and conservation prioritization, particularly through the application of the International Union for Conservation of Nature (IUCN) Red List of Ecosystems (RLE), which provides a global standard for evaluating the risk of ecosystem collapse based on indicators such as area change, range contraction, environmental degradation, and biotic disruption [6,7].

To implement such monitoring frameworks at a global scale, the use of standardized ecosystem typologies and spatial units is essential. In this context, remote sensing (RS) data such as multispectral and radar imagery from satellites are increasingly utilized due to their accessibility and broad spatial coverage [8,9,10,11]. Recent studies have actively applied RS data in combination with artificial intelligence (AI)-based classifiers, particularly machine learning techniques, to enhance the monitoring of ecosystem-related indicators [12,13,14,15,16]. However, existing ecosystem-monitoring studies have shown considerable variation in data sources, typological frameworks, and methodological approaches. This heterogeneity impedes the comparability of monitoring results across regions and the consistent tracking of global ecosystem trends. In addition, commonly used land-cover classifications often provide limited representations of ecosystem functions and biotic components, constraining comprehensive assessments of ecosystem conditions [17].

To establish standardized and spatially explicit ecosystem categories and terminology applicable at the global scale, the IUCN developed the Global Ecosystem Typology (GET), which incorporates ecosystem functions and processes [18]. The GET is structured into a six-level hierarchical framework. The upper three levels include the following: Level 1 (realms), comprising 10 major and transitional ecosystem realms; Level 2 (biomes), which further classifies realms into 25 biomes; and Level 3 (ecosystem functional groups, EFGs), which divides biomes into 110 functionally distinct ecosystem groups. Levels 4 through 6 are designed to capture compositional variations within functionally convergent ecosystem groups, enabling finer-scale classification at national and subnational levels [18]. Although the GET has been recommended as a standardized framework for ecosystem classification and as the assessment unit for the IUCN RLE [19], its application remains challenging. This is primarily due to insufficient spatially detailed data at national scales and classification uncertainties, including excessive overlap among ecosystem types. A recent application of the IUCN GET in Korea using the national land-cover map identified classification challenges, particularly due to ecological ambiguity and overlap among ecosystem types resulting from limited thematic resolution in national datasets [20]. Moreover, studies on mapping ecosystem types based on the IUCN GET remain limited, and evaluations of the applicability of RS data and AI techniques for this purpose are also insufficient.

In this study, a national-scale map of EFGs based on the GET framework was developed for the Republic of Korea, utilizing environmental thematic maps and geospatial datasets to enable international comparability (listed in Table 1). In addition, given that national-scale maps based on pre-existing spatial data may not fully reflect current ecosystem conditions, the mapping approach was further evaluated using satellite imagery and a random forest (RF) algorithm.

2. Materials and Methods

2.1. Study Area

The study area is located between approximately 33–39°N latitude and 124–132°E longitude, covering an area of approximately 100,000 km² (Figure 1). The region has a warm monsoon climate with hot summers (June to August) and cold, dry winters (December to February), resulting in pronounced seasonal variation in phenology and ecological dynamics [21]. Examples from the original IUCN GET maps reveal limitations when applied at the national scale (https://global-ecosystems.org/analyse, accessed on 10 September 2024) (Figure 1(c-1–c-4)). Types such as T7.3 and T7.4 cover almost the entire country, suggesting overgeneralization, while F3.1 and MT1.2 present spatial mismatches; both cases demonstrate inaccuracies due to coarse resolution and generalized input layers. These observations underscore the challenges of directly utilizing the original GET maps for ecosystem assessments within this region.

2.2. Data Acquisition and EFG Map Development

Firstly, to develop the EFG map for ROK, we identified the ecosystem types currently present in the country based on the IUCN GET. Considering the available spatial data as of 2022 and expert consultations, we selected 20 types applicable to the national context and established a classification framework for each.

Table 1. Datasets used for the development of the EFG map for the Republic of Korea.

Application	Dataset	Description	Creator	Extent	Time	Sources	Reference
Spatial classification	Land-cover map	Nationwide land-cover data classified into 41 classes	ME	ROK	2022	https://egis.me.go.kr (accessed on 15 May 2024)	[22]
	Forest-type map	Spatial distribution of forests by type, origin, and other attributes	KFS	ROK	2022	https://map.forest.go.kr (accessed on 16 May 2024)	[23]
	Farm map	Spatial distribution of farmlands by type	MAFRA	ROK	2022	https://agis.epis.or.kr (accessed on 1 June 2024)	[24]
	Wetland inventory	Spatial distribution of wetlands by type	NIE	ROK	2022	https://www.data.go.kr/en/index.do (accessed on 16 May 2024)	[25]
Functional classification	JRC global surface water	Information on surface water occurrence and seasonality	JRC	Global	2021	https://global-surface-water.appspot.com/ (accessed on 21 May 2024)	[26]
	HydroRIVERS	Information on river geometry and order	WWF	Global	2020	https://www.hydrosheds.org/ (accessed on 21 May 2024)	[27]
	MK-PRISM	Nationwide gridded mean air temperature	KMA	ROK	2015–2019	http://www.climate.go.kr/ (accessed on 16 May 2024)	[28]
	DEM	Nationwide gridded surface elevation	NGII	ROK	2022	https://www.data.go.kr/data/15059920/fileData.do (accessed on 16 May 2024)	[29]

Notes: ROK, Republic of Korea; ME, Ministry of Environment of the Republic of Korea; KFS, Korea Forest Services; MAFRA, Ministry of Agriculture, Food and Rural Affairs of the Republic of Korea; NIE, National Institute of Ecology of the Republic of Korea; JRC, Joint Research Centre of the European Commission; WWF, World Wildlife Fund; KMA, Korea Meteorological Administration; NGII, National Geographic Information Institute.

lists the source data used for the classification and mapping [22,23,24,25,26,27,28,29].

Table 2. Classification framework for each EFG.

ID	Ecosystem Functional Group	Criteria
T2.1	Boreal and temperate montane forests and woodlands	Vegetation areas based on land-cover map 1–3 non-consecutive months averaging above 10 °C based on 5-year MK-PRISM data Elevation above 1000 m based on DEM
T2.2.1	Broadleaved Temperate Forests	Broadleaved forests based on forest type map Winter mean temperature below 1 °C, summer mean temperature at or below 22 °C, and 4–6 non-consecutive months averaging above 10 °C based on 5-year MK-PRISM data Elevation below 1000 m based on DEM
T2.2.2	Coniferous temperate forests	Coniferous forests based on forest-type map Winter mean temperature below 1 °C, summer mean temperature at or below 22 °C, and 4–6 non-consecutive months averaging above 10 °C based on 5-year MK-PRISM data Elevation below 1000 m based on DEM
T2.2.3	Mixed temperate forests	Mixed forests based on forest-type map Winter mean temperature below 1 °C, summer mean temperature at or below 22 °C, and 4–6 non-consecutive months averaging above 10 °C based on 5-year MK-PRISM data Elevation below 1000 m based on DEM
T2.4	Warm temperate laurophyll forests	Evergreen broadleaved forest based on forest type map 6–8 non-consecutive months averaging above 10 °C based on 5-year MK-PRISM data Elevation below 1000 m based on DEM
T7.1	Annual croplands	Fields based on farm map
T7.3	Plantations	Orchards based on farm map
T7.4	Urban and industrial ecosystems	Built-up areas and artificial bare areas based on land-cover map
T7.5	Derived semi-natural pastures and old fields	Natural and artificial grassland based on land-cover map
TF1.2	Subtropical–temperate forested wetlands	Inland wetlands based on land-cover map Woody vegetation area based on wetland inventory
TF1.3	Permanent marshes	Lakes, rivers, and wetlands smaller than 8 hectares based on wetland inventory
TF1.7	Boreal and temperate fens	Inland wetlands based on land-cover map Herbaceous vegetation area based on wetland inventory
F1.1	Permanent upland streams	Rivers based on land-cover map 1st- to 3rd-order rivers based on HydroRIVERS Permanent water based on JRC global surface water
F1.2	Permanent lowland rivers	Rivers based on land-cover map 4th- to 9th-order rivers based on HydroRIVERS Permanent water based on JRC global surface water
F1.3	Freeze–thaw rivers and streams	Rivers based on land-cover map Winter mean temperature below 0 °C based on 5-year MK-PRISM data
F1.4	Seasonal upland streams	Rivers based on land-cover map 1st- to 4th-order rivers based on HydroRIVERS Seasonal water based on JRC global surface water
F1.5	Seasonal lowland rivers	Rivers based on land-cover map 5th- to 9th-order rivers based on HydroRIVERS Seasonal water based on JRC global surface water
F2	Lakes	Lakes based on land-cover map
F3.3	Rice paddies	Rice paddies based on farm map
MT1	Shorelines	Areas between marine waters based on the land-cover map and inland boundaries

shows the classification criteria for each EFG.

Table A1. Classification system of the land-cover map.

Major Class	Code	Subdivision Class	Criteria
Used Area	111	Detached Residential Area	Areas primarily consisting of single-family houses, excluding apartments, villas, and row houses
	112	Multi-family Residential Area	Areas dominated by apartments, villas, and row houses
	121	Industrial Facility	Areas designated for manufacturing and processing industries
	131	Commercial Facility	Areas for retail, wholesale, offices, and services
	132	Mixed-use Area	Areas where residential, commercial, and industrial facilities coexist
	141	Cultural, Sports, and Recreational Facilities	Areas designated for cultural, sports, and recreational activities
	151	Airport	Facilities for air transportation, including runways, terminals, and hangars
	152	Port	Facilities for maritime transportation, including docks, warehouses, and breakwaters
	153	Railway	Rail tracks and associated facilities like stations and maintenance areas
	154	Road	Paved roads and bridges, including highways and local roads
	155	Other Transportation and Communication Facility	Facilities not classified under other transportation categories, such as helipads and broadcasting stations
	161	Environmental Infrastructure Facility	Facilities for environmental protection and waste management, including treatment plants and recycling centers
	162	Educational and Administrative Facility	Schools, universities, government offices, and related facilities
	163	Other Public Facility	Public facilities not classified elsewhere, such as religious sites, correctional facilities, and military bases
Agricultural Areas	211	Paddy Field (Leveled)	Leveled fields used for rice cultivation
	212	Paddy Field (Unleveled)	Unleveled fields used for rice cultivation
	221	Upland Field (Leveled)	Leveled fields used for cultivating crops other than rice
	222	Upland Field (Unleveled)	Unleveled fields used for cultivating crops other than rice
	231	Facility Cultivation Area	Areas with greenhouses or other structures for plant cultivation
	241	Orchard	Areas planted with fruit-bearing trees
	251	Ranch and Aquaculture Area	Areas used for livestock grazing and aquaculture activities
	252	Other Cultivated Area	Areas used for horticulture, landscaping, and nurseries
Forest	311	Deciduous Forest	Forests dominated by deciduous trees
	321	Coniferous Forest	Forests dominated by coniferous trees
	331	Mixed Forest	Forests with a mix of deciduous and coniferous trees
Grass	411	Natural Grassland	Naturally occurring grass-covered areas
	421	Golf Course	Areas designated for golf, including fairways and greens
	422	Cemetery	Areas designated for burial purposes
	423	Other Grassland	Grass-covered areas not classified elsewhere, including buffer zones and slopes
Wet Land	511	Inland Wetland	Areas with saturated soil conditions, including marshes and swamps
	521	Mudflat	Coastal wetlands exposed during low tide
	522	Salt Pan	Areas used for salt production through evaporation
Barren	611	Beach	Sandy or pebbly shorelines along bodies of water
	612	Riverbank	Areas adjacent to rivers, often with exposed soil or vegetation
	613	Cliff and Rock	Areas with exposed rock formations or steep slopes
	621	Mining Area	Areas where mineral extraction activities occur
	622	Sports Ground	Open areas designated for sports activities, typically with bare soil
	623	Other Bare Land	Areas with little to no vegetation, including construction sites and cleared lands
Water	711	River	Natural flowing watercourses
	712	Lake	Inland bodies of standing water, including reservoirs
	721	Ocean Water	Marine areas beyond the coastline

in Appendix A provides the 41 subdivision land-cover classes used as inputs for EFG classification, based on the national land-cover map of the ROK. All source data were projected to the UTM/WGS84 coordinate system and resampled to 30 m spatial resolution using bilinear interpolation to ensure spatial alignment with satellite imagery. The spatial classification of each EFG was derived using land cover-related datasets provided via the respective government agencies. Functional classification was applied on top of spatial classification to produce the EFG map by matching the spatially defined land units with the functional criteria of the IUCN GET, including climatic thresholds and hydrological characteristics. This process was based on the key drivers of each EFG proposed by [18] and refined through expert consultation to reflect national conditions in the ROK.

2.3. Landsat 8–9 Satellite Imagry

Seasonal composites of Landsat 8–9 Level-2 satellite imagery for the year 2022 were generated using Google Earth Engine (GEE) as input data for EFG classification modeling based on the constructed EFG map. GEE is a cloud-based geospatial analysis platform that allows efficient processing of large-scale satellite datasets without the need for local storage or high-performance computing [30]. During the compositing process, cloud masking was applied to eliminate data distortion caused by clouds, and missing pixels resulting from cloud interference were corrected using the focal mean interpolation method, which fills gaps based on the average value of surrounding pixels. Additionally, cloud and shadow pixels were specifically removed using QA-based masking, and seasonal composites were generated using the median reducer to integrate multiple cloud-free observations into a single representative image for each season. The seasons were defined as winter (12–2), spring (3–5), summer (6–8), and autumn (9–11).

Table 3. Variables derived from Landsat imagery for the EFG classification model.

Indices	Formula
Normalized Difference Vegetation Index (NDVI)	$({\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}}-{\mathit{\rho }}_{\mathit{R}\mathit{E}\mathit{D}})/({\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}}+{\mathit{\rho }}_{\mathit{R}\mathit{E}\mathit{D}})$
Modified Normalized Difference Water Index (MNDWI)	$({\mathit{\rho }}_{\mathit{G}\mathit{R}\mathit{E}\mathit{E}\mathit{N}}-{\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}1})/({\mathit{\rho }}_{\mathit{G}\mathit{R}\mathit{E}\mathit{E}\mathit{N}}+{\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}1})$
Normalized Difference Built-up Index (NDBI)	$({\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}1}-{\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}})/({\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}1}+{\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}})$
Urban Index (UI)	$({\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}2}-{\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}})/({\mathit{\rho }}_{\mathit{S}\mathit{W}\mathit{I}\mathit{R}2}+{\mathit{\rho }}_{\mathit{N}\mathit{I}\mathit{R}})$
Land Surface Temperature (LST)	${\mathit{\rho }}_{\mathit{T}\mathit{I}\mathit{R}}$

summarizes the input variables used in the classification model, including spectral indices and a thermal band derived from the constructed Landsat composite imagery [31,32].

2.4. Random Forest Modeling

We employed the RF algorithm to construct the EFG classification model because of its strong performance in ecological classification tasks. The RF algorithm has been widely applied in remote sensing tasks involving both classification and regression [33,34,35,36]. It consists of an ensemble of classification and regression trees (CARTs), each trained on a randomly selected subset of the input data [37]. For every CART, predictor variables are selected at random with equal probability. The final prediction is obtained by aggregating the outputs of all individual trees, either through majority voting (for classification) or averaging (for regression). This ensemble strategy, which integrates bootstrap aggregation (bagging) and random feature selection, has been demonstrated to outperform many other machine learning approaches in various contexts [38].

The input datasets for modeling consisted of 25 bands, including 20 variables derived from spring, summer, fall, and winter Landsat imagery, as presented in Table 3, as well as four seasonal mean temperatures based on 5-year MK-PRISM data and DEM in Table 1. Considering the spatial extent of each EFG, and to ensure a balance between model performance and computational efficiency, we extracted 500 to 1000 samples per class using stratified random sampling. This range has been shown to be sufficient for robust classification, particularly when ensemble models such as RF are used [39]. We trained the models using a random selection of 80% of samples, stratified by EFG class, and the remaining 20% was used for tests.

The RF model was tuned using the training dataset and grid search with 5-fold cross-validation, systematically refining key parameters such as n_estimators (10, 50, 100, 200), max_depth (10, 20, 30, 40, 50, None), min_samples_split (2, 5, 10), and min_samples_leaf (1, 2, 4). The final model was selected with 200 trees, a maximum depth of 10, a minimum sample split of 5, and minimum leaf samples of 2, based on optimal F1-score performance and computational efficiency. After parameter optimization, we assessed the model performance using the test dataset and the metrics presented in

Table 4. Accuracy measures used to assess RF classification model.

Approach	Formula
Overall accuracy	T/(T + F)
Precision	TP/(TP + FP)
Recall	TP/(TP + FN)
F1-score	(2 × precision × recall)/ (precision + recall)

. TPs, FPs, and FNs refer to true positives, false positives, and false negatives for the target class, respectively; T and F denote the total number of correctly and incorrectly classified points across all classes. RF modeling was performed using the scikit-learn Python 3.8.10 library.

3. Results

3.1. Result of EFG Map Development for the Republic of Korea

We classified a total of 20 EFG types, listed in Table 2, within the ROK based on various data suitable for ecosystem classification, expert opinions, and the definitions provided in the existing IUCN GET. Figure 2 (left) shows the developed EFG map, and

Table 5. Area comparison between IUCN GET and the developed EFG map for each EFG type.

ID	Ecosystem Functional Group	IUCN GET (km2)	EFG Map (km2)	Relative Difference (%)
T2.1	Boreal and temperate montane forests and woodlands	3195.06	19.48	−99.39
T2.2.1	Broadleaved Temperate forests	46,114.35	32,076.05	+29.67
T2.2.2	Coniferous temperate forests		20,964.80
T2.2.3	Mixed temperate forests		6755.47
T2.4	Warm temperate laurophyll forests	13,838.58	142.68	−98.97
T7.1	Annual croplands	30,683.18	11,235.81	−63.38
T7.3	Plantations	79,767.46	1268.27	−98.41
T7.4	Urban and industrial ecosystems	61,680.09	9918.62	−83.92
T7.5	Derived semi-natural pastures and old fields	36,347.7	4666.41	−87.16
TF1.2	Subtropical–temperate forested wetlands	42,663.56	3.12	−99.99
TF1.3	Permanent marshes	NA	24.23	NA
TF1.7	Boreal and temperate fens	NA	1.45	NA
F1.1	Permanent upland streams	7279.39	172.41	−97.63
F1.2	Permanent lowland rivers	NA	210.50	NA
F1.3	Freeze–thaw rivers and streams	11,998.11	290.53	−97.58
F1.4	Seasonal upland streams	18,313.1	171.72	−99.06
F1.5	Seasonal lowland rivers	2178.58	31.11	−98.57
F2	Lakes	1753.99	3387.31	+93.12
F3.3	Rice paddies	44,601.29	9974.73	−77.64
MT1	Shorelines	13,843.88	4370.31	−68.43
Total		414,258.32	105,684.97	−74.49

presents the area of each EFG type in both the existing IUCN GET and the EFG map. Compared to the original IUCN GET classification, the EFG map developed in this study includes several structural refinements and additions. For example, T2.2 (temperate forests) has been subdivided into more specific categories: T2.2.1 (broadleaved temperate forests), T2.2.2 (Coniferous Temperate Forests), and T2.2.3 (mixed temperate forests). In addition, new functional groups that were not present in the original GET, such as TF1.3 (permanent marshes), TF1.7 (Boreal and Temperate Fens), and F1.2 (permanent lowland rivers), have been introduced, improving ecological specificity.

Significant differences were observed in the spatial extent of many EFG types in the refined map (Table 5). T2.1 (montane forests) showed a drastic decrease of over 99%, which was primarily due to climatic thresholds from [18], as many areas did not meet the required number of months with mean temperatures above 10 °C. T2.2.1 decreased compared to the undivided T2.2 in the original GET, but the combined area of T2.2.1 to T2.2.3 (59,796.32 km²) exceeded the original value, suggesting internal redistribution and improved vegetation classification. T2.4 (warm temperate laurophyll forests) also showed a substantial reduction of about 99%, likely due to the refined interpretation of vegetation types.

Among agricultural and artificial ecosystems, some types were broadly overestimated in the original GET due to generalized classification and a coarse spatial resolution over 1 km. Among them, F3.3 (rice paddies), T7.2 (horticultural croplands), T7.3 (plantations), and T7.4 (urban and industrial ecosystems) were mapped across nearly the entire national territory, resulting in very low spatial accuracy. These classification errors in the original GET were primarily due to the generalized use of low-resolution land-cover data and the lack of thematic detail in distinguishing intensively and extensively managed agricultural landscapes. For example, T7.1 (annual croplands) and T7.5 (derived semi-natural pastures and old fields) were often misclassified due to spectral and spatial similarity, particularly in transitional zones where land abandonment or rotational use created ambiguous vegetation patterns that were not adequately captured in the original dataset. These types have been significantly refined in the developed EFG map through more detailed classification and spatial filtering. As a result, T7.3 decreased by 98%, F3.3 by 78%, and T7.1 (annual croplands) by 63%. Similarly, T7.5 (derived semi-natural pastures and old fields) declined by 87%, and T7.4 declined by 84%, reflecting a comprehensive correction of prior overestimation across managed landscapes.

Wetland- and river-related types also showed substantial changes. TF1.2 (subtropical–temperate forested wetlands) decreased by over 99.99%, while TF1.3 and TF1.7, which were not included in the original GET, were newly added. F1.1 (permanent upland streams), F1.3 (freeze–thaw rivers), F1.4 (seasonal upland streams), and F1.5 (seasonal lowland rivers) were reduced by over 95–98%, while F1.2 was newly mapped, reflecting improved hydrological delineation. F2 (lakes) increased by 93% due to a more accurate detection of inland water bodies and MT1 (shorelines) declined by 68%, likely due to refined coastal boundary definitions and the removal of spatial overlaps.

The total area assigned to the 20 EFG types in the original IUCN GET was 414,258 km², approximately four times the actual land area of South Korea (about 100,000 km²), primarily due to broadly defined and overlapping classifications. In contrast, the refined EFG map developed in this study maps a total of 105,684.97 km² including MT1, closely matching the actual land area. This demonstrates a significant improvement in spatial accuracy and consistency over the original GET.

3.2. Classification Results

The developed EFG map was used as a reference map for classifying EFGs from satellite imagery using the RF algorithm. Accuracy assessments for each EFG type are presented in

Table 6. Accuracies of the RF model for EFG classification.

Division	Precision	Recall	F1-Score
T2.1	0.98	0.95	0.96
T2.2.1	0.76	0.91	0.83
T2.2.2	0.74	0.89	0.80
T2.2.3	0.81	0.89	0.84
T2.4	0.98	0.87	0.92
T7.1	0.70	0.90	0.79
T7.3	0.83	0.80	0.82
T7.4	0.53	0.84	0.65
T7.5	0.73	0.59	0.65
TF1.2	1.00	0.67	0.80
TF1.3	1.00	0.45	0.62
TF1.7	0.91	0.32	0.47
F1.1	0.99	0.95	0.97
F1.2	0.92	0.92	0.92
F1.3	0.79	0.15	0.25
F1.4	0.78	0.63	0.70
F1.5	0.89	0.74	0.81
F2	0.93	0.97	0.95
F3.3	0.75	0.97	0.85
MT1	0.96	0.97	0.97
Overall accuracy	0.80

, and the confusion matrix for the classification results is shown in Figure A1 in Appendix A.

The model achieved an overall accuracy of 0.80, with particularly high performance observed in classes such as T2.1, T2.4, F1.1, F1.2, F2, and MT1, all of which recorded F1-scores above 0.90. In contrast, TF1.3, TF1.7, and F1.3 yielded F1-scores below 0.50, largely due to confusion with ecologically similar or spatially adjacent categories. For example, TF1.3 samples were frequently misclassified as TF1.7 and T2.2.3 (mixed temperate forests), reflecting the difficulty of distinguishing wetland ecosystems with variable vegetation structures. F1.3, which is defined by seasonal freezing conditions and winter temperatures below 0 °C, also showed more frequent misclassification compared to other riverine classes such as F1.1 and F1.2. This suggests challenges in capturing the spectral or seasonal variability of intermittent or thermally dynamic water bodies. T7.4 also exhibited notable misclassifications, particularly with T2.2.3, T7.1, and T7.5. These overlaps are likely due to the complex spatial heterogeneity in peri-urban areas, where built-up surfaces, cropland edges, and vegetated open spaces are often intermingled, making them difficult to distinguish based on spectral features alone. Additionally, T2.2.3 was also confused with T2.2.1 and T2.2.2, highlighting the challenges of delineating transitional forest types that share similar structural and climatic characteristics.

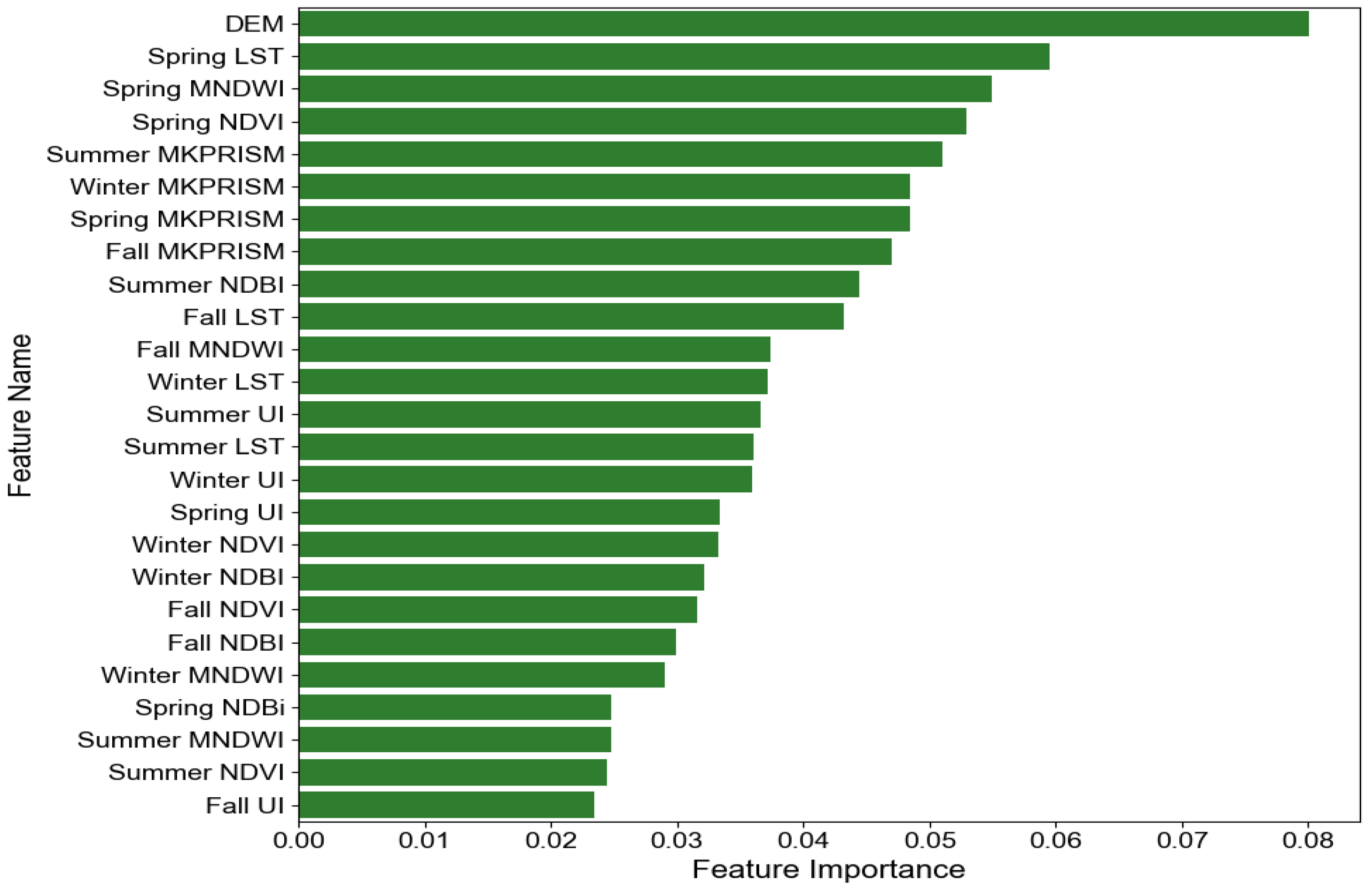

Figure 3 shows the feature importance of the 25 predictors used in RF classification for EFGs. DEM was the most important variable, effectively separating elevation-dependent classes such as montane forests and highland wetlands. Temperature-related variables, including seasonal averages from MK-PRISM and Landsat LST, also showed a strong influence. These variables played a key role in distinguishing ecosystems characterized by climatic conditions and seasonal variability, with predictors from multiple seasons contributing meaningfully to the classification. Spectral variables based on surface reflectance, which are commonly used in land-cover classification for their sensitivity to vegetation greenness, surface moisture, and built-up features [40], showed moderate importance in the model. These variables contributed consistently across seasons, aiding the classification of EFG types without notable seasonal variation in their relative importance.

3.3. Mapping Results

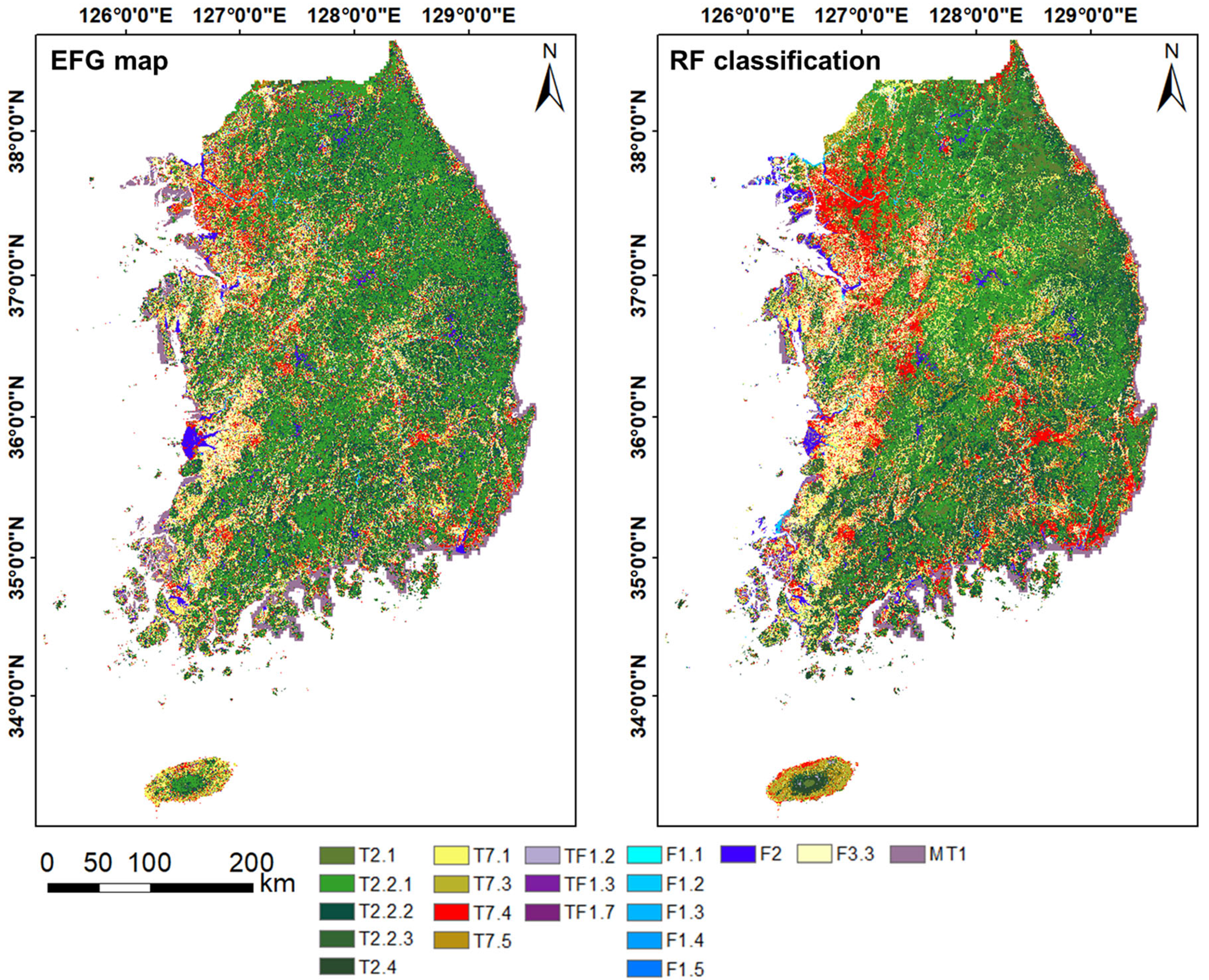

Figure 3 (right) shows the EFG mapping result for the entire ROK using the RF model. While the overall distribution is similar to the reference EFG map (left), T7.4 (urban and industrial ecosystems) is more broadly mapped, particularly in peri-urban areas, where it tends to be confused with T2.2.3, T7.1, and T7.5, as previously described. Additionally, T2.1 (boreal and temperate montane forests) is more extensively mapped in mountainous regions, likely due to the influence of DEM. In contrast, the reference map reflects more conservative delineation based on temperature criteria, leading to visible differences in high-altitude areas. Shorelines are also generally well reproduced in the RF classification, although certain areas in the northwestern coastal region were classified as F2, possibly due to spectral similarity near land–water boundaries.

Table 7. Case-specific differences between EFG map and RF modeling results.

	True Color	EFG Map	RF Mapping
Case A
Case B

shows that the EFG map constructed using nationally developed environmental thematic maps, is likely to differ from the results of RF modeling based on satellite imagery. In Case 1, such discrepancies appear in areas containing sensitive infrastructure, such as military facilities, where access to accurate ground information may be restricted due to security concerns [41]. In Case 2, environmental maps developed at the national level, which are updated less frequently than satellite imagery, often fail to capture recent changes in land surface conditions. These cases highlight the limitations of relying solely on pre-existing spatial data for monitoring EFG dynamics, and they emphasize the need to incorporate satellite imagery and AI-based modeling approaches as complementary tools to improve the accuracy and timeliness of ecosystem monitoring.

4. Discussion

4.1. Integration of National Data with the IUCN GET Framework

Globally standardized ecosystem classification provides the foundation for consistent assessment, monitoring, and conservation planning, regardless of regional or national boundaries. By offering a unified typological framework, it enables the integration of heterogeneous ecological data and facilitates meaningful global comparisons. In particular, such a framework is essential for applications such as the IUCN RLE, which relies on uniform criteria to assess ecosystem risk and guide prioritization [19]. This study applied the IUCN GET framework to ROK as a test case and demonstrated how national-level spatial datasets can be integrated with remote sensing data to derive a higher-resolution EFG map. Compared to the original GET map, which often overgeneralizes or misrepresents local ecological patterns, our results underscore the value of incorporating contextualized ecological information. Notably, substantial differences were observed in the distribution and area of specific EFG types, demonstrating the enhanced ability of our approach to capture local ecological variation. By incorporating ecological data from national sources, the method improves classification accuracy and mitigates the limitations of globally generalized ecosystem maps [42]. In addition, this refinement supports a more accurate representation of ecosystem heterogeneity, which is critical for the monitoring of ecosystems and supporting conservation and policy decisions [10].

4.2. Key Predictors and Ecological Relevance

To evaluate the feasibility of satellite-based classification of EFGs, we employed an RF algorithm trained on diverse geospatial predictors. Among these, DEM was the most influential, reflecting the significant relationship between topography and ecological variation. Elevation influences spatial patterns in vegetation and ecosystem composition by shaping hydrological processes, microclimates, and soil conditions, all of which affect the distribution of EFGs [43,44]. In the context of ROK, where approximately 70% of the land is mountainous, and terrain complexity varies sharply, even within short distances, elevation plays an especially critical role in determining ecosystem types. Temperature-related variables, the integration of MK-PRISM, and Landsat-derived LST showed high feature importance, indicating their potential relevance in differentiating EFGs based on thermal characteristics. In the case of ROK, which experiences a temperate monsoon climate characterized by distinct seasonal variation in temperature and precipitation, thermal variables such as seasonal MK-PRISM means and Landsat-derived LST are particularly effective in distinguishing temperature-sensitive ecosystems distributed along altitudinal and latitudinal gradients [45]. As demonstrated by [46], canopy and temperature dynamics are associated with ecological function and species traits, particularly in forests and wetlands. Although spectral indices contributed valuable spatial information, their importance was somewhat lower than that of topographic and thermal variables. Nevertheless, as suggested by [44], they were crucial for distinguishing EFGs in complex environments, such as urban–natural ecotones or ecosystems with seasonal phenological changes. Overall, the integration of topographic, thermal, and spectral data within an RF algorithm demonstrates the potential of satellite-based approaches for functionally meaningful ecosystem classification. Additionally, timely ecosystem monitoring is essential for informing effective policy decisions, as emphasized by [42]. This study demonstrates that such needs can be addressed and complemented through the integration of satellite-derived mapping results with the constructed EFG map, enabling more spatiotemporally representative monitoring.

4.3. Limitations and Future Work

The significance of this study lies in presenting an integrated methodology that synthesizes detailed national-level spatial datasets, satellite-based geospatial variables, and AI-based classification techniques to produce an EFG map aligned with the IUCN GET framework. This approach demonstrates the practical feasibility of applying globally standardized ecosystem typologies within a regional context while enhancing the spatial resolution and ecological specificity of classification outputs. By bridging the gap between global typological standards and locally available environmental data, this approach supports a more meaningful integration of ecosystem classification into national conservation strategies. The refined EFG map not only enables improved monitoring of ecological change but also facilitates spatial prioritization for biodiversity protection and land-use planning, aligned with global policy frameworks such as the IUCN Red List of Ecosystems and the Global Biodiversity Framework. However, due to limitations in data and definitions, specific EFG types were not included in the current classification, highlighting the importance of integrating overlooked EFG types to improve ecological accuracy and representational completeness. The spatial resolution of the 30 m satellite imagery used in this study may have limited the detection of small or fragmented ecosystems, and the reliance on a single year of data constrains temporal generalization. These factors contribute to uncertainties in ecosystem delineation, particularly within transitional or mixed-land-use zones. Building on this foundation, subsequent efforts should focus on including a broader range of EFG types, integrating more diverse datasets, and applying advanced deep learning-based models to support more ecologically meaningful and spatially accurate EFG mapping. The refined classification framework developed in this study can contribute to national biodiversity strategies, inform ecosystem risk assessments under the IUCN RLE, and support evidence-based spatial planning. As standardized spatial ecosystem information becomes increasingly important in global environmental governance, this approach offers a replicable model for other countries with similar data contexts and monitoring needs.

5. Conclusions

This study applied the IUCN GET to map EFGs in ROK by integrating national-level spatial datasets, satellite imagery, and an RF classifier. First, based on national-level spatial datasets, an optimized EFG map for ROK was developed that more accurately captures local ecological heterogeneity and better aligns with the actual land extent than the original GET product. This refinement addressed issues such as overgeneralization and spatial overlap commonly found in globally generalized typologies. Subsequently, satellite imagery and geospatial variables were incorporated using an RF classifier to assess the applicability of automated classification. Variables related to elevation and temperature exerted the greatest influence on the model, underscoring their critical role in distinguishing EFGs across diverse ecological gradients. The mapping result offers complementary value for ecosystem monitoring by supporting the consistent detection of spatial changes and offering insight into region-specific ecological patterns. It also helps address the limited update frequency of existing national-level spatial datasets, underscoring the value of satellite-based automated mapping for more timely and responsive ecosystem assessments. These improvements provide a stronger basis for ecosystem monitoring and more coherent conservation decision-making by enabling standardized and spatially consistent assessments. The optimized EFG map for ROK, built from national-level datasets and remote sensing, serves as a practical tool for domestic planning while enhancing compatibility with global frameworks. In particular, it offers a robust input for IUCN RLE assessments, contributing to consistent evaluation of ecosystem risks and supporting global biodiversity conservation efforts in alignment with the goals of the GBF.
