An Infrared Maritime Small Target Detection Algorithm Based on Semantic, Detail, and Edge Multidimensional Information Fusion
Abstract
:1. Introduction

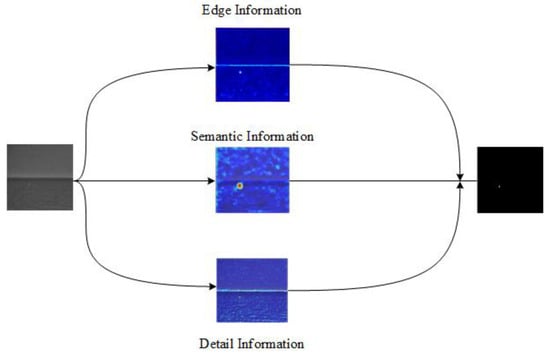

- We propose an infrared small target detection model that demonstrates excellent performance on a dataset specifically designed for infrared small targets in maritime and aerial scenes. We introduce an edge information extraction module, which not only compensates for the loss of target information caused by downsampling but also provides edge information to enable more precise target detection;
- We draw inspiration from the deeplab network structure and introduce shallow feature maps with richer detailed information in the last stage to further reduce the loss caused by downsampling;
- We propose a fusion mechanism that combines semantic information with detail and edge information. This mechanism first extracts semantic information from the FPN baseline network and then organically integrates all three components using an attention mechanism;
- Experimental results on the dataset compared with other state-of-the-art algorithms demonstrate the excellent performance of our algorithm. It can effectively extract and learn the features of the targets.
2. Materials and Methods
2.1. Related Work
2.1.1. Infrared Small Target Detection
2.1.2. Attention Mechanism
2.1.3. Edge Information
2.2. Method

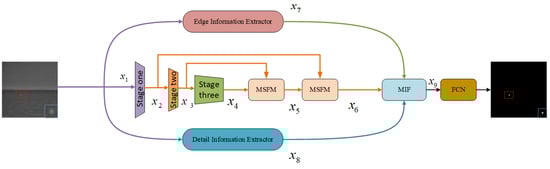

2.2.1. Overall Architecture
Algorithm 1: The Method Processing of an Image |
Input: An Infrared Image |
begin |
Do abstract feature extraction |
End |
Do FPN feature fusion |
End |
Do Multiple dimension information fusion |
End |
Output: Binary Mask Image |
2.2.2. Edge Information Extractor
2.2.3. Multiscale Information Fusion Module

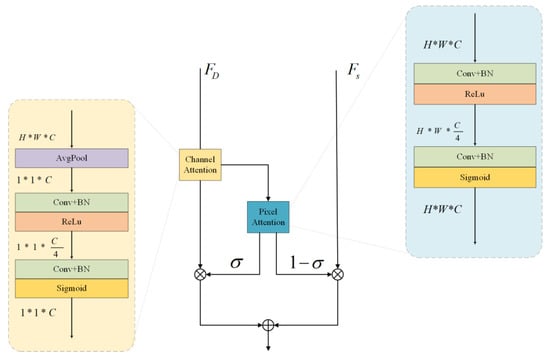

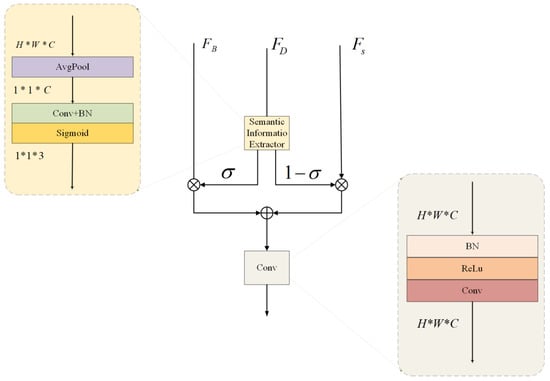

2.2.4. Multiple Information Fusion Module
2.2.5. Loss Function
3. Results
3.1. Evaluation Metrics
3.2. Experiment Settings and Dataset

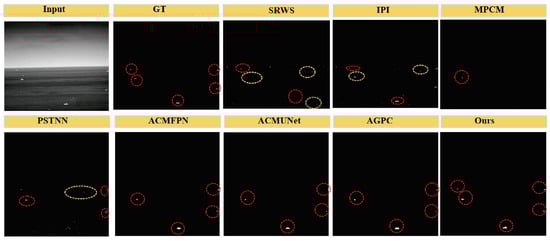

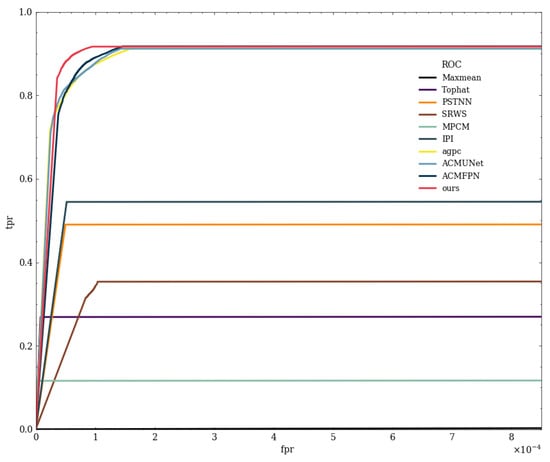

3.3. Equations Comparision to the State-of-the-Art Method

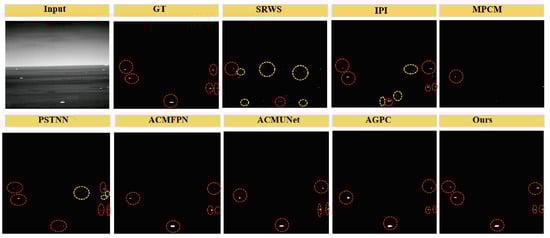

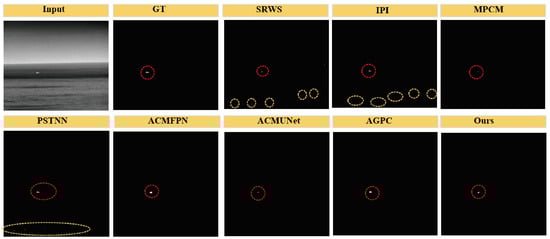

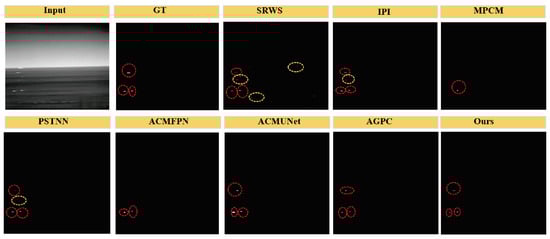

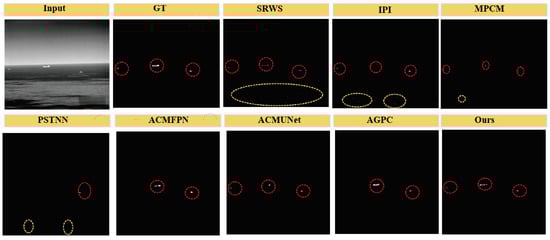

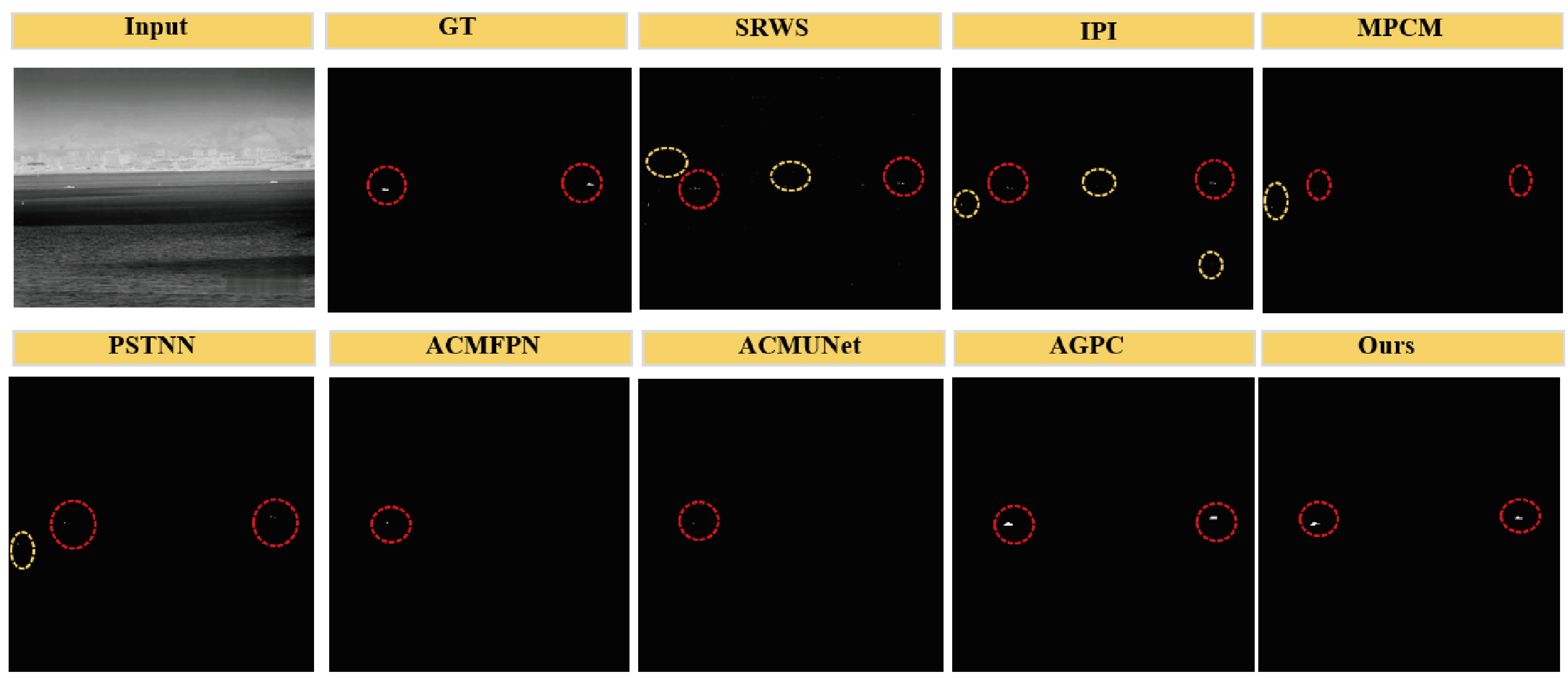

3.4. Ablation Study
- 1.
- Influence of edge information.
- 2.
- Influence of detailed information.
- 3.
- Influence of Fusion module
- 4.
- Influence of depth of layers
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest

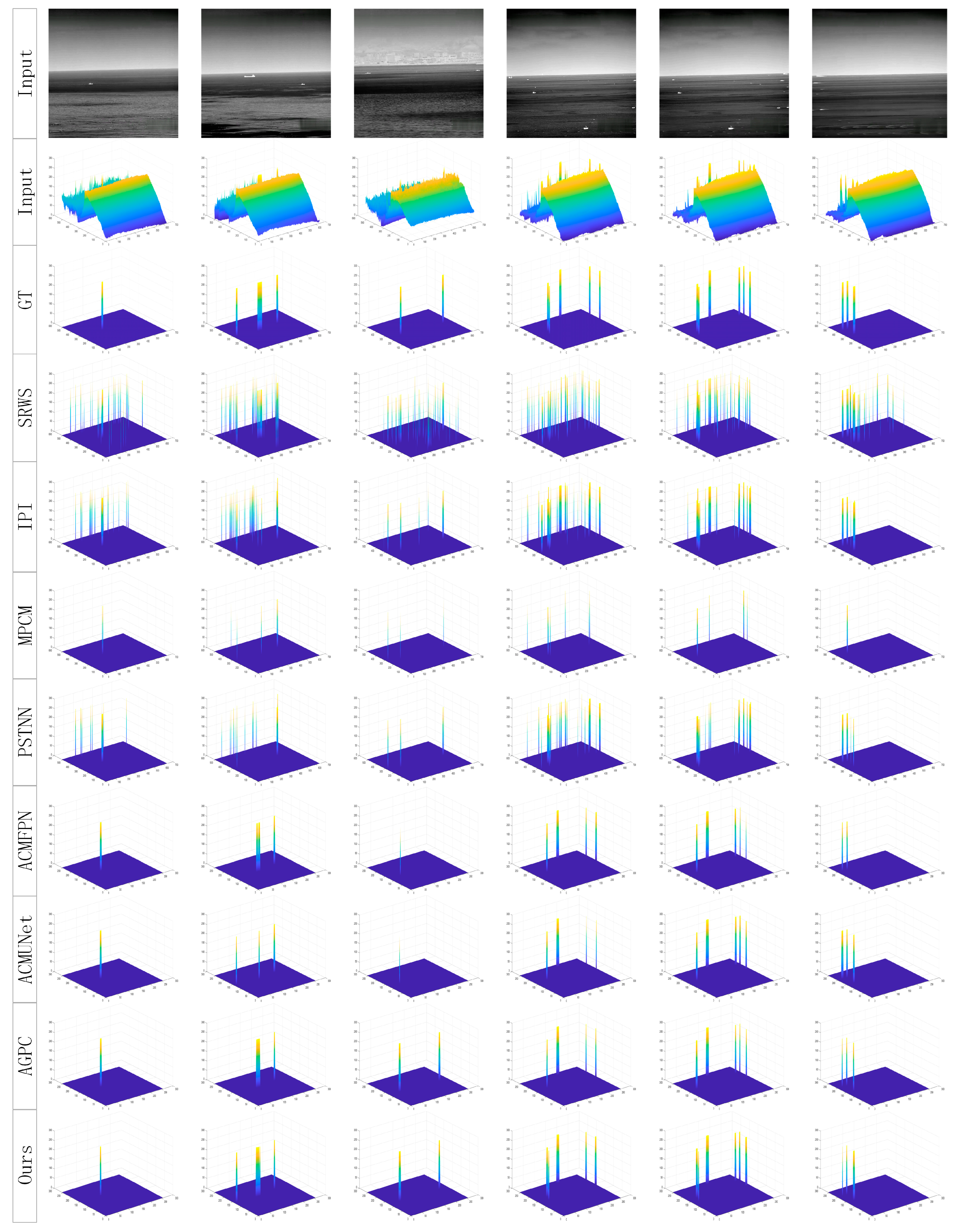

Appendix A. Three-Dimensional Visualization Results of Different Methods on 6 Test Images
References
- Yang, C.; Ma, J.; Qi, S.; Tian, J.; Zheng, S.; Tian, X. Directional support value of gaussian transformation for infrared small target detection. Appl. Opt. 2015, 54, 2255–2265. [Google Scholar] [CrossRef] [PubMed]
- Qi, H.; Mo, B.; Liu, F.; He, Y.; Liu, S. Small infrared target detection utilizing local region similarity difference map. lnfared Phys. Technol. 2015, 71, 131–139. [Google Scholar] [CrossRef]
- Pak, J. Visual odometry particle filter for improving accuracy of visual object trackers. Electron. Lett. 2020, 56, 884–887. [Google Scholar] [CrossRef]
- Lin, G.; Fan, W. Unsupervised video object segmentation based on mixture models and saliency detection. Neural Process. Lett. 2020, 51, 657–674. [Google Scholar] [CrossRef]
- Li, B.; Xu, Z.; Zhang, J.; Wang, X.; Fan, X. Dim-Small Target Detection Based on Adaptive Pipeline Filtering. Math. Probl. Eng. 2020, 2020, 8234349. [Google Scholar] [CrossRef]
- Fu, J.; Zhang, H.; Luo, W.; Gao, X. Dynamic Programming Ring for Point Target Detection. Appl. Sci. 2022, 12, 1151. [Google Scholar] [CrossRef]
- Zhao, M.; Li, W.; Li, L.; Hu, J.; Ma, P.; Tao, R. Single-Frame Infrared Small-Target Detection: A Survey. IEEE Geosci. Remote Sens. Mag. 2022, 10, 87–119. [Google Scholar] [CrossRef]
- Rivest, J.F.; Fortin, R. Detection of dim targets in digital infrared imagery by morphological image processing. Opt. Eng. 1996, 35, 1886–1893. [Google Scholar] [CrossRef]
- Deshpande, S.D.; Er, M.H.; Venkateswarlu, R.; Chan, P. Maxmean and max-median filters for detection of small targets. In Signal and Data Processing of Small Targets; International Society for Optics and Photonics: Bellingham, WA, USA, 1999; Volume 3809, pp. 74–83. [Google Scholar]
- Chen, C.P.; Li, H.; Wei, Y.; Xia, T.; Tang, Y.Y. A local contrast method for small infrared target detection. IEEE Trans. Geosci. Remote Sens. 2013, 52, 574–581. [Google Scholar] [CrossRef]
- Wei, Y.; You, X.; Li, H. Multiscale patch-based contrast measure for small infrared target detection. Pattern Recognit. 2016, 58, 216–226. [Google Scholar] [CrossRef]
- Gao, C.; Meng, D.; Yang, Y.; Wang, Y.; Zhou, X.; Hauptmann, A.G. Infrared patch-image model for small target detection in a single image. IEEE Trans. Image Process. 2013, 22, 4996–5009. [Google Scholar] [CrossRef] [PubMed]
- Zhang, T.; Peng, Z.; Wu, H.; He, Y.; Li, C.; Yang, C. Infrared small target detection via self-regularized weighted sparse model. Neurocomputing 2021, 420, 124–148. [Google Scholar] [CrossRef]
- Zhang, L.; Peng, Z. Infrared small target detection based on partial sum of the tensor nuclear norm. Remote Sens. 2019, 11, 382. [Google Scholar] [CrossRef]
- Haq, M.A.; Hassine, S.B.H.; Malebary, S.J.; Othman, H.A.; Tag-Eldin, E.M. 3D-cnnhsr: A 3-dimensional convolutional neural network for hyperspectral super-resolution. Comput. Syst. Sci. Eng. 2023, 47, 2689–2705. [Google Scholar]
- Haq, M.A. CNN based automated weed detection system using uav imagery. Comput. Syst. Sci. Eng. 2022, 42, 837–849. [Google Scholar]
- Stupariu, M.-S.; Cushman, S.A.; Pleşoianu, A.-I.; Pătru-Stupariu, I.; Fuerst, C. Machine learning in landscape ecological analysis: A review of recent approaches. Landsc. Ecol. 2022, 37, 1227–1250. [Google Scholar] [CrossRef]
- Dai, Y.; Wu, Y.; Zhou, F.; Barnard, K. Asymmetric contextual modulation for infrared small target detection. In Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision, Virtual, 5–9 January 2021; pp. 950–959. [Google Scholar]
- Zhang, M.; Zhang, R.; Yang, Y.; Bai, H.; Zhang, J.; Guo, J. ISNet: Shape matters for infrared small target detection. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), New Orleans, LA, USA, 18–24 June 2022; pp. 877–886. [Google Scholar]
- Li, M.; He, Y.J.; Zhang, J. Small infrared target detection based on low-rank representation. In Image and Graphics; Springer: Berlin/Heidelberg, Germany, 2015; pp. 393–401. [Google Scholar]
- Wang, X.; Peng, Z.; Kong, D.; He, Y. Infrared dim and small target detection based on stable multisubspace learning in heterogeneous scene. IEEE Trans. Geosci. Remote Sens. 2017, 55, 5481–5493. [Google Scholar] [CrossRef]
- Girshick, R.; Donahue, J.; Darrell, T. Rich feature hierarchies for accurate object detection and semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Columbus, OH, USA, 23–28 June 2014; pp. 580–587. [Google Scholar]
- Girshick, R. Fast r-cnn. In Proceedings of the IEEE International Conference on Computer Vision, Santiago, Chile, 7–13 December 2015; pp. 1440–1448. [Google Scholar]
- He, K.; Gkioxari, G.; Dollár, P. Mask r-cnn. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2961–2969. [Google Scholar]
- Redmon, J.; Divvala, S.; Girshick, R. You only look once: Unified, real-time object detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 779–788. [Google Scholar]
- Redmon, J.; Farhadi, A. YOLO9000: Better, faster, stronger. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 7263–7271. [Google Scholar]
- Redmon, J.; Farhadi, A. Yolov3: An incremental improvement. arXiv 2018, arXiv:1804.02767. [Google Scholar]
- Bochkovskiy, A.; Wang, C.Y.; Liao, H.Y.M. Yolov4: Optimal speed and accuracy of object detection. arXiv 2020, arXiv:2004.10934. [Google Scholar]
- Li, C.; Li, L.; Jiang, H. YOLOv6: A single-stage object detection framework for industrial applications. arXiv 2022, arXiv:2209.02976. [Google Scholar]
- Wang, C.Y.; Bochkovskiy, A.; Liao, H.Y.M. YOLOv7: Trainable bag-of-freebies sets new state-of-the-art for real-time object detectors. arXiv 2022, arXiv:2207.02696. [Google Scholar]
- Zhang, T.; Li, L.; Cao, S.; Pu, T.; Peng, Z. Attention-Guided Pyramid Context Networks for Detecting Infrared Small Target Under Complex Background. IEEE Trans. Aerosp. Electron. Syst. 2023, 59, 4250–4261. [Google Scholar] [CrossRef]
- Li, B.; Xiao, C.; Wang, L.; Wang, Y.; Lin, Z.; Li, M.; An, W.; Guo, Y. Dense Nested Attention Network for Infrared Small Target Detection. IEEE Trans. Image Process. 2023, 32, 1745–1758. [Google Scholar] [CrossRef] [PubMed]
- Lee, M. The geometry of feature space in deep learning models: A holistic perspective and comprehensive review. Mathematics 2023, 11, 2375. [Google Scholar] [CrossRef]
- Hu, J.; Shen, L.; Sun, G. Squeeze-and-excitation neworks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Salt Lake City, UT, USA, 18–22 June 2018; pp. 7132–7141. [Google Scholar]
- Woo, S.; Park, J.; Lee, J.; Kweon, I.S. Cbam: Convolutional block attention module. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 3–19. [Google Scholar]
- Li, X.; Zhong, Z.; Wu, J.; Yang, Y.; Lin, Z.; Liu, H. Expectation-maximization attention networks for semantic segmentation. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Seoul, Republic of Korea, 27 October–2 November 2019. [Google Scholar]
- Huang, Z.; Wang, X.; Wei, Y.; Huang, L.; Shi, H.; Liu, W.; Huang, T.S. Ccnet: Criss-cross attention for semantic segmentation. In Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision (ICCV), Seoul, Republic of Korea, 27 October–2 November 2020. [Google Scholar]
- Abdulqader, D.A.; Hathal, M.S.; Mahmmod, B.M.; Abdulhussain, S.H.; Al-Jumeily, D. Plain, edge, and texture detection based on orthogonal moment. IEEE Access 2022, 10, 114455–114468. [Google Scholar] [CrossRef]
- Geng, Z.; Guo, M.-H.; Chen, H.; Li, X.; Wei, K.; Lin, Z. Is attention better than matrix decomposition? In Proceedings of the International Conference on Learning Representations, Virtual, 3–7 May 2021. [Google Scholar]
- Zhen, M.; Wang, J.; Zhou, L.; Li, S.; Shen, T.; Shang, J.; Fang, T.; Quan, L. Joint semantic segmentation and boundary detectionusing iterative pyramid contexts. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 13–19 June 2020; pp. 13666–13675. [Google Scholar]
- Takikawa, T.; Acuna, D.; Jampani, V.; Fidler, S. Gated-SCNN: Gatedshape CNNs for semantic segmentation. In Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Seoul, Republic of Korea, 27 October 2019–2 November 2019; pp. 5229–5238. [Google Scholar]
- Yu, C.; Wang, J.; Peng, C.; Gao, C.; Yu, G.; Sang, N. Learninga discriminative feature network for semantic segmentation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Salt Lake City, UT, USA, 18–23 June 2018; pp. 1857–1866. [Google Scholar]
- Yuan, Y.; Xie, J.; Chen, X.; Wang, J. SegFix: Model-agnostic boundary refinement for segmentation. In Proceedings of the European Conference on Computer Vision (ECCV), Glasgow, UK, 23–28 August 2020; pp. 489–506. [Google Scholar]
- Yu, C.; Wang, J.; Peng, C.; Gao, C.; Yu, G.; Sang, N. BiSeNet: Bilateral Segmentation Network for Real-Time Semantic Segmentation. In Computer Vision—ECCV 2018, Proceedings of the 15th European Conference, Munich, Germany, 8–14 September 2018; Ferrari, V., Hebert, M., Sminchisescu, C., Weiss, Y., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 334–349. [Google Scholar]
- Sun, X.; Xie, Y.; Jiang, L.; Cao, Y.; Liu, B. DMA-Net: DeepLab With Multi-Scale Attention for Pavement Crack Segmentation. IEEE Trans. Intell. Transport. Syst. 2022, 23, 18392–18403. [Google Scholar] [CrossRef]
- Faisal, M.M.; Mohammed, M.S.; Abduljabar, A.M.; Abdulhussain, S.H.; Mahmmod, B.M.; Khan, W.; Hussain, A. Object detection and distance measurement using AI. In Proceedings of the 2021 14th International Conference on Developments in eSystems Engineering (DeSE), Sharjah, United Arab Emirates, 7–10 December 2021; pp. 559–565. [Google Scholar]
- Lv, G.; Dong, L.; Liang, J.; Xu, W. Novel Asymmetric Pyramid Aggregation Network for Infrared Dim and Small Target Detection. Remote Sens. 2022, 14, 5643. [Google Scholar] [CrossRef]
Stage | Output | Backbone |
---|---|---|
Stage one | ||
Stage two | ||
Stage three |
Target Size | Target Category | Background Type | |
---|---|---|---|
(a) | 5 7 | One small target with low local contrast | Calm sea |
(b) | 4 8, 5 6 | Two small targets with low local contrast | Floating interface |
(c) | 5 5, 5 6, 5 7, 5 8 | Three small targets with low local contrast | Calm sea |
(d) | 9 9, 5 6, 5 6 | Three small targets with low local contrast | Wave clutter |
(e) | 7 7, 3 6, 9 9, 4 8, 4 7 | Four small targets with low local contrast | Wave clutter |
(f) | 4 6, 4 5, 5 6 | Three small targets with low local contrast | Dynamic camera |
ACMFPN | ACMUnet | AGPC | Ours | |
---|---|---|---|---|
FLOPs | 564.537 M | 1.003 G | 86.362 G | 2.013 G |
Params | 386.615 K | 519.271 K | 12.360 M | 397.666 K |
Method | Hyper-Parameters Settings |
---|---|
MaxMean | 3 |
Tophat | 3 |
MPCM | window size = { 3, 5, 7, 9} |
PTSNN | |
IPI | |
SRWS |
Method | IoU | nIoU | F1 | AuC |
---|---|---|---|---|
Maxmean | 0.12 | 3.54 | 0.23 | 54.45 |
Tophat | 26.33 | 26.7 | 41.69 | 63.44 |
MPCM | 11.58 | 12.49 | 20.75 | 55.80 |
IPI | 48.05 | 48.17 | 64.91 | 77.23 |
PSTNN | 43.51 | 44.22 | 60.64 | 74.52 |
SRWS | 26.39 | 27.71 | 41.76 | 26.39 |
ACMFPN | 72.66 | 72.97 | 84.19 | 95.75 |
ACMUnet | 72.55 | 73.24 | 83.3 | 95.50 |
AGPC | 77.61 | 78.13 | 83.39 | 95.58 |
Ours | 79.09 | 79.43 | 87.88 | 95.96 |
Method | IoU | nIoU |
---|---|---|
Baseline | 72.66 | 72.97 |
Baseline + fusion | 76.19 | 76.28 |
Baseline + sobel + fusion | 77.99 | 78.47 |
Baseline + x1 + sobel + fusion | 79.09 | 79.43 |
Depth | IoU | nIoU |
---|---|---|
1 | 76.60 | 77.09 |
2 | 77.90 | 78.40 |
3 | 78.22 | 78.78 |
4 | 79.09 | 79.43 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Yao, J.; Xiao, S.; Deng, Q.; Wen, G.; Tao, H.; Du, J. An Infrared Maritime Small Target Detection Algorithm Based on Semantic, Detail, and Edge Multidimensional Information Fusion. Remote Sens. 2023, 15, 4909. https://doi.org/10.3390/rs15204909
Yao J, Xiao S, Deng Q, Wen G, Tao H, Du J. An Infrared Maritime Small Target Detection Algorithm Based on Semantic, Detail, and Edge Multidimensional Information Fusion. Remote Sensing. 2023; 15(20):4909. https://doi.org/10.3390/rs15204909
Chicago/Turabian StyleYao, Jiping, Shanzhu Xiao, Qiuqun Deng, Gongjian Wen, Huamin Tao, and Jinming Du. 2023. "An Infrared Maritime Small Target Detection Algorithm Based on Semantic, Detail, and Edge Multidimensional Information Fusion" Remote Sensing 15, no. 20: 4909. https://doi.org/10.3390/rs15204909
APA StyleYao, J., Xiao, S., Deng, Q., Wen, G., Tao, H., & Du, J. (2023). An Infrared Maritime Small Target Detection Algorithm Based on Semantic, Detail, and Edge Multidimensional Information Fusion. Remote Sensing, 15(20), 4909. https://doi.org/10.3390/rs15204909
