Deep Learning-Based Geomagnetic Navigation Method Integrated with Dead Reckoning

1
Guangxi Key Laboratory of Precision Navigation Technology and Application, Guilin University of Electronic Technology, Guilin 541004, China
2
School of Information and Communication, Guilin University of Electronic Technology, Guilin 541004, China
3
Guangxi Key Laboratory of Image and Graphic Intelligent Processing, Guilin University of Electronic Technology, Guilin 541004, China
4
National & Local Joint Engineering Research Center of Satellite Navigation Localization and Location Service, Guilin 541004, China
5
GUET-Nanning E-Tech Research Institute Co., Ltd., Nanning 530031, China
6
Faculty of Electrical and Electronics Engineering, Universiti Malaysia Pahang, Pekan 25200, Malaysia
*
Author to whom correspondence should be addressed.
Remote Sens. 2023, 15(17), 4165; https://doi.org/10.3390/rs15174165
Submission received: 13 June 2023 / Revised: 20 August 2023 / Accepted: 21 August 2023 / Published: 24 August 2023

Abstract

:
Accurate location information has significant commercial and economic value as they are widely used in intelligent manufacturing, material localization and smart homes. Magnetic sequence-based approaches show great promise mainly due to their pervasiveness and stability. However, existing geomagnetic indoor localization methods are facing the problems of location ambiguity and feature extraction deficiency, which will lead to large localization errors. To address these issues, we propose a coarse-to-fine geomagnetic indoor localization method based on deep learning. First, a multidimensional geomagnetic feature extraction method is presented which can extract magnetic features from spatial and temporal aspects. Then, a hierarchical deep neural network model is devised to extract more accurate geomagnetic information and corresponding location clues for more accurate localization. Finally, localization is achieved through a particle filter combined with IMU localization. To evaluate the performance of the proposed methods, we carried out several experiments at three trial paths with two heterogeneous devices, Vivo X30 and Huawei Mate30. Experimental results demonstrate that the proposed algorithm can achieve more accurate localization performance than the state-of-the-art methods. Meanwhile, the proposed algorithm has low cost and good pervasiveness for different devices.

Graphical Abstract

1. Introduction

Location-based services (LBSs) have gradually penetrated all aspects of people’s lives and have become an indispensable application technology. Examples of their application include pedestrian navigation or object searching in airports, shopping malls, hospitals, underground parking lots, tourist route planning services, unmanned medical care, intelligent manufacturing, and intelligent meal delivery [1]. Therefore, LBSs have substantial commercial and economic value.
Reliable LBS cannot be achieved without accurate location information. Currently, the Global Navigation Satellite System (GNSS) in outdoor environments can satisfy all weather navigation requirements. Since satellite signals cannot penetrate buildings, research on indoor navigation methods has become crucial for ensuring seamless indoor and outdoor localization. However, though many indoor localization technologies seem rather similar, they are actually completely different. Indoor localization is greatly affected by the surrounding environment, and more obstacles and intricate environments, including building structures, materials, and various furniture in indoor environments, lead to complex multipath and signal attenuation effects and then cause a decrease in accuracy localization. Meanwhile, the accuracy requirement for indoor localization is much higher than that of outdoor localization.
Researchers have explored various indoor localization techniques, such as wireless-fidelity (Wi-Fi) [2,3,4,5], Bluetooth (BT) [6,7], radio frequency identification (RFID) [8,9], ultra-wideband (UWB) [10,11,12,13], ultrasound [14], and visible light [15,16] technologies. These technologies need some infrastructure facilities, and are susceptible to environmental impacts, such as multipath propagation, signal absorption and building blocking. In contrast to the abovementioned techniques, geomagnetic localization technology [17,18] and pedestrian dead reckoning (PDR) [19,20] localization technology do not need extra hardware equipment and are less susceptible to the influence of the surrounding environment. Localization methods without infrastructure facilities have been favored by a large number of researchers and consumers and have become an interesting research topic.
Ubiquitous geomagnetic signals are generated by the earth’s geomagnetic field. Ferrogeomagnetic materials such as steer bars, irons, and iron-containing alloys in indoor environments result in geomagnetic abnormalities [21]. Geomagnetic abnormalities provide obvious clues and are beneficial for indoor localization [22]. Moreover, geomagnetic sequences can be collected using smartphones and they have high stability when the indoor environment does not change. Among the geomagnetic-based approaches, the dynamic time warping (DTW) algorithm [23] is a typical method used for geomagnetic localization. Gong et al. [24] used the DTW algorithm to warp the processed geomagnetic sequence and the known base, combining it with PDR to achieve geomagnetic matching localization. Subbu et al. [25,26] used the DTW algorithm to realize localization by matching the similarity of different geomagnetic sequences to solve the influence of different walking speeds on localization. The results showed that the localization accuracy is 2–6 m. Another widespread localization approach based on geomagnetic sequences is the particle filter [27], which is a non-parametric implementation of Bayesian filtering [28,29]. Canciani et al. [30] proposed an airborne navigation system using magnetic field. A particle filter is utilized to correct the errors in an inertial navigation system. Akai et al. [31] proposed using the Gaussian model to describe the fingerprint database of the geomagnetic field, and the particle weight, which is determined by the residual between the established model parameters and the fingerprint database, to estimate the optimal location. Xie et al. [32] proposed using MaLoc to achieve localization, which is based on the proposed augmented particle filter. Experimental results showed that the MaLoc algorithm can achieve 1~2.8 m localization accuracy in a large building with a 72 m × 64 m floor plan.
Pedestrian dead reckoning (PDR) [19,20] is a representative indoor localization method. It does not require additional infrastructure and can achieve relative localization in a short time. Kang et al. [33] solved the hardware problem of using inertial measurement techniques for localization by replacing inertial sensors, which are measurement devices used in traditional PDR methods with smartphones. Poulose et al. [34] performed a comparison analysis of various sensor fusion techniques for heading estimation to identify the optimal heading direction for PDR. Yao et al. [35] proposed a robust step length and stride length detection method for smartphones to enhance localization accuracy by modifying the step length estimation model. A modified zero-velocity detection algorithm is designed for step and heading estimations in ref. [36], which can obtain a more stable localization result.
However, existing geomagnetic indoor localization methods suffer from many problems. In the DTW algorithm, location determination is achieved when the maximum similarity of the geomagnetic magnitude is matched between online geomagnetic data and the fingerprint database in the overall region. However, the geomagnetic magnitudes do not fluctuate greatly without external metal changes. Large positioning errors will occur especially in symmetric and large area environments. The DTW algorithm has significant computational complexity. On the other hand, geomagnetic magnitudes are related to geological characteristics and the external human environment, and are nonlinear and complex problems. The particle filter algorithm can be used to solve various complex problems, such as moving object tracking. However, the particle filter is also severely impacted by motion estimation errors and suffers from the particle degradation problem. Increasing particle numbers can solve these problems, but a significant computational resource is required. Thus, the practical application of particle filters with smartphones is limited. In addition, different locations in symmetric environments may have identical geomagnetic readings, which cause localization ambiguity. Therefore, it is very challenging to construct a localization system using only geomagnetic sequences [37]. PDR can achieve relative localization, which relies heavily on pre-set initial location. When long distance localization is involved, the cumulative errors and drift errors will gradually increase over time, resulting in poor localization accuracy in practical scenes. Additionally, different pedestrians have different heights, stride lengths, and walking habits, which may lead to errors in step detection and heading direction. Therefore, PDR is used more as an auxiliary optimization algorithm than other as a localization algorithm.
To address the above problems, we proposed a coarse-to-fine indoor localization algorithm based on geomagnetic and inertial data, which mitigates the effects of geomagnetic ambiguity and PDR cumulative errors. We exploited the application to collect geomagnetic sequences and inertial measurement unit (IMU) data using smartphones. A novel deep learning neural network is proposed to achieve indoor localization. The key contributions of this research are summarized as follows:
  • Multidimensional geomagnetic feature extraction: To facilitate distinctive geomagnetic feature extraction, we propose a multidimensional algorithm developed from spatial and temporal information, which improves the uniqueness of the geomagnetic features.
  • A novel neural network framework: To enhance the extraction of geomagnetic features and solve the problem of location ambiguity, we propose a novel neural network to realize localization with geomagnetic sequences. The hierarchical structure of this model can extract more unique features from multidimensional geomagnetic sequences and better study the correlation between geomagnetic sequences and locations. The experiments demonstrate that this network can improve localization performance.
  • A coarse-to-fine localization system: To enhance localization performance, a coarse-to-fine localization system based on geomagnetic signals and IMUs is proposed. The coarse localization is realized with the geomagnetic sequence and inertial data, and the fine localization is realized through the particle filter. We conducted several experiments with heterogeneous devices at three trial paths. The experimental results indicate that the coarse-to-fine localization system can achieve superior accuracy compared to the state-of-the-art algorithms. Through this system, the localization performance can be significantly improved and it can also be utilized in various scenarios.
The rest of the paper is structured as follows: Section 2 reviews the related works. In Section 3, the methodology is introduced. Experimental results are demonstrated in Section 4. In Section 5, discussion of the experimental results is presented. Finally, conclusion of this paper is stated in Section 6.

2. Related Works

In recent years, deep learning methods have been used successfully in many academic studies. Wang et al. [38] proposed DeepML, an indoor localization system based on deep long short-term memory (LSTM), which uses geomagnetic and light sensors to achieve localization. Ashraf Imran et al. [39] used a deep neural network-based ensemble classifier to realize localization by extracting features of geomagnetic sequences. Liu et al. [40,41] proposed ST-Loc, which uses a hierarchical recurrent network to extract geomagnetic features from spatial and temporal representations for localization. Zhang et al. [42] built an LSTM network to carry out real-time indoor localization and designed a method for preprocessing geomagnetic data based on double sliding window expansion, which had satisfactory localization performance. Jin et al. [43] proposed a deep learning-based method that fuses the temporal and spatial features of geomagnetic fingerprints to obtain stable and reliable localization results. Lee et al. [44] proposed a geomagnetic indoor localization method named AMID, which used a deep neural network as a classifier to recognize geomagnetic sequence patterns for localization. Bhattarai et al. [45] utilized deep recurrent neural networks (DRNNs) to learn the spatial/temporal geomagnetic patterns and capture long-range dependencies in variable geomagnetic input lengths. Li et al. [46] aimed to achieve localization by implementing a deep residual network (ResNet) to learn the key features from a massive fingerprint image database. Ding et al. [47] designed a sliding window mechanism to expand the dimension of geomagnetic data and utilized a one-dimensional convolutional neural network and LSTM network to realize localization.
PDR is more commonly employed in combination with other localization algorithms. Zhang et al. [48] proposed a novel fusing method integrating PDR characteristics and Wi-Fi characteristics and then realized data fusion and localization through LSTM networks. Ciabattoni et al. [49] proposed a fused localization application that combines real-time model-based PDR techniques with received signal strength indicator analysis of Bluetooth Low Energy (BLE) beacons. Sun et al. [50] presented fused indoor localization, which integrated pedestrian dead reckoning and geomagnetic localization using the genetic-particle filter algorithm. Tong et al. [51] focused on integrating a PDR and a UWB-based localization algorithm, which can achieve high accuracy in harsh environments. Yan et al. [52] proposed a cost-effective and high-efficiency localization algorithm that combines inertial sensors and acoustic signals, which has higher localization accuracy than the state-of-the-art methods. In ref. [53], a novel fusion indoor localization system, CHAN-IPDR-ILS, based on acoustic signals and PDR was proposed. In this system, an improved step estimation method and a heading direction correction method were introduced to solve the problem of accumulated errors in the PDR algorithm. Qian et al. [54] proposed a new hybrid method combining PDR and Wi-Fi information, and a modified particle filter algorithm was introduced to improve the precision of the fingerprint matching phase. Tao et al. [55] introduced a smartphone PDR indoor localization method based on ambient light assistance, which implements PDR with self-correction capability using a light detection algorithm to detect the location of the light source. Sun Meng et al. [56] constructed a smartphone fusion system with geomagnetic localization and PDR based on the extended Kalman filter, which can achieve localization performance with a mean localization error and a root mean square error of 1.25 m and 1.53 m, respectively. Yu et al. [57] presented a new method for Wi-Fi/PDR localization fusion based on neural networks, which applied LSTM networks to train the historical motion states of pedestrians to reduce the cumulative error of PDR.
Inspired by the significant success of deep learning in geomagnetic indoor localization, we propose a coarse-to-fine indoor localization method using geomagnetic sequences. Our proposed method has tremendous advantages in the following aspects. First, we propose a multi-feature geomagnetic extraction method, which can extract more features from temporal and spatial information and solve the errors caused by different devices. Then, our novel deep learning neural network can achieve more accurate localization in the forward and backward directions. Finally, fine localization can be achieved via a particle filter with fusion PDR localization. In addition, the geomagnetic and IMU data can be acquired through a client application installed on the smartphone, which does not require excessive costs.

3. Methodology

The proposed coarse-to-fine localization model is elaborated in Section 3.1. In Section 3.2, we illustrate the multi-feature geomagnetic extraction method. Then, the hierarchical deep learning neural network is described in Section 3.3. Step length estimation and heading angle estimation are presented in Section 3.4 and Section 3.5, respectively.

3.1. Coarse-to-Fine Localization Model

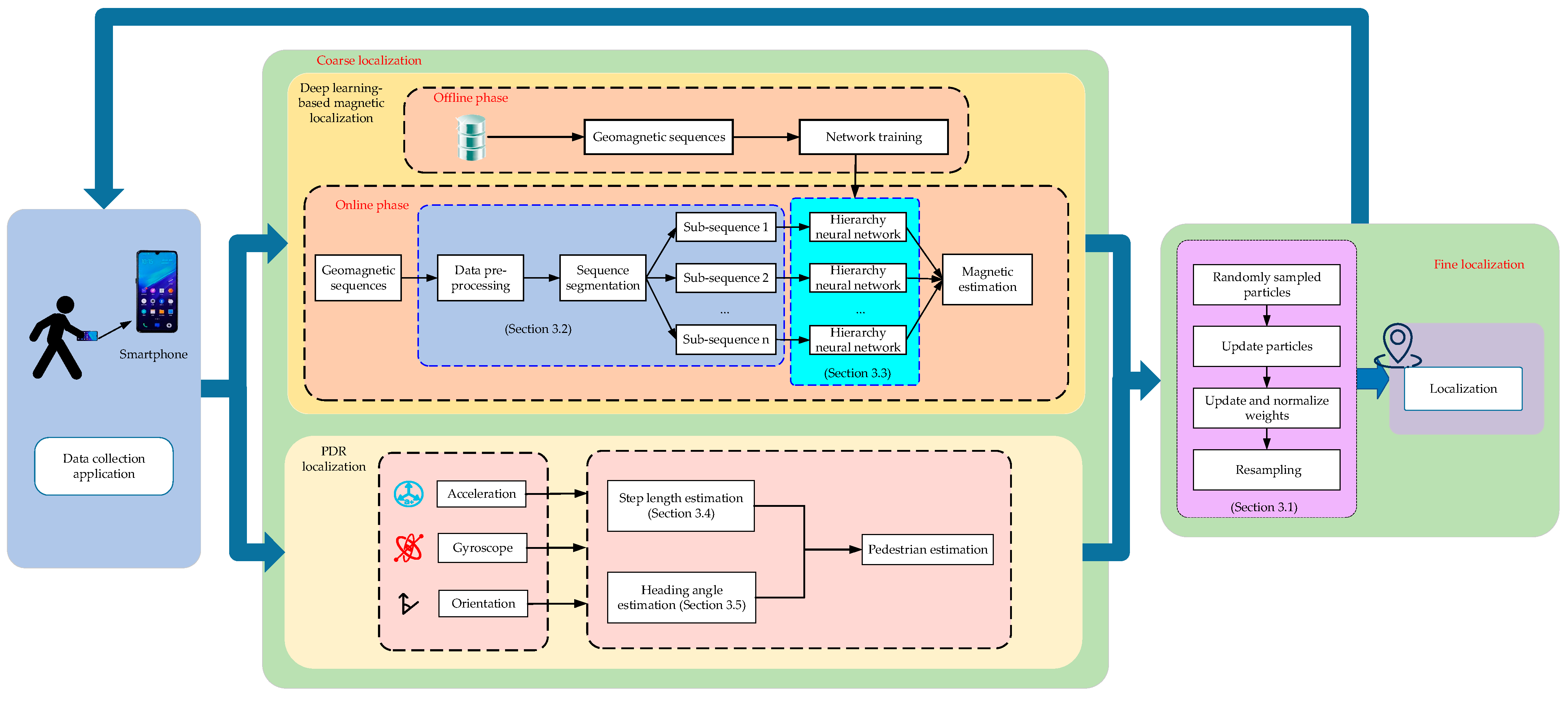

In this section, we introduce the proposed coarse-to-fine localization method, which contains data acquisition and preprocessing, coarse localization using deep learning-based geomagnetic localization and PDR localization, and fine location determination. The overall structure of the coarse-to-fine localization method is presented in Figure 1.
In data acquisition and preprocessing, it is necessary to plan test scenarios and data acquisition paths. The pedestrian holds a smartphone to collect the geomagnetic sequences, acceleration, gyroscope, and orientation data through a preinstalled application software. The crowdsourcing method can realize fast and low-cost data in the planned region. Afterward, these data will be sent to the server in a *.txt format and preprocessed. The cubic spline interpolation method is used to construct a geomagnetic fingerprint database.
In coarse localization, we can gain the coarse location using deep learning and PDR methods. Deep learning-based geomagnetic localization consists of an offline phase and an online phase. In the offline phase, a multidimensional geomagnetic feature extraction method is used to extract the spatial and temporal information of geomagnetic sequences. Then, a multidimensional geomagnetic fingerprint database is constructed. In the online phase, we devise a hierarchical deep neural network model to predict the target location. In PDR localization, we can obtain the target location using inertial sensor data.
In fine localization, location estimation is achieved via a particle filter. The initial location is shown using deep learning-based geomagnetic localization. Then, according to PDR localization, we construct a particle set to test the hypothesis of the target’s state as the posterior distribution. Each particle set includes 100 random particles. The state of the target contains the location and the heading angle. Finally, all particle locations are compared with the geomagnetic localization locations to generate the weights of all particles and thus achieve localization.
In this coarse-to-fine localization model, the particles state P t at time t is described as shown in Equation (1):
P t = [ ( x t , y t , θ t ) , ω t ]
where x t , y t , θ t represent the location and heading angle of the particles at time t . ω t is the weight of particles.
Assuming the deep learning-based geomagnetic estimation Z t as the system observation, the location estimation L o c t 1 at time t 1 is the system state. During fine localization, the state of each particle is updated in the following steps:
Step 1: N particles are randomly sampled at time t 1 , centered on the location system state L o c t 1 . The particles are characterized as P t 1 i , i = 1 , , N and the weight of each particle is equivalent. The particles at the next step may be updated using Equation (2):
x t i y t i = x t 1 i y t 1 i + s i n θ t c o s θ t · s t p l e n + G t
where s t p l e n is the step length of the pedestrian at time t, θ t is the heading angle at time t, and G t is the Gaussian noise with 0 mean and variance 1.
Step 2: After updating the location of all the particles, the weight of each particle needs to be re-evaluated using Equation (3):
ω t i = 1 V 1 2 2 π exp 1 2 V 1 < x t i , y t i > Z t 2
where V is the observation noise covariance matrix.
Step 3: Normalize the weight of each particle using Equation (4):
ω t i = ω t i i = 1 N ω t i
Step 4: Localization at time t can be achieved using Equation (5):
L o c t = i = 1 N ω t i · ( x t i , y t i )
The procedure of the proposed localization method is presented in Algorithm 1.
Algorithm 1: The coarse-to-fine localization procedure
Input: The geomagnetic sequence and inertial data from smartphone.
Output: The localization of the target.
1: Collect data from smartphone.
2: Geomagnetic preprocessing and segmentation.
3: Multifeature geomagnetic extraction.
4: Geomagnetic localization using deep Learning.
5: Step length estimation of the pedestrian.
6: Coordinate transformation to navigation system.
7: Heading angle estimation.
8: Generate N random particles based on location estimation.
9: for each step do
10: for each particle do
11:  Resample particle location < x t i , y t i > by Equation (2).
12:  Re-evaluate each particle’s weight ω t i at time t by Equation (3).
13: end for
14:  Normalize the particle weights ω t i by Equation (4).
15:  Resample the particles.
16:  Achieve the fine target localization L o c t by Equation (5).
17: end for

3.2. Multi-feature Geomagnetic Extraction

The geomagnetic field is highly affected by indoor man-made constructions, especially those involving ferrogeomagnetic materials such as steel and iron railings. Such anomalies caused by indoor infrastructure are observed to supply more clues at different locations.

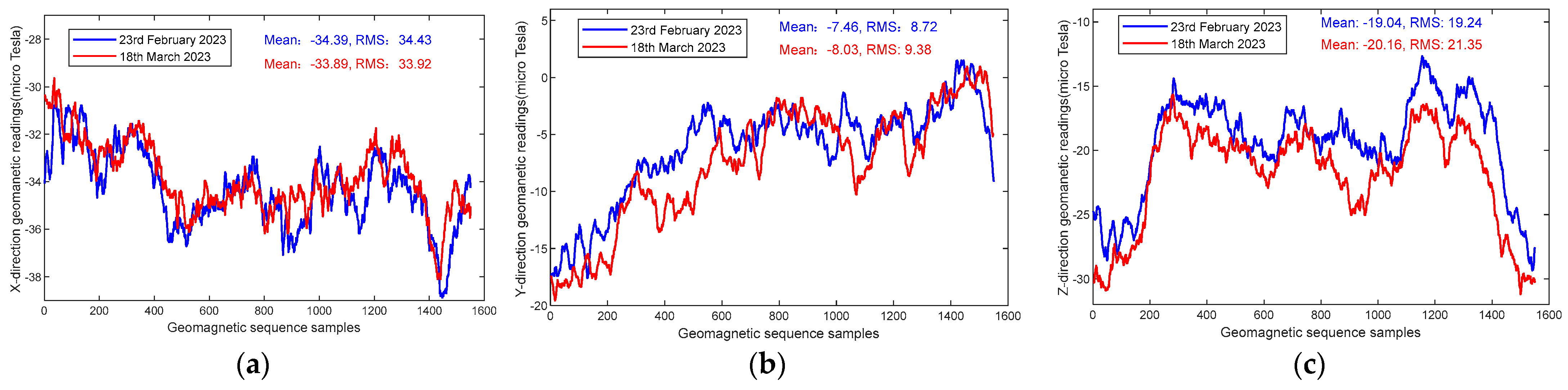

To validate the stability of the indoor geomagnetic field over time, we conducted several experiments at a corridor of 32.4 m in length in two different time periods. Figure 2 shows the three-direction geomagnetic data captured using smartphones on 23 February 2023 and 16 March 2023. Figure 2a demonstrates the geomagnetic magnitude in the x-direction; the waveform of two dates has the same tendency. Figure 2b,c show the geomagnetic magnitude in the y-direction and z-direction, respectively. It can be seen that the geomagnetic magnitude varies slightly in different time periods, but the overall trend has significant similarity.
In addition, we have compared the magnitudes and gradients of the geomagnetic data over time. Figure 3a describes the geomagnetic magnitude of the same region on 23 February 2023 and 16 March 2023, respectively. The results show that the waveform of geomagnetic magnitude maintains great similarity after a period of time. Figure 3b describes the geomagnetic gradient of the same region on 23 February 2023 and 16 March 2023, respectively. The gradient basically fluctuates around zero. Therefore, the gradient fluctuations are very small. From these two graphs, it can be seen that the geomagnetic field has good stability without external infrastructure changes.
Although the geomagnetic field strength and gradient have changed after a period of time, the fluctuations are less varied and basically negligible. Meanwhile, we calculate the mean and the RMS values of these geomagnetic sequence samples, as shown in Figure 2 and Figure 3. It can be seen that these values on 23 February 2023 and 16 March 2023 are very close. Therefore, the geomagnetic sequences exhibit great stability.
In summary, this stable variation feature of the indoor geomagnetic field facilitates indoor localization and endows the smartphone-based geomagnetic indoor localization system with very high potential application. Researchers have studied various works associated with geomagnetic sequence-based localization methods. However, most of them merely use a single raw sequence of geomagnetic values [58], magnitudes [26], or gradients [18] for localization estimation, leading to rough localization accuracy in a large area scene. Among the geomagnetic sequence localizations, the three-direction vector m x , m y , m z of geomagnetic sequences retains spatial information, the magnitudes of geomagnetic sequences m a retain the geomagnetic characteristics, and the gradient of geomagnetic sequences m g can effectively eliminate equipment heterogeneities. To address these issues, we propose a multidimensional geomagnetic feature extraction algorithm. Feature extraction includes data resampling, noise reduction, geomagnetic feature extraction, and normalization.
Geomagnetic data collected by different persons will lead to varying online and offline geomagnetic densities. To effectively match data, we employ the resampling method via upsampling and downsampling to satisfy different velocity targets. Based on the real-time and accuracy requirements of localization, we resample geomagnetic sequences in every step. The step length is estimated based on the work in [52], which is related to ours and can predict pedestrian states more accurately.
Then, empirical mode decomposition (EMD) [59] is adopted to reduce the noise generated during geomagnetic data acquisition and conversion. It is an adaptive signal separation method that decomposes nonstationary geomagnetic sequences s t into a nonzero mean residue r t and several intrinsic mode functions (Imfs), as shown in Equation (6).
s t = i = 1 N I m f i t + r t
where N is the number of Imfs and I m f i t is the i th Imf.
After preprocessing the geomagnetic data, the magnitude m a and gradient m g of the geomagnetic sequences can be obtained using Equation (7). Then, we can construct the geomagnetic vector m x , m y , m z , m a , m g , in which m x , m y , m z represents the spatial information features and m a and m g represent the geomagnetic field temporal information.
m a = m x 2 + m y 2 + m z 2 m g = m x x e x + m y y e y + ( m z z ) e z
where m x x e x , m y y e y , ( m z z ) e z are the gradients of the geomagnetic field along the x-, y-, z-axis, respectively. e x , e y , e z are the respective unit vectors of the three axes.

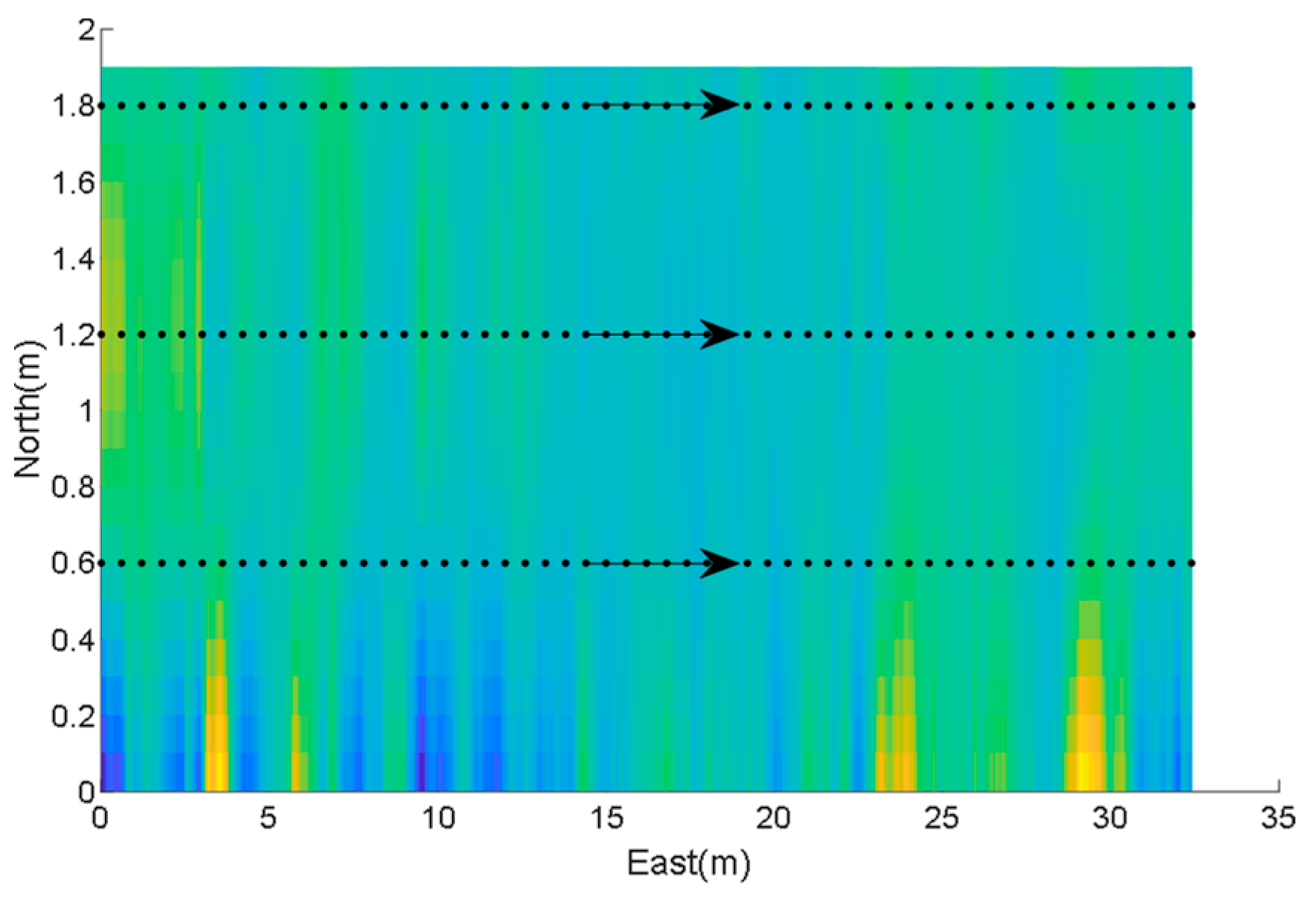

The geomagnetic sequence samples are collected in a 32.4 × 1.9 m 2 area. The pedestrian walks along a 32.4 m corridor to collect data with a sampling frequency of 20 Hz. The geomagnetic magnitude of temporal representations is shown in Figure 4. The arrows represent the pedestrian walking direction, the black dots are geomagnetic samples. Each sample in the figure corresponds to a location in the graph and is also associated with the pedestrian’s walking time. Each location corresponds to a geomagnetic magnitude value. It can be seen that the geomagnetic magnitude in the corridor varies strongly in temporal terms, and the geomagnetic magnitude is clearly differentiated and can be used for indoor localization.
To eliminate the undesirable effects caused by odd sample data, the geomagnetic data need to be normalized into the range [0, 1] with the min-max scaling approach, which is defined in Equation (8). To extract more geomagnetic features for localization, we utilize multiple geomagnetic data as input in the proposed deep learning network.
N ( s ) = s min s max s min s
where min s and max s are the minimum and maximum values of geomagnetic sequence s, respectively.
Long geomagnetic sequence data require more computational complexity during localization regardless of whether temporal correlation or fingerprint matching methods are used. Since it is very tedious and time-consuming to extract features from long input sequences, a sliding window with uniform size is adopted to fragment the geomagnetic sequences into several consecutive subsequences. The proposed localization method predicts the target location by matching the corresponding location of each frame in the subsequence.

3.3. Hierarchical Deep Learning Neural Network

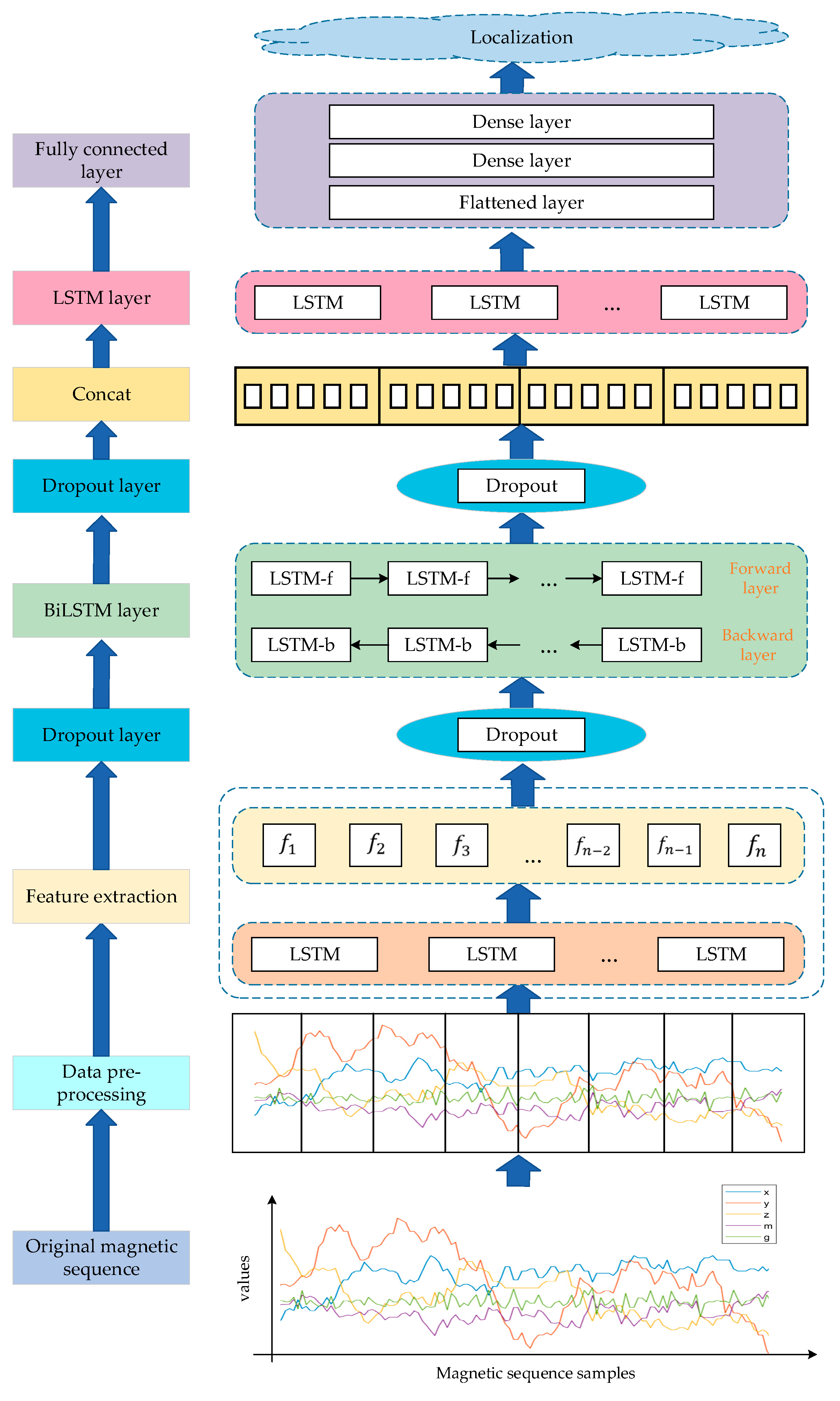

In this section, we propose a hierarchical deep learning network model for target localization that can better extract features and learn the correlation between the geomagnetic sequences and location labels. The framework of the deep learning indoor geomagnetic localization is shown in Figure 5. The proposed deep learning neural network sequentially assembles the LSTM, BiLSTM, dropout layer, and the fully connected (FC) layer.
In the proposed model, the LSTM layer is used to extract anomalous features from multidimensional geomagnetic sequences. To extract more context information of subsequences, the BiLSTM layer is introduced to enhance the extracted feature. Afterward, the last LSTM layer is applied to extract the enhanced features for more accurate prediction. Each layer is backed by a dropout layer with a dropout rate of 0.2, which resets certain values to zero during training and therefore avoids overfitting. Finally, the fully connected layer is applied to output the results. More specifically, the FC network contains three layers: a flattened layer and two dense layers. The first dense layer with 32 neurons is used to handle sparse output by the flattened layer. Then, the predicted value is output through the last dense layer, which has two neuron nodes activated by the sigmoid activation function. In the model training phase, the preprocessed feature data and location data are fed into the hierarchical deep learning network model for training. After completing the training stage, the target’s location can be determined.
Deep learning approaches solve the problem of localization delay and enable more accurate localization by learning more extensive abstractions and high-level features from geomagnetic sequences. Long short-term memory LSTM [60], an improved recurrent neural network (RNN) with better long-term memory, can efficiently convey and represent information in long sequences without causing useful information from long periods to be forgotten. The forget gate, input gate, output gate and cellular state are used to control the message that will be stored in the LSTM structure. The expressions of LSTM are presented below:
f t = σ W f · h t 1 , r t + b f i t = σ W i · h t 1 , r t + b i C t = tanh W C · h t 1 , r t + b C C t = f t C t 1 + i t C t o t = σ W o · h t 1 , r t + b o
where f t , i t , and o t are the output, input and forget gates, respectively. C t is the candidate memory cell, which is determined by combining the old cell state C t 1 and the cell input activation vector C t . h t and h t 1 are the outputs of the current neuron and the previous layer, respectively. r t represents the input data at time t.
The loss function of the LSTM network at time t is defined as
l t = a p t y t 2
L = t = 1 T l t
where p t ,   y t are the output and input values of LSTM at time t, respectively. a is the scale factor.
The gradient δ t of the output layer is expressed as follows:
δ t = L p t = p t y t
The update of weight value U f x , U i x ,   U a x , and U o x at time t is characterized as follows:
l t U f x l t U i x l t U a x l t U o x = k = 1 t l t U t f x k = 1 t l t U t i x k = 1 t l t U t a x k = 1 t l t U t o x = l t U t f x + l t U t 1 f x + + l t U 1 f x l t U t i x + l t U t 1 i x + + l t U 1 i x l t U t a x + l t U t 1 a x + + l t U 1 a x l t U t o x + l t U t 1 o x + + l t U 1 o x
For the weight value U f x , l t U f x can be obtained from the gradient of the loss function at the current and previous times. The gradient l t U t f x at the current time is obtained as follows:
l t U t f x = l t y t · y t h t · h t C t · C t f t · f t U t f x
We can determine the gradient l t U t 1 f x at time t − 1 using Equation (15).
l t U t 1 f x = l t y t · y t h t · h t O t · O t h t 1 · h t 1 C t 1 · C t 1 f t 1 · f t 1 U t 1 f x + l t y t · y t h t · h t C t · C t C t 1 · C t 1 f t 1 · f t 1 U t 1 f x
The gradient l t U t 2 f x at time t − 2 is derived from Equation (16).
l t U t 2 f x = l t y t · y t h t · h t h t 1 · h t 1 O t 1 · O t 1 h t 2 · h t 2 C t 2 · C t 2 f t 2 · f t 2 U t 2 f x + l t y t · y t h t · h t h t 1 · h t 1 C t 1 · C t 1 C t 2 · C t 2 f t 2 · f t 2 U t 2 f x + l t y t · y t h t · h t C t · C t C t 1 · C t 1 C t 2 · C t 2 f t 2 · f t 2 U t 2 f x
For the update of weight value U f x , all the gradients at the previous time include the gradient C t C t 1 of the cell state. In the LSTM model, C t C t 1 can be inferred in Equation (17). It is determined by the weight values W f h , W i h , and W a h . We can adjust the parameters so that the gradient is in a controllable range.
C t C t 1 = C t 1 · s i g m . 1 s i g m . · W f h · O t 1 · 1 t a n h 2 C t 1 + f t + a t         · s i g m . 1 s i g m . · W i h · O t 1 · 1 t a n h 2 C t 1 + i t      · 1 t a n h 2 C t 1 · W a h · O t 1 · 1 t a n h 2 C t 1
Similarly, for the parameters U i h ,   U a h ,   U o h , W i h ,   W a h ,   W f h ,   W o h ,   b i ,   b a ,   b f and b o update of the model, we can infer the weight value U f x . Therefore, the model can effectively mitigate gradient explosion and gradient vanishing.
The BiLSTM contains two independent hidden LSTM layers arranged in a chronological and a reverse order. The state equations for the BiLSTM are the same as those mentioned above, except that both forward y t and backward hidden states y t are used in each time period. The BiLSTM is defined as follows:
y t = L S T M y t 1 , r t y t = L S T M y t + 1 , r t h t b = y t + y t
where h t b is the output state of BiLSTM.
BiLSTM can capture the past and future contextual temporal and spatial correlations of the input geomagnetic sequence, keeping more detailed features and reducing the loss of information. Therefore, the geomagnetic sequence features can be effectively captured and extracted.

3.4. Step Length Estimation

The peak detection algorithm estimates the pedestrian step length based on the periodic variation in acceleration during walking. We set an acceleration threshold a t h and time difference threshold T d i f f to avoid invalid peaks. It is specified as follows:
First, assume a t , a t 1 and a t + 1 are the accelerometer values at times t, t − 1, and t + 1, respectively. When a t is the maximum value among the values a t 1 ,   a t , a n d   a t + 1 , then a t is labeled as the peak value. Otherwise, we will forward the time t + 1 and return this step.
Then, if the peak value a t is greater than the threshold a t h , the peak value will be retained and transferred to the next step. Otherwise, we will return to the first step.
Finally, if the time difference between the current and the previous peak value is larger than the time threshold T d i f f , then the peak is a valid peak.
The methods of step length estimation include mainly the constant model [61], linear model [62], and nonlinear model [63]. The most representative nonlinear model is the Weinberg [64] algorithm. These typical models are as follows:
Constant algorithm:
s t p l e n = d s t p n
Linear algorithm:
s t p l e n = K 1 · f + K 2
Weinberg algorithm:
s t p l e n = K 3 · a m a x a m i n 4
where d and s t p l e n are the walking distance and step number, respectively. K 1 , K 2 and K 3 are model constants. f is the step frequency, and a m a x and a m i n are the maximal and minimal values of the acceleration in the vertical direction at each step, respectively.
The step length cannot always be constant due to the fluctuation of the pedestrians. In addition, different pedestrians have different step frequencies at different times. Therefore, the linear model and the constant model cannot accurately describe the variation in step length and meet the application requirements. The nonlinear model uses the correlation between the step length and acceleration data to estimate the step length, which is more in line with the actual pedestrian state. An improved nonlinear step length estimation method, which is our previous work [52], can provide a more accurate pedestrian step length, as shown below:
s t p l e n i = c 1 s t p l e n i 1 + c 2 s t p l e n i 2 + c 3 K a m a x i a m i n i 4 + σ
where s t p l e n i 1 and s t p l e n i 2 are the former two-step lengths. K is the model constant, [ c 1 , c 2 , c 3 ] is the weight, a m a x i and a m i n i are the maximal and minimal values of the acceleration at the i-th step, respectively, and σ is the accelerometer compensation measured at stationary time.

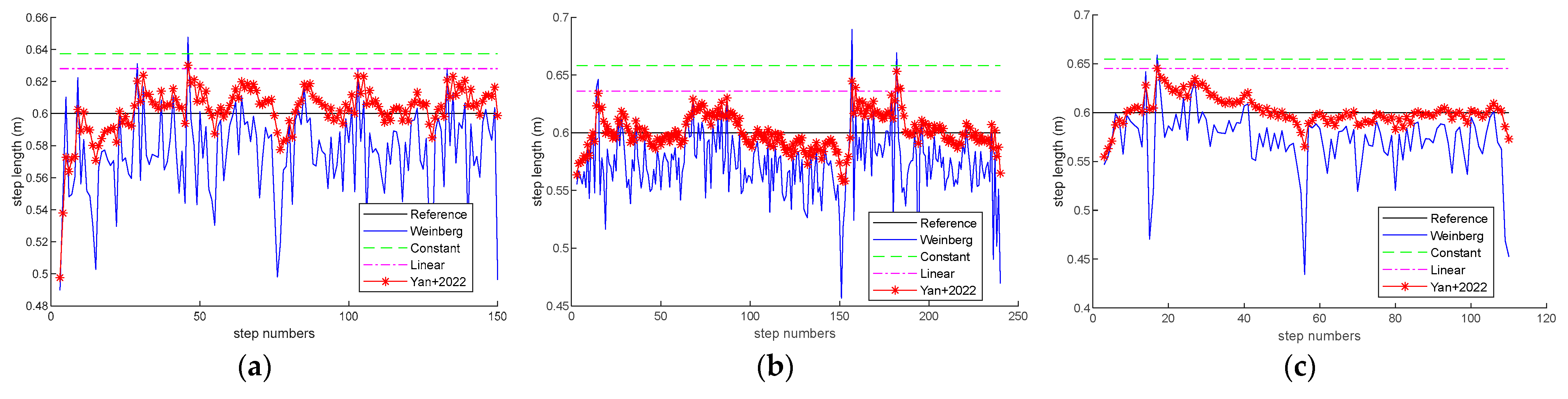

We conducted experiments with the constant, linear, Weinberg, and Yan methods at three trial paths. Trial path 1 is 92 m long with fire hydrants, iron railings, and other iron substances. Trial path 2 is 158 m long with iron, steel, and ferrous substances. Trial path 3 is 72 m long with iron frames and iron bars. Figure 6 shows the step length estimation of these methods when the pedestrian walks at a speed of 0.6 m per step. The experimental results demonstrate that our previous method can achieve more accurate step length estimation.

3.5. Heading Angle Estimation

During the data collection process, all sensor data are located in the built-in coordinate system of the smartphone. However, in indoor localization, a navigation coordinate system is needed. Therefore, it is necessary to transfer the coordinate system for heading direction estimation. We adopt the quaternion method, which converts the target from the phone coordinate system to the navigation coordinate system, as shown in Equation (23).
C n b = q 1 2 + q 0 2 q 3 2 q 2 2 2 q 1 q 2 q 0 q 3 2 q 1 q 3 + q 0 q 2 2 q 1 q 2 + q 0 q 3 q 2 2 q 3 2 + q 0 2 q 1 2 2 q 2 q 3 q 0 q 1 2 q 1 q 3 q 0 q 2 2 q 2 q 3 + q 0 q 1 q 3 2 q 2 2 q 1 2 + q 0 2
where q 0 ,   q 1 , q 2 , q 3 denotes the normalized posture quaternion and q 0 is the scalar part of the quaternion.   q 1 , q 2 , q 3 are the vector parts.
The heading angle is expressed in Equation (24).
φ = a r c t a n 2 ( q 3 q 2 + q 0 q 1 ) / ( 1 2 q 1 2 2 q 2 2 ) θ = a r c s i n 2 q 1 q 3 + 2 q 0 q 2 γ = a r c t a n 2 ( q 2 q 1 + 2 q 0 q 3 / 1 2 q 2 2 2 q 3 2
where φ , θ , γ are the yaw, pitch and roll angle, respectively.   a r c t a n is the arctangent function, and a r c s i n is the arcsine function.

4. Results

In Section 4.1, we first introduce the experimental setting. The verification and analysis are presented in Section 4.2. Finally, Section 4.3 demonstrates the localization performance.
To evaluate the performance of our proposed localization method, we conducted numerous experiments and compared the proposed method with the state-of-the-art localization approaches in two experimental scenarios. Figure 7 illustrates the floor plans of these two sites, a narrow corridor of office area in the library and a large-scale scenario of the gym, with dimensions of 34 × 17.2 × 4 m 3 and 56 × 35 × 10 m 3 , respectively. In Figure 7, the red dashed line represents the object movement trajectory. In Figure 7a,b, the planned paths are closed rectangular; the movement trajectory follows the red solid arrow. The start and end points are depicted in Figure 7a,b. In Figure 7c, the movement trajectory of the object is along the red dashed line with different start point and end point. The object moves along the solid red arrow. Trial path 1, which is 92 m long, is in a narrow corridor in the library with several fire hydrants and iron-containing substances at fixed locations. Trial path 2, which is 158 m long, contains more iron, steel, and ferrous material in the gymnasium. There are a few iron frames, ferrous substances, and iron bars in trial path 3 which is 72 m long.

4.1. Experimental Setting

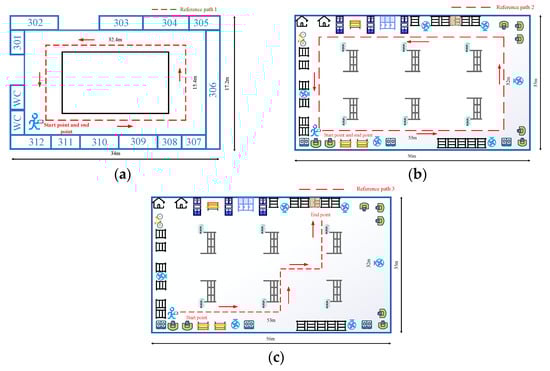

The proposed coarse-to-fine localization system based on geomagnetic sequences and inertial data developed in this paper contains an application terminal and a server terminal.
The accelerometer, gyroscope, and magnetometer data are collected through smartphones wherein the application is preinstalled while the pedestrian walks along the planned path. In the three paths, the pedestrian is required to collect the data along the designed paths several times. In the experiments, this sampling frequency is 20 Hz. The crowdsourcing method is adopted to collect the geomagnetic signal strength and inertial sensor data.
A workstation acting as a server with the Windows 10 64-bit operating system is required to carry out the experiments in this paper. The CPU is an Intel Core i7-9750H with a base frequency of 3.6 GHz. The machine learning framework TensorFlow 2.9.0 with the deep learning library Keras 2.9.0 and Python 3.9.0 are utilized in the experiments.
We conducted a survey on smartphone usage in our university, which found that Vivo and Huawei are the common domestic phone models. Therefore, the Vivo X30 and Huawei Mate30 are selected in the experiments. The technical information of the mobile phones is presented in Table 1.

4.2. Verification and Analysis

4.2.1. Localization Performance with Different Geomagnetic Sequence Lengths

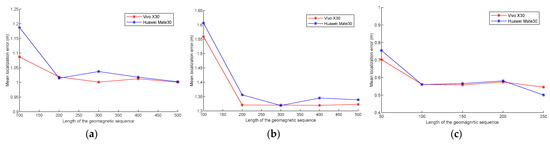

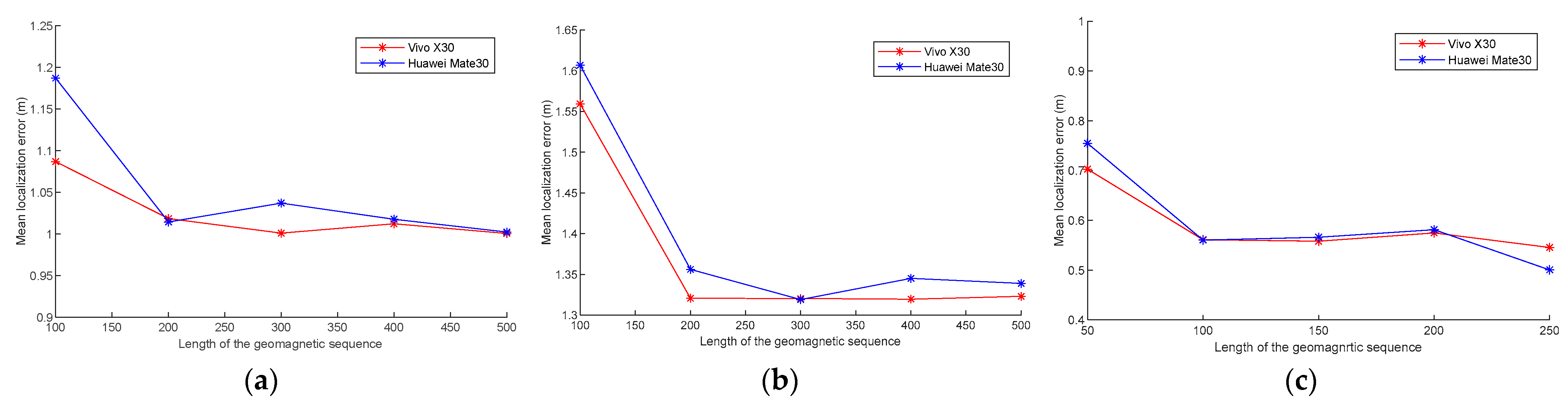

To validate the localization performance with different magnetic lengths, we invite a volunteer from the local university to collect the data along the planned path at a normal speed with both Vivo X30 and Huawei Mate30 several times. We set geomagnetic sequence samples of 100 to 500 with a step size of 100 in trial paths 1 and 2 and geomagnetic sequence samples of 50 to 250 with a step size of 50 in trial path 3 to conduct the experiments. Figure 8 shows the mean localization error with different geomagnetic sequence lengths in the three experimental paths. In Figure 8a,b, the mean localization error is minimal when the geomagnetic samples are 200. When the geomagnetic samples exceed 200, the error becomes steady. In Figure 8c, when the geomagnetic samples exceed 100, the decrease in error slows down. As can be seen in Figure 8, the localization error decreases as the geomagnetic sequence samples increases. This is because more geomagnetic samples cover longer path with more unique geomagnetic features. Therefore, the proposed hierarchical deep neural network can learn more location clues from these unique features. However, longer geomagnetic sequences will take more time to achieve localization.
In addition, the time consumption of various geomagnetic sequence lengths with different devices is presented in Table 2, Table 3 and Table 4. From the tables, we can see that in the three experimental paths, the time consumption increases as the sequence length increases. Longer input geomagnetic sequences require more time to achieve localization. Shorter sequences take less time; however, the deficiency of geomagnetic abnormalities will cause high localization error.
Considering the localization error and time overhead, the geomagnetic sequence lengths for the three trial paths are 200.

4.2.2. Localization Performance with Different Hidden Units

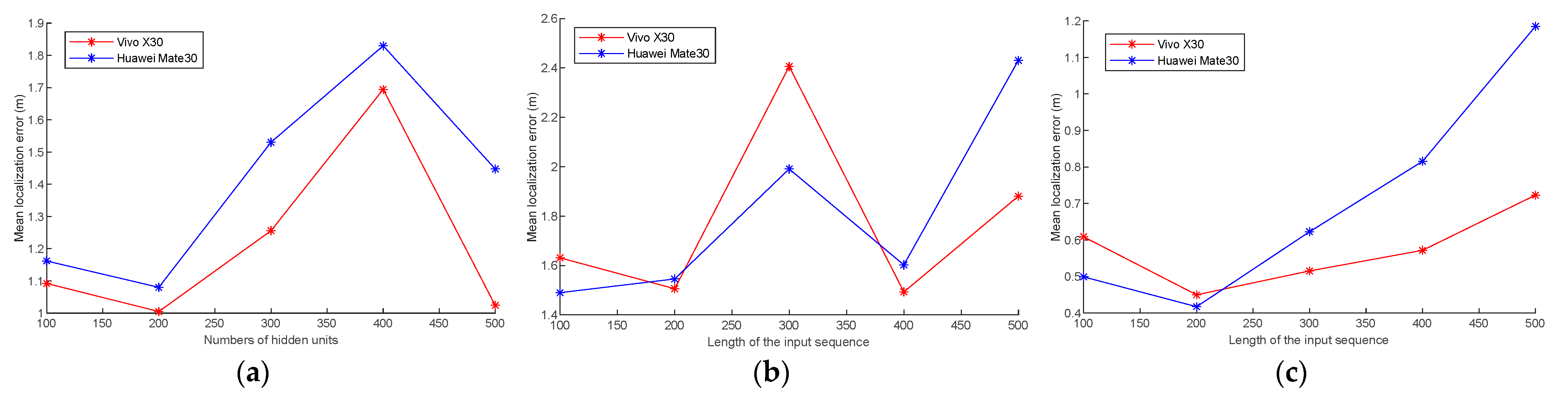

We have also evaluated the localization performance on different numbers of hidden units. Hidden units are the dimensional size of the output of a neural network layer; it is also an important factor that affects localization accuracy. In the experiment, the number of hidden units is set from 100 to 500 at a step size of 100. Figure 9 shows the mean localization error with different numbers of hidden units at three trial paths using Vivo X30 and Huawei Mate30. The experimental results show that the mean localization error fluctuates with the number of hidden units. The mean localization error is minimized when the number of hidden units in all the three experimental paths is 200. In this paper, 200 hidden units for three trial paths are selected.

4.3. Localization Performance

In this section, the localization performances of the proposed method are evaluated with extensive experiments. We have compared the proposed method with the MaLoc method, DTW method, LSTM method, and PDR method in the three trial paths.
Figure 10 demonstrates the mean localization errors of LSTM, PDR, MaLoc, DTW, and the proposed algorithm for different step numbers on the three trial paths using Vivo X30. The experiments show that the proposed algorithm has a lower mean error at different step numbers compared with the state-of-the-art algorithms, and the localization has a more significant comparison, especially when the step numbers increase. This is because our method can gain more features from the temporal and spatial dimensions. In addition, the BiLSTM used in the novel neutral network matches the fingerprint from the forward and reverse order extracts more details, especially for long step numbers, and can effectively eliminate the location ambiguity of magnetic sequences and the accumulation errors of dead reckoning.

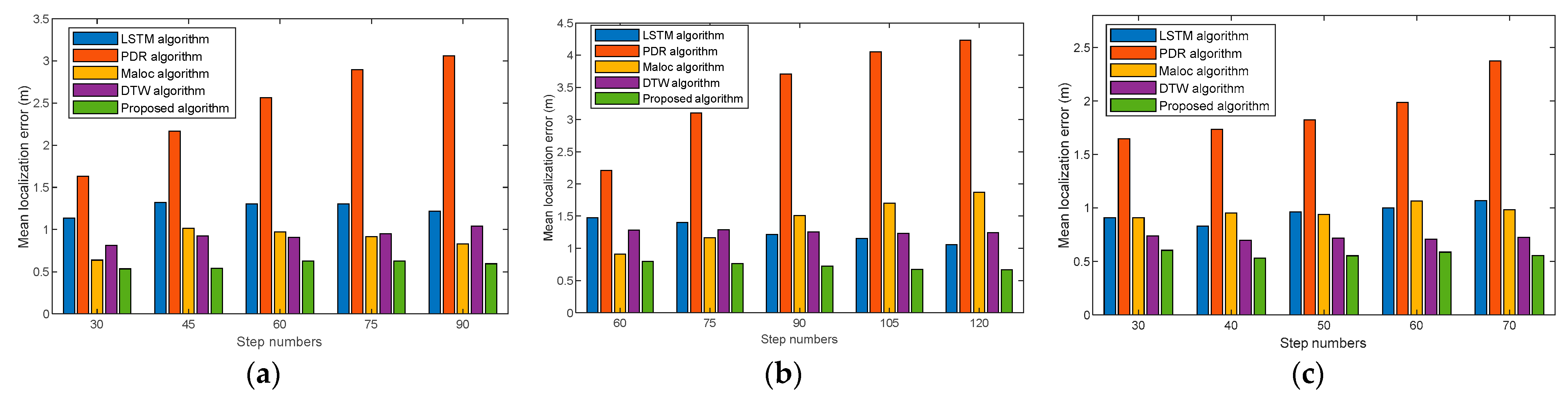

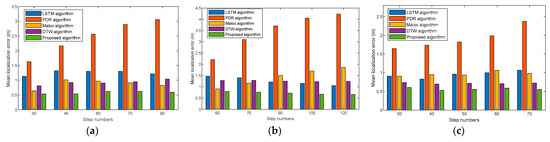

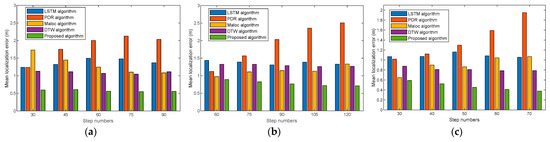

Figure 11 shows the mean localization errors with different step numbers using Huawei Mate30. Experimental results demonstrate that our proposed algorithm can also achieve comparable localization accuracy with different devices compared with the state-of-the-art algorithms. This is because the multidimensional feature extraction method can effectively mitigate the errors caused by heterogeneous devices and solve the cumulative error problem in PDR localization.

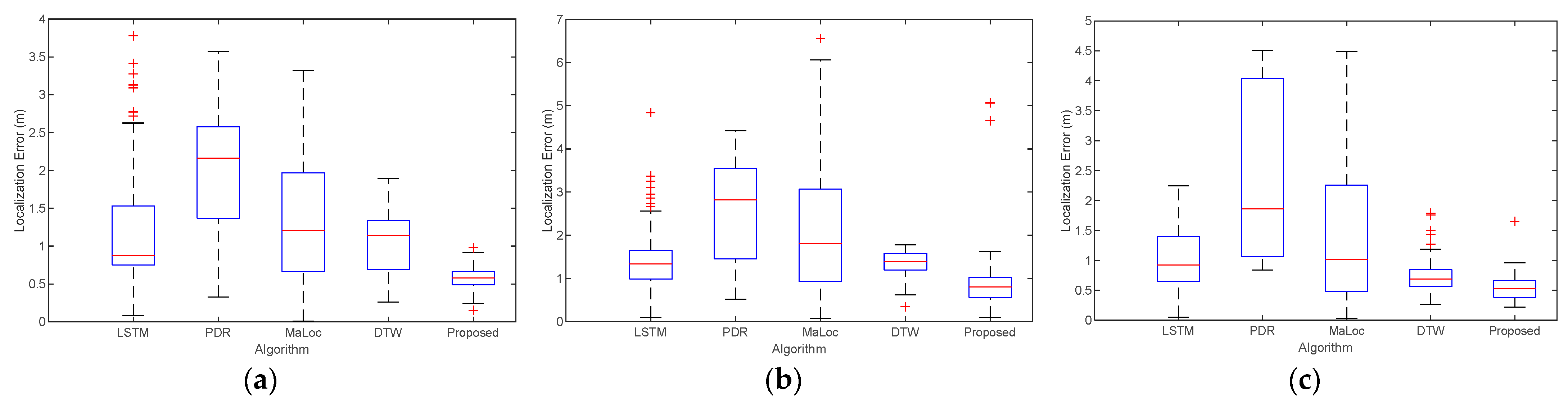

We present the localization error with Vivo X30 in the three trial paths in Figure 12. Red symbols are the location anomalies. It shows that the median and maximum values of the proposed algorithm are the smallest compared to the LSTM, PDR, MaLoc, DTW algorithms at all three different trial paths. This is mainly because our proposed algorithm can efficiently extract the geomagnetic features in both spacious and narrow spaces, and thus more accurate localization can be achieved. It can be seen that our proposed algorithm can achieve good localization performance in different scenarios, overcoming the problem of ambiguous geomagnetic localization.

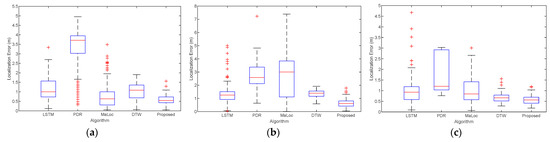

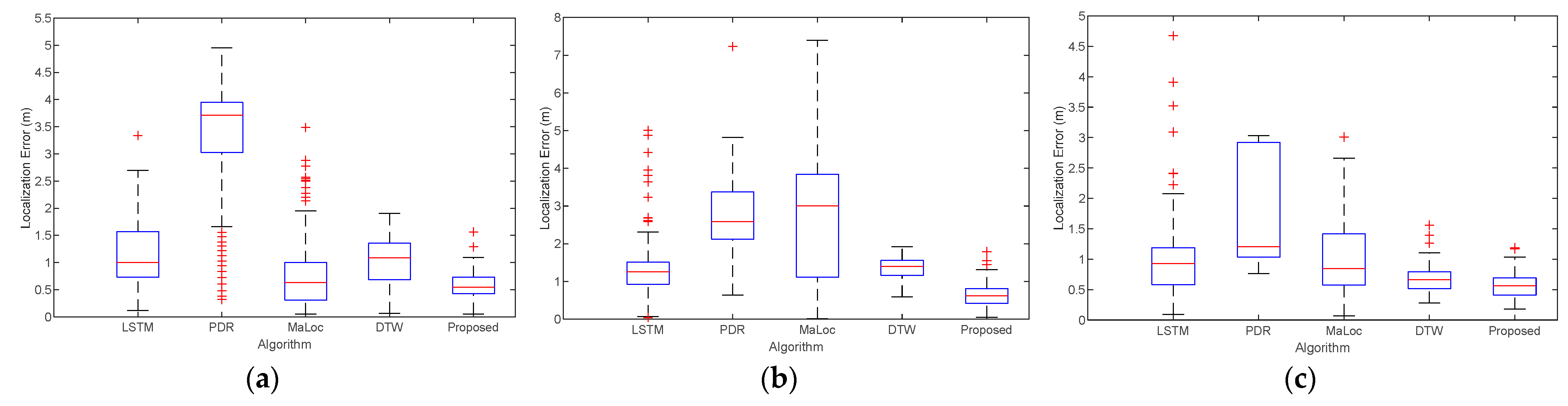

We also compare the localization error at the three trial paths using Huawei Mate30, as shown in Figure 13. The experiments illustrate that our proposed method achieves comparable localization accuracy with different devices. These results occur because our multidimensional extraction algorithm can obtain enough information to realize localization, eliminating equipment heterogeneity.

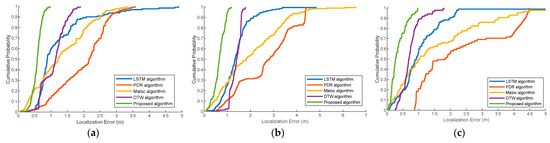

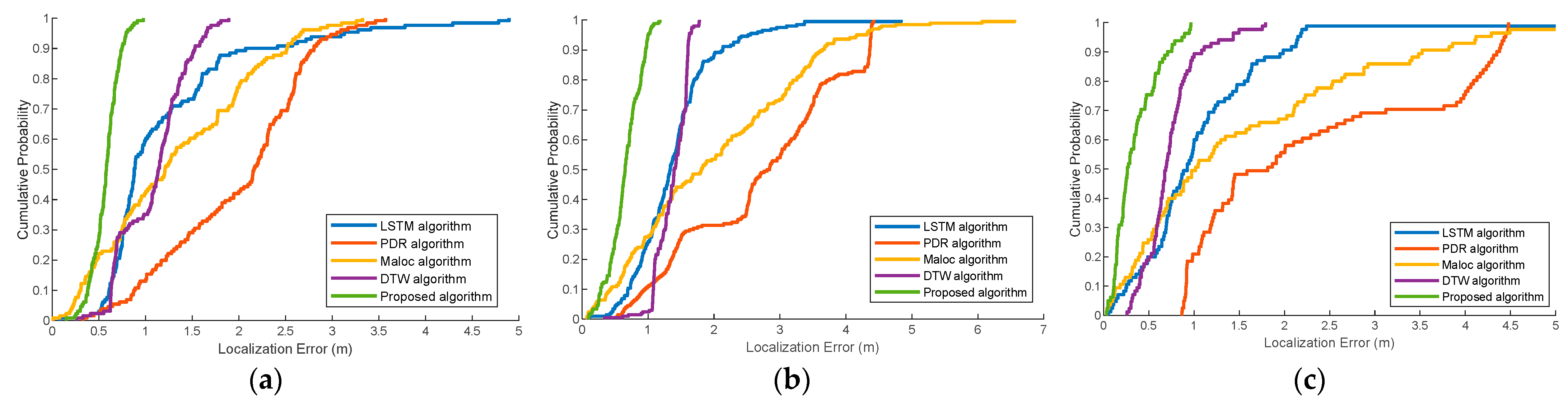

Figure 14 presents the cumulative distribution function (CDF) of the localization error with Vivo X30 at the three trial paths. These experiments demonstrate that the proposed algorithm can achieve the best localization performance compared with the typical localization methods. This is mainly due to the following reasons. First, the distinctiveness and differences of features are increased with multidimension geomagnetic sequences. Then, the hierarchical neural networks can effectively estimate the location through the fully connected layer after fine-graining all the features. Finally, the coarse-to-fine localization algorithm can solve the ambiguous location on the basis of geomagnetic estimation and dead reckoning.

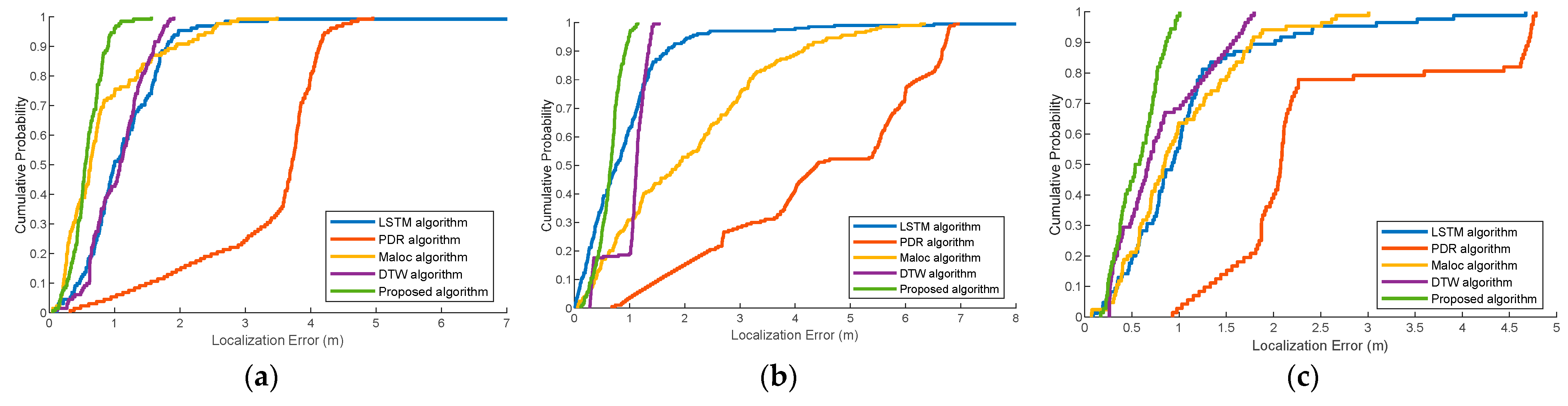

We also illustrate the CDF of localization error at the three trial paths using Huawei Mate30, as shown in Figure 15. It shows that the proposed method achieves considerable accuracy compared to the state-of-the-art methods. This is attributed to the fact that the multidimensional geomagnetic sequence contains spatial and temporal representations, avoiding the extra effort needed to calibrate different devices to a uniform standard.
Table 5 shows the localization error of the 75th and 90th percentiles at the three experimental paths with both Vivo X30 and Huawei Mate30. The results demonstrate that our proposed method can achieve better accuracy than the other state-of-the-art methods. This is because our localization system can effectively extract the location information, thus eliminating the outliers caused by magnetic localization and PDR localization. Our method has great universality and feasibility in different trajectories and equipment.
Table 6 displays the mean errors and root mean square error (RMSE) of different localization algorithms with Vivo X30 at the three experimental paths. The results demonstrate that the localization performance of the proposed algorithm has significantly improved in comparison with the other schemes in the trial sites. The proposed localization is an efficient way to obtain sufficient information, using multidimensional geomagnetic sequences as location clues; thus, our framework is able to extract more distinctive features for localization.
Table 7 shows the RMSE of different localization algorithms with Huawei Mate30 at the three trial sites. The experiments show that our proposed method markedly improves the localization performance with different devices and trial paths. This is mainly because the proposed algorithm that uses a particle filter effectively eliminates the errors caused by localization. In addition, short subsequences processed using sliding windows reduce the loss of feature information that tends to occur in longer sequences. Consequently, the localization estimation route of the three trial paths fluctuates near the real reference value, and the localization performances are noticeably enhanced.
In addition, we compare the calculation complexity between our proposed algorithm and the DTW algorithm at the three trial paths. In trial path 1, our proposed method takes 312.87 s, and the DTW algorithm takes 1452.21 s. In trial path 2, our proposed method takes 521.64 s, and the DTW algorithm takes 2695.41 s. In trial path 3, our proposed method takes 343.58 s, and the DTW algorithm takes 400.89 s. The experiments illustrate that our coarse-to-fine localization method has a relatively low computational complexity and can satisfy the real-time localization requirements. This is because our proposed method can achieve more accurate localization in a smaller area by fusing the dead reckoning instead of matching the whole area as DTW does.

5. Discussion

In this section, we analyze the experimental results presented in Section 4.2 and Section 4.3, respectively. Then, we state the future research direction.
As already demonstrated in Section 4.2, geomagnetic sequence length and hidden units of neural network are the two factors that affect localization performance. The results in Section 4.2.1 show that short geomagnetic sequences take less time to achieve localization, but localization errors may be high due to the lack of geomagnetic features. Long geomagnetic sequences may have sufficient features, but may also lead to large localization errors due to the possibility of the presence of same geomagnetic features at different locations. Additionally, long geomagnetic sequences require more time for localization. Considering localization error and time consumption, the suitable geomagnetic sequence length should be within a certain range regardless of scenarios and mobile devices. In Section 4.2.2, Figure 9 demonstrates that the localization accuracy is affected by hidden units. Large number of hidden units will lead to high computational complexity and overfitting. Therefore, it is important to choose both an adequate geomagnetic sequence length and number of hidden units.
In Section 4.3, we demonstrate the localization performance of our proposed algorithm in several aspects, including the localization error of step numbers, the boxplot and CDF of localization error, localization error of the 75th and 90th percentiles, and the mean and RMSE errors. Figure 10 and Figure 11 show the mean localization errors of different step numbers with Vivo X30 and Huawei Mate30 on the three trial paths, respectively. It can be seen that our proposed algorithm has the smallest localization error at different step numbers, even when different mobile devices on the same reference path are used. Figure 12 and Figure 13 illustrate the boxplot of localization error using Vivo X30 and Huawei Mate30, respectively. From the figures it is evident that our proposed algorithm can achieve considerable localization accuracy with both mobile devices on the same path. It implies that our multidimensional feature extraction method can alleviate the anomalies in the localization process, independent of the paths and mobile devices. Figure 14 and Figure 15 demonstrate the CDF of the localization error with Vivo X30 and Huawei Mate30, respectively. From the figures it is seen that when the accumulative probability accuracy is 80%, the localization error of our proposed algorithm with different devices in reference path 1 are 0.69 m and 0.80 m, in reference path 2 are 0.89 m and 0.80 m, in reference path 3 are 0.57 m and 0.76 m, respectively. On the other hand, the localization errors of the other state-of-the-art methods are all above 1 m. This implies that the localization accuracy of our proposed algorithm has significantly improved. Table 5 presents the localization error of the 75th and 90th percentiles at the three experimental paths with Vivo X30 and Huawei Mate30. It can be noticed that the localization errors of our proposed algorithm at the 75th and 90th percentiles are all less than 1 m, exhibiting great improvement over other algorithms. Table 6 and Table 7 show that the mean error and RMS error of our proposed algorithm are less than 0.7 m with different smartphones at all the reference paths. Moreover, we calculate the computation complexity of our proposed algorithm, which takes less time than the DTW algorithm. As can be seen from the above experimental results, our proposed algorithm can achieve better localization performance and robustness than the other state-of-the-art algorithms. The device heterogeneity problem and location ambiguity problem can be effectively solved. Moreover, our proposed algorithm can sufficiently extract geomagnetic features whether it is in a spacious area or a narrow area. Therefore, our proposed algorithm has high generality and practicality.
In future research, we will explore more complicated environments to verify the applicability of our proposed algorithm. More different mobile devices will be adopted to validate robustness. Deep learning models with higher accuracy will also be considered for exploration. Furthermore, since the PDR method still suffers from cumulative and drift errors of long-term localization, methods to improve it for precise indoor localization may be another direction for future research.

6. Conclusions

To solve the problem of location ambiguity caused by single magnetic sequence, we propose a coarse-to-fine localization method based on magnetic sequences and inertial data in this paper. Firstly, a geomagnetic multi-feature extraction algorithm is presented to extract more distinctive location features for accurate localization. Then, a novel deep learning-based model is proposed to realize indoor localization. Meanwhile, we use the PDR method based on inertial sensor data to solve location ambiguity, especially in the symmetric structure. Finally, fine localization is achieved through the particle filter using geomagnetic localization and PDR localization. Extensive experiments have been conducted at three different planned paths in two trial sites, the school library with an area of approximately 584 m 2 , and the school gym with an area of 1960 m 2 . Two different heterogeneous devices were utilized in the experiments, Vivo X30 and Huawei Mate30. The experiments demonstrate that localization performance can be affected by geomagnetic sequence length and hidden neuron network units. They also proved that our proposed method can achieve higher localization accuracy and more robustness than the state-of-the-art indoor localization methods with different mobile devices at different trial paths. In addition, the calculation complexity of our proposed algorithm is lower than that of the DTW algorithm. The localization system can effectively mitigate the accumulation errors of IMU estimation and location ambiguity caused by magnetic sequences. It has pervasiveness for different interferences, scenes and devices, which can satisfy the real-time and high accuracy localization requirements.

Author Contributions

Conceptualization, S.Y. and A.S.; methodology, S.Y. and X.L.; software, Y.S.; validation, S.Y. and Y.S.; formal analysis, X.L. and A.S.; resources, K.H.b.G. and Y.J.; data curation, S.Y. and Y.S.; writing—original draft preparation, S.Y. and Y.S.; writing—review and editing, S.Y. and Y.J.; funding acquisition, S.Y. and K.H.b.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Guangxi Science and Technology Project: Grant AB22035074, Grant AA20302022, Grant AD22080061 and Grant AB21196041; National Natural Science Foundation of China: Grant 62061010, Grant 62161007, Grant 61936002, Grant 62033001 and Grant 6202780103; National Key Research and Development Program (2018AA100305); Guangxi Bagui Scholar Project; Nan-ning City Qingxiu District Science and Technology Major Special Project: Grant 2018001; Guilin Science and Technology Project: Grant 20210222-1; Guangxi Key Laboratory of Precision Navigation Technology and Application No. DH202206, and DH202215; 2022 Director’s Fund Project of the Key Laboratory of Cognitive Radio and Information Processing of the Ministry of Education; Innovation Project of Guang Xi Graduate Education: YCSW2022291. Innovation Project of Guilin University of Electronic Technology Graduate Education (Indoor localization algorithm with multi-information fusion).

Data Availability Statement

The data that support the findings of this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Major symbols used in this paper were shown as followings:
NotationDescription of Notation
Z t System observation value
θ t Heading angle
ω t Particle weight at time t
L o c t Target localization at time t
N s Normalized geomagnetic data
f t Forget gate of LSTM neural network
i t Input gate of LSTM neural network
o t Output gate of LSTM neural network
C t Candidate memory cell of LSTM neural network
C t Cell input activation vector of LSTM neural network
L Loss function of the LSTM neural network
δ t Gradient of the output layer of the LSTM neural network
U f x ,   U i x , U a x ,   U o x Weight value of the LSTM neural network
b i ,   b a ,   b f ,   b o Parameters of the LSTM neural network
y t Forward hidden state of the Bi-LSTM neural network
y t Backward hidden state of the Bi-LSTM neural network
h t b Output state of the Bi-LSTM neural network
a t Acceleration values at time t
a t h Acceleration threshold
T d i f f Time threshold of the two adjacent acceleration peaks
s t p l e n Step length estimation
φ , θ , γ Yaw, pitch and roll angle of the target

References

  1. He, S.N.; Shin, K.G. Geomagnetism for Smartphone-Based Indoor Localization: Challenges, Advances, and Comparisons. ACM Comput. Surv. 2018, 50, 37. [Google Scholar] [CrossRef]
  2. Hernandez, N.; Parra, I.; Corrales, H.; Izquierdo, R.; Ballardini, A.L.; Salinas, C.; Garcia, I. WiFiNet: WiFi-based indoor localisation using CNNs. Expert Syst. Appl. 2021, 177, 114906. [Google Scholar] [CrossRef]
  3. Wang, F.; Feng, J.W.; Zhao, Y.L.; Zhang, X.B.; Zhang, S.Y.; Han, J.S. Joint Activity Recognition and Indoor Localization With WiFi Fingerprints. IEEE Access 2019, 7, 80058–80068. [Google Scholar] [CrossRef]
  4. Zhao, Y.C.; Xu, J.; Wu, J.; Hao, J.; Qian, H.Y. Enhancing Camera-Based Multimodal Indoor Localization With Device-Free Movement Measurement Using WiFi. IEEE Internet Things J. 2020, 7, 1024–1038. [Google Scholar] [CrossRef]
  5. Bi, J.X.; Zhao, M.Q.; Yao, G.B.; Cao, H.J.; Feng, Y.G.; Jiang, H.; Chai, D.S. PSOSVRPos: WiFi indoor positioning using SVR optimized by PSO. Expert Syst. Appl. 2023, 222, 119778. [Google Scholar] [CrossRef]
  6. Tomazic, S.; Skrjanc, I. An Automated Indoor Localization System for Online Bluetooth Signal Strength Modeling Using Visual-Inertial SLAM. Sensors 2021, 21, 2857. [Google Scholar] [CrossRef] [PubMed]
  7. Hu, Q.Y.; Wu, F.; Wong, R.K.; Millham, R.C.; Fiaidhi, J. A novel indoor localization system using machine learning based on bluetooth low energy with cloud computing. Computing 2023, 105, 689–715. [Google Scholar] [CrossRef]
  8. Shen, L.X.; Zhang, Q.Y.; Pang, J.Y.; Xu, H.; Li, P.; Xue, D.H. ANTspin: Efficient Absolute Localization Method of RFID Tags via Spinning Antenna. Sensors 2019, 19, 2194. [Google Scholar] [CrossRef]
  9. El-Absi, M.; Zheng, F.; Abuelhaija, A.; Abbas, A.A.H.; Solbach, K.; Kaiser, T. Indoor Large-Scale MIMO-Based RSSI Localization with Low-Complexity RFID Infrastructure. Sensors 2020, 20, 3933. [Google Scholar] [CrossRef]
  10. Poulose, A.; Han, D.S. UWB Indoor Localization Using Deep Learning LSTM Networks. Appl. Sci. 2020, 10, 6290. [Google Scholar] [CrossRef]
  11. Djosic, S.; Stojanovic, I.; Jovanovic, M.; Nikolic, T.; Djordjevic, G.L. Fingerprinting-assisted UWB-based localization technique for complex indoor environments. Expert Syst. Appl. 2021, 167, 114188. [Google Scholar] [CrossRef]
  12. Monica, S.; Bergenti, F. Hybrid Indoor Localization Using WiFi and UWB Technologies. Electronics 2019, 8, 334. [Google Scholar] [CrossRef]
  13. Minne, K.; Macoir, N.; Rossey, J.; Van den Brande, Q.; Lemey, S.; Hoebeke, J.; De Poorter, E. Experimental Evaluation of UWB Indoor Positioning for Indoor Track Cycling. Sensors 2019, 19, 41. [Google Scholar] [CrossRef] [PubMed]
  14. Fischer, G.; Bordoy, J.; Schott, D.J.; Xiong, W.X.; Gabbrielli, A.; Hoflinger, F.; Fischer, K.; Schindelhauer, C.; Rupitsch, S.J. Multimodal Indoor Localization: Fusion Possibilities of Ultrasonic and Bluetooth Low-Energy Data. IEEE Sens. J. 2022, 22, 5857–5868. [Google Scholar] [CrossRef]
  15. Rahman, A.; Li, T.; Wang, Y. Recent Advances in Indoor Localization via Visible Lights: A Survey. Sensors 2020, 20, 1382. [Google Scholar] [CrossRef] [PubMed]
  16. Luo, J.H.; Fan, L.Y.; Li, H.S. Indoor Positioning Systems Based on Visible Light Communication: State of the Art. IEEE Commun. Surv. Tutor. 2017, 19, 2871–2893. [Google Scholar] [CrossRef]
  17. Ouyang, G.L.; Abed-Meraim, K. A Survey of Magnetic-Field-Based Indoor Localization. Electronics 2022, 11, 864. [Google Scholar] [CrossRef]
  18. Niu, Q.; He, T.; Liu, N.; He, S.; Luo, X.; Zhou, F. MAIL: Multi-Scale Attention-Guided Indoor Localization Using Geomagnetic Sequences. Proc. ACM Interact. Mob. Wearable Ubiquitous Technol. 2020, 4, 54. [Google Scholar] [CrossRef]
  19. Zhou, B.D.; Li, Q.Q.; Mao, Q.Z.; Tu, W.; Zhang, X. Activity Sequence-Based Indoor Pedestrian Localization Using Smartphones. IEEE Trans. Hum. Mach. Syst. 2015, 45, 562–574. [Google Scholar] [CrossRef]
  20. Poulose, A.; Eyobu, O.S.; Han, D.S. An Indoor Position-Estimation Algorithm Using Smartphone IMU Sensor Data. IEEE Access 2019, 7, 11165–11177. [Google Scholar] [CrossRef]
  21. Krizhevsky, A.; Sutskever, I.; Hinton, G.E. ImageNet classification with deep convolutional neural networks. Commun. ACM 2017, 60, 84–90. [Google Scholar] [CrossRef]
  22. Li, B.H.; Gallagher, T.; Dempster, A.G.; Rizos, C. How feasible is the use of magnetic field alone for indoor positioning? In Proceedings of the International Conference on Indoor Positioning and Indoor Navigation (IPIN). Sydney, Australia, 13–15 November 2012. [Google Scholar]
  23. Zhang, Z.S.; Zhao, T.Z.; Ao, X.; Yuan, H.Q. A Vehicle Speed Estimation Algorithm Based on Dynamic Time Warping Approach. IEEE Sens. J. 2017, 17, 2456–2463. [Google Scholar] [CrossRef]
  24. Gong, P.W.; Wei, D.Y.; Ji, X.C.; Li, W.; Yuan, H. Research on Geomagnetic Matching Localization for Pedestrian. In Proceedings of the 9th China Satellite Navigation Conference (CSNC), Harbin, China, 23–25 May 2018; pp. 537–549. [Google Scholar]
  25. Subbu, K.P.; Gozick, B.; Dantu, R. Indoor Localization through Dynamic Time Warping. In Proceedings of the IEEE International Conference on Systems, Man and Cybernetics (SMC), Anchorage, AK, USA, 9–12 October 2011; pp. 1639–1644. [Google Scholar]
  26. Subbu, K.P.; Gozick, B.; Dantu, R. LocateMe: Magnetic-fields-based indoor localization using smartphones. ACM Trans. Intell. Syst. Technol. 2013, 4, 73. [Google Scholar] [CrossRef]
  27. Shu, Y.C.; Bo, C.; Shen, G.B.; Zhao, C.S.; Li, L.Q.; Zhao, F. Magicol: Indoor Localization Using Pervasive Magnetic Field and Opportunistic WiFi Sensing. IEEE J. Sel. Areas Commun. 2015, 33, 1443–1457. [Google Scholar] [CrossRef]
  28. Melo, J.; Matos, A. Survey on advances on terrain based navigation for autonomous underwater vehicles. Ocean. Eng. 2017, 139, 250–264. [Google Scholar] [CrossRef]
  29. Stepanov, O.A.; Toropov, A.B. Nonlinear filtering for map-aided navigation. Part 1. An overview of algorithms. J. Gyroscopy Navig. 2015, 6, 324–337. [Google Scholar] [CrossRef]
  30. Canciani, A.; Raquet, J. Airborne Magnetic Anomaly Navigation. Ieee Trans. Aerosp. Electron. Syst. 2017, 53, 67–80. [Google Scholar] [CrossRef]
  31. Akai, N.; Ozaki, K. Gaussian Processes for Magnetic Map-Based Localization in Large-Scale Indoor Environments. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Hamburg, Germany, 28 September–2 October 2015; pp. 4459–4464. [Google Scholar]
  32. Xie, H.W.; Gu, T.; Tao, X.P.; Ye, H.B.; Lv, J.; Assoc Comp, M. MaLoc: A Practical Magnetic Fingerprinting Approach to Indoor Localization using Smartphones. In Proceedings of the ACM International Joint Conference on Pervasive and Ubiquitous Computing (UbiComp), Seattle, WA, USA, 13–17 September 2014; pp. 243–253. [Google Scholar]
  33. Kang, W.; Han, Y. SmartPDR: Smartphone-Based Pedestrian Dead Reckoning for Indoor Localization. IEEE Sens. J. 2015, 15, 2906–2916. [Google Scholar] [CrossRef]
  34. Poulose, A.; Senouci, B.; Han, D.S. Performance Analysis of Sensor Fusion Techniques for Heading Estimation Using Smartphone Sensors. IEEE Sens. J. 2019, 19, 12369–12380. [Google Scholar] [CrossRef]
  35. Yao, Y.B.; Pan, L.; Fen, W.; Xu, X.R.; Liang, X.S.; Xu, X. A Robust Step Detection and Stride Length Estimation for Pedestrian Dead Reckoning Using a Smartphone. IEEE Sens. J. 2020, 20, 9685–9697. [Google Scholar] [CrossRef]
  36. Long, K.L.; Shen, C.; Tian, C.; Zhang, K.; Bhatti, U.A.; Kong, D.F.N.; Feng, S.; Cheng, H.S. Single UWB Anchor Aided PDR Heading and Step Length Correcting Indoor Localization System. IEEE Access 2021, 9, 11511–11522. [Google Scholar] [CrossRef]
  37. Chung, J.; Donahoe, M.; Schmandt, C.; Kim, I.-J.; Razavai, P.; Wiseman, M. Indoor location sensing using geo-magnetism. In Proceedings of the MobiSys’11: The 9th International Conference on Mobile Systems, Applications, and Services, Bethesda, MD, USA, 28 June–1 July 2011. [Google Scholar]
  38. Wang, X.Y.; Yu, Z.T.; Mao, S.W. Indoor Localization Using Smartphone Magnetic and Light Sensors: A Deep LSTM Approach. Mobile Netw. Appl. 2020, 25, 819–832. [Google Scholar] [CrossRef]
  39. Ashraf, I.; Hur, S.; Park, S.; Park, Y. DeepLocate: Smartphone Based Indoor Localization with a Deep Neural Network Ensemble Classifier. Sensors 2020, 20, 23. [Google Scholar] [CrossRef]
  40. He, T.; Niu, Q.; He, S.N.; Liu, N. Indoor Localization with Spatial and Temporal Representations of Signal Sequences. In Proceedings of the IEEE Global Communications Conference (IEEE GLOBECOM), Waikoloa, HI, USA, 9–13 December 2019. [Google Scholar]
  41. Liu, N.; He, T.; He, S.N.; Niu, Q. Indoor Localization With Adaptive Signal Sequence Representations. IEEE Trans. Veh. Technol. 2021, 70, 11678–11694. [Google Scholar] [CrossRef]
  42. Zhang, M.Y.; Jia, J.; Chen, J.; Yang, L.Y.; Guo, L.; Wang, X.W. Real-time indoor localization using smartphone magnetic with LSTM networks. Neural Comput. Appl. 2021, 33, 10093–10110. [Google Scholar] [CrossRef]
  43. Jin, Z.; Kang, R.Q.; Su, H.L. Multi-Scale Fusion Localization Based on Magnetic Trajectory Sequence. Sensors 2023, 23, 17. [Google Scholar] [CrossRef] [PubMed]
  44. Lee, N.; Ahn, S.; Han, D. AMID: Accurate Magnetic Indoor Localization Using Deep Learning. Sensors 2018, 18, 449. [Google Scholar] [CrossRef]
  45. Bhattarai, B.; Yadav, R.K.; Gang, H.S.; Pyun, J.Y. Geomagnetic Field Based Indoor Landmark Classification Using Deep Learning. IEEE Access 2019, 7, 33943–33956. [Google Scholar] [CrossRef]
  46. Li, D.; Lei, Y.K.; Li, X.; Zhang, H.C. Deep Learning for Fingerprint Localization in Indoor and Outdoor Environments. ISPRS Int. J. Geo Inf. 2020, 9, 267. [Google Scholar] [CrossRef]
  47. Ding, X.D.; Zhu, M.H.; Xiao, B. Accurate Indoor Localization Using Magnetic Sequence Fingerprints with Deep Learning. In Proceedings of the 21st International Conference on Algorithms and Architectures for Parallel Processing (ICA3PP), Online, 3–5 December 2021; pp. 65–84. [Google Scholar]
  48. Zhang, M.Y.; Jia, J.; Chen, J.; Deng, Y.S.; Wang, X.W.; Aghvami, A.H. Indoor Localization Fusing WiFi With Smartphone Inertial Sensors Using LSTM Networks. IEEE Internet Things J. 2021, 8, 13608–13623. [Google Scholar] [CrossRef]
  49. Ciabattoni, L.; Foresi, G.; Monteriu, A.; Pepa, L.; Pagnotta, D.P.; Spalazzi, L.; Verdini, F. Real time indoor localization integrating a model based pedestrian dead reckoning on smartphone and BLE beacons. J. Ambient Intell. Humaniz. Comput. 2019, 10, 1–12. [Google Scholar] [CrossRef]
  50. Sun, M.; Wang, Y.J.; Xu, S.L.; Cao, H.J.; Si, M.H. Indoor Positioning Integrating PDR/Geomagnetic Positioning Based on the Genetic-Particle Filter. Appl. Sci. 2020, 10, 668. [Google Scholar] [CrossRef]
  51. Tong, H.B.; Xin, N.; Su, X.L.; Chen, T.F.; Wu, J.J. A Robust PDR/UWB Integrated Indoor Localization Approach for Pedestrians in Harsh Environments. Sensors 2020, 20, 193. [Google Scholar] [CrossRef] [PubMed]
  52. Yan, S.Q.; Wu, C.P.; Deng, H.G.; Luo, X.N.; Ji, Y.F.; Xiao, J.M. A Low-Cost and Efficient Indoor Fusion Localization Method. Sensors 2022, 22, 5505. [Google Scholar] [CrossRef] [PubMed]
  53. Yan, S.Q.; Wu, C.P.; Luo, X.A.; Ji, Y.F.; Xiao, J.M. Multi-Information Fusion Indoor Localization Using Smartphones. Appl. Sci. 2023, 13, 3270. [Google Scholar] [CrossRef]
  54. Qian, Y.X.; Chen, X.C. An improved particle filter based indoor tracking system via joint Wi-Fi/PDR localization. Meas. Sci. Technol. 2021, 32, 014004. [Google Scholar] [CrossRef]
  55. Tao, X.X.; Shi, T.Q.; Ma, X.; Zhang, H.W.; Pei, Z.P. An improved indoor pedestrian dead reckoning algorithm using ambient light and sensors. Multimed. Tools Appl. 2022, 81, 32581–32592. [Google Scholar] [CrossRef]
  56. Sun, M.; Wang, Y.J.; Joseph, W.; Plets, D. Indoor Localization Using Mind Evolutionary Algorithm-Based Geomagnetic Positioning and Smartphone IMU Sensors. IEEE Sens. J. 2022, 22, 7130–7141. [Google Scholar] [CrossRef]
  57. Yu, D.; Li, C.G.; Xiao, J.X. Neural Networks-Based Wi-Fi/PDR Indoor Navigation Fusion Methods. IEEE Trans. Instrum. Meas. 2023, 72, 14. [Google Scholar] [CrossRef]
  58. Wu, H.; He, S.; Chan, S.-H.G. Efficient Sequence Matching and Path Construction for Geomagnetic Indoor Localization. In Proceedings of the EWSN ’17: Proceedings of the 2017 International Conference on Embedded Wireless Systems and Networks, Uppsala, Sweden, 20–22 February 2017. [Google Scholar]
  59. Flandrin, P.; Rilling, G.; Goncalves, P. Empirical mode decomposition as a filter bank. IEEE Signal Process. Lett. 2004, 11, 112–114. [Google Scholar] [CrossRef]
  60. Sherstinsky, A. Fundamentals of Recurrent Neural Network (RNN) and Long Short-Term Memory (LSTM) network. Physica D 2020, 404, 28. [Google Scholar] [CrossRef]
  61. Vildjiounaite, E.; Malm, E.-J.; Kaartinen, J.; Alahuhta, P. Location estimation indoors by means of small computing power devices, accelerometers, magnetic sensors, and map knowledge. In Proceedings of the 1st International Conference on Pervasive Computing, Pervasive 2002, Zurich, Switzerland, 26–28 August 2002; pp. 211–224. [Google Scholar]
  62. Dae-Ki, C.; Min, M.; Uichin, L.; Kaiser, W.J.; Gerla, M. AutoGait: A mobile platform that accurately estimates the distance walked. In Proceedings of the 2010 IEEE International Conference on Pervasive Computing and Communications (PerCom), Mannheim, Germany, 29 March–2 April 2010; pp. 116–124. [Google Scholar]
  63. Tian, Q.L.; Salcic, Z.; Wang, K.I.K.; Pan, Y. A Multi-Mode Dead Reckoning System for Pedestrian Tracking Using Smartphones. IEEE Sens. J. 2016, 16, 2079–2093. [Google Scholar] [CrossRef]
  64. Weinberg, H. Using the ADXL202 in Pedometer and Personal Navigation Applications; Analog Devices: Norwood, MA, USA, 2009. [Google Scholar]
Figure 1. The overall structure of the coarse-to-fine localization method.
Figure 1. The overall structure of the coarse-to-fine localization method.
Remotesensing 15 04165 g001
Figure 2. Geomagnetic signal readings collected through a mobile device on 23 February 2023 and 16 March 2023: (a) geomagnetic x-direction vector; (b) geomagnetic y-direction vector; (c) geomagnetic z-direction vector.
Figure 2. Geomagnetic signal readings collected through a mobile device on 23 February 2023 and 16 March 2023: (a) geomagnetic x-direction vector; (b) geomagnetic y-direction vector; (c) geomagnetic z-direction vector.
Remotesensing 15 04165 g002
Figure 3. Geomagnetic signal readings collected through a mobile device on 23 February 2023 and 16 March 2023: (a) geomagnetic field magnitudes; (b) geomagnetic field gradients.
Figure 3. Geomagnetic signal readings collected through a mobile device on 23 February 2023 and 16 March 2023: (a) geomagnetic field magnitudes; (b) geomagnetic field gradients.
Remotesensing 15 04165 g003
Figure 4. Geomagnetic magnitude of temporal representations.
Figure 4. Geomagnetic magnitude of temporal representations.
Remotesensing 15 04165 g004
Figure 5. Framework of the deep learning-based indoor geomagnetic localization algorithm.
Figure 5. Framework of the deep learning-based indoor geomagnetic localization algorithm.
Remotesensing 15 04165 g005
Figure 6. Step length estimation at different steps with the constant [61], linear [62], Weinberg [64] and Yan+2022 [52] methods: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 6. Step length estimation at different steps with the constant [61], linear [62], Weinberg [64] and Yan+2022 [52] methods: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g006
Figure 7. Floorplans of the experimental sites: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 7. Floorplans of the experimental sites: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g007
Figure 8. Mean localization error with different lengths of the geomagnetic sequence: (a) Vivo X30 and Huawei Mate30 in trial path 1; (b) Vivo X30 and Huawei Mate30 in trial path 2; (c) Vivo X30 and Huawei Mate30 in trial path 3.
Figure 8. Mean localization error with different lengths of the geomagnetic sequence: (a) Vivo X30 and Huawei Mate30 in trial path 1; (b) Vivo X30 and Huawei Mate30 in trial path 2; (c) Vivo X30 and Huawei Mate30 in trial path 3.
Remotesensing 15 04165 g008
Figure 9. Mean localization error with different numbers of hidden units: (a) Vivo X30 and Huawei Mate30 in trial path 1; (b) Vivo X30 and Huawei Mate30 in trial path 2; (c) Vivo X30 and Huawei Mate30 in trial path 3.
Figure 9. Mean localization error with different numbers of hidden units: (a) Vivo X30 and Huawei Mate30 in trial path 1; (b) Vivo X30 and Huawei Mate30 in trial path 2; (c) Vivo X30 and Huawei Mate30 in trial path 3.
Remotesensing 15 04165 g009
Figure 10. Mean localization error comparison of LSTM, PDR, MaLoc, DTW and the proposed algorithm at different step numbers using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 10. Mean localization error comparison of LSTM, PDR, MaLoc, DTW and the proposed algorithm at different step numbers using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g010
Figure 11. Mean localization error comparison of LSTM, PDR, MaLoc, DTW and the proposed algorithm at different step numbers using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 11. Mean localization error comparison of LSTM, PDR, MaLoc, DTW and the proposed algorithm at different step numbers using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g011
Figure 12. Localization error with LSTM, PDR, MaLoc, DTW and the proposed algorithm using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 12. Localization error with LSTM, PDR, MaLoc, DTW and the proposed algorithm using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g012
Figure 13. Localization error with LSTM, PDR, MaLoc, DTW and the proposed algorithm using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 13. Localization error with LSTM, PDR, MaLoc, DTW and the proposed algorithm using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g013
Figure 14. CDF of localization errors with LSTM, PDR, MaLoc, DTW and proposed algorithms using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 14. CDF of localization errors with LSTM, PDR, MaLoc, DTW and proposed algorithms using Vivo X30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g014
Figure 15. CDF of localization errors with LSTM, PDR, MaLoc, DTW and proposed algorithms using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Figure 15. CDF of localization errors with LSTM, PDR, MaLoc, DTW and proposed algorithms using Huawei Mate30: (a) trial path 1; (b) trial path 2; (c) trial path 3.
Remotesensing 15 04165 g015
Table 1. Information of different mobile devices.
Table 1. Information of different mobile devices.
Device InformationVivo X30Huawei Mate30
Operation systemFuntouch OS 10Android 10
CPUExynos 980Snapdragon 990
RAM + ROM8 G + 256 G8 G + 128 G
GPUMali-G76Mali-G76
Battery capacity4350 mAh4100 mAh
Screen6.44 inch6.62 inch
Image resolution2400 × 10802340 × 1080
Weight196.5 g196 g
Table 2. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 1(s).
Table 2. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 1(s).
LengthVivo X30Huawei Mate30
100181.42197.87
200368.38408.90
300440.09579.15
400725.99741.58
500766.50773.70
Table 3. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 2(s).
Table 3. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 2(s).
LengthVivo X30Huawei Mate30
100323.37339.74
200587.18564.14
300782.32818.54
400802.44779.54
500999.50859.20
Table 4. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 3(s).
Table 4. Time consumption with different lengths of input geomagnetic sequence using Vivo X30 and Huawei Mate30 in trial path 3(s).
LengthVivo X30Huawei Mate30
10099.6494.61
200137.35145.51
300183.15183.75
400213.51236.78
500238.69259.58
Table 5. The localization error of LSTM, PDR, MaLoc, DTW and proposed algorithms with Vivo X30 and Huawei Mate30 in three experimental paths (m).
Table 5. The localization error of LSTM, PDR, MaLoc, DTW and proposed algorithms with Vivo X30 and Huawei Mate30 in three experimental paths (m).
Vivo X30Method75th Percentile90th Percentile
Trial path 1
(Vivo X30)
LSTM1.53201.5289
PDR2.57582.8041
MaLoc1.96652.5149
DTW1.33711.5289
Proposed0.66490.7459
Trial path 1
(Huawei Mate30)
LSTM1.56661.8022
PDR3.94884.1368
MaLoc1.00411.9383
DTW1.35541.6043
Proposed0.73400.9009
Trial path 2
(Vivo X30)
LSTM1.64832.1335
PDR5.64686.9505
MaLoc3.06713.6445
DTW1.57671.6058
Proposed0.83520.9646
Trial path 2
(Huawei Mate30)
LSTM1.20481.6760
PDR5.99276.6634
MaLoc2.99874.1362
DTW1.24401.3463
Proposed0.77200.9259
Trial path 3
(Vivo X30)
LSTM1.40251.9838
PDR3.98674.3610
MaLoc2.25583.5212
DTW0.84281.0863
Proposed0.48790.7260
Trial path 3
(Huawei Mate30)
LSTM1.18792.0170
PDR2.25194.7029
MaLoc2.62543.1619
DTW1.17431.5737
Proposed0.74610.8630
Table 6. The mean errors and RMSE of LSTM, PDR, MaLoc, DTW and proposed algorithms with Vivo X30 in three experimental paths (m).
Table 6. The mean errors and RMSE of LSTM, PDR, MaLoc, DTW and proposed algorithms with Vivo X30 in three experimental paths (m).
Vivo X30MethodMean ErrorRMSE
Trial path 1LSTM1.22521.4879
PDR1.97902.1154
MaLoc1.31901.5503
DTW1.08241.1381
Proposed0.56250.5798
Trial path 2LSTM1.38861.5216
PDR2.68522.9394
MaLoc1.98822.3735
DTW1.37171.3905
Proposed0.65020.6927
Trial path 3LSTM1.07511.4344
PDR2.28352.6560
MaLoc1.51262.0207
DTW0.72940.7887
Proposed0.32430.4045
Table 7. The mean errors and RMSE of LSTM, PDR, MaLoc, DTW and proposed algorithms with Huawei Mate30 in three experimental paths (m).
Table 7. The mean errors and RMSE of LSTM, PDR, MaLoc, DTW and proposed algorithms with Huawei Mate30 in three experimental paths (m).
Huawei Mate30MethodMean ErrorRMSE
Trial path 1LSTM0.90631.0527
PDR2.82093.1064
MaLoc0.83111.0848
DTW1.05221.1308
Proposed0.57840.6287
Trial path 2LSTM0.96641.3970
PDR2.03652.5386
MaLoc2.05332.5115
DTW1.37321.3911
Proposed0.63720.6747
Trial path 3LSTM1.05831.3198
PDR2.38062.6330
MaLoc0.99951.1718
DTW0.67510.7165
Proposed0.54610.5891
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yan, S.; Su, Y.; Luo, X.; Sun, A.; Ji, Y.; Ghazali, K.H.b. Deep Learning-Based Geomagnetic Navigation Method Integrated with Dead Reckoning. Remote Sens. 2023, 15, 4165. https://doi.org/10.3390/rs15174165

AMA Style

Yan S, Su Y, Luo X, Sun A, Ji Y, Ghazali KHb. Deep Learning-Based Geomagnetic Navigation Method Integrated with Dead Reckoning. Remote Sensing. 2023; 15(17):4165. https://doi.org/10.3390/rs15174165

Chicago/Turabian Style

Yan, Suqing, Yalan Su, Xiaonan Luo, Anqing Sun, Yuanfa Ji, and Kamarul Hawari bin Ghazali. 2023. "Deep Learning-Based Geomagnetic Navigation Method Integrated with Dead Reckoning" Remote Sensing 15, no. 17: 4165. https://doi.org/10.3390/rs15174165

APA Style

Yan, S., Su, Y., Luo, X., Sun, A., Ji, Y., & Ghazali, K. H. b. (2023). Deep Learning-Based Geomagnetic Navigation Method Integrated with Dead Reckoning. Remote Sensing, 15(17), 4165. https://doi.org/10.3390/rs15174165

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
