Spatiotemporal Evolution of Arid Ecosystems Using Thematic Land Cover Products

Abstract

The pathway, direction, and potential drivers of the evolution in global arid ecosystems are of importance for maintaining the stability and sustainability of the global ecosystem. Based on the Climate Change Initiative Land Cover dataset (CCILC), in this study, four indicators of land cover change (LCC) were calculated, i.e., regional change intensity (RCI), rate of change in land cover (CR), evolutionary direction index (EDI), and artificial change percentage (ACP), to progressively derive the intensity, rate, evolutionary direction, and anthropogenic interferences of global arid ecosystems. The LCC from 1992 to 2020 and from 28 consecutive pair-years was observed at the global, continental, and country scales to examine spatiotemporal evolution in the Earth’s arid ecosystems. The following main results were obtained: (1) Global arid ecosystems experienced positive evolution despite complex LCCs and anthropogenic interferences. Cautious steps to avoid potential issues caused by rapid urbanization and farmland expansion are necessary. (2) The arid ecosystems in Australia, Central Asia, and southeastern Africa generally improved, as indicated by EDI values, but those in North America were degraded, with 41.1% of LCCs associated with urbanization or farming. The arid ecosystems in South America also deteriorated, but 83.4% of LCCs were in natural land covers. The arid ecosystems in Europe slightly improved with overall equivalent changes in natural and artificial land covers. (3) Global arid ecosystems experienced three phases of change based on RCI values: ‘intense’ (1992–1998), ‘stable’ (1998–2014), and ‘intense’ (2014–2020). In addition, two phases of evolution based on EDI values were observed: ‘deterioration’ (1992–2002) and ‘improvement’ (2002–2020). The ACP values indicated that urbanization and farming activities contributed increasingly less to global dryland change since 1992. These findings provide critical insights into the evolution of global arid ecosystems based on analyses of LCCs and will be beneficial for sustainable development of arid ecosystems worldwide within the context of ongoing climate change.

1. Introduction

Arid ecosystems are habitats for dryland flora and fauna, playing an essential role in supporting terrestrial carbon sinks and biodiversity at a global scale [1,2]. The evolution of arid ecosystems influences cycling processes of the hydrosphere, atmosphere, and biosphere [3,4,5] and is of importance for the stability and sustainability of the global ecosystem.

However, arid ecosystems are usually fragile [6]. The evolution of arid ecosystems is influenced by external interferences [7,8,9], such as climate change [10,11,12] and human activities [13,14,15]. Global warming is generally now acknowledged based on diverse sources of evidence [16,17,18]. The global area of drylands is expanding, and drylands are predicted to face greater stress than non-drylands in response to ongoing global warming [19]. Human societies in drylands worldwide are experiencing unprecedented change. Increasing urbanization and farming practices are reshaping arid ecosystems in direct and indirect ways [20,21]. Within the context of recent global warming and economic globalization, close observation and a rich understanding of evolution in global arid ecosystems are essential for maintaining and improving the resistance and resilience of these unique areas in response to future unprecedented interferences.

Land cover change (LCC), an indicator of the modifications of the Earth’s surface [22], could provide a framework to interpret the evolutionary processes of Earth’s ecosystems. Previous research linked LCCs with several aspects of ecosystems, for instance, ecosystem services [23], resilience [24], and biodiversity [25]. The transitions among land covers may indicate the evolutionary behavior of ecosystems [26,27]. Changes in specific land covers provide clues to natural or anthropogenic drivers of ecological evolution [28,29]. Thus, monitoring LCC in global drylands is a practical and effective means to understand the pathway, direction, and potential drivers of the evolution of global arid ecosystems.

Remote sensing platforms, such as AVHRR, MODIS, and Landsat [30,31,32], are efficient for monitoring LCC at local [20,33], regional [34], and global scales [35,36,37,38]. Although previous studies have used time-series vegetation indices to capture the land surface change in global drylands [39,40,41], few studies have focused on the long-term evolution of Earth’s ecosystems from the perspective of LCC. A few studies have investigated the land cover dynamics in dry areas, but such studies focused on limited areas of drylands [13,42] or a selected thematic LCC [43]. Specifically, Central Asia [44], China [45], southeastern Australia [46], and southeastern Africa [47] have experienced the loss of bare land and overall greening in vegetation, whereas the arid ecosystems in South America have been degraded [48]. Meanwhile, wetland shrinkage has been documented in Uzbekistan [49]. These accounts present different conclusions and differ in study periods, and hence discerning spatiotemporal changes in global drylands is difficult [34,50]. To date, it is unclear whether certain dryland hotspots with striking LCCs are representative of drylands worldwide, as well as whether global arid ecosystems evolve in a linear or nonlinear manner in the long term. Several global studies of thematic LCCs have recorded a decrease in the area of bare land [36,37], an increase in water-body area [51,52], net loss of forests and grasslands [36,37], and rapid expansion of urban areas and agricultural land [36,53]. However, the performance of thematic LCCs in relation to global drylands, compared with that for global non-drylands, remains unknown. Elucidation of the evolutionary processes in arid ecosystems worldwide remains a challenging task.

The scientific question posed in the present study was as follows: what are the unique spatiotemporal evolutionary processes of Earth’s arid ecosystems, within the context of global warming and economic globalization? To answer this question, long-term LCCs in drylands at global, continental, and country scales were determined using the Climate Change Initiative Land Cover (CCILC) dataset (1992–2020). Four indicators, i.e., regional change in intensity of land cover (RCI), rate of change in land cover (CR), evolutionary direction index (EDI), and artificial change percentage (ACP), were used to derive the intensity, rate, evolutionary direction, and anthropogenic interferences of global arid ecosystems based on the LCCs. We first determined the evolutionary characteristics of global drylands from 1992 to 2020, and then derived the evolutionary processes in 28 consecutive pair-years. In this manner, we interpreted the diversity and uniqueness of evolution in global drylands, as well as the nonlinear evolutionary paths of global arid ecosystems. The present research provides fundamental evidence of how global drylands have changed and how arid ecosystems have evolved during the past three decades. The findings are of importance for understanding the evolutionary mechanism of worldwide arid ecosystems from the perspective of LCCs.

2. Methods

2.1. Study Area

The extent of global drylands was determined based on the global climate map using the Köppen–Geiger system and downloaded from the Global Groundwater Information System website (https://ggis.un-igrac.org/catalogue/#/dataset/431 (accessed on 4 May 2023)). The most recent version of the map was released in October 2020. The Köppen–Geiger system includes five climate zones of global extent. The five zones, i.e., tropical (A), arid (B), temperate (C), continental (D), and polar (E), were determined by consideration of the local vegetation, long-term precipitation, and long-term temperature status [54]. In the present study, the dryland area refers to the arid zone (B) of the Köppen–Geiger system, covering four subzones, i.e., the BWh area (Arid-Desert-Hot), BWk area (Arid-Desert-Cold), BSh area (Arid-Steppe-Hot), and BSk area (Arid-Steppe-Cold).

The study area was generally located between 10° and 50° N/S and covered 97 countries (Figure S1). Given that 35 of the 97 countries had dryland areas of less than 0.02 million km², these countries (0.35% of the global dryland area) were excluded from the analysis. Ultimately, the study area included 62 countries on six continents and covered 41.14 million km² in total (Table S1).

2.2. Data

The CCILC dataset has been widely used in previous LCC monitoring studies [20,36,55] and was downloaded from the official website of the European Space Agency (https://www.esa-landcover-cci.org (accessed on 25 June 2022)). The dataset contains annual land-cover maps from 1992 to 2020 with 300 m spatial resolution and using the WGS84 geographic coordinate system. The dataset was produced using the Advanced Very High-Resolution Radiometer (AVHRR) time series (1992–1999), the Systeme Probatoire d’Observation de la Terre Vegetation (SPOT-VGT) time series (1999–2013), the Project for On-Board Autonomy V (Proba-V) time series (2014–2015), and the Sential-3 Ocean Land Color Instrument (S3-OLCI) time series (2016–2020). The overall accuracy of the land-cover map in the year 2015 proved to be 71.45% in comparison with the GlobCover 2009 validation database [56].

The 37 land-cover categories in the dataset were determined using the Land Cover Classification System (LCCS), which was developed by the Food and Agriculture Organization of the United Nations. Based on the description of the individual land-cover categories, the 37 land-cover categories were regrouped into eight categories, i.e., farmland, forest, grassland, wetland, urban land, shrubland, bare land, and other lands, with consideration of the land cover/land use definitions in the Intergovernmental Panel on Climate Change land classification system, as well as the ecological function and ecosystem service of each land-cover category (Table S2).

2.3. Land Cover Change Indices

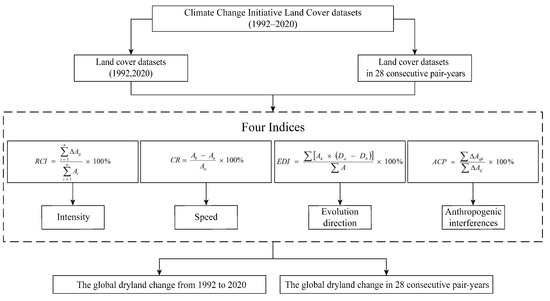

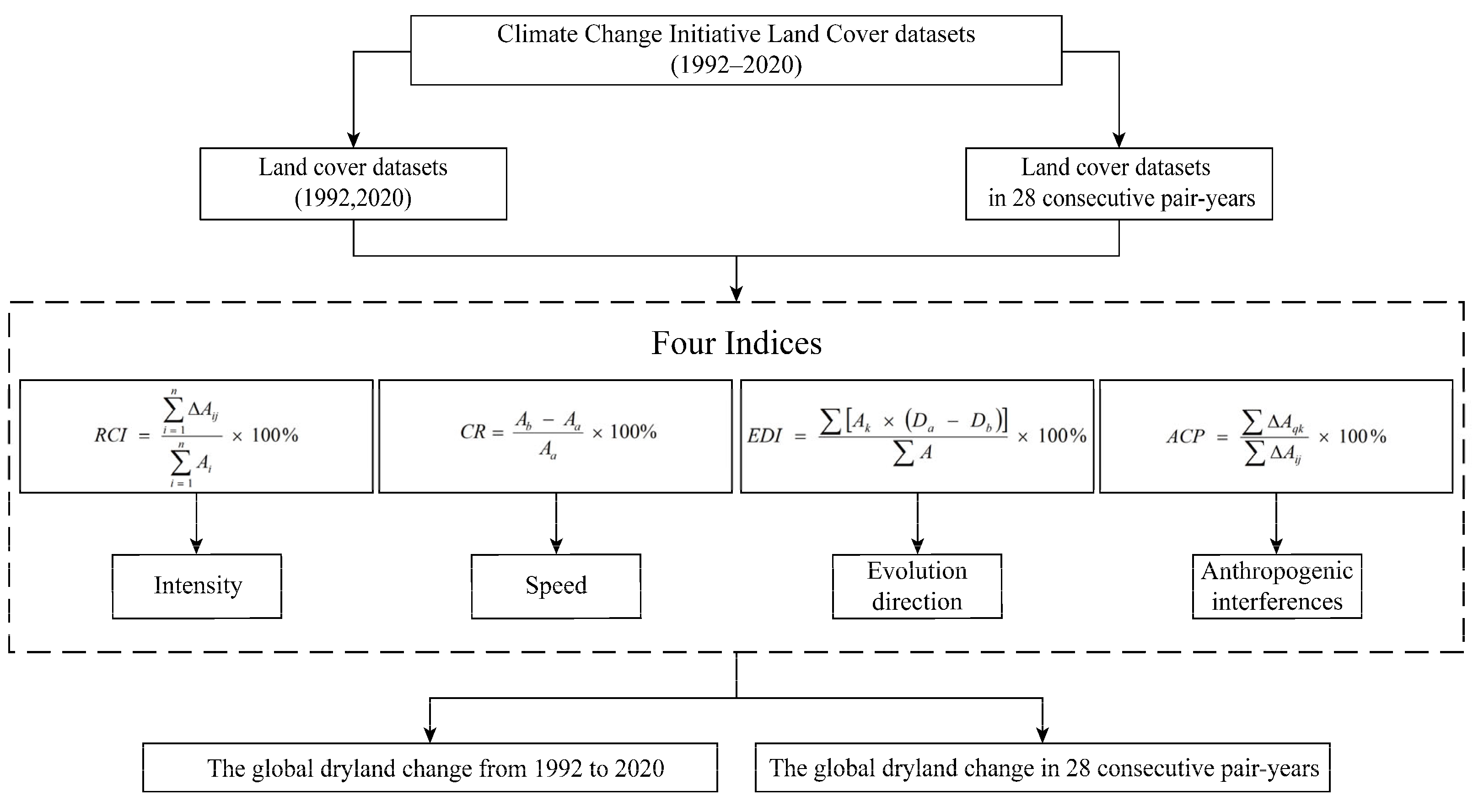

In this study, the CCILC dataset was the only data source. Four indicators (RCI, CR, EDI, and ACP) were calculated to progressively capture the intensity, rate, evolutionary direction, and potential anthropogenic contributions of the LCCs in global drylands. The statistical computing was conducted using the C# language with ArcGIS Engine functions.

In theory, all indices could be derived by comparing land-cover maps from two specific years. We first calculated the four indices using the land-cover maps for 1992 and 2020 to outline the long-term changes. Then, we calculated RCI, EDI, and ACP in 28 consecutive pair-years to enrich information on the detailed pathway of the changes (Figure 1). In this manner, the long-term consequences and the tortuous evolutionary paths of global arid ecosystems were considered. A pair-year refers to two consecutive years starting from 1992, for instance, 1992–1993, 1993–1994, and so forth. As a result, there were 29 years and 28 pair-years. The pair-year results were recorded using the start year. For example, the EDI of 1992 denotes the EDI calculated using the land cover maps in 1992 and 1993. All maps were visualized using ArcGIS 10.5 software.

• Regional change intensity (RCI)

The RCI is a comprehensive indicator of the intensity of LCCs within a specific spatial extent for two specific years [57]. It considers all potential transitions among land-cover categories and was calculated using Equation (1). The RCI is always a positive value. A high RCI value indicates a high intensity of LCCs for a given area.

$$RCI=\frac{{\displaystyle \sum _{i=1}^n\mathrm{\Delta }{A}_{\mathrm{ij}}}}{{\displaystyle \sum _{i=1}^n{A}_i}}\times 100\%$$

(1)

where $A_{\mathrm{i}}$ is the area of land-cover category i in the start year, and $\mathrm{\Delta }{A}_{\mathrm{ij}}$ is the absolute change in areas in which land-cover category i was transferred to category j. Note that i and j are two different land-cover categories.

• Rate of change in land cover (CR)

The CR indicates the rate of change of land cover categories within a specific spatial extent for two given years [57,58]. The CR was calculated using Equation (2):

$$CR=\frac{A_b-A_a}{A_a}\times 100\%$$

(2)

where $A_{\mathrm{a}}$ and $A_{\mathrm{b}}$ are the area of a specific land-cover category in year a and year b, respectively.

• Evolutionary direction index (EDI)

The EDI was conceived to indicate the direction of ecological evolution owing to LCCs [58]. Because different land cover categories indicate various ecological functions and values [59,60], we assigned levels 1 to 5 to each of the eight land-cover categories to represent their influence on ecosystems (

Table 1. Ecological level assigned to each land-cover category.

Land Cover	Farmland	Forest	Grassland	Wetland	Urban Area	Shrub	Bare	Others
Ecological level	5	2	4	1	5	3	5	5

). The ecological levels of the different land-cover categories were assigned in accordance with previous studies [58,61]. A lower ecological level indicates a higher benefit to an ecosystem (Table 1). Based on the equivalent value per unit area of ecosystem services determined in a previous study [60], we determined wetland (including water bodies and lakes) as having the highest ecological level (i.e., 1).

The EDI is a comprehensive indicator. Every local land-cover transition among the eight categories contributes to the EDI value. The direction of ecological evolution at a specific site was determined by comparison of ecological levels over two years. Note that the LCCs associated with farmland and urban pixels were excluded from the calculation of the EDI. These pixels accounted for a relatively small percentage of the study area and were mainly controlled by anthropogenic factors. Therefore, in this study, the EDI was designed to capture the evolution of natural LCCs and was calculated using Equation (3):

$$EDI=\frac{{\displaystyle \sum \left[A_k\times \left(D_a-D_b\right)\right]}}{{\displaystyle \sum A}}\times 100\%$$

(3)

where $D_{\mathrm{a}}$ and $D_{\mathrm{b}}$ are the ecological levels in year a and b, respectively, in land-cover transitions associated with land-cover category k (k = 1, 2, …, n); $A_k$ is the area of the land-cover transitions ‘from’ or ‘to’ land-cover category k; and ${\displaystyle \sum A}$ is the statistical area.

Given that each land cover category has an ecological level (Table 1), each land-cover transition would contribute to the upward or downward change in the regional EDI value. The regional EDI value considers all land-cover transitions and, consequently, indicates the direction in which local ecosystems evolve. A positive regional EDI value indicates that the local ecosystem is improving because of the land-cover transitions; a negative regional EDI value indicates that the local ecosystem is deteriorating because of the land-cover transitions.

• Artificial change percentage (ACP)

The ACP evaluates the proportion of the LCCs that is directly linked with human activities. Given that farmland and urban land are two land-cover categories mainly governed by human societies, the ACP was used to determine the proportion of dryland changes caused by farming and urbanization. The ACP value indicates the extent of human influences on local drylands and was calculated using Equation (4):

$$ACP=\frac{{\displaystyle \sum \mathrm{\Delta }{A}_{qk}}}{{\displaystyle \sum \mathrm{\Delta }{A}_{ij}}}\times 100\%$$

(4)

where $\mathrm{\Delta }{A}_{\mathrm{ij}}$ is the absolute area of transitions between category i and category j; ${\displaystyle \sum \mathrm{\Delta }{A}_{ij}}$ is the total changed area in the statistical area; $\mathrm{\Delta }{A}_{qk}$ is the absolute area of transitions between category q and k; and ${\displaystyle \sum \mathrm{\Delta }{A}_{\mathrm{qk}}}$ is the total changed area caused by modifications of artificial land-cover categories (i.e., farmland and urban land). Note that, i, j, and q refer to different land-cover categories, and k refers to artificial land-cover categories. In addition, j is a non-i land-cover category and q is a non-k land-cover category.

3. Results

3.1. Evolution of Global Drylands from 1992 to 2020

3.1.1. Dryland Changes at the Global Scale

At the global scale, complex land-cover transitions occurred during the past 30 years (Tables S3–S5). Overall, the global drylands changed at a certain rate with RCI reaching 5.08%. Most land-cover categories remained relatively stable, with the absolute value of CR less than 10% (

Table 2. Rate of change in land cover (CR) for eight land-cover categories in four periods (1992–2020, 1992–2000, 2001–2010, and 2011–2020).

Land Covers	CR (%)
	1992–2020	1992–2000	2001–2010	2011–2020
Farmland	3.87	1.97	1.37	0.25
Forest	1.61	−2.03	0.36	4.12
Grassland	3.01	0.02	1.06	1.69
Shrub	−1.55	−0.44	−0.37	−0.71
Wetland	−7.47	−3.23	−4.55	0.60
Urban area	228.18	24.94	56.70	48.88
Bare	−2.09	−0.03	−0.83	−1.12
Others	0.48	−0.30	0.47	0.16

). The evolutionary direction of global arid ecosystems was encouraging, with a positive EDI value of 0.36%. About one-fifth of LCCs in global drylands from 1992 to 2020 were linked with anthropogenic disturbances, as indicated by the ACP value of 19.87%. However, it is worth noting that urban land had the highest positive CR (228.18%), and wetland had the lowest negative CR (−7.47%). The CR values for farmland and grassland increased, whereas those for bare land and shrubland decreased.

3.1.2. Changes in RCI, CR, EDI, and ACP at Continental and Country Scales

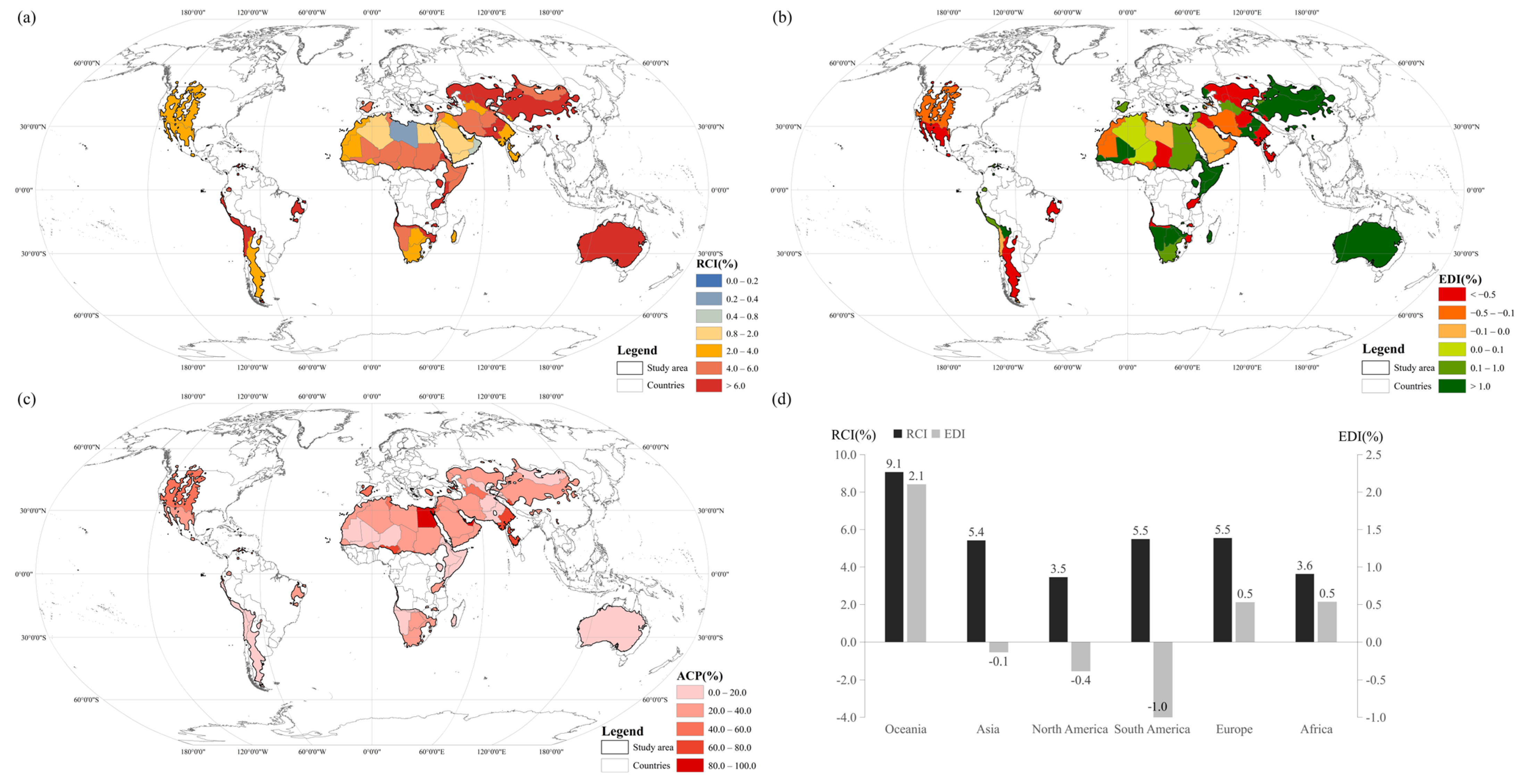

Relatively high RCI values were observed in Oceania and Asia (Figure 2a). Most countries within these two continents experienced dramatic dryland changes, with RCI values exceeding 4%, and thus were the main contributors to the global RCI during the past three decades. Although arid ecosystems comprise a large area of North America, the dryland changes showed a relatively low RCI value. African countries showed diverse changes in drylands land cover with regard to the RCI values.

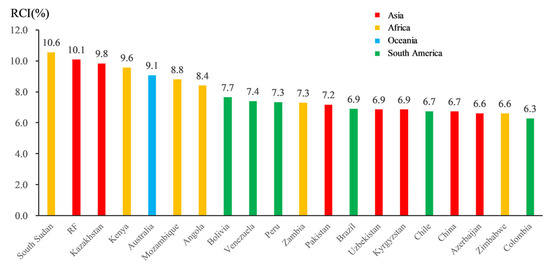

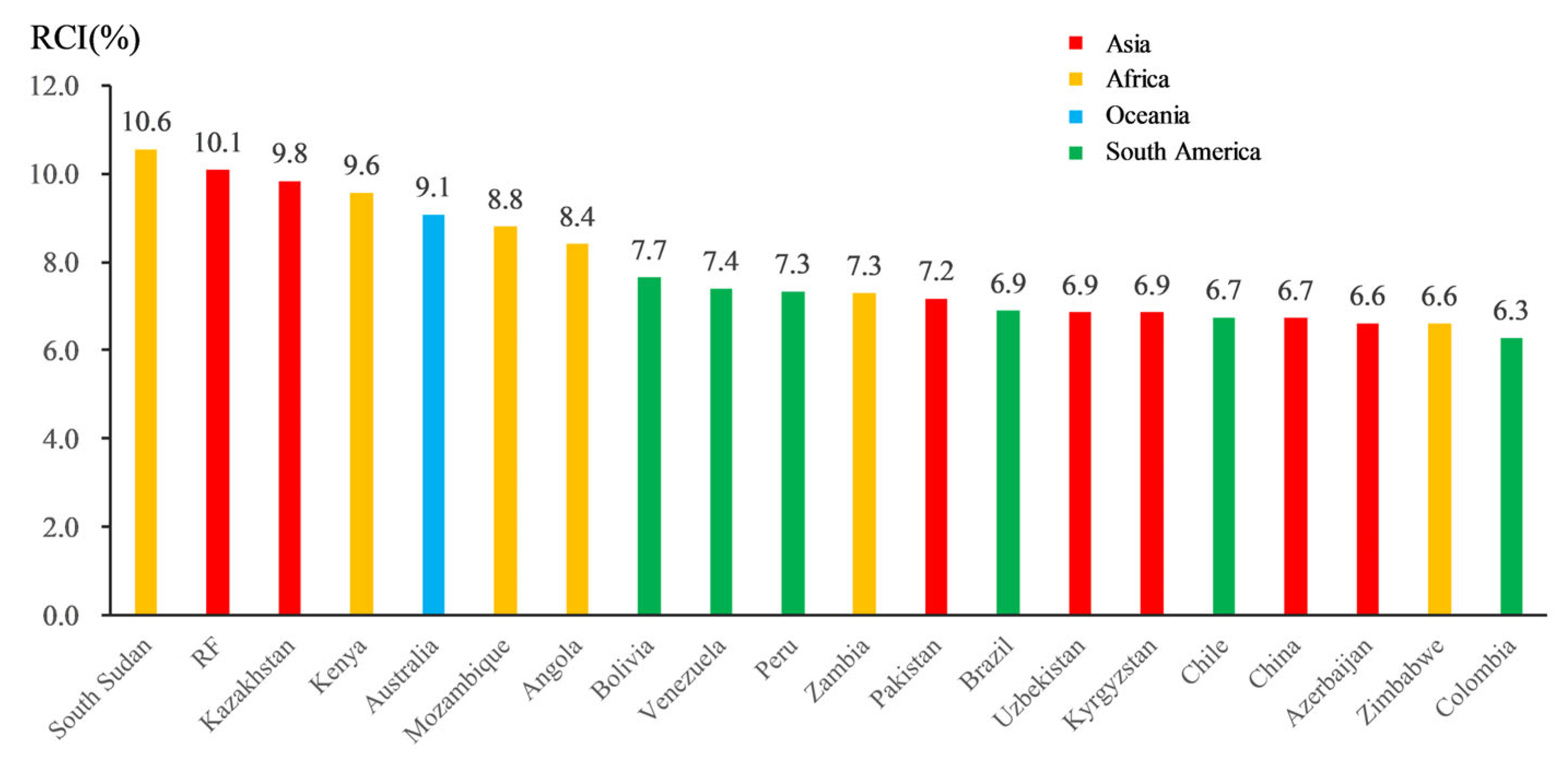

Seven Asian countries, six African countries, six South American countries, and Australia comprised the 20 top-ranked countries with the highest RCI values (Figure 3). Note that most are developing countries with large dryland areas within their territory. It is, therefore, understandable that complex and intense LCCs occurred in these areas during the past three decades. Specifically, the six African countries, i.e., South Sudan, Kenya, Mozambique, Angola, Zambia, and Zimbabwe, are all located in southeastern Africa. In Asia, the highest RCI value was observed in the Central Asia area. Accordingly, southeastern Africa and Central Asia were the most eye-catching regions. The drylands area in South America is small (0.06%), but six of the eight countries with drylands were ranked among the top 20 countries based on RCI value.

At the global level, the CR values for farmland, forest, and urban land increased, whereas those for bare land decreased. In Asia, Africa, and Oceania, the continental pattern of change in CR values was identical to that at the global scale (Table S6). Specifically, Asia accounted for more than 50% of the global increase in urban land. At the same time, Asia lost 21.7 × 10⁴ km² of bare land, which was almost half of the global decrease in bare land. Africa experienced a large increase in farmland area and a marked decrease in bare land area, whereas Oceania experienced a large increase in grassland area (12.8 × 10⁴ km²) and the smallest increase in urban land area. South America lost the largest area of forest compared with all other continents.

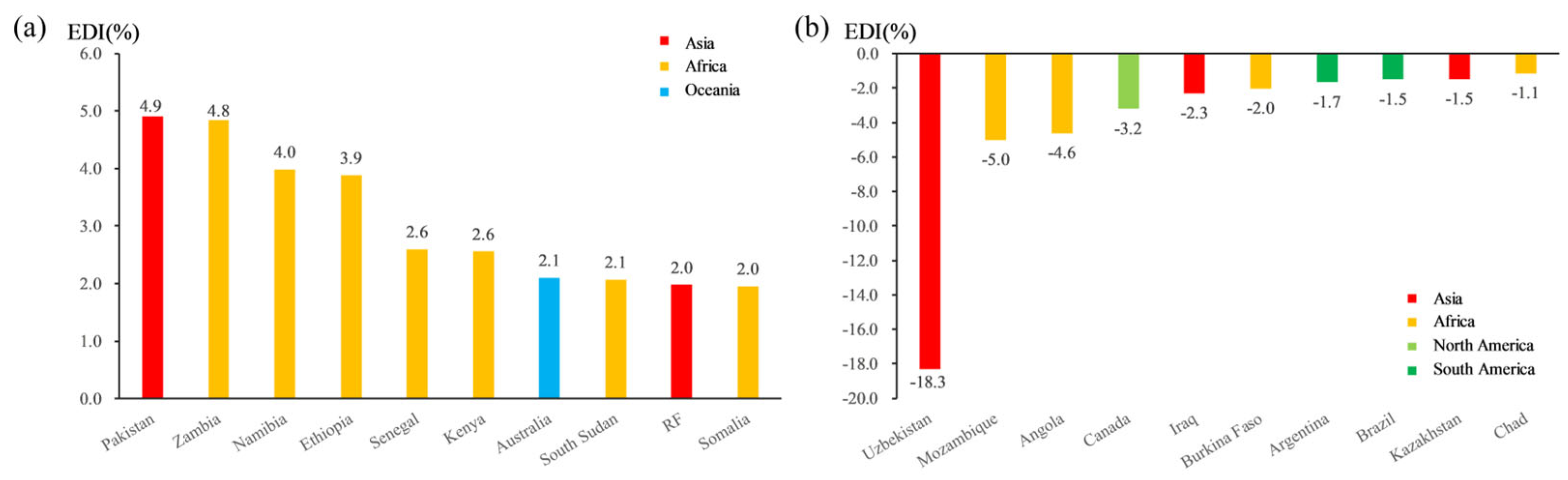

The highest positive EDI values were observed in Oceania (i.e., Australia) and the Mongolian plateau (i.e., China and Mongolia) (Figure 2b). Several countries in eastern and southern Africa also had positive EDI values. Thus, the arid ecosystems in these regions were in better condition in 2020 than in 1992. On the American continents, the arid ecosystems were in worse condition after 29 years. The 10 countries with the highest positive EDI values were mainly located in southeastern Africa and Central Asia (Figure 4a). The positive EDI values in these two areas and in Australia largely contributed to the global positive EDI (0.36%). Note that southeastern Africa and Central Asia were the most eye-catching areas with respect to RCI (Figure 3). This indicated that, although these regions experienced intense LCCs during the past three decades, the condition of the arid ecosystems was improved. The EDI in Pakistan was 4.9%, and the highest contribution was from the ‘bare land to grassland’ transition, which accounted for 59.0% of the overall LCC in the country. Certain countries had negative EDI values (Figure 4b). For instance, arid ecosystems in Uzbekistan had experienced severe deterioration, with the EDI reaching −18.3%. During the past three decades, most pair-year EDIs were negative, which indicated that the deterioration had occurred in most years. More than half (55.9%) of the LCCs were ‘wetland (including water bodies) to bare land’, which indicated that wetland shrinkage might be the most pressing issue in Uzbekistan.

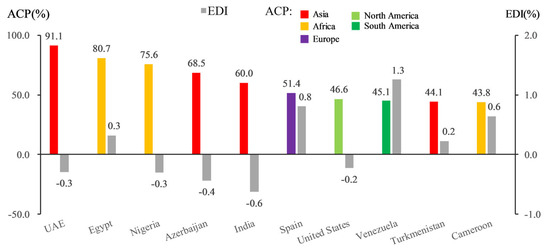

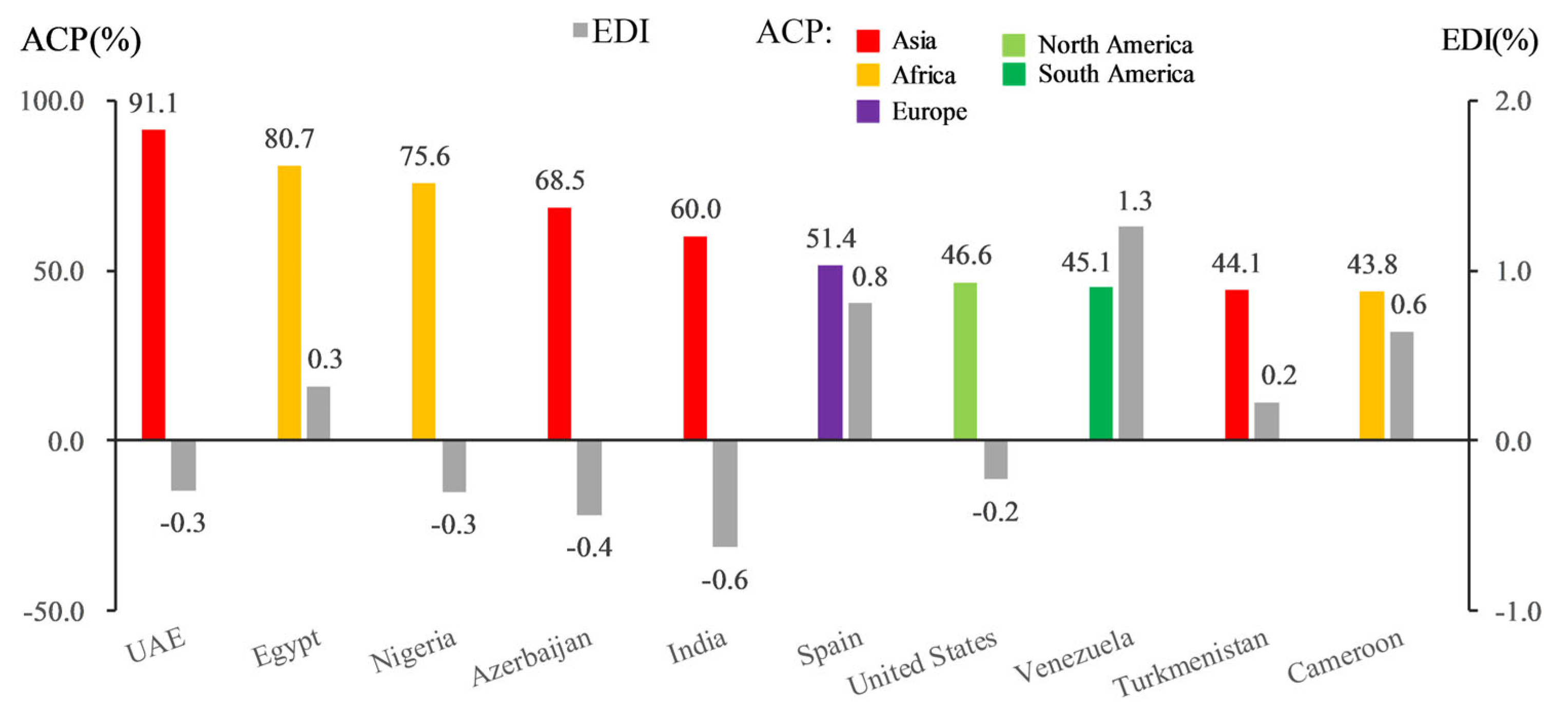

The ACP values in most Asian and African countries remained above 20% (Figure 2c), indicating there were considerable changes to farmland and urban land among arid ecosystems. In contrast, the ACP in Oceania was less than 20%. The highest RCI and EDI values, as well as the lowest ACP value, were indicative of the improvement of the natural environment in Oceania. The 10 countries with the highest ACP values had notable proportions of drylands changing to urban land and farmland (Figure 5). However, the EDI values of these countries were diverse. Three Asian countries, i.e., United Arab Emirates, Azerbaijan, and India, experienced arid ecosystem deterioration and large areas of urbanization and farming activity. This indicated that human activities negatively affected the dryland environment by severely affecting artificial and natural land covers. A similar pattern was observed in the United States. Other countries, for instance, Egypt and Spain, experienced substantial areas of changes in artificial land covers, but the arid ecosystems generally improved.

The arid ecosystems in Oceania, Europe, and Africa had high RCI and positive EDI values (Figure 2d). The arid ecosystems in South America and Asia had negative EDI and high RCI values. South America had the lowest EDI (−1.0%), but the ACP values in all South American countries remained low. This indicated that the deteriorated arid ecosystems in this continent were the result of indirect human-induced or natural-induced LCCs. Although the EDI value in Asia was negative, China had high RCI and EDI values. However, the ACP in China was relatively higher than that observed for other Asian countries (Figure 2c). This indicated that, although farming and urbanization of Chinese drylands had undergone dramatic changes, the natural arid environments were improved during the past 29 years.

3.2. Pair-Year Changes in Global Drylands

3.2.1. Pair-Year RCI

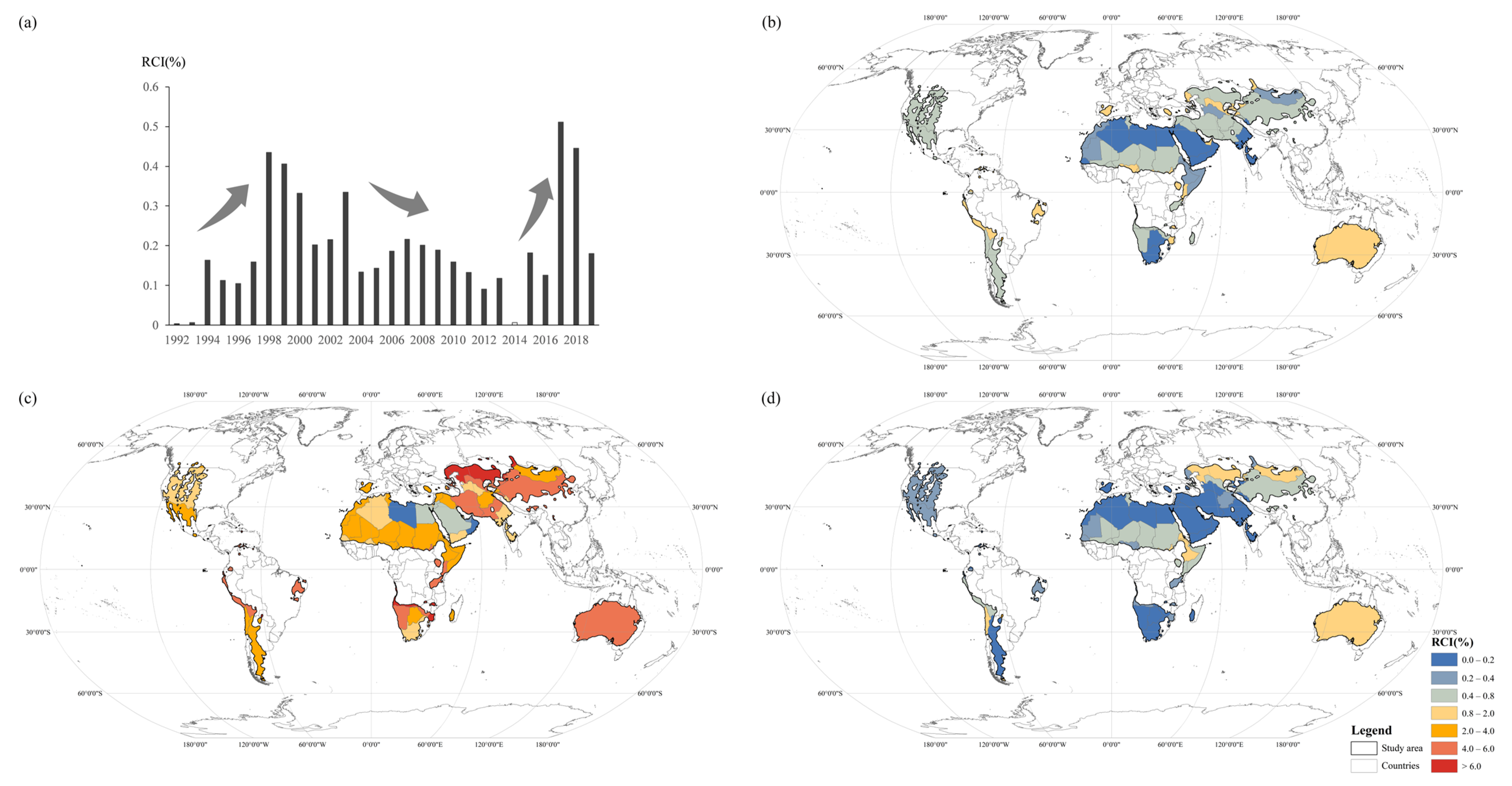

Although the global RCI (1992–2020) was 5.08%, the RCI values in the 28 pair-years were relatively small with values generally less than 0.6% (Figure 6a). This finding is reasonable because LCCs might occur year by year and lead to accumulated consequences over a long period. The pair-year RCI went through three phases from 1992 to 2020 (Figure 6a): an increasing trend from 1992 to 1998, a decreasing trend from 1998 to 2014, and another increasing trend after 2014. Overall, the pair-year 2017–2018 had the highest intensity in LCC with the highest RCI value of 0.51% compared with all other pair-years.

We calculated the RCI values of global drylands in the pair-years 1992–1998 and 1998–2014. The former was 0.55% and the latter was 3.39%. Most countries had larger LCCs in the latter period than in the former period (Figure 6b,c). This finding was in conflict with the observed trends of RCI values in these two phases (Figure 6a). However, the increasingly intense dryland dynamics from 1992 to 1998 may occur within approximately the same spatial extent, whereas decreasingly intense dryland dynamics from 1998 to 2014 might have gradually spread to different territories. In addition, the value and spatial distribution of RCIs from 2017 to 2018 (Figure 6d) were similar to that derived from the seven-year period (1992–1998) (Figure 6b), which indicated that the global dryland dynamics became increasingly intense and widespread. Countries in northern Africa had consistently low RCI values, whereas Australia always had high RCI values (Figure 1a and Figure 5b,c). Most countries, especially the Russian Federation and China, showed stronger RCI values in the latest 20 years compared with values in the first 10 years.

3.2.2. Pair-Year EDI

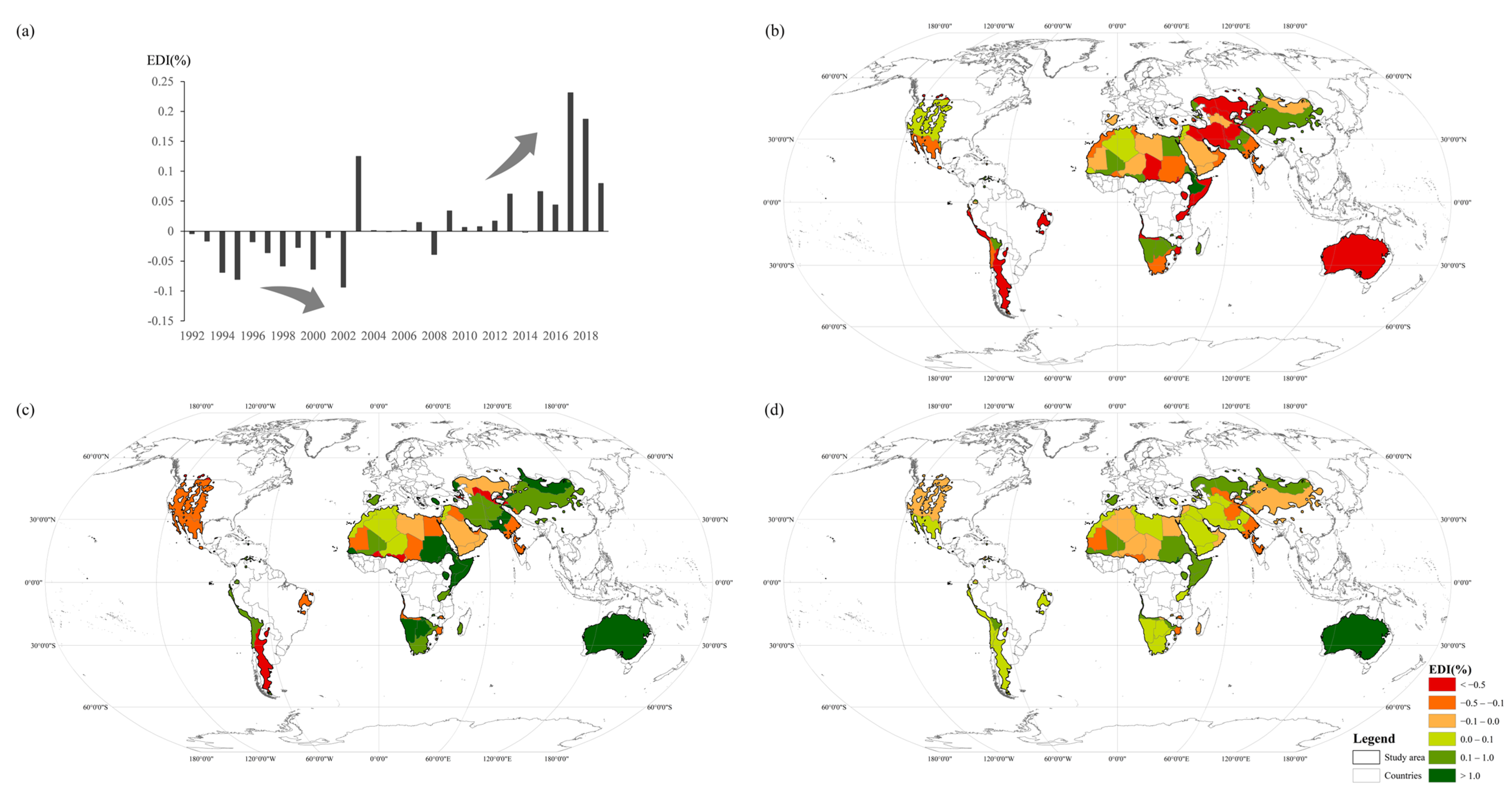

As described in Section 3.1.1, the EDI (1992–2020) of global arid ecosystems was positive (0.36%). However, the pair-year EDI was consistently negative before the pair-year 2002–2003 (Figure 7a). After 2003, the EDI was positive in most pair-years and the maximum value was attained in the pair-year 2017–2018. This indicated that the improvements in global arid ecosystems during the past three decades were mainly because of improvements after 2003. The highest EDI in pair-year 2017–2018 was mainly be cause of the LCCs in Australia, Mongolia, Ethiopia, and Somalia (Figure 7d).

The EDI of global drylands experienced two phases during the past three decades. We further calculated the EDI in the pair-years 1992–2002 and 2002–2020. The former value was −0.39% and the latter was 0.74%. Several countries, for instance, Australia, Mongolia, Iran, Somalia, and South Africa, experienced conversion of EDIs from negative to positive (Figure 7b,c), which was consistent with the overall trend in global drylands. The United States experienced a deterioration of EDI, which was the opposite of the global overall trend. The EDI values remained stable in some countries, such as Libya (consistently negative EDI) and China (consistently positive EDI). Overall, the improvement of global arid ecosystems during the past three decades was mainly contributed by improvements in Australia, Mongolia, Somalia, and South Africa after 2003. The consistent improvement of arid ecosystems in China also contributed to the overall improvement of global drylands as indicated by the EDI.

3.2.3. Pair-Year ACP

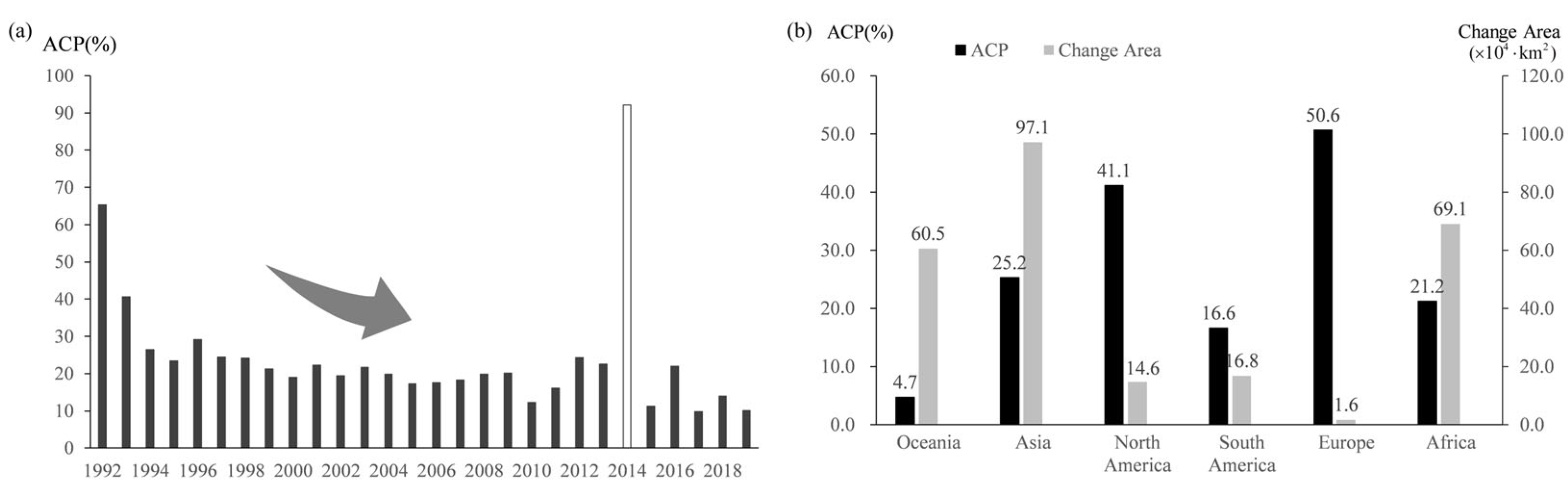

The ACP values in the 28 consecutive pair-years showed a decreasing trend if the abnormal peak observed in 2014 is excluded (Figure 8a). It is worth noting that the ACP declined rapidly during the initial years. After 1995, the ACP value fluctuated to a limited extent around 20%. This indicated that the global dryland changes were increasingly contributed by modifications of the natural land-cover categories over time.

The areas of change in continents are shown in Figure 8b. Overall, Asia and Africa experienced the two largest areas of dryland changes. These results were reasonable because most countries in these two continents were agriculture-dominated regions and had experienced rapid urbanization during the past 29 years. In Europe and North America, the areas of change were small, but more than half of these changes were associated with artificial land covers. In South America, more dryland changes occurred, but fewer changes were caused by artificial land-cover changes, compared with those in Europe and North America. Oceania experienced large areas of dryland changes, but less than 5% of the changes were associated with farming and urbanization.

4. Discussion

The present study is the first to focus on the evolutionary behavior of global arid ecosystems during the last three decades. In general, the Earth’s arid ecosystems evolved with a promising direction from the perspective of LCCs. This conclusion is consistent with previous research using a time-series normalized difference vegetation index [39,40,41]. However, worldwide drylands experienced different LCCs [62,63] because of differences in human–nature interactions [21,64,65]. It is of considerable interest to understand the diversity and uniqueness, as well as the nonlinear evolutionary paths, of Earth’s arid ecosystems.

4.1. Diversity and Uniqueness of Evolution in Global Drylands

The arid ecosystems in Oceania, Central Asia, and southeastern Africa generally improved, despite the intense LCCs in these areas. A previous local study [44] also indicated that Central Asia experienced an overall decrease in bare land and an overall increase in natural land covers from 2001 to 2017; the potential driving factors might be the amount of rainfall and severity of drought [44]. The intensive LCCs in the areas of interest in southeastern Africa were observed from the 1980s to 2013 [47]. The present results further confirmed that the arid ecosystems generally improved. Among hotspot countries, the greening trend in southeastern Australia from 1981 to 2007 has been recorded previously [46,66]. Evidence from previous research supported the finding of a decrease in bare land in Pakistan [13]. The greening of China in recent decades was observed in previous research analyzing a satellite imagery time-series [67]. Many Chinese region-wide eco-projects have been conducted in arid areas [68], which might be the main reason for positive EDI and relatively high RCI for China. The arid ecosystem has degraded in Uzbekistan because of wetland (including water bodies) shrinkage, which has been recorded in previous studies documenting wetland deterioration in the Amu Darya River Basin and the Aral Sea. The former might be caused by the expansion of farming, reservoirs, and irrigation [49], and the latter is claimed to be driven by global warming and the absence of water-saving technology in farming [69]. The arid ecosystems in South America deteriorated because of intensive natural land-cover transitions. A previous study has reported severe land degradation in Argentina [48].

The uniqueness of evolution in global drylands is shown by the differences with evolution in global non-drylands. First, the decrease in bare land and wetland, as well as the increase in forest and grassland, are distinct with regard to natural LCCs. Bare land accounts for the largest proportion of global drylands and decreased by 43.8 × 10⁴ km² with CR of −2.09%. Previous evidence also supports the decrease in bare land. However, the extent of the decrease ranged from 75.2 × 10⁴ km² [37] to 16.5 × 10⁴ km² [35] during 1982–2016, and approximately 50 × 10⁴ km² during 1992–2018 [36]. Taking into account the most severe decrease (75.2 × 10⁴ km²) recorded in previous research [37], 58.2% of the decrease was in drylands according to the present results. This indicates that the decline in bare land is more serious in drylands than in non-drylands. The wetland (including water bodies and water-covered shrubs/herbaceous) in global drylands decreased with CR as high as −7.47%, whereas global evidence indicates an overall increase in permanent surface water area from 1984 to 2015 [51,52]. Although global water monitoring still has numerous challenges [70,71], a previous study on global endorheic basin water [72], which covered approximately the same spatial extent as that observed in the present study, showed a clear trend for decline in water storage (1984–2015). Furthermore, the global forest/tree canopy cover showed a net loss from 1992 to 2018 [36], but the present results showed that forest in drylands experienced a slight increase with CR of 1.61%. The grassland/short vegetation cover showed a net loss [35,37], but in the present study, grassland slightly increased in global drylands with CR of 3.01%. The global loss of forest and grassland has mainly occurred in non-drylands. The greening in natural land cover generally portrays a unique and encouraging evolution in global drylands. These findings explain the overall positive EDI and may be associated with recent evidence of climate change in drylands [4,44].

Although we observed an overall promising evolution in global drylands during the past 30 years, an opposing trend is the rapid expansion of urban land and farming. Urbanization in drylands is more rapid than that in global non-drylands. The CR of urban land reached 228.2% in drylands (Table S4), whereas a global CR of 126.1% was reported in previous research [39]. Although the extents of increase in urbanization in previous studies differed because of disparity in the definitions of urban and dryland areas [14,36], there is no doubt that rapid urban expansion in drylands is a worldwide phenomenon. Globally, farmland increased by 100 × 10⁴ km² during 1992–2018 [36], but farmland in drylands only increased by 22.3 × 10⁴ km² from 1992 to 2020. This indicates that the worldwide increase in farmland has mainly occurred in non-drylands. Given that anthropogenic consequences are usually permanent, the dramatically increasing artificial land covers indicate that cautious steps are required to avoid potential issues caused by rapid urbanization and for long-term sustainable development in global drylands.

4.2. Nonlinear Evolutionary Paths of Global Arid Ecosystems

The nonlinear evolutionary paths of global arid ecosystems are difficult to discern from previous LCC studies. Traditionally, LCC information is obtained based on the existing land-cover maps, i.e., the so-called ‘post-classification’ change detection strategy [59]. Previous LCC studies using this strategy usually summarized LCCs by comparing land-cover information in selected and limited years [35,37,39]. The evolutionary processes determined by these studies might be approximate, and even biased, because the results were mainly shaped and restrained by the preliminary selected temporal phases. In contrast, in the present study, a long-term LCC dataset (1992–2020), combined with detailed changes occurring in 28 consecutive pair-years, jointly portrayed the nonlinear evolutionary pathway for global drylands in the past three decades.

Although the present results (for the period 1992–2020) proved that global drylands seemed stable and global arid ecosystems even improved slightly in recent decades, the optimistic situation was not achieved through a linear process. Tortuous paths were reflected in long-term RCI, EDI, and ACP values. With respect to RCI, differences in the extents of RCI were differentiable into three phases, namely, ‘intense’ during 1992–1998, ‘stable’ during 1998–2014, and ‘intense’ during 2014–2020. Considering EDI, the evolution of global arid ecosystems went through two periods, i.e., remaining consistently deteriorating before 2003 and assuming a promising direction after 2003. These nonlinear changes are closely associated with the nonlinear changes in climatic factors or human activities. Previous studies have reported that the climate [28,73,74], human impacts on the Earth’s systems [75,76], and even the relationship between vegetation greenness and rainfall [77] have all experienced frequently nonlinear changes in the past. However, because of the differences in study areas, study periods, research objects (satellite-based vegetation indicators, thematic LCC, or comprehensive indicators derived from general LCCs), and the method of nonlinear diagnosis (statistical analysis of vegetation trajectories or observation of annual consequence of general LCCs), the derived results are not comparable. We believed these results are not conflicting, but rather represent different perspectives of the Earth’s evolution and may be supplementary to obtain rich background information on global dryland evolution.

With regard to ACPs, the current results indicated a consistent decline in the contributions from urbanization and farming to the global dryland changes (excluding 2014). However, it may not necessarily imply that anthropogenic interferences for global drylands have decreased. Based on the existing evidence [78,79,80], a more likely explanation is that society is changing the methods of exploiting arid ecosystems. Humans might instead turn to modification of other land covers or influence drylands through indirect measures.

4.3. Limitation and Outlook

The present study used the most recent version of the global climate map using the Köppen–Geiger system (released in 2020) to determine the geographical extent of global drylands. Therefore, the evaluations in this study are only relevant within this area, assuming that the area of global drylands is stable. However, previous research has proven that the extent of global drylands has changed in recent years [4,33,62]. Future studies could capture LCC characteristics in dynamic scenarios by updating the extent of drylands.

The present analyses were based on the CCILC dataset because of its advantages in long-term data accumulation and broad application at the global scale [20,36,55]. However, the present findings will contain a certain level of uncertainty related to the following aspects of the CCILC dataset. First, the coarse spatial resolution (300 m) of the CCILC dataset would instinctively lead to mixed pixels, which would influence the calculated area of land covers and their corresponding changes [20]. Further studies using datasets with relatively higher spatial resolution are required. Second, the accuracy of the CCILC dataset, including an overall accuracy of approximately 71.45%, different accuracies of land-cover categories, and the temporal inconsistency, would cause error accumulation and propagation effects, leading to spurious changes to some extent. Previous studies have shown that the product of individual map accuracies determines the accuracy of LCCs [22,81]. In particular, the temporal consistency of the CCILC dataset has received considerable attention because the data are based on imagery from multiple satellite sources [82]. The producers used a ‘baseline’ and a uniform legend to ensure consistency between the map series. Although previous studies assessed its temporal consistency [83] and compared the CCILC dataset with other land-cover products [20,55], these studies only targeted limited countries or areas of interest. To date, the global performance of its temporal consistency remains uncertain. In the present work, a noteworthy phenomenon is that the RCI, EDI, and ACP in 2014 were 0.0066, −0.0021, and 92.1%, respectively. This indicates that, during 2014 and 2015, the total change areas of global drylands remained extremely small, but 92.1% of the changes were associated with urbanization and farming. More importantly, the arid ecosystems deteriorated slightly because of these changes. These abnormal results indicate that the land-cover map for 2014 might be extremely similar to that of 2015, especially in the distributions of natural land covers. Given that the official documentation acknowledged that the changes occurring during 2014–2015 are limited to certain changes [84], users are warned to be cautious of the LCC information during 2014–2015. It is impossible to validate an individual global map of the CCILC dataset, and hence it is difficult to assess the influences of these uncertainties on the present results. Further studies could build on the present results by developing high-quality time-series LCC products.

The EDI, which was conceived using information on LCCs, was used to indicate the direction of evolution in arid ecosystems. However, multiple indicators could be used to estimate eco-evolution from different perspectives. Further studies on the use of various indicators to estimate eco-evolution are warranted. The present study sheds light on the drivers of LCCs in arid ecosystems by targeting urbanization and farming activities. However, numerous external interferences would influence the processes of LCC in drylands during the last three decades. For instance, variation in precipitation and temperature may cause the shrinkage or expansion of wetlands. Various human activities, such as afforestation, grazing prohibition, and rest–rotation grazing, may have shaped the LCCs in global drylands. Further research is recommended on the use of indicators involving multiple drivers to obtain further information on the processes responsible.

5. Conclusions

Analysis of LCCs in global drylands is important for understanding the evolutionary mechanisms of global arid ecosystems. This study is the first to explore long-term dryland dynamics at the global scale. Four indicators, i.e., RCI, CR, EDI, and ACP, were used to capture the intensity, rate, evolutionary direction, and potential drivers of global dryland change. We examined the characteristics of LCC at the global, continental, and country scales, and several hotspots with eye-catching LCCs were highlighted. From a temporal perspective, the long-term changes (1992–2020) and the annual changes in 28 consecutive pair-years were targeted to represent the nonlinear evolutionary path of global arid ecosystems. In this manner, the pathway, direction, and anthropogenic interferences of the evolution of global arid ecosystems were examined. The main findings and inferences were as follows:

(1)

From 1992 to 2020, the global RCI, EDI, and ACP were 5.08, 0.36, and 19.87%, respectively. This indicated that global arid ecosystems generally evolved in a promising direction despite certain LCCs and human interferences. However, cautious steps are required to avoid potential issues caused by rapid urbanization and farming expansion in global drylands.

(2)

Several hotspot drylands were observed. The arid ecosystems in Australia were improved, but the lowest ACP indicated that the improvements were mainly associated with natural factors. Although arid ecosystems in Asia deteriorated, as indicated by the negative EDI, many Asian countries were noteworthy. The arid environments in China improved despite intensive LCCs and dramatic urbanization and farming expansion; the arid environments in Pakistan improved mainly because of large areas changing from bare land to grassland. The arid environments in southeastern Africa generally improved with intensive LCCs during the past three decades. The arid ecosystems in North American countries deteriorated, with 41.1% of changes caused by urbanization or farming. The arid ecosystems in South American countries also deteriorated, but 83.4% of changes were associated with changes in natural land covers. The arid ecosystems in Europe generally improved, although 50.6% of the changes were associated with urbanization and farming activities.

(3)

Global arid ecosystems experienced three phases, as indicated by RCI values: intensive change with increase in RCI values (1992–1998); stable with decline in RCI values (1998–2014); and intensive change with increase in RCI values (2015–2020). Two phases were differentiated based on EDI values, namely, a ‘deterioration’ period with mainly negative EDI values (1992–2002), and an ‘improvement’ period with mainly positive EDI values after 2002. The ACP values, in general, decreased over time, providing a clear indication that urbanization and farming gradually contributed less to dryland change (excluding 2014).

The highlighted hotspots provide evidence for the diversity of evolution in global drylands. The results inferred that urban land increased more rapidly in drylands than in non-drylands, but that farmland in drylands expanded more slowly than in non-drylands. The overall global decrease in bare land mainly occurred in drylands. Forest and grassland increased in drylands but decreased at a global scale. In contrast, wetland decreased in drylands but increased globally. These findings demonstrated the uniqueness of evolution in global drylands. The nonlinear evolutionary pathway for global dryland dynamics in the past three decades provides insights into the evolutionary mechanism for arid ecosystems worldwide. Further research is required using dynamic scenarios for drylands, remote sensing products with higher overall accuracy and improved temporal consistency, and multiple statistical indicators to build on the present results.
