Satellite Multi-Sensor Data Fusion for Soil Clay Mapping Based on the Spectral Index and Spectral Bands Approaches

Abstract

Integrating satellite data at different resolutions (i.e., spatial, spectral, and temporal) can be a helpful technique for acquiring soil information from a synoptic point of view. This study aimed to evaluate the advantage of using satellite mono- and multi-sensor image fusion based on either spectral indices or entire spectra to predict the topsoil clay content. To this end, multispectral satellite images acquired by various sensors (i.e., Landsat-5 Thematic Mapper (TM), Landsat-8 Operational Land Imager (OLI), Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER), and Sentinel2-MultiSpectral Instrument (S2-MSI)) have been used to assess their potential in identifying bare soil pixels over an area in northeastern Tunisia, the Lebna and Chiba catchments. A spectral index image and a spectral bands image are generated for each satellite sensor (i.e., TM, OLI, ASTER, and S2-MSI). Then, two multi-sensor satellite image fusions are generated, one from the spectral index images and the other from spectral bands. The resulting spectral index and spectral band images based on mono-and multi-sensor satellites are compared through their spectral patterns and ability to predict the topsoil clay content using the Multilayer Perceptron with backpropagation learning algorithm (MLP-BP) method. The results suggest that for clay content prediction: (i) the spectral bands’ images outperformed the spectral index images regardless of the used satellite sensor; (ii) the fused images derived from the spectral index or bands provided the best performances, with a 10% increase in the prediction accuracy; and (iii) the bare soil images obtained by the fusion of many multispectral sensor satellite images can be more beneficial than using mono-sensor images. Soil maps elaborated via satellite multi-sensor data fusion might become a valuable tool for soil survey, land planning, management, and precision agriculture.

1. Introduction

Soil property prediction and mapping are necessary to determine a soil’s production capabilities and, as a consequence, are excellent resources for many agricultural and environmental issues [1]. In this context, digital soil mapping (DSM) [1,2] is widely used as a tool for soil information mapping around the world. DSM is the process of developing and populating spatial soil information systems using numerical models that infer the geographical and temporal changes of soil types and attributes from soil measurements, knowing, and associated environmental factors [1]. The development of DSM as a valid option to meet the growing global need for geospatial soil data depends on its capacity to raise spatial resolutions, extend extents, and supply pertinent soil information [1]. Remote sensing satellite images have been influential among the available input data for the DSM since they may give a chronological view of the scene under investigation [2,3], and enable assessing soil parameters over time [4]. The extensive use of remote sensing satellite images may considerably increase the accuracy of DSM outputs. Indeed, remote sensing satellite images directly estimate some fundamental soil surface properties, such as soil texture (sand, clay, and silt content), carbon content, and soil salinity, e.g., [5,6,7,8].

In the literature, two common approaches have been widely applied to relate soil spectra extracted from remote sensing imagery to soil properties, including spectral indices, e.g., [9,10,11,12] and visible, near-infrared, and short wave infrared (VNIR/SWIR, 400–2500 nm) spectral bands (i.e., entire spectra) approach, e.g., [6,7,8,13]. For instance, spectral datasets based on multi- and hyper-spectral images have been used by researchers to quantify the minerals and/or physicochemical properties of the soil. Spectral indices are based on the physical analysis of spectral reflectances, such as the slope or absorption band depth value, and by combining spectral reflectance from two or more wavelengths that indicate the relative abundance of features of interest, which allows the quantifying of minerals or physicochemical properties of the soils [14]. For example, the absorption band depth values centered at 2206 and 2341 nm can be used to estimate the clay [15] and calcium carbonate (CaCO₃) [16] contents, respectively, whereas chromophores and iron oxides cause wide, weakly expressed absorption bands at wavelengths less than 1000 nm [17].

Many indices have been developed, such as the sand moisture index (SMI) [10] dedicated to sand content identification; the ferrous minerals index [18,19] and iron oxide index [18,19] created for iron content determination; the normalized soil moisture index (NSMI) [20] dedicated to moisture identification; the soil salinity spectral index (SSI) [21] used for salinity content identification; and the hue index [22] developed for soil color content identification. In addition, several spectral indices have been developed for clay content estimation, such as the Simple Ratio Clay Index (SRCI) [19], the SWIR fine particles index (FI) [10], and more recently, the Normalized Difference Clay Index (NDCI) [23]. Reference [24] used linear regression models to establish the relationship between the NDCI derived from Landsat-TM images and clay content over the Kairouan plain in central Tunisia. In addition, [9] calculated the clay index from Hyperion bands at 2193, 2203, and 2214 nm. A SWIRFI index based on the spectral bands at 2130, 2205 and 2224 nm of the AISA-DUAL hyperspectral airborne data was employed by [14] in predicting clay content.

Remote sensing image fusion integrates spatial, spectral, and temporal data from airborne and satellite sensors with various resolutions to provide a multi-sensor image fusion that contains more extensive information than each of the original data [25]. Data from multiple remote sensing sensors can be fused to significantly improve soil property prediction and mapping. For example, [4] indicated that using indices produced from multitemporal Landsat-8 data fusion instead of static terrain indices for DSM of soil parameters can improve the soil modeling and mapping for a wide range of applications. When combining gamma-ray spectrometry data with aerial photography photos, [26] discovered that the estimates of topsoil clay content improved. The authors of [27] established an empirical surface soil moisture (SSM) model via the fusion of soil moisture networks, remote sensing data (SMAP and Sentinel-1 images), and high-resolution land surface parameters (e.g., soil texture, terrain).

A possible fusion of multispectral images from many satellites can help achieve more detailed and abundant information than each satellite can provide, which can be helpful for improving soil studies and needs to be explored. This research aims (i) to assess the potential of multi-sensor bare soil images obtained by the fusion of various multispectral satellite images (i.e., Landsat-TM, Landsat-OLI, ASTER, and Sentinel-2A MSI) to predict clay content using spectral indices vs. spectral bands approaches and (ii) to compare their performances with those obtained from single-sensor images. Our hypothesis is that fusion satellite images provide high-quality data and more continuous, detailed, and abundant soil information than single-satellite images, based on both spectral indices and spectral band approaches, which can improve the digital mapping of soil properties.

2. Materials and Methods

2.1. Study Area

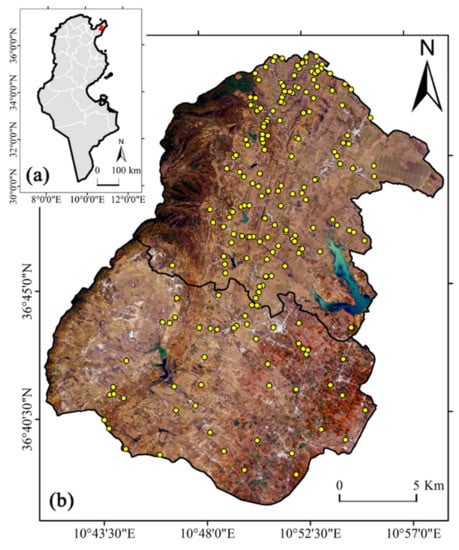

The study was conducted over the Lebna and Chiba catchments within the Cap-Bon region in northeastern Tunisia (Figure 1a,b). The Lebna and Chiba catchments cover an area of 210 and 220 km², respectively [28]. The catchments’ upstream components, mainly in the northwestern region, have mountainous relief, while the downstream components, corresponding to the southeastern region, have a flat area (Figure 1b). The Jebel Abderrahmane is the western limit of the upstream section of the Lebna and Chiba watersheds, covered by scrubland and forest, with a maximum altitude of 650 m. The study area is an agricultural region with intense plant production, including fruit culture, field crops (cereals, legumes), fodder crops, grazing pastures, condiments, and olive cultivation. The area is distinguished by a broad range of parent materials, notably limestone, marls, sand, sandstones, dunes, and detrital deposits developed during the Cenozoic era. This lithological complexity has resulted in the evolution of several soil types, including Regosols, Calcic Cambisols, Vertisols, Cambisols, Rendzina, Ferralitic, and Iso-humic soils [29].

Both catchments have a typical Mediterranean climate, with hot, dry summers and pleasant, chilly winters. Climate influence varies from a rainy regime at the top of the Jebel in the northwest, with more than 700 mm/year, to a semi-arid climate in the southeast, with less than 500 mm/year. The rainy season begins at the end of September and continues through February with moderate rain. The evaporative demand is roughly 1200 mm. In the summer, the highest temperature can reach 45 °C.

2.2. Soil Dataset and Sampling Collection

Soil samples were taken at a 0–5 cm depth during the soil studies conducted between October 2008 and November 2010. Five sub-samples were taken at random at every soil sample site inside a 10 × 10 m² square plot. The central geographical position was registered using a Garmin GPS navigation system and georeferenced. The clay content (granulometric fraction inferior to 2 μm) was measured using the pipette method (method NF 31–107, particle size distribution by sedimentation) after drying, homogenizing, and sieving to 2 mm of all the samples [30].

2.3. Multispectral Satellite Data and Bare Soil Images

2.3.1. Multispectral Satellite Data

Multispectral satellite images acquired by Landsat-5 TM [31], Landsat-8 OLI [31], ASTER [32], and Sentinel-2A MSI [33] were used for the purpose of this study (

Table 1. Spectral, spatial, and temporal characteristics of Landsat-5 TM, Landsat-8 OLI, ASTER, and Sentinel-2A MSI satellite sensors.

Multispectral Satellites	Spatial Resolution	Bands	Spectral Ranges (nm)	Acquisition Date
Landsat-5 TM	30 m	B1—Blue	450–520	14 August 2008
		B2—Green	520–600
		B3—Red	630–690
		B4—NIR	760–900
		B5—SWIR1	1550–1750
		B7—SWIR2	2080–2350
Landsat-8 OLI	30 m	B2—Blue	450–510	27 July 2013
		B3—Green	530–590
		B4—Red	640–670
		B5—NIR	850–880
		B6—SWIR1	1570–1650
		B7—SWIR2	2110–2290
ASTER	15 m	B1—Green	520–600	3 July 2004
		B2—Red	630–690
		B3N—NIR1	780–860
	30 m	B4—SWIR1	1600–1700
		B5—SWIR2	2145–2185
		B6—SWIR3	2185–2225
		B7—SWIR4	2235–2285
		B8—SWIR5	2295–2365
		B9—SWIR6	2360–2430
Sentinel-2A MSI	10 m	B2—Blue	457.5–522.5	30 August 2015
		B3—Green	542.5–577.5
		B4—Red	650–680
		B8—NIR1	784.5–899.5
	20 m	B5—RED1	697.5–712.5
		B6—RED2	732.5–747.5
		B7—RED3	733–793
		B8a—NIR2	855–875
		B11—SWIR1	1565–1655
		B12—SWIR2	2100–2280

Notes: NIR: near-infrared, SWIR: shortwave infrared, TIR: thermal infrared.

). The Landsat-TM and OLI images were level-1 precision terrain (L1TP) products. The ASTER images were level-1 precision terrain, corrected and registered, at-sensor radiance (AST_L1T) products. The Sentinel-2A MSI image was a level-1C top-of-atmosphere (TOA) reflectance data product. One scene of the Landsat-TM, Landsat-OLI, and Sentinel-2A data and two scenes of the ASTER data were selected to cover the entire study area and were registered on 14 August 2008, 27 July 2013, 30 August 2015, and 03 July 2004, respectively, (Table 1). The multispectral satellite images were chosen during the summer season to avert the soil moisture caused by rain, cloud cover, and the impact of green vegetation. All images were radiometrically calibrated, atmospherically corrected, and converted to surface reflectance using the QUick Atmospheric Correction (QUAC) method [34]. The blue, green, red, and NIR1 bands of the Sentinel-2A image (i.e., bands 2, 3, 4, and 8A, respectively) were resampled to 20 m using the resample toolbox and the nearest neighbor technique [35] in ENVI software to guarantee that all Sentinel-2A spectral bands had an equal spatial resolution. The same treatment was carried out for the ASTER spectral bands with 15 and 30 m pixel sizes (band B1 to B3N and band B4 to B9), which were resampled to 30 m.

2.3.2. Bare Soil Images

The normalized difference vegetation index (NDVI) [36,37] was generated to mask the green vegetation in each image. Following a field visual inspection of different plots, a threshold value of NDVI equal to 0.22 was determined. Pixels with a reflectance value of less than 0.25 at 2100 nm, corresponding to bands 7 for the Landsat-TM and OLI, and bands 5 and 12 for the ASTER and Sentinel-2A, respectively, were designated dry vegetation coverage pixels and also masked. Pixels with a reflectance value of less than 0.28 at 1600 nm, corresponding to bands 5, 6, 4, and 11 of the Landsat-TM, OLI, ASTER, and Sentinel-2A, respectively, were considered as pixels covered by water and were also masked. The urban areas were also masked following a visual inspection. For further analysis, the green and dry vegetation, water, and urban areas were removed based on these diverse masks to maintain bare soil pixels in the satellite images, which we will refer to as the “bare soil images”.

2.4. Multi-Sensor Image Fusion

The Sentinel-2A MSI bare soil image has a spatial resolution of 20 m, and to group with the Landsat-5 TM, Landsat-8 OLI, and ASTER bare soil images, it was resampled to 30 m using the nearest neighbor method [35] in ENVI software. The Landsat-5 TM, Landsat-8 OLI, ASTER, and Sentinel-2A bare soil images at 30 m pixel sizes were named TM_S, OLI_S, AST_S, and S2A_S, respectively. A fifth image was obtained by fusing bare soil pixels onto only the common areas between these images (i.e., TM_S, OLI_S, AST_S, and S2A_S images) and was denoted as Fusion_SB. The resulting Fusion_SB image with 31 spectral bands at a 30 m spatial resolution was performed using the ENVI layer stacking tool.

2.5. Spectral Index Images

Spectral index images of the clay contents, named TM_SI, OLI_SI, and S2A_SI, were generated using the spectral index proposed by [19] from the TM_S, OLI_S, and S2A_S bare soil images, respectively, as follows:

$${\mathrm{ClayIndex}}_{\left(\mathrm{CI}\right)}= \mathrm{SWIR}1/\mathrm{SWIR}2$$

(1)

where SWIR1 corresponded to the spectral range from 1550 to 1750 nm, 1570 to 1650 nm, and 1565 to 1655 nm, for the TM_S, OLI_S, and S2A_S images, respectively (Table 1). SWIR2 corresponded to the spectral range from 2080 to 2350 nm, 2110 to 2290 nm, and 2100 to 2280 nm, for the TM_S, OLI_S, and S2A_S images, respectively (Table 1).

A spectral index image of the clay contents, named AST_SI, was generated from the AST_S bare soil image, using the spectral index proposed by [38] as follows:

$${\mathrm{ClayIndex}}_{\left(\mathrm{CI}\_\mathrm{AST}\right)}= \mathrm{SWIR}2\times \mathrm{SWIR}4/\mathrm{SWIR}3$$

(2)

where SWIR2, SWIR3, and SWIR4, corresponded to the spectral ranges from 2145 to 2185 nm, 2185 to 2225 nm, and 2235 to 2285 nm, respectively, and corresponding to the AST-band B5, AST-band B6, and AST-band B7, respectively.

2.6. Multi-Sensor Satellite Data Fusion of Spectral Index Images

All satellite clay spectral index images (i.e., TM_SI, OLI_SI, AST_SI, and S2A_SI) were fused on the only common area to form a single image with 30 m of spatial resolution, which reunited the four clay spectral index images, named Fusion_SI. This data fusion integrated the clay spectral index images derived from several multispectral remote sensing datasets at different spatial, spectral, and temporal resolutions to collect more abundant information. The spectral index processing and data fusion were implemented using the ENVI software.

2.7. Statistical Analysis

2.7.1. Soil Line Analysis

The soil line analysis approach [39] was used to determine if the applied masks may successfully recover bare soil pixels from each multispectral image (i.e., TM_S, OLI_S, AST_S, and S2A_S images). The reflectance values of the NIR and Red bands corresponding to the TM-bands B4 and B3, OLI-bands B5 and B4, AST-bands B3 and B2, and S2A-bands B8 and B4 (Table 1), were plotted on an XY graph, and regression analyses were conducted between them. The better the coefficient of determination (R²) between the reflectance values of the NIR and Red bands, the nearer the scatter points were to the 1:1 line. Therefore, the applied masks were able to isolate the bare soil patches correctly.

2.7.2. Canonical Correlation Analysis

Canonical correlation analysis (CCA) [40,41] was carried out between the four multispectral images and only in the common bare soil pixels (i.e., on TM_S, OLI_S, AST_S, and S2A_S) to evaluate the spectral similarities between them. Each image’s spectral bands were reduced to discrete canonical variables using a multivariate linear transformation, equivalent to substituting a group of variables with uncorrelated components [41]. The higher the canonical correlations, the greater the spectral signatures were comparable amongst the multispectral images. This analysis was performed using SPSS software.

2.7.3. Pearson’s Correlation Analysis

Pearson’s correlation coefficient (r) was performed between the clay values and both the spectral band and spectral index values to evaluate the relevance of the derived remote sensing data for the clay content prediction. The p-value indicates whether the clay values were statistically significantly correlated with the spectral bands and spectral index in the Pearson’s correlation analysis.

2.7.4. Spatial Regression Models

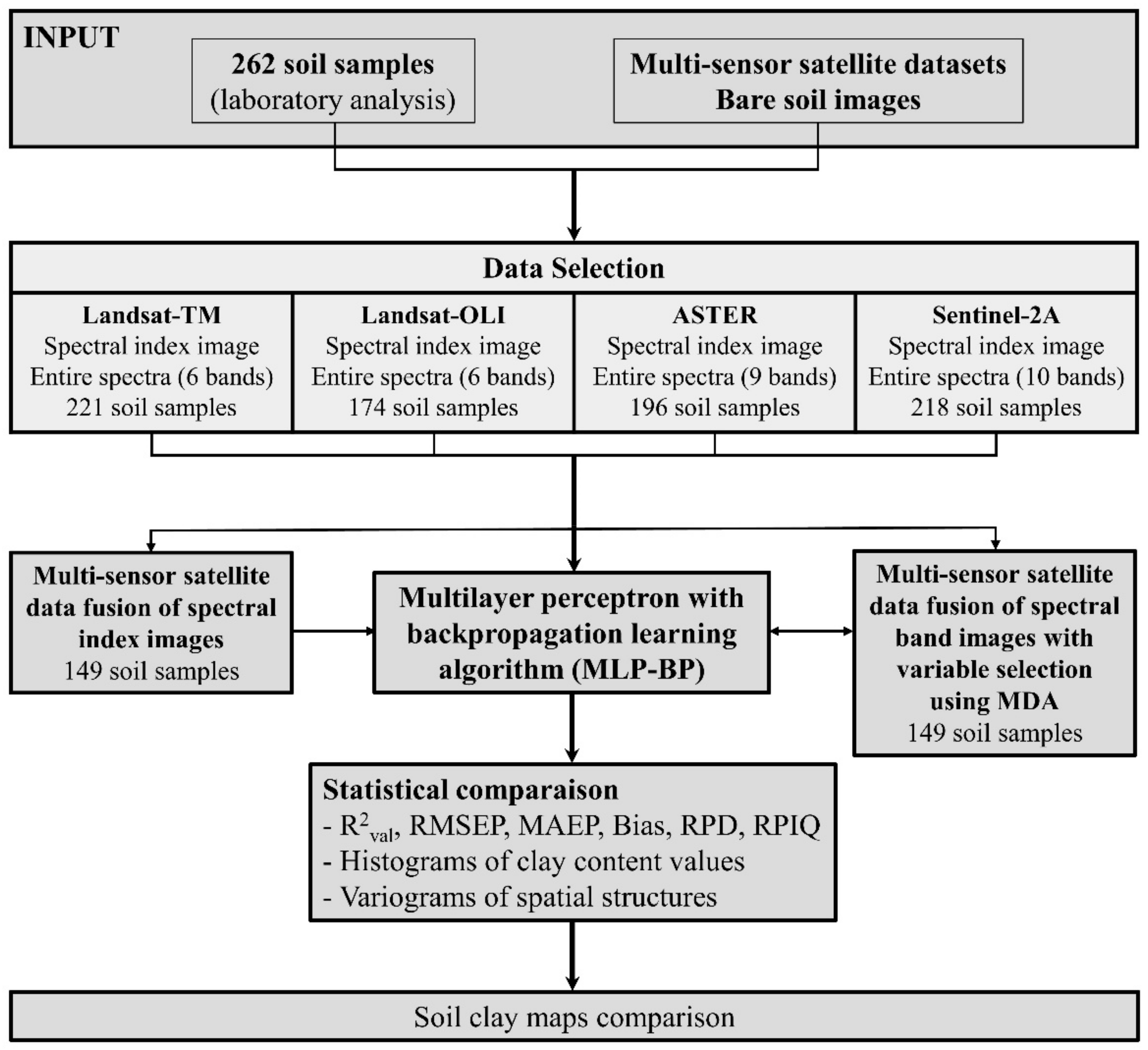

The predictions of the soil clay content using TM, OLI, AST, S2A, and fusion images were performed following two approaches: (a) using the spectral index of each multispectral image (i.e., TM_SI, OLI_SI, AST_SI, S2A_SI, and Fusion_SI) and (b) the VNIR-SWIR spectral bands of each multispectral image (i.e., TM_S, OLI_S, AST_S, S2A_S, and Fusion_SB), as predictors, for a total of ten predictor images (Figure 2). The soil sample datasets for each image were split into training (75%) and validation (25%) using the Unscrambler software package [42]. The response variables (i.e., Y_clay, clay content) were ordered in increasing rank. The lower clay content sample was first attributed to a validation set, followed by the next three samples in the training set. The process was then carried out by successively placing the next sample in the validation set and the subsequent three samples in the training set. This division guaranteed that the clay content in the training and validation sets was distributed similarly.

In this study, we relied on AutoML to select the best regression model and corresponding hyper-parameters on the given data. We chose to run the Auto-WEKA [43], which is an AutoML system based on the popular machine learning and data mining platform, WEKA software [44]. Auto-WEKA was the first AutoML system that considered the problem of simultaneously selecting a machine learning algorithm and optimizing its hyperparameters.

Among the popular machine learning algorithms, the Multi-Layer Perceptron (MLP) [45] network with a backpropagation (BP) algorithm has been widely used in practice for classification and regression problems. The MLP is a neural network that has a number of hidden layers of neurons. The connections between the neurons have a weight, which is obtained from a backpropagation algorithm. In the experiments, only one hidden layer was used in the MLP. The number of neurons in this layer, the learning rate, and momentum parameters were optimized through internal cross-validation in order to maximize the precision and accuracy of the results. The WEKA Multisearch package was used for this purpose.

2.7.5. Variable Selection Using MLP-BP Mean Decrease in Accuracy (MDA)

Feature selection was used to select the most pertinent and discriminative bands from the Fusion_SB image. Thus, it could identify and reduce as much irrelevant and redundant information as possible, thereby leading to the good predictive performance of the soil clay content. A mean decrease accuracy (MDA) [46] based on multilayer perceptron with the backpropagation learning algorithm (MLP-BP) evaluated the available band’s characteristics and ranked all bands based on the variable importance criterion for each band. MDA utilized the capability of the MLP-BP to evaluate the spectral bands of the Fusion_SB image during the training stage. After the MDA rankings, the spectral bands that had zero or negative contributions to the predicting clay content were removed from the Fusion_SB image. The remaining bands were then examined in descending order of MLP-BP models, with the smallest and most accurate model being kept. In more detail, if the introduction of a spectral band provided no increase in the model accuracy, then the said band was removed from the Fusion_SB image. At the final step of the procedure, we obtained a fusion image with the most discriminant features and this was denoted as Fusion_S.

2.7.6. Model Performances Assessment

The performance in the validation sets of the MLP-BP models was evaluated by the coefficient of determination of validation (${\mathrm{R}}_{\mathrm{val}}^2$), the root mean square error of prediction (RMSEP), the mean absolute error of prediction (MAEP), the bias of prediction on validation sets, the ratio of the performance to the deviation on the validation set (RPD, [47]) and the ratio of performance to interquartile on the validation set (RPIQ, [48]). The predicted clay values and the produced maps were realized using the prediction tools of the WEKA software [44] and the ArcGis software package [49].

2.7.7. Spatial Structure Analysis

The spatial structure of the predicted clay contents was evaluated by examining their variogram characteristics, which quantified their spatial dependence. The semi-variance for the soil clay values to be displayed on a variogram was calculated using the formula [50]:

$$\gamma \left(h\right)=\frac{1}{2N\left(h\right)}{\displaystyle \sum }_{i=1}^{N\left(h\right)}{\left\{z\left(x_i\right)-z\left(x_i+h\right)\right\}}^2$$

(3)

where h is the lag distance, $\gamma \left(h\right)$ is the semi-variance of the soil clay content at a lag distance h, $N\left(h\right)$ is the total population of sample pairs at lag distance h, z is the value of the clay content, x is the position of point i on the landscape, and $z\left(x_i+h\right)$ is the clay value at the position $x_i+h$. The variograms were calculated for the observed values dataset and maps estimated by spectral index (i.e., TM_SI, OLI_SI, AST_SI, and S2A_SI), spectral bands (i.e., TM_S, OLI_S, AST_S, and S2A_S), and image data fusion (i.e., Fusion_SI and Fusion_S) using Surfer-15 software (Golden Software, LLC).

3. Results

3.1. Bare Soil Images and Spectral Pattern Descriptions

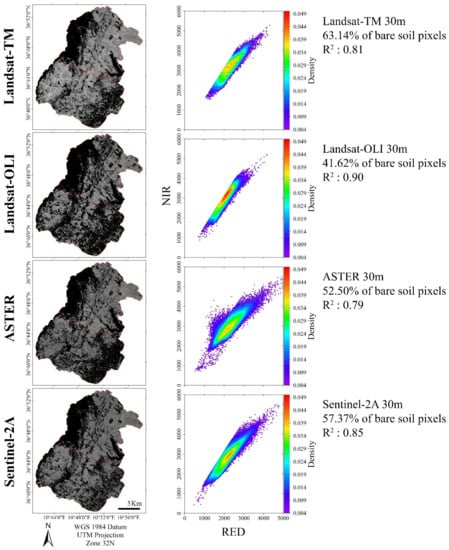

The TM image had the highest bare soil pixels percentage (63.14%), followed by the S2A (57.37%), AST (52.50%), and OLI (41.62%) images (Figure 3). The bare soil’s surface variation was related to the different acquisition years of the multispectral scenes. According to the soil line analysis, the OLI image best described the bare soil patterns in the study region, with the highest coefficient of determination (${\mathrm{R}}^2$ = 0.90). In contrast, the AST image had the lowest representation (${\mathrm{R}}^2$ = 0.79) of all the examined images (Figure 3). The four multispectral remote sensing datasets had 34.6% of the common bare soil pixels. The canonical correlation analysis between these common bare soil pixels showed that the TM and OLI, as well as the OLI and S2A, had the highest coefficient (0.90) (

Table 2. Canonical correlation analysis between the common bare soil area of multispectral images, with the first canonical function.

Bare Soil Images	OLI_S	AST_S	S2A_S
TM_S	0.90 1	0.82	0.89 1
OLI_S		0.79	0.90 1
AST_S			0.84

¹ Strongest correlation. TM_S, OLI_S, AST_S, and S2A_S are the Landsat-TM, Landsat-OLI, ASTER, and Sentinel-2A bare soil images at a 30 m spatial resolution, respectively.

). The percentage of bare soil pixels over both fusion images (i.e., Fusion_SI and Fusion_SB) was equal to 34.6%, which corresponds to the common bare soil area between all derived-multispectral images.

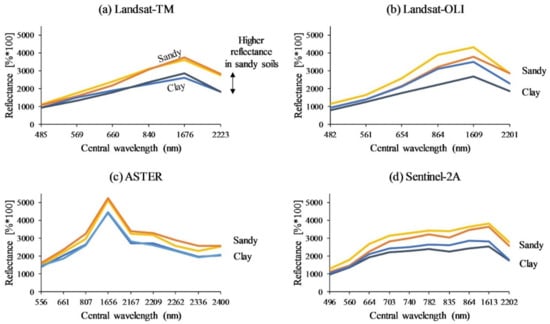

Based on the spectral characteristics of multispectral satellite images (i.e., TM, OLI, AST, and S2A images) (Figure 4), the reflectance values rose as the clay content dropped [8]. The TM and OLI spectra appeared very similar (Figure 4a,b). The reflectance values of the sandy soils were greater than those of the clay soils; however, the differences were noticeable in the NIR-SWIR wavebands regardless of the sensor (Figure 4).

3.2. Descriptive Statistics of Clay Soil Samples and Correlation with Bare Soil Images

The entire soil sample dataset contained 262 soil measurements. Due to the different number of bare soil pixels in each image, the dataset was reduced to 221, 174, 196, 218, and 149 soil data for the TM, OLI, AST, S2A, and fusion images, respectively (

Table 3. Statistics of the sample datasets used for the satellite images.

Images	NS	Min	Q1	Mean	Q3	Max	SD	IQ	CV	Sk
TM	221	25	256	402	558	772	182	302	45	0.14
OLI	174	94	278	423	571	772	179	292	42	0.11
AST	196	46	261	412	564	772	182	302	44	0.09
S2A	218	50	260	400	556	772	179	296	44	0.19
Fusion	149	94	292	435	575	772	179	283	41	0.03

Notes: NS—number of samples; Q1—first quartile (g/kg); Q3—third quartile (g/kg); SD—standard deviation (g/kg); IQ—interquartile (g/kg); CV—coefficient of variation (%); Sk—skewness.

). The descriptive statistics results of the sample datasets used for each satellite image revealed a significant degree of similarity between the clay content values of the soil sample datasets. Based on the analysis of variance (ANOVA) results, no significant variations in the analyzed clay content values were observed at the 0.01 alpha level. The coefficient of variation (CV, reported in percent) was between 41 and 45% in all datasets. The TM soil samples had the highest CV, indicating that the TM soil sample set was the most varied in these datasets. In all datasets, the interquartile and standard deviation ranged from 283 to 302 g/kg and 179 to 182 g/kg, respectively. Finally, a soil sample with a clay content of 772 g/kg was reported in all datasets (Table 3).

The Pearson’s correlation coefficients between the spectral bands of the TM, OLI, AST, and S2A bare soil images and the measured clay values (

Table 4. Pearson’s correlation coefficient (r) between the spectral bands of TM, OLI, AST, and S2A bare soil images and measured clay value datasets.

Images	Band Name	Band Number	r	p-Value
TM_S	Blue	B1	−0.04	0.55
	Green	B2	−0.05	0.41
	Red	B3	−0.19 1	0.00 **
	NIR	B4	−0.42 1	0.00 **
	SWIR1	B5	−0.58 1	0.00 **
	SWIR2	B7	−0.72 1	0.00 **
OLI_S	Blue	B2	−0.09	0.22
	Green	B3	−0.09	0.20
	Red	B4	−0.18 1	0.01 *
	NIR	B5	−0.29 1	0.00 **
	SWIR1	B6	−0.51 1	0.00 **
	SWIR2	B7	−0.71 1	0.00 **
AST_S	Green	B1	−0.13	0.52
	Red	B2	−0.24 1	0.00 **
	NIR1	B3N	−0.38 1	0.00 **
	SWIR1	B4	−0.59 1	0.00 **
	SWIR2	B5	−0.63 1	0.00 **
	SWIR3	B6	−0.64 1	0.00 **
	SWIR4	B7	−0.64 1	0.00 **
	SWIR5	B8	−0.67 1	0.00 **
	SWIR6	B9	−0.60 1	0.00 **
S2A_S	Blue	B2	−0.12	0.05
	Green	B3	−0.13	0.05
	Red	B4	−0.31 1	0.00 **
	RED1	B5	−0.36 1	0.00 **
	RED2	B6	−0.43 1	0.00 **
	RED3	B7	−0.47 1	0.00 **
	NIR1	B8	−0.50 1	0.00 **
	NIR2	B8a	−0.53 1	0.00 **
	SWIR1	B11	−0.62 1	0.00 **
	SWIR2	B12	−0.72 1	0.00 **

¹ Strongest correlation. *—Significant at 5% probability. **—Significant at 1% probability.

) showed the significantly correlated bands of multispectral images with the measured clay values (p-value less than 0.05). All the spectral bands of the satellites’ multispectral images revealed a negative correlation with the soil clay content values. All datasets’ clay values demonstrated high correlation coefficients with the Red, RedEdge, NIR, and SWIR bands of the multispectral images (Table 4). The clay content was most correlated with the spectral bands TM-B7, OLI-B7, AST-B8, and S2A-B12, with r values equal to −0.72, −0.71, −0.67, and −0.72, respectively (Table 4). This most correlation is due to the clay minerals’ characteristic hydroxyl absorption around 2200 nm, caused by a mixture of vibrations related to the OH and OH-Al-OH bonds [15,51].

All clay value datasets were significantly correlated with the clay spectral index of each multispectral image, although the S2A_SI had the highest correlation (r = −0.71,

Table 5. Pearson’s correlation coefficient (r) between the spectral index of TM, OLI, AST, and S2A bare soil images and measured clay value datasets.

Images	Clay Index	Bands	r	p-Value
TM_SI	SWIR1/SWIR2	B5/B7	−0.66 1	0.00 **
OLI_SI	SWIR1/SWIR2	B6/B7	−0.68 1	0.00 **
AST_SI	SWIR2×SWIR4/SWIR3	B5×B7/B6	−0.61 1	0.00 **
S2A_SI	SWIR1/SWIR2	B11/B12	−0.71 1	0.00 **

¹ Strongest correlation. **—Significant at 1% probability.

).

3.3. Selected Features from the Spectral Bands of the Fusion Image

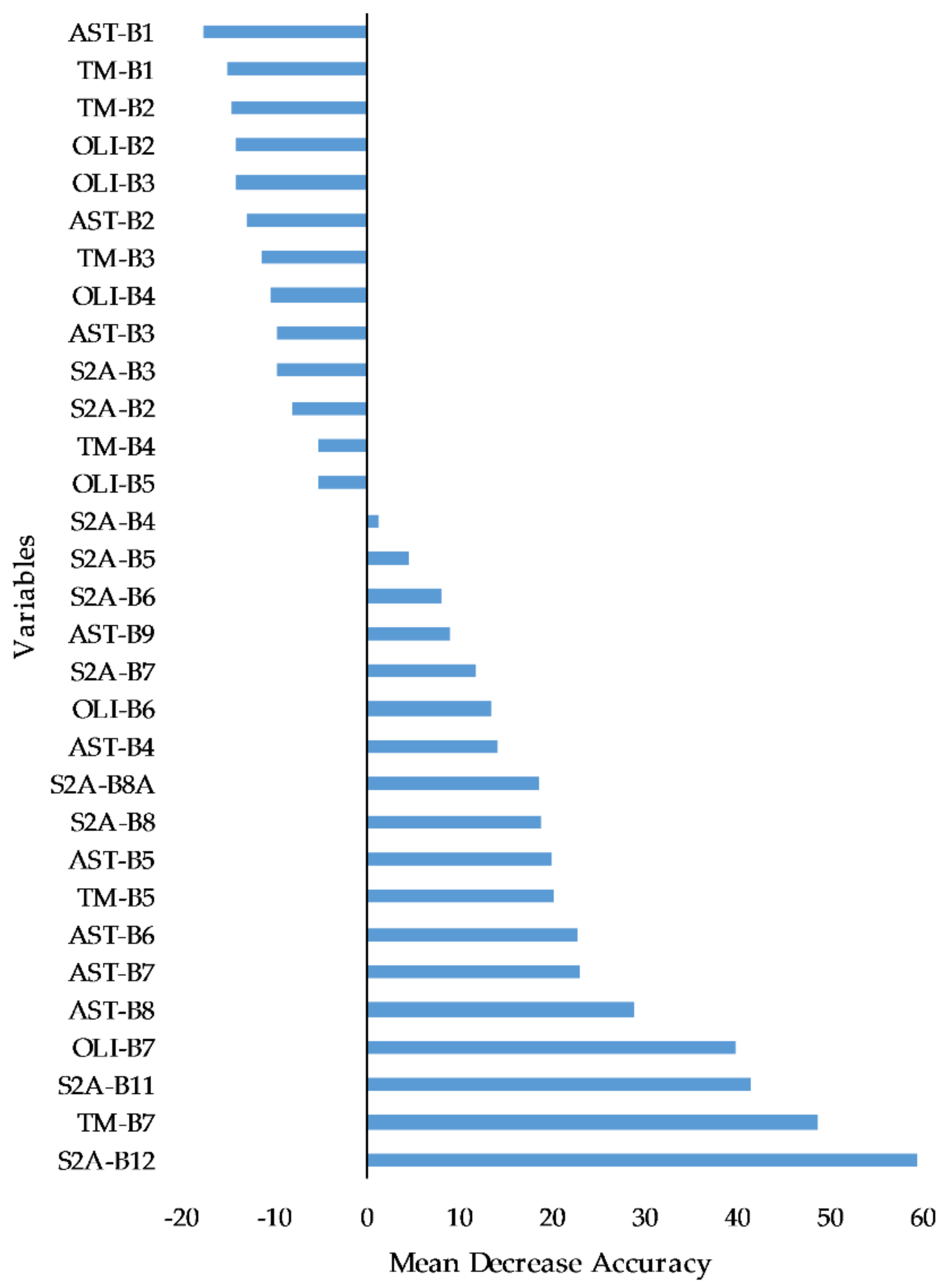

The importance of each spectral band of the Fusion_SB image was derived from the MDA based on the MLP-BP algorithm and plotted on Figure 5 in order to investigate the feature rankings. The spectral bands S2A-band B12 (2100–2280 nm) and TM-band B7 (2080–2350 nm) were the most important for predicting the soil clay content. This spectral range had a central wavelength of around 2200 nm, which corresponds to an absorption characteristic caused by the combination of OH-Al bending and OH stretching modes [15]. Other variables that exerted important impacts were the S2A-band B11, followed by the OLI-band B7 and AST-band B8 (Figure 5). The AST-band B7, AST-band B6, TM-band B5, AST-band B5, S2A-band B8, S2A-band B8A, AST-band B4, and OLI-band B6 were identified as the factors group with a moderate importance to predict soil clay content. The other variables (i.e., S2A-band B7, AST-band B9, S2A-band B6, S2A-band B5, and S2A-band B4) emerged as having weak impacts. Although these variables might not be particularly predictive by themselves alone, some can increase the model accuracy through their interactions with other variables [52]. Additionally, thirteen bands had no impact on the prediction performance (Figure 5). Finally, from the Fusion_SB image, the variable selection using the MDA based on MLP-BP selected a feature subset of eight attributes for the clay prediction. This feature subset included the spectral bands S2A-band B12, TM-band B7, OLI-band B7, TM-band B5, S2A-band B8, OLI-band B6, S2A-band B7, and AST-band B9, which were selected to generate the Fusion_S image.

3.4. Spectral Index vs. Spectral Bands Prediction Performances

Based on the Auto-WEKA results, the MLP-BP was selected as the best regression model for the datasets. The MLP-BP models generated from spectral index images (i.e., TM_SI, OLI_SI, AST_SI, and S2_SI) performed poorly regardless of the sensor (0.43 ≤ ${\mathrm{R}}_{\mathrm{val}}^2$ ≤ 0.51, and 126.42 ≤ RMSEP ≤ 140.24 g/kg,

Table 6. Model performances of clay content (in g/kg) for validation datasets following spectral index and spectral bands approaches.

Images	NB	NS	H	L	M	${\mathbf{R}}_{\mathbf{val}}^{\mathbf{2}}$	RMSEP	MAEP	Bias	RPD	RPIQ
TM_SI	One	221	2	0.01	0.00	0.43	140.24	112.29	6.64	1.34	2.14
OLI_SI	One	174	1	0.01	0.00	0.51	126.42	99.65	−4.33	1.45	2.30
AST_SI	One	196	1	0.01	0.33	0.45	135.09	109.39	−4.22	1.36	2.19
S2A_SI	One	218	1	0.03	0.00	0.48	130.21	100.77	18.69	1.41	2.23
Fusion_SI	Four	149	5	0.01	0.43	0.61	114.18	90.92	−28.47	1.63	2.50
TM_S	Six	221	3	0.01	0.67	0.61	115.64	88.37	47.91	1.62	2.60
OLI_S	Six	174	3	0.01	0.60	0.67	102.96	81.10	2.82	1.78	2.82
AST_S	Nine	196	1	0.01	0.47	0.60	114.55	91.86	−13.57	1.60	2.59
S2A_S	Ten	218	2	0.01	0.65	0.71	96.45	73.29	22.35	1.90	3.01
Fusion_S	Eight	149	1	0.01	0.33	0.78	87.84	69.99	−16.79	2.12	3.25

Notes: SI: spectral index. S: spectral bands. NB: number of spectral indices or bands used in predictions. NS: number of samples. H: number of neurons in the hidden layer. L: learning rate. M: momentum. The highest performances are in bold.

); however, the MLP-BP model built from the spectral index image fusion (Fusion_SI) provided good performance (${\mathrm{R}}_{\mathrm{val}}^2$ = 0.61 and RMSEP = 114.18 g/kg, Table 6), outperforming the MLP-BP models built from individual spectral index images (Table 6).

The MLP-BP models created from the multispectral images (TM_S, OLI_S, AST_S, and S2A_S) showed accurate results (0.60 ≤ ${\mathrm{R}}_{\mathrm{val}}^2$ ≤ 0.71, and 96.45 ≤ RMSEP ≤ 115.64 g/kg, Table 6), whereas the clay prediction model built using the S2A_S spectra provided the higher performance, taking advantage of the sentinel-2 MSI sensor’s ten spectral bands. The clay prediction model created using the AST_S spectra performed worse, although the ASTER sensor had nine spectral bands. The MLP-BP model built from the fusion image (Fusion_S) performed excellently (${\mathrm{R}}_{\mathrm{val}}^2$ = 0.78, and RMSEP = 87.84 g/kg, Table 6), outperforming the MLP-BP models built from individual multispectral images (Table 6).

3.5. Predicted Soil Maps and Spatial Structure Analysis

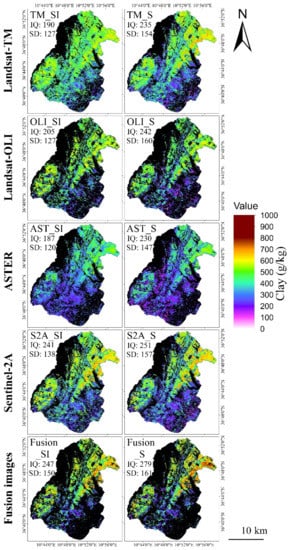

The MLP-BP models were applied to their corresponding bare soil images to provide the predicted clay content maps (Figure 6). The predicted clay content maps derived from the spectral index approach showed a globally similar distribution of clay spatial patterns regardless of the percentage of bare soil areas, as was the case for the maps derived from the VNIR-SWIR spectral bands approach. On these predicted clay maps, the south-eastern part of the studied area presented low concentrations of soil clay, whereas the north-eastern part of the area presented high concentrations, regardless of the map (Figure 6). Moreover, the clay content map predicted using the Fusion_S showed clay content values slightly higher than the other maps, regardless of the maps region.

For each satellite sensor, both the spectral index and VNIR-SWIR spectral bands images were able to represent the variability of the soil clay content; however, with the spectral images, the interquartile and standard deviation values were higher than those obtained with the spectral index images. Both the Fusion_SI and Fusion_S clay content maps, which had the best performance (Table 6), showed high interquartile and standard deviation values in contrast to the other predicted maps. Depending on the images used to create the predicted clay maps, the IQ varied from 187 g/kg (obtained from the AST_SI image) to 279 g/kg (obtained from the Fusion_S image). Thus, the standard deviation varied from 120 g/kg (obtained from the AST_SI image) to 161 g/kg (obtained from the Fusion_S image) (Figure 6).

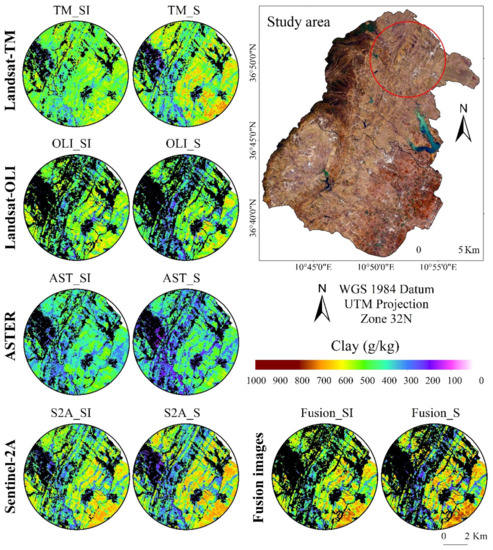

Figure 7 shows a zoom over a small area of the predicted clay maps, characterized by strong variations in the soil patterns on a small scale, with a close succession of clay-rich areas (brown color) and clay-poor areas (sky blue color) oriented northwest/southeast, corresponding to marl and sandstone outcrops, respectively. Following the VNIR-SWIR spectral bands approach, the predicted clay maps exhibited more clearly short-range variations in soil patterns, with a close succession of clay-rich areas and clay-poor areas, than the maps following the spectral index approach (Figure 7). Between the clay maps based on the fusion of the spectral index and VNIR-SWIR spectral bands images, the Fusion_S showed slightly higher clay values than the Fusion_SI values. It should be noted that the changes in the bare soil spatial coverage are small among the Landsat-5 TM, Landsat-8 OLI, ASTER, and Sentinel-2A images (Figure 7).

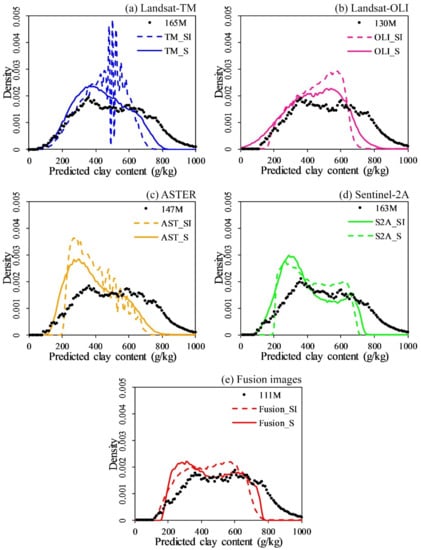

Histograms analysis of the predicted maps over the Lebna and Chiba catchments showed a normal distribution of clay content, with the exception of the histogram of predicted values from the TM_SI around 500 g/kg, which represents an extremely weak density (Figure 8). The histograms of predicted values from the TM, AST, and S2A images showed a histogram peak of around 300 g/kg, while the histograms of predicted values from the OLI image showed a histogram peak of around 500 g/kg (Figure 8). This may be due to the training database’s clay values, which were slightly higher than the other databases (see Table 3 and Figure 8). Moreover, the distribution of clay contents predicted using the spectral index images (TM_SI, OLI_SI, AST_SI, and S2A_SI) shifted to slightly higher values compared to those obtained from the VNIR-SWIR spectral bands images. This means that the pedological variability of the study area is more represented in the predicted clay content maps obtained using the VNIR-SWIR spectral bands images (TM_S, OLI_S, AST_S, and S2A_S) than in the spectral index images (TM_SI, OLI_SI, AST_SI, and S2A_SI). Thus, the maps predicted using the fusion images exhibited a wider distribution of clay content values than the other images (Figure 8).

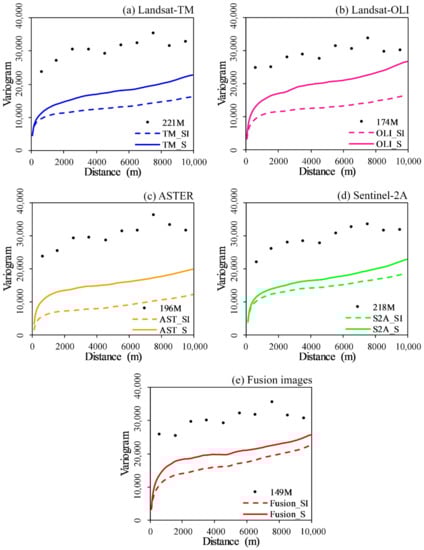

Finally, the variograms of the measured clay content values (dots in Figure 9) had higher variance than the predicted values, regardless of the sample datasets used for each satellite image. Thus, the spatial structures of the estimated clay contents obtained by the VNIR-SWIR spectral bands images exhibited very high sills compared to the spectral index images (Figure 9). By contrast, the variance obtained by the spectral index image fusion exhibited a very high sill and strong variations compared to those obtained by a single sensor spectral index image. Finally, the variogram obtained by the VNIR-SWIR spectral bands image fusion was higher.

4. Discussion

4.1. Clay Predictions Depending on the Multispectral Sensor

The models based on multispectral images (i.e., TM_S, OLI_S, AST_S, and S2A_S) provided acceptable accuracies with ${\mathrm{R}}_{\mathrm{val}}^2$ values between 0.60 and 0.71, RMSEP values between 96.45 and 115.64 g/kg, MAEP values between 73.29 and 91.86 g/kg, RPD values between 1.60 and 1.90, and RPIQ values between 2.59 and 3.01 (Table 6). This performance variance could be explained by differences in satellite remote sensing datasets’ acquisition dates (i.e., date ranges), as previously shown by [53]. Moreover, though the bands of each sensor cover similar spectral domains, they were not exactly the same (Table 1). Additionally, different acquisition conditions and view angles between the sensors can result in differences between the recorded datasets [54]. The model performance obtained from the S2A_S image was superior to that obtained by [6], who also used the ten bands of the Sentinel-2A (S2A) and a PLSR model. Similar results were obtained by [8] using Sentinel-2 MSI and Landsat-8 OLI images for clay content prediction, with R² values of 0.68 and 0.62, respectively. Moreover, [29] also found similar performance using the MLR model and nine bands of the ASTER image, while [55] obtained a high prediction accuracy of soil clay content using a mean spectral reflectance from bare soil pixels along a Landsat-TM time series.

4.2. Clay Predictions Obtained from Spectral Indexes vs. Entire Spectra

Whatever the sensor, the models built using the entire VNIR-SWIR spectra outperformed the models built using spectral indexes (Table 6). The models built from the four spectral index images (i.e., TM_SI, OLI_SI, AST_SI, and S2A_SI) performed poorly (0.43 ≤ ${\mathrm{R}}_{\mathrm{val}}^2$ ≤ 0.51, 126.42 ≤ RMSEP ≤ 140.24 g/kg, 99.65 ≤ MAEP ≤ 112.29 g/kg, 1.34 ≤ RPD ≤ 1.45, and 2.14 ≤ RPIQ ≤ 2.30, respectively; Table 6), and this could be explained by the lack of spectral information. These prediction accuracy results were in agreement with those obtained by [23], who used a Simple Ratio Clay Index (SRCI) and a Normalized Difference Clay Index (NDCI) based on Landsat-OLI imagery for clay content mapping in Indonesia. Accuracy assessment of the regression models based on independent validation showed that both clay indexes provided low performances, with ${\mathrm{R}}^2$ values of 0.42 and 0.40, respectively [23]; however, [24] used Simple Linear Regression (SLR) to establish the relationships between many NDCI-Landsat TM and clay content over the Kairouan plain in Tunisia and obtained results with ${\mathrm{R}}^2$ values that varied between 0.48 and 0.73.

4.3. Added-Value of Fusion Images

The best-performer models were obtained using multi-sensor image fusion incorporating spectral bands or spectral index images (Table 6). Effectively, the model with the best performance for the spectral bands approach was founded on the Fusion_S image, with an ${\mathrm{R}}_{\mathrm{val}}^2$ of 0.78, an RMSEP of 87.84 g/kg, an MAEP of 69.99 g/kg, an RPD of 2.12, and an RPIQ of 3.25 (Table 6). Similarly, for the spectral index approach, the model based on the Fusion_SI image was superior to those found on the TM_SI, OLI_SI, AST_SI, and S2A_SI (Table 6).

On the other hand, based on the same soil sample set (i.e., 149 samples), the models using multispectral images (i.e., TM_S, OLI_S, AST_S, and S2A_S) provided acceptable results with ${\mathrm{R}}_{\mathrm{val}}^2$ values between 0.48 and 0.69, RMSEP values between 99.94 and 132.31 g/kg, MAEP values between 82.89 and 109.93 g/kg, RPD values between 1.40 and 1.86, and RPIQ values between 2.16 and 2.86 (results not shown). These performances, however, always remained lower than those obtained using the Fusion_S (Table 6). The models based on the four spectral index datasets (i.e., TM_SI, OLI_SI, AST_SI, and S2A_SI) and the same soil samples (i.e., 149 samples) performed poorly in estimating the clay content with ${\mathrm{R}}_{\mathrm{val}}^2$ values between 0.21 and 0.53, RMSEP values between 125.03 and 162.89 g/kg, MAEP values between 99.36 and 130.59 g/kg, RPD values between 1.14 and 1.49, and RPIQ values between 1.75 and 2.28 (results not shown), and these performances always remained lower than those obtained using Fusion_SI (Table 6).

The results of this paper suggest that the models based on satellite multi-sensor data fusion were the most precise for prediction and mapping of soil clay content. Moreover, the improved accuracy of the results obtained using fusion images might be attributed to complementary spectral, spatial, and temporal information derived from the fusion of various satellite sensor datasets. For example, [4] demonstrated the potential of using fusion indices derived from multitemporal Landsat 8 imagery to predict static soil properties such as OC, sand, and CCE. Meanwhile [26] investigated multisource data fusion for topsoil clay mappings, such as proximally measured gamma (γ) ray spectrometry, apparent electrical conductivity (ECa), four terrain attributes, and the digital numbers (DNs) of an aerial photo. The results improved when the gamma-ray spectrometry data was integrated with the digital numbers (DNs) of the aerial photos [26]. Ref. [27] established an empirical surface soil moisture (SSM) model via the fusion of soil moisture networks, remote sensing data, and high-resolution land surface parameters. The results indicated that the data fusion-based model could retrieve the SSM temporal dynamics [27].

4.4. Future Research

In this study, the best results were obtained via the fusion of four multispectral satellite images with feature selection using an MDA based on MLP-BP, which allowed the selecting of the most significant, pertinent, and discriminative spectral bands to predict clay content (i.e., eight bands), instead of just using six bands for the TM or OLI, for example. Thus, the modelling process produced an increase of about 10% in the prediction accuracy compared to that obtained from single-sensor images. Nonetheless, only the variable selection using the MDA based on the MLP-BP algorithm was used to select the key features impacting clay prediction; however, future research could consider using additional feature selection methods, including feature subset evaluation and feature ranking methods belonging to three groups: filter, wrapper, and embedded techniques. Finally, the incorporation of additional data sources to generate the fusion image, such as thermal infrared bands, synthetic aperture radar (SAR) and light detection and ranging (LiDAR) data, can improve the accuracy of the results for soil property prediction.

5. Conclusions

Spectral bands images restricted to bare soil pixels, derived from Landsat-TM, Landsat-OLI, ASTER, and the Sentinel-2A satellites, were more suitable for obtaining the soil clay map than those derived from the spectral index images of the same satellites. Moreover, the satellite’s multi-sensor data fusion, which included multispectral bands or spectral index images, was revealed to be a promising tool for mapping soil attributes. Multi-sensor images generated by the fusion of multispectral satellite data can provide a voluminous amount of bare soil information for DSM. To reinforce these conclusions and the guidelines, this study could be enlarged to (i) evaluate additional feature selection algorithms and methods, (ii) integrate additional data sources into the fusion image, (iii) assess the influence of the spatial resolution of the fusion image on soil property prediction, and (iv) include additional soil properties and additional pedological settings.
