Evolution Assessment of Mining Subsidence Characteristics Using SBAS and PS Interferometry in Sanshandao Gold Mine, China

by
Jia Liu
1,2,3,
Fengshan Ma
1,2,*,
Guang Li
1,2,
Jie Guo
1,2,
Yang Wan
1,2,3 and
Yewei Song
1,2,3
1
Key Laboratory of Shale Gas and Geoengineering, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
2
Innovation Academy for Earth Science, Chinese Academy of Sciences, Beijing 100029, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(2), 290; https://doi.org/10.3390/rs14020290
Submission received: 9 December 2021 / Revised: 30 December 2021 / Accepted: 6 January 2022 / Published: 9 January 2022
(This article belongs to the Topic High-Resolution Earth Observation Systems, Technologies, and Applications)
Browse Figures
Versions Notes

Abstract

:
Ground subsidence is a common geological phenomenon occurring in mining areas. As an important Chinese gold mine, Sanshandao Gold Mine has a mining history of 25 years, with remarkable ground subsidence deformation. Mining development, life security, property security and ecological protection all require comprehension of the ground subsidence characteristics and evolution in the mining area. In this study, the mining subsidence phenomenon of the Sanshandao Gold Mine was investigated and analyzed based on Persistent Scatterer Interferometry (PSI) and small baseline subset (SBAS). The SAR (synthetic aperture radar) images covering the study area were acquired by the Sentinel-1A satellite between 2018 and 2021; 54 images (between 22 February 2018 and 25 May 2021) were processed using the PSI technique and 24 images (between 11 April 2018 and 12 July 2021) were processed using the SBAS technique. In addition, GACOS (generic atmospheric correction online service) data were adopted to eliminate the atmospheric error in both kinds of data processing. The interferometric synthetic aperture radar (InSAR) results showed a basically consistent subsidence area and a similar subsidence pattern. Both InSAR results indicated that the maximum LOS (line of sight) subsidence velocity is about 49 mm/year. The main subsidence zone is situated in the main mining area, extending in the northwest and southeast directions. According to the subsidence displacement of several representative sites in the mining area, we found that the PSI result has a higher subsidence displacement value compared to the SBAS result. Mining activities were accompanied by ground subsidence in the mining area: the ground subsidence phenomenon is exacerbated by the increasing mining quantity. Temporally, the mining subsidence lags behind the increase in mining quantity by about three months. In summary, the mining area has varying degrees of ground subsidence, monitored by two reliable time-series InSAR techniques. Further study of the subsidence mechanism is necessary to forecast ground subsidence and instruct mining activities.

1. Introduction

In recent years, ground subsidence has caused growing ecological problems and social stability concerns worldwide. As a common geological phenomenon, it is driven by the soil type, hydrogeological conditions, bedrock configuration, tectonic faults and human activities [1,2,3,4,5]. Moreover, the subsidence mechanism is complicated. Ground subsidence induced by the groundwater table lowering is related to the external loading that varies with time. Different types of soil (sand, silt, clay, gravel, etc.) have distinct compressibility and hydraulic conductivity [6,7,8,9]; soil thickness also affects settlement. Under the action of external loading, soils with different properties will have different mechanical responses. Furthermore, plenty of factors that trigger ground subsidence exist [10,11,12,13,14]; underground mining activities are a vital contributor [15,16,17,18,19,20,21,22]. The deformation and movement of rock mass induced by mining activities is a complicated mechanical problem. During mining, the formation of the goaf causes stress redistribution, deformation and destruction of rock mass until a new balance is reached. Due to the self-weight of the rock mass and the existence of the free surface, the rock mass movement eventually leads to ground subsidence. When rock mass has been repeatedly disturbed, the ground subsidence shape varies from its original and normal profile [23]. In addition, the steep-lying mining of minerals also has an important influence on the ground subsidence shape [24]. Most mining areas are adjacent to densely populated towns, where ground subsidence causes flooding, the degradation of farmland and soil erosion [22], which, in turn, poses a threat to the population and infrastructure as well as raising conflicts between residents and mining operators. In the past few years, the Interferometric Synthetic Aperture Radar (InSAR) technique has been broadly applied to various ground deformation detection purposes, from monitoring subsidence [25,26,27], landslides [28,29,30], tectonics [31], the coseismic deformation fields of earthquakes [32], to volcanology [33,34,35]. In addition, InSAR has the ability to detect the ground deformation that results from the underground storage of CO2 [36] and cryospheric processes [37]. Compared with traditional monitoring methods, such as optical remote sensing, GPS, levelling, and total station, InSAR technology has high temporal and spatial coverage [32,38]. Moreover, it has millimeter-level line-of-sight (LOS) deformation precision and the ability to uninterruptedly acquire earth surface information regardless of the weather conditions [39,40,41,42,43]. InSAR techniques for detecting and monitoring ground subsidence have been demonstrated to be very reliable on a global level [44,45]. However, traditional InSAR technology is significantly affected by spatiotemporal coherence and atmospheric delay effects [46]. During the past few decades, advanced InSAR technology was developed on the basis of traditional InSAR technology: the time-series InSAR technology, such as the Small Baseline Subset (SBAS) technique and Persistent Scatterer Interferometry (PSI) technique, was proposed and widely used [47,48,49,50,51,52]. Moreover, time-series InSAR technology presents a period of recording the changeable radar signal return phase, which represents the LOS distance between the ground surface and the radar platform [53].
Based on advanced technology development, a large number of ground subsidence studies [54,55,56,57,58,59] have focused on coal mining. Nevertheless, studies on metal mining using InSAR technology are scarce [60,61,62,63], especially in cases of a complicated geological structure; the mining of vein metal deposits with faults as the roof in Sanshandao is one of only a few examples worldwide. Due to its great industrial importance, human geographic background and tourism-related economic value to Sanshandao Town, since it includes Sanshandao Gold Mine and gold coast resorts, the ground subsidence within the mining area needs to be investigated urgently. Moreover, due to the outbreak of novel coronavirus pneumonia, field subsidence monitoring is unachievable.
In this study, we investigated the mining-induced subsidence with time-series InSAR analysis using Sentinel-1A images, examined the accuracy of the analysis by cross-validating the results of the PSI and SBAS techniques and analyzed the patterns of the subsidence deformation within the Sanshandao Gold Mine over the period between 2018 and 2021. Hereafter, further study on the Sanshandao ground subsidence pattern will be summarized in our next study, which is meaningful for forecasting potential hazards and guiding mining activities.

2. Region of Interest

The area of interest, Sanshandao Gold Mine, is located in Sanshandao Town, Laizhou City, bordering the Bohai Sea in the northwest (Figure 1). It has a temperate monsoon continental climate, according to the monitoring data of the Laizhou Meteorological Bureau. In addition, its average temperature in the past 40 years is 12.5 °C and the average annual precipitation reaches about 600 mm. The study area is between longitudes 119.94°and 119.96°, and latitudes 37.39°and 37.41°. Overall, the terrain of the entire mining area is flat over a distance of 5 km (between 1 and 6 m in elevation) [64]. There are around 20,000 full-time residents in the study area [65]. Moreover, Sanshandao Town (a coastal tourist town) has a large floating population, with provincial highways 218 and 304 passing through the territory.

2.1. Geological Settings

The geotectonic location of the Sanshandao Gold Mine is in the Jiaobei uplift area of the Jiaobei terrane on the southern margin of the North China Platform, bound by the Yishu fault zone, the most active fault zone in eastern China, to the west [66], and by the Jiaolai depression to the south. The Sanshandao gold deposit is controlled by the north-northeast (NNE) to the northeast (NE)-trending Sanshandao-Cangshang fault that belongs to the Yishu fault zone [67] (Figure 2). There are three controlling faults, F1, F2, and F3 (Figure 2), as well as some typical secondary joints in the mining area: Fault F1 (dipping southeastward) is the ore-bearing fault (reverse fault) with an extension depth of about 1000 m, which is located in the northeastern section of the Sanshandao–Cangshang fault zone [68]. The gold ore body is altered rock type gold deposits controlled by the F1 fault. The attitude of F1 is NE 35–40°/SE 38° (“NE 35–40°” refers to a fault strike in the 35–40° range, “SE” refers to a fault dip, “38°” refers to the dip angle of a fault, the following expressions have the same meanings) with slight variations in the strike and dip directions [69]. Fault F2 is a small-scale normal fault with an attitude of about NE 15°/NW 60–80°. The strike-slip fault F3 has the attitude of NW 300°/SW 90°, with an extension depth of about 600 m, extending westward to Laizhou Bay. Quaternary sediment (about 25 m) covers the mining area. In terms of hydrogeological features, quaternary sediment is divided into the following four units from top to bottom: (a) the first aquifer (medium to coarse sand) ranges in thickness from 4 to 7 m; (b) the first aquiclude (sandy clay) ranges in thickness from 7 to 8 m; (c) the second aquifer (coarse sand and gravel) has an average thickness of 4 m; and (d) the second aquiclude (red clay), which has an average thickness of 4 m, lies above the weathered crust (Figure 3). The bedrock consists of sericitic and silicic granite, pyrite sericite, gneiss, cataclasite, etc. The in-situ stress field of the Sanshandao Gold Mine is dominated by horizontal stress: The maximum principal stress lies in a nearly horizontal direction (NWW), and its value is larger than the self-weight stress of the rock mass. The bedrock is subjected to strong weathering and tectonic effects, and fractures are relatively developed, forming a densely developed fracture zone of fault F1. According to the data sharing infrastructure of the National Earthquake Data Center (http://data.earthquake.cn, accessed on 8 December 2021), there have been four earthquakes with a depth of less than 7 km and a magnitude below 5 in Laizhou city thus far (➀ Ms 3.0; Location: 120.02°E, 37.11°N; Depth: 6 km ➁ Ms 4.6; Location: 120.02°E, 37.10°N; Depth: 6 km ➂ Ms 3.3; Location: 120.01°E, 37.12°N; Depth: 6 km ➃ Ms 3.2; Location: 120.03°E, 37.10°N; Depth: 7 km). The seismic peak acceleration is 0.15 g.

2.2. Mining Settings

The gold mine began its basic construction in August 1984. At the end of 1990, the production capacity of mining reached its designed scale, with an expected production capacity of 1500 t/d. The exploitation activities mainly developed along the strike direction of the F1, from southwest to northeast. The mechanical upward horizontal slice stopping-filling method with pointed pillars is adopted in this mining area. A stope with good ventilation and drainage is positioned along the strike, which has a length of 100 m, and the width is the thickness of the ore body. At present, the exploitation length of the −375 m middle section is the longest, about 2.54 km along the strike direction of the F1. The exploitation length of the deep middle section is gradually increasing, and the deepest exploiting middle section has reached −825 m. At present, the exploitation of the shallow gold ore body has basically ended, and the depth of the mining activities is close to −1000 m. During the mining period, the gold ore body was exploited at different depths.

3. Materials and Methods

3.1. SAR Images

The SAR images used in this study were acquired by Sentinel-1A, which is the Earth observation satellite in the European Space Agency (ESA)’s “Copernicus” plan, following ERS and ENVISAT SAR missions [49]. The advantage of the Sentinel-1A satellite is that it provides C-band (5.6 cm wavelength) SAR data that are considerably enhanced in aspects of coverage, repeat cycle, etc. In addition, the Sentinel-1A satellite with a total swath width of 250 km (pixel size: 5 m × 20 m) has the potential to map the global landmasses once every 12 days according to the acquisition plan of various sites [70,71]. Fifty-seven radar images of the study area were obtained using the C-band sensor on board the Sentinel-1A satellite. The images used for InSAR analysis in this study were collected between 22 February 2018 and 12 July 2021. In addition, the images were obtained in the Interferometric Wide swath (IW) scanning mode (angle of view θ = 38.9°; swath width = 250 km) with VV polarization and along the ascending orbit (track 171). Specific information on the SAR images is shown in Table 1. Twenty-four of these fifty-seven images were used for SBAS analysis, which were collected between 11 April 2018 and 12 July 2021. Fifty-four of these fifty-seven images were used for time series InSAR analysis using the PSI technique. The Precise Orbit Determination data (obtained from the European Space Agency (ESA) https://scihub.copernicus.eu/gnss/#/home, accessed on 8 December 2021) and the digital elevation model from the Shuttle Radar Topography Mission [72] with a resolution of 30 m were used to remove the orbit error and topography phase.

3.2. Data Processing of Time-Series InSAR Technology

The SBAS technique was developed by the CNR-IREA group in Italy [48]. It was improved to deal with the full resolution interferograms [73] and applies multi-looking [74]. Its critical characteristics are the utilization of abundant SAR images distributed in small baseline subsets and the singular value decomposition (SVD) method [48,75]. In terms of analyzing distributed scatterers, the SBAS technique performed better than the PSI technique in capturing strongly nonlinear displacement rates [76]. The SBAS method enables us to generate multi-master interferograms instead of single-master interferograms. In this study, the SBAS processing was implemented through isce [77] and mintpy (https://github.com/insarlab/MintPy, accessed on 8 December 2021) software. The stack included 24 SAR images from the Sentinel-1A satellite (polarization: VV, orbit configuration: ascending), dating from 11 April 2018 to 12 July 2021.
In recent years, many studies have focused on the following two aspects of the PSI technique: detecting permanent scatterers [78,79,80] and modeling [48,49,79,81]. The first concept of the PSI technique is based on the identification of Persistent Scatterers (PS) whose phase has stable amplitude values and consistently low noise levels over a long time [48,78]. The key steps are as follows: establish a model based on the PSs, solve the deformation phase, and separate the atmospheric delay phase in order to obtain the deformation information.

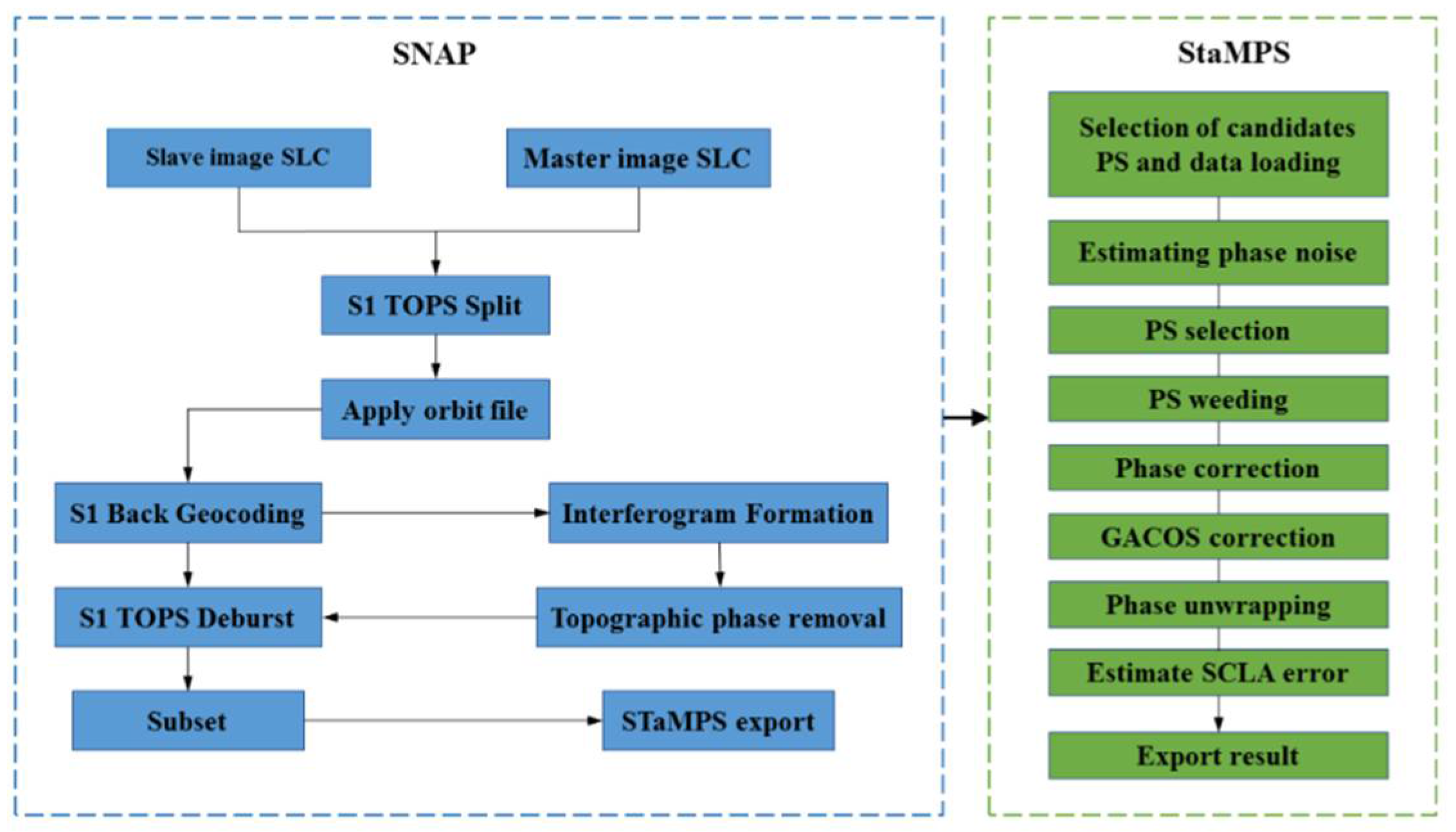

In this study, PSI processing was performed with the support of SNAP (Sentinel Application Platform) software (ESA, 2017) [82] and the StaMPS (Stanford Method for Persistent Scatterers) algorithm. Forming interferograms from single-look complex (SLC) images is the preprocessing target of SNAP [5,34,83,84,85,86]. It does this by ➀ applying precise orbit correction to co-register the stack. ➁ choosing the master image. ➂ generating interferograms and removing the topographic phase, and ➃ exporting the processed stack into Gamma format to enable PSI processing with the StaMPS algorithm (version 3.3b1). Moreover, the Goldstein adaptative filter (window size: 32; value of α: 0.8) [87] was applied during the phase unwrapping process to reduce the noise phase. The flowchart of the whole PSI processing chain is shown in Figure 4.
As mentioned before, the PSI analysis included 54 radar images (ascending orbit) and covered the period from 22 February 2018 to 25 May 2021. The date 20,200,804 was used as a master scene for track 171 in PSI processing. The Shuttle Radar Topography Mission (SRTM) 30 m data were used to remove the topographic phase contribution. In addition, it is a characteristic of the PSI technique that the retained pixels of the subsidence velocity maps are located mainly over artificial structures. Furthermore, we applied GACOS data that are broadly used by scholars to eliminate atmospheric errors in both kinds of data processing [88,89,90].
The reason why we do not use all available images from the monitoring period is as follows. Some images of the study area are corrupted and unavailable, and our computer configuration is not powerful enough. In consideration of computational efficiency and image date regularity, we only select a part of the images for analysis. This is because the PSI technique and SBAS technique have different key mechanisms, and these mechanisms need a different number of images. For instance, the SBAS technique is an analysis method for the multi-master-image InSAR time series that uses interferometric pairs of small baselines to obtain the surface deformation, whereas, the PSI technique is an analysis method for the mono-master-image. In addition, the perpendicular baselines and temporal baselines of the images are important for forming interferometric image pairs. Considering the problems of image date regularity and the temporal baseline, we used a dataset with a slight difference.

4. Results

4.1. Spatial Characteristics of LOS Velocity Fields

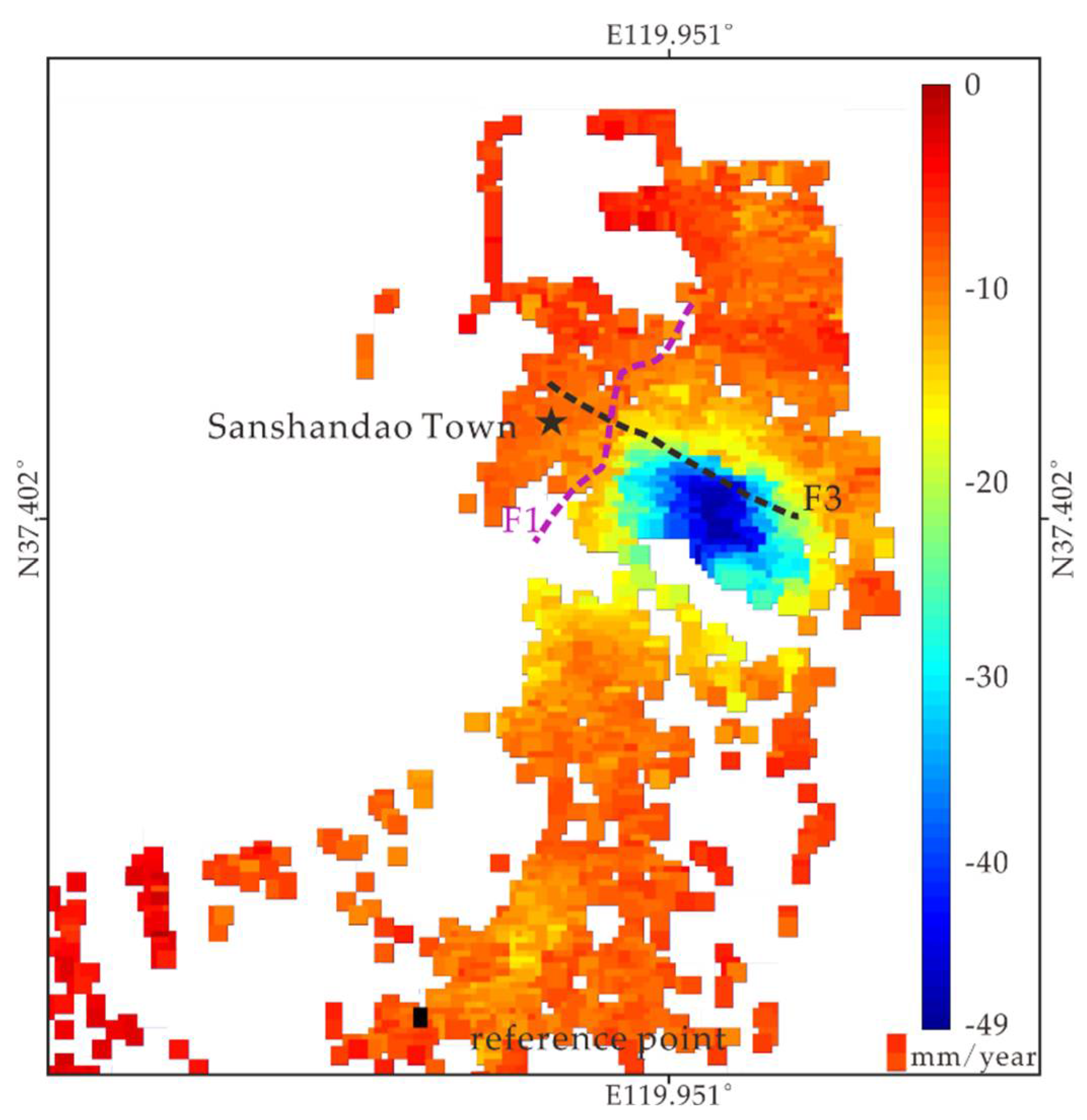

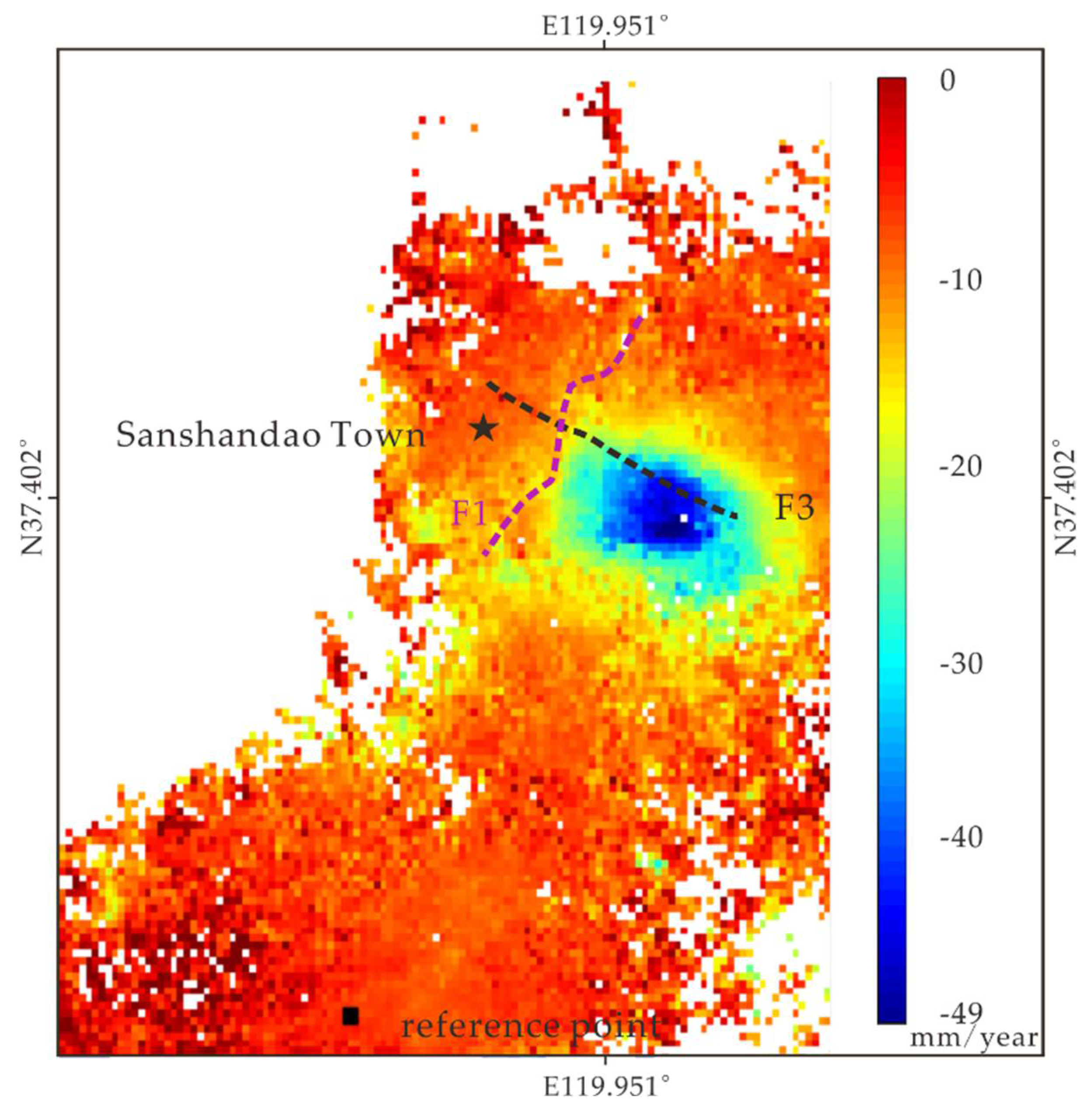

The PSI processing identified 7218 PS within the selected area, which means an average density of 150 PS/km2. The mean LOS velocity maps of various archives are calculated by estimating the linear regression of displacement over time. As shown in Figure 5, the maximum deformation rate was about −49 mm/year, furthermore, the standard deviation of the mean LOS velocity result is shown in Figure 6, which is an indication of the result’s quality. In addition, the LOS velocity value produced by PSI is a relative value, this explains why positive values exist. In addition, the outcome of the SBAS analysis demonstrated that the mining area shows a maximum subsidence velocity in LOS of about 49 mm/year (Figure 7).

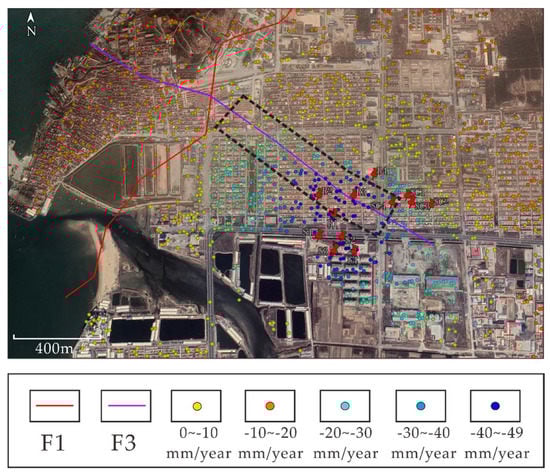

According to the LOS deformation results, we discovered a similar deformation pattern through two time-series InSAR techniques: the shape of the subsidence funnel resembles an egg. At the same time, they all possess a stratified structure. The external part has a lower LOS velocity value, and the inner part has a higher LOS velocity value. Moreover, the two subsidence funnels obtained using the PSI and SBAS techniques share the same scope, between 119.94°E and 119.96°E, and 37.39°N and 37.41°N. Figure 8 shows the important construction areas in the study area. As displayed in Figure 9, a general trend of negative LOS velocity is distributed in the important construction areas. The heavily subsided area is lower than the surrounding area. In the rainy summer, rainwater gathers due to poor drainage (Figure 10), affecting transport in Sanshandao Town. However, the specular reflection of radar waves by water surface results in missing the deformation data in the fish farm area. There is a gradual change in LOS velocity from negative values to positive values in areas away from the important constructions. It turns out that the subsidence may be bounded by the F3 fault (Figure 2). As Figure 9 shows, the ground deformation extends along the northwest and southeast direction, similar to an oblique egg in shape (the same part is outlined by a solid, yellow, rectangular line in Figure 1, using the PSI and SBAS techniques).

4.2. Deformation Time-Series Evolution

4.2.1. Comparison between PSI and SBAS Results

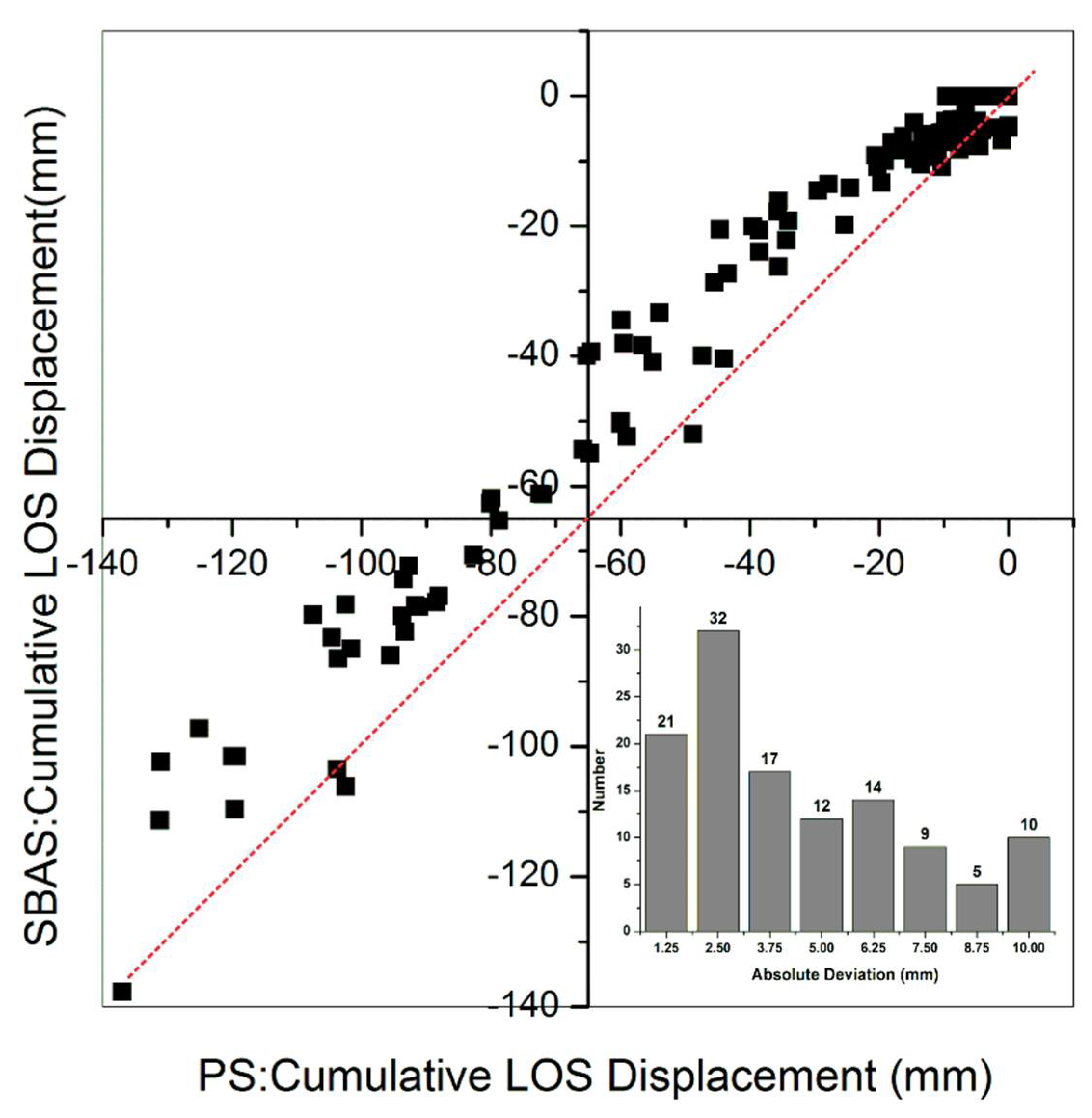

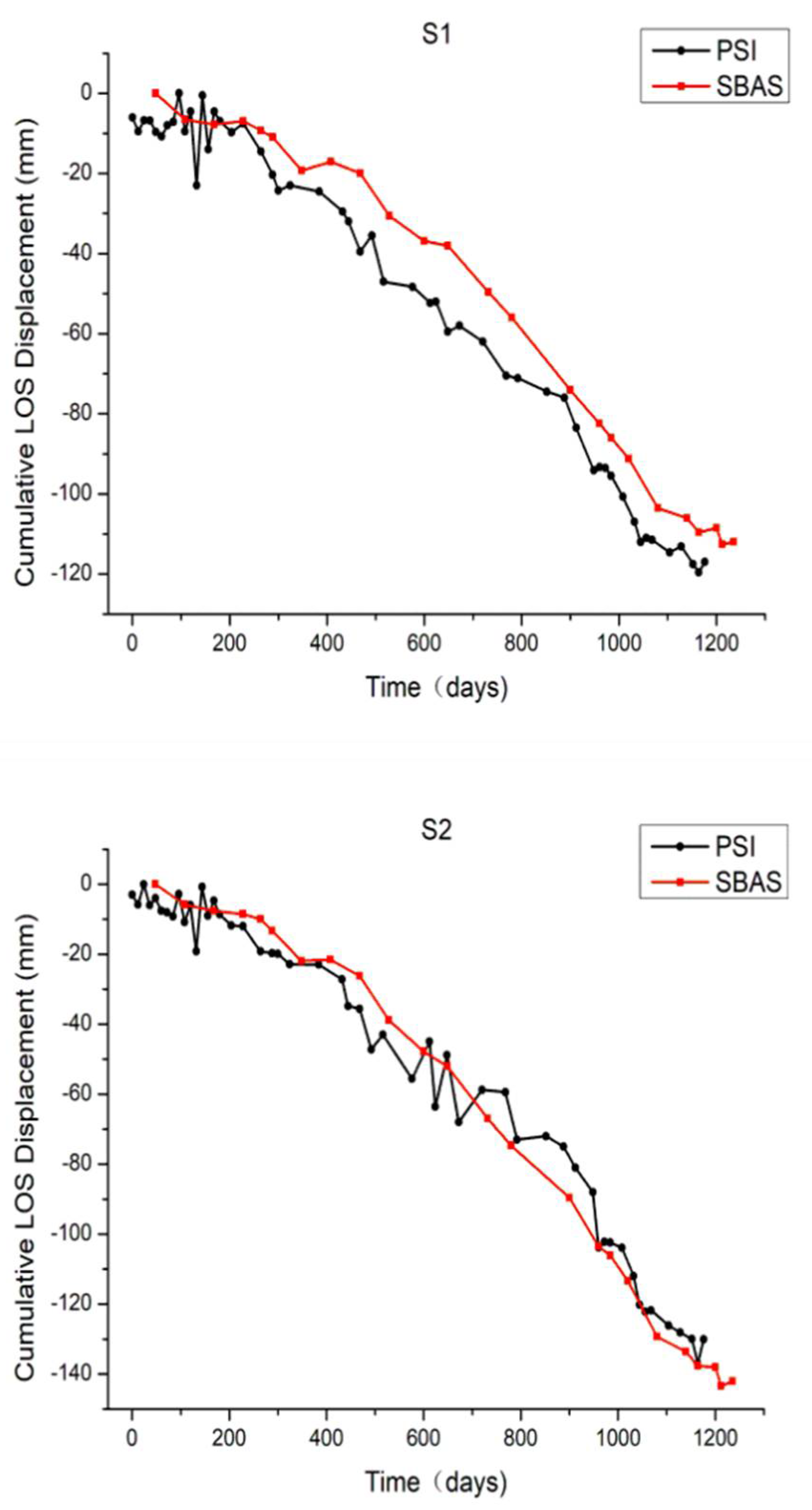

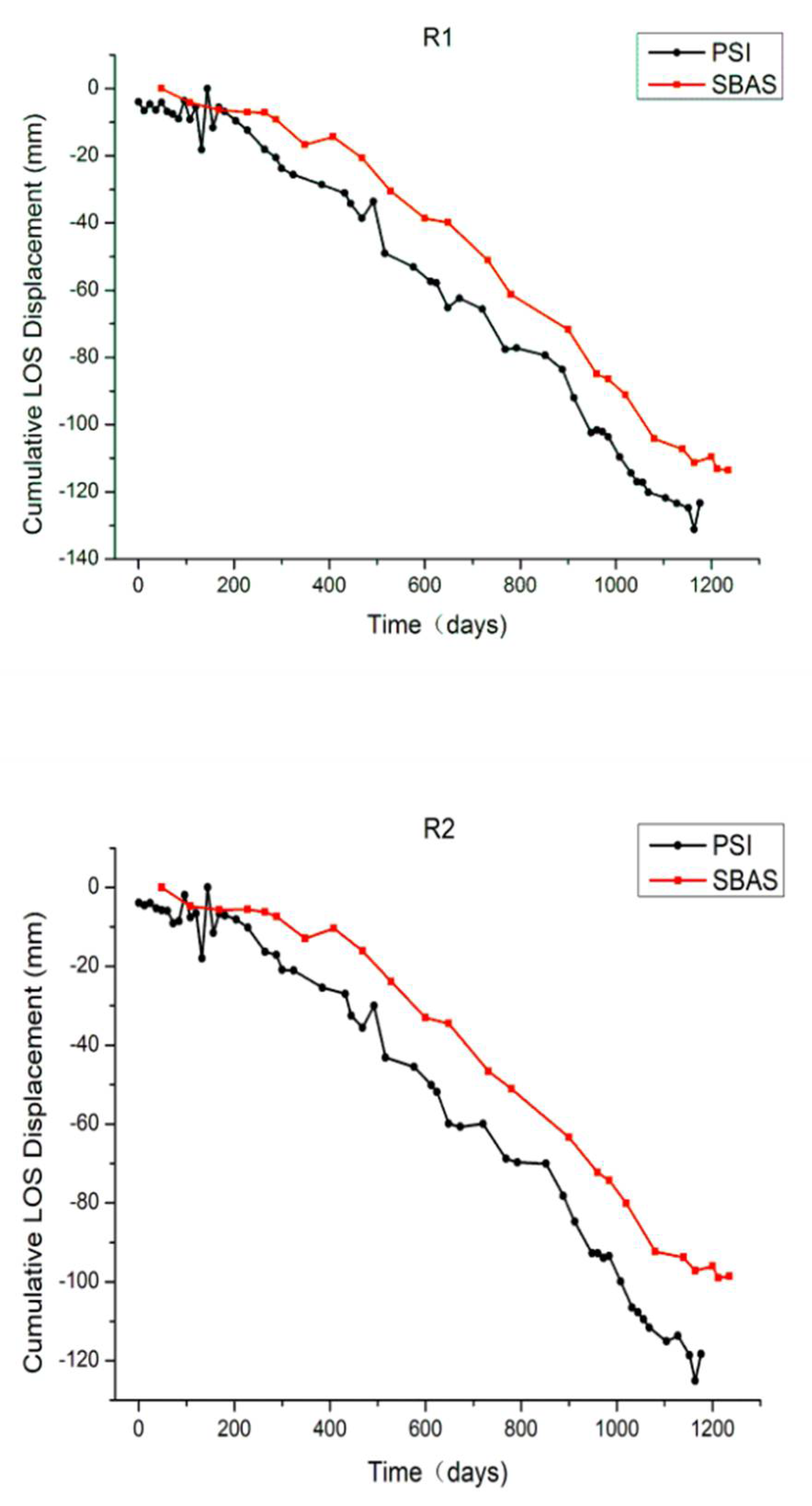

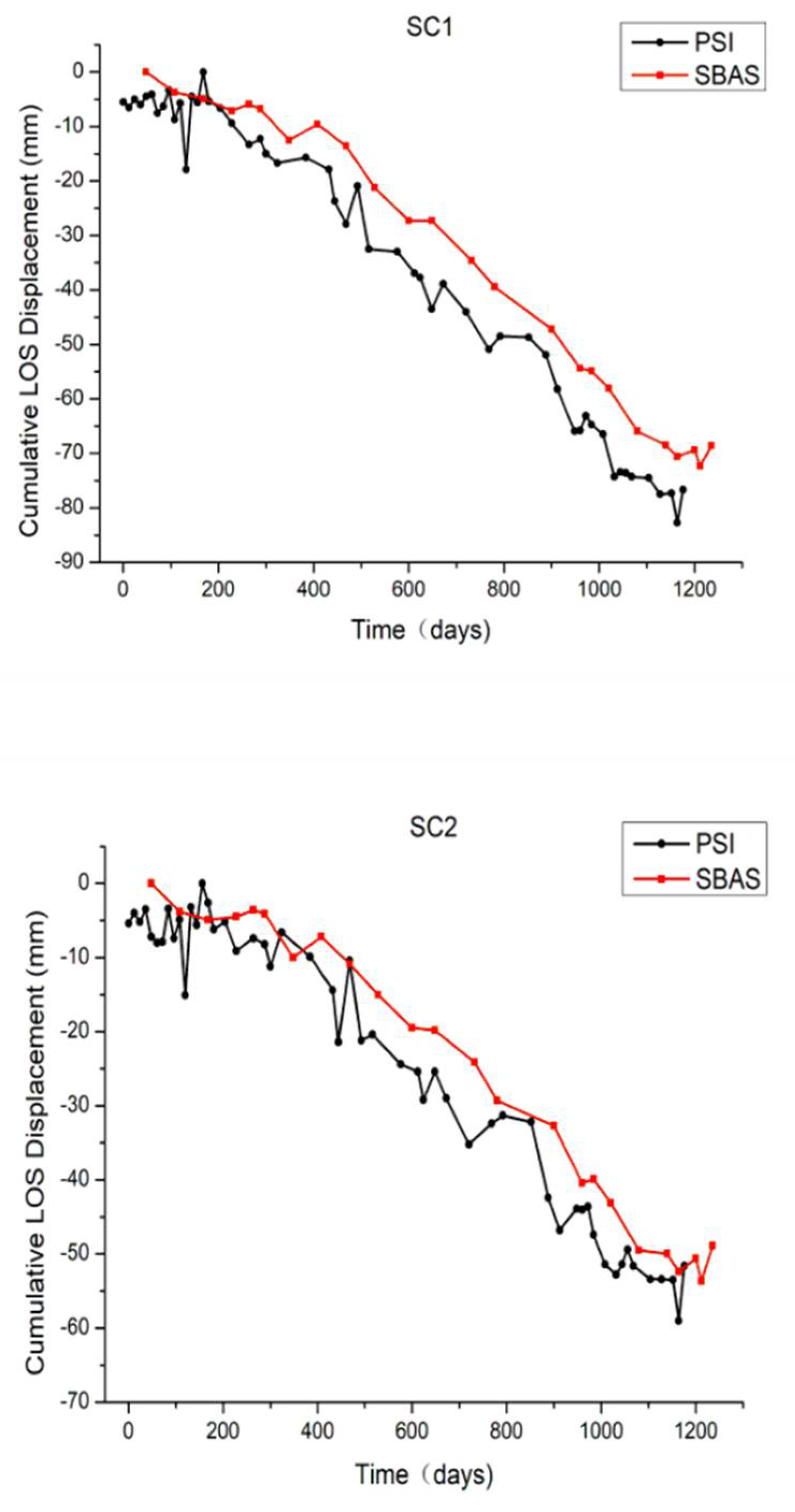

As mentioned above, we attained similar deformation results using the PSI and SBAS techniques applied to the same study area. In order to cross-validate the specific deformation results and advance the detailed study, we selected six sites represented by the letters R1, R2, S1, S2, SC1, and SC2 (The Google Earth images of six critical sites are displayed in Figure 11). Due to the fact that PSI and SBAS data are both relative results, one stable zero-deformation point (37.372°N, 119.934°E) was selected to be the reference in PSI and SBAS analysis processing, and it is far away from the mining subsidence funnel with low LOS velocity and standard deviation value (as shown by the black dot in Figure 7). Consistent time series behavior was discovered after contrasting several representative sites in the constructions area. As displayed in Figure 12, the LOS displacements in the Residential Area zone are relatively consistent, as are those shown in Figure 13 and Figure 14. Figure 13 shows the LOS displacements results in the sea view community zone;, and Figure 14 shows the LOS displacements of various sites in the area behind the school. The results indicated the high consistency of subsidence monitoring by time-series InSAR techniques. In the area of import construction (Figure 8 and Figure 11), the sea view community area (represented by S1, S2), the residential area (represented by R1, R2) and the area behind the school (represented by SC1, SC2) have different levels of severity. Most of the buildings in these areas have wall cracking. In general, damages to buildings due to slope and curvature are relatively slight, and the main cause of building damage is the tensile and compressible deformation, with the former being more harmful to buildings. We believe that both PSI and SBAS results are plausible; the degree of building damage is obviously different in the different construction areas, as shown in Figure 15, Figure 16 and Figure 17. The buildings in the sea view community which were made of reinforced concrete were less damaged.

4.2.2. Spatiotemporal Correlation between InSAR Results and Mining Activities

As mentioned before, we performed PSI processing with the 54 radar images obtained from the Sentinel-1A satellite. The cumulative LOS displacements in several representative sites were provided in the previous section. Moreover, we attained more relatively continuous subsidence displacement values compared with SBAS processing. Therefore, we chose the PSI results as the following discussion object. Firstly, we broke the cumulative LOS displacement results into two parts for analysis, using the date 20,200,801 as the cut-off point. Secondly, we performed linear fitting on the two parts of the data. Table 2 shows that the first part has a low subsidence velocity and the second part has a higher subsidence velocity. Multiple potential mechanisms that trigger the subsidence phenomenon could exist, as demonstrated by the distinct temporal behavior of the LOS displacement value. For instance, this phenomenon can be explained by changes in mining quantity.

5. Discussion

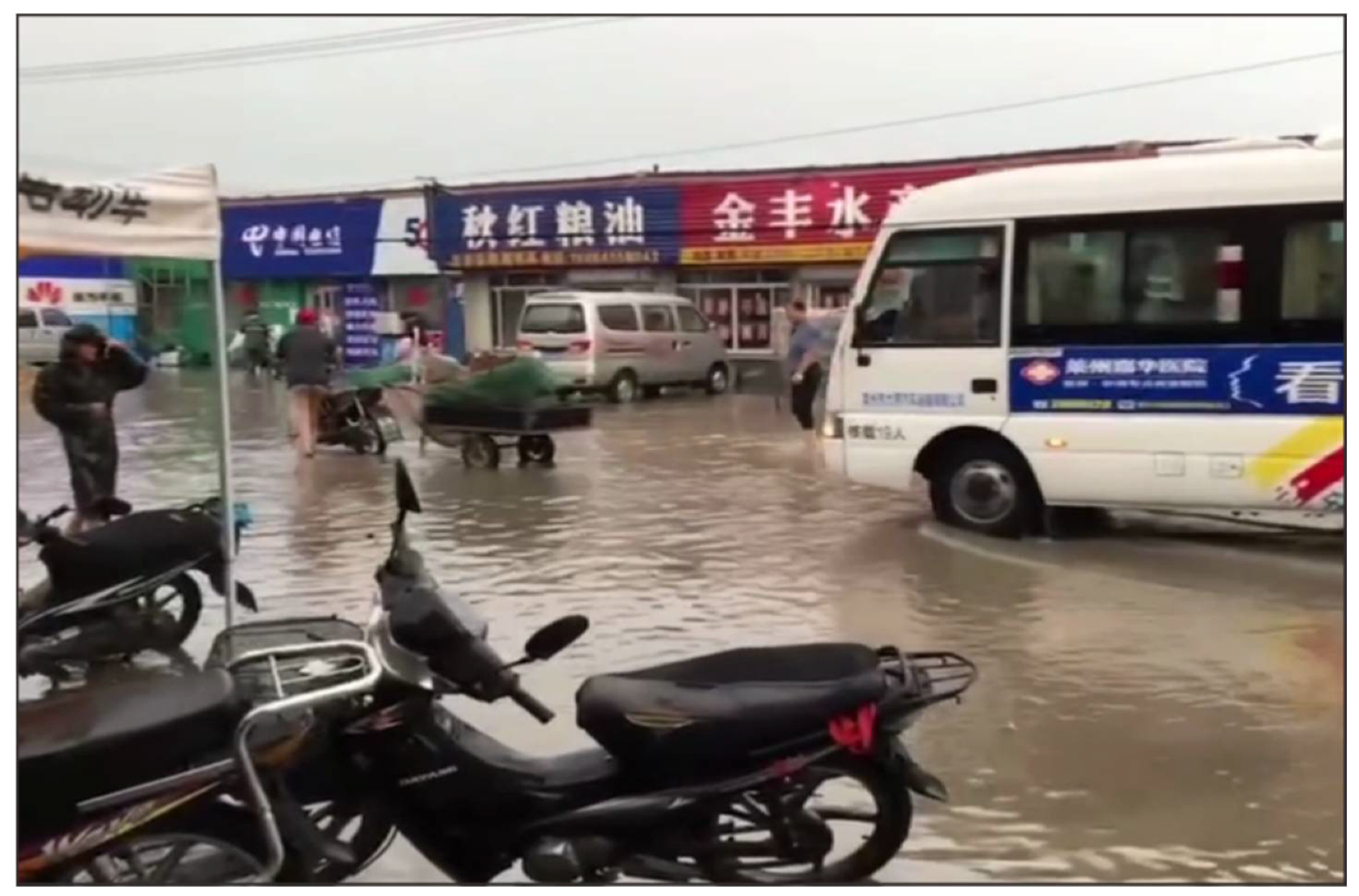

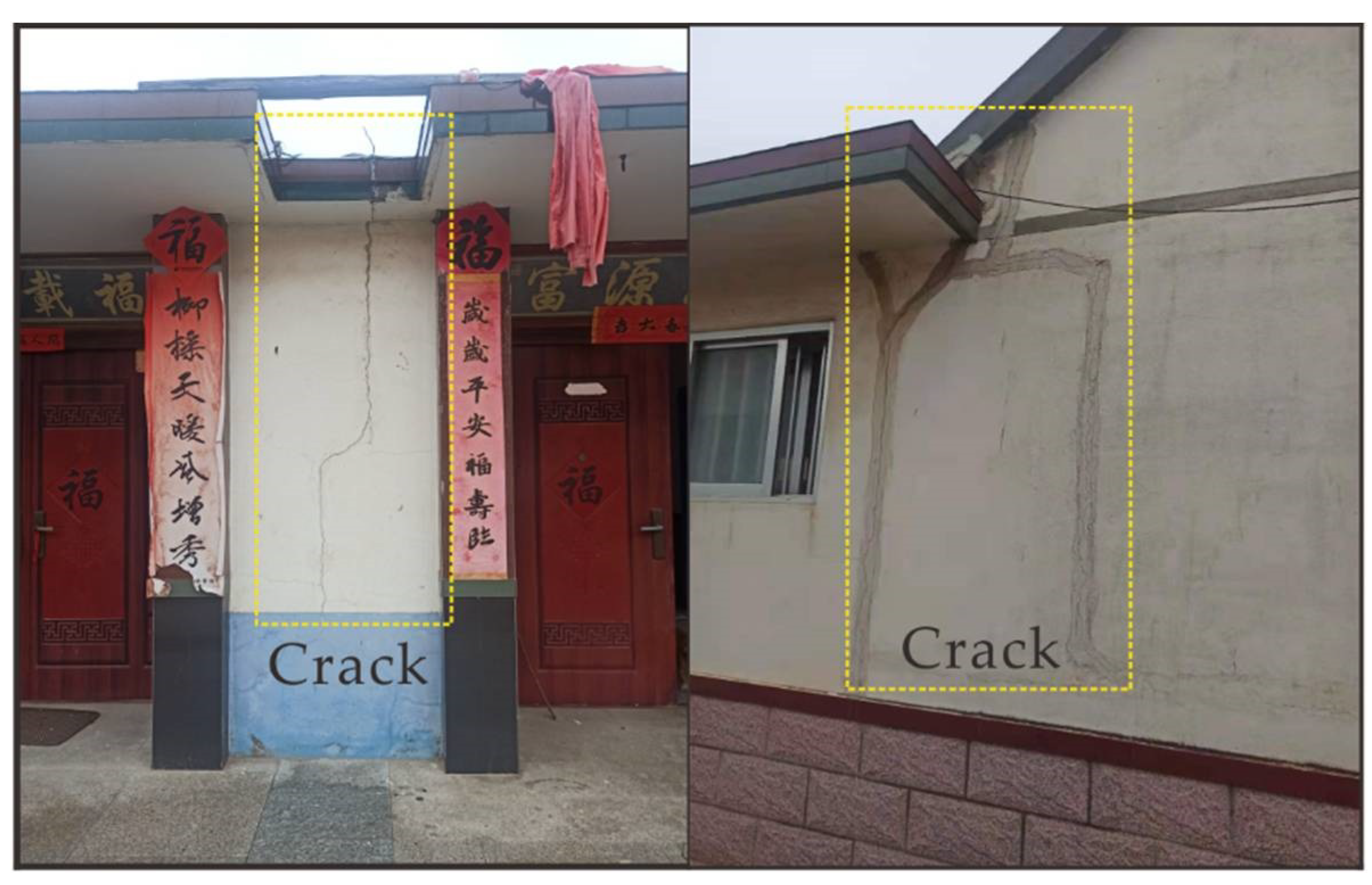

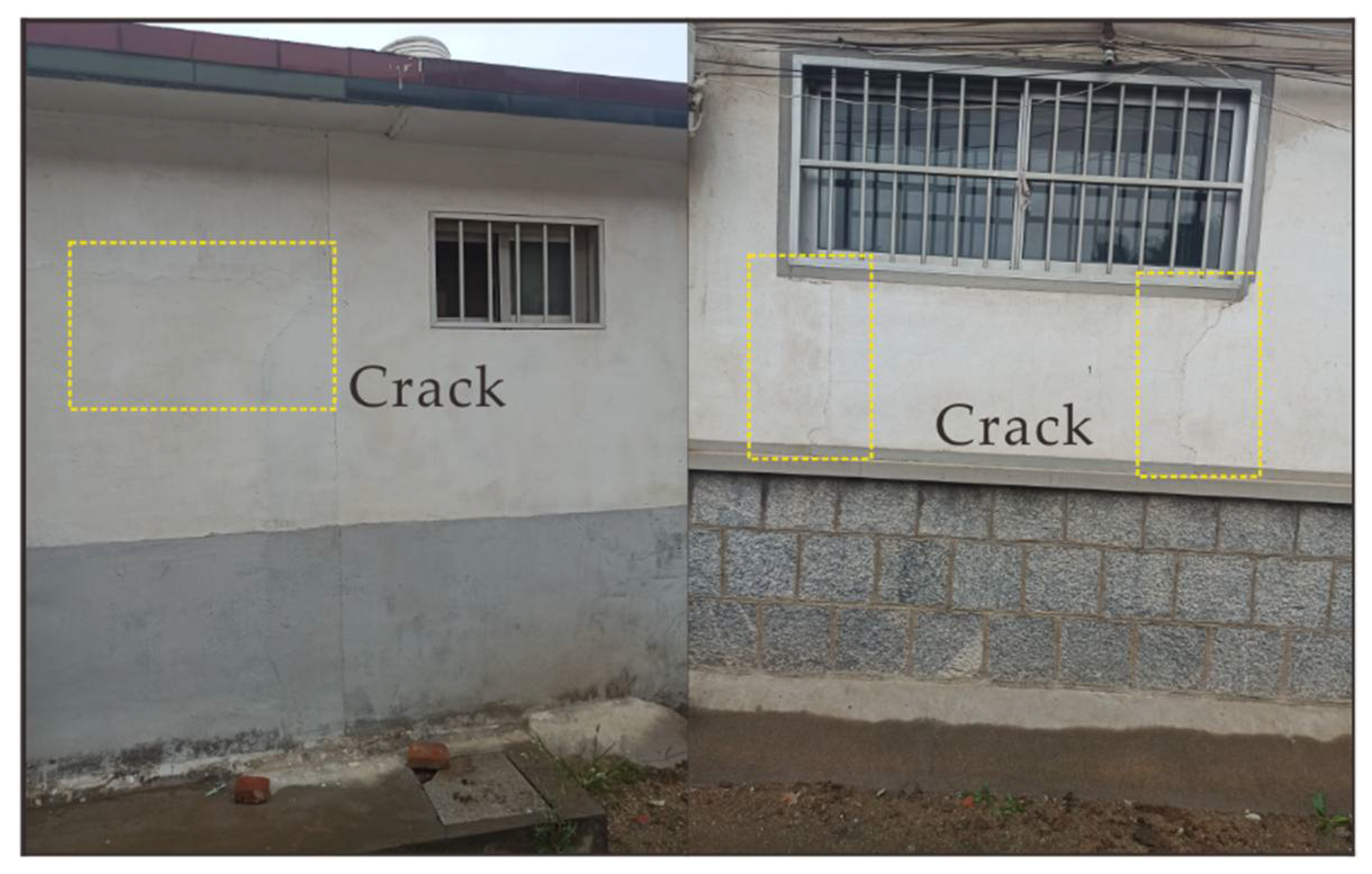

The water supplies for production and daily life in Sanshandao Town come from the urban centralized water supply measure. There is no need to exploit the groundwater of the study area for water supply, which means that the effective stress of the underlying soil does not increase significantly as the water table falls. Therefore, ground subsidence induced by groundwater over-exploitation, as a result of an external loading varying with time, is almost impossible. Moreover, the structure of the overlying soil layer in the study area is relatively uniform. In other words, the deformation of the overlying soil is related to the deformation of the underlying rock mass. For these reasons, the ground subsidence changes the original stress state of construction, causing construction deformation damage.
However, both of the LOS displacement results in the same site are not totally coincidental, and the common character of the displacement results indicated that the PSI displacement value is bigger than the SBAS displacement value. We selected several sites (as shown in Figure 11: R1-R4, S1-S4, SC1-SC4) for error analysis. As shown in Figure 18, the scatter plot with regular dispersion shows a low standard deviation. We used IBM SPSS (version 22) for error analysis: the standard deviation is about 6 mm, and the deviations do not have normal error distribution (Kolmogorov-Smirnov consistency test [91,92]), which implies that the results are reliable. The absolute deviation result is displayed in the lower right corner of Figure 18. We calculated the root mean square error (RMSE) between the results of the PS and SBAS. The RMSE value is about 8 mm. In general, according to the results of the previous chapters and the error analysis, the results obtained using the PSI and SBAS techniques are in good agreement from both the qualitative and quantitative perspectives. The potential reasons for this phenomenon are described below: both time-series InSAR techniques have different principles and algorithms, as well as work platforms. For instance, the SBAS technique is an analysis method for the multi-master-image InSAR time series that uses interferometric pairs of small baselines to obtain the surface deformation; the PSI technique is an analysis method for the mono-master-image. SBAS regards better nonlinear movements, and the SBAS technique reduces the decorrelation by exploiting distributed targets; PSI enables a precise characterization of the linear deformation affecting urban areas, and PSI can detect more PS in urban areas. Therefore, the results are not in perfect accord.

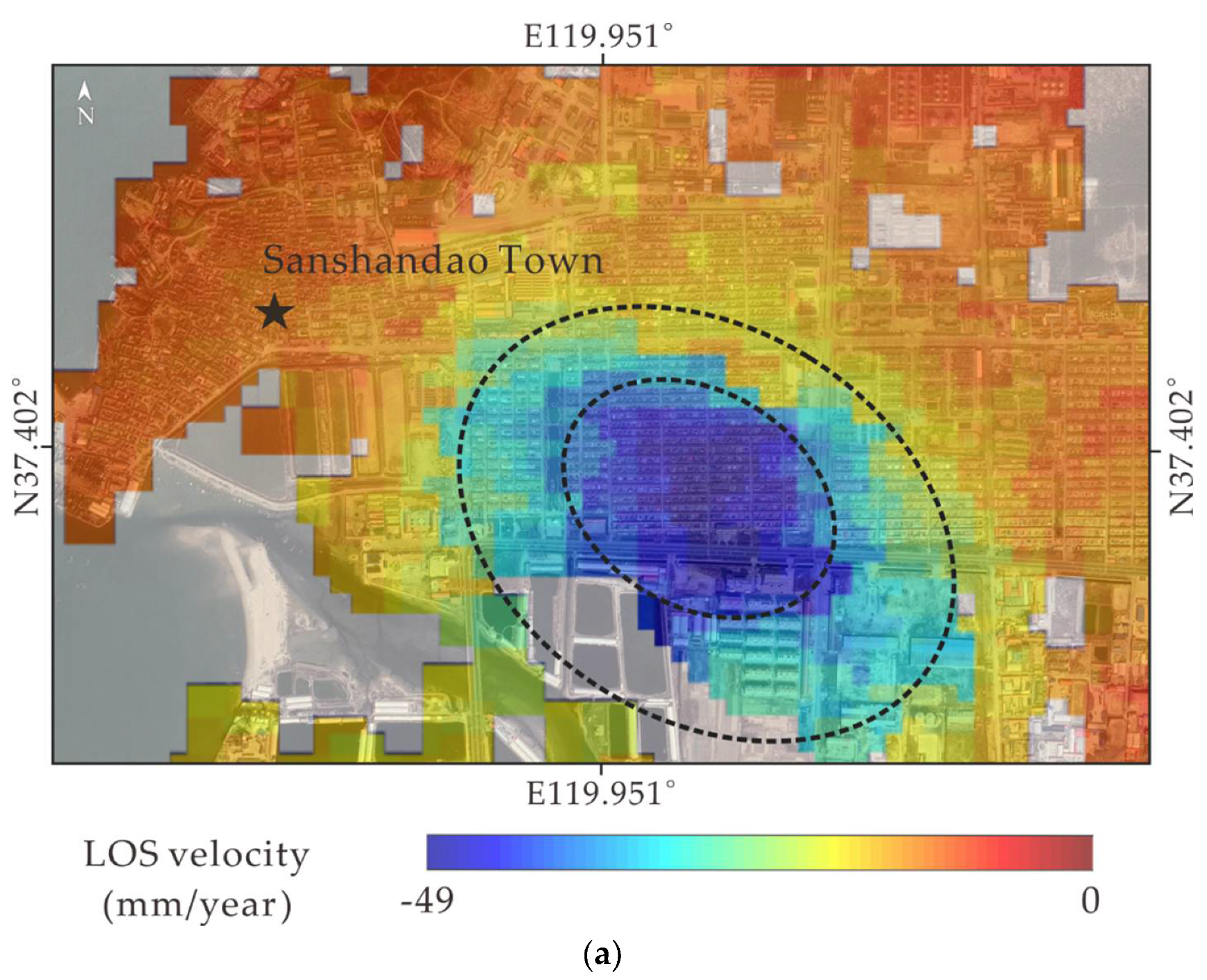

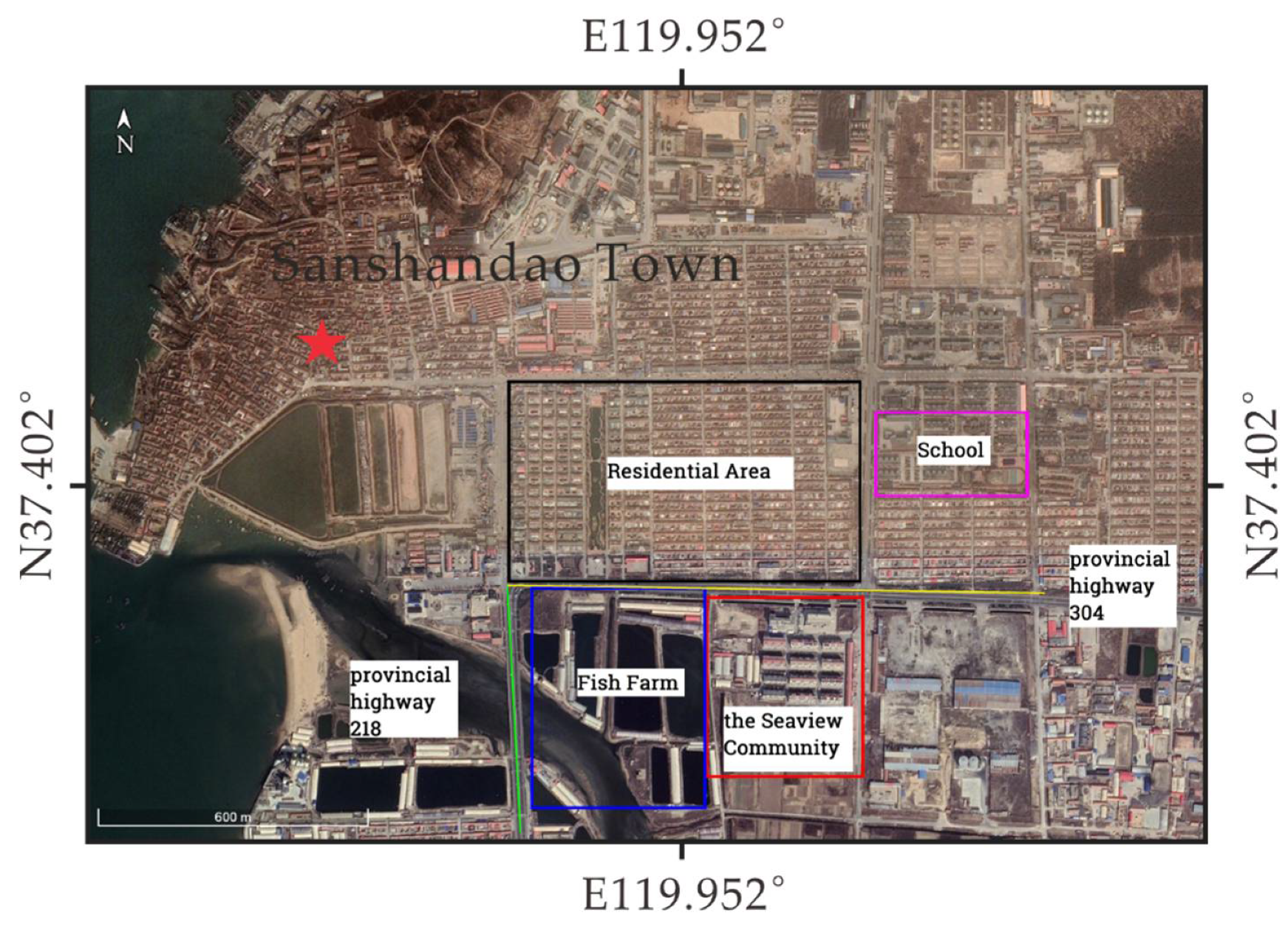

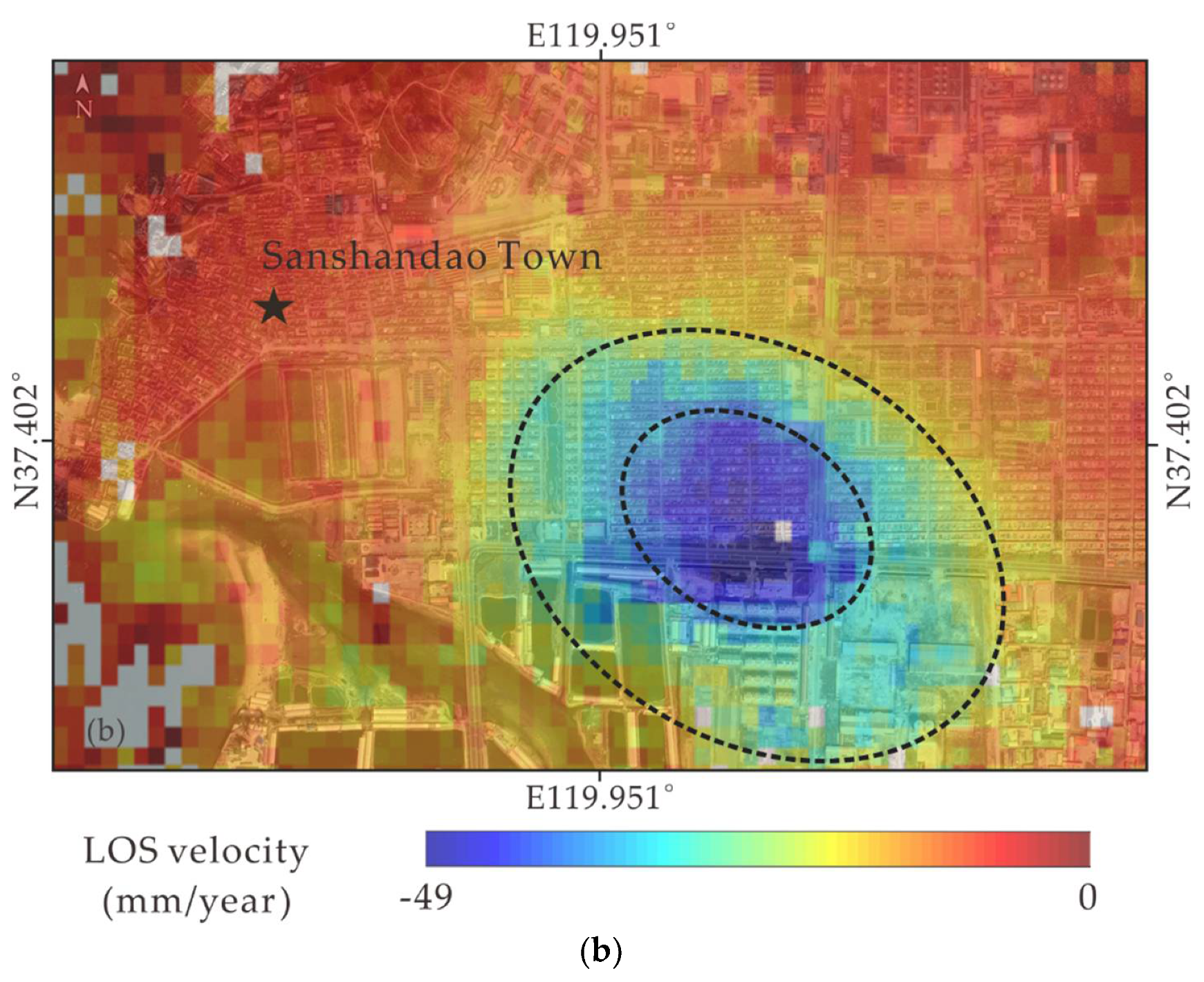

As displayed in Figure 9, the subsidence deformation may be bounded by the F3 fault, as the ground deformation extends along the northwest and southeast direction, similar in shape to an oblique egg. We have selected several sites in the dashed box (black) in Figure 11 from the northwest to the southeast for LOS velocity analysis. It turns out that the subsidence rate is different on both sides of the fault. The south area has a bigger LOS velocity value than the north area (Figure 19). From a qualitative and quantitative perspective, our results suggested that the fault F3 may restrict and affect the subsidence development. The ground subsidence shape is affected by the discontinuous interface (in this case, the fault) which is the product of internal and external dynamic geological processes. In the case of mining, the heterogeneous rock mass with geological discontinuities affects stress redistribution. Therefore, the ground subsidence can be influenced [5,93,94]. In addition, there have been no earthquakes in Laizhou City since 2018 according to the earthquake data. The subsidence does not appear to have been caused by strong fault movement. Unfortunately, we cannot discriminate the mechanism between ground subsidence and fault attributes due to a lack of enough underground mining information and field tests. Further studies on this aspect will be summarized in our next study.
The underground rock mass is heterogeneous due to the existence of geological discontinuities. Before mining, the rock mass under the effect of the in-situ stress field is in a balanced state. After the local ore body is exploited, the goaf is formed inside the rock mass, which leads to changes in the stress state of the surrounding rock mass, causing stress redistribution. This change in the stress states induces a deformation that could reach the failure threshold. Throughout this process, the rock mass deforms, becomes broken, and generates numerous fractures. Finally, the underlying bedrock deforms and the overlying quaternary soil settles down. Many scholars have studied the coal mining subsidence [43,54,55,56,57,58,59], but studies on steeply dipping metal deposits are scarce. Coalfields are more regular than metal deposits and thus form a more regular subsidence area.

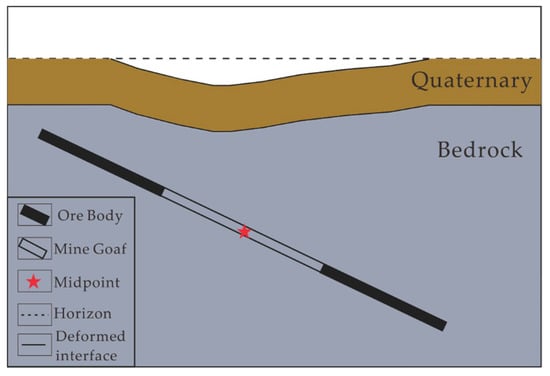

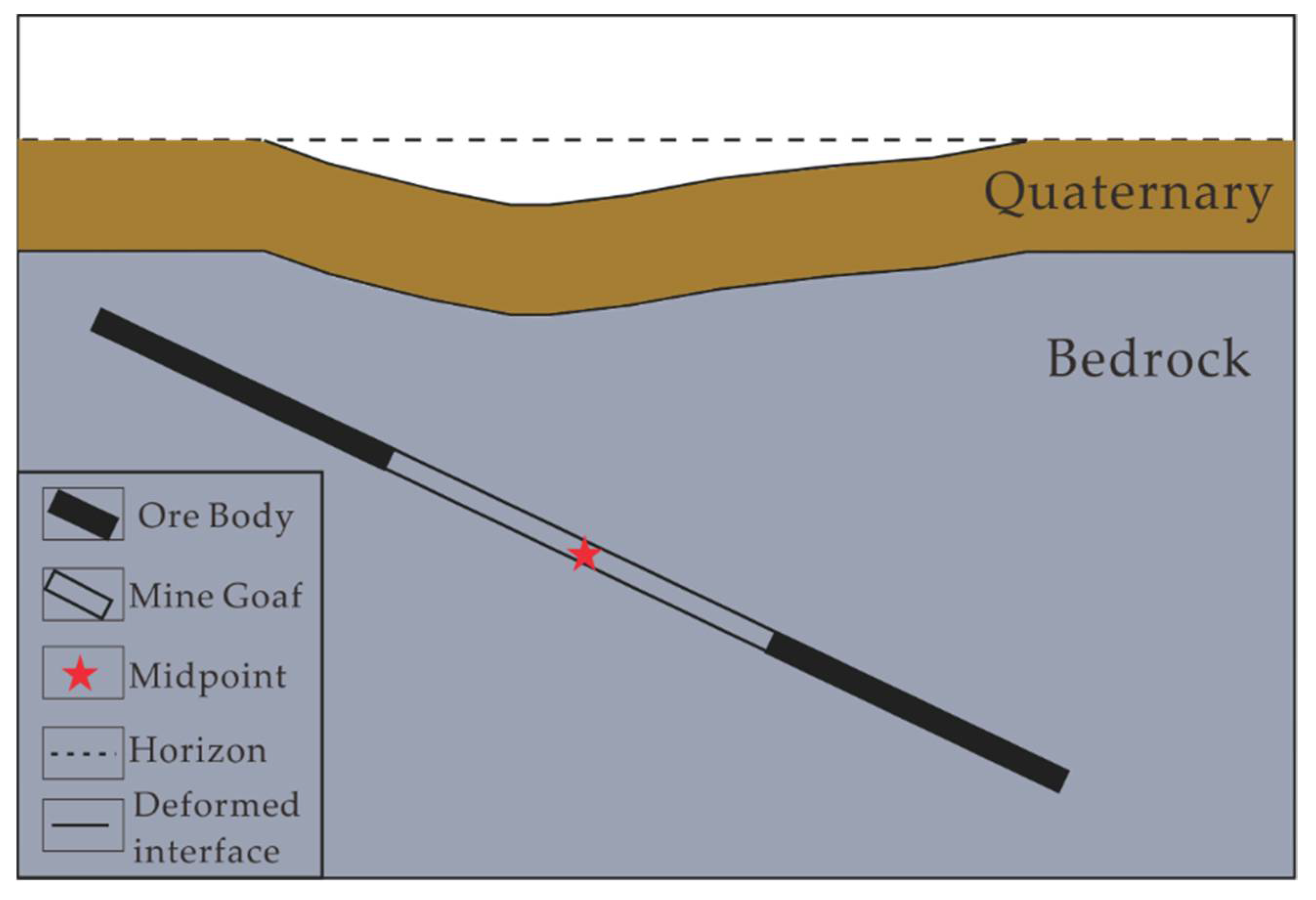

According to the schematic diagram of ground subsidence (Figure 20), the settlement shape is affected by the shape of the ore body [24]: when the ore body is horizontal and the goaf is located in the center of the ore body, the subsidence boundary is symmetrical and the location of the subsidence center corresponds to the position of the goaf; when the ore body is steep-lying and the goaf is located in the center of the ore body, the sedimentary boundary (asymmetrical) and subsidence center moves in the opposite direction to the ore body inclination. According to the detailed deformation figures (Figure 9), we discovered that the displacement value is asymmetric. We circled the settlement center with a smaller dotted ellipse; and we circled one LOS velocity contour with a bigger dotted ellipse. The subsidence center is roughly biased in the uphill direction (northwest). In other words, the displacement gradient (between two ellipses) in the northwest of the subsidence center is larger. These results imply the possibility that the subsidence of the study area is related to the geometric configuration of the ore body. Further studies on this aspect will be summarized in our next study.

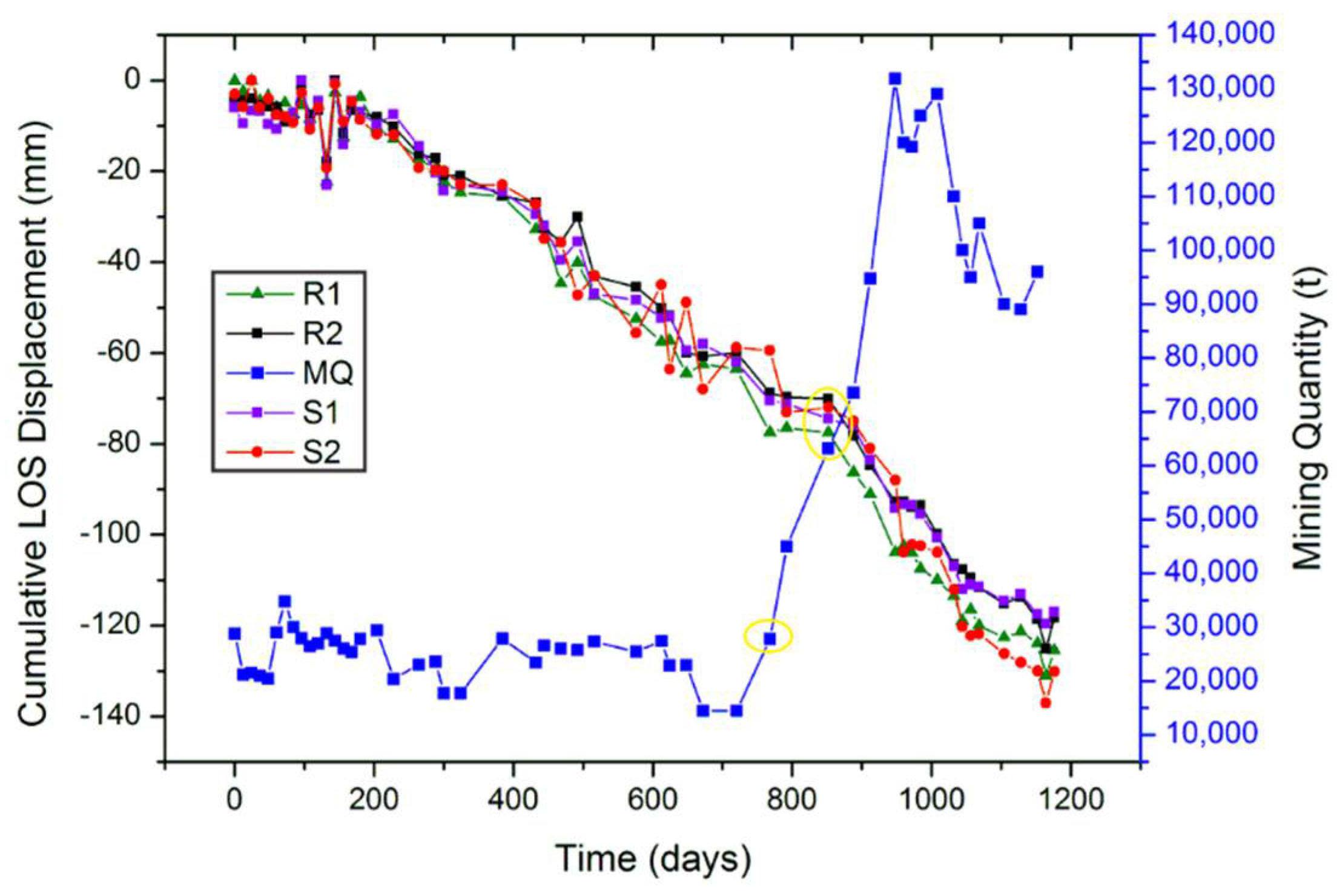

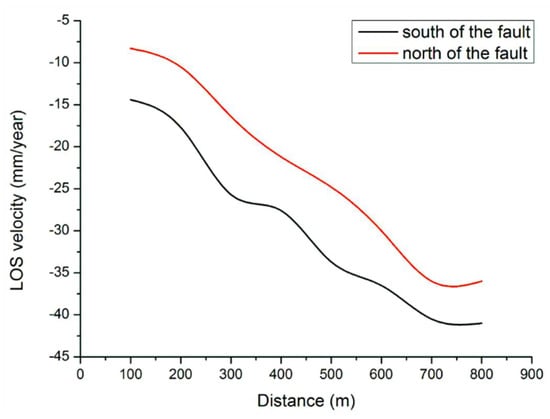

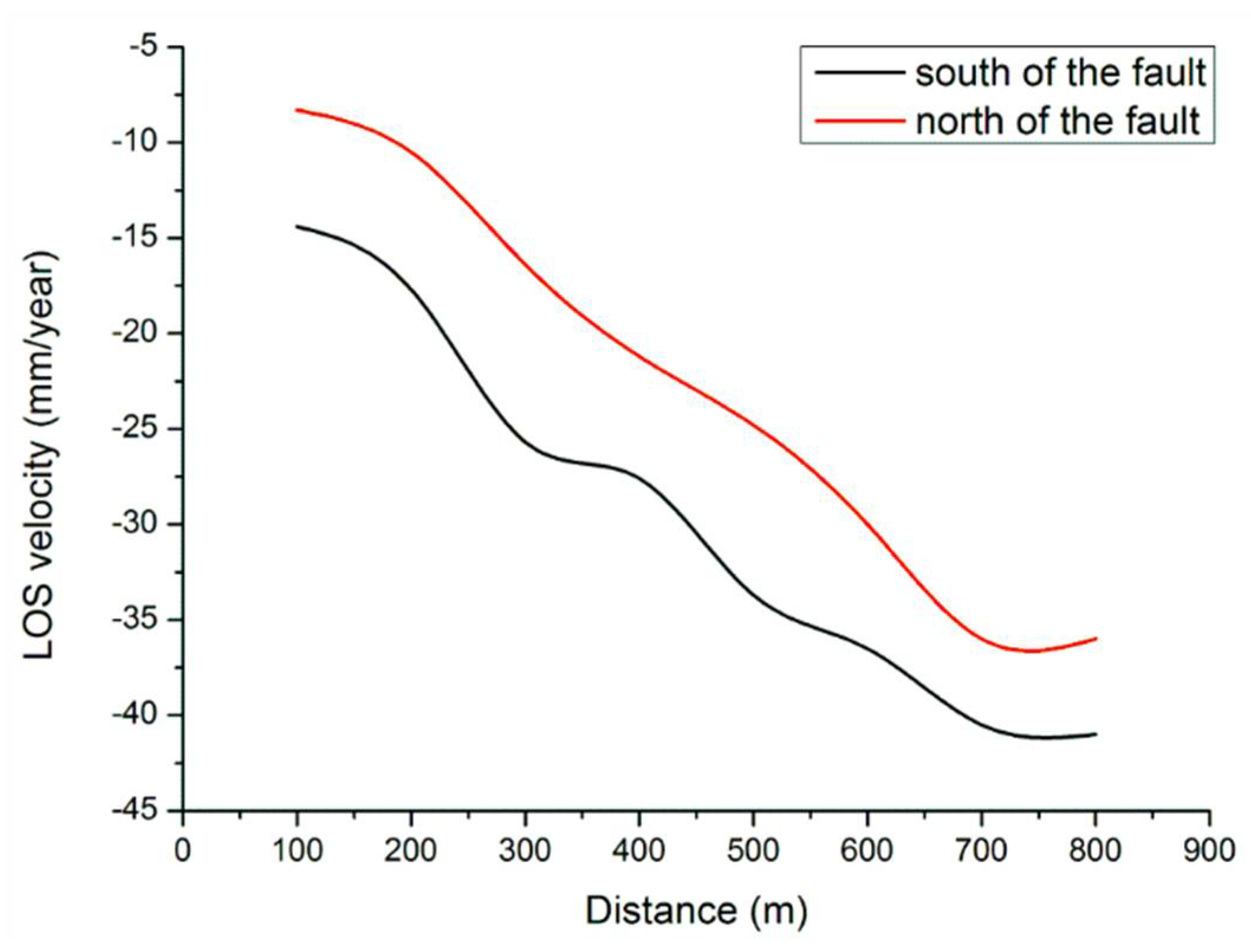

To analyze the relationship between the subsidence velocity and mining activities, we collected the mining quantity information (between January 2018 and December 2020) of the mining area above −600 m and selected R3, R2, S1 and S2 for analysis. Since June 2020, the mining quantity (above −600 m) has doubled compared with previous months, and has continued to grow exponentially. Consequently, the cumulative LOS subsidence displacement also changed with the mining quantity (Figure 21). Remarkably, the results indicate that the occurrence of subsidence lags behind mining and excavation activities. This result may be due to the fact that the gold ore body was exploited at different depths during the mining period. During mining, the formation of the goaf causes stress redistribution, deformation and destruction of the rock mass until a new balance is reached. It takes time for the underground rock mass and the overlying soil to deform. As shown in Figure 21, a sudden increase in mining quantity does not significantly change the amount of subsidence, and this is because the two different measuring units are not comparable; the rock has a greater density (2.78 t/m3) and the total goaf volume has a small change. According to the administrative staff of the Sanshandao Gold Mine, the total mining quantity has remained almost stable in recent years. However, the mining quantity of the mining area (above −600 m) has increased dramatically since June 2020.

6. Conclusions

In this study, we monitored the ground subsidence over the Sanshandao Gold Mine area between 2018 and 2021 using PSI and SBAS techniques. The subsidence results derived using the time-series InSAR techniques have high consistency, indicating that the mining area has a similar deformation pattern. The main subsidence deformation area is located between 119.94°E and 119.96°E, and 37.39°N and 37.41°N, corresponding to the main mining area. In addition, the outcome of the PSI and SBAS analysis indicated that the maximum deformation rate is about −49 mm/year. Spatially, the subsidence deformation fits with the F3 fault, extending along the northwest and southeast direction, similar in shape to an oblique egg. Temporally, the subsidence velocity significantly accelerated after July 2020, providing insights into the time of changes in mining activities; the subsidence velocity changed over the mining boom period, with a three-month delay. In general, our results help to better characterize the spatiotemporal evolution of ground subsidence. The findings of this study suggest that mining quantity is a vital factor affecting ground subsidence in the Sanshandao Gold Mine area. Due to a lack of detailed mining material, this study did not address the specific mechanism of ground subsidence in the Sanshandao Gold Mine area. Therefore, the local government should pay more attention to residential areas with severe subsidence. Measures to displace the population can be taken when necessary. Due to the complexity of the geological environment, more intensive field investigations of ground subsidence and the collection of adequate mining data are necessary for in-depth researches in the future.

Author Contributions

Conceptualization, J.L. and F.M.; methodology, J.L.; software, J.L. and G.L.; validation, J.L. and J.G.; formal analysis, J.L. and G.L.; investigation, J.G., Y.W. and Y.S.; resources, F.M.; data curation, Y.W.; writing—original draft preparation, J.L.; writing—review and editing, J.L. and G.L.; visualization, J.L.; supervision, Y.S.; project administration, F.M.; funding acquisition, F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (Grants 41831293, 42072305 and 41772341). Grateful appreciation is expressed for this financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used to support the findings of this study are available from the corresponding author upon request.

Acknowledgments

The authors would like to thank the Copernicus program of European Space Agency (ESA) for providing Sentinel-1A data and the NASA for arranging the SRTM DEM data. Acknowledgement for the data support from “China Earthquake Networks Center, National Earthquake Data Center. (http://data.earthquake.cn, accessed on 8 December 2021)”. The data for eliminating atmospheric error was provided by Generic Atmospheric Correction Online Service (GACOS). The authors also thank Lv for professional instruction. Many thanks also for editor and anonymous reviewers for their valuable advice which improved the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xue, Y.Q.; Zhang, Y.; Ye, S.J.; Wen, J.C.; Lin, Q.F. Land subsidence in China. Environ. Geol. 2005, 48, 713–720. [Google Scholar] [CrossRef]
  2. Estelle, C.; Shimon, W.; Enrique, C.; Falk, A. Land subsidence in central Mexico detected by ALOS InSAR time-series. Remote Sens. Environ. 2014, 140, 94–106. [Google Scholar]
  3. Cianflone, G.; Tolomei, C.; Brunori, C.A.; Dominici, R. InSAR time series analysis of natural and anthropogenic coastal plain subsidence: The case of sibari (Southern Italy). Remote Sens. 2015, 7, 16004–16023. [Google Scholar] [CrossRef] [Green Version]
  4. Jones, C.E.; Blom, R.G. Bayou Corne, Louisiana, sinkhole: Precursory deformation measured by radar interferometry. Geology 2014, 42, 111–114. [Google Scholar] [CrossRef]
  5. Sócrates, F.M.; Víctor, M.H.M.; José, T.V.; Cecilia, I.V.R. Evolution assessment of structurally-controlled differential subsidence using SBAS and PS interferometry in an emblematic case in Central Mexico. Eng. Geol. 2020, 279, 105860. [Google Scholar]
  6. Chai, J.C.; Shen, S.L.; Zhu, H.H.; Zhang, X.L. 1D analysis of land subsidence in Shanghai. Lowl. Technol. Int. 2005, 7, 33–41. [Google Scholar]
  7. Shen, S.L.; Ma, L.; Xu, Y.S.; Yin, Z.Y. Interpretation of increased deformation rate in aquifer IV due to groundwater pumping in Shanghai. Can. Geotech. J. 2013, 50, 1129–1142. [Google Scholar] [CrossRef]
  8. Shen, S.L.; Xu, Y.S. Numerical evaluation of land subsidence induced by groundwater pumping in Shanghai. Can. Geotech. J. 2011, 48, 1378–1392. [Google Scholar] [CrossRef]
  9. Stamatopoulos, C.; Petridis, P.; Parcharidis, I.; Foumelis, M. A method predicting pumping-induced ground settlement using back-analysis and its application in the Karla region of Greece. Nat. Hazards 2018, 92, 1733–1762. [Google Scholar] [CrossRef]
  10. Massonnet, D.; Rossi, M.; Carmona, C.; Adragna, F.; Peltzer, G.; Feigl, K.; Rabaute, T. The displacement field of the Landers earthquake mapped by radar interferometry. Nature 1993, 364, 138–142. [Google Scholar] [CrossRef]
  11. Strozzi, T.; Wegmuller, U.; Tosi, L.; Bitelli, G.; Spreckels, V. Land subsidence monitoring with differential SAR interferometry. Photogramm. Eng. Remote Sens. 2001, 67, 1261–1270. [Google Scholar]
  12. Pirouzi, A.; Eslami, A. Ground subsidence in plains around Tehran: Site survey, records compilation and analysis. Int. J. Geo-Eng. 2017, 8, 30. [Google Scholar] [CrossRef] [Green Version]
  13. Yu, H.; Gong, H.; Chen, B.; Liu, K.; Gao, M. Analysis of the influence of groundwater on land subsidence in Beijing based on the geographical weighted regression (GWR) model. Sci. Total Environ. 2020, 738, 139405. [Google Scholar] [CrossRef] [PubMed]
  14. Xiao, X.; Francisco, G.; Jesús, G. The impact of groundwater drawdown and vacuum pressure on sinkhole development. Phys. Lab. Models Eng. Geol. 2020, 279, 105894. [Google Scholar] [CrossRef]
  15. Kratzsch, H. Mining Subsidence Engineering; Springer: Berlin/Heidelberg, Germany; New York, NY, USA, 1983. [Google Scholar]
  16. Bell, F.G.; Stacey, T.R.; Genske, D.D. Mining subsidence and its effect in the environment: Some differing examples. Environ. Geol. 2000, 40, 135–152. [Google Scholar] [CrossRef]
  17. Donnelly, L.J.; De La Cruz, H.; Asmar, I.; Zapata, O.; Perez, J.D. The monitoring and prediction of mining subsidence in the Amaga, Angelopolis, Venecia and Bolombolo Regions, Antioquia, Colombia. Eng. Geol. 2001, 59, 103–114. [Google Scholar] [CrossRef]
  18. Miao, F.; Yan, M.; Qi, X.; Ye, C.; Wang, B.; Liu, R.; Chen, J. Application of DInSAR and GIS for underground mine subsidence monitoring. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2008, 37, 251–255. [Google Scholar]
  19. Oh, H.J.; Lee, S. Assessment of ground subsidence using GIS and the weights-of-evidence model. Eng. Geol. 2010, 115, 36–48. [Google Scholar] [CrossRef]
  20. Can, E.; Mekik, C.; Kuşcu, S.; Akçın, H. Subsidence occurring in mining regions and a case study of Zonguldak-Kozlu Basin. Sci. Res. Essays 2011, 6, 1317–1327. [Google Scholar]
  21. Gambolati, G.; Teatini, P.; Ferronato, M. Anthropogenic land subsidence. Encycl. Hydrol. Sci. 2006. [Google Scholar] [CrossRef]
  22. Gambolati, G.; Putti, P.; Teatini, G.; Gasparetto, S. Subsidence due to peat oxidation and impact on drainage infrastructures in a farmland catchment south of the Venice Lagoon. Environ. Geol. 2006, 49, 814–820. [Google Scholar]
  23. Lautsch, H. The extended trough theory for the interpretation of soil movements caused by mining. Glückauf 1974, 35, 167–173. [Google Scholar]
  24. Stojanović, A.; Patarić, M. Uber die stochastische Theorie der Gebirgsbewegung als Abbaufolge. Int. Symp. Mine Surv. (ISM) 1979, 4, 169–180. [Google Scholar]
  25. Carnec, C.; Delacourt, C. Three years of mining subsidence monitored by SAR interferometry, near Gradane. J. Appl. Geophys. 2000, 43, 43–54. [Google Scholar] [CrossRef]
  26. Stramondo, S.; Bozzano, F.; Marra, F.; Wegmuller, U.; Cinti, F.; Moro, M.; Saroli, M. Subsidence induced by urbanisation in the city of Rome detected by advanced InSAR technique and geotechnical investigations. Remote Sens. Environ. 2008, 112, 3160–3172. [Google Scholar] [CrossRef]
  27. Yerro, A.; Corominas, J.; Monells, D.; Mallorquí, J.J. Analysis of the evolution of ground movements in a low densely urban area by means of DInSAR technique. Eng. Geol. 2014, 170, 52–65. [Google Scholar] [CrossRef]
  28. Squarzoni, C.; Delacourt, C.; Allemand, P. Nine years of spatial and temporal evolution of the La Vallette landslide observed by SAR interferometry. Eng. Geol. 2003, 68, 53–66. [Google Scholar] [CrossRef]
  29. Farina, P.; Colombo, D.; Fumagalli, A.; Marks, F.; Moretti, S. Permanent scatterers for landslide investigations: Outcomes from the ESA-SLAM project. Eng. Geol. 2006, 88, 200–217. [Google Scholar]
  30. Zhao, C.Y.; Lu, Z.; Zhang, Q.; Fuente, J. Large-area landslide detection and monitoring with Alos/Palsar imagery data over Northern California and Southern Oregon, USA. Remote Sens. Environ. 2012, 124, 348–359. [Google Scholar] [CrossRef]
  31. Komac, M.; Bavec, M. Application of PS InSAR for observing the vertical component of the recent surface displacement in Julian Alps. Geologija 2007, 50, 97–110. [Google Scholar]
  32. Massonnet, D.; Feigl, K.L. Radar interferometry and its application to changes in the Earth’s surface. Rev. Geophys. 1998, 36, 441–500. [Google Scholar] [CrossRef] [Green Version]
  33. Salvi, S.; Atzori, S.; Tolomei, C.; Allievi, J.; Ferretti, A.; Rocca, F.; Prati, C.; Stramondo, S.; Feuillet, N. Inflation rate of the Colli Albani volcanic complex retrieved by the permanent scatterers SAR interferometry technique. Geophys. Res. Lett. 2004, 31, 12606–12610. [Google Scholar] [CrossRef] [Green Version]
  34. Hooper, A.; Pa, S.; Howard, Z.A. Persistent scatterer interferometric synthetic aperture radar for crustal deformation analysis, with application to Volcán Alcedo, Galápagos. J. Geophys. Res. Solid Earth 2007, 112, B7. [Google Scholar] [CrossRef] [Green Version]
  35. Peltier, A.; Bianchi, M.; Kaminski, E.; Komorowski, J.C.; Rucci, A.; Staudacher, T. PsInSAR as a new tool to monitor pre-eruptive volcano ground deformation: Validation using GPS measurements on Piton de la Fournaise. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef]
  36. Vasco, D.W.; Rucci, A.; Ferretti, A.; Novali, F.; Bissell, R.C.; Ringrose, P.S.; Mathieson, I.W. Satellite-based measurements of surface deformation reveal fluid flow associated with the geological storage of carbon dioxide. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef] [Green Version]
  37. Goldstein, R.M.; Engelhardt, H.; Kamb, B.; Frolich, R.M. Satellite radar interferometry for monitoring ice sheet motion: Application to an Antarctic ice stream. Science 1993, 262, 1525–1530. [Google Scholar] [CrossRef]
  38. Cigna, F.; Bateson, B.L.; Jordan, J.C.; Dashwood, C. Simulating SAR geometric distortions and predicting Persistent Scatterer densities for ERS-1/2 and ENVISAT C-band SAR and InSAR applications: Nationwide feasibility assessment to monitor the landmass of Great Britain with SAR imagery. Remote Sens. Environ. 2014, 152, 441–466. [Google Scholar] [CrossRef] [Green Version]
  39. Bürgmann, R.; Rosen, P.A.; Fielding, J.E. Synthetic Aperture Radar Interferometry to Measure Earth’s Surface Topography and Its Deformation. Annu. Rev. Earth Planet. Sci. 2000, 28, 169–209. [Google Scholar] [CrossRef]
  40. Perissin, D.; Ying, W.Z.; Hui, L. Shanghai subway tunnels and highways monitoring through cosmo-skymed persistent scatterers. ISPRS J. Photogramm. Remote Sens. 2012, 73, 58–67. [Google Scholar] [CrossRef]
  41. Samsonov, S.; D’oreye, N.; Gonzalez, P. Rapidly accelerating subsidence in the greater Vancouver region from two decades of ERS-ENVISAT-Radarsat-2 DInSAR measurements. Remote Sens. Environ. 2014, 143, 180–191. [Google Scholar] [CrossRef] [Green Version]
  42. Abelson, M.; Raz, E.; Magen, M.; Atzori, S.; Salvi, S.; Baer, G. SAR Interferometry for Sinkhole Early Warning and Susceptibility Assessment along the Dead Sea, Israel. Remote Sens. 2019, 1, 89. [Google Scholar]
  43. Malinowska, A.A.; Witkowski, T.W.; Hejmanowski, R.; Chang, L.; Leijen, J.V.F.; Hanssen, F.R. Sinkhole occurrence monitoring over shallow abandoned coal mines with satellite-based persistent scatterer interferometry. Eng. Geol. 2019, 262, 105336. [Google Scholar] [CrossRef]
  44. Motagh, M.; Shamshiri, R.; Haghighi, M.H.; Wetzel, H.-U.; Akbari, B.; Nahavandchi, H.; Roessner, S.; Arabi, S. Quantifying groundwater exploitation induced subsidence in the Rafsanjan plain, southeastern Iran, using InSAR time-series and in situ measurements. Eng. Geol. 2017, 218, 134–151. [Google Scholar] [CrossRef]
  45. Svigkas, N.; Papoutsis, I.; Loupasakis, C.; Tsangaratos, P.; Kiratzi, A.; Kontoes, C. Land subsidence rebound detected via multi-temporal InSAR and ground truth data in Kalochori and Sindos regions, Northern Greece. Eng. Geol. 2016, 209, 175–186. [Google Scholar]
  46. Thapa, S.; Chatterjee, R.S. Estimation of atmospheric effects of radarsat-2 d-insar product using groundbasedand spaceborne meterological data. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2015, 40, 243. [Google Scholar] [CrossRef] [Green Version]
  47. Ferretti, A.C.; Prati, C.; Rocca, F. Permanent Scatterers in SAR Interferometry. Trans. Geosci. Remote Sens. 2001, 39, 8–20. [Google Scholar] [CrossRef]
  48. Berardino, P.; Fornaro, G.; Lanari, R.; Sansosti, E. A new algorithm for surface deformation monitoring based on Small Baseline Differential SAR Interferograms. IEEE Trans. Geosci. Remote Sens. 2002, 40, 2375–2383. [Google Scholar] [CrossRef] [Green Version]
  49. Aly, M.H.; Klein, A.G.; Zebker, H.A. Land subsidence in the Nile Delta of Egypt observed by persistent scatterer interferometry. Int. J. Remote Sens. 2012, 33, 2068–2096. [Google Scholar] [CrossRef]
  50. Pacheco-Martínez, J.; Hernandez-Marín, M.; Burbey, T.J.; González-Cervantes, N.; Ortíz-Lozano, J.Á.; Zermeño-De-Leon, M.E.; Solís-Pinto, A. Land subsidence and ground failure associated to groundwater exploitation in the Aguascalientes Valley, México. Eng. Geol. 2013, 164, 172–186. [Google Scholar] [CrossRef]
  51. Foroughnia, F.; Nemati, S.; Maghsoudi, Y.; Perissin, D. An iterative PS-InSAR method for the analysis of large spatio-temporal baseline data stacks for land subsidence estimation. Int. J. Appl. Earth Obs. Geoinf. 2018, 74, 248–258. [Google Scholar] [CrossRef]
  52. Murgia, F.; Bignami, C.; Brunori, C.A.; Tolomei, C.; Pizzimenti, L. Ground Deformations Controlled by Hidden Faults: Multi-Frequency and Multitemporal InSAR Techniques for Urban Hazard Monitoring. Remote Sens. 2019, 11, 2246. [Google Scholar] [CrossRef] [Green Version]
  53. Cohen-Waeber, J.; Bürgmann, R.; Chaussard, E.; Giannico, C.; Ferretti, A. Spatiotemporal patterns of precipitation-modulated landslide deformation from independent component analysis of InSAR time series. Geophys. Res. Lett. 2018, 45, 1878–1887. [Google Scholar] [CrossRef]
  54. Ramesh, P.S.; Ram, N.Y. Prediction of subsidence due to coal mining in Raniganj coalfield, West Bengal, India. Eng. Geol. 1995, 39, 103–111. [Google Scholar]
  55. Hahn, J.C.; Sang-Wan, K.; Hyung-Sup, J.; Kyung, M.D.; Joong-Sun, W. Satellite observation of coal mining subsidence by persistent scatterer analysis. Eng. Geol. 2007, 92, 1–13. [Google Scholar]
  56. Choi, J.K.; Won, J.S.; Lee, S.; Kim, S.W.; Kim, K.D.; Jung, H.S. Integration of a subsidence model and SAR interferometry for a coal mine subsidence hazard map in Taebaek. Int. J. Remote Sens. 2011, 32, 8161–8181. [Google Scholar] [CrossRef]
  57. Wang, Z.; Zhang, J.; Huang, G. Precise monitoring and analysis of the land subsidence in Jining coal mining area based on InSAR technique. J. China Univ. Min. Technol. 2014, 43, 169–174. [Google Scholar]
  58. Mark, G.; Abduwasit, G. Evaluation of land subsidence from underground coal mining using TimeSAR (SBAS and PSI) in Springfield, Illinois, USA. Nat. Hazards 2015, 79, 1739–1751. [Google Scholar]
  59. Rehman, S.; Sahana, M.; Duttta, S.; Sajjad, H.; Song, X.; Imdad, K.; Dou, J. Assessing subsidence susceptibility to coal mining using frequency ratio, statistical index and Mamdani fuzzy models: Evidence from Raniganj coalfield, India. Environ. Earth Sci. 2020, 79, 16. [Google Scholar] [CrossRef]
  60. Yan, H.; Gao, K.; Peng, H. Study on Surface Subsidence Law Induced by Deep Mining of Large Steep Metal Deposit. J. Appl. Mech. Mater. 2013, 295–298, 2902–2905. [Google Scholar]
  61. Alex, H.M.N.; Linlin, G.; Xiaojing, L. Assessments of land subsidence in the Gippsland Basin of Australia using ALOS PALSAR data. Remote Sens. Environ. 2015, 159, 86–101. [Google Scholar]
  62. Fengshan, M.; Hongyu, G.; Jie, G.; Rong, L. Analysis of ground deformation based on GPS in Sanshandao gold mine, China. J. Nepal Geol. Soc. 2018, 55, 7–14. [Google Scholar]
  63. Papoutsis, I.; Kontoes, C.; Alatza, S.; Apostolakis, A.; Loupasakis, C. InSAR Greece with Parallelized Persistent Scatterer Interferometry: A National Ground Motion Service for Big Copernicus Sentinel-1 Data. Remote Sens. 2020, 12, 3207. [Google Scholar] [CrossRef]
  64. Duan, X.L.; Ma, F.S.; Guo, J.; Zhao, H.J.; Gu, H.Y.; Liu, S.Q.; Sun, Q.H. Source Identification and Quantification of Seepage Water in a Coastal Mine, in China. Water 2019, 11, 1862. [Google Scholar] [CrossRef] [Green Version]
  65. Wang, S.F.; Wang, K.; Ma, F.S.; Lu, R. Optimization of three-underground mining technology and disaster prevention in Sanshandao Gold Mine. Gold Sci. Technol. 2020, 28, 734–742. [Google Scholar]
  66. Jiang, W.L.; Zhang, J.F.; Han, Z.J.; Tian, T.; Jiao, Q.S.; Wang, X.; Jiang, H.B. Characteristic Slip of Strong Earthquakes Along the Yishu Fault Zone in East China Evidenced by Offset Landforms. Tectonics 2017, 36, 1947–1965. [Google Scholar] [CrossRef]
  67. Liu, Y.Z.; Yang, L.Q.; Wang, S.R.; Liu, X.D.; Wang, H.; Li, D.P.; Wei, P.F.; Cheng, W.; Chen, B.Y. Origin and Evolution of Ore-Forming Fluid and Gold-Deposition Processes at the Sanshandao Gold Deposit, Jiaodong Peninsula, Eastern China. Minerals 2019, 9, 189. [Google Scholar] [CrossRef] [Green Version]
  68. Liu, G.; Ma, F.S.; Zhao, H.J.; Li, G.; Cao, J.Y.; Guo, J. Study on the Fracture Distribution Law and the Influence of Discrete Fractures on the Stability of Roadway Surrounding Rock in the Sanshandao Coastal Gold Mine, China. Sustainability 2019, 11, 2758. [Google Scholar] [CrossRef] [Green Version]
  69. Gu, H.Y.; Ma, F.S.; Guo, J.; Li, K.P.; Lu, R. Assessment of Water Sources and Mixing of Groundwater in a Coastal Mine: The Sanshandao Gold Mine, China. Mine Water Environ. 2018, 37, 351–365. [Google Scholar] [CrossRef]
  70. Geudtner, D.; Prats, P.; Yague, N.; Navas-Traver, I.; Barat, I.; Torres, R. Sentinel-1 SAR interferometry performance verification. In Proceedings of the EUSAR 2016: 11th European Conference on Synthetic Aperture Radar, Hamburg, Germany, 6–9 June 2016; pp. 1–4. [Google Scholar]
  71. Hu, L.Y.; Dai, K.R.; Xing, C.Q.; Li, Z.H.; Tomás, R.; Clark, B.; Shi, X.L.; Chen, M.; Zhang, R.; Qiu, Q.; et al. Land subsidence in Beijing and its relationship with geological faults revealed by Sentinel-1 InSAR observations. Int. J. Appl. Earth Obs. Geoinform. 2019, 82, 101886. [Google Scholar] [CrossRef]
  72. Farr, T.G.; Kobrick, M. Shuttle radar topography mission produces a wealth of data. Eos Trans. Am. Geophys. 2000, 81, 583–585. [Google Scholar] [CrossRef]
  73. Lanari, R.; Mora, O.; Manunta, M. A small-baseline approach for investigating deformations on full-resolution differential SAR interferograms. IEEE Trans. Geosci. Remote Sens. 2004, 42, 1377–1386. [Google Scholar] [CrossRef]
  74. Lanari, R.; Casu, F.; Manzo, M.; Zeni, G.; Berardino, P.; Manunta, M.; Pepe, A. An overview of the Small BAseline subset algorithm: A DInSAR technique for surface deformation analysis. Pure Appl. Geophys. 2007, 164, 637–661. [Google Scholar] [CrossRef]
  75. Sansosti, E.; Casu, F.; Manzo, M.; Lanari, R. Spaceborne radar interferometry techniques for the generation of deformation time series: An advanced tool for Earth’s surface displacement analysis. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef]
  76. Necsoiu, M.; McGinnis, R.N.; Hooper, D.M. New insights on the Salmon Falls Creek Canyon landslide complex based on geomorphological analysis and multitemporal satellite InSAR techniques. Landslides 2014, 11, 1141–1153. [Google Scholar] [CrossRef]
  77. Zebker, H.A. Geodetically accurate InSAR data processor. Geosci. Remote Sens. IEEE Trans. 2010, 48, 4309–4321. [Google Scholar] [CrossRef]
  78. Ferretti, A.; Prati, C.; Rocca, F. Nonlinear subsidence rate estimation using permanent scatterers in differential SAR interferometry. Trans. Geosci. Remote Sens. 2000, 38, 2202–2212. [Google Scholar] [CrossRef] [Green Version]
  79. Hooper, A.; Zebker, H.; Segall, P.; Kampes, B. A new method for measuring deformation on volcanoes and other natural terrains using InSAR persistent scatterers. Geophys. Res. Lett. 2004, 31, L23611. [Google Scholar] [CrossRef]
  80. Zhang, L.; Ding, X.L.; Lu, Z. Ground settlement monitoring based on temporarily coherent points between two SAR acquisitions. ISPRS J. Photogramm. Remote Sens. 2011, 66, 146–152. [Google Scholar] [CrossRef]
  81. Chen, Q.; Liu, G.X.; Ding, X.; Li, Y.S. Radar differential interferometry based on permanent scatterers and its application to detecting regional ground subsidence. Acta Geophys. Sin. 2007, 50, 737–743. [Google Scholar]
  82. ESA. SNAP Download STEP [WWW Document]. Step Sci. Toolbox Explot. Platf URL. 2017. Available online: https://step.esa.int/main/download/snap-download/ (accessed on 8 December 2021).
  83. Hooper, A.; Bekaert, D.; Spaans, K. StaMPS/MTI Manual; Version 3.3b1; University of Leeds: Leeds, UK, 2013. [Google Scholar]
  84. Joaquim, S.; Andrew, H.J.; Ramon, H.F.; Maria, B.L.; Antonio, R.M. Persistent Scatterer InSAR: A comparison of methodologies based on a model of temporal deformation vs. spatial correlation selection criteria. Remote Sens. Environ. 2011, 115, 2652–2663. [Google Scholar]
  85. Dwivedi, R.; Varshney, P.; Tiwari, A.; Singh, A.K.; Dikshit, O. The International Archives of Photogrammetry. Remote Sens. Spat. Inf. Sci. 2014, 8, 35–38. [Google Scholar]
  86. Czikhardt, R.; Papčo, J.; Bakoň, M. Feasibility of the Sentinel-1 Multi-temporal InSAR system based on the SNAP and StaMPS: Case study from the Tatra Mts., Slovakia. Procedia Comput. Sci. 2018, 138, 366–373. [Google Scholar] [CrossRef]
  87. Goldstein, R.M.; Werner, C.L. Radar interferogram filtering for geophysical applications. Geophys. Res. Lett. 1998, 25, 4035–4038. [Google Scholar] [CrossRef] [Green Version]
  88. Yu, C.; Penna, N.T.; Li, Z. Generation of real-time mode high-resolution water vapor fields from GPS observations. J. Geophys. Res. Atmos. 2017, 122, 2008–2025. [Google Scholar] [CrossRef]
  89. Yu, C.; Li, Z.; Penna, N.T. Interferometric synthetic aperture radar atmospheric correction using a GPS-based iterative tropospheric decomposition model. Remote Sens. Environ. 2018, 204, 109–121. [Google Scholar] [CrossRef]
  90. Yu, C.; Li, Z.; Penna, N.T.; Crippa, P. Generic atmospheric correction model for Interferometric Synthetic Aperture Radar observations. J. Geophys. Res. Solid Earth 2018, 123, 9202–9222. [Google Scholar] [CrossRef]
  91. Zhang, C.S.; Zhang, S. A robust-symmetric mean: A new way of mean calculation for environmental data. GeoJournal 1996, 40, 209–212. [Google Scholar] [CrossRef]
  92. Lilliefors, W.H. On the Kolmogorov-Smirnov Test for Normality with Mean and Variance Unknown. Am. Stat. Assoc. 2012, 318, 399–402. [Google Scholar] [CrossRef]
  93. Bell, F.G.; Donnelly, L.J.; Genske, D.D.; Ojeda, J. Unusual cases of mining subsidence from Great Britain, Germany and Colombia. Environ. Geol. 2005, 47, 620–631. [Google Scholar] [CrossRef] [Green Version]
  94. Sainoki, A.; Mitri, H.S. Dynamic behavior of mining-induced fault slip. Int. J. Rock Mech. Min. Sci. 2014, 66, 19–29. [Google Scholar] [CrossRef]
Remotesensing 14 00290 g001 550

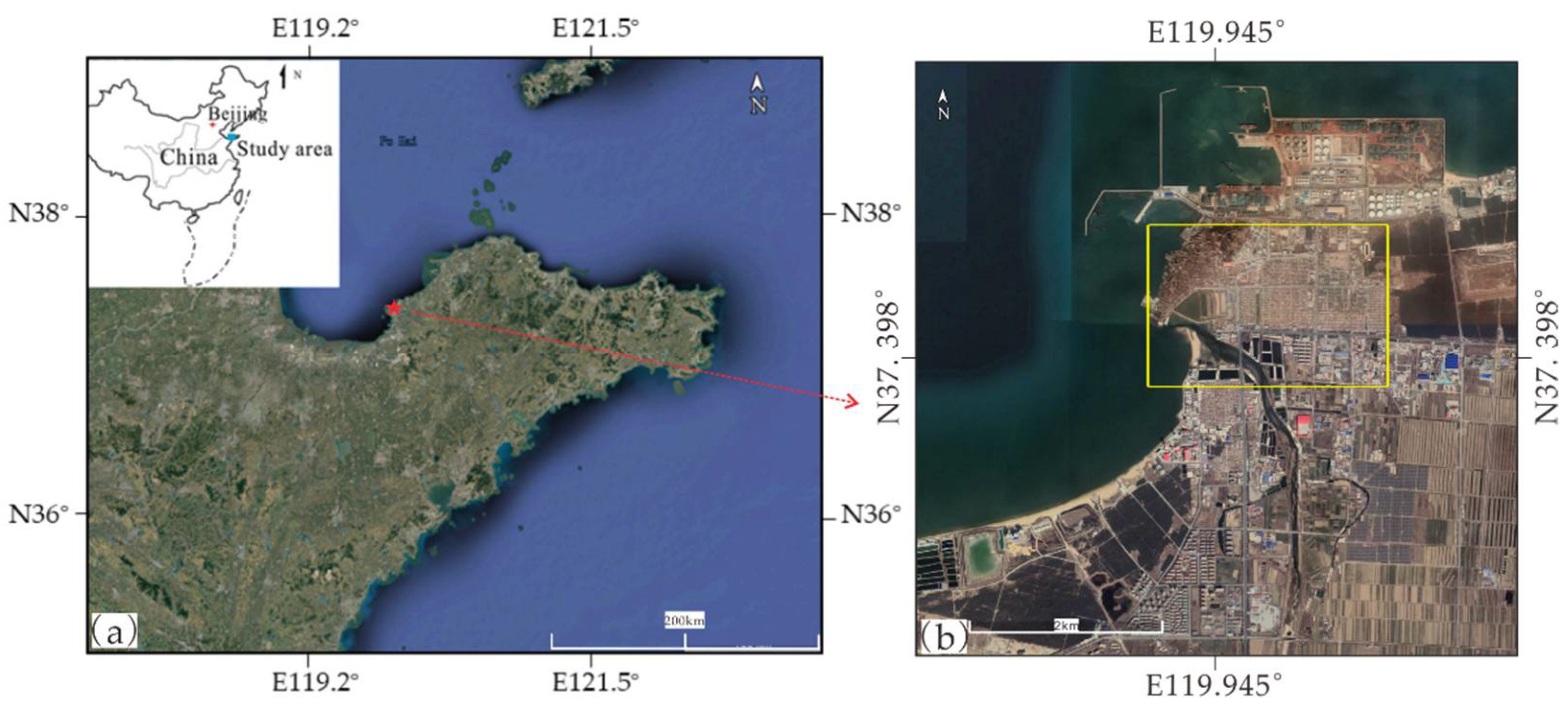

Figure 1. (a) The Google Earth view localizes the Shandong Province to which the mining area belongs. (b) Specific location of the study area. (The main mining area is outlined by a solid, yellow, rectangular line).
Figure 1. (a) The Google Earth view localizes the Shandong Province to which the mining area belongs. (b) Specific location of the study area. (The main mining area is outlined by a solid, yellow, rectangular line).
Remotesensing 14 00290 g001
Remotesensing 14 00290 g002 550

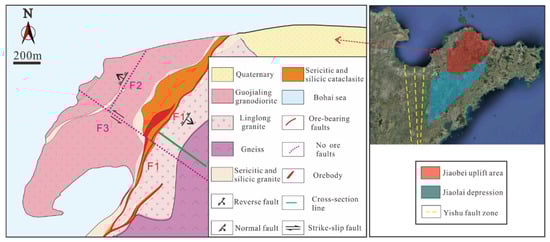

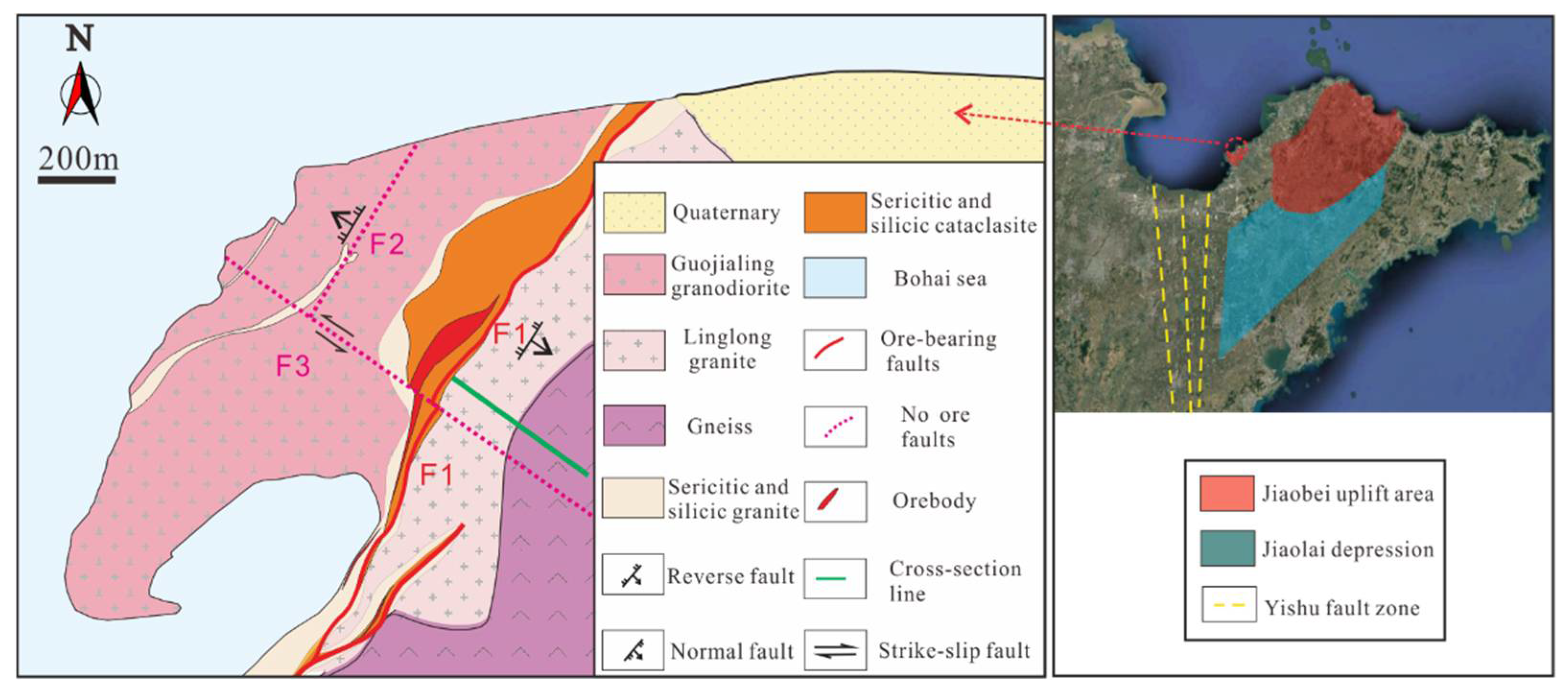

Figure 2. Simplified geological map of study area: the bedrock consists of sericitic and silicic granite, pyrite sericite, gneiss, cataclasite. The cross-section line is marked in green in the figure (adapted from [64]).
Figure 2. Simplified geological map of study area: the bedrock consists of sericitic and silicic granite, pyrite sericite, gneiss, cataclasite. The cross-section line is marked in green in the figure (adapted from [64]).
Remotesensing 14 00290 g002
Remotesensing 14 00290 g003 550

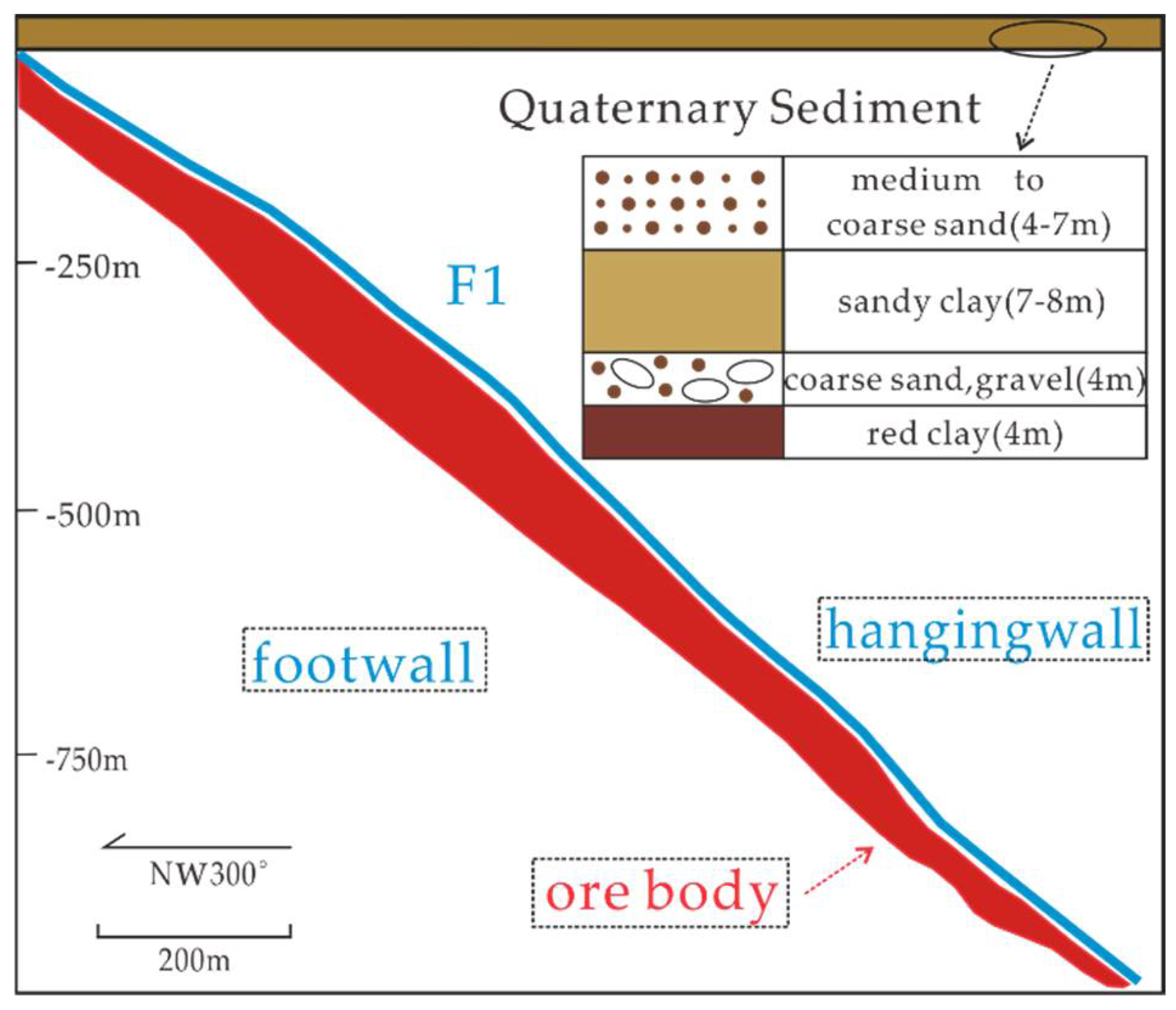

Figure 3. The simplified geological cross-section of the study area.
Figure 3. The simplified geological cross-section of the study area.
Remotesensing 14 00290 g003
Remotesensing 14 00290 g004 550
Figure 4. The flowchart of the whole PSI processing chain, using SNAP program and StaMPS algorithm (adapted from [5]).
Figure 4. The flowchart of the whole PSI processing chain, using SNAP program and StaMPS algorithm (adapted from [5]).
Remotesensing 14 00290 g004
Remotesensing 14 00290 g005 550
Figure 5. InSAR LOS velocity in study area between 22 February 2018 and 25 May 2021, processed using the PSI technique. Ground movements away from the satellite are shown with warm colors.
Figure 5. InSAR LOS velocity in study area between 22 February 2018 and 25 May 2021, processed using the PSI technique. Ground movements away from the satellite are shown with warm colors.
Remotesensing 14 00290 g005
Remotesensing 14 00290 g006 550

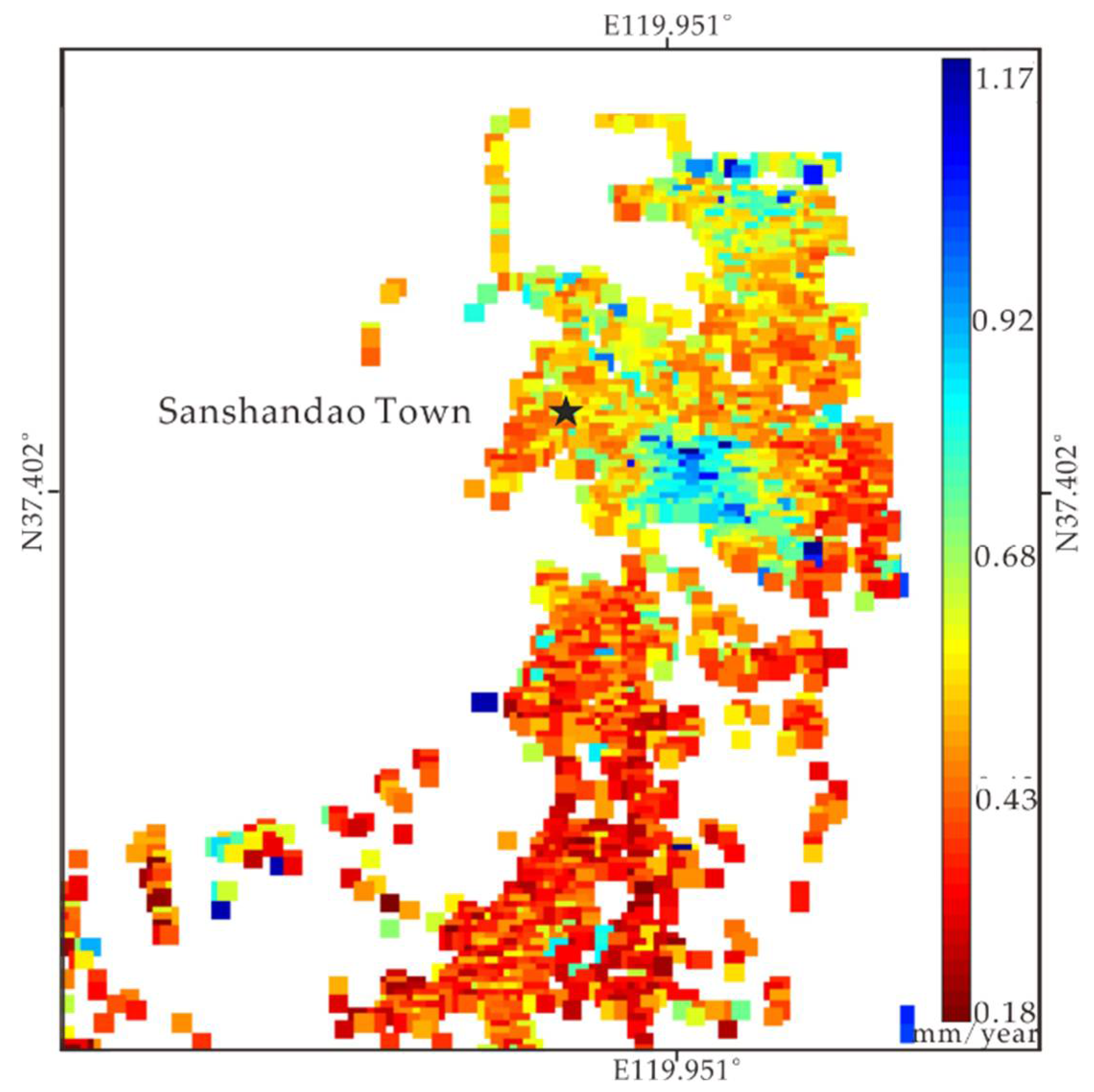

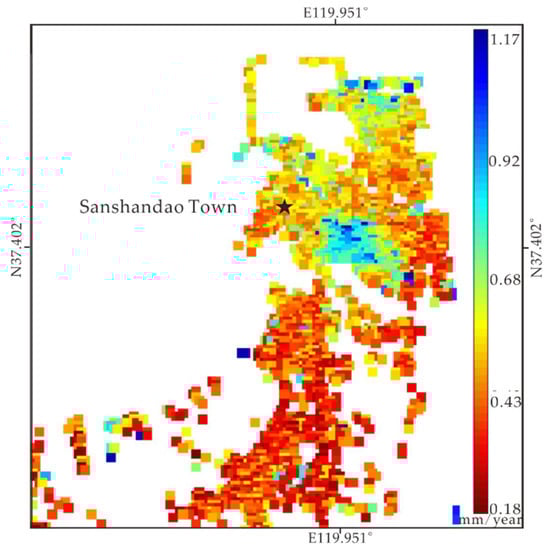

Figure 6. The standard deviation of the mean LOS velocity estimation.
Figure 6. The standard deviation of the mean LOS velocity estimation.
Remotesensing 14 00290 g006
Remotesensing 14 00290 g007 550
Figure 7. InSAR LOS displacement in study area between 11 April 2018 and 12 July 2021, processed using the SBAS technique. Ground movements toward the satellite are shown with warm colors. The black dot in the picture will be discussed later as a reference point.
Figure 7. InSAR LOS displacement in study area between 11 April 2018 and 12 July 2021, processed using the SBAS technique. Ground movements toward the satellite are shown with warm colors. The black dot in the picture will be discussed later as a reference point.
Remotesensing 14 00290 g007
Remotesensing 14 00290 g008 550
Figure 8. The important constructions and provincial highways (marked with lines and rectangular wireframes) in mining area.
Figure 8. The important constructions and provincial highways (marked with lines and rectangular wireframes) in mining area.
Remotesensing 14 00290 g008
Remotesensing 14 00290 g009a 550Remotesensing 14 00290 g009b 550
Figure 9. The subsidence funnel in the main mining area: (a) PSI result: ground movements away from the satellite are shown with cold colors; (b) SBAS result: ground movements away from the satellite are shown with cold colors.
Figure 9. The subsidence funnel in the main mining area: (a) PSI result: ground movements away from the satellite are shown with cold colors; (b) SBAS result: ground movements away from the satellite are shown with cold colors.
Remotesensing 14 00290 g009aRemotesensing 14 00290 g009b
Remotesensing 14 00290 g010 550
Figure 10. The severe subsidence area during rainy days.
Figure 10. The severe subsidence area during rainy days.
Remotesensing 14 00290 g010
Remotesensing 14 00290 g011 550

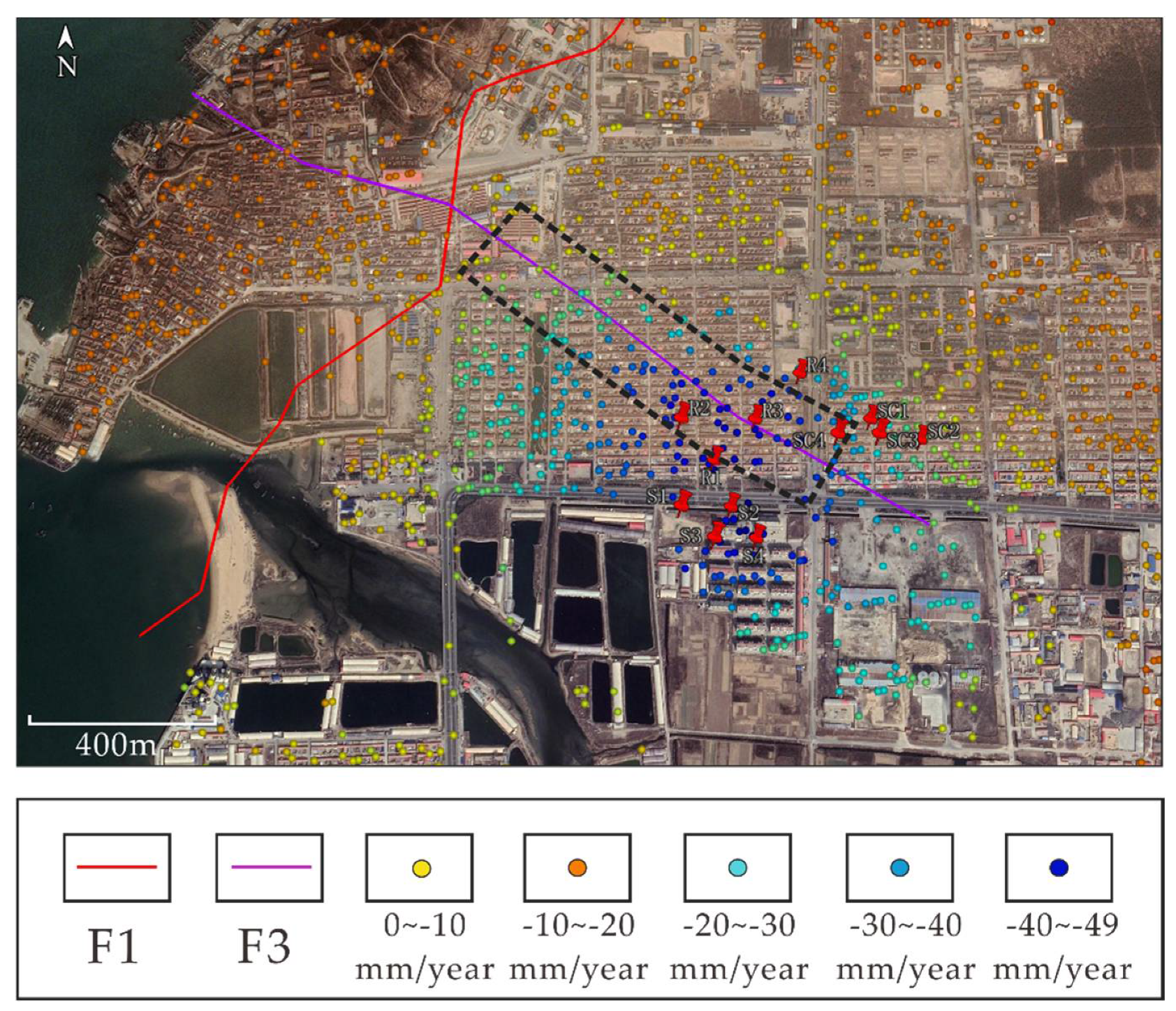

Figure 11. The LOS velocity map overlaid on Google Earth, the selected analysis range (black dashed box) and the location of representative sites are shown on the map.
Figure 11. The LOS velocity map overlaid on Google Earth, the selected analysis range (black dashed box) and the location of representative sites are shown on the map.
Remotesensing 14 00290 g011
Remotesensing 14 00290 g012 550
Figure 12. The representative sites in the Residential Area Zone.
Figure 12. The representative sites in the Residential Area Zone.
Remotesensing 14 00290 g012
Remotesensing 14 00290 g013 550
Figure 13. The representative sites in the sea view community zone.
Figure 13. The representative sites in the sea view community zone.
Remotesensing 14 00290 g013
Remotesensing 14 00290 g014 550
Figure 14. The representative sites in the area behind the school.
Figure 14. The representative sites in the area behind the school.
Remotesensing 14 00290 g014
Remotesensing 14 00290 g015 550
Figure 15. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Figure 15. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Remotesensing 14 00290 g015
Remotesensing 14 00290 g016 550

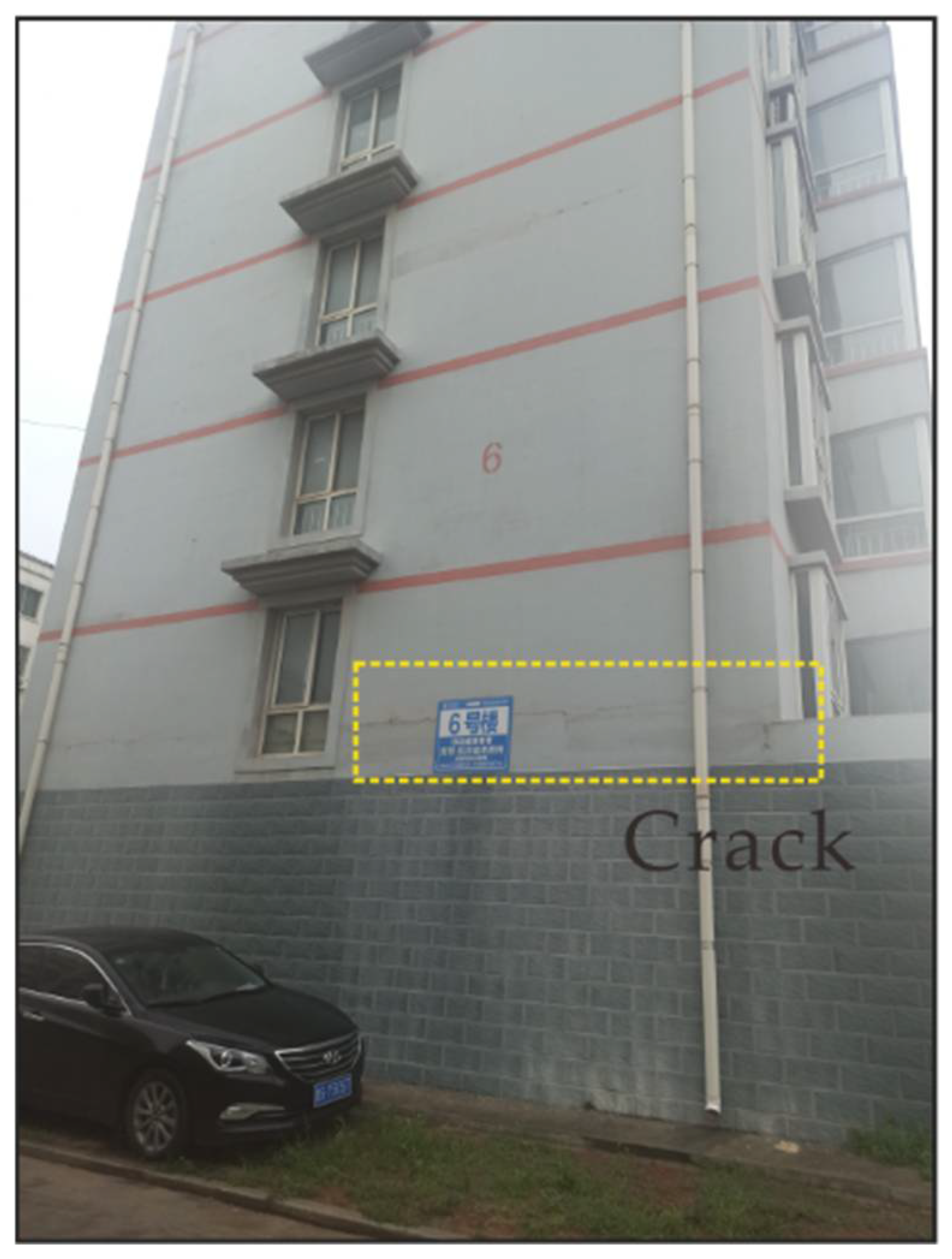

Figure 16. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Figure 16. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Remotesensing 14 00290 g016
Remotesensing 14 00290 g017 550
Figure 17. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Figure 17. Construction damages due to the mining subsidence (the yellow dashed box shows the position of the cracks).
Remotesensing 14 00290 g017
Remotesensing 14 00290 g018 550
Figure 18. The cumulative LOS displacements of the selected sites: the PS vs. SBAS cross-comparison analysis.
Figure 18. The cumulative LOS displacements of the selected sites: the PS vs. SBAS cross-comparison analysis.
Remotesensing 14 00290 g018
Remotesensing 14 00290 g019 550
Figure 19. The subsidence rate on both sides of the F3 fault (from northwest to southeast).
Figure 19. The subsidence rate on both sides of the F3 fault (from northwest to southeast).
Remotesensing 14 00290 g019
Remotesensing 14 00290 g020 550
Figure 20. The schematic diagram of ground subsidence.
Figure 20. The schematic diagram of ground subsidence.
Remotesensing 14 00290 g020
Remotesensing 14 00290 g021 550
Figure 21. The cumulative LOS subsidence displacement and mining quantity change (the turning points of subsidence displacement and mining quantity are circled by yellow ellipses).
Figure 21. The cumulative LOS subsidence displacement and mining quantity change (the turning points of subsidence displacement and mining quantity are circled by yellow ellipses).
Remotesensing 14 00290 g021
Table
Table 1. Specific information of SAR images (Dates are in the format yyyy mm dd).
Table 1. Specific information of SAR images (Dates are in the format yyyy mm dd).
ItemsDescription
missionSentinel-1A
scanning modeIW
band typeC
antenna_pointingright
slice number7
orbit directionascending
range_spacing (m)2.3296
azimuth_spacing (m)13.9637
track number171
incidence_angle (°)38.9
time spans2018 02 22–2021 07 12
days1236
The corresponding unit is displayed in parentheses.
Table
Table 2. Stage analysis of the cumulative LOS displacement results.
Table 2. Stage analysis of the cumulative LOS displacement results.
Stage20180222–2020080120200801–20210525
ItemsVelocityR2VelocityR2
R132.560.9551.000.92
R231.130.9553.000.95
S131.350.9350.550.91
S231.760.9472.340.92
SC121.280.9230.620.87
SC213.720.8516.060.74
Dates are in the format yyyy mm dd; The unit of velocity is mm/year; R2 is the goodness of fit.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, J.; Ma, F.; Li, G.; Guo, J.; Wan, Y.; Song, Y. Evolution Assessment of Mining Subsidence Characteristics Using SBAS and PS Interferometry in Sanshandao Gold Mine, China. Remote Sens. 2022, 14, 290. https://doi.org/10.3390/rs14020290

AMA Style

Liu J, Ma F, Li G, Guo J, Wan Y, Song Y. Evolution Assessment of Mining Subsidence Characteristics Using SBAS and PS Interferometry in Sanshandao Gold Mine, China. Remote Sensing. 2022; 14(2):290. https://doi.org/10.3390/rs14020290

Chicago/Turabian Style

Liu, Jia, Fengshan Ma, Guang Li, Jie Guo, Yang Wan, and Yewei Song. 2022. "Evolution Assessment of Mining Subsidence Characteristics Using SBAS and PS Interferometry in Sanshandao Gold Mine, China" Remote Sensing 14, no. 2: 290. https://doi.org/10.3390/rs14020290

APA Style

Liu, J., Ma, F., Li, G., Guo, J., Wan, Y., & Song, Y. (2022). Evolution Assessment of Mining Subsidence Characteristics Using SBAS and PS Interferometry in Sanshandao Gold Mine, China. Remote Sensing, 14(2), 290. https://doi.org/10.3390/rs14020290

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
