The Spatial Variation of Water Clouds, NH₃, and H₂O on Jupiter Using Keck Data at 5 Microns

Abstract

We obtained high-resolution spectra of Jupiter between 4.6 and 5.4 µm using NIRSPEC on the Keck 2 telescope in February 2017. We measured the spatial variation of NH${}_3$, H${}_2$O, and the pressure level of deep (p > 3 bar) clouds using two geometries. We aligned the slit north–south on Jupiter’s Central Meridian to measure the spatial variation of the gas composition and cloud structure between 66${}^{°}$N and 70${}^{°}$S. With the slit aligned east–west, we also examined the longitudinal variation at two regions of the North Equatorial Belt (NEB) at 18${}^{°}$N and at 8${}^{°}$N near the latitude of the Galileo Probe entry site. We used the integrated line absorption, also known as the equivalent width, of deuterated methane (CH${}_3$D) at 4.66 µm to derive the pressure level of deep clouds between 3 and 7 bar. From thermochemical models, these are most likely water clouds. At the location of a deep cloud revealed by HST methane-band imaging, we found spectroscopic evidence for an opaque cloud at the 5 bar level. We also identified regions on Jupiter that lacked deep clouds but exhibited evidence for upper clouds and enhanced NH${}_3$. We estimated column-averaged mole fractions of H${}_2$O and NH${}_3$ above the opaque lower boundary of the deep cloud. The meridional scan exhibited significant belt-zone structure with retrieved NH${}_3$ abundances in the 200–400 ppm range above the opaque lower cloud, except for a depletion (down to 90 ppm) in the NEB. Water in Jupiter’s belts varies from a maximum of 7 ppm at 8${}^{°}$S to a minimum of 1.5 ppm at 23${}^{°}$S. We found evidence for water clouds and enhanced NH${}_3$ and H${}_2$O in the South Equatorial Belt Outbreak region at 13${}^{°}$S. The NEB is a heterogeneous region with significant variation in all of these quantities. The NH${}_3$ abundance at 18${}^{°}$N and 8${}^{°}$N varies with the longitude with mole fractions between 120 and 300 ppm. The H${}_2$O abundance at these same latitudes varies with the longitude with mole fractions between 3 and 10 ppm. Our volatile mole fractions apply to the 5 to 8 bar pressure range (or to the level of an opaque cloud top where found at shallower pressure); therefore, they imply a deeper gradient continuing to increase toward higher concentrations detected by the Galileo Probe Mass Spectrometer at 11 and 20 bar. Hot Spots in the NEB exhibit minimal cloud opacity; however, they lack prominent anomalies in the concentrations of NH${}_3$ or H${}_2$O.

1. Introduction

The spectrum of Jupiter between 4.5 and 5.4 µm provides a wealth of information about the gas composition and cloud structure of the troposphere of this giant planet. Jupiter’s 5 µm spectrum is a mixture of reflected sunlight and thermal emission that changes significantly between belts and zones. Chemical models of Jupiter’s cloud structure predict three distinct layers: an NH${}_3$ ice cloud near 0.8 bar, an NH${}_4$SH cloud formed from a reaction of NH${}_3$ and H${}_2$S at 2.5 bar, and a massive water ice/liquid solution cloud near 5 or 6 bar, depending on the assumptions of the composition and thermal structure (see Weidenschilling and Lewis [1], Atreya and Romani [2] and Wong et al. [3]).

Jupiter exhibits remarkable spatial structure at 5 µm. Thermal emission from the deep atmosphere is attenuated by the variable opacity of one or more of these three cloud layers. The haze opacity at pressures less than 0.8 bar and clouds composed of NH${}_3$ ice and NH${}_4$SH affect the continuum level; however, they are too cold to change the line to continuum ratios in Jupiter’s 5 µm spectrum. In this paper, we use the strength of the absorption features of CH${}_3$D to derive the spatial variation of the pressure of the warmest and deepest cloud layer at numerous locations using slit orientations at one longitude (280${}^{°}$W System III) spanning from 66${}^{°}$N to 70${}^{°}$S (planetographic) along the central meridian; and using an East–West placement of the slit along the North Equatorial Belt (NEB) at 18${}^{°}$N covering longitudes 300–360 and also at 8${}^{°}$N near the latitude of the Galileo Probe entry site covering longitudes 200–270.

We also measured the strength of absorption features of gaseous H${}_2$O and NH${}_3$. Using the derived pressure of the deep cloud, we obtained mole fractions for H${}_2$O and NH${}_3$ as a function of latitude on the central meridian and as a function of longitude in the NEB at pressures of 4 to 6 bar. The spatial variation of these condensible gases when combined with information on cloud structure will help to place the Galileo Probe results into a regional context as well as to understand the dynamics of the 1 to 10 bar region of Jupiter’s atmosphere.

2. Observations

Five-micron spectra of Jupiter were acquired using NIRSPEC on the Keck 2 telescope. NIRSPEC is an echelle spectrograph with three orders dispersed onto a 1024 × 1024 InSb array at our selected grating/cross-disperser settings of 60.48/36.9 [4]. A 0.4″ × 24″ slit was aligned north–south along the central meridian near 280${}^{°}$ West System III longitude. This closely coincided with the ground track of the microwave radiometer during the fourth orbit (perijove 4) of the Juno spacecraft. Two slit positions were required to span the planet from pole to pole. The southern slit position included an active region near 13${}^{°}$S associated with a fresh storm or “outbreak” in the South Equatorial Belt [5].

The slit was also aligned east–west on Jupiter in the NEB at two positions: 18${}^{°}$N and 8${}^{°}$N (planetographic), or 16${}^{°}$N and 7${}^{°}$N (planetocentric), respectively. The latter position is near the latitude of the entry site of the Galileo Probe, which plunged into Jupiter’s atmosphere in December 1995 at 6.5${}^{°}$N (planetocentric) [6]. Henceforth, all latitudes referred to in this study will be planetographic. The NIRSPEC data have a resolving power of 20,000, equivalent to 0.1 cm${}^{-1}$ at 2000 cm${}^{-1}$.

We analyzed two of the three orders centered at 4.67 and 4.97 µm. The NIRSPEC spectra were obtained on 4 February 2017. Jupiter subtended 39.4″, and the geocentric Doppler shift of the central meridian was −26.0 km/s. The vertical water vapor column above Maunakea was 0.5 precipitable mm (pr mm) and 0.8 pr mm along the line of sight to Jupiter. This was derived from fitting telluric lines in the stellar spectra. The combination of a large Doppler shift and an exceptionally dry night permitted the retrieval of gaseous H${}_2$O on Jupiter from our ground-based spectra.

NIRSPEC observations from February 2017 were processed using relatively standard methodologies, which are described below, implemented in Python, and available upon request. NIRSPEC orders were first registered by focal plane array row limits and wavelength ranges using the NIRSPEC echelle format simulator provided by Keck using the instrument settings (e.g., the mode, cross disperser, and echelle angle) set during observations.

A bad pixel mask is generated by identifying pixels that are outliers (+/− 500 DN threshold) in multiple dark exposures. The infrared detector was clean with fewer than 0.1% bad pixels in the region of the detector where Jupiter’s spectrum was measured. A flat field was combined from the mean of 10 exposures and corrected for bad pixels using the median in a 5 × 5 pixel box around each bad pixel.

The order edges were found by calculating the a–b difference image of (a) the flat image and (b) the flat image shifted by +/− 3 pixels perpendicular to the echelle order and then cropping values that were negative. The two images were fit per column to Gaussians to find the centroid of a representative order “edge” location. The center locations of the order edge were fit along rows using a polynomial. The edge locations of the order were used per column to spatially rectify the image—that is, to interpolate the image onto common coordinates defined by the order edges. Flat fields were generated by normalizing each order (i.e., accounting for the echelle blaze) and used to correct each target exposure.

Dispersion correction was performed per row by fitting a HITRAN sky emission spectrum to the observations. HITRAN line strengths were scaled to match the observations, and then a second order polynomial optimization was used to scale the approximate wavelength solution from the echelle simulator to the final dispersion axis of the observations. A 1-d interpolation was used to place each row of the echelle orders onto the same axis—that is, to spectrally rectify each echelle-order image. The rectification methodology was tested on sky exposures, thereby, confirming that sky emission lines appeared at the correct wavelengths and with common centroids per row in the rectified images. The rectification process (spatial and spectral) using fit coefficients from above was then performed on target images that were flat fielded and corrected for bad pixels.

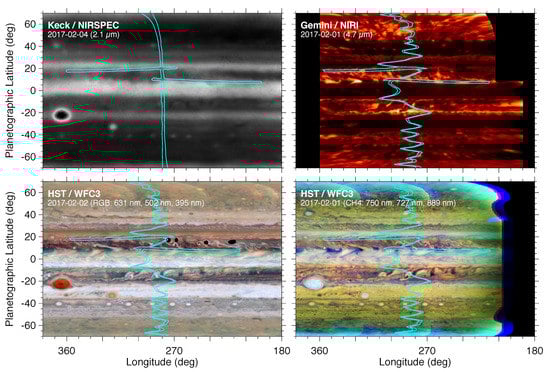

The spectral data were navigated using images of Jupiter in reflected near-infrared (NIR) sunlight at 2.1 µm acquired with the slit viewing camera (SCAM) on NIRSPEC (see Figure 1, top left). Our observing approach interleaved Jupiter spectral frames (A), background sky spectra (B), and NIR images (C) in a BCACB sequence. Each cycle took about 8 minutes to complete, with total integration times of 1 s for each C-frame and 1 min for each spectral frame.

Including offsets and filter changes, the duty cycle had about a 13% on-target time for each Jupiter spectrum; however, our priority was maximizing the accuracy of the spatial navigation and background subtraction. Jupiter ranged from airmass 1.8 to 1.2 over the observation window. We aligned a latitude/longitude grid to the limb of the planet for each C-frame, with the A-frame navigation solution derived by assuming a linear telescope drift between adjacent C-frames (and accounting for planetary rotation in the 2–3 min interval between images).

The spatial registration was refined by matching the continuum brightness of the spectrum at each pixel with 5 µm images of Jupiter (see Figure 1, top right) acquired using the Near Infrared Imager (NIRI) on the Gemini telescope [7]. Since the NIRI images were acquired 3 days before the spectra, it was necessary to use zonal wind profiles [8] to calculate the predicted cloud locations at the time of the spectra. This is denoted using a wavy north–south profile (double cyan lines) to indicate which cloud features would be visible from our slit considering the time interval between the NIRI and Keck data.

Hubble Space Telescope images using the WFC3 camera were also acquired at visible wavelengths (Figure 1, bottom left) and in three CH${}_4$ bands in the NIR (Figure 1, bottom right). Methane-band imaging permits the determination of cloud heights, and it may constrain their composition (e.g., ammonia or water ice) using equilibrium cloud models [7]. All of these images are displayed in the form of cylindrical maps in Figure 1.

3. Data Analysis and Results

3.1. North–South Variation in the Deep Cloud-Top Pressure

The band pass that we use to derive the cloud structure at 4.66 µm contains absorption lines of deuterated methane (CH${}_3$D). Methane and its isotopologues are well mixed: they do not condense, nor are they destroyed photochemically in Jupiter’s troposphere at the altitudes probed in this study. We therefore assume that CH${}_4$ and CH${}_3$D have a constant mixing ratio with respect to H${}_2$ in Jupiter’s troposphere. Thus, variations in the strength and shape of the CH${}_3$D lines between different locations on Jupiter must be due to changes in the cloud structure—not the gas concentration.

Bjoraker et al. [9] introduced the idea of using CH${}_3$D absorption to study Jupiter’s deep cloud structure. Extrema in CH${}_3$D were identified, and radiative transfer models were calculated for a Hot Spot in the South Equatorial Belt (SEB) at 17${}^{°}$S and a cloudy region in the South Tropical Zone (STZ) at 32${}^{°}$S. Although measurements were acquired covering 70${}^{°}$S to 70${}^{°}$N in our previous study, it was not practical to model every latitude. The current study extends this analysis by converting the CH${}_3$D absorption into the cloud-top pressure for each spatial pixel along the slit, which then can be used to investigate the cloud structure and volatiles at all latitudes rather than being limited to selected locations.

We generated synthetic spectra of Jupiter at 5 µm to model the NIRSPEC data. These spectra were calculated using the Spectrum Synthesis Program (SSP) radiative transfer code first described in [10] and updated in Bjoraker et al. [11]. The input temperature profile was obtained from the Galileo Probe [6]. Although this profile pertains only to the Probe Entry Site, it can be used elsewhere on Jupiter for this study because the shapes of the absorption features at 5 µm are only weakly dependent on the temperature. The line parameters for CH${}_3$D and other 5 µm absorbers are from GEISA 2003 [12]. The parameters for CH${}_3$D-H${}_2$ and CH${}_3$D-He broadening have been measured in the lab [13,14,15]. We used a broadening coefficient of 0.0613 cm${}^{-1}$ /atm (296/T)${}^{0.5}$ for CH${}_3$D colliding with a mixture of 86.3% H${}_2$ and 13.6% helium, as measured by the Galileo Probe [16]. Pressure-induced H${}_2$ coefficients were obtained using laboratory measurements at 5 µm in [17] and the formalism developed in [18].

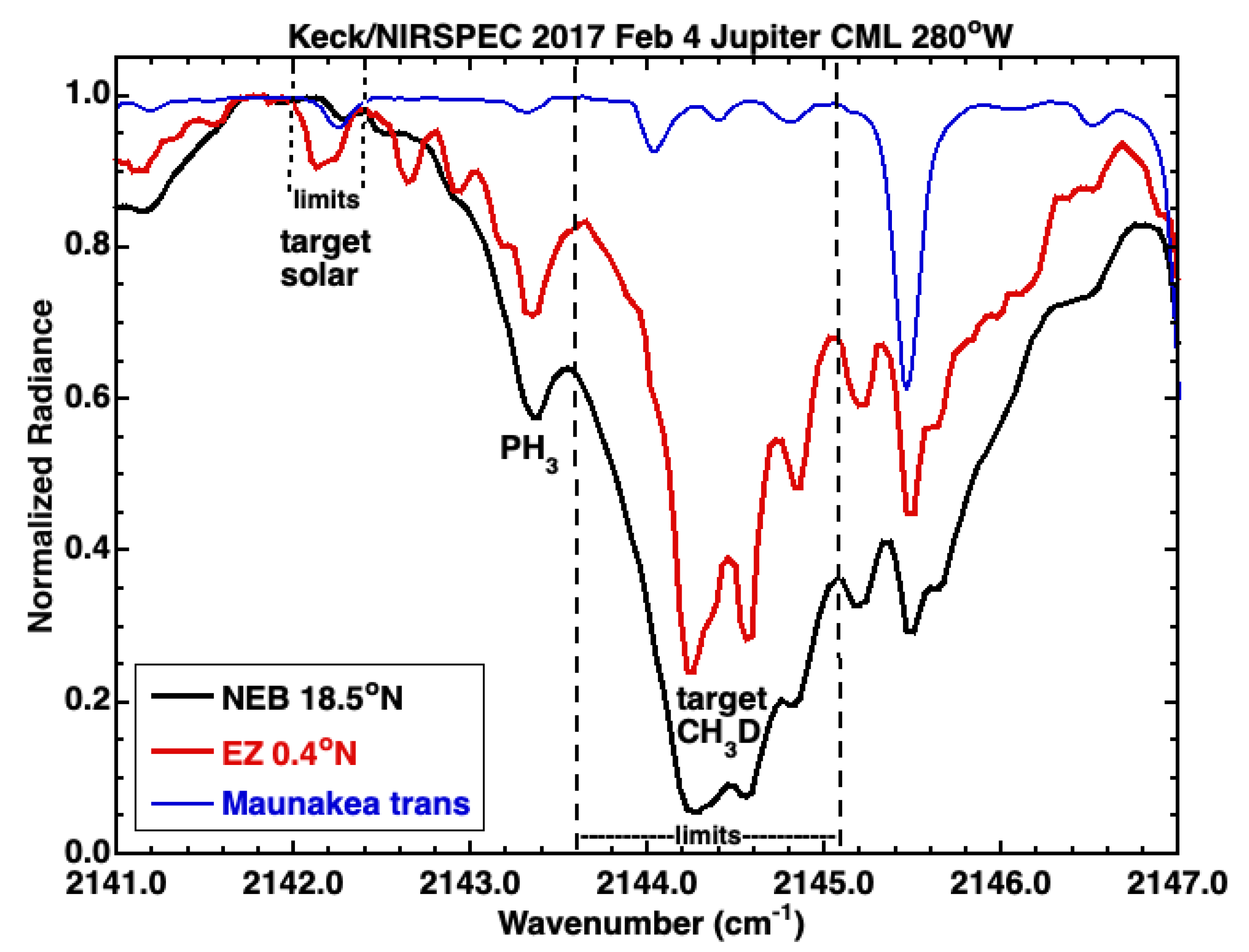

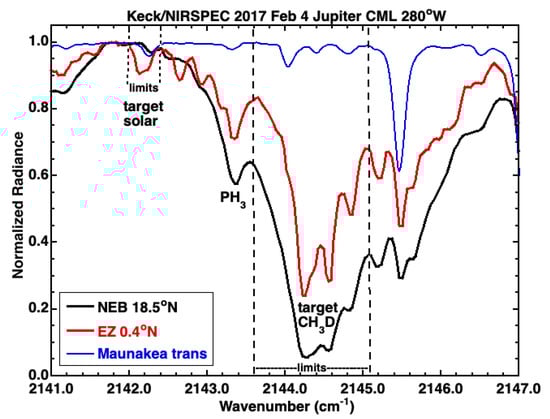

Figure 2 shows NIRSPEC spectra at 4.66 µm (2141–2147 cm${}^{-1}$) in which the slit was aligned north–south on the central meridian covering Jupiter’s northern hemisphere. Spectra were normalized at 2141.8 cm${}^{-1}$ to permit comparisons of the line shapes. Note the large change in the appearance of CH${}_3$D lines at two different latitudes along the slit. The set of CH${}_3$D absorption lines near 2144 cm${}^{-1}$ are stronger and broader in the NEB at 18.5${}^{°}$N due to a combination of opacity and pressure broadening. We calculated the equivalent width (defined below) of the CH${}_3$D feature as a function of spatial pixels over the spectral range from 2143.62 to 2145.10 cm${}^{-1}$. This provides important clues to the deep cloud structure.

We also analyzed a nearby Fraunhofer (solar) line due to CO in the Sun. The scattered solar flux is much smaller than Jupiter’s thermal emission in most regions, only becoming visible in the cloudiest areas. Thus, the Fraunhofer line is observed only in zones, such as the EZ at 0.4${}^{°}$N and not in the NEB at 18.5${}^{°}$N. We measured the spatial variation of the strength of this line on Jupiter over the spectral range from 2141.97 to 2142.37 cm${}^{-1}$, as shown in Figure 2. This provides information on the amount of reflected sunlight in the spectrum, as described below. This same Fraunhofer line was used by Bjoraker et al. [9] to model the STZ at 32${}^{°}$S.

The equivalent width (EW) is a measure of the spectral line strength and is defined as the area of the spectral feature relative to a normalized continuum. The nomenclature arises when considering the width of a rectangular absorption feature from the continuum to zero that has the equivalent area of the spectral line [19]. The EWs of the CH${}_3$D feature and the targeted Fraunhofer line as functions of the spatial pixels were calculated numerically using the trapezoid rule.

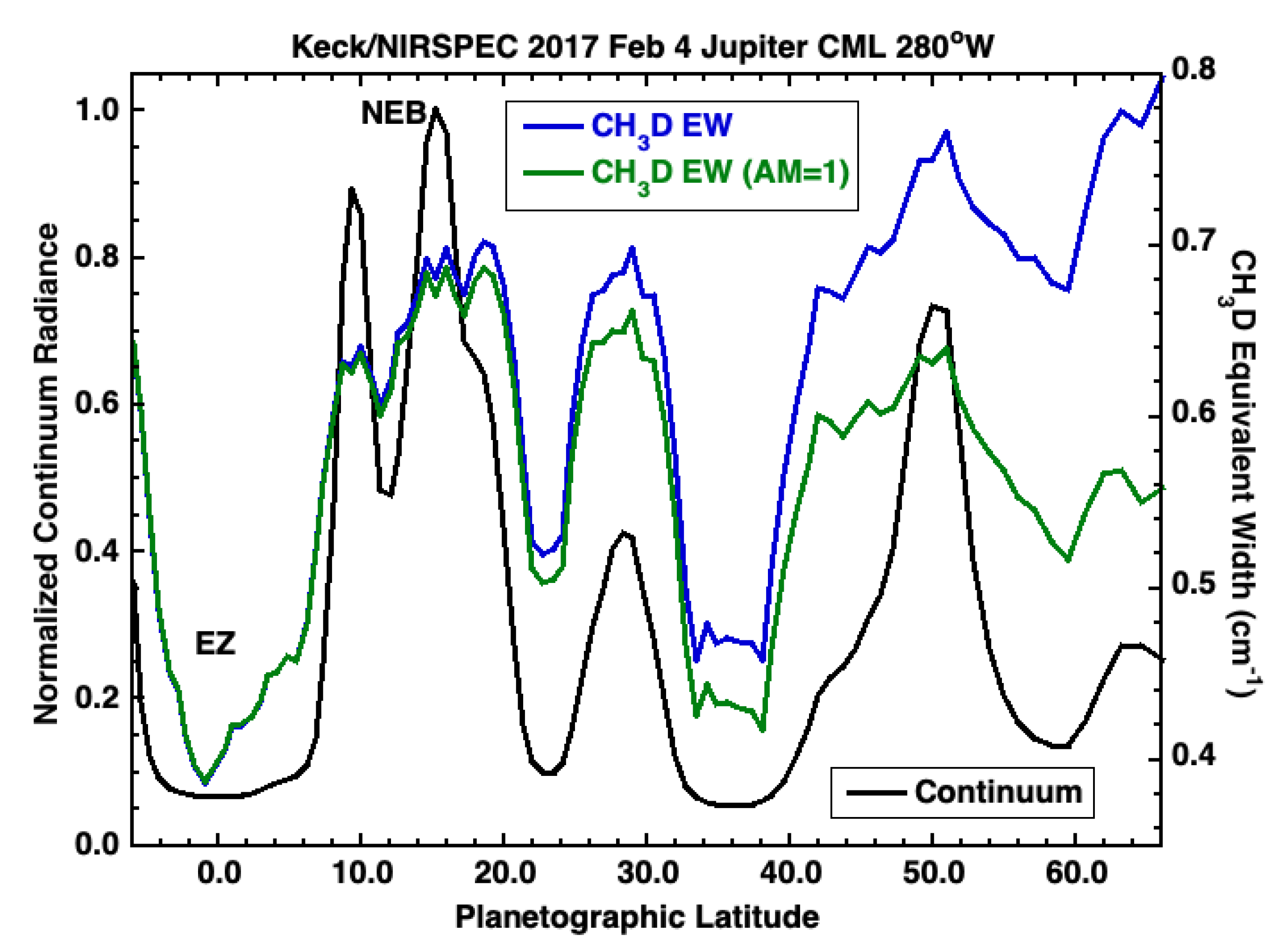

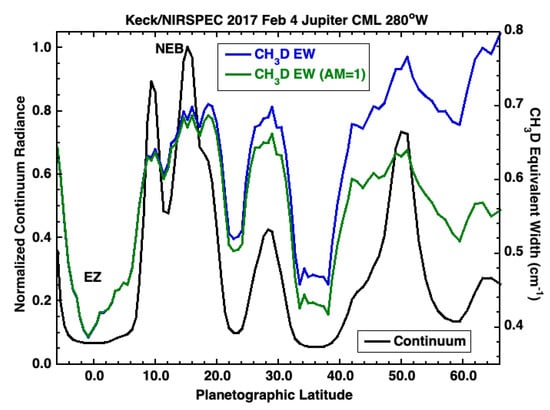

In Figure 3, the EW of the targeted CH${}_3$D absorption feature is shown as a function of latitude between 6${}^{°}$S and 66${}^{°}$N along Jupiter’s central meridian. The EW along the line of sight was corrected to normal viewing using the Jovian airmass. Since this feature is optically thick and, therefore, is on the nonlinear portion of the curve of growth, it was necessary to use a power-law relation obtained from our radiative transfer code developed to model Jupiter at 5 µm [9,11]. The EW at Jupiter airmass ($AMj$) of 1 can be calculated from the EW at values of $AMj$ between 1 and 1.7 using the following relation:

$${EW|}_{AMj=1}=exp(ln{\mathrm{EW}|}_{AMj}-0.354lnAMj)$$

(1)

This power law was evaluated for a cloud-free model atmosphere with an opaque lower boundary at 6.5 bar, simulating a water cloud. In the model, the CH${}_3$D mole fraction was 0.18 ppm [20]; the H${}_2$O mole fraction at 6.5 bar was 4 ppm, an intermediate value between the retrieved values ranging between 1.5 and 14 ppm; and PH${}_3$ was 0.6 ppm [9]. This model is an approximation as H${}_2$O varies spatially on Jupiter, and the wings of these absorption features act as a continuum absorber to affect the strength of the CH${}_3$D feature.

As discussed in Section 3.2, the retrieved cloud-top pressures in belts and Hot Spots should be reliable for H${}_2$O mole fractions in the 1–15 ppm range for p > 5 bar. Regions with low values of CH${}_3$D EW are identified as containing water clouds, which, in turn, may also have much larger gaseous H${}_2$O abundances (∼1000 ppm) for p > 5 bar. As a result, this technique may be used to identify the spatial location of water clouds but the cloud-top pressures will be overestimated.

The value of EW corrected for airmass correlates well with the normalized continuum radiance—also shown in Figure 3. The continuum radiance depends on the transmission of both upper and lower clouds. As shown below, the CH${}_3$D EW depends primarily on the opacity of the lower clouds. This suggests that much of the variation of the continuum brightness at 5 µm between belts and zones on Jupiter can be attributed to deep clouds.

The EW (corrected to normal viewing) of the targeted CH${}_3$D absorption feature was converted to the cloud-top pressure using our radiative transfer model with different input parameters. A pair of models was constructed for a Jovian airmass of 1 with opaque lower boundaries at 4 and 10 bar. The gas composition for each model was the same as in the airmass study described above. The CH${}_3$D EW over the targeted spectral interval was measured for both models. A power law was calculated to interpolate EW values between pressures (p) of 4 and 10 bar.

$$EW\left(p\right)=0.3848p^{0.2389}$$

(2)

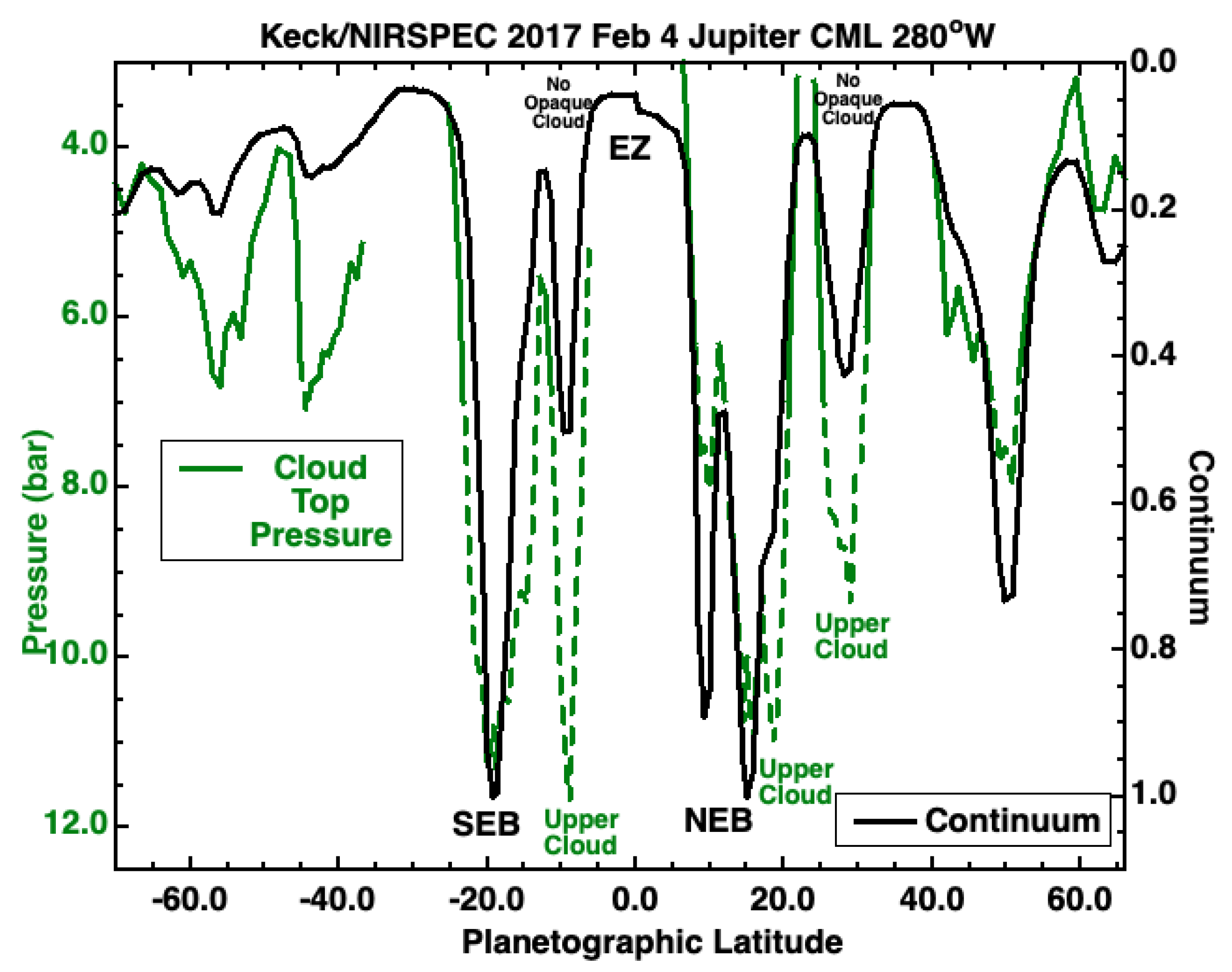

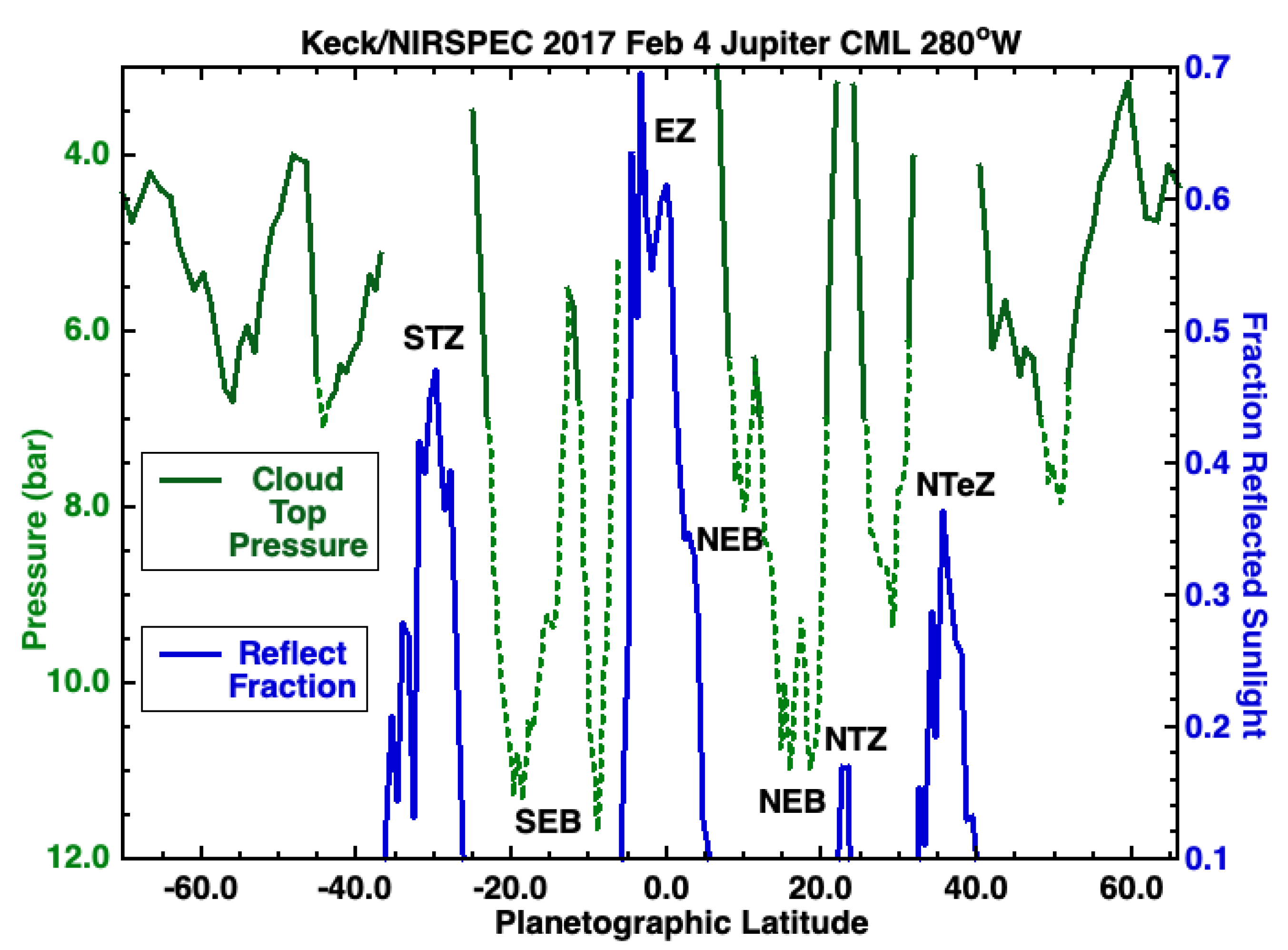

The corresponding pressure of the opaque lower boundary is shown in Figure 4 as a function of latitude between 70${}^{°}$S and 66${}^{°}$N. An important point to note is that an opaque boundary at 11 bar, caused primarily by gas opacity, is indistinguishable from a 20 bar cloud boundary. That is, collision-induced absorption due to H${}_2$-H${}_2$, and H${}_2$-He, combined with opacity from the wings of H${}_2$O and other molecules limits the line formation region at 4.66 µm to pressures less than 11 bar. Thus, the apparent cloud-top pressure of 11 bar in the NEB and SEB shown in Figure 4 is not a real cloud. It is a region of maximum CH${}_3$D EW, which we interpret as due to the absence of opaque clouds at pressures less than 11 bar at these locations.

This coincides with the highest continuum radiance, as shown in Figure 3 for the NEB. Although the CH${}_3$D EWs are identical for the 11 bar and 20 bar cases, the CH${}_3$D EW for a 7 bar cloud is 10% less than for the 11 bar case. The Keck data have sufficient signal-to-noise to distinguish between regions with an opaque cloud at 7 bar and areas that lack deep clouds. However, regions denoted in Figure 4 as having clouds deeper than 7 bar may have optically thin clouds between 4 and 7 bar rather than, for example, an opaque cloud at 8 bar. Thus, apparent cloud-top pressures >7 bar are shown as dashed lines to indicate thin clouds or, in the case at 11 bar, no deep clouds at all.

The spectrum at 4.66 µm provides valuable information on the ratio of reflected sunlight to thermal emission on Jupiter, which is critical for understanding Jupiter’s cloud structure. We compared the equivalent width of the Fraunhofer line at 2141.8 cm${}^{-1}$ (Doppler shifted to 2142.2 cm${}^{-1}$) with its measured value in the Sun using ATMOS data [21,22]. Fraunhofer lines on Jupiter are due to sunlight reflecting off of upper clouds. They are not observed in belts or Hot Spots because these regions are dominated by thermal emission. The ratio of the Jovian EW to the solar value is interpreted as the ratio of reflected sunlight to the sum of the reflected solar and Jovian thermal emission.

This value (shown in Figure 4) is significant in the EZ and other zones but negligible in the belts. We interpret high values of reflected sunlight as due to two factors: the presence of upper clouds that reflect sunlight (likely NH${}_3$ ice clouds near 0.6 bar as inferred in the Great Red Spot by Bjoraker et al. [11]) as well as opaque clouds near 4 bar that block the thermal radiation originating from deeper levels. Reflected sunlight also affects the slope of Jupiter’s continuum between 4.6 and 5.4 µm; however, this effect may be difficult to distinguish from wavelength-dependent cloud absorption.

Figure 4 presents evidence for opaque clouds between 3 and 7 bar, which we interpret as due to water clouds. Water clouds are present at many latitudes, including 65${}^{°}$S, 50${}^{°}$S, 13${}^{°}$S, and 60${}^{°}$N. Other latitudes (30${}^{°}$S, the Equator, 23${}^{°}$N, and 35${}^{°}$N) are inferred to have water clouds that attenuate thermal emission sufficiently to result in a significant amount of reflected sunlight. These include the South Tropical Zone (STZ), Equatorial Zone (EZ), North Tropical Zone (NTZ), and North Temperate Zone (NTeZ). We do not show cloud-top pressures in the EZ and the other zones in Figure 4.

The presence of reflected sunlight affects the EW of CH${}_3$D in a way not described in Equation (2), which assumes 100% thermal emission. As a result, we cannot rule out the possibility that the zones shown in blue have thick NH${}_4$SH and NH${}_3$ clouds rather than water clouds. However, detailed modeling of the STZ at 32${}^{°}$S by Bjoraker et al. [9] using the entire 5 µm spectrum, rather than only the EW of CH${}_3$D, required an opaque cloud top between 4 and 5 bar—consistent with a water cloud. In addition, by analogy with the Great Red Spot, the zones denoted in blue (with significant reflected sunlight) likely have all three cloud layers as described in [11].

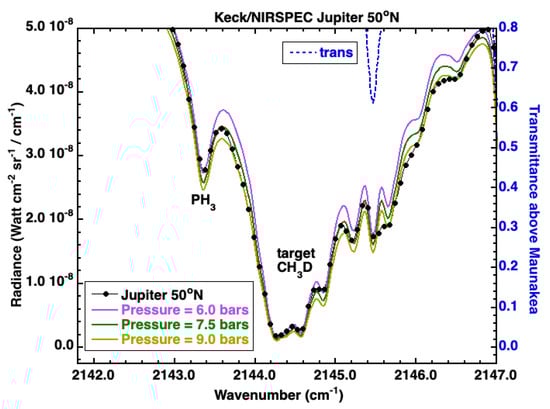

In Figure 5, we compare the spectrum of Jupiter at 50${}^{°}$N with three radiative transfer models in which the cloud-top pressure varied between 6 and 9 bar. The best fit to CH${}_3$D was provided by the model with the cloud top at 7.5 ± 0.5 bar. In Figure 6, the pressure of the lower boundary and continuum radiance are shown as functions of latitude between 70${}^{°}$S and 66${}^{°}$N. This is a composite of data from two slit positions that each span one hemisphere. The values of the cloud-top pressure are the same as in Figure 4. The continuum radiance was normalized to one in each hemisphere. The South Equatorial Belt (SEB) at 20${}^{°}$S exhibits maxima in both continuum radiance and CH${}_3$D EW, indicated by an apparent cloud at 11 bar; i.e., this region is thus free of deep clouds. Other latitudes (e.g., 25–70${}^{°}$S) have thick water clouds.

Imaging of Jupiter at 5 µm shows large variations in continuum radiance due to the combined transmission of all clouds at pressures less than 11 bar. However, it has been difficult from 5 µm imaging alone to separate upper clouds (0.5 to 2 bar) from lower clouds (3 to 7 bar). By combining the continuum radiance with CH${}_3$D EWs, we can find regions that have upper clouds but lack deep clouds. Figure 6 provides evidence for upper clouds at 10${}^{°}$S, 19${}^{°}$N, and 28${}^{°}$N. This comes from measured high values of CH${}_3$D equivalent width (plotted as a dashed line and interpreted as free of deep clouds) and relatively low continuum radiance.

This low radiance must be due to thick but not opaque upper clouds. The upper clouds may be composed of NH${}_3$ ice, NH${}_4$SH, or both. Our technique is sensitive to the temperature of the absorbing clouds. Upper clouds with temperatures of 150 to 200 K attenuate thermal emission from below; however, they emit a negligible amount at 5 µm compared with opacity sources at 5 bar where the T is 273 K. Thus, cold upper clouds at 10${}^{°}$S (for example) do not affect the EW of CH${}_3$D, while warm water clouds at 13${}^{°}$S do. Observations of Jupiter in reflected sunlight show the presence of upper clouds at latitudes other than the ones highlighted here. The ability to distinguish upper clouds from water clouds using 5 µm data alone is new.

A quantitative estimate of the transmission of upper clouds is only possible at locations with high values of CH${}_3$D EWs. At latitudes with low CH${}_3$D EW (cloud-top pressures 3 to 7 bar), the continuum radiances are low due to the presence of deep clouds. There is evidence for upper clouds in regions with significant reflected sunlight, as shown in Figure 4; however, it is difficult to measure the transmittance of each cloud layer separately.

Figure 6 also shows latitudes that exhibit the opposite relation between the continuum brightness and CH${}_3$D EW. At 10${}^{°}$N and 50${}^{°}$N, high continuum levels indicate a high combined transmittance for all cloud layers despite the presence of optically thin water clouds between 4 and 7 bars. We interpret this as evidence for exceptionally transparent upper clouds at these locations. Observations at visible and near-IR wavelengths would be needed to test this conclusion.

3.2. North–South Variation in the Ammonia and Water Abundances

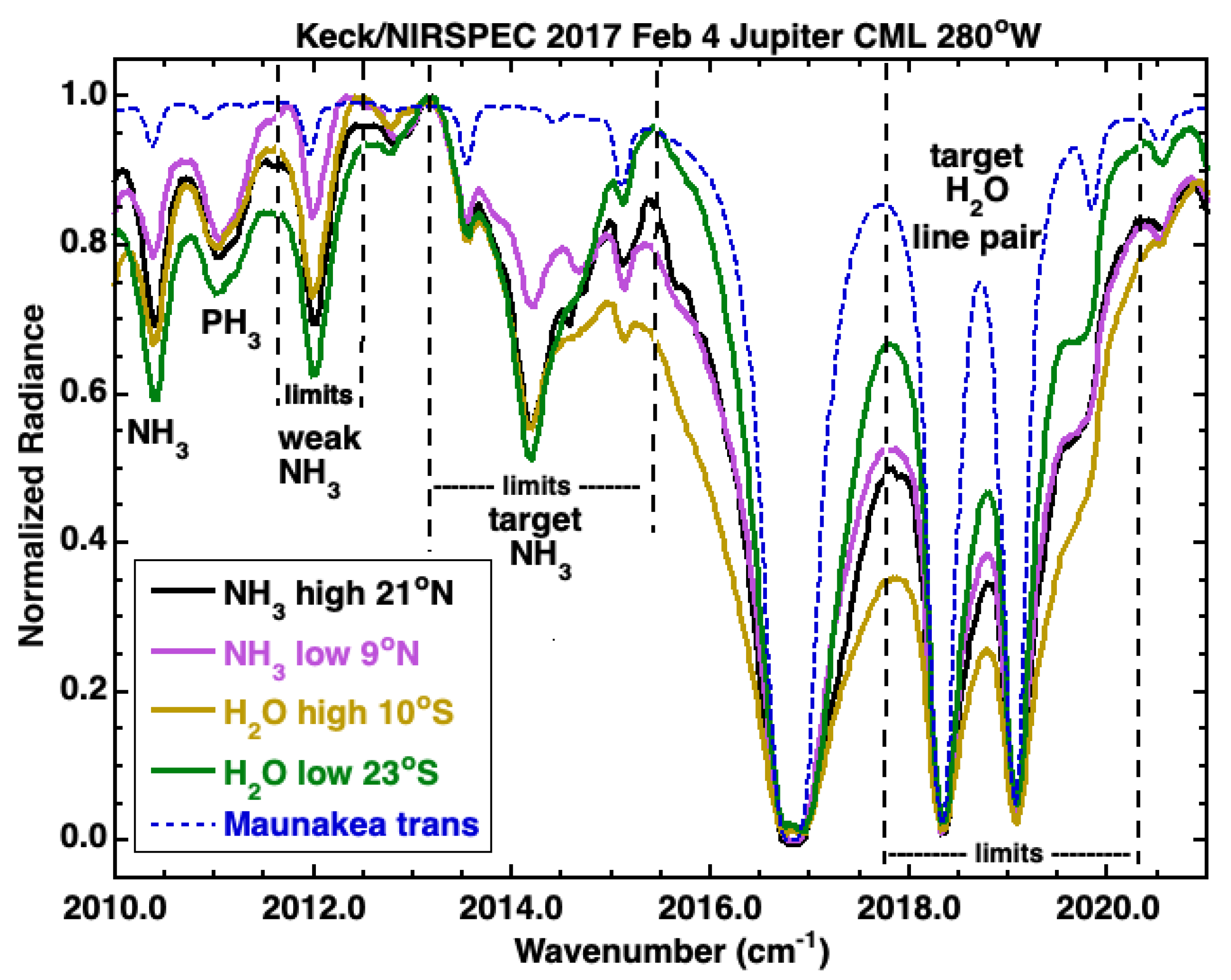

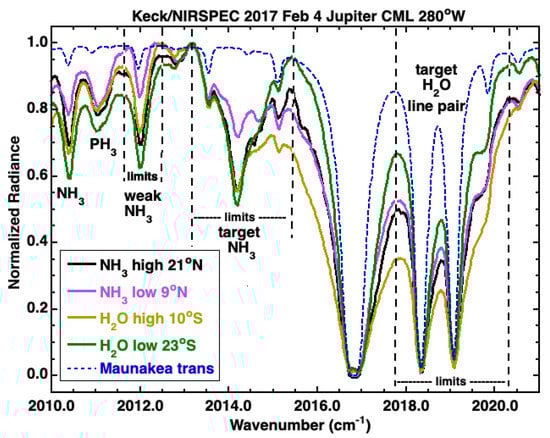

Figure 7 shows NIRSPEC spectra at 4.96 µm (2010–2021 cm${}^{-1}$) obtained from two slit positions that were aligned north–south on the central meridian to cover Jupiter’s northern and southern hemispheres. The spectra were normalized at 2013.16 cm${}^{-1}$ to permit the comparison of line shapes. A strong NH${}_3$ feature at 2014 cm${}^{-1}$ was used to derive the ammonia abundances.

The weaker NH${}_3$ line at 2012 cm${}^{-1}$ was investigated as well. Equivalent widths were calculated for the target line at 2014 cm${}^{-1}$ using the frequency limits (2013.16 to 2015.37 cm${}^{-1}$ ) shown in Figure 7. Equivalent widths were also calculated for the weaker NH${}_3$ line between 2011.62 and 2012.50 cm${}^{-1}$. The ammonia mole fraction was retrieved using both frequency ranges for one test case yielding similar abundances; however, ultimately, we used the stronger NH${}_3$ feature at 2014 cm${}^{-1}$ for our Jupiter analysis.

Information about Jovian H${}_2$O comes primarily from the wings of three strong absorption features centered between 2016 and 2020 cm${}^{-1}$. Their cores coincide with strong telluric lines; however, the Jovian lines are broader than their terrestrial counterparts. The limits for the H${}_2$O line integration include telluric absorption but this component was subtracted out using the model shown in blue. After several iterations, we used the pair of H${}_2$O lines between 2017.83 and 2020.24 cm${}^{-1}$ and excluded the strongest line at 2017 cm${}^{-1}$. The use of this optically thick line pair enabled our radiative transfer model to convert the EW to the H${}_2$O mole fraction. Note the exceptionally broad wings of the H${}_2$O feature at 10${}^{°}$S between 2015 and 2016 cm${}^{-1}$ and between 2019 and 2020 cm${}^{-1}$.

A comparison between Figure 7 and Figure 4 and Figure 6 indicates that the extrema in the depths of absorption lines of NH${}_3$ and H${}_2$O do not match the extrema in CH${}_3$D, which we used to derive the deep cloud structure. For example, the ammonia absorption is low at 9${}^{°}$N despite the lack of deep clouds at this latitude. This indicates a real depletion in NH${}_3$ rather than a shorter absorption path length. Similarly, H${}_2$O exhibits large changes in the wing absorption between 2015.5 and 2016 cm${}^{-1}$ between 10${}^{°}$S and 23${}^{°}$S, despite the lack of deep clouds at these locations. This represents a real variation in the mole fraction of H${}_2$O between 3 and 6 bar where the targeted absorption features in Jupiter’s atmosphere sound, as discussed below.

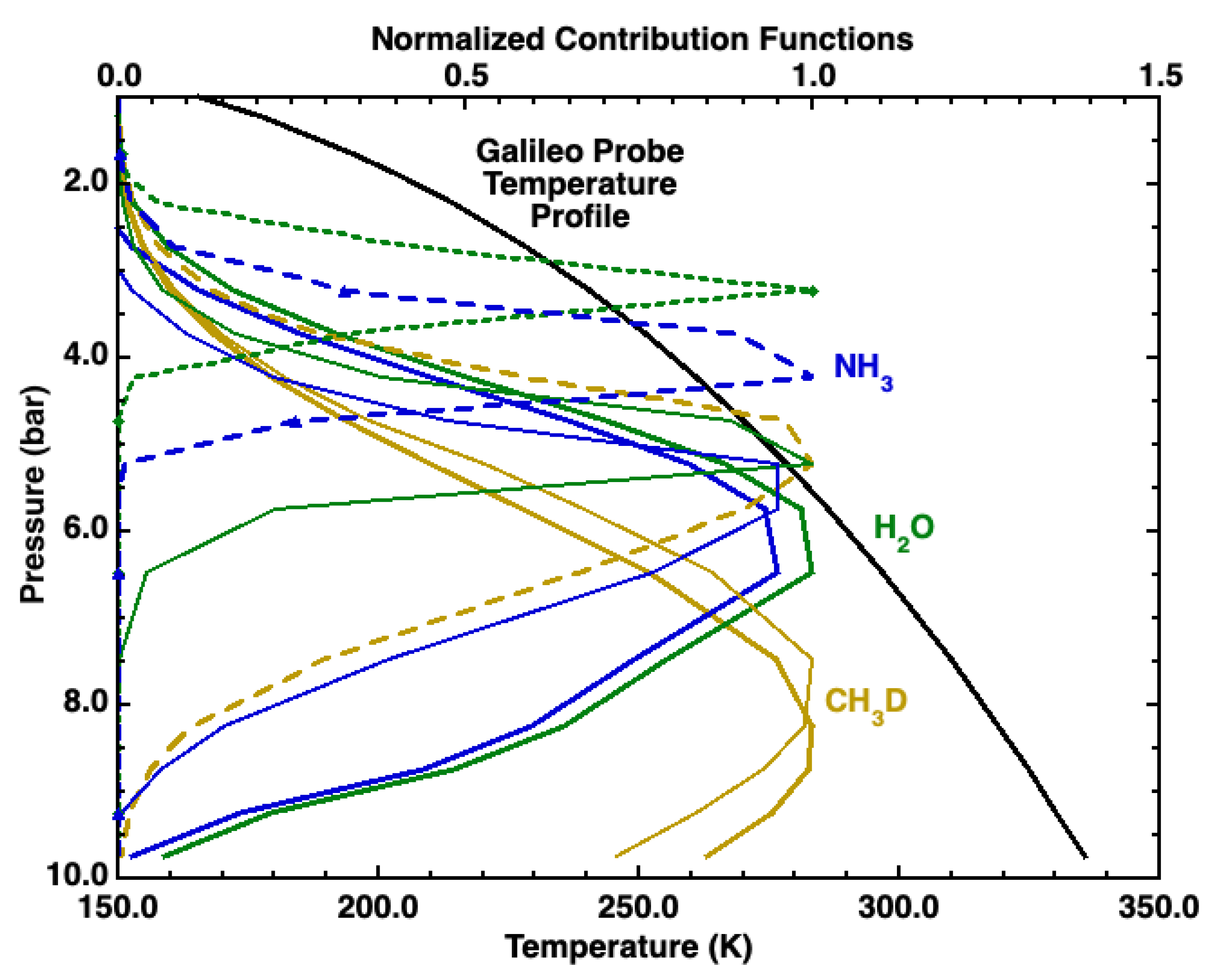

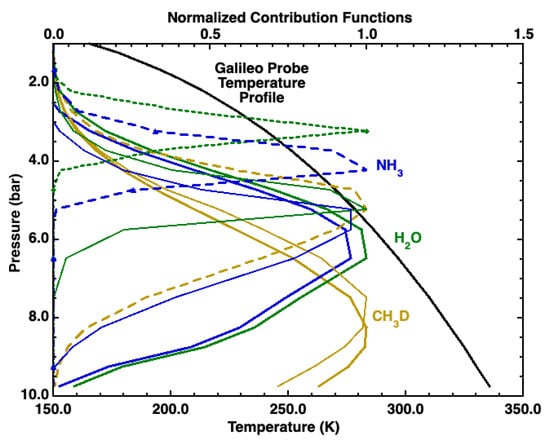

In Figure 8, we show the Galileo Probe temperature profile used for all latitudes along with normalized contribution functions for the targeted absorption lines in this study. Contribution functions for each molecule were calculated for three different abundances of H${}_2$O: 4, 47, and 1000 ppm for p > 5 bar. The retrieved parameters in this study assumed 4 ppm H${}_2$O, which provided a better fit to the targeted H${}_2$O line pair in belts and Hot Spots. A value of 47 ppm was investigated to match the Galileo Probe value measured at 11 bar [23]. This value was assumed in our previous study [9].

Using this H${}_2$O abundance instead of 4 ppm shifts each contribution to higher altitudes or to lower pressures by 0.5 to 1 bar. The largest change occurs for a deep value of 1000 ppm H${}_2$O. Contribution functions peak for CH${}_3$D, NH${}_3$, and H${}_2$O at 5 bar, 4 bar, and 3 bar, respectively. As a result, low values of CH${}_3$D equivalent width may still be used to identify the spatial locations of water clouds. However, the retrieved cloud-top pressures in these regions will be overestimated if water clouds are accompanied by large values of gaseous H${}_2$O below their cloud tops, as is likely to be the case. Since the retrieved NH${}_3$ and H${}_2$O mole fractions depend on the derived cloud-top pressure, the values reported below in regions with water clouds will be underestimated.

All contribution functions pertain to a cloud-free model atmosphere at normal incidence with an opaque boundary at 10 bar. For our assumed H${}_2$O abundance of 4 ppm for p > 5 bar, both NH${}_3$ and H${}_2$O peak near 6 bar, while CH${}_3$D exhibits a peak near 8 bar. These functions will shift to lower pressures at higher emission angles and after the inclusion of the optically thin cloud opacity. An opaque cloud truncates each function at the designated cloud pressure. The atmospheric profiles in our model are truncated at this altitude, and an opaque “surface” temperature equivalent is inserted.

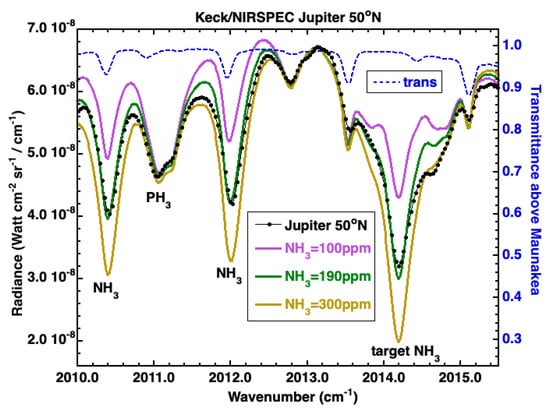

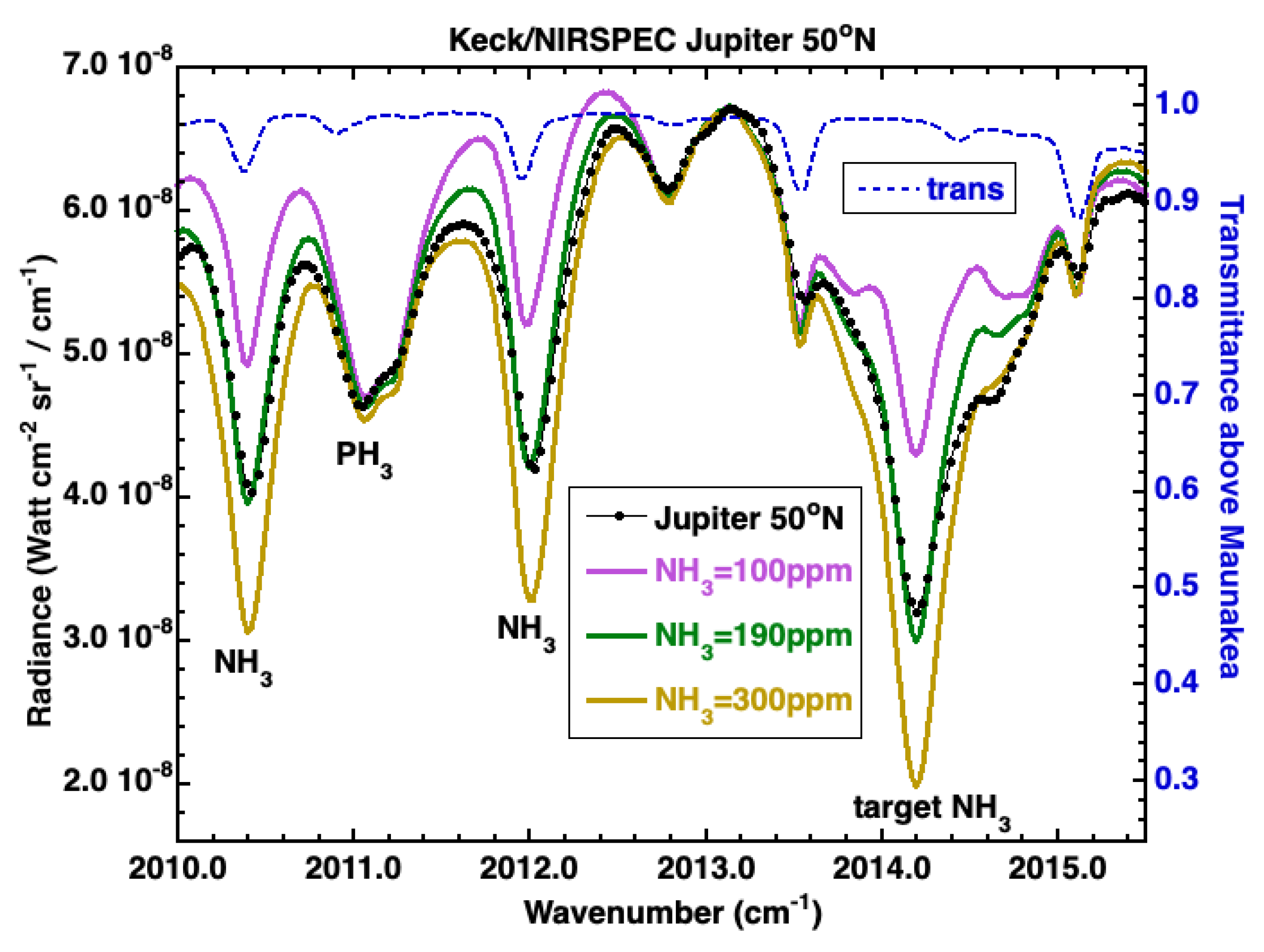

The relation between NH${}_3$ EW and NH${}_3$ mole fraction was established by modeling regions at 50${}^{°}$N and at 56${}^{°}$S (not shown), using our radiative transfer code. These latitudes were chosen to avoid strong gradients in the cloud-top pressure or extreme heterogeneity, as in the NEB. The Jovian airmass at 50${}^{°}$N was 1.68, and the deep cloud-top pressure was 7.5 bar, derived from CH${}_3$D as shown in Figure 5. The best fit model to this latitude required 190 ± 20 ppm NH${}_3$, as shown in Figure 9. This fit made use of NH${}_3$ absorption features at 2010.4 and 2012.0 cm${}^{-1}$, in addition to the target line at 2014.2 cm${}^{-1}$. This value is in excellent agreement with the NH${}_3$ abundance at this latitude derived from microwave observations of Jupiter using the Very Large Array (VLA) [24].

The ammonia mole fractions at all locations were obtained using three power laws to convert measured EWs to NH${}_3$ mole fractions. This required three steps. First, the EW at the observed Jovian airmass was converted to a value for the unit airmass (emission angle of 0). The airmass power law was obtained by calculating the EWs for synthetic spectra with 215 ppm NH${}_3$, cloud-top pressure of 6.8 bar, and Jovian airmasses of 1.0 and 1.7. The latter case matches the conditions for a Jupiter spectrum at 56${}^{°}$S and is similar to conditions at 50${}^{°}$N at the same airmass. Next, a pressure power law was obtained by calculating the EWs for synthetic spectra with 215 ppm NH${}_3$, airmass of 1, and cloud-top pressures of 4 and 10 bar. Using the measured EWs for NH${}_3$ converted to unit airmass, the cloud-top pressures derived from CH${}_3$D, and the pressure power law, we calculated the NH${}_3$ EW for a cloud-top pressure of 6.5 bar.

In the last step, a mole fraction power law was obtained by calculating the EWs for synthetic spectra with airmass of 1, a cloud-top pressure of 6.5 bar, and NH${}_3$ mole fractions of 200 and 340 ppm. Finally, the measured EW for each spatial pixel, after conversion to the unit airmass and a cloud-top pressure of 6.5 bar, was converted to the NH${}_3$ mole fraction.

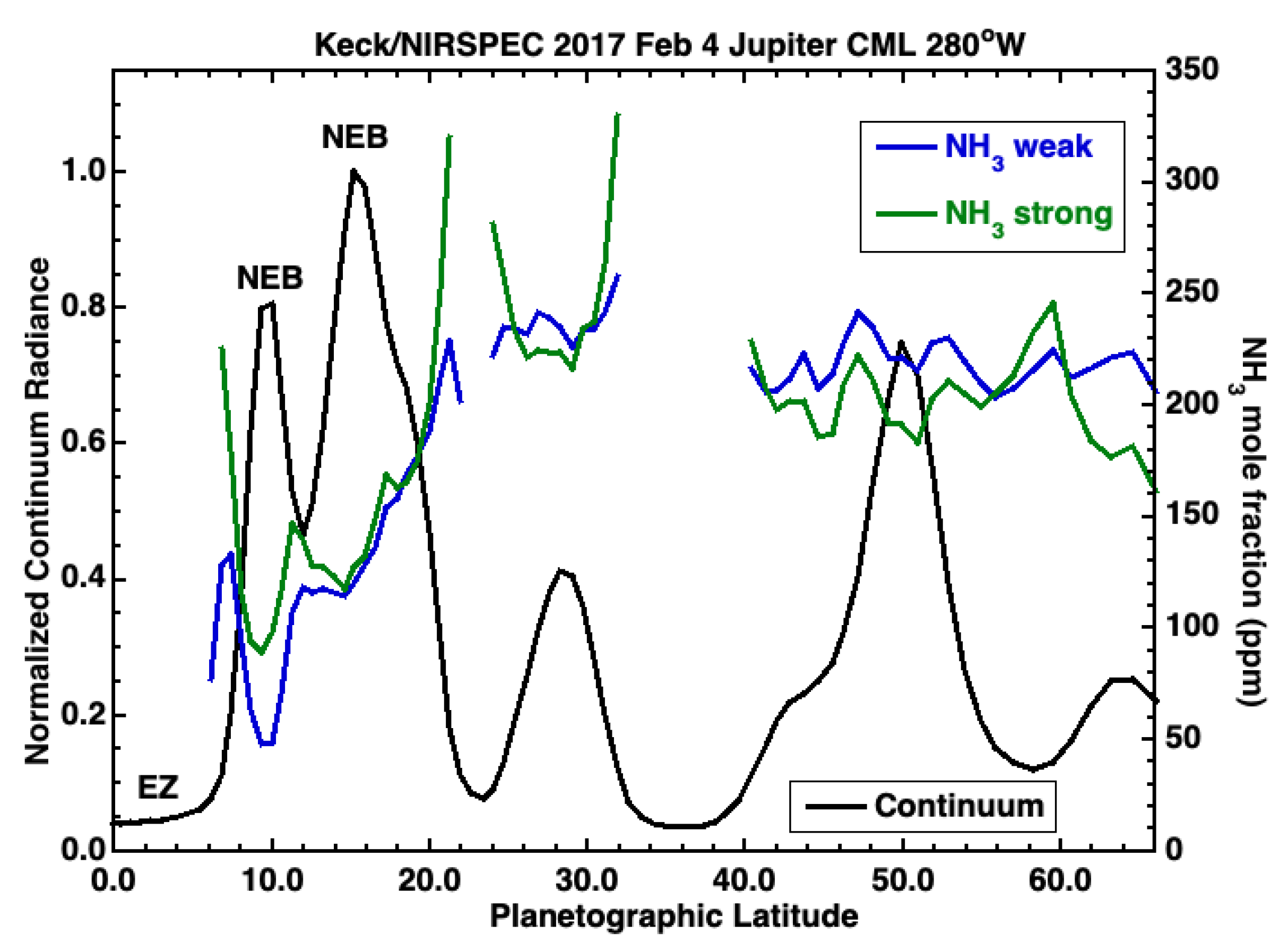

In Figure 10, we compare the derived NH${}_3$ mole fractions for Jupiter’s northern hemisphere using two frequency ranges covering the weak 2012 cm${}^{-1}$ line and the strong NH${}_3$ line at 2014 cm${}^{-1}$. Both frequency ranges have their own set of three power laws. Most latitudes have NH${}_3$ in the 150–300 ppm range as measured above the top of an opaque lower cloud except for a significant depletion in the NEB near 10${}^{°}$N. We find similar spatial variations in NH${}_3$ mole fractions using the two different spectral ranges.

This figure illustrates that the accuracy of our retrieved NH${}_3$ is not solely determined by the S/N ratio, which is high for all spatial pixels. Instead, it depends on systematic factors, such as the accuracy of the power laws, the choice of continuum frequencies, the degree of blending with other molecules, and the fraction of reflected sunlight. The mole fractions derived from both NH${}_3$ features critically depend on the cloud pressures derived from CH${}_3$D. In general, the spatial variation of NH${}_3$ should be robust as it is based on the measured equivalent widths.

The absolute NH${}_3$ abundances, however, are model-dependent with the largest uncertainty in regions with H${}_2$O clouds. The ammonia abundances are not shown in regions where the fraction of reflected sunlight exceeds 0.1. Ultimately, we adopted values derived from the strong NH${}_3$ feature at 2014 cm${}^{-1}$. The difference between the two models is a better indication of the retrieval error than the Keck signal-to-noise ratio, which is high at all latitudes.

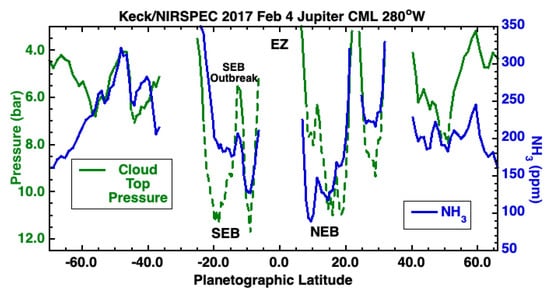

In Figure 11, we show the mole fraction of NH${}_3$ as a function of latitude between 70${}^{°}$S and 66${}^{°}$N. All values pertain to a column above an opaque lower boundary, denoted as the cloud-top pressure, derived from CH${}_3$D. The vertical profile is constant for p > 0.7 bar and follows the saturated value at p < 0.7 bar. The retrieved abundances are in the 150–300 ppm range, except for the NEB. There is a strong latitudinal gradient in NH${}_3$ from a minimum of 90 ppm at 10${}^{°}$N to 200 ppm at 20${}^{°}$N.

There is evidence for a decrease in NH${}_3$ in the NEB for p < 1.8 bar from the infrared spectra at 5.32 µm [25]. Thus, the NH${}_3$ values at 10 bar in the NEB reported here may be slightly underestimated by using a constant with altitude mole fraction for p > 0.7 bar. The ammonia mole fraction is enhanced at 13${}^{°}$S in the SEB Outbreak region. As discussed earlier, the retrieved abundance of NH${}_3$ in regions with water clouds, such as the SEB Outbreak region, is likely underestimated.

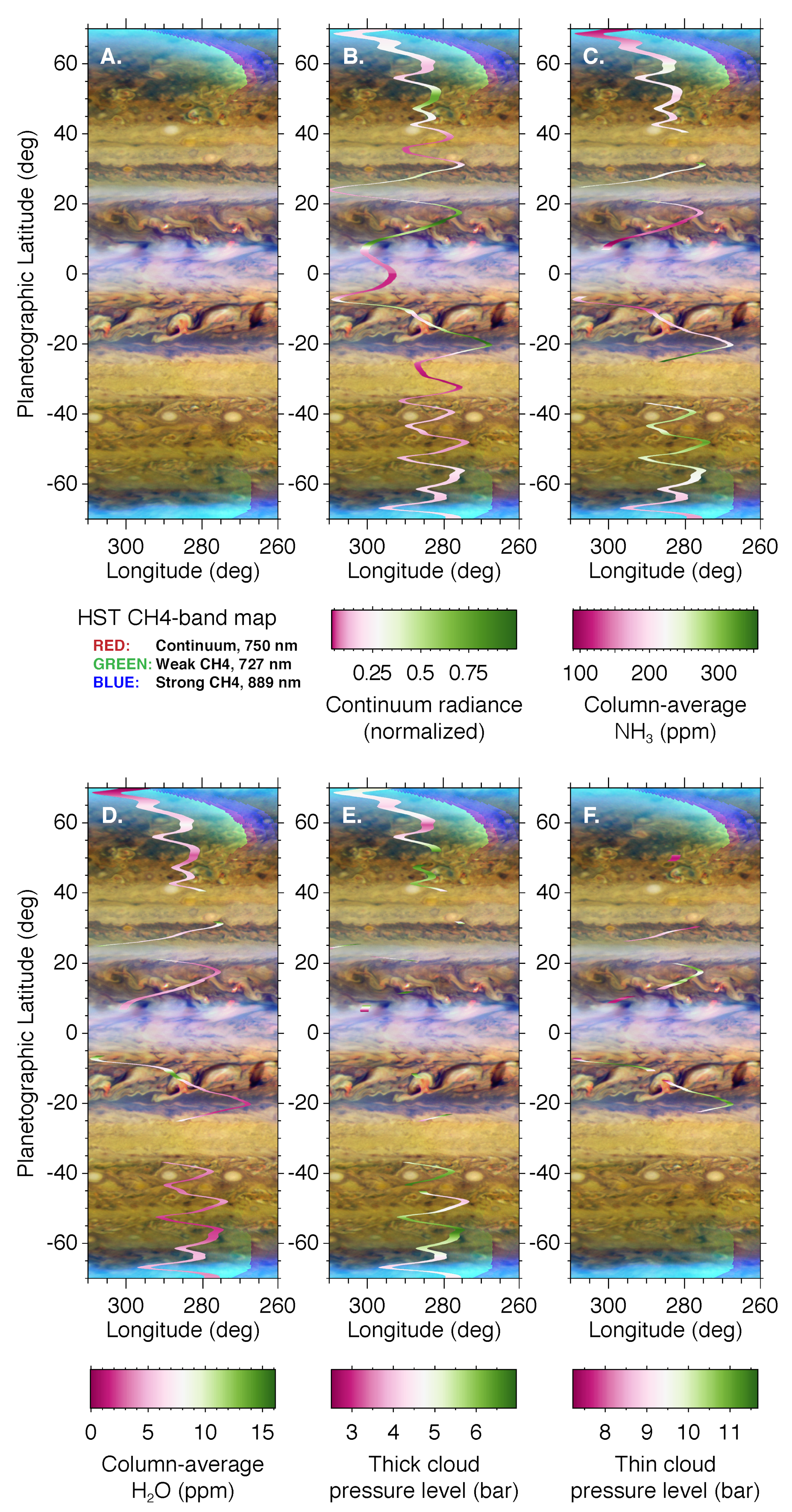

Figure 12 compares the retrieved H${}_2$O and NH${}_3$ mole fractions, cloud depth, and continuum radiance with HST imaging taken about 3 days prior. The HST false color image of Jupiter was generated using three filters within or adjacent to CH${}_4$ bands between 727 and 889 nm. The longitude range from 260 to 310${}^{°}$W is a subset of Figure 1. As in Figure 1, the slit location is not constant at 280${}^{°}$W but varies with latitude due to advection by zonal winds between the time of the Hubble image and the NIRSPEC data.

Deep clouds appear red in this image. Of particular interest is the fact that the NIRSPEC slit sampled the SEB Outbreak region, which appears as a mushroom-shaped cloud near 15${}^{°}$S. This is discussed in detail in Section 3.3.

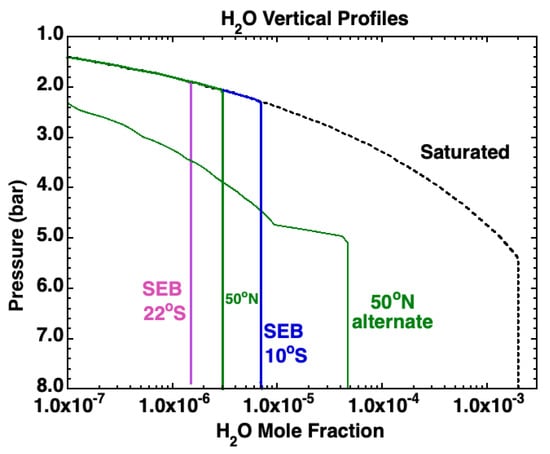

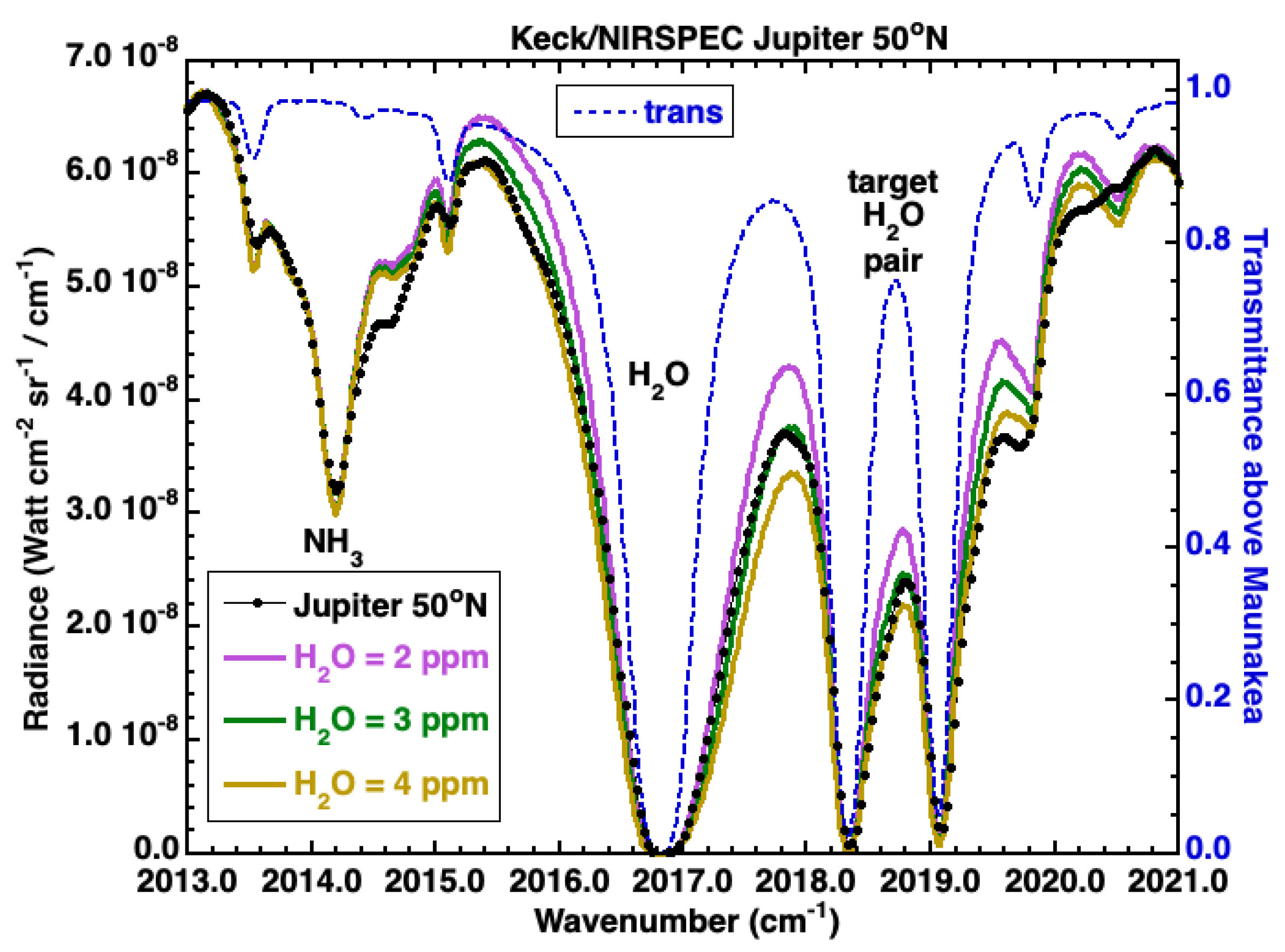

We calculated models for three abundances of H${}_2$O at 50${}^{°}$N, as shown in Figure 13. The best fit, 3.0 ± 0.3 ppm for p > 2.5 bar, made use of a strong H${}_2$O absorption feature at 2016.8 cm${}^{-1}$ in addition to the target line pair near 2018 and 2019 cm${}^{-1}$. We also plot the retrieved mole fractions of H${}_2$O as a function of latitude between 70${}^{°}$S and 66${}^{°}$N (Figure 14). The vertical profile of H${}_2$O is assumed to be constant for p > 2.5 bar and following a saturated profile at lower pressures. The retrieved abundances for three latitudes and their vertical profiles are shown in Figure 15. In regions without water clouds, gaseous H${}_2$O ranges from 1.5 ppm at 22${}^{°}$S to 7 ppm at 10${}^{°}$S.

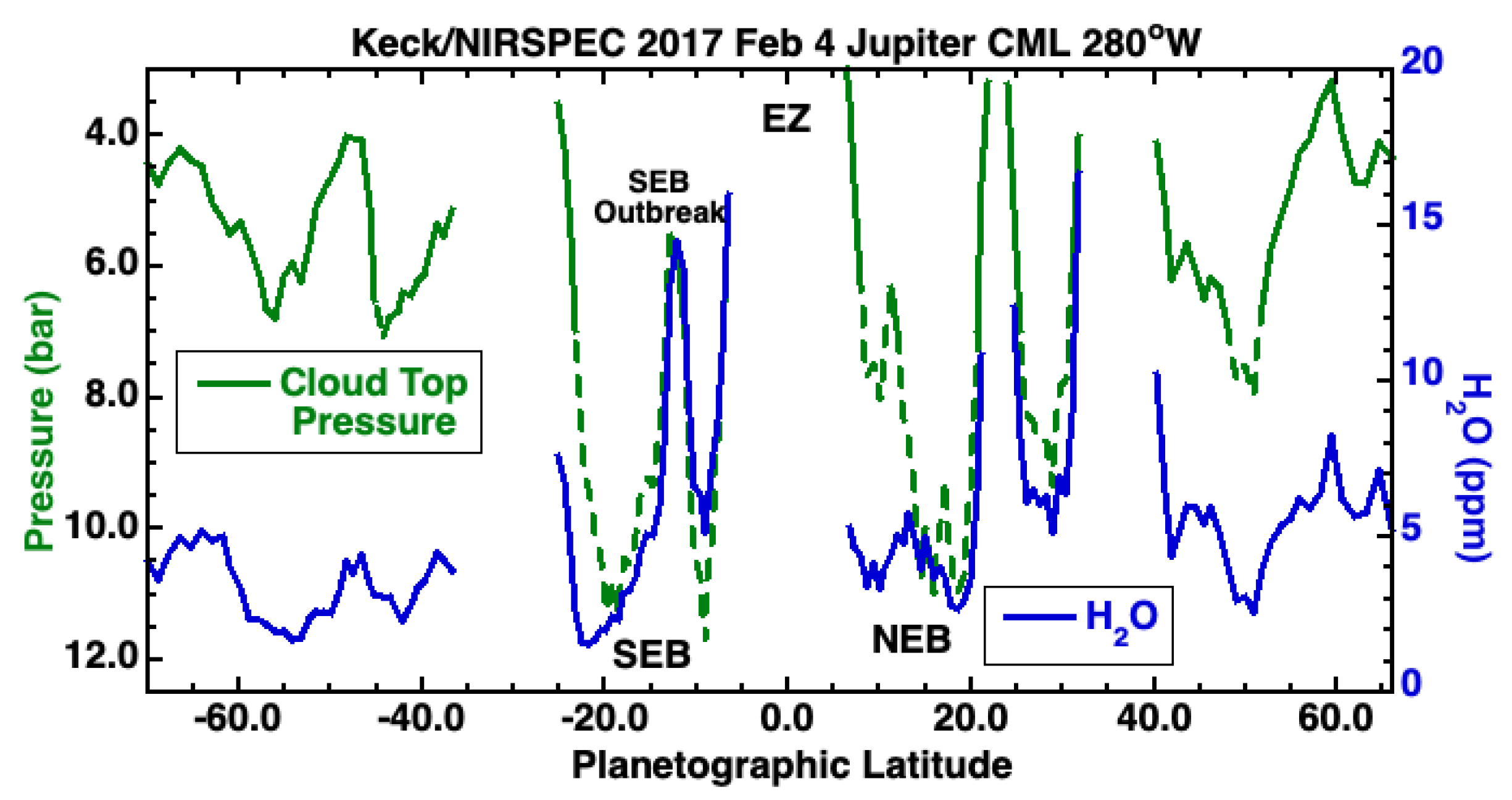

The retrieved H${}_2$O abundance increases to 14 ppm in regions with water clouds, such as in the SEB Outbreak region at 13${}^{°}$S. However, as discussed earlier, H${}_2$O mole fractions retrieved for latitudes with water clouds are not valid in the 4–7 bar pressure range if water clouds are accompanied by ∼1000 ppm gaseous H${}_2$O below their cloud tops. Information derived from our targeted H${}_2$O line pair would pertain to the 3 bar level, rather than to the pressures shown in Figure 14. The retrieved values in the belts are significantly sub-saturated, as shown by the dashed line in Figure 15. Sub-saturation is expected in relatively cloud-free regions, such as the NEB and SEB, but not in regions with water clouds.

There is some degeneracy in our sensitivities to the vertical profile and the deep concentration of water vapor. Green lines in Figure 15 show two acceptable fits to the 50${}^{°}$N spectrum: our preferred distribution with a constant value of 3 ppm, and one with 47 ppm H${}_2$O in the 5–8 bar region, dropping off at pressures <5 bar (maintaining roughly 1% relative humidity at the lower pressures). Both profiles have the same H${}_2$O mole fraction at 4 bar. The alternate profile—similar to the one used in our previous study of the SEB [9]—is consistent with the Galileo Probe Mass Spectrometer (GPMS) concentration of 40 ± 13 ppm [23].

However, it is important to note that the GPMS was not sensitive to H${}_2$O concentration at $p<11$ bar, while our spectroscopic retrieval is not sensitive to H${}_2$O concentration at $p>8$ bar (and limited to even shallower pressures when opaque clouds are present). Although the alternate profile with 47 ppm H${}_2$O at $p>5$ bar provided an acceptable fit to the spectral data at 50${}^{°}$N, the fit was poorer at other latitudes. Our analysis favors lower concentrations in the 5 to 8 bar region. New 5 µm spectra of Jupiter from the James Webb Space Telescope using weak H${}_2$O absorption lines that are blocked by the Earth’s atmosphere may allow us to distinguish between these two vertical profiles.

The low H${}_2$O concentrations in the 5 to 8 bar region are consistent with a widespread deep gradient in water. The GPMS measured increasing H${}_2$O from 11 bar to its deepest measurement at 20 bar. Although this deep gradient has been explained in terms of local meteorology in 5 µm Hot Spots, e.g., [26,27], the widespread deep ammonia gradient from Juno and VLA microwave observations [24,28,29] suggests dynamical processes that may control the water vapor profile as well. Widespread gradients are needed for our depleted H${}_2$O values to increase between 8 bar to the higher values measured by Galileo and implied by the existence of condensation clouds at pressures greater than 3 bar.

3.3. Storms in the South Equatorial Belt

A convective superstorm known as an “SEB outbreak” erupted in Jupiter’s South Equatorial Belt (SEB) in late 2016. Compositional and aerosol anomalies in the storm and nearby regions were characterized using observations in January 2017 at multiple wavelengths from ALMA, VLA, HST, VLT, Subaru, Gemini, and Keck [5]. The Keck data included NIRSPEC observations at 5 µm obtained on 11 January 2017. de Pater et al. [5] reported a lower limit to the NH${}_3$ mole fraction of 300 ppm in a region called the “East Disturbance” at 13${}^{°}$S. This value was reported as a lower limit rather than an abundance in the core of the storm. This is because the NIRSPEC slit included regions adjacent to the storm that contributed more 5 µm flux than the storm itself.

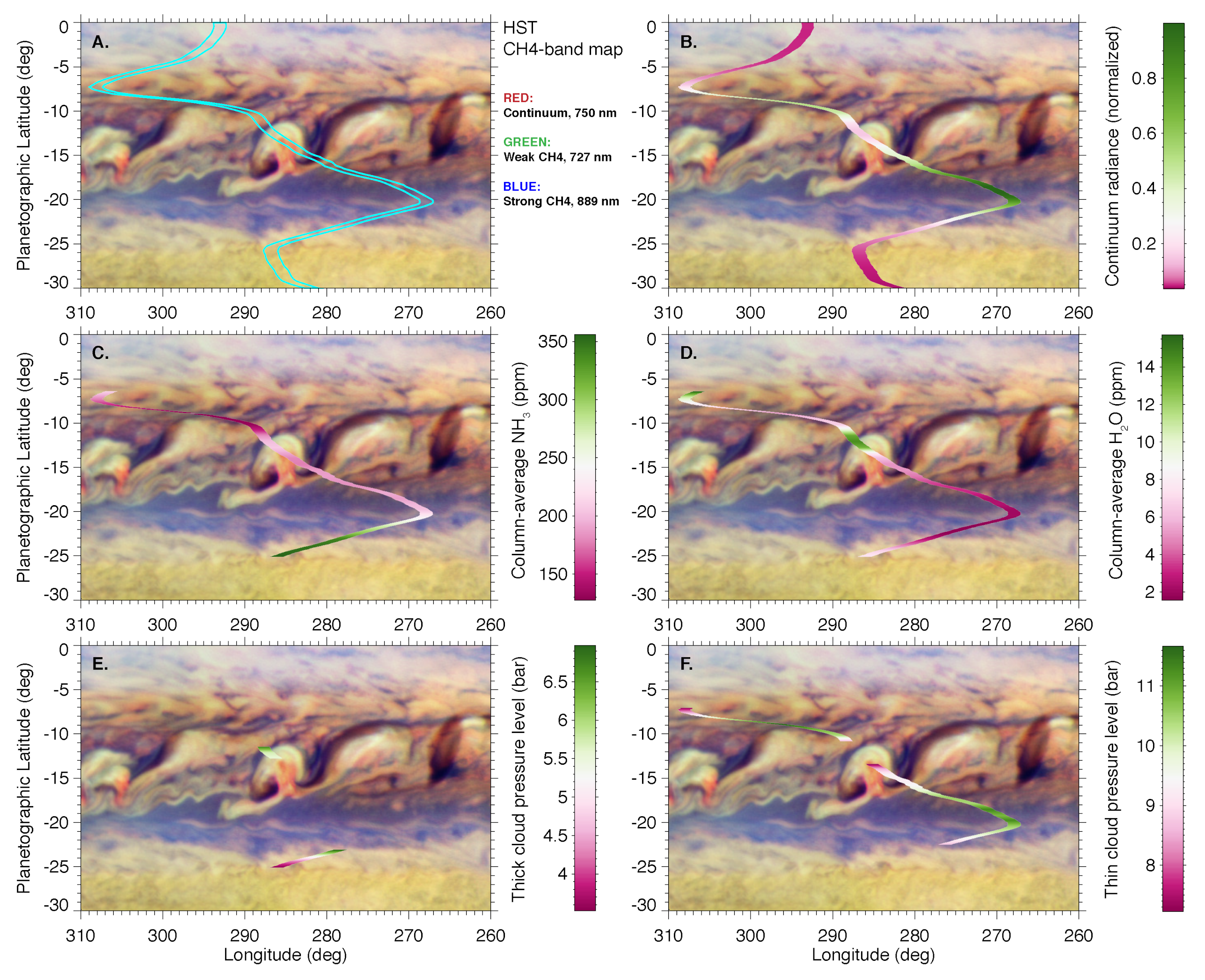

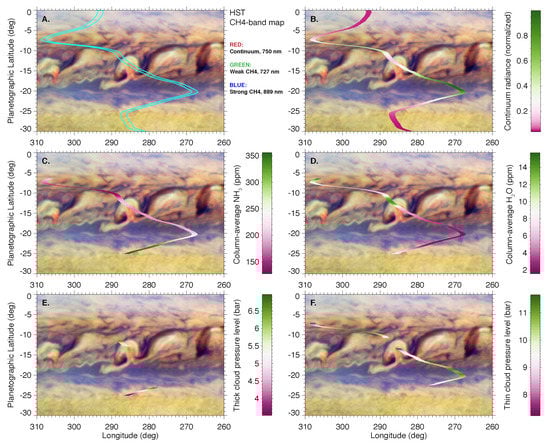

Our February 2017 spectroscopic data characterize the active phase of the SEB outbreak, which continued through March 2017 (with minor residual activity persisting through summer of 2017, see Rogers 2018, report no. 17). The NIRSPEC spectra described in Section 3.1 cut through the SEB storm region when the slit was placed on the central meridian. Atmospheric properties derived from the spectral analysis are graphically summarized in Figure 16, overlaid on a Section of the map from Figure 1. The same atmospheric properties are also plotted in Figure 17 and Figure 18.

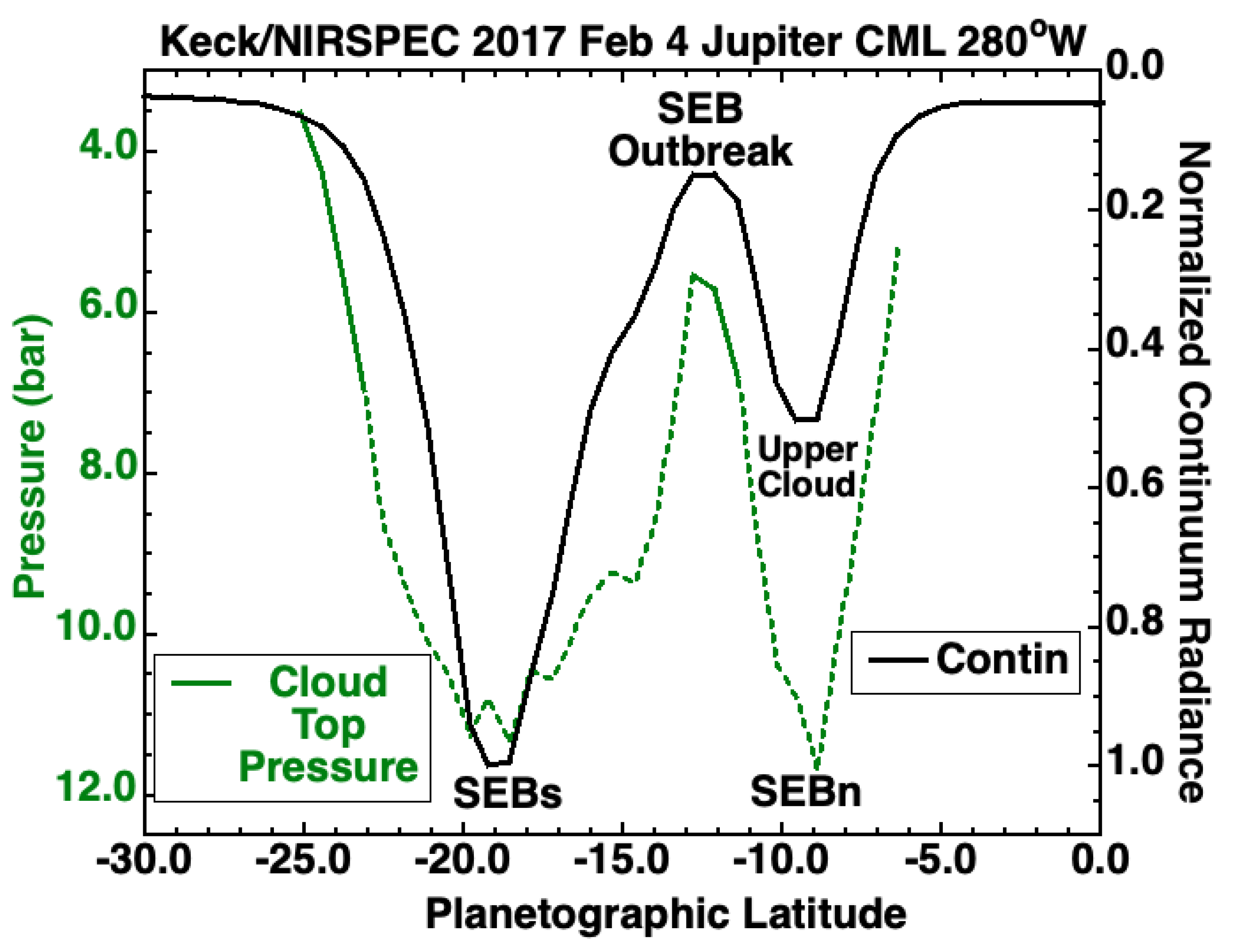

In Figure 17, we show an enlargement of Figure 5 indicating the pressure level of deep clouds over the same latitude range as Figure 16 (between 30${}^{°}$S and the equator). The CH${}_3$D EW retrieval indicates an opaque water cloud near 5.5 bar at 13${}^{°}$S (green line), while the low continuum radiance (black line) indicates upper-level cloud opacity consistent with the HST maps (the white mushroom cap in Figure 16). As discussed earlier, the pressure of the water cloud at 13${}^{°}$S is likely to be overestimated.

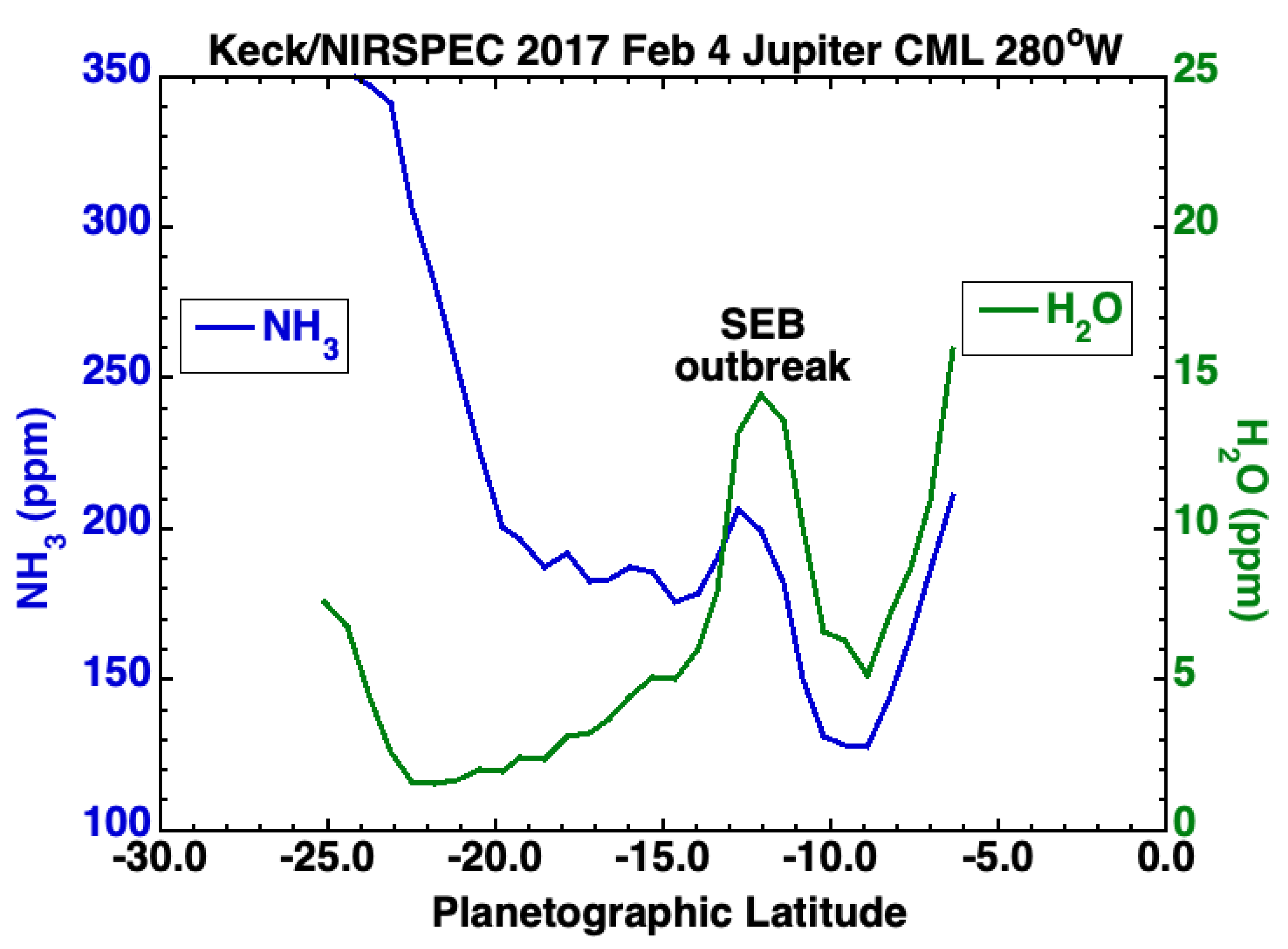

Figure 18 shows the derived mole fractions of NH${}_3$ and H${}_2$O obtained using the EWs of absorption features at 4.97 µm. The mole fraction of NH${}_3$ has a local maximum (whose value is likely underestimated) at 13${}^{°}$S, exactly at the location of a water cloud derived from CH${}_3$D spectra at 4.66 µm, shown in Figure 11. The derived H${}_2$O mole fraction also has a maximum here, and its value is almost certainly underestimated in this retrieval. These results are consistent with a rising parcel of air transporting both gases from deeper levels, in agreement with the scenario suggested based upon the January 2017 data [5].

3.4. Cloud Variation in the North Equatorial Belt

In addition to our study of the latitudinal variation of Jupiter’s deep clouds, we investigated the North Equatorial Belt, retrieving gas and aerosol properties at two locations centered at 18${}^{°}$N (Figure 19) and at 8${}^{°}$N (Figure 20). Highlights at 18${}^{°}$N include the presence of thick water clouds and locally-enhanced water vapor over the optically bright region at 320${}^{°}$W in the HST image, which is likely a cyclonic vortex to the west of a vortex series associated with mesoscale waves [31,32]. There is minimal cloud opacity in an optically dark area covering the western half of the slit, which also has low NH${}_3$ concentration but no prominent anomaly in H${}_2$O concentration.

The NEB at 8${}^{°}$N exhibits an amazing amount of structure. The eastern half of the slit samples two Hot Spots, which appear deep blue in the HST image because upper tropospheric hazes—which appear blue in CH${}_4$-band composites—are not depleted in Hot Spots. The western portion includes deep water clouds, unobscured by overlying upper clouds, that appear red in the CH${}_4$-band composite. This latitude is close to that of the entry site of the Galileo Probe, which relayed in situ data some 21 years earlier.

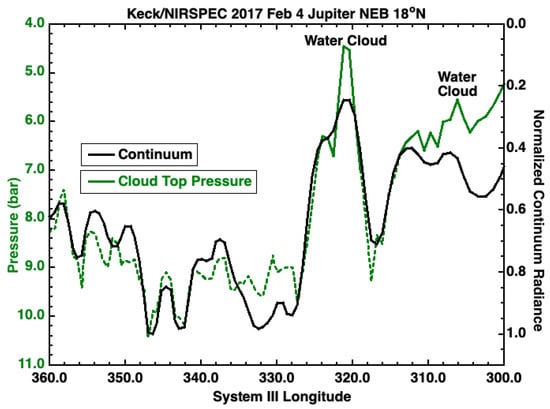

In Figure 21, we show the continuum radiance and derived cloud-top pressure in the NEB at 18${}^{°}$N between 300${}^{°}$W and 360${}^{°}$W longitude. Low values of CH${}_3$D EW indicate water clouds at 306${}^{°}$W and 321${}^{°}$W. There are no opaque clouds between 325${}^{°}$W and 360${}^{°}$W. However, there is a strong correlation between continuum radiance and apparent cloud-top pressure. We measured minute changes in CH${}_3$D EW at the 1% level. This is not due to upper clouds because upper clouds do not affect CH${}_3$D EW. This is either due to deep clouds or due to variations in gaseous H${}_2$O for p > 5 bar. If this is a result of cloud opacity, then we interpret this variation in EW to the presence of optically thin water clouds between 4 and 7 bar rather than opaque clouds between 8 and 10 bar.

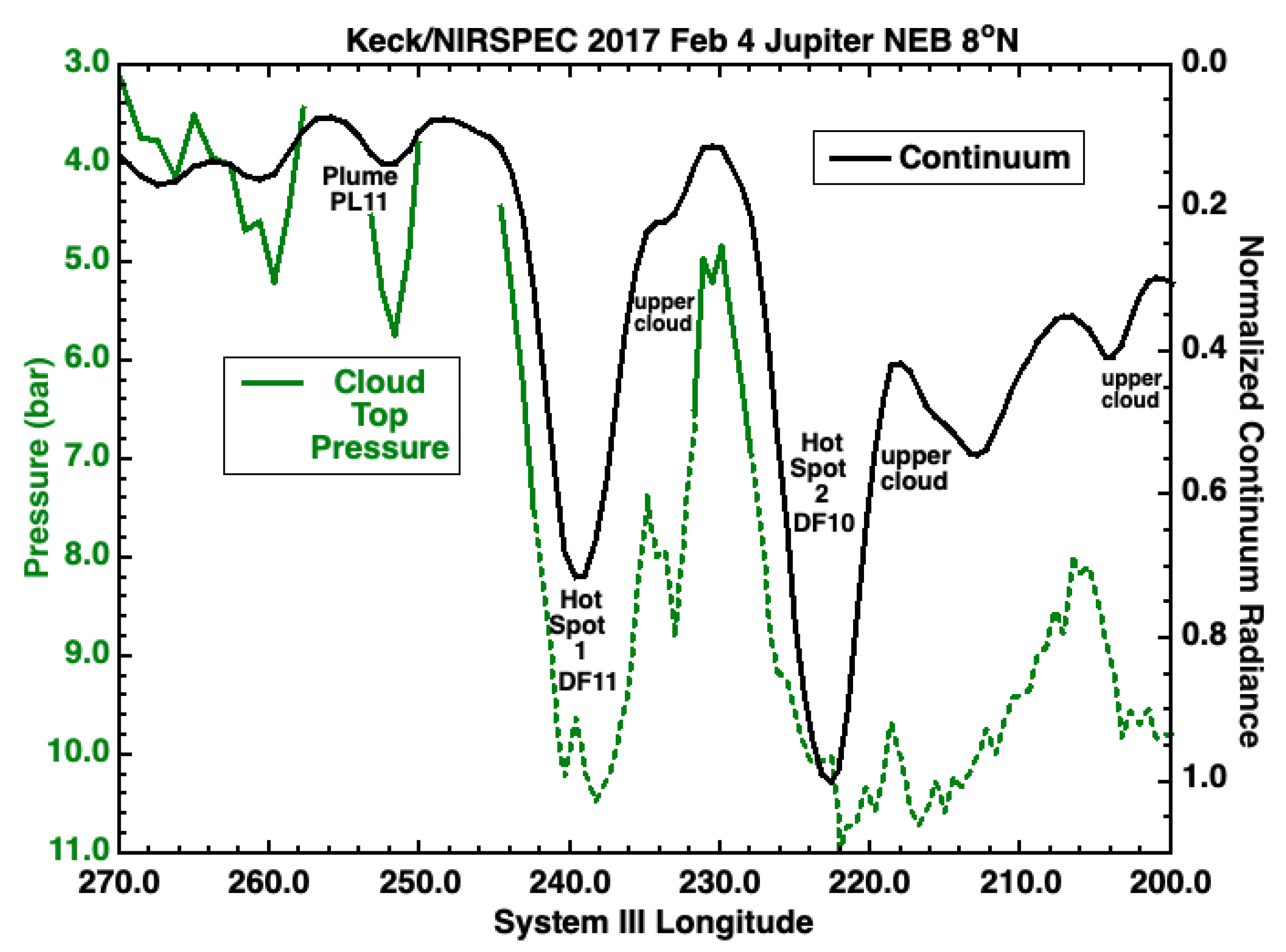

In Figure 22, we show a heterogeneous portion of the NEB at 8${}^{°}$N near the latitude of the Galileo Probe entry site. There is evidence for Hot Spots, water clouds, and upper clouds at different longitudes between 200${}^{°}$W and 270${}^{°}$W. From imaging studies Hot Spots with cloudy regions in between them are expected; however, this is the first study using 5 µm data alone to distinguish between water clouds and upper (NH${}_3$ or NH${}_4$SH) clouds in this region.

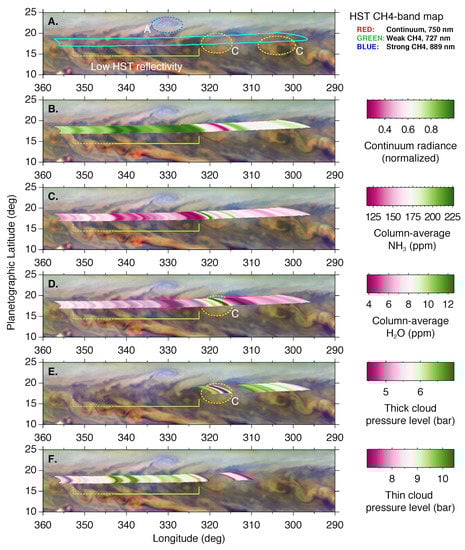

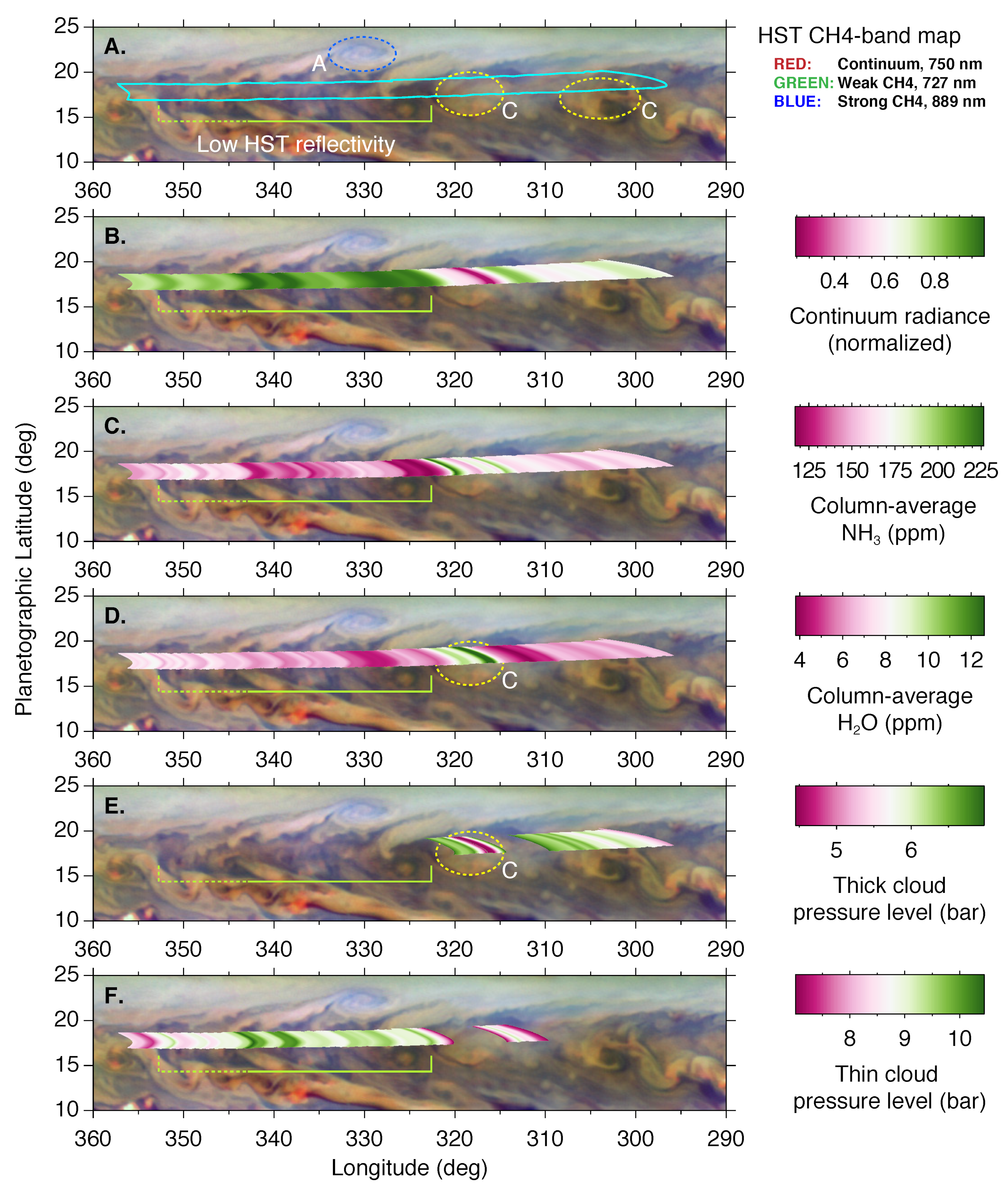

Figure 19. The retrieved properties near 18${}^{°}$N in the North Equatorial Belt, compared with HST imaging. Panel (A) shows the three filters used by HST, the location of the slit, and the presence of three vortices on Jupiter. Features marked A and C resemble anticyclonic and cyclonic vortices associated with mesoscale waves in studies of visible light and 5 µm imaging data in the 2017 timeframe [31,32]. The possible cyclone near 320${}^{°}$W covered the full width of the NIRSPEC slit, and is characterized by relatively high amounts of water vapor and deep cloud opacity (panels (D,E)). The western portion of the slit footprint covers a region of low cloud reflectivity in the HST imaging data, marked with a green bracket. This region was associated with high continuum radiance (panel (B)), the lowest NH${}_3$ concentration (panel (C)), and very low deep-cloud opacity (panels (E,F)). The water abundance in the low-reflectivity region did not appear anomalously low (panel (D)). The longitudes of the retrieved properties shown here were adjusted using the zonal wind profile [7] to match positions in the HST maps acquired about 3 days before the Keck spectra, while the longitudes of the retrieved properties in Figure 21, Figure 23 and Figure 24 differ because they are shown at the time of observation.

Figure 19. The retrieved properties near 18${}^{°}$N in the North Equatorial Belt, compared with HST imaging. Panel (A) shows the three filters used by HST, the location of the slit, and the presence of three vortices on Jupiter. Features marked A and C resemble anticyclonic and cyclonic vortices associated with mesoscale waves in studies of visible light and 5 µm imaging data in the 2017 timeframe [31,32]. The possible cyclone near 320${}^{°}$W covered the full width of the NIRSPEC slit, and is characterized by relatively high amounts of water vapor and deep cloud opacity (panels (D,E)). The western portion of the slit footprint covers a region of low cloud reflectivity in the HST imaging data, marked with a green bracket. This region was associated with high continuum radiance (panel (B)), the lowest NH${}_3$ concentration (panel (C)), and very low deep-cloud opacity (panels (E,F)). The water abundance in the low-reflectivity region did not appear anomalously low (panel (D)). The longitudes of the retrieved properties shown here were adjusted using the zonal wind profile [7] to match positions in the HST maps acquired about 3 days before the Keck spectra, while the longitudes of the retrieved properties in Figure 21, Figure 23 and Figure 24 differ because they are shown at the time of observation.

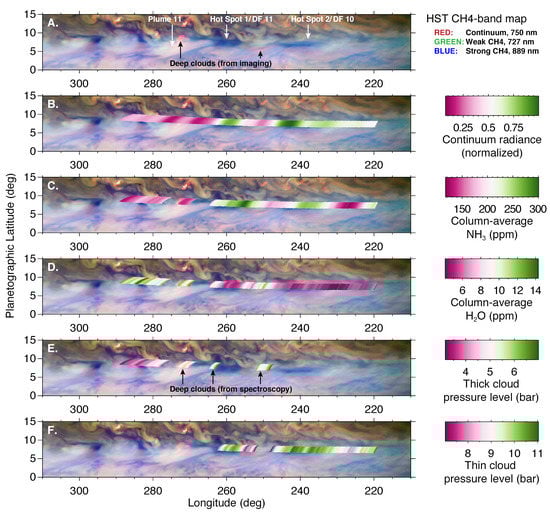

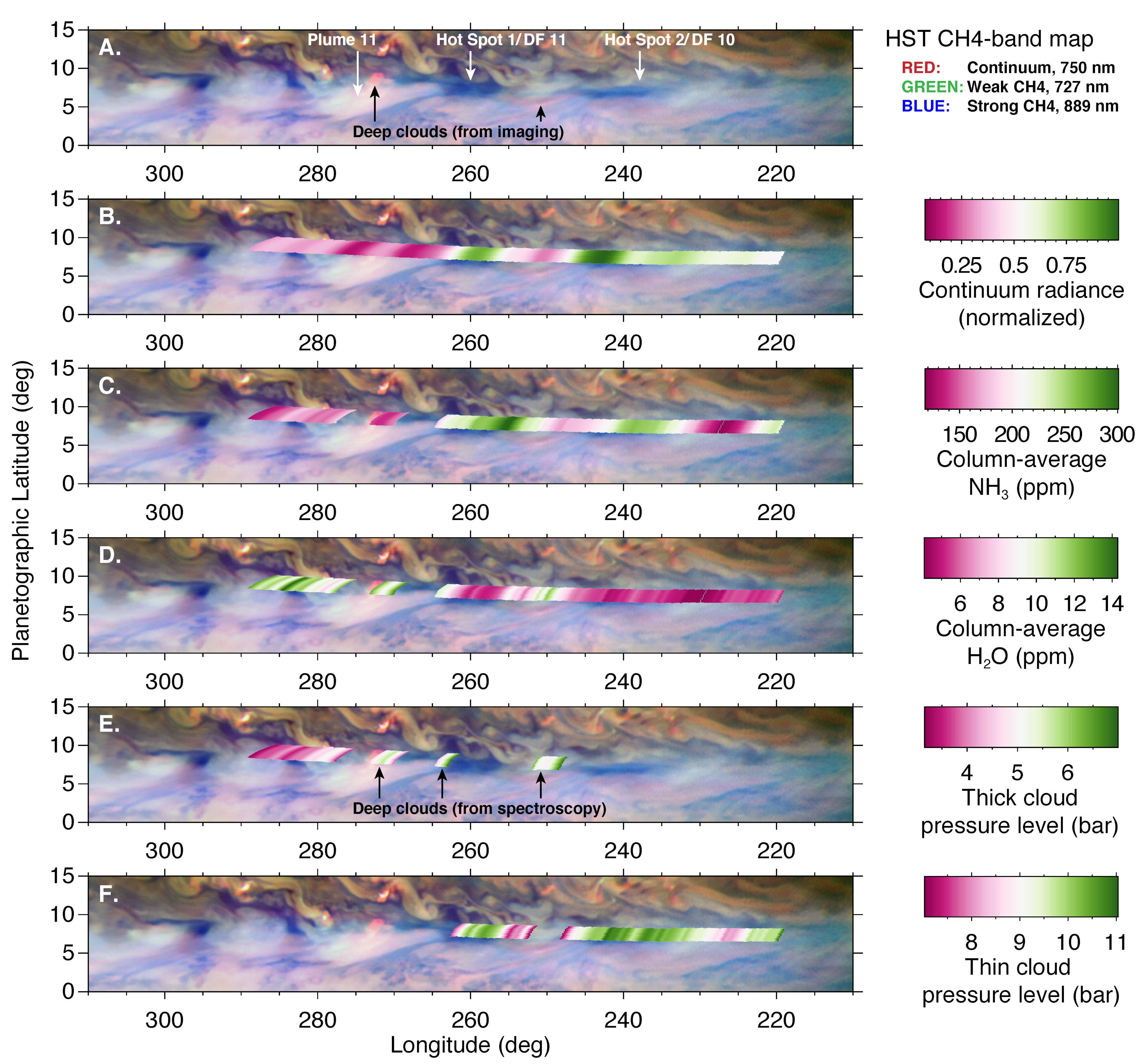

Figure 20. The retrieved properties near 8${}^{°}$N in the North Equatorial Belt. Two Hot Spots (marked in panel (A)), which were also described in Fletcher et al. [33], are generally associated with very low deep-cloud opacity and low volatile concentrations, although the distribution of H${}_2$O and NH${}_3$ vapor within the Hot Spots differs. Panels (B–F) denote the same parameters as in Figure 19. There is a strong correspondence between the locations of deep clouds identified in imaging data by their high continuum/727-nm ratios (red color in panel (A)), and deep clouds identified in the spectral data by their narrow CH${}_3$D EW (retrieved moderate to low thick cloud pressure levels in panel (E)). The longitudes of the retrieved properties shown here were adjusted using the zonal wind profile [7] to match the positions in the HST maps acquired about 3 days before the Keck spectra, while the longitudes of retrieved properties in Figure 22, Figure 25, and Figure 26 differ because they are shown at the time of observation.

Figure 20. The retrieved properties near 8${}^{°}$N in the North Equatorial Belt. Two Hot Spots (marked in panel (A)), which were also described in Fletcher et al. [33], are generally associated with very low deep-cloud opacity and low volatile concentrations, although the distribution of H${}_2$O and NH${}_3$ vapor within the Hot Spots differs. Panels (B–F) denote the same parameters as in Figure 19. There is a strong correspondence between the locations of deep clouds identified in imaging data by their high continuum/727-nm ratios (red color in panel (A)), and deep clouds identified in the spectral data by their narrow CH${}_3$D EW (retrieved moderate to low thick cloud pressure levels in panel (E)). The longitudes of the retrieved properties shown here were adjusted using the zonal wind profile [7] to match the positions in the HST maps acquired about 3 days before the Keck spectra, while the longitudes of retrieved properties in Figure 22, Figure 25, and Figure 26 differ because they are shown at the time of observation.

Figure 21. The pressure of the lower boundary derived from CH${}_3$D (green curve) is shown as a function of longitude in the NEB at 18${}^{°}$N. The continuum radiance is shown in black. Regions with p > 7 bar (dashed green) do not have opaque clouds; however, they may have optically thin water clouds. Longitudes where p < 7 bar (e.g., 306${}^{°}$W and 321${}^{°}$W) are interpreted as having opaque water clouds. See Figure 19 for a comparison with HST images.

Figure 21. The pressure of the lower boundary derived from CH${}_3$D (green curve) is shown as a function of longitude in the NEB at 18${}^{°}$N. The continuum radiance is shown in black. Regions with p > 7 bar (dashed green) do not have opaque clouds; however, they may have optically thin water clouds. Longitudes where p < 7 bar (e.g., 306${}^{°}$W and 321${}^{°}$W) are interpreted as having opaque water clouds. See Figure 19 for a comparison with HST images.

There are two Hot Spots at 222${}^{°}$and 238${}^{°}$, denoted as Hot Spot 2 and Hot Spot 1. They coincide with Dark Formations DF10 and DF11, which were studied a few weeks later at longer wavelengths by Fletcher et al. [33]. The combination of these two datasets provides strong constraints on the nature of Hot Spots, as discussed in Section 4.4. Both regions have high continuum radiances and high CH${}_3$D EWs. Immediately to their east, there are regions with upper clouds between 214 and 220${}^{°}$ and 233–236${}^{°}$. In addition, there are upper clouds near 200${}^{°}$.

Figure 22 also shows opaque water clouds at 230${}^{°}$W, and between 242${}^{°}$ and 270${}^{°}$W. Note that there is a red region at 8${}^{°}$N and 272${}^{°}$W in the HST methane-band image displayed in the lower right of Figure 1 and in Figure 20. Red indicates more reflected sunlight in a continuum channel (750 nm) between methane bands than at wavelengths where methane absorbs strongly (727 and 889 nm). This provides evidence for deep clouds, although it is difficult to quantify their exact pressure. Zonal winds at 8${}^{°}$N will advect the cloud in the HST image from 272${}^{°}$W to ∼252${}^{°}$W over the 3 day interval between the HST and Keck observations.

This places this feature at a location with low CH${}_3$D EW, which supports the interpretation that the red feature in the HST image is, in fact, a water cloud. This is close to the location of plume PL11 observed in [33]. There is additional evidence for a correlation between red features and areas with low CH${}_3$D EW in the SEB outbreak region, as described in Section 3.3, that helps to validate the use of HST methane-band images to detect water clouds. Clearly, this latitude is heterogeneous; thus, caution must be used to apply the results of the Galileo Probe to other regions on Jupiter, even in the same latitude band.

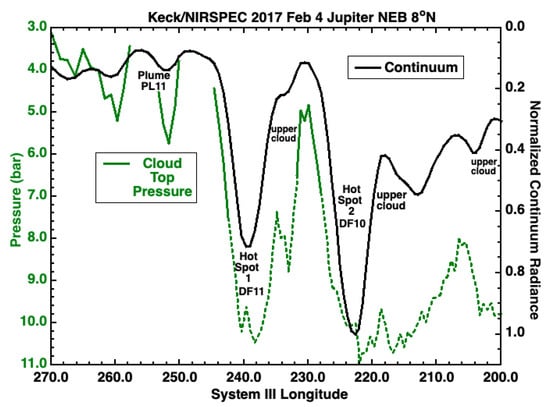

Figure 22. The pressure of the lower boundary derived from CH${}_3$D (green curve) is shown as a function of longitude in the NEB at 8${}^{°}$N. The continuum radiance is shown in black. Longitudes where p < 7 bar (e.g., 244${}^{°}$W to 270${}^{°}$W) are interpreted as having opaque water clouds. Upper clouds are present at longitudes with high CH${}_3$D EW (dashed green) and low continuum radiance (200${}^{°}$W, 217${}^{°}$W, and 233${}^{°}$W). Hot Spots 1 and 2 are the same features as Dark Formation DF11 and DF10, studied in detail in [33]. The cloudy region near 252${}^{°}$W corresponds to plume PL11 in the same study. This is also near the area where HST CH${}_4$-band imaging shows the presence of deep clouds (see Figure 1 and Figure 20).

Figure 22. The pressure of the lower boundary derived from CH${}_3$D (green curve) is shown as a function of longitude in the NEB at 8${}^{°}$N. The continuum radiance is shown in black. Longitudes where p < 7 bar (e.g., 244${}^{°}$W to 270${}^{°}$W) are interpreted as having opaque water clouds. Upper clouds are present at longitudes with high CH${}_3$D EW (dashed green) and low continuum radiance (200${}^{°}$W, 217${}^{°}$W, and 233${}^{°}$W). Hot Spots 1 and 2 are the same features as Dark Formation DF11 and DF10, studied in detail in [33]. The cloudy region near 252${}^{°}$W corresponds to plume PL11 in the same study. This is also near the area where HST CH${}_4$-band imaging shows the presence of deep clouds (see Figure 1 and Figure 20).

3.5. Variations in the Ammonia and Water Abundances within the North Equatorial Belt

Using the cloud-top pressures described in the previous section, we measured the variation with longitude of the two principal volatiles on Jupiter, NH${}_3$ and H${}_2$O, at 18${}^{°}$N in the North Equatorial Belt. In Figure 23 we show that NH${}_3$ is in the 120–150 ppm range near 6 bar in regions lacking opaque water clouds. Its abundance rises to around 200 ppm between 318 and 326${}^{°}$W where there is higher cloud opacity. Similarly, in Figure 24 we indicate that the mole fraction of gaseous H${}_2$O is in the 4–8 ppm range near 6 bar and increases significantly at the cloudiest longitude near 321${}^{°}$W. This same longitude does not exhibit a maximum in NH${}_3$; therefore, it is not analogous to the outbreak region in the SEB.

The NEB at 8${}^{°}$N is an interesting and complicated region on Jupiter. The most surprising feature in Figure 25 is the lack of correlation between NH${}_3$ and the two Hot Spots at 222${}^{°}$W and 238${}^{°}$W (Dark Formations DF10 and DF11 in [33]). Derived NH${}_3$ mole fractions in these Hot Spots are in the 200–250 ppm range; however, they are neither minima nor maxima. Instead, there is a wave-like oscillation between 200 and 250${}^{°}$W with a factor of 2 variation in NH${}_3$ mole fraction ranging from 120 to 250 ppm. This is not an artifact of the derived cloud structure, as it is seen in the measurements of NH${}_3$ equivalent widths. The maxima occur near longitudes where upper clouds were inferred, as shown in Figure 22. Plume PL11 occurs near a region with significant reflected sunlight; thus, NH${}_3$ and H${}_2$O values are not available here.

In Figure 26, the derived H${}_2$O, mole fractions range from 3 to 14 ppm across this longitude range. Gaseous H${}_2$O is strongly correlated with cloud-top pressure. Here, again, Hot Spots do not stand out when compared with adjacent regions with low cloud opacity. Hot Spot 1 (DF11) is evident as it is surrounded by cloudy regions; however, Hot Spot 2 (DF10) has the same H${}_2$O abundance (5 ppm) as adjacent longitudes between 200 and 220${}^{°}$W. There is no evidence for any periodic oscillation in H${}_2$O mole fraction over the 200 to 250${}^{°}$W range of longitudes where NH${}_3$ variation occurs.

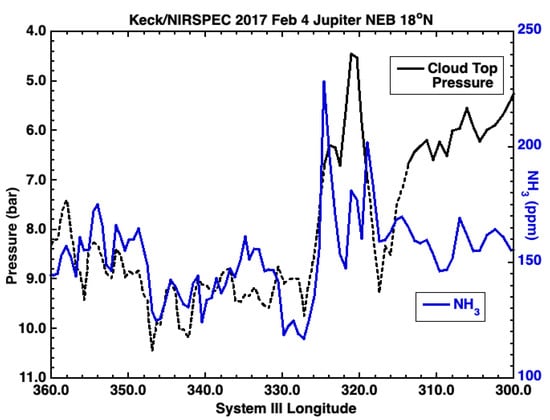

Figure 23. The NH${}_3$ mole fraction in ppm (blue curve) is shown for the NEB at 18${}^{°}$N as a function of longitude between 300${}^{°}$W and 360${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Most longitudes have NH${}_3$ in the 120–200 ppm range. See Figure 19 panel C for an overlay onto the HST image.

Figure 23. The NH${}_3$ mole fraction in ppm (blue curve) is shown for the NEB at 18${}^{°}$N as a function of longitude between 300${}^{°}$W and 360${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Most longitudes have NH${}_3$ in the 120–200 ppm range. See Figure 19 panel C for an overlay onto the HST image.

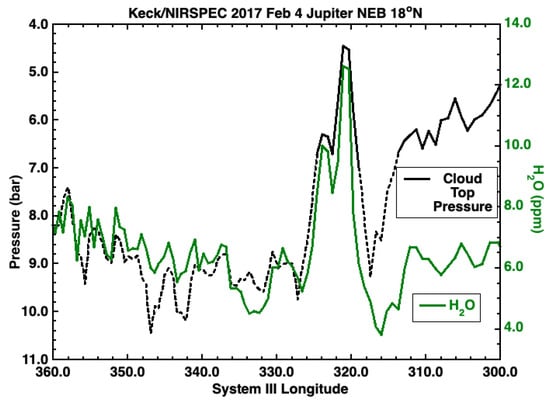

Figure 24. The H${}_2$O mole fraction in ppm (green curve) is shown for the NEB at 18${}^{°}$N as a function of longitude between 300${}^{°}$W and 360${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Most longitudes have H${}_2$O in the 4–8 ppm range. See Figure 19 panel D for an overlay onto the HST image.

Figure 24. The H${}_2$O mole fraction in ppm (green curve) is shown for the NEB at 18${}^{°}$N as a function of longitude between 300${}^{°}$W and 360${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Most longitudes have H${}_2$O in the 4–8 ppm range. See Figure 19 panel D for an overlay onto the HST image.

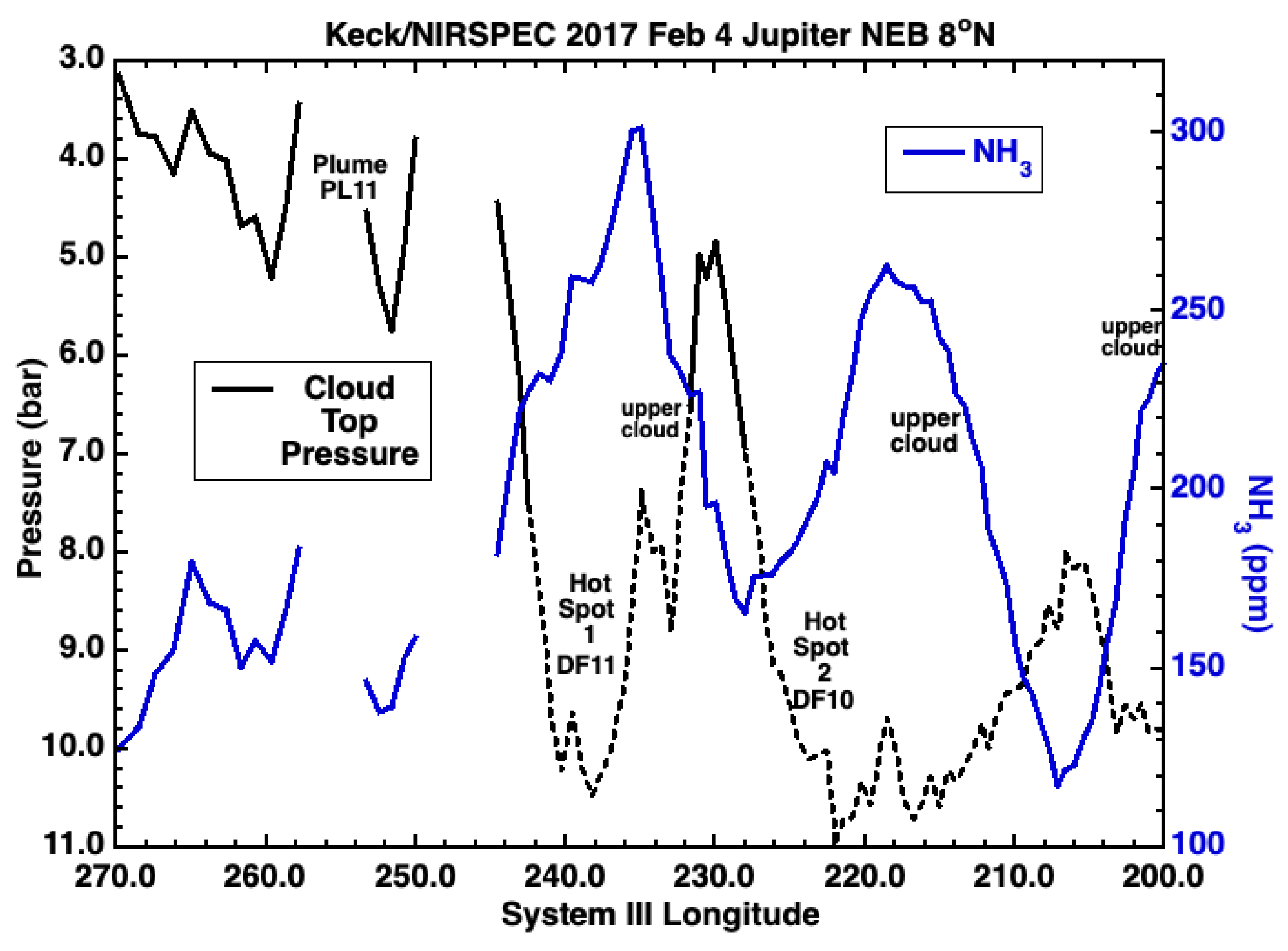

Figure 25. The NH${}_3$ mole fraction in ppm (blue curve) is shown for the NEB at 8${}^{°}$N as a function of longitude between 200${}^{°}$W and 270${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. The Hot Spots do not exhibit minima (or maxima) in NH${}_3$. Hot Spots 1 and 2 are the same features as DF11 and DF10 in [33]. The ammonia mole fraction appears to be correlated with the presence of upper clouds, as inferred by high CH${}_3$D equivalent widths and low continuum radiances. See Figure 20 panel C for an overlay onto the HST image.

Figure 25. The NH${}_3$ mole fraction in ppm (blue curve) is shown for the NEB at 8${}^{°}$N as a function of longitude between 200${}^{°}$W and 270${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. The Hot Spots do not exhibit minima (or maxima) in NH${}_3$. Hot Spots 1 and 2 are the same features as DF11 and DF10 in [33]. The ammonia mole fraction appears to be correlated with the presence of upper clouds, as inferred by high CH${}_3$D equivalent widths and low continuum radiances. See Figure 20 panel C for an overlay onto the HST image.

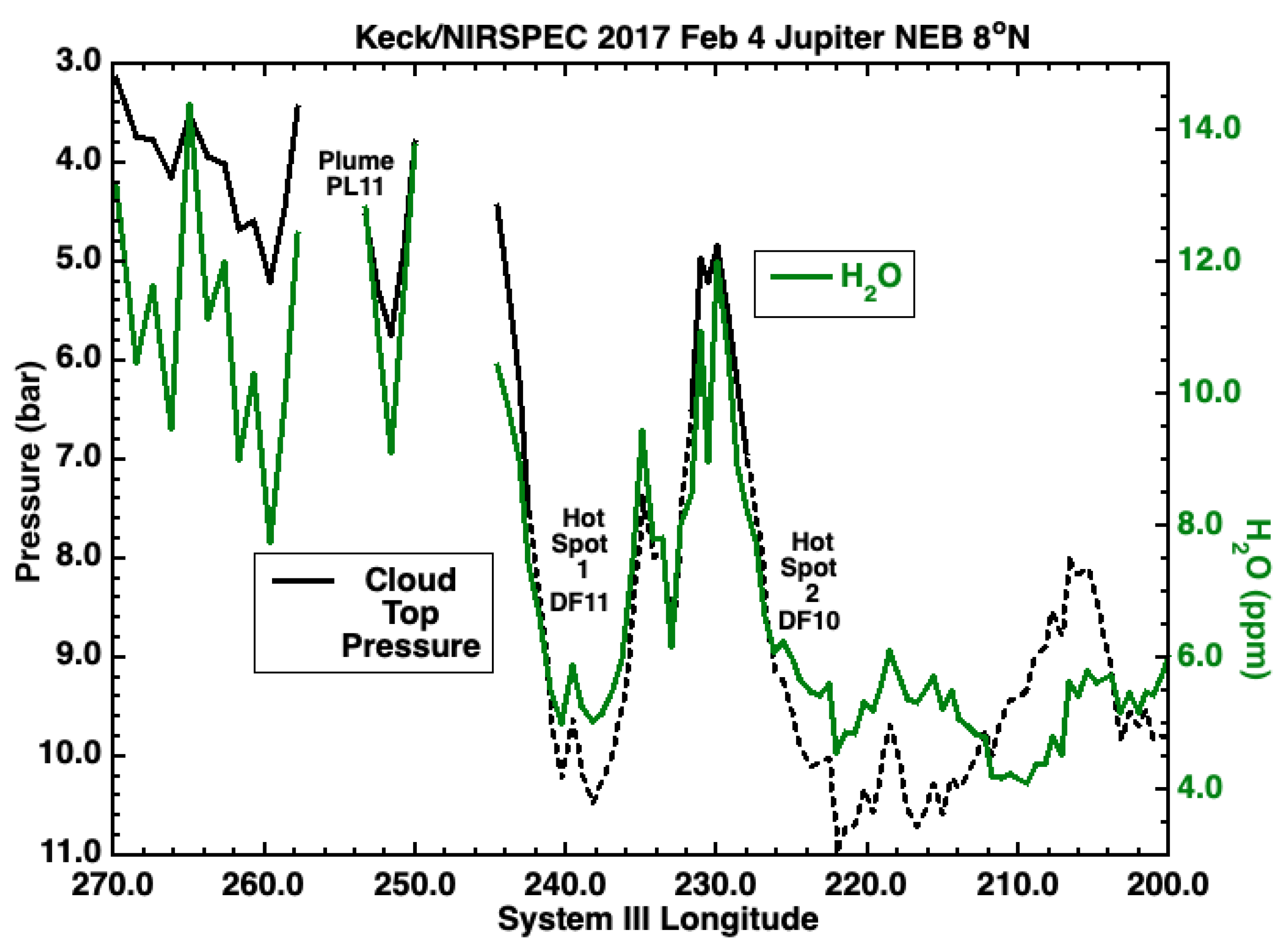

Figure 26. The H${}_2$O mole fraction in ppm (green curve) is shown for the NEB at 8${}^{°}$N as a function of longitude between 200${}^{°}$W and 270${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Hot Spots have less H${}_2$O than regions inferred from CH${}_3$D to have water clouds; however, they do not stand out when compared with adjacent regions that also lack water clouds. Hot Spots 1 and 2 are the same as DF11 and DF10 in [33]. See Figure 20 panel D for an overlay onto the HST image.

Figure 26. The H${}_2$O mole fraction in ppm (green curve) is shown for the NEB at 8${}^{°}$N as a function of longitude between 200${}^{°}$W and 270${}^{°}$W. The pressure of the lower boundary derived from CH${}_3$D is shown in black. Hot Spots have less H${}_2$O than regions inferred from CH${}_3$D to have water clouds; however, they do not stand out when compared with adjacent regions that also lack water clouds. Hot Spots 1 and 2 are the same as DF11 and DF10 in [33]. See Figure 20 panel D for an overlay onto the HST image.

4. Discussion

This paper describes a technique to determine water cloud heights using the integrated absorption, or equivalent width, of CH${}_3$D. We demonstrated with a set of spectra from characteristic spatial regions that variation in the water cloud height manifests as a variation in the equivalent width of CH${}_3$D. We applied this technique to Jupiter’s Central Meridian, to the NEB at 18${}^{°}$N, and to the latitude of the Galileo Probe entry site near 8${}^{°}$N. Using the derived pressure of the deep cloud tops as an opaque lower boundary, we obtained column-averaged mole fractions of NH${}_3$ and H${}_2$O. Knowledge of the spatial variation and pressure level of water clouds, combined with abundances of condensing gases, such as NH${}_3$ and H${}_2$O opens up a new field of study of Jovian dynamics between 1 and 10 bar. In addition, our observations can place the Galileo Probe data into regional context, with the caveat that these observations are separated by 21 years in time.

4.1. Ammonia Abundance

A comparison of our retrieved NH${}_3$ abundances with those reported by Grassi et al. [34] based upon Juno/JIRAM data shows good agreement at 10${}^{°}$N in the NEB, where both studies find 100 ppm NH${}_3$. Elsewhere, JIRAM values are 300–350 ppm, somewhat higher than our values of 200–250 ppm. Grassi et al. [34] focused on infrared-bright spectra only (defined as <3% reflected sunlight); however, our analysis using resolved spectral lines allowed us to set a less restrictive limit. We include infrared-dark regions with significant upper cloud opacity (reflected sunlight < 10%).

We found that the regions with high upper cloud opacity also had higher ammonia concentration (in the regime of 3–10% reflected sunlight where we were able to retrieve ammonia; see Figure 4 and Figure 11). The difference in spectra selected for analysis thus does not explain the difference in retrieved concentrations, because the darker spectra included in our study should bias the results toward higher concentrations, while our overall concentrations were instead lower than in Grassi et al. [34].

Our retrieved NH${}_3$ mole fractions are approximately 100 ppm smaller than Giles et al. [35] who measured a set of absorption features of NH${}_3$ at 5.156, 5.157 and 5.184 µm (1939.5, 1939, and 1929 cm${}^{-1}$) sensitive to the 1.6–3.3 bar level on Jupiter. They observed Jupiter in November 2012 using the CRIRES spectrometer on the Very Large Telescope in Chile at a resolving power of 96,000, or 0.02 cm${}^{-1}$ at 2000 cm${}^{-1}$. These authors reported values of NH${}_3$ ranging from 100 to 400 ppm with a vertical profile increasing between 1.6 and 3.3 bar.

In the NEB at 8${}^{°}$N, their values for NH${}_3$ increased from 60 ppm at 1.6 bar to 300 ppm at 3.3 bar. They also retrieved much larger values of 700 ppm at 13${}^{°}$S and 1500 ppm in the EZ at 5${}^{°}$N. This latter value was reduced to 500 ppm by introducing an opaque cloud at 5 bar. Although we did not model the EZ, this illustrates the extreme sensitivity to the pressure of the lower boundary. The apparent high value at 13${}^{°}$S may also be explained if water clouds were present at this latitude in 2012 when their spectra were acquired. They did not model reflected sunlight in their analysis.

Our retrieved NH${}_3$ mole fractions are in excellent agreement with those of Blain et al. [36] who reported values ranging from 60 to 160 ppm at 10${}^{°}$N to 300 ppm at 20${}^{°}$N and 30${}^{°}$S using a pair of strong absorption features at 5.156 and 5.157 µm (1939.5 and 1939 cm${}^{-1}$) sensitive to the 2 bar level. Note that this is the same line pair as observed in [35]. Reflected sunlight was not taken into account in the zones.

Blain et al. [36] retrieved NH${}_3$ at multiple longitudes at each latitude whereas Giles et al. [35] retrieved gas abundances from one north–south slit position. The data in [36] were acquired in January 2016 with the TEXES spectrometer on the Infrared Telescope Facility in Hawaii at a spectral resolution of 0.15 cm${}^{-1}$, similar to that of our Keck data. These authors retrieved a vertical gradient of ammonia below the NH${}_3$ condensation level, with 500 ppm NH${}_3$ at 3 bar falling off to 100 ppm at 1 bar in Jupiter’s zones. Sub-cloud ammonia gradients were found in observations from the Galileo Probe, the VLA, and Juno.

We can compare our retrieved NH${}_3$ values with the abundances derived from microwave data acquired using the Very Large Array (VLA) (Figure 5, Figure 11 and Figure 12 of de Pater et al. [24]). At 10${}^{°}$N, the authors retrieved an NH${}_3$ abundance of 175 ppm between 20 and 1.5 bar, decreasing to 20 ppm from 1.5 to 0.7 bar, and dropping below 0.1 ppm at 0.3 bar. Given the large variability of NH${}_3$ with longitude in the NEB, this represents good agreement between our infrared data and the microwave data in de Pater et al. [24]. The NH${}_3$ abundance at 6 bar retrieved from VLA data ranged from 180 to 340 ppm as a function of latitude (excluding the EZ), in excellent agreement with results from this study.

Our 5 µm NH${}_3$ abundances are in agreement with Juno MWR values at 6 bar ranging from 100 ppm in the NEB to 250 ppm in the SEB as reported by Li et al. [28]. These authors also reported a decrease in NH${}_3$ from 250 ppm at 2 bar to a minimum of 200 ppm at 7 bar at latitudes outside of the EZ. The ammonia mole fraction may be strongly depleted at 6 bar with respect to measurements at deeper levels from the Galileo Probe. Probe radio signal attenuation gave a maximum concentration of 755 ± 100 ppm NH${}_3$ at 9.7 bar in an initial study [37], updated to 835 ± 60 ppm after additional laboratory measurements of the ammonia opacity under Jovian conditions [38].

Wong et al. [23] reported a mole fraction of 566 ± 216 ppm NH${}_3$ between 9 and 12 bar as measured by the mass spectrometer on the Probe. Both signal attenuation and mass spectrometry pertain to the probe entry site near 7${}^{°}$N. Different vertical profiles, with NH${}_3$ either constant with pressure or increasing only by 40% between 6 and 20 bar, would contradict the Probe results but would be consistent with Juno MWR data. Li et al. [39] reported 351 ± 21 ppm NH${}_3$ at the 20 bar level in the EZ. Li et al. [28] reported similar values at all latitudes for p > 40 bar.

4.2. Water Abundance

A comparison of retrieved water vapor from JIRAM data reported by Grassi et al. [34] shows that we obtain the same extrema in H${}_2$O: 22${}^{°}$S is the latitude with the minimum abundance and 10${}^{°}$S exhibits the maximum value. Grassi et al. [34] express H${}_2$O in terms of relative humidity ranging from 0.1 to 10%. These authors did not specify a pressure level; thus, comparisons between humidity and mole fraction will not be exact. We will assume that both datasets contain information at the 4 bar level where the saturated mole fraction of H${}_2$O is 360 ppm using the Galileo Probe temperature profile [6]. Our results of 1–15 ppm H${}_2$O mole fraction correspond to relative humidities between 0.3 and 4%, in good agreement with [34].

Our data do not directly constrain the deep H${}_2$O abundance because gaseous H${}_2$O cannot be retrieved within or below an opaque water cloud. Our data are also insensitive to composition at the ∼20 bar level where Li et al. [39] find 1–5 times solar O/H. Our measurements in regions with low cloud opacity (9 ppm near 6.5 bar) correspond to ∼1% protosolar O/H (assuming a hydrogen mixing ratio of 0.86 from the Galileo Probe [16,40] and protosolar abundances from Asplund et al. [41]). We can derive indirect constraints on O/H from our analysis, because the cloud levels retrieved from CH${}_3$D EW serve as lower limits to the pressure of the cloud base. This indirect constraint is explored in more detail in Wong et al. [42].

Our retrieved H${}_2$O abundances are in good agreement with Giles et al. [43] who analyzed Cassini VIMS spectra of the night side of Jupiter at 5 µm acquired during its flyby in January 2001. Both VIMS and JIRAM have similar spectral resolving power of 270, or 7 cm${}^{-1}$ at 2000 cm${}^{-1}$. These authors found a maximum of 3% humidity near 10${}^{°}$S and a minimum of 0.2% near 20${}^{°}$S. However, Giles et al. [43] assumed a deep solar abundance below the water condensation level (with their stated relative humidities applying to altitudes above the condensation level) so the average column abundances implied by their results are actually higher than the values from our retrievals.

An extreme sub-saturation of H${}_2$O is seen in Jupiter’s belts and Hot Spots. This may be explained by the same theory that explains the global depletion of ammonia gas in the upper atmosphere. Building upon a suggestion by Ingersoll et al. [44], Showman and de Pater [45] postulated a double-stacked circulation pattern, with air descending in belts at altitudes above the water cloud, and rising upwards deeper in the atmosphere.

The water cloud layer acts as a barrier against convection from below; however, occasionally storms do rise up through this layer. Such thunderstorms may dry out Jupiter’s atmosphere through rainout of NH${}_3$ ice, or NH${}_3$ trapped in water or in NH${}_4$SH particles. A similar circulation was suggested by Fletcher et al. [46] to explain Juno/MWR data, and Duer et al. [47] developed a numerical code to model the variations in ammonia with latitude and altitude. The necessary large size of the particles to make this process work was solved by Guillot et al. [48], who showed that water ice could be lofted up to almost the 1 bar level, where mixed-phase NH${}_3$ and H${}_2$O condensates and hydrates can allow aerosol particles to grow to cm-sized hail, referred to as “mushballs”. Such large particles can fall down to high pressure levels ([45,48]). This process may also cause water to be extremely sub-saturated in Jupiter’s upper troposphere [49,50].

The apparent sub-saturation of gaseous H${}_2$O in regions with water clouds implied by Figure 14, Figure 18, Figure 24 and Figure 26 is almost certainly not real. As discussed earlier, water clouds are likely to be accompanied by large values (∼1000 ppm) of H${}_2$O below their cloud tops, rather than the 4-ppm value assumed in our retrievals. Our technique is sensitive to spatial variation in the H${}_2$O column abundance but it is affected by variation in the depth of the column probed when deep clouds are present.

Even in the absence of clouds, we do not find H${}_2$O volume mixing ratios as high as the 420 ppm detected by the Galileo Probe around 20 bar [23], let alone the 2500 ppm retrieved from analysis of equatorial Juno MWR data [39]. Thus, our measurements strongly support the existence of a deep gradient in the water-vapor concentration that extends well below the 8 to 10 bar lower limit of our sensitivity (Figure 8).

4.3. Clouds

Grassi et al. [34] modeled JIRAM spectra of Jupiter with a spectrally flat cloud extending between 0.7 and 1.3 bar, presumably an NH${}_3$ cloud. Giles et al. [35] adopted a similar cloud model. Grassi et al. [34] tested the introduction of a deep cloud at 5 bar as proposed in [9]; however, they found no improvement in the fit to the JIRAM data and, thus, they did not use a deep cloud in their study. The difference between the current study and that of Grassi et al. [34] may be related to spectral resolution, the depth probed in Jupiter’s atmosphere, and signal to noise.

The JIRAM spectral resolution of 7 cm${}^{-1}$ reveals only the strongest absorption features of H${}_2$O and NH${}_3$ which primarily sound levels less than 5 bar. In contrast, Giles et al. [35], using higher spectral resolution data, found that their retrievals were sensitive to clouds at 5 bar. The JIRAM study excluded low-flux regions where water cloud opacity may be important. Our study excluded some of the same regions due to high values of reflected sunlight; however, we also found evidence for water clouds in the SEB Outbreak region and in other locations.

Our assumption of an opaque lower boundary due solely to cloud opacity is certainly an oversimplification. Additional modeling incorporating multiple scattering of thermal radiation to treat clouds with a finite vertical extent, and including H${}_2$O gas opacity below the cloud tops may be needed; however, this is beyond the scope of the current study. One of the key results of this study is the ability to distinguish upper clouds from deep clouds in areas which have low 5 µm continuum brightness but large values of CH${}_3$D equivalent width. This technique will enable studies that seek to determine which cloud layer(s) are responsible for time-varying changes in the latitudinal extent and thickness of clouds in the NEB and EZ [51].

The strong correlation between gaseous H${}_2$O and the cloud-top pressure supports the interpretation that clouds between 3 and 7 bar are made of water. Although both the retrieved NH${}_3$ and H${}_2$O abundances are affected by the cloud-top pressure, a comparison of Figure 25 and Figure 26 shows a much stronger correlation between gaseous water and the cloud-top pressure than that for NH${}_3$ and cloud pressure. To some extent, the strong correlation may be an artifact of subtle variations in the vertical profile of water vapor that are not captured by our vertically constant profiles.

4.4. Hot Spots and Plumes

Fletcher et al. [33] presented mid-IR maps of Jupiter’s NEB from TEXES acquired on 12 and 13 March 2017, a few weeks after our observations. Using their Figure 2 and an offset of 42${}^{°}$ between System I and System III longitude on 4 February 2017, we identify our Hot Spots 1 and 2 as Dark Formations DF11 and DF10. DF11 and DF10 were observed in detail at wavelengths between 4.7 and 19 µm (see their Figure 12 and Figure 13). Both Hot Spots exhibited minimal aerosol abundance but they did not show minimal NH${}_3$ at 440 mbar. They also did not stand out in physical temperature at 600 mbar.

We find similar results at deeper levels. Both Hot Spots exhibit minimal cloud opacity down to 8 bar; however, their NH${}_3$ abundance at 6 bar is intermediate between values in adjacent regions. They also have similar gaseous H${}_2$O as in adjacent regions free of deep clouds. Fletcher et al. [33] used Juno data to conclude that Hot Spots do not extend deeper than 10 bar, in agreement with de Pater et al. [24]. Our observation that the Hot Spots lack opaque clouds between 3 and 8 bar supports the idea that the wave system extends to 8 bar; however, we have no direct information at deeper levels, and thus our results do not settle the question of Hot Spot depth.

Another suggestion that Hot Spots are confined within a weather layer comes from Cassini images of small, fast-moving water clouds deeper than 3 bar [42,52] within them. Some type of separation between Hot Spots and the deeper atmosphere at p > 5 bar is also supported by observations from Galileo/NIMS [53] and Juno/JIRAM [54], which revealed strong correlations among NH${}_3$ concentration, cloud opacity, and 5 µm radiance, while H${}_2$O concentration varied more independently from the other quantities.

Microwave VLA maps at 1–6 cm by de Pater et al. [24], (their Figure 5), show that the NH${}_3$ abundance in Hot Spots gradually increases from 10 ppm at 0.6 bar to 400 ppm at 8 bar. At higher altitudes it quickly drops to below 0.1 ppm. The Hot Spots clearly showed up in 1.3 cm maps, which probe the 0.4–0.8 bar level. In the VLA maps, Hot Spots alternate with ammonia-rich “plumes”, which carry the full complement of NH${}_3$ gas from deeper layers, and are likely supersaturated at altitudes within and above the NH${}_3$-ice cloud layers.

The plume near 260${}^{°}$W in our observations (Figure 25) did not appear to have enhanced NH${}_3$ concentrations; however, our retrieved NH${}_3$ mole fractions are systematically underestimated in regions with water clouds. Alternatively, the discrepancy with the VLA data could be due to the latitude sampled; the VLA maps show plumes lying equatorward of the Hot Spots.

One challenge with comparing 5 µm and microwave data is that there are different mechanisms giving rise to high radiances at these two wavelengths. Hot Spots are identified at 5 µm by high radiance due to minimal aerosol opacity. Hot Spots show up in microwave data with high radiance due to either high temperatures or minimal NH${}_3$ opacity; however, they may not necessarily be the same regions, even though Sault et al. [55] showed that the 5 µm and radio Hot Spots appeared to be co-located. These 5 µm data, however, were taken 3 days before the radio data and differences in intensity were noted. Infrared observations of Hot Spots, such as those conducted by Fletcher et al. [56] and in this study, suggest that for at least one pair of Hot Spots (DF10 and DF11), they would not be identifiable in microwave data. Simultaneous observations of Hot Spots at infrared and radio wavelengths are required to settle this issue.

Dynamical models of Hot Spots were created to explain the deep depletion of condensable volatiles and the lack of aerosols, as an effect of air flowing through a non-linear Rossby wave system. The wave system would push dry air downward and sublimate clouds. Showman and Dowling [57] simulated atmospheric flow near 8${}^{°}$N, reproducing periodic coherent structures analogous to Hot Spots, with anomalies present at their deepest model layer of 5–8 bar.

Friedson [27] modeled vertical perturbations extending below the deepest level sampled by the Galileo Probe of 22 bar [58]. One issue with these previous deep models is that the initial condition for the unperturbed atmosphere was not consistent with the current picture of widespread deep volatile depletions, informed by microwave observations [59,60] and infrared retrievals, this work, [34,35,36]. Revised models with deep volatile depletions in the background atmosphere—capable of explaining how features like DF10 and DF11 could exhibit low cloud opacity but not necessarily be warmer or depleted in volatiles with respect to adjacent longitudes—might lead to new assessments of the depth of 5 micron Hot Spots.

The region near 252${}^{°}$W in the NIRSPEC data (272${}^{°}$W in the HST map) is identified as plume PL11 in [33]. Here, we find evidence for water clouds from CH${}_3$D equivalent widths as well as in CH${}_4$ band imaging from Hubble, as shown in Figure 20. We do not have values for gaseous H${}_2$O or NH${}_3$ due to the presence of reflected sunlight at 5 µm. The SEB Outbreak region at 13${}^{°}$S exhibits strong vertical mixing due to the action of moist convection, as suggested by clustered lightning detections near the storm [7,61]. For the 5 micron Hot Spots, there is vertical displacement but less vertical mixing from convective processes (despite isolated small convective storms detected near some upwelling branches [42]).

4.5. Open Questions

The radiative transfer approach in this work is an extension to additional spatial locations of the technique of using CH${}_3$D equivalent widths to derive the cloud structure first described in Bjoraker et al. [9]. The conversion of equivalent widths to cloud-top pressures and gas mole fractions is new. It is computationally efficient in the sense of not requiring hundreds of radiative transfer inversions (using, for example, the NEMESIS code [62]) to characterize the spatial variation in cloud opacity and volatile concentrations.

However, systematic effects may still influence the absolute values of retrieved quantities, particularly in regions with water clouds. Future efforts will be devoted to improving our understanding of systematic effects, with the goal of characterizing the spatial and temporal variation throughout the Juno era (2015–present) using ground-based spectral datasets collected using Keck/NIRSPEC and IRTF/iSHELL.

Systematic effects include the scattering of thermal emission in optically-thin deep clouds and the continuum opacity from water vapor in Jupiter’s atmosphere. Giles et al. [35] demonstrated that there is a partial degeneracy between the deep cloud opacity and the retrieved volatile abundances. Our correlation between the water-vapor concentration from H${}_2$O EW and the cloud depth derived from CH${}_3$D EW (Figure 26) may be an example of this degeneracy between the humidity and cloud opacity.

In spatial locations where the H${}_2$O EW is reduced, our assumption that deep cloud opacity takes the form of a completely opaque cloud top may lead to a systematic underestimation of the actual H${}_2$O concentration, since the partitioning of the continuum opacity between H${}_2$O vapor and clouds is difficult to distinguish spectrally. Our analytical radiative transfer approach is still valuable as a probe of spatial variability at deep (p = 3–8 bar) levels where no other volatile species is capable of modulating spectral feature EWs because the dynamical implications of either enhanced water vapor or enhanced deep cloud opacity are similar.

A relatively small number of individual spectra were analyzed in this work. Future analysis will be better able to characterize spatial and temporal variation via the simultaneous analysis of data sets collected from right before the start of the Juno mission, extending to the present day. For example, the latitudinal variation presented here (Figure 4, Figure 6, Figure 10, Figure 11 and Figure 14) is based on a scan near disk center spanning a width of approximately 2${}^{°}$ longitude in February 2017. Additional data from other epochs and longitudes will be studied to identify temporal trends and longitudinal variability (e.g., in discrete vortices). Of particular interest is the strong latitudinal gradient in water-vapor concentration across the SEB (Figure 18).

Data at multiple epochs can be used to determine the extent to which large convective outbreaks modify this latitudinal gradient in the SEB and whether any changes in the compositional gradient may be factors that encourage the development of outbreaks (e.g., via increases in the convective available potential energy or decreases in the convective inhibition [63]).
