Shipborne HFSWR Target Detection in Clutter Regions Based on Multi-Frame TFI Correlation

Abstract

High-frequency surface wave radar (HFSWR) is an important marine monitoring technology, and this new regime of radar plays an important role in large-scale, continuous early-warning monitoring at sea. In particular, shipborne HFSWR has wider applications in detecting interesting sea areas, with the advantages of flexible deployment and extended detection capability. Due to the large amount of sea clutter accompanying the echo signals of shipborne HFSWR and the spread of sea clutter due to platform motion, the detection of targets in clutter regions is extremely difficult. In this paper, a multi-frame time-frequency (TF) analysis–based target-detection method is proposed. First, the sea clutter spreading area in the HFSWR echo signal is modeled, and the effects of platform motion and currents on the sea clutter spread are analyzed to determine the sea clutter coverage area; this paper focuses on frequency modeling. Then the TF image (TFI) of each range cell is obtained by TF analysis of the cells within a certain range of the echo signal, and the range cells of possible target points are determined by binary classification of the TFI through a convolutional neural network. Finally, the location of the final target point is obtained by correlation of multi-frame TFIs. Shipborne HFSWR field experiments show that the proposed detection method performs well in detecting targets concealed by sea clutter.

1. Introduction

High-frequency surface-wave radar (HFSWR) plays an important role in marine surveillance and vessel target detection due to its capability for all-weather and large-scale, over-the-horizon monitoring [1]. In comparison with land-based HFSWRs, shipborne HFSWRs offer greater flexibility and a wider detection range. However, the motion of the platform, including six-degree-of-freedom (6-DOF) motion and forward motion, leads to the spread of ship targets and a corresponding broadening of sea clutter in the range-Doppler (RD) spectrum [2], making target detection very difficult.

Walsh et al. [3,4] derived the first- and second-order HFSWR sea surface scattering cross-sectional areas for an antenna mounted on a floating platform under the influence of a wobbling motion. In their simulations, they showed that additional peaks appear in the Doppler spectrum when the antenna is subjected to wobble. Later, Ma et al. [5] analyzed the first- and second-order sea surface scattering cross-sectional areas of HFSWR under the influence of pitch and roll movements of a floating platform and found that the motion-induced peaks appeared symmetrically in the Doppler frequencies. Meanwhile, Yao et al. [6] derived the sea surface scattering cross-sectional area for first- and second-order HFSWR on the basis of a 6-DOF oscillatory motion model. The results showed that 6-DOF oscillatory motions can generate additional symmetrically distributed peaks in the radar spectrum. The location and intensity of these peaks depends on the angular frequency and amplitude of each one-dimensional oscillatory motion. Simulation results in [6] have also shown that the Doppler spectrum expands due to the forward movement of the ship, which is detrimental to target detection. Gill et al. [7] proposed a method based on ocean backscatter for mitigating the effect of antenna motion in the Doppler spectrum of high-frequency radars. Zhang et al. [8] modeled the spatio-temporal distribution of sea echoes from a shipborne radar platform under variable speed and analyzed the relationship between platform velocity and sea clutter propagation. However, the focus of these studies was solving the sea clutter propagation problem, not the target detection problem. In 2021, Yang et al. [9] determined the effects of platform motion and sea current on target echo by modeling and analyzing the effects of platform 6-DOF, forward movement, and sea current on echo delay, and verified the validity of the model through simulation experiments and actual measurement.

Time-frequency (TF) analysis methods in HFSWR target detection have major advantages over traditional CFAR detection and peak detection in terms of accuracy and false-alarm rate. Classical linear methods, such as the short-time Fourier transform (STFT) and wavelet transform (WT) [10], can extend one-dimensional time-series signals to the two-dimensional TF plane, but the TF representations generated by traditional analysis methods are usually ambiguous due to the limitations of Heisenberg’s inaccuracy measurement principle. To overcome the drawbacks of traditional methods, in 2016, Huang et al. [11] proposed the synchrosqueezing transform (SST) based on the STFT and WT for signal redistribution and synchronous compression. Simulations have shown that the synchronous compression transform can improve the resolution of the TF representation, but for linear frequency modulation signals the SST method cannot produce a focused TF representation. Therefore, in 2019 Yu et al. [12] proposed a multisynchrosqueezing transform (MSST) TF analysis method based on the SST, and the simulation showed that although the TF representation was still sufficient in energy after several iterations, it remained limited for more complex cases. Inspired by the SST, in 2017 Yu et al. [13] proposed a TF analysis method based on the STFT post-processing technique, the synchroextracting transform (SET), which compresses all TF coefficients into the instantaneous frequency (IF) trajectory. Unlike the SST compression, the main idea of SET is to retain only the TF information of the STFT results that are most relevant to the time-varying features of the signal, and to remove most of the smeared TF energy, greatly increasing the energy concentration of the new TF representation. In 2021, Cai et al. [14] applied the SET method to the azimuth detection of HFSWR and showed through simulation experiments that the method is significantly better than CFAR detection for improving detection efficiency and reducing directional errors, especially in the case of a low signal-to-noise ratio (SNR).

In terms of target detection, in 2017 Li et al. [15] proposed a TF analysis motion target detection algorithm based on spectral refinement and wavelet-scale rearrangement. The simulation and experimental results showed better detection for vessel targets with small differences in Doppler frequencies and for targets near sea clutter. Chen et al. [16], also in 2017, proposed a two-dimensional multi-signal classification method based on sparse recovery to improve the target-detection capability of HFSWR. The above methods all detect targets away from sea clutter or near its edges. In 2018, Wang et al. [17] proposed a method for detecting targets within the sea clutter zone using in situ sea state information, but this was shown through experiments to be useful for target detection only in specific scenarios. In 2021, Wu et al. [18] proposed an algorithm for target detection under the occlusion of strong clutter and a complex interference environment, which uses a Faster R-CNN network to localize the clutter and interference region and then a two-stage cascade algorithm to detect the region. Experiments have shown that the method has good results for detecting targets obscured by clutter and interference areas, but its performance degrades when detecting targets completely obscured by sea clutter.

The aim of this paper is to establish a platform-motion model to mathematically analyze the effects of platform motion on echo signals and to focus mainly on the sea clutter spreading in order to locate the target in the sea clutter coverage area for the next step. Both simulations and field experiments verified the validity of this model. One TFI is obtained by using the SET on the clutter region, and a convolutional neural network (CNN) is designed to bifurcate the TFI to obtain the location of the suspected target. Eventually, the exact location of the target is determined by multi-frame correlation.

The structure of this paper is as follows. Section 1 gives a brief introduction to the existing research results related to this paper. In Section 2, the differences between shore−based HFSWR and shipborne HFSWR are compared, and the difficulties of shipborne HFSWR in the target side are pointed out. At the same time, the process framework of this article is given. In Section 3, we model the frequency direction of the HFSWR on the ship platform, and carry out theoretical analysis and finally obtain the sea clutter widening area. In Section 4, the time-frequency analysis is carried out according to the sea clutter broadening area determined in the previous section, and the TF map is classified by CNN to obtain the classification results. Section 5 uses the multi-frame correlation method to remove the false alarm target and the exact position of the real target point. Finally, Section 6 gives the conclusion.

2. Detection Framework

2.1. RD Spectrum of Shipborne HFSWR

The HFSWR echo signal contains signals reflected from vessels along with clutter and interference, including sea clutter, radio-frequency interference, ionospheric clutter, and ground clutter. For shore−based HFSWR, the ground clutter is easy to deal with, as it is at zero frequency. For shipborne HFSWR, the ground clutter is greatly expanded and shifted, which makes target detection difficult. Furthermore, the sea clutter is obviously expanded in the RD spectrum, causing more targets to be submerged in clutter, and the SNR of the echo signal decreases sharply. Therefore, the accuracy of target detection decreases significantly in this situation, and a new detection method for targets concealed in clutter is needed, which is great importance in HFSWR applications.

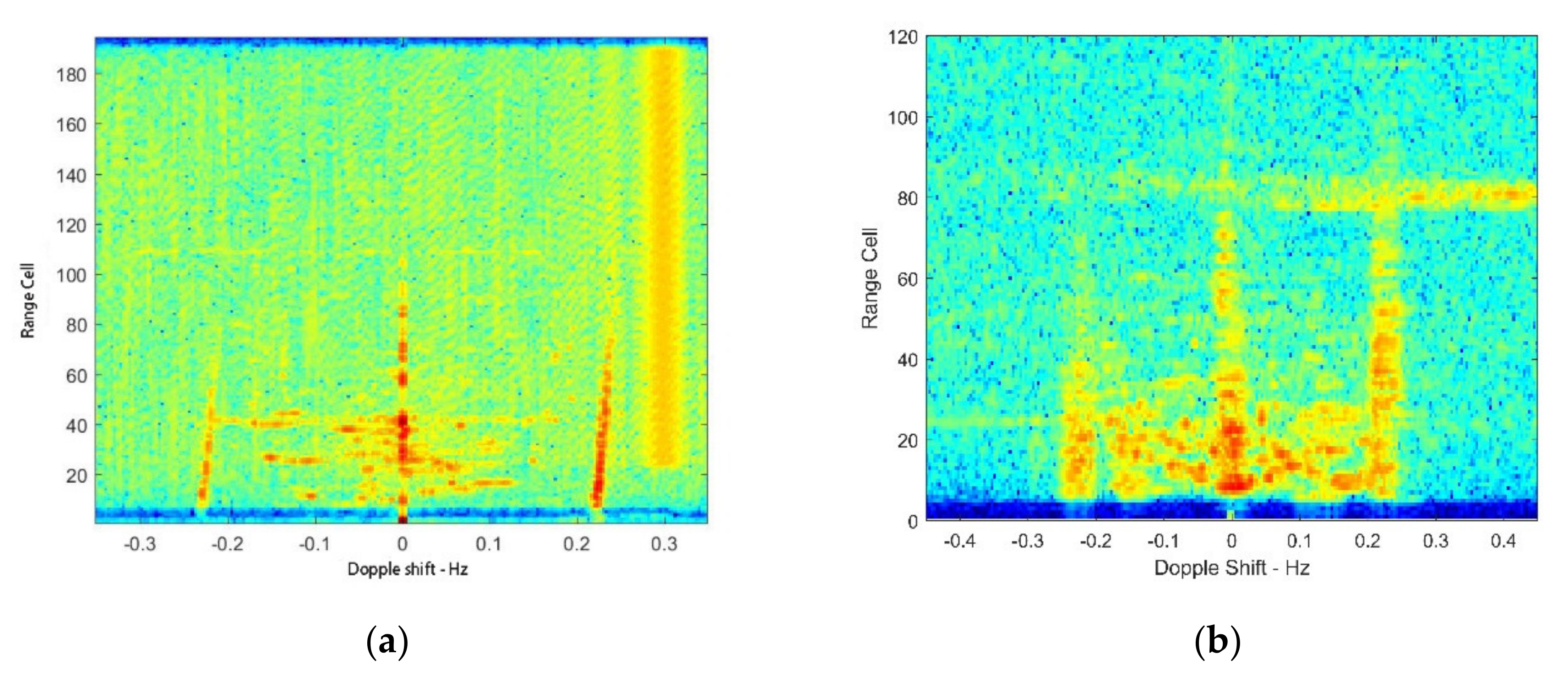

In comparison with land-based HFSWR, the first-order sea clutter region of shipborne HFSWR is significantly wider due to the influence of platform movement and the current, resulting in an increased coverage area, which makes it more difficult to detect targets in the region. Figure 1 shows the RD spectrum of HFSWR. It can be seen that the first-order sea clutter broadening is serious, and the interference signal also appears at the edge of the broadening, so this paper first determines the sea clutter broadening range by theoretical derivation to make the detection of targets concealed in first-order sea clutter feasible.

2.2. Detection Framework

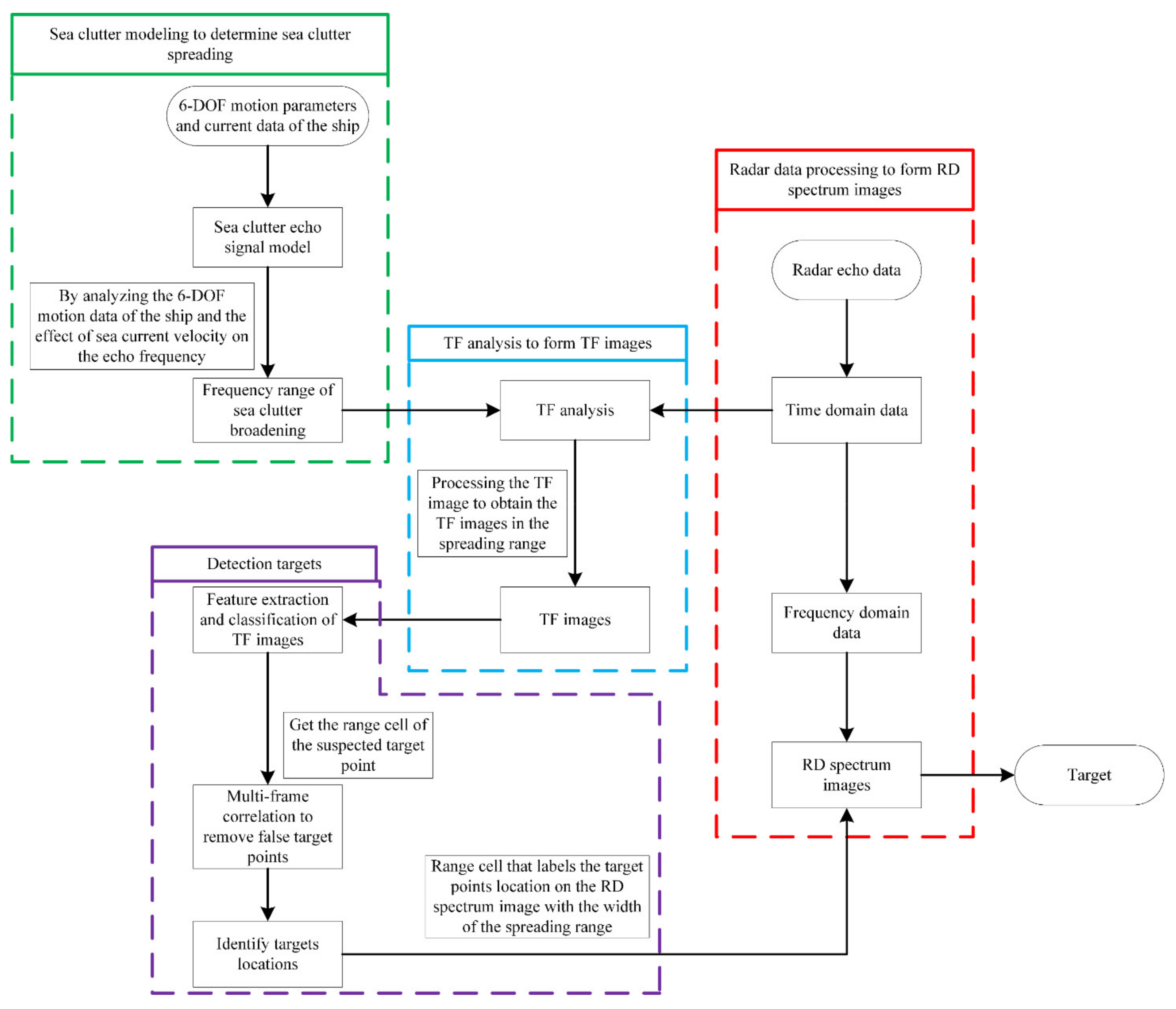

From Figure 1b, it can be seen that the sea clutter spreading of shipboard HFSWR is serious. In this complex situation, a new detection method of target detection in clutter is proposed with the overall framework shown in Figure 2. First, the sea clutter spreading range under the influence of platform motion is obtained by modeling the floating platform and analyzing its influence on the radar echo signal. Field data experiments have verified the validity of the model, in which the TF spectrum for each range cell can be obtained by TF analysis of the determined sea clutter spreading range. The TFI is sent into the trained CNN to classify the potential positions of the target, and the final position of the target is determined by correlating the multi-frame TFIs.

3. Problem Formulation

3.1. Spreading of Sea Clutter

Shipborne HFSWR emits electromagnetic waves to the sea surface, and these are resonantly scattered by the waves to form a sea surface return spectrum. Under the influence of certain radar system parameters and sea surface factors, a first-order scattering model of the sea surface is constructed. The simulation model of the echo signal of the i-th antenna $s^i\left({\theta }_{\mathrm{s}},t\right)$ [19,20] is constructed by considering the effect of the 6-DOF of the platform as follows:

$$s^i\left({\theta }_{\mathrm{s}},t\right)=e\left(t\right)+{\displaystyle \sum _s\frac{P_t{G}_t{G}_{\mathrm{re}}{\lambda }^2\sigma \left({\theta }_{\mathrm{s}},t\right)|F{|}^4}{{\left(4\pi \right)}^3{R}^4}}g\left({\theta }_{\mathrm{s}},t\right)P^i\left({\theta }_{\mathrm{s}},t\right)$$

(1)

where $e\left(t\right)$ is the background noise, F is the ground wave propagation attenuation coefficient, $P_t$ is the transmitter power, $G_t$ and $G_{\mathrm{re}}$ are the transmitting and receiving antenna gain, respectively, $\lambda$ is the wavelength of the electromagnetic wave emitted by the radar, $R$ is the distance, $\sigma \left({\theta }_{\mathrm{s}},t\right)$ is the first-order scattering cross-sectional area at the sea surface, $g\left({\theta }_{\mathrm{s}},t\right)$ is the antenna discharge image function, $P^i\left({\theta }_{\mathrm{s}},t\right)$ is the guide vector and amplitude of the i-th antenna, and ${\theta }_{\mathrm{s}}$ is the orientation range of the target scattering region with respect to the observation point [–90°, 90°].

In Equation (1), the first-order scattering cross-sectional area of the sea surface $\sigma \left({\theta }_{\mathrm{s}},t\right)$ can be expressed as

$$\sigma \left({\theta }_{\mathrm{s}},t\right)=A_{+}{e}^{j\left(2\pi f_{\mathrm{echo}}t\right)}+A_{-}{e}^{j\left[2\pi \left(-f_{\mathrm{echo}}\right)t\right]}$$

(2)

where $\pm f_{\mathrm{echo}}$ is the Bragg frequency in the simulated echo signal, calculated as follows:

$$\pm f_{\mathrm{echo}}=\pm f_{\mathrm{B}}+f_{\mathrm{v}}+f_{\mathrm{c}}$$

(3)

where $\pm f_{\mathrm{B}}=\pm \frac{2v_{\mathrm{B}}}{\lambda }=\pm \sqrt{\frac{g}{\mathsf{\pi }\lambda }}=\pm \sqrt{\frac{g{f}_0}{\mathsf{\pi }\mathrm{c}}}$ is the theoretical Bragg frequency, $f_{\mathrm{c}}$ is the frequency effect due to currents, and $f_v$ is the frequency effect due to platform motion.

The antenna pattern function in Equation (1) is given by

$$g\left({\theta }_{\mathrm{s}},t\right)=g_{\mathrm{x}}\left({\theta }_{\mathrm{s}},t\right)g_{\mathrm{y}}\left({\theta }_{\mathrm{s}},t\right)$$

(4)

$$g_x\left({\theta }_{\mathrm{s}},t\right)=\frac{\cos \left(k_{\mathrm{c}}{l}_{\mathrm{a}}\sin \left(\arctan \left(\tan \phi \cos {\theta }_{\mathrm{s}}\right)\right)\right)-\cos \left(k_{\mathrm{c}}{l}_{\mathrm{a}}\right)}{\cos \left(\arctan \left(\tan \phi \cos {\theta }_{\mathrm{s}}\right)\right)}$$

(5)

$$g_y\left({\theta }_{\mathrm{s}},t\right)=\frac{\cos \left(k_{\mathrm{c}}{l}_{\mathrm{a}}\sin \left(\arctan \left(\tan \varphi \sin {\theta }_{\mathrm{s}}\right)\right)\right)-\cos \left(k_{\mathrm{c}}{l}_{\mathrm{a}}\right)}{\cos \left(\arctan \left(\tan \varphi \sin {\theta }_{\mathrm{s}}\right)\right)}$$

(6)

where $k_{\mathrm{c}}$ is the number of electromagnetic waves, $l_{\mathrm{a}}$ is the length of the antenna, $\varphi$ is the roll angle, and $\phi$ is the pitch angle.

The array steering vector in Equation (1) is calculated as

$$P^i\left({\theta }_{\mathrm{s}},t\right)=a\left(t\right)V^i\left({\theta }_{\mathrm{s}},t\right)=a\left(t\right)P_1{P}_2$$

(7)

where the magnitude $a\left(t\right)$ is normalized. $P_1$ and $P_2$ are calculated as follows:

$$a\left(t\right)=a_0\left(t\right)\cos \phi \cos \varphi$$

(8)

$$P_1=e^{j\frac{2\pi }{\lambda }\left(\left(x+h\sin \phi \right)\sin {\theta }_{\mathrm{s}}+\left(y-a\left(1-\cos \varphi \right)-\sin \varphi \right)\cos {\theta }_{\mathrm{s}}-a\sin \psi \sin \left({\theta }_{\mathrm{s}}+\psi \right)\right)}$$

(9)

$$P_2=\left[\begin{array}{c}{e}^{j\frac{2\pi }{\lambda }\left(\left(1-\cos \psi \right)\cos \left({\theta }_{\text{s}}+\psi \right)a+d\left(\left(2-\cos \phi \right)\sin {\theta }_{\text{s}}+\sin \left({\theta }_{\text{s}}+\psi \right)-\sin \left({\theta }_{\text{s}}+2\psi \right)\right)\frac{M-1}{2}\right)}\\ ⋮\\ e^{j\frac{2\pi }{\lambda }\left(\left(1-\cos \psi \right)\cos \left({\theta }_{\text{s}}+\psi \right)a+d\left(\left(2-\cos \phi \right)\sin {\theta }_{\text{s}}+\sin \left({\theta }_{\text{s}}+\psi \right)-\sin \left({\theta }_{\text{s}}+2\psi \right)\right)\frac{1}{2}\right)}\\ e^{-j\frac{2\pi }{\lambda }\left(\left(1-\cos \psi \right)\cos \left({\theta }_{\text{s}}+\psi \right)a+d\left(\left(2-\cos \phi \right)\sin {\theta }_{\text{s}}+\sin \left({\theta }_{\text{s}}+\psi \right)-\sin {\theta }_{\text{s}}\right)\frac{1}{2}\right)}\\ ⋮\\ e^{-j\frac{2\pi }{\lambda }\left(\left(1-\cos \psi \right)\cos \left({\theta }_{\text{s}}+\psi \right)a+d\left(\left(2-\cos \phi \right)\sin {\theta }_{\text{s}}+\sin \left({\theta }_{\text{s}}+\psi \right)-\sin {\theta }_{\text{s}}\right)\frac{M-1}{2}\right)}\end{array}\right]$$

(10)

where $\psi$ is the yaw angle, $a$ is the distance between the antenna and the platform centerline, $x$ is the surge displacement, y is the sway displacement, z is the heave displacement, $h$ is the distance from the platform’s center of gravity to its top surface, $d$ is the array element spacing, and $M$ is the number of array element antennas.

3.2. Modeling of Platform Movement and Motion Due to Ocean Currents

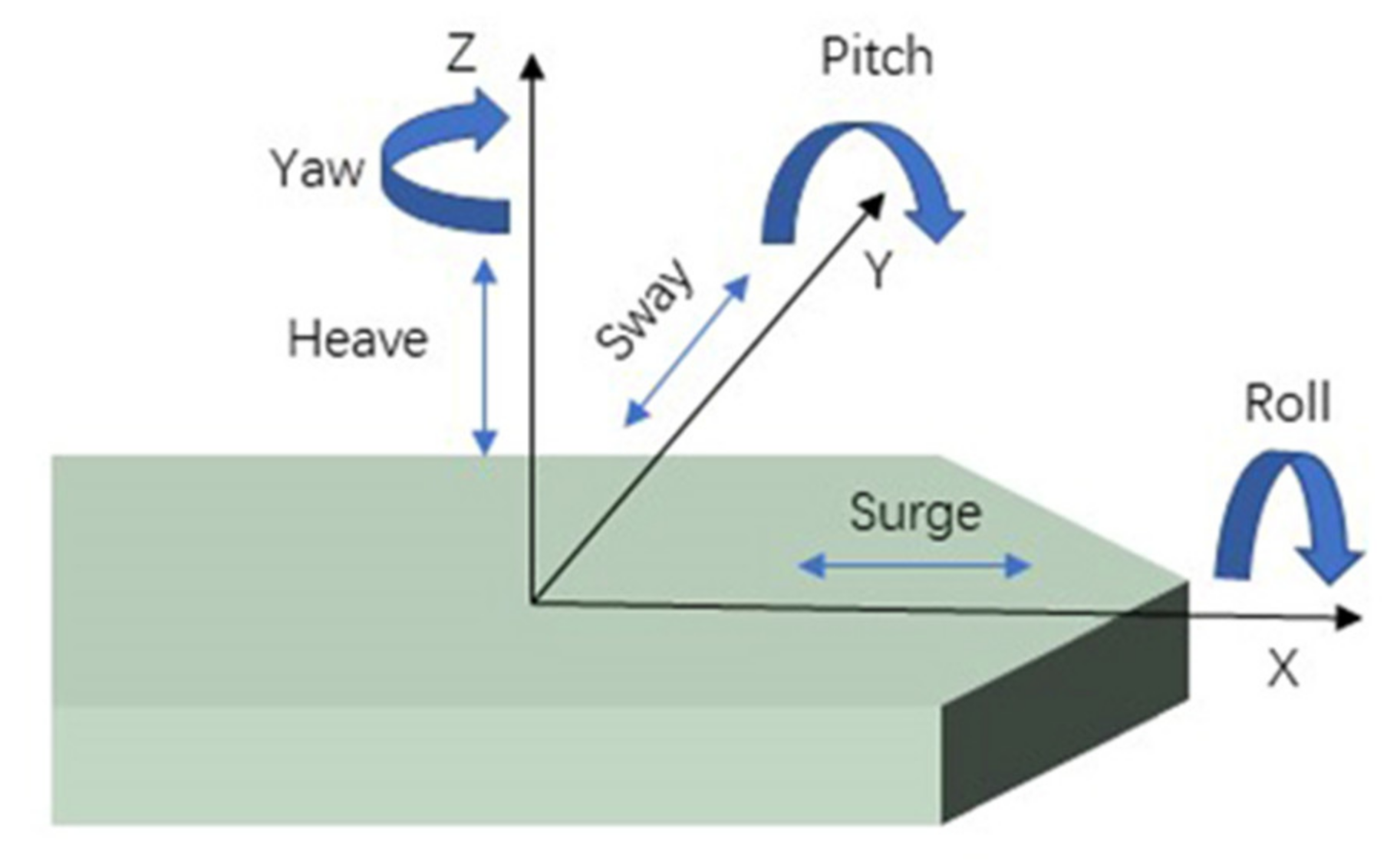

For the generality of the model, a fixed right-handed Cartesian coordinate system is established with the platform’s center of gravity as the coordinate origin O and its forward direction as the x-axis shown in Figure 3. The velocity of the current, the forward movement of the platform, and the velocity in each of the 6-DOF are modeled in Figure 3.

3.2.1. Forward Movement and the Motion from Ocean Currents

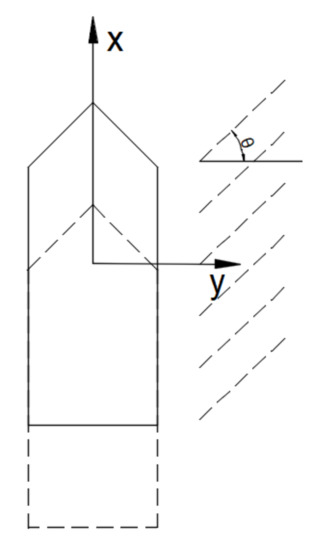

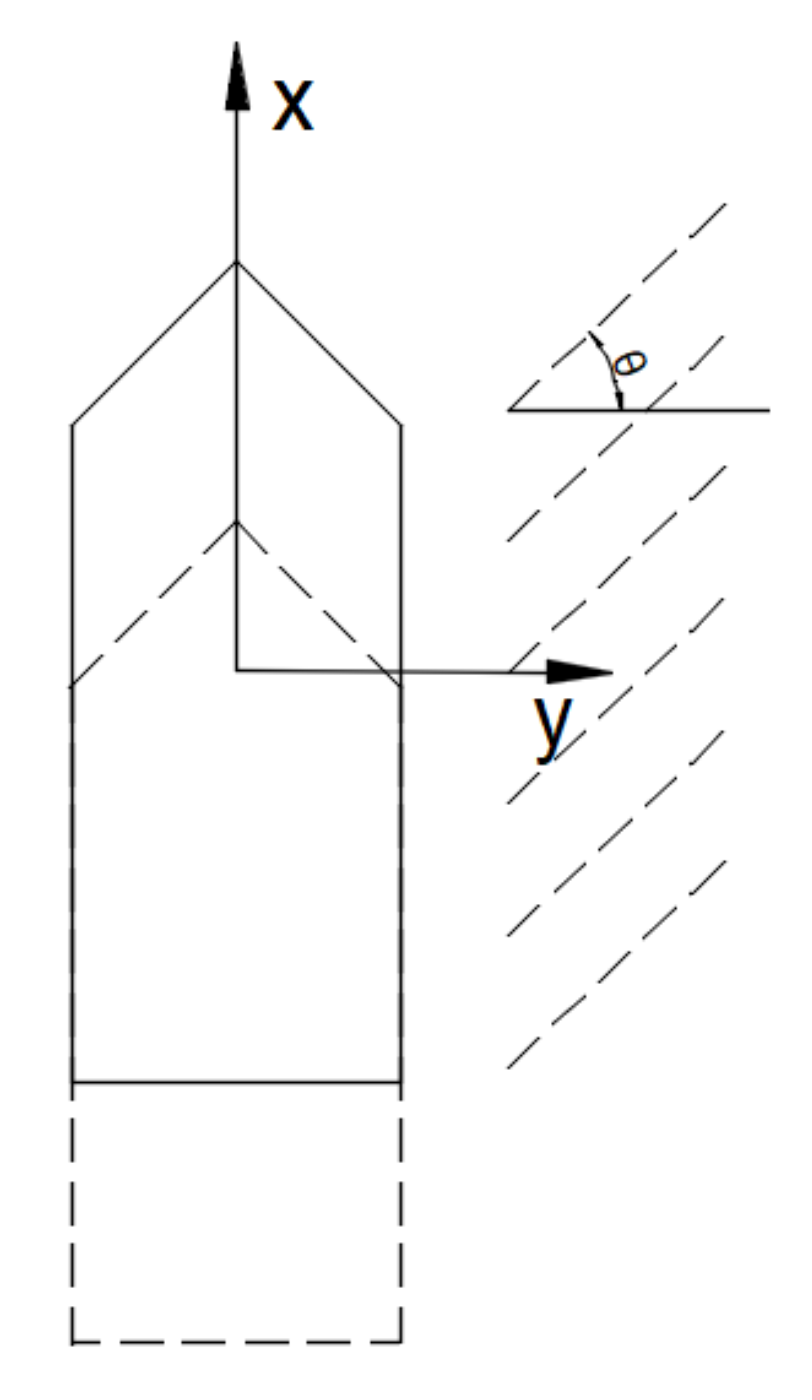

A schematic diagram of the forward movement of the platform and the effect of the current is shown in Figure 4. Let the forward speed of the platform be $v_{\mathrm{p}}$, the velocity of the current be $v_{\mathrm{c}}$, and the angle between the direction of the incoming wave and the axis normal to x be $\theta$. $\beta$ is the angle between the direction of the current and the x-axis. Therefore, the effect of the velocities of the current and the platform’s forward movement on the echo frequency is as follows:

$$f_{\mathrm{cx}}=\frac{2v_{\mathrm{c}}\cos (\beta )}{\lambda }\sin (\theta )$$

(11)

$$f_{\mathrm{cy}}=\frac{2v_{\mathrm{c}}\sin (\beta )}{\lambda }\cos (\theta )$$

(12)

$$f_{\mathrm{p}}=\frac{2v_{\mathrm{p}}}{\lambda }\sin (\theta )$$

(13)

where the speed of the current is obtained by the equipment on board. Because the speed of the platform in the experiment changes relatively slowly, it is approximated by its average speed during that time.

3.2.2. Heave Movement

Droop can be seen as a superposition of sinusoidal motion in the vertical direction. Walsh et al. [3,4] showed that vertical antenna motion does not produce additional Doppler effects because it does not have a component in the direction of wave propagation. Therefore, vertical oscillation has no effect on echo signal frequency.

3.2.3. Sway and Surge Movements

Because the sway and surge movements are translational in the direction of the x- and y-axes, the average velocities of the sway and surge movements are set at $v_{\mathrm{sway}}$ and $v_{\mathrm{surge}}$, respectively, and the magnitudes of both can be obtained from the motion data of the platform over a period of time. The effect of sway and surge movements on the echo frequency is therefore as follows:

$$f_{\mathrm{sway}}=\frac{2v_{\mathrm{sway}}}{\lambda }\sin \left(\theta \right)$$

(14)

$$f_{\mathrm{surge}}=\frac{2v_{\mathrm{surge}}}{\lambda }\cos \left(\theta \right)$$

(15)

3.2.4. Roll Movement

The roll movement of the platform can be decomposed into two components, in the directions of y- and z-axes. Because the motion in z-direction has no effect on echo frequency, the effect of the roll movement on the echo frequency is as follows:

$$f_{\mathrm{roll}}=\frac{2v_{\mathrm{roll}}\sin \left(\varphi \right)}{\lambda }\cos \left(\theta \right)$$

(16)

3.2.5. Pitch Movement

The pitch movement is synthesized from the movements in the x- and z-directions, so it can be decomposed into movements in those two directions, from which the effect of the echo frequency of the pitch-movement term can be obtained as follows:

$$f_{\mathrm{pitch}}=\frac{2v_{\mathrm{pitch}}\sin \left(\phi \right)}{\lambda }\sin \left(\theta \right)$$

(17)

3.2.6. Yaw Movement

The yaw movement of the platform can be seen that the bow rocking is a synthesis of movement in the directions of the horizontal x- and y-axes, so the effect of the bow rocking on the echo frequency can be decomposed into those two directions, as follows:

$$f_{\mathrm{yawx}}=\frac{2v_{\mathrm{yaw}}\sin \left(\psi \right)}{\lambda }\sin \left(\theta \right)$$

(18)

$$f_{\mathrm{yawy}}=\frac{2v_{\mathrm{yaw}}\cos \left(\psi \right)}{\lambda }\cos \left(\theta \right)$$

(19)

$$f_{\mathrm{yaw}}=f_{\mathrm{yawx}}+f_{\mathrm{yawy}}$$

(20)

The total effect of the platform’s 6-DOF motion and the currents on the frequency of the radar echo signal are therefore as follows:

$$f_{\mathrm{v}}+f_{\mathrm{c}}=f_{\mathrm{p}}+f_{\mathrm{sway}}+f_{\mathrm{surge}}+f_{\mathrm{roll}}+f_{\mathrm{pitch}}+f_{\mathrm{yaw}}+f_{\mathrm{cx}}+f_{\mathrm{cy}}$$

(21)

Substituting Equation (20) into Equation (3) gives the Bragg frequency in the echo signal $\pm f_{\mathrm{echo}}$, and substituting the Bragg frequency into Equation (2) yields the first-order scattering cross-sectional area of the sea surface in the actual signal.

3.3. Simulation and Verification of Sea Clutter Spreading

To verify the validity of the model, the echo signals were simulated using MATLAB software. The data for the simulation were taken from the ship’s inertial navigation system. The simulation parameters are shown in

Table 1. 6-DOF, forward movement and current simulation parameters.

Parameter Name	Numerical Values	Unit
Roll angle	0.2410	rad
Pitch angle	1.1807	rad
Declination angle	49.2000	rad
Sway speed	0.2000	m/s
Surge speed	0.2000	m/s
Roll speed	0.1000	m/s
Pitch speed	0.0900	m/s
Yaw Speed	0.1700	m/s
Forward movement speed	0.2000	m/s
Current speed	0.3448	m/s

, where the velocities of all six degrees of freedom have been replaced by the average velocity over a period of time and the speed of the sea current is obtained by the equipment on board.

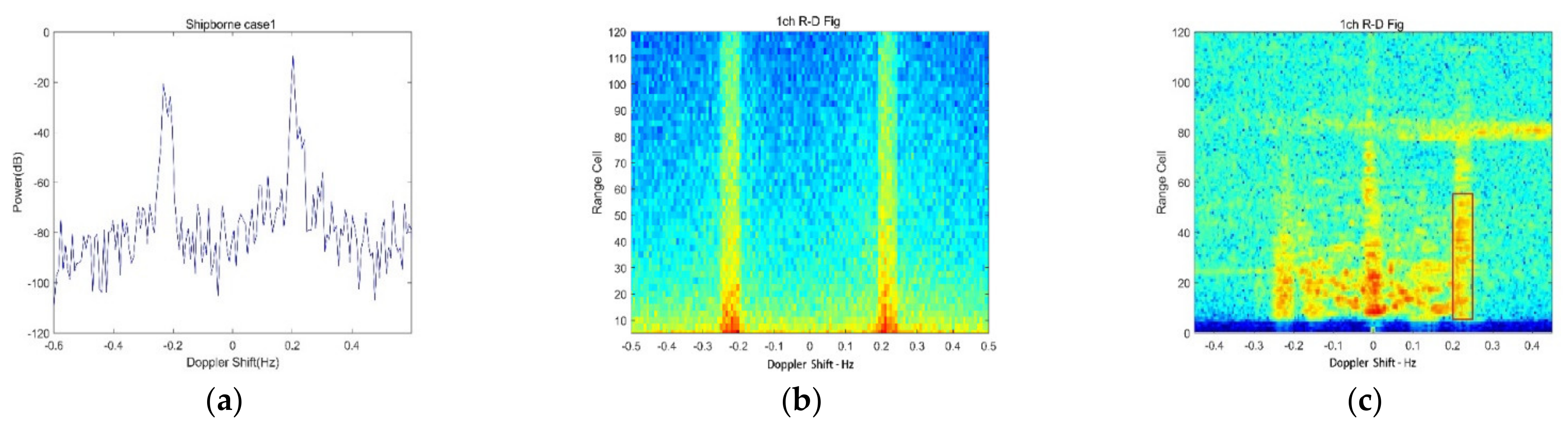

The simulation results are shown in Figure 5a,b, and a comparison with the measured data shows that the model is basically consistent with the actual situation in Figure 5c. The specific sea wave spreading results are shown in

Table 2. Results of sea-wave spreading.

Pattern	Width (Hz)
Theoretical Calculations	0.050
Simulation Result	0.050
Measured Result	0.048

.

4. Time-Frequency Analysis

4.1. Time-Frequency Method

The sea clutter in the spreading range can be further analyzed by using TF analysis. This is an important class of methods for dealing with non-stationary signals in terms of two-dimensional functions of time and frequency. In this paper, the SET is applied as a post-processing method of the STFT and generates a more energetically focused TF representation than the classical TF analysis methods.

A synchronous extraction operator (SEO) is built on top of the original TF representation, calculated with the STFT to extract only the TF coefficients in the instantaneous frequency trajectory. Let the STFT of the input signal be G_e(t, f). Then the SET of the signal can be expressed as follows:

$$T_{\mathrm{e}}\left(t,f\right)=G_{\mathrm{e}}\left(t,f\right)\delta \left(f-f_0\left(t,f\right)\right)$$

(22)

where $f_0\left(t,f\right)$ is the instantaneous frequency of the STFT and $\delta \left(f-f_0\left(t,f\right)\right)$ is the SEO:

$$\delta \left(f-f_0\left(t,f\right)\right)=\left\{\begin{array}{l}1,f=f_0\\ 0,f\ne f_0\end{array}\right.$$

(23)

So,

$$T_{\mathrm{e}}\left(t,f\right)=\left\{\begin{array}{l}{G}_{\mathrm{e}}\left(t,f\right),f=f_0\\ 0,f\ne f_0\end{array}\right.$$

(24)

As can be seen from Equation (23), the SEO only performs coefficient extraction on the STFT instantaneous frequency trajectory, which can be more energy focused than the original STFT results, and the resolution of the instantaneous frequencies can be greatly improved, as shown in Figure 6.

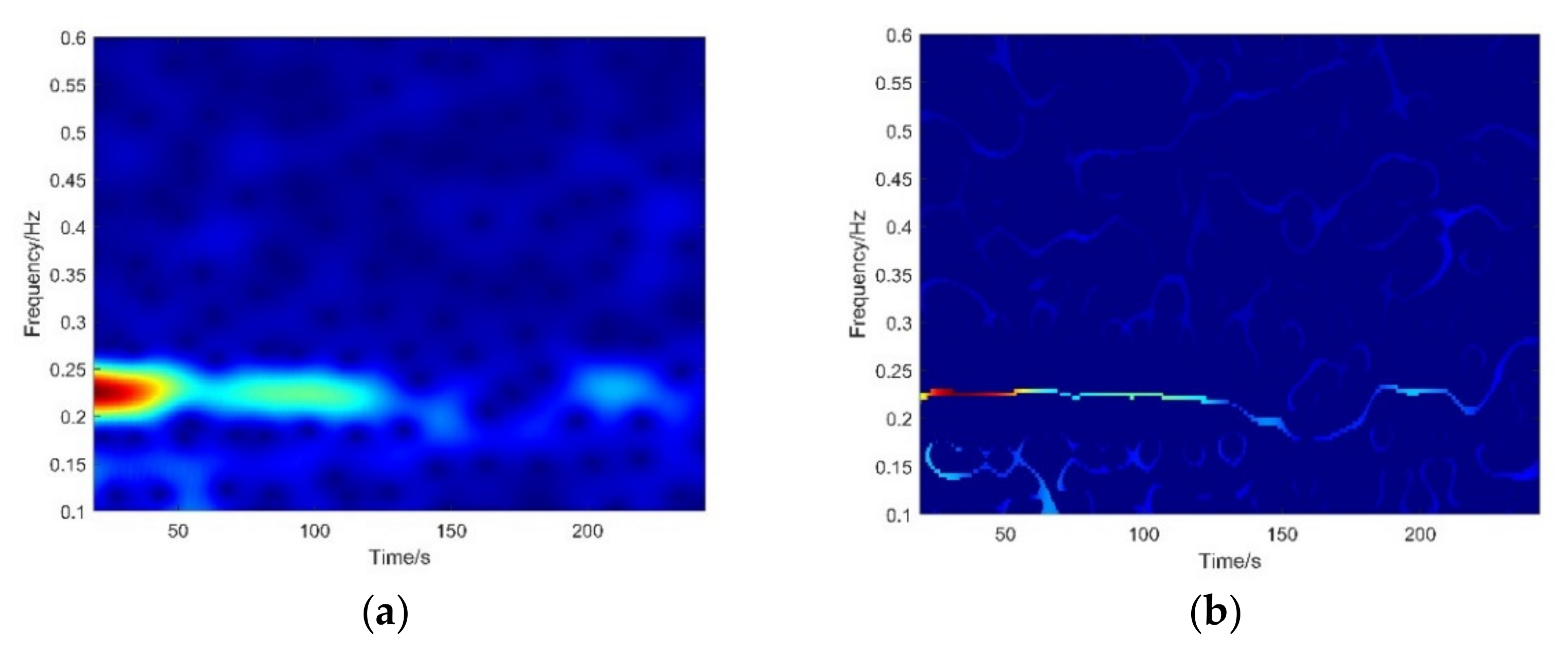

If we use a linear frequency modulated interrupted continuous wave (FMICW) signal as an echo signal for an HFSWR, we can think of the radar’s echo signal as a superposition of harmonic signals of multiple frequencies. At the same time, the echo signal usually contains a variety of clutter and interference.

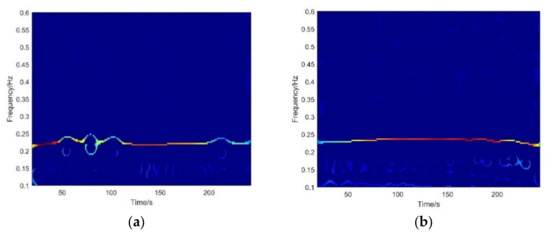

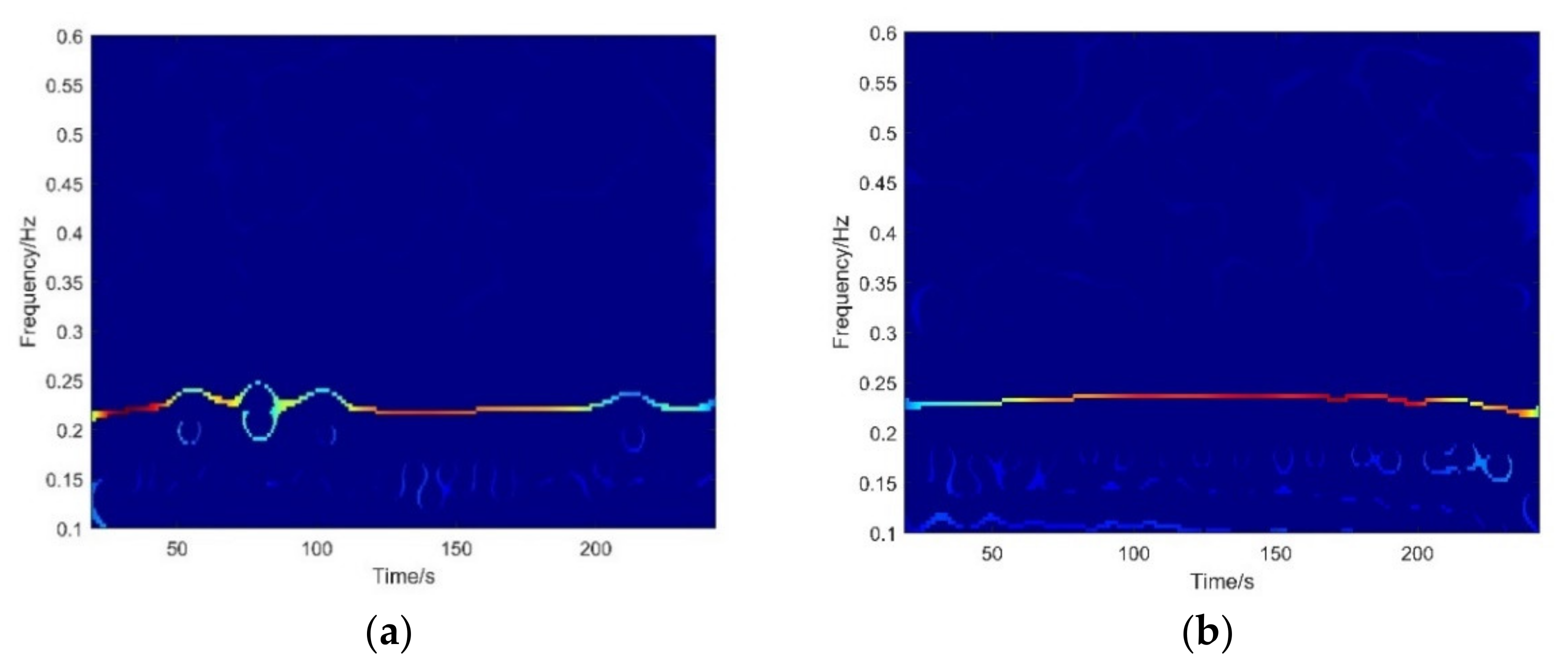

When the input signal contains only sea clutter, as compared to the case when it contains both sea clutter and the target signal, the frequency composition of the echoes will be different. Figure 7 shows the TFI obtained by performing an SET on the radar echo at a certain time.

The shipborne HFSWR parameters are shown in

Table 3. Shipborne HFSWR Parameters.

Parameters	Values
Transmit signal	FMICW
Operating frequency (MHz)	4.7
Coherent integration time (s)	300
Number of antennas	5
Antenna spacing	Non-uniform array

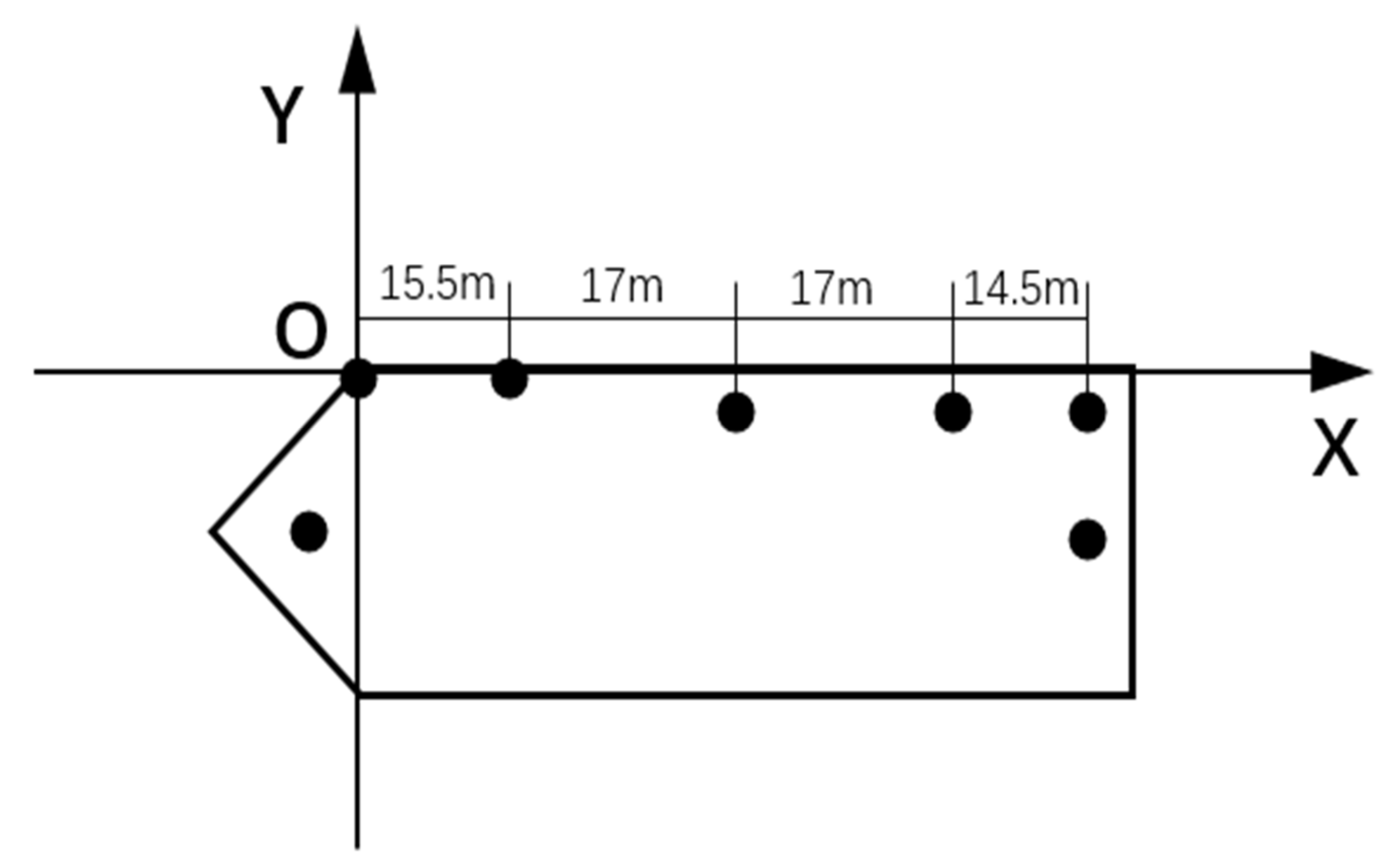

. The antenna array used in the experiment has two transmitting antennas and multiple receiving antennas. In the field shipborne HFSWR experiment, as shown in Figure 8, due to the space restriction on the platform, the antenna array cannot be installed linearly. We establish a coordinate to represent the position of the five antennas. Five receiving antenna placement position coordinates are (0, 0), (15.5, 0), (32.5, 1), (49.5, 1), (64, 1), and the two transmitting antennas are (−3, −1.5), (64, −3). From these coordinates, the steering vector of the non-uniform array can be computed to determine the azimuth of the target.

4.2. Feature Extraction and Classification

In this section, feature extraction and classification are performed for the TFIs of each range cell via the SET method. The neural network chosen is GoogLeNet [21]. In comparison with previous neural networks, such as AlexNet [22] and VGGNet [23], GoogLeNet is the first large-scale CNN formed by stacking inception modules. The GoogLeNet neural network was designed in the dropout layer with a 30% discarding probability due to more distinctive features. Specific details of the auxiliary classifier are as follows: the average pooling layer was designed with a filter size of 5 × 5, a stride size of 1; an output of 14 × 14 × 512 for (4a) and 14 × 14 × 528 for (4d); the fully connected layer with 1024 units and corrected linear activation; the dropout layer with a dropped output ratio of 60%; and the linear layer uses the softmax loss as a classifier. The network structure is shown in

Table 4. GoogLeNet network structure.

Type	Patch Size/Stride	Output Size	Depth	#1 × 1	#3 × 3 Reduce	#3 × 3	#5 × 5 Reduce	#5 × 5	Pool Proj	Params	Ops
convolution	7 × 7/2	112 × 112 × 64	1							2.7 K	34 M
max pool	3 × 3/2	56 × 56 × 64	0
convolution	3 × 3/1	56 × 56 × 192	2		64	192				112 K	360 M
max pool	3 × 3/2	28 × 28 × 192	0
Inception(3a)		28 × 28 × 256	2	64	96	128	16	32	32	159 K	128 M
Inception(3b)		28 × 28 × 480	2	128	128	192	32	96	64	380 K	304 M
Max pool	3 × 3/2	14 × 14 × 480	0
Inception(4a)		14 × 14 × 512	2	192	96	208	16	48	64	364 K	73 M
Inception(4b)		14 × 14 × 512	2	160	112	224	24	64	64	437 K	88 M
Inception(4c)		14 × 14 × 512	2	128	128	256	24	64	64	463 K	100 M
Inception(4d)		14 × 14 × 528	2	112	144	288	32	64	64	580 K	119 M
Inception(4e)		14 × 14 × 832	2	256	160	320	32	128	128	840 K	170 M
Max pool	3 × 3/2	7 × 7 × 832	0
Inception(5a)		7 × 7 × 832	2	256	160	320	32	128	128	1072 K	54 M
Inception(5b)		7 × 7 × 1024	2	384	192	384	48	128	128	1388 K	71 M
Avg pool	7 × 7/1	1 × 1 × 1024	0
Dropout(30%)		1 × 1 × 1024	0
Linear		1 × 1 × 1000	1							1000 K	1 M
Softmax		1 × 1 × 1000	0

.

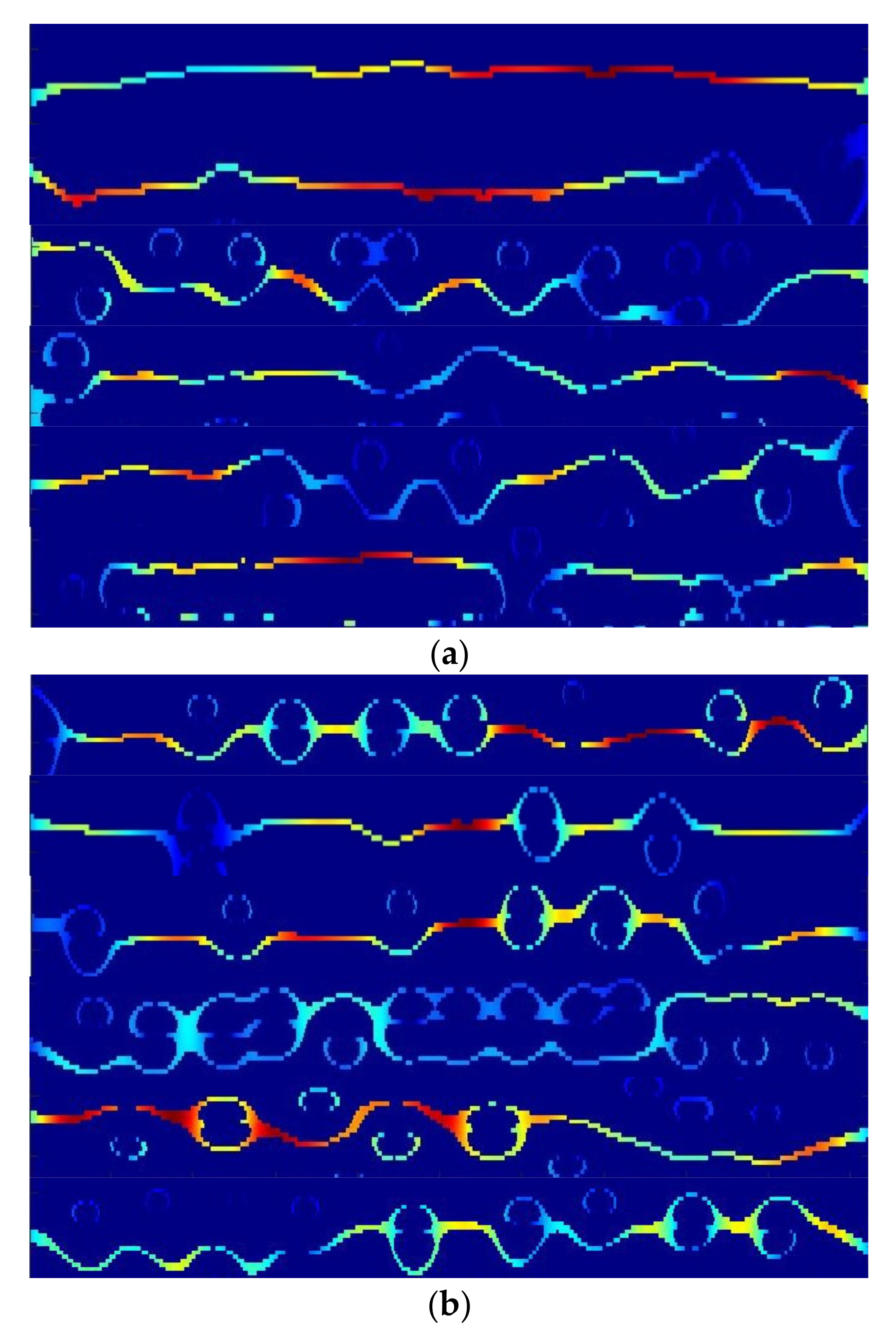

The TF analysis of the HFSWR echo data is performed using the SET to obtain a TFI for each range cell, and the resulting TFI is included for the construction of the dataset. The spread of the target point in the shipborne HFSWR echo signal can lead to features similar to the target point in nearby cells, so attention should be paid to this issue when creating the dataset. The dataset constructed here consists of 1000 pure sea clutter instances and 600 targets with sea clutter. The training and testing samples are split in a ratio of 7:3. The resulting sample dataset is then labeled with two categories: targets with clutter and pure sea clutter, both illustrated in Figure 9. Another batch of data was taken for testing using several CNN models trained to compare the test results, as shown in

Table 5. Detection results of the classification methods.

Network Structure	GoogLeNet	AlexNet	VGG-16
Total number of tests	26	26	26
Detected correctly	22	20	21
Time	1.269	0.6	2.8
Accuracy	84.6%	76.9%	80.77%

. It can be seen that the method used here is more accurate than the AlexNet and VGG-16 networks.

5. Target Detection

5.1. Multi-Frame Correlation and Target Detection

The diffusion of the target point in the HFSWR echo signal will cause the TFIs of one or two range cells above and below the target point to show similar features. If no subsequent processing is performed, the detection of Figure 10a–c will result in a high false-alarm rate. To improve detection, this paper proposes a novel scheme via the correlation of multiple frames of the RD spectrums of several range cells by accumulating the signal through a coherent accumulation time of five minutes. On the basis of the velocity range of the vessels, three batches of data are obtained every five minutes for correlation detection. The target point in the radar echo signal will appear diffuse in this situation, and the continuous data diffusion will affect detection accuracy, so if a certain range cell appears to be the target, then the adjacent distance unit will also appear to have similar characteristics and thus be detected as a target. In the correlation process, a false alarm will appear, but the false-alarm rate will be greatly reduced.

From the above situation, three batches of interrelated field shipborne HFSWR data from a certain sea trip are taken for detection, and the single-batch detection results are shown in Figure 10a–c. It can be seen that each batch of data has a high false-alarm rate. However, after three batches are correlated to obtain the results in Figure 10d, the rate is greatly reduced and the accuracy of target detection is greatly improved.

5.2. Field Experiment

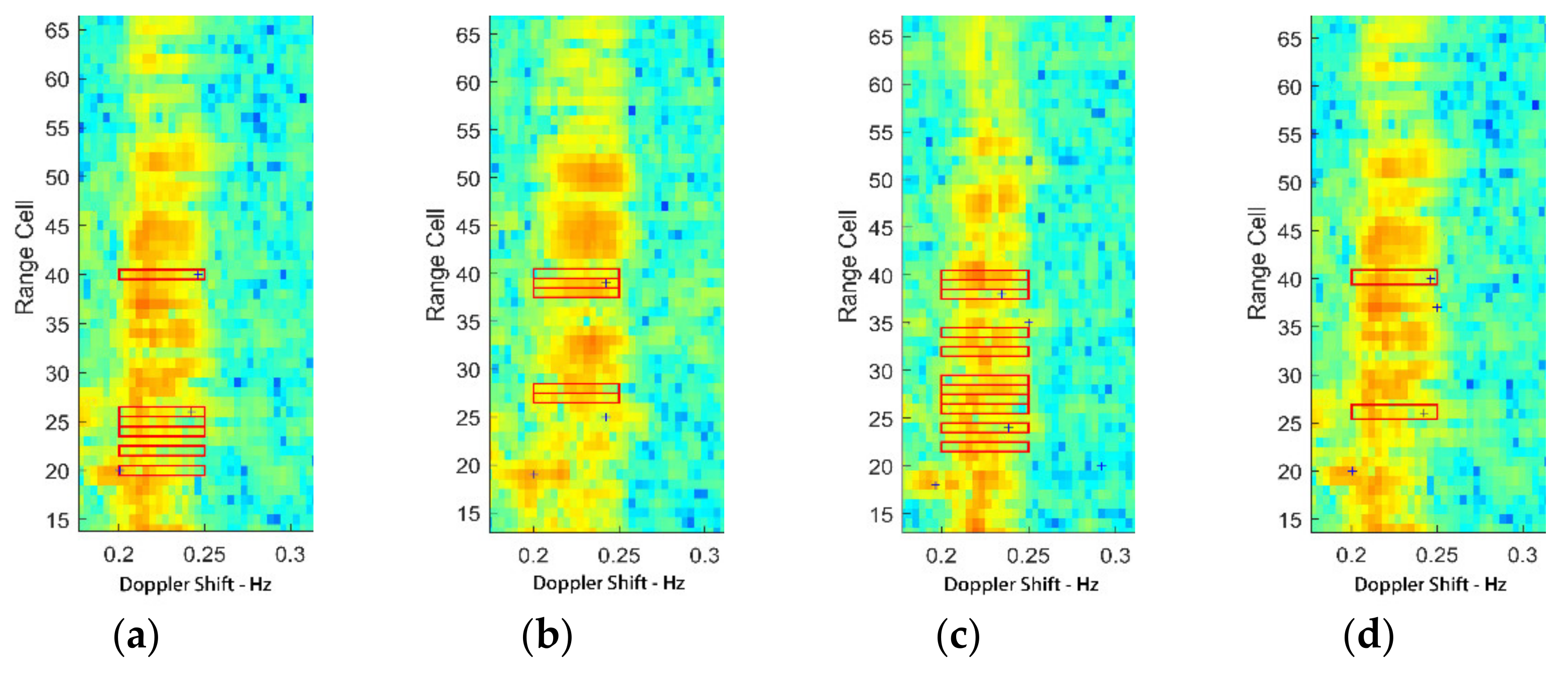

Following the above detection rules, three continuous batches of field data from the shipborne HFSWR were taken for detection. The field shipborne HFSWR experiment were conducted at Huanghai, China, with 5-antenna array radar at working frequency 4.7 MHz. The results of each batch and of the correlated three batches are shown in Figure 10. Each batch of data has a large false-alarm rate, but after three batches are correlated, the rate has been greatly reduced and the accuracy of target detection has been greatly improved.

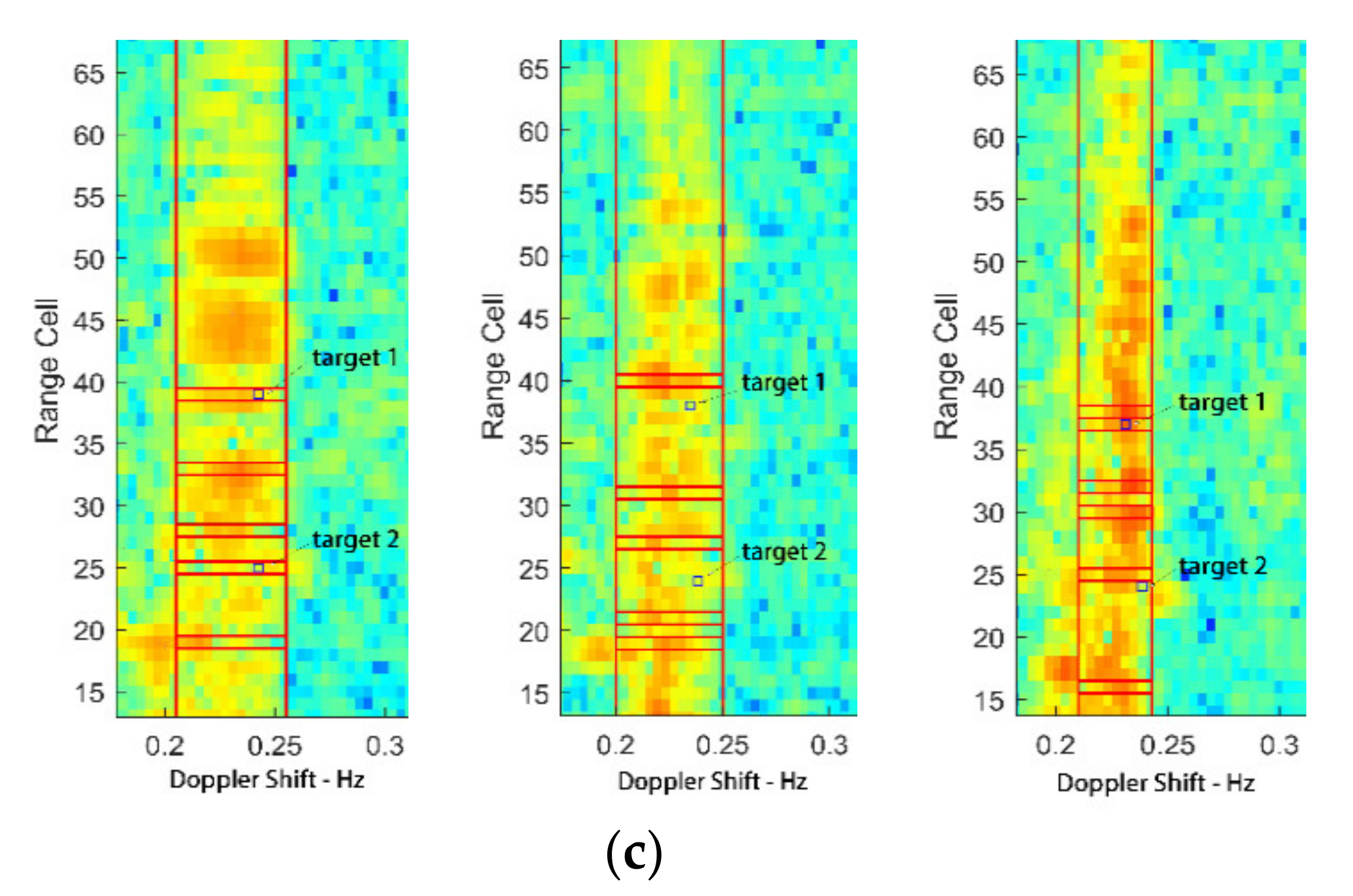

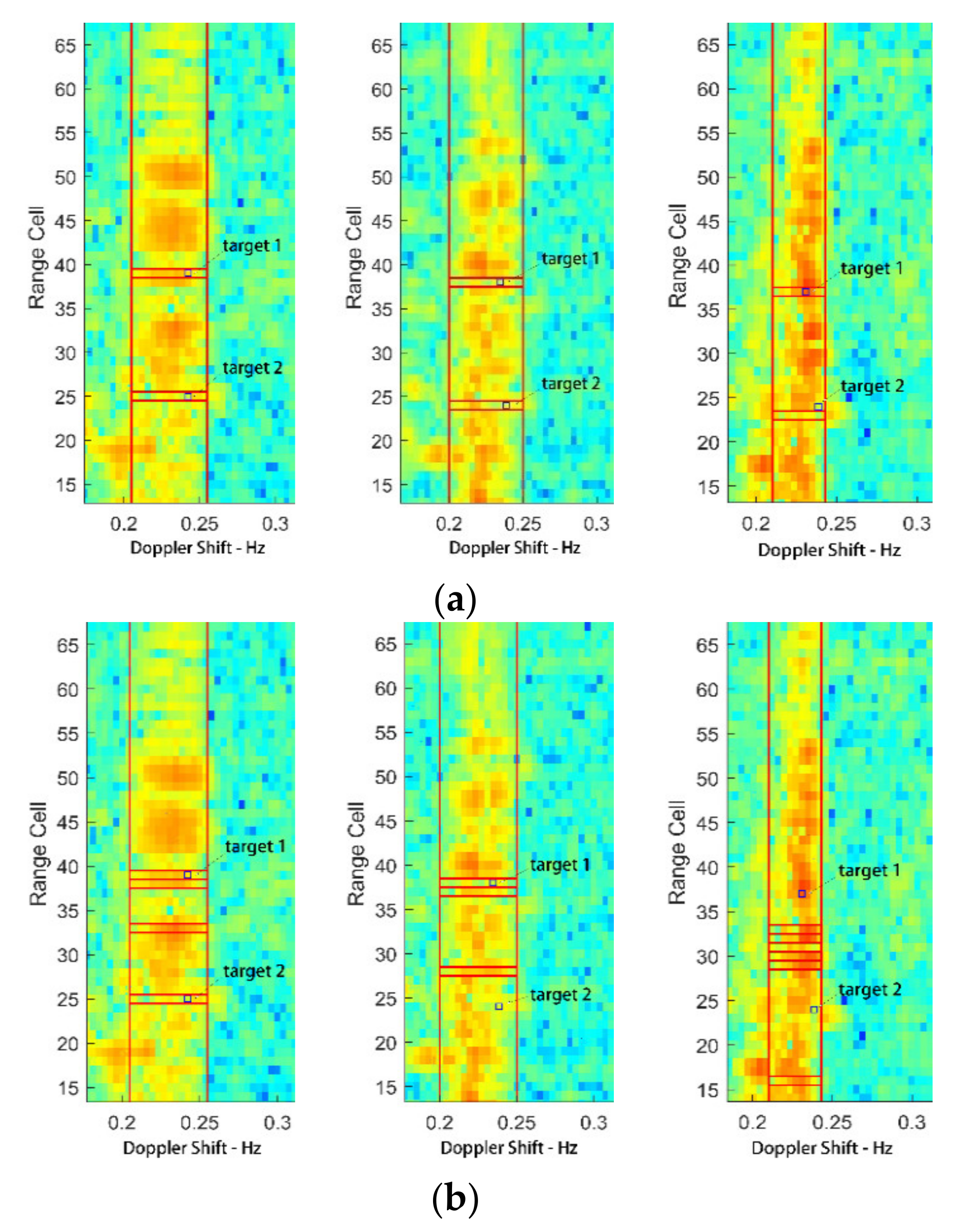

Figure 11 compares the results of the improved CFAR method, the CNN method [18], and the proposed method. The CNN and improved CFAR methods are not ideal for detecting the submerged targets due to sea clutter diffusion and low SNR, and the proposed method is better for target detection in the sea clutter–covered area.

In the tracking detection of vessel targets 1 and 2, a batch of data were taken every five minutes for fifty minutes and transformed to obtain RD spectrum images with a total of 20 target points. The results of the detection of RD spectra by three methods were evaluated by detection rate $P_{\mathrm{d}}$, false-alarm rate $P_{\mathrm{f}}$, and missed-alarm rate $M_{\mathrm{r}}$, in

Table 6. Comparison of the three methods with several indexes over ten RD spectra in half an hour.

Method	Our Method	CNN	Improved CFAR
Target total number of tests	20	20	20
Detected correctly	18	13	16
$P_{\mathrm{f}}$	10%	53.57%	54.55%
$M_{\mathrm{r}}$	10%	35%	25%
$P_{\mathrm{d}}$	90%	65%	75%

The equations for calculating the three indicators are as follows:

$$P_{\mathrm{d}}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FN}}\times 100\%$$

(25)

$$P_{\mathrm{f}}=\frac{\mathrm{FP}}{\mathrm{FP}+\mathrm{TP}}\times 100\%$$

(26)

$$M_{\mathrm{r}}=100\%-P_{\mathrm{d}}$$

(27)

where TP is the detected real target points, FN is the undetected target points, TP + FN is the total number of target points, and FP is the detected false target points.

From Table 6, it can be seen that the improved CFAR method is less effective in low SNR conditions, and the accuracy of CNN has improved over that of the improved CFAR, but the false-alarm rate is still significantly higher than that of the proposed method. The proposed method performs better than the other two methods in having a lower false-alarm rate and a higher detection rate.

6. Conclusions

In this paper, we have modeled the factors affecting the frequency of the shipborne HFSWR echo signal, including the platform’s 6-DOF motion, forward motion, and sea currents, and we obtained the width of the sea clutter spread in the radar echoes under the influence of these factors. The accuracy of the model in predicting the sea clutter spreading area was verified by both simulation and the in situ measured shipborne HFSWR data. The TF analysis method SET was applied to obtain the TFI of the area covered by the sea clutter, which showed different TF characteristics, to determine whether the area contained target points. On the basis of the sea clutter identification results, the target locations were classified by CNN to judge whether the clutter region contained targets. Finally, the location of the target was determined by correlating multiple frames of RD spectra. The proposed method was verified to be effective in detecting targets in regions covered by sea clutter through field shipborne HFSWR experimental data, which showed that the method performed better than the conventional detection methods, having a higher detection rate and a lower false-alarm rate.
