# Validation of an Empirical Subwaveform Retracking Strategy for SAR Altimetry

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Data and Methods

#### 2.1. Data

#### 2.2. Methods: Retracking

#### 2.2.1. Functional Form

#### 2.2.2. Leading Edge Detection

#### 2.2.3. Choice of Trailing Edge Slope

#### 2.2.4. Subwaveform Retracking

#### 2.3. Methods: Sea State Bias

#### 2.4. Methods: Comparison with Tide Gauges

#### 2.5. Methods: Crossover Analysis

#### 2.6. Methods: Gridded Sea-Level Variance Analysis

#### 2.7. Methods: Spectral Analysis

## 3. Results

#### 3.1. Sea State Bias

#### 3.2. Comparison with Tide Gauges

#### 3.3. Crossover Analysis

#### 3.4. Gridded Sea Level Variance

#### 3.5. Spectral Analysis

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Chelton, D.B.; Ries, J.C.; Haines, B.J.; Fu, L.L.; Callahan, P.S. Satellite Altimetry. In Satellite Altimetry and Earth Sciences: A Handbook of Techniques and Applications; Fu, L.L., Cazenave, A., Eds.; Academic Press: Cambridge, MA, USA, 2001; Volume 69, pp. 1–131. [Google Scholar]
- Cipollini, P.; Benveniste, J.; Birol, F.; Fernandes, M.; Obligis, E.; Passaro, M.; Strub, P.; Valladeau, G.; Vignudelli, S.; Wlikin, J. Satellite altimetry in coastal regions. In Satellite Altimetry over Oceans and Land Surfaces; Stammer, D., Cazenave, A., Eds.; CRC Press: New York, NY, USA, 2017; pp. 343–380. [Google Scholar]
- Raney, R.; Phalippou, L. The future of coastal altimetry. In Coastal Altimetry; Vignudelli, S., Kostianoy, A., Cipollini, P., Benveniste, J., Eds.; Springer: Berlin/Heidelberg, Germny, 2011; pp. 535–560. [Google Scholar]
- Schlembach, F.; Passaro, M.; Quartly, G.D.; Kurekin, A.; Nencioli, F.; Dodet, G.; Piollé, J.F.; Ardhuin, F.; Bidlot, J.; Schwatke, C.; et al. Round Robin Assessment of Radar Altimeter Low Resolution Mode and Delay-Doppler Retracking Algorithms for Significant Wave Height. Remote Sens.
**2020**, 12, 1254. [Google Scholar] [CrossRef] [Green Version] - Dinardo, S.; Fenoglio-Marc, L.; Buchhaupt, C.; Becker, M.; Scharroo, R.; Fernandes, M.J.; Benveniste, J. Coastal SAR and PLRM altimetry in german bight and west baltic sea. Adv. Space Res.
**2018**, 62, 1371–1404. [Google Scholar] [CrossRef] - Roohi, S.; Sneeuw, N.; Benveniste, J.; Dinardo, S.; Issawy, E.; Zhang, G. Evaluation of CryoSat-2 water level derived from different retracking scenarios over selected inland water bodies. Adv. Space Res.
**2021**, 68, 947–962. [Google Scholar] [CrossRef] - Shen, X.; Similä, M.; Dierking, W.; Zhang, X.; Ke, C.; Liu, M.; Wang, M. A new retracking algorithm for retrieving sea ice freeboard from CryoSat-2 radar altimeter data during winter–spring transition. Remote Sens.
**2019**, 11, 1194. [Google Scholar] [CrossRef] [Green Version] - Passaro, M.; Müller, F.; Oelsmann, J.; Rautiainen, L.; Dettmering, D.; Hart-Davis, M.; Abulaitijiang, A.; Andersen, O.; Hoyer, J.; Madsen, K.; et al. Absolute Baltic Sea Level Trends in the Satellite Altimetry Era: A Revisit. Front. Mar. Sci.
**2021**, 8, 647607. [Google Scholar] [CrossRef] - Ray, C.; Martin-Puig, C.; Clarizia, M.P.; Ruffini, G.; Dinardo, S.; Gommenginger, C.; Benveniste, J. SAR Altimeter Backscattered Waveform Model. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 911–919. [Google Scholar] [CrossRef] - Ringgaard, I.; Madsen, K.; Müller, F.; Tuomi, L.; Rautiainen, L.; Passaro, M. Dataset Description, Version 1.1; Technical report delivered under the Baltic+ SEAL project, ESA Contract 4000126590/19/I/BG - BALTIC+ SEAL (Sea Level). 2020. Available online: http://balticseal.eu/wp-content/uploads/2020/04/Baltic_SEAL_D2.1_DatasetDescription_v1.1-signed.pdf (accessed on 6 July 2022). [CrossRef]
- Merrifield, M.; Holgate, S.; Mitchum, G.; Pérez, B.; Rickards, L.; Schöne, T.; Woodworth, P.; Wöppelmann, G. Global Sea-Level Observing System (GLOSS) Implementation Plan–2012. IOC Technical Series No.100. GOOS Report No.194, JCOMM Technical Report No.66. 2012. Available online: https://unesdoc.unesco.org/ark:/48223/pf0000217832 (accessed on 6 July 2022).
- Passaro, M.; Cipollini, P.; Vignudelli, S.; Quartly, G.; Snaith, H. ALES: A multi-mission subwaveform retracker for coastal and open ocean altimetry. Remote Sens. Environ.
**2014**, 145, 173–189. [Google Scholar] [CrossRef] [Green Version] - Passaro, M.; Rose, S.; Andersen, O.; Boergens, E.; Calafat, F.; Dettmering, D.; Benveniste, J. ALES+: Adapting a homogenous ocean retracker for satellite altimetry to sea ice leads, coastal and inland waters. Remote Sens. Environ.
**2018**, 211, 456–471. [Google Scholar] [CrossRef] [Green Version] - Brown, G.S. The average impulse response of a rough surface and its applications. IEEE Trans. Antennas Propag.
**1977**, 25, 67–74. [Google Scholar] [CrossRef] - Hayne, G.S. Radar altimeter mean return waveforms from near-normal-incidence ocean surface scattering. IEEE Trans. Antennas Propag.
**1980**, 28, 687–692. [Google Scholar] [CrossRef] [Green Version] - Dinardo, S. Techniques and Applications for Satellite SAR Altimetry over Water, Land and Ice; Technische Universität Darmstadt: Darmstadt, Germany, 2020; Volume 56. [Google Scholar] [CrossRef]
- Passaro, M.; Mueller, F.; Dettmering, D. Baltic+ SEAL: Algorithm Theoretical Baseline Document (ATBD). In Technical Report Delivered under the Baltic+ SEAL Project; 2020; Available online: http://balticseal.eu/wp-content/uploads/2021/01/Baltic_SEAL_D3.2_ATBD_v2.1-signedCompressed.pdf (accessed on 6 July 2022). [CrossRef]
- Ardhuin, F.; Stopa, J.E.; Chapron, B.; Collard, F.; Husson, R.; Jensen, R.E.; Johannessen, J.; Mouche, A.; Passaro, M.; Quartly, G.D.; et al. Observing Sea States. Front. Mar. Sci.
**2019**, 6, 124. [Google Scholar] [CrossRef] [Green Version] - Medvedev, I.P.; Rabinovich, A.B.; Kulikov, E.A. Tides in three enclosed basins: The Baltic, Black, and Caspian seas. Front. Mar. Sci.
**2016**, 3, 46. [Google Scholar] [CrossRef] [Green Version] - Bosch, W.; Dettmering, D.; Schwatke, C. Multi-mission cross-calibration of satellite altimeters: Constructing a long-term data record for global and regional sea level change studies. Remote Sens.
**2014**, 6, 2255–2281. [Google Scholar] [CrossRef] [Green Version] - Dettmering, D.; Schwatke, C. Multi-Mission Cross-Calibration of Satellite Altimeters. In Fiducial Reference Measurements for Altimetry; Mertikas, S.P., Pail, R., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 49–54. [Google Scholar]
- Hart-Davis, M.G.; Piccioni, G.; Dettmering, D.; Schwatke, C.; Passaro, M.; Seitz, F. EOT20: A global ocean tide model from multi-mission satellite altimetry. Earth Syst. Sci. Data
**2021**, 13, 3869–3884. [Google Scholar] [CrossRef] - Lyard, F.H.; Allain, D.J.; Cancet, M.; Carrère, L.; Picot, N. FES2014 global ocean tide atlas: Design and performance. Ocean Sci.
**2021**, 17, 615–649. [Google Scholar] [CrossRef] - Morrow, R.; Carret, A.; Birol, F.; Nino, F.; Valladeau, G.; Boy, F.; Bachelier, C.; Zakardjian, B. Observability of fine-scale ocean dynamics in the northwestern Mediterranean Sea. Ocean Sci.
**2017**, 13, 13–29. [Google Scholar] [CrossRef] [Green Version] - Gómez-Enri, J.; Cipollini, P.; Passaro, M.; Vignudelli, S.; Tejedor, B.; Coca, J. Coastal Altimetry Products in the Strait of Gibraltar. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 5455–5466. [Google Scholar] [CrossRef] - Welch, P. The use of fast Fourier transform for the estimation of power spectra: A method based on time averaging over short, modified periodograms. IEEE Trans. Audio Electroacoust.
**1967**, 15, 70–73. [Google Scholar] [CrossRef] [Green Version] - Gaspar, P.; Ogor, F.; Le Traon, P.Y.; Zanife, O.Z. Estimating the sea state bias of the TOPEX and POSEIDON altimeters from crossover differences. J. Geophys. Res. Ocean.
**1994**, 99, 24981–24994. [Google Scholar] [CrossRef] - Passaro, M.; Nadzir, Z.; Quartly, G.D. Improving the precision of sea level data from satellite altimetry with high-frequency and regional sea state bias corrections. Remote Sens. Environ.
**2018**, 218, 245–254. [Google Scholar] [CrossRef] [Green Version] - Sandwell, D.T.; Smith, W.H. Retracking ERS-1 altimeter waveforms for optimal gravity field recovery. Geophys. J. Int.
**2005**, 163, 79–89. [Google Scholar] [CrossRef] [Green Version] - Quartly, G.D.; Smith, W.H.; Passaro, M. Removing Intra-1-Hz Covariant Error to Improve Altimetric Profiles of σ
_{0}and Sea Surface Height. IEEE Trans. Geosci. Remote Sens.**2019**, 57, 3741–3752. [Google Scholar] [CrossRef] - Leppäranta, M.; Myrberg, K. Physical Oceanography of the Baltic Sea; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
- Taburet, G.; Sanchez-Roman, A.; Ballarotta, M.; Pujol, M.I.; Legeais, J.F.; Fournier, F.; Faugere, Y.; Dibarboure, G. DUACS DT2018: 25 years of reprocessed sea level altimetry products. Ocean Sci.
**2019**, 15, 1207–1224. [Google Scholar] [CrossRef] [Green Version] - Hart-Davis, M.G.; Backeberg, B.C.; Halo, I.; van Sebille, E.; Johannessen, J.A. Assessing the accuracy of satellite derived ocean currents by comparing observed and virtual buoys in the Greater Agulhas Region. Remote Sens. Environ.
**2018**, 216, 735–746. [Google Scholar] [CrossRef] - Cancet, M.; Griffin, D.; Cahill, M.; Chapron, B.; Johannessen, J.; Donlon, C. Evaluation of GlobCurrent surface ocean current products: A case study in Australia. Remote Sens. Environ.
**2019**, 220, 71–93. [Google Scholar] [CrossRef] [Green Version] - Xu, Y.; Fu, L.L. The effects of altimeter instrument noise on the estimation of the wavenumber spectrum of sea surface height. J. Phys. Oceanogr.
**2012**, 42, 2229–2233. [Google Scholar] [CrossRef] [Green Version] - Dibarboure, G.; Boy, F.; Desjonqueres, J.; Labroue, S.; Lasne, Y.; Picot, N.; Poisson, J.; Thibaut, P. Investigating short wavelength correlated errors on low-resolution mode altimetry. J. Atmos. Ocean. Technol.
**2014**, 31, 1337–1362. [Google Scholar] [CrossRef] [Green Version]

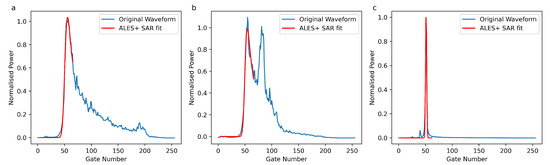

**Figure 1.**Three examples of ALES + SAR fitting applied to a SAR altimetry waveform from (

**a**) typical open ocean conditions, (

**b**) coastal-like interference along the trailing edge and (

**c**) lead-like peaky leading edge.

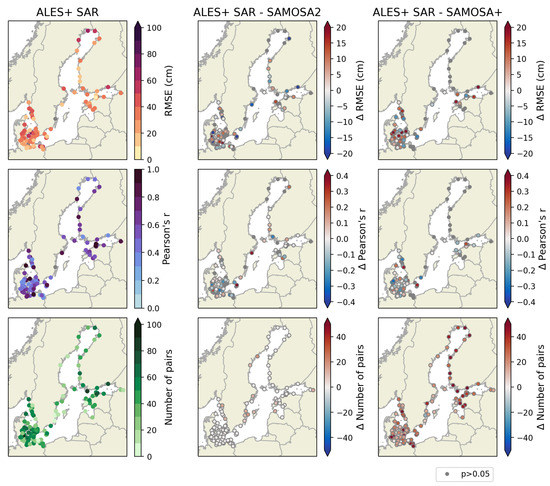

**Figure 2.**Map of root mean squared error (RMSE) and correlation (r) computed against the TGs for ALES + SAR, SAMOSA2 and SAMOSA+ (considering altimetry points from 0 to 3 km from the coast). The results are displayed for ALES + SAR (left panel) and then for SAMOSA2 and SAMOSA+ as the difference from the ALES + SAR results (middle and right panels respectively). The number of pairs denotes the amount of comparable altimeter and TG sea level measurements and is reported for SAMOSA2 and SAMOSA+ as a difference from ALES + SAR results in the left panel. Grey dots denote not enough good data to form time series or statistically insignificant correlation (p-value > 0.05).

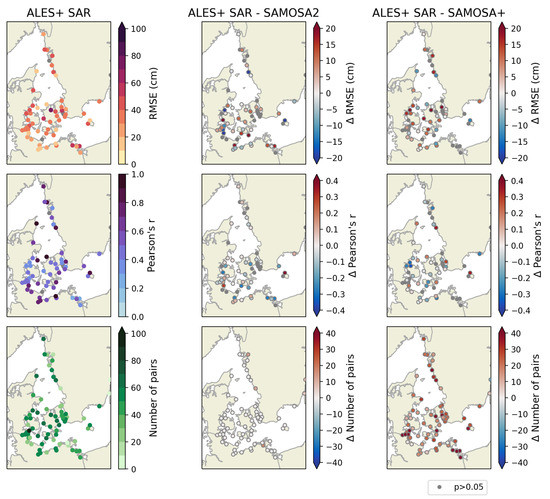

**Figure 3.**Zoom of Figure 2 in the Danish Straits.

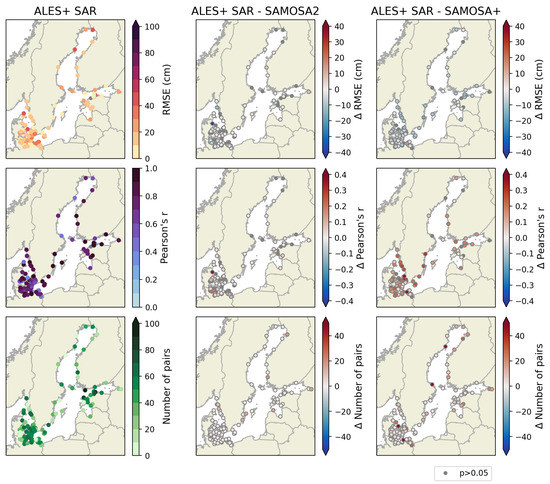

**Figure 4.**Map of root mean squared error (RMSE) and correlation (r) computed against the TGs for ALES + SAR, SAMOSA2 and SAMOSA+ (considering altimetry points from 3 to 10 km from the coast). The results are displayed for ALES + SAR (left panel) and then for SAMOSA2 and SAMOSA+ as the difference from the ALES + SAR results (middle and right panels respectively). The number of pairs denotes the amount of comparable altimeter and TG sea level measurements and is reported for SAMOSA2 and SAMOSA+ as a difference from ALES + SAR results in the left panel. Grey dots denote not enough good data to form time series or statistically insignificant correlation (p-value > 0.05).

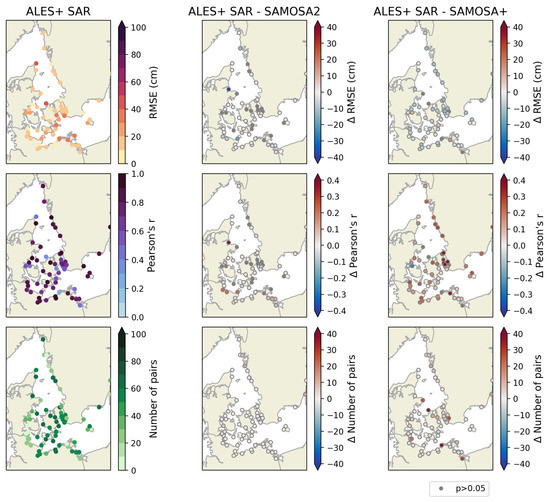

**Figure 5.**Zoom of Figure 4 in the Danish Straits.

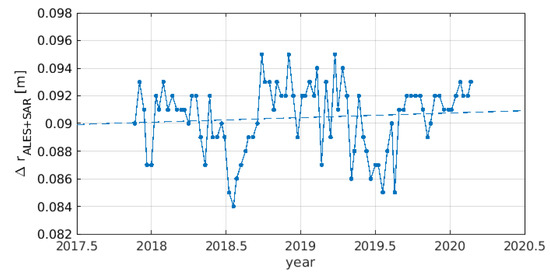

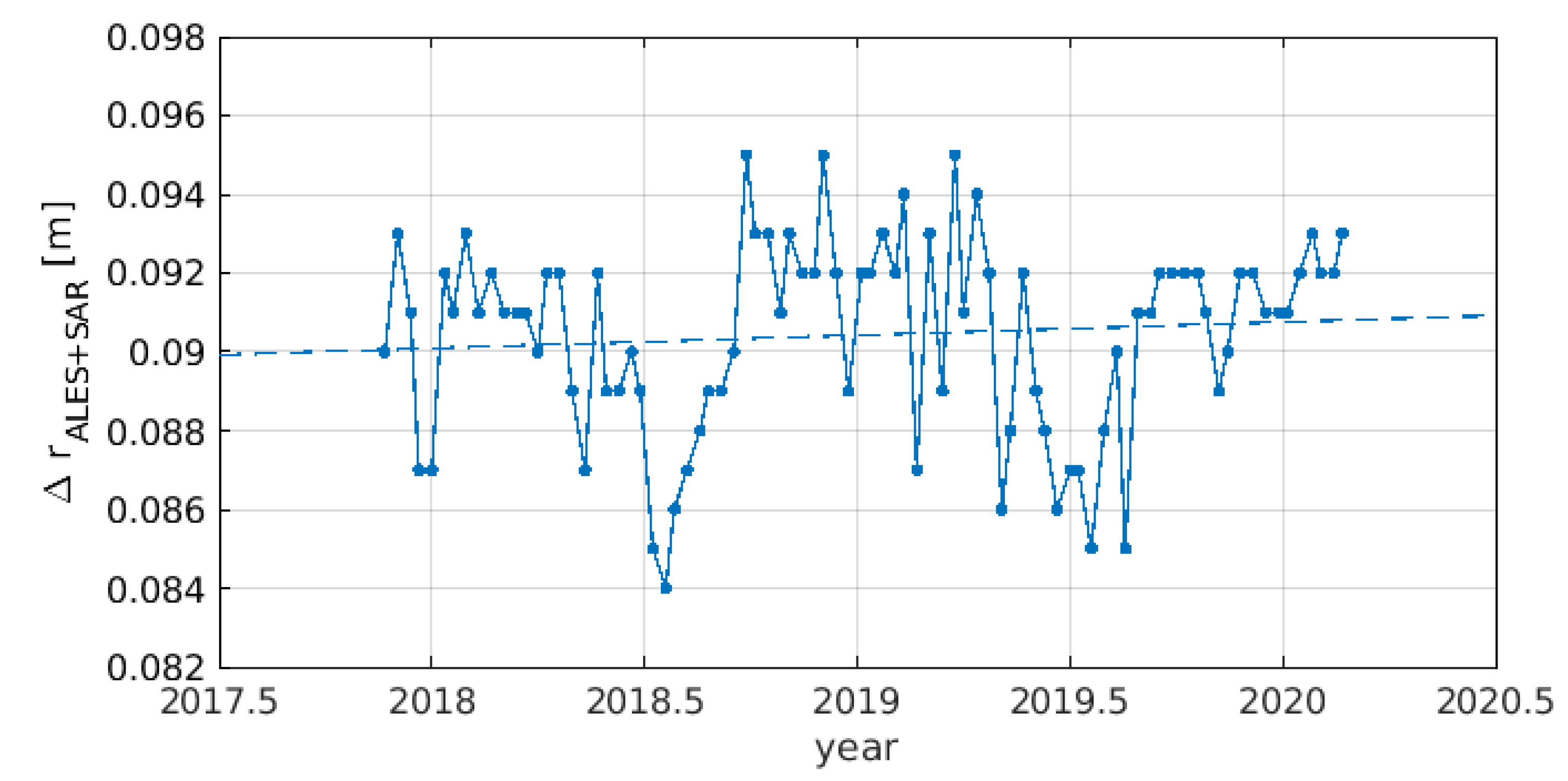

**Figure 6.**Range bias of Sentinel-3A (ALES+SAR retracker) with respect to Jason-3 (per 10-day Jason-3 cycle) as estimated by a multi-mission crossover analysis.

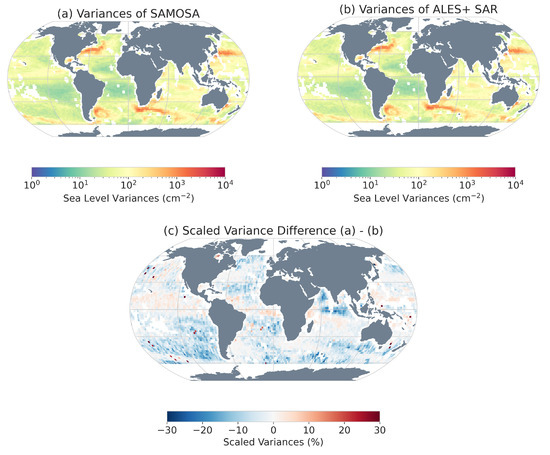

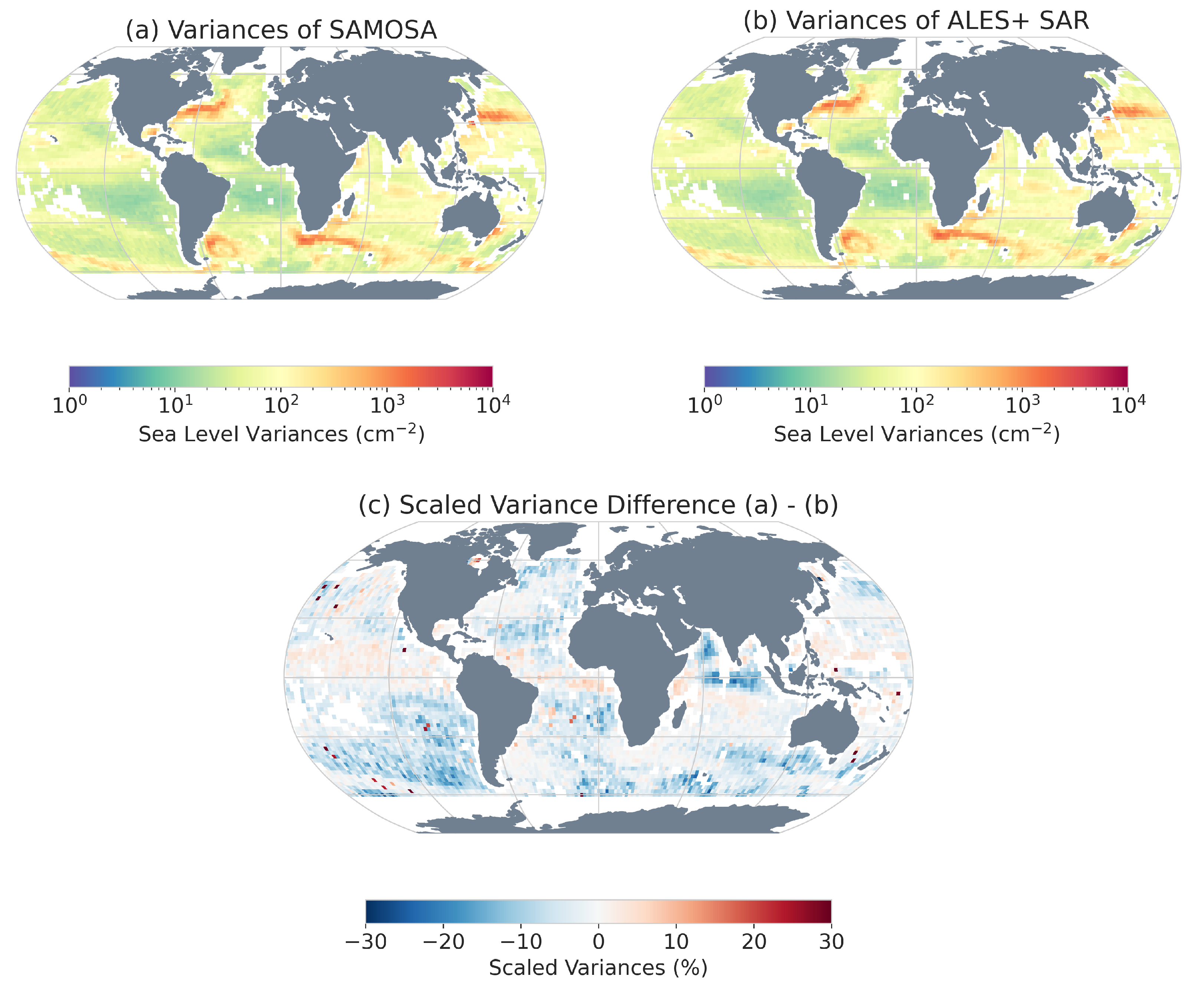

**Figure 7.**The gridded SLAVA from the (

**a**) SAMOSA2 and (

**b**) ALES+SAR retrackers respectively as well as (

**c**) the scaled differences between the respective variances. The coastal grid cells, i.e., grid cells within two degrees of the coast, have been removed due to the two-degree grid size not giving an accurate representation of the coastal variances.

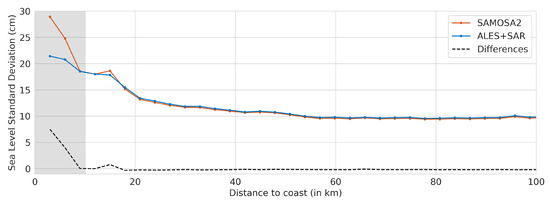

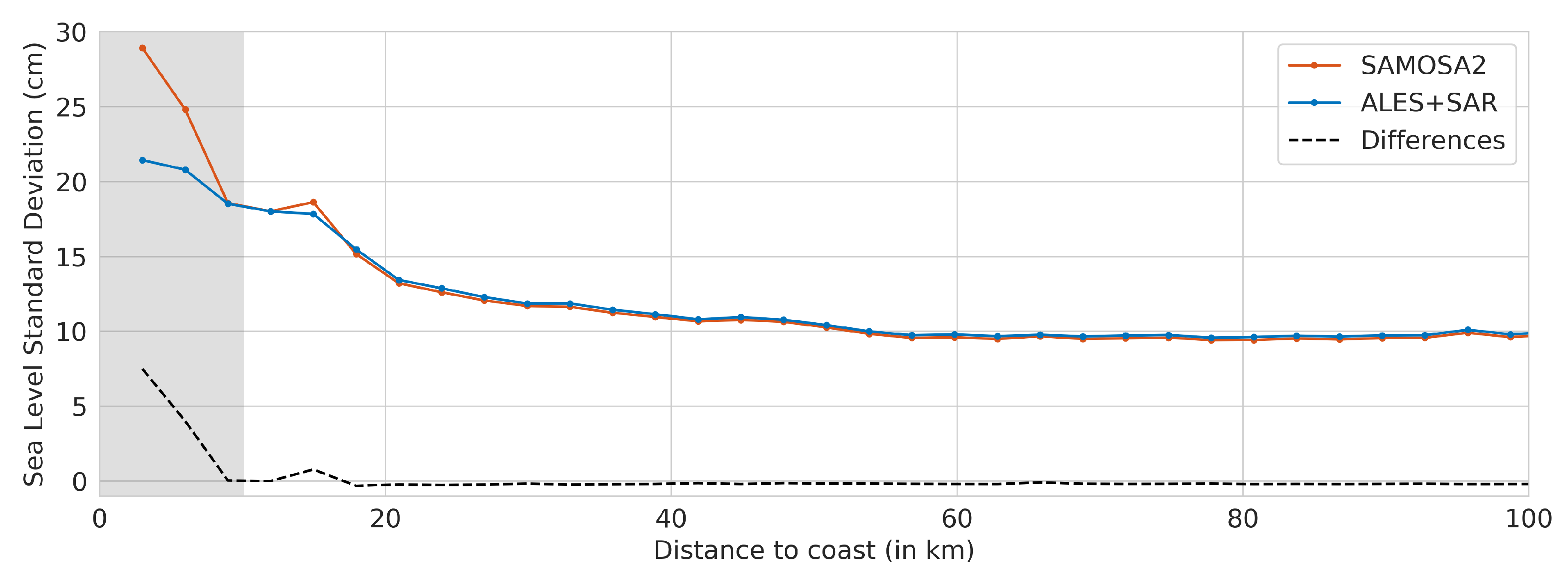

**Figure 8.**The 3-km gridded standard deviation of sea level observations obtained using the SAMOSA2 and the ALES+SAR retrackers. The greyed out area is designated to show the first 10 km of the comparison.

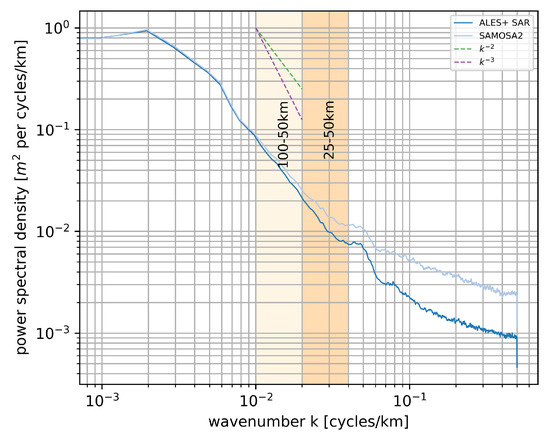

**Figure 9.**PSD spectrum of sea surface heights computed using ALES + SAR and SAMOSA2. The spectrum is based on 8 full cycles (cycles 30 to 37) over the global ocean. To avoid outliers, points located closer than 20 km to the coast and sea level anomalies exceeding 2 m in absolute value are excluded.

**Table 1.**Variance at crossover locations (XO var) before and after the application of the SSB. The first row provides the corresponding numbers reported in [27] for a global solution using 1 Hz data.

Dataset | XO var before SSB [cm^{2}] | XO var after SSB [cm^{2}] | Variance Explained |
---|---|---|---|

Gaspar et al. (1994) [27] | 127.7 | 120.4 | 6% |

SGDR Jason-1 Mediterranean Sea | 135.6 | 108.4 | 20% |

ALES + SAR Sentinel-3A | 106.0 | 84.9 | 20% |

**Table 2.**Statistics of the validation of ALES + SAR, SAMOSA+ and SAMOSA2 sea level retrievals against tide gauge data: correlation, root mean square error and number of paired altimetry and tide gauge measurements. Altimetry data are grouped according to their distance to the coast (0–3 km and 3–10 km). Valid ALES + SAR retrievals are selected using a quality flag based on classification, applied to distinguish returns from leads among sea ice, and fitting error. The same statistics derived using SAMOSA2 sea level retrievals on the same points are shown for comparison. SAMOSA+ retrievals are filtered using the same quality flag based on classification and their own misfit quality flag.

Dataset | Correlation [r] | RMSE [m] | Number of Points |
---|---|---|---|

ALES + SAR (0–3 km) | 0.50 | 0.35 | 4826 |

SAMOSA+ (0–3 km) | 0.59 | 0.27 | 2177 |

SAMOSA2 (0–3 km) | 0.44 | 0.43 | 4735 |

ALES + SAR (3–10 km) | 0.70 | 0.22 | 4502 |

SAMOSA+ (3–10 km) | 0.58 | 0.26 | 3978 |

SAMOSA2 (3–10 km) | 0.38 | 0.49 | 4415 |

**Table 3.**Results of SXO analysis: mean of crossover differences (mxo), mean of absolute crossover differences (maxo), standard deviation of crossover differences (stdxo), averages standard deviation of crossovers (msxo) [all in cm], as well as number of SXO points. Statistics are given for all crossovers (first two rows) as well as for coastal points only (closer than 10 km from the coast).

Dataset | mxo | maxo | stdxo | msxo | Number of SXO |
---|---|---|---|---|---|

ALES + SAR (all) | −0.18 | 5.27 | 7.77 | 1.55 | 657,731 |

SAMOSA2 (all) | −0.08 | 5.07 | 7.58 | 1.66 | 663,743 |

ALES + SAR (<10 km) | −1.62 | 9.60 | 16.79 | 1.30 | 432 |

SAMOSA2 (<10 km) | −1.51 | 9.65 | 16.87 | 1.47 | 429 |
