Article

GDP Forecasting Model for China’s Provinces Using Nighttime Light Remote Sensing Data

1
State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430072, China
2
Department of Geosciences, University of Arkansas, Fayetteville, AR 72701, USA
3
School of Remote Sensing and Information Engineering, Wuhan University, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(15), 3671; https://doi.org/10.3390/rs14153671
Submission received: 21 June 2022 / Revised: 25 July 2022 / Accepted: 27 July 2022 / Published: 31 July 2022

Abstract

:
In order to promote the economic development of China’s provinces and provide references for the provinces to make effective economic decisions, it is urgent to investigate the trend of province-level economic development. In this study, DMSP/OLS data and NPP/VIIRS data were used to predict economic development. Based on the GDP data of China’s provinces from 1992 to 2016 and the nighttime light remote sensing (NTL) data of corresponding years, we forecast GDP via the linear model (LR model), ARIMA model, ARIMAX model, and SARIMA model. Models were verified against the GDP records from 2017 to 2019. The experimental results showed that the involvement of NTL as exogenous variables led to improved GDP prediction.

1. Introduction

The rapid development of economies demands better monitoring and forecasting approaches. Gross domestic product (GDP) is widely regarded as one of the major indicators of measuring the sustainable economic development of a country or region [1,2]. It provides a new basis for regional economic development and the formulation of a sustainable development strategy to forecast economic development at various scales [3,4]. GDP data mainly come from surveys from the National Bureau of Statistics or other administrative departments. Despite their authoritativeness, they have intrinsic limitations (e.g., uncertainties introduced by “water injection” [5] and statistical data methods [6]). In order to better forecast GDP, nighttime light (NTL) remote sensing data have gradually emerged as a novel data source. NTL imagery provides a unique opportunity to observe human activities directly from space, which makes many applications possible including mapping urban areas [7], estimating population and urbanization [8,9], and monitoring disasters and conflicts [10]. NTL satellite imagery has increasingly been used by economists as a representative to measure economic activities [11]. The combination of NTL observation data with other data promotes the development of multidisciplinary and interdisciplinary analysis of NTL observations.
Elvidge et al. [12] found a strong correlation between NTL and GDP. In order to study the urban night economy and its relationship with urbanization from the perspective of NTL data, Shao et al. [13] proposed a night light economic index (NLEI). Gonzalez et al. [14] estimated the impact of regional disasters on economic growth in Argentina from 1992 to 2013 using NTL data. Li et al. [15] estimated whether GDP distortion would have an impact on the tax decisions of local state-owned enterprises using NTL data, and the results pointed to a negative correlation between the distorted local GDP and tax avoidance behaviors of local state-owned enterprises. Galimberti et al. [16] evaluated the effectiveness of satellite-based NTL data in predicting country-level GDP growth, and the results proved that NTL data could improve the accuracy of the model prediction. Sun et al. [17] proposed a deep learning method based on the Contiguous United States (CONUS) time series (2012–2015) county GDP estimation method. Liang et al. [18] studied the spatialization of Ningbo’s GDP using NPP/VIIRS NTL data and urban GDP statistical data. Ma et al. [19] explored the spatiotemporal patterns of India’s heavy industries using NTL data that spanned from 2012 to 2018. Zhang et al. [20] extracted the Central Yunnan Urban Agglomeration (CYUA) in built-up urban areas through the urban gravity center model and gravity model using the Yunnan Statistical Yearbook and NTL data and further analyzed the connection strength between urban expansion and urban space.
With the continuous development of NTL, it has attracted much attention due to its objectivity and easy access. Its application is not limited to the estimation of social and economic parameters (GDP, regional development, etc.), and many academic societies also use these data to mine applications in different fields [21]. For example, Li et al. [22] used NTL to evaluate the Syrian conflict. Gu et al. [23] studied the relationship between NTL and net primary productivity (NPP). Bayan et al. [24] used NTL to create a map of Eurasian cities, and the accuracy evaluation result was as high as 94%. Weidmann et al. [25] proposed a new measure of local inequality based on NTL emissions data. Peled et al. [26] used NTL data acquired by satellites to divide different built-up areas combined with the building strength of different building materials to obtain the spatial material stock assessments (MSA) in Europe, presenting multi-level aggregation from urban areas to the continent. Oda et al. [27] presented the first man-made CO2 emission map based on NASA’s Black Marble NTL Product Suite (NBM). Straka et al. [28] investigated the effect of tree cover on the relationship between artificial light at night (ALAN) and bats. James et al. [29] investigated the association between residential outdoor night light and breast cancer incidence. Shao et al. [30] proposed a spatially adaptive regression model and realized multi-temporal impervious surface area (ISA) fraction extraction and spatial-temporal analysis with the integrated use of diurnal and nighttime remotely sensed imagery.
Numerous models have been proposed for GDP forecasting. The autoregressive integrated moving average model (ARIMA) model [31] is one of the models widely used to explore the dynamics of time series data. Lim et al. [32] used ARIMA on the longitudinal data, which propounds pragmatic suggestions to help gambling hubs that are destination-dependent to navigate in and recover from crisis such as the COVID-19 pandemic. Kumar et al. [33] adopted X12-ARIMA to adjust the variables and explored the relationship between financial development and economic growth in India. Shuai et al. [34] established ARIMA models based on the GDP data of Shanghai and Shenzhen, respectively, from 1979 to 2018, and the results showed that the model they used could better fit the GDP data series. Zou et al. [35] used the seasonal autoregressive integrated moving average (SARIMA) model to analyze and predict the horizontal displacement of the dam. Taking advantage of the GDP data of Bangladesh from 1960 to 2017, Miah et al. [36] predicted the GDP of Bangladesh in the future using the ARIMA model. Zhu et al. [37] used the ARIMA model to estimate the GDP growth to assess the macroeconomic recovery from natural disasters. By comparing simulated regional GDP values from 2008 to 2014 with actual regional GDP data after the Wenchuan earthquake, they investigated the economic recovery of the worst-hit areas six years later. Ediger et al. [38] used the ARIMA method to estimate the future primary energy demand of Turkey from 2005 to 2020, and the ARIMA forecasting of the total primary energy demand appeared to be more reliable than the summation of the individual forecasts. Ma et al. [39] predicted the GDP of Dongying City from 2017 to 2020 via a constructed time series ARIMA model.
However, existing efforts have tended to focus on provincial and municipal perspectives, and few studies have performed GDP forecasting on the national level. In this study, we aimed to fill this gap by performing GDP forecasting for all Chinese provinces. We obtained NTL data from 1992 to 2016 and long-term GDP series data from the China Statistical Yearbook for model training. GDP data from 2017 to 2019 were used to test the accuracy of the prediction model. The linear regression (LR) model, ARIMA model, ARIMAX model, and SARIMA model were used to forecast China’s province-level GDP. We further evaluated the accuracy of the predicted results and compared the outputs from different models, aiming to reveal their advantages and disadvantages. In addition, we used the model with the best performance to forecast China’s economy in 2030. The conceptual and methodological knowledge as well as the results of this study are expected to provide important references for the sustainable development of China’s economy.

2. Study Area and Materials

2.1. Study Area

China (Figure 1) is located in the eastern part of Asia. Its administrative region is divided into 23 provinces, five autonomous regions, four municipalities, and two special administrative regions. China covers 9.6 million square km, with the mainland coastline of roughly 18,000 km. It also owns 7600 islands, of which the biggest island covers an area of 35,798 square km. Through planned large-scale construction, China has seen rapid economic development and has quickly became the second largest economy in the world.

2.2. Data Sources

In the 1970s, the United States took the lead in launching the first nighttime light remote sensing satellite (i.e., the Defense Meteorological Satellite Program/Operational Linescan System (DMSP/OLS)). The original intention of DMSP/OLS was to obtain cloud information. Later, the potential of DMSP/OLS in obtaining NTL imagery was explored. Under cloudless conditions at night, NTL remote sensing images can be obtained to reflect human social activities [40]. The National Polar-Orbiting Partnership/Visible Infrared Imaging Radiometer (NPP/VIIRS) was launched in October 2011 with a higher resolution than the DMSP/OLS imagery. The NTL imagery from NPP/VIIR, first published in 2012, has widely been used by scholars to monitor and estimate the social and economic indicators given its easy access, objectivity, and strong applicability. Table 1 specifically compares DMSP/OLS and NPP/VIIRS. In this study, we used DMSP/OLS images from 1992 to 2013 and NPP/VIIRS data from 2012 to 2020 to construct a consistent NTL data series at China’s provincial level, retrieved from the national environmental information (https://www.ngdc.noaa.gov) (accessed on 1 November 2020). In addition, the GDP data used in this study came from the official China Statistical Yearbook.

3. Methods

The method in this study follows three major steps: (1) NTL calibration; (2) GDP prediction; and (3) accuracy evaluation (Figure 2).

3.1. Establishing Consistent Long NTL Time Series

DMSP/OLS and NPP/VIIRS, two widely used NTL data, are not comparable, greatly limiting investigations that demand long NTL time series [41]. Therefore, we developed a calibration strategy that included two steps: (1) DMSP/OLS internal calibration; and (2) DMSP/OLS and NPP/VIIRS mutual cross-sensor calibration.

3.1.1. Internal Calibration of DMSP/OLS

Due to the lack of on-board calibration devices and the influence of atmospheric conditions, the image data obtained by DMSP/OLS night-light remote sensing had some limitations such as systematic error and random noise. Thus, internal calibration is necessary.
Widely used DMSP/OLS NTL data calibration methods include polynomial regression (Elvidge) and ridge sampling regression (RSR). Elvidge et al. [12,42] chose Sicily, Italy, as the reference area for DMSP/OLS data calibration and plotted the data of Sicily in the OLS images of all years in the same coordinate system with the data of Sicily in F121999 images. The fitting formula follows:
D N a d j = C 0 + C 1 × D N + C 2 × D N 2
where D N a d j is the DN value after calibration of NTL data, and C 0 , C 1 ,   C 2 are the polynomial coefficients.
The RSR method was proposed by Zhang et al. [43] based on the assumption that only a small number of NTL pixels changed in a short time. The formula follows:
D N a d j = a × D N + b × D N 2 + c
where D N a d j is the DN value after the ridge regression analysis of NTL data, and a ,   b ,   c are the coefficients of the least square method.
Two additional conditions should be met for data selection (i.e., the calibration error of images taken by different satellites in the same year should be the minimum), and the time series should present a certain level of stableness. Therefore, in order to select the optimal data, the sum of the normalized different index (SNDI) was used to evaluate the calibration error:
SNDI =   N D I t
NDI = | N T L 1 t N T L 2 t | | N T L 1 t + N T L 2 t |
where N T L 1 t and N T L 2 t represent the NTL values of two images in the same year in the selected area, respectively; N D I represents the normalized different index; S N D I is the sum of N D I .
According to the temporal coverage in Table 2, different satellite data sources at 12 scenes with repeated time points were used to evaluate the effect of the two algorithms.

3.1.2. Cross-Sensor Calibration of DMSP/OLS and NPP/VIIRS

Currently, global-scale NTL data are acquired by two satellite sensors (i.e., DMSP/OLS and NPP/VIIRS), but the data collected by the satellites are not compatible [44]. The NPP/VIIRS NTL data were monthly data from April 2012 to December 2017. We averaged the monthly data to obtain the annual records. Since DMSP/OLS and NPP/VIIRS overlapped in 2012 and 2013, we adopted a relatively simple superposition of the translation method for calibration (STC), which assumed that the TNL observation values of the DMSP/OLS data and NPP/VIIRS data in 2013 were equal, converted the 2013 NPP/VIIRS data to 2013 DMSP/OLS data, and generated the 2013–2019 DMSP/OLS-like NPP/VIIRS data, thus connecting DMSP/OLS and NPP/VIIRS into a longer series of NTL data.

3.2. GDP Forecasting Model

In order to reveal the relationship between NTL data and GDP, we adopted four methods (i.e., the LR, ARIMA model, ARIMAX model, and SARIMA model). In this study, we set the seasonal factor as 1. A detailed description of these models is presented below.

3.2.1. Linear Regression (LR) Model

A simple LR model was used to reveal the internal relationship between the NTL data of a long time series and GDP. The LR model is as follows:
y G D P = a x T N L + b
where x T N L represents the total amount of NTL data and y G D P represents the GDP data.

3.2.2. ARIMA Model

The ARIMA model is built on the basis of autoregression model (AR model) and moving average model (MA model) with the introduction of the difference operation to transform a non-stationary time series into a stationary time series. The ARIMA model is as follows:
x t = c + i = 0 p φ i x t i + ε i + i = 0 q θ i ε t i
where x t is the stationary time series data; c is the constant term; φ i is the coefficient of the autoregressive lag term x t i ; ε i is the residual term; θ i is the coefficient of MA lag term ε t i ; p is the AR term; and q is the number of MA terms.

3.2.3. ARIMAX Model

Compared with the ARIMA model, the ARIMAX model considers additional exogenous variables, which better solve the problem that unstable variables are prone to false regression and is suitable for multivariate time series data analysis. The mathematical expression of ARIMAX is as follows:
y t = j = 0 v j ( 1 ) B j x t ( 1 ) + j = 0 v j ( 2 ) B j x t ( 2 ) + + j = 0 v j ( k ) B j x t ( k ) + θ ( B ) φ ( B ) α t
where ( B ) = 1 θ 1 B θ q B q ;   φ ( B ) = 1 φ 1 B φ p B p is called the transfer function model; x t ( j ) is the input factor; and y t is the output factor.

3.2.4. SARIMA Model

In time series analysis, certain time sequences can contain notable cyclical changes. If the tendency fails to follow a linear change, ARIMA often falls short in deriving its changing dynamics. Thus, SARIMA, the seasonal version of the ARIMA model, can be used. The general expression of a SARIMA model is as follows:
x t = Δ d Δ s D y t
( 1 1 L P L p ) ( 1 α 1 L s α p L P S ) ( Δ d Δ s D y t ) = ( 1 + θ 1 θ q L q ) ( 1 β 1 L s β Q β Q s ) u t
where Δ ,   Δ s represent the seasonal differences of the non-seasonal and S-phase, respectively; d and D represent the non-seasonal and seasonal differences, respectively; p , P , q , Q represent the maximum lag order of non-seasonal, seasonal, AR, and MA operators, respectively.

3.3. Accuracy Evaluation

In order to explore the advantages and disadvantages of the above four GDP forecasting models and seek the best GDP forecasting model, the following formula was used to evaluate the accuracy of the GDP forecasting models:
r = | G D P p r e d G D P r e a l | G D P r e a l × 100 %
where G D P p r e d represents the data obtained through the GDP prediction model and G D P r e a l represents the official GDP data from China’s Statistical Yearbook.

4. Results

4.1. The Calibration of the NTL

We first performed an internal calibration on the DMSP/OLS data. The calibration results of the method adopted from Elvidge et al. [12,42] and the RSR method adopted from Zhang et al. [43] were obtained (Figure 3). Compared with the original uncalibrated DMSP/OLS data (Figure 3a), the calibrated DMSP/OLS NTL time series presented considerably smoother patterns.
According to the standard errors calculated by overlapping satellites, the calibration errors of the NTL images of different satellites in the same year based on different calibration methods are shown in Table 3. The S N E r a w of the uncalibrated DMSP/OLS data was 2.033. In comparison, the S N E E l v i d g e was 1.132, while the calculated S N E R S R was 1.108. The above results suggest that both calibration methods significantly reduced the errors compared with the uncalibrated DMSP/OLS data, and the RSR calibration method outperformed the Elvidge method.
Figure 4 presents the calibration coefficients of the RSR method with F152000 as the reference image. We noted that records from the F18 satellite greatly deviated from the other records. Therefore, it can be inferred that the RSR method perform poorly on images from the F18 satellite. Thus, we used the RSR method to calibrate the NTL data from 1992 to 2007 and the Elvidge method to calibrate the NTL data from 2008 to 2013. Finally, continuous calibrated NTL data that spanned from 1992 to 2019 after calibration was obtained (Figure 5 and Figure 6). From Figure 5, we can observe that, in general, Eastern China is notably brighter than Western China, with urban agglomeration in the Yangtze River Delta presenting the highest light intensity. From 1992 to 2019, many rural areas in China, especially in the central regions, have been developed, as evidenced by their increasing amount of light intensity. From Figure 6, we can see that the unified NTL data of the long time series showed good stable growth characteristics. Thus, the accuracy and reliability of our calibration strategy were further verified.

4.2. NTL–GDP Relationship and Model Evaluation

Based on the above four models, the NTL data from 1992 to 2016 were taken as the training set, while the NTL data from 2017 to 2019 were used to evaluate the models’ performance, serving as the verification set.
Through the simple LR model (Figure 7), it can be seen that there was a strong positive correlation between the NTL intensity and GDP during the 25-year span (1992–2016). Despite the high R2 of the GDP prediction model based on LR, the GDP prediction accuracy had an average error of 19.26%.
To predict GDP in the years 2017, 2018, and 2019 using the NTL data from 1992 to 2016, we tested three additional models (i.e., classic ARIMA, seasonal variable SARIMA, and exogenous ARIMAX. The predicted results in selected Chinese provinces are presented in Figure 8 and Figure 9. The average errors based on the ARIMA model, SARIMA model, and ARIMAX models were 8.44, 6.98, and 4.51%, respectively. The above results suggest that compared with the LR model, the overall accuracy of the other three models was improved, and ARIMAX model had the best performance among the three models. As an exogenous variable, NTL can play a good correction role in the GDP prediction model with the minimum error, thus proving once again that NTL plays an important role in the exploration of urban economic development and the analysis and prediction of urban GDP changes by NTL.
Figure 10 presents the spatial distribution of errors at China’s provincial level. We observed that certain provinces presented considerably larger errors than others. The reasons may be as follows. (1) The GDP data themselves have a non-trend fluctuation, while NTL resulting from urbanization continues to increase. For example, Liaoning (with a large error in all four GDP forecasting methods) had a large fluctuation in GDP data, with a clear upward trend from 1992 to 2015 and a sudden drop in 2016. Such GDP fluctuations failed to be captured by the models, as non-trend fluctuations pose great challenges for all forecasting models. (2) The NTL data themselves contain a certain level of uncertainty. From Figure 10, we notice that, in general, that the GDP prediction error of southern provinces was smaller than that of northern provinces, which may be related to the errors of the NTL data themselves. In addition, we found periodic changes in abnormal data when processing the experimental data. (3) NTL fails to represent GDP in a comprehensive manner. Compared to the South, North China has more extensive land urbanization. In certain places, extensive impervious surfaces and a large number of artificial objects could correspond to high GDP, but they failed to be captured by NTL intensity, leading to the severe underestimation of GDP.

4.3. GDP Forecast in 2030

Using the ARIMAX model, a model with the smallest error in the verification dataset, we forecast the GDP of China’s provinces (except Taiwan). The forecast results are presented in Figure 11 and Table 4. The results show that by 2030, the Chinese economy will be more than 1.6 quintillion yuan, with provinces that include Tianjin, Guizhou, and Xizang having a higher predicted growth while provinces that include Shanxi and Liaoning having a small predicted growth.
From the perspective of spatial variation, the economic aggregate of Jiangsu and Guangdong is expected to continue to lead all other provinces in China, both exceeding 190,000 trillion yuan, while the economic aggregate of Xizang and Qinghai will lag behind, both less than 5000 trillion yuan. Such a result indicates unbalanced economic development in China. The economic aggregate of the South has higher GDP than that of the North, while the economic development of the East is stronger than that of the West. In terms of provinces, the economic aggregate of Guangdong and Jiangsu is notably stronger than that of other provinces. China’s future economic policy formulation can be further carried out in the direction of addressing the unbalanced regional economic development, aiming for a more sustainable and even development.

5. Discussion

The development of NTL data has provided a new common data source for the spatialization of social and economic data, with strong application and analysis ability. This section will further discuss the spatio-temporal changes and limitations, respectively.

5.1. Time Change of GDP

NTL can directly reflect the differences in human activities and has a wide application space in economic analysis. It can be seen from Figure 5 and Figure 11 that all provinces in China are in a stage of steady growth, which is of great importance to the 14th National Congress of the Communist Party of China, which proposed combining the basic socialist system with the market economy to establish a socialist market economic system. The national economy is growing at a high speed, and production, construction, distribution, and opening-up are developing in an all-round way, and people’s living standards are being further improved. Judging from the GDP forecasts, China is on track to achieve this goal.

5.2. Spatial Variation of GDP

The NTL reflects the human activities in a region at night. The NTL brightness in developed cities is significantly higher than that in small cities. Therefore, NTL data can reflect the social and economic development of a region to a certain extent, and better show the consistency of urban economic development. After the reform and opening-up policy since 1978, the Chinese government has embarked on a regional economic development strategy for a large change, from an unbalanced development strategy to a balanced development strategy, with priority given to the development of coastal areas. The development and the open policy tilt toward coastal regions has obviously made coastal areas develop more rapidly, thus quickly widening the economic development gap between the coast and inland. The eastern region is obviously stronger than the western region. After the reform and opening up, the “strong north and weak south” has rapidly changed to the “strong south and weak north”, and there is a big development gap between provinces. To address the problem of unbalanced regional development, China has successively implemented the strategy of the large-scale development of the Western region, the strategy of revitalizing the old industrial base in Northeast China, and the strategy of promoting the rise of the Central region.

5.3. Limitation Analysis

Although there is a strong relationship between the NTL data and human society economic activity based on the NTL built GDP model, which have important research value, this study does not take into account the NTL “fraud” [45], the global crisis (such as COVID-19 pandemic [46,47], the Russo–Ukrainian War), and so on. In addition, the NTL field also has many problems, for example, the night light photometric units have not been clearly defined, the different platform and sensor lights at night time sequence consistency problem due to the angle of the atmosphere and surface optical properties, the daily variation and seasonal variation caused by the night lights, and the uncertainty of measurement error [48]. At the same time, based on the optical wavelengths of observation at night, there are many challenges such as artificial light, vegetation changes, the change of the street layout and building height, so night lights will change accordingly [49]. Due to the light emitting diode (LED) [50] technology to the development of the cause of a “lighting revolution”, the world is in transition to the LED, so lamp remote sensing has a great influence on NTL. Therefore, from the perspective of NTL, the quantitative refinement study of economic development is the focus of future research.

6. Conclusions

Based on the historical GDP data from 1992 to 2016 and the calibrated annual NTL data from DMSP/OLS and NPP/VIIRS, we tested the GDP forecasting capability of models that included the LR model, ARIMA model, ARIMAX model, and SARIMA model. Model performances were evaluated by deriving the GDP values in 2017, 2018, and 2019 by using the NTL data from 1992 to 2016. After a comparison with the original GDP data, the results showed that the ARIMAX model achieved the best prediction result. Our study suggests that the NTL intensity was highly correlated with the GDP values, and the involvement of NTL benefits the GDP prediction models. We further predicted China’s GDP in 2030 using the ARIMAX model, and the results showed that China’s economy will continue to grow, but the growth rate will greatly differ in different provinces. Such a result points to the necessity of establishing regional development plans that address the uneven development. To solve the problem of unbalanced regional development is a long-term process, which must be based on the long-term and rationally planned.

Author Contributions

Conceptualization, Y.G. and B.C.; Methodology, Y.G.; Software, Y.G.; Validation, Y.G. and B.C.; Formal analysis, Y.G.; Resources, Z.S.; Data curation, Z.S.; Writing—original draft preparation, Y.G. and B.C..; Writing—review and editing, B.C., Z.S., and X.H.; Supervision, X.H.; Project administration, Z.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China with grant number 42090012; the National Key Research and Development Program of China with grant number 2018YFB2100501; and the National Natural Science Foundation of China with grant numbers 41771452 and 41771454.

Data Availability Statement

No applicable.

Acknowledgments

We are grateful to those who participated in the data processing and manuscript revisions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, X.; Nordhaus, W. VIIRS Nighttime Lights in the Estimation of Cross-Sectional and Time-Series GDP. Remote Sens. 2019, 11, 1057. [Google Scholar] [CrossRef] [Green Version]
  2. Cai, B.; Shao, Z.; Fang, S.; Huang, X. Quantifying Dynamic Coupling Coordination Degree of Human–Environmental Interactions during Urban–Rural Land Transitions of China. Land 2022, 11, 935. [Google Scholar] [CrossRef]
  3. Li, Z.; Jiao, L.; Zhang, B.; Xu, G.; Liu, J. Understanding the pattern and mechanism of spatial concentration of urban land use, population and economic activities: A case study in Wuhan, China. Geo-Spat. Inf. Sci. 2021, 24, 678–694. [Google Scholar] [CrossRef]
  4. Zhuang, Q.; Shao, Z.; Li, D.; Huang, X.; Cai, B.; Altan, O.; Wu, S. Unequal weakening of urbanization and soil salinization on vegetation production capacity. Geoderma 2022, 411, 115712. [Google Scholar] [CrossRef]
  5. Marc, F.; Philippe, M. The news of the death of welfare economics is greatly exaggerated. Soc. Choice Welf. 2005, 25, 381–418. [Google Scholar] [CrossRef] [Green Version]
  6. Huh, H.; Chung, M. A method to allocate GDP statistical discrepancy. Appl. Econ. Lett. 2006, 13, 587–591. [Google Scholar] [CrossRef]
  7. Zhang, X.; Guo, S.; Guan, Y.; Cai, D.; Zhang, C.; Fraedrich, K.; Xiao, H.; Tian, Z. Urbanization and Spillover Effect for Three Megaregions in China: Evidence from DMSP/OLS Nighttime Lights. Remote Sens. 2018, 10, 1888. [Google Scholar] [CrossRef] [Green Version]
  8. Xu, P.; Jin, P.; Yang, Y.; Wang, Q.; Bagan, H. Evaluating Urbanization and Spatial-Temporal Pattern Using the DMSP/OLS Nighttime Light Data: A Case Study in Zhejiang Province. Math. Probl. Eng. 2016, 2016, 9850890. [Google Scholar] [CrossRef] [Green Version]
  9. Cai, B.; Shao, Z.; Fang, S.; Huang, X.; Huq, M.E.; Tang, Y.; Li, Y.; Zhuang, Q. Finer-scale spatiotemporal coupling coordination model between socioeconomic activity and eco-environment: A case study of Beijing, China. Ecol. Indic. 2021, 131, 108165. [Google Scholar] [CrossRef]
  10. Li, X.; Liu, S.; Jendryke, M.; Li, D.; Wu, C. Night-Time Light Dynamics during the Iraqi Civil War. Remote Sens. 2018, 10, 858. [Google Scholar] [CrossRef] [Green Version]
  11. Shao, Z.; Tang, Y.; Huang, X.; Li, D. Monitoring Work Resumption of Wuhan in the COVID-19 Epidemic Using Daily Nighttime Light. Photogramm. Eng. Remote Sens. 2021, 87, 197–206. [Google Scholar] [CrossRef]
  12. Elvidge, C.; Ziskin, D.; Baugh, K.; Tuttle, B.; Ghosh, T.; Pack, D.; Erwin, E.; Zhizhin, M. A Fifteen Year Record of Global Natural Gas Flaring Derived from Satellite Data. Energies 2009, 2, 595–622. [Google Scholar] [CrossRef]
  13. Fu, H.; Shao, Z.; Fu, P.; Cheng, Q.; Yu, B.; Thenkabail, P. The Dynamic Analysis between Urban Nighttime Economy and Urbanization Using the DMSP/OLS Nighttime Light Data in China from 1992 to 2012. Remote Sens. 2017, 9, 416. [Google Scholar] [CrossRef] [Green Version]
  14. Gonzales, F.; London, S.; Santos, M. Disasters and economic growth: Evidence for Argentina. Clim. Dev. 2021, 13, 932–943. [Google Scholar] [CrossRef]
  15. Li, X.; Cai, G.; Luo, D. GDP distortion and tax avoidance in local SOEs: Evidence from China. Int. Rev. Econ. Financ. 2020, 69, 582–598. [Google Scholar] [CrossRef]
  16. Galimberti, J. Forecasting GDP Growth from Outer Space. Oxf. Bull. Econ. Stat. 2020, 82, 697–722. [Google Scholar] [CrossRef] [Green Version]
  17. Sun, J.; Di, L.; Sun, Z.; Wang, J.; Wu, Y. Estimation of GDP Using Deep Learning with NPP-VIIRS Imagery and Land Cover Data at the County Level in CONUS. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2020, 13, 1400–1415. [Google Scholar] [CrossRef]
  18. Liang, H.; Guo, Z.; Wu, J.; Chen, Z. GDP spatialization in Ningbo City based on NPP/VIIRS night-time light and auxiliary data using random forest regression. Adv. Space Res. 2020, 65, 481–493. [Google Scholar] [CrossRef]
  19. Ma, C.; Niu, Y.; Ma, Y.; Chen, F.; Yang, J.; Liu, J. Assessing the Distribution of Heavy Industrial Heat Sources in India between 2012 and 2018. ISPRS Int. J. Geo-Inf. 2020, 8, 568. [Google Scholar] [CrossRef] [Green Version]
  20. Zhang, E.; Feng, H.; Peng, S.; Gary, A. Measurement of Urban Expansion and Spatial Correlation of Central Yunnan Urban Agglomeration Using Nighttime Light Data. Math. Probl. Eng. 2021, 2021, 8898468. [Google Scholar] [CrossRef]
  21. Levin, N.; Kyba, C.; Zhang, Q.; Miguel, A.; Román, M.; Li, X.; Portnov, B.; Molthan, A.; Jechow, A.; Miller, S.; et al. Remote sensing of night lights: A review and an outlook for the future. Remote Sens. Environ. 2020, 237, 111443. [Google Scholar] [CrossRef]
  22. Li, X.; Li, D. Can night-time light images play a role in evaluating the Syrian Crisis? Int. J. Remote Sens. 2014, 35, 6648–6661. [Google Scholar] [CrossRef]
  23. Gu, Y.; Shao, Z.; Huang, X.; Fu, Y.; Gao, J.; Fan, Y. Assessing the Impact of Land Use Changes on Net Primary Productivity in Wuhan, China. Photogramm. Eng. Remote Sens. 2022, 88, 189–197. [Google Scholar] [CrossRef]
  24. Bayan, A.; Ryutaro, T.; Dong, X.; Nguyen, T.; Ahmad, A.; Bai, X. New urban map of Eurasia using MODIS and multi-source geospatial data. Geo-Spat. Inf. Sci. 2017, 20, 29–38. [Google Scholar] [CrossRef] [Green Version]
  25. Weidmann, N.; Theunissen, G. Estimating Local Inequality from Nighttime Lights. Remote Sens. 2021, 13, 4642. [Google Scholar] [CrossRef]
  26. Peled, Y.; Fishman, T. Estimation and mapping of the material stocks of buildings of Europe: A novel nighttime lights-based approach. Resour. Conserv. Recycl. 2021, 169, 105509. [Google Scholar] [CrossRef]
  27. Oda, T.; Román, M.; Wang, Z.; Stokes, E.; Sun, Q.; Shrestha, R.; Feng, S.; Lauvaux., T.; Bun, R.; Maksyutov, S.; et al. US Cities in the Dark: Mapping Man-Made Carbon Dioxide Emissions Over the Contiguous US Using NASA’s Black Marble Nighttime Lights Product. In Urban Remote Sensing: Monitoring, Synthesis, and Modeling in the Urban Environment, 2nd ed.; Yang, X., Ed.; Wuhan University: Wuhan, China, 2021; pp. 337–367. [Google Scholar] [CrossRef]
  28. Straka, T.; Wolf, M.; Gras, P.; Buchholz, S.; Voigt, C. Tree cover mediates the effect of artificial light on urban bats. Front. Ecol. Evol. 2019, 7, 91. [Google Scholar] [CrossRef] [Green Version]
  29. James, P.; Bertrand, K.; Hart, J.; Schernhammer, E.; Tamimi, R.; Laden, F. Outdoor light at night and breast cancer incidence in the nurses’ health study II. Environ. Health Perspect. 2017, 125, 087010. [Google Scholar] [CrossRef] [Green Version]
  30. Shao, Z.; Chong, L. The Integrated Use of DMSP-OLS Nighttime Light and MODIS Data for Monitoring Large-Scale Impervious Surface Dynamics: A Case Study in the Yangtze River Delta. Remote Sens. 2014, 6, 9359–9378. [Google Scholar] [CrossRef] [Green Version]
  31. Ledolter, J.; Box, G. Conditions for the optimality of exponential smoothing forecast procedures. Springer Nat. J. 1978, 25, 77–93. [Google Scholar] [CrossRef] [Green Version]
  32. Lim, W.; To, W. The economic impact of a global pandemic on the tourism economy: The case of COVID-19 and Macao’s destination- and gambling-dependent economy. Curr. Issues Tour. 2021, 25, 1258–1269. [Google Scholar] [CrossRef]
  33. Kumar, K.; Paramanik, R. Nexus between Indian Economic Growth and Financial Development: A Non-Linear ARDL Approach. J. Asian Financ. Econ. Bus. 2020, 7, 109–116. [Google Scholar] [CrossRef]
  34. Shuai, Y.; Zhou, Z. GDP Analysis and Comparison in Coastal Cities Based on Time Series Analysis. J. Coast. Res. 2019, 98, 402–406. [Google Scholar] [CrossRef]
  35. Zou, J.; Bui, K.; Xiao, Y.; Doan, C. Dam deformation analysis based on BPNN merging models. Geo-Spat. Inf. Sci. 2018, 21, 149–157. [Google Scholar] [CrossRef] [Green Version]
  36. Miah, M.; Tabassum, M.; Rana, M. Modelling and Forecasting of GDP in Bangladesh: An ARIMA Approach. J. Mech. Contin. Math. Sci. 2019, 14, 150–166. [Google Scholar] [CrossRef]
  37. Zhu, Y.; Wang, Y.; Liu, T.; Sui, Q. Assessing macroeconomic recovery after a natural hazard based on ARIMA—A case study of the 2008 Wenchuan earthquake in China. Nat. Hazards 2018, 91, 1025–1038. [Google Scholar] [CrossRef]
  38. Ediger, V.; Akar, S. ARIMA forecasting of primary energy demand by fuel in Turkey. Energy Policy 2007, 35, 1701–1708. [Google Scholar] [CrossRef]
  39. Ma, L.; Hu, C.; Lin, R.; Han, Y. ARIMA model forecast based on EViews software. In Proceedings of the International Conference on Air Pollution and Environmental Engineering 2018, Hong Kong, China, 26–28 October 2018. [Google Scholar] [CrossRef]
  40. Zhao, N.; Cao, G.; Zhang, W.; Samson, E.; Chen, Y. Remote sensing and social sensing for socioeconomic systems: A comparison study between nighttime lights and location-based social media at the 500 m spatial resolution. Int. J. Appl. Earth Obs. Geoinf. 2020, 87, 102058. [Google Scholar] [CrossRef]
  41. Dong, K.; Li, X.; Cao, H.; Tong, Z. Intercalibration Between Night-Time DMSP/OLS Radiance Calibrated Images and NPP/VIIRS Images Using Stable Pixels. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2021, 14, 8838–8848. [Google Scholar] [CrossRef]
  42. Elvidge, C.; Hsu, F.; Baugh, K.; Ghosh, T.; Weng, Q. National Trends in Satellite-Observed Lighting: 1992–2012. Remote Sens. Appl. Ser. 2014, 23, 97–118. [Google Scholar] [CrossRef]
  43. Zhang, Q.; Pandey, B.; Seto, K. A robust method to generate a consistent time series from DMSP/OLS nighttime light data. IEEE Trans. Geosci. Remote Sens. 2016, 54, 5821–5831. [Google Scholar] [CrossRef]
  44. Zheng, Q.; Weng, Q.; Wang, K. Developing a new cross-sensor calibration model for DMSP-OLS and Suomi-NPP VIIRS night-light imageries. ISPRS J. Photogramm. Remote Sens. 2019, 153, 36–47. [Google Scholar] [CrossRef]
  45. Green, J.; Perkins, C.; Steinbach, R.; Edwards, P. Reduced street lighting at night and health: A rapid appraisal of public views in England and Wales. Health Place 2015, 34, 171–180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Altan, O.; Dowman, I. The changing world under the corona virus threat—from human needs to SDGs and what next? Geo-Spat. Inf. Sci. 2021, 24, 50–57. [Google Scholar] [CrossRef]
  47. Griffith, D.; Li, B. Spatial-temporal modeling of initial COVID-19 diffusion: The cases of the Chinese Mainland and Conterminous United States. Geo-Spat. Inf. Sci. 2021, 24, 340–362. [Google Scholar] [CrossRef]
  48. Román, M.; Wang, Z.; Sun, Q.; Kalb, V.; Miler, S.; Molthan, A.; Schultz, L.; Bell, J.; Stokes, E.; Pandey, B.; et al. NASA’s Black Marble nighttime lights product suite. Remote Sens. Environ. 2018, 210, 113–143. [Google Scholar] [CrossRef]
  49. Kyba, C.; Garz, S.; Kuechly, H.; De Miguel, S.; Zamorano, J.; Fischer, J.; Hölker, F. High-resolution imagery of earth at night: New sources, opportunities and challenges. Remote Sens. 2015, 7, 1–23. [Google Scholar] [CrossRef] [Green Version]
  50. Sánchez de Miguel, A.; Aubé, M.; Zamorano, J.; Kocifaj, M.; Roby, J.; Tapia, C. Sky Quality Meter measurements in a colour-changing world. Mon. Not. R. Astron. Soc. 2017, 467, 2966–2979. [Google Scholar] [CrossRef]
Figure 1. The geographical location of the study area.
Figure 1. The geographical location of the study area.
Remotesensing 14 03671 g001

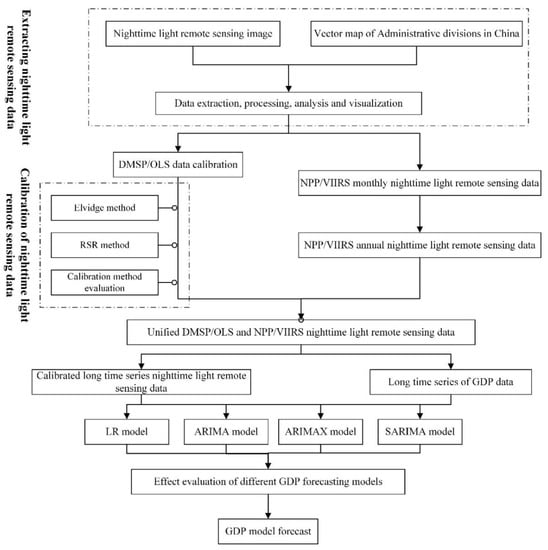

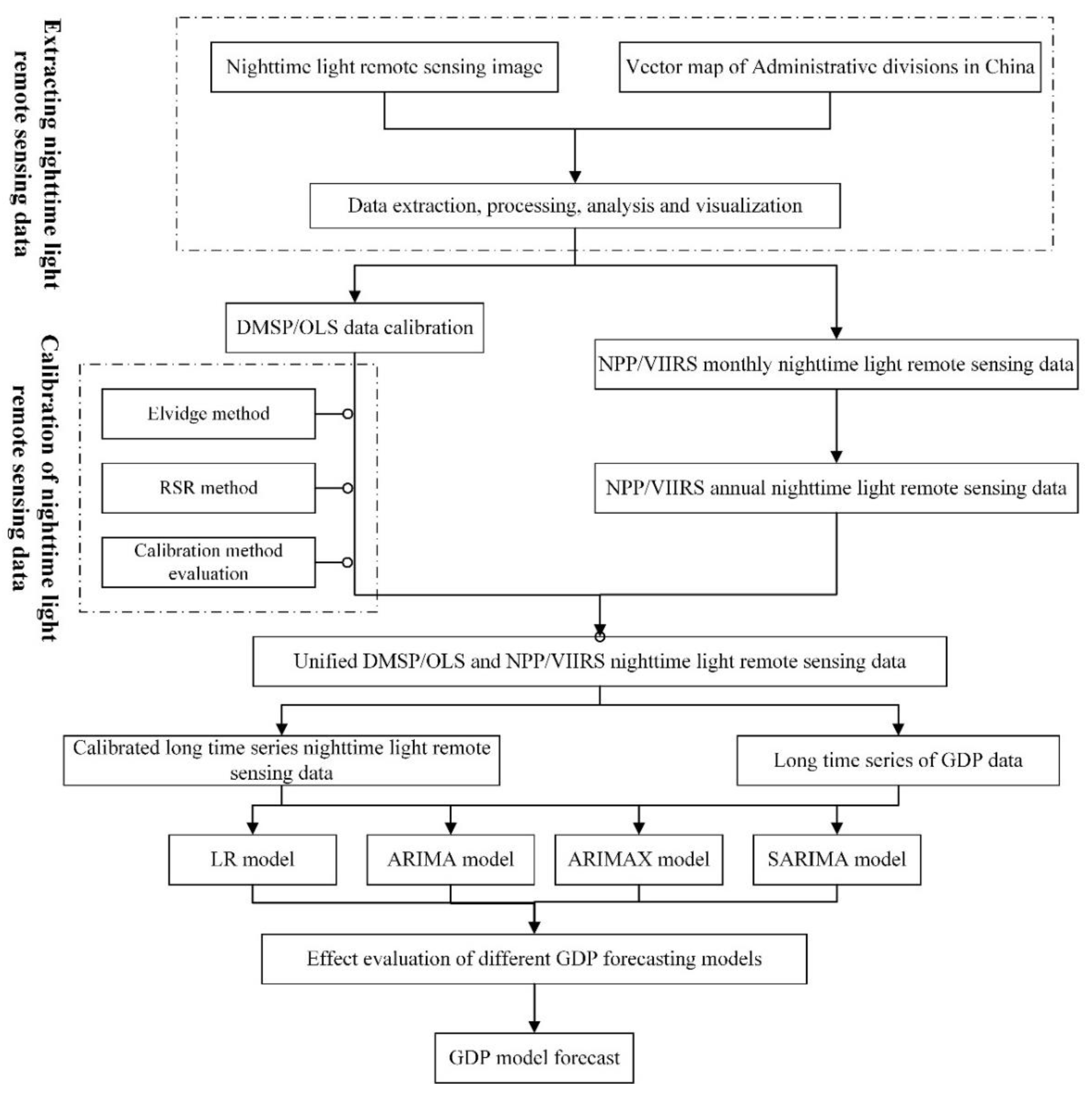

Figure 2. The workflow of the GDP estimation using NTL data.
Figure 2. The workflow of the GDP estimation using NTL data.
Remotesensing 14 03671 g002

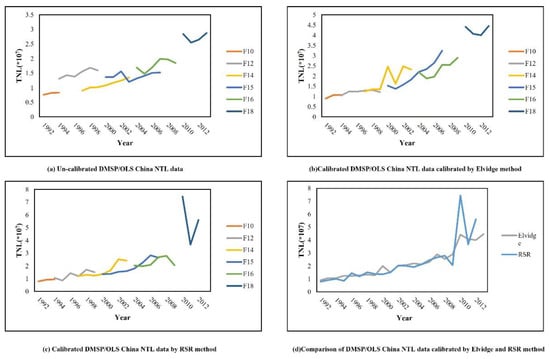

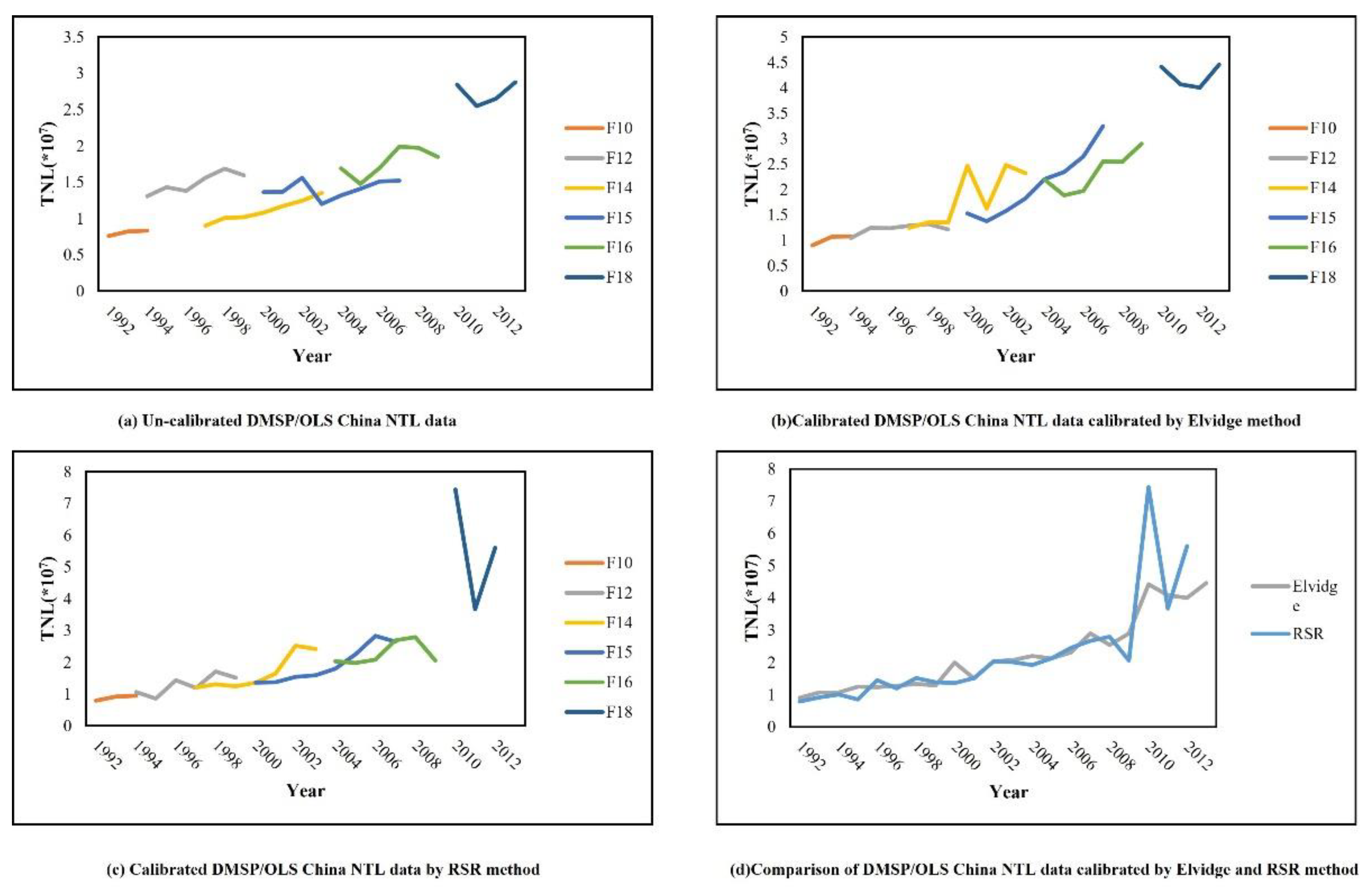

Figure 3. The DMSP/OLS NTL data before and after the calibrations using two different methods.((a) Un-calibrated DMSP/OLS NTL data, (b) Calibrated NTL data calibrated by Elvidge method, (c) Calibrated NTL data by RSR method, (d) Comparison of DMSP/OLS NTL data calibrated by Elvidge and RSR method).
Figure 3. The DMSP/OLS NTL data before and after the calibrations using two different methods.((a) Un-calibrated DMSP/OLS NTL data, (b) Calibrated NTL data calibrated by Elvidge method, (c) Calibrated NTL data by RSR method, (d) Comparison of DMSP/OLS NTL data calibrated by Elvidge and RSR method).
Remotesensing 14 03671 g003

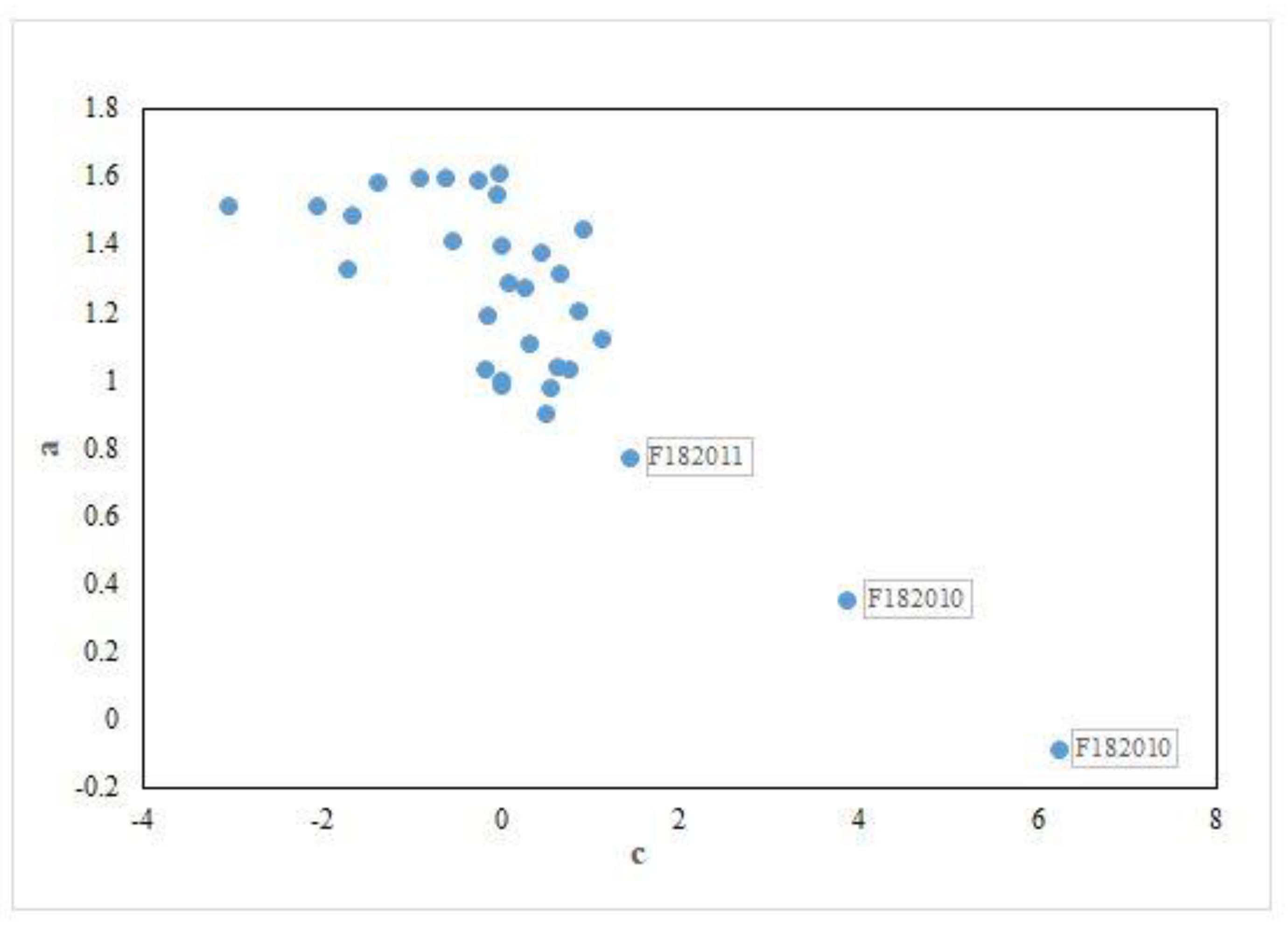

Figure 4. The calibration coefficients of the RSR method with F152000 as the reference image.
Figure 4. The calibration coefficients of the RSR method with F152000 as the reference image.
Remotesensing 14 03671 g004
Figure 5. The calibrated NTL remote sensing images in China from 1992 to 2019.
Figure 5. The calibrated NTL remote sensing images in China from 1992 to 2019.
Remotesensing 14 03671 g005

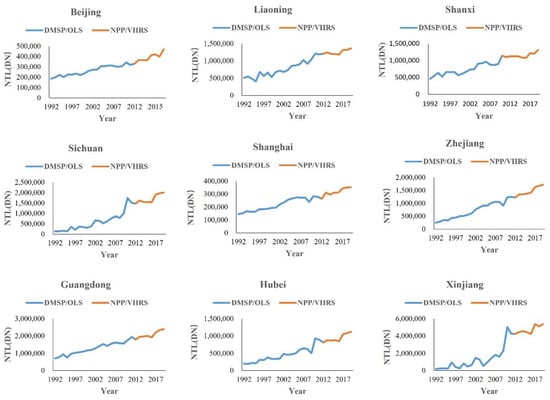

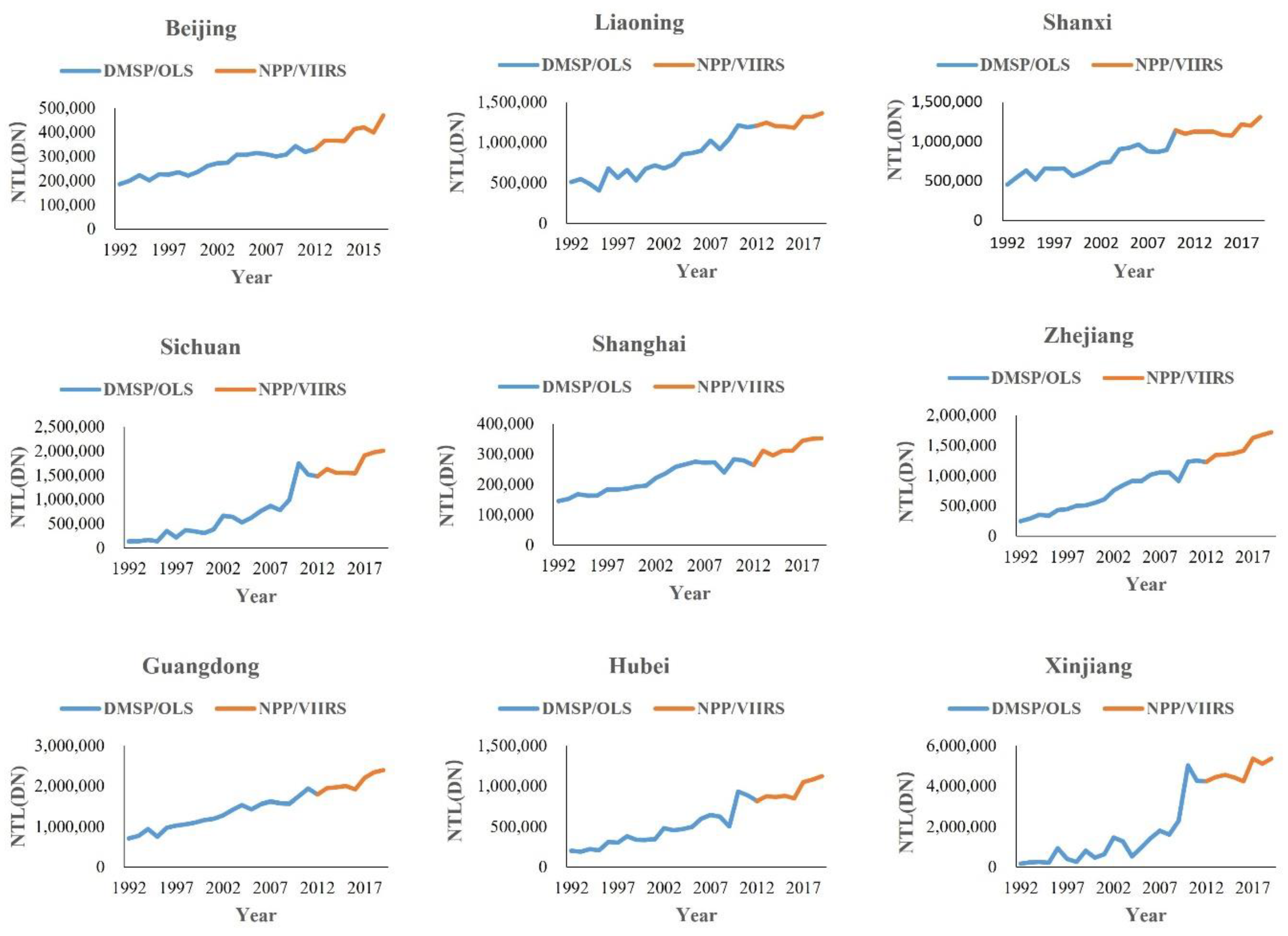

Figure 6. The statistical value of the calibrated NTL data in selected Chinese provinces from 1992 to 2019.
Figure 6. The statistical value of the calibrated NTL data in selected Chinese provinces from 1992 to 2019.
Remotesensing 14 03671 g006

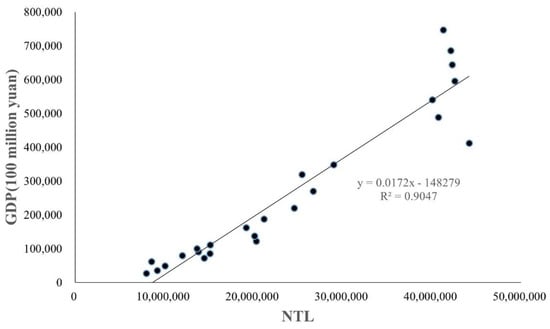

Figure 7. The NTL data and GDP in China from 1992 to 2016 (LR results).
Figure 7. The NTL data and GDP in China from 1992 to 2016 (LR results).
Remotesensing 14 03671 g007

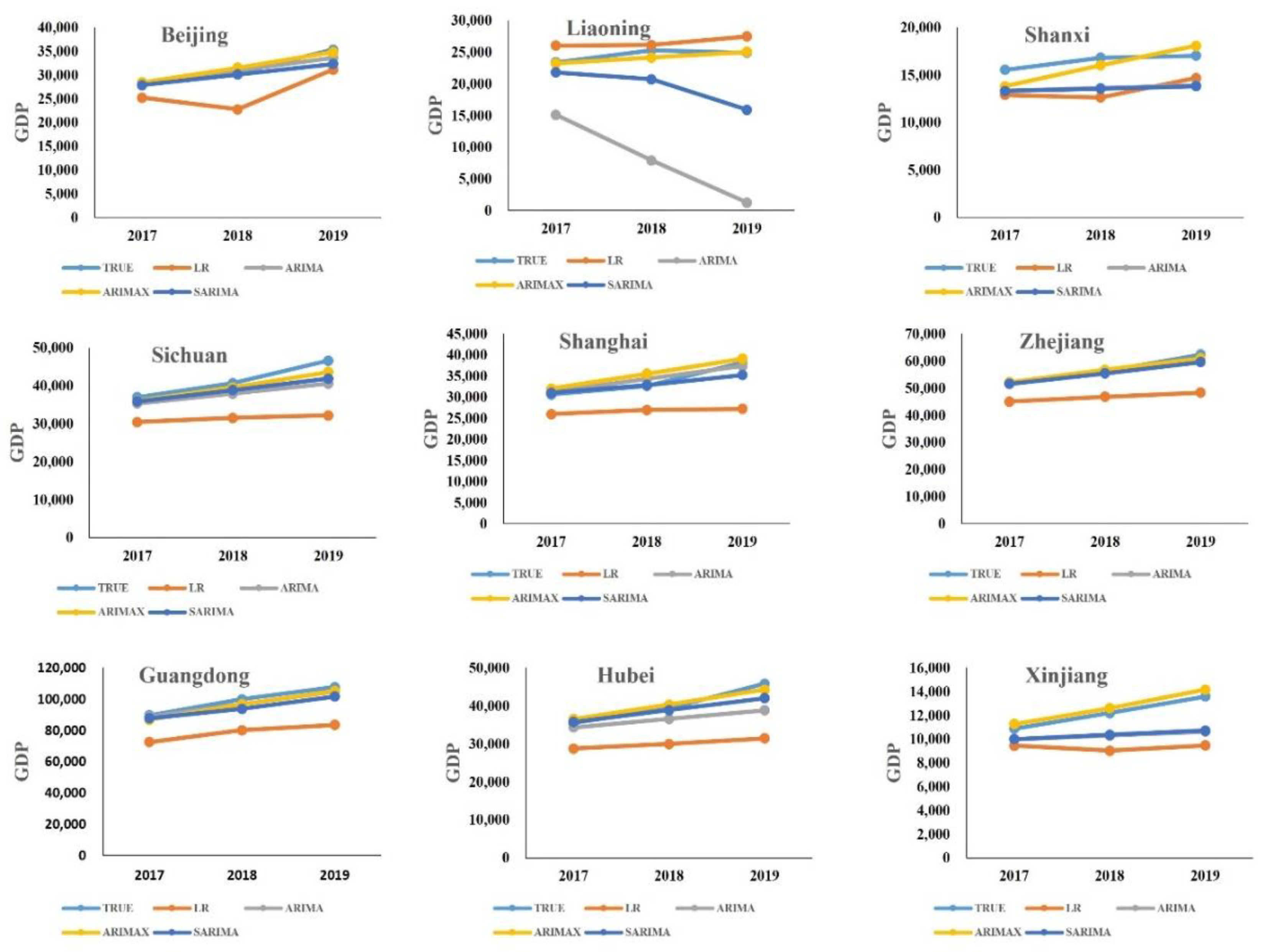

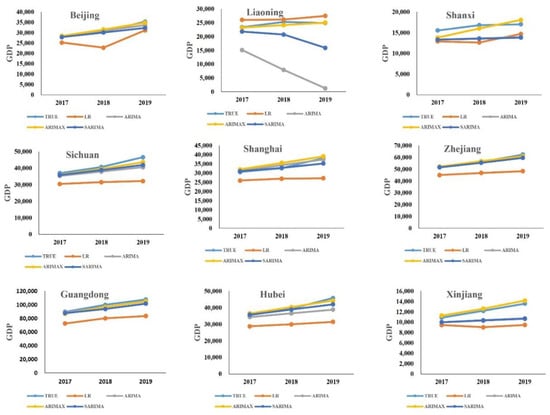

Figure 8. The GDP predicted by different models in selected Chinese provinces.
Figure 8. The GDP predicted by different models in selected Chinese provinces.
Remotesensing 14 03671 g008

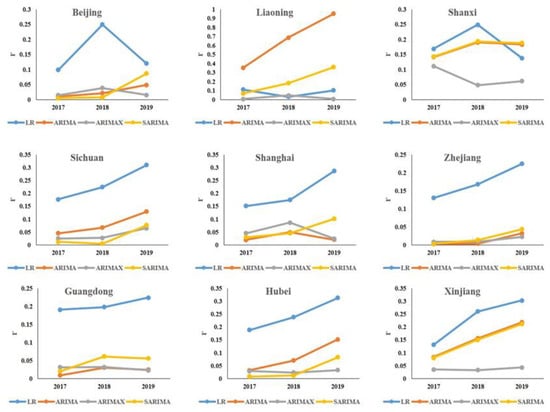

Figure 9. The r of different GDP forecasting models in selected Chinese provinces.
Figure 9. The r of different GDP forecasting models in selected Chinese provinces.
Remotesensing 14 03671 g009

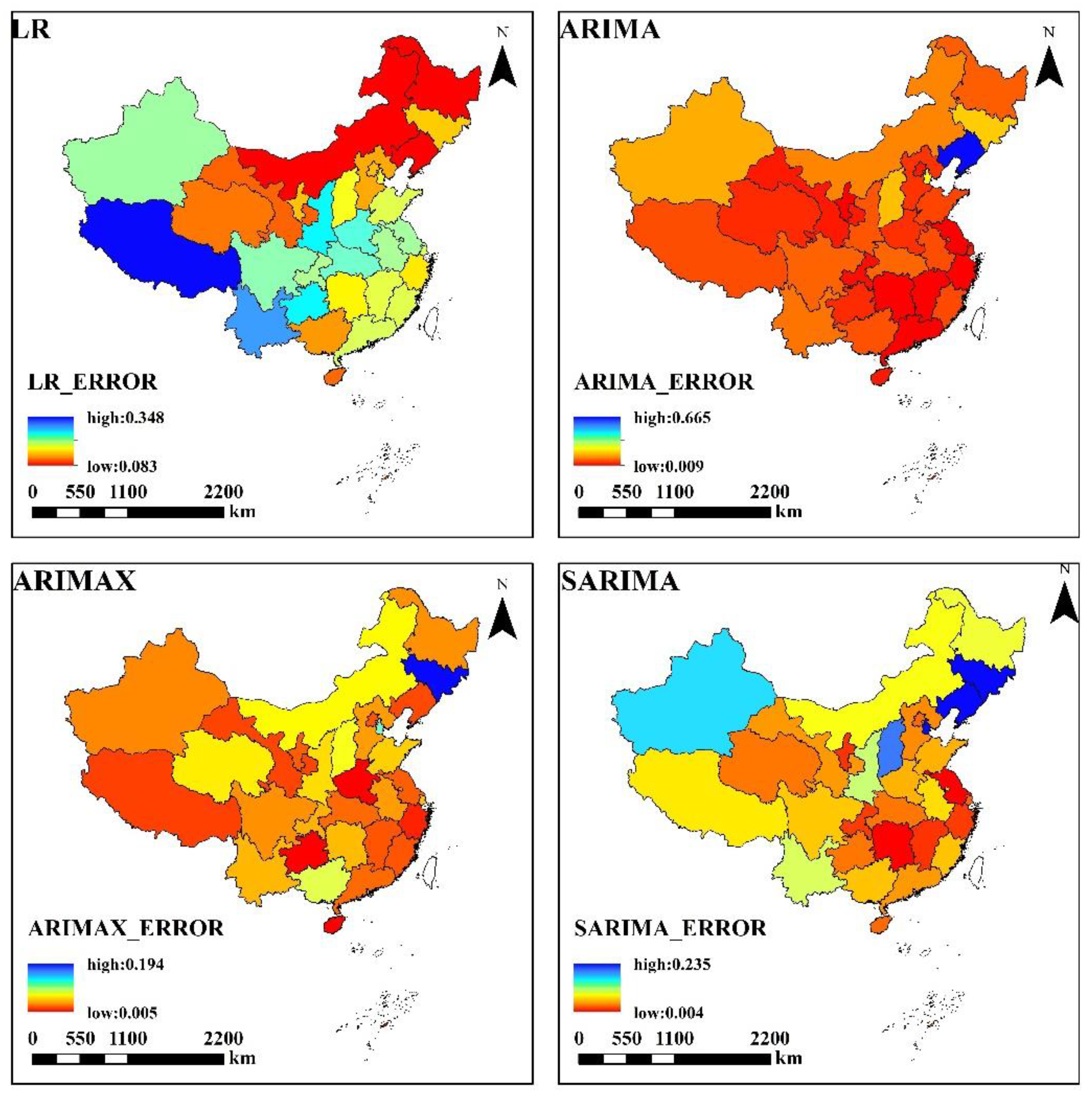

Figure 10. The comparison of the average error of the different GDP forecast models in China.
Figure 10. The comparison of the average error of the different GDP forecast models in China.
Remotesensing 14 03671 g010

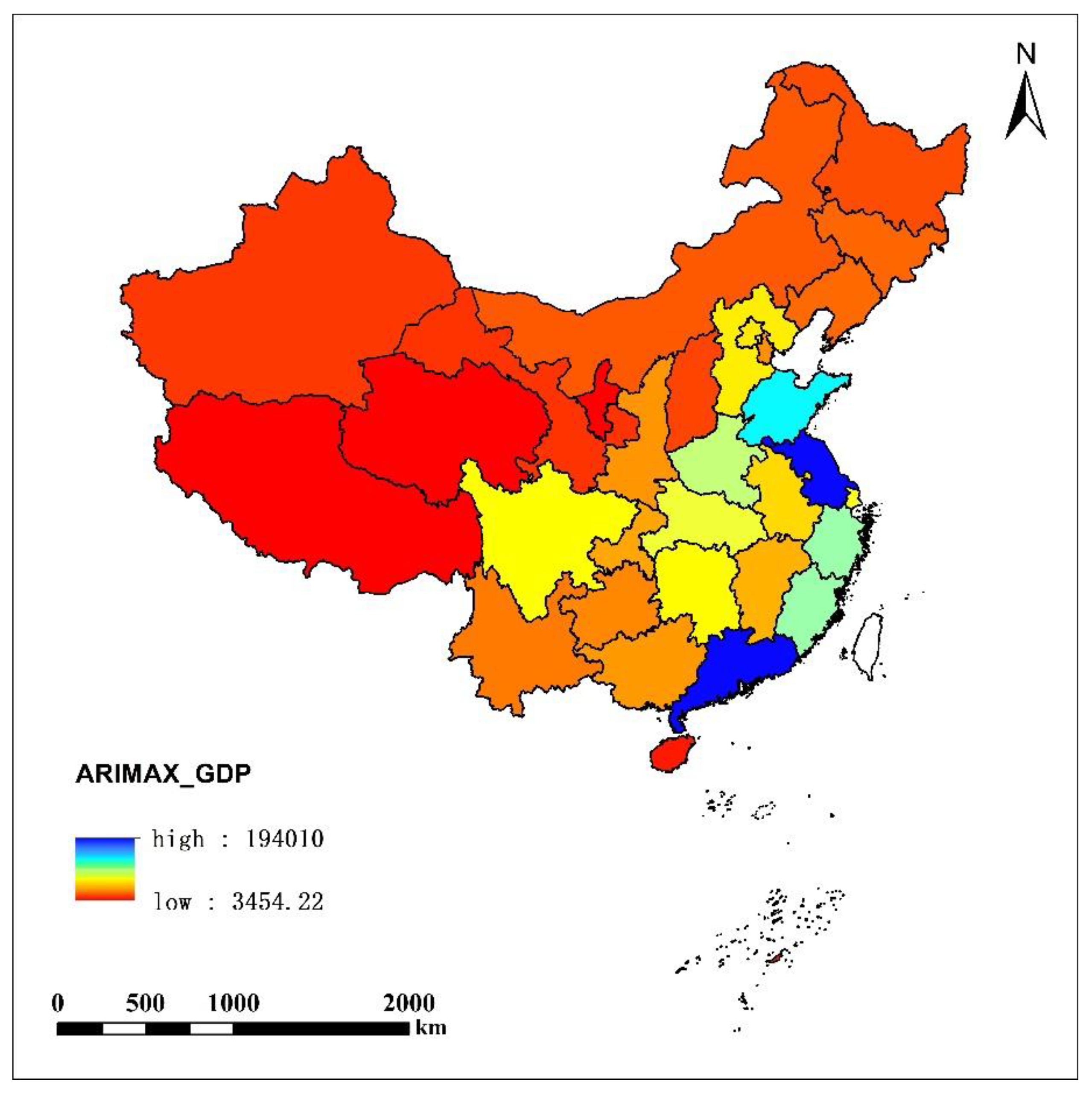

Figure 11. The 2030 GDP forecast of Chinese provinces (except Taiwan) using the ARIMAX model.
Figure 11. The 2030 GDP forecast of Chinese provinces (except Taiwan) using the ARIMAX model.
Remotesensing 14 03671 g011
Table 1. The basic parameters of DMSP/OLS and NPP/VIIRS.
Table 1. The basic parameters of DMSP/OLS and NPP/VIIRS.
SensorDMSP/OLSSuomi NPP/VIIRS
Archive year1992–2013April 2012-
Spatial resolution/m2700740
Time resolution/h1212
CountryAmericaAmerica
Data accessibilityFree annual video download, monthly average and daily video to orderMonthly average, daily video free download
Table 2. The DMSP/OLS satellites and their overlays in the corresponding years.
Table 2. The DMSP/OLS satellites and their overlays in the corresponding years.
YearF10F12F14F15F16F18
1992F101992
1993F101993
1994F101994F121994
1995 F121995
1996 F121996
1997 F121997F141997
1998 F121998F141998
1999 F121999F141999
2000 F142000F152000
2001 F142001F152001
2002 F142002F152002
2003 F142003F152003
2004 F152004F162004
2005 F152005F162005
2006 F152006F162006
2007 F152007F162007
2008 F162008
2009 F162009
2010 F182010
2011 F182011
2012 F182012
2013 F182013
Table 3. The calibration errors of the NTL images based on different methods.
Table 3. The calibration errors of the NTL images based on different methods.
YearSatellite 1Satellite 2RawElvidgeRSR
1994F10F120.0230.0150.052
1997F12F140.5320.0170.008
1998F12F140.0890.0120.129
1999F12F140.0770.0540.099
2000F14F150.2380.2340.002
2001F14F150.3610.0840.088
2002F14F150.2410.2210.242
2003F14F150.0860.1180.206
2004F15F160.0060.0030.059
2005F15F160.0790.1080.064
2006F15F160.1490.1450.151
2007F15F160.1500.1190.008
2.0331.1321.108
Table 4. A comparison of the GDP forecast of Chinese provinces in 2030 using the ARIMAX model.
Table 4. A comparison of the GDP forecast of Chinese provinces in 2030 using the ARIMAX model.
YearTrillion Yuan YearTrillion Yuan YearTrillion Yuan
Province Province Province
Beijing62,832.69Tianjin36,746.19Hebei63,771.21
Shanxi19,321.30Neimenggu22,280.36Liaoning26,416.12
Jilin24,768.18Heilongjiang19,619.97Shanghai71,024.35
Jiangsu194,010.35Zhejiang108,359.54Anhui58,035.48
Fujian68,441.22Jiangxi46,614.7Shandong13,3058.04
Henan95,018.14Hubei76,278.04Hunan68,639.61
Guangdong193,447.95Guangxi39,520.92Hainan8959.36
Chongqing43,340.22Sichuan69,464.10Guizhou35,046.67
Yunnan31,157.92Xizang3454.22Shaanxi38,687.81
Gansu12,941.07Qinghai4720.20Ningxia6764.07
Xinjiang14,198.30
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gu, Y.; Shao, Z.; Huang, X.; Cai, B. GDP Forecasting Model for China’s Provinces Using Nighttime Light Remote Sensing Data. Remote Sens. 2022, 14, 3671. https://doi.org/10.3390/rs14153671

AMA Style

Gu Y, Shao Z, Huang X, Cai B. GDP Forecasting Model for China’s Provinces Using Nighttime Light Remote Sensing Data. Remote Sensing. 2022; 14(15):3671. https://doi.org/10.3390/rs14153671

Chicago/Turabian Style

Gu, Yan, Zhenfeng Shao, Xiao Huang, and Bowen Cai. 2022. "GDP Forecasting Model for China’s Provinces Using Nighttime Light Remote Sensing Data" Remote Sensing 14, no. 15: 3671. https://doi.org/10.3390/rs14153671

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
