Landslide Susceptibility Mapping Based on the Germinal Center Optimization Algorithm and Support Vector Classification

Abstract

A landslide susceptibility model based on a metaheuristic optimization algorithm (germinal center optimization (GCO)) and support vector classification (SVC) is proposed and applied to landslide susceptibility mapping in the Three Gorges Reservoir area in this paper. The proposed GCO-SVC model was constructed via the following steps: First, data on 11 influencing factors and 292 landslide polygons were collected to establish the spatial database. Then, after the influencing factors were subjected to multicollinearity analysis, the data were randomly divided into training and testing sets at a ratio of 7:3. Next, the SVC model with 5-fold cross-validation was optimized by hyperparameter space search using GCO to obtain the optimal hyperparameters, and then the best model was constructed based on the optimal hyperparameters and training set. Finally, the best model acquired by GCO-SVC was applied for landslide susceptibility mapping (LSM), and its performance was compared with that of 6 popular models. The proposed GCO-SVC model achieved better performance (0.9425) than the genetic algorithm support vector classification (GA-SVC; 0.9371), grid search optimized support vector classification (GRID-SVC; 0.9198), random forest (RF; 0.9085), artificial neural network (ANN; 0.9075), K-nearest neighbor (KNN; 0.8976), and decision tree (DT; 0.8914) models in terms of the area under the receiver operating characteristic curve (AUC), and the trends of the other metrics were consistent with that of the AUC. Therefore, the proposed GCO-SVC model has some advantages in LSM and may be worth promoting for wide use.

1. Introduction

Landslides are the most common geological disaster, and they have wide distributions, pose a high risk, and cause serious damage [1,2]. Many internal and external factors contribute to landslide occurrence, including topographic, geological, hydrological, seismic, and surface factors and factors associated with human engineering activity [3,4]. Thus, landslide spatial prediction based on these influencing factors, which is also called landslide susceptibility mapping (LSM), is important for preventing and reducing landslide damage [5].

In recent years, various machine learning methods have been applied for regional LSM, including artificial neural network (ANN) [6,7,8,9], random forest (RF) [10,11], decision tree (DT) [12,13], logistic regression (LR) [14], K-nearest neighbor (KNN) [15,16], extreme learning machine (ELM) [17], and support vector machine (SVM) models [18,19]. Machine learning models are popular, mature, and promising for LSM. For example, SVM models are widely used in LSM due to their powerful generalization ability on small samples [7,13]. However, such deep learning models generally have many hyperparameters, which directly affect the model results [20,21]. Therefore, it is extremely important that these models choose the appropriate combination of hyperparameters for LSM.

To solve this problem, many algorithms have been used to perform hyperparameter optimization of deep learning models [22,23]. One of the most commonly used algorithms is the violent grid search algorithm [12,24], which iterates through all combinations of the listed hyperparameters and scores them to select the best hyperparameters. The process may be effective for finite discrete space search, but exhaustive enumeration for continuous hyperparameter space is almost impossible. Therefore, metaheuristic algorithms have recently been applied and are increasingly used in model hyperparameter optimization, with the most applied algorithms being genetic algorithms (GAs) [25,26] and particle swarm optimization algorithms [27]. It has been demonstrated that the optimization of model hyperparameters for LSM results is enhanced by the use of metaheuristic algorithms.

In this study, a new model named GCO-SVC was proposed and applied to LSM in the Zigui to Badong basins of the Three Gorges Reservoir area (TGRA). This effort represents the first application of the metaheuristic germinal center optimization (GCO) algorithm to the hyperparameter optimization of the SVC model and its use for LSM. To validate the proposed model, six popular models, artificial neural network (ANN), decision tree (DT), K-nearest neighbor (KNN), random forest (RF), grid search optimized support vector classification (GRID-SVC), and genetic algorithm optimized support vector classification (GA-SVC), and four common metrics, namely accuracy, F₁ score, Log loss, and area under the receiver operating characteristic curve (AUC), were employed for comparative study.

2. Methods

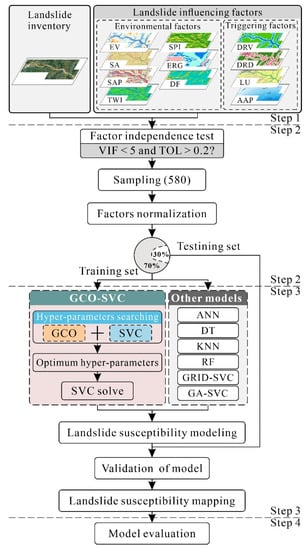

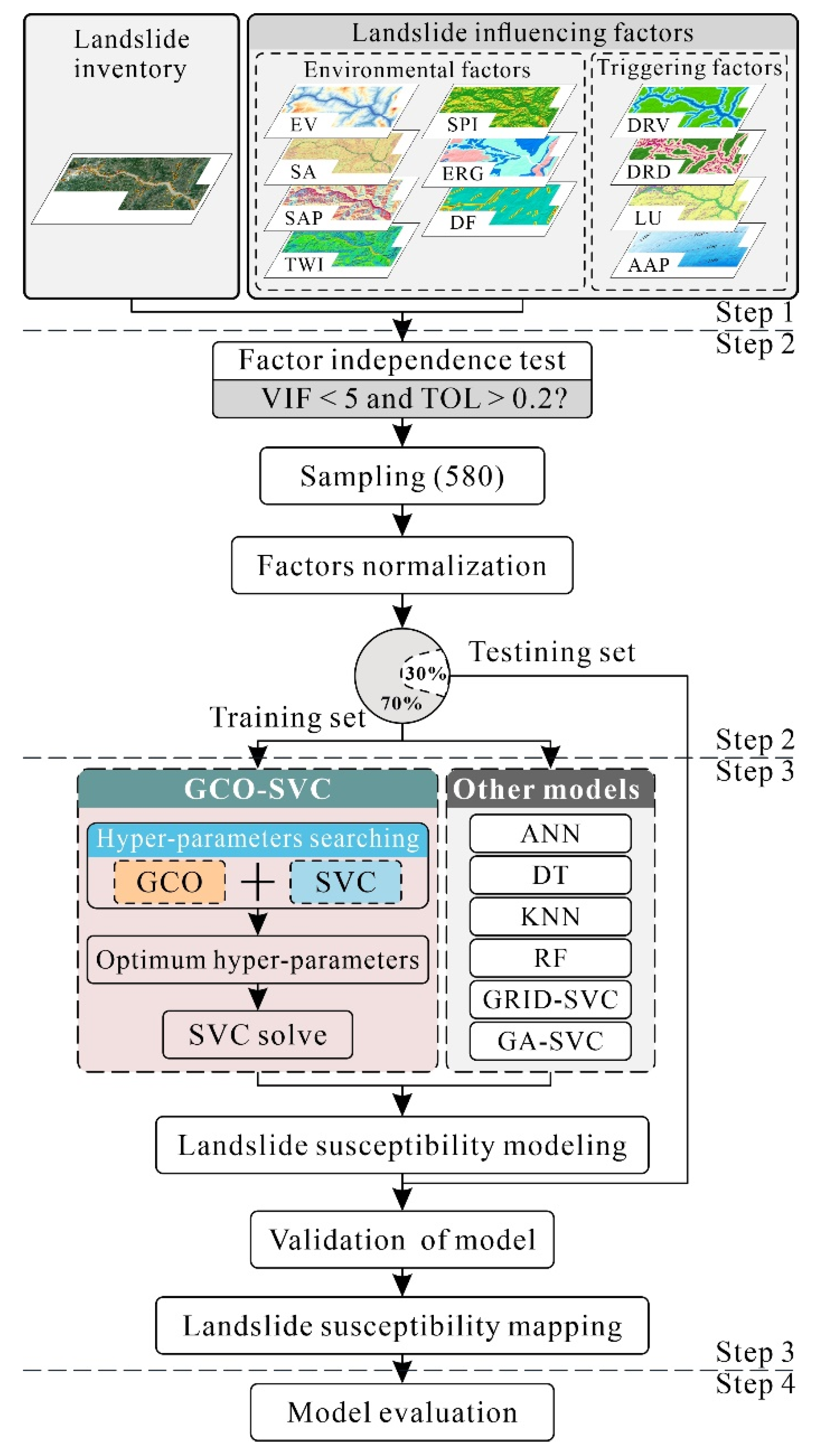

This study consists of four main steps, as shown in Figure 1: (1) data collection, including the landslide inventory map and influencing factors; (2) dataset preparation and landslide influencing factor analysis; (3) spatial prediction modeling of landslides using the proposed GCO-SVC and six other models; and (4) model performance evaluation based on multiple statistical tools.

2.1. Study Area

2.1.1. Description of the Study Area

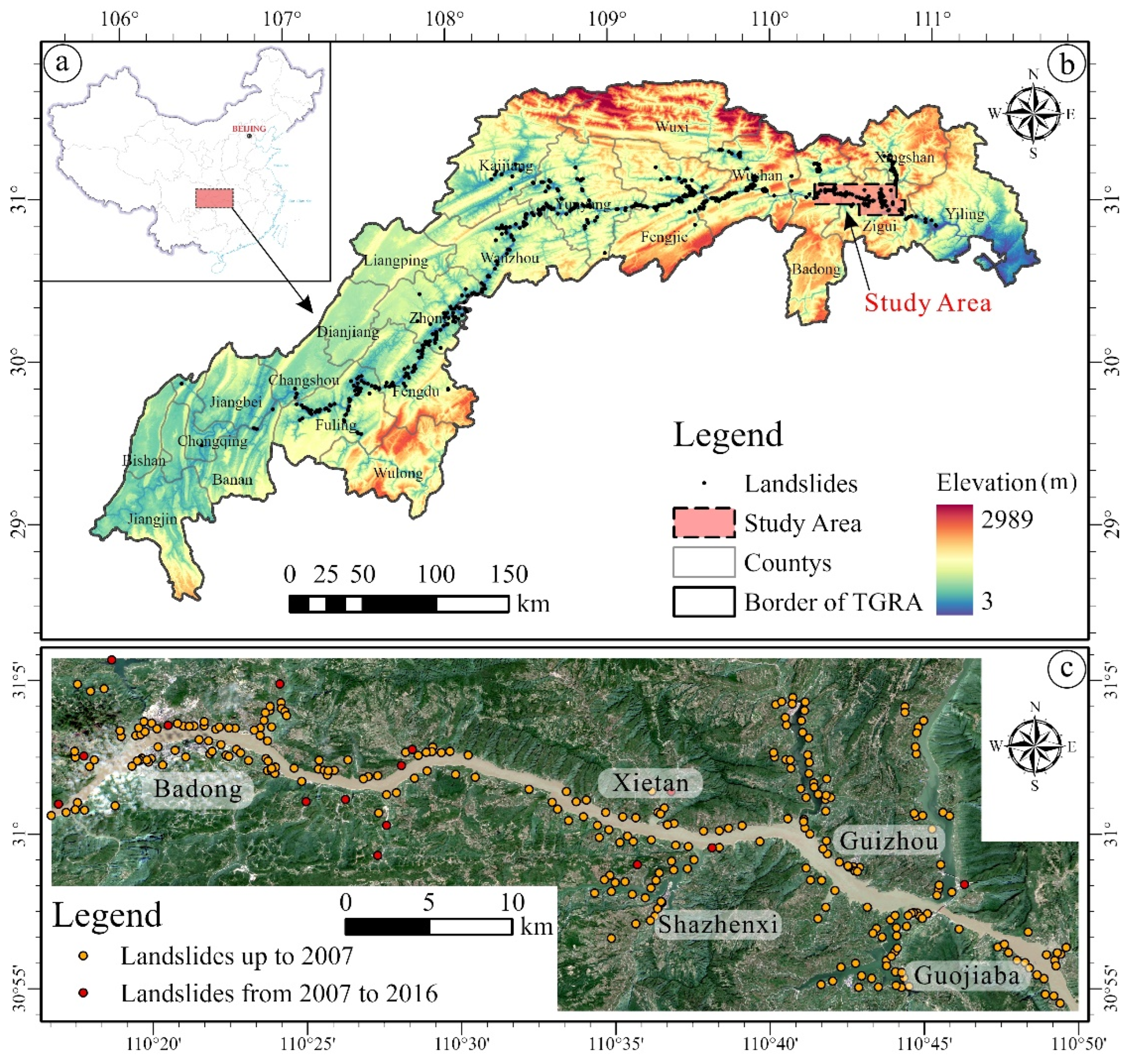

The study area is located in Hubei Province, China. It belongs to the Zigui to Badong basins of the TGRA, within longitudes 110°15′~110°50′ east and latitudes 30°50′~1°6′ north, and the total area is approximately 900 km² (Figure 2). In total, 4256 landslides and rock avalanches with a total volume of roughly 4.24 billion m³ have been found in the TGRA [1]; those in the study area account for 16% of the total. The average annual rainfall is 1100–1200 mm, and most of the precipitation is concentrated from April to September [28]. This study area is a Mesozoic tectonic basin that developed and was shaped in the Late Triassic–Early Jurassic period, and it is mainly composed of Jurassic terrestrial and Middle–Upper Triassic coastal-phase clastic rocks (Figure 3). The primary strata that crop out in this area include the Triassic Jialingjiang (T_1-2j) and Badong (T₂b) formations and the Jurassic Qianfoya (J₂q), Shaximiao (J₂s), and Suining (J₃s) formations.

In recent years, the construction and impoundment of the Three Gorges Dam have led to increased numbers of engineering activities along the Yangtze River in the area, such as urban relocation and reconstruction and road and high-speed railway construction, which have had significant impacts on the engineering geological environment and led to frequent geological hazards in the area. Moreover, the periodic reservoir water level and seasonal rainfall exacerbate the landslide geological hazards in this area [29].

2.1.2. Landslide Inventory

For LSM, the first important step is to acquire the exact locations of landslides that have occurred [30]. The landslide distribution up to 2016 in the study area was obtained by compiling data from field surveys, satellite images, and a literature review, as shown in Figure 2c. The landslide distribution prior to 2007 was provided by the Three Gorges Reservoir Area Geological Disaster Prevention and Control Work Command (TGWC), while the landslides from 2007 to 2016 were determined by the authors based on open-source data [31], Google Maps, and Sentinel-2B images. In 2016, a total of 292 landslides were identified in the study area, with a total area of 32.43 km², accounting for 8.11% of the whole study area, and Quaternary deposit landslides and rock landslides were found to be the main types [32]. For large-scale LSM, landslide inventories are usually compiled with point data to improve mapping efficiency, avoid uncertainty in the description of landslide boundaries, decrease spatial autocorrelation across landslides, and treat landslides of different scales equally [33,34,35].

2.1.3. Influencing Factors

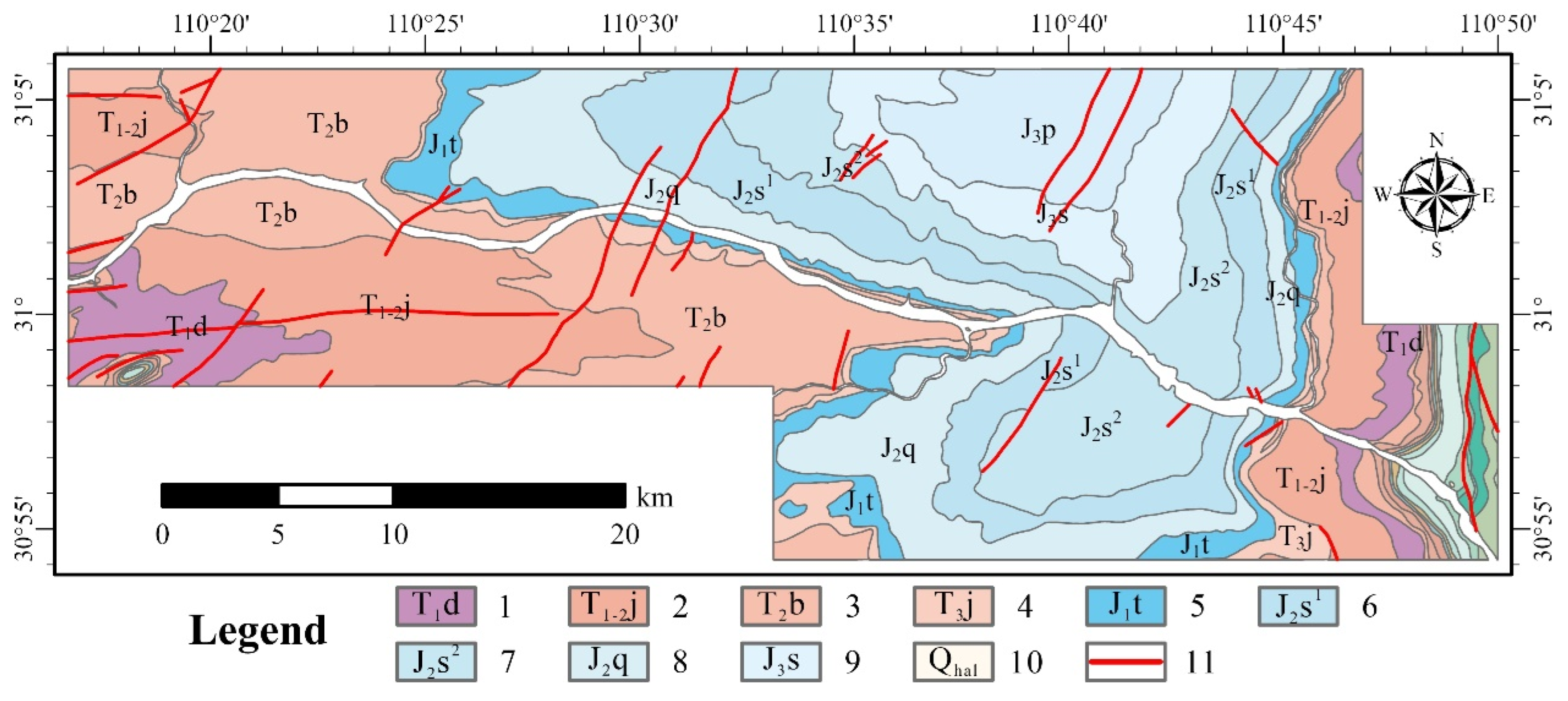

Landslide hazards are usually triggered by a combination of internal geological conditions and external environmental factors. Many previous studies [18,36] in the TGRA have indicated that landslides in this area are primarily influenced by hydrological conditions and human engineering activities, as well as by their own geological conditions. Therefore, a digital elevation model (DEM), geologic map, road network, river network, rainfall monitoring, and land use data were compiled from previous studies [11,32] and field investigations, and their sources and descriptions are provided in

Table 1. Multisource landslide influencing factors.

Data Type	Date	Influencing Factors	Source
DEM (12.5 m)	2011	Elevation (EV) Slope angle (SA) Slope aspect (SAP) Topographic wetness index (TWI) Stream power index (SPI)	ALOS PALSAR
Geologic map (1:200,000)	2013	Engineering rock group (ERG) Distance to faults (DF)	National Geological Archives of China
Road network	2021	Distance to roads (DRD)	OpenStreetMap
River network	2021	Distance to rivers (DRV)	OpenStreetMap
Rainfall monitoring data	2015–2020	Average annual precipitation (AAP)	Hubei Provincial Hydrology and Water Resources Bureau
Land use (10 m)	2017	Land use (LU)	FROM-GLC10 [37]

.

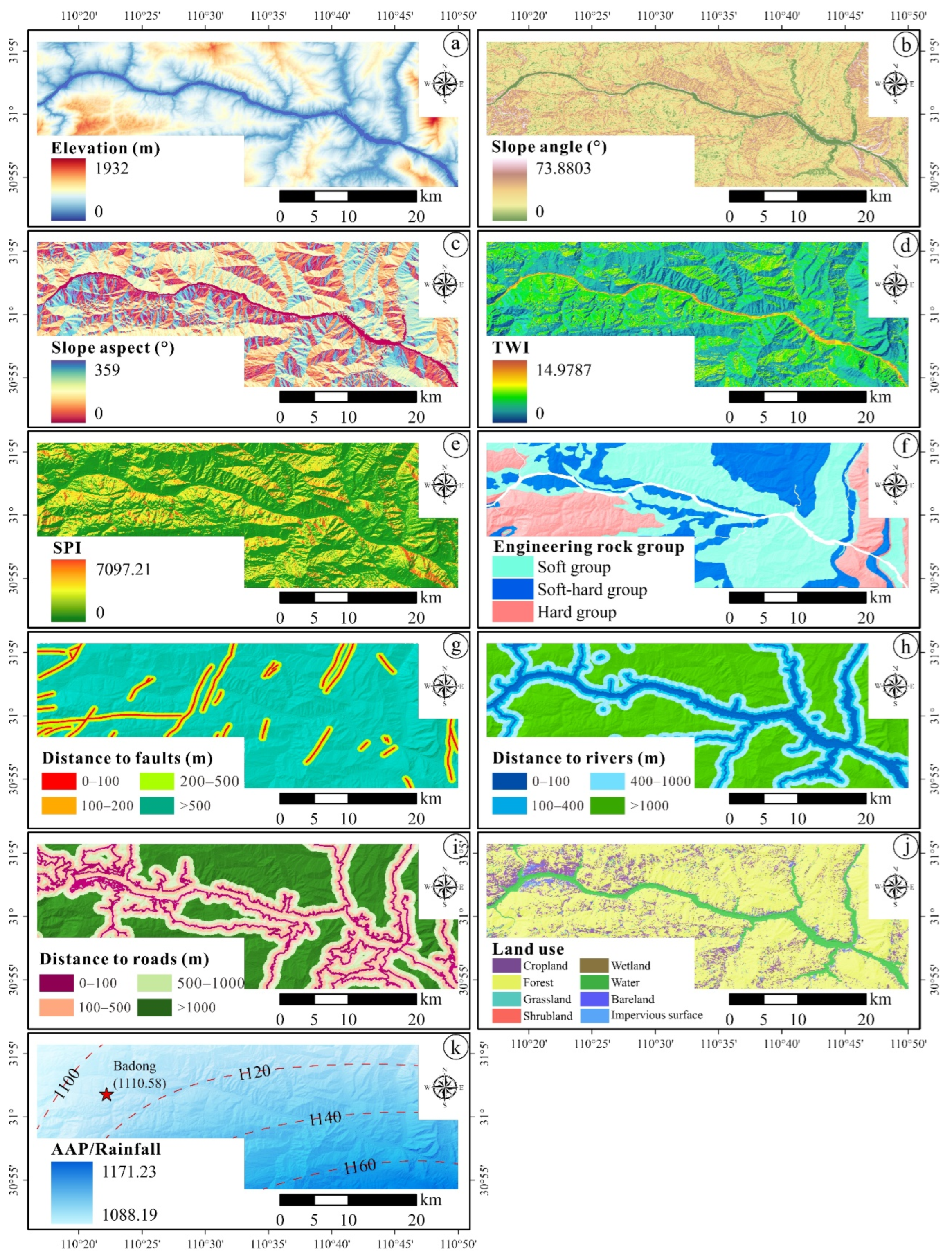

Per the above data sources, 11 influencing factors were extracted for LSM in the study area: elevation (EV), slope angle (SA), slope aspect (SAP), topographic wetness index (TWI), stream power index (SPI), engineering rock group (ERG), distance to faults (DF), distance to roads (DR), distance to rivers (DRV), land use (LU), and average annual precipitation (AAP). Topographic factors such as EV, SA, SAP, TWI, and SPI were acquired from the DEM with a 12.5 m resolution. Regarding the geological factors, ERG was generated by classifying lithologies into 3 classes, soft, soft–hard, and hard, based on their engineering characteristics [32]. Then, DF was calculated using Euclidean distance. Regarding the environmental and human activity factors, DRV and DRD were computed by Euclidean distance; LU was adopted from the FROM-GLS10 dataset with 10 m resolution, released by Tsinghua University; and AAP was determined from the precipitation data of 13 stations near the study area from 2015 to 2020, provided by the Hubei Provincial Bureau of Hydrology (http://113.57.190.228:8001) (accessed on 16 April 2022), using the inverse distance weighted (IDW) interpolation method.

2.2. Preparation of the Training and Test Datasets

According to previous studies, LSM was considered a binary classification task [38], where the mapping units were classified into two categories, landslides (value 1) and nonlandslides (value 0), and the probability distribution of landslide susceptibility ranged from 0 to 1. The choice of mapping units affects LSM; for this study, the most widely used grid cell with 12.5 m resolution was selected based on previous studies [39,40]. To evaluate landslide susceptibility, all 11 influencing factors and the landslide inventory map were converted into raster format with 12.5 m spatial resolution and aligned with the elevation raster, and the influencing factors are shown in Figure 4.

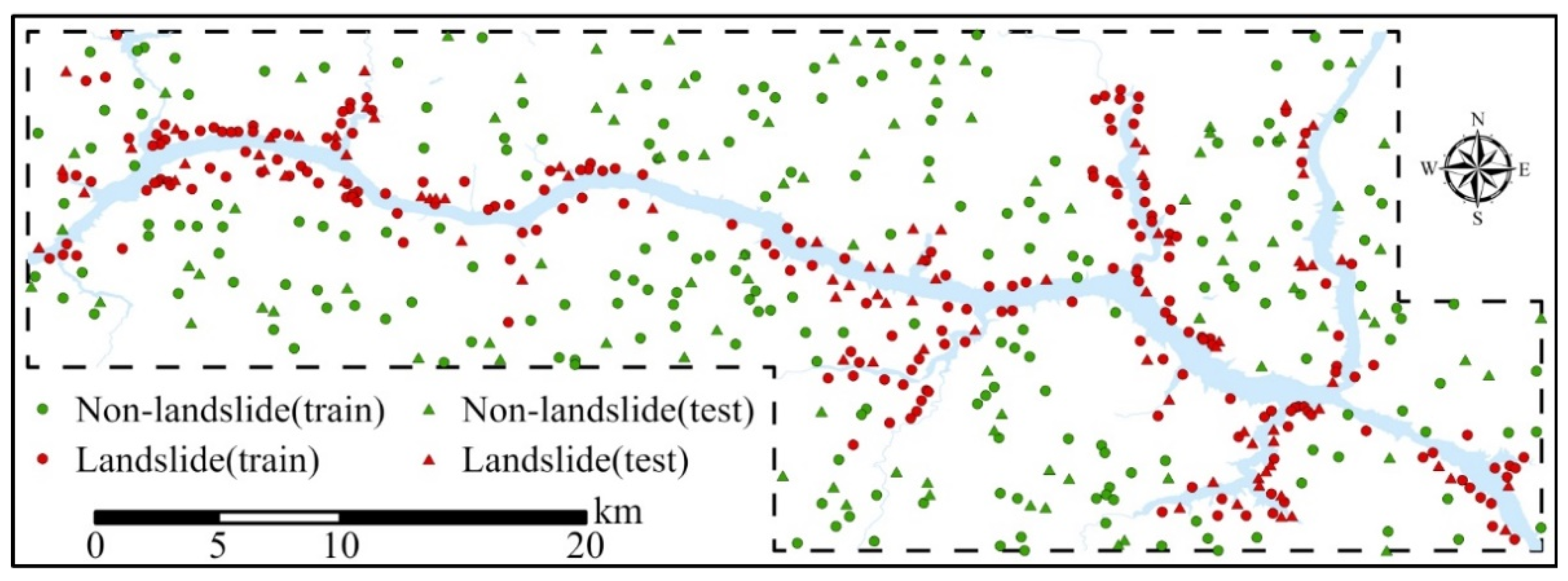

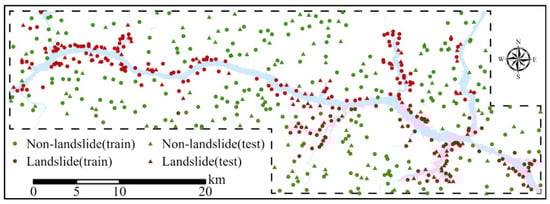

After conversion, a total of 290 landslide grid cells were acquired as the positive samples, and nonlandslide grid cells 50 m away from known landslides were randomly selected as negative samples at a ratio of 1:1 [41,42]. The total dataset with 580 samples was generated by merging the landslide grid cells (labeled as 1) and nonlandslide grid cells (labeled as 0). Since k-fold spatial cross-validation was chosen for model validation, the dataset was then divided randomly into training (70%, 204:202 landslide:nonlandslide samples) and testing (30%, 86:88 landslide:nonlandslide samples) datasets, as shown in Figure 5. Finally, the training and testing datasets were prepared with the corresponding values of the 11 landslide influencing factors [43].

2.3. Analysis of the Factors Influencing Landslides

Past studies have shown that multicollinearity, i.e., the nonindependence of influencing factors that may occur in a dataset, can lead to erroneous LSM [44]. Several methods have been proposed to quantify multicollinearity, such as Pearson’s correlation coefficient analysis [10,45,46], conditional analysis [47], and variance inflation factor (VIF) and tolerance (TOL) methods [5,48,49]. In this study, the most widely used methods, the VIF and TOL methods, were employed to identify multicollinearity among the influencing factors. VIF refers to the ratio of the variance between influencing factors in the presence of multicollinearity and in the absence of multicollinearity, and TOL is the inverse of VIF, which reflects the degree of increase in variance induced by multicollinearity. Generally, a VIF value greater than 5 or a TOL value less than 0.2 is considered to indicate strong multicollinearity between the influencing factors, which is regarded as unacceptable for analysis [18,24]. For Pearson’s correlation coefficient, values larger than 0.7 indicate high collinearity between influencing factors [50].

2.4. Landslide Susceptibility Models

In this study, a new LSM model named GCO-SVC was proposed, and six other popular models were selected for comparison: ANN, DT, KNN, RF, GRID-SVC, and GA-SVC models. All analyses were carried out using Python 3.6.9, scikit-learn 1.1.1, and ArcGIS Pro 2.9 in Windows 10 Pro 21H1 with an AMD Ryzen 7 5800H processor running at 3.2 GHz and 64 G RAM.

2.4.1. GCO-SVC

(1)

SVC

SVC is a popular classification algorithm based on Vapnik’s statistical learning theory, which minimizes a bound on a generalized risk based on the structural risk minimization principle [51,52,53]. SVC has been extensively applied to landslide susceptibility modeling, and its predictive ability has been demonstrated in numerous studies to be higher than that of other traditional methods [38,54]. However, the performance of an SVC model is heavily influenced by various hyperparameters, such as the penalty term ($C$), the kernel function, and its parameters.

$$\min \frac{1}{2}{\left|\left|w\right|\right|}^2+C{\displaystyle \sum }_{i=1 }^n{\zeta }_i$$

(1)

$$\mathrm{subject}\mathrm{to} y_i\left[\left(w{x}_i\right)+b\right]\ge 1-{\zeta }_i, i=1,\dots ,n$$

(2)

where $\left|\left|w\right|\right|$ is the normal constant of the hyperplane and $b$ is a scalar basis.

For the penalty term ($C$), the larger the value is, the more severe is the penalty of the model for misclassification, but the model tends to be overfitted; the smaller the value is, the lighter is the penalty of the model for misclassification, but the model tends to be underfitted. Thus, a suitable penalty term ($C$) is crucial for an SVC model. The SVC kernels include linear, polynomial (poly), Gaussian (RBF), and sigmoid types; their formulas and kernel parameters are shown in

Table 2. Kernels of the SVC model and their parameters.

Kernel Name	Kernel Function	Kernel Parameters
linear	$\langle x,x^{\prime }\rangle$	None
poly	${\left(\gamma \langle x,x^{\prime }\rangle +r\right)}^d$	$d,\gamma ,r$
RBF	$\exp \left(-\gamma {\left|\left|x-x^{\prime }\right|\right|}^2\right)$	$\gamma$
sigmoid	$\tan \mathrm{h}\left(\gamma \langle x,x^{\prime }\rangle +r\right)$	$\gamma ,r$

. $\gamma$ is the gamma term for all kernel types except linear, $d$ is the polynomial degree term for the poly kernel, and $r$ is the bias term in the poly and sigmoid kernels, which is usually ignored and set to the default value of 0 [55,56]. Among these four kernel functions, RBF usually provides better predictive performance in nonlinear classification for LSM than the other kernel functions [57,58]. Thus, in this study, the RBF kernel was employed for the SVC model to produce the LSM, and the hyperparameters for the RBF-SVC were the penalty term ($C$) and the gamma term ($\gamma$).

(2)

GCO

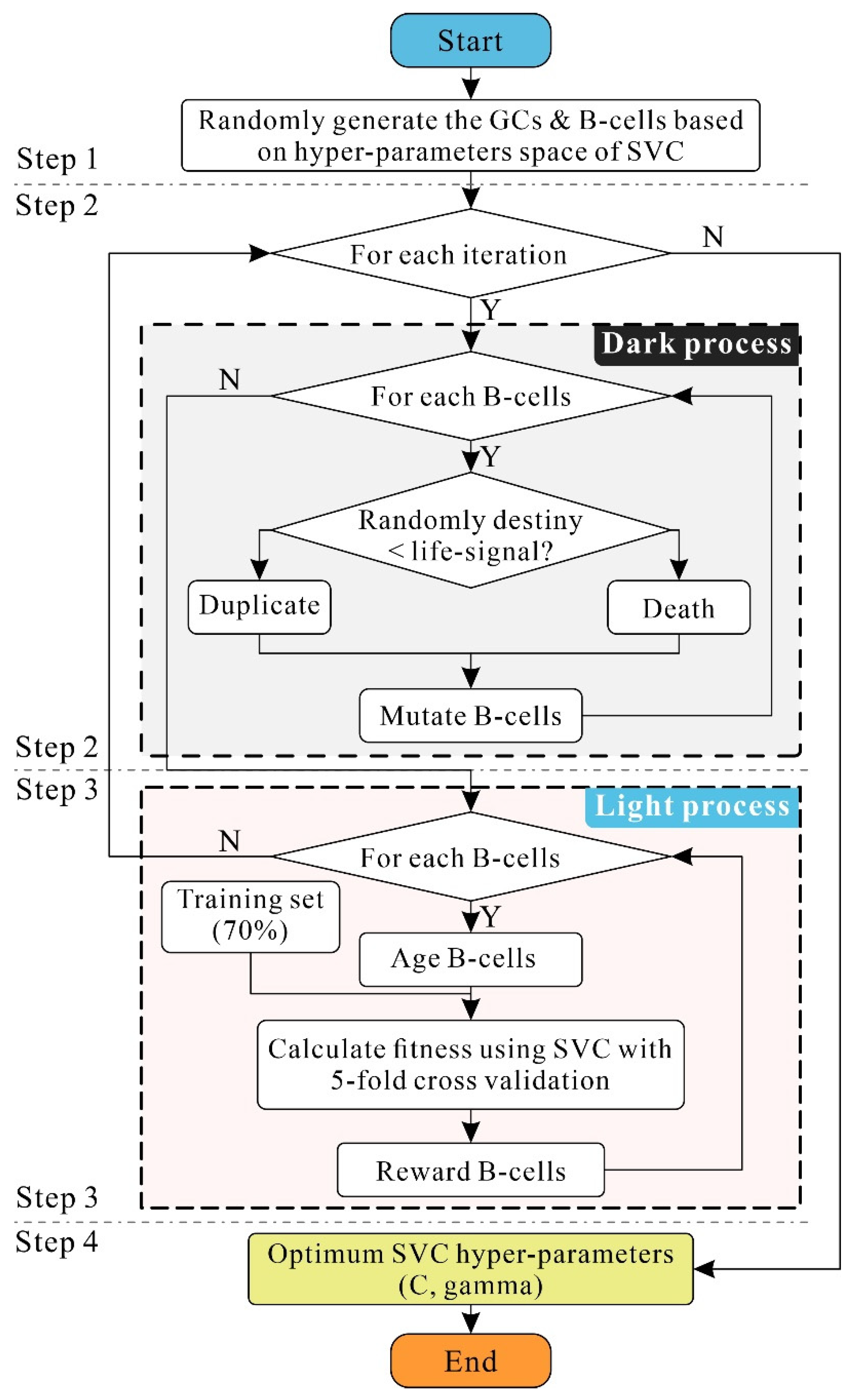

GCO is a new metaheuristic optimization algorithm proposed by Villaseñor; it is a novel multivariate continuous optimization algorithm inspired by the germinal center (GC) reaction [59]. The GCs, where B lymphocytes (B cells) and other immune cells are bounded by inactive B cells that form in the presence of an infection, can be divided into two zones: a dark zone, where clonal expansion occurs and somatic cells are located, and a light zone, where competition for Ag internalization and helper T-cell binding occurs [60]. In this study, GCO was employed to search for the optimal hyperparameters (C and gamma) for the RBF-SVC model, which comprised 4 steps, initialization, dark-zone processing, light-zone processing, and postprocessing, as shown in the flowchart in Figure 6.

Step 1: Initialization. A population of B cells with a total number $N$ is initialized, and every B cell $B_i$ stores a candidate solution that is randomly initialized in the hyperparameter space. Additionally, each B cell has a cell counter $B_{i}c$ with an initial value of 0 and a life signal $B_i\epsilon$ with an initial value of 70, which means that the cell has a 70% chance of duplication and a 30% chance of death. Importantly, $B_{i}C$ and $B_i\epsilon$ will change and influence the evolution throughout the life of GCO.

Step 2: Dark-zone processing. The dark-zone process is the first part of each iteration, which is responsible for the life management and mutation of B cells. First, for each B cell $B_i$, a random number with a uniform range from 0 to 100 is generated and compared with the life signal $B_i\epsilon$ to decide the destiny of the B cell: duplication or death. Duplication means adding one to $B_{i}c$, while death is the reverse. Then, a mutated B cell is generated by mutation, which is performed using modified differential evolution (DE)-like mutation process. The key parameters of the mutation are $cr$ and $wf$; the first parameter controls the difficulty of mutation and ranges from 0 to 1, and the second parameter is the coefficient of mutation. The global best solution of each iteration is recorded during the mutation.

Step 3: Light-zone processing. The light-zone process is the second part of each iteration after the mutation of each B cell, which manages the fitness calculation, aging, and reward of each B cell. First, each B cell is aged by resetting its life signal to 10. Second, for each B cell $B_i$, the parameters C and gamma inside it are used for the construction of the RBF-SVC model, and the fitness of $B_i$ is calculated using 5-fold cross-validation on the training set. Then, the $fi{t}_i$ of each B cell is obtained based on Equation (3). Third, each B cell is rewarded by adding $10\ast fi{t}_i$ to its life signal $B_i\epsilon$.

$$fi{t}_i=\{\begin{array}{c}\frac{f\left(B_i\right)-\max f\left(B_k\right)}{\min f\left(B_k\right)-\max f\left(B_k\right)} \mathrm{for}\mathrm{minimum}\\ \frac{\min f\left(B_k\right)-f\left(B_i\right)}{\min f\left(B_k\right)-\max f\left(B_k\right)} \mathrm{for}\mathrm{maximum}\end{array}$$

(3)

Step 4: Postprocessing. Steps 2 and 3 are looped until the end of all iterations to obtain the optimum hyperparameters ($C$ and $\gamma$) of the RBF-SVC model by decoding the global best solution.

(3)

Implementation of the GCO-SVC model

The hyperparameter space of RBF-SVC includes $C$ and $\gamma$, both of which range from ${10}^{-3}$ to ${10}^4$. The optimum hyperparameters were obtained using the above GCO algorithm, and then the SVC model for LSM was constructed with the best C and $\gamma$ and trained using the training set acquired in Section 2.2. Thus, the whole process described above was named GCO-SVC to complete the LSM of the study area, and the hyperparameter search space of the GCO-SVC model is listed in

Table 3. Hyperparameter search spaces of the models.

Model	Parameters	Search Space
ANN	Neurons in hidden layer	$Linspace \left(10, 200, 10\right)$
	$\mathrm{L}2\mathrm{penalty}\mathrm{parameter}(\alpha$)	$Logspace \left(-10,-1, 10\right)$
DT	Max depth	$Linspace \left(1, 10, 10\right)$
	Min sample leaf	$Linspace \left(1, 10\right)$
KNN	N neighbors	$Linspace \left(3, 50\right)$
	Weight	$\left[uniform, distance\right]$
	Distance	$\left[Manhattan, Euclidean\right]$
RF	Number of estimators	$Linspace \left(10, 200, 20\right)$
	Criterion	$\left[gini, entropy\right]$
GRID-SVC	Kernel	$\left[linear, polynomial,RBF,sigmoid\right]$
	C	$\left[{10}^{-3}, {10}^4\right)$
	$\gamma$	$\left[{10}^{-3}, {10}^4\right)$
GA-SVC	Kernel	$\left[linear, polynomial,RBF,sigmoid\right]$
	C	$\left[{10}^{-3}, {10}^4\right)$
	$\gamma$	$\left[{10}^{-3}, {10}^4\right)$
GCO-SVC	Kernel	$\left[linear, polynomial,RBF,sigmoid\right]$
	C	$\left[{10}^{-3}, {10}^4\right)$
	$\gamma$	$\left[{10}^{-3}, {10}^4\right)$

.

2.4.2. Models for Comparison

For a comparison study, six popular models for LSM, ANN [6,7], DT [12,13], KNN [15,16], RF [10,11], GRID-SVC [10,58], and GA-SVC [25], were selected in this study. The base versions of the above models require hyperparameter optimization, where ANN, DT, KNN, RF, and GRID-SVC use grid search coupled with 5-fold cross-validation, and GA-SVC uses a GA combined with 5-fold cross-validation. Since these models are very mature and widely validated, their principles are described only briefly here, and the hyperparametric optimization space of each model is shown in Table 3.

(1)

ANN

The ANN model is a widely used model for LSM and has great nonlinear mapping capability and strong generalization ability [61]. An ANN generally consists of an input layer, an output layer, and one or more hidden layers, and each layer contains several neurons, which are the basic units of the model. The nodes of the input layer correspond to the landslide influencing factors in turn, and the nodes in the output layer respond to the probability of landslide susceptibility. The hidden layers are the bridge between the input and output layers and typically contain one or multiple layers. Based on previous studies, an ANN containing an input layer, an output layer, and a hidden layer was constructed for comparison in this study, and its hyperparameter space focused on the number of hidden layers and the L2 penalty parameter $\alpha$. The other parameters were set as the default values: “relu” as the activation function, stochastic gradient-based optimizer as the solver, 500 as maximum iterations, and ${10}^{-4}$ as the tolerance of the optimization.

(2)

DT

The DT model is a nonparametric supervised deep learning model and has been applied successfully for LSM [12,62,63]. It is built to find a set of decision rules to predict landslide susceptibility according to landslide influencing factors. Various DT algorithms have been developed, such as ID3 [64], C4.5 [65], C5.0 [66], and CART [67,68]. CART builds binary trees with features and thresholds that yield maximum information gain at each node; CART was selected for the comparison study. The main hyperparameters for the DT model are the maximum depth of the decision tree and the minimum number of samples, and the search space is listed in Table 3.

(3)

KNN

The KNN algorithm is a traditional nonparametric supervised statistics method that was proposed in the 1960s [69]. The principle of KNN is simplicity: a sample belongs to the category if the majority of the K most similar or most neighboring samples in the feature space fall into that category as well. Due to the simplicity and intuitiveness of the principle and its good performance, it has been widely used in various classification studies, including LSM [10,15,70]. Regarding the hyperparameters of KNN, “N neighbors” is the number of neighbors to use by default for k-neighbor queries; weight functions are used in prediction, including “uniform”, in which all neighborhoods are weighed equally, and “distance”, in which weight points are given by the inverse of their distance; the “distance function” includes two types: $Manhattan$ and $Euclidean$ distance.

(4)

RF

RF is a meta-estimator that resumes multiple independent decision trees at different sample sizes by random sampling and uses averaging to combine multiple decision trees for classification to improve prediction accuracy and control overfitting [11,71]. The RF model is simple to implement and is faster to train and less prone to overfitting than other models, and it can date the impact between each feature [10,72]. For the construction of the RF model, “Number of estimators” is the total number of decision trees, and “Criterion” is the function used to measure the quality of a split.

(5)

GRID-SVC

To perform a comprehensive analysis, a grid search with the 5-fold cross-validation method is applied to the SVC hyperparameter search, and the model is labeled GRID-SVC. This model uses the same core SVC model and hyperparametric search space as the GCO-SVC model, differing only in the search method.

(6)

GA-SVC

The GA is a computational model of biological evolution that simulates the natural selection and genetic mechanism of Darwinian evolution and is used to search for the optimal solution by simulating a natural evolutionary process [25,73]. GA has been heavily applied to hyperparameter optimization for SVC in past studies, and it is a metaheuristic algorithm like GCO. Thus, the GA is employed to optimize the hyperparameters of the SVC model in the same search space as the GCO-SVC model, and the model is named GA-SVC.

2.5. Model Evaluation Criteria

The LSM problem is generally considered a binary classification problem that is positive for landslide units and negative for nonlandslide units, and the probability that the unit is positive is considered its susceptibility, which ranges from 0 to 1. Four metrics were utilized for model evaluation: accuracy, F₁ score, Log loss, and AUC. Accuracy represents the classification accuracy of a model and is given by:

$$\mathrm{Accuracy}=\frac{TP+TN}{TP+TN+FP+FN}$$

(4)

where TP is the true-positive prediction, TN is the true-negative prediction, FP is the false-positive prediction, and FN is the false-negative prediction.

The F₁ score is another widely used accuracy metric; it is considered a harmonic mean of model accuracy and recall and is given by:

$${\mathrm{F}}_1\mathrm{score}=\frac{2TP}{2TP+FP+FN}$$

(5)

Logarithmic loss (Log loss) represents the closeness of the predicted probability to the corresponding true value. The larger the deviation of the predicted probability from the true value, the higher the Log loss. The Log loss can be calculated using:

$$\mathrm{Log}\mathrm{loss}=-\frac{1}{N}{\displaystyle \sum }_{i=1}^N{y}_i\log \left(p\left(y_i=1\right)\right)+\left(1-y_i\right)p\left(y_i=0\right)$$

(6)

where N is the total number of samples, $y_i$ is the true label of the $i\mathrm{th}$ sample, $p\left(y_i=0\right)$ is the probability of the predicted label of the $i\mathrm{th}$ sample being 0, and $p\left(y_i=1\right)$ is the probability of the predicted label of the $i\mathrm{th}$ sample being 1.

The receiver operating characteristic (ROC) curve is a graph showing the performance of a classification model at all classification thresholds. It is plotted by the true-positive rate (TPR, given by $TP/\left(TP+FN\right)$) against the false-positive rate (FPR, given by $FP/\left(TN+FP\right)$) at different thresholds. Then, the area under the ROC curve (AUC) can be calculated, which provides a comprehensive evaluation of performance for all probability classification thresholds.

To assess the statistical significance of systematic pairwise differences among the seven landslide models, the Wilcoxon signed-rank test was employed. Its results contain two values, $p$ and $z$, that describe the difference between the models. For a pair of models, if $p$ is below the 0.05 significance level and z exceeds the critical range (−1.96 to +1.96), their performance can be considered different [38,43].

Finally, to evaluate the contributions of different landslide influencing factors to the models, permutation feature importance (PFI) was calculated, which is defined as the reduction of the model score when a single feature value is randomly shuffled [74]. The importance of the influencing factor is obtained by averaging the reduction of the model output scores that are calculated by shuffling the influencing factor N times. In this study, Log loss was selected as the score function of the models for calculating the PFI, and the number of times a feature is randomly shuffled was set at 30.

3. Results

3.1. Influencing Factor Analysis

VIF analysis was employed for the multicollinearity analysis of the landslide influencing factors, and the results are shown in

Table 4. Multicollinearity analysis of the landslide influencing factors.

	EV	SA	SAP	TWI	SPI	ERG	DF	DRD	DRV	AAP	LU
VIF	2.884	1.942	1.123	2.16	2.066	1.393	1.104	1.781	2.976	1.123	1.247
TOL	0.347	0.515	0.89	0.463	0.484	0.718	0.906	0.561	0.336	0.891	0.802

. The influencing factor with the largest VIF value, 2.976, was DRV, and that with the smallest value, 1.104, was DF. None of the influencing factors had a VIF value greater than 5 or a TOL smaller than 0.2, indicating a lack of significant multicollinearity [18,75]. Thus, all the landslide influencing factors were taken into account for LSM.

3.2. Optimal Hyperparameters

In this study, all seven models were optimized using grid search or metaheuristic algorithms with hyperparameter search spaces (listed in Table 3), as described in Section 2.4. The optimum hyperparameters and the corresponding best score obtained after the optimization of the seven models are listed in

Table 5. The optimal hyperparameters of the seven models.

Model	Parameter Settings	Optimal Hyperparameters	Best Score
ANN	$MaxIterations=500$ $Solver=“lbfgs”$	$HiddenLayerSize=70$ $\alpha =0.1$	0.434876
DT	$Criterion=“gini”$ $Splitter=“best”$	$MaxDepth=2$ $MinSamplesLeaf=1$	0.324234
KNN	$Algorithm=“auto”$ $LeafSize=30$	$nNeighbors=23$ $Weights=“distance”$ $Distance=“Manhattan”$	0.290551
RF	$MaxDepth=None$ $MinSamplesSplit=2$ $MinSamplesLeaf=1$	$nEstimators=135$ $Criterion=“gini”$ $MaxFeatures=“log2”$	0.238102
GRID-SVC	$Coef0=0$ $Tol=0.0001$ $MaxIterations=-1$	$C=1.0$ $\gamma =0.1$ $Kernel=“rbf”$	0.243250
GA-SVC	$Coef0=0$ $Tol=0.0001$ $MaxIterations=-1$ $Epoch=100$ $Population=100$ $cp=0.95$ $mp=0.025$	$C=0.46565951$ $\gamma =0.15258858$ $Kernel=“rbf”$	0.232593
GCO-SVC	$Coef0=0$ $Tol=0.0001$ $MaxIterations=-1$ $Epoch=100$ $Population=100$ $cr=0.70$ $wf=1.25$	$C=0.64040679$ $\gamma =0.19201292$ $Kernel=“rbf”$	0.231471

, together with other parameter settings of each model. The results show that the GCO-SVC model achieved the best score (0.231471), followed by the GA-SVC (0.232593), RF (0.238102), GRID-SVC (0.243250), KNN (0.290551), DT (0.324234), and ANN (0.434876) models. Comparison of the grid search optimized models (ANN, DT, KNN, and GRID-SVC) with the metaheuristic algorithm optimized models (GA-SVC and GCO-SVC) revealed that the best scores of the latter models were less than 0.235, while those of the former models were greater than 0.235. Thus, the models optimized by the metaheuristic algorithms performed better than the models optimized by the grid search algorithm.

3.3. Model Performance Comparison

The optimal hyperparameters and training set were applied for model construction and training, and the testing set with 174 samples was used for model evaluation. Then, the performance metrics of the seven models on the training and testing sets were acquired.

Table 6. Model performance on the training and testing sets.

Dataset	Metric	ANN	DT	KNN	RF	GRID-SVC	GA-SVC	GCO-SVC
Training	Accuracy	1.0000	0.8966	1.0000	1.0000	0.9409	0.9384	0.9532
	F1 score	1.0000	0.8981	1.0000	1.0000	0.9420	0.9400	0.9538
	Log loss	0.0000	3.5730	0.0000	0.0000	2.0417	2.1268	1.6164
	AUC	1.0000	0.8965	1.0000	1.0000	0.9408	0.9382	0.9532
Testing	Accuracy	0.9080	0.8908	0.8966	0.9080	0.9195	0.9368	0.9425
	F1 score	0.9036	0.8914	0.8989	0.9080	0.9186	0.9364	0.9412
	Log loss	3.1760	3.7715	3.5730	3.1760	2.7790	2.1835	1.9850
	AUC	0.9075	0.8914	0.8976	0.9085	0.9198	0.9371	0.9425

lists the accuracy, F₁ score, Log loss, and AUC values of the seven models on the training and testing sets. The GCO-SVC model achieved the best scores of all four metrics: an accuracy of 0.9425, an F₁ score of 0.9412, a Log loss of 1.9850, and an AUC of 0.9425. The performance of GCO-SVC was consistent between the training and testing sets, which indicates that the model has a strong generalization ability without overfitting or underfitting. The other two SVC-based models, GA-SVC (AUC = 0.9371) and GRID-SVC (AUC = 0.9198), followed in second and third place, respectively, with slightly lower performance and good generalization. The performance of ANN, KNN, and RF on the training set was perfect, each yielding an accuracy of 1, an F1 score of 1, a Log loss of 0, and an AUC of 1, but they did not achieve corresponding performance on the testing set (accuracy, F₁ score, and AUC less than 0.91 and Log loss > 3.1), which revealed overfitting. The DT model exhibited the poorest performance among the models on both the training set and the testing set, with the poorest scores for all metrics. Its performance was consistent between the two sets, which demonstrated the absence of overfitting or underfitting by DT. The ROC curves of the seven models based on the testing set are shown in Figure 7a.

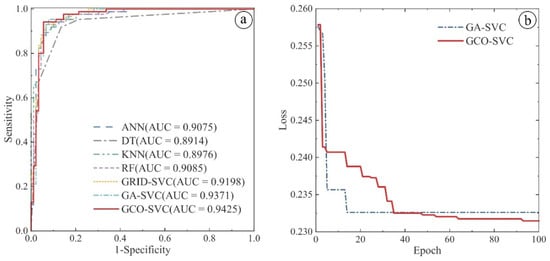

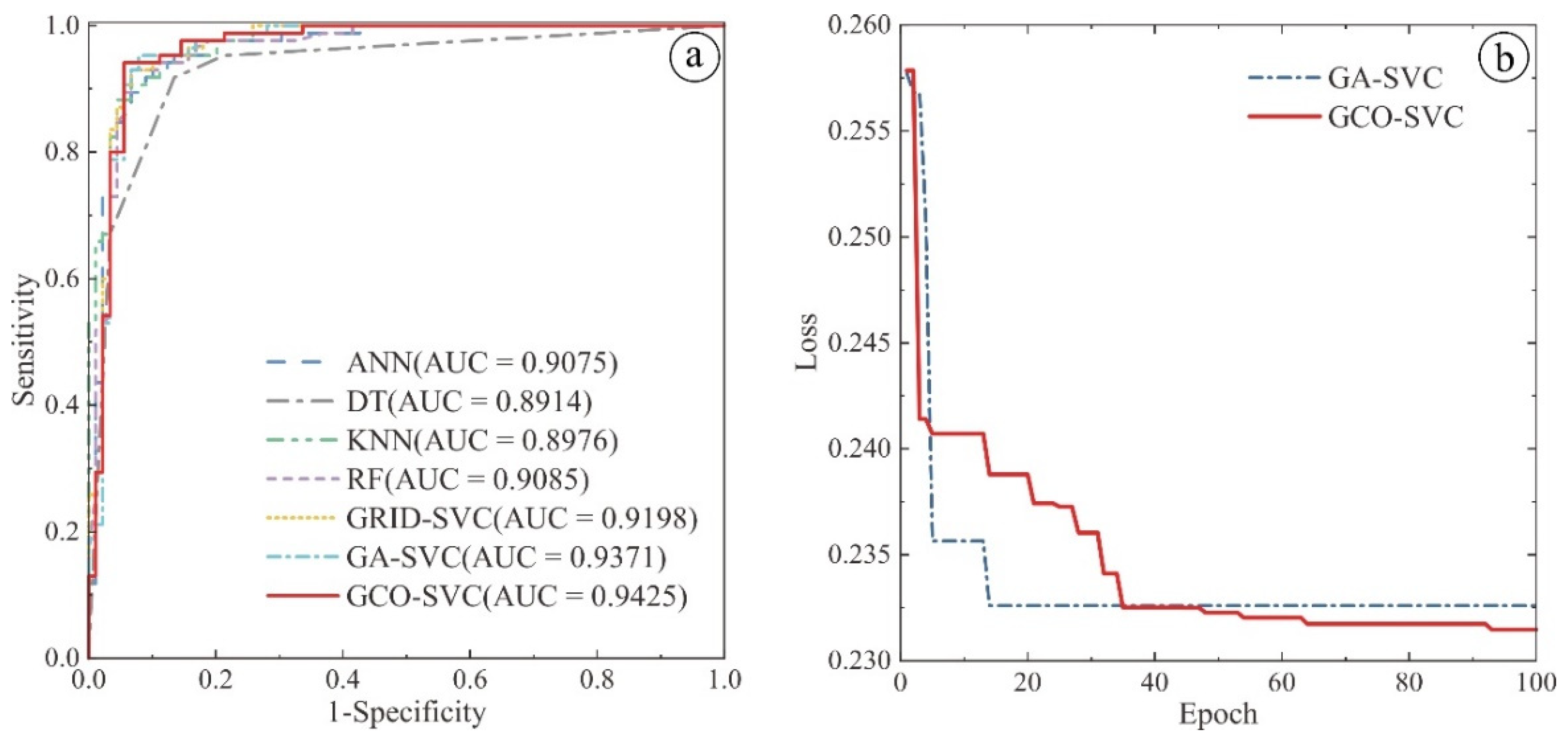

To evaluate the convergence of the GCO-SVC model, the same metaheuristic-based GA-SVC model was employed for the comparison of the convergence curves, as shown in Figure 7b. As evident from Table 5, GCO-SVC and GA-SVC have almost the same parameter settings for hyperparameter optimization, including the parameters of the optimization algorithm (epoch, population) and the default parameters of SVC (such as tolerance and max iterations), and they have the same hyperparameter search space. The convergence curves in Figure 7b show that compared to GA-SVC, GCO-SVC converged faster initially and slower in the middle, but it continued to converge throughout the process, finally obtaining a lower loss than GA-SVC at the end of the iteration. In summary, GCO-SVC offered better performance than GA-SVC and powerful continuous optimization but may require many iterations.

In the pairwise model comparison, GCO-SVC was compared with the other six models using the Wilcoxon signed-rank test, and the results are shown in

Table 7. Pairwise comparison results for the seven models using the Wilcoxon signed-rank test (two-tailed).

Pairwise Comparison	$\mathit{z}$ Value	$\mathit{p}$ Value	Significance
GCO-SVC vs. ANN	333.56	0.00	Yes
GCO-SVC vs. DT	−160.03	0.00	Yes
GCO-SVC vs. KNN	−515.59	0.00	Yes
GCO-SVC vs. RF	−8.67	0.00	Yes
GCO-SVC vs. GRID-SVC	81.97	0.00	Yes
GCO-SVC vs. GA-SVC	333.79	0.00	Yes

. The performance of the GCO-SVC model was significantly different from that of the other six models, with all the $p$ values being lower than 0.05 and all $z$ values exceeding the critical range (−1.96 to +1.96).

3.4. Landslide Susceptibility Maps

Seven trained models using the optimal hyperparameters and training set were constructed to predict the landslide susceptibility indices for all the mapping units in the study area. Then, all the mapping units were divided into five susceptibility levels: very low (0.0 to 0.1), low (0.1 to 0.3), moderate (0.3 to 0.5), high (0.5 to 0.8), and very high (0.8 to 1.0). Finally, seven landslide susceptibility maps were produced from the ANN, DT, KNN, RF, GRID-SVC, GA-SVC, and GCO-SVC models, as shown in Figure 8, and the statistical analysis results for the landslide distribution at different susceptibility levels are listed in

Table 8. Density analysis of landslide susceptibility maps of the different models.

Model	Susceptibility Level	Pixels in Domain (A)	Pixels in Landslide (B)	Percentage of Domain to Total Domain (C)	Percentage of Landslide to Total Landslide (D)	Frequency Ratio (D/C)
ANN	Very Low	1,006,570	3222	78.19%	9.55%	0.1221
	Low	44,610	1058	3.47%	3.13%	0.9046
	Moderate	24,966	791	1.94%	2.34%	1.2084
	High	37,504	1655	2.91%	4.90%	1.6831
	Very High	173,619	27,025	13.49%	80.07%	5.9368
DT	Very Low	1,012,900	4911	78.69%	14.55%	0.1849
	Low	0	0	0.00%	0.00%	0.0000
	Moderate	73,691	3325	5.72%	9.85%	1.7209
	High	101,856	8683	7.91%	25.73%	3.2514
	Very High	98,822	16,832	7.68%	49.87%	6.4963
KNN	Very Low	653,424	81	50.76%	0.24%	0.0047
	Low	207,630	726	16.13%	2.15%	0.1334
	Moderate	131,899	1627	10.25%	4.82%	0.4705
	High	172,609	8254	13.41%	24.46%	1.8238
	Very High	121,707	23,063	9.45%	68.33%	7.2274
RF	Very Low	819,929	1128	63.70%	3.34%	0.0525
	Low	201,461	2420	15.65%	7.17%	0.4581
	Moderate	88,133	3010	6.85%	8.92%	1.3026
	High	75,989	5944	5.90%	17.61%	2.9834
	Very High	101,757	21,215	7.90%	62.86%	7.9517
GRID-SVC	Very Low	900,588	1185	69.96%	3.51%	0.0502
	Low	116,040	1650	9.01%	4.89%	0.5423
	Moderate	58,303	1809	4.53%	5.36%	1.1834
	High	79,551	4440	6.18%	13.16%	2.1287
	Very High	132,787	24,667	10.32%	73.09%	7.0851
GA-SVC	Very Low	919,184	1337	71.41%	3.96%	0.0555
	Low	101,455	1492	7.88%	4.42%	0.5609
	Moderate	53,742	1652	4.17%	4.89%	1.1724
	High	73,138	4103	5.68%	12.16%	2.1396
	Very High	139,750	25,167	10.86%	74.57%	6.8685
GCO-SVC	Very Low	918,028	1331	71.32%	3.94%	0.0553
	Low	106,417	1498	8.27%	4.44%	0.5369
	Moderate	51,981	1638	4.04%	4.85%	1.2019
	High	69,348	4044	5.39%	11.98%	2.2241
	Very High	141,495	25,240	10.99%	74.78%	6.8035

.

Table 8 shows that the very high and high susceptibility levels accounted for 16.40%, 15.59%, 22.86%, 13.81%, 16.50%, 16.54%, and 16.38%; the moderate levels accounted for 1.94%, 5.72%, 10.25%, 6.85%, 4.53%, 4.17%, and 4.04%; and the very low and low susceptibility levels accounted for 81.66%, 78.69%, 66.89%, 79.35%, 78.98%, 79.29%, and 79.58% of the total area for ANN, DT, KNN, RF, GRID-SVC, GA-SVC and GCO-SVC, respectively. KNN obtained the highest percentage of very high- and high-susceptibility units to total landslides (92.79%), followed by GCO-SVC (86.76%), GA-SVC (86.72%), GRID-SVC (86.24%), ANN (84.98%), RF (80.47%), and DT (75.60%).

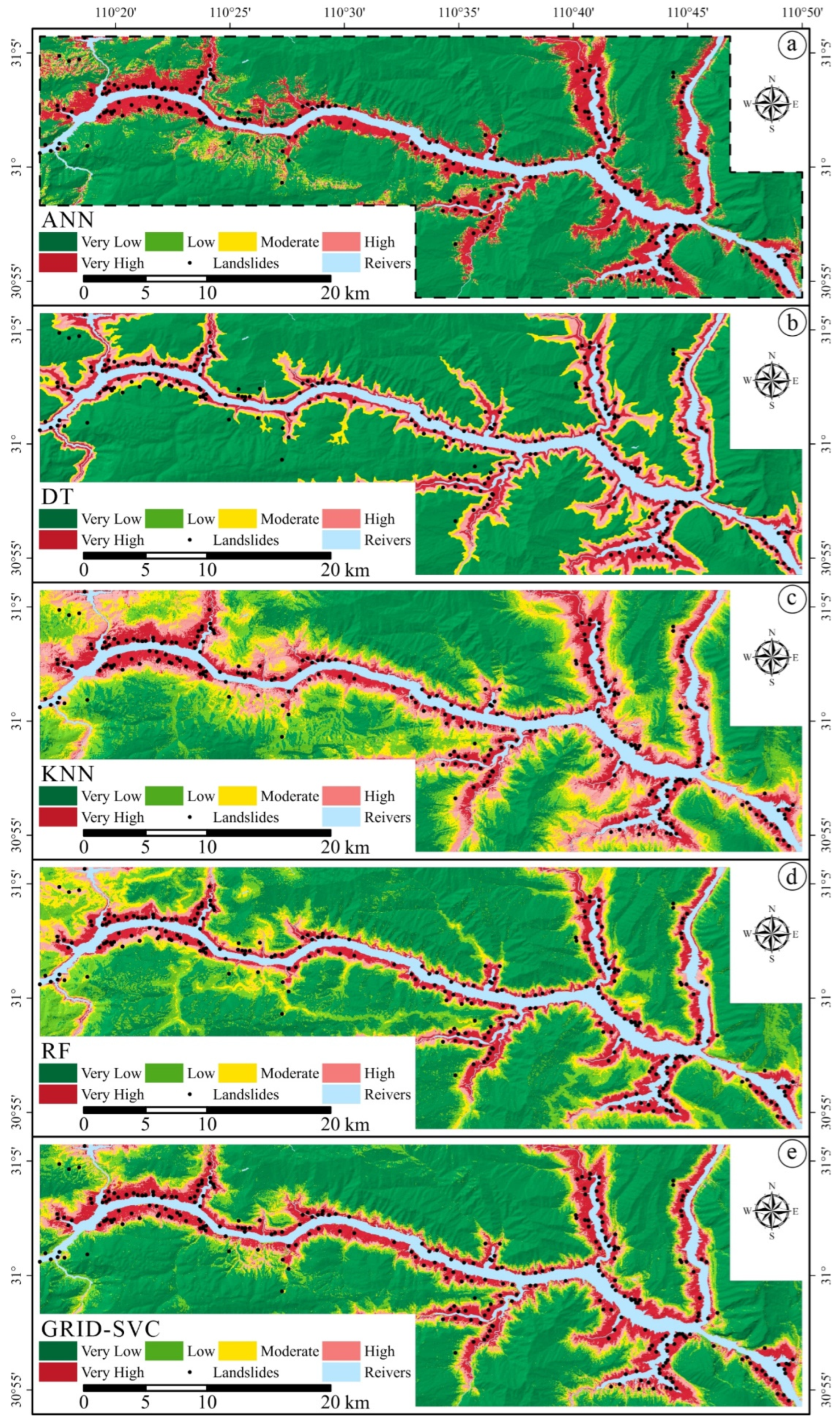

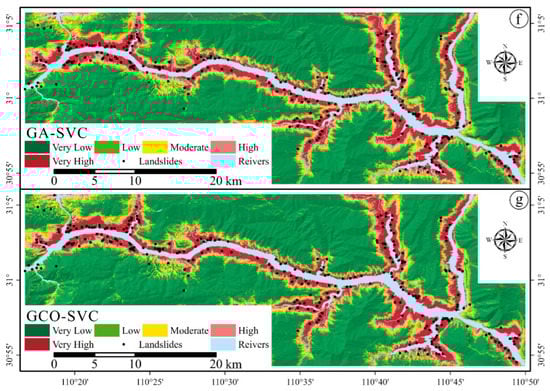

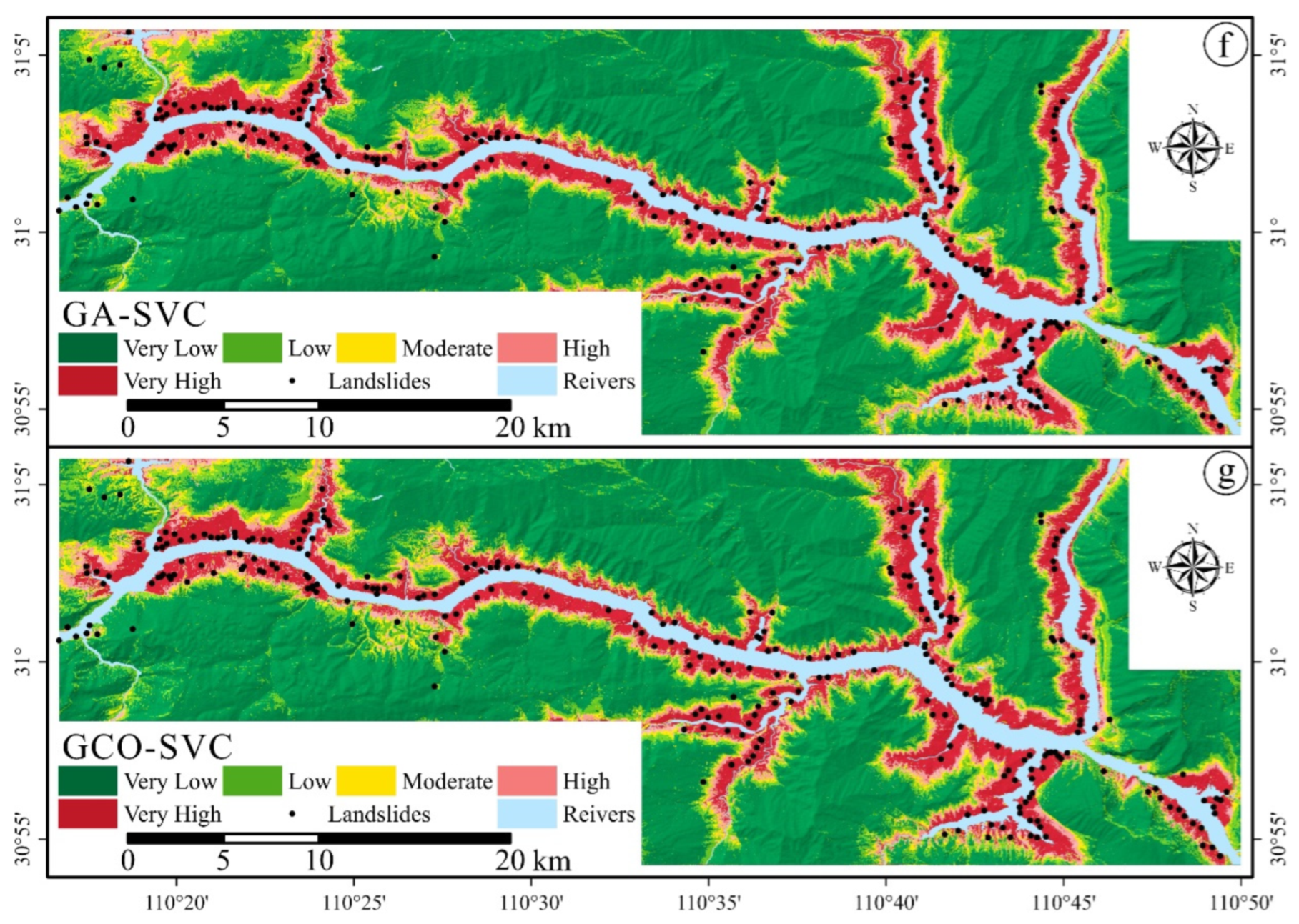

Figure 8c and the above results show that the LSM produced by KNN generally reflected higher susceptibility and differed significantly from the LSM obtained with the other six models; thus, it is not recommended. The results of ANN showed that very low- and very high-sensitivity units accounted for 91.68% of the total area, with the former accounting for 78.19% and the latter for 13.49%; these values highly differ. DT showed similar performance to ANN, having an even higher very low-susceptibility percentage of 78.69%; thus, neither model showed good generalization. Figure 8d shows that RF achieved a better result than ANN, DT, and KNN in terms of susceptibility distribution, but the proportion of very high or high susceptibility levels was significantly lower than that of the other models, indicating that its results were conservative. In addition, the LSM produced by DT had an intermediate break and no units classified into the low susceptibility level, as shown in both Table 8 and Figure 8b. The SVC-based models GRID-SVC, GA-SVC, and GCO-SVC produced similar landslide susceptibility maps but differed in many details. For example, the proposed GCO-SVC model obtained the best performance with respect to the percentage of very high-susceptibility units to total landslides (74.78%), followed by GA-SVC (74.57%) and GRID-SVR (73.09%), and the numbers of pixels classified into very high-susceptibility units based on GCO-SVC exceeded the corresponding numbers obtained via GA-SVC and GRID-SVC by 141,495 and 8708, respectively.

4. Discussion

4.1. PFI of the Influencing Factors

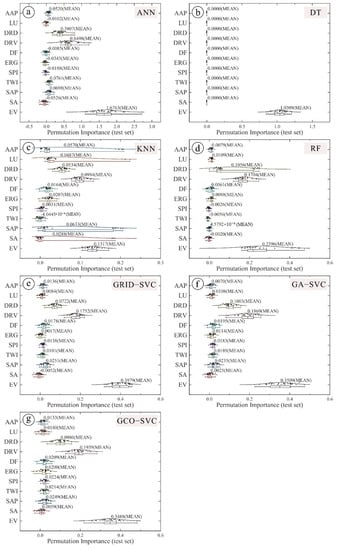

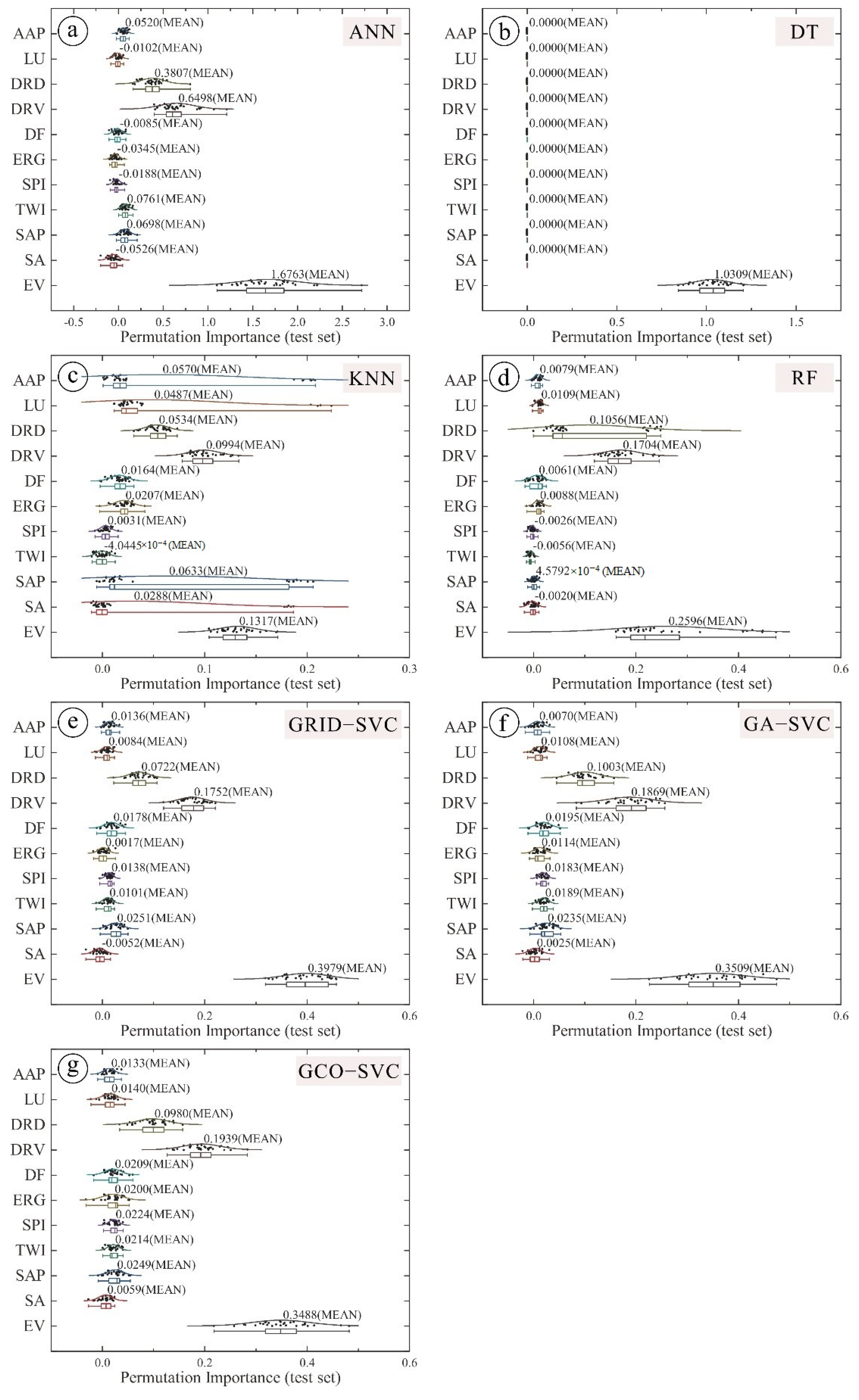

To assess the predictive power of the influencing factors, PFI was employed to determine the contributions of the different influencing factors to the predictions of the seven models, as described in Section 2.5. The PFI score of each influencing factor is shown in Figure 9. The results show that EV, DRV, and DRD were the most sensitive influencing factors affecting the landslide susceptibility predicted by ANN, RF, GRID-SVC, GA-SVC, and GCO-SVC. For GCO-SVC, the PFI of each factor was stable, and EV was the most sensitive factor, followed by DRV, DRD, SAP, SPI, TWI, DF, ERG, LU, APP, and SA. For DT, only EV affected the results, which is inconsistent with reality; thus, the model is not recommended. For KNN, the variance of the PFI of each factor was large, but the mean values were generally consistent with those of the other models. In conclusion, EV, DRV, and DRD were the top three landslide influencing factors in the study area.

4.2. Sensitivity Analysis of the Parameters of the GCO-SVC Model

According to the principle of the GCO metaheuristic optimization algorithm described in Section 2.4.1, the model has four important parameters that affect the performance of the algorithm: $cr$, $wf$, $Population$, and $Epoch$, which represent the difficulty of mutation, the coefficient of mutation, the total population, and the number of iterations, respectively. The set of default parameters, $cr=0.7, wf=1.25, Population=100$, and $Epoch=100$, was taken as the benchmark, and the control variable method was used to vary the other parameters and observe the performance of the model on the validation set to determine the effect of each parameter on the GCO-SVC model. Figure 10 shows the performance of the GCO-SVC model under different combinations of hyperparameters.

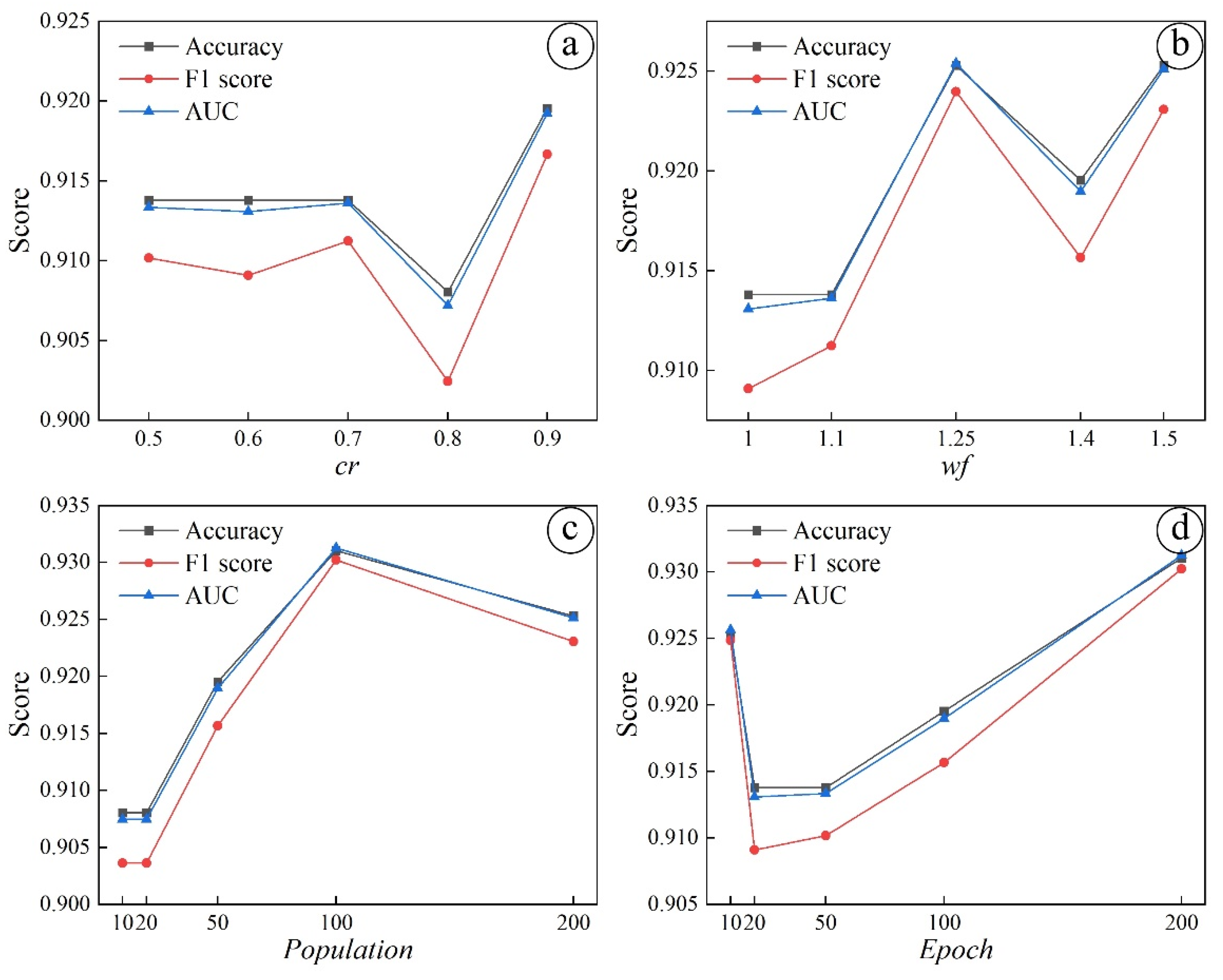

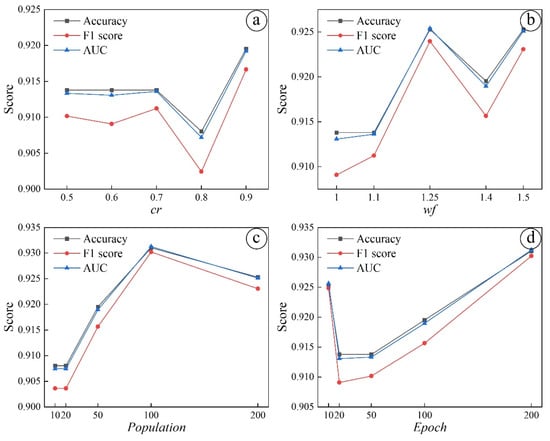

Figure 10a shows that an increase in the difficulty of mutation ($cr$) does not significantly improve the performance of the model and can even have the opposite effect (e.g., when $cr$ = 0.8); thus, it is recommended that $cr$ be set to 0.7. The performance of the model under different values of the coefficient of mutation ($wf$) and the total population ($Population$) in Figure 10 exhibits a mountain shape, with the model performing optimally when $wf=1.25$ and $Population=100$. In regard to the number of iterations ($Epoch$), an increase in $Epoch$ improves the performance of the proposed GCO-SVC model, but a large increase in epochs may lead to overfitting and consume a considerable amount of computing capacity and time; thus, it is recommended that $Epoch$ be set at 200. In conclusion, the suggested combination of hyperparameters for the GCO-SVC model is $cr=0.7, wf=1.25, Population=100$, and $Epoch=200$.

5. Conclusions

In this study, a new model called GCO-SVC was proposed for assessing landslide susceptibility in the Zigui to Badong basins of the TGRA. The proposed GCO-SVC model was validated for landslide susceptibility in the study area through the analysis of 11 influencing factors. Six commonly used models, ANN, DT, KNN, RF, GRID-SVC, and GA-SVC, were used for comparative analysis based on the objective measures of accuracy, F₁ score, Log loss, and AUC. In addition, the PFI scores of all influencing factors and the sensitivities of the parameters of the GCO-SVC model were evaluated. The following conclusions were drawn from the comparison study: (1) The proposed GCO-SVC model demonstrated good fitting and generalization in the evaluation of landslide susceptibility in the study area. (2) The proposed GCO-SVC model obtained optimal results across all metrics, i.e., AUC, accuracy, F₁ score, and Log loss, and performed significantly better than the other six models. (3) EV, DRV, and DRD were found to be the top three most influential factors in this study area by PFI analysis. (4) The optimal combination of parameters for the proposed GCO-VC model was identified through parameter sensitivity analysis, which showed that the performance of GCO-SVC can be improved by appropriately increasing the number of epochs. In summary, the GCO-SVC model holds promise for landslide susceptibility analysis and performed better than six other popular models in the study area. In the future, the proposed GCO-SVC model should be applied to additional cases to validate its adaptability.
