Combining Passive Acoustics and Environmental Data for Scaling Up Ecosystem Monitoring: A Test on Coral Reef Fishes

by
Simon Elise
1,2,*,
François Guilhaumon
3,
Gérard Mou-Tham
4,
Isabel Urbina-Barreto
2,3,
Laurent Vigliola
4,5,
Michel Kulbicki
5,6 and
J. Henrich Bruggemann
2,5
1
REEF PULSE S.A.S., 27 Allée Maureau, 97490 Sainte-Clotilde, La Réunion, France
2
UMR 9220 ENTROPIE, University of Reunion Island, 97400 Saint-Denis, La Réunion, France
3
UMR 9220 ENTROPIE, IRD La Réunion, 97400 Saint-Denis, La Réunion, France
4
UMR 9220 ENTROPIE, IRD Nouvelle-Calédonie, 98848 Nouméa, Nouvelle-Caledonie, France
5
Laboratoire d’Excellence CORAIL, 66000 Perpignan, France
6
UMR 9220 ENTROPIE, IRD UPVD, 66000 Perpignan, France
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(10), 2394; https://doi.org/10.3390/rs14102394
Submission received: 5 March 2022 / Revised: 5 May 2022 / Accepted: 5 May 2022 / Published: 16 May 2022
(This article belongs to the Special Issue Remote Sensing of Ecosystem Diversity)
Browse Figures
Versions Notes

Abstract

:
Ecological surveys of coral reefs mostly rely on visual data collected by human observers. Although new monitoring tools are emerging, their specific advantages should be identified to optimise their simultaneous use. Based on the goodness-of-fit of linear models, we compared the potential of passive acoustics and environmental data for predicting the structure of coral reef fish assemblages in different environmental and biogeographic settings. Both data types complemented each other. Globally, the acoustic data showed relatively low added value in predicting fish assemblage structures. The predictions were best for the distribution of fish abundance among functional entities (i.e., proxies for fish functional groups, grouping species that share similar eco-morphological traits), for the simplest functional entities (i.e., combining two eco-morphological traits), and when considering diet and the level in the water column of the species. Our study demonstrates that Passive Acoustic Monitoring (PAM) improves fish assemblage assessment when used in tandem with environmental data compared to using environmental data alone. Such combinations can help with responding to the current conservation challenge by improving our surveying capacities at increased spatial and temporal scales, facilitating the identification and monitoring of priority management areas.

1. Introduction

Human activities impact the state and functioning of coral reefs through local and global disturbances to the extent that the majority of these ecosystems will suffer unprecedented changes over the next 30 years, raising concerns about their persistence in the future [1,2,3,4]. To counteract this trend, a coordinated global coral reef conservation strategy is necessary to determine priorities and policies and permanently readjust them to meet the challenges of “rebuilding marine life” [3,5,6]. Such conservation efforts require efficient monitoring networks providing frequent and standardised information from local to global scales [2,3].
Current monitoring networks (e.g., Global Coral Reef Monitoring Network-GCRMN) target the assessment of Essential Ocean Variables (EOVs) in various degrees of detail (see [7]). They mostly rely on visual surveys performed by highly trained divers. Time and cost-intensive, these surveys will not be able to respond to the speed and scale of the expected changes. In addition, Obura et al. [7] indicate that the comparison of diver-based data is reliable over large areas (i.e., region, ocean) only for coarser levels of benthic EOVs (e.g., total hard coral cover). Since such levels can be assessed using airborne remote sensing tools (i.e., satellite and aerial, e.g., [8,9,10]), these tools could bring frequent and standardized information at a global scale, whereas human efforts in the field could be better used to grasp the nuances of reef state and functioning and/or focus on key areas [7,11]. For coral reef fishes, standardised diver-based evaluations and comparisons over large areas are even more difficult and, in some cases, impossible [12] including for coarse EOVs (e.g., species richness) due to large differences in the fish taxa monitored and to the biases resulting from the abundance and size estimates provided by numerous observers. Hence, integrating complementary remote sensing into current monitoring networks could considerably improve their efficiency and spatio-temporal resolution.
A panel of tools (e.g., airborne sensing, Passive Acoustic Monitoring—PAM—, environmental DNA—eDNA—metabarcoding) can provide complementary information to in situ visual surveys [13,14,15]. Nonetheless, their capacity to reliably monitor species, habitats, and the ecological state and functioning of ecosystems still needs to be specified [16]. Also, the specific advantages of each tool should be identified in order to optimise their simultaneous use [7]. For coral reef ecosystems, a first step was provided by Wedding et al. [17], who demonstrated the benefits of coupling habitat maps with LIDAR to enhance the prediction of fish assemblage structures. To our knowledge, such an approach integrating PAM is still lacking for coral reefs (see [18] for terrestrial environments).
Airborne remote sensing and Geographic Information System (GIS)-derived data provide environmental information over large areas (including coral cover, reef slope, habitat complexity, wave exposure, reef area, management status, and indicators of human pressure; [8,9,10,17,19,20]). These environmental data enable the prediction of reef fish assemblage structures [17,19,21,22,23], which is of utmost importance since reef fishes provide tens of millions of people with incomes and food [24,25]. However, inferring fish assemblage structures from airborne remotely sensed data alone is not sufficient under ongoing rapid changes (e.g., [26]).
PAM is an emerging complementary tool for the non-invasive and standardised assessment of coral reef fish assemblages. By using either snapshots or long-term continuous recordings, it captures the sounds produced by fishes both intentionally (e.g., choruses, reproductive and communicative signals) and non-intentionally (e.g., sounds associated with feeding, moving, escaping predators, etc.). Beyond fish sounds, PAM captures the whole soundscape (i.e., ambient sound). As such, it can also be used to monitor the cryptobiome [27,28] or to measure noise pollution [29]. In comparison with diver-based methods, PAM is cost-effective and can be deployed in a wide variety of situations. Furthermore, crude data can be stored and re-analysed when needed. Nonetheless, building an exhaustive global library of underwater biological sounds will probably take a substantial amount of time (see [30]). Thus, methods such as eDNA metabarcoding are currently more efficient for species inventories. Moreover, several limits need to be addressed before a systematic use of PAM for coral reef monitoring can be envisioned. These include testing the validity of snapshot approaches by using long-term datasets and evaluating the detectability of reef organisms [31].
A panel of acoustic measures (e.g., amplitude, complexity of the signal, temporal variability) calculated from soundscape recordings were shown to correlate with reef fish species richness and abundance (e.g., [14,32,33].) and with the abundance and biomass of several key functional groups of fishes [34]. Although they still need validation [31], these ecoacoustic indices offer an interesting complementarity to other methods for the assessment of fish-related EOVs.
In this study, we constructed predictive models for different descriptors of fish assemblages. The predictions were based on environmental data (including GIS-derived variables and coarse habitat variables visually collected in situ) and acoustic data to disentangle via variance partitioning the unique and combined contributions of these data in explaining various aspects of fish assemblages. The fish assemblages were assessed through visual and video surveys. Our goals were (1) to test if the acoustic data could offer added value in predicting fish assemblage characteristics compared to the predictions based on the environmental data alone; and (2) to identify the fish assemblage characteristics best predicted by the acoustic data.

2. Materials and Methods

2.1. Study Sites

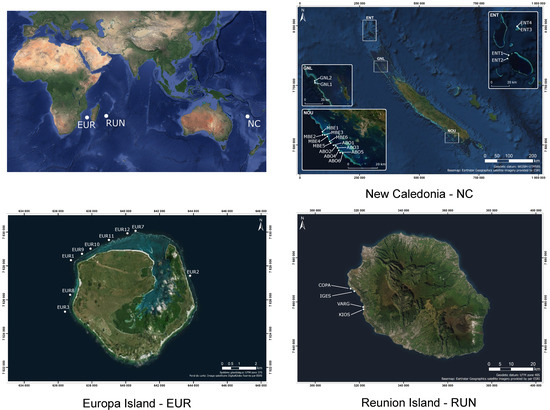

The study was conducted at 31 outer reef slope sites located between 10 and 18 m depth around three Indo-Pacific islands (Figure 1). Four sites were sampled in Reunion Island and nine sites in Europa Island, both located in the South-West Indian Ocean. The 18 other sites were sampled around New Caledonia in the South-West Pacific Ocean. Reunion Island reefs are exposed to strong anthropogenic pressures from a population of approximately 850,000 inhabitants and 500,000 visiting tourists annually, those of Europa Island are virtually pristine with strong protection implemented for decades and no people living within a 300 km radius around the island. New Caledonia is inhabited by approximately 270,000 inhabitants, of which 180,000 live in or near the capital Noumea. Twelve sites were located within a 30 km radius around Noumea, with six sites inside the Aboré Marine Protected Area and six sites outside. The remaining six sites were virtually pristine reefs (Great Northern Lagoon and d’Entrecasteaux reefs) located over 450 km away from Noumea. Reunion Island sites were sampled in October 2016, New Caledonia sites in July 2017, and Europa Island sites in April 2018.

2.2. Evaluation of Reef Fish Assemblage Characteristics

Video footage was used to evaluate reef fish assemblages at Europa Island and New Caledonia sites (e.g., [35]). Calibrated stereo-cameras (two GoPro cameras, San Mateo, CA, USA) affixed 50 cm above the substrate filmed for 90 min an area covering approximately 150 m2. Cameras were oriented so that footage captured half the substrate and half the water column above. We identified individual fish and estimated an index of abundance and biomass for each species using the software EventMeasure (SeaGIS, Bacchus Marsh, Australia). The maximum abundance “MaxN” for a species was calculated as the maximum number of individuals of this species that can be observed on a single frame of the footage. Size of these individuals was measured and their biomass evaluated to calculate the maximum biomass “MaxB” of the species. The coefficients “a” and “b” which define the relationship between fish length and weight for each species were extracted from FishBase [36].
Video footage was not performed at the four Reunion Island sites. At each of these sites, reef fish assemblages were visually evaluated using Underwater Visual Census (UVC; e.g., [37]) along three 5 × 30 m belt transects. During each census, a diver swam 1 m above the transect line identifying, counting, and evaluating the sizes (to the nearest cm) of all fishes within 2.5 m on either side of the central line. Highly mobile and wary species were enumerated on the first pass as the transect line was laid and all the remaining species during the second pass. Transects encompassed half of the water column. As for video footage, the vast majority of individuals were found within a few meters above the seafloor. All detected fishes were recorded.
To homogenise the results of visual censuses and video footage and thus combine visual and video data in the modelling step, visual observations were averaged among the three transects at each Reunion site (e.g., for a given site, abundance of species “s” was the mean abundance of this species among the three transects, etc.). Indeed, a single 30 m belt transect covers approximately a 150 m2 area, equivalent to the coverage of video footage.
For each species recorded in the study, eco-morphological traits were compiled from FishBase [36] according to the classification used in recent articles (e.g., [38]). Five traits were considered: diet, species size class, schooling, mobility, and level in the water column. Three to six levels were considered for each trait (Table 1).
Species sharing similar eco-morphological traits were grouped into “Functional entities” (annotated “FE”). Each FE was considered as a proxy for the ecological function performed by a group of species following an approach increasingly used over the past decade (see [39]).
We estimated five taxonomic descriptors of fish assemblages: species richness, total abundance, total biomass, and two Shannon indices, one calculated on species abundance and another on species biomass (i.e., taxonomic distribution of abundance and biomass).
Functional descriptors were based on functional entities (FEs) rather than species. Four kinds of descriptors were calculated: functional richness (i.e., number of FEs) and three Shannon indices calculated on the distribution of species richness, abundance, or biomass among FEs (henceforth called functional distribution of richness, abundance, and biomass respectively). We considered FEs of increasing levels of complexity (i.e., from two to five eco-morphological traits), with all possible combinations of traits for each level (Table 2). The simplest FEs combined two eco-morphological traits (e.g., diet-size or diet-schooling), resulting in 10 types of 2-trait FEs. Similarly, we considered ten types of 3-trait FEs, five types of 4-trait FEs, and one type of 5-trait FEs. In total 26 types of FEs were considered in the study. Thus, a total of 104 functional descriptors was computed (four kinds of descriptors * 26 types of FEs). Biomass was log-transformed prior to the calculation of biomass-related descriptors.

2.3. Environmental Variables

Eight environmental characteristics were considered at each site, comprising reef habitat features and human pressure. The eight variables were selected on the condition that they could be easily retrieved over large areas.
Four environmental variables were computed using open-source GIS layers available at world scale. Exposure to waves was determined as being between 1 (low) and 3 (high), based on site orientation and knowledge of dominant swells, using the layer of the global distribution of warm-water coral reefs [40]. The same layer was used to compute coral reef area within a 12 km radius around each site. Gravity (i.e., human disturbance based on population size surrounding a reef site and travel time to the nearest population centre) was evaluated using the layer of gravity estimates within 500 km [19]. These three variables were computed using QGIS [41]. Based on the World Database on Protected Area [42], three management statuses were considered: (1) Fished, (2) Marine Protected Area, and (3) Pristine Area.
The other four environmental variables represented coarse habitat features that could have been estimated using airborne remote sensing tools. Indeed, reef slope and habitat complexity can be evaluated using airborne LIDAR (e.g., [17]), live coral cover using airborne hyperspectral imagery (e.g., [10]), and soft bottom cover using satellite imagery (e.g., [9]). Unfortunately, such airborne remotely sensed data were not simultaneously available for the three localities in our study and datasets of habitat features available at world scale (e.g., Allen Coral Atlas) are only qualitative at this time (e.g., “coral/algae” benthic map class does not differentiate between 5 and 50% of coral cover). To approximate the precision that could have been obtained using airborne remote sensing tools, we visually estimated these four variables during a short dive at each of the 31 sites using semi-quantitative scales. At each site, we determined an area representative of the site habitat (~150 m2) and visually estimated the four habitat variables as follows. Habitat complexity ranged from 0 (flat landscapes) to 5 (exceptionally complex habitats with numerous caves and overhangs; see [43]) as illustrated in the Supplementary Materials of Darling et al. [22]. Live coral cover was divided into five semi-quantitative categories (see [44]): 1 (0–20%); 2 (20–30%); 3 (30–40%); 4 (40–50%), and 5 (>50%). Similarly, five semi-quantitative categories for soft bottom cover were defined: 1 (0–5%); 2 (5–10%); 3 (10–20%); 4 (20–30%), and 5 (>30%). Slope was evaluated as being between 1 (gentle) and 3 (steep).

2.4. Soundscape Recordings and Acoustic Metrics

At each site, soundscapes were continuously recorded between 9:30 am and 3:30 pm simultaneously with video footage recorded at Europa Island (April 2018) and New Caledonia (July 2017), and the day before the underwater visual census at Reunion Island (April 2016).
Two identical recording systems were alternatively used. Systems were affixed to the substrate to prevent movement during recordings. Each system was composed of a TC 4014–5 omnidirectional hydrophone (RESON, Slangerup, Denmark) fixed approximately 1.5 m above the substrate at the top of an aluminium tripod and connected to an acquisition chain designed by NORTEKMED S.A.S (Toulon, France). Sensitivity of the whole recording system was −166 dB re 1 V μPa−1. Calibration of the systems was regularly checked during the study with a Brüel & Kjaer 4229 hydrophone calibrator (Nærum, Denmark). Systems were programmed to record continuously at 100 kHz and 16 bits, providing an analysis range of 0–50 kHz.
Samples containing wave or boat noise, or noise of animals probing the hydrophone were eliminated in order to keep 24 “clean” 5 min sound samples from each site. This recording protocol was found to be well-suited to acoustically discriminate coral reef sites [45]. Although this snapshot approach fails to capture the vast spatio-temporal variabilities in reef soundscapes [31], here the aim was to test if it could provide information about the structure of the reef fish assemblage present at the moment of the recording.
For each sound sample, six acoustic metrics were calculated on five frequency bands (0.1–0.5 kHz; 0.5–1 kHz; 1–2 kHz; 2–7 kHz; 0.1–50 kHz): amplitude (Sound Pressure Level; SPL), Bioacoustics Index (BI), spectral entropy (sh), temporal entropy (th), acoustic entropy index (H), and Acoustic Complexity Index (ACI). In addition, the Normalised Difference Soundscape Index (NDSI) was calculated to evaluate the ratio of high-frequency (2–7 kHz) to low-frequency (0.1–1 kHz) acoustic components (see Supplementary Materials ESM 1 for details on acoustic metrics and their calculation). Both the acoustic metrics and frequency bands were selected following the results previously obtained on coral reefs (e.g., [14,33,34,45]).
After removing the most-correlated metrics [H (0.5–1 kHz), H (2–7 kHz), BI (2–7 kHz), sh (2–7 kHz), and th (2–7 kHz)], 26 acoustic metrics were retained for each sound sample. The mean value of each metric was computed for each site.

2.5. Statistical Analyses

2.5.1. Reduction of Environmental Data and Acoustic Data

To summarise the information provided by environmental and acoustic variables and avoid model over-fitting, we performed a Principal Component Analysis on both sets of explanatory variables prior to modelling and retained the first three axes of each (annotated env1, env2, env3 and acous1, acous2, acous3).

2.5.2. Test of the Added Value of Acoustic data in Predicting Fish Assemblage Characteristics

We first used linear models to evaluate the performance of combined environmental and acoustic data in predicting each of the 109 fish descriptors (104 functional descriptors and 5 taxonomic descriptors). When models were significant, we followed the same approach using environmental data and then using acoustic data. Hence, three linear models were built for each of the 109 fish descriptors, theoretically representing 327 models. Among these, 16 were expected to be statistically significant just by chance at an alpha level of 0.05, which must be considered in results interpretation. Models were built as follows:
(combined) Fish ~ env1 + env2 + env3 + acous1 + acous2 + acous3 + ocean
(environment) Fish ~ env1 + env2 + env3 + ocean
(acoustics) Fish ~ acous1 + acous2 + acous3 + ocean
When ocean effect was not significant in the combined model, it was removed from the analyses.

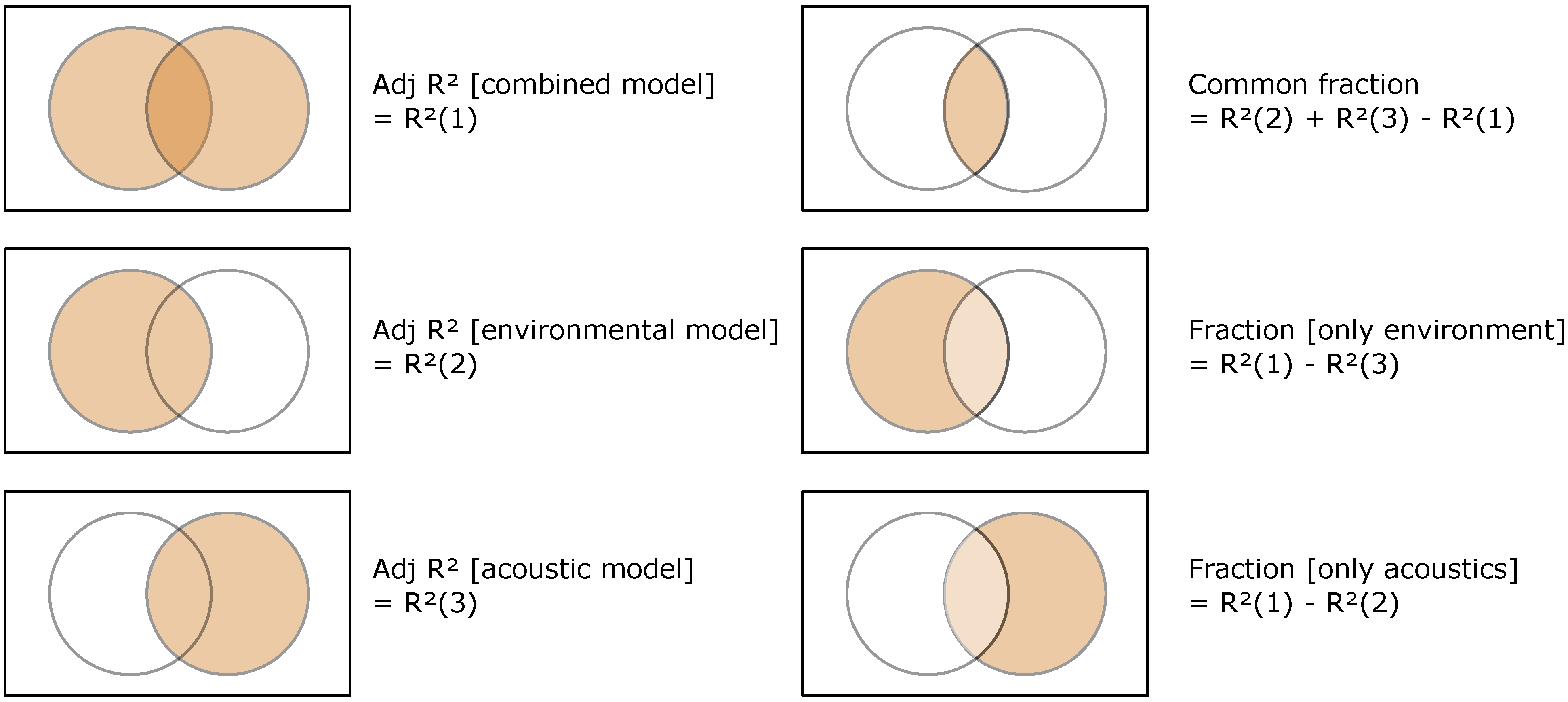

Adjusted coefficients of determination (i.e., adjusted R2) were examined for the three models. We used variation partitioning ([46]; Figure 2) to quantify the unique fractions of variation in each of the 109 fish descriptors explained by environmental variables, by acoustic variables (i.e., the added value of using acoustic variables), as well as the fraction explained by both (i.e., common fraction).

2.5.3. Identification of the Fish Assemblage Characteristics Best Predicted by Acoustic Data

To better understand the information provided by acoustic variables, we used linear models to examine how the adjusted R2 of acoustic models (or the fraction only explained by acoustic variables) was influenced by the number of traits considered in the FE and by the identity (e.g., diet, size class) of those traits. For each kind of functional descriptor (i.e., functional richness, functional distribution of richness, etc.), the effect of considering a particular trait (diet, species size class, schooling, mobility, and level in the water column) in the FEs was tested. This represented 20 tests on adjusted R2 of the acoustic models and 20 tests on fractions [only acoustics].

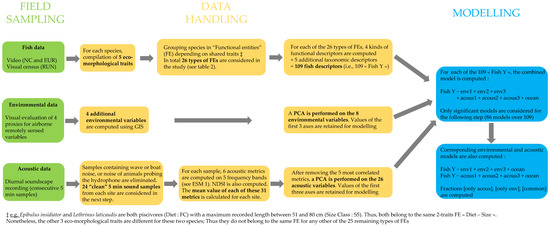

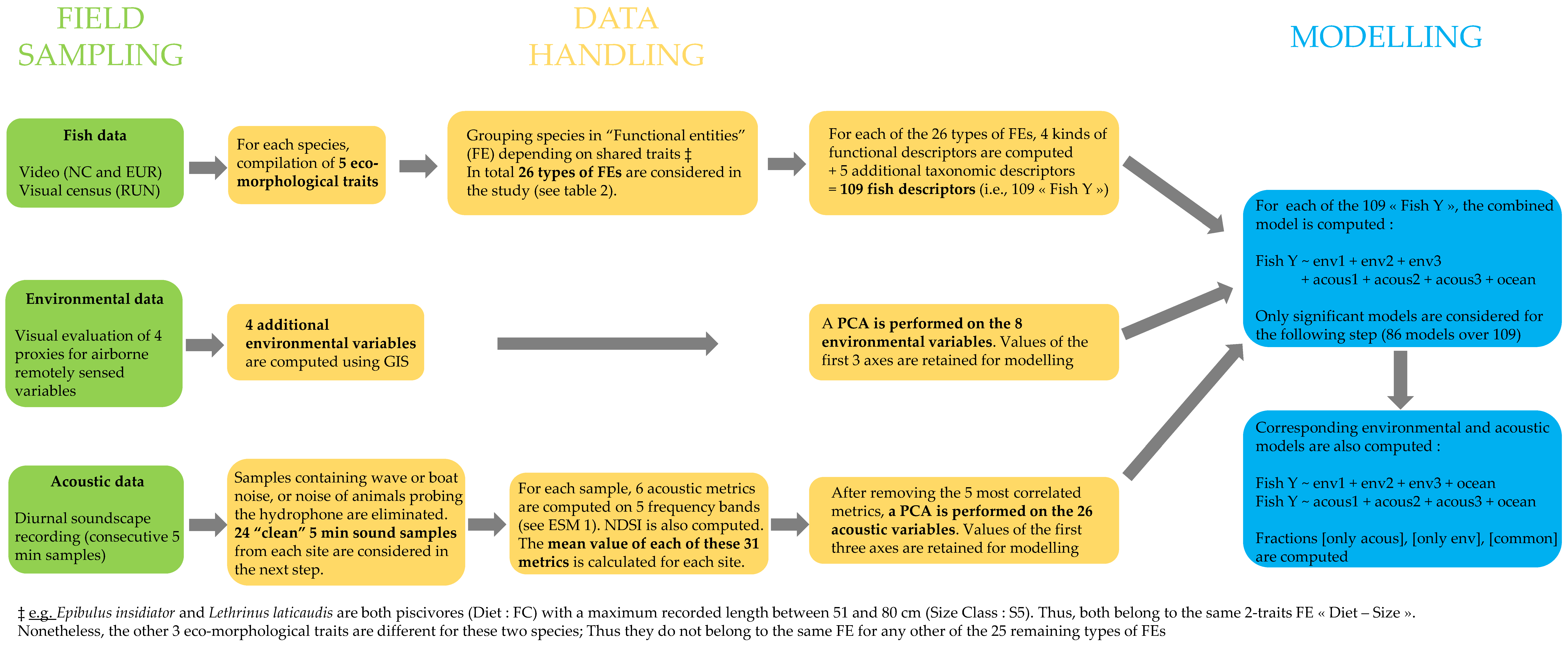

The whole methodological approach that was followed from sampling to data analysis is synthetised in Figure 3. All datasets are available in Supplementary Materials (ESM 2 to 8).

3. Results

3.1. Reduction of Environmental Data and Acoustic Data

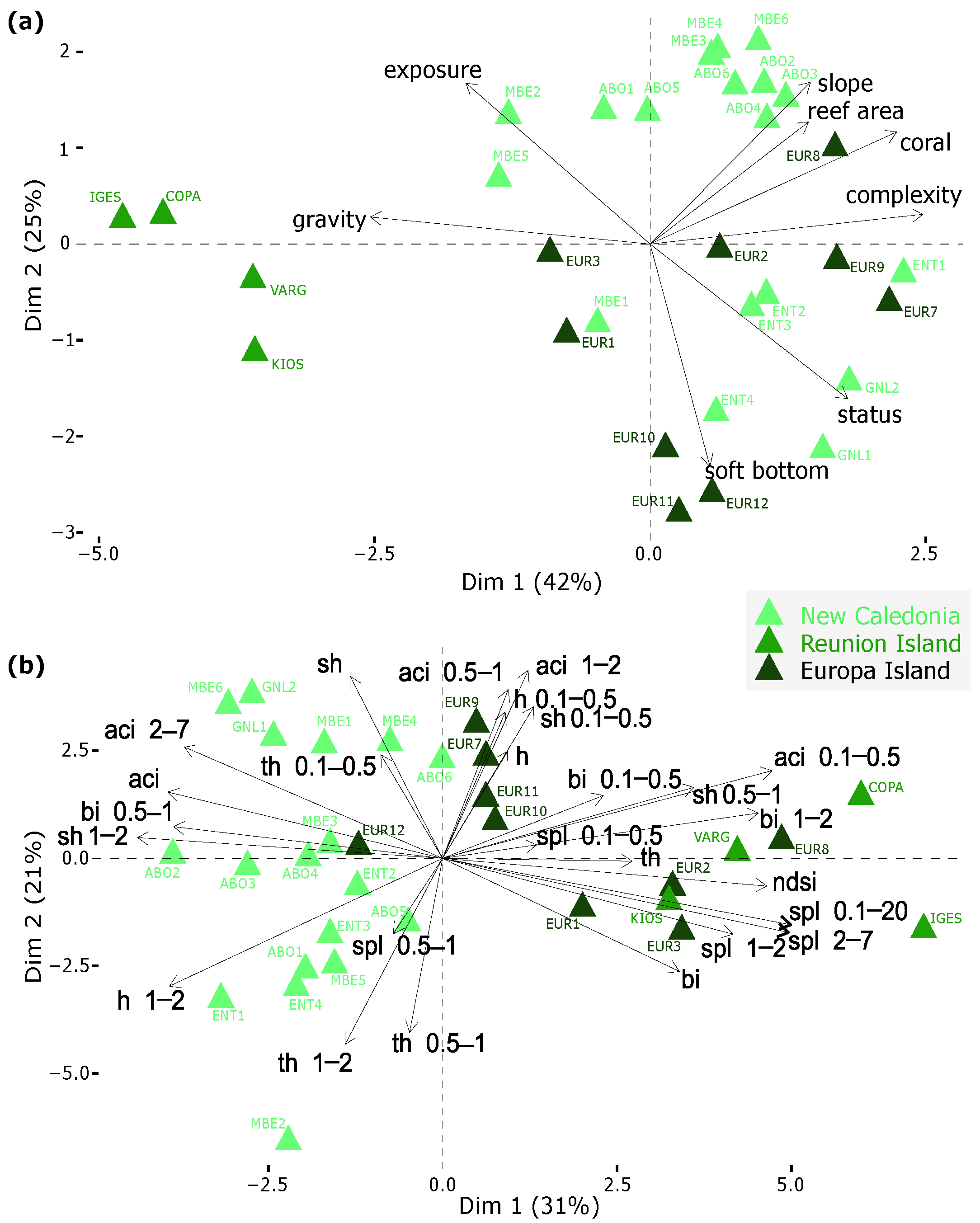

The first three axes of the Principal Component Analysis performed on the environmental variables explained 79% of the variance among the sites. For the Principal Component Analysis performed on the acoustic variables, the first three axes explained 70% of the variance (Figure 4).

3.2. Test of the Added Value of Acoustic Data in Predicting Fish Assemblage Characteristics

Of the 109 combined models, 86 were significant. Depending on the fish descriptor considered, the adjusted R2 ranged from 0.14 to 0.60 for the environmental models [mean value (±sd) = 0.35 ± 0.09], from 0 to 0.47 for the acoustic models [mean value (±sd) = 0.14 ± 0.15], and from 0.21 to 0.58 for the combined models [mean value (±sd) = 0.39 ± 0.09] (Figure 5a,c).
The contribution of the acoustic variables to the variance explained by the combined models, i.e., fraction [only acoustics], varied greatly. It ranged from −0.05 to 0.22 [mean value (±sd) = 0.04 ± 0.05] (Figure 5a). This contribution was positive for 69% of the fish descriptors tested (59 descriptors over 86) and negative for the remaining 31%, revealing that the acoustic data did not bring additional explicative power to the environmental models for these 27 descriptors (Figure 5a). These latter descriptors reflected the total abundance, the taxonomic distribution of biomass, and several descriptors of the functional richness, functional distribution of richness, and functional distribution of biomass.

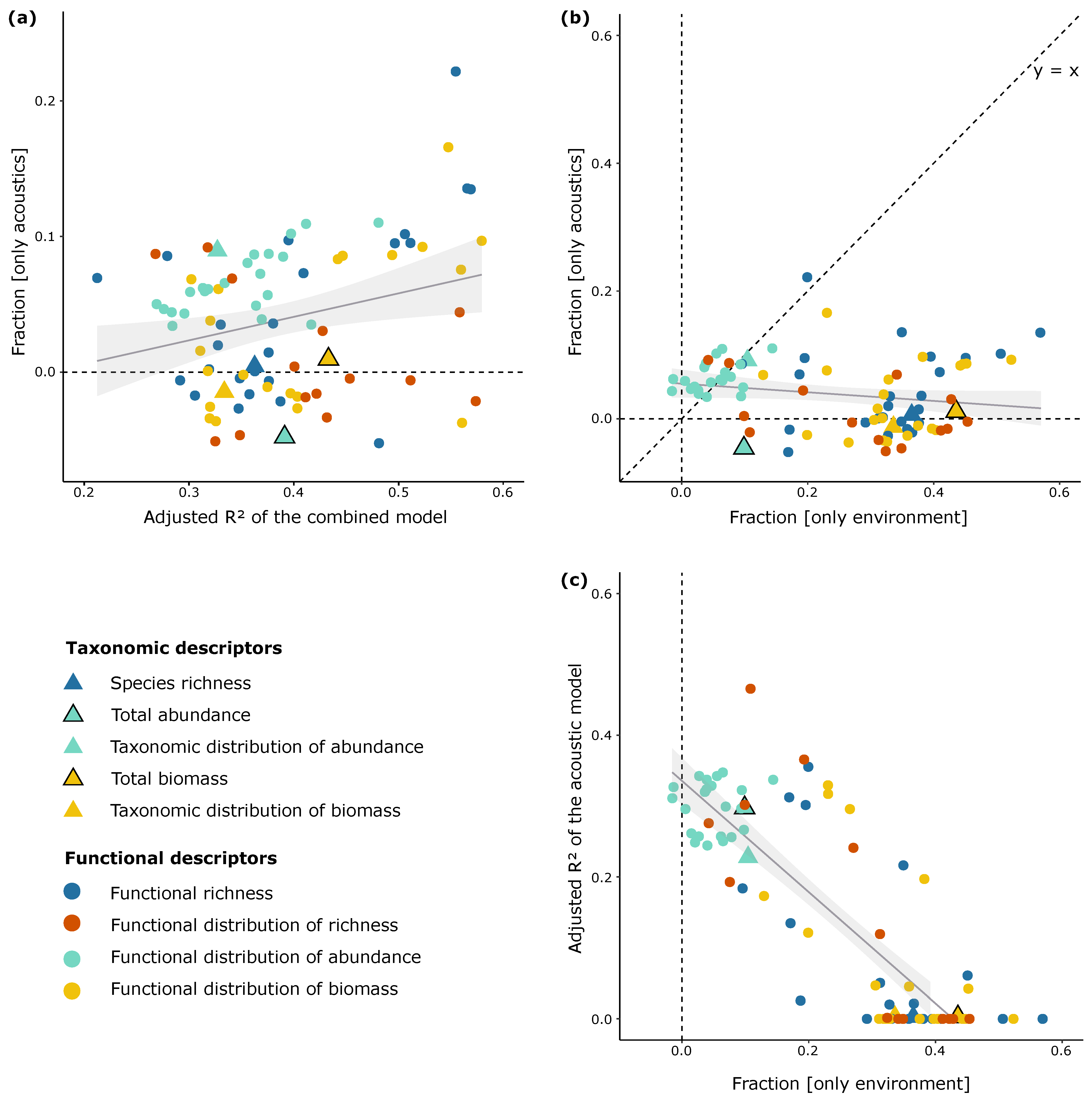

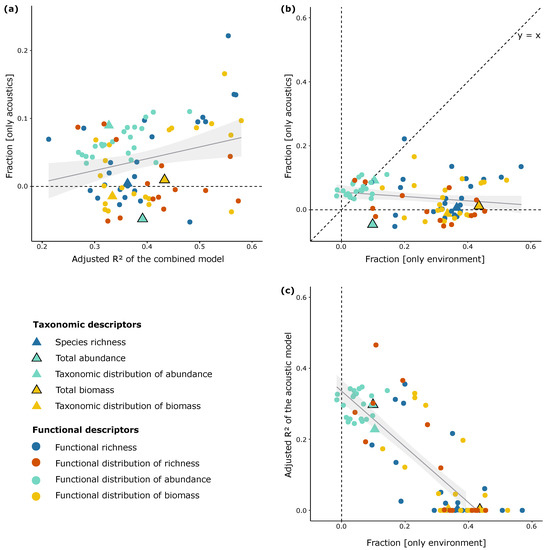

The explicative power of the combined models significantly increased with the fraction of variation only explained by acoustics (Pearson’ρ = 0.27, p < 0.05) (i.e., when fraction [acoustics] was high, adjusted R2 of the combined model was also high, Figure 5a), revealing that, overall, the acoustic data significantly enhanced the explicative power of the environmental models.
We found no significant relationship between the fraction only explained by the acoustic variables and the fraction only explained by the environmental variables (Pearson’ρ = −0.19, p = 0.08) (Figure 5b), or between the fraction only explained by the acoustic variables and the common fraction (Pearson’ρ = 0, p = 0.94). This absence of significant relationships shows that the information only provided by the acoustic data, albeit limited (i.e., maximum value = 0.22), is independent of the information provided by the environmental data. In other words, a low fraction (either acoustic or environmental) does not imply that the other fraction is low, which highlights the complementarity between both datasets in explaining the structures of reef fish assemblages. Nonetheless, the fraction only explained by the environmental variables was greater than the fraction only explained by the acoustic variables in a majority of cases (i.e., most of the points are below the y = x line; Figure 5b).
The fractions only explained by the environmental variables reached the highest values for a number of descriptors of functional richness and functional distribution of biomass (Figure 5a,c). For other descriptors, particularly those reflecting the functional distribution of abundance, the fraction only explained by the environmental variables was lower than the fraction only explained by the acoustic variables (Figure 5b). As such, with this larger contribution of acoustic variables where environmental variables performed poorly (Figure 5c), the combined models were found to predict a wide range of descriptors of the fish assemblage structure. The Ocean basin was significant in 34% of combined models including all the models of the functional distribution of abundances.
To sum up, the acoustic data globally enhanced the predictions of fish assemblage characteristics with respect to the predictions only based on the environmental data. Albeit limited (i.e., mean value = 0.04 and maximum value = 0.22), the contribution of the acoustic data was positive for 69% of the fish descriptors tested and was globally not correlated to the contribution of the environmental data, which highlights that the information provided by both data types is different. In addition, the contribution of the acoustic data was higher than the contribution of the environmental data for predicting the functional distribution of fish abundance.

3.3. Identification of the Fish Assemblage Characteristics Best Predicted by the Acoustic Data

Concerning functional descriptors, the adjusted R2 for the acoustic models were significantly affected by the type of functional descriptor (ANOVA, F = 26.22, df = 3, p < 10−10) and by the number of traits considered to construct the FEs (ANOVA, F = 21.79, df = 1, p < 10−4); these effects were independent (interaction term, F = 1.29, df = 3, p = 0.28) (Table 3).

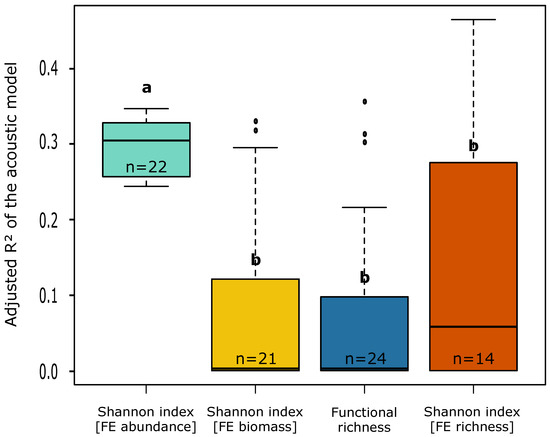

The adjusted R2 of the acoustic models was significantly higher for the functional distributions of abundance than for the other functional descriptors (all p < 10−6, Table 4 and Figure 6) and significantly decreased with increasing functional resolution (i.e., an increasing number of traits considered to construct the FEs) (slope = −0.06, t = −4.641, p < 10−4).

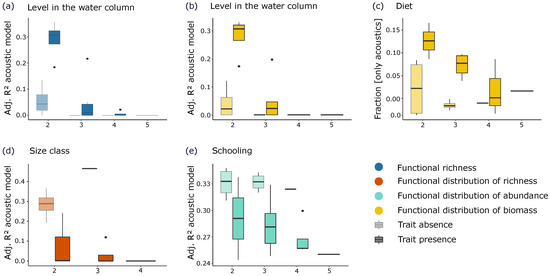

The number and identity of traits influenced the models. When the level in the water column was considered in the 2-trait FEs, the adjusted R2 of the acoustic models was significantly higher than when this trait was not considered for functional richness and for the functional distributions of biomass (Figure 7a,b). Nonetheless, this trait was not significantly influential when considering the fraction only explained by the acoustics. This suggests that the predictions by the acoustic and environmental data were partially redundant when the FEs included the level in the water column.
When diet was considered in the FE composition, the fraction only explained by the acoustic variables was significantly enhanced for the functional distribution of biomass (Figure 7c), revealing the particular added value of the acoustic variables in predicting diet-related biomass. On the contrary, considering size class and schooling in the FE composition significantly dropped the adjusted R2 of the acoustic models for the functional distribution of richness and abundance, respectively (Figure 7d,e).

4. Discussion

Tropical coral reefs are extremely different from one region to another, but they also notably vary at local scales (e.g., [47]). Adding that the intensity of human disturbances strongly differs between localities, the response of coral reef ecosystems to ongoing changes is highly spatialized and hard to predict and may rapidly change in a given locality [2,3,4,48]. Therefore, long-term adaptive management needs efficient monitoring networks able to track changes both within and across regions identified as conservation priorities [3]. Since this fundamentally requires frequent and standardised information across scales, the capacity of observer-based in situ monitoring to respond to this challenge may be limited [7]. Concurrently, remote sensing is considerably augmenting our monitoring capacities with the recent emergence and diversification of affordable tools [7,49,50] combined with the increasing possibilities of automated handling through machine learning (e.g., [51,52,53,54]). Although remote sensing offers opportunities to solve numerous monitoring challenges (i.e., standardised information from a local to a global scale, frequent assessments), its optimisation for conservation requires addressing several barriers [7,31,50]. Among these, the ecological significance of remotely sensed data still needs to be specified, as well as the capacity of these data to reliably inform EOVs [7,50]. Also, the complementarity among remote sensing tools must be understood in order to optimise their simultaneous implementation (e.g., [17,55,56,57]).
Consistent with the results of previous studies (e.g., [17,19,23]), we found that coarse environmental data (i.e., variables that could have been estimated using airborne remote sensing tools and variables extracted from GIS layers) could provide sufficient information to delineate multiple aspects of the structure of reef fish assemblages across the Indo-Pacific region. The novelty of our study was to demonstrate that PAM data could improve these predictions. Indeed, the acoustic data significantly enhanced the explicative power of the environmental models. Also, the acoustic variables performed better than the environmental variables for predicting the functional distribution of fish abundance. Although the magnitude of improvements was low, our results revealed that the acoustics metrics could supply different, and thus complementary, information to the airborne remotely sensed data.
This was not the case, however, for the prediction of the taxonomic descriptors. This contrasts with previous findings on coral reefs where several acoustic metrics were correlated with fish species’ richness and abundance (i.e., SPL and ACI in the lower frequencies; e.g., [14,32,33]). Two elements may explain this discrepancy. First, in this study we considered the synthetic information from a panel of 26 acoustic metrics (i.e., values of the first three axes of a PCA on these metrics) rather than the individual metrics examined in previous studies. Second, the taxonomic structures of fish assemblages were strongly different among our study sites as they were located in different biogeographic contexts. This may have interfered with the capacity of the acoustic metrics to reflect the taxonomic descriptors between distant localities. The lack of performance of PAM for predicting the taxonomic descriptors at this scale illustrates that other remote sensing tools, such as eDNA metabarcoding surveys (e.g., [15]), could better complement airborne tools for taxonomic assessments.
Although the predictions of functional descriptors were also affected by biogeographic effects (significant in 34% of the models), PAM alone explained the different levels of variation in the distribution of richness, abundance, and biomass across the FEs and in the functional richness of coral reef fish assemblages. The contribution of PAM was particularly important for predicting the functional distribution of abundance, as environmental variables were less performant regarding this aspect. These results illustrate that simultaneously using several remote sensing tools could generate more comprehensive evaluations of coral reef fish assemblages.
Furthermore, our approach allowed for the identification of the functional aspects for which the prediction by PAM offered a significant added value. The best predictions were obtained for coarse functional classifications (i.e., 2-trait FEs), whereas increasing the functional resolution resulted in poorer descriptions. These results suggest that the distribution of ecological functions among fish species, when considered at a relatively coarse level, is reflected in the soundscape composition. Different fish species ensuring a similar ecological function may produce similar acoustic patterns through feeding, movements, and defense, for example. This is consistent with the results of a previous study where the abundance and biomass of several simple fish FEs were found to significantly correlate with various acoustic metrics [34].
In addition, the PAM predictions were significantly enhanced when considering diet and the level in the water column in the FE composition. Numerous acoustic signals are linked with feeding, such as predation, escape, and parrotfish scraping (see review by Lobel et al. [58]), partially explaining why this trait emerged from the analysis. Furthermore, the level in the water column occupied by a species is linked to its detectability by the hydrophone (i.e., hydrophone range to the fish), which could explain at least partially why this trait also emerged. Moreover, this could be related to differences in the prevalence of soniferous fish among demersal, semi-demersal, and pelagic categories.
Surprisingly, considering size class (and to a lesser extent schooling) reduced the predictive capacity of PAM, whereas these traits are usually important features structuring sound production by fishes (e.g., [59]). Beyond the question of which functional information is conveyed through soundscapes, these results suggest that considering local specificities is crucial when defining the functional role of individuals. Indeed, there were important differences between the theoretical and the actual observed size class/schooling classifications of species depending on the study sites (e.g., for some species in Reunion Island, the observed maximum size was much lower than the theoretical maximum size). This could explain the poorer results when considering these traits across sites.
A limit of the study was the discrepancy between fish survey methods, which may have introduced some biases, especially in the evaluation of cryptic species. Although numerous studies have evaluated the implications of using different survey methods (e.g., UVC, Baited Remote Underwater stereo-Videos, Diver Operated stereo-Videos, Rotating Videos) on the assessment of coral reef fish assemblages (e.g., [60,61,62,63]), we did not find any study considering a video protocol similar to that used in the present study (i.e., 90 min video footage using UnBaited Remote Underwater stereo-Videos, UBRUV). However, in their study of tropical seagrass meadows, Zarco-Perello and Enríquez [64] found that UVC provided lower estimations of fish diversity and abundance when compared to UBRUV, especially for herbivorous and piscivorous fishes [64]. Since we used similar UVC and UBRUV protocols, our evaluation of the fish assemblage structure could have been biased at Reunion Island.
PAM is an emerging approach for ecosystem monitoring, which will rapidly gain in performance with upcoming developments. For example, in this study, we made a subjective selection of acoustic variables to discriminate among soundscapes, whereas the development of data-driven approaches (e.g., convolutional neural networks) allows for a more exhaustive and objective selection of the acoustic features able to discriminate among soundscapes (see e.g., [54]). Also, most studies, including the present one, still refer to a known referential (here the visual assessment of fish assemblages) to evaluate PAM capacities. Alternative approaches (e.g., automated classification and quantification of biological signals using machine learning algorithms) will probably bring out the best in the PAM applications. Although deployments of acoustic devices only last a few minutes, they still require in situ human presence. We may expect that Automated Underwater (or Surface) Vehicles will be able to replace humans in this task in a few years. By integrating onboard data handling, analysis, and transmission, they could considerably improve coral reef PAM over ever larger areas.

5. Conclusions

This study represents the first test of the complementarity between coarse environmental data (including data which could have been collected using airborne remote sensing tools) and PAM for coral reef fish assemblage assessment. Although our results highlight a relatively low added value of combining PAM with environmental data, they should be considered as an incentive to develop more robust studies. The latter could at least include more sites and rely on a single standardised method (e.g., video footage) for establishing a “reference” assessment for fish assemblages. They could also widely benefit from integrating the perspectives cited above.
Despite its weaknesses, our study showed that acoustic data could be more relevant than environmental data for predicting certain aspects of the fish assemblages (i.e., functional distribution of abundance). In addition, the significant improvements obtained when considering diet and the level in the water column in the FE composition strongly suggest the potential of PAM for assessing various aspects of fish assemblage functional structure. Moreover, as acoustic data were collected over a few hours, our results highlight that PAM can deliver useful in situ snapshot information.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/rs14102394/s1. ESM1: calculation of acoustic metrics: ESM2: values of acoustic metrics on each site; ESM3: values of environmental variables on each site; ESM4: values of fish taxonomic variables on each site; ESM5: value of fish functional richness on each site; ESM6: value of functional distribution of fish species richness on each site; ESM7: value of functional distribution of fish abundance on each site; ESM8: value of functional distribution of fish biomass on each site. References [65,66,67,68,69,70,71,72,73,74] are cited in the Supplementary Material ESM1.

Author Contributions

Conceptualization, S.E., F.G., M.K. and J.H.B.; Data curation, S.E., F.G., G.M.-T., I.U.-B. and L.V.; Formal analysis, S.E. and F.G.; Funding acquisition, S.E., I.U.-B., L.V. and J.H.B.; Investigation, S.E., I.U.-B., L.V. and J.H.B.; Methodology, S.E., F.G., L.V., M.K. and J.H.B.; Project administration, S.E. and J.H.B.; Resources, S.E., I.U.-B., L.V. and J.H.B.; Software, F.G.; Supervision, J.H.B.; Validation, F.G.; Visualization, S.E.; Writing–original draft, S.E.; Writing–review and editing, F.G., G.M.-T., I.U.-B., L.V., M.K. and J.H.B. All authors have read and agreed to the published version of the manuscript.

Funding

S.E. and I.U.-B. were supported by a CIFRE fellowship (French ANRT; agreement numbers 2015/1538 and 2017/0322). Part of this study was funded by the European Commission (DG DEVCO) through the BEST 2.0 program (CORCOPA project).

Data Availability Statement

All datasets are available as Supplementary Material. Research was authorized by the RNMR (Reunion Island), the TAAF (Europa Island), and the Government of New Caledonia (Apex program).

Acknowledgments

We are grateful to Valentin Bouvot, Sophie Bureau, Lucas Bonnin, Germain Boussarie, Bertrand Bourgeois, Armand Dayde, Eric Folcher, Erwan Meyer, and Franco Nirvola for field assistance. We thank the crews of the yacht Antsiva and the research vessel Amborella, the pilots of the Archamia and Mangabe, the military forces (FAZSOI), and Ocean Innovation Tour for logistical support. We thank Jessica Meeuwig for use of the EventMeasure software.

Conflicts of Interest

We declare we have no competing interest.
