In-Season Interactions between Vine Vigor, Water Status and Wine Quality in Terrain-Based Management-Zones in a ‘Cabernet Sauvignon’ Vineyard

Abstract

Wine quality is the final outcome of the interactions within a vineyard between meteorological conditions, terrain and soil properties, plant physiology and numerous viticultural decisions, all of which are commonly summarized as the terroir effect. Associations between wine quality and a single soil or topographic factor are usually weak, but little information is available on the effect of terrain (elevation, aspect and slope) as a compound micro-terroir factor. We used the topographic wetness index (TWI) as a steady-state hydrologic and integrative measure to delineate management zones (MZs) within a vineyard and to study the interactions between vine vigor, water status and grape and wine quality. The study was conducted in a commercial 2.5-ha Vitis vinifera ‘Cabernet Sauvignon’ vineyard in Israel. Based on the TWI, the vineyard was divided into three MZs located along an elongate wadi that crosses the vineyard and bears water only in the rainy winter season. MZ1 was the most distant from the wadi and had low TWI values, MZ3 was closest to the wadi and had high TWI values. Remotely sensed crop water stress index (CWSI) was measured simultaneously with canopy cover (as determined by normalized difference vegetation index; NDVI) and with field measurements of midday stem water potential (Ψ_stem) and leaf area index (LAI) on several days during the growing seasons of 2017 and 2018. Vines in MZ1 had narrow trunk diameter and low LAI and canopy cover on most measurement days compared to the other two MZs. MZ1 vines also exhibited the highest water stress (highest CWSI and lowest Ψ_stem), lowest yield and highest wine quality. MZ3 vines showed higher LAI on most measurement days, lowest water deficit stress (Ψ_stem) during phenological stage I, highest yield and lowest wine quality. Yet, in stage III, MZ3 vines exhibited a similar water deficit stress (CWSI and Ψ_stem) as MZ2, suggesting that the relatively high vigor in MZ3 vines resulted in higher water deficit stress than expected towards the end of the season, possibly because of high water consumption over the course of the season. TWI and its classification into three MZs served as a reliable predictor for most of the attributes in the vineyard and for their dynamics within the season, and, thus, can be used as a key factor in delineation of MZs for irrigation. Yet, in-season remotely sensed monitoring is required to follow the vine dynamics to improve precision irrigation decisions.

1. Introduction

Spatial variability in terrain (elevation, slope and aspect) and soil properties (texture and depth) can lead to different extents of soil water availability even within a small vineyard [1]. Therefore, genetically identical vines of the same age differ in vine growth and vigor and in vine physiological parameters. The accumulated effect over the years can lead to high variation in grape yield and fruit maturity. As variability increases, irrigation efficiency decreases, such that the full potential of the vineyard cannot be achieved [2]. Precision irrigation through irrigation management zones (IMZs) strategy aims at targeting this challenge. Generally, delineation of MZs is a way of classifying the spatial variability within a field [3]. In the context of irrigation, a MZ is a subregion of a field that is (relatively) homogeneous in its water availability for which a single rate of irrigation is appropriate.

In semiarid areas, soil hydraulic and physical properties often control vine water status [4], and therefore can be used to delineate IMZs. Among those properties, maps of apparent soil electrical conductivity (EC_a) have been extensively used to delineate MZs in vineyards [5,6]. Elevation, slope, soil texture and soil depth have also been utilized for MZ delineation in vineyards [7,8,9]. It has been shown in previous studies that topographic inclination and slope can be key factors affecting soil and vine water dynamics [10,11]. Topographic wetness index (TWI), a steady-state hydrologic variable, mainly determined by slope, can be a good parameter for IMZ as it provides an estimate of the water drainage dynamics within the field during the winter and thus affects vine water availability during the spring and summer [12]. In recent studies, TWI was used for flood risk assessment [13] and as an additional variable for IMZ delineation in vineyards [9,14].

Stem water potential (Ψ_stem) is a sensitive indicator for vine water status [15] and should be frequently monitored when used to drive irrigation management [16,17,18]. Enhancing fruit quality for red wine production necessitates accurate control of the water deficit during the growing season [19]. For instance, grape berry development can be inhibited by temporary water deficit during stage I (anthesis-bunch closure), thus inducing a high skin-to-pulp ratio [16]. Since most of the fruit color and phenolic and aromatic components are concentrated in the skins, higher skin-to-pulp ratio in the grape must is desirable [20]. In addition, it was shown that water deficit during stage III (veraison-harvest) also promotes high concentrations of anthocyanins in red wine grapes and their wines [21]. However, severe water deficit stress resulted in negative effects on a vineyard’s endurance because of structural damage to the xylem and deterioration of the hydraulic system of the vine [17].

In order to adopt best irrigation practices in a vineyard, an IMZ strategy should include frequent monitoring of vine water status to drive appropriate local irrigation management [2]. Yet, while on the scale of the entire vineyard Ψ_stem can be measured in a few representative vines, MZ-based irrigation requires additional laborious and time-consuming measurements to represent the water status in each IMZ. Aerial thermal-imaging could serve as an alternative way of assessing the spatial variability of water status in the vineyard. In previous studies, ground based, proximal and airborne thermal imagery was used for irrigation scheduling [22] or for water status assessment [23,24,25] in vineyards. Thermal imaging was also used to estimate in-field spatial variability of water deficit stress [26] and to classify a vineyard into IMZs [14].

Delineation of IMZs using geomorphological data of soil texture and topography [27,28] is based on the assumption that IMZs are static. Each IMZ is characterized by a different level of water availability, and differences between IMZs are assumed to be stable throughout the season. Further, it is generally assumed that vine water status is positively correlated with soil water availability. Accordingly, in IMZs with high water availability vines would grow more canopy and would not suffer from water shortage, while in IMZs with low water availability vines would suffer from water deficit stress and grow a smaller canopy. However, recent studies have indicated that the relationships between soil water availability and plant water status is complicated. For example, vines with higher water availability and LAI at the beginning of season were found to reach higher water deficit stress at the end of the season because of wider vessels and increased specific hydraulic conductivity [17,29] or greater leaf area [26].

The objective of this study was to characterize the seasonal dynamics of vine vigor and water deficit stress in TWI-based MZs and to assess its effects on fruit yield, fruit quality and wine quality. The study demonstrates the role of aerial remote sensing in mapping the variability of vine vigor and water status required for a MZ-based irrigation strategy.

2. Materials and Methods

2.1. Study Site

The study was conducted in a commercial vineyard of Vitis vinifera L. ‘Cabernet Sauvignon’ grafted onto 101-14 rootstock in Mevo-Beitar, Israel (31°43′N; 35°06′E; Figure 1). Vine spacing was 1.5 m within rows and 3 m between rows (2222 vines per hectare), and the vineyard consisted of 5522 vines. The vines were planted in 2011, with a row direction of 117–297°, and were trained to a vertical shoot positioned trellis system with two foliage wires on each side. The elevation of the vineyard varied from 672 to 702 m above sea level (

Table 1. Descriptive statistics of terrain and soil variables in the vineyard. CV stands for coefficient of variation (%), N stands for number of data points.

Parameter	Symbol	Source	Mean	Range	CV (%)	N	Season
Topographic wetness index	TWI	Local digital elevation survey	6.9	3.96–11.1	20.3	2045	2011
Soil electrical conductivity (dS/m) at 0–75 cm depth	ECa	Verris 3100 field measurement	31.2	0.3–97.5	39.1	4037	2018
Elevation (masl)	Elevation	Local digital elevation survey	689.1	672.9–702	0.37	2045	2011
Soil depth (cm)	Soil depth	Direct soil samples	82.5	34–141	23.8	81	2017

), with the eastern part reaching higher elevation and gradually declining towards the west. The area’s lithology is dominated by limestone, frequently mixed with chalk and marl, and covered with shallow terra-rosa soil. During the 2017-2018 growing seasons, the vineyard was drip-irrigated using a computer-controlled system (Dream 1, Talgil, Israel) with one drip line (16 mm) per row at 1.6 L/h in-line, pressure-compensated drippers spaced 0.75 m apart (Uni-Ram, Netafim, Israel). Irrigation was based on crop coefficients and potential evapotranspiration, calculated according to the ASCE Penman-Monteith equation [30]. At all fruit development stages, the basic crop coefficient was 0.2. Ψ_stem measurements were used to correct the irrigation factor as described at Bahat et al., [31].

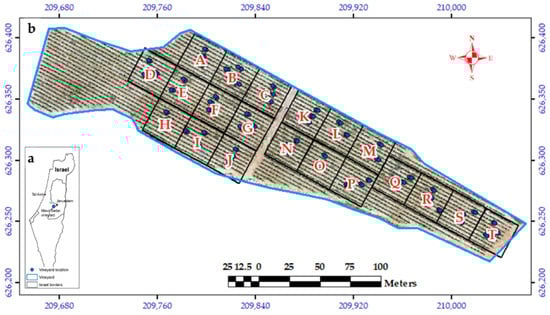

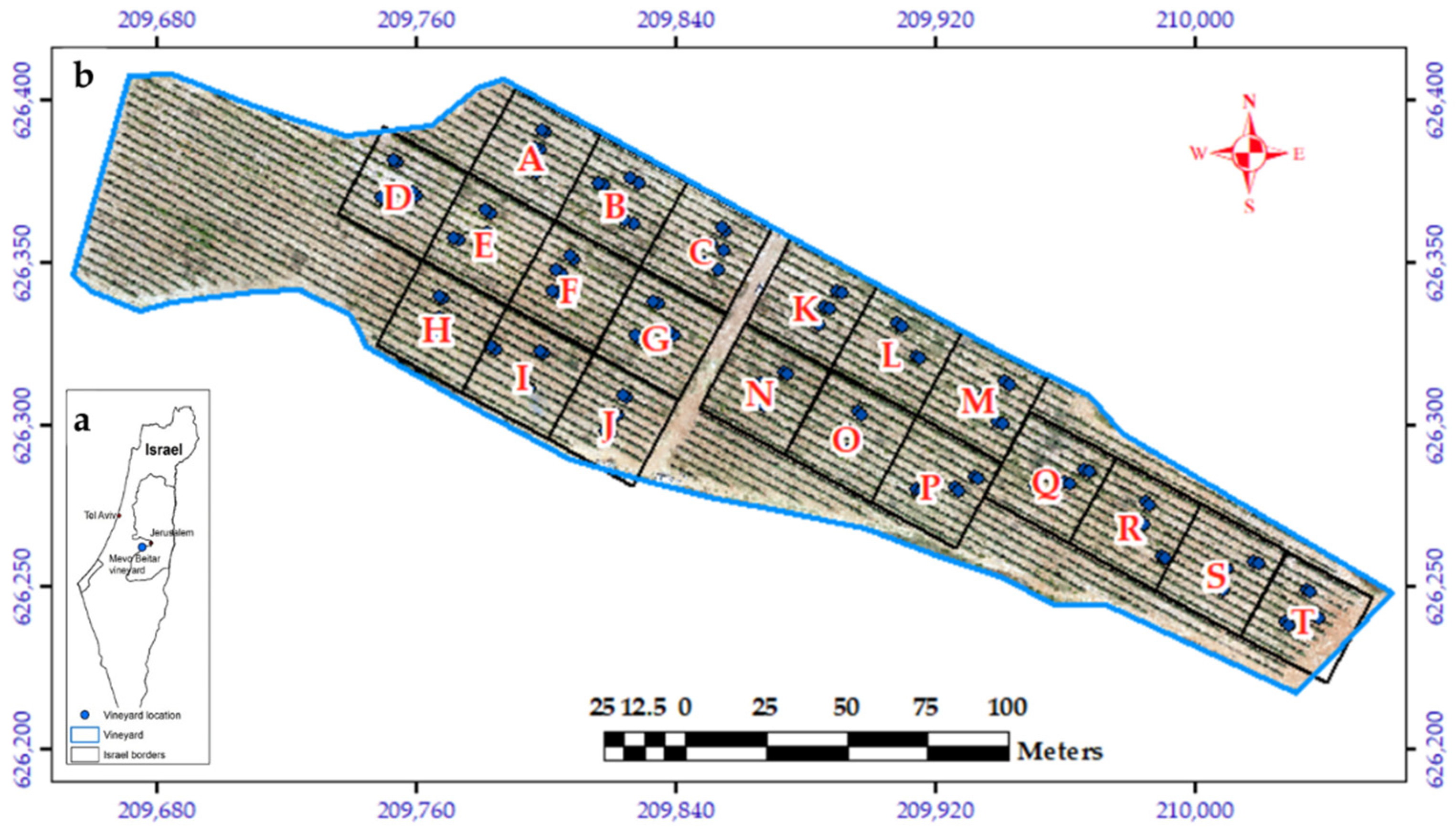

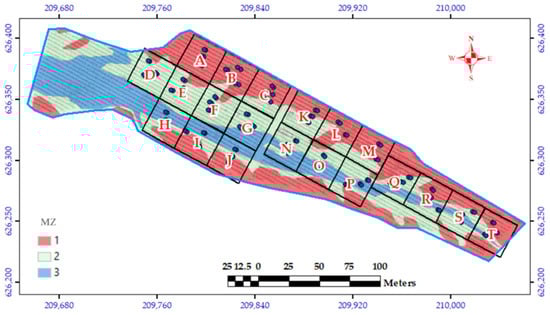

The vineyard was delineated into 20 management cells (MCs; referred by the letters A–T) and 6 vines per MC (120 vines in total) were selected as measurement vines (Figure 1).

In 2017, irrigation was uniform for the entire vineyard and reached 98 mm for the season. In 2018 a drip precision irrigation system was installed in the western block (MCs A–J). In that season, the vineyard was irrigated with a total of 32 mm on average, with most of the western MCs receiving within ±5 mm of the average. The exception to this being MC C, which was irrigated with 66 mm, which had no impact on this study’s results [31]. More detail of the site and experiment can be found at the project story map website [32].

2.2. Terrain and Soil Measurements

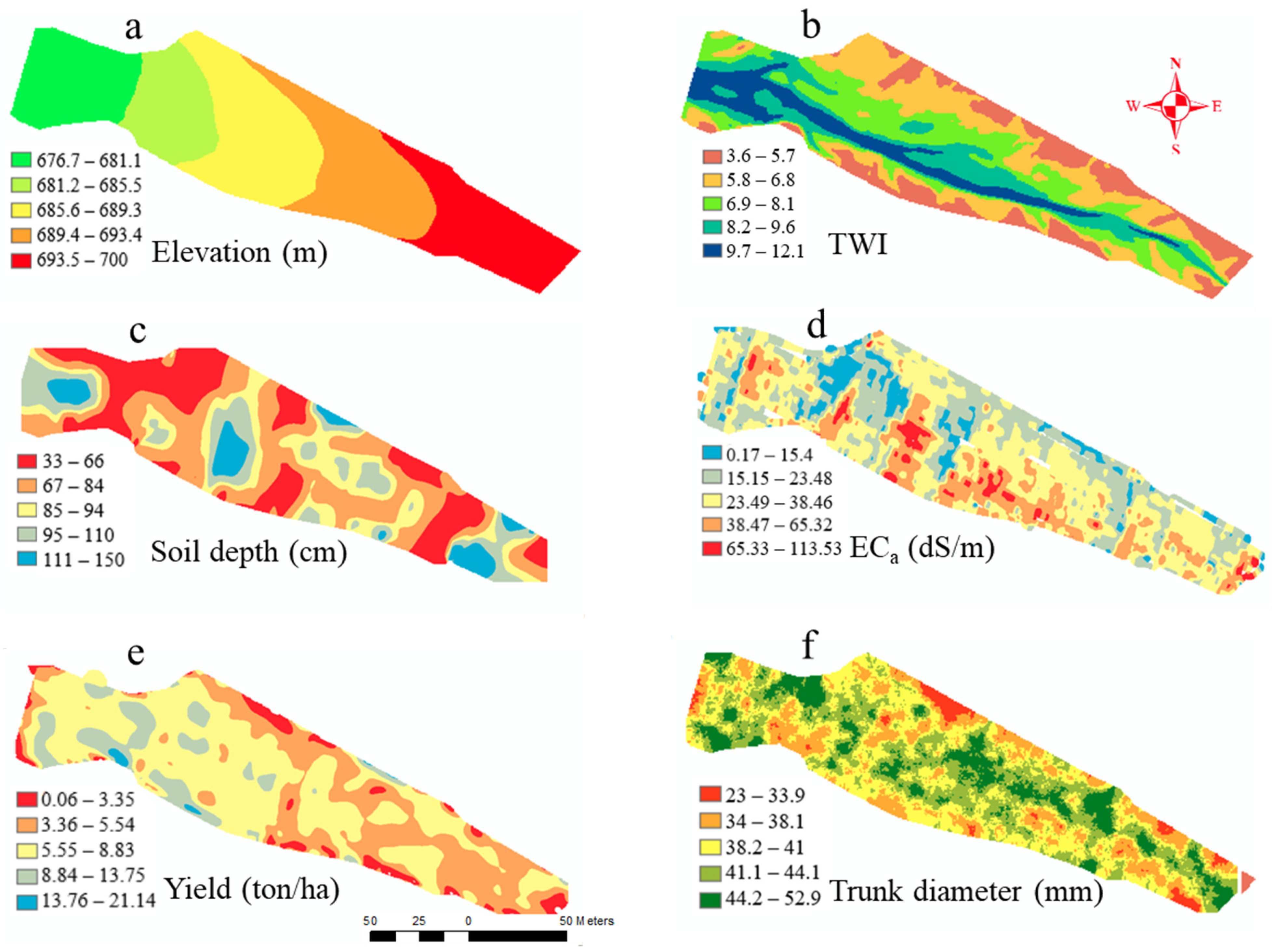

The spatial variability of soil and terrain was mapped and quantified by various field attributes (Figure 2a–d, Table 1). A contour digital elevation model (DEM) with spatial resolution of 1 m was created based on a local elevation survey using real time kinematic global positioning system (RTK). The DEM was further used to create topographic layers using the ‘Topo to Raster’ tool in ArcMap 10.6 (ESRI Inc. Redlands, CA, USA), including elevation (Figure 2a) and slope, and was further analyzed to create the TWI layer (Figure 2b). TWI was originally proposed by Beven and Kirkby [33] and provides a relative, not absolute, measure of the soil moisture status of each pixel in a defined area. The index was calculated using the “dynatopmodel” package in R [34] by the equation:

$$TWI=\ln \left(\frac{A}{tan\beta }\right)$$

(1)

where A is the specific area, or the upstream contributing area (m²) for each pixel, and β is the local slope in the steepest down slope direction in degrees.

Apparent electrical conductivity (EC_a) was determined on 10 April 2018 by a four-probe soil resistance sensor (Soil EC 3100; Veris Technologies, Salina, KS) at field capacity as recommended by the protocol for conducting a field-scale EC_a survey [35]. Data from the shallow layer (0–75 cm) were utilized for this study as it represents the vast majority of expected grapevine active root zone [36]. An EC_a map (Figure 2d) was created from 4037 points recorded using the geostatistical module contained in ArcMap 10.6, interpolated according to the inverse distance weighting (IDW) method.

Soil depth levels were measured using an 80 cm diameter hydraulic earth auger connected to a small tractor at 81 randomly selected points defined using stratified random sampling. The exact depth was recorded when the auger reached bedrock. A soil depth map (Figure 2c) was created using the geostatistical module contained in ArcMap 10.6, interpolated according to the IDW method.

2.3. Plant Vigor Measurements

2.3.1. Ground Measurements

LAI of the 120 measurement vines was determined during the growing season using a canopy analysis system (SunScan model SS1-R3-BF3; Delta-T Devices, Cambridge, UK). The system was operated using the standard protocol recommended by the manufacturer, and all measurements were conducted while the zenith angle was below 30°. The LAI values obtained were compared with measurements following destructive defoliation of leaves from 39 vines (3 cultivars from 6 sites), using an area meter (model 3100; Li-Cor, Lincoln, Nebraska). The two measurement methods were found to have strong linear relationship [37]. Trunk diameter was measured during January 2017 using digital calipers (075430, Signet, Taiwan) for all vines (n = 5522), at a height of 50 cm above ground, representing the cumulated multi-year vine vigor.

2.3.2. Remote-Sensing

Canopy cover was determined as the covered fraction (%) of NDVI within each MZ polygon. NDVI was calculated from a multispectral image of high spatial resolution (8 cm). The image was acquired between 11:45–12:00 Israel Standard Time by an airborne multispectral camera MicaSense RedEdge MX (MicaSense^® Inc, Seattle, WA, USA). The RedEdge MX has five sensors (blue: 465–485 nm, green: 550–570 nm, red: 663–673 nm, red edge: 712–722 nm, and near infrared: 820–860 nm). It also has an external irradiance sensor with GPS and inertial measurement unit (IMU) placed on top of the UAV to capture sensor angle, sun angle, location, and irradiance for each image during flight. Red and near infrared (NIR) bands were used to calculate NDVI using the equation:

$$NDVI=\frac{\rho \left(NIR\right)-\rho \left(Red\right)}{\rho \left(NIR\right)+\rho \left(Red\right)}$$

(2)

where ρ(NIR) is the reflectance value for near infrared band (center wavelength 0.84 µm) and ρ(Red) is the reflectance value for the visible red band (center wavelength 0.668 µm). NDVI values range between −1 and +1. Values below an empirical threshold of 0.3 were excluded as they mostly represented soil and weeds (

Table 2. Descriptive statistics of variables based on remote sensing retrievals.

Parameter	Symbol	Source	Mean	Range	Pixel Size (cm)	Number of Campaigns	Season
Canopy cover	CC	UAV multispectral imagery	28.6	24.9–30.8	6.7	2	2017
Canopy cover	CC	UAV multispectral imagery	27.5	18.2–30.5	8.0	8	2018
Crop water stress index	CWSI	UAV thermal imagery	0.32	0.21–0.44	6.8	3	2017
Crop water stress index	CWSI	UAV thermal imagery	0.30	0.16–0.57	9.1	7	2018

).

2.4. Water Status Measurements

2.4.1. Ground Measurements

Midday stem water potential was measured around solar noon (12:00–14:30) on all measurement vines (n = 120). At four major phenological stages (Figure 3) we measured Ψ_stem on additional vines (extended measurement; n = 154) to allow for spatial interpolation using the kriging method (ArcMap 10.6). The measurements were conducted using pressure chambers (model Arimad 3000, MRC, Holon, Israel) according to the procedures of Boyer [38]. A mature, fully expanded, leaf from each measurement vine was bagged 2 h prior to acquisition with aluminum and plastic bags. The time elapsing between leaf excision and chamber pressurization was less than 20 s. Leaf stomatal conductance (g_s) was measured on all measurement vines in the western block (n = 60) at three phenological stages during 2017, using a portable gas exchange measurement system (model LI-6400, Li-Cor) around solar noon (12:00–14:30). Further descriptive statistics can be found in

Table 3. Descriptive statistics of physiological variables. CV stands for the coefficient of variation (%).

Parameter	Symbol	Source	Mean	Range	CV (%)	N	Season
Leaf area index (m2/m2)	LAI-17	Field measurement using SunScan	0.75	0.37–1.3	24.6	120 vines over 5 measurement days	2017
Leaf area index (m2/m2)	LAI-18	Field measurement using SunScan	0.88	0.2–1.75	39.4	120 vines over 4 measurement days	2018
Trunk diameter (mm)	TDM	Field measurement using hand caliper	40.4	4.9–72.8	18.5	5522 vines	2017
Midday stem water potential (MPa)	Ψstem	Field measurement using pressure chamber	−1.03	−0.38–−2.02	30.3	120 vines over 9 measurement days	2017
Midday stem water potential (MPa)	Ψstem	Field measurement using pressure chamber	−1.0	−0.5–−1.9	25.1	120 vines over 9 measurement days	2018
Stomatal conductance (µmol H2O/m2/s)	gs	Leaf measurement using Li-Cor 6400	0.180	0.002–0.399	63.7	60 vines over 3 measurement days	2017

.

2.4.2. Remote-Sensing

Crop water stress index (CWSI) based on canopy temperature [39] is widely used as a plant water stress indicator and as a tool for mapping in-field variability. Thermal imagery acquired at 11:45–12:00 from a UAV equipped with a FLIR SC655 thermal camera (FLIR^® Systems, Inc., Bilerica, MA, USA) with 640 pixels × 480 pixels, sensitive in the spectral range of 7.5–13 µm and a measurement accuracy of ±0.5 °C was used to evaluate the vineyard’s canopy surface temperature. Image processing for pure canopy extraction included two major steps: 1. a temperature threshold of 45 °C was determined by a visual analysis of the temperature bimodal histogram to remove soil-associated pixels and 2. for masking other non-canopy pixels (mostly shade and grass), we used an NDVI image from the same campaign to indicate pixels with values above an empirical threshold of 0.3. Finally, the following equation was used as CWSI [39]:

$$\mathrm{CWSI}=\frac{Tcanopy-Twet}{Tdry-Twet}$$

(3)

where T_canopy is the temperature of the canopy, T_wet is the temperature of a fully transpiring canopy and T_dry is the temperature of a non-transpiring canopy. Calculation of T_canopy was done at the vine level—polygons of 80 cm × 140 cm for all 5522 vines were created, and the coolest 33% of the pixels within each of the polygons were averaged following Meron et al. [40]. T_wet was calculated at the whole vineyard scale using the average temperature of the coolest 5% of the canopy pixels [41,42]. T_canopy and T_wet were calculated using the “raster” package in R [43]. For T_dry calculation, a portable meteorological station was positioned within the vineyard, which recorded the temperature during all hours of data collection at the canopy height by a data logger (Campbell Scientific, Logan, UT, USA). The average ambient air temperature during the flight was calculated. T_dry was calculated as T_air + 7 °C [41].

2.5. Yield and Fruit Quality Measurements

Yield was measured in two steps. First, hand-picked yield was determined at the vine scale. Twelve vines from each MC were selected, each vine was individually harvested and its total fruit weight and cluster number recorded, thus allowing calculation of cluster weight. Secondly, a mechanical grape harvester (New Holland, Braud 9040) with a continuous weighing system was used for spatial yield mapping at a resolution of 5 m. An interpolated thematic yield map (Figure 2e) was generated as described above (Section 2.2). Total soluble solids (TSSs) and fruit anthocyanin were determined for 104 geo-referenced sample sites within the vineyard that were collected a day before harvest. Twelve fruit clusters were collected at each sample site and were hand-crushed for fruit analysis using an automatic fruit must analyzer (SA-13, Maselli, Italy). Further descriptive statistics can be found in

Table 4. Descriptive statistics of yield and wine variables. CV stands for the coefficient of variation (%).

Parameter	Symbol	Source	Mean	Range	CV (%)	N	Season
Yield (ton/ha)	Yield	Mechanical harvester	7.4	2.1–12.6	26.6	2634 points	2017–2018
Cluster weight (g)	CW	Hand harvest	110.8	46.8–174.9	17.6	240 vines	2017–2018
Cluster number	CN	Hand harvest	47.1	29–87	17.9	240 vines	2017–2018
Berry weight (g)	BW	Fruit samples	1.3	0.75–1.6	9.3	50 berries from 104 sample points	2018
Wine score	Wine score	Micro-vinification and professional wine evaluation	85.2	78.7–89.6	3.1	20 wines each season	2017–2018

.

2.6. Wine Quality Assessments

The grapes of each MC (n = 20) were transported to Ariel winery and, after an over-night cooling, fruit must samples were taken for sugar content, pH and TA analyses. Wines were separately vinified using the following oenological technique: crushing and destemming; addition of SO₂ (11 mg/Kg) and dry selected yeast (25 mg/Kg); 8-d fermentation at a controlled temperature in 100 L stainless steel tanks with three punches of the cap every day. Finally, the 20 wines were put in demijohns for malolactic fermentation and aging for 6 months. After bottling, the wines were tasted and evaluated by a test panel of 7–8 professional winemakers. The wine tasting was a “double-blind test,” with anonymous labels on the bottles of wines according to the ‘Organisation International de la Vigne et du Vin’ [44].

2.7. Vineyard Delineation to Management Zones

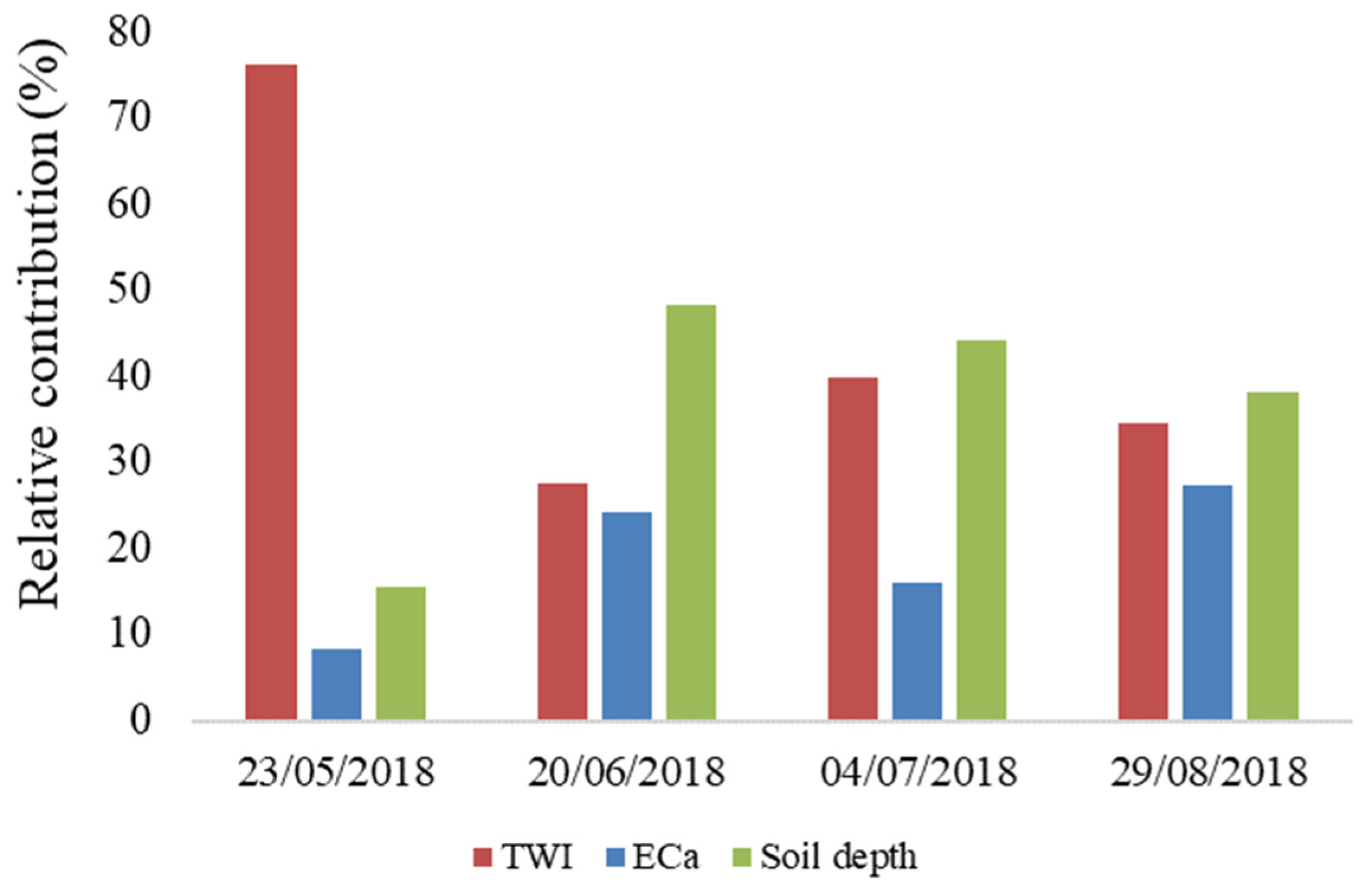

The relative influence of the three soil and terrain variables on vine water status was assessed using a predictive boosted trees model as a function of extended measurements of Ψ_stem at 4 different phenological stages. The boosted trees model produces an additive decision tree model that is based on many smaller decision trees that are constructed in layers. The tree in each layer consists of a small number of splits, typically five or fewer. Each layer is fit using the recursive fitting methodology [45]. Topographic wetness index and soil depth had the highest impact. At the beginning of the season, TWI had a higher impact on Ψ_stem variance implying that TWI better represents the soil water availability resulting from winter and spring precipitation. Therefore, TWI was selected as the basis for MZ delineation.

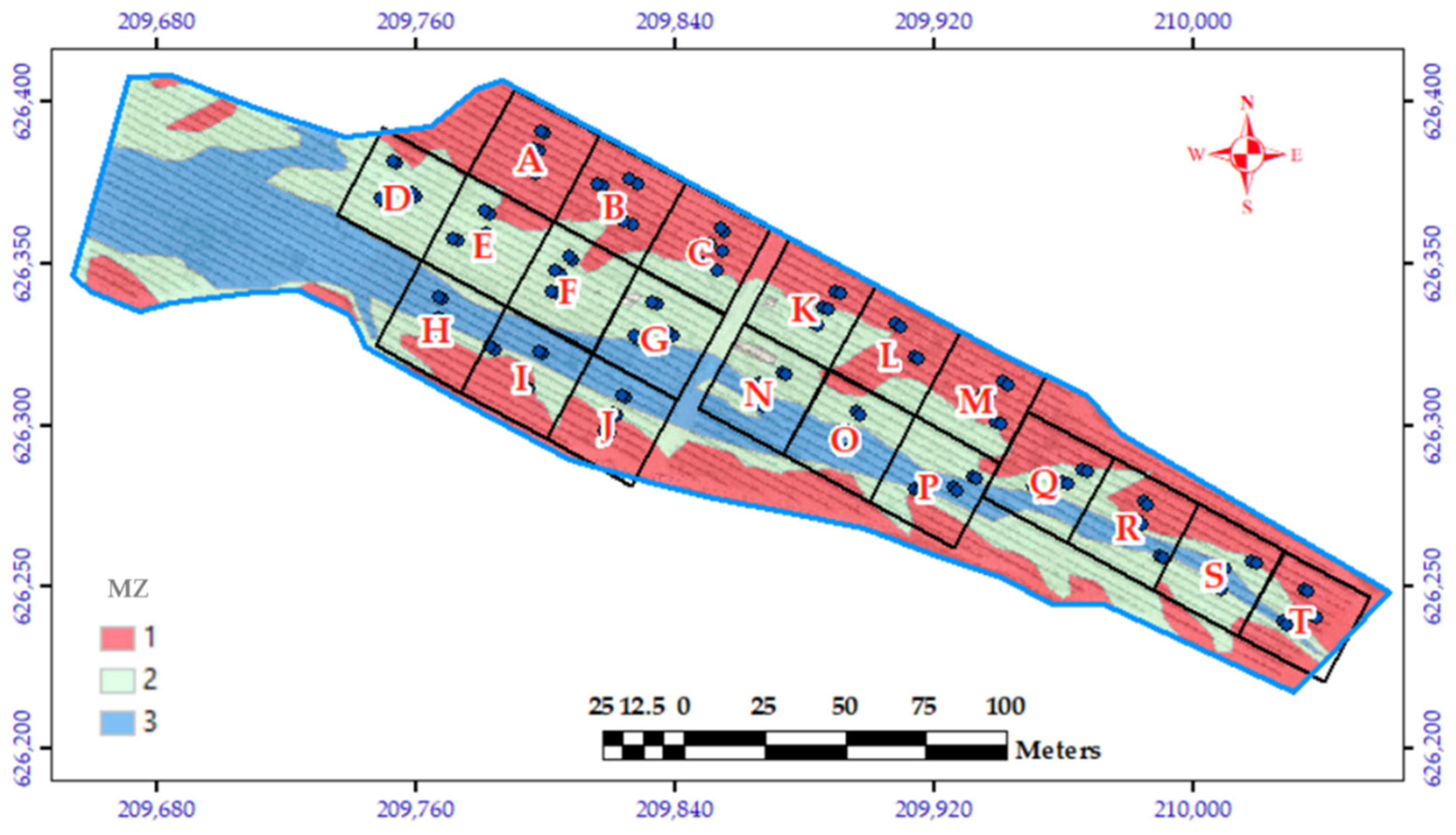

Delineation to MZs was determined using Iso Cluster unsupervised classification tool in ArcMap 10.6. The vineyard was delineated into 2, 3, 4 or 5 zones. Then, a single factor ANOVA was performed, and a goodness of variance fit (GVF) was calculated for each classification result of MZ, in order to minimize the member deviation from the class mean (within groups) while maximizing class mean deviation from other classes (between groups). The optimal number of MZs was determined when GVF reached a minimal threshold of 0.8, following Lowrance et al. [46].

2.8. Data Analysis

Analysis of variance (ANOVA) was performed to reveal differences between the different MZs within the vineyard (p < 0.05) for all variables with a normal distribution, and a multiple comparison test was done using the Tukey–Kramer HSD test. The non-parametric Steel–Dwass test was applied to determine differences between MZs for variables that were not normally distributed, namely g_s, TSS and fruit must color. Statistical data analysis was performed using JMP software (Pro 15, SAS Institute, Cary, NC, USA) and R software [47].

In order to avoid spatial autocorrelation of CWSI, canopy cover, trunk diameter and yield variables, we selected 22 random points within a 6 m buffer in each MZ with a minimal distance of the calculated range of the semivariogram [48]. Random points were selected using the ‘Create Random Points’ Module, the semivariogram was calculated using the geostatistical wizard of ArcMap 10.6. Wine scores were classified for the MZs using Jenks natural breaks that minimizes each MZ’s average deviation from the MZ mean. All the analyses, interpolations and classification were calculated using ArcMap 10.6.

3. Results

3.1. Climate Conditions

The Judaean Hills region, where the study site was located, is characterized by a Mediterranean climate, with mean annual rainfall of 540 mm, typically concentrated between October and May [49]. Accumulated annual precipitation recorded at a meteorological station located 6 km from the vineyard was 369 and 452 mm/year for 2017 and 2018, respectively. The mean daily temperature ranged between 24.9 in August and 9.1 °C in January. Precipitation during the spring of 2016–2017 (between 1 March and 15 May) was low (17.2 mm) compared to the spring of 2018 (70.4 mm).

3.2. Geospatial Variables and Management Zones Delineation

TWI, which is affected mainly by the local slope (Equation 1), revealed a local wadi (Figure 2b, in blue) extending from east to west with a graduated effect around it. EC_a and soil depth were characterized by a dispersed spatial pattern (Figure 2c,d). The relative influence of TWI, EC_a and soil depth on vine water deficit stress (Ψ_stem) was analyzed on four phenological stages (Figure 4). On 23 May 2018 the relative influence of TWI on Ψ_stem was highest (76%), and therefore it was selected as the basis for the vineyard’s delineation into MZs (Figure 5).

3.3. Canopy Measurements

3.3.1. Ground Measurements

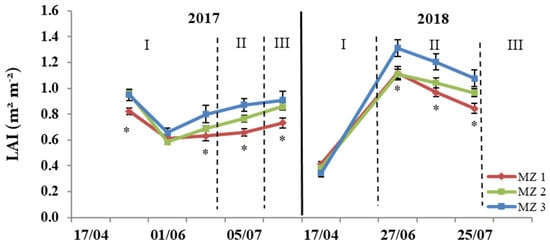

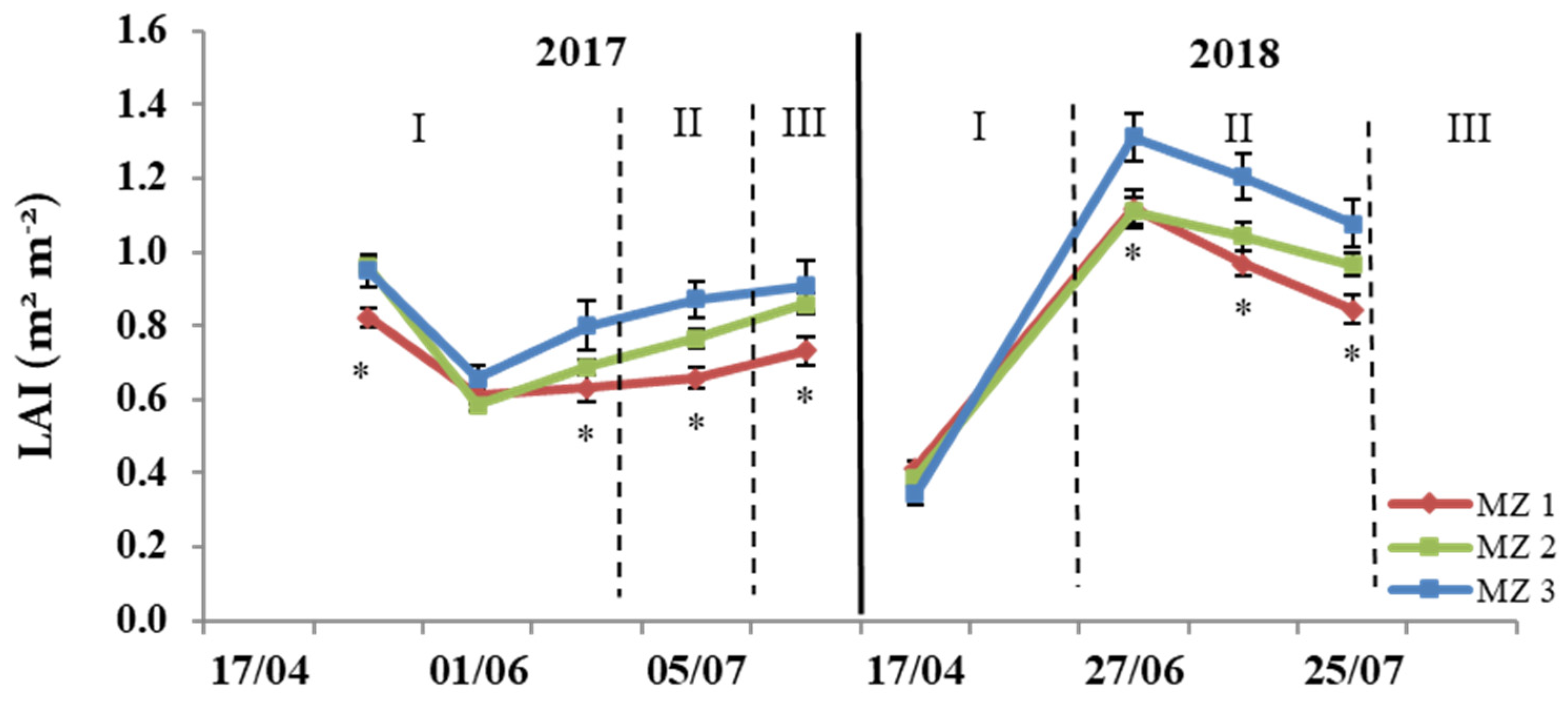

The seasonal trend of LAI showed higher canopy area in MZ3 on most of the measurement days during both growing seasons (Figure 6). The ANOVA results found a significant difference between MZ1 and MZ3 in 6 out of 9 days, and no differences between MZ2 and MZ3 (

Table A1. Leaf area index in each management zone (MZ) during 2017 and 2018. Each value is the mean of 22, 28 and 10 replicates for MZ 1, 2 and 3, respectively. The value of each replicate was the average of the measurements of two adjacent sample vines. Data were analyzed using ANOVA. Different letters represent significant differences among MZs, means were separated using the Tukey–Kramer HSD test (α = 0.05).

	MZ	17/05	01/06	14/06	05/07	16/08
2017	1	0.82 B	0.61 A	0.63 B	0.66 B	0.73 B
	2	0.96 A	0.59 A	0.69 AB	0.77 A	0.86 A
	3	0.95 A	0.66 A	0.80 A	0.87 A	0.91 A
		17/04	27/06	11/07	25/07
2018	1	0.41 A	1.12 AB	0.97 B	0.85 B
	2	0.39 A	1.11 B	1.04 AB	0.97 AB
	3	0.35 A	1.31 A	1.21 A	1.08 A

).

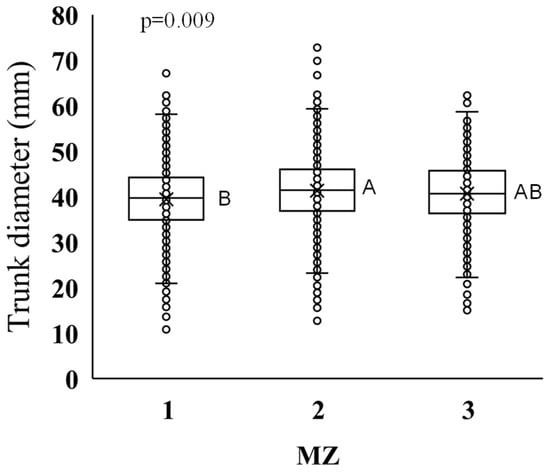

The average trunk diameter of the vines in MZ1 was 39.4 mm, which was significantly lower than the averaged trunk diameter in MZ2 (41.3 mm; Figure 7). MZ3 vine trunk diameter was intermediate (40.7 mm) and did not differ from those of MZ1 and MZ2.

3.3.2. Remote Sensing

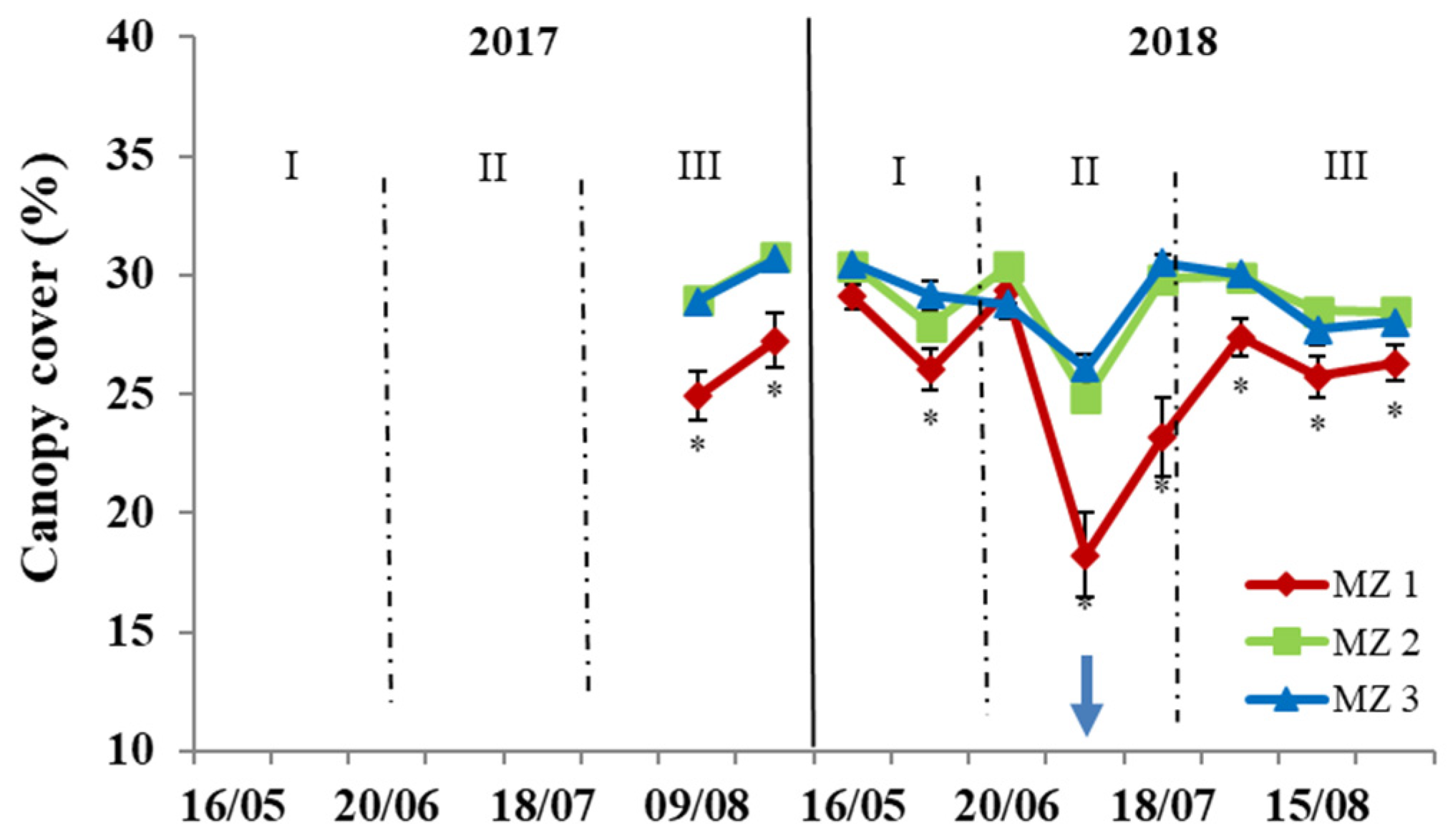

The trend of canopy cover was relatively stable along the seasons, except for canopy trimming, which temporarily decreased canopy area for all MZ. On 8 out of 10 measurement days during the season, canopy cover in MZ1 was lower than canopy cover in at least one of the other 2 MZs (Figure 8).

3.4. Vine Water Status

3.4.1. Ground Measurements

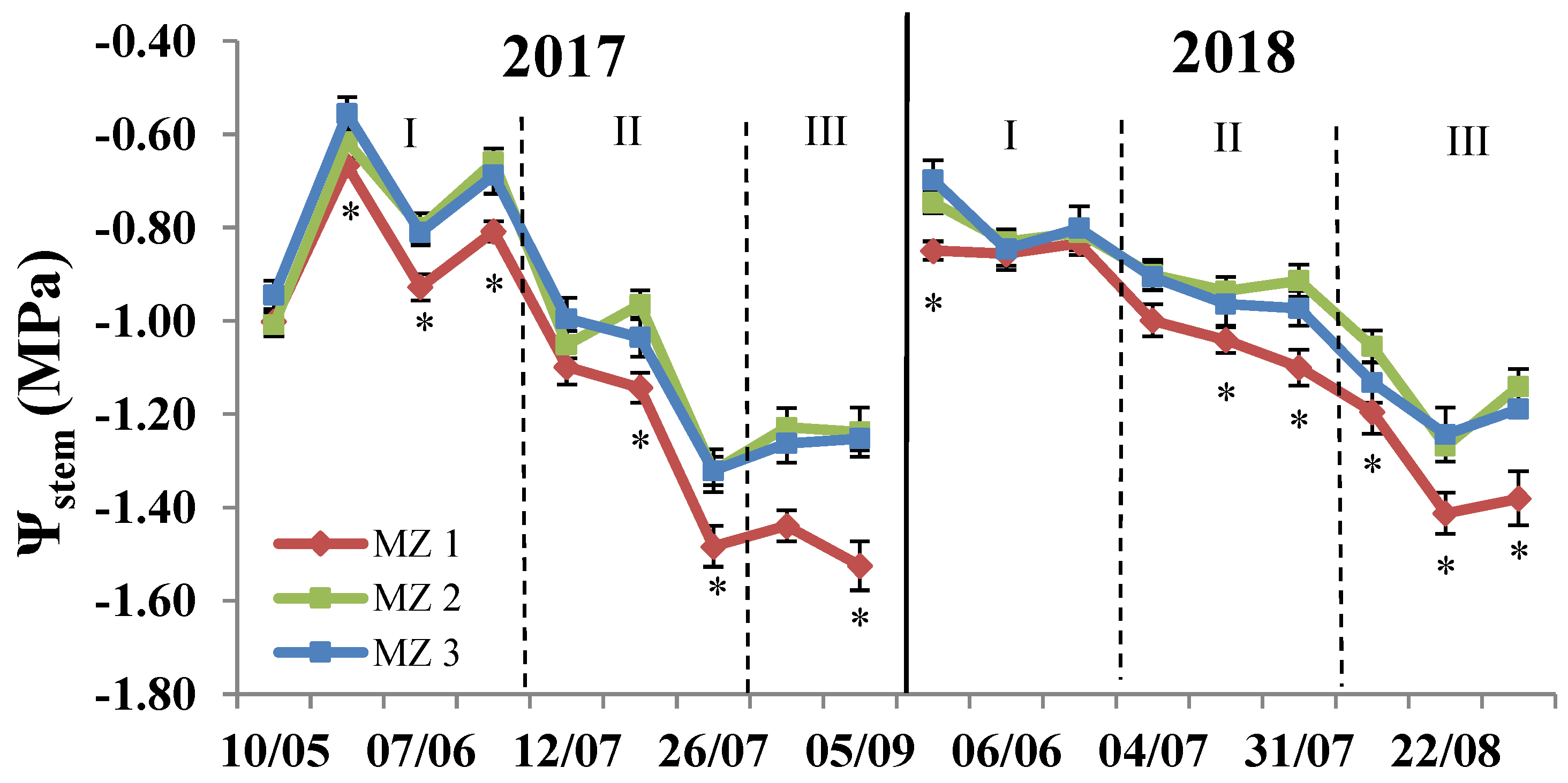

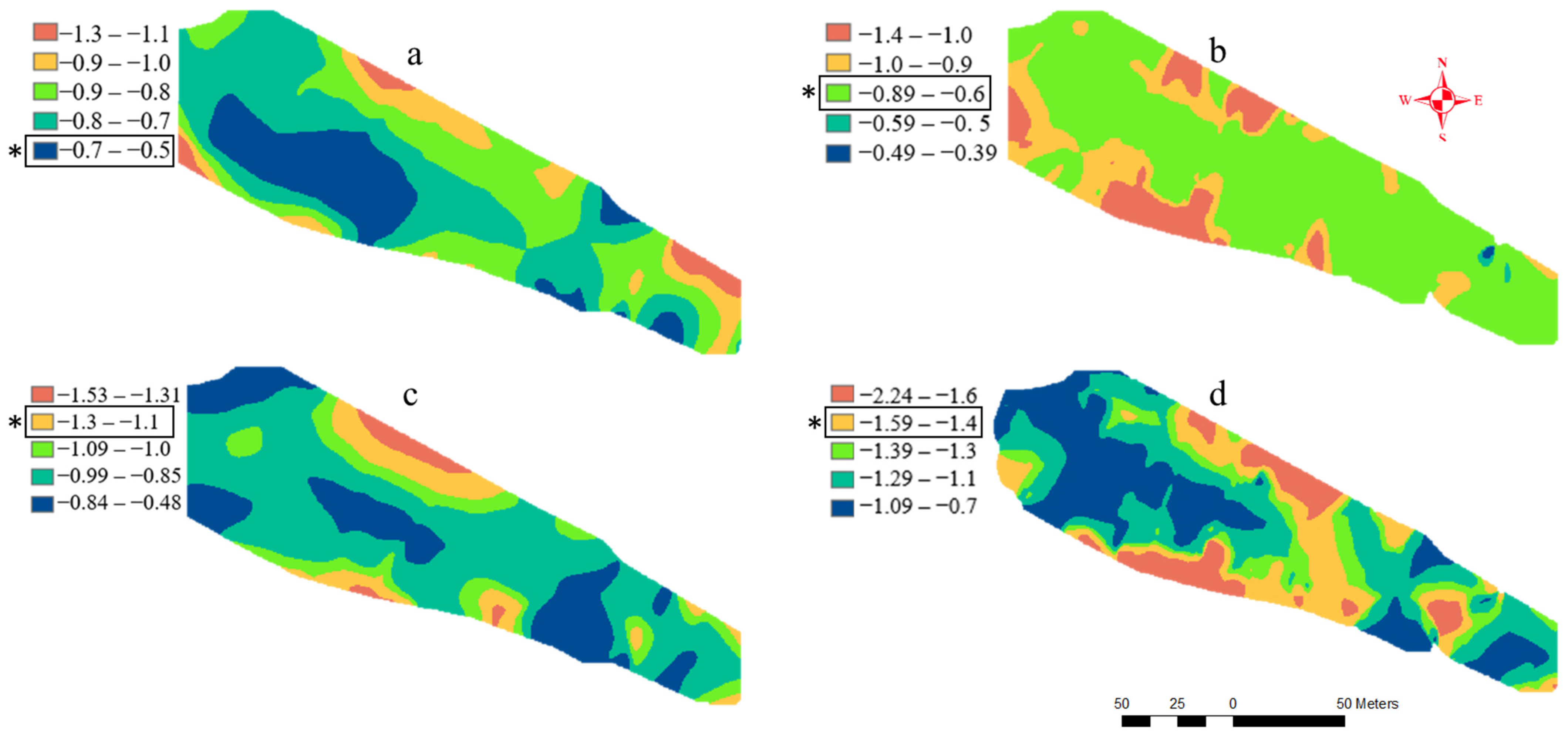

The trend of Ψ_stem (Figure 9) exhibited low water deficit stress at the beginning of each season, gradually becoming higher towards harvest time. MZ1 had the greatest water deficit stress (lower Ψ_stem values) compared to MZ2 and MZ3 in most cases. MZ3 and MZ2 had a similar trend of Ψ_stem for all stages in both years, in 9 out of 18 measurements. MZ3 exhibited intermediate values between MZ1 to MZ2 and did not statistically differ from the other two MZs (

Table A2. Midday stem water potential in each management zone (MZ) during 2017 and 2018. Each value is the mean of 22, 28 and 10 replicates for MZ 1, 2 and 3, respectively. The value of each replicate was the average of the measurements of two adjacent sample vines. Data were analyzed by ANOVA. Different letters represent significant differences among MZs, means were separated using the Tukey–Kramer HSD test (α = 0.05).

	MZ	10/05	24/05	07/06	28/06	12/07	19/07	26/07	09/08	05/09
2017	1	−1.00 A	−0.67 B	−0.93 B	−0.81 B	−1.10 A	−1.14 B	−1.48 B	−1.37 A	−1.53 B
	2	−1.01 A	−0.62 AB	−0.80 A	−0.66 A	−1.05 A	−0.96 A	−1.32 A	−1.23 A	−1.24 A
	3	−0.94 A	−0.56 A	−0.81 AB	−0.69 AB	−1.00 A	−1.04 AB	−1.32 AB	−1.26 A	−1.25 A
		23/05	06/06	20/06	04/07	18/07	31/07	15/08	22/08	29/08
2018	1	−0.85 B	−0.86 A	−0.83 A	−1.00 A	−1.04 B	−1.10 B	−1.20 B	−1.41 B	−1.38 B
	2	−0.75 A	−0.83 A	−0.81 A	−0.90 A	−0.94 A	−0.91 A	−1.05 A	−1.27 A	−1.14 A
	3	−0.70 A	−0.85 A	−0.80 A	−0.91 A	−0.96 AB	−0.97 AB	−1.13 AB	−1.24 AB	−1.19 AB

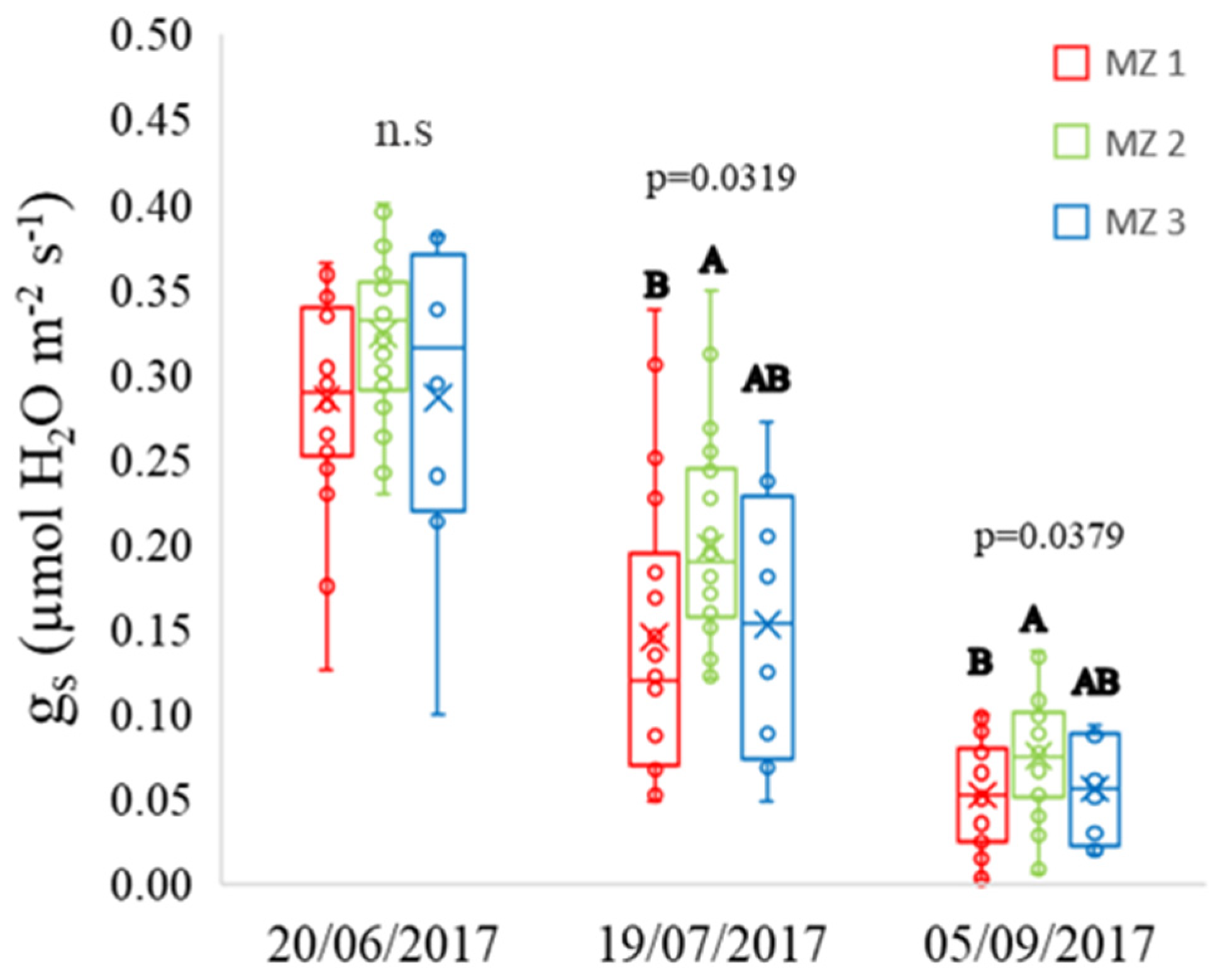

). Stomatal conductance (g_s) at the beginning of the 2017 season (20 June) was high and similar in all 3 MZs. On the other two measurement days g_s was lower in MZ1 than in MZ2, with intermediate values for MZ3, suggesting a temporal change of MZ3 water status within the season (Figure 10).

3.4.2. Remote Sensing

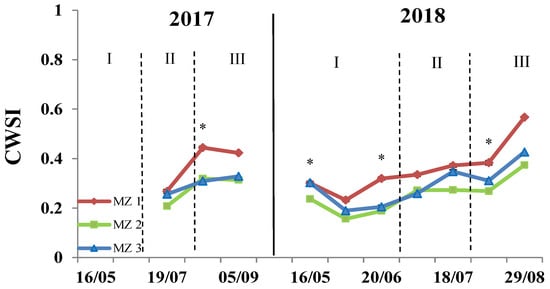

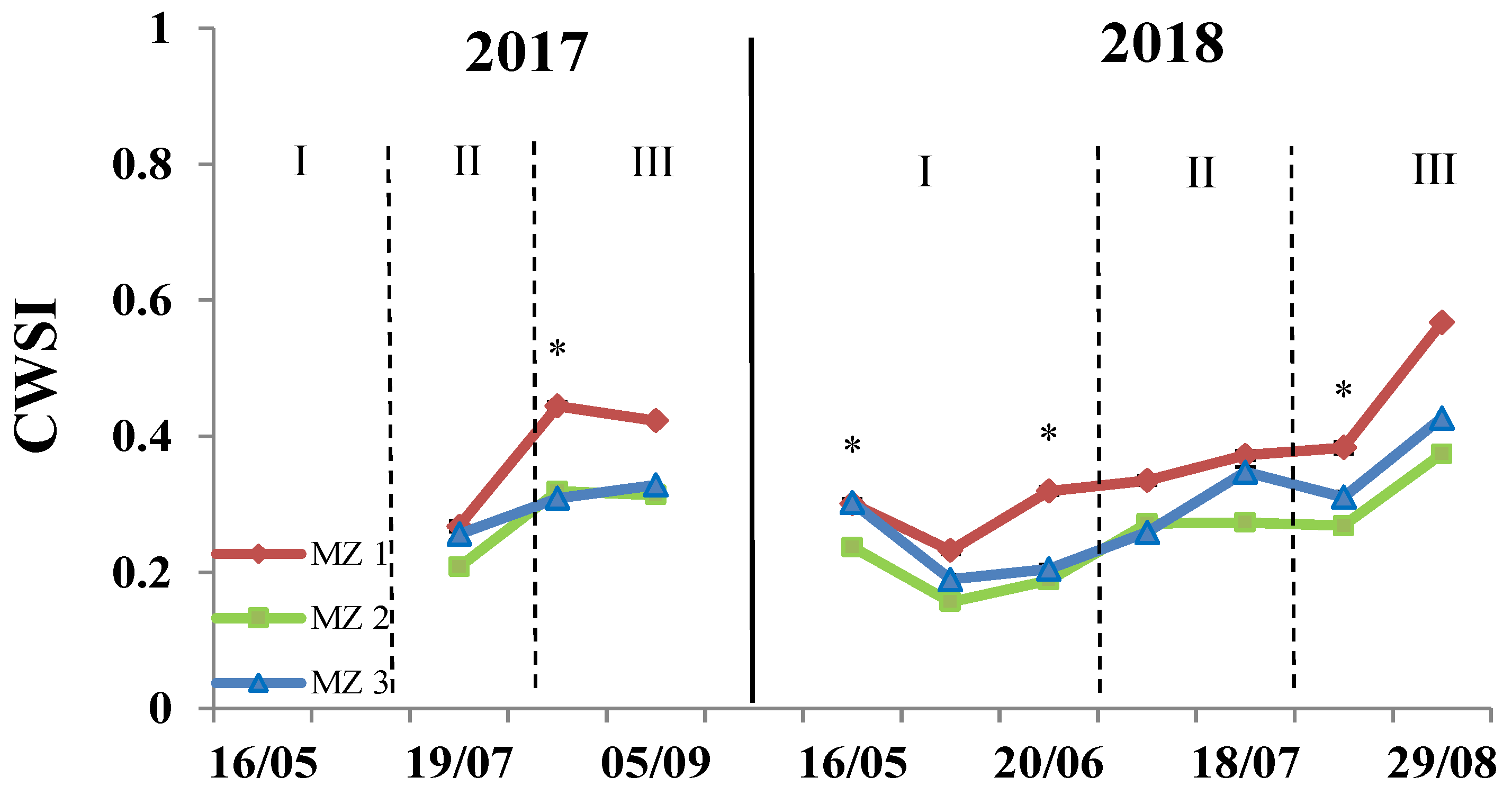

Management zone (MZ) 1 demonstrated the highest water deficit stress, determined by higher CWSI values compared to MZ2 and MZ3 in most cases (Figure 11). In 2017, MZ3 and MZ2 had a similar trend of CWSI, while 2018 results demonstrated larger differences. At the beginning of the 2018 season (during stages I and II) MZ3 followed a similar trend as MZ2, but for the last three measurements of the season, it had higher values of CWSI.

3.5. Yield Components, Fruit and Wine Quality

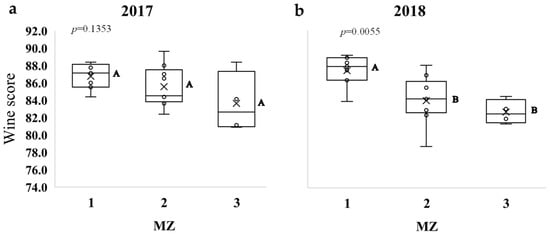

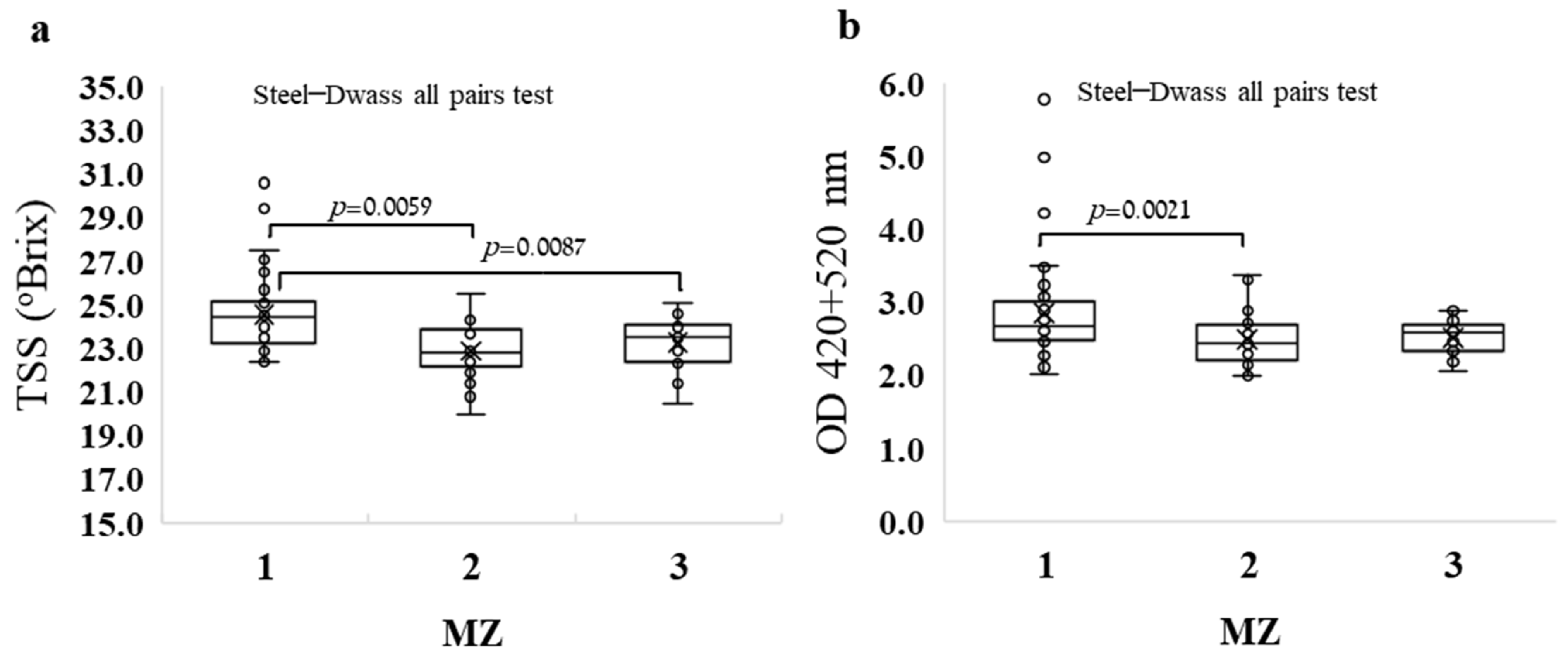

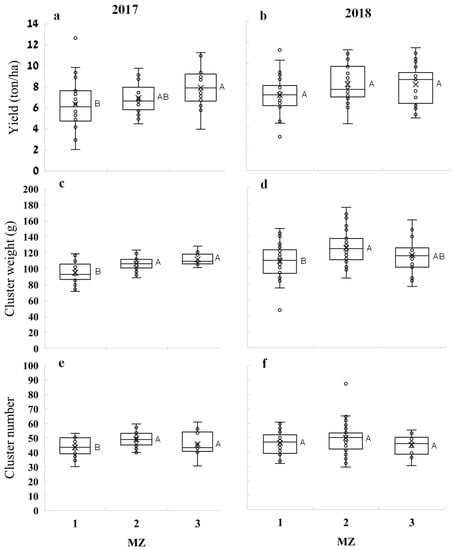

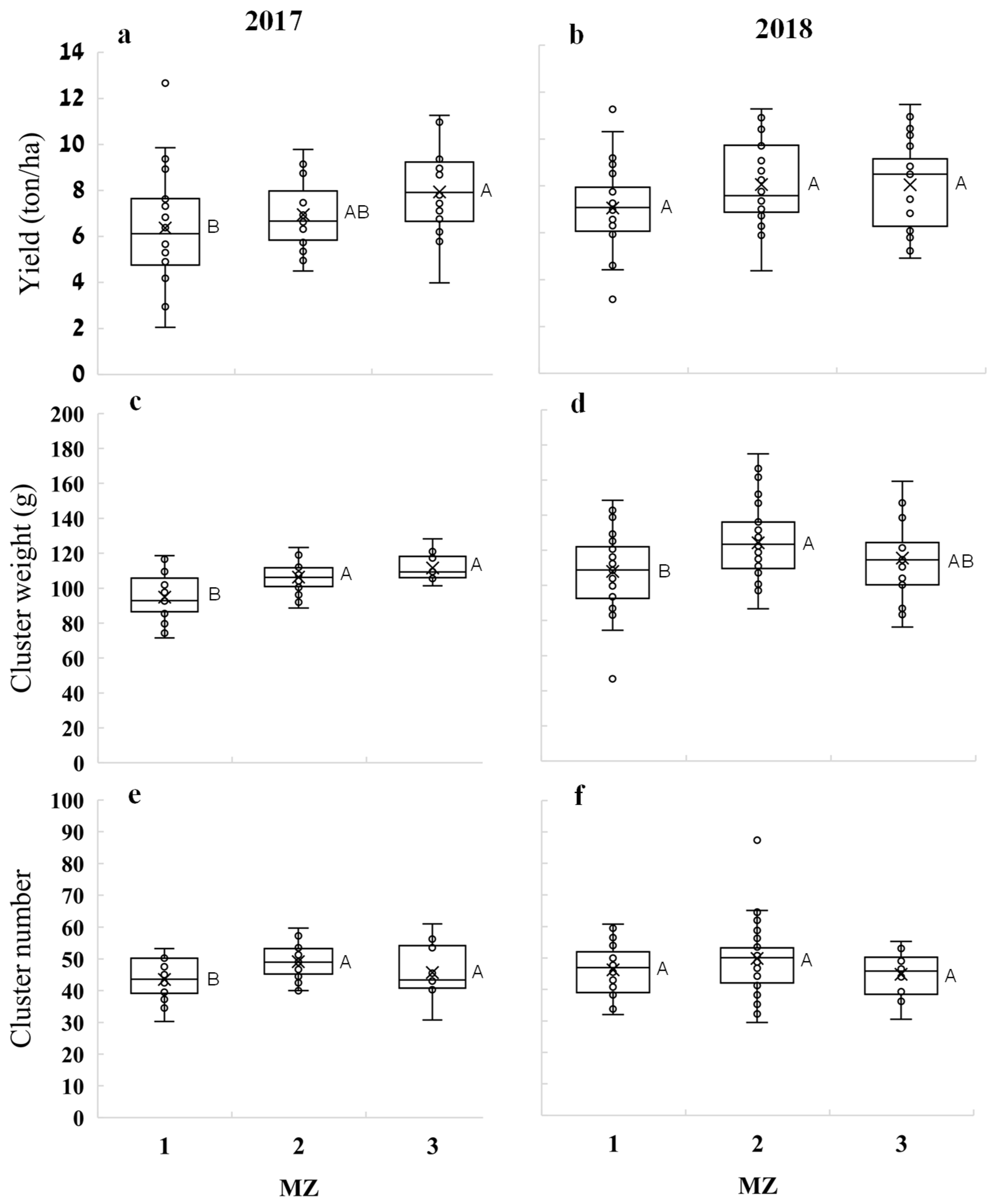

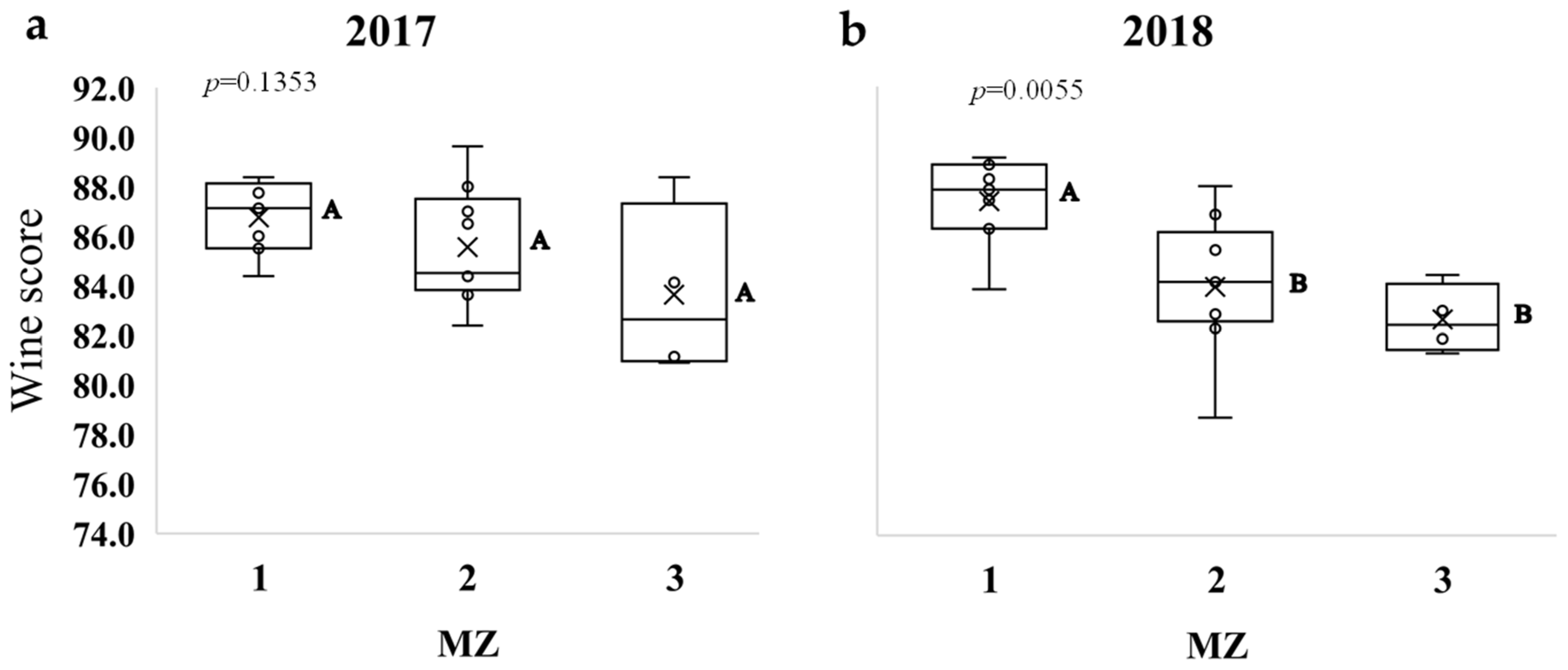

MZ1 had the lowest yield, cluster weight and cluster number in 2017, and the highest TSS and fruit color (OD 420 + 520) in 2018. MZ2 and MZ3 exhibited similar responses regarding yield and its components, TSS, fruit must color and wine quality (Figure 12, Figure 13 and Figure 14).

4. Discussion

We defined and evaluated three MZs within a wine grape vineyard, based on a single topographic variable (TWI). Differences between MZs were continuously evaluated throughout two growing seasons by measuring vine vigor and water deficit stress. Data was gathered using both common and accurate field measurements with a low sample size (e.g., Ψ_stem, LAI and yield parameters) and by remote sensing with lower accuracy and a higher sample size (e.g., canopy cover and CWSI). Within-season measurements in each of the MZs allowed investigation of MZ vine vigor and water status dynamics and its effects on yield and wine parameters. Management zones can be static, with no change of their boundaries throughout the season [14,28] or dynamic, with a change of size or class number [42,50,51]. Since our main objective in this study was to delineate MZs for precision irrigation purposes, we calculated the relative influence of three soil and topographic variables on the water status in the vineyard using extended measurements of Ψ_stem at four phenological stages (Figure 4). Results showed a clear, strong influence of TWI on Ψ_stem measurements at the beginning of the season while, as the season progressed, soil depth and EC_a had higher or similar influence. Since none of the soil or topographic variables showed a constant relative influence on vine water status, MZ delineation in this vineyard appears to be not static. The dynamics of MZs with constant, pre-defined boundaries were tested to promote understanding of irrigation requirements under varied constraints and objectives regarding canopy size, water deficit stress and fruit quality.

Vine vigor measurements revealed season-to-season differences with relatively higher LAI values during 2018 due to the greater spring precipitation (70.4 mm compared to 17.2 mm in 2017 between 1 March and 15 May each year), and differences between field measurements and remote sensing variables. Canopy cover results (Figure 8;

Table A3. Canopy cover for each management zone (MZ) during 2017 and 2018. Measurement was done first by calculating NDVI in vine rows, then calculating the canopy coverage of each MZ. Each value is the mean of 22 random points created to account for spatial autocorrelation. Data were analyzed by ANOVA. Different letters represent significant differences among MZs, means were separated using the Tukey–Kramer HSD test (α = 0.05).

	MZ	09/08	05/09
2017	1	24.9 B	27.2 B
	2	29.0 A	30.8 A
	3	28.9 A	30.7 A
		16/05	06/06	20/06	04/07	18/07	31/07	15/08	29/08	26/09
2018	1	29.09 A	26.03 B	29.32 A	18.24 B	23.20 B	27.38 B	25.74 B	26.31 B	24.11 B
	2	30.41 A	27.88 AB	30.38 A	24.82 A	29.85 A	29.91 A	28.52 A	28.46 A	26.72 A
	3	30.46 A	29.20 A	28.80 A	26.11 A	30.53 A	30.06 A	27.72 AB	28.02 AB	25.93 AB

) revealed differences between MZ1 and MZ2 and three in most cases while LAI results indicated that MZ3 values were highest, with smaller differences between MZs. The relations between LAI and canopy cover in the vineyard have rarely been studied. Though a few examples of ground-measured LAI–NDVI relationships have been published [52], none of them showed a strong correlation between the variables. It is assumed that LAI is more sensitive to vine vigor and can serve well as a parameter for irrigation scheduling in vineyards [53,54]. Moreover, LAI has been shown to be a particularly dominant factor influencing vine evapotranspiration [55].

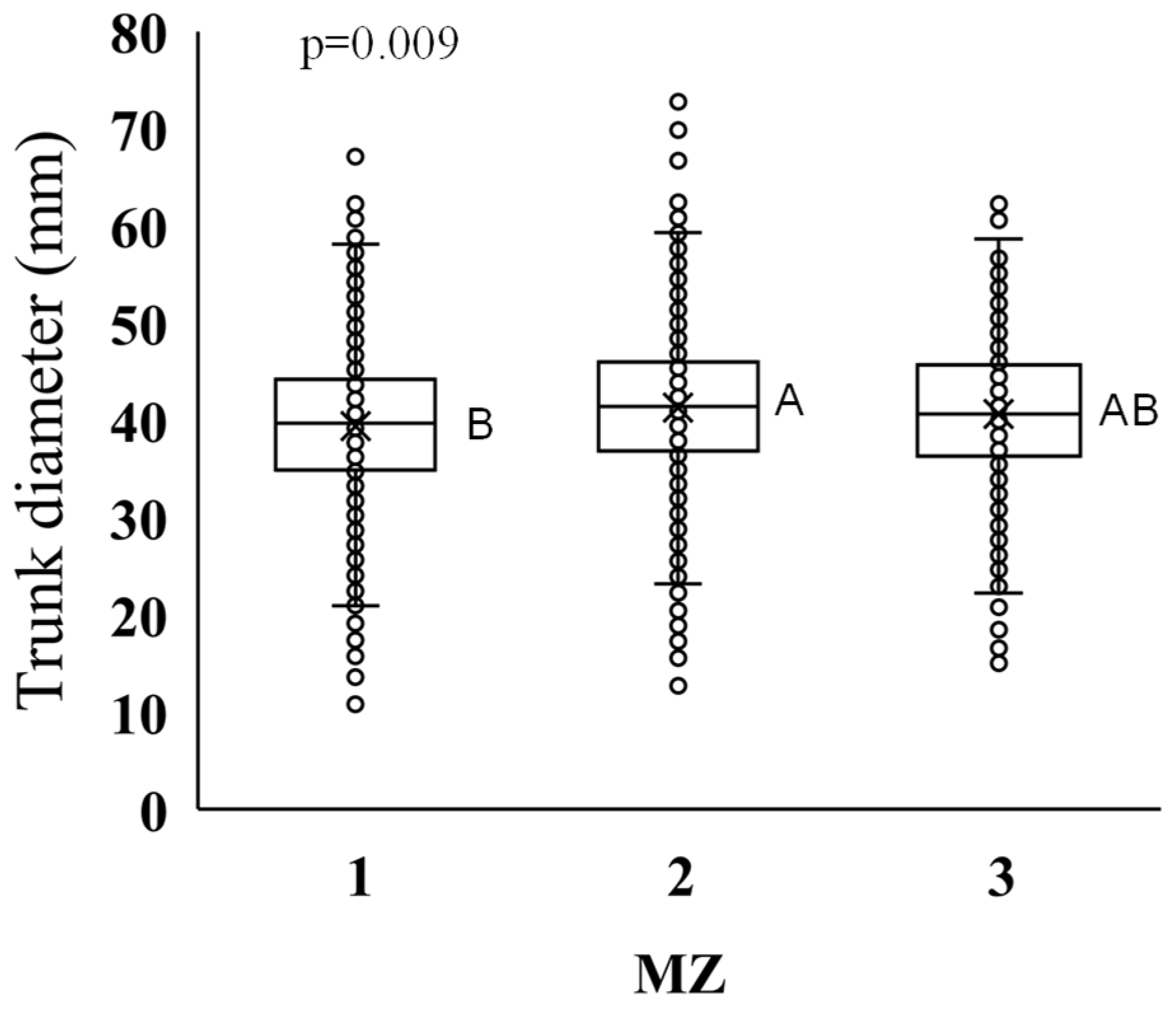

Trunk diameter represents the cumulated effect of vineyard variability on vine vigor. Figure 7 shows an intermediate effect of TWI on MZ3 average trunk diameter. It is well established that the most pronounced and rapid trunk growth occurs from flowering until veraison, followed by a decrease in trunk diameter as fruit starts ripening. Intrigliolo and Castel [56] suggested that the increase in trunk diameter is related to a strong connection between water availability from flowering to veraison, and the decrease in trunk diameter is related to carbohydrate demands of fruit and canopy from veraison onwards. This theory can explain the accumulated, multiyear effect in MZ3, which experienced high soil water availability leading to a high trunk diameter and a larger canopy at the beginning of the season, followed by a decrease in trunk diameter at the end of season.

Vine vigor as revealed from LAI values indicated for high water availability in MZ3, which correspond with the TWI division and its high wetness index. Accordingly, it could be further expected that Ψ_stem values would be less negative than MZ2. Yet, in overall, Ψ_stem values in MZ3 were very similar to MZ2. The Ψ_stem trend of MZ3 at the beginning of each season indicates minimal water deficit stress, i.e., higher Ψ_stem, while at the end of the season the water status of MZ3 was similar to or slightly less than that of MZ2 (Figure 9; Table 2). Relation between proximal field and remotely sensed water stress measurements was more persistent than that of the vine vigor variables. The trend of CWSI in MZ3 revealed even larger differences. At the beginning of the season, MZ3 was at the lowest water deficit, i.e., lower CWSI, but at the end of the season its water status indicated intermediate water deficit stress (Figure 11). These findings lead to two important conclusions. First, that water status in MZ3 is a result of a complex interaction between water availability and vine vigor development and thus follows a dynamic temporal pattern. Such a dynamic trend may exist in other zones within vineyards as a function of high wetness index. Second, that remote sensing offers strong and important tools for water status measurements for precision irrigation purposes.

Previous studies have suggested that high soil and plant water availability can lead to larger canopies and consequently to greater water consumption and water stress at the end of the season [17,55]. Stomatal conductance results showed differences between MZ1 and MZ2 at stages II and III while MZ3 did not differ from any of the other MZs (Figure 10). These results are in agreement with remote sensing water status variable CWSI, showing the same intermediate status of MZ3 at stages II and III (Figure 11).

The spatial variability in TWI reflected the variability of grapevine physiology at the beginning of the season (stage I and partially stage II) but not at the end of season. Water deficit stress was not consistently different along the season between MZs in contrast to the results of Yu et al. [57] who delineated a ‘Cabernet Sauvignon’ vineyard in Ca, USA into 2 MZs based on Ψ_stem integrals. Differences between vineyards can be explained by heterogenic soil texture, soil depth and seasonal evaporative demand. As above-mentioned, while dynamic MZs have been studied in field crops [42,50,51], there is little known regarding orchards or vineyards. The approach requires continuous usage of reliable tools to assess spatiotemporal variation of plant vigor and vine water status. While remote sensing tools to evaluate vine water status and stress have been the subject of many studies [24,58,59,60], remote tools to sense vine vigor have been left behind. Assessment of canopy size using satellite imagery [61] has been attempted using a 3D canopy surface model [62] or image processing algorithms [63].

Results of yield and fruit quality show that vines under similar irrigation can respond uniquely as a function of location and spatial conditions. MZ1, the most distant from the wadi and steepest slope, was characterized by lower trunk diameter, LAI, and canopy cover on most of the measurement days (p < 0.05). MZ1 also demonstrated the greatest water deficit stress, eventually resulting in the lowest yield, highest TSS, fruit skin color and the highest wine score (n.s in 2017). Although we measured some differences in vine vigor between MZ3 and MZ2 during the 2017–2018 seasons, there were no significant differences between them in terms of fruit quantity, fruit quality and wine score.

Inducing water deficit stress in vineyards during stage III is favorable for quality red wine production, and has become a common practice in vineyards [21]. In an irrigation study in Israel, it was proved that providing regulated deficit irrigation (RDI) combining higher irrigation at stage I and lower irrigation at stage III has the potential to generate an optimal balance between vegetative growth, yield and wine with enhanced color and aroma compounds [16,17]. In this sense, zones within a vineyard with higher plant available water should be treated with unique RDI strategies. On one hand, this could improve water use in the vineyard, on the other, it could drive site-specific agrotechnical practices, particularly regarding canopy management.

Certainly, the future of precision irrigation will include utilization of accurate and feasible remote sensing tools. Additional studies should therefore consider MZ dynamics within vineyards, based on within season, continuous remote sensing retrievals.

5. Conclusions

We provided evidence for the relations between geomorphological spatial attributes of a vineyard and vine physiological response from early season vine vigor to wine quality. We showed the existence of temporal-dynamic MZs in our study vineyard. Understanding the relationships between soil water availability, vine vigor and water stress can improve irrigation decisions. TWI was successful in determining MZs in the current study and could serve as a cost effective, key factor for MZ delineation in other typical vineyards in semiarid regions where topography is spatially varied and winter and spring precipitation are important to vine growth and development and to irrigation management.
