Extraterrestrial Influences on Remote Sensing in the Earth’s Atmosphere

Abstract

Atmospheric properties have a significant influence on electromagnetic (EM) waves, including the propagation of EM signals used for remote sensing. For this reason, changes in the received amplitudes and phases of these signals can be used for the detection of the atmospheric disturbances and, consequently, for their investigation. Some of the most important sources of the temporal and space variations in the atmospheric parameters come from the outer space. Although the solar radiation dominates in these processes, radiation coming out of the solar system also can induces enough intensive disturbance in the atmosphere to provide deflections in the EM signal propagation paths. The aim of this issue is to present the latest research linking events and processes in outer space with changes in the propagation of the satellite and ground-based signals used in remote sensing.

1. Introduction

As the highest terrestrial layer, the atmosphere is under permanent influences from outer space. For this reason and due to link with many processes in different areas of Earth, the temporal and space distributions of atmospheric parameters are very complex and have been the focus of a number of studies in different research fields. The application of these studies is important for pure sciences but also for applied sciences and technology.

Since the measurement of atmospheric parameters using on-site methods is very complex, remote sensing has very important role in observations of different-altitude domains. The propagation properties of a signal which have been used for different kinds of remote sensing depend on the different atmospheric parameters, such as the electron density and temperature. The spatial and temporal variations in these parameters affect signal propagations and, consequently, the corresponding applications of the used technique, such as observations and positioning. Some of the most important sources of atmospheric disturbances are solar wind and radiation. In addition, cosmic rays can provide intensive perturbations of the outer Earth’s layer [1,2,3]. The perturbation intensity, duration, and location in the Earth’s atmosphere can be quite different, which can induce various signal deviations.

The focus of this Special Issue is: (1) the detection of extraterrestrial events and induced atmospheric disturbance modelling, and (2) the influences of atmospheric parameter variations on EM signal propagation.

2. Extraterrestrial Influences on the Earth Atmosphere—Remote Sensing of Disturbances

The properties of the atmospheric disturbances induced by extraterrestrial events and processes depend on the characteristics of the disturbance sources (intensities, source type etc.), the considered atmospheric area (due to interaction of incoming radiation or bodies with particles within them), and the space between them (due to the interaction of incoming radiation or bodies with the atmosphere part before its arrival at the considered location). Charged particlesprimarily disturb the upper ionosphere as well as the polar and near-polar latitudes (due to the geomagnetic field), while the influence of the EM radiation depends on the radiation intensity, wavelength, impact angle in the atmosphere, and the area within its propagation.

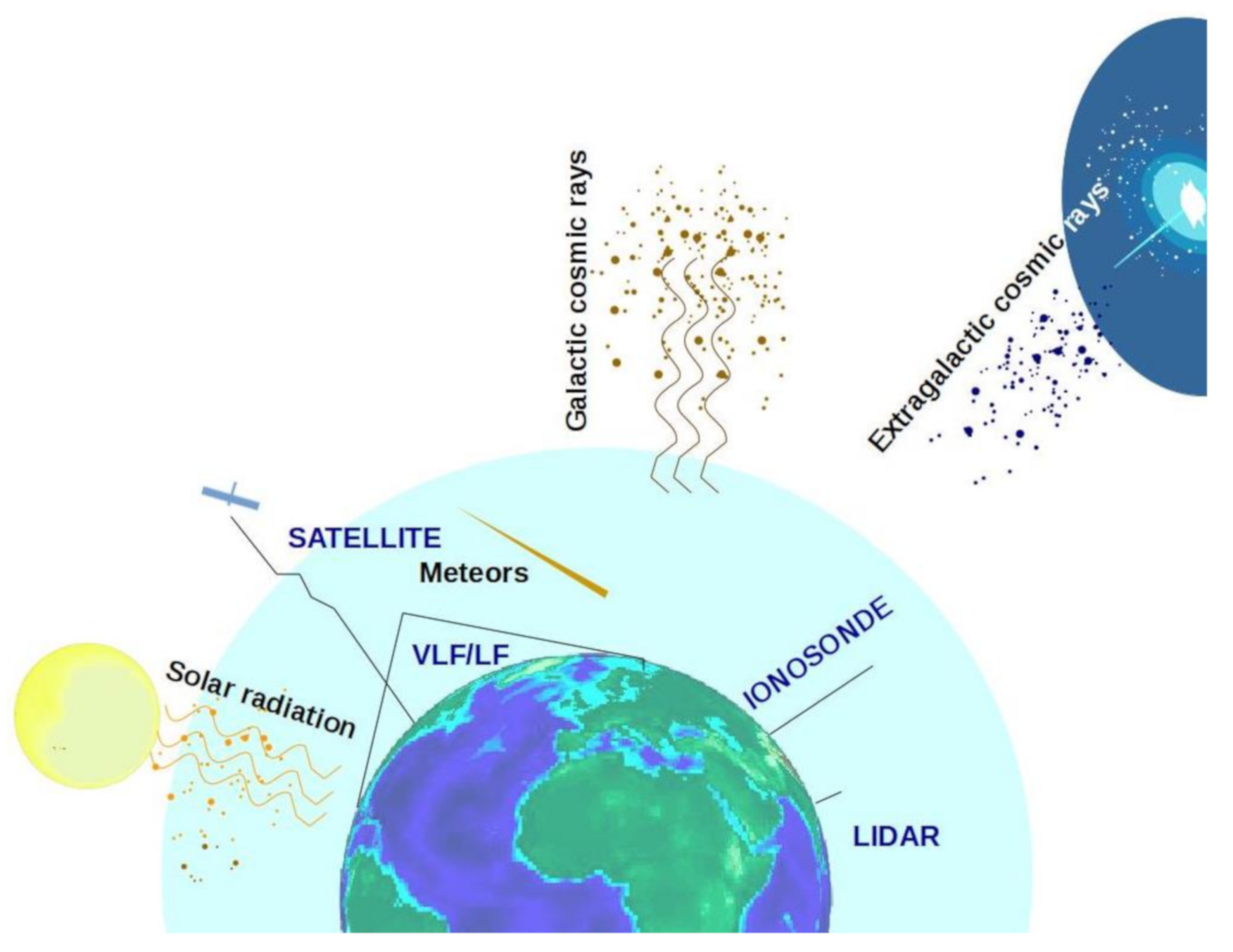

These variations can be periodical because of, for example, variations during a solar cycle, year (due to Earth’s revolution), and day (due to Earth’s rotation), and sudden due to expected or unexpected outer space phenomena (see Figure 1). The periodical changes in the atmospheric parameters and the precision of their determination are primarily connected with the solar radiation. They are recorded within all atmospheric layers, from the ionosphere and magnetosphere in the upper atmosphere [4,5,6] to the troposphere and stratosphere in the lower atmosphere [7]. The sources of these sudden perturbations can be the Sun, solar system, galaxy, or the wider Universe [3,8]. The intensity and duration of their influences on the atmosphere are different: from very weak and very hard to detect to extremely intensive when the atmospheric parameters are changed by several orders of magnitude [9,10], and from short-lasting (several milliseconds) [2] to perturbations of several days or more [11].

The application of an observation technique depends on the considered altitude domain. In addition, the detection of the short-term variations requires the good temporal resolution of the observed data, while the monitoring of the unpredictable phenomena is possible with continuous measurements provided by, for example, the Global Navigation Satellite System (GNSS) [12] or lower ionosphere monitoring by very low/low frequency radio waves [2,3,13,14].

The recorded data are included in many methodologies for the modelling of the spatial and temporal distributions of atmospheric parameters. In some cases, their estimation within a local area require a more then one data set and more than one monitoring techniques [15,16,17] which provides more precious estimates of atmospheric properties.

3. Extraterrestrial Influences on Electromagnetic Signal Propagation

The investigation of the signal propagation changes induced by extraterrestrial events and processes, primarily with origins in the solar system, is very important due to possible errors in their use in observations and modelling. This task can be crucial for precision in technologies based on, for example, satellite signal propagation, which is reason why the corresponding research took place many decades ago and why it is still of high importance.

In this field, solar radiation is the subject of most relevant studies. Its influence on satellite signals dominates in the upper ionosphere due to the largest electron density in this atmospheric layer, which is often used as an approximation in the estimation of the total electron content (TEC), the ionospheric parameter required in the modelling of signal propagation [18,19,20]. However, the recent study presented in [21] shows that errors due to the neglect of the D-region electron density increase induced by a solar X-ray flare can be important for the precision of satellite signal propagation modelling. Lower ionosphere disturbances as well as F-region disturbances below the altitude of the electron density maximum are important for the propagation of ground-based signals emitted at the surface and reflected from the ionosphere. A well-known example of extreme solar radiation influence on radio signal propagation is black out [22].

The influence of the Solar radiation on the quality of signals is also reported in lower atmospheric observations. As an example, in [23] the authors analysed solar radiation’s influence on error in temperature measurements.

4. Summary

The main goal of this Special Issue is to collect studies about extraterrestrial influences on remote sensing in the Earth’s atmosphere. Attention is focused on research on the following topics:

• The detection of extra-terrestrial radiation and the modelling of the induced atmospheric disturbances using different kinds of remote sensing techniques;
• Changes in signals used for remote sensing and the quality of their applications during influences of extra-terrestrial events;
• Influence of events from outer space on the detection of terrestrial or extra-terrestrial events and corresponding modelling, such as masking less intense perturbations with solar influences;
• The Earth’s atmosphere’s perturbations due to extra-terrestrial events (e.g., meteor perturbations) that may affect signal propagation, etc.

Studies in different research fields should emphasise the multidisciplinary character of both observations and modelling corresponding to extraterrestrial influences on remote sensing in the Earth’s atmosphere
