High-Accuracy Real-Time Kinematic Positioning with Multiple Rover Receivers Sharing Common Clock

Abstract

Since the traditional real-time kinematic positioning method is limited by the reduced satellite visibility from the deprived navigational environments, we, therefore, propose an improved RTK method with multiple rover receivers sharing a common clock. The proposed method can enhance observational redundancy by blending the observations from each rover receiver together so that the model strength will be improved. Integer ambiguity resolution of the proposed method is challenged in the presence of several inter-receiver biases (IRB). The IRB including inter-receiver code bias (IRCB) and inter-receiver phase bias (IRPB) is calibrated by the pre-estimation method because of their temporal stability. Multiple BeiDou Navigation Satellite System (BDS) dual-frequency datasets are collected to test the proposed method. The experimental results have shown that the IRCB and IRPB under the common clock mode are sufficiently stable for the ambiguity resolution. Compared with the traditional method, the ambiguity resolution success rate and positioning accuracy of the proposed method can be improved by 19.5% and 46.4% in the restricted satellite visibility environments.

1. Introduction

The relative positioning of moving platforms derived by the real-time kinematic (RTK) often suffers from satellite obstruction and deprived satellite visibility, which is especially true for offshore loading operations. This situation is often experienced on vessels working close to offshore platforms or other shadowing objects (e.g., island structure), where the field view of antenna is continuously varying and different satellite signals will be temporally blocked, as shown by the typical marine positioning applications in Figure 1. It is imperative that at least four satellites must be common-in-view at both rover and reference receivers. However, the traditional RTK usually implements high precision positioning with a single rover receiver [1]. In the worst case, the common-in-view satellites between the rover and the reference are insufficient to provide enough observations to enable the integer ambiguity resolution [2,3,4]. Additionally, some observations are possibly corrupted by multipath, so that more measurements than usually are necessary to strengthen the relative positioning. To overcome this issue, one solution is taking advantage of the multi-constellation to increase the number of satellites in view [5,6], whose benefits are demonstrated in case of weakly obstructed conditions, but degrade likewise under the severely satellite-limited environments. The other solution is to deploy multiple receivers, exploring more available observations to improve ambiguity resolution and positioning accuracy under the satellite-deprived environments [7,8,9].

The multiple receivers-based positioning method is a generalized measurement concept in RTK and precise point positioning (PPP) or PPP-RTK, which uses global navigation satellite system (GNSS) data from multiple antennas to realize improved GNSS parameter estimation [10,11]. Its applications have been widely extended in the fields of deformation monitoring [12], flight formation [13], attitude determination [7,14], bias, and ionosphere sensing [15,16]. The involved approaches of improving the model strength or estimation accuracy are to combine common-in-view satellites’ observations among those available receivers. Whereas under the constrained environment, particularly when there are various observational occlusions for the receivers, the decreased number of common-in-view satellites for those receivers will similarly weaken model strength relative to the conventional multiple receivers RTK positioning method. Therefore, it is necessary to tightly integrate the observations from all receivers and improve the strength of the positioning model, so as to ensure the ambiguity resolution and the continuity of the RTK positioning method under the restricted navigation environment [17]. Hence, we propose employing few mounted antennas with corresponding, individual receivers on a platform and combine their observations into a common set that has enough information to estimate an accurate position. Thus, the effect of obstructions on relative positioning can be released. Related research has demonstrated that increased precision in terms of dilution of precision (DOP) is obtained, and continuity can be guaranteed in the positioning [18].

Generally, owing to the sky blockage, different antennas may have access to different sets of satellite signals, and there are two strategies to deal with different available satellites among those receivers to improve the field view when constructing double-differenced (DD) observations [17,19]. The first strategy is that each rover receiver selects its own pivot satellite with respect to the reference receiver individually [19,20], but the introduction of multiple pivot satellites will reduce the redundancy of observation model. The other strategy is to fix the pivot satellite relative to the reference receiver in order to enhance the observation redundancy. However, when the clocks origination between each rover receiver are independent of each other, the receiver hardware delay related biases and the receiver clock errors are different from each other, which will yield inter-receiver bias (IRB) in the double-differenced observations. IRB consists of inter-receiver hardware biases and inter-receiver clock error. When the rover receivers utilize independent clocks, the inter-receiver clock error is usually not stable and the IRB becomes a time-varying parameter to be estimated. In addition, the number of IRB parameters increases exponentially with the number of non-common clock-driven rover receivers [18], which reduces the redundancy of the DD observations. Consequently, multiple rover receivers under the common clock mode, i.e., the signals from multiple receivers are driven by a common clock, is a feasible approach to improve the redundancy of DD observations [21].

Multiple rover receivers sharing the common clock does not imply that the inter-receiver biases for each rover are identical [22]. It is because that the clock provides each rover receiver with only a stream of pulses without an absolute time tag. Therefore, due to the inconsistent transmission clock signal delays to those receivers when the receivers are powered on, the inter-receiver clock errors under the common clock mode will be time-varying [23]. Odijk and Teunissen [24], Paziewski and Wielgosz [25], and Zhang and Teunissen [26] have shown that inter-receiver hardware biases have time-domain stability, and its stability is affected by ambient temperature and so on, which can be regarded as a time-invariant to be pre-estimated and calibrated for eliminating the influence on ambiguity resolution [27]. Therefore, the common clock-induced IRB is anticipated to have a stable time-domain feature, which provides the foundation to perform calibration. In this contribution, the RTK positioning method with multiple rover receivers sharing the common clock (C-RTK) is investigated to calibrate the IRB by the pre-estimated correction strategy for suppressing the influence on the integer ambiguity resolution, thereby improving the strength of the observational model.

This contribution is structured as follows: taking the Beidou Navigation Satellite System (BDS) dual-frequency signal as an example, we formulate the RTK positioning method with multiple rover receivers sharing the common clock under short-baseline cases. Then, the IRB stability characteristics under the common clock mode and non-common clock mode are compared by three different datasets with non-common clocks and a set of BDS dual-frequency short baseline dataset. Additionally, by simulating the constrained environment, the performance of the proposed method is explored. At the last section, the corresponding conclusions are drawn.

2. Methodology

We describe the observation models of IRB-float and IRB-fixed for the C-RTK method, respectively. Specifically, the IRB-float method estimates the unknown IRB simultaneously with the baseline coordinates and DD ambiguities. While the IRB-fixed method corrects the IRB using available calibrations in which no unknowns at all for the IRB is estimated. Meanwhile, the statistical characterization of IRB is introduced, including inter-receiver code bias and inter-receiver phase bias, which is followed by the two-step calibration procedure to implement IRB correction for the inter-receiver DD observations. The last of this section comes up with the redundancy and solvability analysis for C-RTK method.

2.1. IRB-Float Model

To derive the methodology of IRB-float positioning model, it is necessary to briefly review the single-differenced (SD) observations between rover receivers “r_i” and reference receivers “b”, in which the satellite-specific biases are eliminated. The SD phase and code observations are expressed as [28],

$$\left\{\begin{array}{l}E(\Delta p_{r_i{b}_{},j}^s)={\mathit{u}}_{r_i{b}_{}}^s {\mathit{x}}_{r_i{b}_{}}^{}+{\mu }_j\Delta I_{r_i{b}_{},j}^s+\Delta d{t}_{r_i{b}_{}}+\Delta d_{r_i{b}_{},j}\\ E(\Delta {\phi }_{r_i{b}_{},j}^s)={\mathit{u}}_{r_i{b}_{}}^s {\mathit{x}}_{r_i{b}_{}}^{}-{\mu }_j\Delta I_{r_i{b}_{},j}^s+\Delta d{t}_{r_i{b}_{}}+\Delta {\delta }_{r_i{b}_{},j}+{\lambda }_j^{}{N}_{r_i{b}_{}}^s\end{array}\right.$$

(1)

where ${\left(\cdot \right)}_{r_{i}b}={\left(\cdot \right)}_{r_i}-{\left(\cdot \right)}_b$, with i = 1, 2 and $E\left(\cdot \right)$ is the expectation operator, s = 1, …, n. The subscript j identifies a term associated with a frequency band. $\Delta {\phi }_{r_i{b}_{},j}^s$ and $\Delta p_{r_i{b}_{},j}^s$ denote the observed-minus-computed code and phase residual observations at frequency B_j, respectively. $x_{r_{i}b}^{}$ denotes a vector of non-dispersive terms including incremental receiver positions and zenith tropospheric delay with its design matrix ${\mathit{u}}_{r_{i}b}^s$. $\Delta I_{r_{i}b,j}^s$ is SD ionospheric delay with the first order ionospheric coefficient ${\mu }_j=B_j^2/B_1^2$. $\Delta d{t}_{r_{i}b}$ is the SD receiver clock error. $\Delta d_{r_{i}b,j}$ and $\Delta {\delta }_{r_{i}b,j}$ are SD receiver hardware delays with respect to code and phase observations. $N_{r_{i}b}^s$ is SD integer ambiguity. Note that we focus on short-baseline applications for which the differential atmospheric delays are absent in the future derivation.

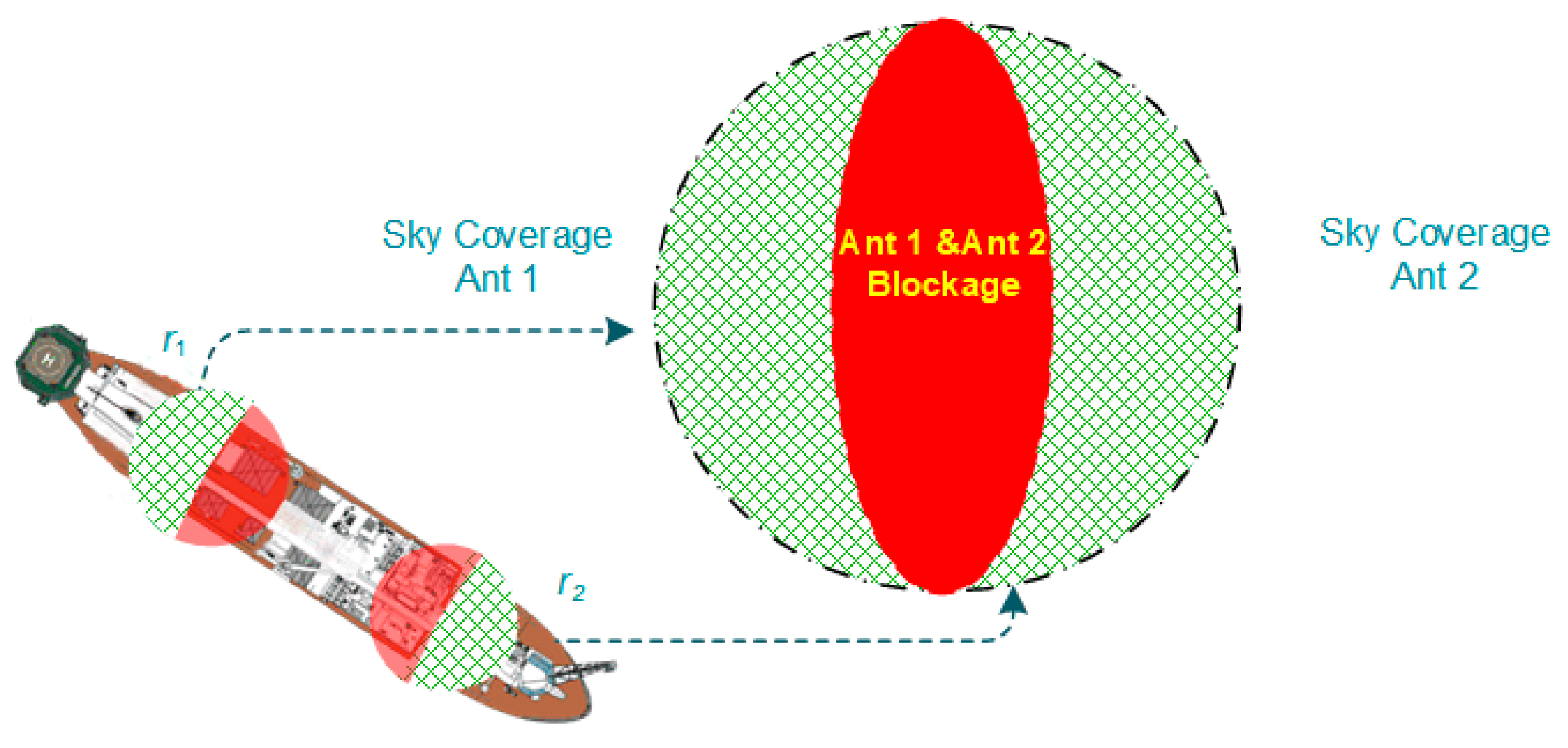

As shown in Figure 1, assuming that the satellites tracked by r₁ are s = {1, 2, …, m}, and satellites tracked by r₂ are q = {m + 1, m + 2, …, n}. With “classical” double differencing, we form double differences for per receiver pair, i.e., (r₁, b) or (r₂, b). For the receiver pair (r₁, b), if we fix the pivot satellite as 1, the DD observations read,

$$\left\{\begin{array}{l}E(\nabla \Delta {\phi }_{r_{1}b,j}^{s,1})={\mathit{u}}_{r_{1}b}^{s,1}{\mathit{x}}_{r_{1}b}+{\lambda }_j^{}\nabla \Delta N_{r_{1}b,j}^{s,1}\\ E(\nabla \Delta p_{r_{1}b,j}^{s,1})={\mathit{u}}_{r_{1}b}^{s,1}{\mathit{x}}_{r_{1}b}\end{array}\right.$$

(2)

Here, $\nabla \Delta$ represents a double differencing operator. Similarly, provided m+1 as the pivot satellite for the receiver pair (r₂, b), the DD observations read as,

$$\left\{\begin{array}{l}E(\nabla \Delta {\phi }_{r_{2}b,j}^{q,m+1})={\mathit{u}}_{r_{2}b}^{q,m+1}{\mathit{x}}_{r_{2}b}+{\lambda }_j^{}\nabla \Delta N_{r_{2}b,j}^{q,m+1}\\ E(\nabla \Delta p_{r_{2}b,j}^{q,m+1})={\mathit{u}}_{r_{2}b}^{q,m+1}{\mathit{x}}_{r_{2}b}\end{array}\right.$$

(3)

where ${\left(\ast \right)}^{s,1}={\left(\ast \right)}^s-{\left(\ast \right)}^1$, with s = 2, …, m, q = m + 2, …, n. In order to benefit from the increased number of observations, we have to establish a common solution for the multiple rover receivers. With ${\mathit{x}}_{r_{1}b}^{}={\mathit{x}}_{r_{2}b}^{}+{\mathit{x}}_{r_{2}b}^{}{\mathit{x}}_{r_1{r}_2}^{}$, we rewrite Equation (3) to construct the loosely coupled RTK using non-common clock (NC-RTK) method,

$$\left\{\begin{array}{ll}E(\nabla \Delta {\phi }_{r_1{b}_{},j}^{s,1})={\mathit{u}}_{r_1{b}_{}}^{s,1}{\mathit{x}}_{r_1{b}_{}}+{\lambda }_j\nabla \Delta N_{r_1{b}_{},j}^{s,1}& \\ E(\nabla \Delta p_{r_1{b}_{},j}^{s,1})={\mathit{u}}_{r_1{b}_{}}^{s,1}{\mathit{x}}_{r_1{b}_{}}& \\ E(\nabla \Delta {\phi }_{r_2{b}_{},j}^{q,m+1}+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{r}_2})={\mathit{u}}_{r_2{b}_{}}^{q,m+1}{\mathit{x}}_{r_1{b}_{}}+\nabla \Delta \delta t_{r_2{b}_{},j}+{\lambda }_j\nabla \Delta N_{r_2{b}_{},j}^{q,m+1}& \\ E(\nabla \Delta p_{r_2{b}_{},j}^{q,m+1}+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{r}_2})={\mathit{u}}_{r_2{b}_{}}^{q,m+1}{\mathit{x}}_{r_1{b}_{}}+\nabla \Delta d{t}_{r_2{b}_{},j}& \end{array}\right.$$

(4)

for q = m + 1, …, n. The implementation of (4) is the traditional RTK method, by which 2 satellites’ observations are decreased owing to DD operation with multiple pivot satellites.

The observation model in (4) is a relatively classical coupling to integrate observations from different rover receivers. When tight observation integration is considered for complementing the receiver pairs {(r₁, b) and (r₂, b)} SD observations, we construct the DD observations with respect to the common pivot satellite from the receiver pair (r₁, b). Thus, the inter-receiver tightly coupled DD observations read,

$$\left\{\begin{array}{ll}E(\nabla \Delta {\phi }_{r_1{b}_{},j}^{s,1})={\mathit{u}}_{r_1{b}_{}}^{s,1}{\mathit{x}}_{r_{}{b}_1}+{\lambda }_j\nabla \Delta N_{r_{}{b}_1,j}^{s,1}& \\ E(\nabla \Delta p_{r_1{b}_{},j}^{s,1})={\mathit{u}}_{r_1{b}_{}}^{s,1}{\mathit{x}}_{r_{}{b}_1}& \\ E(\nabla \Delta {\phi }_{r_{2-1}{b}_{},j}^{q,1}+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{r}_2})={\mathit{u}}_{r_{2-1}{b}_{}}^{q,1}{\mathit{x}}_{r_1{b}_{}}+\nabla \Delta \delta t_{r_{2-1}{b}_{},j}+{\lambda }_j\nabla \Delta N_{r_{2-1}{b}_{},j}^{q,1}& \\ E(\nabla \Delta p_{r_{2-1}{b}_{},j}^q+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{r}_2})={\mathit{u}}_{r_{2-1}{b}_{}}^{q,1}{\mathit{x}}_{r_1{b}_{}}+\nabla \Delta d{t}_{r_{2-1}{b}_{},j}& \end{array}\right.$$

(5)

where ${\left(\cdot \right)}_{r_{2-1}{b}_{}}={\left(\cdot \right)}_{r_2{b}_{}}-{\left(\cdot \right)}_{r_1{b}_{}}$, with q = m + 1, …, n. Therefore, for the phase as well as code observations, one more DD observation can be obtained by (5) when compared with (4). On the other hand, the inter-receiver bias terms are not eliminated during double differencing,

$$\begin{array}{l}\nabla \Delta \delta t_{r_{{}_{2-1}}{b}_{},j}=(\Delta d{t}_{r_2{b}_{}}-\Delta d{t}_{r_1{b}_{}})+(\Delta {\delta }_{r_2{b}_{},j}-\Delta {\delta }_{r_1{b}_{},j})\\ \nabla \Delta d{t}_{r_{{}_{2-1}}{b}_{},j}=(\Delta d{t}_{r_2{b}_{}}-\Delta d{t}_{r_1{b}_{}})+(\Delta d_{r_2{b}_{},j}-\Delta d_{r_1{b}_{},j})\end{array}$$

(6)

where $\nabla \Delta \delta t_{r_{2-1}{b}_{},j}$ and $\nabla \Delta d{t}_{r_{2-1}{b}_{},j}$ are referred as inter-receiver phase bias (IRPB) and inter-receiver code bias (IRCB), respectively. Unfortunately, the inter-receiver tightly coupled model described by (5) is rank deficient. It is, therefore, impossible to simultaneously estimate the IRB parameters and the ambiguity by (5) owing to the linear correlation between $\nabla \Delta N_{r_{2-1}{b}_{},j}^{q,1}$ and IRPB. The rank deficiency is of size f (equal to the number of frequencies). Hence, we re-parametrize $\nabla \Delta N_{r_{2-1}{b}_{},j}^{q,1}$ as,

$$\begin{array}{c}\nabla \Delta N_{r_{{}_{2-1}}{b}_{},j}^{q,1}=(\Delta N_{r_2{b}_{},j}^q-\Delta N_{r_2{b}_{},j}^{m+1})+(\Delta N_{r_2{b}_{},j}^{m+1}-\Delta N_{r_1{b}_{},j}^1)\\ =\nabla \Delta N_{r_2{b}_{},j}^{q,m+1}+\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}\end{array}$$

(7)

Furthermore, we select $\Delta N_{r_2{b}_{},j}^{m+1}$ as reference ambiguity to re-parametrize the inter-receiver DD ambiguity $\nabla \Delta N_{r_{{}_{2-1}}{b}_{},j}^{q,1}$. The DD ambiguities relative to the same receiver pair, i.e., $\nabla \Delta N_{r_2{b}_{},j}^{q,m+1}$, plus inter-receiver ambiguity between the pivot satellite belonged to different receiver pairs, i.e., $\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}$. The ambiguity $\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}$ is lumped to the IRPB term as,

$$\nabla \Delta \tilde{\delta }{t}_{r_{{}_{2-1}}{b}_{},j}=\nabla \Delta \delta t_{r_{{}_{2-1}}{b}_{},j}+{\lambda }_j^{}\nabla \Delta N_{r_{{}_{2-1}}{b}_{},j}^{m+1,1}$$

(8)

We substitute (8) into (5), the full-rank IRB-float model can be expressed as,

$$\left\{\begin{array}{l}E\left[\begin{array}{l}\nabla \Delta \phi \\ \nabla \Delta p\end{array}\right]=\left[\begin{array}{cccc}{e}_f\otimes \mathit{A}& e_f\otimes e_{*}& \mathbf{0}& \mathit{\Lambda }\otimes I_{n-2}\\ e_f\otimes \mathit{A}& \mathbf{0}& e_f\otimes e_{*}& \mathbf{0}\end{array}\right]\left[\begin{array}{c}\mathit{x}\\ \tilde{\mathit{\delta }}{\mathit{t}}_{r_{2-1}{b}_{}}\\ \mathit{d}{\mathit{t}}_{r_{{}_{2-1}}{b}_{}}\\ \mathit{a}\end{array}\right]\\ D\left[\begin{array}{l}\nabla \Delta \phi \\ \nabla \Delta p\end{array}\right]=\left[\begin{array}{cc}{Q}_{\phi }& 0\\ 0& Q_p\end{array}\right]\end{array}\right.$$

(9)

in which $\otimes$ denotes Kronecker product. D[·] is dispersion operator. $\nabla \Delta \phi =(\nabla \Delta {\phi }_1{}^T,\dots ,\nabla \Delta {\phi }_f{}^T{)}^T$ is the DD phase observation vector with $\nabla \Delta {\phi }_j=(\nabla \Delta {\phi }_{rb,j}^{m1},\dots ,\nabla \Delta {\phi }_{rb,j}^{n1}{)}^T$. $\nabla \Delta p=(\nabla \Delta {\mathit{p}}_1{}^T,\dots ,\nabla \Delta {\mathit{p}}_f{}^T{)}^T$ is the DD code observation vector with $\nabla \Delta {\mathit{p}}_j={(\nabla \Delta p_{rb,j}^{m1},\dots ,\nabla \Delta p_{rb,j}^{n1})}^T$. ${\mathit{e}}_f$ is f×1 vector of 1’s. A is the design matrix. $\mathit{\Lambda }=diag({\lambda }_1,\dots ,{\lambda }_j)$ with ${\lambda }_j^{}$ being the wavelength on frequency j. ${\mathit{e}}_{*}={\left[\begin{array}{cc}{\mathbf{0}}_{(m-\mathbf{1})\times 1}^T& 1_{n-m+1}^T\end{array}\right]}^T$ with 0 being m − 1 of 0’s vector and 1 being n − m + 1 vector of 1’s. x denotes the baseline vector. $\tilde{\delta }{t}_{r_{2-1}{b}_{}}={[\nabla \Delta \tilde{\mathit{\delta }}{\mathit{t}}_{r_{2-1}{b}_{},1},\dots ,\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}]}^T$, $d{t}_{r_{2-1}{b}_{}}={[\nabla \Delta d{t}_{r_{2-1}{b}_{},1},\dots ,\nabla \Delta d{t}_{r_{2-1}{b}_{},j}]}^T$. a is the DD ambiguity vector. $Q_{\phi }$ and $Q_p$ are covariance of DD phase and DD code, respectively. When n ≥ 5, $\tilde{\mathit{\delta }}{\mathit{t}}_{r_{2-1}{b}_{}}$ and $\mathit{d}{\mathit{t}}_{r_{{}_{2-1}}{b}_{}}$ can be resolved by (9) with the dual-frequency single-system observations. However, when compared with the NC-RTK method as shown by (4), the increased number of observations for the IRB-float model is counter-balanced by the parameters to be estimated, which indicates the model strength of the IRB-float model is equivalent to the traditional NC-RTK method.

2.2. IRB-Fixed Model

It has been shown that if we parameterize the IRB for inter-receiver observations, it does not strengthen the model relative to NC-RTK method using the classical double differencing. However, the observation redundancy can still be retrieved if the statistical knowledge of the IRB can be provided [24]. For instance, given the stable statistical characteristics of the IRB, the observation redundancy can be obtained by a two-step method, i.e., the pre-estimation and post-calibration sequentially. Otherwise, if the IRB behaves without stationary statistical characteristics, then the IRB need to be estimated epoch-wisely. Correspondingly, the number of increased DD observations is equal to the number of additional parameters to be estimated, which takes no improvement on the DD observation redundancy. There is no doubt that the statistical characteristics of IRB determine the compensation strategy of IRB.

We can decompose the IRB term in the IRB-float model into two parts, the first part being an initial bias and the second part being the drift over time. Driving both rover receivers with a common clock only retains the identical second part for all rover receivers. Therefore, the IRB are treated as time-invariant terms instead of time-varying parameters, which are deterministic to be subtracted from the phase and code observations. The IRB-float model can be used to solve $\nabla \Delta d{t}_{r_{2-1}{b}_{},j}$ and $\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}$. However, we can see from (8) that $\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}$ is biased by $\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}$. This will be an issue for the IRB calibration when the pivot satellite change or in the presence of cycle slip. In order to avoid this issue, we separate $\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}$ into integral part and fractional part, respectively.

$$\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}={\lambda }_j\underset{integer}{\underbrace{(z_0+\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1})}}+\underset{fraction}{\underbrace{\nabla \Delta \overline{\delta }{t}_{r_{2-1},j}}},z_0\in \mathbb{Z}$$

(10)

Obviously, the integral part of $\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}$ can be merged with ambiguity $\nabla \Delta N_{r_2{b}_{},j}^{q,m+1}$,

$$\nabla \Delta {\overline{N}}_{r_2{b}_{},j}^{q,m+1}=z_0+\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}+\nabla \Delta N_{r_2{b}_{},j}^{q,m+1}$$

(11)

Fortunately, the ambiguity retains the integer nature, which has no impact on instantaneous ambiguity resolution. However, when the factional part of (10) is not calibrated, it will undermine the ambiguity resolution success rate performance. Herein, in order to resolve the ambiguity, consideration should be taken into eliminating the factional part subsequently. Firstly, through removing the integer of IRPB $z_0+\nabla \Delta N_{r_{2-1}{b}_{},j}^{m+1,1}$ by the nearest rounding method, the fractional calibration reads,

$$\nabla \Delta \overline{\delta }{t}_{r_{2-1},j}=\nabla \Delta \widehat{\delta }{t}_{r_{2-1}{b}_{},j}-{\lambda }_j^{}round[\frac{\nabla \Delta \widehat{\delta }{t}_{r_{2-1}{b}_{},j}}{{\lambda }_j^{}}]$$

(12)

where round[·] is rounding to the nearest integer estimator. $\nabla \Delta \widehat{\delta }{t}_{r_{2-1}{b}_{},j}$ denotes the estimation of $\nabla \Delta \tilde{\delta }{t}_{r_{2-1}{b}_{},j}$. The following experimental results will prove the time-domain stability feature of the IRB. As a result, IRB can be corrected by pre-calibration. On the basis of (12), the IRB-fixed model can be given as,

$$\left\{\begin{array}{ll}E(\nabla \Delta {\phi }_{r_1{b}_{,j}}^{s1})& ={\mathit{u}}_{r_1{b}_{}}^{s1}{\mathit{x}}_{r_1{b}_{}}+{\lambda }_j\nabla \Delta N_{r_1{b}_{},j}^{s,1}\\ E(\nabla \Delta p_{r_1{b}_{,j}}^{s1})& ={\mathit{u}}_{r_1{b}_{}}^{s1}{\mathit{x}}_{r_1{b}_{}}\\ E(\nabla \Delta {\phi }_{r_{2-1}{b}_j}^{q1}+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{r}_2}-\nabla \Delta \overline{\delta }{t}_{r_{2-1}b,j})& ={\mathit{u}}_{r_{2-1}{b}_{}}^{q1}{\mathit{x}}_{r_1{b}_{}}+{\lambda }_j\nabla \Delta {\overline{N}}_{r_{2-1}{b}_{},j}^{q,1}\\ E(\nabla {\Delta p}_{r_{2-1}{b}_j}^{q1}+{\mathit{u}}_{r_2{b}_{}}^q{\mathit{x}}_{r_1{\mathrm{r}}_2}-\nabla {\Delta d}_{r_{2-1}b,j})& ={\mathit{u}}_{r_{2-1}{b}_{}}^{q1}{\mathit{x}}_{r_1{b}_{}}\end{array}\right.$$

(13)

When the IRB is calibrated, the above full-rank model will regress to the traditional RTK positioning model. From this follows the important conclusion that when the inter-receiver biases are corrected (2f corrections), the fused observations from each receiver pair can be processed as if they were stemmed from one common receiver pair. The model strength is improved ultimately, which is further clarified in Section 3.

3. Redundancy and Solvability Analysis

Provided that there are k + 1 rover receivers tracking n satellites simultaneously,

Table 1. Model redundancy analysis.

Model	NC-RTK Model	IRB-Float Model	IRB-Fixed Model
# of observations	2f(n − k − 1)	2f(n − 1)	2f(n − 1)
# of parameters	f(n − k − 1) + 3	f(n + k − 1) + 3	f(n − 1) + 3
Redundancy	f(n − k − 1) − 3	f(n − k − 1) − 3	f(n − 1) − 3

gives the number of observations, the number of parameters, and the observation redundancy for different RTK models. It can be found that the IRB-float model is equivalent to the NC-RTK model. Compared with the IRB-float model, the unknown parameters amount of the IRB-fixed model is decreased by kf, which means that the strength of the observation model is further enhanced after IRB is eliminated.

4. Experimental Analysis and Discussion

To test the proposed method, a series of experiments were carried out. Firstly, we analyze and compare the stability of IRCB and IRPB under the common clock mode and the non-common clock mode, respectively. With different cut-off elevations, this contribution simulates the satellite-deprived environment. Because the short baseline data were collected, the atmospheric delays are neglected in the experimental data processing. Additionally, to analyze the ambiguity solution success rate and the positioning accuracy performance, the variants of two RTK algorithms compared in this contribution are NC-RTK and the C-RTK driven by the IRB-fixed model. Besides, assuming that multipath error is coupled with the thermal noise, the elevation-dependent weighting model is applied to account for the effect of multipath, and the observational standard deviation (STD) with elevation angle θ is set as $\sigma \left(\theta \right)={\sigma }_0\left(1+1/\sin \left(\theta \right)\right)$, in which ${\sigma }_0^{}$ takes 30 cm and 3 mm for original code and phase observation, respectively [29,30]. Since in the short-baseline case most receiver-dependent and satellite-dependent errors are eliminated by DD operation, the instantaneous ambiguity resolution strategy is applied to the fix/float solutions. Herein, we utilize the metrics of success rate and the positioning accuracy to evaluate the fix and float solutions for the NC-RTK and C-RTK models. It has been widely proven that the LAMBDA algorithm performs excellent ambiguity resolution performance among the different integer aperture estimation methods [3]. We, therefore, apply LAMBDA to fix ambiguity, in which the threshold for the ratio test is set as 3 [31].

4.1. Receivers Setup

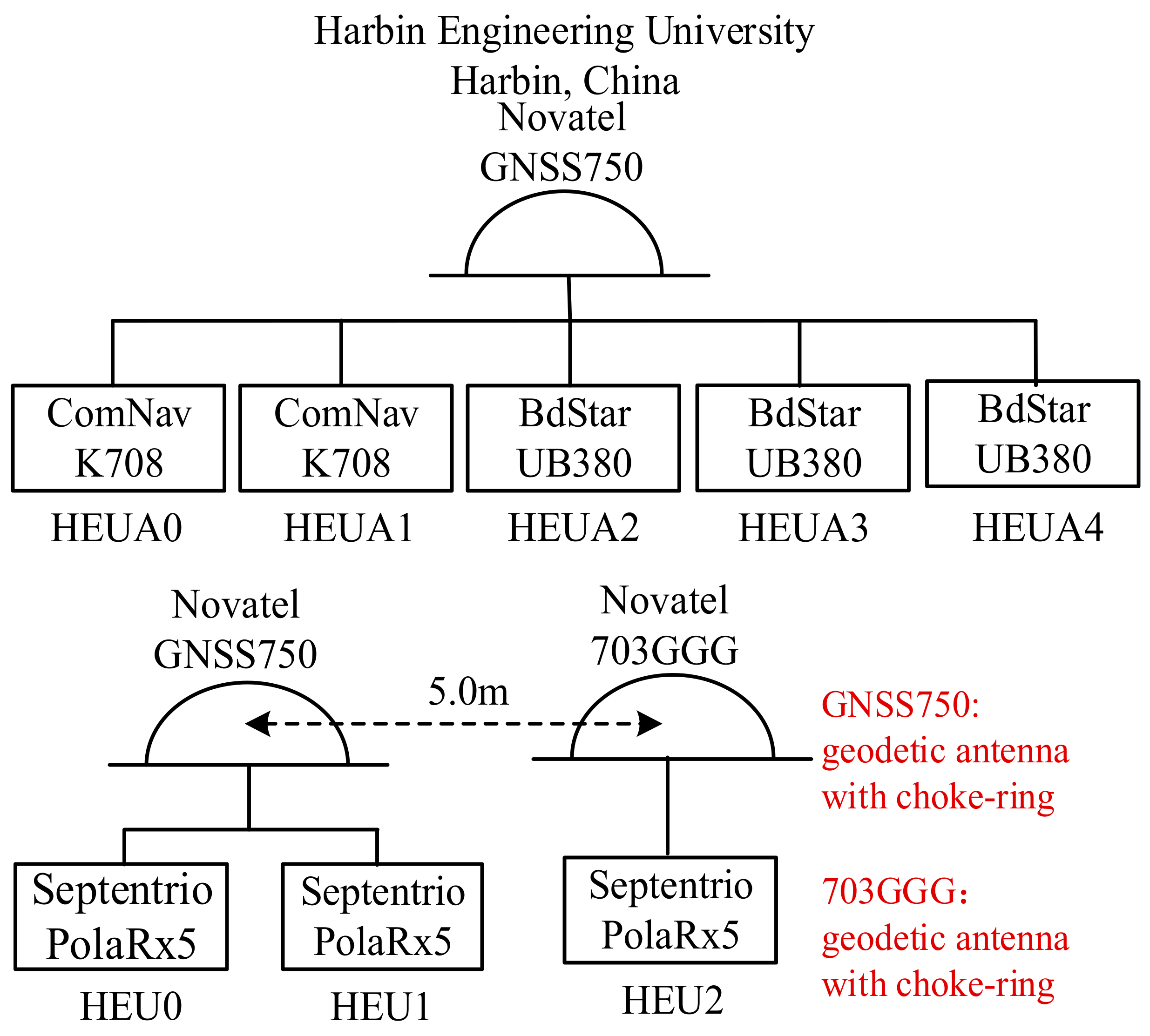

The experimental datasets were collected at Harbin Engineering University in China, where several high-grade receivers with geodetic antennas were setup under an open-sky environment to disentangle the multipath effect. The rover receivers are BDStar UB380 with non-common clocks, the ComNav K708 with non-common clocks, and the Septentrio PolaRx5 with an external common clock. Note that the time-frequency stability of the common clock for Septentrio PolaRx5 receivers is up to 10⁻¹¹ level. The datasets we collected include dual-frequency BDS code and carrier phase measurements. IRB-float model is used to estimate the corresponding IRB sequences, by which the stability of IRB under the common clock and non-common modes are, respectively, analyzed during a 96-h time span and a 24-h time span. All receivers were installed in a room with a relatively constant ambient temperature, including HEUA0-HEUA4 and HEU0-HEU1 connected to one same antenna GNSS750. Therefore, we can form several different configurations of zero-baseline and short baseline. The schematic overview of all receivers and antennas involved is shown in Figure 2 and the detailed baseline configurations are listed in

Table 2. Baseline setup.

No.	Reference	Rover	Signals	Interval(s)	Distance(m)	Observation Span
1	HEUA2	HEUA0	B1 B2	30	0	DOY147, 2019
		HEUA1	B1 B2	30	0
2	HEU2	HEU0	B1 B2	30	5.0	DOY153–156, 158–161, 2020
		HEU1	B1 B2	30	5.0
3	HEUA0	HEUA2	B1 B2	30	0	DOY147, 2019
		HEUA3	B1 B2	30	0
4	HEUA4	HEUA2	B1 B2	30	0	DOY148, 2019
		HEUA3	B1 B2	30	0

.

4.2. IRPB Estimation Results

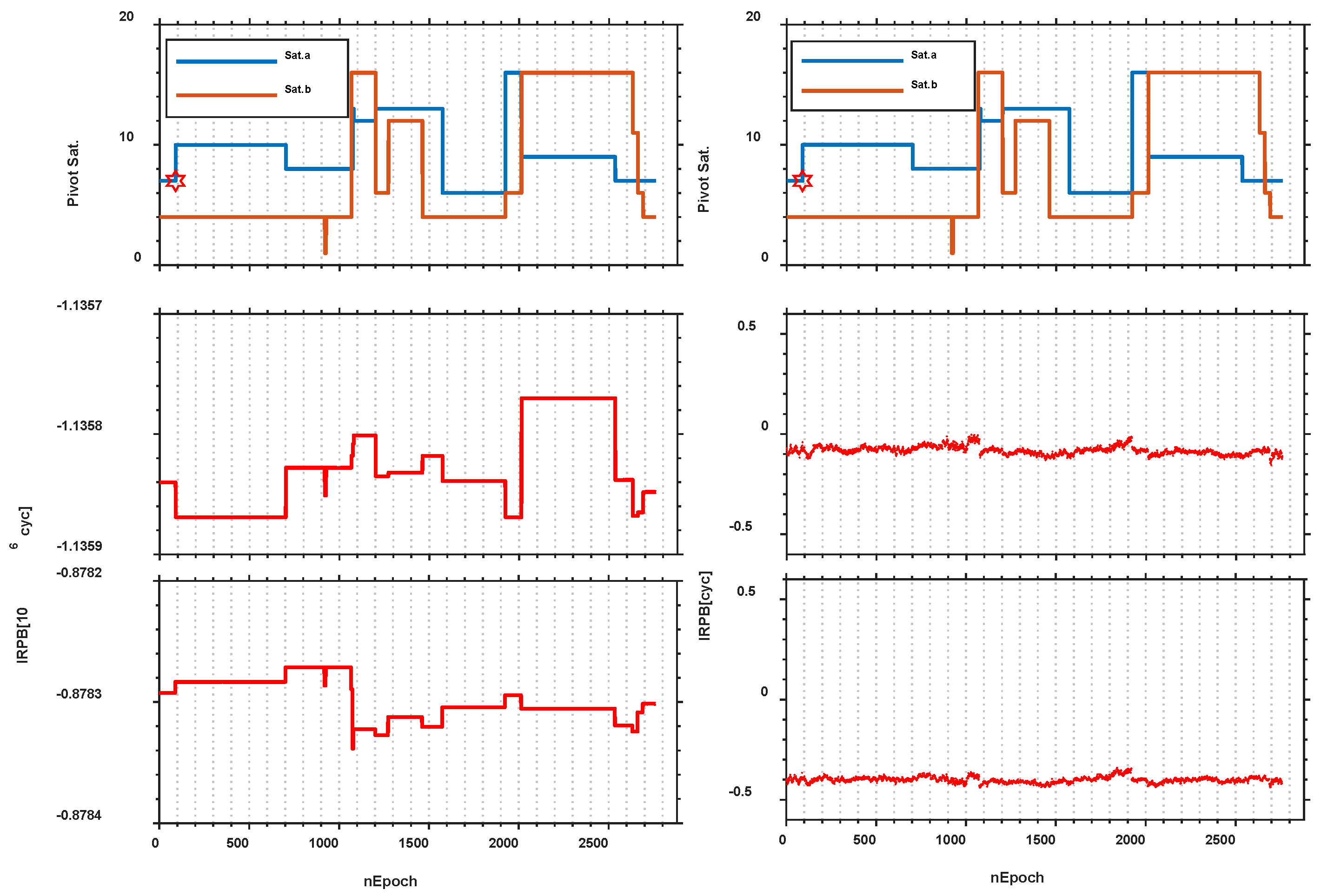

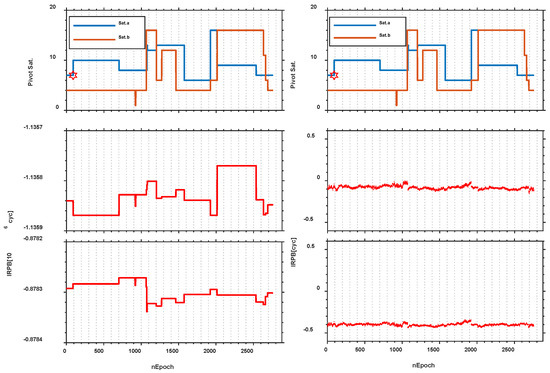

Considering a typical example, 24-h time series of epoch-wise IRPB estimated results are presented in Figure 3, which are determined by IRB-float model using BDS dataset collected with the short baseline {HEU0, HEU1}-HEU2 on day 160 of 2020. It can be found in Figure 3 that significant jumps ranging from several cycles during the 24 h continuous arc, which takes a detrimental effect on the acquisition of IRPB correction. It additionally confirms that each jump occurs immediately at the instant when the current pivot satellite sets and a new pivot satellite comes into view. Prior to our analysis, appropriate handling of these jumps should be taken. Therefore, the removal of integer part for the estimated IRPB results allows us to eliminate those jumps, resulting in the second panel time series that is jump-free. It can be used for further analysis without destroying the integer nature of ambiguity.

4.3. IRB Analysis under the Non-common Clock Mode

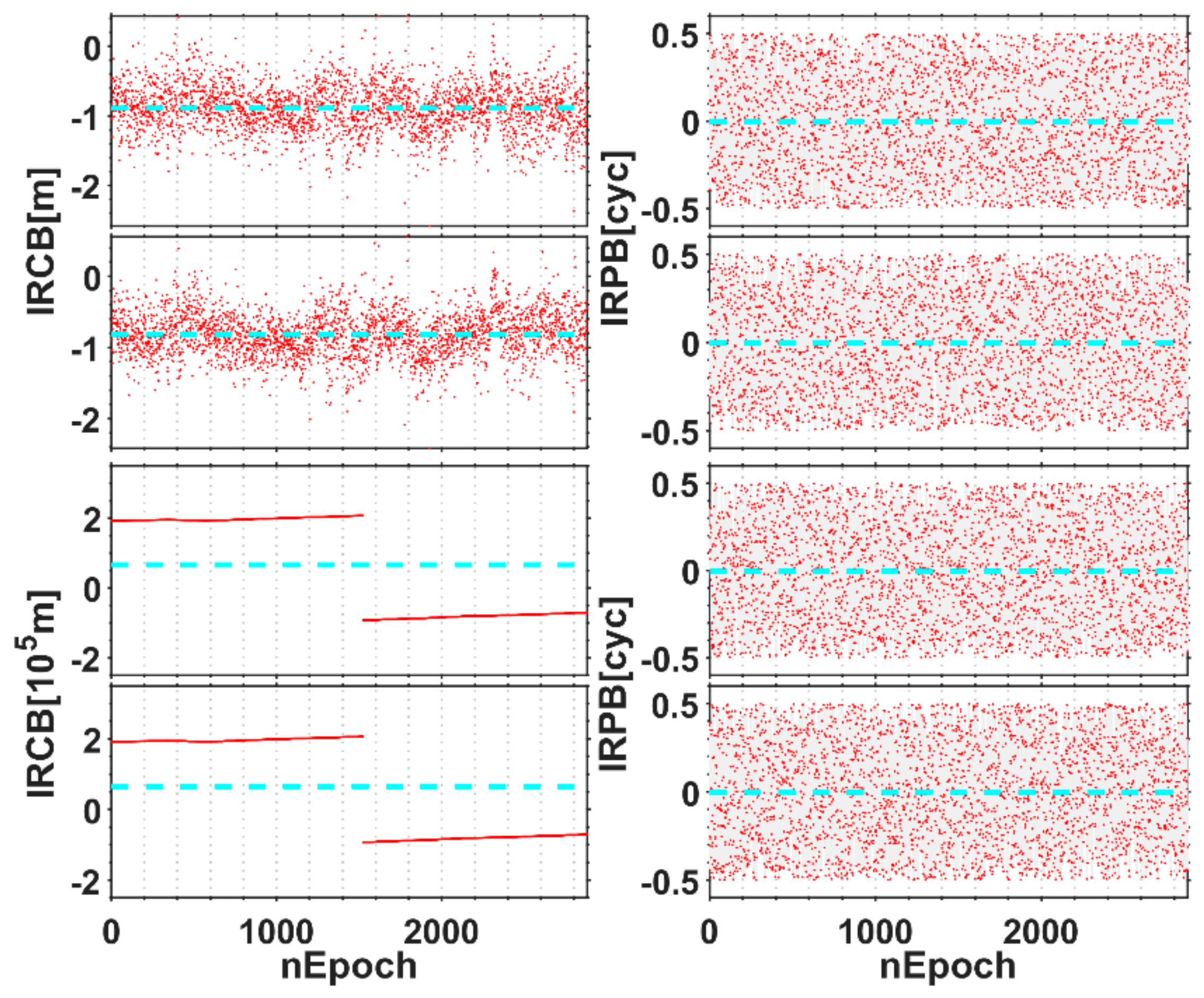

With the IRCB and IRPB estimated model, we obtain the epoch-wise results of IRB for UB380 and K708, in which the fractional part of IRPB is given in Figure 4. It can be found that the IRCB is not affected apparently by non-common clocks-based rover receivers. It is very stable in a 24-h observation span, making slight random fluctuations around its mean value. However, the fractional part of IRPB for B1 and B2 ranges from −0.5 to 0.5 cycles irregularly, whose STD reaches 0.3 cycles. Therefore, the IRB over the 24 h short-term temporal time series fluctuated too wildly to be calibrated in advance.

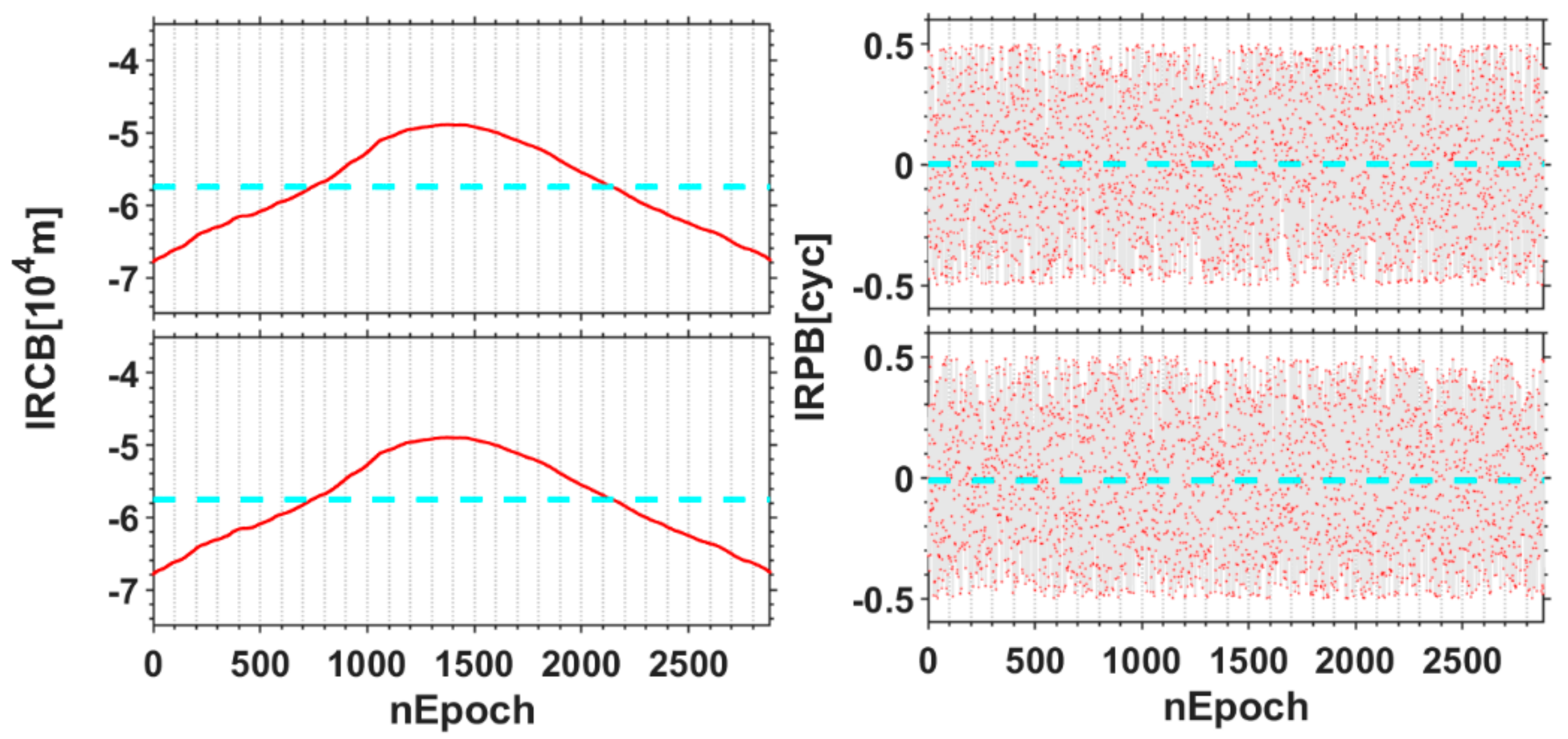

As shown by Figure 4, the IRCB estimation results for UB380 under non-common clock mode are not stable within the 24 h fixed arc and reach the order of 10⁵m. In addition, IRB with respect to the carrier phase for the two frequencies also presents random fluctuations ranging from −0.5 to 0.5 cycles, which is difficult to be accurately modeled. Furthermore, at the 1500th epoch, the IRCB of both B1 and B2 frequency have obvious jump. It is because the internal clocks of UB380 receiver used in those two receivers are independent quartz clocks, in which the clock errors for two rover receivers will gradually drift. Generally, when the clock errors of the receiver exceed a certain threshold, the clock jump will be inserted for reset control to keep its accuracy within a certain range. However, for the case of non-common clock mode, the clocks of independent receivers are inconsistent owing to asynchronous processing strategies by two independent rover receivers. Hence, the jump phenomenon as shown in Figure 4 is present. However, it is noted that the phenomenon might not necessarily appear owing to asynchronous characteristics of random for every rover receiver clock. We collected another data using three UB380 receivers with non-common clocks on DOY148, 2019. Figure 5 shows that the clock jump is not present but with a trend item because the practical clock drifts for the rover receivers are neither common nor up to the level to reset control. In conclusion, the IRB under the non-common clock mode is not stable, which has shown that the pre-estimated correction method cannot be applied to calibrate the non-common clock-based IRB (

Table 3. IRB statistics results under non-common clock mode.

Baseline	Fre	IRCB		IRPB
		Mean (m)	STD (m)	Mean (Cycle)	STD (Cycle)
{HEUA0,HEUA1}-HEUA2	B1	−0.8725	0.3399	0.0045	0.30
	B2	−0.8320	0.3249	0.0050	0.30
{HEUA2,HEUA3}-HEUA0	B1	65,902.9	139,203.6	0.0067	0.29
	B2	65,902.5	139,203.7	0.0010	0.29
{HEUA2,HEUA3}-HEUA4	B1	−57,534.6	5843.1	0.0128	0.29
	B2	−57,535.1	5843.2	0.0036	0.29

).

4.4. Characterization of IRB under the Common Clock Mode

The time-domain stability of IRB is the key for C-RTK method to improve the strength of the positioning model. Therefore, this contribution spares more attention on analyzing the stability of IRB under the common clock mode. Firstly, the IRB-float model is utilized to estimate the IRCB and IRPB sequences, and the corresponding IRB results are shown in Figure 6.

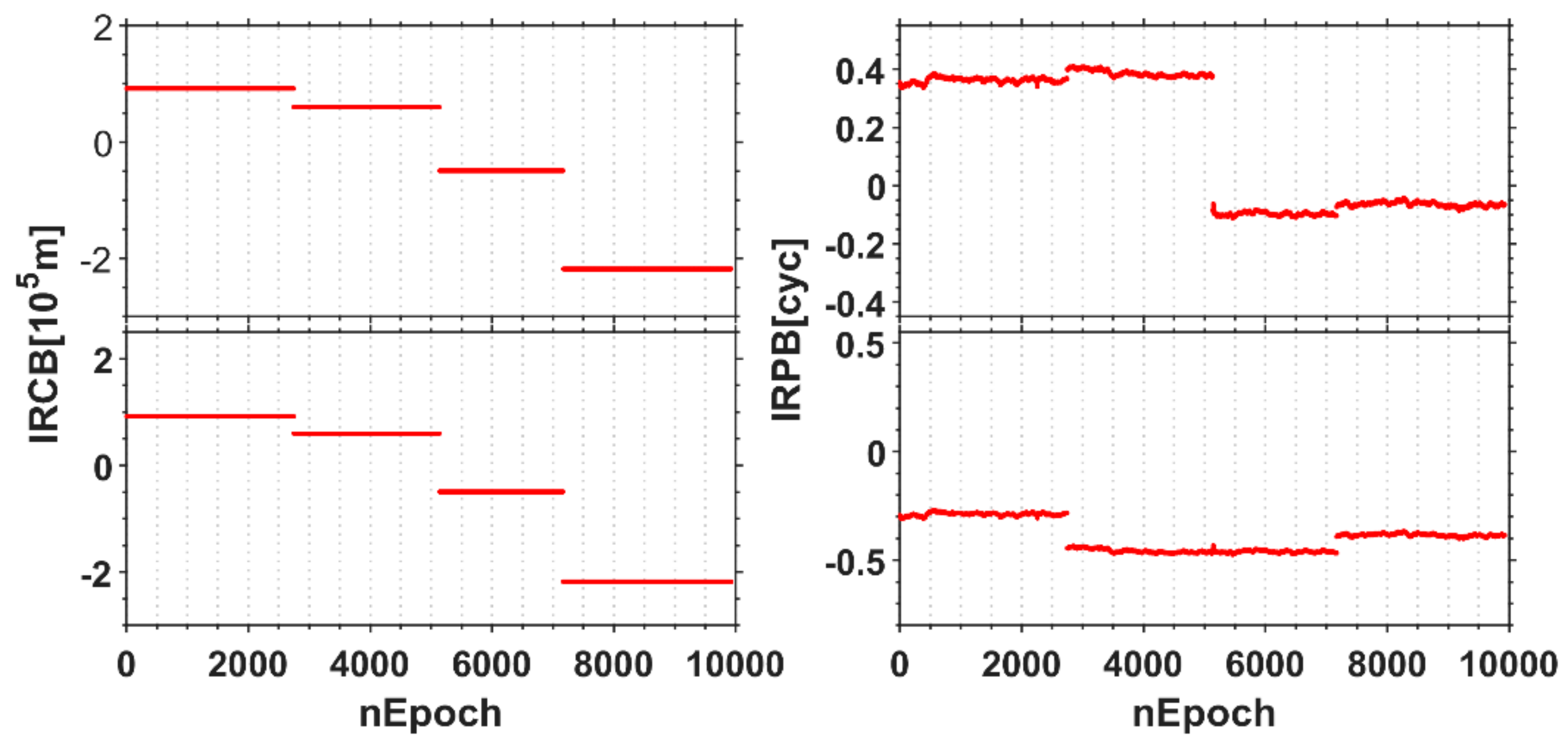

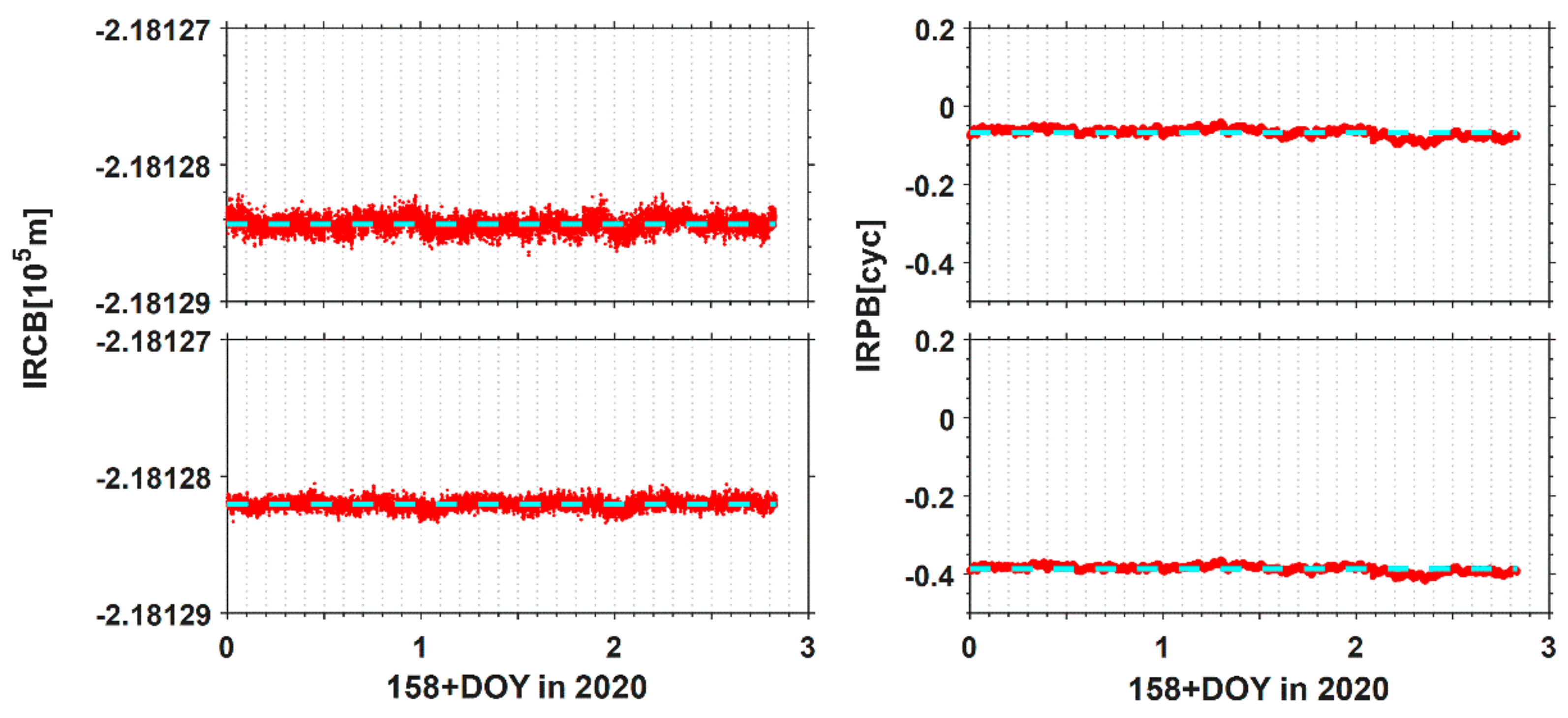

Figure 6 depicts that the IRCB at B1 and B2 frequency reach the order of magnitude of 10⁵ m with slight fluctuation near the mean value. The standard deviations corresponding to B1 and B2 frequencies are 0.28 m and 0.22 m, respectively, which reflect the statistical stability of IRCB. In addition, it can also be seen from Figure 6 that the IRPB for B1 and B2 frequency is also relatively stable because the standard deviations reach 0.021 cycles and 0.015 cycles for B1 and B2, respectively, which has no influence on the ambiguity resolution. Therefore, with the common clock mode, the averaging IRB estimation results over multiple epochs can be used as the calibration for the ambiguity resolution.

Previous studies have shown that the stability of IRCB and IRPB can be affected by a restart of the receiver and temperature fluctuation of the hardware [22,26]. Since our datasets are collected indoor environment with nearly constant temperature, therefore, the effect of temperature fluctuation on the IRB will not be considered in this contribution. Herein, we only test whether the stability of the IRCB and the IRPB are affected by the receiver restart. Additional datasets are collected by {HEU0, HEU1}-HUA2 at Harbin, China, for 4 days from DOY 153, 2020 with the sampling period of 30 s, in which the restart of the receiver will be executed about every 24 h for three times. The IRCB and the IRPB estimation results are shown in Figure 7. It can be seen that the fluctuation of IRPB caused by the receiver’s restart may be significantly larger than the phase observational noise. Similarly, the jumps are presented for IRCB estimated results that dramatically outweigh a lot before and after reboot, which implies that it is impossible to be calibrated by one same correction. Therefore, the IRCB and IRPB should be re-calibrated in IRB-fixed model when the receiver is restarted.

4.5. Performance of the IRB-Fixed Model

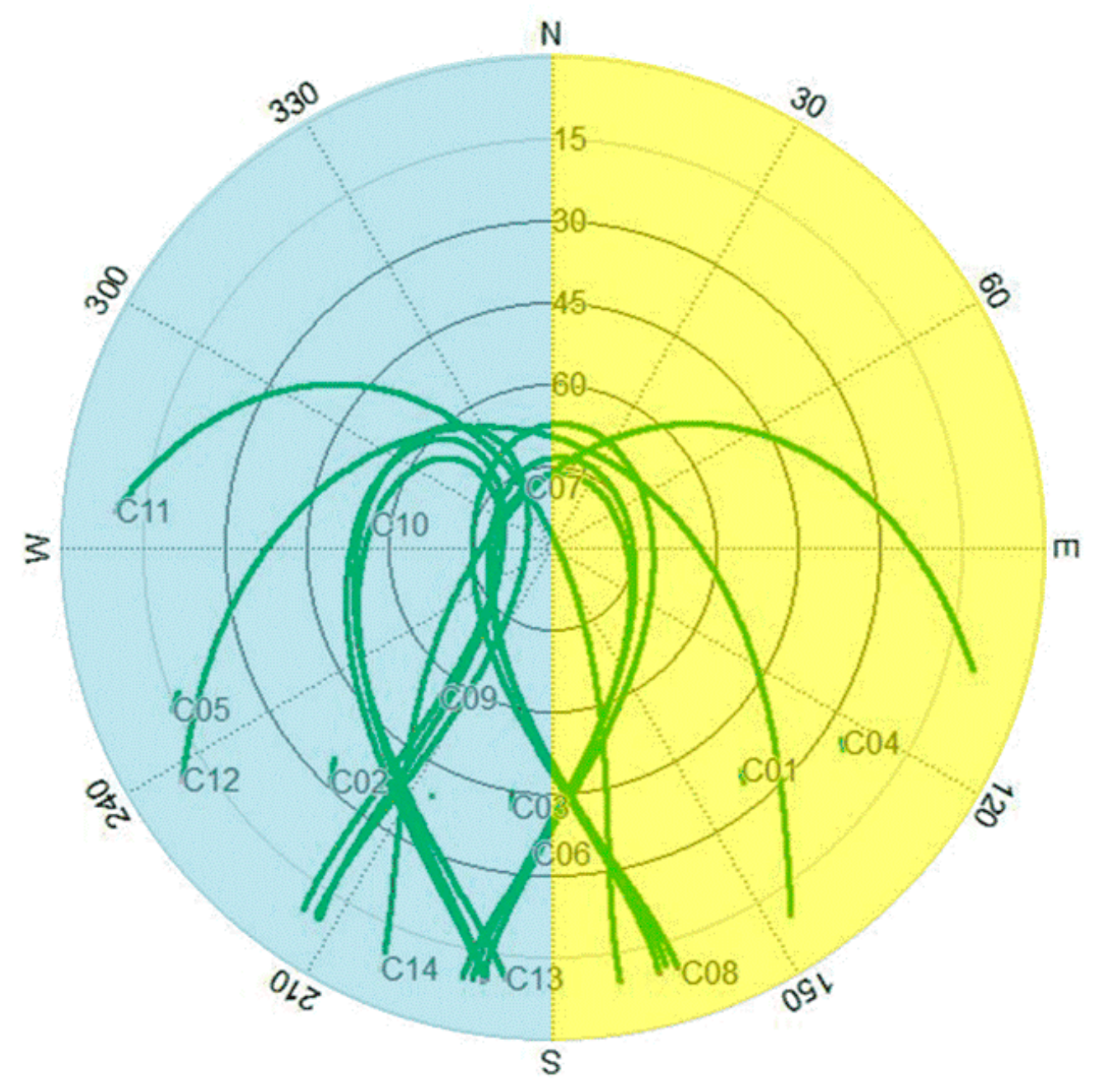

In order to evaluate the advantages of the proposed method over the traditional NC-RTK method in terms of positioning accuracy and integer ambiguity resolution, we simulate the obstructed satellite visibility cases. In this section, an experiment was conducted with three PolaRx5 on DOY158, in which two receivers, indicated as r₁ and r₂, were equipped with a common clock and a common antenna. Moreover, the third receiver as the reference receiver, denoted as b, has a 5 m baseline distance with the other two receivers. The sky plot of all tracked BDS satellites for r₁ and r₂ is given in Figure 8. In order to simulate the constrained environment, firstly, we manipulate the available satellites for r₁ are corresponding to the azimuths ranging from 180° to 360°, the available satellites for r₂ are from 0° to 180°. Therefore, the extreme case that there are no common-in-view satellites between rover can be created. Secondly, the elevation mask θ is adjusted from 10° to 30° for all the receivers with step of 5°. Thirdly, the azimuth mask α for r₁ and r₂ with the step of 10° is decreased to create less available satellites between rover receivers. The satellite constrained environment may also introduce multipath and sometimes other types of interference that are not considered in this contribution. We use the ambiguity dilution of precision (ADOP) and position dilution of precision (PDOP) to show the benefit of more observation redundancy from utilizing the proposed method [32]. The mean values of the estimated IRCB and IRPB sequences listed in

Table 4. IRB statistics under the common clock mode.

Type	B1		B2
	Mean	STD	Mean	STD
IRCB (m)	−218,128.42	0.28	−218,128.20	0.22
IRPB (cycle)	−0.081	0.021	−0.40	0.015

are used as a correction to calibrate the IRB for the second baseline configuration with a common clock. The empirical success rate P_s for ambiguity resolution is defined as the ratio between the correctly-fixed epochs and the total epochs.

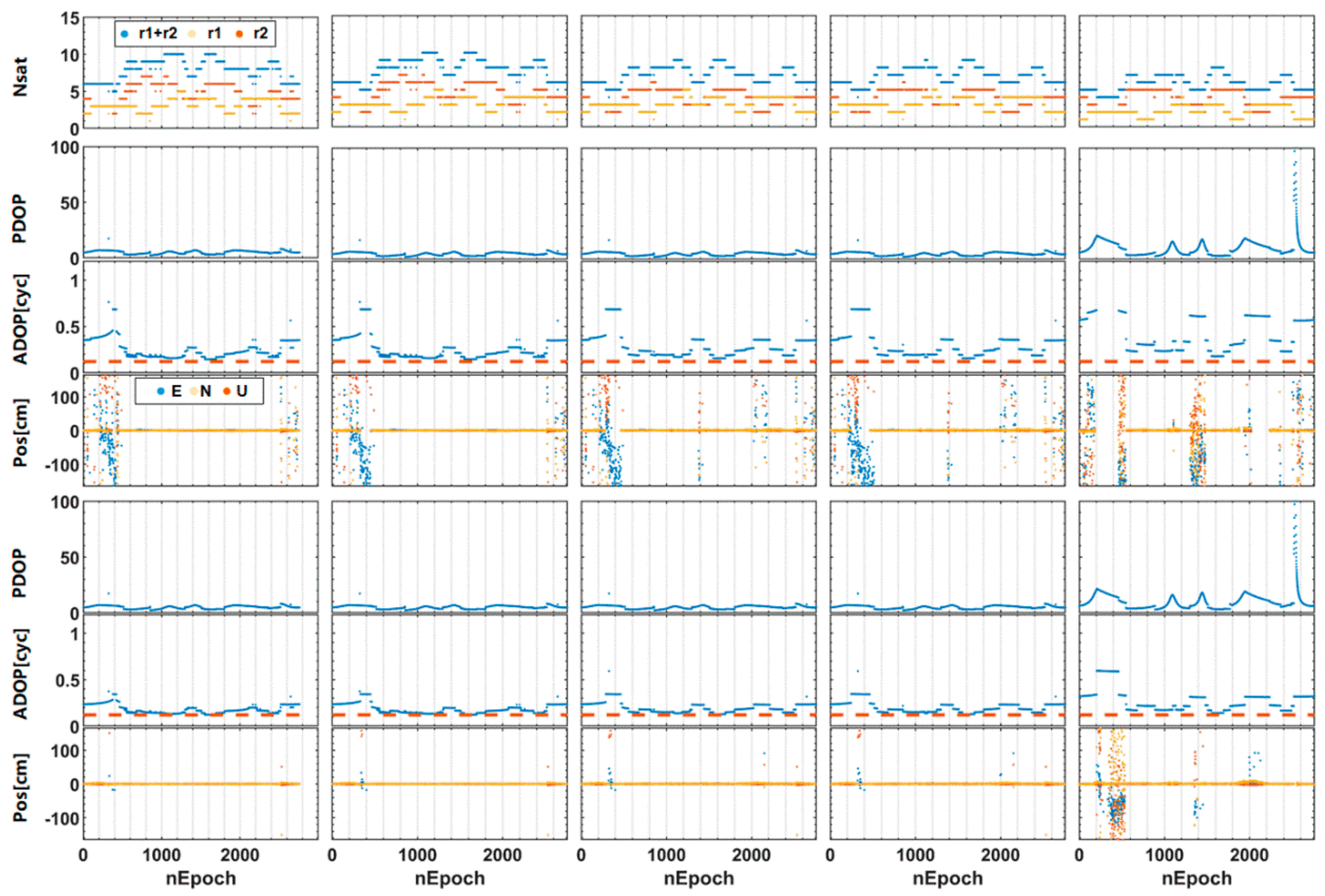

Figure 9 gives the positioning results, including the fixed solutions and float solutions. The statistical results are summarized in

Table 5. Positioning performance and ambiguity resolution success rates.

α (deg)	θ (deg)	NC-RTK (cm)				C-RTK (cm)
		σE,RMS	σN,RMS	σU,RMS	Ps	σE,RMS	σN,RMS	σU,RMS	Ps
(180,180)	10	0.35	0.34	0.82	100%	0.19	0.28	0.68	100%
	15	0.35	0.34	0.76	100%	0.19	0.27	0.63	100%
	20	0.31	2.40	2.51	99.96%	0.24	0.33	0.92	100%
	25	0.32	2.41	2.52	99.96%	0.25	0.34	0.95	100%
	30	8.97	10.09	25.01	98.2%	0.35	0.44	1.28	100%
(170,190)	10	17.27	33.91	69.47	97.57%	0.98	2.41	4.50	99.96%
	15	19.82	41.65	83.66	97.03%	0.59	5.88	11.75	99.86%
	20	21.93	45.97	92.03	95.62%	0.13	9.3	18.49	99.67%
	25	28.90	61.88	122.84	93.33%	2.20	10.18	20.26	99.57%
	30	29.52	34.72	83.48	82.5%	14.48	31.78	51.81	95%
(160,200)	10	25.93	56.59	104.86	93.44%	0.68	5.12	9.69	99.86%
	15	32.58	70.51	129.95	93.04%	0.84	8.84	18.63	99.67%
	20	37.84	78.22	143.88	90.29%	2.20	10.23	20.46	99.52%
	25	41.76	84.42	158.05	88.77%	2.32	11.37	22.71	99.45%
	30	51.61	56	114.76	72.83%	16.69	34.64	61.61	92.32%

, including the root mean square (RMS) of 3D positioning errors and the success rate of ambiguity resolution. Note that Figure 9 only shows the worst case of all the experimental results, only a fraction of epochs was processed due to either the insufficient satellites for positioning or extremely poor satellite geometry (PDOP>30) under the BDS-only situation. Furthermore, it can be observed from Figure 9 that when the azimuth masks for r₂ and r₁ are up to (160°, 200°), the NC-RTK has more positioning interruptions due to the number of satellites are required at least five for the traditional RTK method. In contrast, the C-RTK method has better continuity performance because of the observation redundancy from IRB calibration.

When the sky blockage is not severe (e.g., the azimuth masks for r₂ and r₁ are all 180°, and the cutoff elevation is less than 25°), the performance of the C-RTK is comparative to NC-RTK. Because in the open sky scenario spliced jointly by r₁ and r₂, the C-RTK method can rarely improve DOP values and there are sufficient numbers of satellites to fix the ambiguity. However, this situation will change with the decrease of satellites in view. As shown in Figure 9, the C-RTK method has better ADOP relative to NC-RTK, which is further validated by the ambiguity resolution success rate. In addition, Figure 9 shows that the incorrectly fixed cases are present when the ADOPs are significantly more than the 0.12 cycle level. When the cutoff elevation angle is set to less than 20°, it can be seen from Table 5 that the integer ambiguity resolution and positioning performance of C-RTK are better with closely P_s of 99.5%, and the positioning accuracy within 30 cm. The results indicate that the proposed method is comparable with the traditional NC-RTK method since the advantages of additional observations remain tiny for the two methods under the open-sky environments. Furthermore, we find that the C-RTK behaves better in the satellite-deprived environment. Particularly, when the cutoff elevation is increased up to 30°, the integer ambiguity resolution and positioning performance for the NC-RTK method are much worse than the proposed C-RTK method. Specifically, the success rate of the NC-RTK method decreases by 27.17%, and the positioning accuracy is up to the meter level. Correspondingly, the success rate of C-RTK method decreases by 7.68%. Nevertheless, compared with NC-RTK method, the C-RTK method improves success rate by 19.5% and positioning accuracy by 46.4%. It is because the averaging of IRB as the correction to calibrate bias sequences will not affect the integer ambiguity resolution. In addition, the C-RTK method has more redundancy over the NC-RTK when the averaged IRB is used to calibrate inter-receiver DD observations. A slightly better ADOP can be obtained due to the increased observation redundancy. Therefore, the better ambiguity resolution success rate and the positioning accuracy of C-RTK can be achieved under the satellite-deprived environment owing to stronger observation model strength.

5. Concluding Remarks

To improve the integer ambiguity resolution and positioning performance under the satellite-deprived environments, we developed an RTK positioning method with multiple rover receivers sharing common clock. The proposed method can improve the observation redundancy by integrating the observations from multiple rover receivers. Regarding the code and phase IRB resulting from the integrating multiple rover receivers, a code and phase IRB estimation method is investigated, in which the phase IRB estimation is immune to the cycle slip or the change of pivot satellite. Fortunately, the experimental results have shown that the standard deviation of the carrier phase IRB under the common clock mode is less than 0.1 cycles. We, therefore, can use the pre-estimation-based IRB calibration strategy for the tightly integrating multiple rover receivers. However, the stability of code IRB and phase IRB can be destroyed by the reboot of the receiver, which implies that it is necessary to re-calibrate the IRB when the receiver is restarted.

Real-world datasets have demonstrated that, because of the stronger observation strength obtained by calibrating IRB, the proposed tightly coupled C-RTK method can obtain a higher positioning accuracy and ambiguity resolution performance achievement relative to the traditional loosely coupled NC-RTK method when under the short baseline satellite-deprived environment. It should be noted that we only compare the short baseline application in mild multipath and homothermal environment. Further study will be developed to investigate the temperature sensitivity of IRB and the multipath effect on the proposed method.
