# Green LAI Mapping and Cloud Gap-Filling Using Gaussian Process Regression in Google Earth Engine

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. GPR Formulation for Vector Input

- Length-scale ${\sigma}_{b}$ describes the smoothness of $f\left(\mathbf{x}\right)$ dependence along the dimension b. Small ${\sigma}_{b}$ means $f\left(\mathbf{x}\right)$ changes quickly for variations of $\mathbf{x}$ along b; large values denote slow changes w.r.t. the b dimension. Alternatively, the inverse of ${\sigma}_{b}$ represents the relevance of band b in the prediction process. Intuitively, high values of ${\sigma}_{b}$ mean that relations largely extend along that band hence suggesting a lower informative content.
- Signal variance ${\sigma}_{s}^{2}$ is a scaling factor. It determines variation of $f\left(\mathbf{x}\right)$ from its mean. Small value of ${\sigma}_{s}^{2}$ characterize functions that stay close to their mean value, larger values allow more variation. If ${\sigma}_{s}^{2}$ is too large, the modeled function will be free to chase outliers.
- Noise variance ${\sigma}_{n}^{2}$ is formally not a part of the covariance function itself. It is used by the Gaussian process model to account for noise present in training data.

#### 2.2. GPR Formulation for Space-Spectrum (3D) Input

**X**; the third one is related to the information contained in the trained model, but not on the new input to be used for prediction. Accordingly, we can give one further step towards parallelization, and extend the estimation of ${\mathit{k}}_{*}$ to a $B\times M$ matrix ${\mathit{X}}_{*}=[{\mathit{x}}_{*1},..,{\mathit{x}}_{*M}]$ containing M new input vectors, being M the number of pixels of the multispectral image to be processed at once. Defining ${\mathit{K}}_{*}=[{\mathit{k}}_{*}^{1},{\mathit{k}}_{*}^{2},..{\mathit{k}}_{*}^{M}]$, it results:

#### 2.3. GPR Formulation for Space-Time (3D) Input

## 3. GPR Models Training

#### 3.1. Green LAI Model

#### 3.2. Gapfilling Model

## 4. GEE Implementation and Assessment

#### 4.1. LAI${}_{\mathit{G}}$ Mapping

#### 4.2. LAI${}_{\mathit{G}}$ Time Series Gapfilling

**t**common to all the pixels of S2 image collection over the same tile, we first convert each acquisition date in a numeric format. We choose to express it in terms of number of days with respect to the GPS time reference, i.e., 1 January 1970. As an example, according to this criterion the date 20 July 2019 becomes the number 18,097. Afterwards, we add (1) a new constant band to each S2 image of the collection corresponding to its numeric date (band ${\mathit{t}}_{*}$), and (2) a copy of this new band where we set to 0 (i.e., not masked anymore) all the pixels labeled as cloud. Cloudy pixel identify backs up on the S2 classification product [56] distributed along with L2A multispectral reflectance (band ${\mathit{t}}_{msk}$). Similarly, we set to zero also the reflectance values of these cloudy pixels in each element of the S2 collection. Summing up, in the time series of a generic pixels from the S2 collection, the time associated to cloudy samples is 0 as well as their multispectral radiometric values. Taking into account that the input time series for calculating the temporal Covariance matrix ${\mathit{K}}_{t}$ must not be time ordered, the contribution of all these cloudy captures to the estimation of LAI${}_{G}$ at any S2 acquisition date, i.e., the value of $k(0,{t}_{i})$ in Equation (10), becomes negligible. This is shown in Figure 5, where we analyze the LAIG time series of a pixel belonging to a vegetated area in Castille and Leon, Spain. As expected, the collection presents both meaningful (cloud-free) and non-valid (cloudy) samples. These two cases are described by the meaningful (MTS) and cloudy (CD) time series points. CD dates correspond to S2 acquisitions where the chosen pixel but not the whole tile is cloudy; completely cloudy captures over tile 30TUM have been discarded. The blue plot (GTS) describes the result obtained with the standard approach, i.e., all the cloudy samples are eliminated and only MTS is used for the GPR model prediction; in red the result provided by the proposed strategy (GTS2Z), i.e., by substituting (0,0) for each (date, LAIG) pair from a cloudy capture and performing the prediction using all the samples. The gapfilling has been performed over the whole observation period with a 5-day sampling step. It can be observed that GTS and GTS2Z plots perfectly match, and the overall difference between the two estimation is utterly negligible (RMSE = 2.9 × 10${}^{-14}$, R${}^{2}$ = 1). For the sake of completeness, we show in black (GTSZ) the result obtained when cloudy samples are set to 0 to demonstrate that this substitution leads to incorrect estimations of LAIG and should not be used.

**1**denotes a matrix of ones; bold font defines variables which take into account all the pixels of the collection at once. The final prediction corresponds to the LAI${}_{G}$ cloud-free map at time ${\mathit{t}}_{*}$. Details on the GPR formulation here implemented can be found in [13]. The key steps are (1) the implementation of Equation (11) by defining the ${\mathbf{1}}_{msk}$ and ${\mathbf{1}}_{*}$ vectors, and (2) the parallel calculation of L matrix using the Cholesky Decomposition available in $ee$ library. In this case too, the matrix algebra operation can be performed by casting the multiband images from $image$ to $array$ data type. The final result is converted back to $image$ using the $arrayProject$ functions to add geocoordinates and turn it into a map. As dealing with $array$ type means asking for chunks of contiguous memory [57], care must be taken to the global volume of data involved in the process. Note that the theoretical computational complexity of LAI prediction as well as gapfilling steps is O(${n}^{3}$), being n the number of bands for the former and time series length for the latter. For this reason, the gapfilling task over multiple-tile areas must be carried out by looping over tiles and considering one date at a time. This way, memory exceeded errors are nicely avoided.

## 5. Cloud-Free Seamless Mapping of Wide Areas

## 6. Discussion

## 7. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## References

- Weiss, M.; Jacob, F.; Duveiller, G. Remote sensing for agricultural applications: A meta-review. Remote Sens. Environ.
**2020**, 236, 111402. [Google Scholar] [CrossRef] - Malenovskỳ, Z.; Homolová, L.; Lukeš, P.; Buddenbaum, H.; Verrelst, J.; Alonso, L.; Schaepman, M.E.; Lauret, N.; Gastellu-Etchegorry, J.P. Variability and uncertainty challenges in scaling imaging spectroscopy retrievals and validations from leaves up to vegetation canopies. Surv. Geophys.
**2019**, 40, 631–656. [Google Scholar] [CrossRef] - Verrelst, J.; Rivera, J.P.; Veroustraete, F.; Muñoz-Marí, J.; Clevers, J.G.; Camps-Valls, G.; Moreno, J. Experimental Sentinel-2 LAI estimation using parametric, non-parametric and physical retrieval methods—A comparison. ISPRS J. Photogramm. Remote Sens.
**2015**, 108, 260–272. [Google Scholar] [CrossRef] - Verrelst, J.; Malenovskỳ, Z.; Van der Tol, C.; Camps-Valls, G.; Gastellu-Etchegorry, J.P.; Lewis, P.; North, P.; Moreno, J. Quantifying vegetation biophysical variables from imaging spectroscopy data: A review on retrieval methods. Surv. Geophys.
**2019**, 40, 589–629. [Google Scholar] [CrossRef] [Green Version] - Baret, F.; Weiss, M.; Lacaze, R.; Camacho, F.; Makhmara, H.; Pacholcyzk, P.; Smets, B. GEOV1: LAI and FAPAR essential climate variables and FCOVER global time series capitalizing over existing products. Part1: Principles of development and production. Remote Sens. Environ.
**2013**, 137, 299–309. [Google Scholar] [CrossRef] - Weiss, M.; Baret, F.; Myneni, R.; Pragnère, A.; Knyazikhin, Y. Investigation of a model inversion technique to estimate canopy biophysical variables from spectral and directional reflectance data. Agronomie
**2000**, 20, 3–22. [Google Scholar] [CrossRef] - Combal, B.; Baret, F.; Weiss, M. Improving canopy variables estimation from remote sensing data by exploiting ancillary information. Case study on sugar beet canopies. Agronomie
**2002**, 22, 205–215. [Google Scholar] [CrossRef] - Verrelst, J.; Muñoz, J.; Alonso, L.; Delegido, J.; Rivera, J.; Camps-Valls, G.; Moreno, J. Machine learning regression algorithms for biophysical parameter retrieval: Opportunities for Sentinel-2 and -3. Remote Sens. Environ.
**2012**, 118, 127–139. [Google Scholar] [CrossRef] - Upreti, D.; Huang, W.; Kong, W.; Pascucci, S.; Pignatti, S.; Zhou, X.; Ye, H.; Casa, R. A Comparison of Hybrid Machine Learning Algorithms for the Retrieval of Wheat Biophysical Variables from Sentinel-2. Remote Sens.
**2019**, 11, 481. [Google Scholar] [CrossRef] [Green Version] - Verrelst, J.; Camps-Valls, G.; Munoz-Marí, J.; Rivera, J.P.; Veroustraete, F.; Clevers, J.G.; Moreno, J. Optical remote sensing and the retrieval of terrestrial vegetation bio-geophysical properties—A review. ISPRS J. Photogramm. Remote Sens.
**2015**, 108, 273–290. [Google Scholar] [CrossRef] - Suykens, J.; Vandewalle, J. Least squares support vector machine classifiers. Neural Process. Lett.
**1999**, 9, 293–300. [Google Scholar] [CrossRef] - Vapnik, V.; Golowich, S.; Smola, A. Support vector method for function approximation, regression estimation, and signal processing. Adv. Neural Inf. Process. Syst.
**1997**, 9, 281–287. [Google Scholar] - Rasmussen, C.E.; Williams, C.K.I. Gaussian Processes for Machine Learning; The MIT Press: New York, NY, USA, 2006. [Google Scholar]
- Verrelst, J.; Alonso, L.; Camps-Valls, G.; Delegido, J.; Moreno, J. Retrieval of Vegetation Biophysical Parameters Using Gaussian Process Techniques. IEEE Trans. Geosci. Remote Sens.
**2012**, 50, 1832–1843. [Google Scholar] [CrossRef] - Verrelst, J.; Rivera, J.P.; Gitelson, A.; Delegido, J.; Moreno, J.; Camps-Valls, G. Spectral band selection for vegetation properties retrieval using Gaussian processes regression. Int. J. Appl. Earth Obs. Geoinf.
**2016**, 52, 554–567. [Google Scholar] [CrossRef] - Verrelst, J.; Rivera, J.; Moreno, J.; Camps-Valls, G. Gaussian processes uncertainty estimates in experimental Sentinel-2 LAI and leaf chlorophyll content retrieval. ISPRS J. Photogramm. Remote Sens.
**2013**, 86, 157–167. [Google Scholar] [CrossRef] - Chen, Z.; Wang, B. How priors of initial hyperparameters affect Gaussian process regression models. Neurocomputing
**2018**, 275, 1702–1710. [Google Scholar] [CrossRef] [Green Version] - Mateo-Sanchis, A.; Muñoz-Marí, J.; Campos-Taberner, M.; García-Haro, J.; Camps-Valls, G. Gap filling of biophysical parameter time series with multi-output Gaussian Processes. In Proceedings of the IGARSS 2018—2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 22–27 July 2018; pp. 4039–4042. [Google Scholar] [CrossRef]
- Pipia, L.; Muñoz-Marí, J.; Amin, E.; Belda, S.; Camps-Valls, G.; Verrelst, J. Fusing optical and SAR time series for LAI gap filling with multioutput Gaussian processes. Remote Sens. Environ.
**2019**, 235, 111452. [Google Scholar] [CrossRef] - Belda, S.; Pipia, L.; Morcillo-Pallarés, P.; Rivera-Caicedo, J.P.; Amin, E.; de Grave, C.; Verrelst, J. DATimeS: A machine learning time series GUI toolbox for gap-filling and vegetation phenology trends detection. Environ. Model. Softw.
**2020**, 104666. [Google Scholar] [CrossRef] - Amin, E.; Verrelst, J.; Rivera-Caicedo, J.P.; Pipia, L.; Ruiz-Verdú, A.; Moreno, J. Prototyping Sentinel-2 green LAI and brown LAI products for cropland monitoring. Remote Sens. Environ.
**2020**, 112168. [Google Scholar] [CrossRef] - Belda, S.; Pipia, L.; Morcillo-Pallarés, P.; Verrelst, J. Optimizing Gaussian Process Regression for Image Time Series Gap-Filling and Crop Monitoring. Agronomy
**2020**, 10, 618. [Google Scholar] [CrossRef] - Tona, C.; Bua, R. Open Source Data Hub System: Free and open framework to enable cooperation to disseminate Earth Observation data and geo-spatial information. In Proceedings of the 20th EGU General Assembly, EGU2018, Vienna, Austria, 8–13 April 2018; Volume 20. [Google Scholar]
- Gorelick, N.; Hancher, M.; Dixon, M.; Ilyushchenko, S.; Thau, D.; Moore, R. Google Earth Engine: Planetary-scale geospatial analysis for everyone. Remote Sens. Environ.
**2017**, 202, 18–27. [Google Scholar] [CrossRef] - Kumar, L.; Mutanga, O. Google Earth Engine applications since inception: Usage, trends, and potential. Remote Sens.
**2018**, 10, 1509. [Google Scholar] [CrossRef] [Green Version] - Verrelst, J.; Alonso, L.; Rivera Caicedo, J.; Moreno, J.; Camps-Valls, G. Gaussian Process Retrieval of Chlorophyll Content From Imaging Spectroscopy Data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2013**, 6, 867–874. [Google Scholar] [CrossRef] - Campos-Taberner, M.; García-Haro, F.J.; Camps-Valls, G.; Grau-Muedra, G.; Nutini, F.; Crema, A.; Boschetti, M. Multitemporal and multiresolution leaf area index retrieval for operational local rice crop monitoring. Remote Sens. Environ.
**2016**, 187, 102–118. [Google Scholar] [CrossRef] - Amin, E.; Verrelst, J.; Rivera-Caicedo, J.P.; Pasqualotto, N.; Delegido, J.; Verdú, A.R.; Moreno, J. The Sensagri Sentinel-2 LAI Green and Brown Product: From Algorithm Development Towards Operational Mapping. In Proceedings of the IGARSS 2018—2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 22–27 July 2018; pp. 1822–1825. [Google Scholar]
- Camps-Valls, G.; Jung, M.; Ichii, K.; Papale, D.; Tramontana, G.; Bodesheim, P.; Schwalm, C.; Zscheischler, J.; Mahecha, M.; Reichstein, M. Ranking drivers of global carbon and energy fluxes over land. In Proceedings of the 2015 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Milan, Italy, 26–31 July 2015; pp. 4416–4419. [Google Scholar]
- Camps-Valls, G.; Verrelst, J.; Muñoz-Marí, J.; Laparra, V.; Mateo-Jiménez, F.; Gómez-Dans, J. A Survey on Gaussian Processes for Earth Observation Data Analysis. IEEE Geosci. Remote Sens. Mag.
**2016**, 4, 58–78. [Google Scholar] [CrossRef] [Green Version] - Camps-Valls, G.; Sejdinovic, D.; Runge, J.; Reichstein, M. A Prspective on Gaussian Processes for Earth Observation. Natl. Sci. Rev.
**2019**. [Google Scholar] [CrossRef] [Green Version] - Aye, S.; Heyns, P. An integrated Gaussian process regression for prediction of remaining useful life of slow speed bearings based on acoustic emission. Mech. Syst. Signal Process.
**2017**, 84, 485–498. [Google Scholar] [CrossRef] - Calandriello, D.; Carratino, L.; Lazaric, A.; Valko, M.; Rosasco, L. Near-linear time Gaussian process optimization with adaptive batching and resparsification. In Proceedings of the 37th International Conference on Machine Learning, Vienna, Austria, 13–18 July 2020; pp. 1295–1305. [Google Scholar]
- Verrelst, J.; Rivera, J.; Alonso, L.; Moreno, J. ARTMO: An Automated Radiative Transfer Models Operator toolbox for automated retrieval of biophysical parameters through model inversion. In Proceedings of the 7th EARSeL Workshop on Imaging Spectrometry, Brno, Czech Republic, 6–8 February 2011. [Google Scholar]
- Blum, M.; Riedmiller, M. Optimization of Gaussian Process Hyperparameters using Rprop. In Proceedings of the 21th European Symposium on Artificial Neural Networks, Computational Intelligence and Machine Learning, Bruges, Belgium, 24–26 April 2013. [Google Scholar]
- Jonckheere, I.; Fleck, S.; Nackaerts, K.; Muys, B.; Coppin, P.; Weiss, M.; Baret, F. Review of methods for in situ leaf area index determination Part I. Theories, sensors and hemispherical photography. Agric. For. Meteorol.
**2004**, 121, 19–35. [Google Scholar] [CrossRef] - Boegh, E.; Søgaard, H.; Broge, N.; Hasager, C.; Jensen, N.; Schelde, K.; Thomsen, A. Airborne multispectral data for quantifying leaf area index, nitrogen concentration, and photosynthetic efficiency in agriculture. Remote Sens. Environ.
**2002**, 81, 179–193. [Google Scholar] [CrossRef] - Duveiller, G.; Baret, F.; Defourny, P. Remotely sensed green area index for winter wheat crop monitoring: 10-Year assessment at regional scale over a fragmented landscape. Agric. For. Meteorol.
**2012**, 166, 156–168. [Google Scholar] [CrossRef] - Drusch, M.; Del Bello, U.; Carlier, S.; Colin, O.; Fernandez, V.; Gascon, F.; Hoersch, B.; Isola, C.; Laberinti, P.; Martimort, P.; et al. Sentinel-2: ESA’s Optical High-Resolution Mission for GMES Operational Services. Remote Sens. Environ.
**2012**, 120, 25–36. [Google Scholar] [CrossRef] - Verrelst, J.; Dethier, S.; Rivera, J.P.; Munoz-Mari, J.; Camps-Valls, G.; Moreno, J. Active Learning Methods for Efficient Hybrid Biophysical Variable Retrieval. IEEE Geosci. Remote Sens. Lett.
**2016**, 13, 1012–1016. [Google Scholar] [CrossRef] - Verrelst, J.; Berger, K.; Rivera-Caicedo, J.P. Intelligent sampling for vegetation nitrogen mapping based on hybrid machine learning algorithms. IEEE Geosci. Remote Sens. Lett.
**2020**. [Google Scholar] [CrossRef] - Rivera-Caicedo, J.P.; Verrelst, J.; Muñoz-Marí, J.; Camps-Valls, G.; Moreno, J. Hyperspectral dimensionality reduction for biophysical variable statistical retrieval. ISPRS J. Photogramm. Remote Sens.
**2017**, 132, 88–101. [Google Scholar] [CrossRef] - D’Odorico, P.; Gonsamo, A.; Gough, C.M.; Bohrer, G.; Morison, J.; Wilkinson, M.; Hanson, P.J.; Gianelle, D.; Fuentes, J.D.; Buchmann, N. The match and mismatch between photosynthesis and land surface phenology of deciduous forests. Agric. For. Meteorol.
**2015**, 214–215, 25–38. [Google Scholar] [CrossRef] - Kuenzer, C.; Dech, S.; Wagner, W. Remote Sensing Time Series Revealing Land Surface Dynamics. Remote Sens. Time Ser.
**2015**, 22. [Google Scholar] [CrossRef] - Weiss, D.J.; Atkinson, P.M.; Bhatt, S.; Mappin, B.; Hay, S.I.; Gething, P.W. An effective approach for gap-filling continental scale remotely sensed time-series. ISPRS J. Photogramm. Remote Sens.
**2014**, 98, 106–118. [Google Scholar] [CrossRef] [Green Version] - Mariethoz, G.; McCabe, M.; Renard, P. Spatiotemporal reconstruction of gaps in multivariate fields using the direct sampling approach. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef] [Green Version] - Chen, J.; Boccelli, D.L. Real-time forecasting and visualization toolkit for multi-seasonal time series. Environ. Model. Softw.
**2018**, 105, 244–256. [Google Scholar] [CrossRef] - Jönsson, P.; Cai, Z.; Melaas, E.; Friedl, M.A.; Eklundh, L. A Method for Robust Estimation of Vegetation Seasonality from Landsat and Sentinel-2 Time Series Data. Remote Sens.
**2018**, 10, 635. [Google Scholar] [CrossRef] [Green Version] - Camps-Valls, G.; Martino, L.; Svendsen, D.H.; Campos-Taberner, M.; Muñoz-Marí, J.; Laparra, V.; Luengo, D.; García-Haro, F.J. Physics-aware Gaussian processes in remote sensing. Appl. Soft Comput.
**2018**, 68, 69–82. [Google Scholar] [CrossRef] - Hensman, J.; Fusi, N.; Lawrence, N.D. Gaussian Processes for Big Data. arXiv
**2013**, arXiv:1309.6835. [Google Scholar] - Moore, C.; Chua, A.; Berry, C.; Gair, J. Fast methods for training gaussian processes on large datasets. R. Soc. Open Sci.
**2016**, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Klein, T.; Nilsson, M.; Persson, A.; Håkansson, B. From Open Data to Open Analyses—New Opportunities for Environmental Applications? Environments
**2017**, 4, 32. [Google Scholar] [CrossRef] [Green Version] - Chen, B.; Xiao, X.; Li, X.; Pan, L.; Doughty, R.; Ma, J.; Dong, J.; Qin, Y.; Zhao, B.; Wu, Z.; et al. A mangrove forest map of China in 2015: Analysis of time series Landsat 7/8 and Sentinel-1A imagery in Google Earth Engine cloud computing platform. ISPRS J. Photogramm. Remote Sens.
**2017**, 131, 104–120. [Google Scholar] [CrossRef] - Deines, J.M.; Kendall, A.D.; Hyndman, D.W. Annual irrigation dynamics in the US Northern High Plains derived from Landsat satellite data. Geophys. Res. Lett.
**2017**, 44, 9350–9360. [Google Scholar] [CrossRef] - ESA. ESA Scientific Hub. Available online: https://scihub.copernicus.eu/dhus/#/home (accessed on 10 January 2021).
- Louis, J.; Debaecker, V.; Pflug, B.; Main-Knorn, M.; Bieniarz, J.; Mueller-Wilm, U.; Cadau, E.; Gascon, F. Sentinel-2 Sen2Cor: L2A processor for users. In Proceedings of the Living Planet Symposium 2016, Prague, Czech Republic, 9–13 May 2016; pp. 1–8. [Google Scholar]
- Google Earth Engine Debugging Guide. Available online: https://developers.google.com/earth-engine/guides (accessed on 10 January 2021).
- AEMET, I. Atlas climático ibérico/Iberian climate atlas. In Agencia Estatal de Meteorología, Ministerio de Medio Ambiente y Rural y Marino; Instituto de Meteorologia de Portugal: Madrid, Spain, 2011. [Google Scholar]
- Azorin-Molina, C.; Vicente-Serrano, S.M.; Chen, D.; Connell, B.H.; Domínguez-Durán, M.Á.; Revuelto, J.; López-Moreno, J.I. AVHRR warm-season cloud climatologies under various synoptic regimes across the Iberian Peninsula and the Balearic Islands. Int. J. Climatol.
**2015**, 35, 1984–2002. [Google Scholar] [CrossRef] - Li, H.; Wan, W.; Fang, Y.; Zhu, S.; Chen, X.; Liu, B.; Hong, Y. A Google Earth Engine-enabled software for efficiently generating high-quality user-ready Landsat mosaic images. Environ. Model. Softw.
**2019**, 112, 16–22. [Google Scholar] [CrossRef] - Tamiminia, H.; Salehi, B.; Mahdianpari, M.; Quackenbush, L.; Adeli, S.; Brisco, B. Google Earth Engine for geo-big data applications: A meta-analysis and systematic review. ISPRS J. Photogramm. Remote Sens.
**2020**, 164, 152–170. [Google Scholar] [CrossRef] - Wu, Q.; Lane, C.R.; Li, X.; Zhao, K.; Zhou, Y.; Clinton, N.; DeVries, B.; Golden, H.E.; Lang, M.W. Integrating LiDAR data and multi-temporal aerial imagery to map wetland inundation dynamics using Google Earth Engine. Remote Sens. Environ.
**2019**, 228, 1–13. [Google Scholar] [CrossRef] [Green Version] - Wu, Q. Geemap: A Python package for interactive mapping with Google Earth Engine. J. Open Source Softw.
**2020**, 5, 2305. [Google Scholar] [CrossRef] - Kennedy, R.E.; Yang, Z.; Gorelick, N.; Braaten, J.; Cavalcante, L.; Cohen, W.B.; Healey, S. Implementation of the LandTrendr algorithm on google earth engine. Remote Sens.
**2018**, 10, 691. [Google Scholar] [CrossRef] [Green Version] - Google Earth Engine Developers’ Forum Guide. Available online: https://groups.google.com/g/google-earth-engine-developers?pli=1 (accessed on 10 January 2021).
- Wu, Q. Earth Engine Python Tutorials. Available online: https://www.youtube.com/c/QiushengWu/featured/ (accessed on 10 January 2021).
- Gisandbeers. Scripts for Google Earth Engine. Available online: http://www.gisandbeers.com/scripts-para-google-earth-engine/ (accessed on 10 January 2021).
- Lakshminarayanan, B.; Pritzel, A.; Blundell, C. Simple and scalable predictive uncertainty estimation using deep ensembles. Adv. Neural Inf. Process. Syst.
**2017**, 30, 6402–6413. [Google Scholar] - Novak, R.; Xiao, L.; Hron, J.; Lee, J.; Alemi, A.A.; Sohl-Dickstein, J.; Schoenholz, S.S. Neural tangents: Fast and easy infinite neural networks in python. arXiv
**2019**, arXiv:1912.02803. [Google Scholar] - Lee, J.; Bahri, Y.; Novak, R.; Schoenholz, S.S.; Pennington, J.; Sohl-Dickstein, J. Deep neural networks as gaussian processes. arXiv
**2017**, arXiv:1711.00165. [Google Scholar] - Novak, R.; Xiao, L.; Lee, J.; Bahri, Y.; Yang, G.; Hron, J.; Abolafia, D.A.; Pennington, J.; Sohl-Dickstein, J. Bayesian deep convolutional networks with many channels are gaussian processes. arXiv
**2018**, arXiv:1810.05148. [Google Scholar] - Sobrino, J.; Julien, Y. Global trends in NDVI-derived parameters obtained from GIMMS data. Int. J. Remote Sens.
**2011**, 32, 4267–4279. [Google Scholar] [CrossRef] - Richardson, A.; Keenan, T.; Migliavacca, M.; Ryu, Y.; Sonnentag, O.; Toomey, M. Climate change, phenology, and phenological control of vegetation feedbacks to the climate system. Agric. For. Meteorol.
**2013**, 169, 156–173. [Google Scholar] [CrossRef] - Atzberger, C. Advances in remote sensing of agriculture: Context description, existing operational monitoring systems and major information needs. Remote Sens.
**2013**, 5, 949–981. [Google Scholar] [CrossRef] [Green Version] - Sobrino, J.A.; Julien, Y.; Sòria, G. Phenology Estimation From Meteosat Second Generation Data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2013**, 6, 1653–1659. [Google Scholar] [CrossRef] - Hill, M.J.; Donald, G.E. Estimating spatio-temporal patterns of agricultural productivity in fragmented landscapes using AVHRR NDVI time series. Remote Sens. Environ.
**2003**, 84, 367–384. [Google Scholar] [CrossRef] - Overpeck, J.T.; Rind, D.; Goldberg, R. Climate-induced changes in forest disturbance and vegetation. Nature
**1990**, 343, 51–53. [Google Scholar] [CrossRef] - Frantz, D.; Röder, A.; Udelhoven, T.; Schmidt, M. Forest disturbance mapping using dense synthetic landsat/MODIS time-series and permutation-based disturbance index detection. Remote Sens.
**2016**, 8, 277. [Google Scholar] [CrossRef] [Green Version] - Masek, J.G.; Huang, C.; Wolfe, R.; Cohen, W.; Hall, F.; Kutler, J.; Nelson, P. North American forest disturbance mapped from a decadal Landsat record. Remote Sens. Environ.
**2008**, 112, 2914–2926. [Google Scholar] [CrossRef] - Zhao, K.; Wulder, M.A.; Hu, T.; Bright, R.; Wu, Q.; Qin, H.; Li, Y.; Toman, E.; Mallick, B.; Zhang, X.; et al. Detecting change-point, trend, and seasonality in satellite time series data to track abrupt changes and nonlinear dynamics: A Bayesian ensemble algorithm. Remote Sens. Environ.
**2019**, 232, 111181. [Google Scholar] [CrossRef] - Lastovicka, J.; Svec, P.; Paluba, D.; Kobliuk, N.; Svoboda, J.; Hladky, R.; Stych, P. Sentinel-2 Data in an Evaluation of the Impact of the Disturbances on Forest Vegetation. Remote Sens.
**2020**, 12, 1914. [Google Scholar] [CrossRef] - Verbesselt, J.; Hyndman, R.; Newnham, G.; Culvenor, D. Detecting Trend and Seasonal Changes in Satellite Image Time Series. Remote Sens. Environ.
**2010**, 114, 106–115. [Google Scholar] [CrossRef] - Zhang, X.; Zhang, Q. Monitoring interannual variation in global crop yield using long-term AVHRR and MODIS observations. ISPRS J. Photogramm. Remote Sens.
**2016**, 114, 191–205. [Google Scholar] [CrossRef] - Baker, N. Chlorophyll fluorescence: A probe of photosynthesis in vivo. Annu. Rev. Plant Biol.
**2008**, 59, 89–113. [Google Scholar] [CrossRef] [Green Version] - Mohammed, G.H.; Colombo, R.; Middleton, E.M.; Rascher, U.; van der Tol, C.; Nedbal, L.; Goulas, Y.; Pérez-Priego, O.; Damm, A.; Meroni, M.; et al. Remote sensing of solar-induced chlorophyll fluorescence (SIF) in vegetation: 50 years of progress. Remote Sens. Environ.
**2019**, 231, 111177. [Google Scholar] [CrossRef]

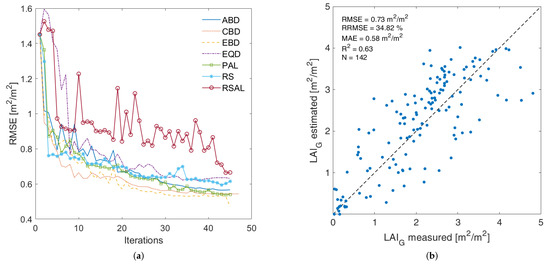

**Figure 1.**Comparison of the RMSE evolution performance of all active learning (AL) methods (

**a**), and scatterplot with goodness-of-fit statistics of validation LAI${}_{G}$ data against estimations using the best Euclidean Diversity (EBD)-reduced LAI${}_{G}$ GPR model (

**b**).

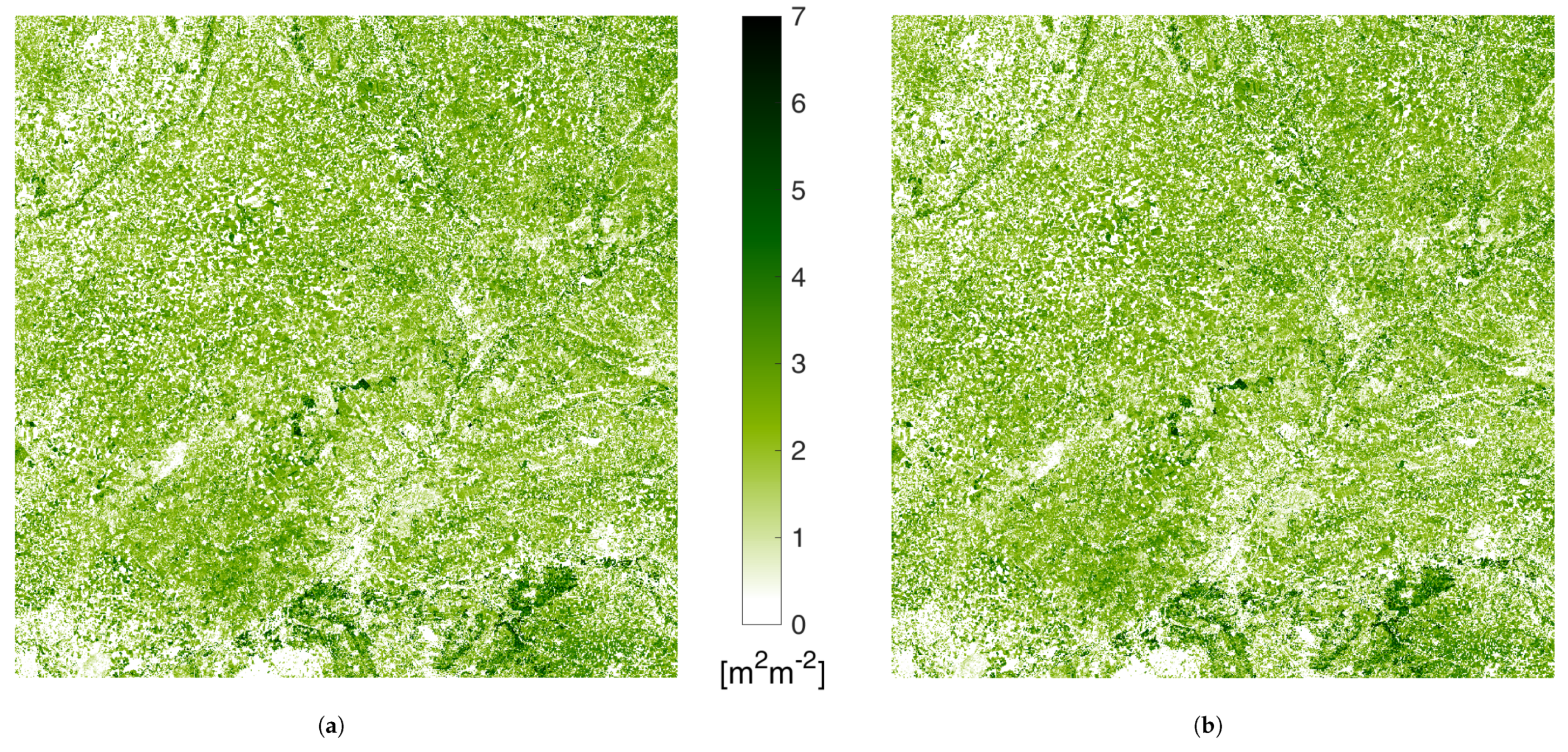

**Figure 2.**Comparison between green LAI maps retrieved by Automated Radiative Transfer Models Operator (ARTMO) (

**a**) and GEE GPR coding (

**b**) from S2 acquisition over tile 30TUM on 2 May 2019.

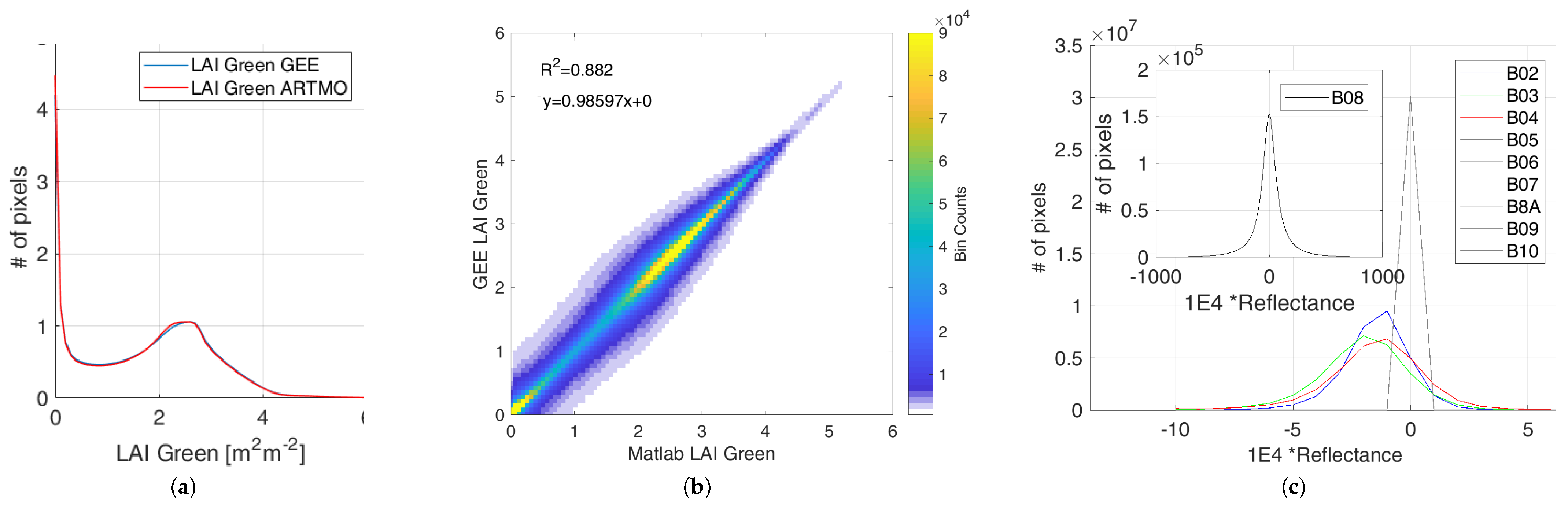

**Figure 3.**Comparison of green LAI maps estimated by ARTMO and GEE GPR implementations: histograms (

**a**) and scatterplot density (

**b**). In (

**c**), the histogram of pixel-by-pixel difference between 10 m bands resampled at 20 m distributed by ESA and available in GEE.

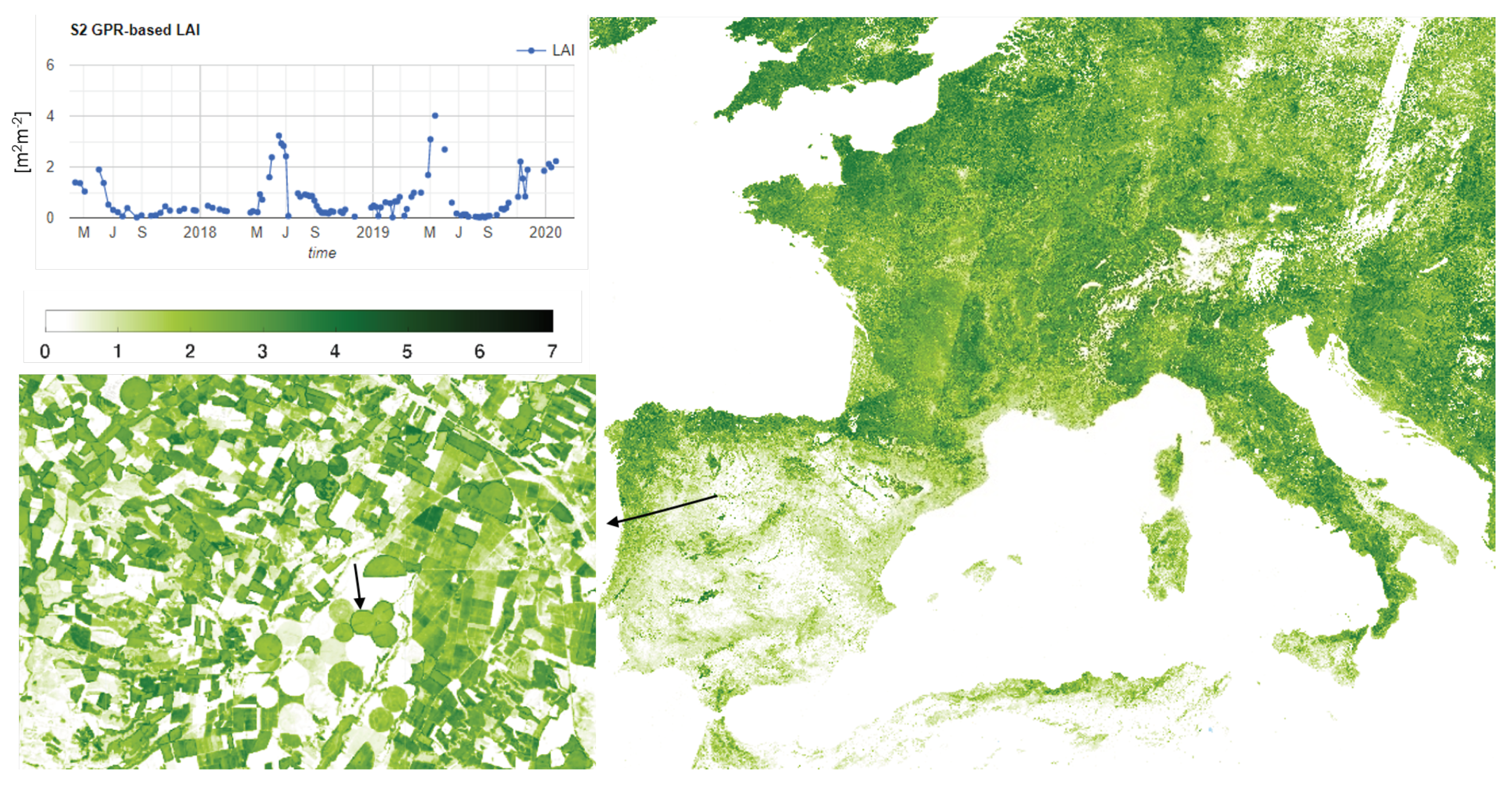

**Figure 4.**Big Scale LAI${}_{G}$ Mosaic over Europe with 1 July to 15 July 2019 time span using maximum value strategy.

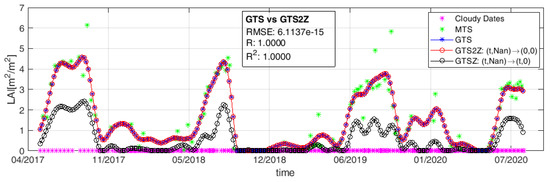

**Figure 5.**Result of GPR gapfilling of input LAI${}_{G}$ time series—meaning values (MTS) plus cloudy acquisitions (CD)—using different approaches: standard GPR prediction (GTS), CD substitutions with 0 (GTSZ) and the proposed parallel implementation (GTS2Z).

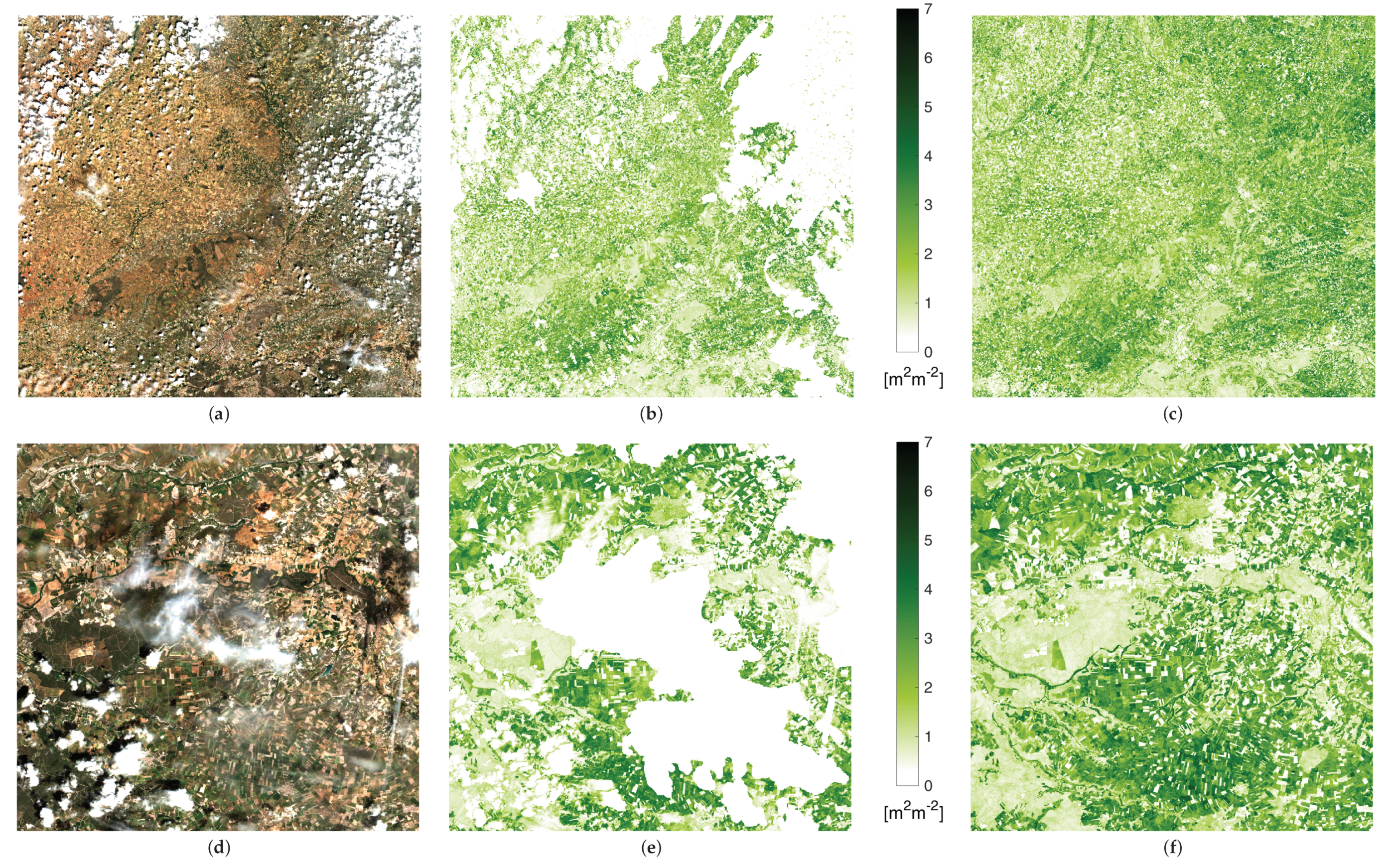

**Figure 6.**S2 acquisition over tile 30TUM on 27 May 2019: RGB (

**a**), $LA{I}_{G}$ map (

**b**) and gapfilled LAI${}_{G}$ map (

**c**) from GPR model applied in GEE to ± 35 dd span S2 collection. In (

**d**–

**f**), the same quantity zoomed onto the bottom-right corner.

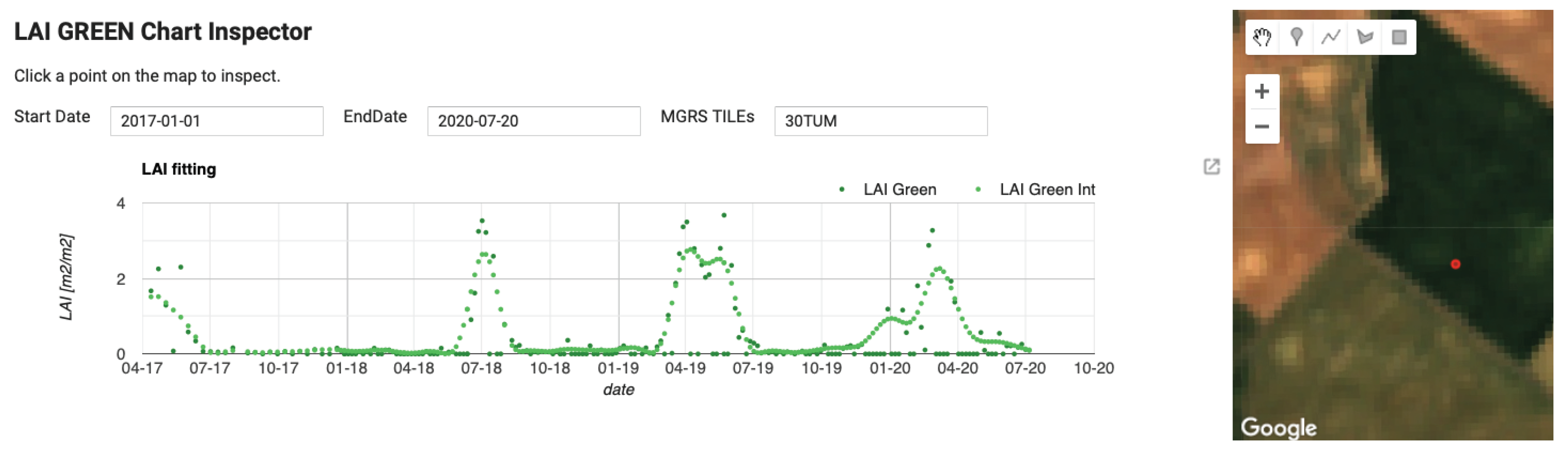

**Figure 7.**Original and gapfilled LAI${}_{G}$ time series of a crop pixel with the area of study generated using GEE visualization APIs. The time span corresponds to the whole collection of S2 L2A imagery distributed by ESA available in GEE.

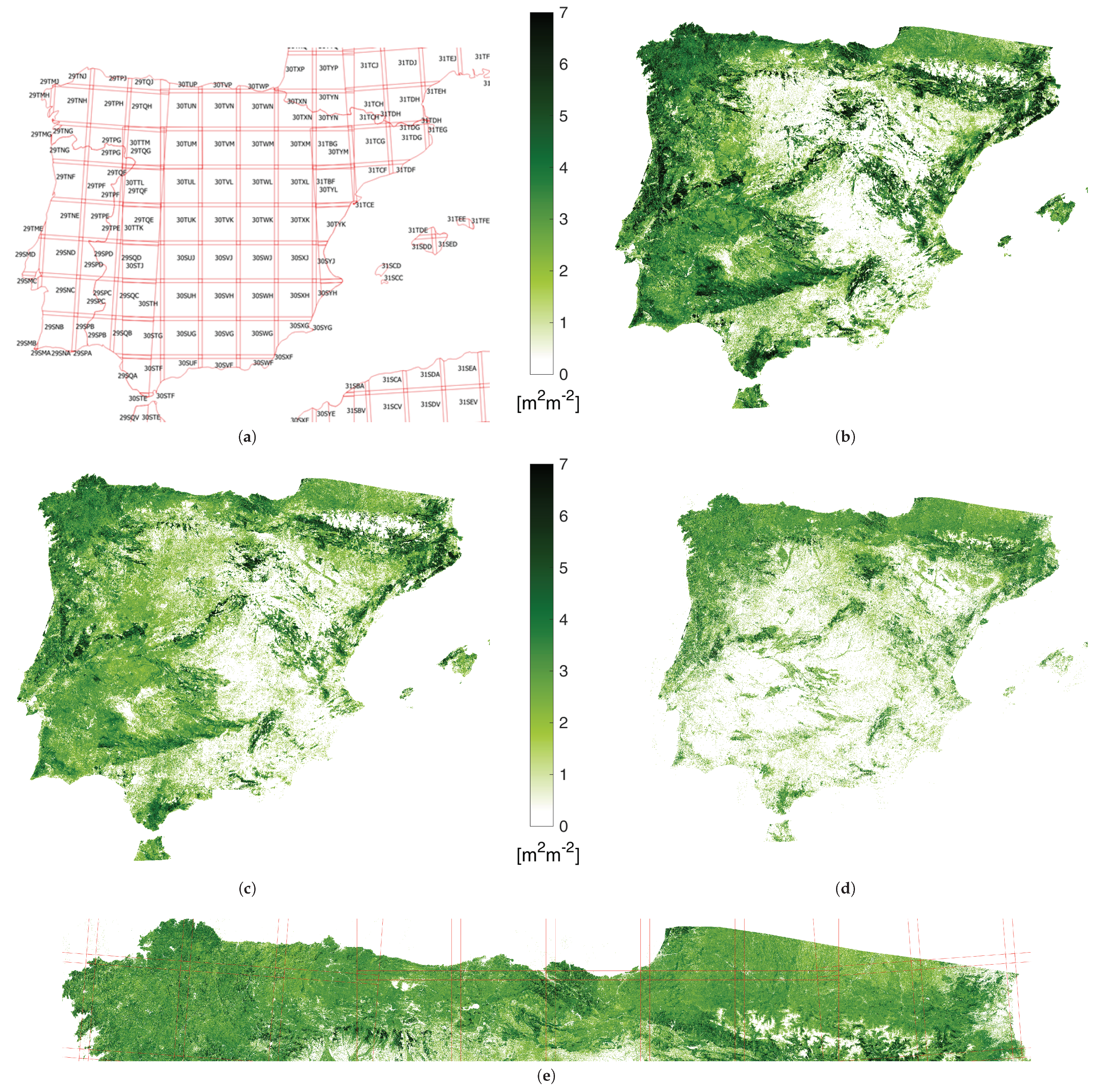

**Figure 8.**Mosaic of gapfilled green LAI maps over Iberian Peninsula from S2-tiling (

**a**) on 2 February (

**b**), 30 March (

**c**) and 30 June (

**d**), 2019. In (

**e**), zoom of 30 June mosaic over the Atlantic coast and Pyrenees Area.

**Table 1.**Overview of field campaigns for leaf area index (LAI${}_{G}$) collection used for training the Gaussian process regression (GPR) retrieval models.

Location | Period | #Points | Range | Instrument | Vegetation Type | Spectral Data |
---|---|---|---|---|---|---|

Barrax, Spain | 3 July | 102 | 0.4–6.2 | LAI-2000 | Alfalfa, corn, garlic, onion, potato, sugar beet, wheat | HyMap |

Valencia, Spain | May–17 November | 34 | 0.41–5.41 | LAI-2200 | Alfalfa, artichoke, lettuce, onion, potato | S2 |

Biely Kríž, Czech Republic | 16 August | 7 | 5.3–9.3 | LAI-2200 | Spruce forest | S2 |

Foggia, Italy | 17 March | 6 | 3.08–4.23 | LAI-2200 | Wheat | S2 |

Poznań, Poland | 17 July | 6 | 2.69–4.2 | LAI-2200 | Maize, triticale, wheat | S2 |

Kiev Oblast, Ukraine | 18 June | 3 | 0.27–0.56 | DHP | Maize, soybean | S2 |

Toulouse, France | 18 August | 1 | 1.77 | DHP | Maize | S2 |

**Table 2.**Overview of campaigns for LAI${}_{G}$ in-situ data collection used for LAI${}_{G}$ GPR model validation.

Location | Period | #Points | Range | Instrument | Vegetation Type | Spectral Data |
---|---|---|---|---|---|---|

Toulouse, France | Nov17/Mar-May-Jul-Aug 18 | 52 | 0.03–3.84 | DHP | Maize, soybean, sunflower | S2 |

Poznań, Poland | Apr-Jun-Aug 18 | 50 | 0.96–4.23 | LAI-2200 | Beetroot, maize, triticale, wheat | S2 |

Kiev Oblast, Ukraine | May-Jun-Aug 18 | 40 | 0.04–4.81 | DHP | Maize, soybean, sunflower, wheat | S2 |

**Table 3.**Averaged hyperparameters estimated using fixed crop-type and global approaches: ${\sigma}_{t}$ defines the gap-filled time series smoothness, ${\sigma}_{st}$ is the amplitude scaling factor and ${\sigma}_{n}$ accounts for the noise variance.

Wheat | Corn | Barley | Sunflower | Rape | Pea | Alfalfa | Beet | Potato | Global | |
---|---|---|---|---|---|---|---|---|---|---|

${\sigma}_{t}$ | 32.6018 | 41.0726 | 36.0351 | 23.0815 | 35.0548 | 23.9367 | 29.8602 | 47.3544 | 25.5081 | 32.7282 |

${\sigma}_{st}$ | 0.8776 | 1.0018 | 0.8395 | 0.5670 | 1.2058 | 0.8415 | 0.6465 | 1.1465 | 1.1870 | 0.9237 |

${\sigma}_{n}$ | 0.3377 | 0.4395 | 0.2833 | 0.2355 | 0.5085 | 0.2778 | 0.4028 | 0.3794 | 0.3620 | 0.3585 |

**Table 4.**Variation in percentage of LAI${}_{G}$ obtained with precalculated hyperparameters with respect to the original LAI time series (lowest values in bold). Last column exhibits the variance in the percentage.

Crop Type | Per-Pixel Hyperpar. | Averaged Hyperparameters | Variance | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

Wheat | Corn | Barley | Sunflower | Rape | Pea | Alfalfa | Beet | Potato | Global | |||

Wheat | 9.064 | 10.078 | 10.845 | 10.240 | 9.072 | 10.372 | 8.851 | 10.519 | 10.996 | 8.995 | 10.097 | 0.787 |

Corn | 10.660 | 10.794 | 11.614 | 10.952 | 9.821 | 11.100 | 9.675 | 11.174 | 11.752 | 9.812 | 10.813 | 0.708 |

Barley | 8.206 | 8.593 | 9.282 | 8.707 | 7.932 | 8.834 | 7.739 | 9.058 | 9.435 | 7.826 | 8.608 | 0.580 |

Sunflower | 8.455 | 11.238 | 12.366 | 11.474 | 9.928 | 11.642 | 9.752 | 11.646 | 12.633 | 9.929 | 11.263 | 1.265 |

Rape | 10.222 | 10.798 | 11.483 | 10.950 | 9.576 | 11.070 | 9.351 | 11.207 | 11.598 | 9.573 | 10.816 | 0.799 |

Pea | 7.634 | 10.017 | 11.601 | 10.314 | 8.719 | 10.557 | 8.485 | 10.671 | 12.026 | 8.624 | 10.050 | 1.371 |

Alfalfa | 11.833 | 14.001 | 14.999 | 14.222 | 12.659 | 14.368 | 12.496 | 14.360 | 15.210 | 12.734 | 14.024 | 1.108 |

Beet | 8.975 | 8.975 | 9.629 | 9.083 | 8.207 | 9.223 | 8.054 | 9.389 | 9.714 | 8.149 | 8.991 | 0.577 |

Potato | 7.477 | 9.456 | 10.566 | 9.647 | 8.311 | 9.848 | 8.130 | 9.993 | 10.769 | 8.262 | 9.481 | 1.070 |

**Table 5.**Lines of pseudo-code of GPR core implementation in Google Earth Engine (GEE) with mathematical notation for variable easy identification.

(var) calculate_LAI_GREEN = function(image){ |

(var) ${\mathit{X}}_{*}^{T}\mathit{D}$ = image.multiply(D).toArray().toArray(1); |

(var) ${\mathit{X}}^{*}$ = image.toArray().toArray(1); |

(var) Term1 = ${\mathit{X}}_{*}^{T}\mathit{D}$.matrixTranspose().matrixMultiply(${\mathit{X}}_{*}$).arrayProject([0]).multiply(−0.5).exp().multiply(${\sigma}_{f}^{2}$) |

(var) PtTDX = ee.Image(X).matrixMultiply(${\mathit{X}}_{*}^{T}\mathit{D}$).arrayProject([0]).arrayFlatten([TS_ID]); |

(var) ${\mathit{K}}_{*}$ = PtTDX.subtract($\mathit{X}\mathit{D}\mathit{X}$.multiply(0.5)).exp().toArray() |

(var) f(${\mathit{X}}_{*}$) = ${\mathit{K}}_{*}$.arrayDotProduct($\mathit{\alpha}$.toArray()).multiply(Term1).toArray(1).arrayProject([0]).arrayFlatten([[‘LAIG’]]); |

return image.select(‘LAIG’)} |

**Table 6.**Lines of pseudo-code of GPR gap-filling core implementation in GEE with mathematical notation for variable easy identification.

(var) N${}_{t}=$LAIG${}_{c}$.size(); |

(var) ${\mathbf{1}}_{msk}={t}_{msk}$.multiply(0).add(1.0); |

(var) ${\mathbf{1}}_{*}={t}_{*}$.multiply(0).add(1.0); |

(var) I = ee.Image(ee.Array.identity(N${}_{t}$)); |

(var) prod = ${t}_{msk}$.matrixMultiply(1${}_{msk}$.matrixTranspose()); |

(var) K${}_{t}=prod$.subtract(prod.matrixTranspose()).pow(2).multiply(${D}_{t}$).multiply($-0.5$).exp().multiply(${\sigma}_{ft}$); |

(var) L = I.multiply(${\sigma}_{nt}^{2}$).add(${\mathit{K}}_{t}$).matrixCholeskyDecomposition(); |

(var) ${\mathit{\alpha}}_{tmp}$ = L.matrixInverse().matrixMultiply($LAI{G}_{c}$.toBands().unmask().toArray().toArray(1)); |

(var) ${\mathit{\alpha}}_{t}$ = L.matrixTranspose().matrixInverse().matrixMultiply(${\mathit{\alpha}}_{tmp}$); |

(var) ${\mathit{T}}_{*}=t*$.matrixMultiply(${\mathbf{1}}_{msk}$.matrixTranspose()); |

(var) ${\mathit{T}}_{msk}$ = ${t}_{msk}$.matrixMultiply(${\mathbf{1}}_{.}$matrixTranspose()).matrixTranspose(); |

(var) $\mathit{K}*$ = ${\mathit{T}}_{*}$.subtract(${\mathit{T}}_{msk}$).pow(2).multiply(${D}_{t}$).multiply($-0.5$).exp().multiply(${\sigma}_{ft}$); |

(var) $LAIG({t}_{*}$) = $\mathit{K}*$.matrixMultiply(${\mathit{\alpha}}_{t}$).arrayProject([0]).arrayFlatten([[‘LAIG’]]); |
