Mapping Urban Excavation Induced Deformation in 3D via Multiplatform InSAR Time-Series

Abstract

Excavation of a subway station and rail crossover cavern in downtown Los Angeles, California, USA, induced over 1.8 cm of surface settlement between June 2018 and February 2019 as measured by a ground-based monitoring system. Point measurements of surface deformation above the excavation were extracted by applying Interferometric Synthetic Aperture Radar (InSAR) time-series analyses to data from multiple sensors with different wavelengths. These sensors include C-band Sentinel-1, X-band COSMO-SkyMed, and L-band Uninhabited Aerial Vehicle SAR (UAVSAR). The InSAR time-series point measurements were interpolated to continuous distribution surfaces, weighted by distance, and entered into the Minimum-Acceleration (MinA) algorithm to calculate 3D displacement values. This dataset, composed of satellite and airborne SAR data from X, C, and L band sensors, revealed previously unidentified deformation surrounding the 2nd Street and Broadway Subway Station and the adjacent rail crossover cavern, with maximum vertical and horizontal deformations reaching 2.5 cm and 1.7 cm, respectively. In addition, the analysis shows that airborne SAR data with alternative viewing geometries to traditional polar-orbiting SAR satellites can be used to constrain horizontal displacements in the North-South direction while maintaining agreement with ground-based data.

1. Introduction

The increasingly extensive archives of SAR data collected by various sensors on spaceborne and airborne platforms offer a variety of wavelengths and distinct viewing geometries from which surface deformation measurements can be made. Over the past 20 years, advances in time-series processing methods, including the Small Baseline (SBAS) subset technique and Persistent Scatterer Interferometry (PSI), have provided the ability to make deformation measurements with millimeter-scale accuracy and precision [1,2,3,4,5,6]. As datasets from more sensors at greater spatial and temporal resolutions become available, the question arises of how to combine complementary pieces of information within different SAR datasets effectively. The combination of displacement data from multiple SAR platforms, i.e., from different line of sight (LOS) vectors, can improve our ability to resolve the East, North, and Up components of the observed surface displacements [7]. This combination is necessary for comparison to ground-based datasets and overcomes one of the main limitations of InSAR, in which a dataset from one track can measure displacements only in a single LOS projection.

Previous literature has shown measurement consistency between multiple SAR datasets [8,9,10,11,12,13,14,15,16,17], proven the ability to integrate satellite and ground-based geodetic data [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40], and offered technical solutions for combining satellite-InSAR-based measurements into vertical, 2D, or 3D displacements [41,42,43,44,45,46,47,48,49,50,51]. Early successes in extracting 2D displacements were carried out by combining both left and right-looking acquisitions from ascending and descending orbits [41]. Other techniques have used pixel offset tracking to overcome low N-S deformation sensitivity. However, these methods require deformations on the order of 10 cm or more and therefore are most often applied to large and temporally discrete deformation phenomena such as co-seismic or volcanic deformation [42,44]. More recent advances include the multidimensional small baseline (MSBAS) subset technique [52,53] and the Minimum-Acceleration (MinA) algorithm [54,55], both of which operate by combining multiple InSAR time-series datasets and solving a set of underdetermined linear equations via Tikhonov regularization or singular value decomposition. By combining ascending and descending tracks from multiple InSAR datasets, these algorithms can extract vertical and E-W horizontal displacements.

The primary obstacles to extracting true 3D displacements using only InSAR data are twofold. First, most InSAR sensors are side-looking systems onboard satellites traveling along polar orbit paths in a primarily N-S direction, preventing LOS measurements outside of a primarily E-W plane and therefore obscuring horizontal deformation in the N-S direction [56]. Second, the combination of multiple InSAR time-series can require an overlap between Persistent Scatterer (PS) pixel locations across multiple datasets. This combination can be especially tricky considering the variety of wavelengths and spatial resolutions from available sensors, each with inherent advantages and disadvantages, depending on the setting in which they are applied [57,58,59,60]. Acquiring sufficient density of PS pixels between separate InSAR datasets can be a challenge, especially when applying time-series techniques in environments with variable backscatter amplitude [4,61].

Presented here is a method to overcome each obstacle by (1) applying Uninhabited Aerial Vehicle SAR (UAVSAR) data [18,62,63,64,65,66,67,68,69,70] with primarily N-S LOS orientations, in combination with Sentinel-1 and COSMO-SkyMed data, to better constrain displacements in the N-S direction and (2) inverse distance weighting each path of InSAR datasets, based on PS pixel location, in order to use all available data. The weighted datasets are then entered into the MinA algorithm to calculate 3D displacement values [7,54,55]. This method is tested on a spatially acute (30,000 m²) subsidence event in downtown Los Angeles, California, and compared to available Ground Surface Settlement Point (GSSP) vertical settlement observations to quantitatively assess method accuracy and precision. In this framework, combined InSAR datasets can monitor 3D deformations of highly urbanized zones with great spatial and temporal resolution.

2. Study Area

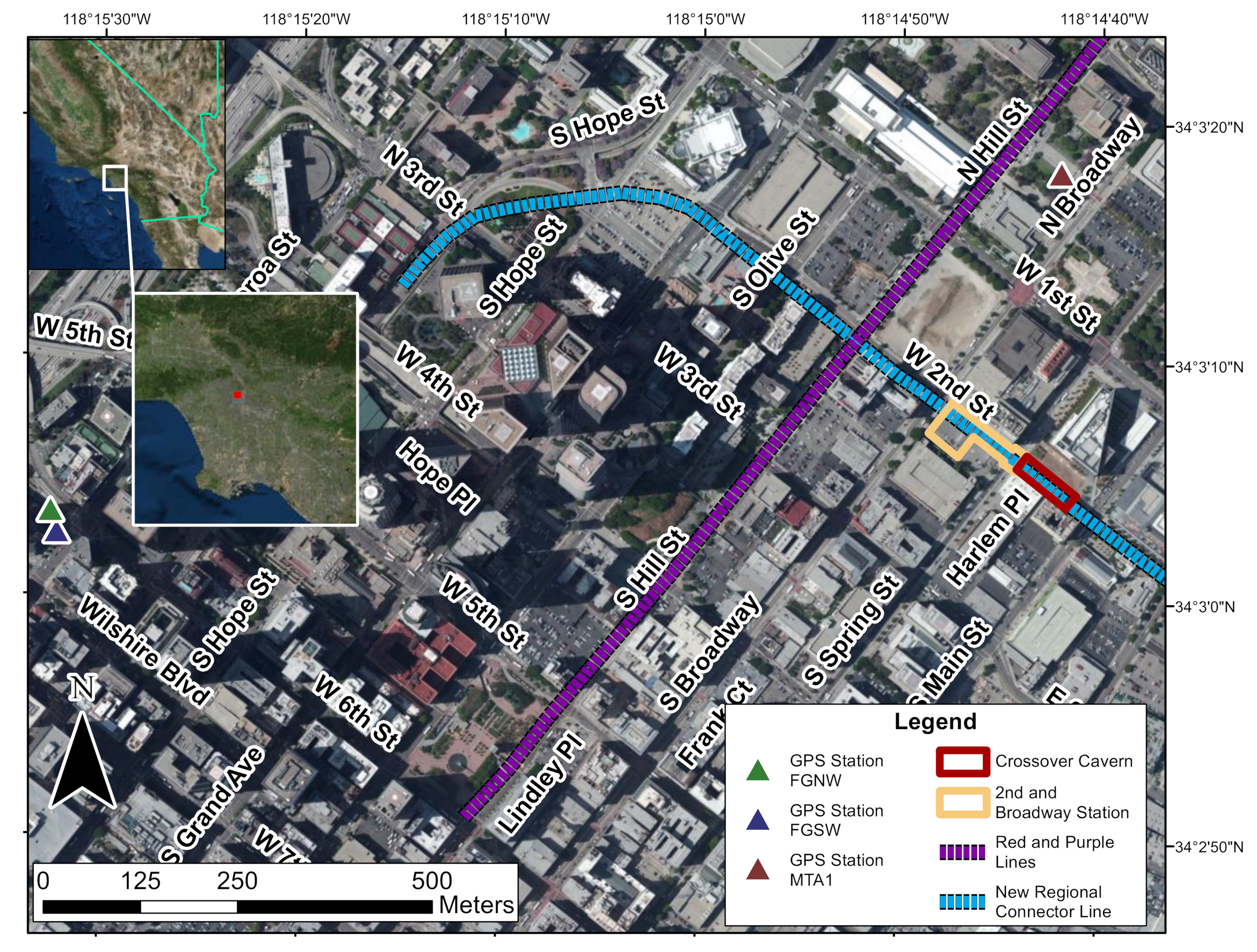

The Regional Connector Transit Corridor (RCTC) project consists of a 3-km tunnel connecting the blue and gold metro rail lines in downtown Los Angeles, California, USA (Figure 1). The construction includes a shallow (~15 m top depth) 90 m long, 17.7 m wide, 11 m tall crossover structure on which construction began after twin 6.7 m diameter tunnels were bored by an earth pressure balance tunnel-boring machine. Boreholes along 2nd Street contain a top layer of artificial fill ranging from 1–3 m thick that overlies a 2–7 m thick deposit of poorly sorted alluvial sand. A perched aquifer is found within the alluvial sands 3–4 m below street level between Hill Street and Main Street. The regional groundwater table begins near the interface between the alluvial sands and the underlying weathered siltstone bedrock of the Fernando formation [71].

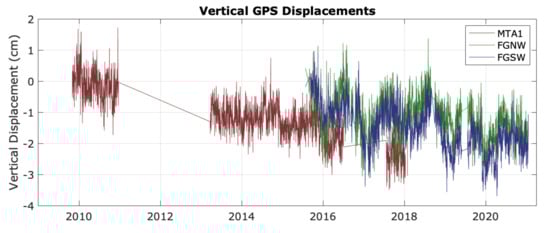

Adjacent to the crossover cavern is the 2nd and Broadway station, for which excavation was completed in July 2018 using the cut and cover method. Sequential excavation of the crossover cavern took place from 30 May 2018 to 14 March 2019, after which 30 and 46 cm liners of shotcrete and concrete, respectively, were installed. Sequential excavation follows principles of the observational method, requiring a complex monitoring system with extensive instrumentation, including a network of GSSPs and automated total stations capable of making settlement measurements with an accuracy of ±0.7 mm [72]. This monitoring system captured an increase in surface subsidence coincident with the crossover cavern excavation. Between June 2018 and February 2019, a vertical settlement magnitude of 1.8 cm was measured along 2nd Street directly above the cavern by GSSP (Figure 2), with peak deformation rates exceeding 2.5 cm/yr [72]. Subsidence rates measured in this location during 2018–2019 are much higher than regional subsidence rates typically found in southern California due to anthropogenic activities, including groundwater pumping and oil extraction [24,73]. The nearest available GPS data from stations MTA1, FGNW, and FGSW (Figure 1) possess average subsidence rates of −0.29, −0.16, and −0.3 cm/y, respectively, for all available data between 2009 and 2021 (Figure 3) [74,75], indicating that accelerated deformation rates above the crossover cavern are primarily caused by excavation activities.

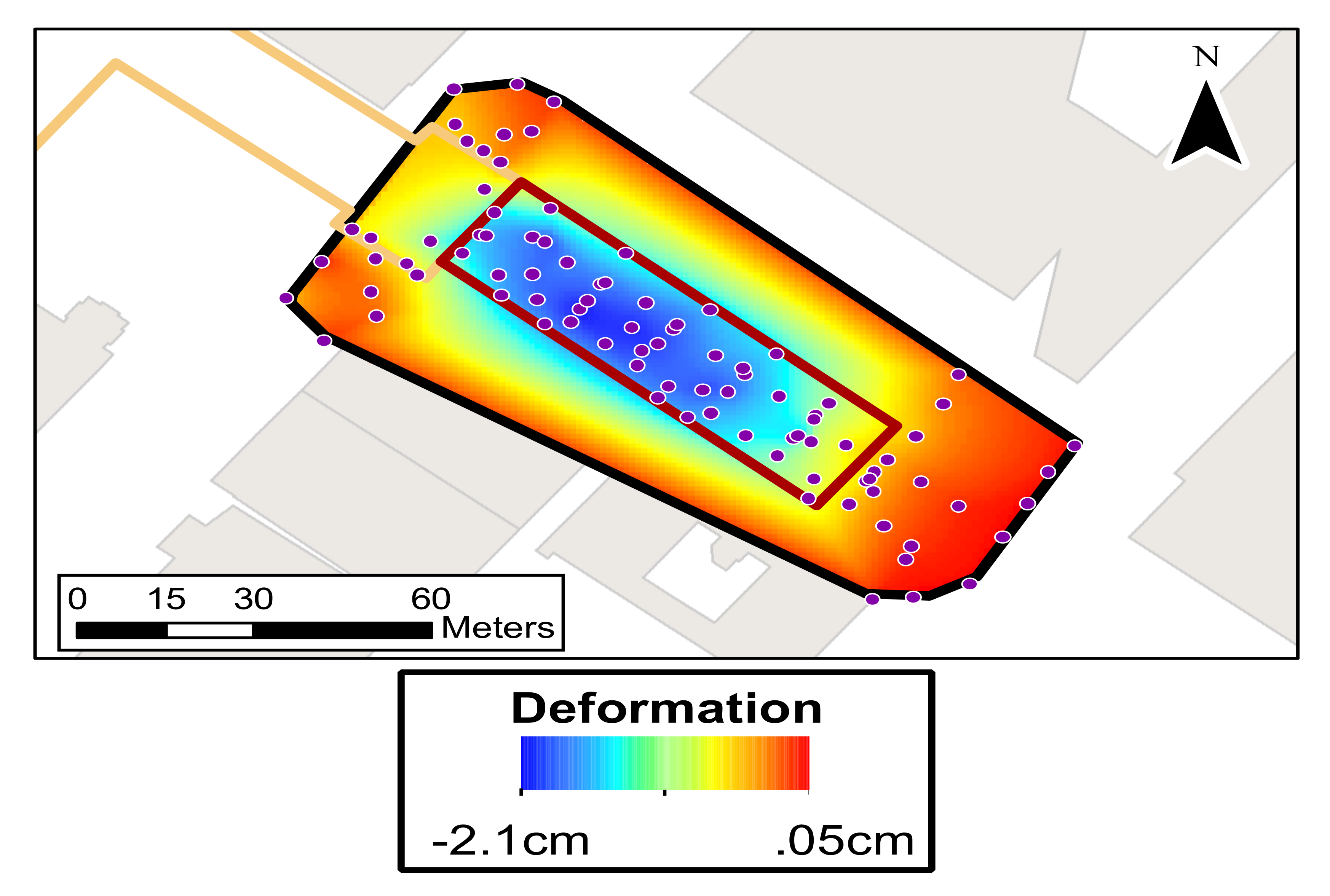

The spatial extent and magnitude of ground deformation caused by tunneling activities are primarily influenced by the size and depth of excavation, geology, and hydrologic setting. Tunneling projects in urban environments generally yield relatively low magnitude settlements, as extra precautions are taken to avoid damaging overlying infrastructure. To more fully explore this deformation event, SAR data were synergistically combined from three sensors: Sentinel-1, UAVSAR, and COSMO-SkyMed. Each sensor and path provided a distinct viewing geometry (

Table 1. Information of the Sentinel-1, COSMO-SkyMed and UAVSAR datasets.

Sensor	Path	LOS Azimuth (φ)	Radar Incidence Angle (ϑ)	Spatial Resolution (m)	Time Span	Number of Acquisitions	Maximum Baseline (m)	PS Density (PS/km2)
Sentinel-1	137	77°	44°	2.3 × 14.1	9 January 2018–3 July 2019	66	163	2550
Sentinel-1	71	283°	39°	2.3 × 14.1	10 January 2018–22 June 2019	45	126	3164
Sentinel-1	64	77°	34°	2.3 × 14.1	4 January 2018–28 June 2019	40	116	2240
COSMO-	-	279°	53°	1.7 × 2.0	12 January 2018–5 July 2019	25	758	8028
SkyMed
UAVSAR	08523	356°	55°	1.7 × 0.6	23 April 2009–21 February 2019	15	N/A	41,086
UAVSAR	26524	174°	52°	1.7 × 0.6	23 April 2009–21 February 2019	18	N/A	38,124

). LOS deformation time-series of all data paths were entered into a modified version of the MinA multiplatform InSAR algorithm to overcome the unique challenges presented by urban settings and yield accurate 3D displacement information. The InSAR-derived 3D displacements were compared to the GSSP dataset to assess the data accuracy and test the applicability of the MinA algorithm on small magnitude urban subsidence events.

3. Data and Methods

Measurements of ground deformation associated with excavations for the RCTC project were acquired by processing Single Look Complexes (SLCs) from 3 paths of Sentinel-1, 2 paths of UAVSAR, and a single descending path of COSMO-SkyMed data (Table 1). Each path was separately processed using repeat pass differential interferometry. GAMMA software [76,77] was used to create a series of single master interferograms from all data paths. A single master date was chosen for each data path, and slave images were co-registered to the geometry of the chosen master scenes. Topographic phase contribution was removed via the USGS 3D Elevation Program (3DEP) 1 m resolution Digital Elevation Model (DEM, Available online: http://nationalmap.gov (accessed on 3 October 2019)) produced using Lidar data acquired between 27 September 2015 and 18 October 2016. GAMMA’s Interferometric Point Target Analysis (IPTA) [77,78] was used to create a time-series of Persistent Scatterers (PS). PS pixels were identified using the Mean to Standard-deviation Ratio (MSR) of the radar intensity backscatter. A threshold MSR value of 1.1 was used to select pixels with low temporal variability, high-intensity backscatter that provided stable phase returns over the time period of interest. SLC values at PS pixel locations were extracted and written to a point data stack. Initial differential interferograms were formed and analyzed in the temporal domain to calculate the linear dependence between the perpendicular baseline and phase for each PS pixel. This linear relationship between phase and perpendicular baseline occurs due to the presence of errors within the DEM used to remove topographic phase contributions, and as such, was calculated to estimate and remove the DEM error. These corrections were subsequently used to update calculated perpendicular baseline values. Reference pixels were selected for each sensor as a basis for phase unwrapping (Figure 4). These reference pixels were selected based on their phase stability over the time period of interest, as well as the physical location, to ensure consistency across all datasets. Linear deformation rates were then calculated for each pixel. Residual phase change, considered as a deviation from the linear deformation rate, is composed of atmospheric contamination, baseline measurement errors, any non-linear deformation, and random noise. As the atmospheric phase contribution from the master scene correlates in space and time, it was extracted using a low-pass temporal filter of the residual phase, then removed from all interferograms. The process was then iterated using the corrected DEM, updated perpendicular baselines, and atmosphere-corrected interferograms. Final deformation values were produced via a phase unwrapping algorithm based on minimum cost flow techniques applied to a Delaunay triangular network.

After the LOS deformation time-series of PS pixels were constructed for all input datasets, each dataset was then individually linearly interpolated to a common 1 m gridded surface and combined in a post-processing stage using the MinA algorithm to calculate 3D deformation. As the MSBAS technique requires simultaneous processing and unwrapping many interferograms, the MinA algorithm was used due to its ability to ingest PSI time-series data and its simple post-processing application. The 1 m-grid size was selected to ensure spatial detail from the highest resolution sensors was preserved within the dataset and to match the resolution of the DEM used to remove the topographic phase contribution. LOS displacement rates were calculated for all input data at each acquisition time across all datasets. Because spatial resolution and LOS differed for each input dataset, PS pixel locations and scatterers also varied (Figure 4).

This variability prevented any one sensor from viewing the entirety of the deforming area and required that each dataset be weighted by inverse distance from the nearest PS pixel. This is the primary change from the original MinA algorithm, which uses interferometric coherence as the primary weighting factor. Weighted LOS displacement rates were then connected to the unknown 3-D velocities, creating a system of underdetermined independent linear equations:

$$\left[\begin{array}{c}{d}_E\\ d_N\\ d_U\end{array}\right]=\left[\begin{array}{ccc}\Gamma d_{LO{S}^{\left(1\right)}}\sin {\vartheta }^{\left(1\right)}\cos {\phi }^{\left(1\right)}& \Gamma d_{LO{S}^{\left(1\right)}}\sin {\vartheta }^{\left(1\right)}\sin {\phi }^{\left(1\right)}& -\Gamma d_{LO{S}^{\left(1\right)}}\cos {\vartheta }^{\left(1\right)}\\ \Gamma d_{LO{S}^{\left(2\right)}}\sin {\vartheta }^{\left(2\right)}\cos {\phi }^{\left(2\right)}& \Gamma d_{LO{S}^{\left(2\right)}}\sin {\vartheta }^{\left(2\right)}\sin {\phi }^{\left(2\right)}& -\Gamma d_{LO{S}^{\left(2\right)}}\cos {\vartheta }^{\left(2\right)}\\ ⋮& ⋮& ⋮\\ \Gamma d_{LO{S}^{\left(n\right)}}\sin {\vartheta }^{\left(n\right)}\cos {\phi }^{\left(n\right)}& \Gamma d_{LO{S}^{\left(n\right)}}\sin {\vartheta }^{\left(n\right)}\sin {\phi }^{\left(n\right)}& -\Gamma d_{LO{S}^{\left(n\right)}}\cos {\vartheta }^{\left(n\right)}\end{array}\right]$$

(1)

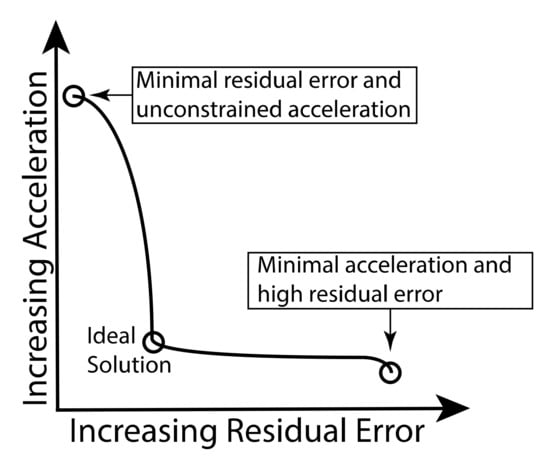

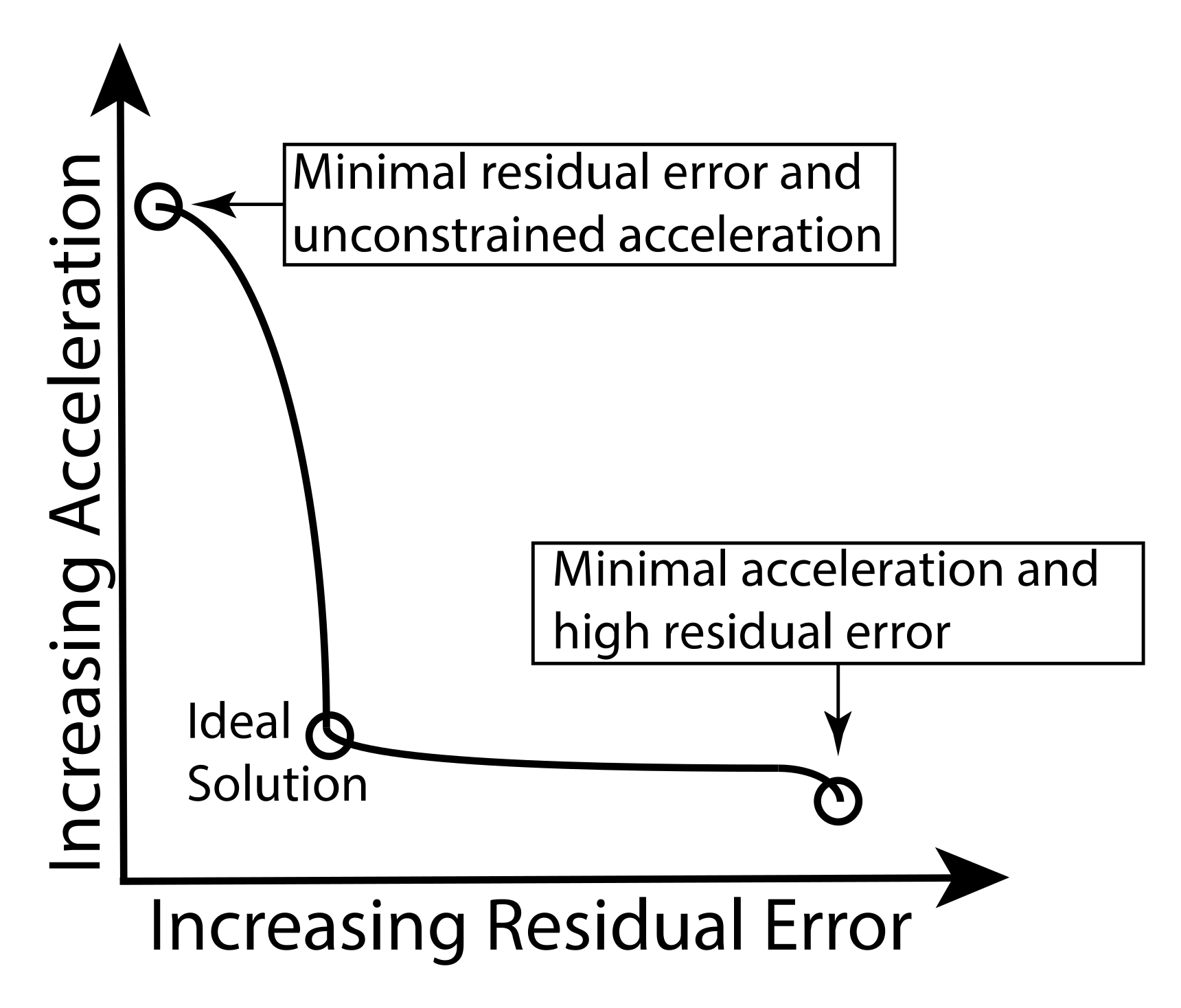

where $\Gamma$ is the weighting factor determined by the inverse distance to the nearest PS pixel, and $\vartheta$ and $\phi$ are the radar incidence angle and LOS azimuth, respectively, of the $n$ LOS displacement time-series [54]. Equations were solved in the least-squares sense by using first-order Tikhonov regularization [79]. Regularization was achieved by imposing constraints to minimize the acceleration of 3D displacements between acquisitions. These constraints were imposed using the L-curve method [80,81], whereby a range of regularization coefficients are applied to the input system of linear equations. This creates a series of potential solutions, ranging from solutions that minimize residual error without constraining displacement acceleration to solutions that minimize acceleration but possess greater residual error (Figure 5). All potential solutions plot along an L-shaped curve, with the optimum solution located at the bottom left corner. The solution found at the corner of the L-curve is optimized because it provides the most precisely balanced solution between minimizing residual error and satisfying the side constraint, which in this case is the minimization of displacement acceleration. This analysis was performed using the regularization tools Matlab package [82]. Once estimated, the calculated velocities were independently time-integrated to extract a single 3D deformation time-series.

All available UAVSAR acquisitions were used in order to produce a deformation time-series, but only four acquisitions were made during the time period of interest, on 16 November 2018 and 21 February 2019 for both UAVSAR data paths. Due to the poor temporal resolution of the UAVSAR data, they are only available to constrain N-S horizontal deformation during the time between these acquisitions. Before 16 November 2018 and after 21 February 2019, N-S acceleration values were assumed to be negligible in order to account for the low sensitivity of satellite InSAR measurements in this direction [77]. To assess the accuracy and precision of the applied method, calculated vertical deformations from InSAR data were compared to and differenced with those from a network of GSSP that captured the subsidence event in real-time.

4. Results

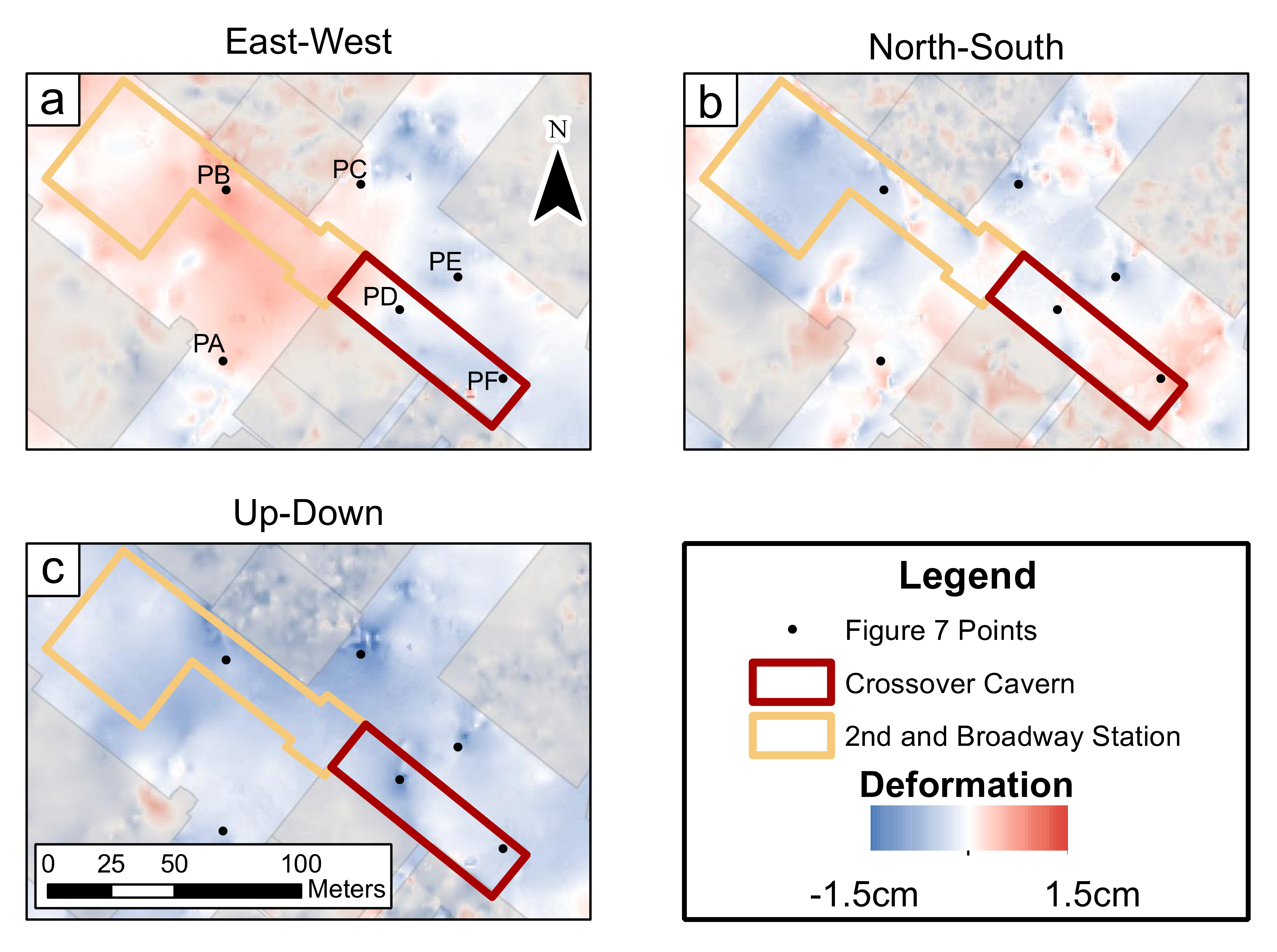

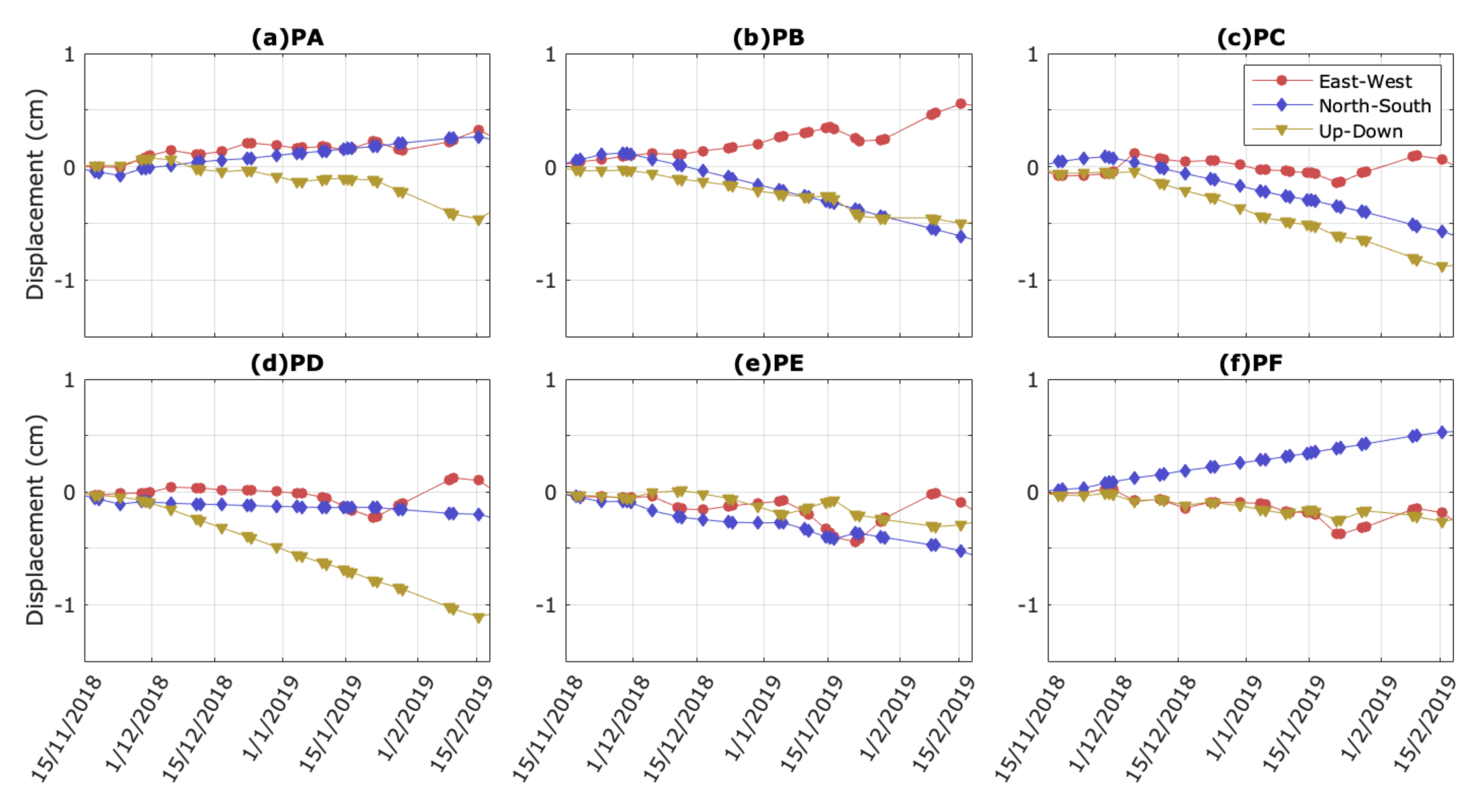

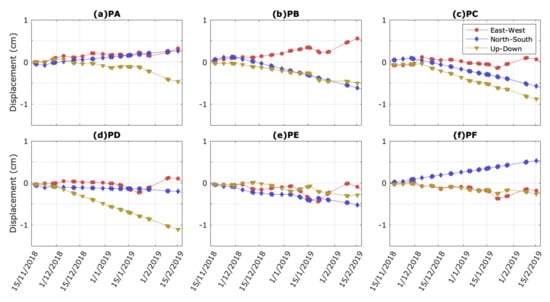

Calculated 3D deformations from all InSAR datasets reveal the temporal and spatial extents of subsidence related to excavation activities (Figure 6). Horizontal and vertical deformations were observed to reach beyond the boundaries of both the crossover cavern and the ground-based dataset, encompassing an area of approximately 200 m by 150 m. From 16 November 2018 to 21 February 2019, the period of time during which UAVSAR data are available to constrain N-S deformation, a maximum vertical deformation of 1.2 cm was measured directly above the crossover cavern near point PD (Figure 7). As this location is near the center of the subsiding area, observed deformation is primarily vertical, and very little E-W or N-S horizontal deformation is calculated. Maximum horizontal deformations reach 0.5 cm at points PF, PC, PB, and PE for the North, South, East, and West deformation components, respectively. Calculated horizontal displacements are consistent with a subsidence event, where horizontal motions centered around the vertical settlement are directed towards each other. Localized pockets of vertical subsidence, such as the area near point PC, coincide with spatially variable horizontal deformation. Computed N-S deformation contains a greater degree of spatial variability than E-W deformation. All deformation components contain greater amounts of noise and spatial heterogeneity on buildings.

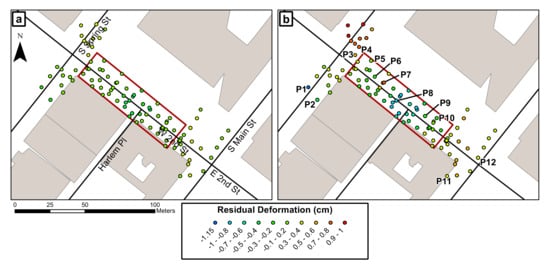

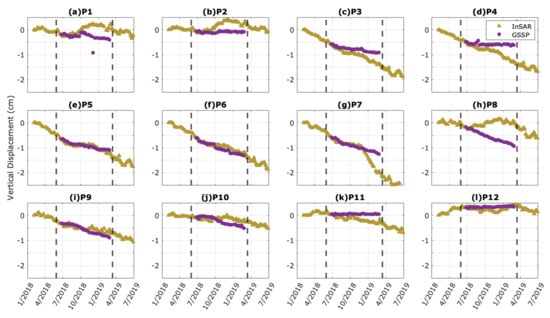

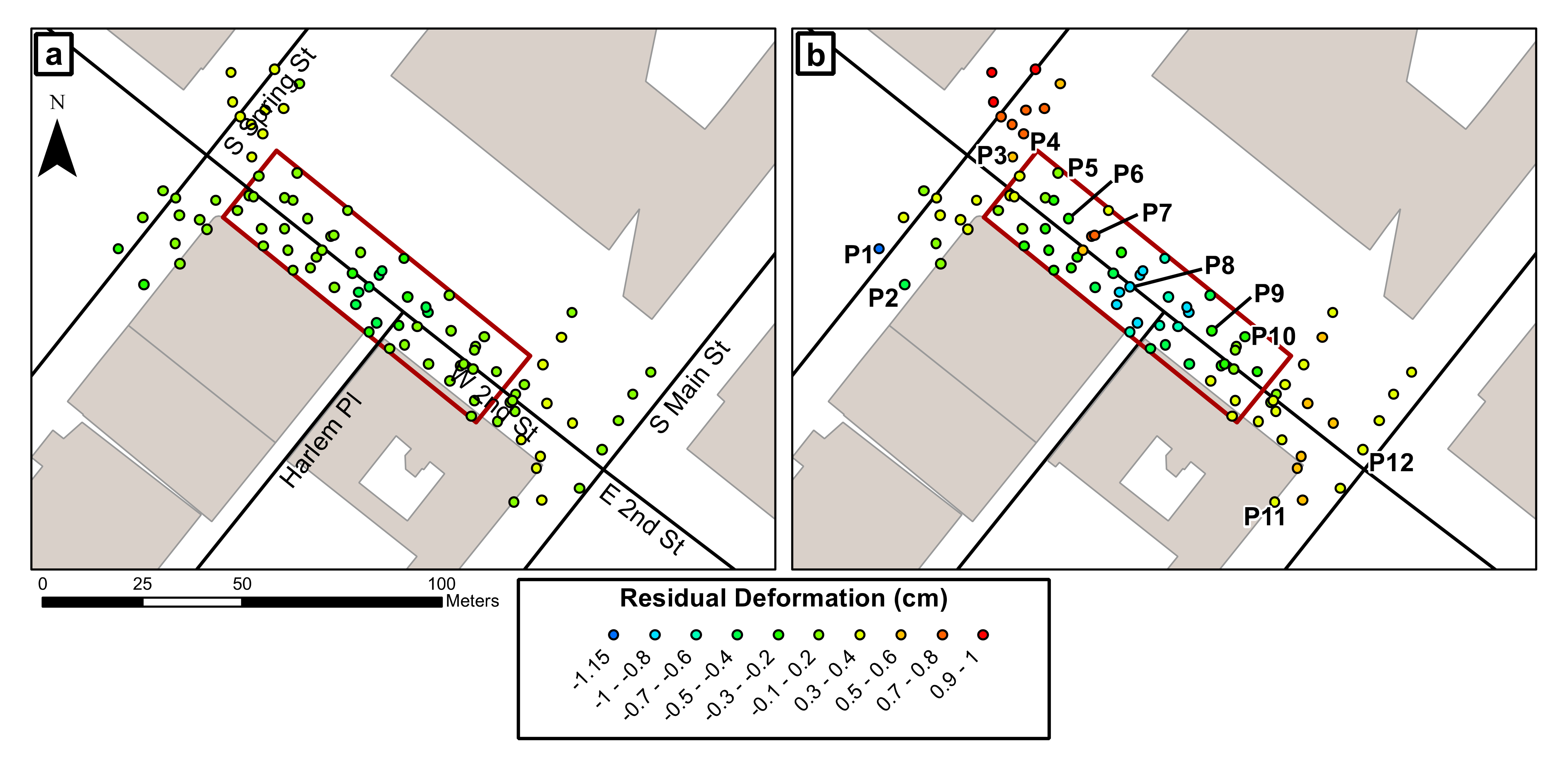

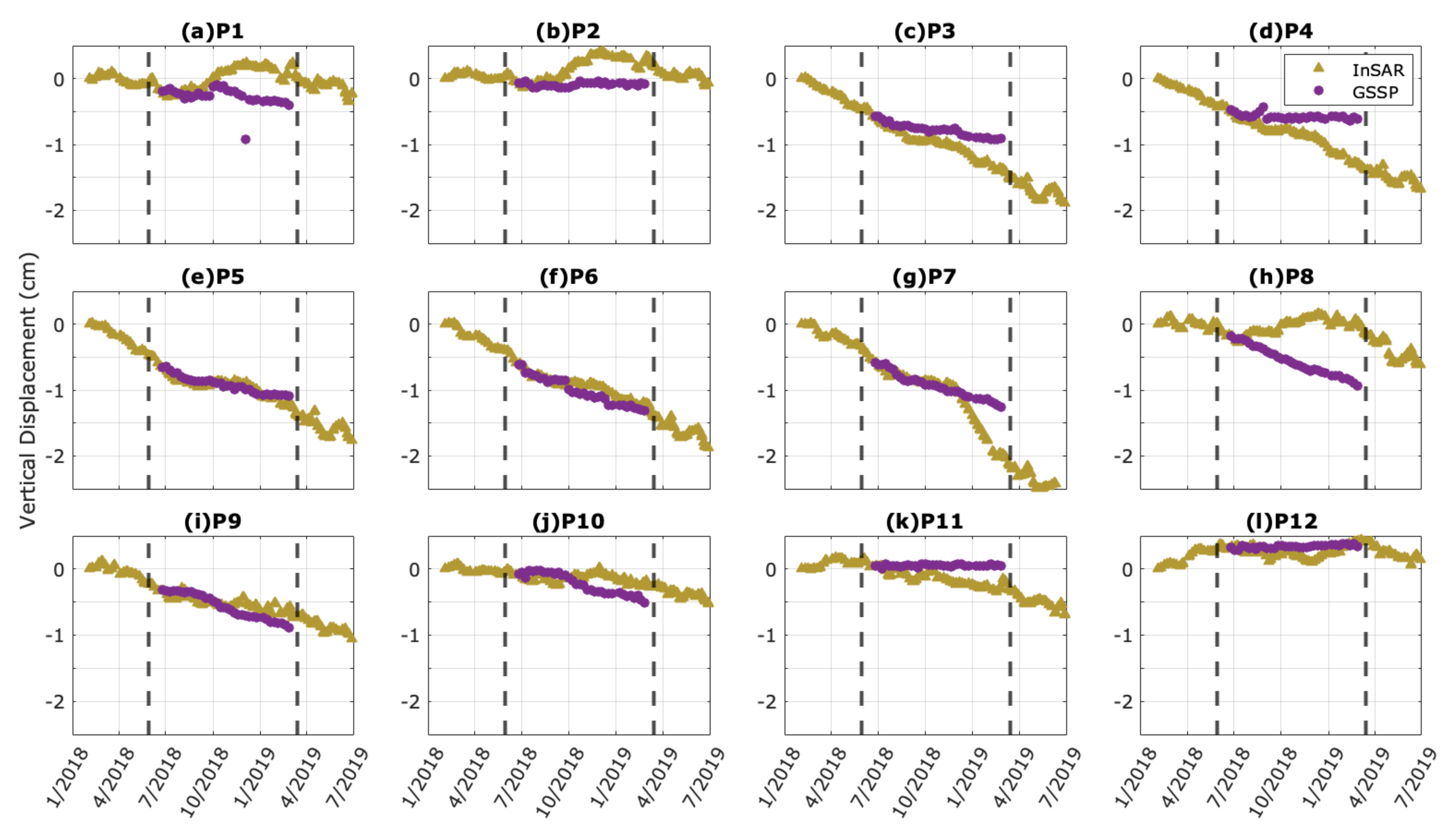

Comparison between vertical InSAR and GSSP data shows the datasets are in good agreement, with a maximum absolute difference of 1.15 cm at point P1 and a maximum average difference of 0.53 cm at point P8 (Figure 8 and Figure 9). Spatially, InSAR data tend to underestimate settlement in areas directly overlying the central portion of the crossover cavern while slightly overestimating settlement northwest and southeast of the cavern. Points P1 and P2 undergo a period of slight uplift in Fall 2018, which is captured in both the InSAR and GSSP data but overestimated by InSAR by several mm. Around the same time period, subsidence rates at points P3–P7 are observed to decrease in the GSSP data, a trend that is well captured by InSAR as well. Subsidence rates near the center of the crossover cavern remain constant in the GSSP data, but InSAR calculated subsidence rates decrease or even show periods of uplift (Figure 9h). This is the primary discrepancy between the InSAR and GSSP datasets, further illustrated by consistent underestimation of subsidence at points surrounding point P8 (Figure 8). Points P9-P12 show lower magnitudes of surface deformation but generally, show good agreement between InSAR and GSSP data.

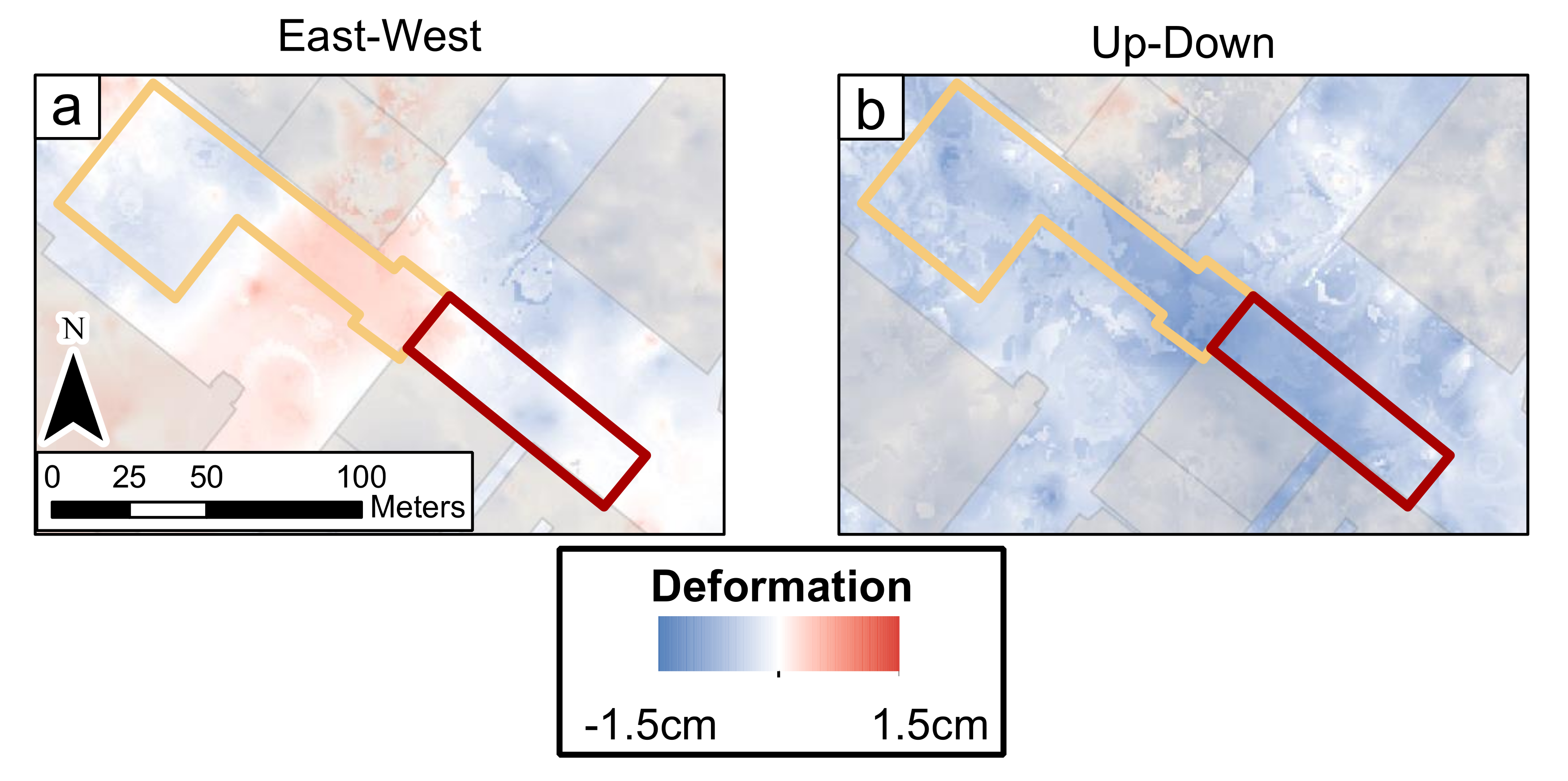

InSAR data reveal vertical deformation on the northwestern side of the cavern, near points P3 and P4, began as early as January 2018 and maintained an average subsidence rate of 1.3 cm/yr until the completion of the crossover cavern. This early period of subsidence is not present throughout the entirety of the study area. Early subsidence reaches as far to the east as point P9 but is not observed in points P10–P12. Average vertical deformation rates during the time period of measurement are greatest at point P7, with rates reaching 1.6 cm/yr. The maximum average settlement rate measured by GSSP data at point P8 is 1.3 cm/yr. After sequential excavation of the crossover cavern was completed in March 2019, InSAR-derived deformation showed continued subsidence until the end of the time-series in July 2019. This post-excavation subsidence occurs at lower rates near points that undergo minimal pre-excavation deformation and is slightly faster at points that undergo greater pre-excavation deformation.

5. Discussion

Urban excavation processes induce ground deformation through the collapse of soils into underground voids or by the extraction of groundwater in unconsolidated deposits. This deformation can cause damage to roads, buildings, and utility lines. It is therefore critical to control the ground deformation within certain limits, especially in urban environments with overlying infrastructure. InSAR exploits the phase shift between SAR acquisitions and is a powerful technique for measuring ground settlement over time. However, the urban environment poses unique challenges to a single sensor and single platform InSAR analysis. Multiplatform InSAR time-series provide an opportunity to overcome the obstacles presented by urban noise and spatially narrow study areas.

Multiplatform InSAR time-series analysis reveals the timing and magnitude of subsidence associated with the excavation of portions of the RCTC subway extension in downtown Los Angeles. While ground-based data were focused on deformation related to the sequential excavation of the crossover cavern, InSAR data reveal vertical deformation on the western side of the cavern began in early 2018, months before sequential excavation of the cavern initiated (Figure 9c–g). This is likely due in part to the boring of the twin tunnels and cut and cover excavation at the 2nd and Broadway station, which began construction in early 2016 and finished excavation in July 2018 [54]. This is further supported by the presence of vertical and horizontal surface deformation located directly above the station (Figure 6 and Figure 7b). Similar deformation patterns are observed from the start of cavern excavation (Figure 10) and extend past its completion (Figure 11). The settlement would also be triggered by any dewatering that occurred within the shallow perched aquifer or deeper regional aquifer, in which case the extent and magnitude of subsidence are primarily controlled by geology and aquifer storage geometry [53,58,60]. Time dependent soil consolidation [83] due to dewatering or other groundwater regime disturbance could explain the continued subsidence after the completion of the crossover cavern excavation. The duration of continued subsidence would depend on the amount of clay within the drained sediments [10,84,85,86,87,88], as clays are more compressible and possess a lower hydraulic conductivity than larger grain sizes [89]. There would also be potential for hydro-mechanically coupled ground rebound post groundwater table recovery [90].

While the subsidence signal was clearly captured by InSAR, measurement accuracy was not consistent with the ground-based data at all locations. The single largest measurement difference occurred at point P1 due to an apparent outlier measurement of the ground-based data in December 2018. Point P8 possesses the most consistent discrepancies between the InSAR and GSSP datasets (Figure 9h). These discrepancies are attributed to limited PS pixel coverage, as Sentinel-1 provided the only PS pixels near the center of the crossover cavern (Figure 4b). Since these data possess the lowest spatial resolution of all input datasets (Table 1), measurements near this portion of the cavern rely on only a handful of PS pixels. These PS pixels appear not to capture the full magnitude of subsidence, as average and maximum residuals show a consistent underestimation of settlement near the intersection of Harlem Place and 2nd Street (Figure 8). InSAR calculations slightly overestimate uplift observed at points P1 and P2 in Fall 2018. The fact that uplift is observed in both the InSAR and GSSP datasets, along with a decrease in subsidence rate at points P3-P7 around the same time, indicate that the signal is not simply noise. One potential source of the decreased subsidence rates could be the installation of ground support during the sequential excavation. Such supports are exposed to the least amount of stress directly after installation near the face of the excavation but are subject to deformation as stress increases while excavation continues. Though the tunnel supports undergo deformation themselves, surface deformation would take place at a lower rate than it would for an unsupported excavation.

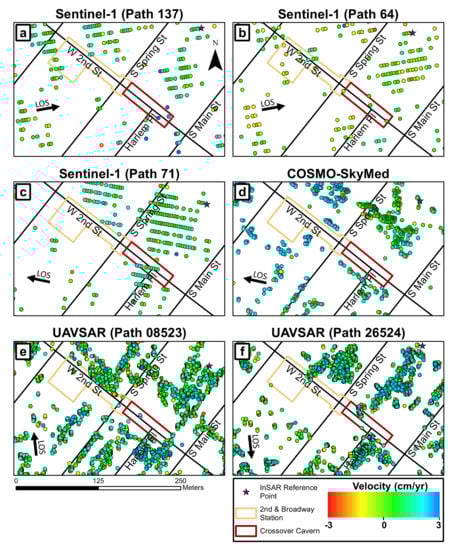

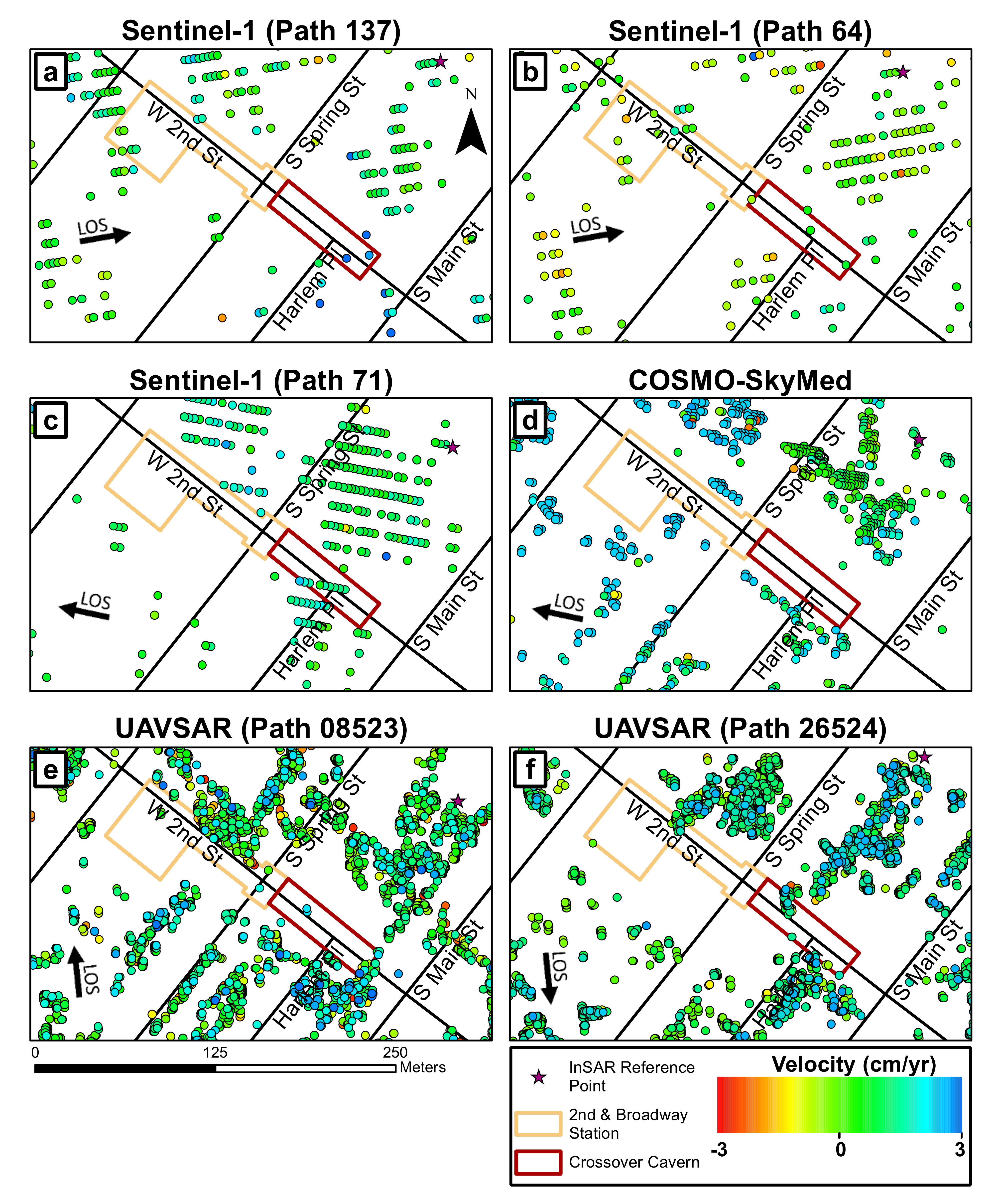

UAVSAR data produced more PS pixels along the crossover cavern, especially on the westbound side of 2nd Street toward Spring Street (Figure 4e,f). InSAR and GSSP data are in good agreement in this area aside from point P7, which possesses the largest overestimation of settlement by the InSAR data (Figure 8b and Figure 9g). The increase in InSAR measured subsidence at P7 takes place during the time period in which UAVSAR data are available (16 November 2018 to 21 February 2019). The overestimation can be attributed in part to the relatively poor temporal resolution of the UAVSAR datasets, as only four scenes are available during the period of interest. Such coarse temporal resolution increases the difficulty of accurately calculating and removing atmospheric and other noise sources and makes transient surface changes more difficult to identify. This difficulty is visually apparent in the North-South displacements (Figure 6b), which are primarily controlled by the UAVSAR datasets. The calculated North-South displacements resemble that of a subsidence signal, where horizontal motion is directed toward a plane centered at the point of maximum subsidence, but the N-S horizontal deformation is spatially inconsistent relative to the smoother E-W horizontal displacements (Figure 6a) that are better captured by satellite data with higher temporal resolution. Additionally, L-band wavelength sensors, while able to maintain coherence over longer timespans than C-band or X-band sensors, are known to possess less accurate LOS deformation measurements compared to shorter wavelength sensors [91]. Other sources of artifact inducing noise may include thermal expansion and contraction of buildings [59,76,92], surface changes due to ongoing construction related to the cut and cover of the 2nd and Broadway station, interpolation error within the LOS time-series input, other urban noise [59,76], or discrepancies related to wavelength-dependent scattering phenomena [58]. The impact of artifacts within the dataset could be partially mitigated by applying a 4D filter that can remove random noise from low magnitude subsidence events [60]. Timing of the initiation of subsidence could be better constrained by analysis of archival SAR data.

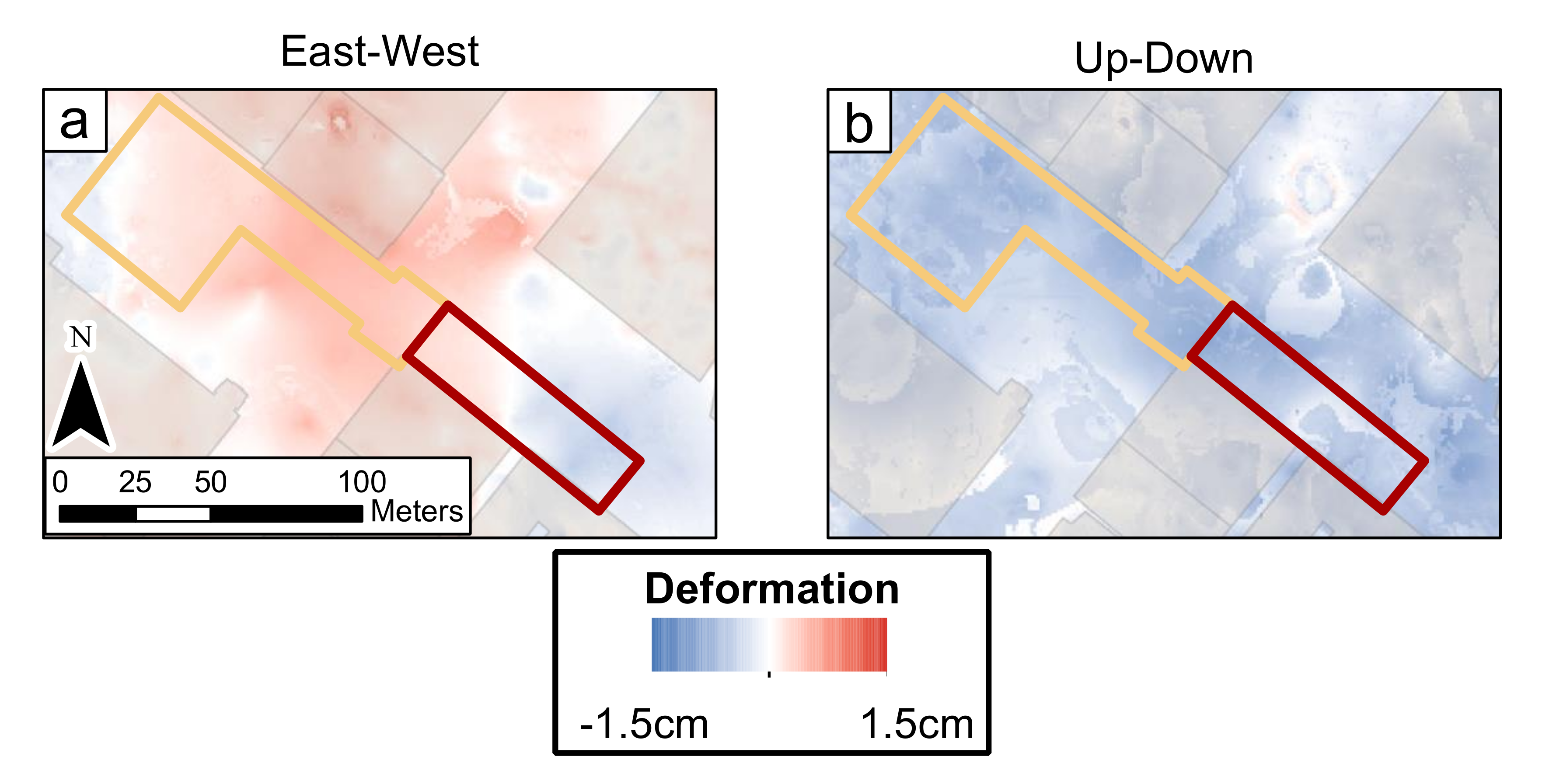

The InSAR PS post-processing algorithm shown here is specifically designed for application to deformation events in which the majority of displacement occurs in a single direction, which is subsidence for the case study shown here. As the MinA algorithm succeeds in calculating 3D displacement data by assuming minimum acceleration in all directions, it is not well suited for application to dynamic deformation events, such as landslides, where large magnitudes of vertical and horizontal displacements can occur simultaneously [93,94,95]. Interpolation of each dataset also presents potential sources of error in cases of spatially heterogeneous deformations that are not accurately captured by available PS pixels. A high PS pixel density across InSAR datasets is also required to carry out distance weighting with sufficient LOS viewing constraints. Here it is assumed that all sensor wavelengths are equally accurate and precise in their ability to capture deformation magnitudes at their PS pixel locations, though this may not be true in all situations, and more research is required to better quantify measurement uncertainty when combining multiple InSAR datasets of different wavelengths.

6. Conclusions

Combined satellite and airborne SAR data from X, C, and L band sensors reveal 3D deformation surrounding the 2nd and Broadway subway station and the adjacent rail crossover cavern in downtown Los Angeles, encompassing an area of 30,000 m² with maximum vertical and horizontal deformations reaching 2.5 cm and 1.7 cm, respectively. Vertical displacements calculated by combining six paths of InSAR data were in good agreement with available ground-based data, within 5 mm on average. InSAR calculation accuracy was observed to decrease in areas with less PS pixel coverage. UAVSAR data provided the necessary constraint of N-S horizontal deformation but were limited by low temporal resolution. Both interpolating and distance weighting InSAR datasets overcame challenges presented by limited overlapping PS pixel coverage.

These results support the application of the distance-weighted MinA algorithm to small magnitude, spatially acute subsidence events given input data with sufficiently dense PS pixel spacing relative to the size and shape of ground deformation and diverse LOS viewing geometries. As more SAR platforms become available, including the recent launch of the SAOCOM SAR constellation and the future launch of the NASA-ISRO SAR mission, post-processing algorithms like the MinA algorithm can be used in combination with multiple SAR datasets to compare to or potentially replace ground-based geodetic systems for monitoring purposes.
