# L-Band SAR Co-Polarized Phase Difference Modeling for Corn Fields

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Incoherent Multi-Parameter Fitting Model

#### 2.2. Sensitivity Analysis of the Model Parameters

- At ${\theta}_{i}={20}^{\xb0}$, the ${\varphi}_{p}$ variations evaluated at the ground measurements are $\Delta {\varphi}_{p}={0}^{\xb0}$ on the $2{a}_{0},h$-space and $\Delta {\varphi}_{p}={2}^{\xb0}$ on ${\epsilon}_{st}^{\prime},{\epsilon}_{st}^{\u2033}$-space;
- Similarly, at ${\theta}_{i}={60}^{\xb0}$ resulted in $\Delta {\varphi}_{p}={26}^{\xb0}$ and $\Delta {\varphi}_{p}={28}^{\xb0}$;
- At both ${\theta}_{i}={20}^{\xb0}$ and ${\theta}_{i}={60}^{\xb0}$, $\Delta {\varphi}_{st}$ is bounded between −6° and −3°.

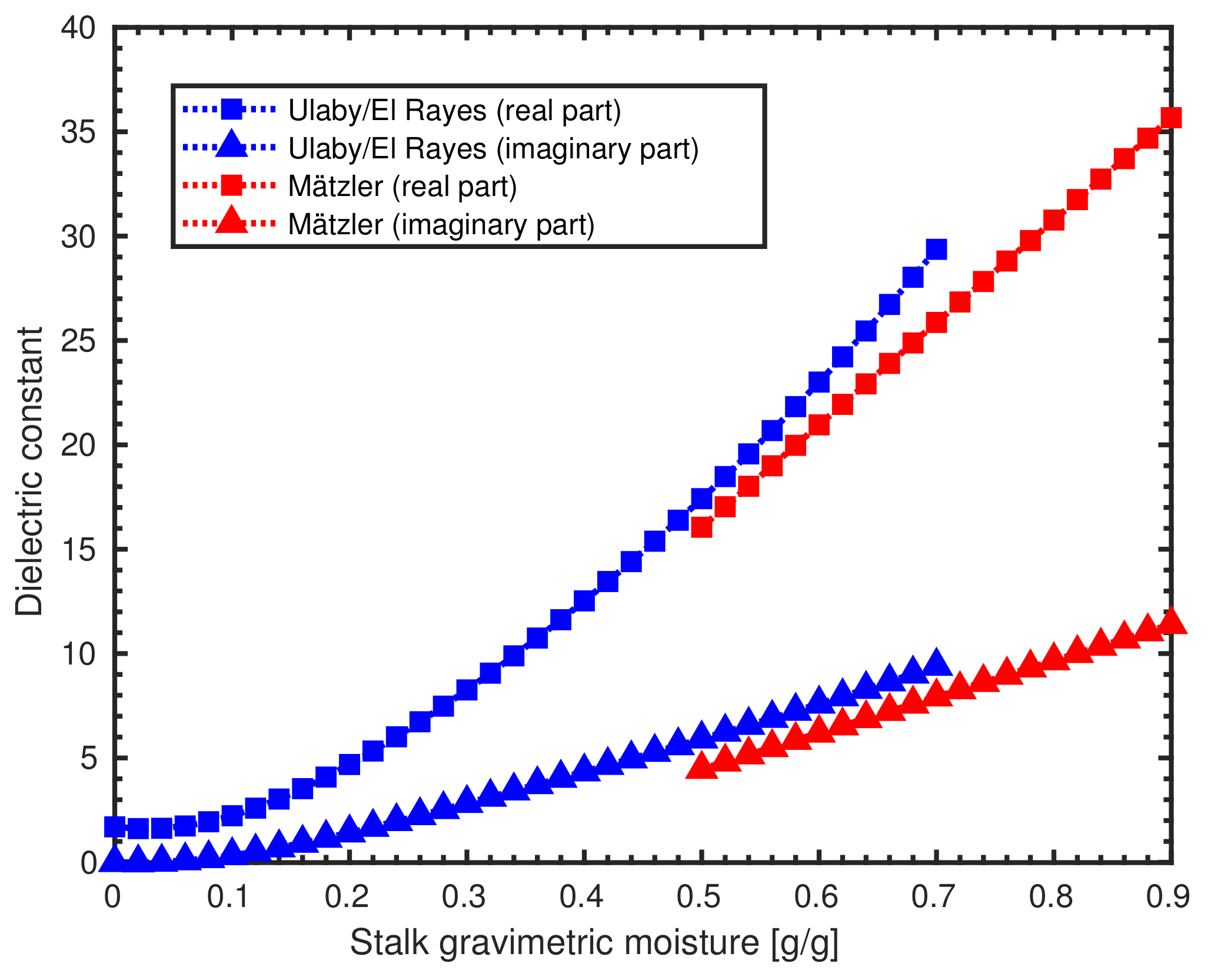

#### 2.3. Microwave Dielectric Constant of Stalk from Gravimetric Measurements

#### 2.4. Study Area and Ground Data Collection

#### 2.5. SAR Data and Its Quality and Processing Chain

#### 2.6. Polarimetric Observable $\varphi $

## 3. Results

#### 3.1. Co-Polarized Phase Difference ${\varphi}_{0}$ Estimation

#### 3.2. Ulaby’s Model Fitting to SAR Data

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- McNairn, H.; Brisco, B. The application of C-band polarimetric SAR for agriculture: A review. Can. J. Remote Sens.
**2004**, 30, 525–542. [Google Scholar] [CrossRef] - Li, H.; Zhang, C.; Zhang, S.; Atkinson, P.M. Crop classification from full-year fully-polarimetric L-band UAVSAR time-series using the Random Forest algorithm. Int. J. Appl. Earth Obs. Geoinf.
**2020**, 87, 102032. [Google Scholar] [CrossRef] - Larrañaga, A.; Álvarez Mozos, J. On the Added Value of Quad-Pol Data in a Multi-Temporal Crop Classification Framework Based on RADARSAT-2 Imagery. Remote Sens.
**2016**, 8, 335. [Google Scholar] [CrossRef][Green Version] - Erten, E.; Lopez-Sanchez, J.M.; Yuzugullu, O.; Hajnsek, I. Retrieval of agricultural crop height from space: A comparison of SAR techniques. Remote Sens. Environ.
**2016**, 187, 130–144. [Google Scholar] [CrossRef][Green Version] - Lopez-Sanchez, J.M.; Vicente-Guijalba, F.; Erten, E.; Campos-Taberner, M.; Garcia-Haro, F.J. Retrieval of vegetation height in rice fields using polarimetric SAR interferometry with TanDEM-X data. Remote Sens. Environ.
**2017**, 192, 30–44. [Google Scholar] [CrossRef][Green Version] - Ndikumana, E.; Ho Tong Minh, D.; Dang Nguyen, H.T.; Baghdadi, N.; Courault, D.; Hossard, L.; El Moussawi, I. Estimation of Rice Height and Biomass Using Multitemporal SAR Sentinel-1 for Camargue, Southern France. Remote Sens.
**2018**, 10, 1394. [Google Scholar] [CrossRef][Green Version] - Barber, M.; Bruscantini, C.; Grings, F.; Karszenbaum, H. Bayesian Combined Active/Passive (B-CAP) Soil Moisture Retrieval Algorithm. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2016**, 9, 5449–5460. [Google Scholar] [CrossRef] - Das, N.N.; Entekhabi, D.; Dunbar, R.S.; Colliander, A.; Chen, F.; Crow, W.; Jackson, T.J.; Berg, A.; Bosch, D.D.; Caldwell, T.; et al. The SMAP mission combined active-passive soil moisture product at 9 km and 3 km spatial resolutions. Remote Sens. Environ.
**2018**, 211, 204–217. [Google Scholar] [CrossRef] - Hensley, S.; Michel, T.; Van Zyl, J.; Muellerschoen, R.; Chapman, B.; Oveisgharan, S.; Haddad, Z.S.; Jackson, T.; Mladenova, I. Effect of Soil Moisture on polarimetric-interferometric repeat pass observations by UAVSAR during 2010 Canadian Soil Moisture campaign. In Proceedings of the 2011 IEEE International Geoscience and Remote Sensing Symposium, Brussels, Belgium, 11–16 July 2011; pp. 1063–1066. [Google Scholar] [CrossRef]
- Morandeira, N.S.; Franco, M.; Barber, M.; Grings, F. Modeling Bare Soil L-Band Polarimetric H-α Values Using a Second-Order SPM Model. IEEE Geosci. Remote Sens. Lett.
**2016**, 13, 399–403. [Google Scholar] [CrossRef] - McNairn, H.; Jackson, T.J.; Wiseman, G.; Bélair, S.; Berg, A.; Bullock, P.; Colliander, A.; Cosh, M.H.; Kim, S.B.; Magagi, R.; et al. The Soil Moisture Active Passive Validation Experiment 2012 (SMAPVEX12): Prelaunch Calibration and Validation of the SMAP Soil Moisture Algorithms. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 2784–2801. [Google Scholar] [CrossRef] - NASA Jet Propulsion Laboratory. NASA-ISRO SAR (NISAR) Mission Science Users’ Handbook; NASA Jet Propulsion Laboratory: Pasadena, CA, USA, 2018; p. 261. [Google Scholar]
- ESA. Copernicus L-Band SAR Mission Requirements Document. Available online: https://esamultimedia.esa.int/docs/EarthObservation/Copernicus_L-band_SAR_mission_ROSE-L_MRD_v2.0_issued.pdf (accessed on 8 November 2021).
- FAOSTAT: The Food and Agriculture Organization (FAO) Statistics. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 25 February 2021).
- Joseph, A.T.; van der Velde, R.; O’Neill, P.E.; Lang, R.H.; Gish, T. Soil Moisture Retrieval During a Corn Growth Cycle Using L-Band (1.6 GHz) Radar Observations. IEEE Trans. Geosci. Remote Sens.
**2008**, 46, 2365–2374. [Google Scholar] [CrossRef][Green Version] - Sharma, A.; Lang, R.H.; Kurum, M.; O’neill, P.E.; Cosh, M.H. L-Band Radar Experiment and Modeling of a Corn Canopy Over a Full Growing Season. IEEE Trans. Geosci. Remote Sens.
**2020**, 58, 5821–5835. [Google Scholar] [CrossRef] - Ulaby, F.T.; Held, D.; Dobson, M.C.; McDonald, K.C.; Senior, T.B.A. Relating Polarization Phase Difference of SAR Signals to Scene Properties. IEEE Trans. Geosci. Remote. Sens.
**1987**, GE-25, 83–92. [Google Scholar] [CrossRef] - Sarabandi, K.; Polatin, P.F.; Ulaby, F.T. Monte Carlo simulation of scattering from a layer of vertical cylinders. IEEE Trans. Antennas Propag.
**1993**, 41, 465–475. [Google Scholar] [CrossRef] - Karam, M.A.; Fung, A.K. Electromagnetic scattering from a layer of finite length, randomly oriented, dielectric, circular cylinders over a rough interface with application to vegetation. Int. J. Remote Sens.
**1988**, 9, 1109–1134. [Google Scholar] [CrossRef] - Skriver, H.; Svendsen, M.T.; Thomsen, A.G. Multitemporal C- and L-band polarimetric signatures of crops. IEEE Trans. Geosci. Remote Sens.
**1999**, 37, 2413–2429. [Google Scholar] [CrossRef] - Xie, Q.; Wang, J.; Lopez-Sanchez, J.M.; Peng, X.; Liao, C.; Shang, J.; Zhu, J.; Fu, H.; Ballester-Berman, J.D. Crop Height Estimation of Corn from Multi-Year RADARSAT-2 Polarimetric Observables Using Machine Learning. Remote Sens.
**2021**, 13, 392. [Google Scholar] [CrossRef] - Cable, J.W.; Kovacs, J.M.; Jiao, X.; Shang, J. Agricultural Monitoring in Northeastern Ontario, Canada, Using Multi-Temporal Polarimetric RADARSAT-2 Data. Remote Sens.
**2014**, 6, 2343–2371. [Google Scholar] [CrossRef][Green Version] - Lopez-Sanchez, J.M.; Ballester-Berman, J.D.; Hajnsek, I. First Results of Rice Monitoring Practices in Spain by Means of Time Series of TerraSAR-X Dual-Pol Images. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2011**, 4, 412–422. [Google Scholar] [CrossRef] - Balenzano, A.; Mattia, F.; Satalino, G.; Davidson, M. Dense Temporal Series of C- and L-band SAR Data for Soil Moisture Retrieval Over Agricultural Crops. Sel. Top. Appl. Earth Obs. Remote Sens. IEEE J.
**2011**, 4, 439–450. [Google Scholar] [CrossRef] - Ulaby, F.T.; Long, D.; Blackwell, W.; Elachi, C.; Fung, A.; Ruf, C.; Sarabandi, K.; van Zyl, J.; Zebker, H. Microwave Radar and Radiometric Remote Sensing; The University of Michigan Press: Ann Arbor, MI, USA, 2014. [Google Scholar]
- Mätzler, C. Microwave (1–100 GHz) dielectric model of leaves. IEEE Trans. Geosci. Remote Sens.
**1994**, 32, 947–949. [Google Scholar] [CrossRef] - Ruck, G. Radar Cross Section Handbook; Number v. 2 in Radar Cross Section Handbook; Plenum Press: New York, NY, USA, 1970. [Google Scholar]
- Hallikainen, M.; Ulaby, F.; Dobson, M.; El-Rayes, M.; Wu, L.K. Microwave Dielectric Behavior of Wet Soil-Part I: Empirical Models and Experimental Observations. IEEE Trans. Geosci. Remote Sens.
**1985**, GE-23, 25–34. [Google Scholar] [CrossRef] - Peplinski, N.R.; Ulaby, F.T.; Dobson, M.C. Dielectric properties of soils in the 0.3–1.3-GHz range. IEEE Trans. Geosci. Remote Sens.
**1995**, 33, 803–807. [Google Scholar] [CrossRef] - Mironov, V.L.; Dobson, M.C.; Kaupp, V.H.; Komarov, S.A.; Kleshchenko, V.N. Generalized refractive mixing dielectric model for moist soils. IEEE Trans. Geosci. Remote Sens.
**2004**, 42, 773–785. [Google Scholar] [CrossRef] - El-Rayes, M.A.; Ulaby, F.T. Microwave Dielectric Spectrum of Vegetation—Part I: Experimental Observations. IEEE Trans. Geosci. Remote Sens.
**1987**, GE-25, 541–549. [Google Scholar] [CrossRef] - Ulaby, F.T.; El-Rayes, M.A. Microwave Dielectric Spectrum of Vegetation—Part II: Dual-Dispersion Model. IEEE Trans. Geosci. Remote Sens.
**1987**, GE-25, 550–557. [Google Scholar] [CrossRef] - SMAP Validation Experiment 2012, Experimental Plan. Available online: https://smapvex12.espaceweb.usherbrooke.ca (accessed on 22 September 2021).
- Fore, A.; Chapman, B.; Hawkins, B.; Hensley, S.; Jones, C.; Michel, T.; Muellerschoen, R. UAVSAR Polarimetric Calibration. Geosci. Remote Sens. IEEE Trans.
**2015**, 53, 3481–3491. [Google Scholar] [CrossRef] - Motohka, T.; Isoguchi, O.; Sakashita, M.; Shimada, M. Results of ALOS-2 PALSAR-2 Calibration and Validation After 3 Years of Operation. In Proceedings of the IGARSS 2018—2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 22–27 July 2018; pp. 4169–4170. [Google Scholar]
- Lee, J.S.; Pottier, E. Polarimetric Radar Imaging: From Basics to Applications; CRC Press: Boca Raton, FL, USA, 2009. [Google Scholar] [CrossRef]
- Anfinsen, S.; Doulgeris, A.; Eltoft, T. Estimation of the Equivalent Number of Looks in Polarimetric Synthetic Aperture Radar Imagery. Geosci. Remote Sens. IEEE Trans.
**2009**, 47, 3795–3809. [Google Scholar] [CrossRef] - Wasserman, L. All of Statistics: A Concise Course in Statistical Inference; Springer Texts in Statistics; Springer: New York, NY, USA, 2004. [Google Scholar]
- Umburanas, R.C.; Kawakami, J.; Eschemback, V.; Ribeiro Oliari, I.C. Effect of green manure and sources of phosphorus on the morphology and yield of maize plants. Braz. J. Appl. Technol. Agric. Sci.
**2013**, 6, 49–56. [Google Scholar] [CrossRef] - Monsivais-Huertero, A.; Liu, P.W.; Judge, J. Phenology-Based Backscattering Model for Corn at L-Band. IEEE Trans. Geosci. Remote Sens.
**2018**, 56, 4989–5005. [Google Scholar] [CrossRef] - Bracaglia, M.; Ferrazzoli, P.; Guerriero, L. A fully polarimetric multiple scattering model for crops. Remote Sens. Environ.
**1995**, 54, 170–179. [Google Scholar] [CrossRef]

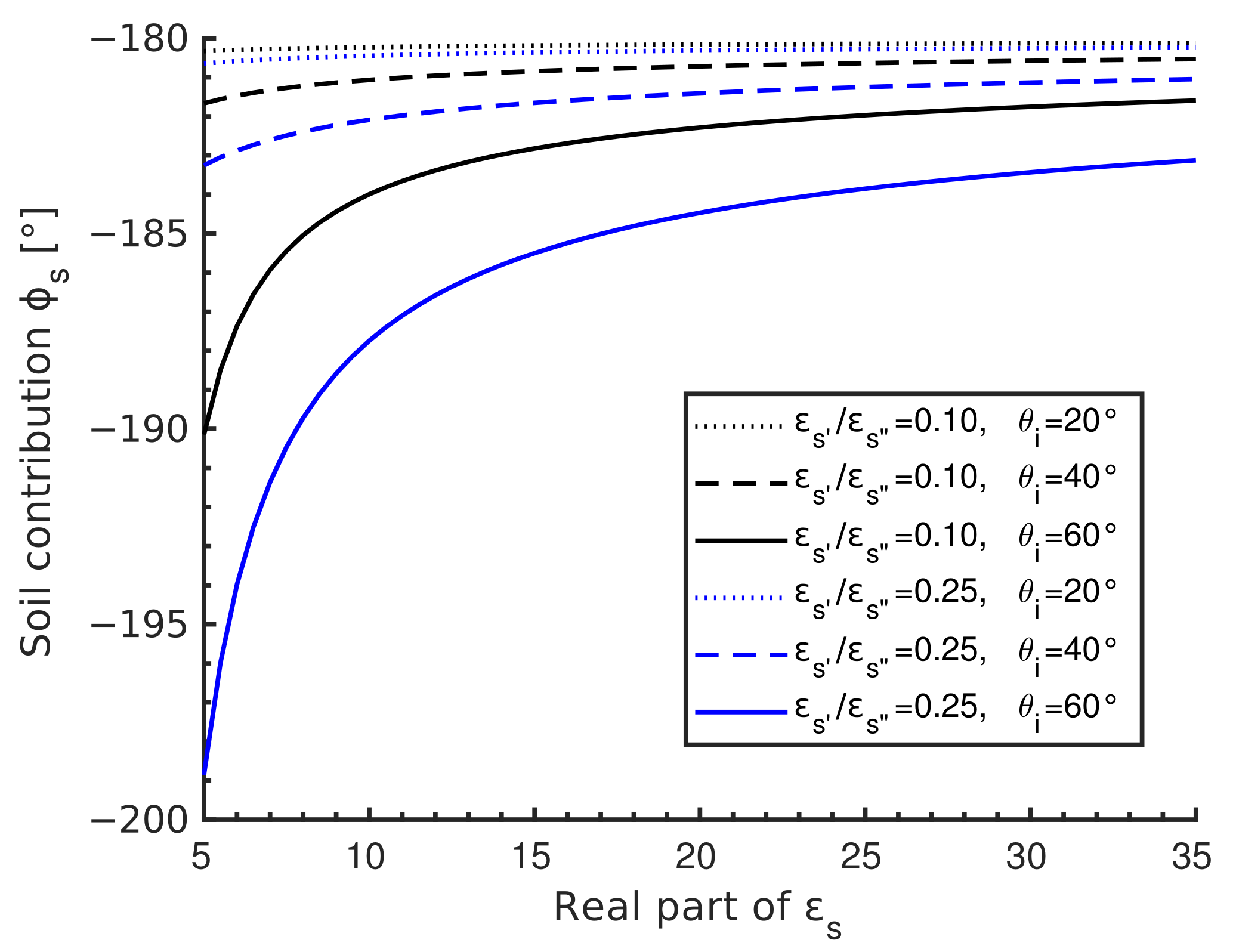

**Figure 1.**Sensitivity of soil term on the real part of the dielectric constant. The imaginary part is assumed to be 0.10 (black lines) and 0.25 (blue lines) of the real part.

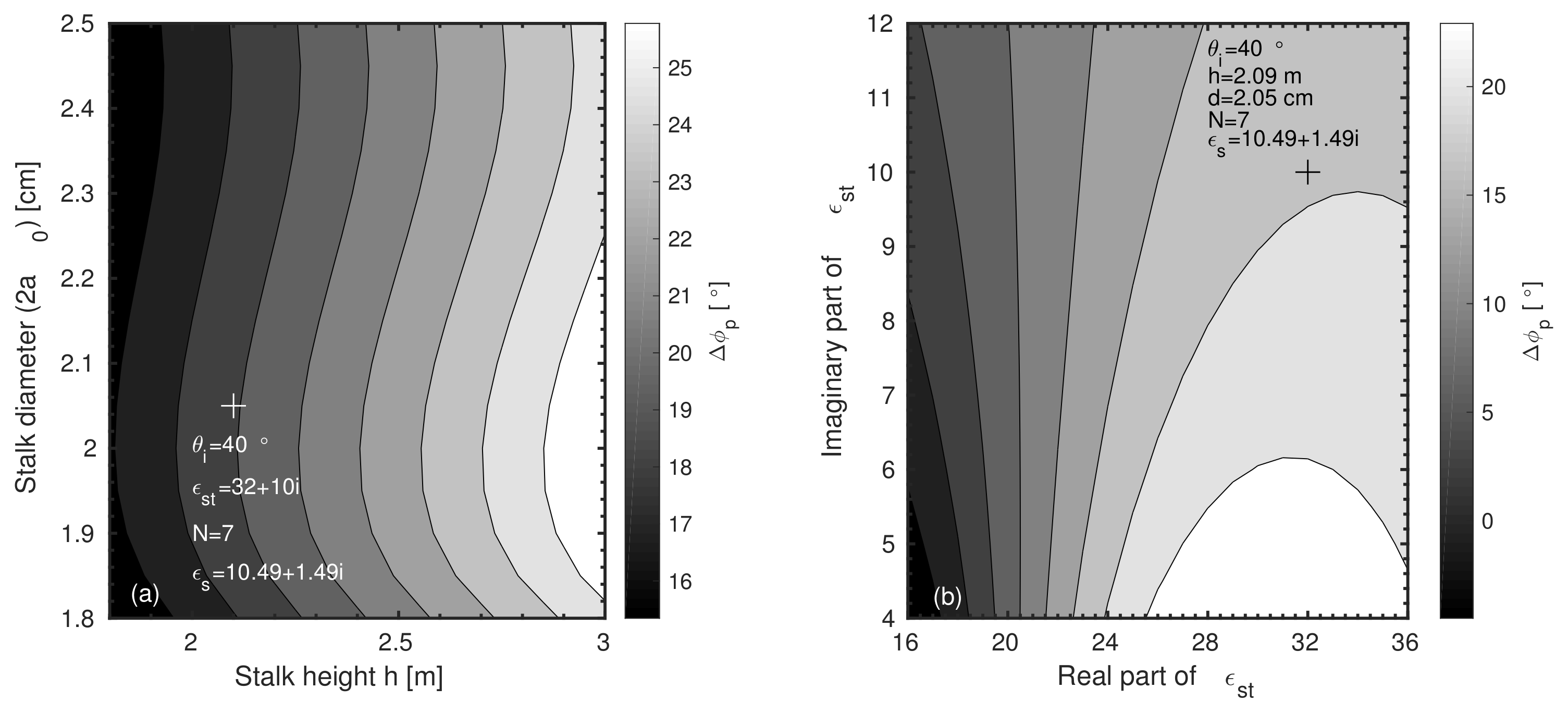

**Figure 2.**Sensitivity analysis of model parameters. (

**a**) Sensitivity of the propagation term on stalk height and diameter $2{a}_{0}$. The ‘+’-mark indicates the average values for the dataset. (

**b**) Sensitivity of propagation term on real ${\epsilon}_{st}^{\prime}$ and imaginary ${\epsilon}_{st}^{\u2033}$ parts of ${\epsilon}_{st}$.

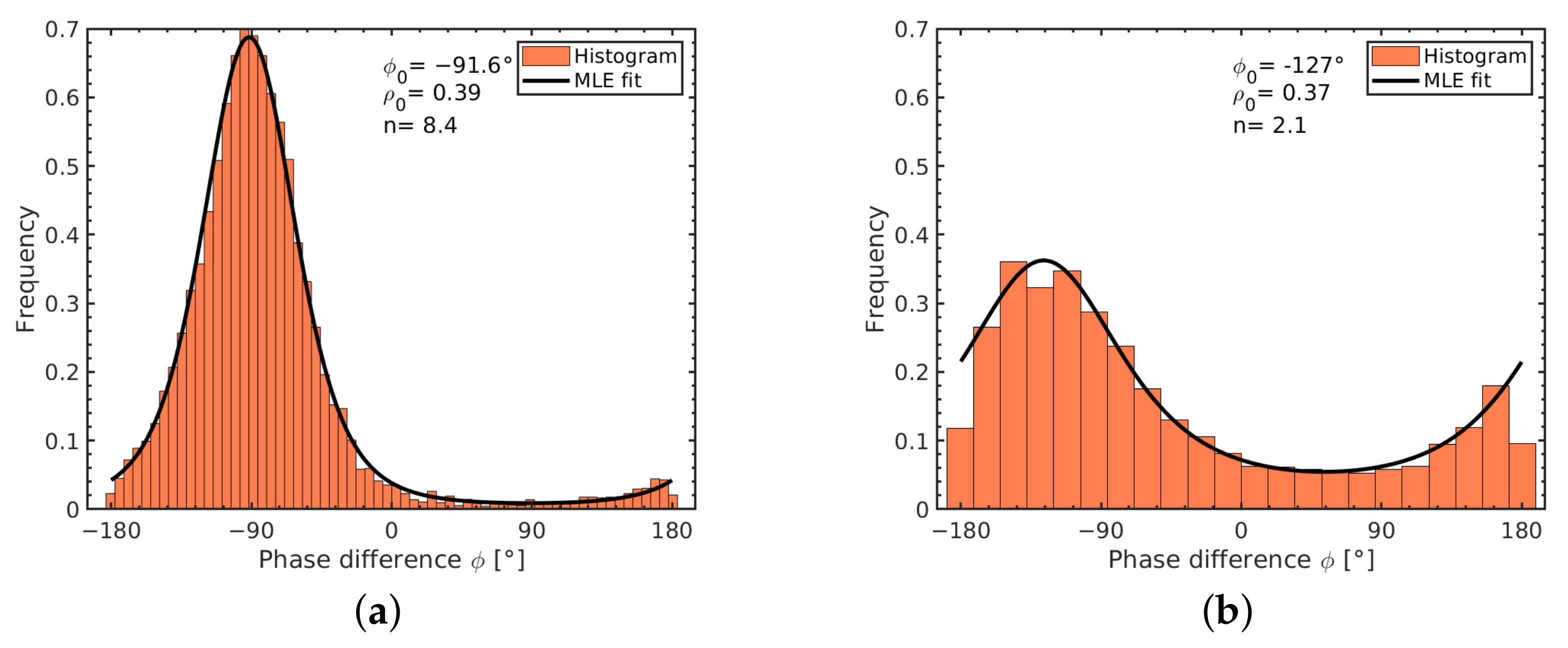

**Figure 4.**MLE fitting for speckled co-polarized phase difference histograms. (

**a**) A 2.27-m-height corn field imaged by UAVSAR at incidence angle 49.98°. (

**b**) A 2.00-m-eight corn field imaged by ALOS-2/PALSAR-2 at incidence angle 26.67°.

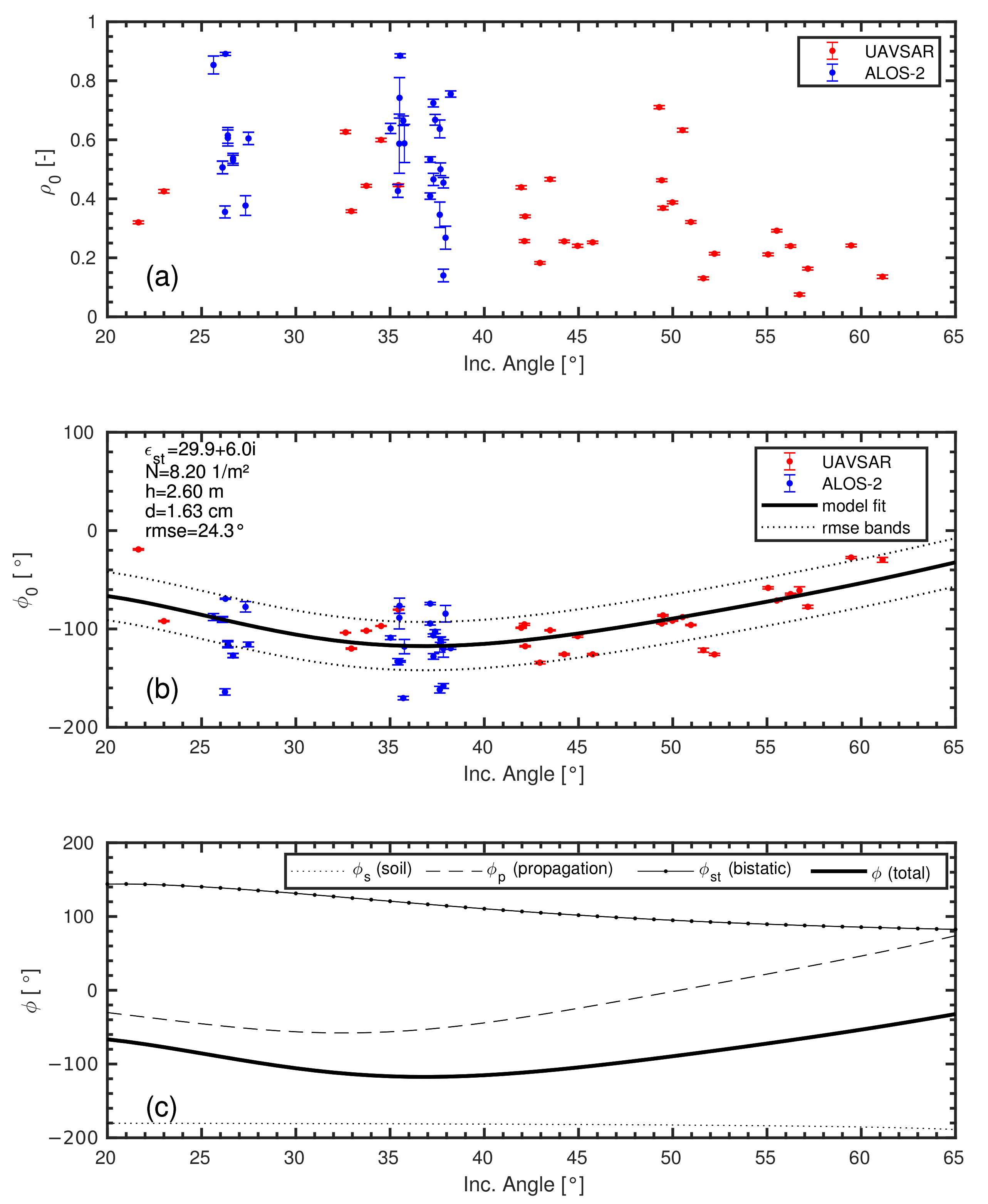

**Figure 5.**Model fitting by nonlinear least-squares and estimated parameters. (

**a**) Coherence ${\rho}_{0}$. (

**b**) Co-polarized phase difference ${\varphi}_{0}$ and model fitting. The fitted parameters are indicated. (

**c**) Each contribution to the total phase difference is shown separately.

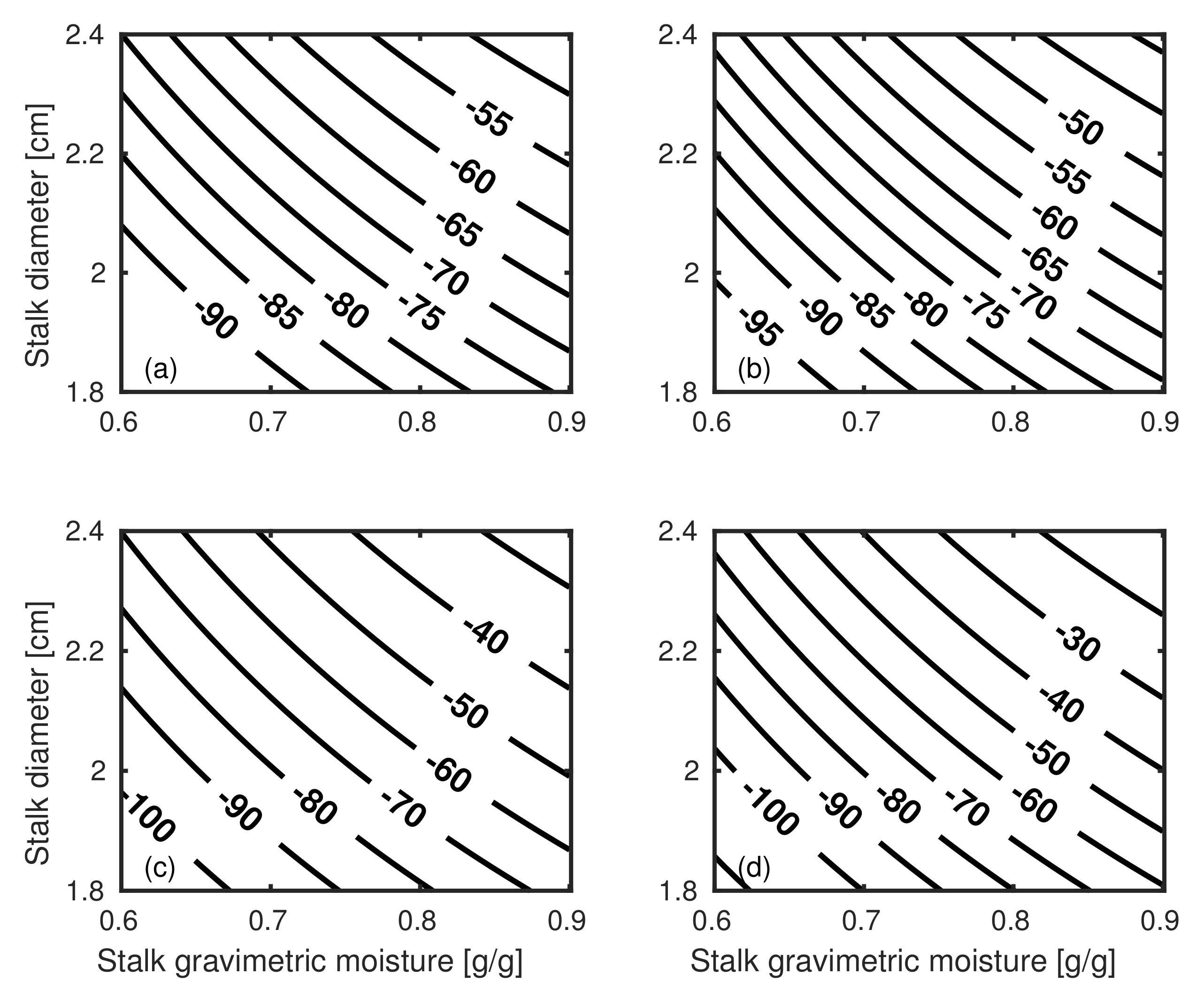

**Figure 6.**$\varphi $-contours resulting from the evaluation of (2) when coupling Mätzler’s model with Ulaby’s. Frequency is fixed at 1.25 $\mathrm{GHz}$ and incidence angle is 40°. Model parameters now include ${m}_{g}$ instead of ${\epsilon}_{st}$. Stalk height h is indicated. (

**a**) $h=1.80$ $\mathrm{m}$. (

**b**) $h=2.00$ $\mathrm{m}$. (

**c**) $h=2.40$ $\mathrm{m}$. (

**d**) $h=2.80$ $\mathrm{m}$. Contours are in degrees.

**Table 1.**Corn stalk features from the ground data collection for two field campaigns in Canada and Argentina.

Feature | Canada | Argentina |
---|---|---|

(SMAPVex12) | (CONAE) | |

# Fields [-] | 8 | 20 |

# Data points [-] | 32 | 30 |

Stalk height h range [m] | 1.93–2.53 | 1.80–3.00 |

Stalk diameter d range [cm] | 1.85–2.35 | - |

Stalk moisture ${m}_{g}$ range [g/g] | 0.811–0.834 | - |

Stalk density N [1/${\mathrm{m}}^{2}$] | 7.0–8.2 | - |

**Table 2.**Stalk features as compared to the fitting and to the ground data from dates prior to peak biomass. Field campaign in Canada with UAVSAR. The di2electric constant on ground data is estimated from stalk moisture by means of Mätzler’s model shown in Figure 3.

Date | ||||
---|---|---|---|---|

5 July 2012 | 8 July 2012 | 14 July 2012 | 17 July 2012 | |

Fitted pars. | ||||

Height h [m] | 1.42 | 1.83 | 2.56 | 2.60 |

Diameter d [cm] | 1.80 | 1.80 | 1.80 | 1.80 |

Dielectric constant ${\epsilon}_{st}$ [-] | 30.6 + 6.0i | 31.4 + 6.0i | 32.0 + 6.0i | 24.9 + 6.0i |

Density N [1/m^{2}] | 7.15 | 7.39 | 8.16 | 8.20 |

Root mean sq. error [°] | 16.3 | 20.8 | 21.8 | 22.3 |

Ground data | ||||

Height h range [m] | 1.19–1.77 | 1.93–2.53 | ||

Diameter d range [cm] | 2.00–2.29 | 1.85–2.35 | ||

Moisture ${m}_{g}$ range [g/g] | 0.834–0.847 | 0.811–0.834 | ||

Dielectric constant (real part) ${\epsilon}_{st}^{\prime}$ [-] | 32–34 | 31–32 |
