Impacts of Human Activities on the Variations in Terrestrial Water Storage of the Aral Sea Basin

Abstract

Assessing the impacts of human activities on the variations in terrestrial water storage (TWS) is essential for water resource management, particularly in regions like the Aral Sea Basin which suffers from severe water scarcity. In this study, the variations in TWS anomalies (TWSA) of the Aral Sea Basin during the period of April 2002 to June 2017 were analyzed using Gravity Recovery and Climate Experiment (GRACE) data and the Global Land Data Assimilation System (GLDAS) Noah model outputs. The impacts of human activities on TWS variations were further quantified through the variations in TWS components and the comparison of TWS obtained from GRACE and GLDAS. The results indicate that TWSA of the entire Aral Sea Basin derived from GRACE experienced a significant decreasing trend of 4.12 ± 1.79 mm/year (7.07 ± 3.07 km³/year) from 2002 to 2017. Trends in individual TWS components indicate that the reduction in TWS of the Aral Sea Basin was primarily attributed to surface water loss, followed by groundwater depletion, which account for ~53.16% and 11.65 ± 45.39 to 42.48 ± 54.61% of the total loss of TWS, respectively. Precipitation (P) and evapotranspiration (ET) both exhibited increasing trends, indicating that ET played a dominant role in TWS depletion from the perspective of water balance. The variations in ET and TWS induced by human activities contributed ~45.54% and ~75.24% to those in total ET and TWS of the Aral Sea Basin, respectively.

1. Introduction

Terrestrial water storage (TWS) is an essential component of the terrestrial and global hydrological cycles, which mainly comprises surface water (lakes, rivers, and reservoirs), groundwater, soil moisture, plant canopy water, snow, and glaciers [1,2,3]. Due to the scarcity of water resources in arid and semi-arid regions, these components of TWS, particularly surface water and groundwater, become of great ecological and social importance [4,5]. In recent years, global warming has exacerbated the variability of TWS in arid and semi-arid regions, intensified further by human activities such as agricultural irrigation [6,7]. Therefore, a better understanding of the impacts of human activities on TWS variations is of great practical significance for water resource management.

The Aral Sea Basin, an endorheic basin located in arid Central Asia, suffers from severe water scarcity under the influence of human activities [8,9,10]. With the rapid increase in water withdrawal since the 1960s, especially for damming and irrigation, the eco-environment dominated by water in the Aral Sea Basin has been deteriorating [4,11,12,13]. For instance, the Aral Sea shrank sharply over the period of 1960–2018, with a reduction of 60,156.50 km² in area and 1000.51 km³ in water volume [14]. It is thus of vital importance to assess the dynamics of TWS in this region and the impacts of human activities on TWS variations.

Traditional site observations (e.g., groundwater level and soil moisture measurements) only provide information on individual hydrological variables at point scales [15,16], and the data transparency and accessibility are often lacking; the Aral Sea Basin is no exception. The launch of the Gravity Recovery and Climate Experiment (GRACE) satellites in 2002 [17] has offered an effective technique to access the spatial and temporal variations in TWS anomalies (TWSA) [18]. The primary objective of the GRACE satellites is to monitor the Earth’s time-variable gravitational field, which reflects the mass changes mainly caused by the movement of water through the Earth’s water cycle [19]. GRACE can achieve frequent, rapid, and continuous observations at the global scale without being restricted by terrestrial conditions. GRACE satellite datasets have been widely used in numerous studies to estimate groundwater storage changes [20], regional TWS changes [21,22,23], ice sheet and glacier mass balance [24,25], and global sea level changes [26], etc.

Land surface models or hydrological models can also simulate TWS variations. Several studies theoretically estimate TWS variations (∆TWS) by using precipitation (P), evapotranspiration (ET), and total runoff (R) from these models based on the water balance equation (∆TWS = P − ET − R) [27,28], or by adding up the variations in various TWS components [15]. However, since human impacts are difficult to parameterize, most of these models can only simulate hydrological variables under natural climate conditions [29,30], and they often lack processes to simulate some important TWS components (e.g., surface water and groundwater) [6,31]. In contrast to land surface models, GRACE can detect changes in TWS caused by both natural and anthropogenic factors [32]. Therefore, the comparison of TWS derived from GRACE and land surface models can indirectly evaluate the human water withdrawal in this region.

Previous studies have focused primarily on the overall trend in TWS of the Aral Sea Basin [6,10,33,34]. However, a comprehensive and quantitative analysis of the contribution of human activities to recent TWS variations is still lacking. Therefore, in this study, we first assessed the annual and seasonal variations in TWS of the Aral Sea Basin over the period of April 2002 to June 2017, by using GRACE data and the Global Land Data Assimilation System (GLDAS) model outputs. Then, the variations in individual TWS components were calculated to indicate the impacts of human activities on TWS variations. Moreover, based on the water balance equation, P − ET obtained from GLDAS was compared with TWS from GRACE, the former of which reflects changes under natural climate conditions whereas the latter represents the total changes, to evaluate the contribution of human activities to TWS variations.

2. Materials and Methods

2.1. Study Area

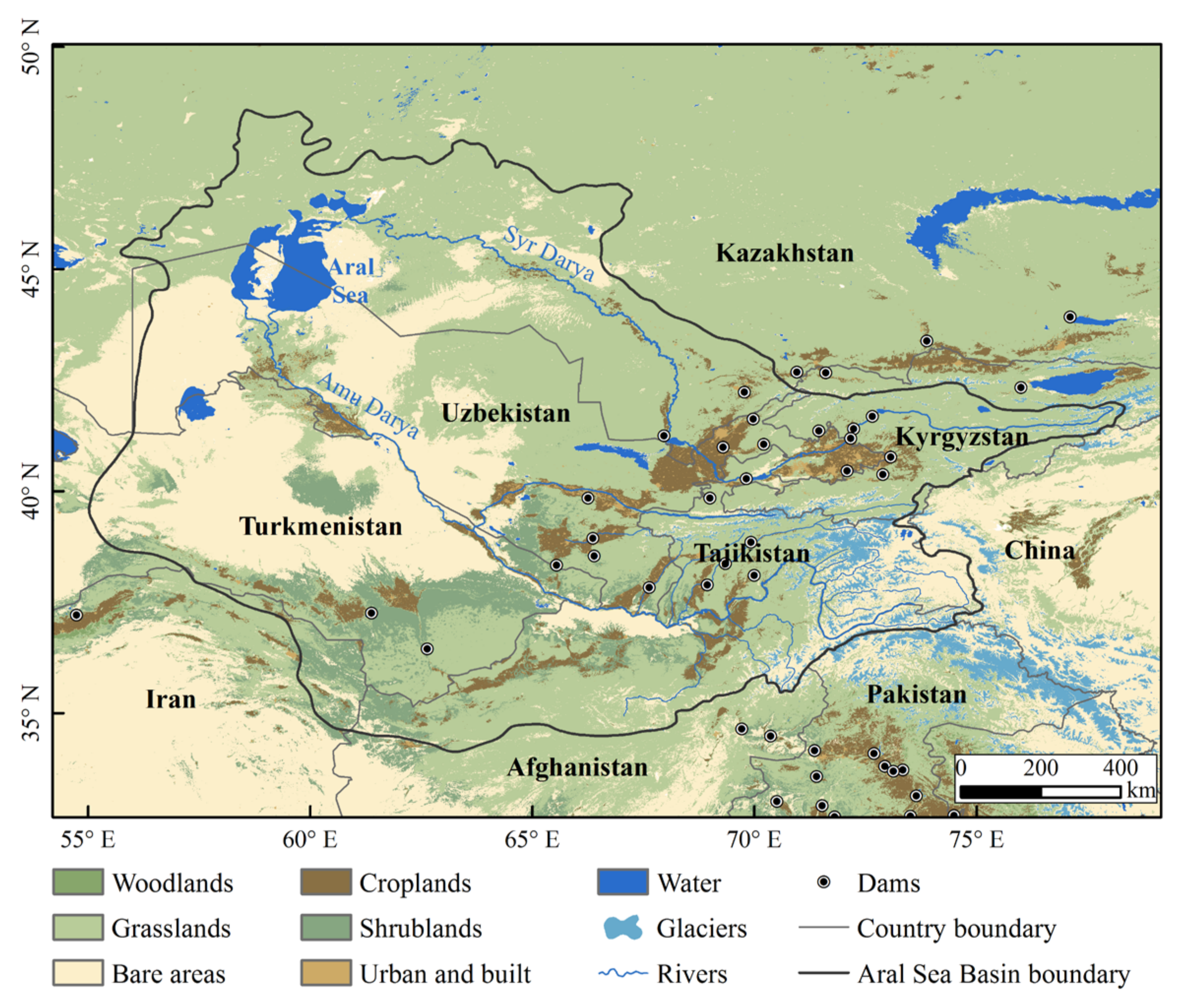

The Aral Sea Basin is a vast transboundary basin in the hinterland of the Eurasian continent [35], with a spatial range of approximately 34°4′–48°40′ N, 54°56′–78°22′ E (Figure 1). It encompasses seven nations: Kazakhstan, Kyrgyzstan, Uzbekistan, Turkmenistan, Tajikistan, Afghanistan, and Iran. Topographically, the Aral Sea Basin ranges from the vast Turan Plain with the Kyzyl Kum and Kara Kum deserts in the west to the tremendous mountains of the Tien Shan and Pamirs in the east [36]. The main water resources in this region are the Amu Darya and the Syr Darya, originating from glaciers and snowfields in the Tien Shan and Pamirs, as well as the Aral Sea into which these rivers flow [9]. The Aral Sea was the world’s fourth largest inland lake in the mid-20th century, covering an area of ~68,478 km² in 1960. However, it shrank sharply over the past six decades, and its changes caused a series of severe eco-environmental issues to the Aral Sea Basin [14,37].

The climate in the Aral Sea Basin is mostly dry–arid continental with low precipitation and high evaporation in summer, and cold and dry conditions in winter [35]. The average temperature ranges from 0 °C–4 °C in January and from 28 °C–32 °C in July. The annual precipitation varies substantially across different regions of the basin, e.g., it ranges from 80–200 mm in the valleys with the majority falling in spring and winter, 300–400 mm in the foothills, and as high as 600–800 mm on the southern and southwestern sides of the mountains. Due to the arid climate in the Aral Sea Basin, agriculture is fully dependent on a dense irrigation and drainage network, and 90% of the total water withdrawal is used for this purpose [35,38].

2.2. Data

2.2.1. GRACE Data

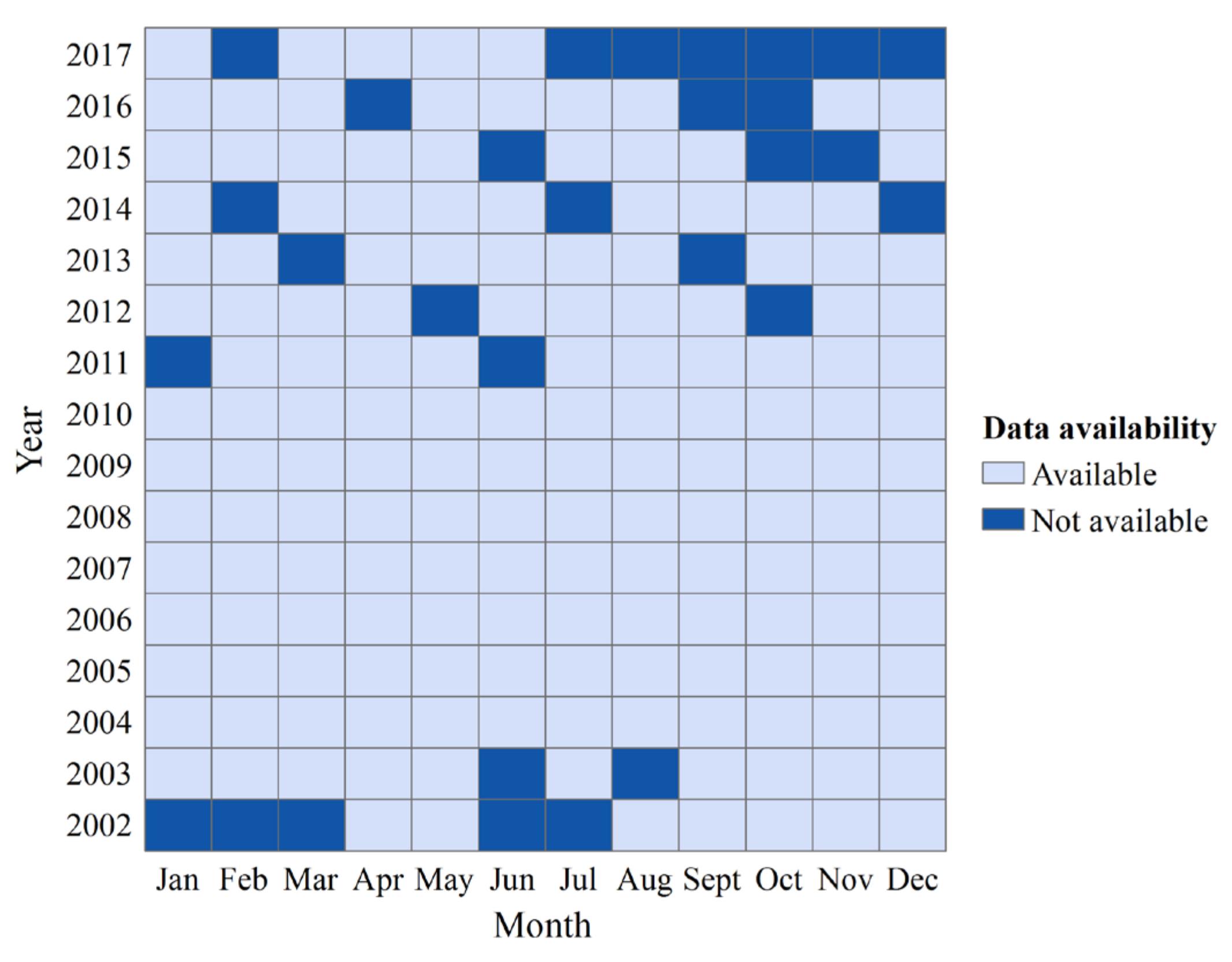

GRACE is a satellite mission jointly launched by the National Aeronautics and Space Administration (NASA) and the German Aerospace Center (DLR). It consists of twin satellites spaced ~220 km apart in a near-polar orbit at an altitude of ~450 km. The products of GRACE are released by the Scientific Data System composed of three major research groups: Center for Space Research (CSR), Geo-Forschungs-Zentrum (GFZ), and Jet Propulsion Laboratory (JPL). Several studies have demonstrated that spherical harmonic (SH) coefficients provided by the CSR can effectively reveal the variations in TWS, since the mass variations in atmosphere and ocean have been removed [22,39,40,41]. Therefore, the latest Release-06 (RL06) SH coefficients from the CSR were selected for this study. The data covered the period of April 2002 to June 2017, for a total of 163 months, and it was missing for 20 months (Figure 2).

2.2.2. GLDAS Data

GLDAS is a commonly used land surface modeling system, which aims to generate optimal fields of land surface states and fluxes based on satellite and ground observations, and has been frequently used in the estimation of TWS [3,42,43,44]. GLDAS derives four land surface models including Noah, Catchment (CLSM), the Community Land Model (CLM), and the Variable Infiltration Capacity (VIC) at a high spatial resolution of 1° to 0.25°. Several studies have confirmed that the Noah model exhibits a better correlation with GRACE TWS than other GLDAS models [45,46,47]. Therefore, we selected the latest GLDAS Noah Land Surface Model L4 monthly 0.25° × 0.25° V2.1 product (GLDAS_NOAH025_M_2.1) for the period of 2002–2017. The GLDAS-2.1 Noah model contains 36 variables, and 9 variables of them were selected for assessing TWS variations as well as water balance (

Table 1. GLDAS variables used in this study.

Short Name	Description	Units
SoilMoi0_10cm_inst	Soil moisture content (0–10 cm underground)	kg m−2
SoilMoi10_40cm_inst	Soil moisture content (10–40 cm underground)	kg m−2
SoilMoi40_100cm_inst	Soil moisture content (40–100 cm underground)	kg m−2
SoilMoi100_200cm_inst	Soil moisture content (100–200 cm underground)	kg m−2
RootMoist_inst	Root zone soil moisture	kg m−2
CanopInt_inst	Plant canopy surface water	kg m−2
SWE_inst	Snow depth water equivalent	kg m−2
Rainf_f_tavg	Total precipitation rate	kg m−2 s−1
Evap_tavg	Evapotranspiration	kg m−2 s−1

).

2.3. Methods

2.3.1. GRACE Data Processing

The variations in TWS can be retrieved directly from GRACE SH coefficients, with the following equation applied [48]:

$$\Delta \sigma \left(\theta ,\phi \right)=\frac{\alpha {\rho }_{ave}}{3}{\displaystyle \sum }_{l=0}^{\infty }{\displaystyle \sum }_{m=0}^l\frac{2l+1}{1+k_l}{\overline{P}}_{lm}\left(cos\theta \right)\times \left(\Delta C_{lm}\cos \left(m\phi \right)+\Delta S_{lm}\sin \left(m\phi \right)\right)$$

(1)

where $\Delta \sigma \left(\theta ,\phi \right)$ represents surface mass density changes, $\alpha$ is the equatorial radius (the constant is 63781363.3 m), ${\rho }_{ave}$ is the mean density of the Earth (the constant is 5517 kg/m³),$\theta$ and $\phi$ are the geocentric latitude and longitude,$\Delta C_{lm}$ and $\Delta S_{lm}$ are the SH coefficient anomalies, $k_l$ is the Loew coefficient, and ${\overline{P}}_{lm}$ is the normalized Legendre function, with maximum degree l and order m expanded to 60.

The variations in TWS can also be expressed as the equivalent water height, see Equation (2), which is converted from Equation (1):

$$EWT\left(\theta ,\phi \right)=\frac{\alpha {\rho }_{ave}}{3{\rho }_{water}}{\displaystyle \sum }_{l=0}^{\infty }{\displaystyle \sum }_{m=0}^l\frac{2l+1}{1+k_l}{\overline{P}}_{lm}\left(cos\theta \right)\times \left(\Delta C_{lm}\cos \left(m\phi \right)+\Delta S_{lm}\sin \left(m\phi \right)\right)$$

(2)

where $EWT\left(\theta ,\phi \right)$ is the equivalent water height and ${\rho }_{water}$ is the density of water (the constant is 1000 kg/m³).

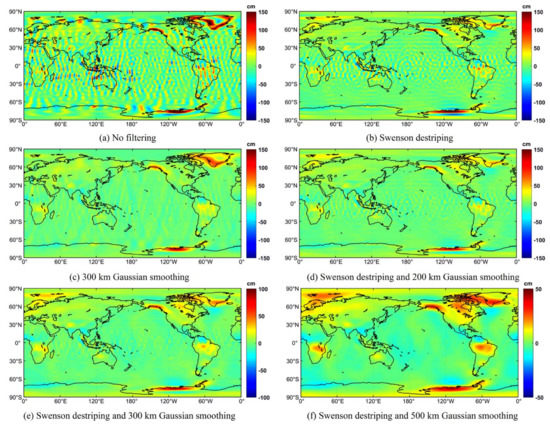

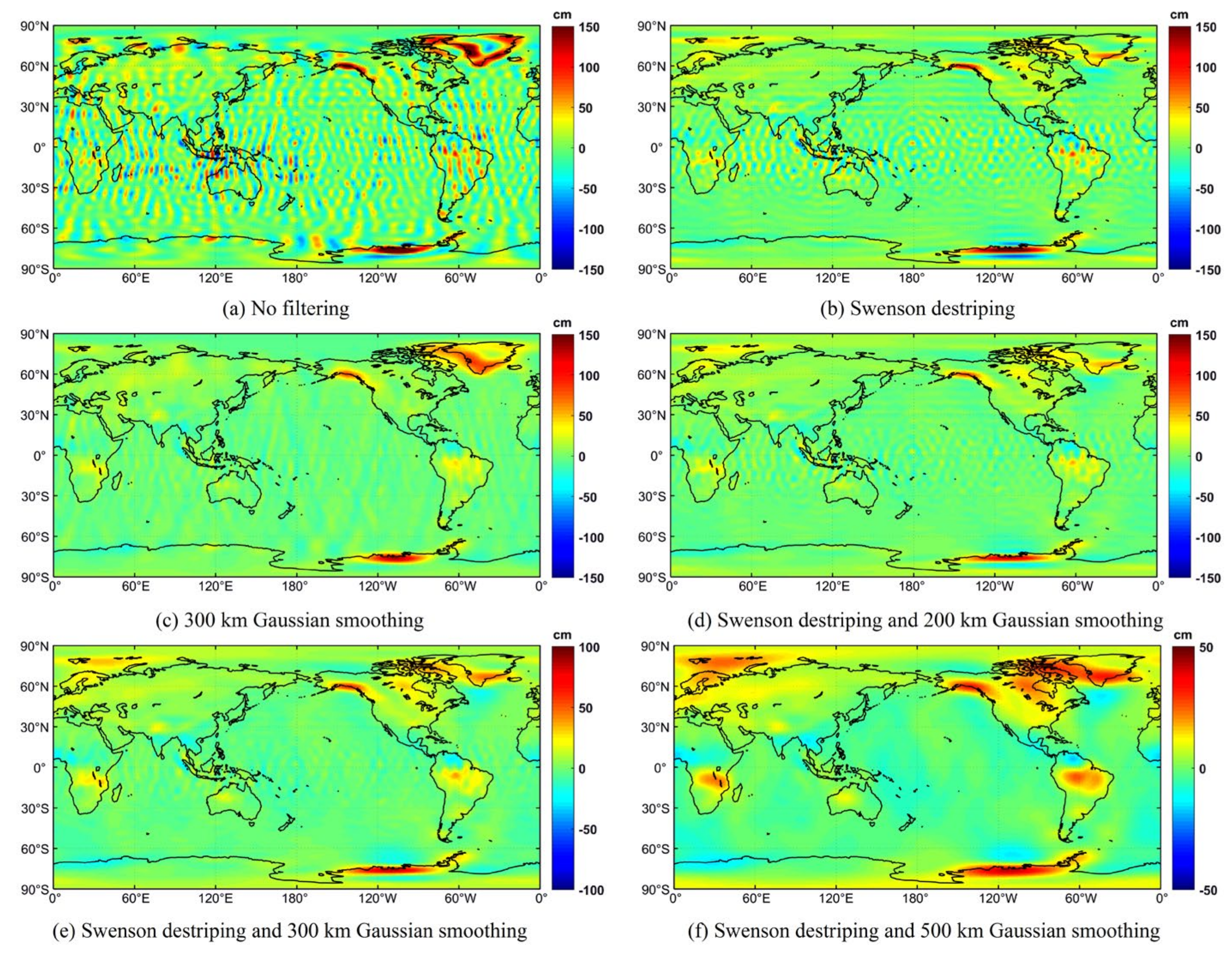

According to the above principles, the following post-processing steps were performed on the SH coefficients first. The C₂₀ terms of the SH coefficients were replaced by estimates obtained from Satellite Laster Ranging (SLR) [49]. The first-degree terms of the SH coefficients were replaced by estimates from the atmosphere and ocean models [50]. Then, a Glacial Isostatic Adjustment (GIA) correction in the model proposed by Geruo et al. [51] was applied to remove glacial rebound effects. To reduce the north–south strip error and high-frequency noise in the original data, an effective spatial filtering method is needed [52,53]. The effects of different filtering methods on retrieving TWS changes were compared, as shown in Figure 3. It can be found that TWSA without any filtering applied showed an obvious north–south strip error in space (Figure 3a), and only when Swenson destriping or Gaussian smoothing was applied, although the stripes were obviously reduced, the filtering effect was not obvious in the middle and low latitudes (Figure 3b,c). The combination of Swenson destriping and Gaussian smoothing can effectively remove the north–south strips and reveal the real information of TWSA, and the larger the Gaussian filter radius, the better the noise removal effect (Figure 3d–f). However, the real data signal will also be attenuated when the strip noise is suppressed [54], e.g., the north–south sharpening appeared when a 500 km Gaussian filter was applied (Figure 3f). Therefore, the Swenson destriping method combined with a 300 km Gaussian smoothing were selected in this study.

After the post-processing, the SH coefficients were converted into equivalent water height with a spatial resolution of 0.25° to keep consistent with the GLDAS model. The monthly TWSA was calculated from the differences between TWS in each month and the baseline average of TWS from January 2004 to December 2010, because there was no missing data in this period. In order to restore the signal reduced by truncation of the gravity coefficients and filtering, the scaling factor was then applied to GRACE TWSA over the study area [55,56]. Based on Equation (3), the scaling factor was computed by applying the same filtering method as applied to GRACE TWSA to GLDAS TWSA, and the result was 1.065.

$$M={\displaystyle \sum }_{i=1}^t{\left(\Delta S_{T,i}-k\Delta S_{F,i}\right)}^2$$

(3)

where $M$ is the objective function that we want to minimize, $\Delta S_{T,i}$ is the unfiltered GLDAS TWSA for month $i$, $\Delta S_{F,i}$ is the filtered GLDAS TWSA for month $i$ processed in the same way as the filtered GRACE data, $k$ is the scaling factor derived through least square regression, and $t$ is the number of months.

In order to evaluate the uncertainty of GRACE TWSA, errors of it were calculated, which mainly include measurement error in monthly gravity field solutions and leakage error caused by truncation and filtering in the spectral domain. The measurement error was estimated as the standard deviation of the residuals of coefficients when seasonal cycles were removed [57]. The leakage error was calculated by the following equation [55]:

$$L_e=RMS\left(\Delta S_{T,i}-k\Delta S_{F,i}\right)\frac{RM{S}_{GRACE}}{RM{S}_{GLDAS}}$$

(4)

where $\Delta S_{T,i}$ is the unfiltered GRACE TWSA for month $i$, $\Delta S_{F,i}$ is the filtered GRACE TWSA for month $i$, $k$ is the scaling factor, and $RM{S}_{GRACE}$ and $RM{S}_{GLDAS}$ are the root mean square of the filtered GRACE TWSA and GLDAS TWSA, respectively.

The total errors were estimated by summing up measurement and leakage errors in quadrature, see Equation (5):

$$E_{total}=\sqrt{M_e{}^2+L_e{}^2}$$

(5)

where $E_{total}$ represents the total errors, and $M_e$ and $L_e$ are the leakage error and measurement error, respectively.

2.3.2. Water Storage Equation

For an endorheic basin, the TWS changes include six major components:

∆TWS = ∆SWS + ∆GWS + ∆SMS + ∆SnWS + ∆CWS + ∆Glacier

(6)

where ∆TWS represents the total TWS changes, ∆SWS is surface water storage changes, ∆GWS is groundwater storage changes, ∆SMS is soil moisture storage changes, ∆SnWS is snow water equivalent changes, ∆CWS is plant canopy water storage changes, and ∆Glacier is glacier mass balance changes. Surface water, groundwater, and glacier mass balance are not simulated in the GLDAS Noah model, so GLDAS TWS was calculated by summing up snow water equivalent, soil moisture, and plant canopy water. The soil moisture is the sum of soil moisture in all soil profiles, including soil moisture content in 0–10 cm, 10–40 cm, 40–100 cm, and 100–200 cm underground, and root zone soil moisture. GLDAS TWSA was calculated the same way as GRACE TWSA, subtracting the average values for the period of January 2004 to December 2010 from the original data.

2.3.3. Water Balance Equation

Precipitation (P) and evapotranspiration (ET) are key components of both atmospheric and terrestrial water balances [58]. The precipitation minus evapotranspiration (P − ET) describes the net water flux into the Earth’s surface, and thus provides essential information regarding the interaction between the atmosphere and the land surface [59]. For an endorheic basin, changes in TWS (∆TWS) can be expressed as:

$$\Delta \mathrm{TWS}=\mathrm{P}-\mathrm{ET}$$

(7)

ET is influenced by both natural climate factors and anthropogenic factors such as irrigation or groundwater pumping [30]. Since GLDAS only simulates ET under natural climate conditions, P − ET obtained from GLDAS was compared with TWS from GRACE, the former of which reflects TWS changes under natural climate conditions and the latter represents the total TWS changes, to evaluate the contribution of human activities to TWS variations.

Moreover, to quantify the impacts of human activities on the variations in ET, ET obtained from GLDAS was compared with the total ET estimated from GRACE. The total ET can be estimated as:

$${\mathrm{ET}}_{\mathrm{GRACE}}=\mathrm{P}-{\mathrm{TWSA}}_{\mathrm{GRACE}}$$

(8)

where ${\mathrm{ET}}_{\mathrm{GRACE}}$ represents total ET and ${\mathrm{TWSA}}_{\mathrm{GRACE}}$ is TWSA derived from GRACE.

2.3.4. Correlation Analysis

To assess the consistency and similarity of TWSA derived from GRACE and GLDAS, Pearson’s correlation coefficient (CC) was used here, expressed as follows:

$$\mathrm{CC}=\frac{{{\displaystyle \sum }}_{i=1}^n\left(R_i-\overline{R}\right)\left(L_i-\overline{L}\right)}{\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left(R_i-\overline{R}\right)}^2}\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left(L_i-\overline{L}\right)}^2}}$$

(9)

where R is the monthly TWSA derived from GRACE, L is the monthly TWSA or hydro-climatic factors obtained from GLDAS, and n is the number of months.

2.3.5. Mann-Kendall Trend Test

The Mann–Kendall trend test (M–K test) is a nonparametric and robust test for accessing the significance of trends in time series data, which has been widely used in hydrological and climatic research [60,61]. In this study, the M–K test was used to detect trends of TWSA and other hydro-climatic factors.

3. Results

3.1. Variations in TWSA from GRACE

3.1.1. Temporal Variations in TWSA from GRACE

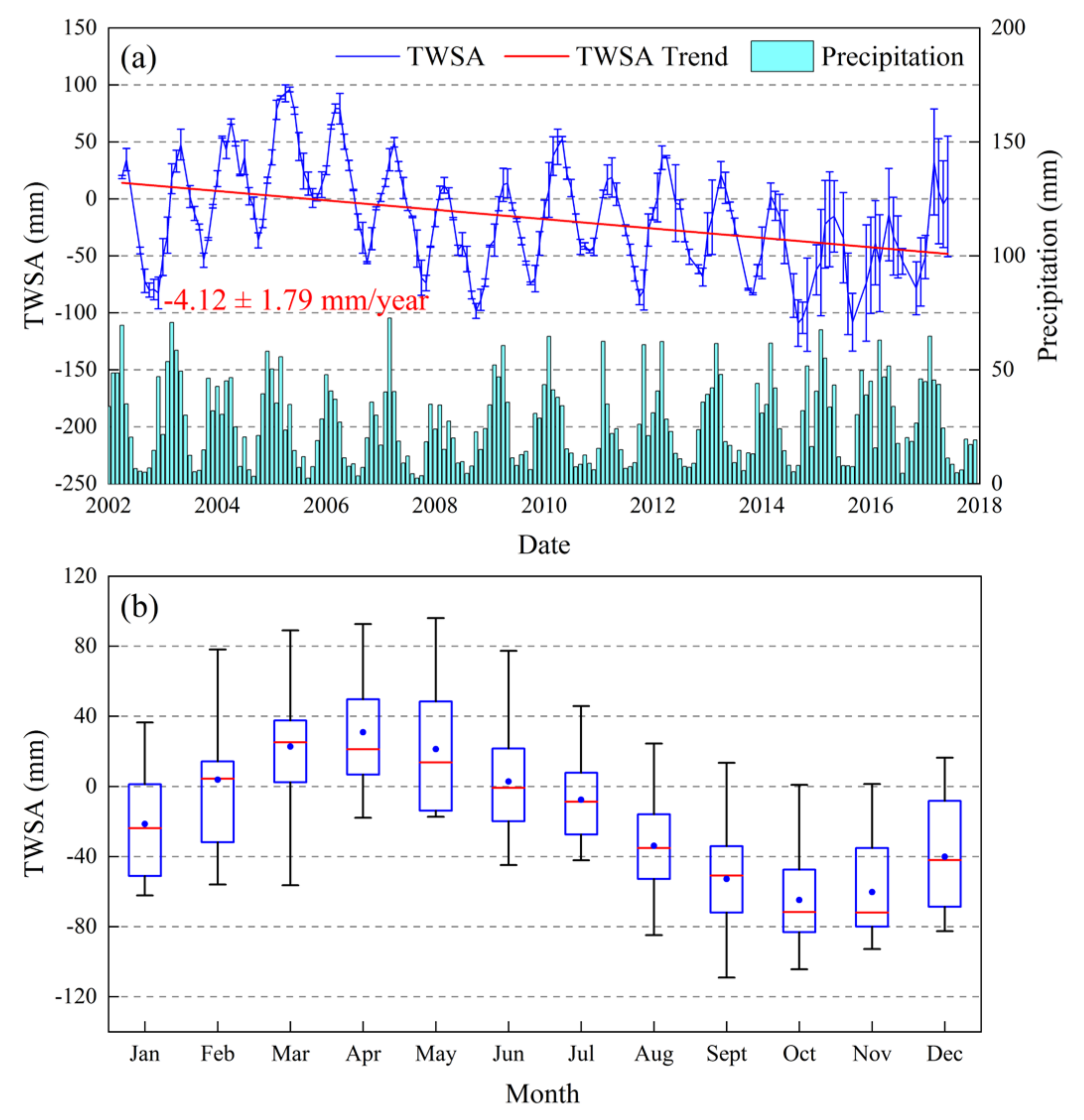

The monthly TWSA of the Aral Sea Basin retrieved by GRACE were averaged to obtain the temporal variations in TWSA during the period of April 2002 to June 2017, as shown in Figure 4a. TWSA of the Aral Sea Basin indicated a significant decreasing trend (p < 0.01) during the entire study period. The change rate of TWSA reached −4.12 ± 1.79 mm/year, equivalent to the water loss of 7.07 ± 3.07 km³/year. During the period of 2002–2005, TWSA exhibited a huge increase at a rate of 23.54 ± 0.53 mm/year (40.42 ± 0.91 km³/year), but it decreased continuously at a rate of 21.89 ± 0.36 mm/year (37.59 ± 0.61 km³/year) from 2006 to 2009, and then declined in fluctuation at a rate of 2.65 ± 4.78 mm/year (4.55 ± 8.20 km³/year) from 2010 to 2017. The maximum positive TWSA of 95.97 ± 2.07 mm appeared in May 2005, while the minimum negative TWSA of −109.10 ± 20.41 mm was observed in September 2014. The variation trend in TWSA of the Aral Sea Basin during the study period is similar to the results observed in previous studies on the Aral Sea Basin and the entirety of Central Asia (

Table 2. Comparisons of the variation trend in TWSA of the Aral Sea Basin with the results observed in previous studies.

Regions	Time Ranges	Trends		Sources
		mm/year	km3/year
Aral Sea Basin	2002–2016	–	−7.31 ± 1.68	Wang et al. [6]
Aral Sea Basin	2003–2017	–	−5.85 ± 2.25	Tao et al. [33]
Central Asia	2003–2014	−4.74	–	Hu et al. [34]
Central Asia	2003–2013	−4.44 ± 2.2	–	Deng and Chen [5]
Aral Sea Basin	2002–2017	−4.12 ± 1.79	−7.07 ± 3.07	This study

).

The year-to-year variations in monthly TWSA were also analyzed, as displayed in Figure 4b. TWSA of the Aral Sea Basin displayed dramatic seasonal variabilities, which mainly increased in spring (March–May) and decreased in other seasons, especially in autumn (September–November). The average TWSA of each month was positive from February to June, and negative from July to January, indicating that water storage of the Aral Sea Basin was surplus in the former period and deficit in the latter one. The maximum monthly average TWSA occurred in April (30.93 ± 13.59 mm) and the minimum appeared in October (−64.85 ± 6.27 mm).

3.1.2. Spatial Variations in TWSA from GRACE

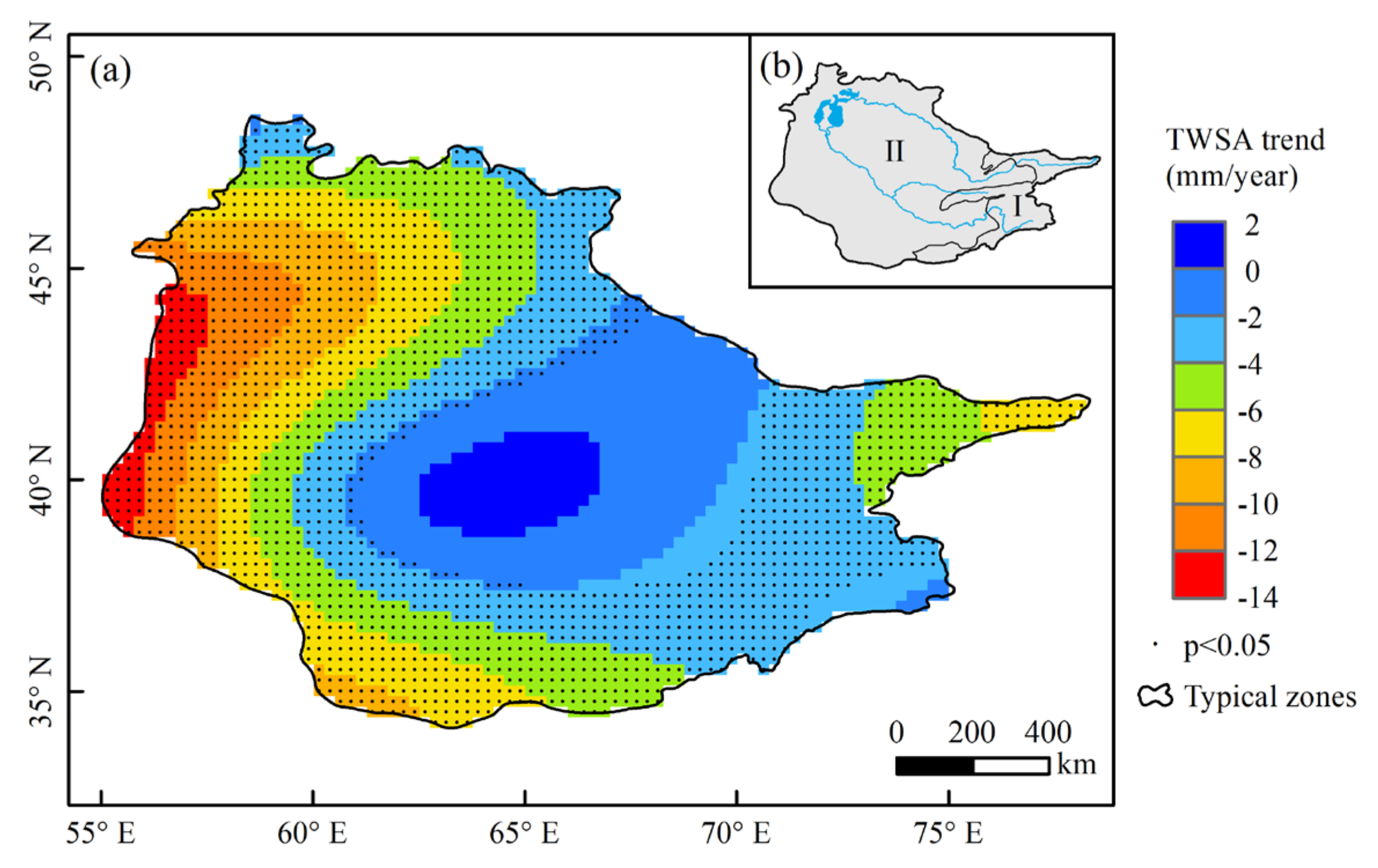

Figure 5a presents the spatial distribution of the TWSA trend in the Aral Sea Basin retrieved by GRACE during the period of April 2002 to June 2017. TWSA of the entire basin generally declined during the study period, with the spatial variation trend ranging from −12.98 to 0.66 mm/year. The variation trend in TWSA of the central Aral Sea Basin was relatively small and even exhibited a slight increase (p > 0.05). However, the significant water storage loss can be found in other areas of the basin (p < 0.05), with the largest loss in the northwest and the smallest in the southeast.

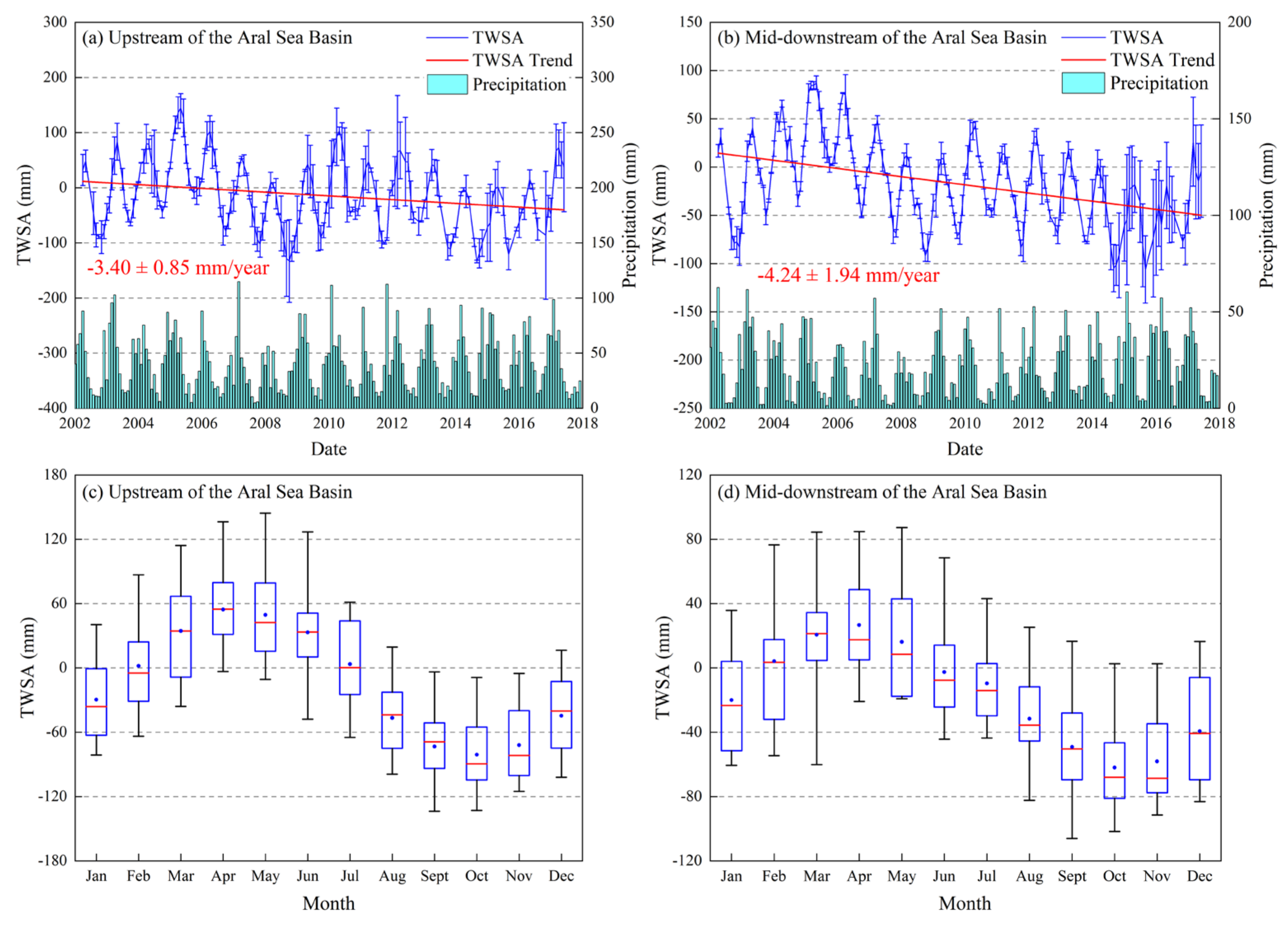

Considering that the majority of water in the Aral Sea Basin comes from cryosphere meltwater in the upstream mountains, and is consumed in the mid-downstream plains, the upstream and mid-downstream of the basin were divided according to the extent of the mountains (Figure 5b). TWSA of the two zones both indicated significant decreasing trends (p < 0.01) during the study period, with the much larger decreasing rate of 4.24 ± 1.94 mm/year in the mid-downstream and the smaller decreasing rate of 3.40 ± 0.85 mm/year in the upstream of the Aral Sea Basin (Figure 6a,b,

Table 3. Trends in TWSA of the Aral Sea Basin and the typical zones derived from GRACE.

Regions	Trends		p-Value
	mm/year	km3/year
Aral Sea Basin	−4.12 ± 1.79	−7.07 ± 3.07	0.000
Upstream of the Aral Sea Basin	−3.40 ± 0.85	−0.93 ± 0.23	0.002
Mid-downstream of the Aral Sea Basin	−4.24 ± 1.94	−6.12 ± 2.81	0.000

), and their seasonal variation patterns were basically consistent with those of the entire basin (Figure 6c,d). The reduction in TWS of the upstream mountains of the Aral Sea Basin was mainly due to the melting of glaciers and snow cover. Therefore, the increase in glacier meltwater and snow water equivalent might bring more water resources to the mid-downstream plains. However, TWS in the mid-downstream of the Aral Sea Basin exhibited a tremendous decrease, especially in the downstream zone, suggesting that a large amount of water in the mid-downstream plains was utilized by human activities.

3.2. Variations in TWSA from GLDAS

TWS calculated from GLDAS includes soil moisture, snow water equivalent, and plant canopy water, which account for about 98.37%, 1.62%, and 0.01% of the total GLDAS TWS in the Aral Sea Basin, respectively. The variations in TWSA and year-to-year variations in monthly TWSA of the Aral Sea Basin from GLDAS over the study period are presented in Figure 7, and trends in TWSA, soil moisture, snow water equivalent, and plant canopy water obtained from GLDAS are listed in

Table 4. Trends in TWSA, soil moisture, snow water equivalent, and plant canopy water of the Aral Sea Basin from GLDAS.

Variables	Trends		p-Value
	mm/year	km3/year
GLDAS TWSA	−0.81	−1.38	0.949
Soil moisture anomalies	0.39	0.68	0.956
Snow water equivalent anomalies	−1.19	−2.05	0.472
Plant canopy water anomalies	−0.01	−0.01	0.259

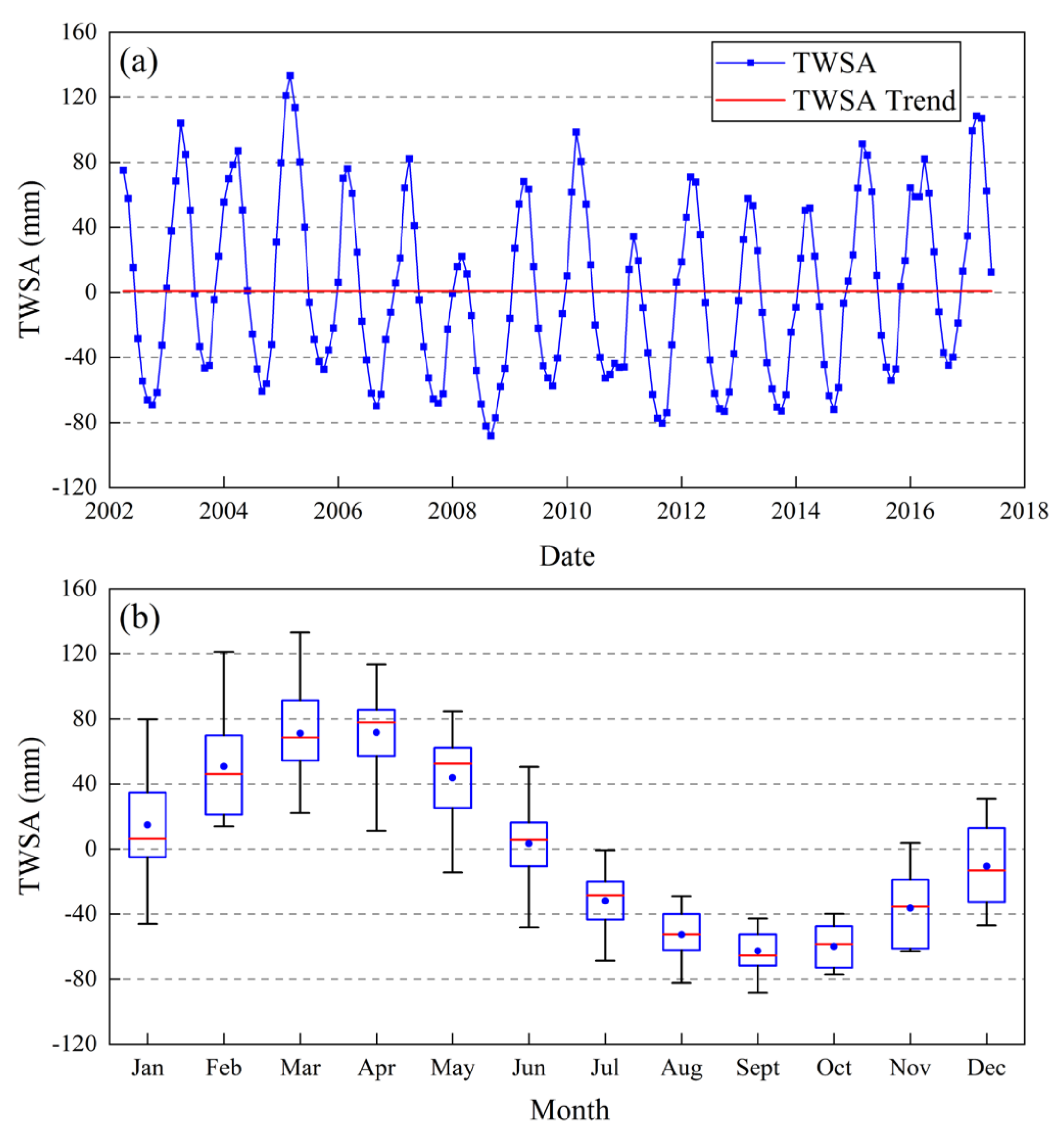

. The monthly GLDAS TWSA of the Aral Sea Basin ranged from −89 to 134 mm (Figure 7a), and the annual change rate of GLDAS TWSA was −0.81 mm/year (p > 0.05), equivalent to the water loss of 1.38 km³/year (Table 4). Among the components of GLDAS TWS, soil moisture anomalies increased slightly at a rate of 0.39 mm/year, snow water equivalent anomalies decreased at a rate of 1.19 mm/year, and plant canopy water anomalies remained basically unchanged (−0.01 mm/year) (Table 4). In addition, the average TWSA of each month obtained from GLDAS was positive from January to June and negative from July to December, and the maximum and minimum values were observed in April (71.79 mm) and September (−62.63 mm), respectively (Figure 7b).

3.3. Comparisons of TWSA from GRACE and GLDAS

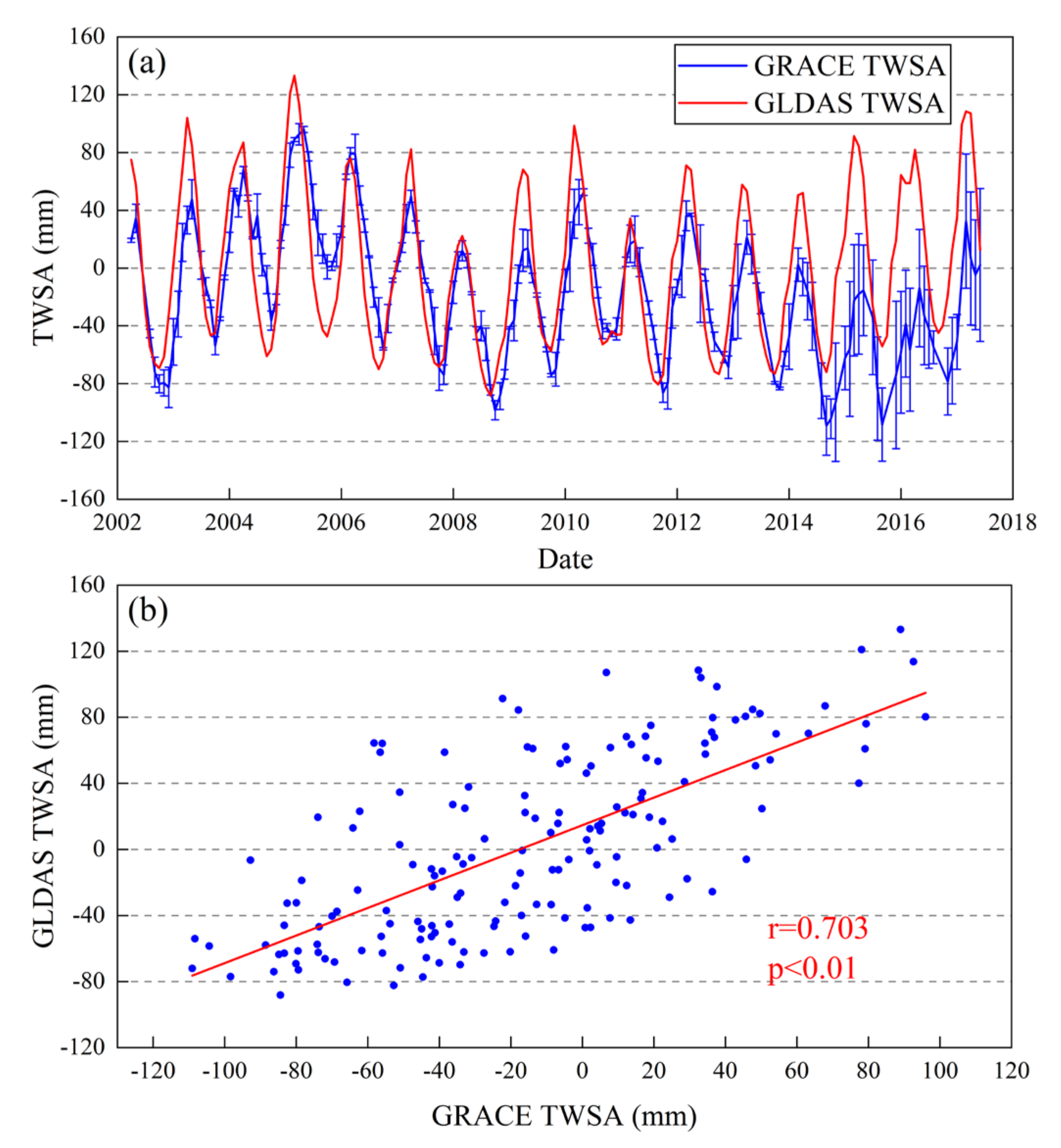

The comparison and correlation of TWSA in the Aral Sea Basin obtained from GRACE and GLDAS over the period of April 2002 to June 2017 are presented in Figure 8. GLDAS TWSA was significantly correlated to GRACE TWSA, with a high correlation coefficient of 0.703 (p < 0.01), though the extreme values of GLDAS TWSA in some particular years were larger than those of GRACE TWSA, particularly after 2014. Both GRACE TWSA and GLDAS TWSA showed declining trends over the study period, while the declining rate of GRACE TWSA (4.12 ± 1.79 mm/year) was much larger than that of GLDAS TWSA (0.81 mm/year). Since GLDAS TWSA only reflects the variations in three elements of GRACE TWSA, these findings suggest that the variations in soil moisture, snow water equivalent, and plant canopy water account for a small proportion (~19.66%) of total TWS variations, while the variations in surface water, groundwater and glacier mass balance account for a greater one (~80.34%).

4. Discussion

In this section, the impacts of human activities on total TWS variations in the Aral Sea Basin were systematically quantified from the perspectives of TWS components (e.g., surface water and groundwater) and water balance (e.g., P and ET).

4.1. TWS Components

The excessive water consumption associated with human activities is a major component of the total water consumption in the Aral Sea Basin [62]. Around 90% of the total human water withdrawal is from irrigation, which mainly depends on surface water, and only ~3–4% comes from groundwater [9,38]. Therefore, the variations in surface water and groundwater of the Aral Sea Basin were estimated to indicate the impacts of human activities on the variations in TWS.

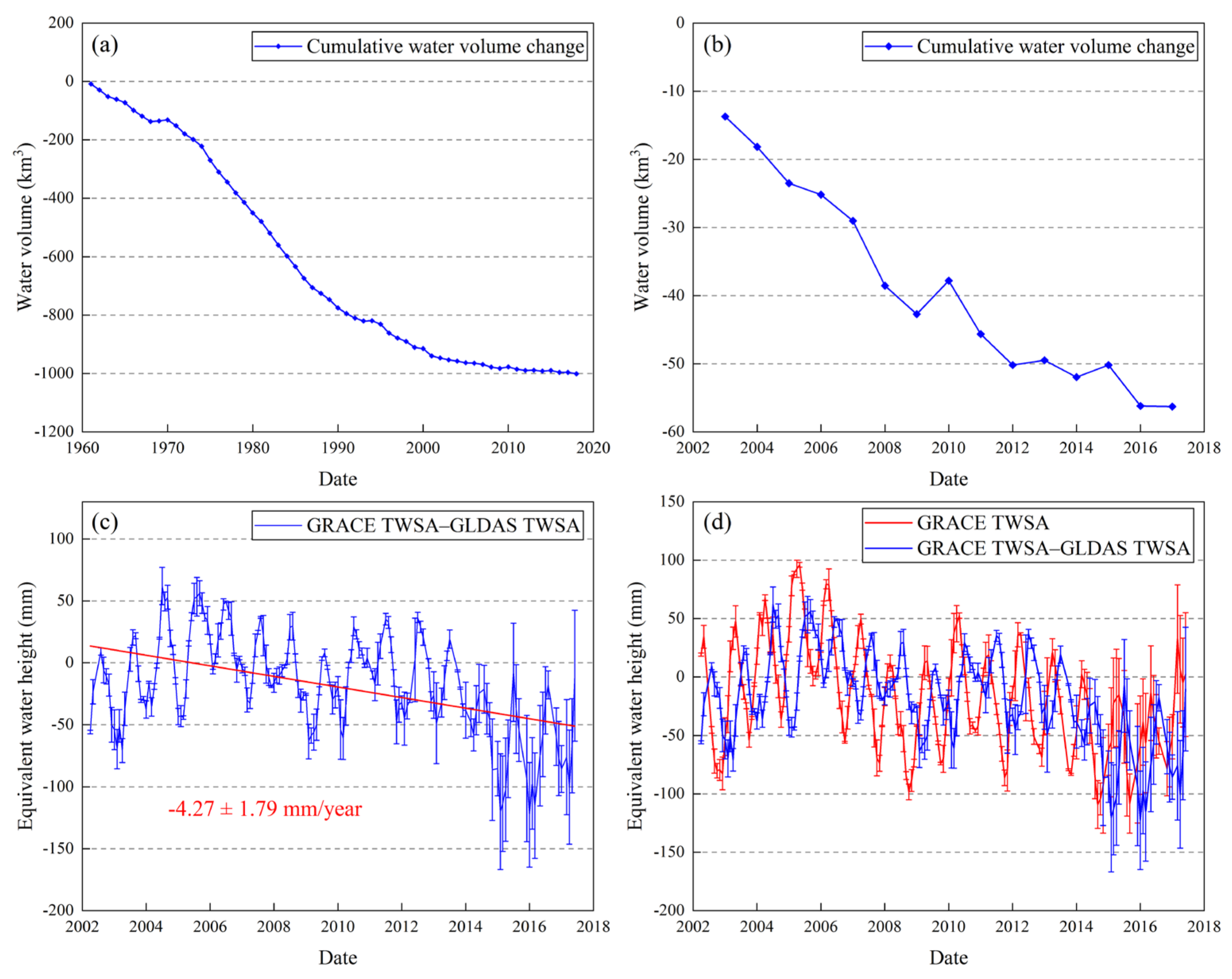

Based on water volume data of the Aral Sea obtained from CAWATER-info (http://www.cawater-info.net accessed on 1 October 2019) and previous study [14], the variations in water volume of the Aral Sea during the periods of 1960–2018 and 2002–2017 are presented in Figure 9a,b. Although the water volume of the Aral Sea exhibited a sharp decline during the past six decades, the declining rate has been relatively slow from 2002 to 2017 (3.75 km³/year). Given that the Aral Sea is the major component of surface water in the Aral Sea Basin, we roughly estimated the change rate of surface water in the basin using the variations in the water volume of the Aral Sea. Results indicated that surface water in the Aral Sea Basin decreased at a rate of 2.19 mm/year, accounting for ~53.16% of the declining rate of GRACE TWSA.

Glaciers in the Tien Shan and Pamirs have exhibited an overall retreat under long-term global warming [63,64]. The glacier area in the Aral Sea Basin reduced by approximately 500.85 ± 1174.72 km² and the total loss of glacier mass ranged from 9.17 ± 12.76 to 43.89 ± 2.11 km³ w.e. over the period of 2000–2016 [14]. Based on the glacier mass loss during 2000–2016, the annual glacier mass balance of the Aral Sea Basin during 2002–2017 was estimated to be −2.74 ± 0.13 to −0.57 ± 0.80 km³ w.e./year (−1.60 ± 0.08 to −0.33 ± 0.46 mm/year), accounting for about 8.10 ± 11.27 to 38.77 ± 1.86% of the change rate of GRACE TWSA.

According to the water storage equation, the variations in the sum of surface water, groundwater, and glacier mass balance were estimated by subtracting TWSA from GRACE and GLDAS (Figure 9c). GRACE TWSA–GLDAS TWSA of the Aral Sea Basin declined intensely at a rate of 4.27 ± 1.79 mm/year, equivalent to the water loss of 7.33 ± 3.07 km³/year. Since surface water and glaciers decreased at the rates of 2.19 mm/year and 0.33 ± 0.46 to 1.60 ± 0.08 mm/year, respectively, the change rate of groundwater could be roughly estimated to be −1.75 ± 2.25 to −0.48 ± 1.87 mm/year, accounting for about 11.65 ± 45.39 to 42.48 ± 54.61% of the change rate of GRACE TWSA.

Table 5. Trends in soil moisture, snow water equivalent, plant canopy water, glacier mass balance, surface water, and groundwater, and their contributions to GRACE TWSA during 2002–2017.

Variables	Trends		Contributions (%) to TWSA
	mm/year	km3/year
Soil moisture anomalies	0.39	0.68	−9.47%
Snow water equivalent anomalies	−1.19	−2.05	28.88%
Plant canopy water anomalies	−0.01	−0.01	0.24%
Glacier mass balance	−1.60 ± 0.08~−0.33 ± 0.46	−2.74 ± 0.13~−0.57 ± 0.80	8.10 ± 11.27~38.77 ± 1.86%
Surface water	−2.19	−3.75	53.16%
Groundwater	−1.75 ± 2.25~−0.48 ± 1.87	−3.01 ± 3.87~−0.84 ± 3.20	11.65 ± 45.39~42.48 ± 54.61%
GRACE TWSA	−4.12 ± 1.79	−7.07 ± 3.07	–

lists trends in all TWS components of the Aral Sea Basin as well as their contributions to GRACE TWSA. The reduction in TWS of the Aral Sea Basin was primarily caused by surface water loss, followed by groundwater depletion. Other TWS components which are more affected by climate factors contributed less to TWS variations, further confirming the dominant role of human activities on TWS depletion of the Aral Sea Basin.

4.2. Water Balance

According to the water balance equation, TWS variations in endorheic basins are mainly influenced by P and ET. Human activities such as agricultural irrigation, reservoir construction, and groundwater pumping directly affect TWS through changing water loss by ET to the atmosphere [30,65]. For example, the water diversion and irrigation schemes in the Aral Sea Basin considerably increased ET, thereby reducing net water flux (P − ET) from the atmosphere to the land surface [66,67]. To quantify the water loss caused by human activities, ET and P − ET obtained from GLDAS (i.e., ET_GLDAS and P − ET_GLDAS) were compared with ET and TWS from GRACE (i.e., ET_GRACE and GRACE TWSA), the former reflecting changes under natural climate conditions and the latter representing the total changes.

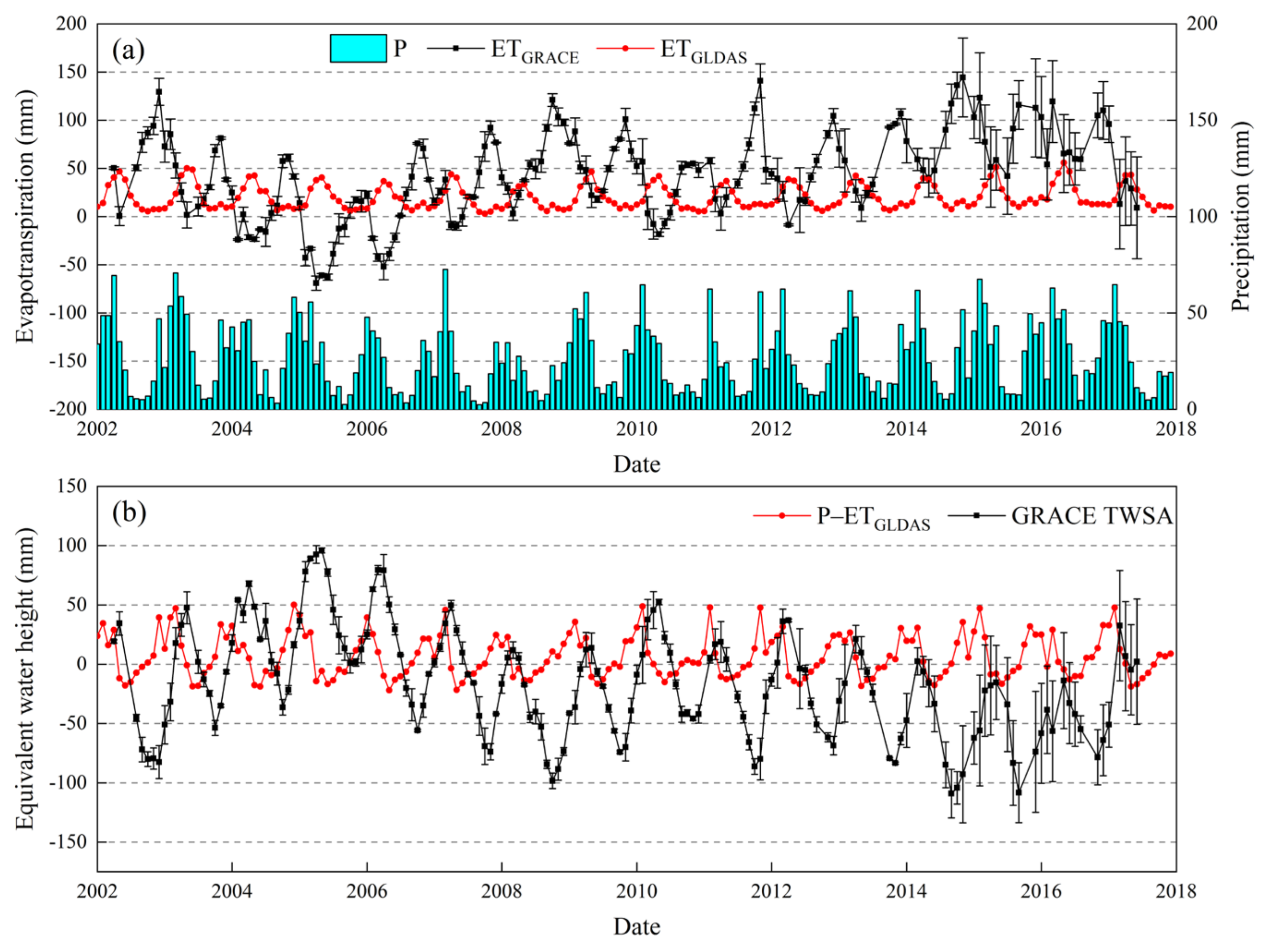

Figure 10 illustrates the variations in P, ET_GRACE, ET_GLDAS, and P − ET_GLDAS of the Aral Sea Basin over the period of 2002–2017, and their trends are listed in

Table 6. Trends in P, ET_GRACE, ET_GLDAS, P − ET_GLDAS, and GRACE TWSA of the Aral Sea Basin during the period of 2002–2017.

Variables	Trends		p-Value
	mm/year	km3/year
P	1.36	2.34	0.627
ETGRACE	4.37 ± 1.79	7.50 ± 3.07	0.000
ETGLDAS	2.38	4.09	0.137
P − ETGLDAS	−1.02	−1.75	0.505
GRACE TWSA	−4.12 ± 1.79	−7.07 ± 3.07	0.000

. P and ET_GRACE both exhibited increases at the rates of 1.36 mm/year (p > 0.01) and 4.37 ± 1.79 mm/year (p < 0.01), respectively (Figure 10a), indicating that ET was the dominant cause for the reduction in TWS of the Aral Sea Basin. ET_GLDAS increased at a rate of 2.38 mm/year (p > 0.01), which accounts for ~54.46% of the increasing trend in ET_GRACE, suggesting that ET induced by human activities might account for ~45.54% of the increasing trend in total ET of the Aral Sea Basin. Moreover, the decreasing rate of P − ET_GLDAS (1.02 mm/year) accounts for ~24.76% of that of GRACE TWSA (Figure 10b), further suggesting that the drastic reduction in TWS of the Aral Sea Basin was more affected by human activities (~75.24%).

In summary, human activities have a profound impact on the variations in TWS of the Aral Sea Basin. TWS depletion caused by human activities contributed ~75.24% to total TWS loss of the Aral Sea Basin, which was much larger than that induced by natural climate factors. Water scarcity driven by human activities has brought great challenges to the sustainable development of economies and eco-environments in this region. It is imperative to optimize water resource management, particularly the rational utilization and protection of surface water. Otherwise, in the context of global warming, the water crisis in the Aral Sea Basin will intensify when the cryosphere meltwater weakens.

5. Conclusions

In this study, the temporal and spatial variations in TWS of the Aral Sea Basin during the period of April 2002 to June 2017 were investigated by using GRACE data and GLDAS Noah model outputs. The impacts of human activities on TWS variations were further quantified through the variations in TWS components and the comparison of TWS obtained from GRACE and GLDAS.

The results indicate that TWSA of the Aral Sea Basin derived from GRACE experienced a significant decreasing trend of 4.12 ± 1.79 mm/year from April 2002 to June 2017, equivalent to the water loss of 7.07 ± 3.07 km³/year. GRACE TWSA of the Aral Sea Basin displayed dramatic seasonal variabilities, which mainly increased in spring (March–May). The spatial heterogeneity was also observed in TWSA of the entire Aral Sea Basin: the decreasing trend in the mid-downstream (4.24 ± 1.94 mm/year) was larger than that in the upstream of the basin (3.40 ± 0.85 mm/year). GLDAS TWSA decreased at a rate of 0.81 mm/year (1.38 km³/year), which was less than that of GRACE TWSA.

The variation trends of individual TWS components indicate that the reduction in TWS of the Aral Sea Basin was primarily due to surface water loss, followed by groundwater depletion, which account for about 53.16% and 11.65 ± 45.39 to 42.48 ± 54.61% of the total loss of TWS, respectively. From the perspective of water balance, ET played a dominant role in TWS depletion of the Aral Sea Basin. The variations in ET and TWS caused by human activities contributed ~45.54% and ~75.24% to those in total ET and TWS of the Aral Sea Basin, respectively. To alleviate the water crisis in this region, it is imperative to optimize water resource management, particularly the rational utilization and protection of surface water.
