Type III Radio Bursts Observations on 20th August 2017 and 9th September 2017 with LOFAR Bałdy Telescope

Abstract

We present the observations of two type III solar radio events performed with LOFAR (LOw-Frequency ARray) station in Bałdy (PL612), Poland in single mode. The first event occurred on 20th August 2017 and the second one on 9th September 2017. Solar dynamic spectra were recorded in the 10 MHz up to 90 MHz frequency band. Together with the wide frequency bandwidth LOFAR telescope (with single station used) provides also high frequency and high sensitivity observations. Additionally to LOFAR observations, the data recorded by instruments on boards of the Interface Region Imaging Spectrograph (IRIS) and Solar Dynamics Observatory (SDO) in the UV spectral range complement observations in the radio field. Unfortunately, only the radio event from 9th September 2017 was observed by both satellites. Our study shows that the LOFAR single station observations, in combination with observations at other wavelengths can be very useful for better understanding of the environment in which the type III radio events occur.

1. Introduction

The type III bursts [1] belong to the most frequently observed radio events in the outer layer of the Sun’s atmosphere—the corona. They are observed over a broad frequency range, from 10 kHz up to 1 GHz. Type III bursts appear in groups of numerous bursts, with total duration from few minutes up to a whole day or even longer, in case of a storm [2]. In dynamic spectra the type III bursts look like fast drifting, almost perpendicular structures. The small inclination indicates the direction of fast moving electron beams accelerated in the corona, which are responsible for the generation of type III bursts due to plasma emission mechanism [3]. The relationship between the drift rate $D_f$ measured at the frequency f and the radial source velocity $V_r$ is given by:

$$D_f=\frac{f}{2}\frac{1}{N}\frac{dN}{dr}{V}_r$$

(1)

where N is the number density [4]. For type III bursts drift rates correspond to the electron beams velocity ranging typically between $0.1c$ and $0.6c$ [2] (where c is the speed of light). Drift rates decrease is directly proportional to the frequency and in the meter range are about several hundred MHz/s (see e.g., [5]). The duration of individual bursts varies inversely as a function of frequency. Time profiles of the type III bursts radio flux show rapid rise and slow decay. Additionally, decay seems to have an exponential distribution [6].

One of the characteristic features of a type III solar radio bursts is high drift rate, measured in MHz/s (see

Table 1. Drift rates for type III solar radio bursts.

Drift (${\mathit{D}}_{\mathit{f}}$)	Frequency Range	Reference
$[\mathbf{MHz}/\mathbf{s}]$	$\left[\mathbf{MHz}\right]$
$-0.01f^{1.84}$	0.075–550	[8]
$-0.007354f^{1.76}$	0.04–85	[4]
$-0.0672f^{1.23}$	10–80	[7]

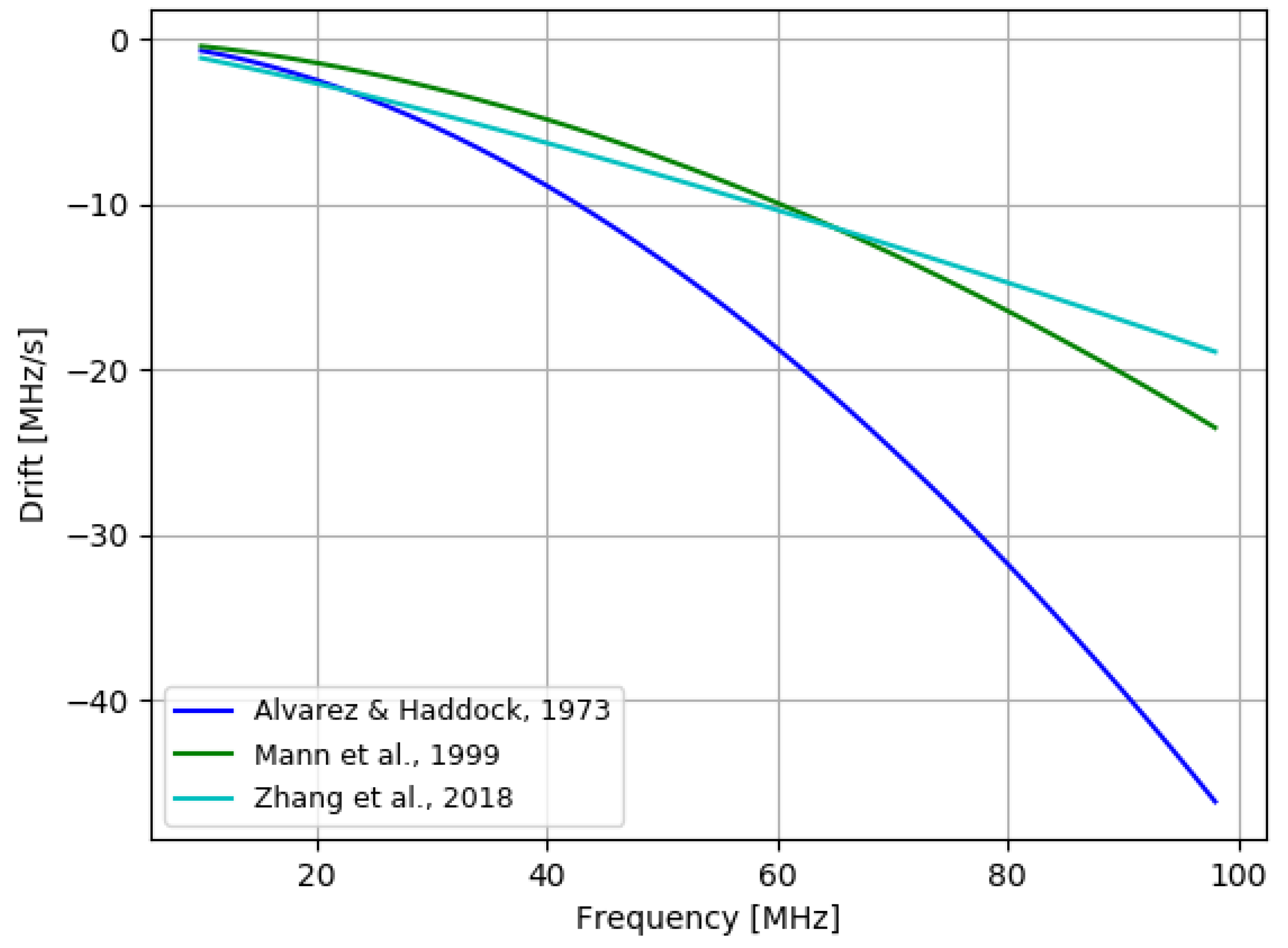

). In the Figure 1 we present drift rates as a function of frequency presented in publications listed in the Table 1. The drift rate was limited up to 10–90 MHz frequency band, which corresponds to the frequency range of our research. The drift rates as a function of frequency obtained by [4,7] are similar, while the ones presented in [8] are somewhat different.

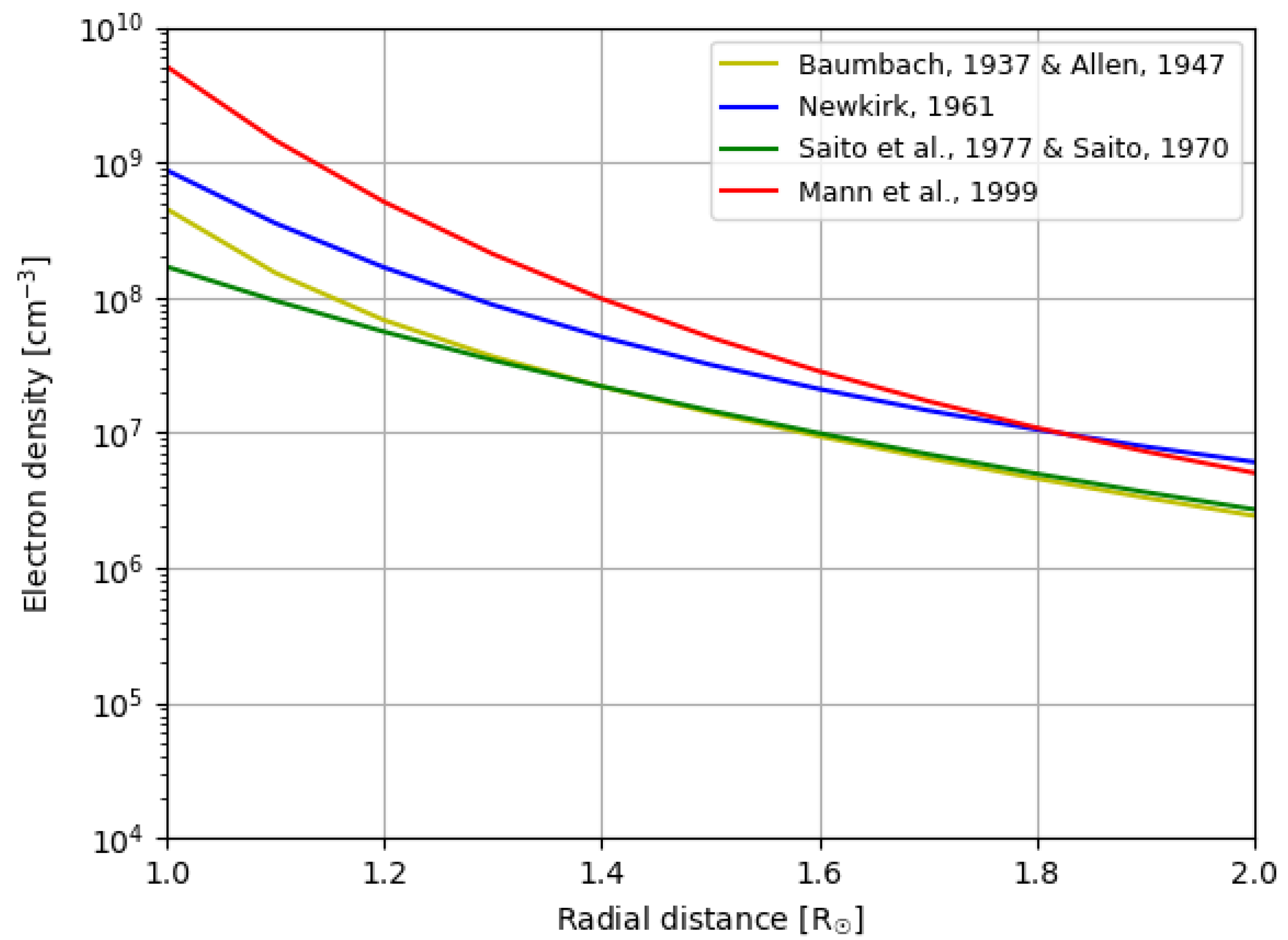

For the proper velocity estimation of the electrons beams responsible for the type III solar radio bursts generation, besides the drift rate, knowledge about the electron density in the solar corona is also required. Several models of electron density in the solar corona, like for example [4,9,10,11,12,13], are currently in use. Four of them were presented in the Figure 2. In this study, the radial velocity have been computed employing the two most commonly used electron density models proposed by [4,11].

In the Mann et al. coronal density model [4] (hereafter called Mann et al. model) the radial velocity $V_r$ is computed with the following formula:

$$V_r=\frac{(-D_f)}{f}·v_0·{\left[1+0.145ln\left(\frac{f}{n{f}_s}\right)\right]}^{-2}$$

(2)

where $v_0=100,620$ km/s, f is the frequency, $f_s=644$ MHz, $n=1$ (for the fundamental emission, $n=2$ would correspond to harmonic emission, but here we assume fundamental emission) and $D_f$ is the drift rate. In the Newkirk coronal density model [11] (hereafter called Newkirk model) the radial velocity $V_r$ is expressed as:

$$V_r=\frac{2D_f}{f}{\left(\frac{d}{dr}ln\left(N\right)\right)}^{-1}$$

(3)

where:

$${\left(\frac{d}{dr}ln\left(N\right)\right)}^{-1}=\frac{-r^2}{4.32·ln\left(10\right)}$$

(4)

where N is the number density, $D_f$ is the drift rate, f is the frequency and r is a distance from the center of the Sun in solar radius units [14]. For estimation of the type III radio burst parameters we assume they are emitted at the fundamental plasma frequency.

The main objectives of our work was: (1) to determine the parameters of type III events, such as drift velocity, (2) to estimate the velocity of electrons responsible for the formation of such type of events and (3) to compare them with the results obtained by other authors. Furthermore, the additional goal was to add more detail to already established knowledge on type III radio bursts. For this task LOFAR telescope is extremely useful. This instrument is very sensitive with high frequency resolution that observes a broad bandwidth of very low radio frequencies (10–90 MHz). Such combination of parameters is extremely rare, hence the direct comparison of the results with other radio data sources is not always possible. For this purpose we used observations from a single LOFAR station in Bałdy (Poland). For better understanding of the conditions under which type III events are generated, we also used the data obtained by the IRIS and SDO satellites.

2. Instruments

In this work we use the data from LOFAR, the LOw-Frequency ARray telescope (radio range), IRIS (ultraviolet range) and from SDO (ultraviolet range).

2.1. LOFAR Telescope

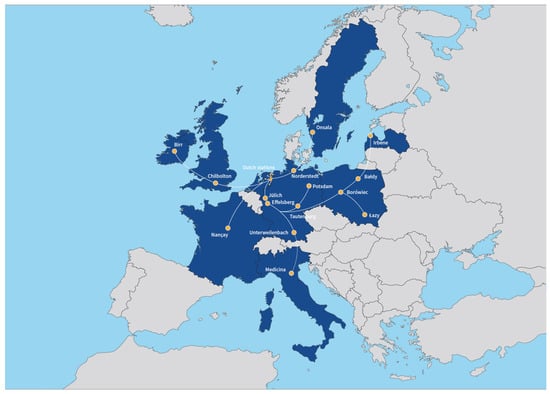

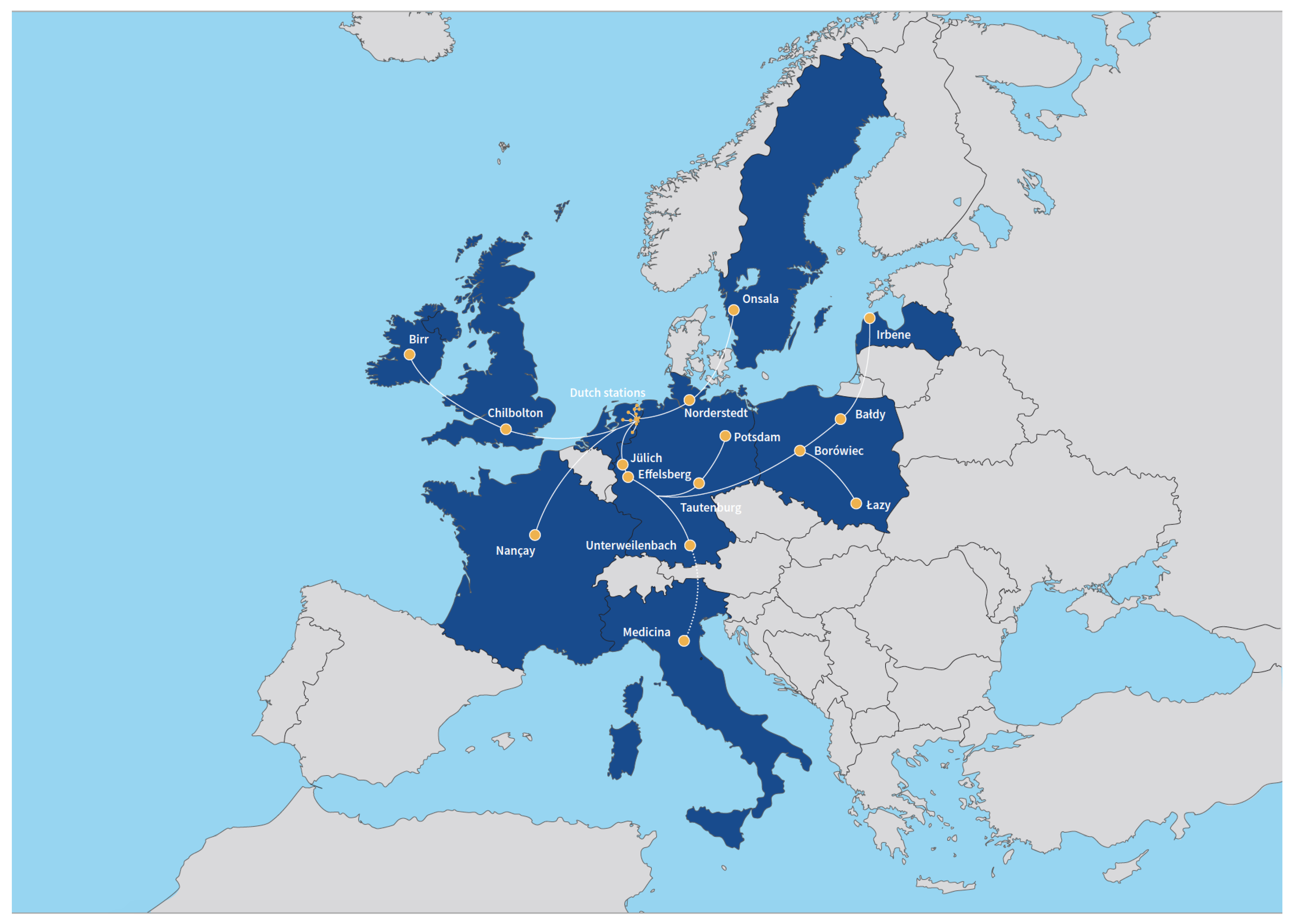

LOFAR is a large radio interferometer working in a broad frequency range 10–240 MHz. LOFAR consists of over 50 stations, which are spread all over Europe (Figure 3). The LOFAR “core” consists of 24 stations located near Exloo, The Netherlands. Six of these stations are placed on an artificial island with diameter of about 350 m called “Superterp”. 14 so called “remote” stations are located at a distance of up to 90 km from the core. In addition, LOFAR is extended with 14 “international” stations in Germany (6 stations), Poland (3 stations), and one station each in France, Sweden, United Kingdom, Ireland and Latvia. The largest baselines are of the order of 2000 kilometres, resulting in the 0.1 arc second resolution imaging in the 110–240 MHz range. The LOFAR stations are connected by a high speed network. The data centres are located in Amsterdam, Jülich and Poznan. The correlator is located in Groningen (The Netherlands). A single station of the LOFAR telescope consists of few thousands of dipole antennas connected together. They are grouped in two fields (1) Low Band Antennas (LBA) operating in the frequency range of 10–90 MHz and (2) High Band Antennas (HBA) operating in the range of 110–240 MHz. Each station type: international, core or remote, has a different configuration and number of LBA and HBA antennas [15,16].

Each international LOFAR station can operate as an individual instrument, which can be used, for example, for spectroscopic solar observations. Ref. [17,18] have described a methodology of simultaneous observations with both LBA and HBA, covering the entire frequency range of the LOFAR telescope, which we have used in this work. A part of data is recorded at the Bałdy station Local Computing Unit, while the main string is recorded at the University of Warmia and Mazury in Olsztyn data center.

Spectroscopic solar observation with the use of the Bałdy LOFAR station (Poland) in a local mode, started from February 2017 [19]. Since then, observations are performed regularly, usually one or two days per week—the station runs also other observations programs, especially in the ILT (International LOFAR Telescope) mode. The temporal and frequency resolutions of observations presented here are 1 s and 0.39 MHz, respectively. The LOFAR single station has unique capabilities which are the (1) high frequency resolution, (2) high sensitivity, and (3) wide frequency bandwidth.

2.2. IRIS

The Interface Region Imaging Spectrograph (IRIS), launched on 27th June 2013, is a Small Explorer mission (SMEX) realized by NASA. It observed the Sun in the ultraviolet spectral range and performed images and spectra simultaneously. The main aim of IRIS observations is to answer the questions about the structure, dynamics and processes in the solar atmosphere, like type of non-thermal energy in the chromosphere and in the upper layers, mechanism of coronal heating, acceleration of the solar wind, role of magnetic flux emergence in the solar flares and coronal mass ejections (CMEs). The IRIS is a perfect tool to study the solar atmosphere from the level of photosphere, across chromosphere, transition region up to the corona because of its high spatial (0.33–0.4 arcsec), temporal (1 s) and spectral resolution (1 km/s). These observations correspond to the range of temperatures from $5\times {10}^3$ to ${10}^7$ K. The IRIS telescope is constructed in the Cassegrain system. The diameter of the primary mirror is equal to 19 cm and effective focal length is approximately 7 m. The solar atmosphere is observed by the IRIS cameras in four bands: C II 1330 Å, Si IV 1400 Å (both explore the transition region), Mg II k 2796 Å (chromosphere) and 2832 Å containing the wing of Mg II line (photosphere). Passbands of the Slit-Jaw Images (SJI) cover a field-of-view (FOV) up to $175\times 175$ arcsec. On board of IRIS, the Czerny-Turner spectrograph with a slit of 0.33 arcsec in width and 175 arcsec in length is mounted. The spectrograph of IRIS covers two FUV ranges, FUVS (1331.6–1358.4 Å) and FUVL (1390.0–1406.8 Å) and one NUV range (2782.6–2833.9 Å). The strongest lines observed in these spectral ranges are Mg II h and k and C II (both are optically thick), and Si IV (optically thin lines). Other optically thin lines, like O I, Cl I, O IV, S IV, Fe XII and Fe XXI, are also observed. The detailed description the IRIS mission can be found in [20].

2.3. SDO

The Solar Dynamics Observatory (SDO) launched on 11th February 2010, is NASA’s mission under the Living With a Star (LWS) program [21]. The telescopes on board SDO observe the solar activity and its influence on Earth and near Earth space. The mission consists of three experiments: Atmospheric Imaging Assembly (AIA), Extreme Ultraviolet Variability Experiment (EVE), and Helioseismic and Magnetic Imager (HMI). AIA contains four telescopes, each one has 20 cm diameter and effective focal length of 4.125 m. They image the solar atmosphere in seven Extreme Ultraviolet (EUV) channels: 94, 131, 171, 193, 211, 304, 335 Å, which covers the temperature range from $6\times {10}^4$ to $2\times {10}^7$ K, and in 1600, 1700 and 4500 Å [22]. EVE measures the Sun’s EUV irradiance in range of wavelengths from 0.1 to 105 nm [23]. HMI studies the magneitic field (Doppler shift, intensity and vector of the field) of the solar surface and observed the Sun at 6173 Å [24].

3. Observations

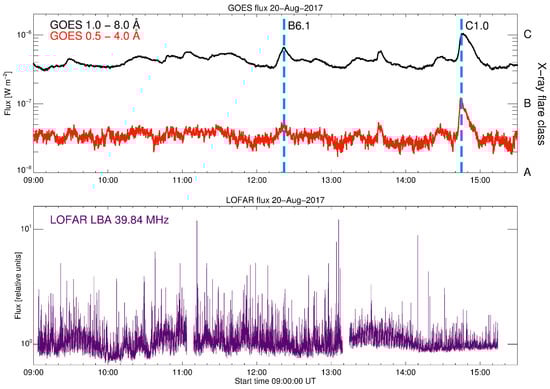

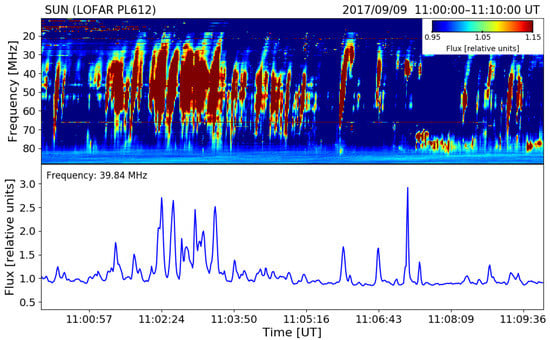

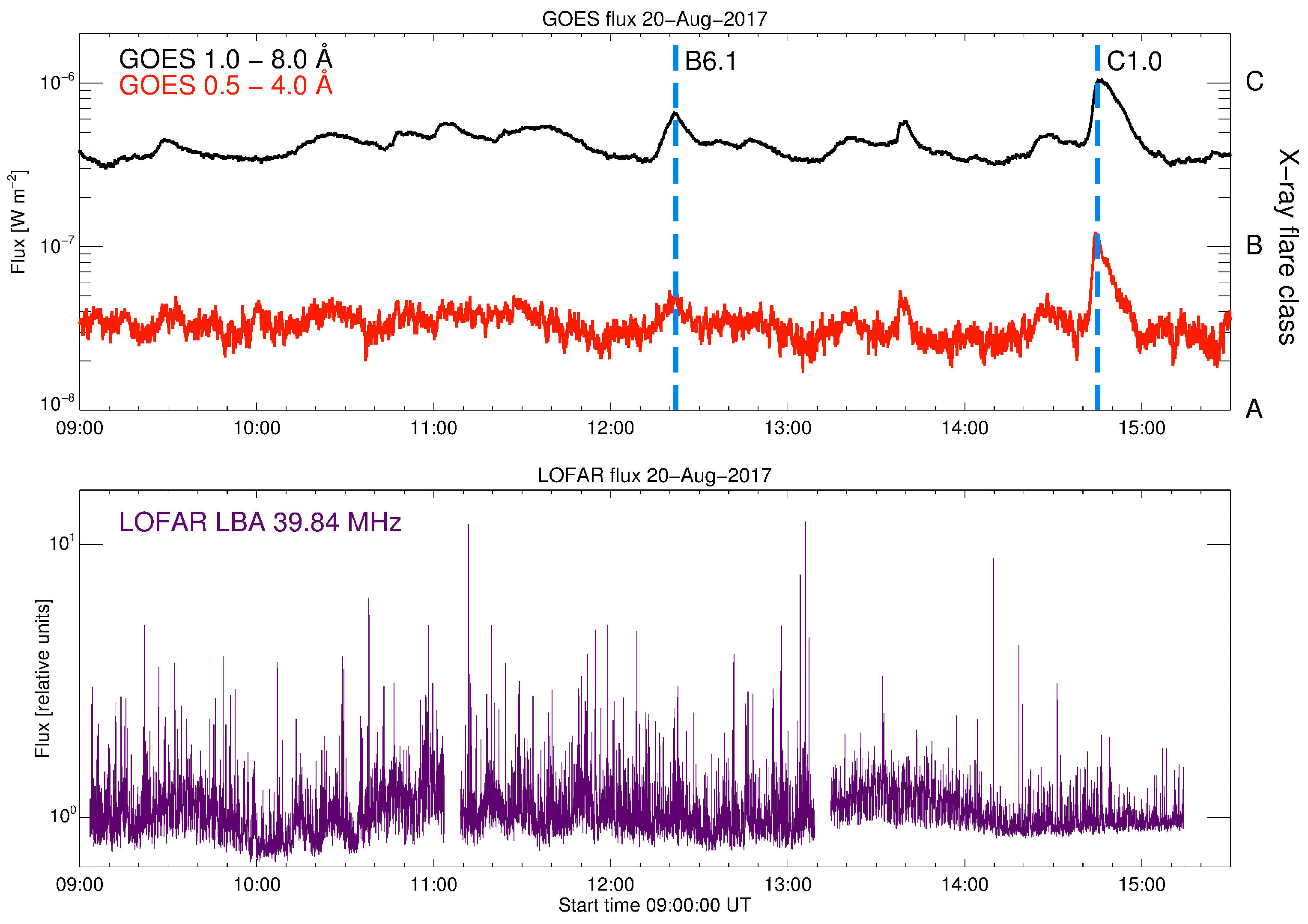

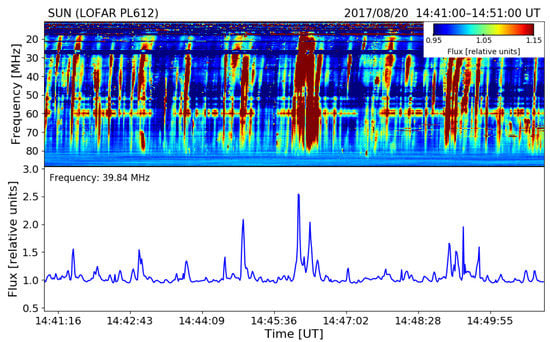

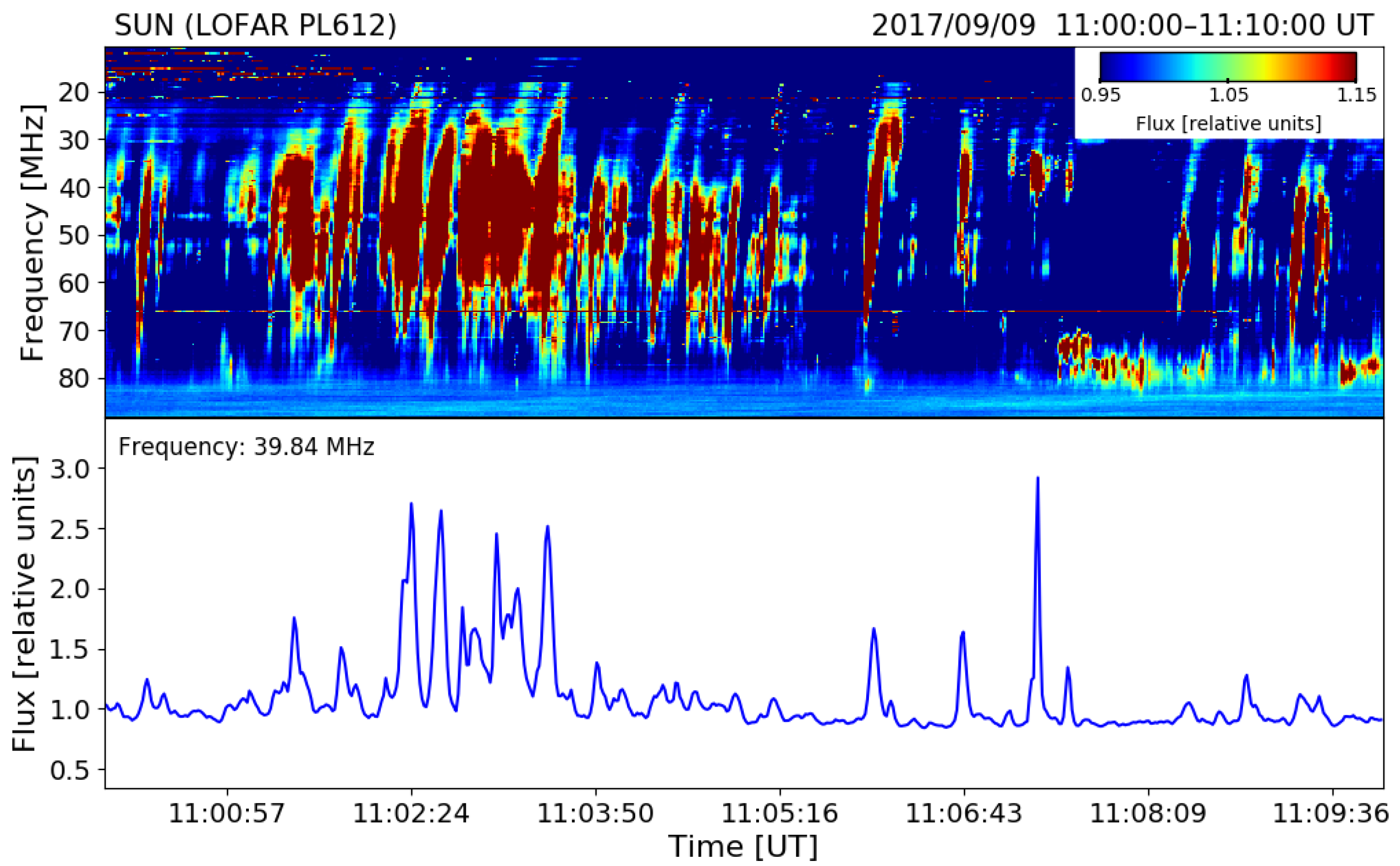

For our analyzis, we chose two type III solar radio events observed in the frequency range of 10–90 MHz. The first one occurred on 20th August 2017 (shown in the Figure 4 and Figure 5) and the second one on 9th September 2017 (shown in the Figure 6 and Figure 7). In both cases, we were unable to observe the beginning or ending of the event, because the Sun was already too low over the horizon or the observation program for Bałdy station was set to observations of another radio source. On bottom panels of Figure 4 and Figure 6 radio flux from LOFAR at 39.84 MHz frequency has been selected as it roughly corresponds to the middle of our frequency band. However, we note that the events on 20th August 2017 and 9th September 2017 were also embedded in the type III storms lasting for several days, related with the activity from active regions NOAA 12671 and NOAA 12673, respectively. The type III event on 20th August 2017 was observed between 09:03:32 UT and 15:14:36 UT and the event on 9th September 2017 was observed between 10:03:32 UT and 14:09:08 UT. During the event on 20th August 2017 the GOES satellite registered two flares. The first one is B6.1 flare which originated from the NOAA 12671 active region. The flare started at 12:16 UT, reached the maximum at 12:21 UT and ended at 12:26 UT (Figure 5, upper panel). The second one C1.0 flare originated from the NOAA 12672 active region. The flare started at 14:40 UT, reached the maximum at 14:45 UT and ended at 14:52 UT (Figure 5, upper panel). The solar flares were localized in two different AR’s. One of the flare appeared close to the centre of the solar disk, and the second one were observed on the east solar limb. Due to the lack of an interferometric Sun image, it was impossible to identify the radio sources. During the event on 9th September 2017 the GOES satellite registered the M3.7 flare which originated from the NOAA 12673 active region located close to the solar limb at coordinates (187”S 883”W). The flare started at 10:50 UT, reached the maximum at 11:04 UT and ended at 11:42 UT (Figure 7, upper panel). The main details regarding both events are summarized in the

Table 2. Type III radio events and corresponding GOES flares.

Type III Events	Flare Class	Time (Start-Max-End)	NOAA	Location
2017-08-20	B6.1	12:16-12:21-12:26 UT	12671	34″N 144″W
09:03:32–15:14:36 UT	C1.0	14:40-14:45-14:52 UT	12672	75″N 945″E
2017-09-09 10:03:32–14:09:08 UT	M3.7	10:50-11:04-11:42 UT	12673	187″S 883″W

.

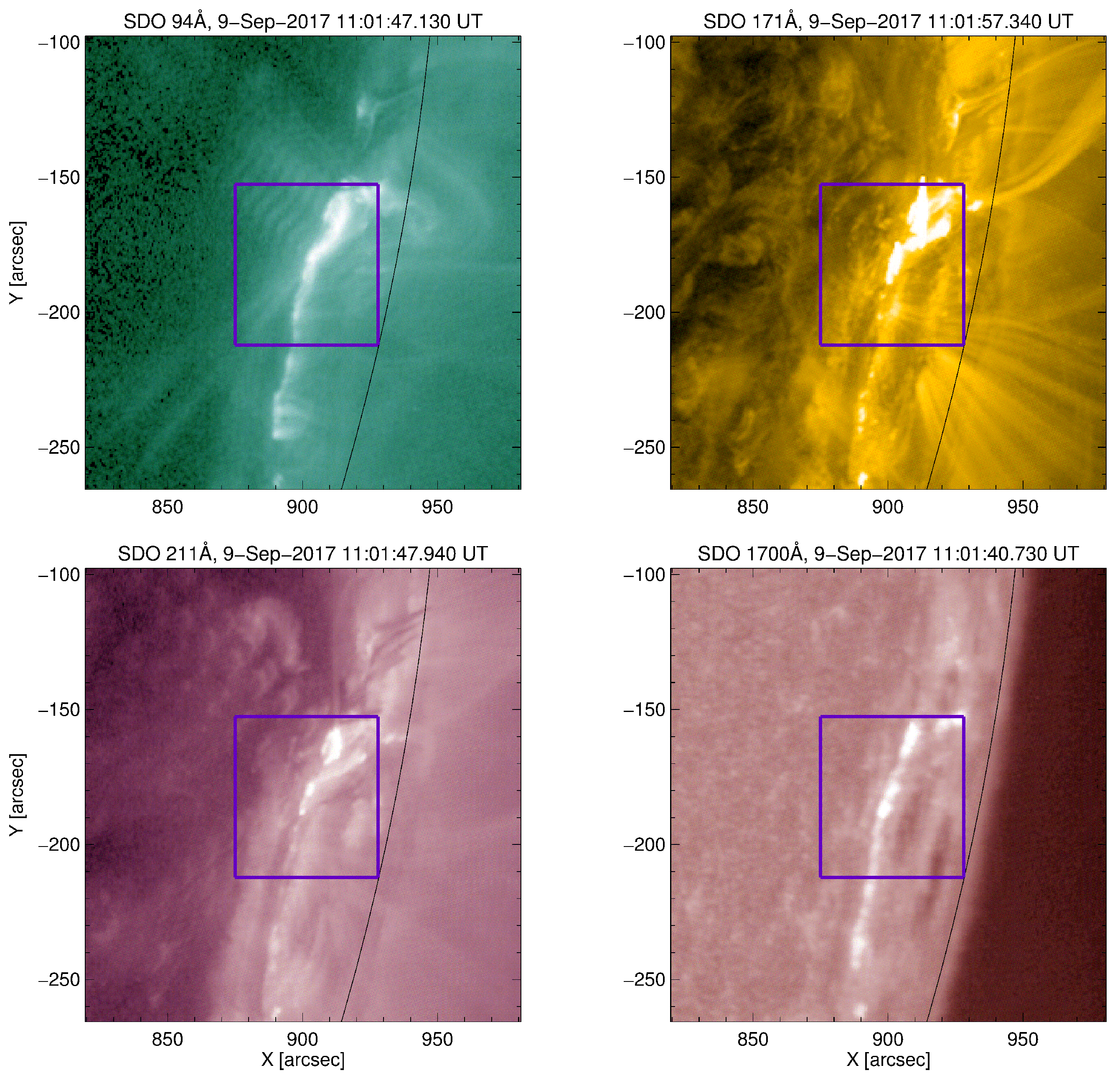

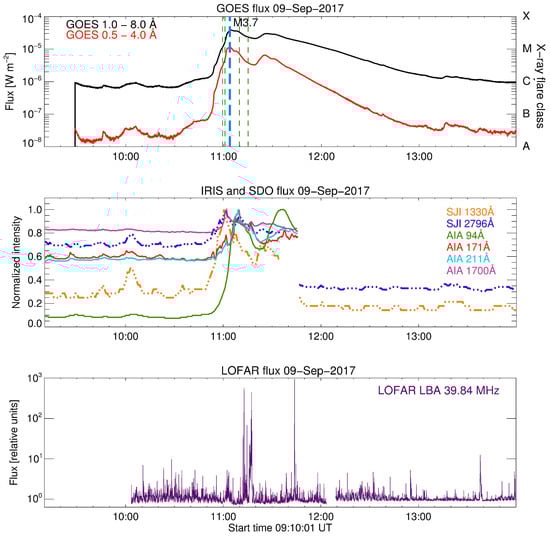

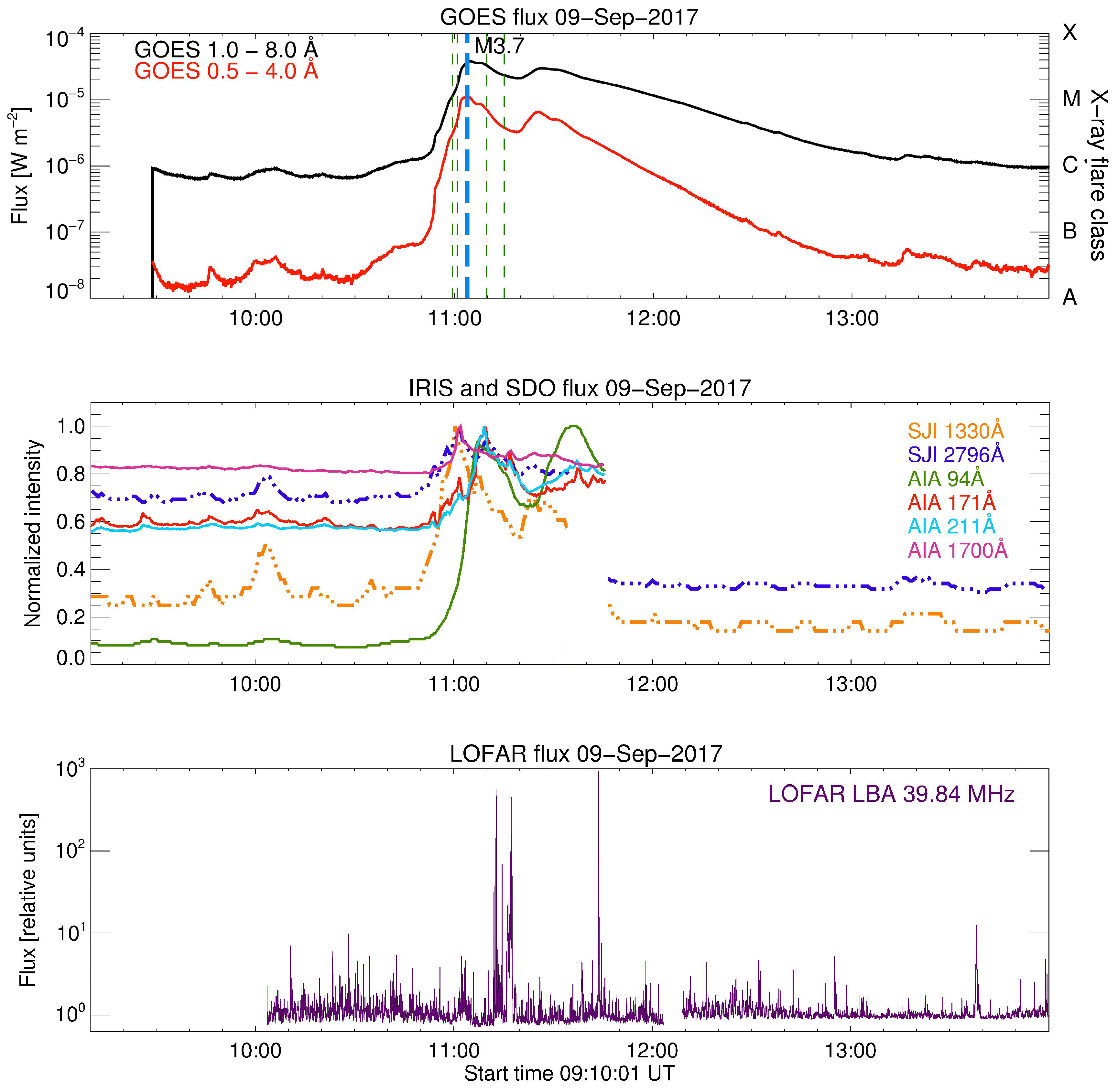

One of the three GOES solar flares which appeared during studied radio events was also registered by the IRIS and SDO satellites. It was an M3.7 GOES class solar flare registered on 9th September 2017 (Figure 7, second panel). One can see two peaks, the first one at 11:04 UT and the second one at 11:23 UT. The second peak appeared in the same active region, but it was not fully visible in the FOV of the SJIs. After these two peaks we observed gradual phase of the solar flare lasting over 2 hours. IRIS performed the observations from 5:20 to 11:36 UT and it contains the impulsive, maximum phase and part of the gradual phase of the flare. The observations contain SJIs in three passbands with a FOV $61\times 68$ arcsec—C II 1330 Å (transition region), Mg II k 2796 Å (chromosphere) and wing of the Mg II line centered at 2832 Å (photosphere). IRIS recorded 800 SJIs with a 28 s cadence in every passband (examples are showed on the Figure 8): 1330 Å—upper panel, 2796 Å—middle panel, 2832 Å—lower panel. In our research we used IRIS level 2 data, which are corrected for i.a. dark current, flat-field, geometric distortion and scattered light [25]. In the upper panel of Figure 7 we marked also moments, for which SDO/AIA maps were obtained (green vertical dotted lines). In the Figure 8 we can see the active region just before the flare triggered at 10:59 UT in the images at 1330 Å and 2796 Å. Some small brightenings in one of the sunspots in the photospheric filter are clearly visible. The flare ribbon was well visible in the IRIS maps at around 11:01 UT in the impulsive phase. After the flare onset, at 11:10 UT and 11:15 UT, the small flare loops system also appeared. There are no visible structures at 2832 Å in the photosphere layer. The characteristic feature of the SJIs is also worth mentioning. The bright vertical line in the middle of the transition region maps and the same line, but dark visible in the other maps (Figure 8), is a shadow of the slit of the IRIS spectrograph.

The comparison of GOES 1–8 Å with IRIS 1330 Å and 2796 Å SJIs, counted from the whole FOV of every SJI and divided by its exposure times (Figure 7), shows that for both of these wavelengths the lightcurves during radio event on 9th September 2017 are similar to each other (showing the impulsive phase and two peaks of the solar flare). Unfortunately, the complete gradual phase of the flare in UV was not observed because of the gap in the IRIS observations. We also present SDO maps at selected channels AIA (94, 171, 211, 1700 Å showed flaring regions of the solar corona, upper transition region, active regions of the corona and photosphere/temperature minimum region, respectively) with the full visible active region NOAA 12673 during the impulsive phase of the flare with overplotted IRIS FOV (rectangle, Figure 9). On these maps one can see the detailed location of the active region with solar flare (the solar limb is overplotted by black solid line). The Figure 7 (middle panel) also shows the lightcurves from SDO obtained in the same way as the IRIS lightcurves. We can see a delay between the UV and radio emission is about 3 min. The delay between the individual UV channels and X-ray is smaller than the delay between UV and the type III radio bursts. The SDO/AIA wavelengths follow the X-ray flux. The differences between the maxima in IRIS and SDO fluxes are due to the fact that we observe plasma at different temperatures.

4. Results

The studied radio events consisted of numerous type III solar radio bursts that show a visible drift rate in frequency. For the analyzis, we selected well isolated type III bursts, so that their drift rates could be easily determined. The determination of this parameter would not be possible for examples when two or more type III burst were overlapping. Bursts were isolated by an approximate visual assessment, resulting in a search window for each isolated burst, defined in time and frequency domain. Then four parameters have been estimated for each burst by determination of the local flux maxima in consecutive frequency channels – first the frequencies of the burst beginning and end, nextly corresponding times. This allowed us to determine a constant, linear drift rate for each burst. Due to bursts durations close to the time resolution of the observations (1 s) it was not possible to determine time and frequency for intermediate points of the bursts. We applied this procedure for several dozens of well isolated type III bursts in both studied events.

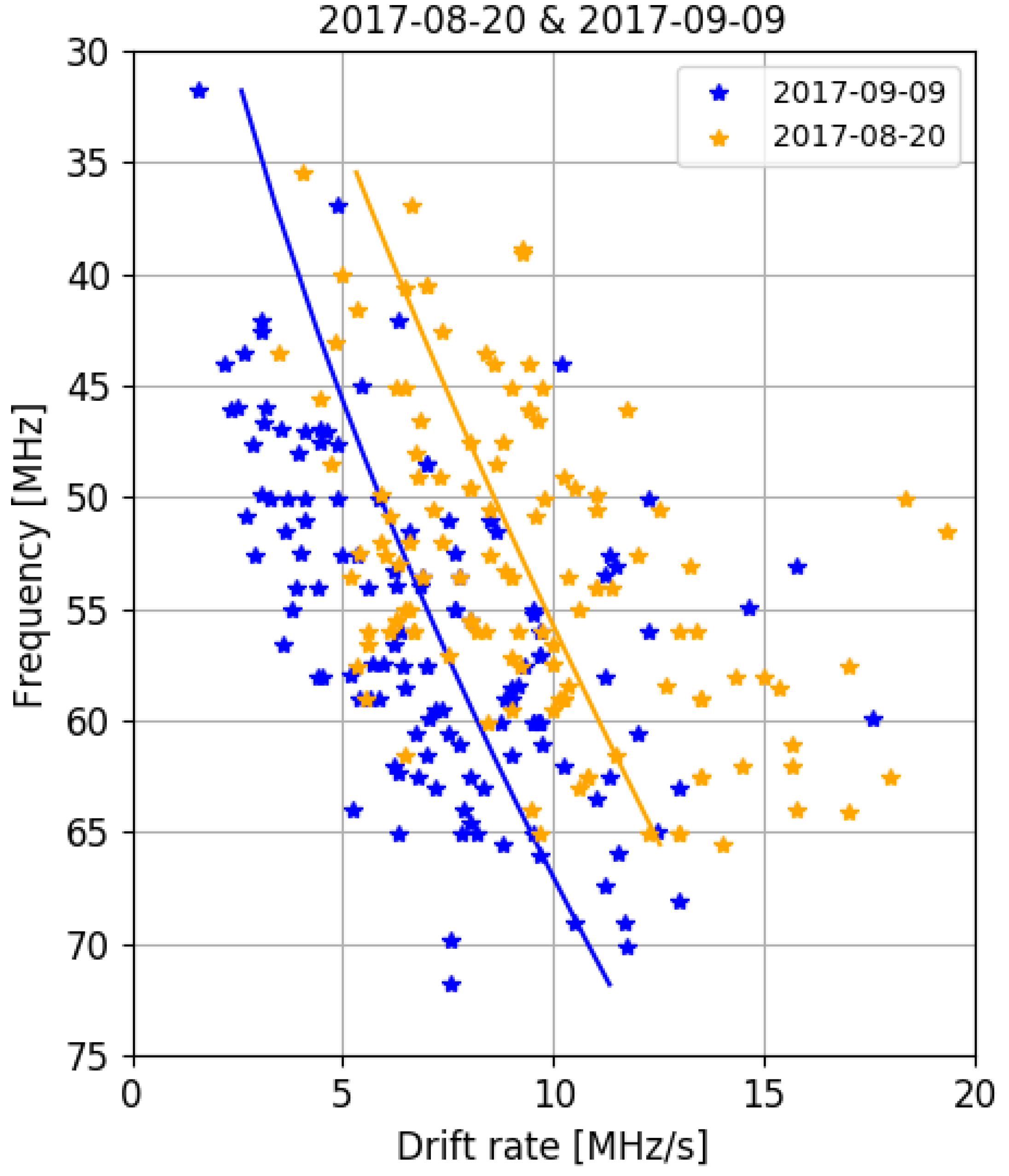

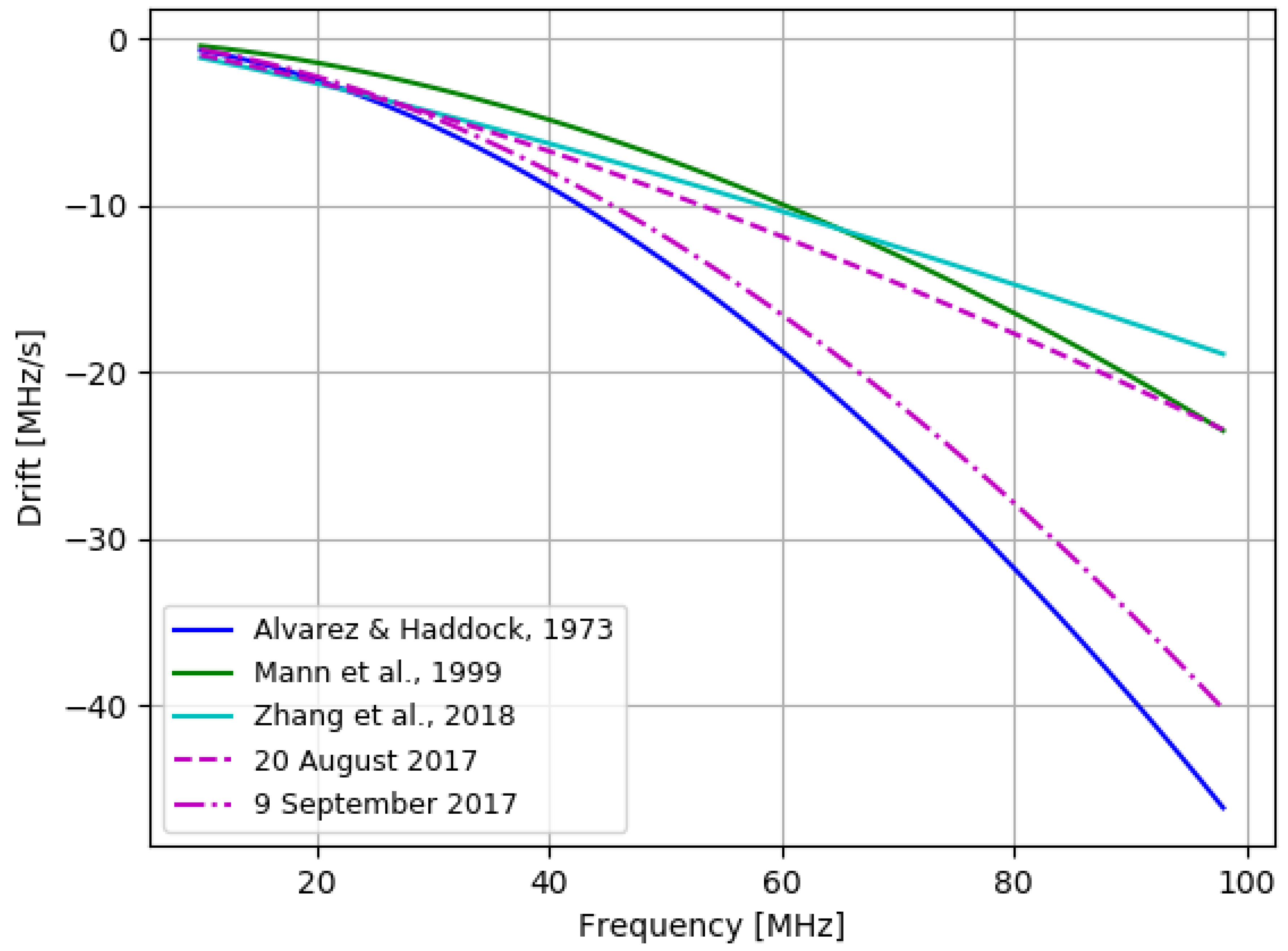

Figure 10 shows the drift rate change as a function of frequency for the studied events. The lines correspond with the power-law fit to the data. We found that the frequency drift rate for 124 type III bursts within 10–90 MHz for 20th August 2017 can be described by $D_f=-0.04f^{1.39}$ and the mean value of drift rate was $-9.4$ MHz/s. The frequency drift rate for 131 type III bursts within 10–90 MHz for 9th September 2017 can be described by $D_f=-0.01f^{1.81}$ and the mean value of drift rate was $-7.3$ MHz/s.

Assuming the Mann et al. coronal density model we found that radial velocity of the type III bursts related electrons amounts around 43,704 km/s (the drift rate was $-9.4$ MHz/s), that corresponds to $0.15c$ and 30,960 km/s (the drift rate was $-7.3$ MHz/s), that corresponds to $0.10c$ on 20th August 2017 and 9th September 2017, respectively. When using the Newkirk coronal density model, then the radial velocity of the type III bursts related electrons for event observed on 20th August 2017 (the drift rate was $-9.4$ MHz/s) is 54,287 km/s (which corresponds to $0.18c$) and for event on 9th September 2017 (the drift rate was $-7.3$ MHz/s) is 38,119 km/s (which corresponds to $0.13c$). We found that the radial velocity of the type III bursts related electrons for radio event observed on 20th August 2017 is a little bigger in comparison to the velocity of the type III bursts related electrons event observed on 9th September 2017. Other authors suggest, that the electron beams velocities are in the range of $0.1c$ and $0.6c$ [2], while herein obtained results suggest, that they rather remain in the lower part of that range.

During the event observed on 20th August 2017, the type III bursts drift rate ranged from $-3.5$ MHz/s to $-19.3$ MHz/s, with the average value of $-9.4$ MHz/s. No significant change of the drift rate was observed during the B6.1 flares (the maximum of which was observed at 12:21 UT) and C1.0 (with a maximum at 14:45 UT). During the event observed on 9th September 2017, the type III bursts drift rate ranged from $-1.6$ MHz/s to $-17.6$ MHz/s, with the average value being $-7.3$ MHz/s. During the M3.7 flare (the maximum of which was observed at 11:04 UT according to the GOES flux), the drift rate did not change significantly. In general, in both analyzed radio events the drift rate cover very similar ranges of values. However, it seems that the drift rate of type III bursts observed on 20th August 2017 is slightly higher (Figure 10).

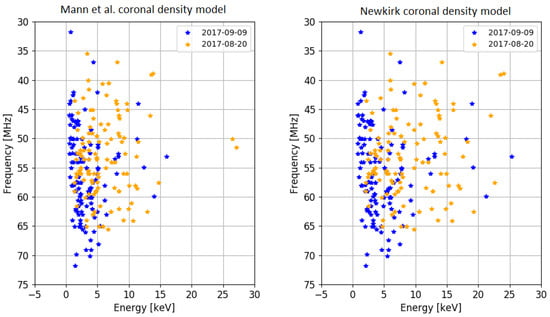

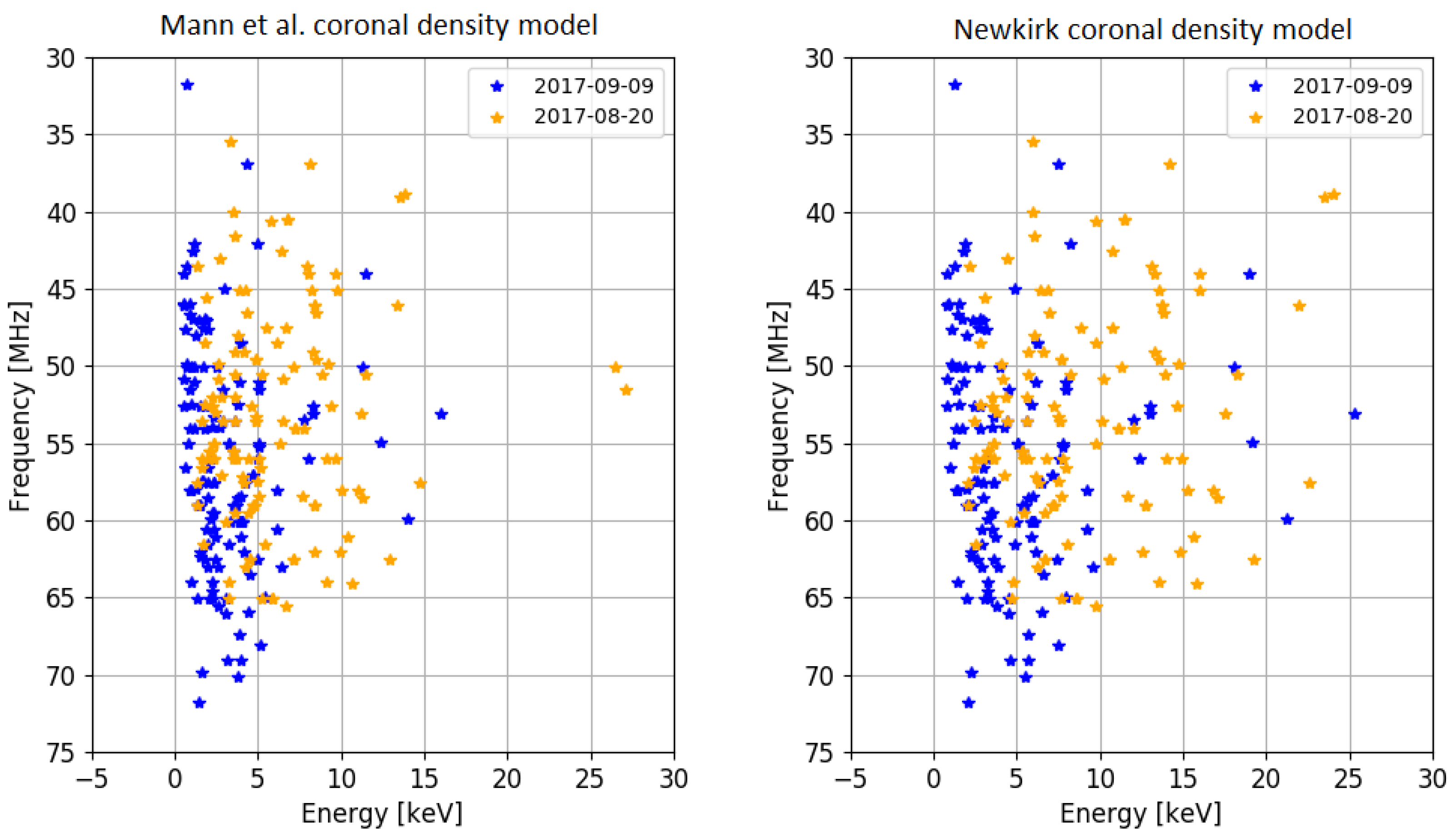

The energy of electrons exciting type III bursts amounts 6.09 keV and 9.55 keV (for Mann et al. model and Newkirk model, respectively) for radio event observed on 20th August 2017 is twice as large in comparison to the energy of electrons exciting type III bursts which is 3.16 keV and 4.83 keV (for Mann et al. model and Newkirk model, respectively) for radio event observed on 9th September 2017 (Figure 11). The results of our analyzes have been collected in

Table 3. Physical parameters of the studied events on 20th August 2017 and 9th September 2017.

				Mann et al. Model		Newkirk Model
Events	Number of	Drift (${\mathit{D}}_{\mathit{f}}$)	Central Freq. (f)	${\mathit{V}}_{\mathit{r}}$	Energy	${\mathit{V}}_{\mathit{r}}$	Energy
	Type III Bursts	[MHz/s]	[MHz]	[km/s]	[keV]	[km/s]	[keV]
2017-08-20	124	$-9.4$	53.3	43,704 ($0.15c$)	6.09	54,287 ($0.18c$)	9.55
2017-09-09	131	$-7.3$	56.0	30,960 ($0.10c$)	3.16	38,119 ($0.13c$)	4.83

.

5. Discussion

We find that the frequency drift rate for type III radio bursts within 10–90 MHz band for event on 20th August 2017 can be described by $D_f=-0.04f^{1.39}$ and for the event on 9th September 2017 by $D_f=-0.01f^{1.81}$. Our results show that the drift rate for 20th August 2017 radio event is very similar to the drift rate obtained by [4,7]. On the other hand, the drift rate for 9th September 2017 radio event is very similar to the drift rate obtained by [8] (Figure 12).

The average drift rate of type III bursts during the event observed on 20th August 2017 was somewhat stronger than during the event observed on 9th September 2017 despite the association of the type III burst on the 9th September 2017 with the stronger flare (GOES M3.7).

Regarding velocities of electron beams accelerated in the corona—responsible for the generation of type III bursts due to plasma emission mechanism—it turned out that electrons in event on 20th August 2017 achieve greater velocity which is $0.15c$ and $0.18c$ (for Mann et al. model and Newkirk model, respectively) than the electrons in the 9th September 2017 radio event which is $0.10c$ and $0.13c$ (for Mann et al. model and Newkirk model, respectively). Other authors suggest, that the electron beams velocities are in the range of $0.1c$ and $0.6c$ [2], while herein obtained results suggest, that they rather remain in the lower part of that range. It seems that the velocity of the electrons is not related to the GOES flare class. The electrons responsible for the generation of type III bursts achieved greater velocities during the event on 20th August 2017 than during 9th September 2017 event despite the observation of B and C type flares on the former one and M type flares on the latter. It is possible that the electron velocity depends on physical conditions in solar active regions, from which they originate.

The energy of electrons exciting type III bursts for radio event observed on 20th August 2017 is twice as large in comparison to the energy of electrons exciting type III bursts for radio event observed on 9th September 2017. It is possible that the difference is related to different configuration of the magnetic fields of the active regions.

The type III radio bursts during the event observed on 20th August 2017 in the 10–90 MHz band were distributed fairly evenly. No increase of their number was observed during a B6.1 and C1.0 flare. In the case of the event on 9th September 2017, observed in the 10–90 MHz band, they were also distributed fairly evenly. Similarly, no increase of their number was observed during the M3.7 flare.

Comparison of the radio flux at frequency 39.84 MHz from LOFAR with X-ray (GOES) and UV (IRIS and SDO) fluxes on 9th September 2017 shows that radio flux increased around 3 min after increasing of UV fluxes (around 11:09 UT). Storing the energetic electrons in the lower corona before they are released into the upper corona, that is covered by LOFAR frequencies, or a slow, diffusive transport of type III radiation near its source region seem implausible to explain the delay. The most plausible explanation is that the type III bursts we observe are not associated with the initial increase in X-ray and UV fluxes. We happen to see the radio emission later in the flare, but miss radio bursts from the flare onset. A possible explanation is that fundamental plasma emission is not emitted isotropically, but in some preferred directions. On top of this, coronal density structures can refract the radio waves and act as a wave guide. So the geometry has to be right for type III emission being able to reach us on Earth. This condition was met for some time 3 min after the flare onset, but not at the start of the flare. Unfortunately, we do not see any correlation with X-ray flux for the event on 20th August 2017. The reason for this are probably weak solar flares, classified as B6.1 and C1.0, during this event.

6. Conclusions

In this work we presented study of the two solar radio events consisting of type III bursts, observed by LOFAR station in Bałdy in the single mode. Both of them were observed in the frequency range of 10–90 MHz. The first one occurred on 20th August 2017 and the second one on 9th September 2017. Additionally, we also inspected the data recorded by instruments on boards of IRIS and SDO (in UV range) and GOES (X-ray range) which complement observations in the radio field.

Different values of drift rates resulting from our research for the both analysed radio events suggest that electron beams (responsible for the generation of the type III bursts) propagate through the plasma in solar corona with different density, temperature, velocity and the geometric configuration of the magnetic field.

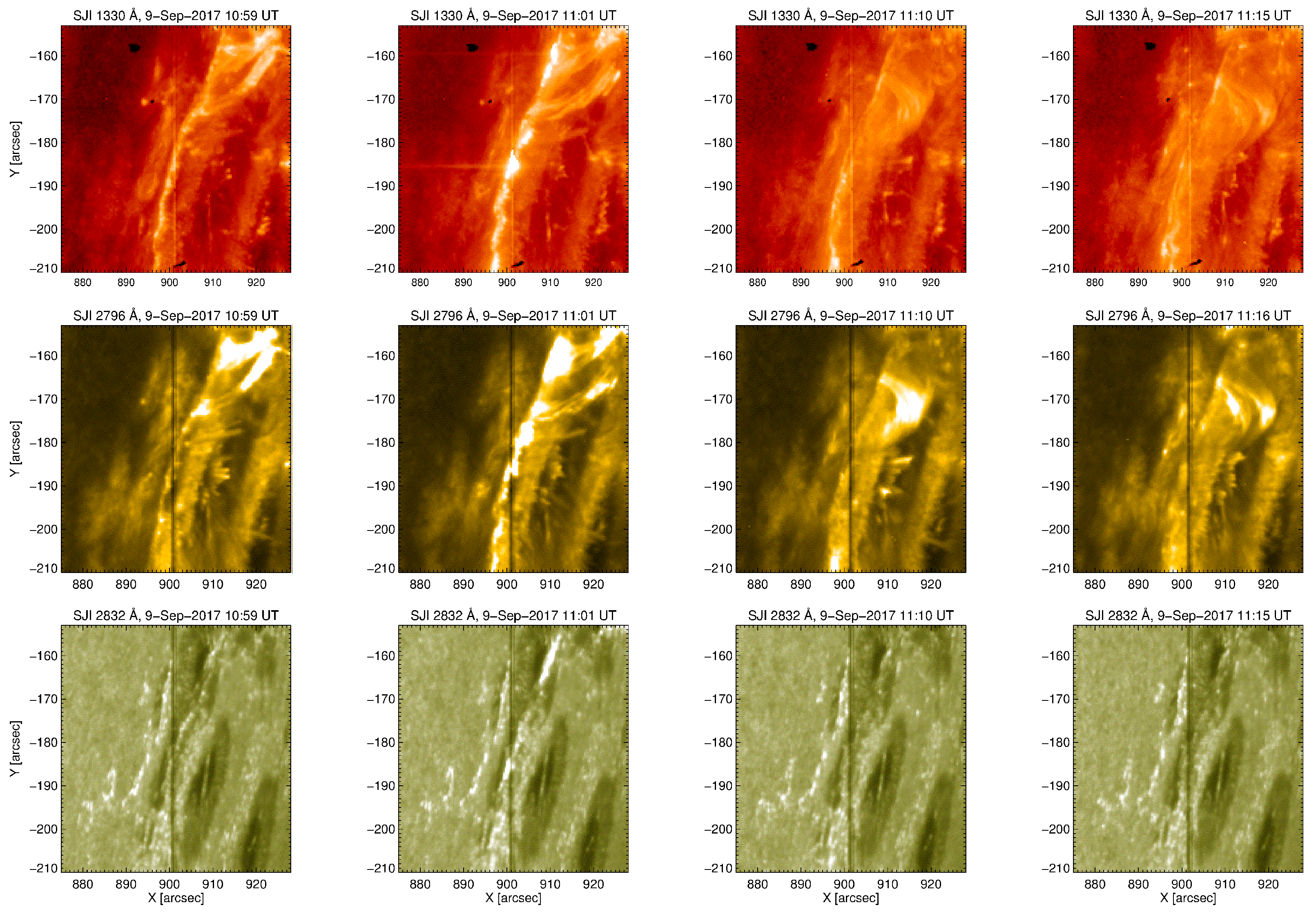

In the work, among others, we focused on the temporal evolution of the event on selected SJIs. Comparison of the LOFAR radio data with X-ray (GOES) and UV (IRIS and SDO) observations allowed us for tracing of solar events related with the type III radio bursts. Unfortunately, the comparison could only be done for radio event observed on 9th September 2017, because only for this event there exist UV data recorded by IRIS and SDO. During this event the type III of radio bursts were observed between 10:04 UT and 14:09 UT. No increase in the number of individual radio bursts was observed during the M3.7 flare (with maximum at 11:04 UT).

The comparison of fluxes on 9th September 2017 shows that the type III bursts we observed were not associated with the initial increase in X-ray and UV fluxes. Unfortunately, we do not see any correlation for the event on 20th August 2017. The reason for this are probably weak solar flares, classified as B6.1 and C1.0, during this event.
