Seismogenic Source Model of the 2019, Mw 5.9, East-Azerbaijan Earthquake (NW Iran) through the Inversion of Sentinel-1 DInSAR Measurements

1
Istituto per il Rilevamento Elettromagnetico dell’Ambiente, IREA-CNR, 80124 Napoli, Italy
2
Istituto Nazionale di Geofisica e Vulcanologia, Osservatorio Vesuviano, 80124 Napoli, Italy
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(8), 1346; https://doi.org/10.3390/rs12081346
Received: 13 March 2020 / Revised: 15 April 2020 / Accepted: 21 April 2020 / Published: 24 April 2020
(This article belongs to the Special Issue Ground Deformation Patterns Detection by InSAR and GNSS Techniques)

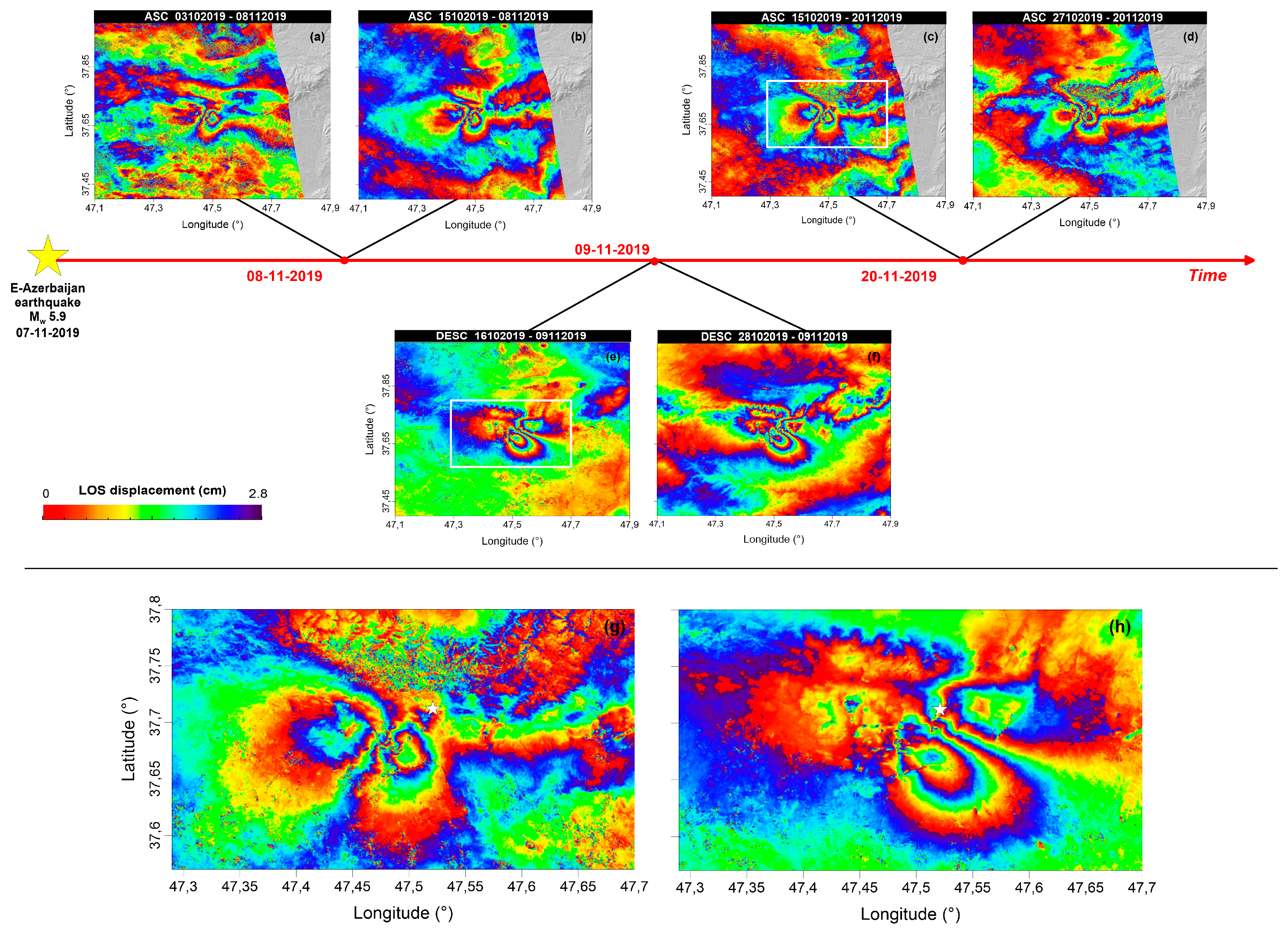

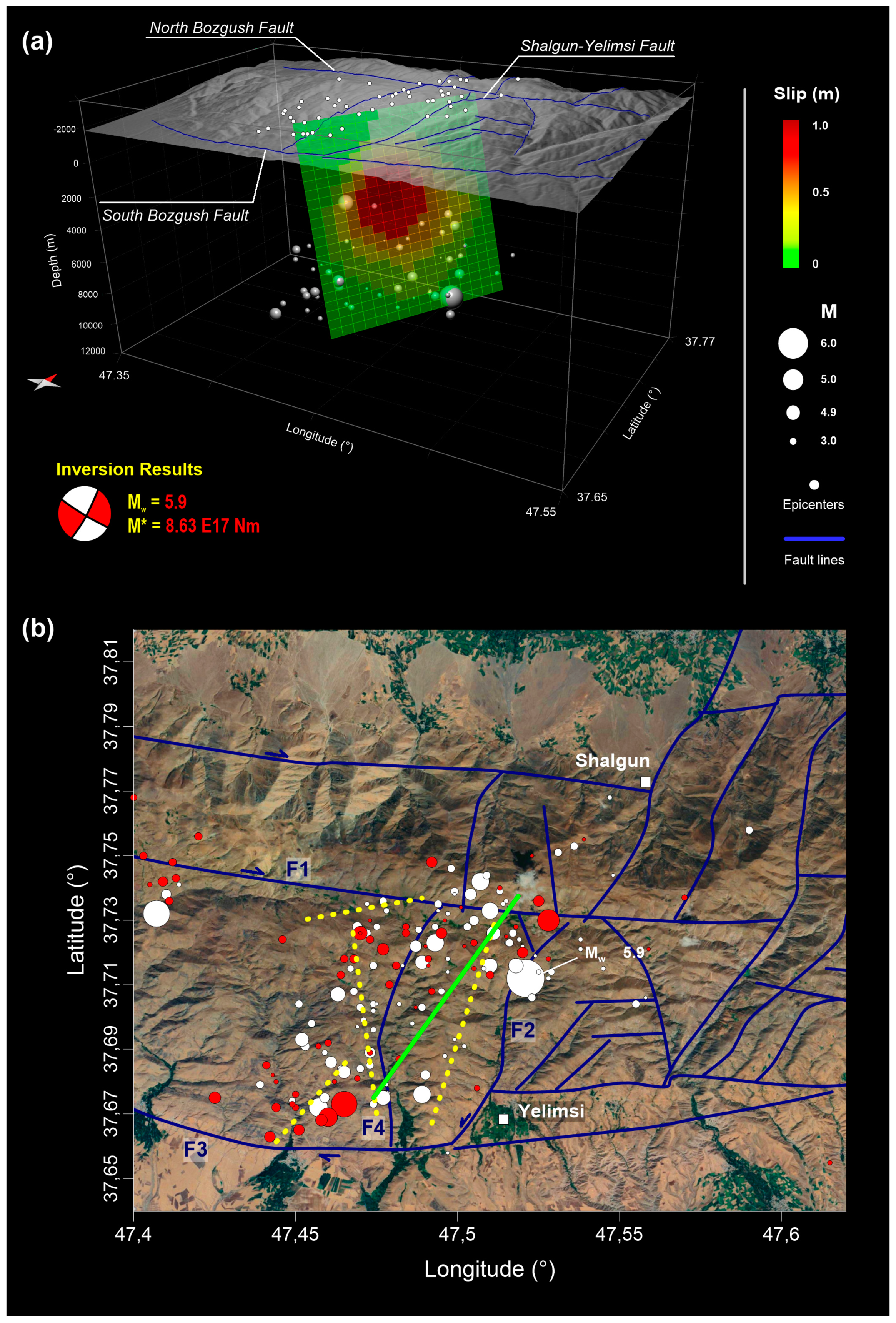

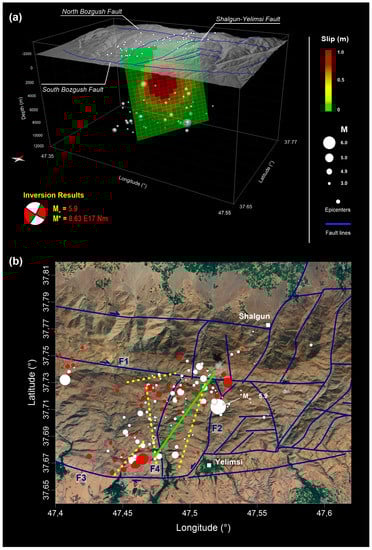

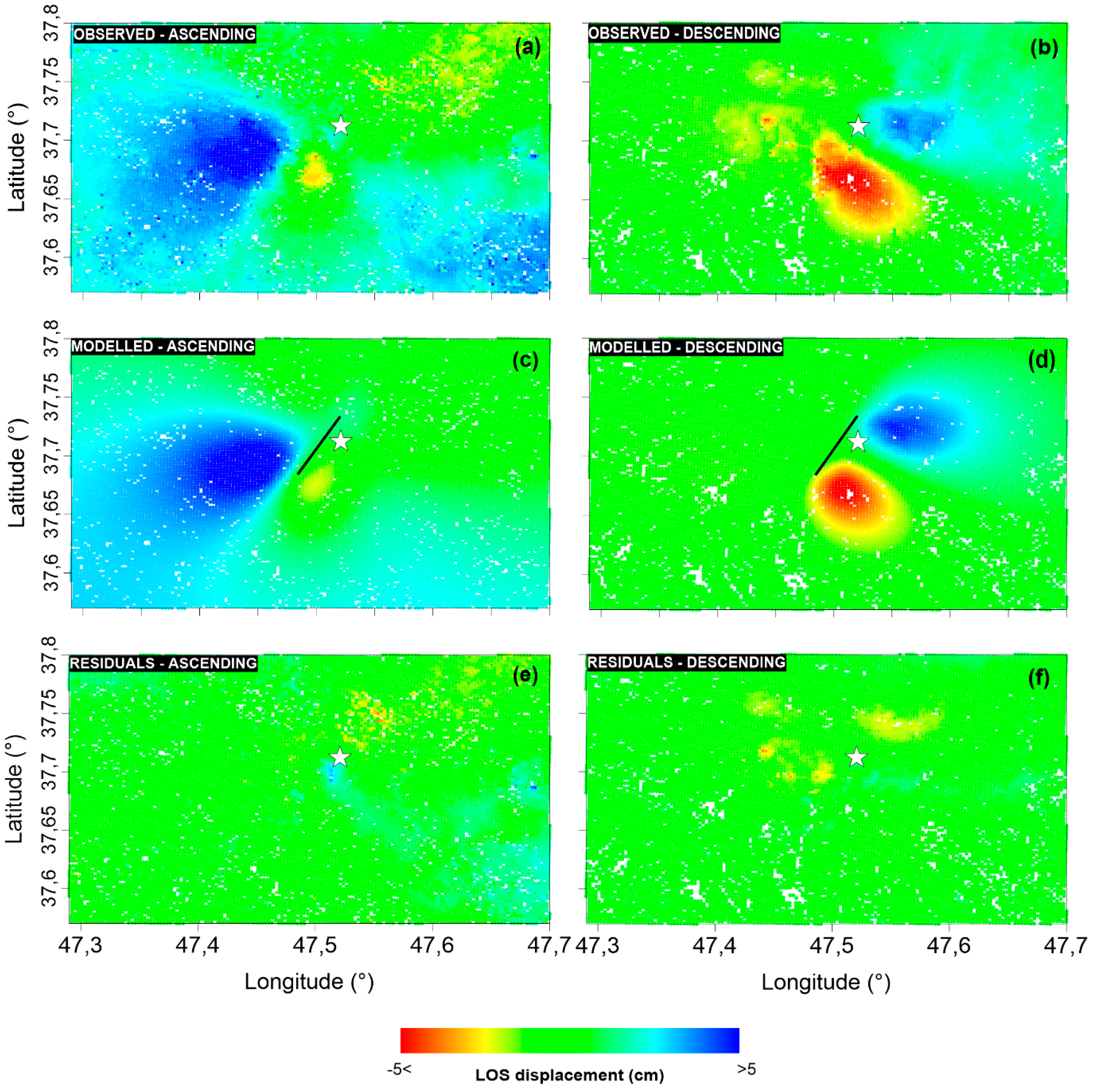

In this work, we investigate the Mw 5.9 earthquake occurred on 7 November 2019 in the East-Azerbaijan region, in northwestern Iran, which is inserted in the tectonic framework of the East-Azerbaijan Plateau, a complex mountain belt that contains internal major fold-and-thrust belts. We first analyze the Differential Synthetic Aperture Radar Interferometry (DInSAR) measurements obtained by processing the data collected by the Sentinel-1 constellation along ascending and descending orbits; then, we invert the achieved results through analytical modelling, in order to better constrain the geometry and characteristics of the seismogenic source. The retrieved fault model shows a rather shallow seismic structure, with a center depth at about 3 km, approximately NE–SW-striking and southeast-dipping, characterized by a left-lateral strike-slip fault mechanism (strike = 29.17°, dip = 79.29°, rake = −4.94°) and by a maximum slip of 0.80 m. By comparing the inferred fault with the already published geological structures, the retrieved solution reveals a minor fault not reported in the geological maps available in the open literature, whose kinematics is compatible with that of the surrounding structures, with the local and regional stress states and with the performed field observations. Moreover, by taking into account the surrounding geological structures reported in literature, we also use the retrieved fault model to calculate the Coulomb Failure Function at the nearby receiver faults. We show that this event may have encouraged, with a positive loading, the activation of the considered receiver faults. This is also confirmed by the distribution of the aftershocks that occurred near the considered surrounding structures. The analysis of the seismic events nucleated along the left-lateral strike-slip minor faults of the East-Azerbaijan Plateau, such as the one analyzed in this work, is essential to improve our knowledge on the seismic hazard estimation in northwestern Iran. View Full-Text

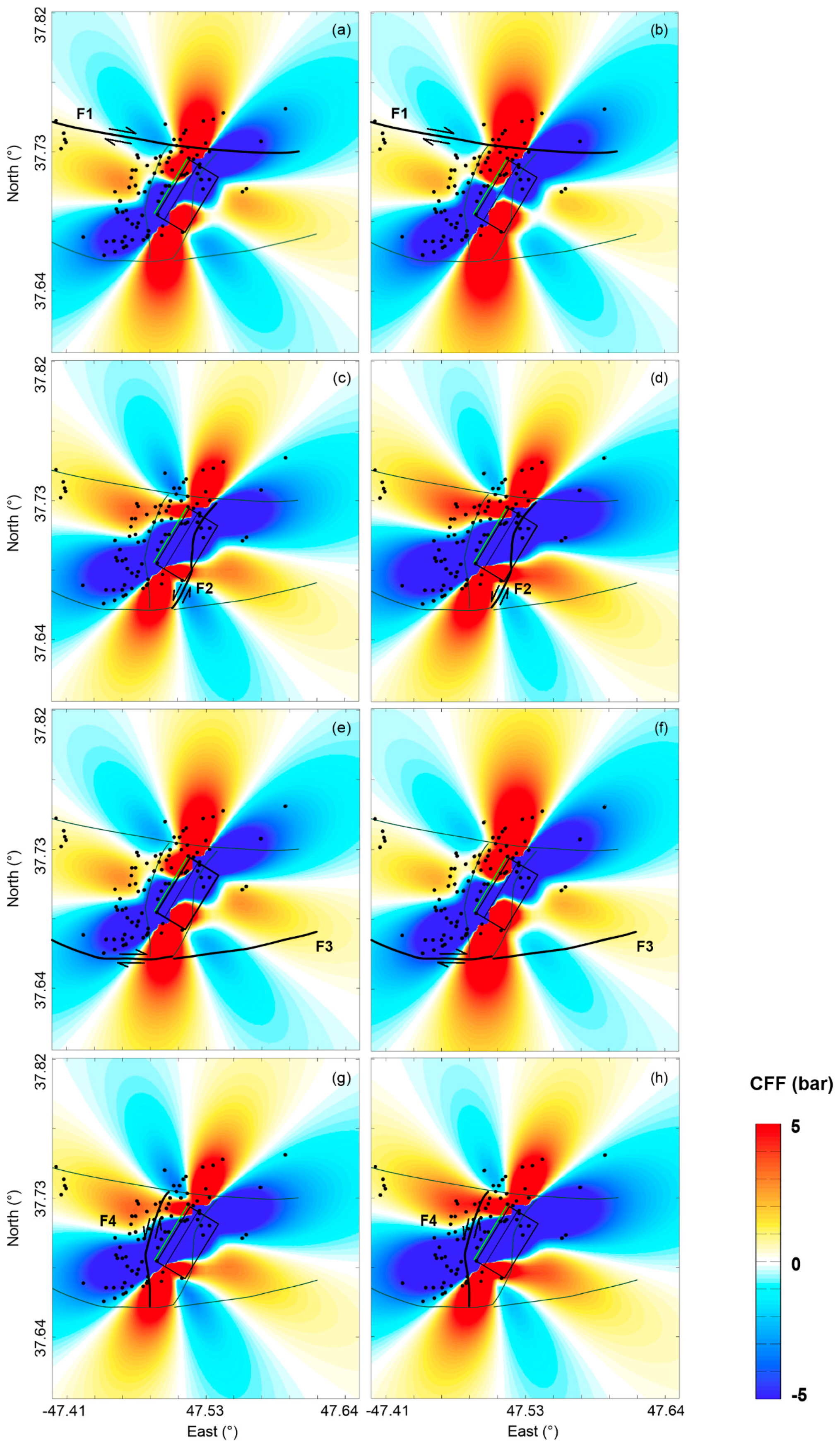

Keywords: the 2019 East-Azerbaijan earthquake; strike-slip fault; Sentinel-1 DInSAR measurements; analytical modelling; Coulomb Failure Function the 2019 East-Azerbaijan earthquake; strike-slip fault; Sentinel-1 DInSAR measurements; analytical modelling; Coulomb Failure Function
Show Figures

Graphical abstract

MDPI and ACS Style

Valerio, E.; Manzo, M.; Casu, F.; Convertito, V.; De Luca, C.; Manunta, M.; Monterroso, F.; Lanari, R.; De Novellis, V. Seismogenic Source Model of the 2019, Mw 5.9, East-Azerbaijan Earthquake (NW Iran) through the Inversion of Sentinel-1 DInSAR Measurements. Remote Sens. 2020, 12, 1346.
