# An ERA5-Based Hourly Global Pressure and Temperature (HGPT) Model

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. HGPT Model Formulation

#### 2.1. Global Temperature and Pressure

#### 2.2. Zenith Hydrostatic Delay (ZHD)

#### 2.3. Weighted Mean Temperature (${T}_{m}$)

## 3. Data and Model Computation

^{9}simulations. Following the time-segmentation concept, we extracted from the 1-h temporal resolution time series the simulations at the same hour for each time series, obtaining 24 time series with a 24-h temporal resolution at each grid point. The linear coefficient values were obtained using a linear regression model. The amplitude and initial phase coefficients were obtained using a Fourier analysis. After detrending and removing the mean of the time series, a fast Fourier transform (FFT) was applied. The amplitudes were obtained after identifying the frequency that corresponded to each periodicity and the initial phase was given by the inverse tangent of the FFT. Both methods were applied at each hour and grid point (about 25 million) for temperature and pressure. All temperature coefficients were saved in an external binary file, but only the grid for a requested hour was loaded at every run of the HGPT subroutine to save time and improve efficiency. Likewise, the pressure coefficients were also saved in a binary file, and as for temperature, only the grid for the requested hour was loaded. The temperature and pressure coefficients obtained were referred to as the ERA5 surface elevation grid. The ERA5 vertical datum was the mean sea level and was based on the WGS84 Earth gravitational model (EGM 96) geoid [25,28]. The HGPT model uses the pressure and temperature lapse rate (see Xu [2], page 56) to convert pressure and temperature to the desired height. For GNSS data processing, we needed to consider that the GNSS heights are referenced to the WGS84 ellipsoid. To transform the GNSS ellipsoidal heights to the mean sea level system such that they become geoid-based, the following relation is used:

## 4. Results and Discussion

## 5. Accuracy Assessment

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Hofmann-Wellenhof, B.; Lichtenegger, H.; Wasle, E. GNSS—Global Navigation Satellite Systems. GNSS—Global Navigation Satellite Systems; Springer: Wien, Austria, 2008; p. 516. [Google Scholar]
- Xu, G. GPS: Theory, Algorithms and Applications; Springer: Berlin/Heidelberg, Germany, 2007; ISBN 9783540727149. [Google Scholar]
- Mendes, V.B. Modeling the Neutral-Atmospheric Propagation Delay in Radiometric Space Techniques; University of New Brunswick: Fredericton, NB, Canada, 1999; p. 353. [Google Scholar]
- Landskron, D.; Böhm, J. VMF3/GPT3: Refined discrete and empirical troposphere mapping functions. J. Geod.
**2018**, 92, 349–360. [Google Scholar] [CrossRef] [PubMed] - Saastamoinen, J. Contributions to the theory of atmospheric refraction. J. Geod.
**1972**, 105, 279–298. [Google Scholar] [CrossRef] - Hopfield, H.S. Two-quartic tropospheric refractivity profile for correcting satellite data. J. Geophys. Res. Space Phys.
**1969**, 74, 4487–4499. [Google Scholar] [CrossRef] - Mateus, P.; Catalao, J.; Nico, G. Sentinel-1 Interferometric SAR Mapping of Precipitable Water Vapor Over a Country-Spanning Area. IEEE Trans. Geosci. Remote. Sens.
**2017**, 55, 2993–2999. [Google Scholar] [CrossRef] - Mendes, V.; Langley, R.B. Tropospheric Zenith Delay Prediction Accuracy for High-Precision GPS Positioning and Navigation. Navig.
**1999**, 46, 25–34. [Google Scholar] [CrossRef] - Bevis, M. GPS meteorology: Mapping zenith wet delays onto precipitable water. J. Appl. Meteorol.
**1994**, 33, 379–386. [Google Scholar] [CrossRef] - Bevis, M.; Businger, S.; Herring, T.; Rocken, C.; Anthes, R.A.; Ware, R.H. GPS meteorology: Remote sensing of atmospheric water vapor using the global positioning system. J. Geophys. Res. Space Phys.
**1992**, 97, 15787. [Google Scholar] [CrossRef] - Collins, J.P. Assessment and Development of a Tropospheric Delay Model for Aircraft Users of the Global Positioning System; University of New Brunswick: Fredericton, NB, Canada, 1999; p. 174. [Google Scholar]
- Leandro, R.F.; Langley, R.B.; Santos, M.C. UNB3m_pack: A neutral atmosphere delay package for radiometric space techniques. GPS Solut.
**2007**, 12, 65–70. [Google Scholar] [CrossRef] - Boehm, J.; Heinkelmann, R.; Schuh, H.; Böhm, J. Short Note: A global model of pressure and temperature for geodetic applications. J. Geod.
**2007**, 81, 679–683. [Google Scholar] [CrossRef] - Lagler, K.; Schindelegger, M.; Böhm, J.; Krasna, H.; Nilsson, T. GPT2: Empirical slant delay model for radio space geodetic techniques. Geophys. Res. Lett.
**2013**, 40, 1069–1073. [Google Scholar] [CrossRef] [Green Version] - Böhm, J.; Moeller, G.; Schindelegger, M.; Pain, G.; Weber, R. Development of an improved empirical model for slant delays in the troposphere (GPT2w). GPS Solut.
**2014**, 19, 433–441. [Google Scholar] [CrossRef] [Green Version] - Schüler, T. The TropGrid2 standard tropospheric correction model. GPS Solut.
**2013**, 18, 123–131. [Google Scholar] [CrossRef] - Martellucci, A.; Cerdeira, A.R.P. Review of tropospheric, ionospheric and multipath data and models for global navigation satellite systems. In Proceedings of the European Conference on Antennas and Propagation, EuCAP 2009, Proceedings; EurAAP, Berlin, Germany, 23–27 March 2009; pp. 3697–3702. [Google Scholar]
- Yao, Y.; Xu, C.; Shi, J.; Cao, N.; Zhang, B.; Yang, J. ITG: A New Global GNSS Tropospheric Correction Model. Sci. Rep.
**2015**, 5, 10273. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Stull, R.B. An Introduction to Boundary Layer Meteorology; Springer: Amsterdam, The Netherlands, 1988. [Google Scholar]
- Saastamoinen, J.; Henriksen, S.W.; Mancini, A.; Chovitz, B.H. Atmospheric Correction for the Troposphere and Stratosphere in Radio Ranging Satellites. Sea Ice
**2013**, 15, 247–251. [Google Scholar] - Davis, J.L.; Herring, T.; Shapiro, I.I.; Rogers, A.E.E.; Elgered, G. Geodesy by radio interferometry: Effects of atmospheric modeling errors on estimates of baseline length. Radio Sci.
**1985**, 20, 1593–1607. [Google Scholar] [CrossRef] - Tuka, A.; El-Mowafy, A. Performance evaluation of different troposphere delay models and mapping functions. Measurement
**2013**, 46, 928–937. [Google Scholar] [CrossRef] [Green Version] - Yang, F.; Meng, X.; Guo, J.; Shi, J.; An, X.; He, Q.; Zhou, L. The Influence of Different Modelling Factors on Global Temperature and Pressure Models and Their Performance in Different Zenith Hydrostatic Delay (ZHD) Models. Remote. Sens.
**2019**, 12, 35. [Google Scholar] [CrossRef] [Green Version] - Rüeger, J.M.; Jean Rüeger, A.M. Refractive Index Formulae for Radio Waves. In Proceedings of the FIG XXII International Congress, Washington, DC, USA, 19–26 April 2002; pp. 19–26. [Google Scholar]
- Copernicus Climate Change Service (C3S). ERA5: Fifth generation of ECMWF atmospheric reanalyses of the global climate. Available online: https://cds.climate.copernicus.eu/cdsapp#!/home (accessed on 29 January 2020).
- Hoffman, L.; Günther, G.; Li, D.; Stein, O.; Wu, X.; Griessbach, S.; Heng, Y.; Konopka, P.; Müller, R.; Vogel, B.; et al. From ERA-Interim to ERA5: The considerable impact of ECMWF’s next-generation reanalysis on Lagrangian transport simulations. Atmospheric Chem. Phys. Discuss.
**2019**, 19, 3097–3124. [Google Scholar] [CrossRef] [Green Version] - Hersbach, H.; Bell, B.; Berrisford, P.; Horányi, A.; Sabater, J.M.; Nicolas, J.; Radu, R.; Schepers, D.; Simmons, A.; Soci, C.; et al. Global Reanalysis: Goodbye ERA-Interim, Hello ERA5. ECMWF Newsl. 2019. Available online: https://www.ecmwf.int/en/newsletter/159/meteorology/global-reanalysis-goodbye-era-interim-hello-era5 (accessed on 28 January 2020).
- European Centre for Medium-Range Weather Forecasts (ECMWF). Part IV: Physical Processes. IFS Doc. CY41R2 2016, 213. Available online: https://www.ecmwf.int/sites/default/files/elibrary/2016/17117-part-iv-physical-processes.pdf (accessed on 25 January 2020).
- Lemoine, F.G.; Smith, D.E.; Kunz, L.; Smith, R.; Pavlis, E.C.; Pavlis, N.K.; Klosko, S.M.; Chinn, D.S.; Torrence, M.H.; Williamson, R.G.; et al. The Development of the NASA GSFC and NIMA Joint Geopotential Model. Int. Assoc. Geod. Symp.
**1997**, 117, 461–469. [Google Scholar] - Zhang, C. Madden-Julian Oscillation. Rev. Geophys.
**2005**, 43, 1–36. [Google Scholar] [CrossRef] [Green Version] - Zhou, Y.; Thompson, K.R.; Lu, Y. Mapping the Relationship between Northern Hemisphere Winter Surface Air Temperature and the Madden–Julian Oscillation. Mon. Weather. Rev.
**2011**, 139, 2439–2454. [Google Scholar] [CrossRef] - Zhou, Y.; Lu, Y.; Yang, B.; Jiang, J.; Huang, A.; Zhao, Y.; La, M.; Yang, Q. On the relationship between the Madden-Julian Oscillation and 2 m air temperature over central Asia in boreal winter. J. Geophys. Res. Atmos.
**2016**, 121, 13–250. [Google Scholar] [CrossRef] [Green Version] - Flatau, M.; Kim, Y.-J. Interaction between the MJO and Polar Circulations. J. Clim.
**2013**, 26, 3562–3574. [Google Scholar] [CrossRef] - Hess, P.G.; Dbattisti, D.S.; Rasch, P.J. Maintenance of the Intertropical Convergence Zones and the Large-Scale Tropical Circulation on a Water-covered Earth. J. Atmospheric Sci.
**1993**, 50, 691–713. [Google Scholar] [CrossRef] [Green Version] - Waliser, D.E.; Somerville, R.C.J. Preferred Latitudes of the Intertropical Convergence Zone. J. Atmospheric Sci.
**1994**, 51, 1619–1639. [Google Scholar] [CrossRef] [Green Version] - Chao, W.C.; Chen, B. Single and double ITCZ in an aqua-planet model with constant sea surface temperature and solar angle. Clim. Dyn.
**2004**, 22, 447–459. [Google Scholar] [CrossRef] - Al-Shammiri, M. Evaporation rate as a function of water salinity. Desalination
**2002**, 150, 189–203. [Google Scholar] [CrossRef] - Wang, J.; Zhang, L.; Dai, A. Global estimates of water-vapor-weighted mean temperature of the atmosphere for GPS applications. J. Geophys. Res. Space Phys.
**2005**, 110, 1–17. [Google Scholar] [CrossRef] [Green Version] - Yao, Y.; Zhu, S.; Yue, S. A globally applicable, season-specific model for estimating the weighted mean temperature of the atmosphere. J. Geod.
**2012**, 86, 1125–1135. [Google Scholar] [CrossRef] - Ross, R.J.; Rosenfeld, S. Estimating mean weighted temperature of the atmosphere for Global Positioning System applications. J. Geophys. Res. Space Phys.
**1997**, 102, 21719–21730. [Google Scholar] [CrossRef] [Green Version] - Emardson, T.R.; Derks, H.J.P. On the relation between the wet delay and the integrated precipitable water vapour in the European atmosphere. Meteorol. Appl.
**2000**, 7, 61–68. [Google Scholar] [CrossRef] - Isioye, O.; Combrinck, L.; Botai, J. Modelling weighted mean temperature in the West African region: Implications for GNSS meteorology. Meteorol. Appl.
**2016**, 23, 614–632. [Google Scholar] [CrossRef] - Mateus, P.; Nico, G.; Catalao, J. Maps of PWV Temporal Changes by SAR Interferometry: A Study on the Properties of Atmosphere’s Temperature Profiles. IEEE Geosci. Remote. Sens. Lett.
**2014**, 11, 2065–2069. [Google Scholar] [CrossRef] - Singh, D.; Ghosh, J.; Kashyap, D. Weighted mean temperature model for extra tropical region of India. J. Atmos. Solar Terr. Phys.
**2014**, 107, 48–53. [Google Scholar] [CrossRef] - Zhang, F.; Barriot, J.-P.; Xu, G.; Yeh, T.-K. Metrology Assessment of the Accuracy of Precipitable Water Vapor Estimates from GPS Data Acquisition in Tropical Areas: The Tahiti Case. Remote. Sens.
**2018**, 10, 758. [Google Scholar] [CrossRef] [Green Version] - Liou, Y.-A.; Teng, Y.-T.; Van Hove, T.; Liljegren, J.C. Comparison of Precipitable Water Observations in the Near Tropics by GPS, Microwave Radiometer, and Radiosondes. J. Appl. Meteorol.
**2001**, 40, 5–15. [Google Scholar] [CrossRef] - Raju, C.S.; Saha, K.; Thampi, B.V.; Parameswaran, K. Empirical model for mean temperature for Indian zone and estimation of precipitable water vapor from ground based GPS measurements. Ann. Geophys.
**2007**, 25, 1935–1948. [Google Scholar] [CrossRef] [Green Version] - Yao, Y.; Zhang, B.; Yue, S.Q.; Xu, C.; Peng, W.F. Global empirical model for mapping zenith wet delays onto precipitable water. J. Geod.
**2013**, 87, 439–448. [Google Scholar] [CrossRef] - Mendes, V.B.; Prates, G.; Santos, L.; Langley, R.B. An Evaluation of the Accuracy of Models for the Determination of the Weighted Mean Temperature of the Atmosphere. In Proceedings of the Institute of Navigation 2000 National Technical Meeting, Anaheim, CA, USA, 26–28 January 2000; pp. 3–8. [Google Scholar]
- Vincent, L.A.; Zhang, X.; Brown, R.D.; Feng, Y.; Mekis, E.; Milewska, E.J.; Wan, H.; Wang, X.L. Observed Trends in Canada’s Climate and Influence of Low-Frequency Variability Modes. J. Clim.
**2015**, 28, 4545–4560. [Google Scholar] [CrossRef] - Babina, E.D.; Semenov, V.A. Intramonthly Variability of Daily Surface Air Temperature in Russia in 1970–2015. Russ. Meteorol. Hydrol.
**2019**, 44, 513–522. [Google Scholar] [CrossRef] - Kobashi, T.; Goto-Azuma, K.; Box, J.; Gao, C.-C.; Nakaegawa, T. Causes of Greenland temperature variability over the past 4000 yr: Implications for northern hemispheric temperature changes. Clim. Past
**2013**, 9, 2299–2317. [Google Scholar] [CrossRef] [Green Version] - Rintoul, S.R.; Hughes, C.W.; Olbers, D. Chapter 4.6 The antarctic circumpolar current system. Int. Geophys.
**2001**, 77, 271. [Google Scholar] - Durre, I.; Yin, X. Enhanced Radiosonde Data For Studies of Vertical Structure. Bull. Am. Meteorol. Soc.
**2008**, 89, 1257–1262. [Google Scholar] [CrossRef] - Lan, Z.; Zhang, B.; Geng, Y. Establishment and analysis of global gridded Tm− Ts relationship model. Geodesy Geodyn.
**2016**, 7, 101–107. [Google Scholar] [CrossRef] [Green Version]

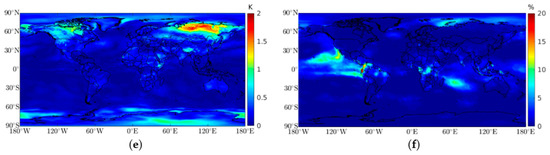

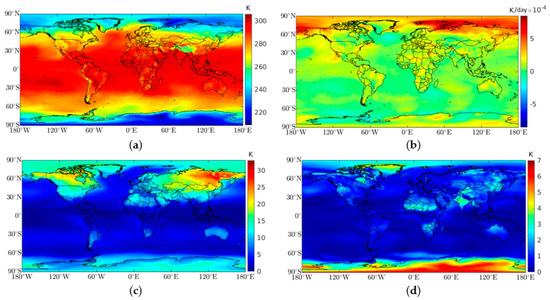

**Figure 1.**Global distribution of mean coefficients for surface air temperature. The globe was divided into a 0.25° × 0.25° grid. (

**a**) $a$ mean values (K), (

**b**) $b$ mean values (trend) (K/day), (

**c**) mean annual amplitude contribution (K), (

**d**) mean semi-annual contribution (K), (

**e**) mean quarterly contribution (K); and (

**f**) mean impact of introducing a linear trend versus using only the mean temperature, in percentage.

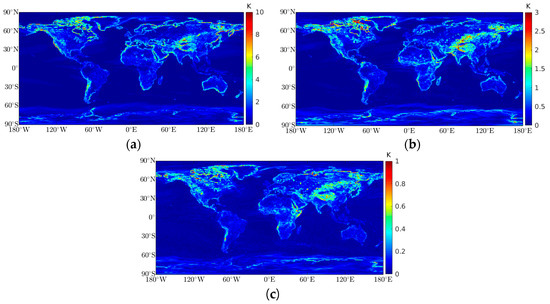

**Figure 2.**Maximum spatial variability for each surface air temperature periodicity, which was calculated using a window of 4 × 4 grid points, approximately a 1° × 1° horizontal grid: (

**a**) maximum spatial variability for the annual amplitude (K), (

**b**) maximum spatial variability for the semi-annual amplitude (K), and (

**c**) maximum spatial variability for the quarterly amplitude (K).

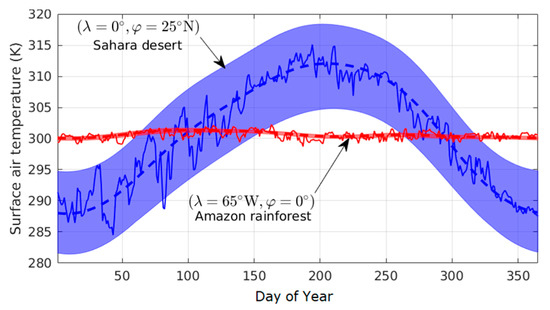

**Figure 3.**Surface air temperature at two distinct locations (different climatological and topographical characteristics). In blue: over the Sahara Desert (λ = 0°, φ = 25°N), and in red: over the Amazon Rainforest (λ = 65°W, φ = 0°) for a one-year timespan (2018). The bluish shaded area represents the diurnal cycle. The dashed line represents the model daily mean and the continuous line represents the daily mean of all ERA5 simulations (24 time series, each one represents one hour).

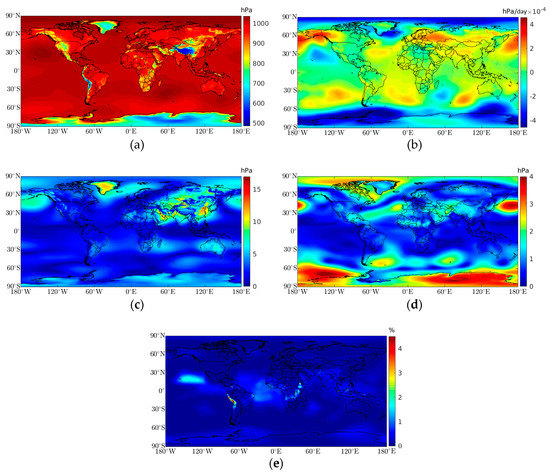

**Figure 4.**Global distribution of mean coefficients for surface pressure. The globe was divided into a grid of 0.25° × 0.25°. (

**a**) $a$ mean values (hPa), (

**b**) $b$ mean values (trend) (hPa/day), (

**c**) contribution from the annual mean amplitude (hPa), (

**d**) contribution from the semi-annual mean amplitude (hPa), and (

**e**) mean impact of introducing a linear trend versus using only the mean pressure (%).

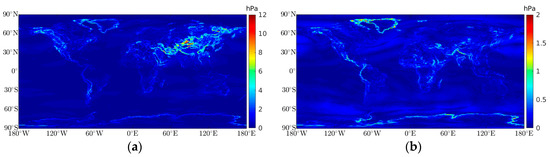

**Figure 5.**Maximum spatial variability for each surface pressure periodicity, which were calculated using a window of 4 × 4 grid points, approximately a 1° × 1° horizontal grid: (

**a**) maximum spatial variability for the annual amplitude (hPa) and (

**b**) maximum spatial variability for semi-annual amplitude (hPa).

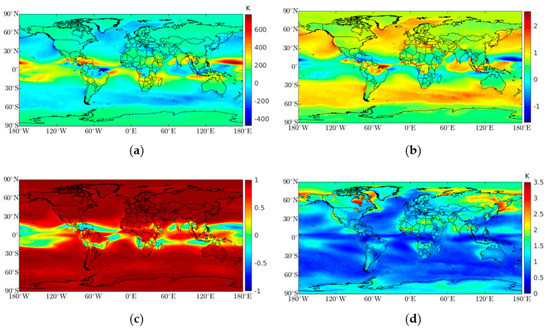

**Figure 6.**(

**a**,

**b**) $\alpha $ and $\beta $ regression coefficients, obtained using 20 years of monthly ERA5 data, which were used to estimate the weighted mean temperature (${T}_{m}$) from the surface air temperature (${T}_{s}$). (

**c**) Pearson correlation coefficient between the ${T}_{m}$ obtained using ERA5 numerical integration at each grid point and ${T}_{s}$. (

**d**) RMSE between ${T}_{m}$ obtained using $\alpha $, $\beta $, and ${T}_{s}$, and the ${T}_{m}$ obtained using ERA5’s numerical integration (see Equation (5)). The estimation of the coefficients in the tropic regions could generate artefacts, especially over the sea, when ${T}_{s}$ did not vary over a range large enough to get a satisfactory estimation of the parameters.

**Figure 7.**Comparison of 20 years of ERA5 surface air temperature and pressure with the modeled values using Equations (1) and (2): (

**a**) mean RMSE for surface air temperature (K), (

**b**) mean RMSE for surface pressure (hPa), (

**c**) mean bias for surface air temperature (K), and (

**d**) mean bias for surface pressure (hPa). Note that a positive bias value indicates an hourly global pressure and temperature (HGPT) model overestimation and a negative bias value indicates an underestimation.

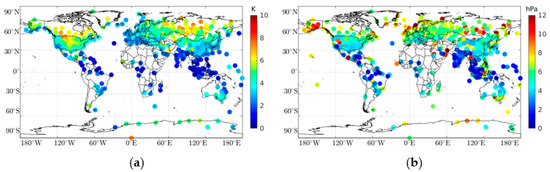

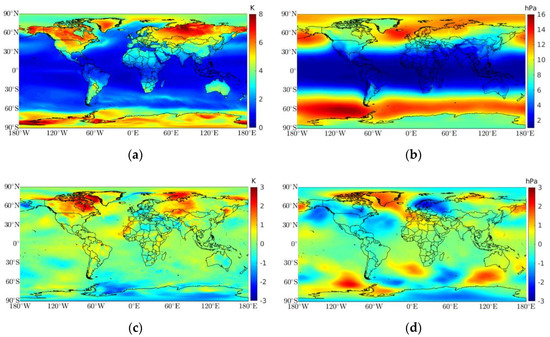

**Figure 8.**Global distribution of the mean RMSE values: (

**a**) mean RMSEs for surface air temperature at 00:00 UTC (K) and (

**b**) mean RMSEs for surface pressure at 00:00 UTC (hPa).

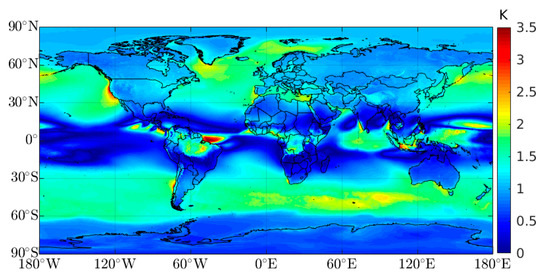

**Figure 9.**Accuracy spatial distribution for ${T}_{m}$ considering a global standard deviation of 1.1 K for surface air temperature and ignoring possible errors in $\alpha $ and $\beta $.

**Table 1.**Statistical analysis. RMSE and bias values (with standard deviation) between the HGPT model and radiosondes and the original signal (ERA5 simulations) and radiosondes, for 00:00 and 12:00 UTC. A negative bias indicates overestimation by the HGPT or ERA5 models and a negative bias indicates an underestimation.
