Dust Lidar Ratios Retrieved from the CALIOP Measurements Using the MODIS AOD as a Constraint
Abstract
1. Introduction
2. Data
2.1. CALIOP
2.2. MODIS
2.3. Collocation and Data Sellection

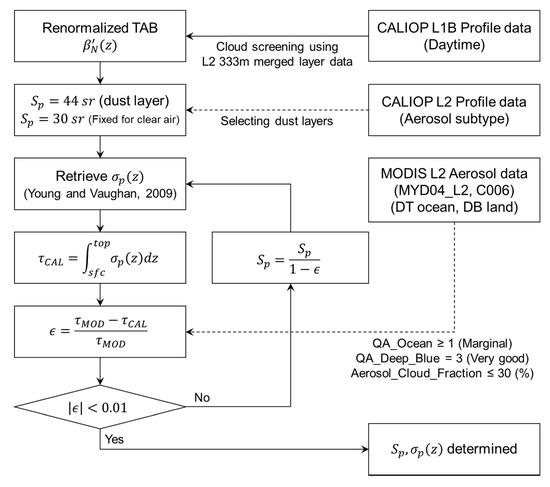

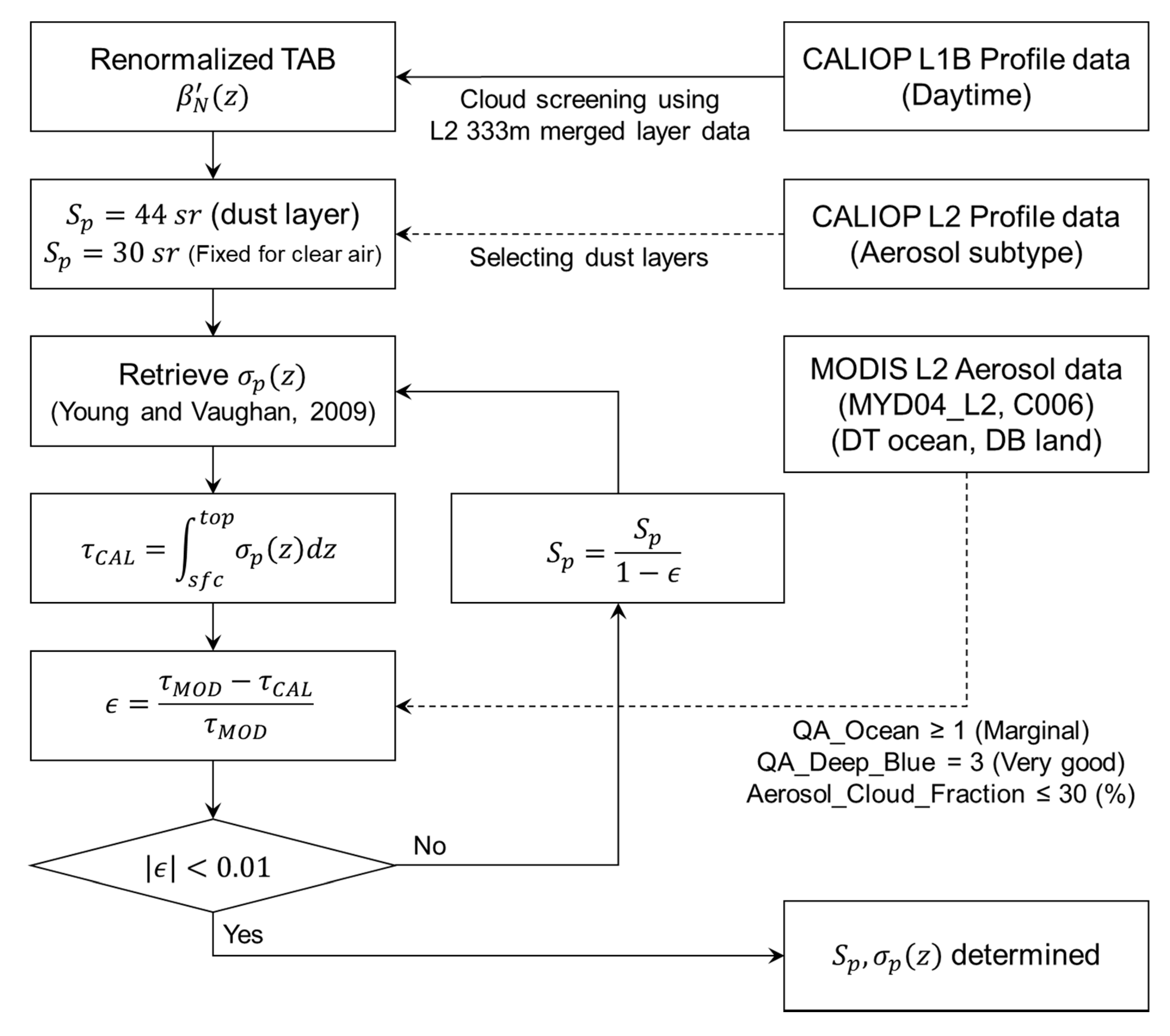

3. AOD Constrained Retrieval

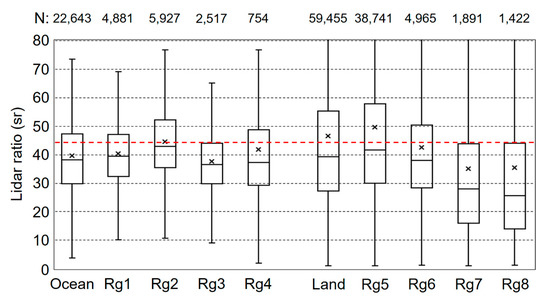

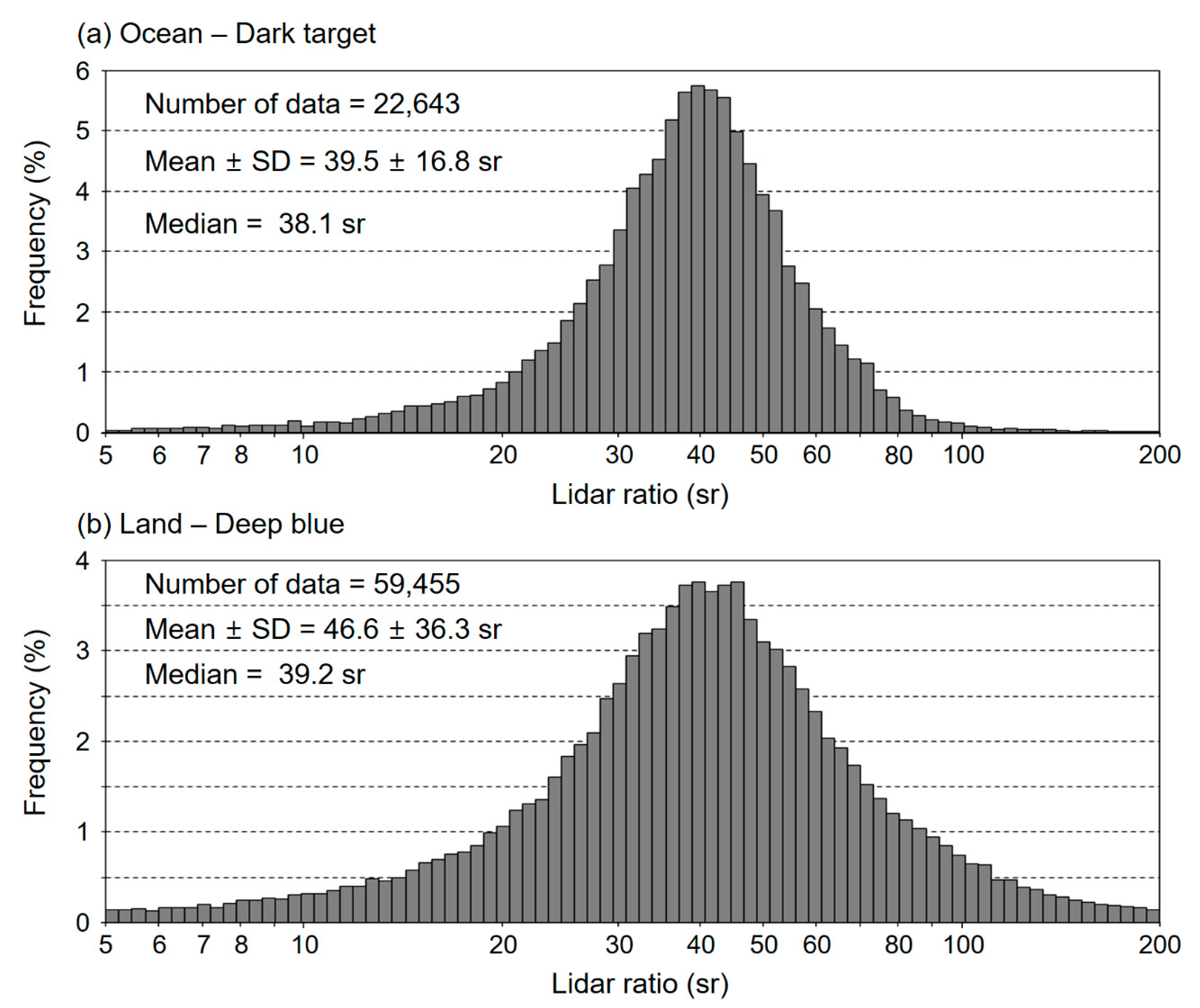

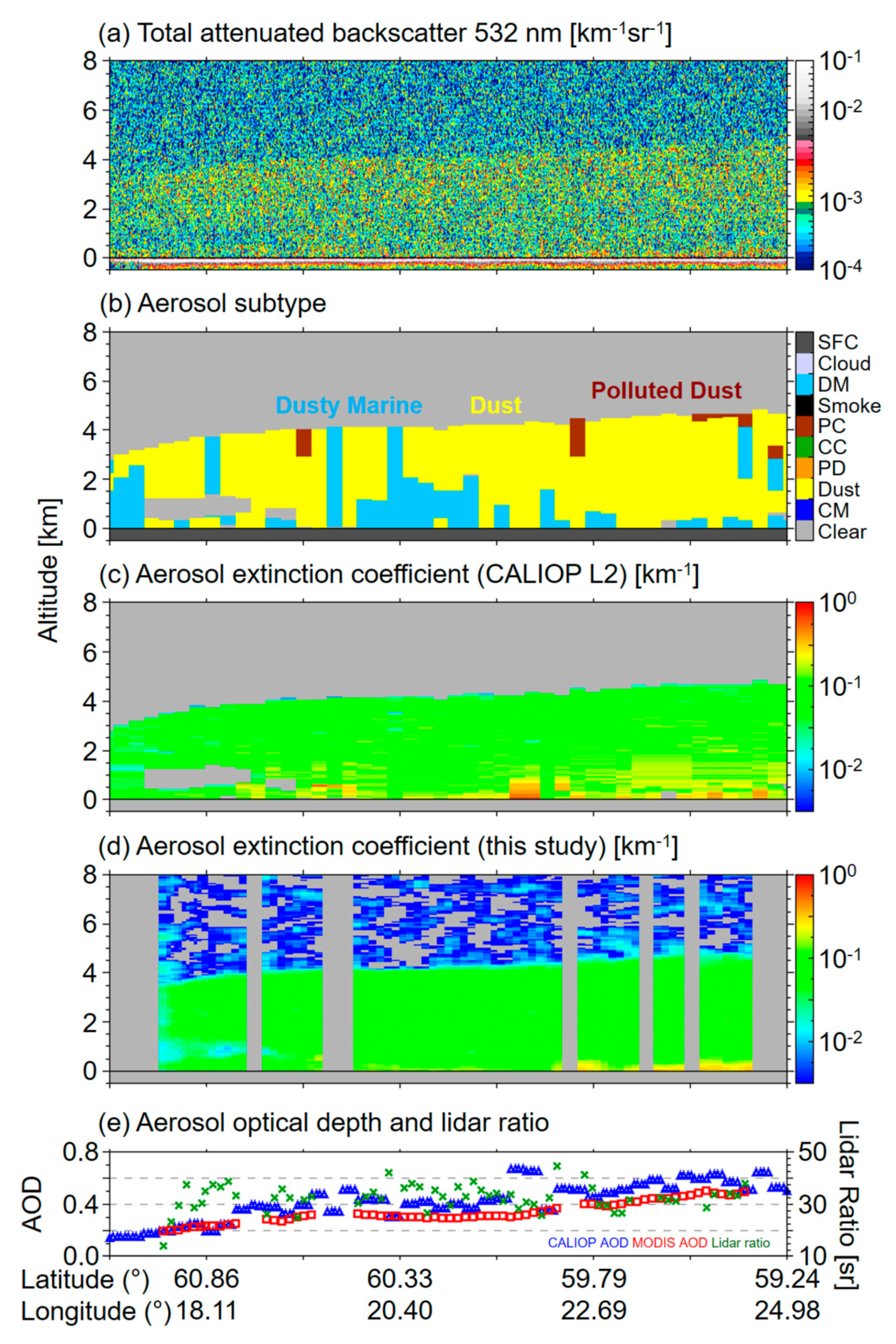

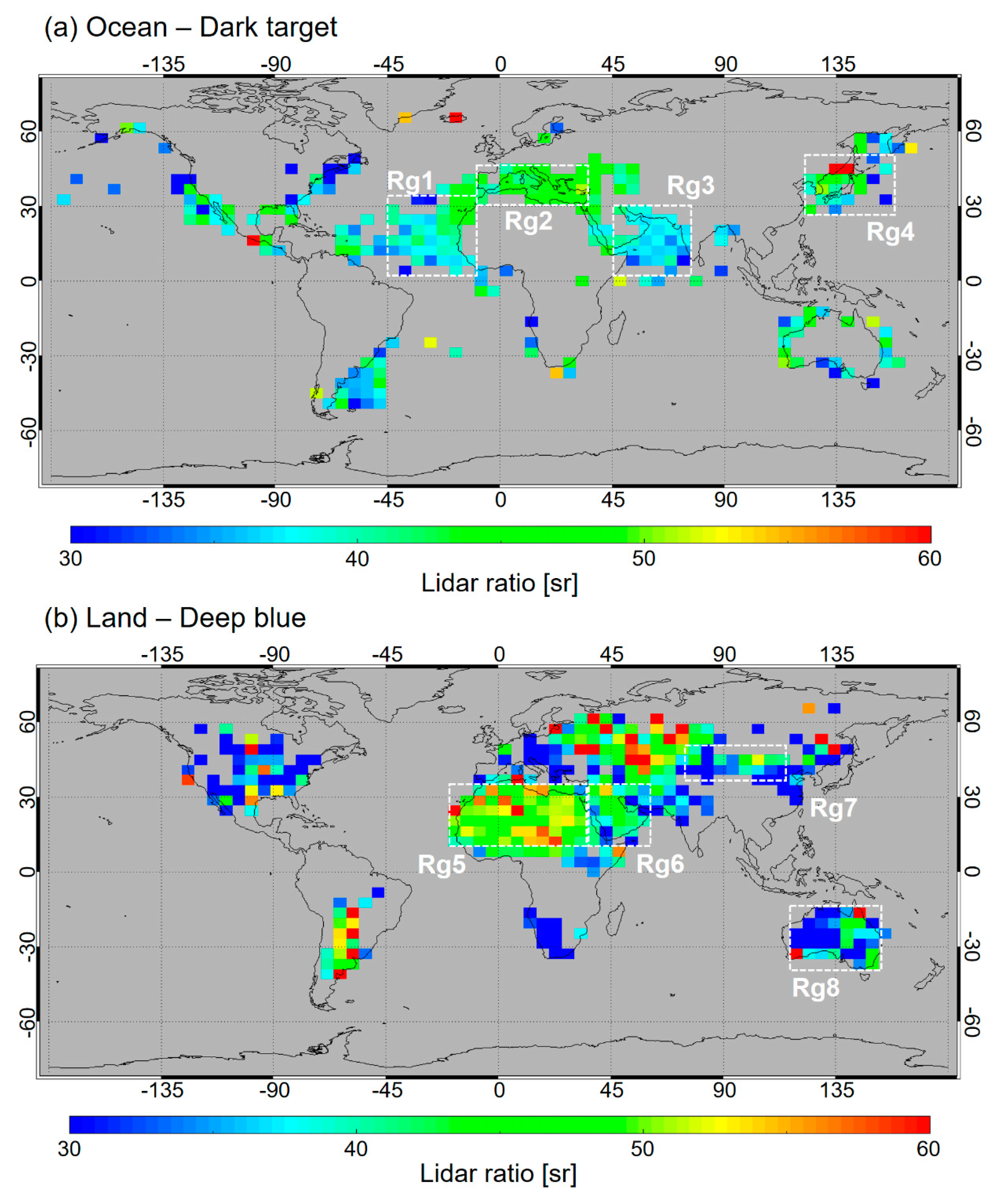

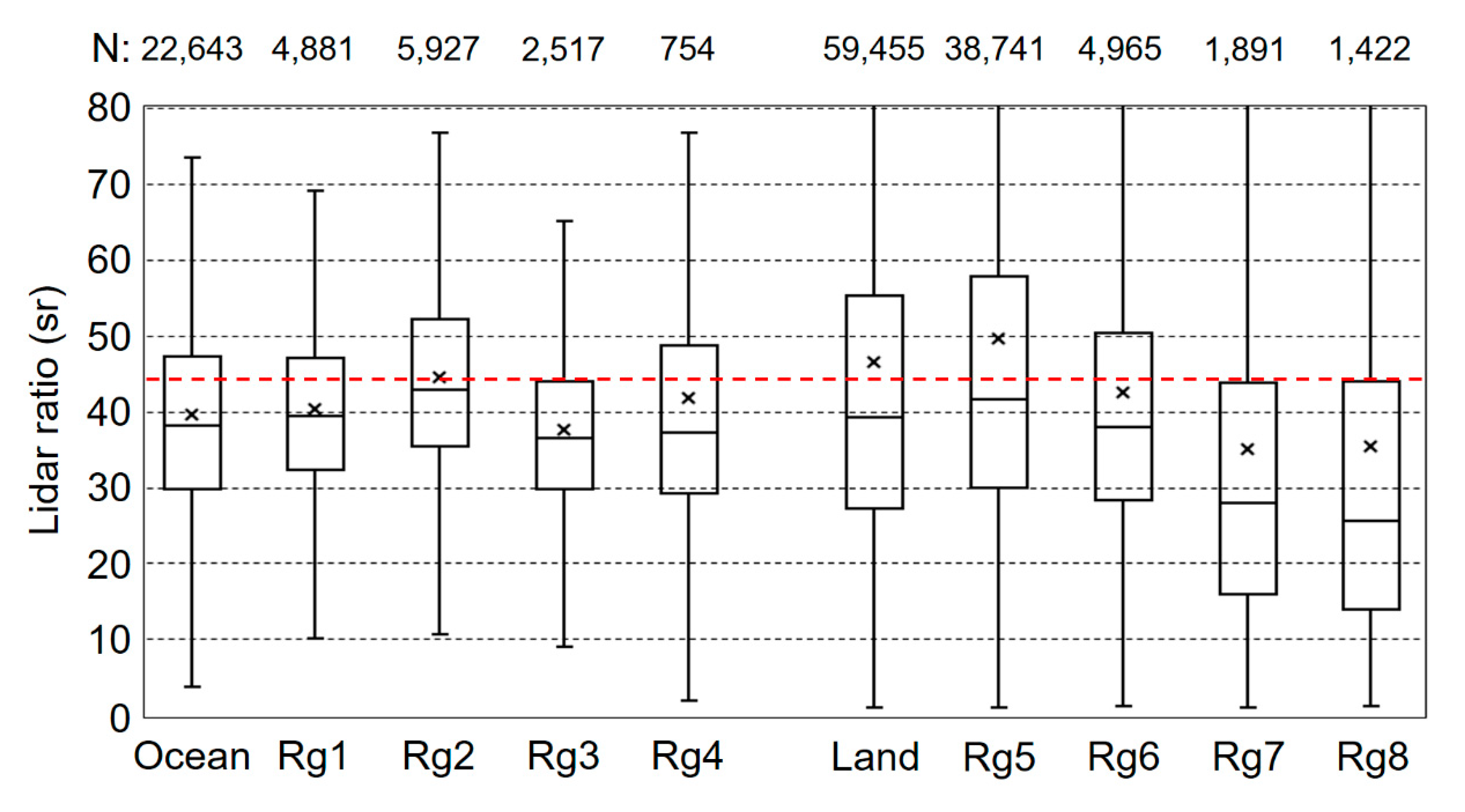

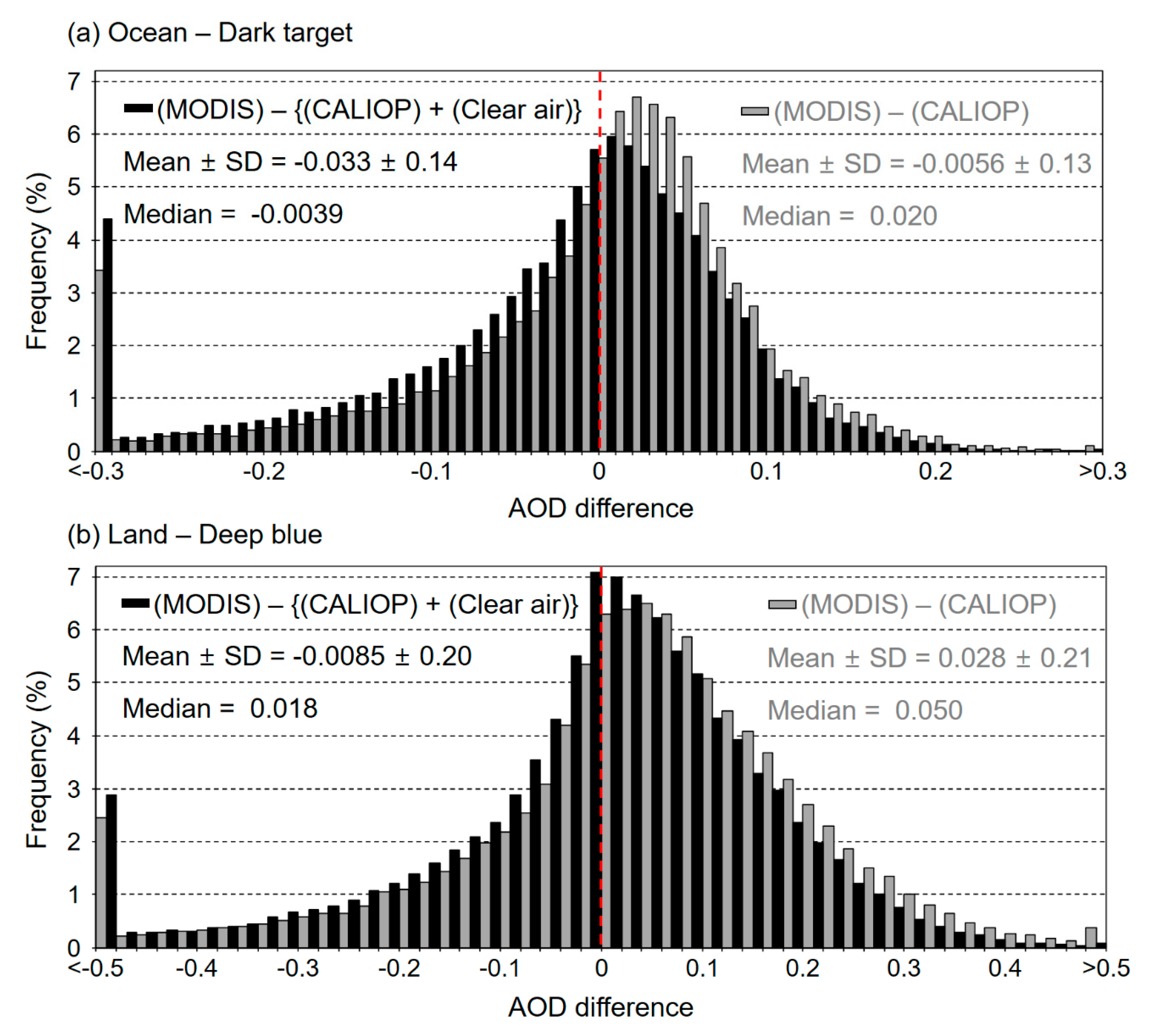

4. Results and Discussion
5. Summary
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
