Automatic Annotation of Hyperspectral Images and Spectral Signal Classification of People and Vehicles in Areas of Dense Vegetation with Deep Learning
Previous Article in Journal
Forest Inventory and Diversity Attribute Modelling Using Structural and Intensity Metrics from Multi-Spectral Airborne Laser Scanning Data
Open AccessArticle

Leaf Area Index Estimation Algorithm for GF-5 Hyperspectral Data Based on Different Feature Selection and Machine Learning Methods

1
State Key Laboratory of Remote Sensing Science, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
2
Beijing Engineering Research Center for Global Land Remote Sensing Products, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
3
Land Satellite Remote Sensing Application Center, Ministry of Natural Resource of the People’s Republic of China, Beijing 100048, China
4
Beijing Engineering Research Center of Industrial Spectrum Imaging, Beijing 100083, China
5
School of Automation and Electrical Engineering, University of Science and Technology Beijing, Beijing 100083, China
6
Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100101, China
7
Northwest National Key Laboratory Breeding Base for Land Degradation and Ecological Restoration, Ningxia University, Yinchuan 750021, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(13), 2110; https://doi.org/10.3390/rs12132110
Received: 24 May 2020 / Revised: 25 June 2020 / Accepted: 30 June 2020 / Published: 1 July 2020

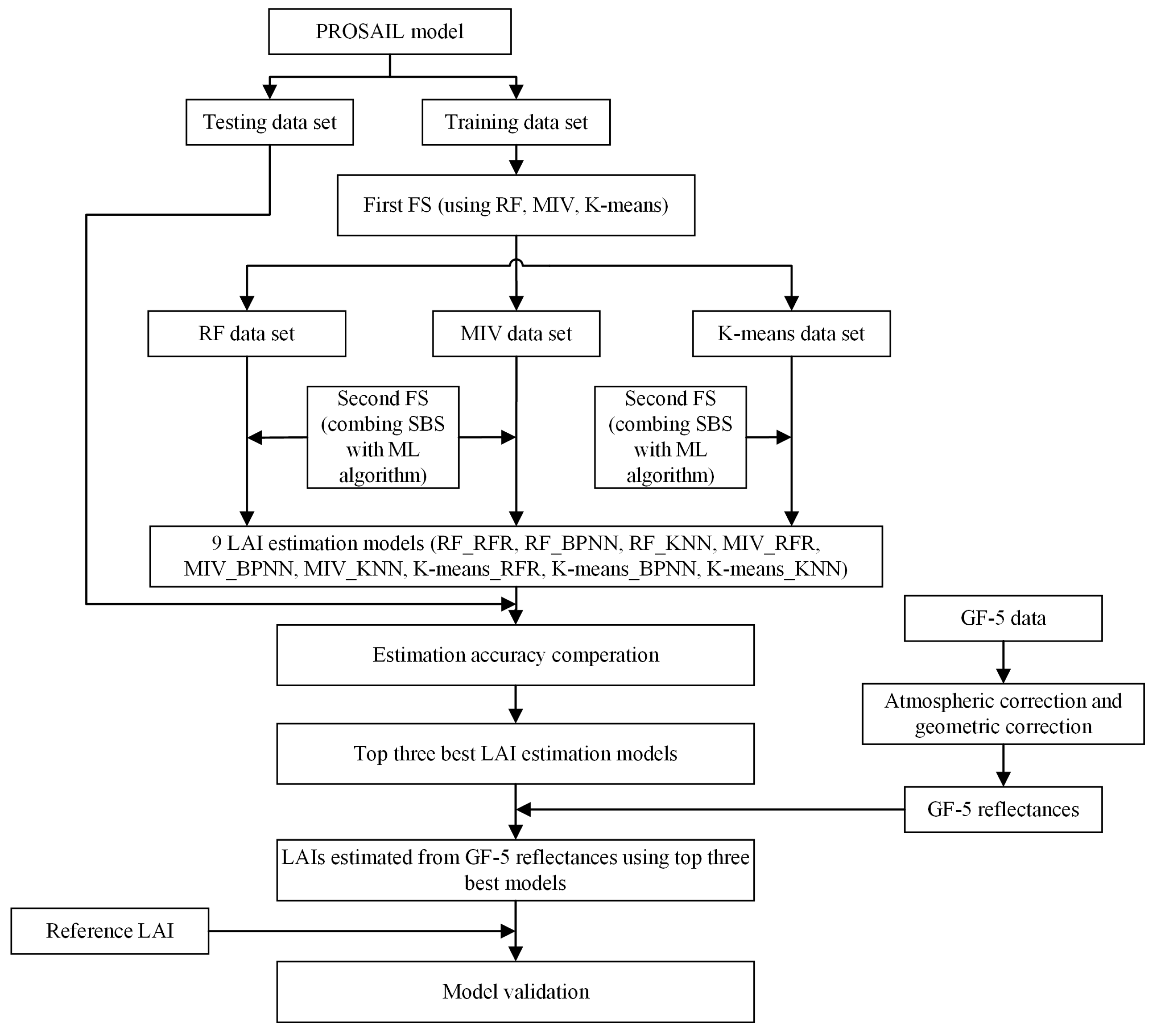

Leaf area index (LAI) is an essential vegetation parameter that represents the light energy utilization and vegetation canopy structure. As the only in-operation hyperspectral satellite launched by China, GF-5 is potentially useful for accurate LAI estimation. However, there is no research focus on evaluating GF-5 data for LAI estimation. Hyperspectral remote sensing data contains abundant information about the reflective characteristics of vegetation canopies, but these abound data also easily result in a dimensionality curse. Therefore, feature selection (FS) is necessary to reduce data redundancy to achieve more reliable estimations. Currently, machine learning (ML) algorithms have been widely used for FS. Moreover, the same ML algorithm is usually conducted for both FS and regression in LAI estimation. However, no evidence suggests that this is the optimal solution. Therefore, this study focuses on evaluating the capacity of GF-5 spectral reflectance for estimating LAI and the performances of different combination of FS and ML algorithms. Firstly, the PROSAIL model, which coupled leaf optical properties model PROSPECT and the scattering by arbitrarily inclined leaves (SAIL) model, was used to generate simulated GF-5 reflectance data under different vegetation and soil conditions, and then three FS methods, including random forest (RF), K-means clustering (K-means) and mean impact value (MIV), and three ML algorithms, including random forest regression (RFR), back propagation neural network (BPNN) and K-nearest neighbor (KNN) were used to develop nine LAI estimation models. The FS process was conducted twice using different strategies: Firstly, three FS methods were conducted to search the lowest dimension number, which maintained the estimation accuracy of all bands. Then, the sequential backward selection (SBS) method was used to eliminate the bands having minimal impact on LAI estimation accuracy. Finally, three best estimation models were selected and evaluated using reference LAI. The results showed that although the RF_RFR model (RF used for feature selection and RFR used for regression) achieved reliable LAI estimates (coefficient of determination (R2) = 0.828, root mean square error (RMSE) = 0.839), the poor performance (R2 = 0.763, RMSE = 0.987) of the MIV_BPNN model (MIV used for feature selection and BPNN used for regression) suggested using feature selection and regression conducted by the same ML algorithm could not always ensure an optimal estimation. Moreover, RF selection preserved the most informative bands for LAI estimation so that each ML regression method could achieve satisfactory estimation results. Finally, the results indicated that the RF_KNN model (RF used as feature selection and KNN used for regression) with seven GF-5 spectral band reflectance achieved the better estimation results than others when validated by simulated data (R2 = 0.834, RMSE = 0.824) and actual reference LAI (R2 = 0.659, RMSE = 0.697). View Full-Text
Keywords: GF-5; LAI; feature selection; machine learning GF-5; LAI; feature selection; machine learning
Show Figures

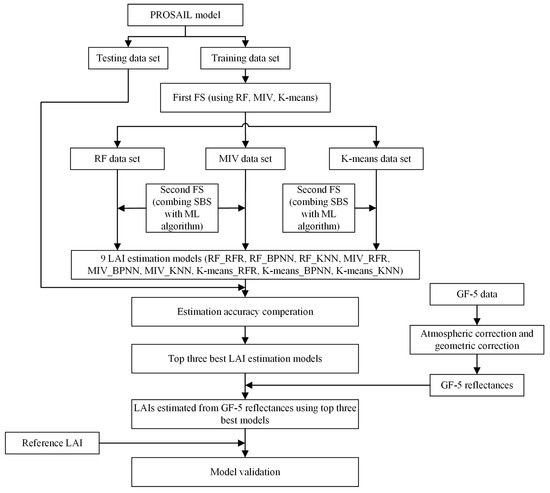

Graphical abstract

MDPI and ACS Style

Chen, Z.; Jia, K.; Xiao, C.; Wei, D.; Zhao, X.; Lan, J.; Wei, X.; Yao, Y.; Wang, B.; Sun, Y.; Wang, L. Leaf Area Index Estimation Algorithm for GF-5 Hyperspectral Data Based on Different Feature Selection and Machine Learning Methods. Remote Sens. 2020, 12, 2110.
