Analysis of Physical and Biogeochemical Control Mechanisms on Summertime Surface Carbonate System Variability in the Western Ross Sea (Antarctica) Using In Situ and Satellite Data

Abstract

In this study, carbonate system properties were measured in the western Ross Sea (Antarctica) over the 2005–2006 and 2011–2012 austral summers with the aim of analysing their sensitivity to physical and biogeochemical drivers. Daily Advanced Microwave Scanning Radiometer 2 (AMSR2) sea ice concentration maps, obtained prior to and during the samplings, were used to analyse the sea ice evolution throughout the experiment periods. Monthly means and 8-day composite chlorophyll concentration maps from the Moderate-resolution Imaging Spectroradiometer (MODIS) Aqua satellite at 4-km resolution were used to investigate inter-annual and basin scale biological variability. Chlorophyll-a concentrations in surface waters estimated by MODIS satellite data contribute to descriptions of the variability of carbonate system properties in surface waters. Mean values of carbonate system properties were comparable across both investigated years; however, the 2012 data displayed larger variability. Sea ice melting also had a pivotal role in controlling the carbonate system chemistry of the mixed layer both directly through dilution processes and indirectly by favouring the development of phytoplankton blooms. This resulted in high pH and Ω_Ar, and in low C_T, particularly in those areas where high chlorophyll concentration was shown by satellite maps.

1. Introduction

The Southern Ocean (SO) is highly sensitive to anthropogenic atmospheric carbon dioxide (CO₂) increases, as the cold waters are naturally CO₂-rich and have a low total alkalinity (A_T) to total inorganic carbon (C_T) ratio, which then reduces the degree of carbonate mineral saturation and the buffering capacity for further CO₂ uptake [1,2]. The addition of CO₂ to seawater increases C_T, bicarbonate (HCO₃⁻), and hydrogen (H⁺) ion concentrations, and decreases carbonate (CO₃²⁻) ion concentration and pH. Furthermore, CO₂ addition lowers the saturation state (Ω) of calcium carbonate in a process called ocean acidification (OA) [3,4]. Surface waters of the SO are predicted to experience wintertime carbonate under-saturation, which is driven by seasonal variations in biological activities and a combination of reduced sea-ice cover, surface water freshening, and increased air-sea CO₂ exchange, by 2030 [5,6]. These changes in carbonate chemistry could have severe consequences for calcifying organisms. Indeed, live shell dissolution of shelled pteropods in the SO has been already reported [5,7,8].

The Ross Sea continental shelf is of critical importance to global biogeochemical cycles and in CO₂ uptake because of its leading role in the primary production of the SO [9,10] and in the formation of Antarctic bottom water (AABW), which impacts the climate on a regional and global scale [11,12]. Both numerical models [13] and in situ observations [1,14,15] confirm that the Ross Sea shelf area is an important CO₂ sink region at an annual scale due to its high biological productivity, intense winds, and high bottom water ventilation rates.

The variability of the carbonate system in Ross Sea surface waters (Antarctic surface water (AASW)) has been reported at both the large scale and mesoscale [16,17,18,19,20]. Observations carried out during summertime suggest that the carbonate system is primarily controlled by biological activities (such as primary production). However, the lowest Ω observed close to the glacier fronts suggests that the increasing glacier melt could counteract the effects of primary production because the freshening of surface water due to dilution leads to less CO₃²⁻ [21].

Furthermore, the variability of surface carbonate system properties in the Antarctic region on interannual and shorter timescales could be influenced by the Southern Annular Mode (SAM) and the El Niño–Southern Oscillation (ENSO) [22]. Both phenomena influence several aspects of the general circulation of the SO at different spatial and temporal scales [23,24,25,26].

Here we present carbonate system data from samples collected during the Italian Climatic Long-term Interaction for Mass-balance in Antarctica (CLIMA, 2005–2006) and Terra Nova Bay Research Experiment (T-REx, 2011–12) research cruises. We analyse the sensitivity of the carbonate system to physical and biogeochemical drivers by comparing chemical data with in situ oceanographic measurements and satellite sea ice and chlorophyll-a (Chl-a) data on the Ross Sea continental shelf during summer.

Satellite ocean-colour data, along with data from other remote sensing platforms, are useful in remote areas (such as the high-latitude polar regions) to study the interannual changes that characterize phytoplankton dynamics. However, it is essential to complement remotely sensed data with an in situ sample collection program to understand the mechanisms that govern variability and to ensure the accuracy of satellite-derived measurements.

This multiplatform approach has been already used to describe both large and mesoscale phenomena at all latitudes [20,27,28,29]. Principal component analysis (PCA) is then used to evaluate relationships and differences among stations and between the two summer seasons with regards to physical and biochemical variables and to AASW properties.

2. Materials and Methods

2.1. Sampling

In situ data were collected during two R.V. Italica cruises in the framework of the CLIMA and T-REx projects of the Italian National Program of Research in Antarctica. Both cruises were carried out on the Ross Sea continental shelf with the aim of describing the main physical and bio-geo-chemical properties of the water masses along the water column. The sampling plan was designed both to cover different areas during the same season and to repeat stations to characterize the interannual variability of selected areas such as the Terra Nova Bay polynya. A total of 162 CTD (Conductivity Temperature Depth) casts (CLIMA cruise, 1 January–12 February 2006) and 62 CTD casts (T-REx cruise, 23 January–9 February 2012) were performed during each cruise. In the present work, a subset of CTD stations were selected to compare data collected in similar locations during the 2006 and 2012 cruises. Thus, we investigated twenty-five and twenty-nine stations of the CLIMA and T-REx cruises, respectively (Figure 1). The selected sampling stations are located along the Ross Ice Shelf (RIS), within the Ross Sea polynya area (RSp) between Terra Nova Bay and McMurdo Sound, and along the western coast of the Ross Sea. A series of transects crossing the Drygalski Trough were made in the Terra Nova Bay polynya (TNBp), north of Coulman Island (CI), and at the continental shelf break off Cape Adare (CA). At each station, water samples for carbonate system analyses were collected at 5–7 depths (from the surface to the bottom) using 12-L Niskin bottles and were stored in 500-mL borosilicate glass bottles following standard operating procedures [30]. The water samples were then poisoned with saturated HgCl₂ solution to stop biological activity from altering the carbon distribution before analysis. Samples were finally stored at constant temperature (+ 4°C) in dark conditions.

2.2. A_T, C_T, and pH Measurements

For samples collected during the CLIMA survey, total alkalinity (A_T) and total inorganic carbon (C_T) were measured simultaneously by using a potentiometric titration system [30,31]. For samples collected during the T-REx survey, A_T, and pH were measured using the methods described in [32,33]. The pH was expressed using the pH total scale (i.e., [H⁺] as moles per kilogram of seawater, pH_T) and was determined using a potentiometric method that employed a combination of glass/reference electrode and NTC ((Negative Temperature Coefficient) temperature sensor. The tris(hydroxymethyl)aminomethane (TRIS) buffer used to standardize the pH electrode was prepared according to [30]. Before the measurements were conducted, both the TRIS buffer and seawater samples were brought to the same temperature (25 ± 0.1 °C) using a thermostatic water bath. The pH_T measurements at 25°C were then recalculated at in situ temperature and pressure conditions (pH_{in situ}).

The accuracy and precision of A_T and C_T measurements were evaluated using different Certified Reference Material batches (CRM batches 58, 95, and 123) provided by Prof. A. G. Dickson (Scripps Institution of Oceanography). For 2006 samples the accuracy was ±4.0 μmol kg⁻¹ for both A_T and C_T and the precision was ±3.0 μmol kg⁻¹ for A_T and ±4.0 μmol kg⁻¹ for C_T, respectively. Measurements for 2012 samples were characterized by an accuracy and precision of ±4.0 μmol kg⁻¹ for A_T. The accuracy of the pH measurements would have been strongly dependent on the composition of the TRIS buffer solution, but no certified material was available. Therefore, this figure of merit was not determined. The precision of the pH measurement was ±0.007 units and was evaluated by repeated analysis of the A_T certified material.

2.3. CO₂ -Carbonate System

The CO₂ SYS program was used to calculate seawater pCO₂ and Ω data from the measured variables [34]. In addition, pH values were calculated from A_T and C_T for the 2006 dataset and C_T concentrations from A_T and pH for the 2012 dataset. Equilibrium constants of CO₂ (K1 and K2) and total hydrogen ion scale (mol kg-SW⁻¹) for pH were used for the calculations [35].

The sea-air CO₂ flux (F, in mmol m⁻² d⁻¹) was calculated following Wanninkhof as F = ks (ΔpCO₂), where k is the CO₂ gas transfer velocity (cm h⁻¹), s is the solubility of CO₂ (mol kg⁻¹ atm⁻¹) and ΔpCO₂ is the difference between pCO_2SW and pCO_2atm [36]. Ship-based wind speed data at 25 m height were used to calculate the gas transfer velocity (k). The seawater pCO₂ data were calculated from the measured inorganic carbon data obtained in this study, whereas the atmospheric pCO₂ data (383 and 392.61 μatm for 2006 and 2012, respectively) were obtained from the South Pole Observatory dataset (http://www.esrl.noaa.gov/gmd/dv/data/index) and corrected to 100% humidity at in situ sea surface temperature (SST) and salinity. All corrections and calculations of CO₂ flux were carried out as described in [33].

2.4. Hydrographic and Ancillary Data

Conductivity, temperature, and depth were acquired using a CTD profiler Sea Bird Electronics SBE 9/11plus. The CTD was equipped with dual temperature-conductivity sensors and with an SBE 23 O2 sensor and Chelsea Aquatrack III fluorometer for oxygen concentration and fluorescence data. The CTD calibrations were performed before and after both cruises. Data were acquired at the maximum frequency (24 Hz) with a descent speed of 1 m s⁻¹. The data were corrected and processed according to international procedures [37]. Potential temperature (θ) and salinity (S) were computed using standard algorithms [38]. The data were processed and quality checked using the CTD Sea Bird Electronics data processing software. Finally, the profiles were vertically averaged over 1 m depth bins.

Melt water percentage in the upper surface layer (MW%) was calculated assuming an average sea-ice salinity of six [39] and considering the difference between the salinity measured at the surface (S_meas) and the salinity measured at the same station at greater depth (S_deep), where this is not influenced by freshening due to sea-ice melting.

Mixed layer (ML) depth was determined for each cast by considering an increase in in situ density anomaly (σ_t) > 0.05 over a 5 m depth interval, which has been successfully applied in the same area in previous papers [20,40,41].

2.5. Statistical Analysis

Pair-wise Pearson correlation coefficients were computed to examine the relationships between the parameters. The multivariate statistical technique principal component analysis (PCA) was used to evaluate the correlations between variables and differences among samples collected in the AASW. By means of PCA, a data matrix was reduced to smaller ones that consisted of principal component (PC) loadings and scores. PC scores condense information about all variables into a single number, whereas PC loadings are the eigenvectors of the correlation and indicate the relative contribution of each variable to that score [42]. PCA was performed on a total of 123 samples. The dataset was structured based on three main variables groups: physical and chemical variables (θ, salinity, fluorescence, O₂, A_T, C_T, pH, and pCO₂), sampling years (2006 and 2012), and sampling areas (TNBp, RIS, CA, CI, and RSp). Statistical analysis and PCA were carried out using the Statistica Pro package (StatSoft, Inc., 2001) and the differences were deemed statistically significant at p = 0.05. Chemical and physical data were presented using Ocean Data View software [43].

2.6. Satellite Data

Satellite Chl-a concentration maps estimated through the OCI algorithm from a Level 3 Aqua MODIS product were used (http://oceancolor.gsfc.nasa.gov/cgi/l3) to complement in situ fluorescence data and to investigate inter-annual variability. Moreover, remotely sensed data allowed for the observation of the spatial variability at a larger scale. Monthly mean Chl-a maps were used to discuss basin scale Chl-a patterns during February 2006 and February 2012. Additionally, in order to compare in situ data with the closest in time and nearest in space satellite data, 8-day composite at 4-km resolution maps for the Ross Sea area during the sampling periods in 2006 and 2012 were used.

Sea ice concentration and evolution were analysed through daily satellite Advanced Microwave Scanning Radiometer 2 (AMSR2) sea ice concentration maps, provided at 3.125-km resolution by the University of Bremen for weeks previous to or contemporaneous with the sampling (http://iup.physik.uni-bremen.de/iuppage/psa/2001/amsrop.html) [44].

3. Results

3.1. Hydrographic and Carbonate Chemistry Variability

Water masses were identified and defined according to [12]. AASW is characterised by a neutral density (γⁿ) < 28.00 kg m⁻³ and S < 34.30. Circumpolar deep water (CDW) is defined by 28.00 < γⁿ < 28.27 kg m⁻³ and by a subsurface potential temperature maximum (Figure 2) [45]. The CDW intrudes onto the continental shelf area in the middle layer between the lighter AASW and the densest shelf waters below (i.e., high salinity shelf waters (HSSW) and/or ice shelf water (ISW) [46]. As expected, the larger variability observed in surface water physical properties compared to deep water characteristics is mainly connected to the intense interactions occurring at the ocean-atmosphere-ice interface [47,48].

Table 1. Mean, standard deviation (st.d.), minimum (min) and maximum (max) values of potential temperature (θ, °C), salinity (S), melt water percentage (MW%), Antarctic surface water (AASW) thickness (m) and mixer layer (ML) depth (m).

2006	θ	S	MW%	AASW	ML	2012	θ	S	MW%	AASW	ML
TNBp						TNBp
Mean	0.77	34.07	2.6	19	14	Mean	−0.86	33.97	3.7	34	13
st.d.	0.88	0.34	1.4	2	2	st.d.	0.49	0.56	2.3	7	7
min	−1.01	33.15	1.5	17	11	min	−1.77	32.49	0.3	21	7
max	2.24	34.53	4.9	22	16	max	0.36	34.55	6.5	44	32
RSp						RSp
Mean	0.17	34.41	0.8	42	23	Mean	−1.01	33.90	4.5	37	10
st.d.	0.75	0.12	1.2	15	21	st.d.	0.54	0.48	0.4	10	3
min	−1.12	33.73	0.1	23	4	min	−1.66	33.04	4.3	30	7
max	3.05	34.50	2.6	57	49	max	0.25	34.49	4.8	44	16
RIS						RIS
Mean	−1.07	34.32	0.9	197	67	Mean	−1.19	34.24	1.8	321	116
st.d.	0.46	0.08	0.2	35	24	st.d.	0.62	0.13	0.5	100	56
min	−1.66	34.20	0.4	132	50	min	−1.83	33.78	0.8	183	45
max	−0.46	34.45	1.0	228	84	max	0.29	34.45	2.3	446	198
CI						CI
Mean	−0.56	34.20	1.8	55	35	Mean	−0.77	34.16	2.2	107	32
st.d.	0.51	0.19	0.9	8	4	st.d.	0.55	0.29	1.0	18	6
min	−1.59	33.74	0.9	46	30	min	−1.55	33.55	1.0	89	29
max	0.11	34.48	2.6	61	40	max	0.24	34.47	3.2	132	50
CA						CA
Mean	−0.54	34.34	1.1	143	21	Mean	−0.88	34.24	1.5	209	41
st.d.	0.28	0.09	0.1	33	18	st.d.	0.37	0.18	0.1	36	5
min	−1.45	34.18	0.9	35	19	min	−1.49	33.55	1.3	172	36
max	0.25	34.54	1.3	204	24	max	0.18	34.54	1.6	251	45

reports mean, standard deviation, minimum, and maximum values of the physical properties of the AASW (i.e., γⁿ < 28.00 kg m⁻³).

The AASW mean temperature and salinity were higher in the summer of 2006 than in 2012 in all the studied areas. The warmest values were observed in TNBp and RSp in 2006, while RIS was the coldest area during both surveys. The observed thermohaline variability is coherent with the higher MW% calculated for 2012. These differences in hydrographic properties were reflected along the entire AASW layer and had an impact on the observed ML depths, as will be further discussed. Furthermore, the AASW layer thickness changed from 2006 to 2012. The mean thicknesses of each area for the CLIMA survey (2006) were lower than those for the T-REx survey (2012). In particular, the AASW thickness values in 2006 in the TNBp and at the CI stations were about half of 2012′s values. The shallowest AASW layer was found for both surveys in the TNBp and it deepened moving from the TNBp toward CA and the RIS (cf. Table 1). Additionally, a very shallow ML was calculated for the TNBp stations in both surveys. Conversely, deeper and more variable ML depths were calculated for the other surveyed areas (Table 1).

Furthermore, the physical properties of the intermediate and deep waters during the two cruises were more similar and varied within a relatively narrow range (cf. Figure 2) compared to the AASW.

The intrusion of CDW was traced in 2006 and 2012 to near CA by a relative θ subsurface maximum in the expected γⁿ range between 28.00 and 28.27 kg m⁻³. The same intrusion has also been successively observed when analysing the long time series of mooring data collected in the areas of the T-REx and CLIMA surveys (www.morsea.uniparthenope.it, mooring G) [46]. Water masses with θ below −2.0° C found in both surveys at ~400 m along the RIS were associated with deep ice shelf water (DISW) outflow. Finally, the HSSW, found in the TNBp and in several stations both in the RSp and CI, was characterized by salinity values higher than 34.75.

During both cruises a general increase with depth was observed for A_T and C_T whereas a decrease for pH was found (Figure 3a–c). All samples were oversaturated with respect to both the calcite and the aragonite; Ω aragonite (Ω_Ar) values near the equilibrium (~1.0) were found in the deepest layers of the TNBp (Figure 3d).

All the parameters showed high variability in the upper layer of the water column (from the surface down to a depth of more than 100 m). On the contrary, the carbonate system data of the intermediate and deep waters during the two cruises showed similar values and varied within a relatively narrow range. These patterns are in good agreement with other measurements collected during the summer season in the Ross Sea [18,19,20,33,49].

A_T and S were found to be significantly and positively correlated (Pearson’s r = 0.76, n = 328) in the HSSW layer at depths greater than 500 m in TNBp stations and along its spreading pathways. This is due to A_T conservative behavior with respect to S. The pH co-varied positively and significantly with θ and O₂ (Pearson’s r = 0.27 and 0.46, respectively, n = 328) and negatively with S (−0.42). Conversely, C_T co-varied negatively with θ and O₂ (Pearson’s r = −0.51 and −0.61, respectively, n = 328) and positively with S (0.72).

Table 2. Mean, standard deviation, minimum and maximum values of A_T (µmol kg⁻¹), C_T (µmol kg⁻¹), pH_{in situ}, pCO₂ (µatm), Ω calcite (Ω_Ca), and Ω aragonite (Ω_Ar) in the AASW.

2006	AT	CT	pHin situ	pCO2	ΩCa	ΩAr	2012	AT	CT	pHin situ	pCO2	ΩCa	ΩAr
TNBp							TNBp
Mean	2297.9	2170.5	8.06	376	2.4	1.5	Mean	2307.8	2175.8	8.11	341	2.5	1.6
st.d.	26.4	8.2	0.07	59	0.3	0.2	st.d.	51.3	73.7	0.11	96	0.7	0.4
min	2260.2	2154.0	8.01	266	2.1	1.3	min	2210.0	2015.3	7.95	172	1.8	1.4
max	2337.1	2179.9	8.19	419	2.9	1.8	max	2376.4	2284.6	8.35	505	3.7	2.3
RSp							RSp
Mean	2320.6	2171.6	8.11	333	2.7	1.7	Mean	2282.2	2188.7	8.29	205	3.4	2.1
st.d.	20.9	6.6	0.07	66	0.3	0.2	st.d.	31.3	28.8	0.01	4	0.4	0.3
min	2331.5	2183.3	8.15	480	2.1	1.3	min	2260.2	2164.4	8.28	202	3.0	1.4
max	2273.6	2165.7	7.96	297	2.9	1.8	max	2304.4	2209.1	8.30	208	3.6	2.5
RIS							RIS
Mean	2312.0	2200.9	8.04	391	2.1	1.3	Mean	2322.0	2160.9	8.22	255	3.1	2.0
st.d.	8.5	23.0	0.06	62	0.3	0.2	st.d.	10.4	89.0	0.10	52	0.5	0.3
min	2295.9	2164.9	7.91	305	1.6	1.0	min	2304.4	2074.3	8.10	175	2.4	1.5
max	2329.3	2237.5	8.13	530	2.6	1.6	max	2341.6	2464.7	8.35	339	4.1	2.6
CI							CI
Mean	2302.8	2201.4	8.00	425	2.0	1.3	Mean	2291.4	2195.1	8.00	441	2.0	1.2
st.d.	24.5	6.9	0.06	65	0.3	0.2	st.d.	40.9	45.2	0.05	55	0.2	0.2
min	2270.0	2192.5	7.92	358	1.7	1.1	min	2220.8	2126.1	7.91	374	1.6	1.0
max	2330.6	2208.0	8.07	514	2.3	1.4	max	2340.8	2274.7	8.07	556	2.4	1.5
CA							CA
Mean	2315.0	2192.7	8.06	370	2.3	1.4	Mean	2308.8	2203.9	8.02	417	2.1	1.3
st.d.	12.6	8.7	0.04	40	0.2	0.2	st.d.	12.3	21.1	0.04	46	0.2	0.1
min	2290.3	2182.6	7.98	321	1.9	1.2	min	2293.2	2174.1	7.94	352	1.8	1.1
max	2332.1	2208.5	8.11	453	2.5	1.6	max	2330.4	2237.8	8.09	497	2.4	1.5

reports the ranges of the carbonate system properties measured in the AASW layer of the investigated areas. Mean data of the carbonate system properties are comparable but 2012 data are more scattered, particularly for those in the TNBp, according to both the standard deviation and the range of the observed values.

3.2. Data Analysis

Principal component analysis led to the identification of three principal components explaining about 80% of the total variance, which is valuable for the exploratory data analysis performed in this study and comparable to previous studies [39]. Figure 4 shows the loading plots of these PCs: C_T and O₂ load on PC1; S, A_T, pCO₂, and pH load on both PC2 and PC3; and fluorescence and θ are found on PC3.

The score plots of PC1 versus PC2 and PC1 versus PC3 factor-planes (Figure 5) highlight that the samples collected in the AASW layer are ordered differently in relation to the sampling area and year, mainly for PC1 and PC3. With regards to sampling area variability, the samples collected at CA were characterized by colder temperature, lower O₂ and fluorescence, and higher C_T in comparison to those sampled in the other investigated areas. As regards the sampling year, the RIS area was characterized by higher pH, fluorescence, and O₂ values in 2012, unlike in 2006; on the contrary, the TNBp, the RSp and CI experienced higher temperature and fluorescence in 2006 than in 2012 as well as a wide dispersion of the carbonate system data (cf. Table 2). Finally, PCA did not show any differences between the 2006 and 2012 samples collected at CA since these lie in the same quadrant of the score plot.

3.3. Satellite Data

Ice concentration maps were used to describe the basin scale variability of sea ice coverage before and during the sampling periods in 2006 and 2012. Disappearance of sea ice over the study area was slower in 2012 than in 2006. In mid-January 2012 a sea ice belt was still present at 68°S–70°S, while the coastal areas near the Drygalski ice tongue and the TNBp (~74°S) were affected by the presence of sea ice with a patchy distribution. In both years, almost all sea ice had disappeared by mid-February (Figure 6).

MODIS satellite data show the presence of large areas of high Chl-a concentration levels in the Ross Sea shelf area both in February 2006 and 2012. The monthly composite maps show that maxima were confined to the TNBp and RSp for both years and along the RIS in 2012. Conversely, the area near CA displayed a low signal for both years (Figure 7).

Remotely sensed Chl-a concentration data referring to the position of the sampling stations obtained from the 8-day composites closest to the sampling stations have been correlated with the data of carbonate system parameters collected at the surface (Figure 8). No correlation was found for the 2006 samples, whereas for the 2012 samples the Chl-a co-varied positively and significantly with pH (Pearson’s r = 0.73, n = 28) and negatively with C_T (Pearson’s r = −0.56, n = 28). Figure 8 shows the relationship between Chl-a and C_T and between Chl-a and pH, respectively.

4. Discussion

4.1. Physically-Induced Variability of the Carbonate System in the AASW

The CLIMA and T-REx cruises covered the shelf region and the western slope area of the Ross Sea and were both characterized by ice-free conditions over most of the study area. Results from both cruises show an increase of AASW layer thickness and of ML depth from the TNBp towards the RIS and CA. The observed deepening of the ML and the increased AASW layer thickness have been associated with a decrease in water column stability [12,39,50]. Besides the observed spatial variability, the AASW thickness also increased from 2006 to 2012 over all areas. By contrast, the ML depths showed non-homogeneous behaviour. An increase of ML depth in CA and the RIS and a decrease in the RSp area were observed, while the TNBp and CI showed a similar ML value during both cruises. Similarly to the physical properties, the carbonate system properties of AASW showed a large variability likely to be influenced by the sea ice extent and evolution. The longer lasting presence of sea ice in 2012 implies that the sea ice melting was still influencing upper AASW layer properties during the cruise period. This agrees with lower temperature and salinity and consequently with the higher MW% measured in the January 2012 samples collected in the TNBp and CI transects. On the other hand, the lower variability of the AASW features observed in the CA sampling area (centred at about 72°S) can be linked to the similarities in sea ice distribution in both years.

Sea ice concentration variability can be modulated by various factors, from the local to large scales. The main large-scale modes that dominate Southern Hemisphere atmospheric variability are the Southern Annular Mode (SAM) and the two Pacific–South American modes associated with the high latitude response to the El Niño–Southern Oscillation [51,52]. The influence of these climate oscillations on sea ice retreat and advance has been observed both in the Antarctic Peninsula and in the Ross Sea [25,53,54,55]. Sea ice export from the Ross Sea is also related to the strength of the Amundsen Sea low pressure field which is in turn related to large-scale SO climatic patterns [56]. Cold southerly winds are found in the Ross Sea during SAM+ events which contribute to positive sea ice anomalies [53]. Moreover, cold conditions and more sea ice in the Amundsen and Ross Seas are associated with the strengthening of the polar front jet that occurs during La Niña events [53]. Amplified effects on both physical and biological water column properties can be observed when SAM+ coincides with La Niña [57], as occurred in 2012. Thus, the later spring sea ice retreat observed in 2012 was likely linked to the different interactions and effects of the two climate modes on the Ross Sea area [25,26,55]. Consequently, the addition of melting freshwater in 2012 resulted in a dilution of A_T and C_T. This is consistent with the fact that the distribution of surface A_T and C_T is controlled by factors linked to S, as the positive and significant correlation found between these parameters pointed out. The lowest S (≈33.00) measured in 2012 in the TNBp coincided with the lowest A_T and C_T concentrations. The effect of freshwater addition had a greater impact on A_T than on C_T, as highlighted by the correlation values and the PCA results. The effects produced by ice melting on the carbonate system have been already documented in the Arctic Ocean [58] as well as in the Southern Ocean, where low A_T, C_T, pH, and Ω values were observed in the sea-ice covered areas in both the Amundsen Sea and Ross Sea [21,33]. In this study a significant negative correlation between MW%, Ω, and pH was only found in 2006. This suggests that in 2012 an additional forcing could have determined the displacement of carbonate equilibria and the Ω_Ar distribution (Figure 9) in spite of the greater contribution of sea ice melting to the surface waters.

Prior to this study, an increase in C_T and a pH decrease due to the intrusion of CDW into the shelf in the western Ross Sea had been already observed [18,33]. In this study, the CDW was traced exclusively to CA in 2006, and could have influenced the carbonate properties. However, since the presence of CDW in the other investigated areas has not been detected, we believe that this factor is not relevant in conditioning the observed variability in the AASW across the entire shelf area.

4.2. Biologically-Induced Variability of the Carbonate System in the AASW

Biological processes are strictly dependent on the sea-ice cover, light availability, and water column stratification [39]. Late spring 2012 sea ice retreat resulted in a higher freshwater presence in the TNBp and RSp, and along the RIS. This supported a more intense bloom throughout the increased stratification of the water column and the input of iron reservoirs from the ice sheet [59,60,61]. This agrees with the increase in the mean annual Chl-a concentration on the Ross Sea shelf observed during a SAM+ or La Niña event [9,62]. Thus, the variability in sea-ice extent and melting indirectly affect the carbonate system through biological forcing. Photosynthetic uptake of carbon by phytoplankton in the surface layer decreases C_T while increasing pH, Ω_Ar, and O₂. Consistent with this observation, the O₂ saturation (i.e., the ratio of the measured concentration to the concentration at the equilibrium, which is a function of temperature and salinity) was ≈100% or higher in the TNBp and RSp, whereas in the CA area it decreased to 75–79% on average. In the RIS region a significant difference was observed between the two surveys: O₂ saturation ranged from 78% ± 5 in 2006 to 97% ± 8 in 2012, supporting the hypothesis that higher photosynthetic activity was occurring during the T-REx survey. The RIS area was also characterized by higher pH and fluorescence and by lower C_T values in 2012 than in 2006, suggesting that a stronger control by biological activity compared to physical forcing was occurring within seasonal carbonate system variation. Chl-a concentrations in surface waters estimated by MODIS satellite data were in good agreement with these findings and allowed us to better explain the variability of the carbonate system properties in surface waters.

The phytoplankton of the Ross Sea are alternatively dominated by two functional groups, diatoms and haptophytes (i.e., Phaeocystis antarctica), which are typically separated both in space and time [10]. In the summer, diatoms usually comprise 90% of the phytoplankton along the western Ross Sea continental shelf and in the TNBp, where the stratification of surface waters associated with ice melting results in a relatively shallow mixed layer [10,41].

Information about phytoplankton community composition cannot be obtained by looking at the MODIS satellite Chl-a concentration maps, and unfortunately no specific data were collected during the T-REx (2012) cruise. The observations from the CLIMA survey showed that diatoms prevailed [63], and considering the removal of macronutrients (nitrate, phosphate, and silicate (data not shown)), some assumptions can be made for T-REx. The drawdown of C, N, and P deviates substantially from Redfield ratios (106:16:1) [64], indicating marked phytoplankton taxonomic variation [17,65]. In both years, the N:P ratios (13 and 11, respectively) observed in our study fall within the range of values reported for diatom-dominated waters [66]. This is in agreement with the development of phytoplankton assemblages proposed for the Ross Sea [10]. Similarly, the slope of the C_T:PO₄ disappearance ratio (76.6) falls within the range proposed for diatom-dominated waters (94.3 ± 20.1) [66].

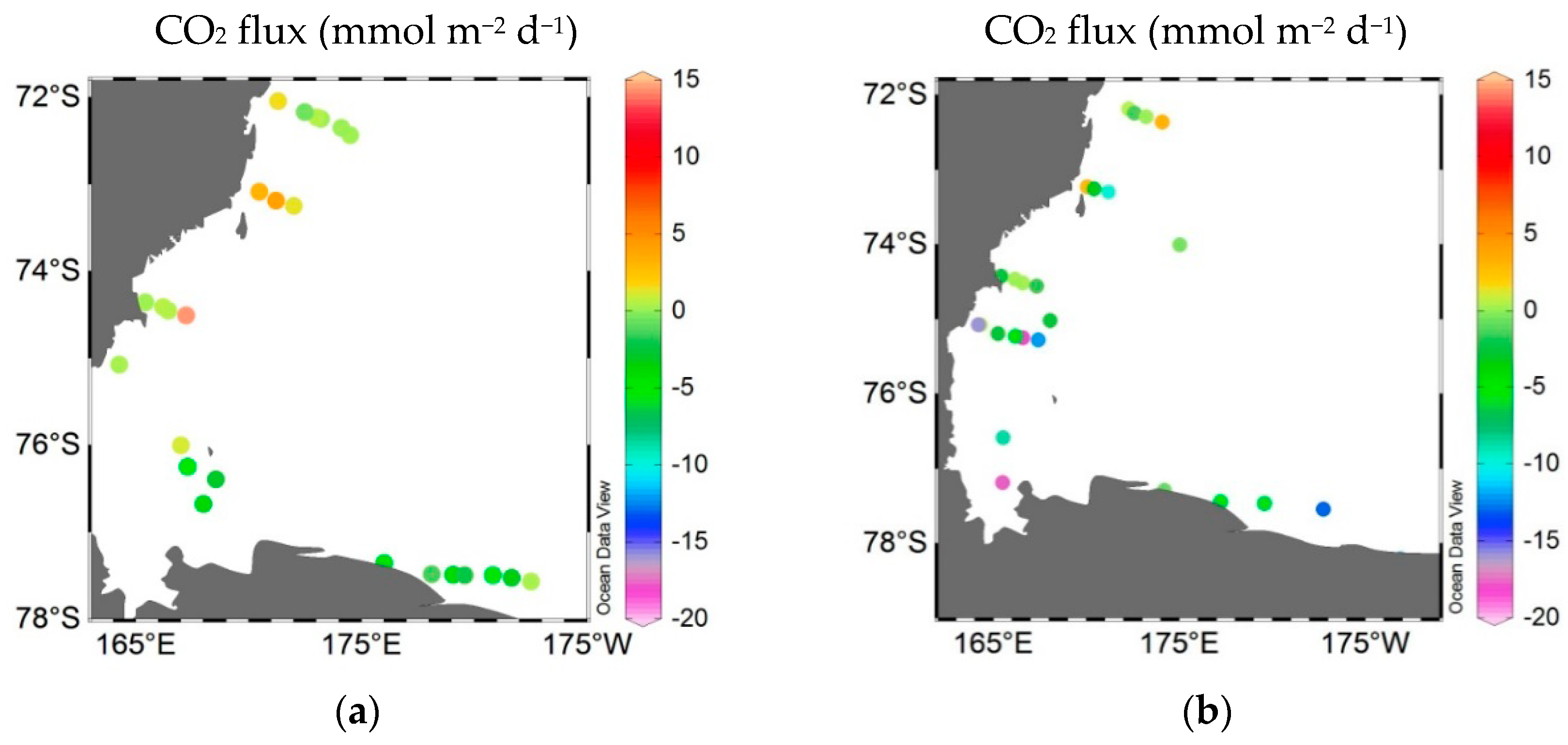

During the 2006 cruise, the mean sea surface pCO₂ (pCO_2SW) values exceeded the atmospheric value in the TNBp, CI, and CA areas, whereas the opposite was observed in the RSp and along the RIS. On the contrary, pCO_2SW during the 2012 cruise was near or below the atmospheric saturation in all the surveyed areas (Table 2). Consequently, the mean ΔpCO₂ (pCO_2SW − pCO_{2 air}) was negative (from –3 to –185 µatm) and in those stations where the greatest air–sea CO₂ disequilibrium occurred, the highest pH and O₂ super-saturation was observed. Thus, the sea surface was under-saturated with respect to atmospheric CO₂ as biological carbon uptake reduced seawater pCO₂ and C_T, creating CO₂ sinks. However, it should be mentioned that even though disequilibria occur, this does not mean that atmospheric CO₂ enters the ocean quickly, as the time scale of air-sea exchange relative to drawdown is different. Sea–air CO₂ fluxes varied substantially by becoming positive or negative, accordingly to the sign of the calculated ΔpCO₂ (Figure 10).

The highest negative values, comparable to those estimated by [37], were observed in the TNBp and along the RIS in 2012 (−18.4 and −13.2 mmol m⁻² d⁻¹), suggesting that these areas were acting as a sink of CO₂. Wind anomalies associated with the SAM+ can impact the flux of CO₂ between the atmosphere and the sea surface, since air-sea CO₂ flux is directly influenced by wind speed. In the present study, there was no evidence of correlation between wind speeds and CO₂ fluxes; in fact, even when high wind speeds were measured, the flux could be weak. However, our data are limited both in time and space and wind anomalies can alter on a longer time scale the circulation and the biogeochemistry of the area. Nevertheless, the effect of SAM+ on air-sea CO₂ flux variability is expected to be only moderate [67].

5. Conclusions

Our results show the seasonal influence of both sea ice melting and biological production in driving summertime AASW carbonate system variability in the western Ross Sea. The combination of in situ and satellite data was crucial to understanding the investigated phenomena. This study highlights the pivotal role of sea ice melting in controlling both directly and indirectly the carbonate system chemistry of the mixed layer. During both investigated years, the freshwater input from sea ice melting contributed to stratifying the water column and led to the dilution of A_T and C_T as well as to a decrease in pH and Ω_Ar. The sea ice melting exerted a stronger direct control on the surface water carbonate system parameters in 2006 than in 2012 even though the melting water percentage was lower. On the contrary, the sea ice melting indirectly affected the carbonate system in 2012 through biological forcing because it facilitated the development of phytoplankton blooms. This resulted in high pH and Ω_Ar and in low C_T, particularly in those areas where high Chl-a concentration was shown by satellite maps. As a result of climate change, the Ross Sea is experiencing a general cooling of the region, higher variability of sea ice properties, and changes in water masses characteristics. This could influence the timing of phytoplankton blooms and therefore affect biogeochemical cycling. Thus, the productive coastal sea-ice zones of the Ross Sea are key regions with which to study the response of marine ecosystems to the impacts of CO₂ increases in the atmosphere. In order to verify the existence and evaluate the magnitude of any trend in long term changes of the carbonate system in surface waters of the Ross Sea, it will be crucial to include both winter time measurements and further studies on the modulation of ENSO and SAM.
