Remote Sens. 2019, 11(21), 2582; https://doi.org/10.3390/rs11212582

Article
MODIS-Satellite-Based Analysis of Long-Term Temporal-Spatial Dynamics and Drivers of Algal Blooms in a Plateau Lake Dianchi, China
by Yuanyuan Jing 1,2, Yuchao Zhang 1,3,*, Minqi Hu 1,2, Qiao Chu 1,2 and Ronghua Ma 1,3
1
Key Laboratory of Watershed Geographic Sciences, Nanjing Institute of Geography and Limnology, Chinese Academy of Sciences, Nanjing 210008, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Jiangsu Collaborative Innovation Center of Regional Modern Agriculture & Environmental Protection, Huaiyin Normal University, Huai’an 223300, China
*
Author to whom correspondence should be addressed.
Received: 18 September 2019 / Accepted: 28 October 2019 / Published: 4 November 2019

Abstract

:
Algal blooms in eutrophic lakes have been a global issue to environmental ecology. Although great progress on prevention and control of algae have been made in many lakes, systematic research on long-term temporal-spatial dynamics and drivers of algal blooms in a plateau Lake Dianchi is so far insufficient. Therefore, the algae pixel-growing algorithm (APA) was used to accurately identify algal bloom areas at the sub-pixel level on the Moderate Resolution Imaging Spectroradiometer (MODIS) data from 2000 to 2018. The results showed that algal blooms were observed all year round, with a reduced frequency in winter–spring and an increased frequency in summer–autumn, which lasted a long time for about 310–350 days. The outbreak areas were concentrated in 20–80 km2 and the top three largest areas were observed in 2002, 2008, and 2017, reaching 168.80 km2, 126.51 km2, and 156.34 km2, respectively. After deriving the temporal-spatial distribution of algal blooms, principal component analysis (PCA) and redundancy analysis (RDA) were applied to explore the effects of meteorological, water quality and human activities. Of the variables analyzed, mean temperature (Tmean) and wind speed (WS) were the main drivers of daily algal bloom areas and spatial distribution. The precipitation (P), pH, and water temperature (WT) had a strong positive correlation, while WS and sunshine hours (SH) had a negative correlation with monthly maximum algal bloom areas and frequency. Total nitrogen (TN) and dissolved oxygen (DO) were the main influencing factors of annual frequency, initiation, and duration of algal blooms. Also, the discharge of wastewater and the southwest and southeast monsoons may contribute to the distribution of algal blooms mainly in the north of the lake. However, different regions of the lake show substantial variations, so further zoning and quantitative joint studies of influencing factors are required to more accurately understand the true mechanisms of algae in Lake Dianchi.
Keywords:
algal blooms; influencing drivers; lake dianchi; MODIS; APA

1. Introduction

Since ancient times, human civilization has depended on water. Lake Dianchi Basin is an area with a high population density and the highest degree of industrialization and urbanization [1], most developed economy, and most dynamic social development in Yunnan Province of China [2]. Lake Dianchi is the only water body that can receive pollutants such as urban sewage, livestock excreta, and agricultural fertilizer from the entire watershed [1,3]. With the accumulation of pollutants entering the lake, the water quality began to deteriorate gradually in the 1980s and rapidly between 1987–2000 [1]. Official data indicate that investment in the treatment of Lake Dianchi have reached 40–50 billion yuan (5.6–7.1 billion US dollars). The “Six Major Projects” namely, (1) lake-round interception, (2) nonpoint source control, (3) ecological restoration and construction, (4) inlet river training, (5) internal pollution control, and (6) water diversion and saving from the outer watershed [3,4], have been implemented to control pollution over the last 10 years [5]. Although so many considerable efforts have been exerted by the local government and private enterprises [6], the eutrophication of the lake has not been solved effectively [7]. Algal blooms, as the sign of extreme eutrophication in aquatic systems [8], accounting for 66.44–90.66% of the total number of phytoplankton cells in Lake Dianchi [9], which still occur in different scales every year [10].
The large-scale growth of algal blooms has brought a series of ecological and environmental impacts to drinking water, cultivation, agricultural irrigation, and tourism landscape [11,12,13,14]. Among all the algal species in Lake Dianchi, Microcystis dominated can be observed from early March and last nearly 300 days yearly, which accounts for 35.69–87.97% of phytoplankton [9,15]. A large number of Microcystis cells increase the pH of water bodies, lead to imbalances in the nervous system of fish [16], and represent a prominent factor responsible for inducing liver cancer [17]. Secondly, Aphanizomenon accounts for 0.46–30.75% of the total number of phytoplankton forms a small area of bloom in March [18,19], which produces an alkaloid toxin that can cause animals to die from paralysis of the respiratory muscle [20].
Based on the above-recognized information, studies on algal blooms in Lake Dianchi have gradually increased in recent years [5,17,18,21,22,23,24,25,26]. Most of these studies used fixed-point chlorophyll-a data as the response parameter for algal blooms [17,19,26,27,28], which has spatial and temporal discontinuities. Remote sensing data characterized by large-area simultaneous observations, strong timeliness, and dynamic continuity, are increasingly used in algal blooms monitoring and identification research [29,30,31,32,33,34,35,36]. Compared with the two other top priority lakes in China, Lake Taihu and Lake Chaohu, the remote sensing monitoring of algal blooms in Lake Dianchi has been very limited [5,22] and used mostly for short-term monitoring [25,37,38]. Zhao et al. [39] performed long-term algal blooms monitoring based on Landsat data with a 30 m spatial resolution from 1986 to 2016 in Lake Dianchi. Although the algal blooms’ information of this study was more accurate than previous studies, the 16-day temporal resolution was insufficient to characterize rapid changes in algal blooms. Jiang [13] used Moderate Resolution Imaging Spectroradiometer (MODIS) data with an extremely high temporal resolution from 2000 to 2015 to monitor Dianchi algae, however, due to the limited spatial resolution of this study, mixed pixels were relatively common. Compared with other nonlinear identification methods such as the normalized difference vegetation index (NDVI) and enhanced vegetation index (EVI), floating algae index (FAI) is not easily affected by the aerosol thickness and observation angle, which can penetrate thin clouds more effectively. This index has been widely applied to monitor algal blooms [32,35,39,40,41,42,43]. Based on the low sensitivity of the FAI, the algae pixel-growing algorithm (APA) is combined to calculate the algal bloom area to sub-pixels [44]. It has been applied to Lake Taihu and Lake Chaohu, which has been proved to be more objective and accurate in real-time monitoring and historical analysis [30,45,46].
This study, therefore, aims to explore the temporal-spatial distribution of algal blooms in Lake Dianchi from 2000 to 2018 more precisely by APA on MODIS. After analyzing the effects of meteorological, water quality, and human activities on algal blooms at different time scales, we recognize the major influencing factors and quantify their impacts. The results of this study may provide a theoretical basis of the eutrophication of Lake Dianchi, and offer some valuable information on algal blooms prediction and corresponding mitigation and control methods for other lakes.

2. Data and Methods

2.1. Study Site

Lake Dianchi (102°29′9″–103°0′51″E, 24°28′10″–25°27′24″N) is located in the southwest of Kunming City, the capital of Yunnan Province in southwest China. It extends 39.4 km from north to south and 12.66 km from west to east and is slightly arched back to the east (Figure 1). The lake covers an area approximately 310 km2 with an average depth of 4.9 m [3], which is the largest lake in the Yunnan-Guizhou Plateau and used to be called the “pearl of the highland” because of its picturesque scenery [47]. Lake Dianchi has been divided into two parts by the Xiyuan Tunnel since 1996: Caohai (north, 2.5% of the entire lake) and Waihai (middle and south, 97.5% of the entire lake) [48].
The water of Lake Dianchi is completely mixed and does not freeze during the year due to the monsoon climate and wind disturbances in the subtropical plateau [1], which create natural conditions that promote occurring algae. Also, developed economy, dense population, high-level urbanization, and serious water quality problems of Lake Dianchi Basin create favorable social conditions for algal blooms [3]. Under the combined effects of various factors, the algal blooms explode different degrees every year.

2.2. Satellite and Other Data

2.2.1. Satellite Data Acquisition and Pre-Processing

A total of 1309 of at least 75% cloud-free MODIS Level-0 data (Terra and Aqua) covering the years 2000–2018 over Lake Dianchi were collected from the NASA EOS Data Gateway (EDG). Then, the calibrated radiance data (Level-1B) were obtained by SeaDAS (version 7.2). The data were georeferenced to the Universal Transverse Mercator (UTM) projection with an error of fewer than 0.5 pixels. The ground 500 m resolution of the MODIS data (1240 nm) was resampled to 250 m resolution to match the resolution at 645 nm by using the nearest neighbor method in ENVI (version 5.3). The Rayleigh-corrected reflectance (Rrc, dimensionless) was derived after the Level-1B data were corrected for gaseous absorption (mainly by ozone) and Rayleigh (molecular) scattering effects using the routines and look up tables (LUTs) available in SeaDAS (version 7.2) [45].
Six quasi-synchronized cloudless Landsat TM/ETM+ Level-1 images (09/15/2000, 11/02/2000, 10/07/2002, 04/06/2005, 08/04/2005, and 08/15/2006) of Lake Dianchi in the presence of algae were downloaded from the Earth Resources Observation and Science (EROS) Center (http://glovis.usgs.gov). The geometric correction was applied to these images using a 1:50000 topographic map within an error of fewer than 0.5 pixels. Subsequently, these images were processed by the same atmospheric correction to get Rrc, which followed the calculation requirements and steps strictly of the floating algae index (FAI) by Hu et al. [40,49].

2.2.2. Other Data

Meteorological, water quality, and human activities data of Lake Dianchi were collected and analyzed in this study [3,50,51,52,53]. Meteorological data include the daily mean air temperature (Tmean), maximum air temperature (Tmax), minimum air temperature (Tmin), wind speed (WS), wind direction (WD), sunshine hours (SH, the duration from sunrise to sundown, minus the cloudy hours), and 20–20 h precipitation (P, the amount of precipitation from 20:00 on one day to 20:00 on the next day) of the Lake Dianchi Basin from 2000 to 2018. These data were obtained from the Kunming Meteorological Station (station no. 56778, 25°N, 102°23′24″E, 1888. 1 m altitude) on the website of the China Meteorological Data Service Center (CMDC) (http://data.cma.cn/en).
The water quality data mainly include the yearly and monthly mean pH, total nitrogen (TN), total phosphorus (TP), nitrogen-phosphorus ratio (TN/TP), dissolved oxygen (DO), chemical oxygen demand (CODMn), ammonia-nitrogen (NH3–N), and water temperature (WT). TN, TP, and TN/TP data for 2000–2015 and WT for 2005–2015 were obtained from published literature [5,54]. The weekly average pH, DO, CODMn, and NH3–N values from 2006 to 2018 were obtained from the China National Environmental Monitoring Centre (CNEMC) (http://www.cnemc.cn/).
The monthly values were obtained by averaging the data of all the corresponding days in each given month, and the annual values were obtained by averaging all the monthly values in each particular year. Monthly meteorological and water quality changes were analyzed through average data sets for specific months from 2000 to 2018.
The socioeconomic data, including Kunming City’s total population (TPop), gross domestic product (GDP), and total wastewater discharge (TW), were downloaded from the Yunnan Statistical Yearbook (YSY) (www.stats.yn.gov.cn). Table 1 shows the specific parameters of the influencing factors.

2.3. Algal Bloom Area Calculation Methods

2.3.1. FAI Algorithm

Under the MODIS band setting, the greatest difference between algal-bloom and non-algal-bloom areas of a water body occurs when the 645 nm and 1240 nm bands are used as the base point of both ends, and the 859 nm band is the central wavelength. Based on this feature, the FAI [40,41] was calculated as:
F A I = R r c , N I R R r c , N I R
R r c , N I R = R r c , R E D + ( R r c , S W I R R r c , R E D ) × ( λ N I R λ R E D ) / ( λ S W I R λ R E D )
where Rrc,RED, Rrc,NIR, and Rrc,SWIR represent the red, near-infrared, and short-wave infrared reflectances, respectively, after Rayleigh scattering is removed. λRED, λNIR, and λSWIR indicate the corresponding wavelengths of MODIS (λRED = 645 nm, λNIR = 859 nm, and λSWIR = 1240 nm). R’rc,NIR is the baseline reflectance of the 890 nm band based on the linear interpolation of the 645 nm and 1240 nm bands.

2.3.2. Thresholds of Pure-Algae and None-Algae Pixels

The high difference between algae and none-algae areas of water bodies leads to sharp changes, with a large gradient among the pixels. After the FAI values of MODIS images were generated automatically, according to the sum of FAI difference between each pixel and its adjacent three by three pixels on the boundary, the gradient distribution histogram was drawn to determine the algal threshold of each image. Then subtracted twice the standard deviation from the average threshold of FAI of all 1309 images, the threshold of none-algae pixels was defined as −0.004. Assuming that the algal blooms in the Landsat TM/ETM+ images were pure, we mapped them to synchronous MODIS images and obtained the FAI distribution of pure algae. The threshold of the pure-algae pixels was determined to be 0.05 after minus the standard deviation from the average FAI [44].

2.3.3. Calculation of Algal Coverage of Mixed Pixels via APA

We defined algal coverage (α) as the proportion of mixed pixels covered by algae and divided the MODIS image pixels of Lake Dianchi into three categories: Pure-algae (α = 100%), none-algae (α = 0), and mixed pixels [44,45,46].
The APA [44] was based on pure pixels of the FAI and the computations of two hypotheses:
Hypothesis 1: In every three by three pixel window, the FAI value of the center pixel can be utilized as a linear combination of the maximum and minimum FAI values of the eight surrounding pixels:
F A I c e n t e r = γ F A I m a x + ( 1 γ ) F A I m i n
where γ is the decomposition coefficient in the three by three pixel, determined based on the linear relationship between known FAI values (FAIcenter, FAImax, and FAImin).
Hypothesis 2: The FAI of any mixed pixel can be decomposed into a linear combination of the pure-algae and none-algae pixels:
F A I m i x e d = α F A I a l g a e t h r e s h + ( 1 α ) F A I n o n e a l g a e t h r e s h = ( F A I a l g a e t h r e s h F A I n o n e a l g a e t h r e s h ) α + F A I n o n e a l g a e t h r e s h
where F A I a l g a e t h r e s h and F A I n o n e a l g a e t h r e s h represent the FAI thresholds of pure-algae and none-algae pixels, respectively, and α is the algal coverage of the mixed pixels. The following can be obtained based on Formula (4):
F A I = m α + k
where m and k are constants ( m = F A I a l g a e t h r e s h F A I n o n e a l g a e t h r e s h , k = F A I n o n e a l g a e t h r e s h ). FAImin = min + k and FAImax = max + k are substituted into Formula (5),
m α c e n t e r + k = γ ( m α m a x + k ) + ( 1 γ ) ( m α m i n + k )
that is:
α c e n t e r = γ α m a x + ( 1 γ ) α m i n
where αmax and αmin are the algae coverages of pixels with maximum and minimum FAI values in a three by three window, respectively. When α is not zero, the algal bloom areas in the pixels is 0.25 by 0.25 by α. Then, the algal area of the entire lake can be calculated by 0.25 × 0.25 × 1 i α i (where i is the number of pixels).

2.4. Temporal-Spatial Characteristic Determination

We identified the spatial distribution of bloom frequency and the annual initiation date and duration to describe the dynamic characteristics of algal blooms.
Based on further classification (year and month), the monthly and annual frequencies of the algal bloom of each pixel were calculated as:
F i , j = C i , j T C j
where Fi,j is the bloom frequency of pixel i over j days, Ci,j is the bloom occurrence count, and TCj is the total count of MODIS images.

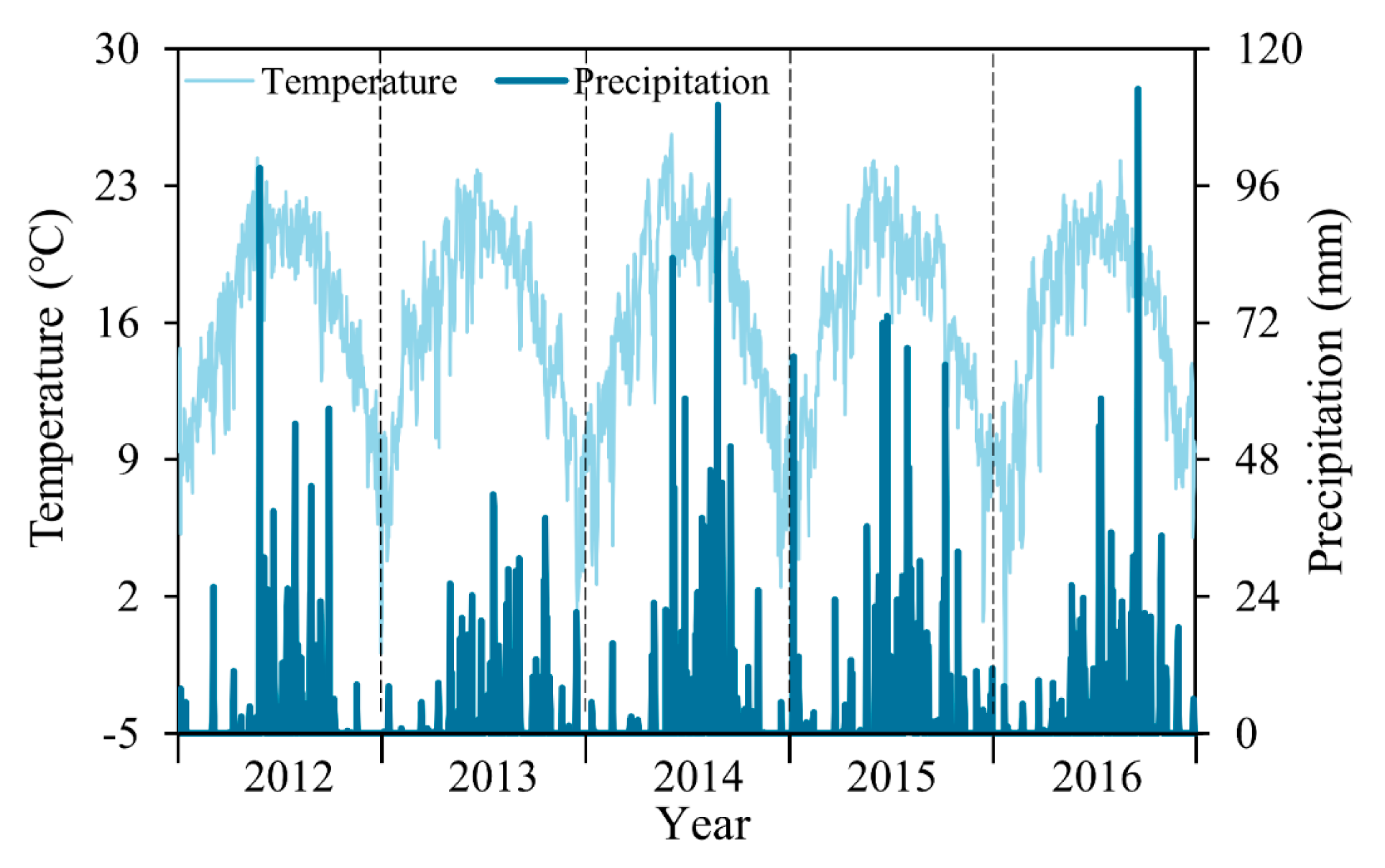

Based on the cyclic changes in annual temperature and precipitation (Figure 2) of Lake Dianchi Basin for 2012–2016, the period of this study was determined to be from January 1 to December 31 of the same year. Algal bloom initiation was defined as the first moment after January 1 that the algal bloom coverage value was greater than 5% (15 km2) of the entire lake. Furthermore, we defined bloom duration as the number of days between the initiation and last date that the algal bloom area was 15 km2. For the entire lake, the significant algal bloom initiation and final date were defined as the first and last moments in the lake district when > 10% (30 km2) of the pixels showed none-zero algal bloom coverage. Initiation dates were transformed into a Julian date format [45].

2.5. Statistical Methods

In this study, the validation of the APA and the spatial-temporal distribution and drivers of the long-time sequence of algal blooms in Lake Dianchi were determined by several multivariate statistical methods. Table 2 lists these methods in detail.

3. Results

3.1. Validation of the APA

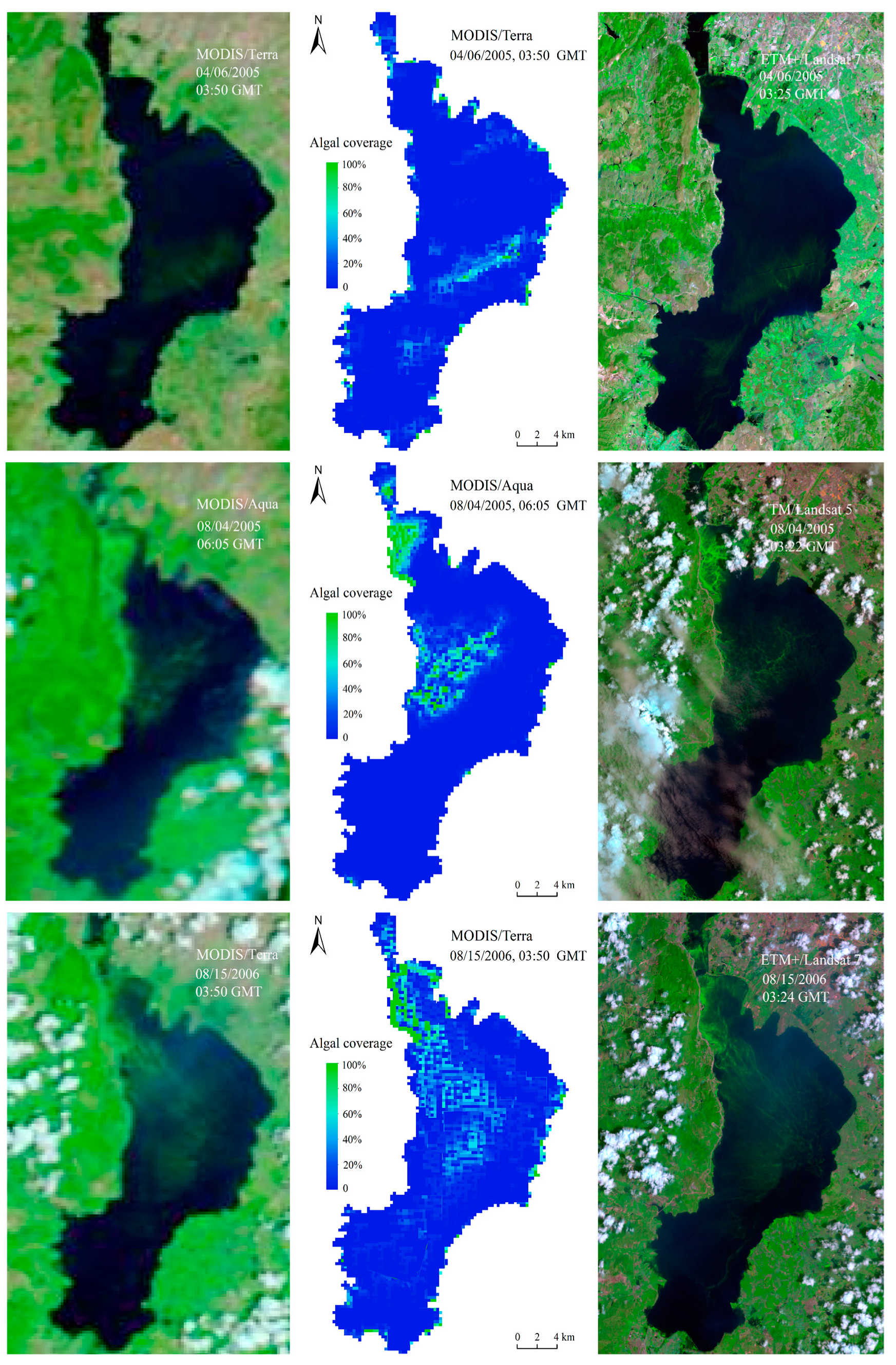

As a result of satellite remote sensing inversion, in situ data or higher-resolution images are usually used for verification. However, it is difficult or impossible to verify the range and area of the planar distribution of algal blooms in Lake Dianchi using fixed-point data. Therefore, this study used higher-resolution Landsat TM/ETM+ data (spatial resolution 30 m) to evaluate the accuracy of the MODIS (spatial resolution 250 m) algal bloom monitoring results. We assumed that there were only pure-algae and none-algae pixels existing in Landsat images, then we use FAI, which has been widely used with high precision [13,41,43], to extract algal bloom areas. The spatial distributions of these six comparison images were roughly the same (Figure 3), there was a little inconsistent distribution of algal bloom area in the north of the lake in 08/04/2005, which may be related to the difference of transit time on MODIS/Aqua and Landsat. Meanwhile, it can be seen from this picture that APA did not mistake the thin cloud for algal blooms. Further quantitative analysis of the algal bloom areas indicated that both results were near the bloom contour, and the root mean square error (RMSE) was 2.27 km2, and the relative error (RE) was 5.63% (Figure 4). Given the small error, the APA was deemed accurate, reliable, and able to provide data support for the scientific decision-making of relevant management departments in Lake Dianchi.

3.2. Spatial-Temporal Distribution of Algal Blooms

3.2.1. Distributions of Algal Bloom Initiation Date and Duration

The initiation and end dates of algal blooms in Lake Dianchi may not be the same each year. Based on the algal bloom area data and visual interpretation, the initiation dates and durations of algal blooms were determined for each year (Table 3). Each initiation date was transformed into a Julian date format. The MODIS data used in this paper were up to 31 December 2018. However, algal blooms are likely to last until early 2019. Thus, the bloom duration for 2018 could not be determined.
Table 3 shows that the initiation dates of algal blooms were mainly distributed within 33–96 days of each year, with a maximum of 40–70 days. Two types of end dates were observed: The first type ended near the end of the year and was mainly distributed between days 347 and 359, and the second type extended to the beginning of the next year.

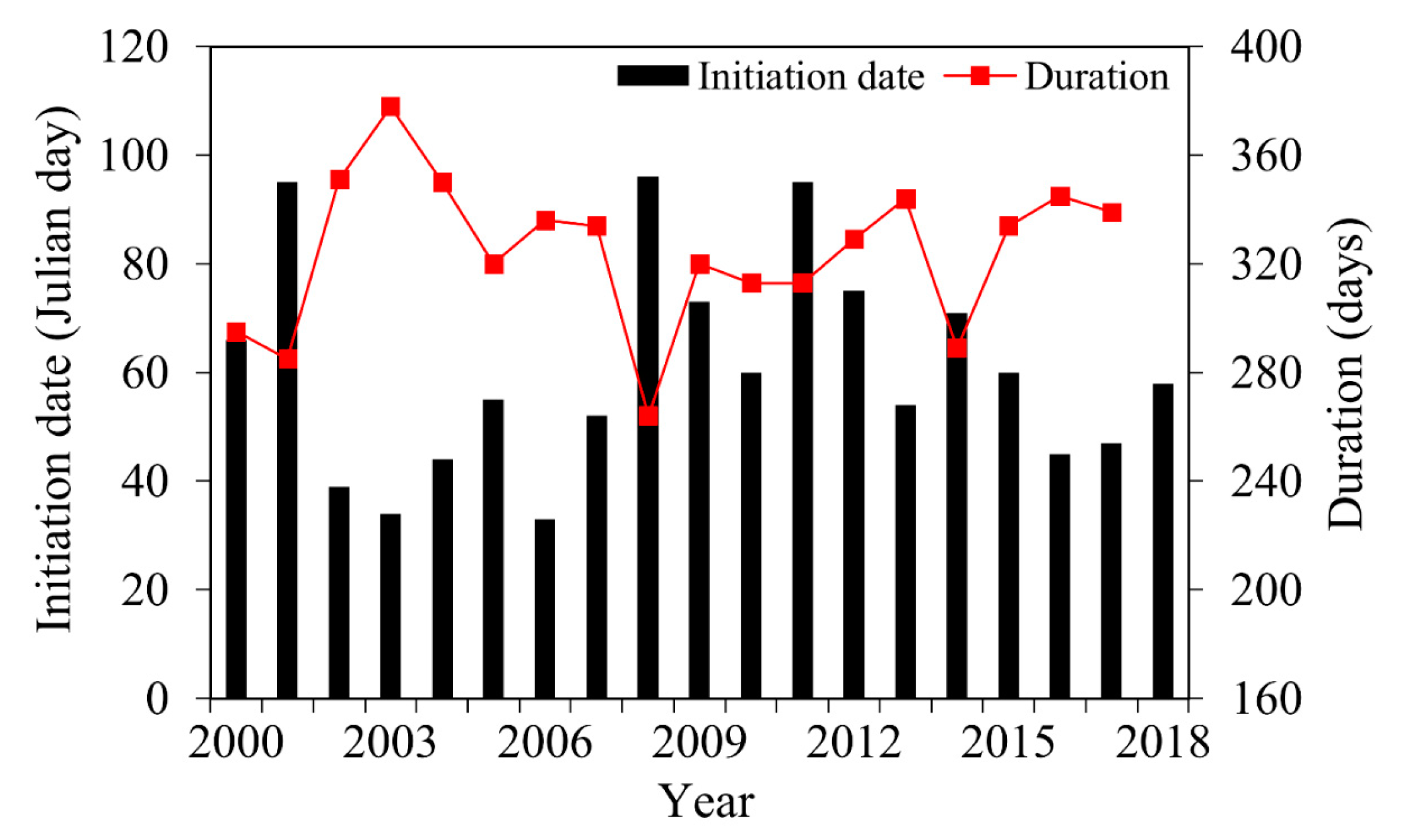

In Figure 5, the initiation dates of algal blooms in Lake Dianchi demonstrate a wave pattern with a wavelength of approximately four years. The durations were mainly concentrated between 310–350 days, which were negatively correlated with the initiation date and showed fluctuations with a small amplitude.

3.2.2. Temporal Variation of the Algal Bloom Areas

The existing algal bloom area data are summarized in Figure 6. Although the algal bloom area changed from year to year, the trend increased in summer and decreased in winter. The monthly and annual areas were analyzed individually to better explore the changing trend.

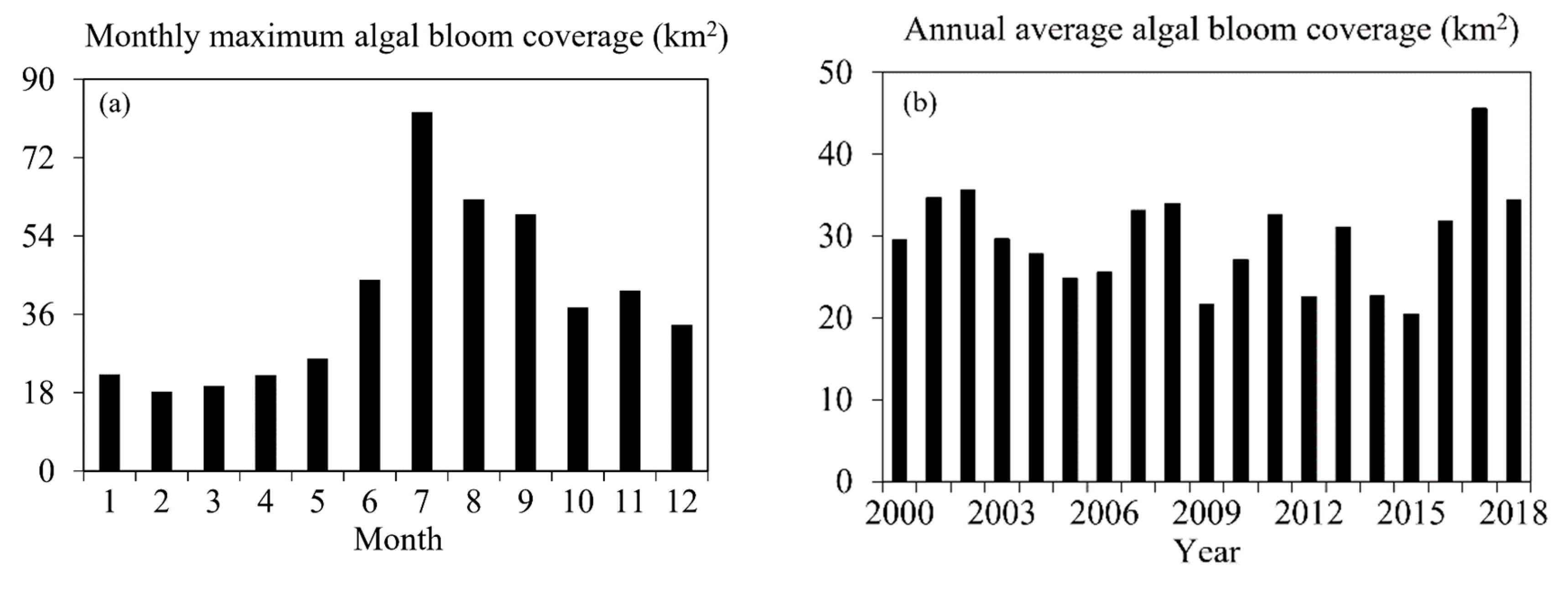

Given the influence of wind on the lake surface, the monthly maximum algal bloom areas (MaxABs) were more representative than the monthly average algal bloom areas [41,45]. The MaxABs showed a double-peak trend, with the first peak (higher) appearing in July and the second peak appearing in November (Figure 7a). In general, the algal blooms continued after July, with considerably smaller areas, which was larger than that before July [13,56].
In the annual mean analysis, the apparent spike in 2002 in Figure 6 was excluded as an outlier. The annual average algal bloom coverage of Lake Dianchi in 2000–2018 was then roughly divided into three stages (Figure 7b). The area in 2000–2005 was concentrated between 25 km2 and 35 km2, showing a single peak trend with a small fluctuation range. In 2006–2015, the algae area fluctuation period was shortened to four years, and the fluctuation range was increased to 20–34 km2. Finally, the area in 2016–2018 increased significantly, considerably exceeding the average of the previous years.

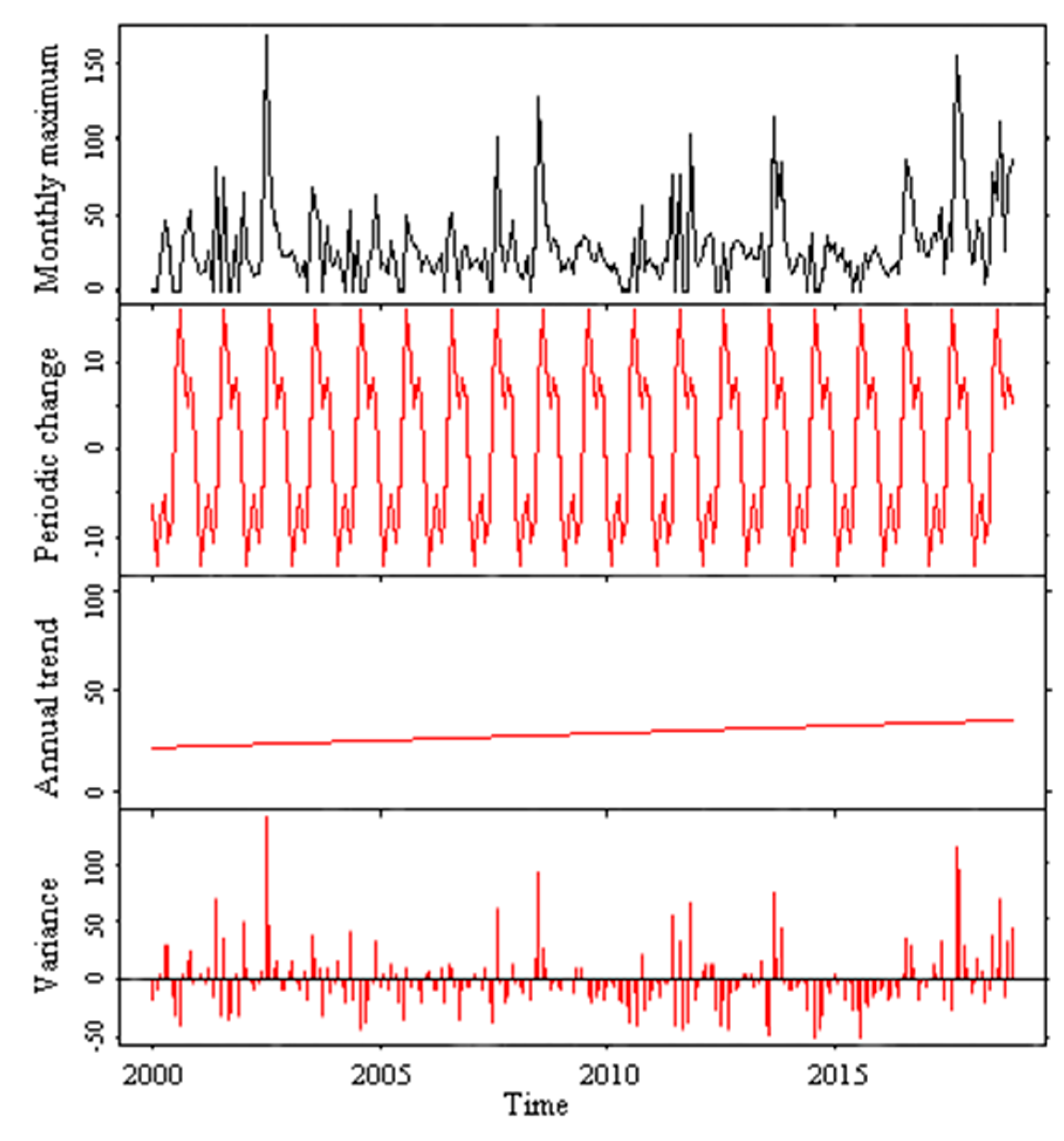

Figure 8 shows that the monthly area of algae blooms presented noticeable periodic changes, and the annual changes were almost the same. The area changed synchronously with the monthly average area, which was remarkably bimodal. In summer, the algal bloom area was the largest, after which it decreased to a second peak in autumn and continued to decline until the beginning of the next year.

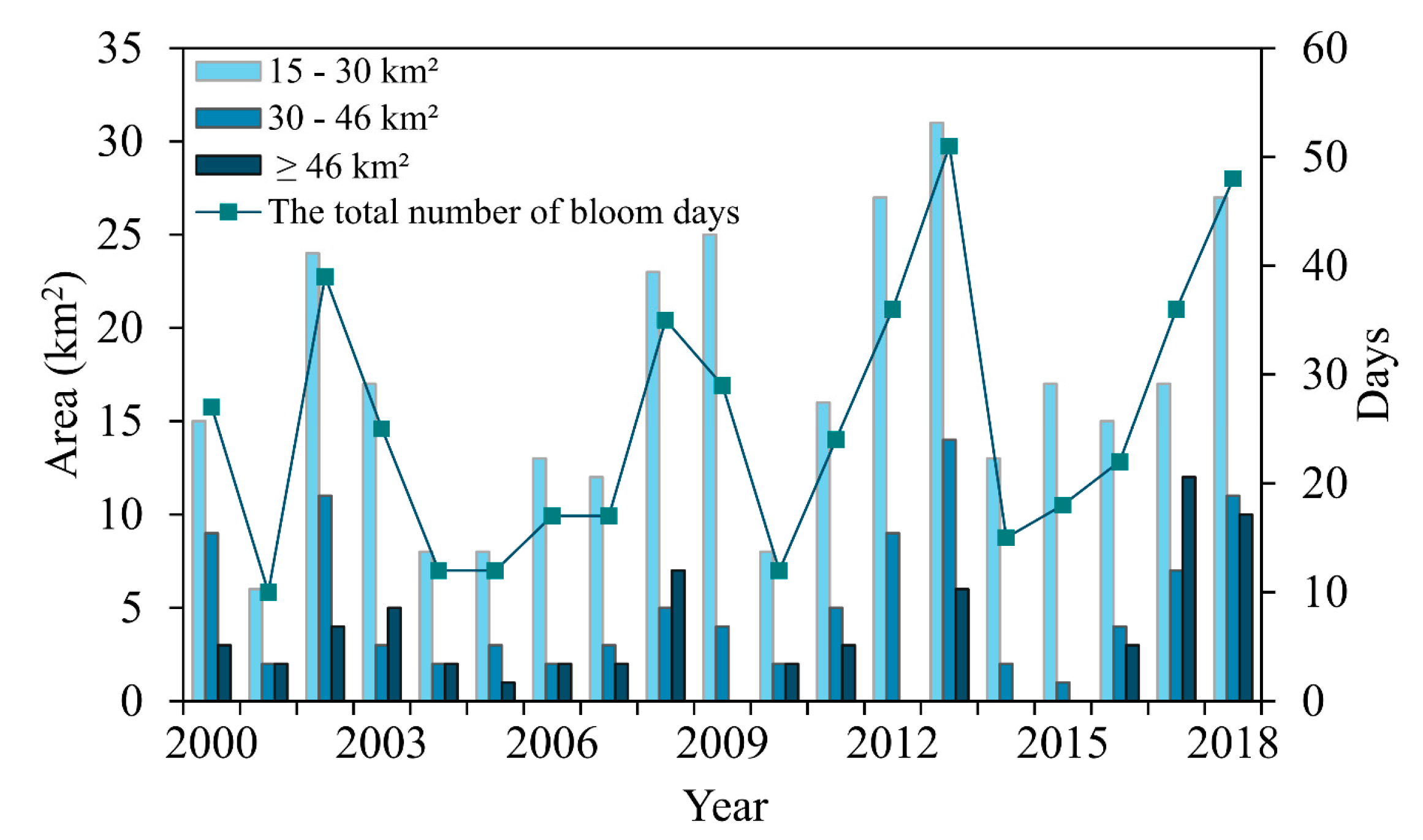

Referring to the standard grading division of cyanobacteria blooms in Lake Taihu [55], the algal blooms in Lake Dianchi were classified according to the bloom area. Slight, moderate, and severe algal bloom conditions were defined as blooms with an area 5% (approximately 15 km2), 10% (approximately 30 km2), and 15% (approximately 46 km2) of Lake Dianchi’s area, respectively (Figure 9). The occurrence day trends of the light and moderate algal blooms tended to be consistent with the total number of days, whereas the severe outbreak days fluctuated in a four-year cycle. Lake Dianchi was dominated by light algal blooms supplemented by moderate algal blooms. In 2008, severe algal blooms suddenly emerged, and the duration of these blooms increased significantly in 2017 and 2018, exceeding 20% of the total algal bloom days.

3.2.3. Temporal-Spatial Distributions of Pixel-Algae Frequency

The occurrence frequency of algal bloom pixels among the pixels in Lake Dianchi showed a noticeable spatial differentiation due to the geographical differences in the water quality, meteorological, and distance from the city. The temporal-spatial clustering of the average pixel algal bloom frequency (ABF) from January to December (Figure 10a) and from 2000 to 2018 (Figure 10b) was measured by Ward’s minimum variance of hierarchical clustering to reveal the spatial heterogeneity pattern between pixels. Finally, the frequencies were divided into five categories.

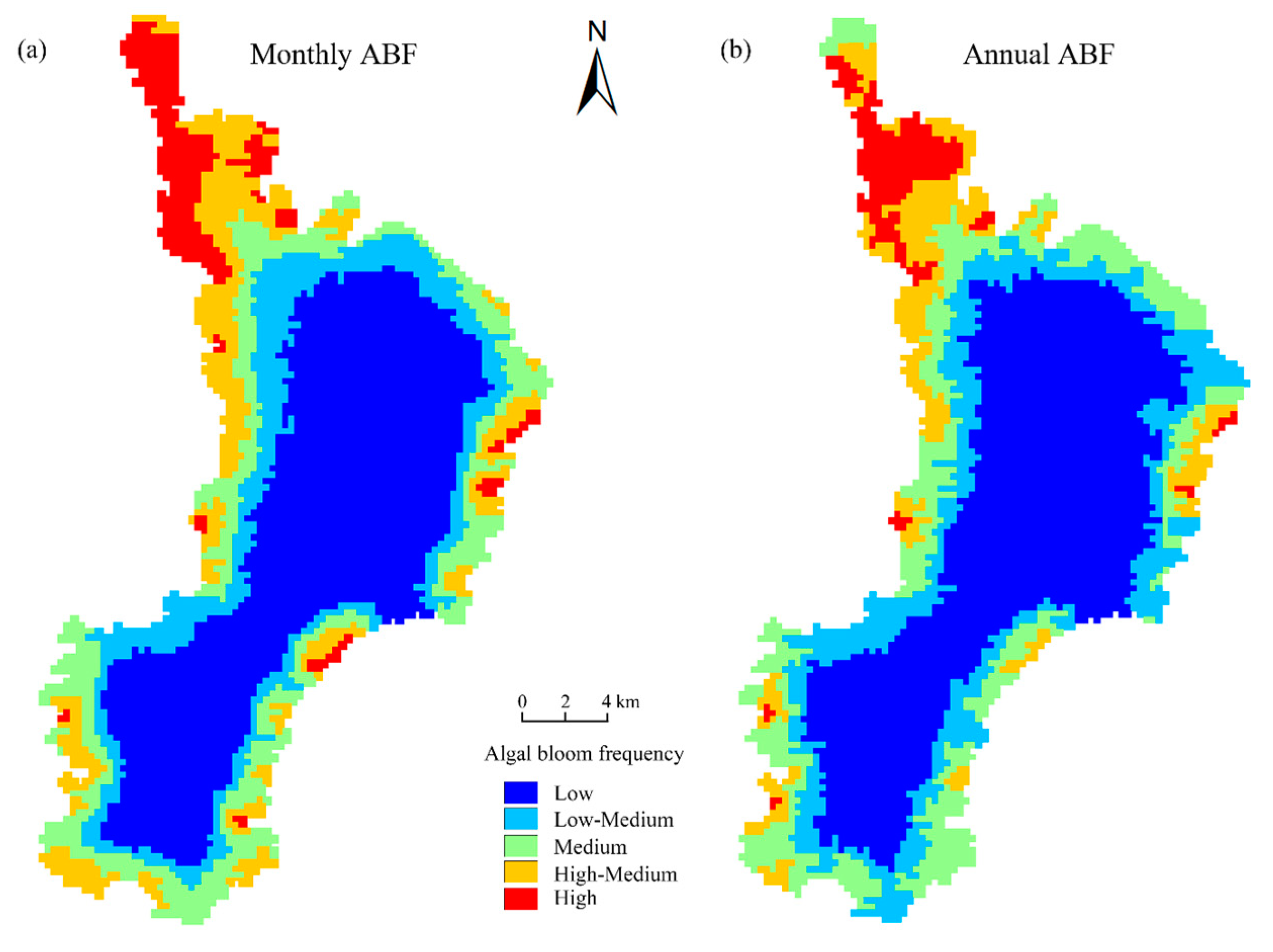

Figure 10 shows a remarkable spatial differentiation in the ABF of Lake Dianchi. The distribution trends of the inter monthly and interannual variations are “high in the north and low in the south” and “high at the edge of the lake and low in the center of the lake”, respectively. The area with the highest ABF is the narrow part of the lake in the north. The low and low-middle ABF pixels account for a large proportion of all pixels and are mainly concentrated in the center of the lake, which is wide on the surface. The medium and high-medium ABF pixels serve as the transition region distributed between the high- and low-ABF areas.

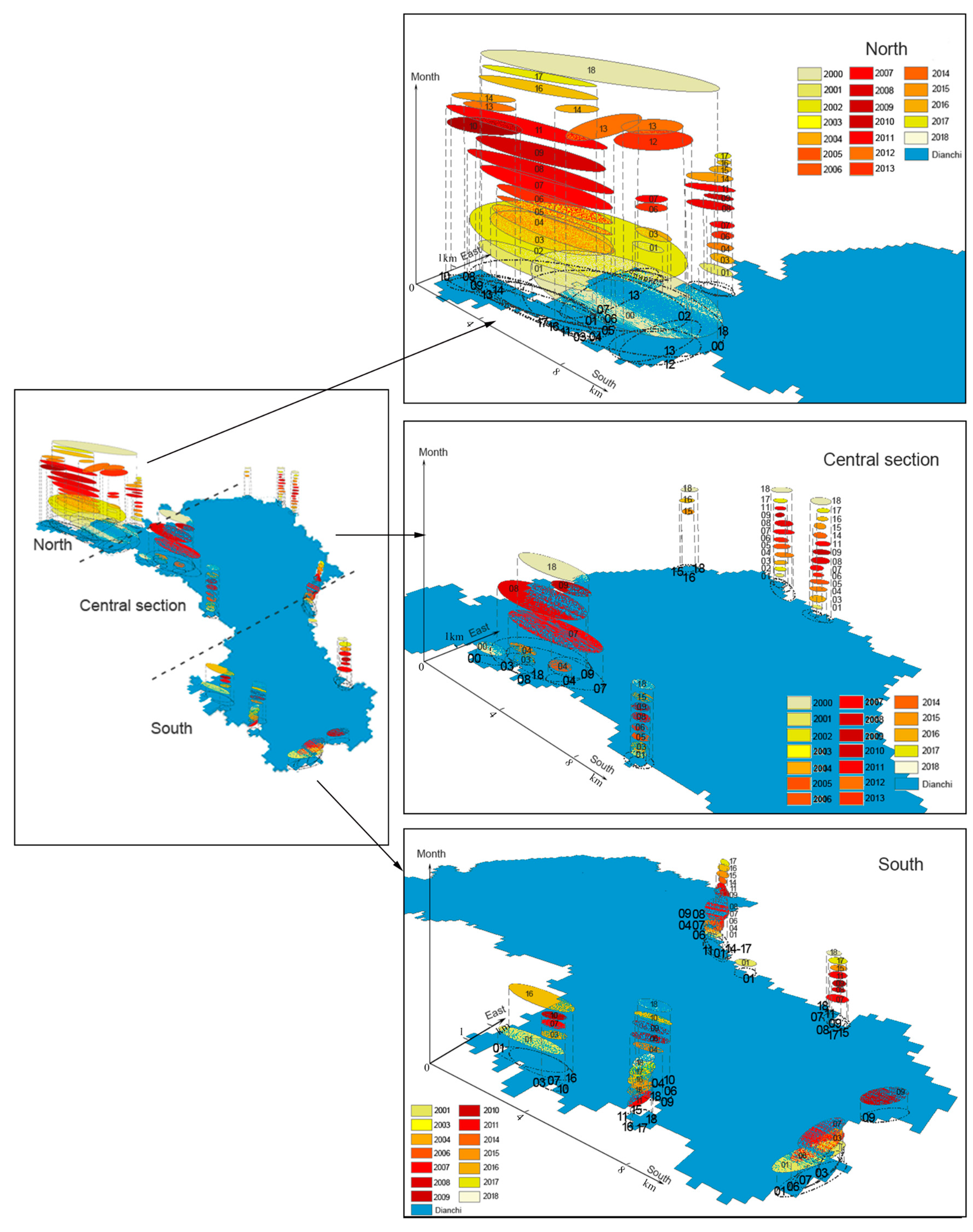

Changes in algal blooms are a complex space-time process. Through the analysis of the spatial-temporal trajectory data of algal blooms, we can extract the similarity features of these data and divide them into categories of similar behavior without prior knowledge [57]. A three-dimensional map was used to show the temporal-spatial synchronous variation characteristics [58] of algal blooms in Lake Dianchi. High-ABF areas were utilized as the hot zone to track the trajectory. In Figure 11 and Figure 12, the xy plane represents the ABF spatial distribution in Lake Dianchi, and the z-axis represents the temporal distribution information (monthly and yearly sequences). The color scheme only represents the high-ABF hot zones in different months and years and does not represent the ABF level. The ranges of different color schemes projected on the xy plane indicate the high-ABF areas in the current month and year. The projection ranges are plotted with dashed lines. For visual convenience, the monthly and yearly information (represented by Roman numerals) are directly marked on different color planes and projected dashed lines. Based on the change in ABF, the entire lake is divided into three regions: Northern, central, and southern.
Figure 11 shows that the algal blooms were mainly distributed in Caohai and the northern part of Waihai, with the highest frequency of occurrence in one year. As seen in the projection of the xy plane, the frequency was the most convergent in February–March, gradually expanded southward in April, extended to the central region in July–September, and then returned to the north from October to January of the following year. The central section showed sporadic outbreaks. Hot spots appeared at the edge of the lake, and an internal expansion trend was evident in August. In the southern region, the high-ABF hot spots were the lowest in one year and all concentrated on the edge of the lake body.
The interannual change characteristics (Figure 12) were as follows (from the projection of the xy plane): The interannual variation in the ABF of Lake Dianchi was similar to that of the monthly variation. The northern region remained a high-ABF area, and the highest ABF occurred in 2000, 2002, and 2018. In the other years, the northwest border showed a high-incidence trend, and the northernmost end had a high-occurrence trend in 2010, 2011, and 2014. In all years, the central region showed sporadic bursts along the lacustrine margin, and high-ABF were mainly concentrated in the northeast-southwest trending part of the middle-eastern margin. The southern region had a few high-ABF outbreaks, and small hot spots were distributed in the depressed area at the edge of the lake body.

3.3. Influencing Factors of Algal Blooms

Many studies have shown that, in addition to nutrient elements, meteorological factors affect the temporal-spatial dynamics of algal blooms [5,26,28,32,44,52]. But the effect of joint parameters has been studied less than that of individual parameters, and identification factors are more qualitative or semi-quantitative [5]. Therefore, we used principal component analysis (PCA) to investigate the combined effects of water quality and meteorological factors on the growth of algal blooms more quantitatively from the perspective of daily, monthly, and interannual scales.

3.3.1. Daily Influencing Factors of Algal Blooms

The nutrient levels in the lake are affected by the dry and rainy seasons [27]. Except for heavy rain, snow melting, and other sudden water pollution and ecological events, the daily changes in water quality are not significant. Besides, water quality data from different monitoring spots may be different and not representative of the entire lake [24,59,60]. But the local meteorological elements are uniform in Lake Dianchi. Favorable meteorological conditions, such as high temperature, strong light, and low WS, promote the floatation and accumulation of algal blooms [35,61]. High temperatures are beneficial in that they accelerate the transformation of organic matter into inorganic nutrient elements in sediments, thereby providing a material basis for the sustained and rapid growth of algae [24]. The average WT of shallow lakes is consistent with Tmean, and an increase in WT benefits the recovery and growth of overwintering algae [24,62]. Solar radiation is the energy source of cyanobacteria [63]. Light affects factors such as the synthesis, physiological activity, and buoyancy regulation of algae [24,63,64,65]. Moreover, wind is an important regulator of algae formation and expansion [66,67]. Therefore, PCA was used to analyze the significant differences between daily algal bloom areas and WT, WS, and SH [30,45] in 2000–2005, 2006–2015, and 2016–2018 (Figure 13). The correlation is expressed by the cosine value of the angle between any two axes in the graph, while the influence intensity is expressed as the distance one axis projected on another. The longer the projection length, the stronger the correlation.
In general, the acute angles showing positive correlations between algal bloom areas and WT, while the obtuse angles showing significant negative correlations between the algal bloom areas and WS, which have been confirmed in previous studies [29,39,46,68,69]. Also, the influence of WS on algal bloom areas shows an increasing trend. Besides, the angles between the algal bloom areas and SH are close to right angles, which denotes an insignificant relationship or a weak negative correlation.

3.3.2. Monthly Influencing Factors of Algal Blooms

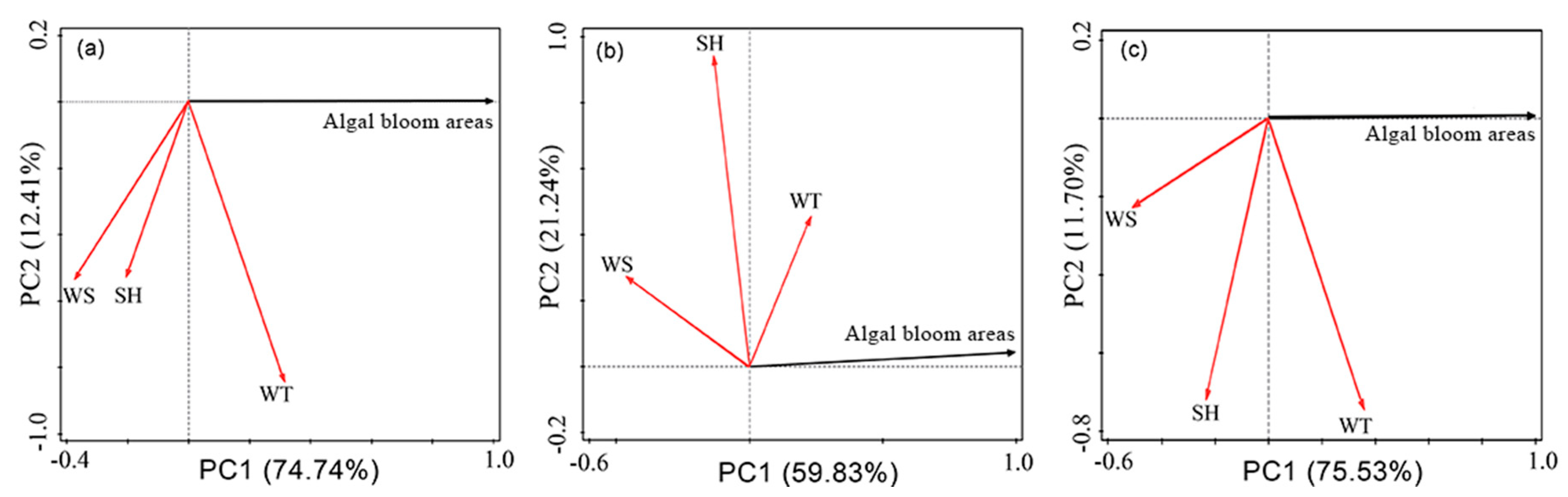

In addition to the factors mentioned above, the monthly influencing factors also added water quality and other meteorological parameters in the comprehensive analysis (the pH, CODMn, DO, NH3–N, and WT data for 2000–2005 were not collected. Thus, the water quality data for this phase considered only TN, TP, and TN/TP) (Figure 14).
In these three periods, meteorological factors were expressed as the first principal component, while water quality parameters were identified as the second component. The algal bloom areas, P, and Tmean had a generally significant positive correlation, and further observation showed that the effect of P was greater than that of Tmean. The positive influencing factors of water quality are WT and pH, and the effect of pH on the algal bloom areas gradually increases every five years. The rest of the factors harm the growth of algal blooms, among which, WS and SH are the most important factors. The southwest and southeast monsoons prevail in the Lake Dianchi Basin (Figure 15), especially west-southwest, which may contribute to the distribution of algal blooms mainly in Caohai and the north of Waihai.

3.3.3. Yearly Influencing Factors of Algal Blooms

Figure 16 shows the average difference in meteorological and water quality parameters from 2000 to 2018. The average difference between Tmean, Tmax, Tmin, P, WS, SH, TN, TP, TN/TP, pH, DO, CODMn, NH3–N, and WT and the corresponding mean values are expressed by ΔTmean, ΔTmax, ΔTmin, ΔP, ΔWS, ΔSH, ΔTN, ΔTP, ΔTN/TP, ΔpH, ΔDO, ΔCODMn, ΔNH3–N, and ΔWT, respectively. Both meteorological and water quality factors showed inapparent fluctuations in the past 19 years. The variations in Tmean and Tmax in the past 19 years are similar, with fluctuation cycles that first gradually shortened from five years to three years and then stabilized after 2016. The fluctuation cycle of Tmin increased gradually from three years to six years, while Tmin of 2018 was 0.8℃ lower than that of 2000 in general. The precipitation can be divided into three stages: Relatively stable in 2000–2008, a yearly increase in 2009–2016, and a noticeable decrease in 2017–2018, with 1 mm less than that of 2000. The change in WS can also be divided into three stages: An annual increase in 2000–2006, a decreasing and then increasing trend in 2007–2010, and an annual decrease to the average value in 2011–2018. The SHs was lower than the average value until 2012, after which it was higher than the average. The changes in TP and TN from year to year were nearly opposite, but both showed an overall downward trend. The change of TN/TP and TN were approximately similar. PH and WT did not change considerably, except for a few years. DO showed a decreasing trend before 2011, after which DO increased annually by 0.2 mg/L. CODMn presented a more balanced fluctuation in the vicinity of the mean value. NH3–N was stable after 2010.
After characterizing the changes in environmental parameters in the past 19 years, we analyzed the interannual variation of algal blooms and environmental factors in Lake Dianchi by PCA. Figure 17a shows the general variation trends of algal blooms and environmental parameters during 2000–2018. The sample data for each year are grouped, and the results are consistent with the results for 2000–2005, 2006–2015, and 2016–2018. Subsequently, the three time periods were analyzed separately. Figure 17b shows the significant algal blooms in 2000–2005 was mainly affected by the positive influence of TN and SH, and the negative influence of WS, P, Tmin, and Tmean, while TP had a small influence. Moreover, TN/TP and SH and TP, TN, and P had strong positive and negative effects on duration; this finding is contrary to the initiation date. In 2006–2015 (Figure 17c), the change trends of significant algal blooms and the ABF were similar. The positive effect of TN, TN/TP, CODMn, and TP on S–days and ABF was weakened, whereas the negative effect of pH, Tmin, DO, SH, Tmax, and Tmean was strengthened. Meanwhile, WT and P only had a small effect. The changes in the duration and initiation date were opposite. The main factor with a positive effect on duration was WT, which was also the main source of the negative effect on initiation date. The changes in the initiation date and duration from 2016 to 2018 (Figure 17d) were consistent with those in the previous years and showed an evident negative correlation. The changes in significant algal blooms and ABF differed from those in previous years but did not have any noticeable correlation. The initiation date and frequency showed a strong positive correlation. SH, DO, NH3–N, and pH had a positive effect on significant algal blooms, particularly SH and DO. In contrast, the negative effect of WS, P, and Tmean on significant algal blooms was the greatest, followed by the strong influence of Tmin and CODMn. PH and Tmax had a strong influence on the initiation date and frequency. The higher the Tmax and pH were, the greater the frequency of severe algal blooms was. The closer Tmax was to summer, the later the initiation date of algal blooms was and the shorter the duration was. The higher the CODMn and NH3–N concentrations in the lake were, the longer the algae blooms lasted. Also, the duration mainly depended on the influence of Tmin.

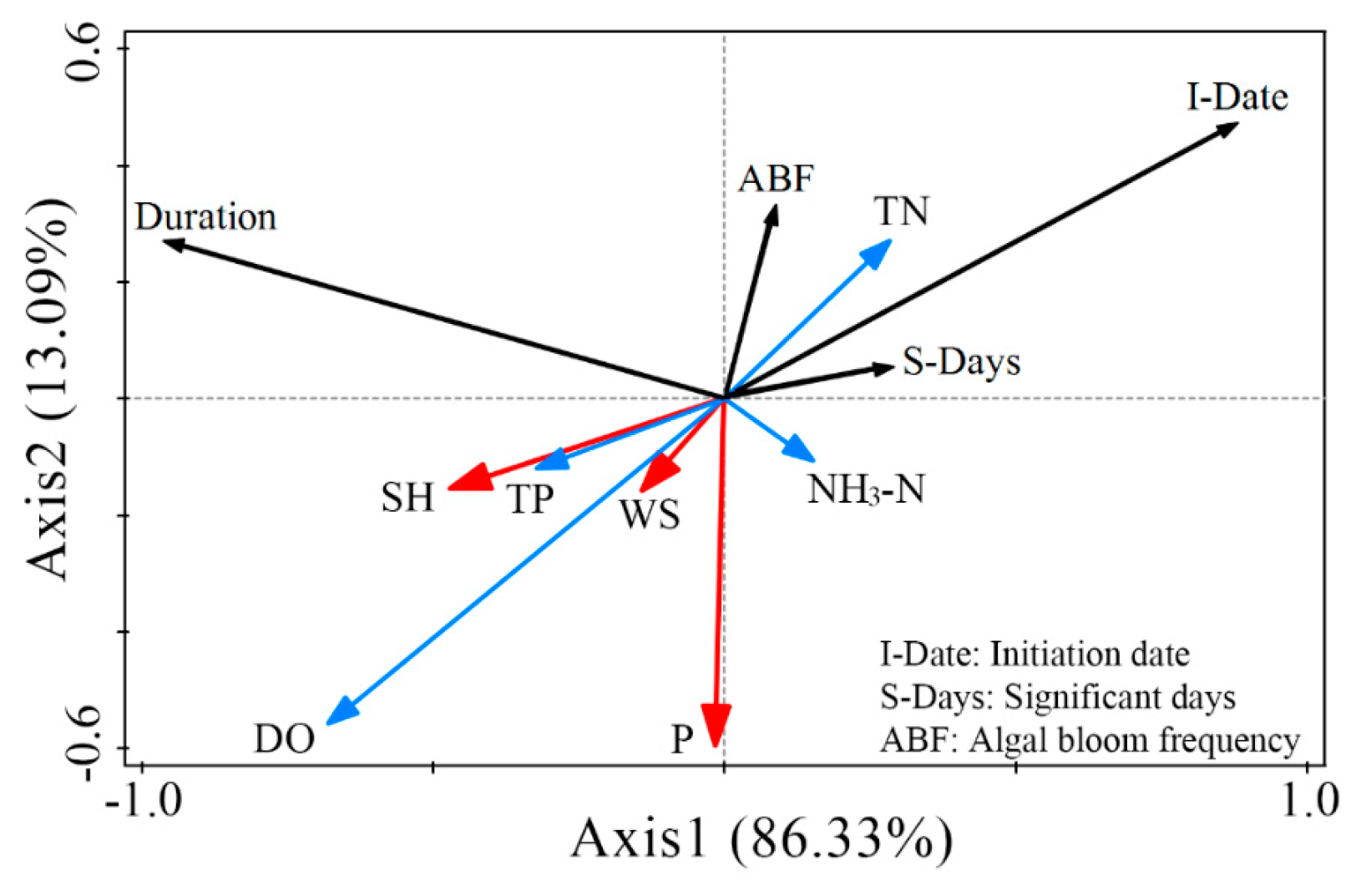

We used redundancy analysis (RDA) to extract the main environmental factors on algal blooms for 2000–2018 (Figure 18). After removing the redundant parameters, only three meteorological factors (SH, WS, and P) and four water quality factors (TN, TP, NH3-N, and DO) were retained. In general, the initiation date and duration of algal blooms remained significantly negatively correlated, whereas the initiation date, ABF and significant algal blooms were positively correlated. TN had a considerable positive influence on initiation date, ABF, and significant algal blooms, which agrees with previous studies [5,22,45,54,70]. The effect of DO was opposite to that of TN, but similar results have not been observed in previous studies. To verify this finding, more years of DO sampling data are needed [5]. Also, the negative effects of SH, TP, and WS were weakened. NH3-N only had a small effect on the three parameters. Meanwhile, DO, SH, and TP were the main positive factors on duration, while WS had no noticeable effect on it.
The WS of Lake Dianchi was counted based on the WD (Figure 19a), and the WD was measured based on the frequency of wind occurrence (Figure 19b). A wind rose map showed that the annual WS was between 1.65 and 3 m/s, which had a minimal effect on the disturbance of the lake water. The statistical results of WD in 2000–2018 are the same as the monthly findings. Southwest wind, especially west-southwest WD, was dominant, which may be the reason for the high frequency of algal blooms in the north of Lake Dianchi [5,13,35].

4. Discussions

4.1. Meteorological and Water Quality Drivers

The influence of single water quality parameters on algal blooms is greater than that of meteorological factors, among which, TN and TP are the most commonly used in studies [5,27,71,72]. But in our research, we found out that the meteorological factors were expressed as the first principal component, while water quality parameters were identified as the second component in monthly influencing results. Also, meteorological factors and water quality factors account for a considerable proportion of interannual influencing factors.
Some studies have shown that pH > 8.5 [5,73,74] and WT > 20℃ [75,76] are conducive to the growth of cyanobacteria. The pH of Lake Dianchi has reached the optimum level for the growth of cyanobacteria, with a monthly average of 8.56 (2006–2015, 8.54; 2016–2018, 8.63). The pH of 2016–2018 is 0.1 higher than that of 2006–2015 and is beneficial to the proliferation of algal blooms. In this plateau Lake Dianchi, the annual Tmean is approximately 20 ℃ and does not change considerably, the WT can be greater than 20 ℃ from May to August [5], which provides suitable conditions for the growth of algal blooms. Also, high summer temperature is conducive to the occurrence of algal blooms, which confirms the phenomena observed in Caohai or the entire Lake Dianchi [5,27,74].
We found out that the effect of P was greater than that of Tmean, which might be supported by two mechanisms: First, the increased effect of P may be related to the location of Lake Dianchi, which accepts 29-river inputs of the surrounding areas [77], with only one outlet [13]. When the precipitation increases, the surface runoff carries a large number of terrestrial pollutants, especially nitrogen and phosphorus, into the lake [22]. Second, pollutants in the air descend to the lake surface through precipitation [39,78], representing none-point source pollution [13]. Either mechanism increases the concentrations of pollutants and nutrients in the lake, affecting chemical and biological processes [79] and providing a material basis for the growth and reproduction of algae.
WS and SH are the most important negative factors, which are consistent with previous studies [5,45]. Some studies have shown that WS affects the mixing mode of surface lake water and determines the success or failure of algae floating from the water column to the water surface. When the WS exceeds 4 m/s, a shallow lake can be mixed by full turbulence, and the vertical floating migration of blue algae can be effectively suppressed [79]. When WS < 3 m/s, the interference to the water body is small and affected by the floating characteristics of algae. Once blue algae overgrow and float to the surface of a lake, the algae will accumulate in a certain spatial range, resulting in the formation of large areas of algal blooms [5]. The WS < 3.5 m/s of Lake Taihu was beneficial to the emergence of cyanobacteria from 2001 to 2013 [45]. Meanwhile, the average WS of Lake Dianchi from 2000 to 2018 was only 2.3 m/s, which was highly conducive to the creation of a calm surface layer [5], resulting in large areas of algal blooms. Also, regional circulation formed by wind has a great influence on the occurrence, development, and diffusion of cyanobacteria blooms [5,13,45]. The southeast and southwest monsoons prevail in the Lake Dianchi Basin, especially west-southwest, which may contribute to the distribution of algal blooms mainly in Caohai and the north of Waihai. This result is consistent with existing findings [5,13,22]. Additionally, the solar radiation in the low latitude plateau of Lake Dianchi is sufficient for cyanobacteria growth, while the low self-shading and high-intensity light inhibit the growth of cyanobacteria [27].
A previous study suggested that the growth of algal blooms is not limited by the concentration of nutrients in the water when the nutrients are sufficient (TN ≤ 0.80 mg/L, TP ≥ 0. 20 mg/L) [80]. On a monthly scale of our research, the negative influences of DO, TN, TN/TP, NH3-N, and TP on algal blooms were generally weakened in Lake Dianchi. This weakening may be related to the fact that the TN and TP contents in Lake Dianchi exceed the internationally recognized threshold of eutrophication [13,22]. The negative correlation was inferred to be mainly due to the consumption of nitrogen, phosphorus, and DO by algal blooms in the lake for growth and reproduction (as shown by the distribution of sample points in Figure 14).
The most interesting finding is the change of CODMn. The CODMn in 2006–2015 had a weak negative effect on the growth and reproduction of algal blooms, but the effect was influentially positive in 2016–2018, which differs from the previous studies, in which CODMn always had a positive effect on algal blooms [5,45].

4.2. Human Activities

Most studies have reported that in addition to water quality and meteorological factors, human activities, which are the main cause of water pollution [3], affect the occurrence of algal blooms [10,54]. With the increase in population and the rapid growth of local economies, the nutritional load of lake basins has increased significantly since the end of the 20th century, thereby transforming oligotrophic lakes into eutrophic lakes [54]. Excessive use of fertilizers, increased fertilizer production, industrial waste, and domestic sewage are causes of excessive nutrient concentrations in lakes [3,81].

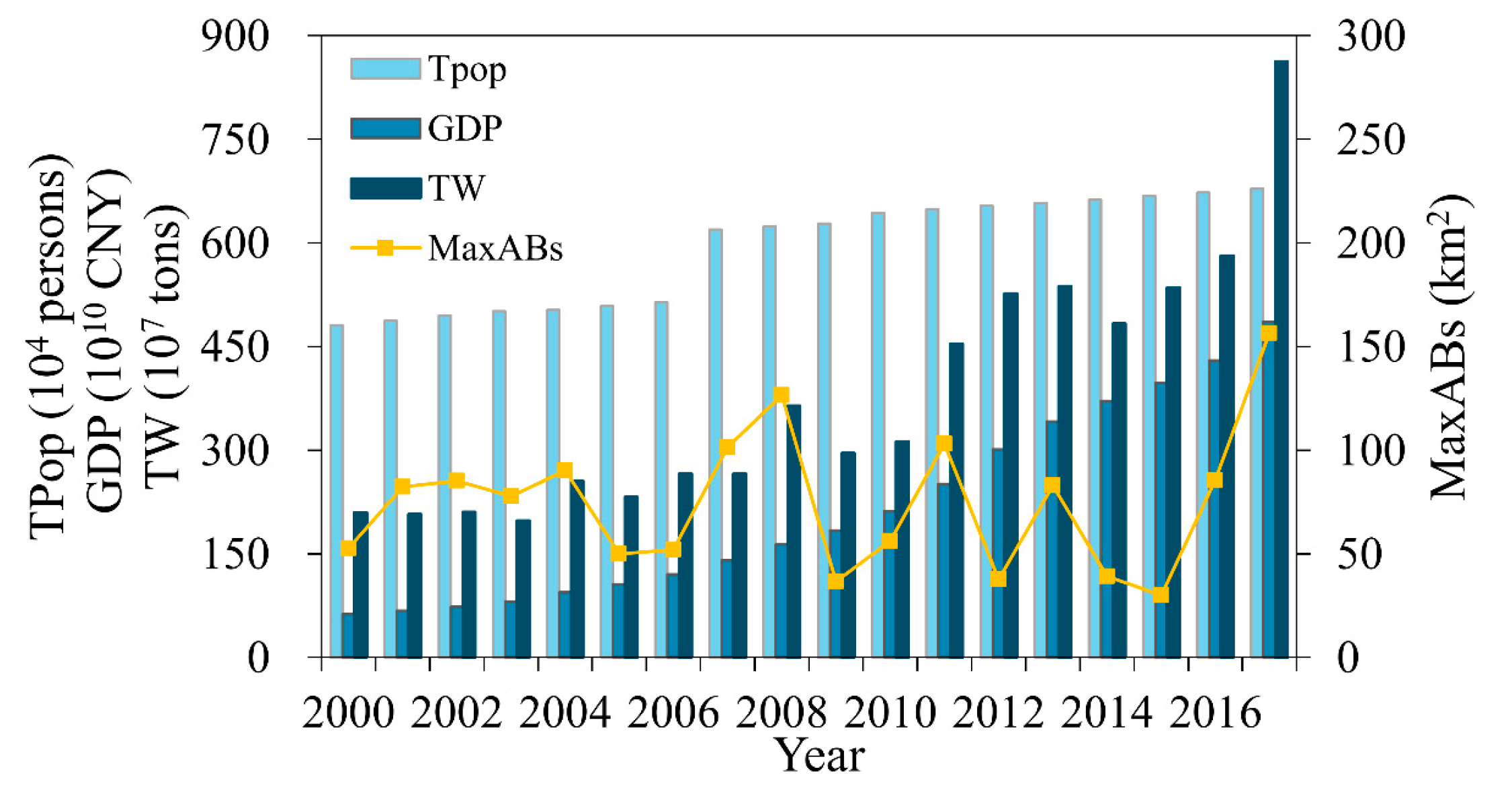

As shown in Figure 20, the TPop of Kunming City increased from 4.809 million in 2000 to 6.783 million in 2017 (growth rate of 41%). And the GDP increased from 62.63 billion yuan (8.89 billion US dollars) in 2000 to 485.76 billion yuan (68.99 billion US dollars) in 2017 (a nearly eightfold increase). Due to the rapid expansion of population and significantly growing economy, the total discharge of industrial wastewater and domestic sewage in urban areas increased from 209.39 million tons in 2000 to 861.97 million tons in 2017, thereby increasing the number of pollutants and nutrients in Lake Dianchi and creating conditions for the growth of algal blooms. As we can see, the MaxABs in every year has a positive correlation with TW. The relationship between the MaxABs peak value of 2002 and TW are not significant, which may be related to the climate of the year. There are significant differences between MaxABs and TW during 2010–2015, which may benefit from the large-scale planting of Eichhornia crassipes in the north of Lake Dianchi [39].

5. Conclusions

MODIS images have moderate spatial resolution and very high temporal resolution, providing a data basis for the dynamic monitoring of algal blooms in long time series. The APA, which has been proved to have higher accuracy than FAI, is capable of better identifying algal blooms on medium resolution remote sensing images.
The algal blooms in Lake Dianchi were influenced by the combination of meteorological and water quality factors, which were suitable for the growth and accumulation of algae. So they were observed all year round, with a reduced frequency in winter–spring and an increased frequency in summer–autumn, which lasted a long time for about 310–350 days. The severe algal blooms usually occurred in July–September every year. This is closely related to the increase in temperature and decrease in WS. From long time series, the top three largest areas of algal blooms were observed in 2002, 2008, and 2017, reaching 168.80 km2, 126.51 km2, and 156.34 km2, respectively. And the frequency and area of algal blooms have increased significantly in the past three years, which is likely to be influenced by the increase of DO. Besides, the discharge of wastewater has some promotion effect on the occurrence of algal blooms.
However, APA used in this research are based on 645 nm, 859 nm, and 1240 nm on MODIS images, which has advantages in monitoring algae in general. For the lakes with the majority of cyanobacteria just like Lake Dianchi, we can try to improve the algorithm using the characteristic peak at 620 nm (such as OLCI/Sentinel 3) of phycocyanin to specifically extract cyanobacteria, which can further improve the extraction precision. Additional, different regions of the lake show substantial variations, and the average value of the entire lake is not completely representative of these regions. In addition to the factors analyzed in this study, food web structures, trophic interactions, and physicochemical environmental factors may affect the outbreak and distribution of algal blooms [23,26,74]. Therefore, it is necessary to further divide Lake Dianchi according to the outbreak degree of algal blooms [24] and then quantitatively study the relationship between the factors in each zone and their influence on algal blooms with in situ data. Only by accurately identifying the environmental driving forces of algae growth in Lake Dianchi can we further effectively monitor and prevent the occurrence of algae.
