Radon-Augmented Sentinel-2 Satellite Imagery to Derive Wave-Patterns and Regional Bathymetry

1
CNES-LEGOS, UMR-5566, 14 Avenue Edouard Belin, 31400 Toulouse, France
2
IRD-LEGOS, UMR-5566, 14 Avenue Edouard Belin, 31400 Toulouse, France
3
CNES, 18 Avenue Edouard Belin, 31400 Toulouse, France
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(16), 1918; https://doi.org/10.3390/rs11161918
Received: 5 July 2019 / Revised: 5 August 2019 / Accepted: 13 August 2019 / Published: 16 August 2019
(This article belongs to the Special Issue Coastal Waters Monitoring Using Remote Sensing Technology)
  |
PDF [16895 KB, uploaded 16 August 2019]
  |

Abstract

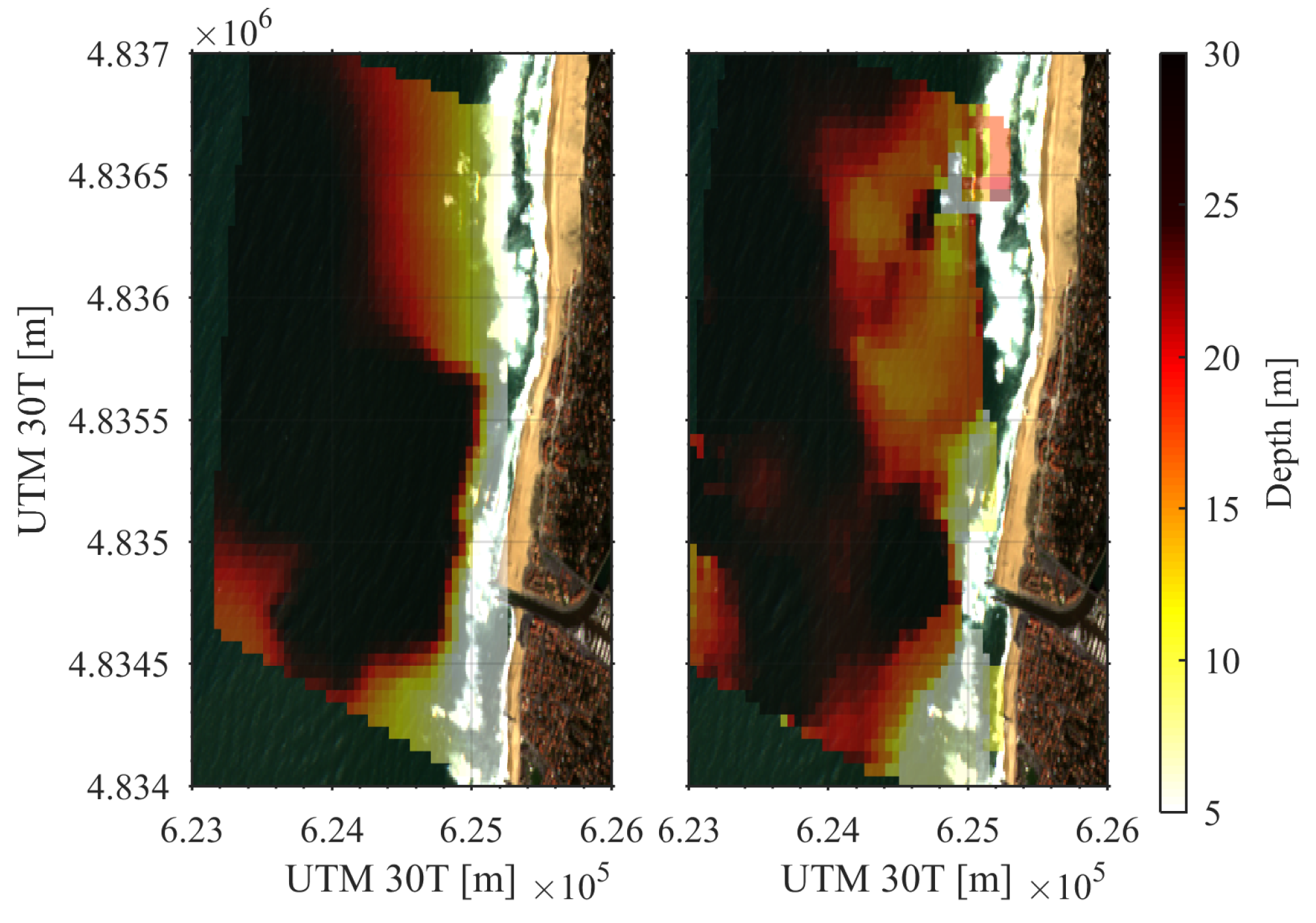

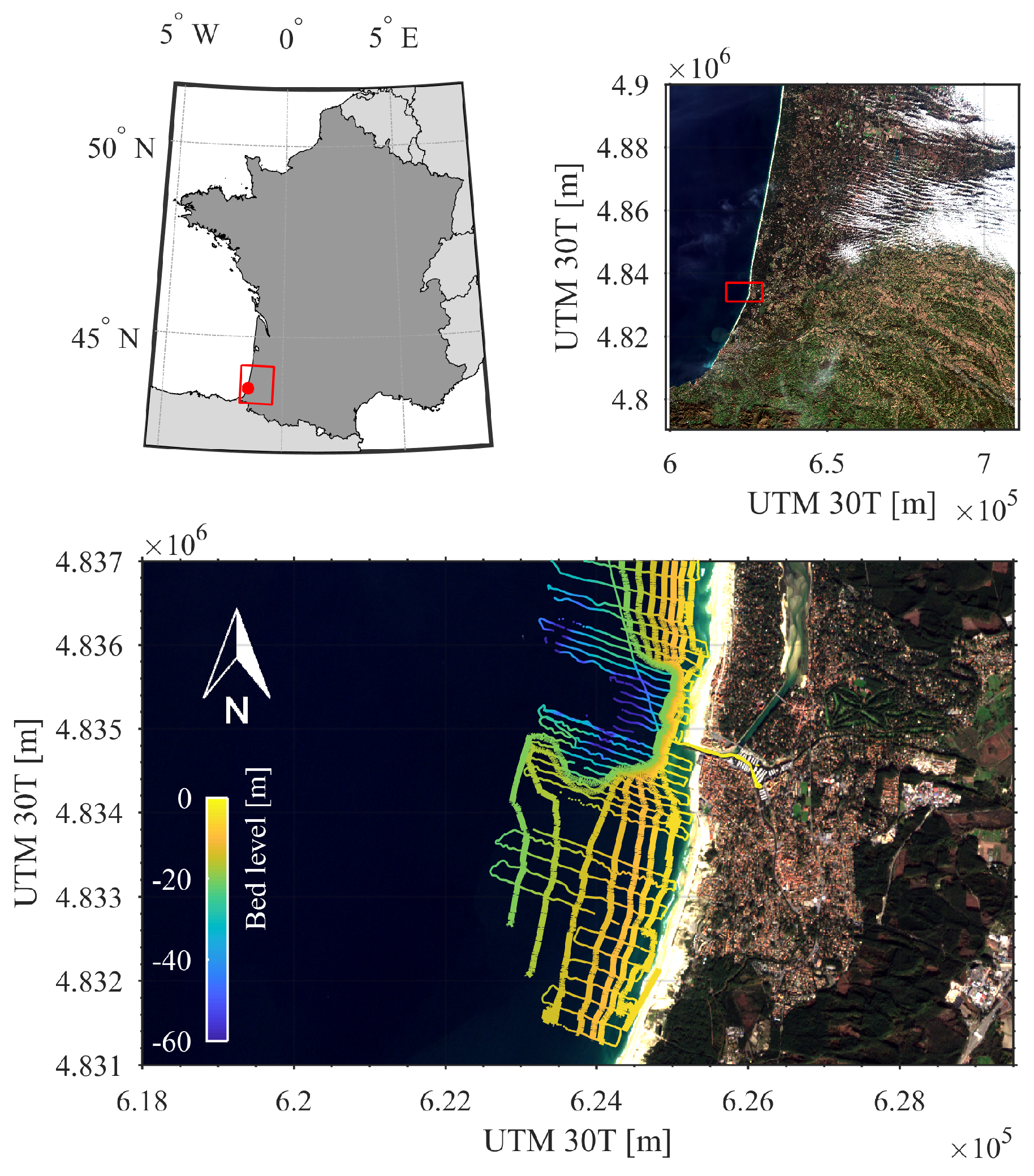

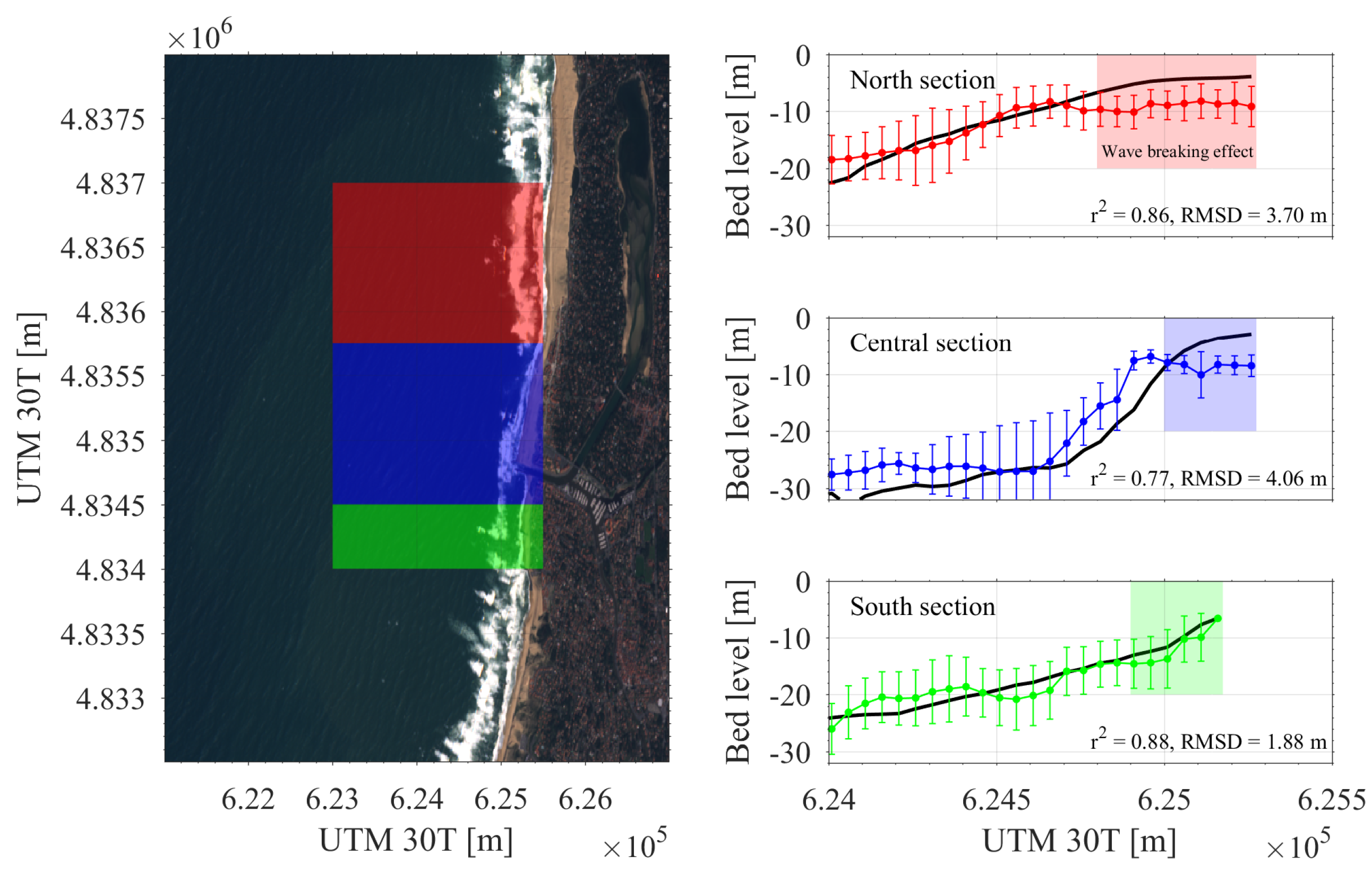

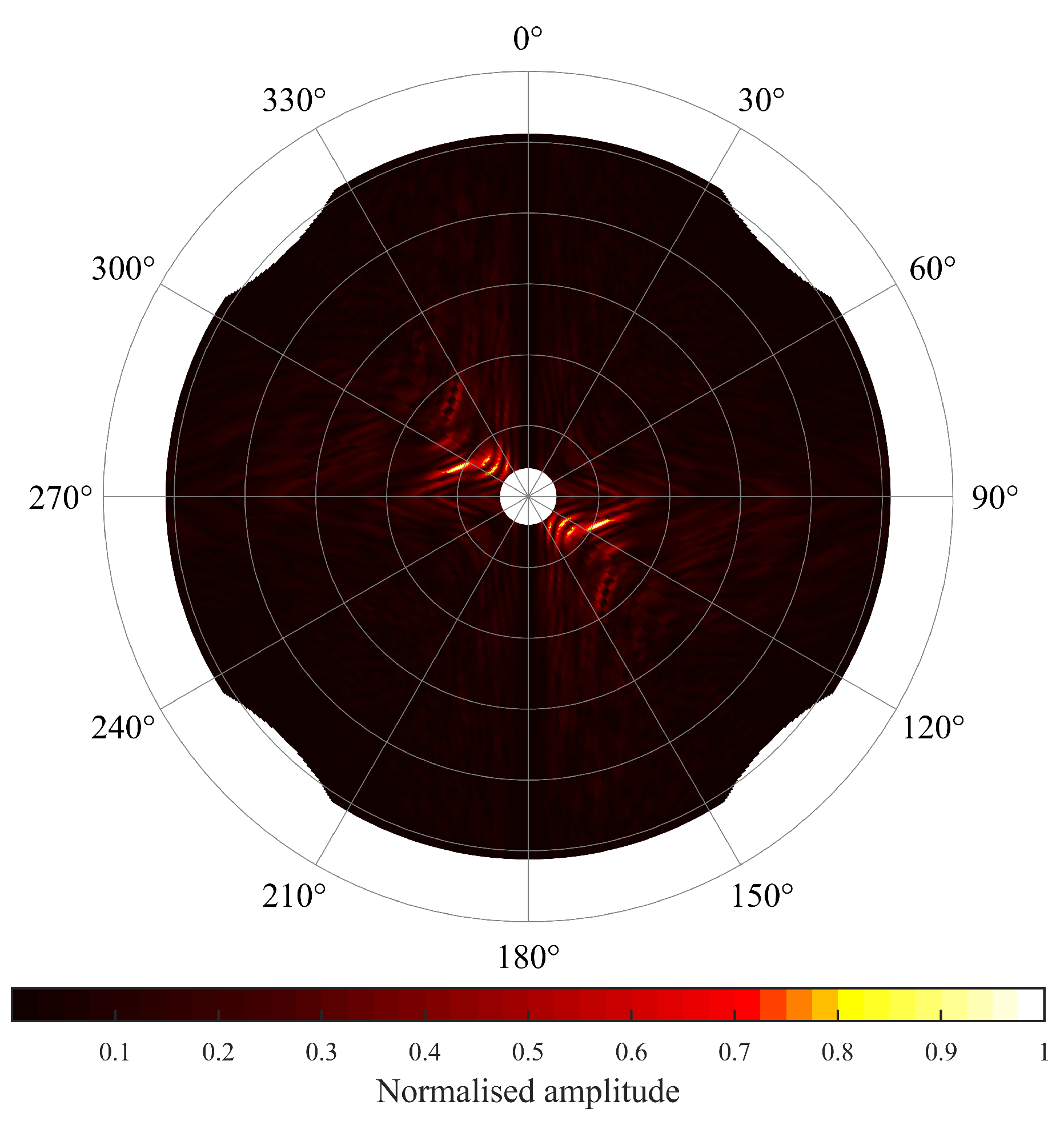

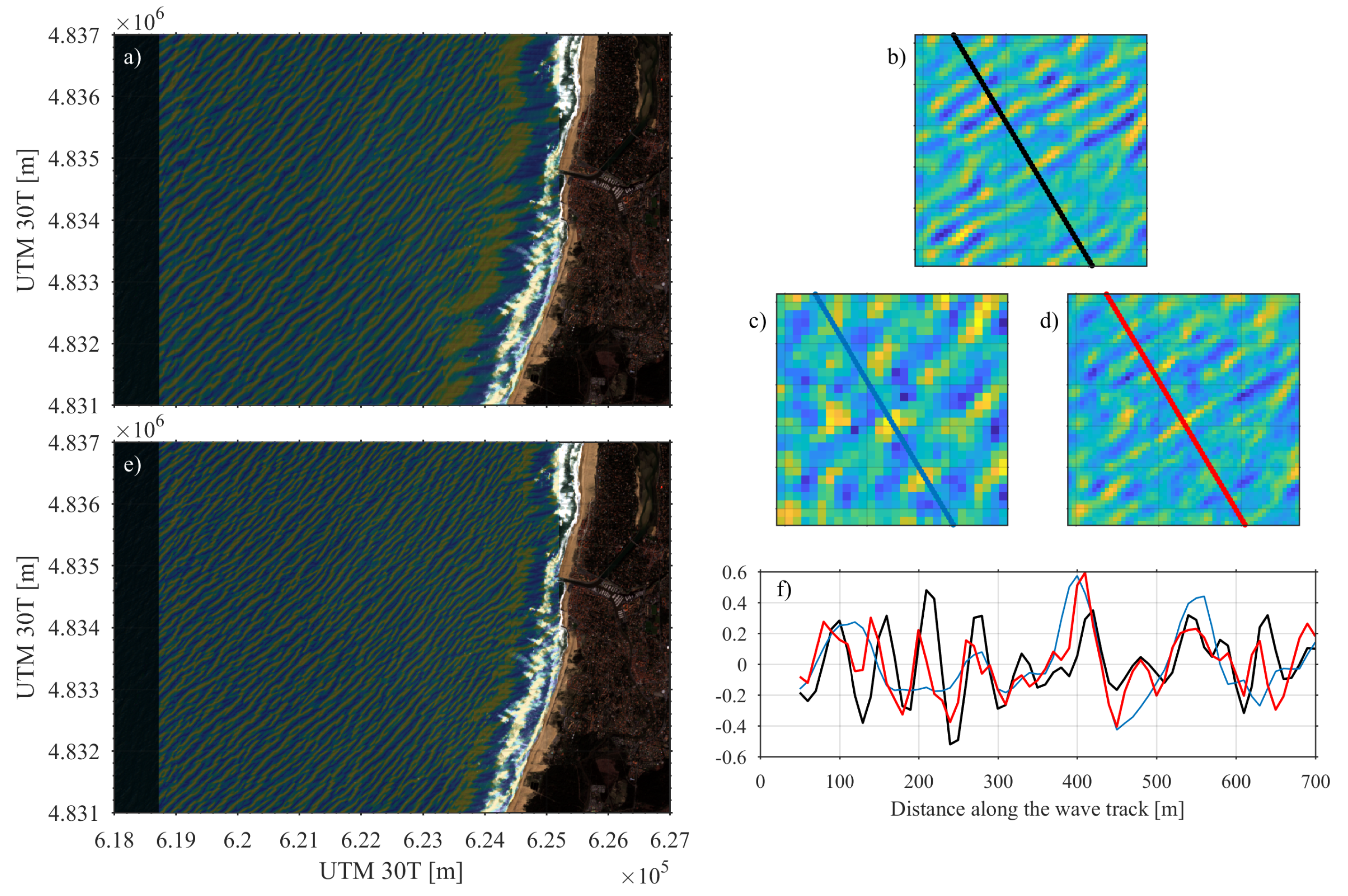

Climatological changes occur globally but have local impacts. Increased storminess, sea level rise and more powerful waves are expected to batter the coastal zone more often and more intense. To understand climate change impacts, regional bathymetry information is paramount. A major issue is that the bathymetries are often non-existent or if they do exist, outdated. This sparsity can be overcome by space-borne satellite techniques to derive bathymetry. Sentinel-2 optical imagery is collected continuously and has a revisit-time around a few days depending on the orbital-position around the world. In this work, Sentinel-2 imagery derived wave patterns are extracted using a localized radon transform. A discrete fast-Fourier (DFT) procedure per direction in Radon space (sinogram) is then applied to derive wave spectra. Sentinel-2 time-lag between detector bands is employed to compute the spectral wave-phase shift and depth using the gravity wave linear dispersion. With this novel technique, regional bathymetries are derived at the test-site of Capbreton, France with an root mean squared (RMS)-error of 2.58 m and a correlation coefficient of 0.82 when compared to the survey for depths until 30 m. With the proposed method, the 10 m Sentinel-2 resolution is sufficient to adequately estimate bathymetries for a wave period of 6.5 s or greater. For shorter periods, the pixel resolution does not allow to detect a stable celerity. In addition to the wave-signature enhancement, the capability of the Radon Transform to augment Sentinel-2 20 m resolution imagery to 10 m is demonstrated, increasing the number of suitable bands for the depth inversion. View Full-Text
Keywords: Sentinel-2; radon transform; remote sensing; bathymetry inversion; multi-scale monitoring; image augmentation Sentinel-2; radon transform; remote sensing; bathymetry inversion; multi-scale monitoring; image augmentation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Bergsma, E.W.J.; Almar, R.; Maisongrande, P. Radon-Augmented Sentinel-2 Satellite Imagery to Derive Wave-Patterns and Regional Bathymetry. Remote Sens. 2019, 11, 1918.
