Mapping Listvenite Occurrences in the Damage Zones of Northern Victoria Land, Antarctica Using ASTER Satellite Remote Sensing Data
Abstract
:1. Introduction

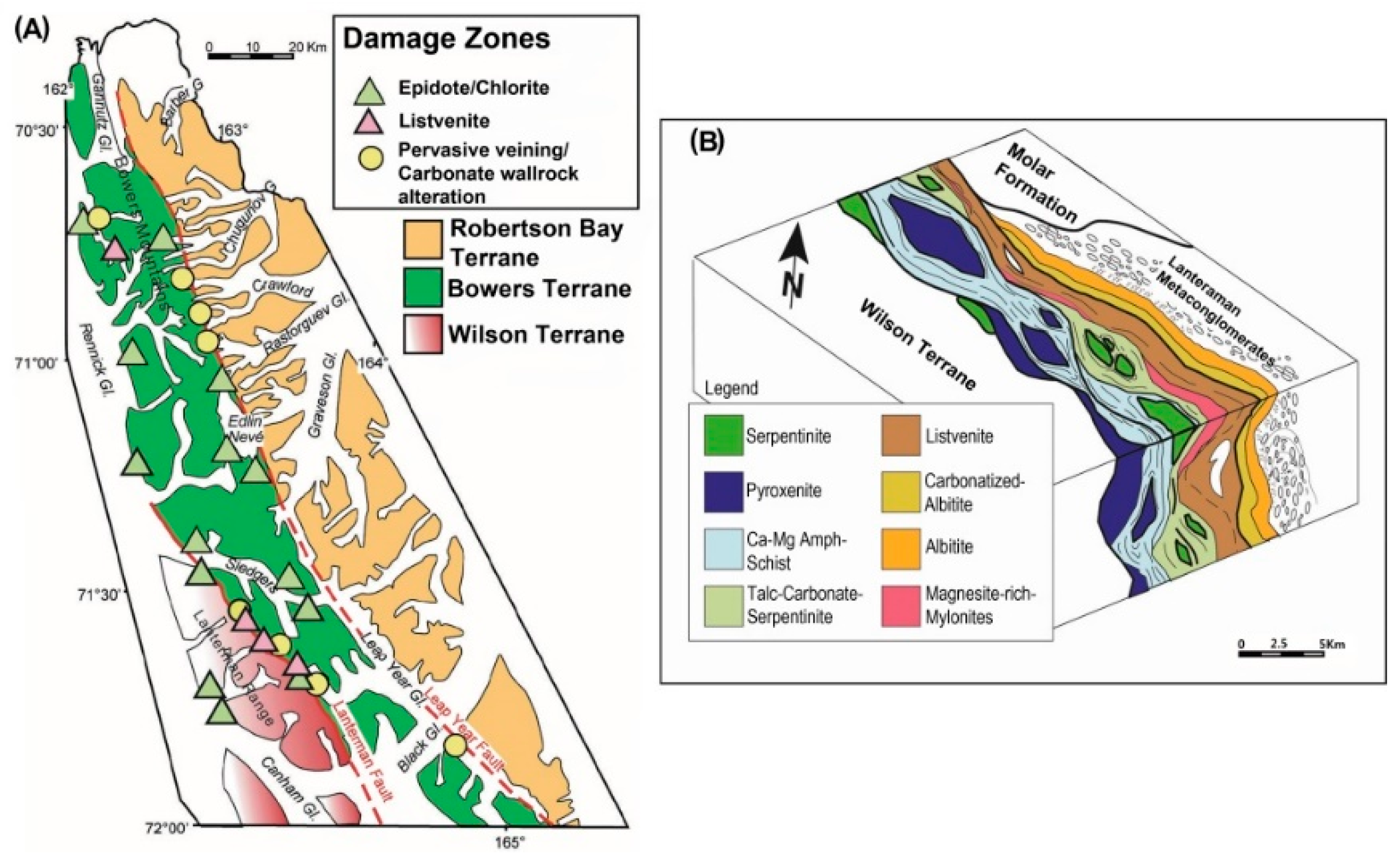

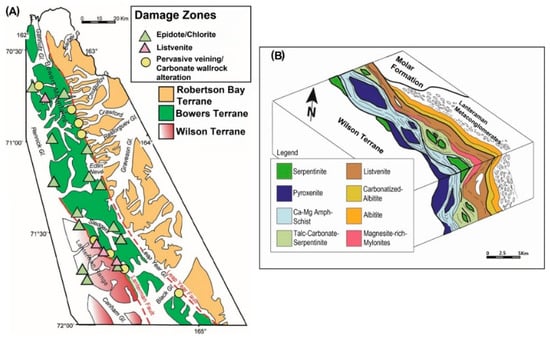

2. Geological Setting of NVL and the Bowers Terrane
3. Materials and Methods
3.1. ASTER Data Characteristics and Pre-processing
3.2. Image Processing Algorithms
3.2.1. Spectral Information Extraction at the Pixel Level
3.2.2. Spectral Information Extraction at the Sub-pixel Level
3.3. Fieldwork Data and Laboratory Analysis
4. Results
4.1. Regional Overview of the BT and Surrounding Areas

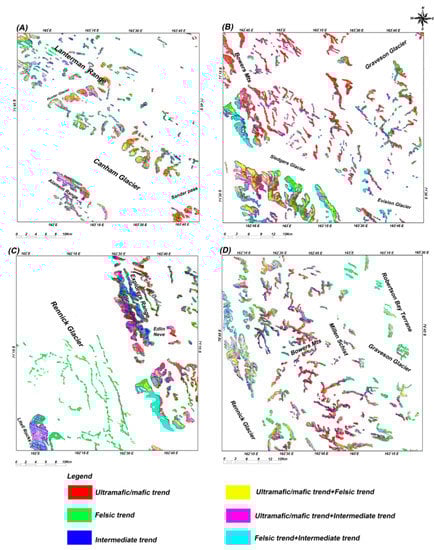

4.2. Alteration and Lithological Mapping in the Fault Zones at Regional Scale

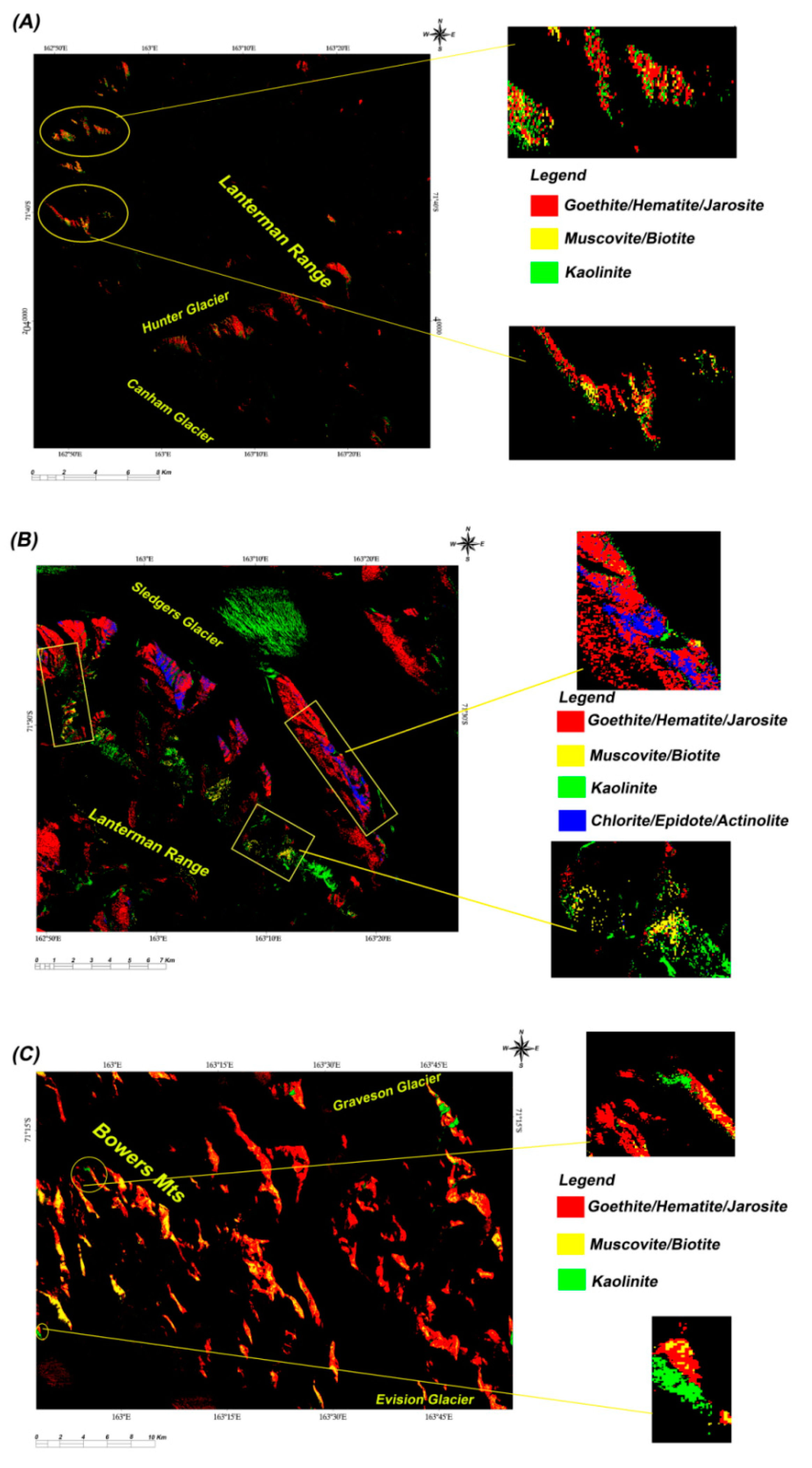

4.3. Detection of Hydrothermal Alteration Minerals and Prospecting Listvenites in the Selected Subset of Damage Zones

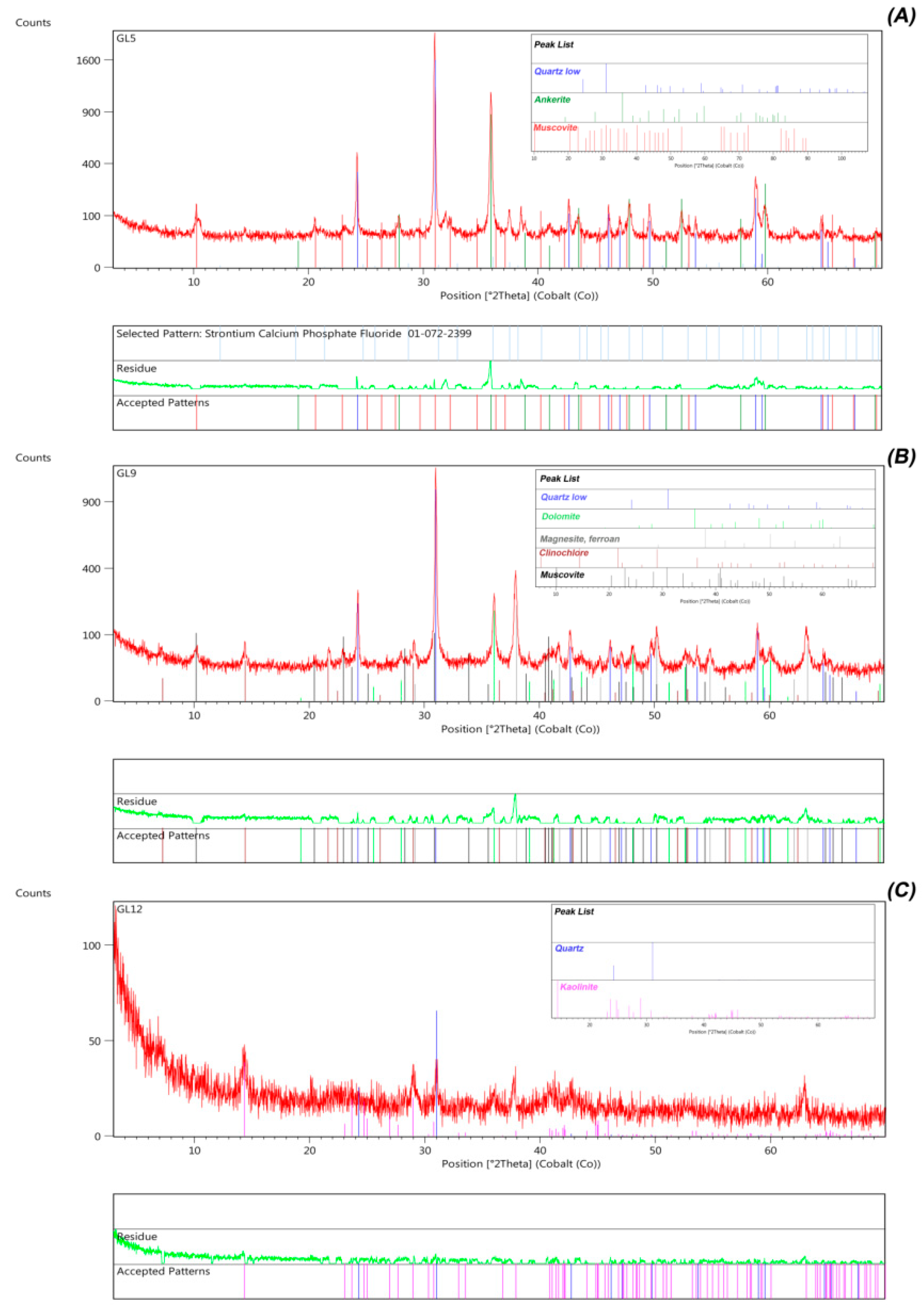

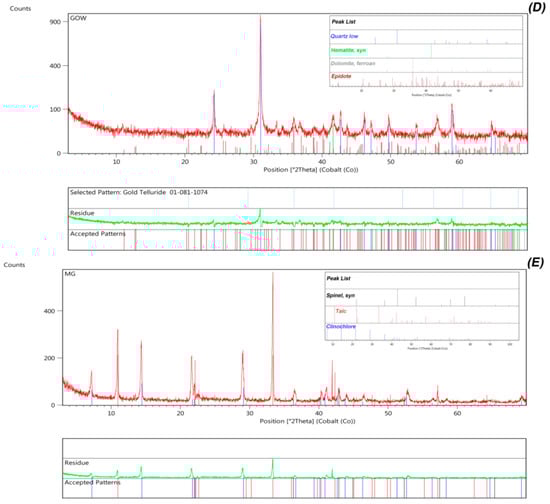

4.4. Petrography and Mineralogy of Hydrothermal Alteration Minerals and Listvenites
5. Discussion
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Appendix A
(A) | |||||||||
Eigenvector | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 | Band 6 | Band 7 | Band 8 | Band 9 |
PCA 1 | 0.467805 | 0.509694 | 0.512981 | 0.217468 | 0.176799 | 0.246614 | 0.248711 | 0.197151 | 0.134638 |
PCA 2 | −0.300431 | −0.288970 | −0.263316 | 0.338230 | 0.386615 | 0.342808 | 0.283244 | 0.363021 | 0.404354 |
PCA 3 | 0.157609 | 0.161323 | −0.103135 | 0.006767 | 0.226125 | −0.358278 | −0.615519 | 0.073713 | 0.612094 |
PCA 4 | 0.044681 | 0.011848 | −0.069971 | 0.090291 | −0.633560 | −0.438259 | 0.344247 | 0.463711 | 0.240442 |
PCA 5 | 0.571038 | 0.143893 | −0.731120 | −0.148991 | 0.161062 | 0.025766 | 0.172102 | 0.073443 | −0.186704 |
PCA 6 | 0.085901 | −0.004662 | −0.067071 | −0.301431 | −0.281197 | 0.308307 | 0.264687 | −0.553969 | 0.588366 |
PCA 7 | −0.076892 | −0.036997 | 0.134514 | −0.155125 | 0.497821 | −0.618179 | 0.507327 | −0.246778 | 0.048065 |
PCA 8 | 0.068572 | 0.059992 | −0.169358 | 0.829896 | −0.117622 | −0.150630 | 0.013344 | −0.485437 | −0.044016 |
PCA 9 | 0.565673 | −0.777720 | 0.257238 | 0.065265 | 0.008201 | −0.026038 | −0.057528 | 0.007880 | 0.024873 |
(B) | |||||||||
Eigenvector | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 | Band 6 | Band 7 | Band 8 | Band 9 |
PCA 1 | −0.479262 | −0.517939 | −0.509952 | −0.225048 | −0.160278 | −0.238705 | −0.238099 | −0.191397 | −0.123923 |
PCA 2 | 0.288066 | 0.267422 | 0.266615 | −0.388911 | −0.371102 | −0.336818 | −0.273033 | −0.365435 | −0.404865 |
PCA 3 | −0.470308 | −0.335548 | 0.711152 | −0.063002 | −0.061806 | 0.155815 | 0.278307 | −0.089651 | −0.207174 |
PCA 4 | 0.089149 | 0.081563 | −0.378102 | 0.066965 | −0.262842 | 0.327757 | 0.541766 | 0.014714 | −0.606397 |
PCA 5 | 0.005198 | −0.011714 | 0.013230 | −0.289525 | −0.571447 | −0.297938 | 0.372870 | 0.457705 | 0.389860 |
PCA 6 | −0.143194 | 0.033396 | 0.100700 | 0.637725 | −0.213061 | −0.346181 | −0.285287 | 0.440341 | −0.347880 |
PCA 7 | 0.048756 | −0.037063 | −0.000810 | −0.381573 | 0.612809 | −0.398723 | 0.186662 | 0.403665 | −0.344018 |
PCA 8 | 0.019200 | −0.050602 | 0.037382 | −0.368910 | −0.118495 | 0.574367 | −0.492425 | 0.505200 | −0.133907 |
PCA 9 | −0.659478 | 0.731979 | −0.091948 | −0.132052 | 0.046537 | 0.019598 | −0.007121 | −0.002060 | 0.028260 |
(C) | |||||||||
Eigenvector | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 | Band 6 | Band 7 | Band 8 | Band 9 |
PCA 1 | 0.436596 | 0.474941 | 0.478323 | 0.259162 | 0.202467 | 0.288422 | 0.293737 | 0.233995 | 0.150469 |
PCA 2 | −0.361523 | −0.339702 | −0.304584 | 0.341346 | 0.339529 | 0.323638 | 0.270272 | 0.338853 | 0.369764 |
PCA 3 | −0.113406 | −0.131491 | 0.013472 | −0.038953 | −0.199768 | 0.301020 | 0.615036 | −0.041133 | −0.676513 |
PCA 4 | 0.646205 | 0.069871 | −0.741104 | 0.063857 | 0.083737 | 0.043079 | 0.029404 | 0.011287 | −0.119854 |
PCA 5 | −0.081856 | 0.003684 | 0.073346 | 0.258757 | 0.617458 | 0.257579 | −0.353971 | −0.466145 | −0.361612 |
PCA 6 | −0.081361 | 0.054497 | 0.026637 | 0.134626 | 0.188319 | −0.340347 | −0.252269 | 0.722429 | −0.484494 |
PCA 7 | −0.038421 | 0.062948 | 0.062948 | 0.128723 | −0.501280 | 0.651852 | −0.509411 | 0.194283 | −0.050948 |
PCA 8 | 0.065332 | −0.071443 | 0.035478 | −0.833862 | 0.356670 | 0.335182 | −0.066825 | 0.222638 | 0.021186 |
PCA 9 | −0.478726 | 0.790450 | −0.345997 | −0.117250 | 0.039925 | 0.012703 | 0.092941 | −0.045796 | 0.007618 |
(D) | |||||||||
Eigenvector | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 | Band 6 | Band 7 | Band 8 | Band 9 |
PCA 1 | 0.457469 | 0.496121 | 0.484720 | 0.241961 | 0.190767 | 0.264428 | 0.267634 | 0.222557 | 0.153665 |
PCA 2 | −0.318221 | −0.311611 | −0.309208 | 0.348166 | 0.377922 | 0.352360 | 0.263388 | 0.321127 | 0.381217 |
PCA 3 | 0.050573 | 0.100867 | 0.065376 | −0.074127 | 0.348897 | −0.190996 | −0.603883 | −0.184339 | 0.648564 |
PCA 4 | −0.576526 | −0.199530 | 0.760114 | −0.121149 | −0.074678 | −0.014245 | 0.117300 | −0.037045 | 0.120188 |
PCA 5 | 0.062048 | 0.065969 | −0.120679 | −0.198503 | −0.582283 | −0.293206 | 0.201001 | 0.452767 | 0.517116 |
PCA 6 | 0.076383 | 0.014735 | −0.110901 | −0.152342 | −0.282329 | 0.477741 | 0.275588 | −0.676196 | 0.342499 |
PCA 7 | 0.082735 | −0.021608 | −0.059222 | −0.230230 | 0.454540 | −0.555810 | 0.600908 | −0.236367 | 0.060691 |
PCA 8 | 0.018744 | 0.033687 | −0.043334 | −0.827212 | 0.260085 | 0.381570 | −0.039539 | 0.303178 | −0.075067 |
PCA 9 | −0.581066 | 0.774987 | −0.234825 | 0.012884 | 0.021499 | −0.022616 | 0.039495 | −0.044352 | −0.044133 |
(A) | |||||
Eigenvector | Band 10 | Band 11 | Band 12 | Band 13 | Band 14 |
PCA 1 | −0.387065 | −0.400716 | −0.418903 | −0.501105 | −0.512857 |
PCA 2 | 0.124757 | −0.148619 | −0.793719 | 0.106037 | 0.566669 |
PCA 3 | −0.639764 | −0.511314 | 0.328506 | 0.186276 | 0.432023 |
PCA 4 | 0.630731 | −0.744700 | 0.169973 | 0.079875 | −0.111041 |
PCA 5 | 0.165821 | 0.036321 | 0.240257 | −0.834608 | 0.465714 |
(B) | |||||
Eigenvector | Band 10 | Band 11 | Band 12 | Band 13 | Band 14 |
PCA 1 | −0.393525 | −0.404088 | −0.412766 | −0.496019 | −0.515209 |
PCA 2 | 0.068174 | 0.244757 | 0.733503 | −0.274307 | −0.567605 |
PCA 3 | −0.739002 | −0.349952 | 0.467340 | 0.209083 | 0.263226 |
PCA 4 | −0.528835 | 0.806255 | −0.213160 | −0.138353 | 0.075548 |
PCA 5 | 0.121244 | −0.065522 | 0.166595 | −0.784770 | 0.580852 |
(C) | |||||
Eigenvector | Band 10 | Band 11 | Band 12 | Band 13 | Band 14 |
PCA 1 | −0.387916 | −0.409696 | −0.430823 | −0.491519 | −0.504450 |
PCA 2 | 0.059723 | 0.202526 | 0.734577 | −0.249602 | −0.594568 |
PCA 3 | −0.749770 | −0.351003 | 0.439774 | 0.248107 | 0.244302 |
PCA 4 | 0.532694 | −0.814304 | 0.224886 | 0.010234 | 0.049680 |
PCA 5 | −0.006039 | 0.069557 | 0.175536 | −0.796521 | 0.574340 |
(D) | |||||
Eigenvector | Band 10 | Band 11 | Band 12 | Band 13 | Band 14 |
PCA 1 | −0.386572 | −0.407245 | −0.432094 | −0.491312 | −0.506577 |
PCA 2 | 0.007595 | −0.170349 | −0.765517 | 0.204563 | 0.585714 |
PCA 3 | 0.667689 | 0.466491 | −0.419996 | −0.168193 | −0.363168 |
PCA 4 | 0.605752 | −0.766295 | 0.140070 | 0.132069 | −0.093781 |
PCA 5 | 0.194321 | -0.017612 | 0.176809 | −0.819167 | 0.509541 |
Altered Rock Types | Coordinates |
---|---|
Listvenites | 71°36.026′S–163°16.302′E |
Listvenites | 71°36.011′S–163°16.364′E |
Carbonitization | 70°47.459′S–162°39.438′E |
Carbonitization | 70°47.349′S–162°38.688′E |
Listvenites + sulfides+ albitites | 71°33.638′S–163°11.716′E |
Epidotization + fault zone | 71°23.702′S–162°47.968′E |
Reddish to greenish alteration zone | 71°19.056′S–162°35.167′E |
Epidotization + chlorite in granitoids | 71°31.135′S–162°59.086′E |
Epidotization + prehnite in granite | 71°49.569′S–161°18.145′E |
Epidotization + prehnite in granite | 71°29.123′S–162°38.567′E |
Epidotization in granite | 71°44.753′S–162°59.358′E |
Epidote + serpentine + talc in high grade mafic-ultramafic rocks | 71°27.635′S–162°53.098′E |
Listvenite + serpentine in ultramafic rocks | 71°34.546′S–163°11.185′E |
Listvenite + carbonates in volcanoclastic rocks | 71°32.738′S–163°31.602′E |
Listvenite + carbonates + talc | 71°36.768′S–163°16.407′E |
Carbonitization + silica in volcanoclastic rocks | 71°33.075′S–163° 31.949′E |
Epidotization in Glasgow Volcanics | 71°11.159′S–163°00.378′E |
Epidote + prehnite + quartz in volcanoclastic rocks | 71°23.048′S–162°48.796′E |
Listvenite + quartz + hydraulic breccia in Glasgow Volcanics | 71°27.078′S–163°26.689′E |
Epidote coating fault in Glasgow Volcanics | 71°11.292′S–162°35.369′E |
Listvenites in ultramafic rocks | 71°38.525′S–162°24.458′E |
Class | Listvenites | Carbonitization | Epidotization | Totals (Field data) | User’s Accuracy |
---|---|---|---|---|---|
Listvenites | 5 | 0 | 1 | 6 | 83.33% |
Carbonitization | 1 | 5 | 1 | 7 | 71.42% |
Epidotization | 1 | 2 | 5 | 8 | 62.50% |
Totals (LSU maps) | 7 | 7 | 7 | 21 | |
Producer’s Accuracy | 71.42% | 71.42% | 71.42% |
