Can We Improve Parametric Cyclonic Wind Fields Using Recent Satellite Remote Sensing Data?
Previous Article in Journal
Spectral Mixture Analysis as a Unified Framework for the Remote Sensing of Evapotranspiration
Article Menu

Export Article

Open AccessArticle
Remote Sens. 2018, 10(12), 1962; https://doi.org/10.3390/rs10121962

A Ground Elevation and Vegetation Height Retrieval Algorithm Using Micro-Pulse Photon-Counting Lidar Data

1
Key Laboratory of Digital Earth Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
2
University of Chinese Academy of Science, Beijing 100049, China
3
Beijing Institute of Spacecraft System Engineering, Beijing 100048, China
*
Authors to whom correspondence should be addressed.
Received: 15 October 2018 / Revised: 29 November 2018 / Accepted: 4 December 2018 / Published: 6 December 2018
Full-Text   |   PDF [8454 KB, uploaded 6 December 2018]   |

Abstract

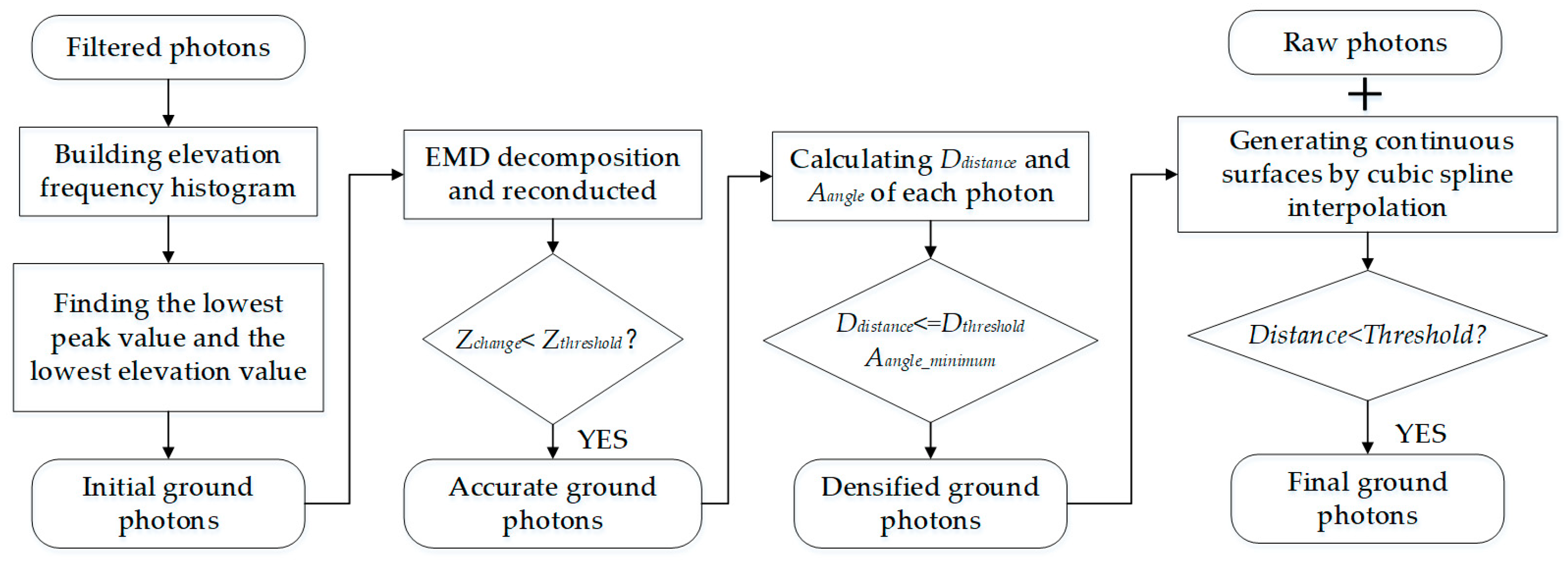

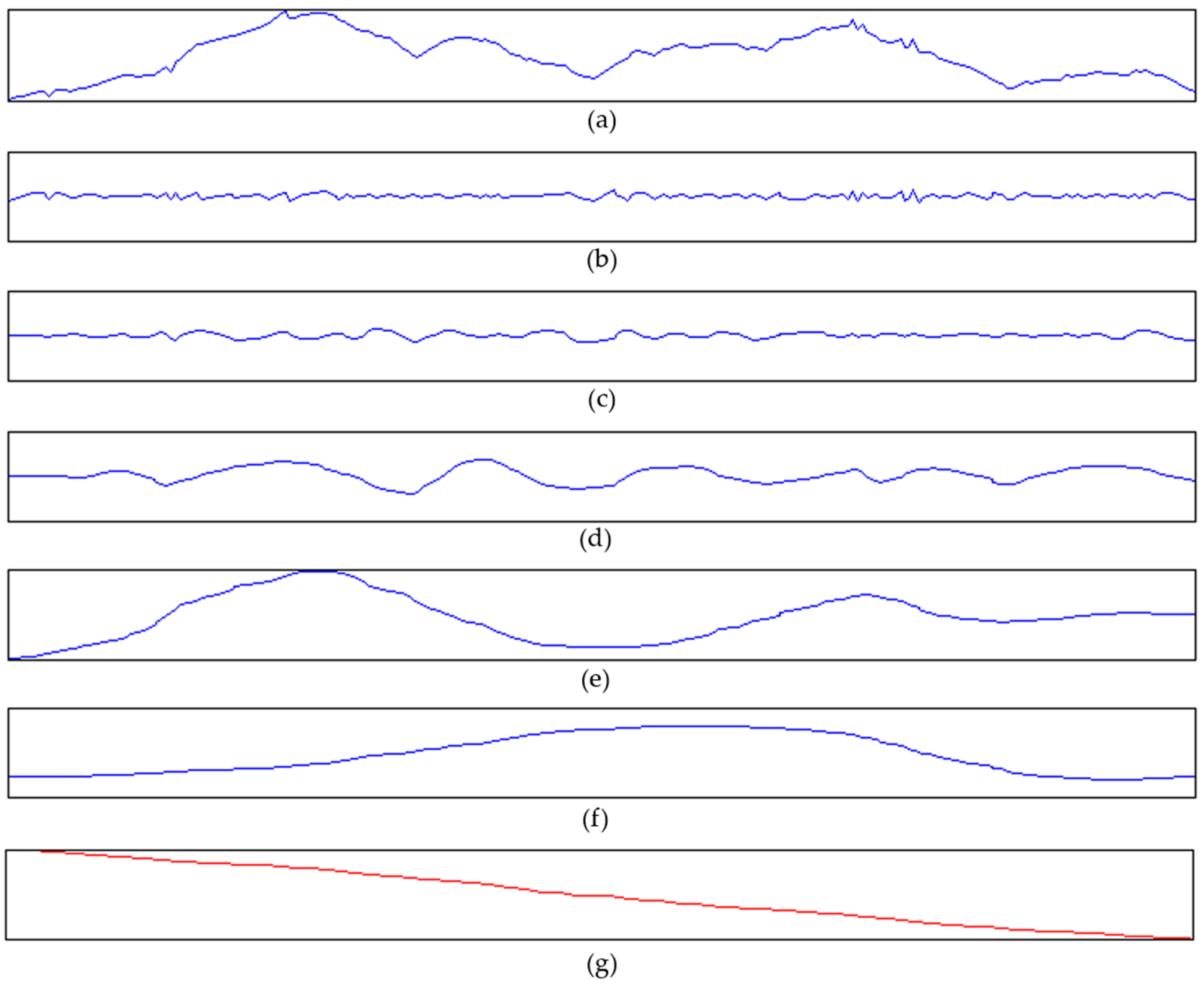

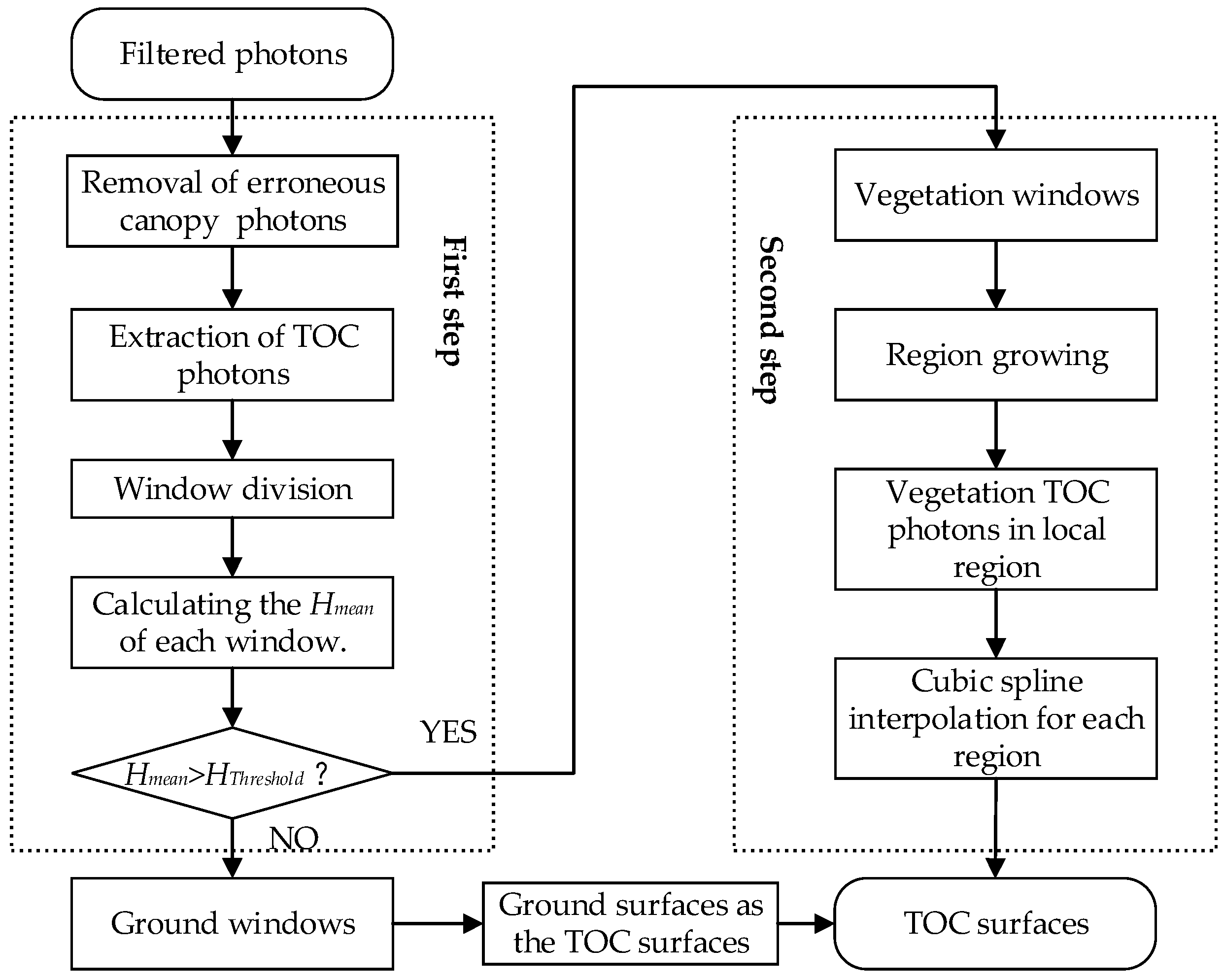

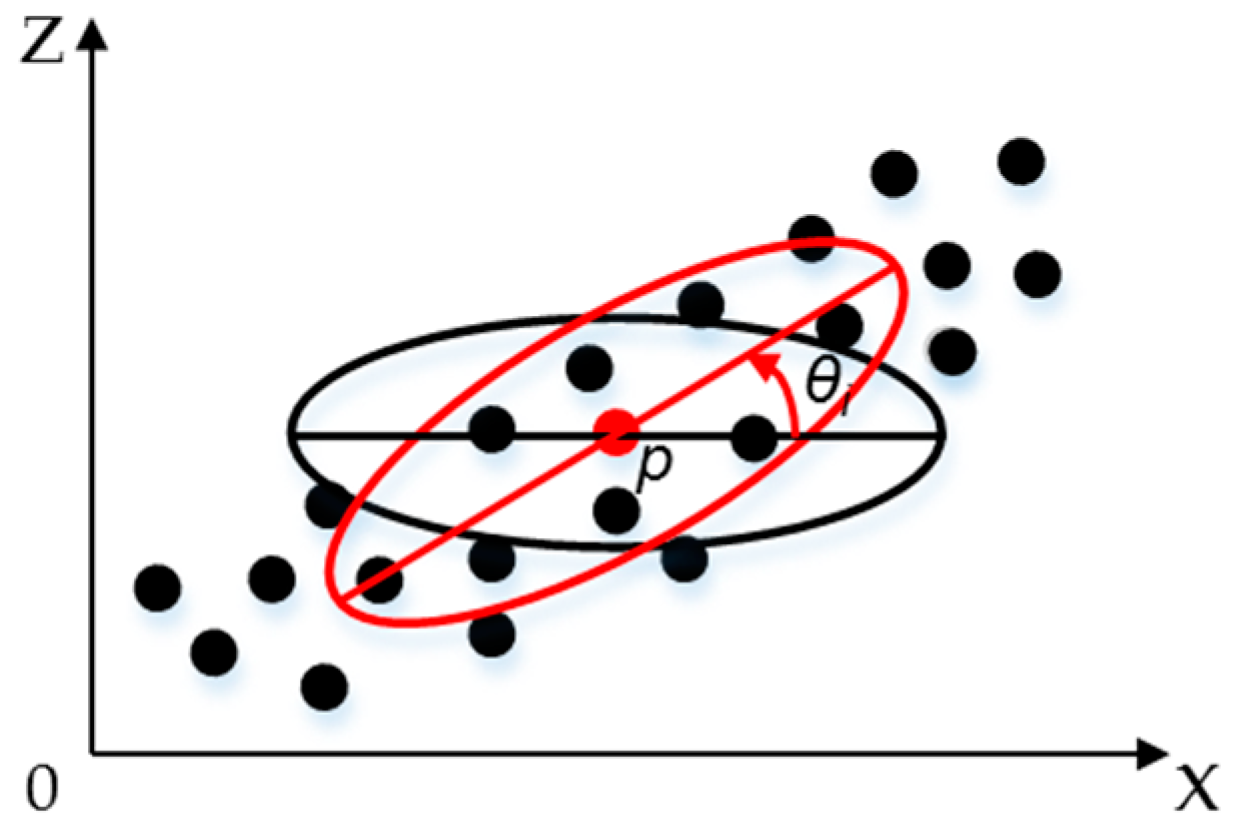

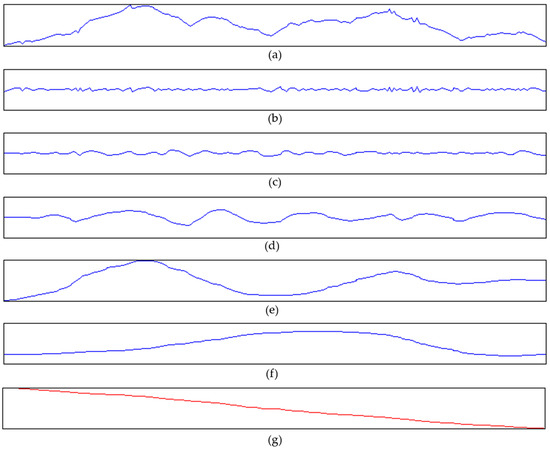

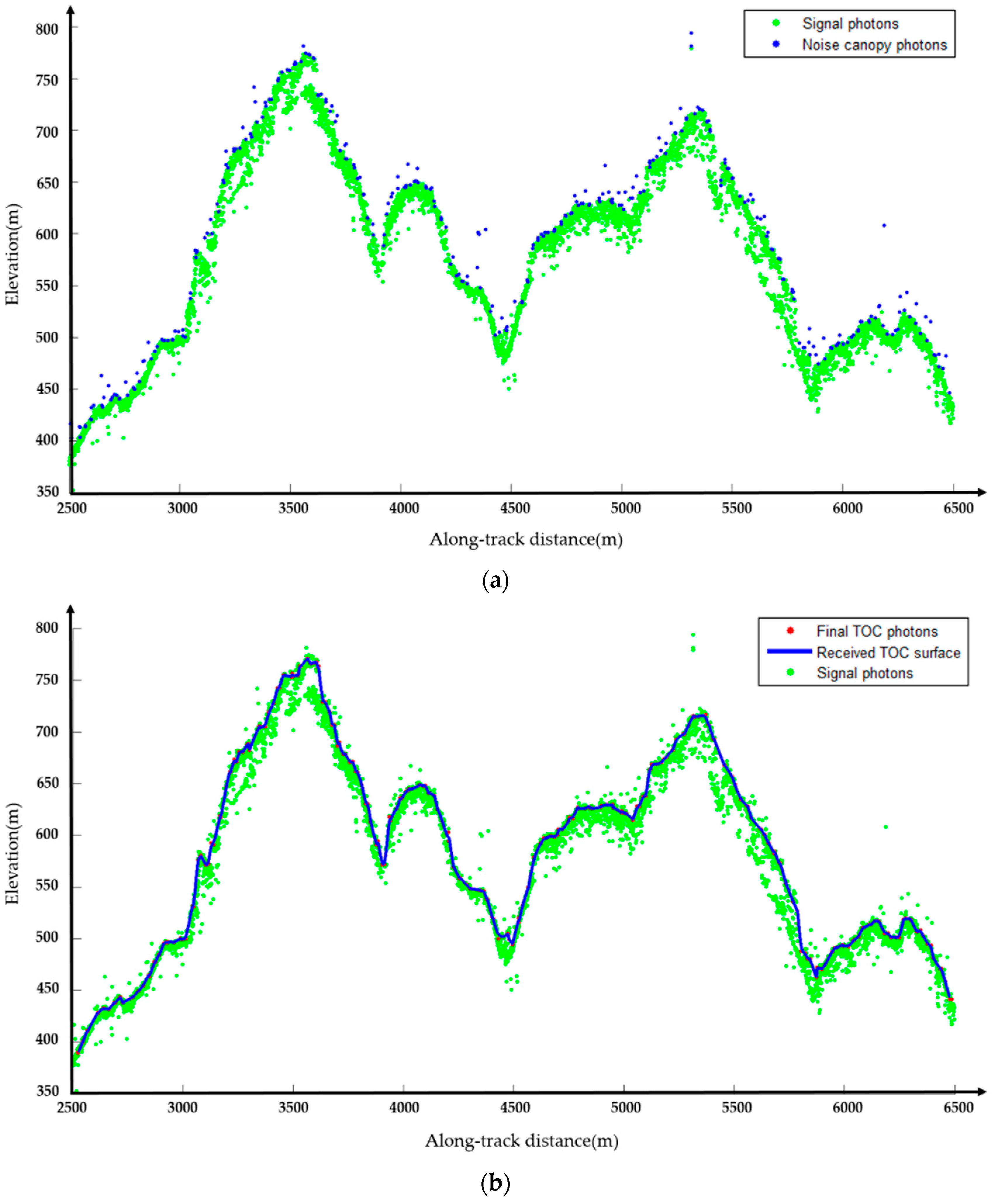

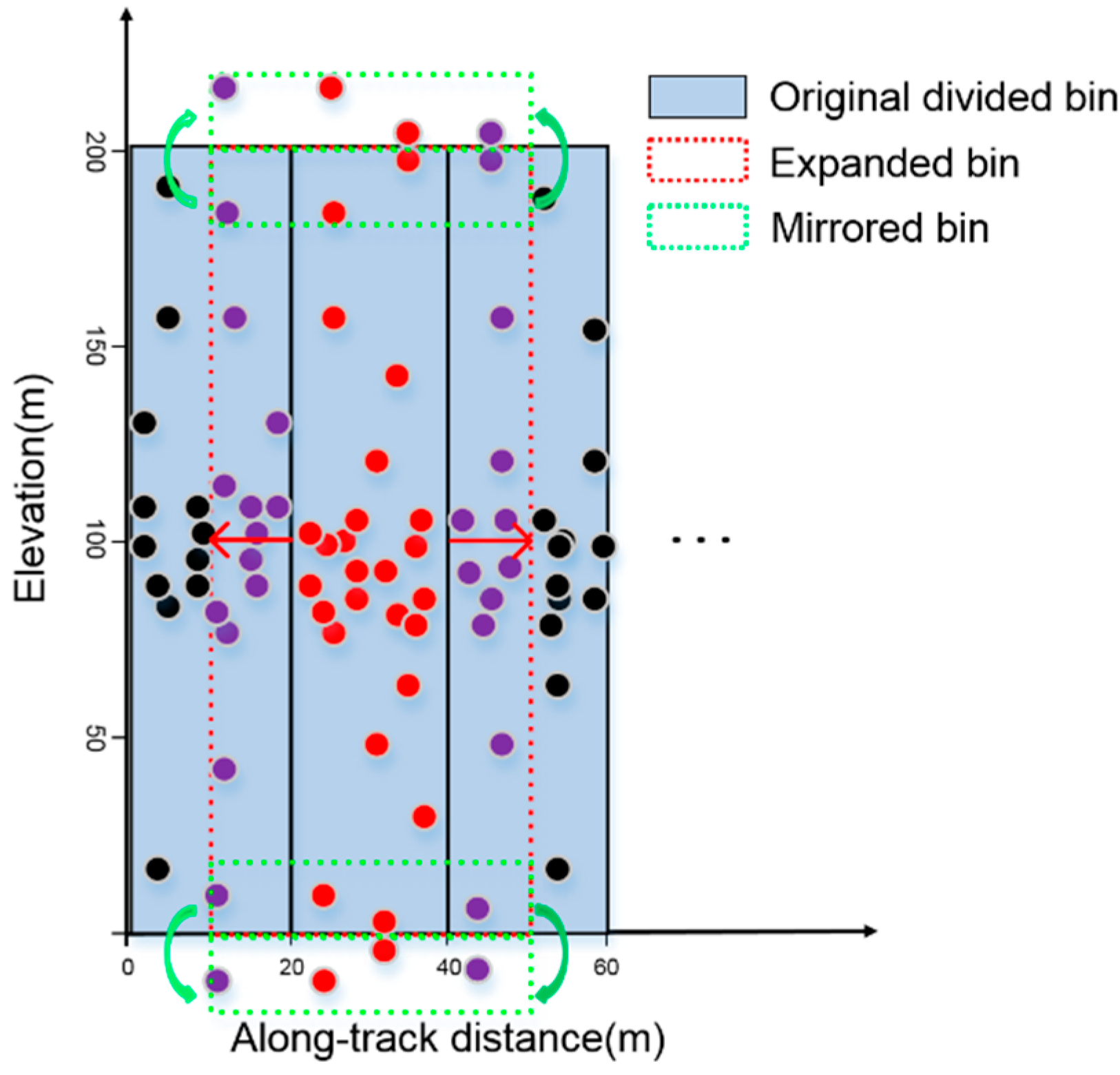

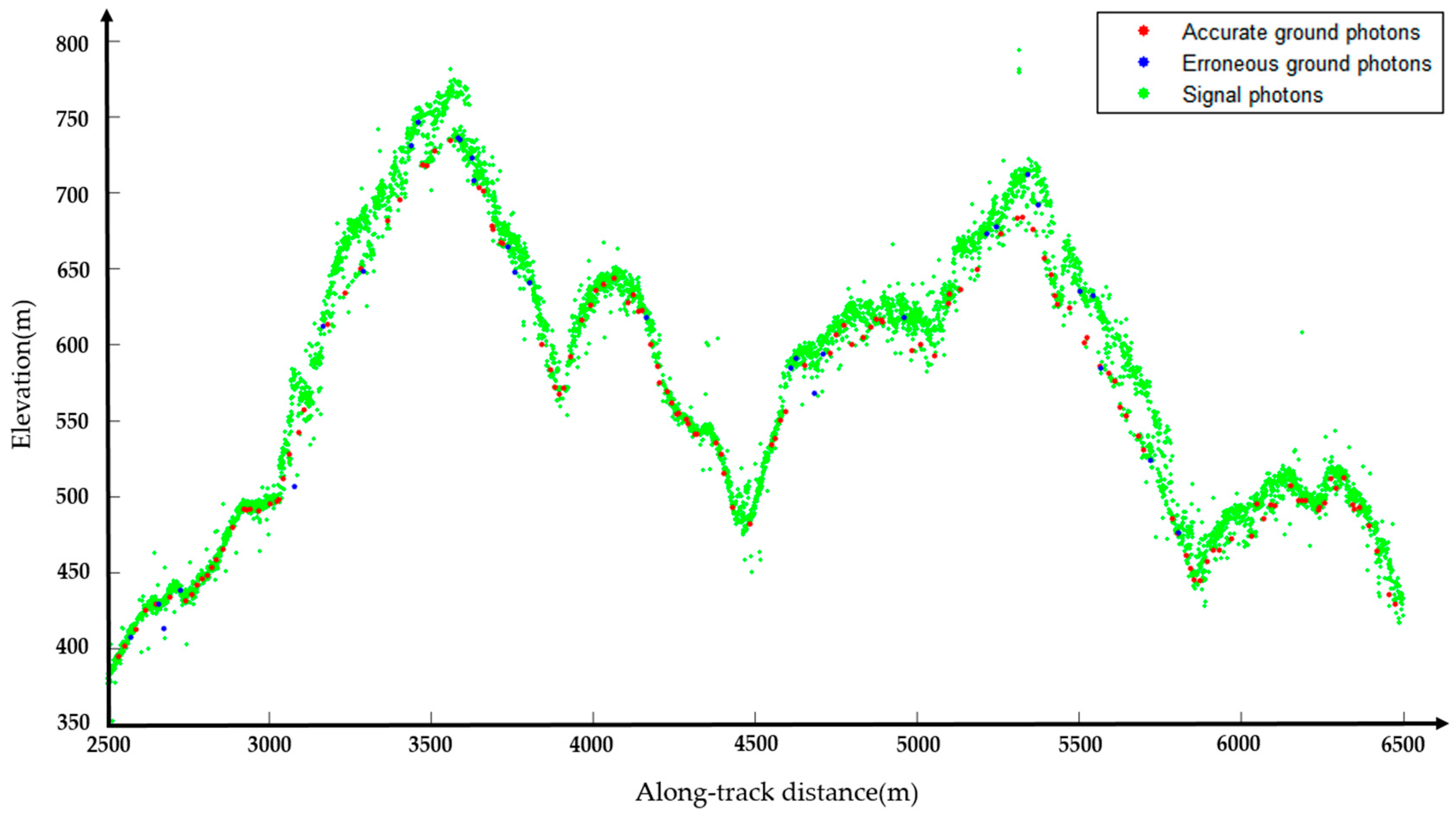

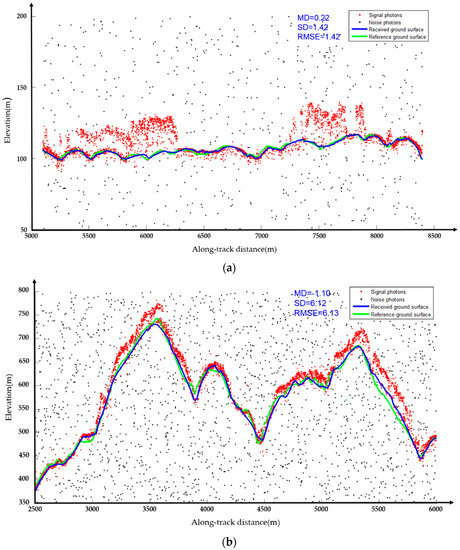

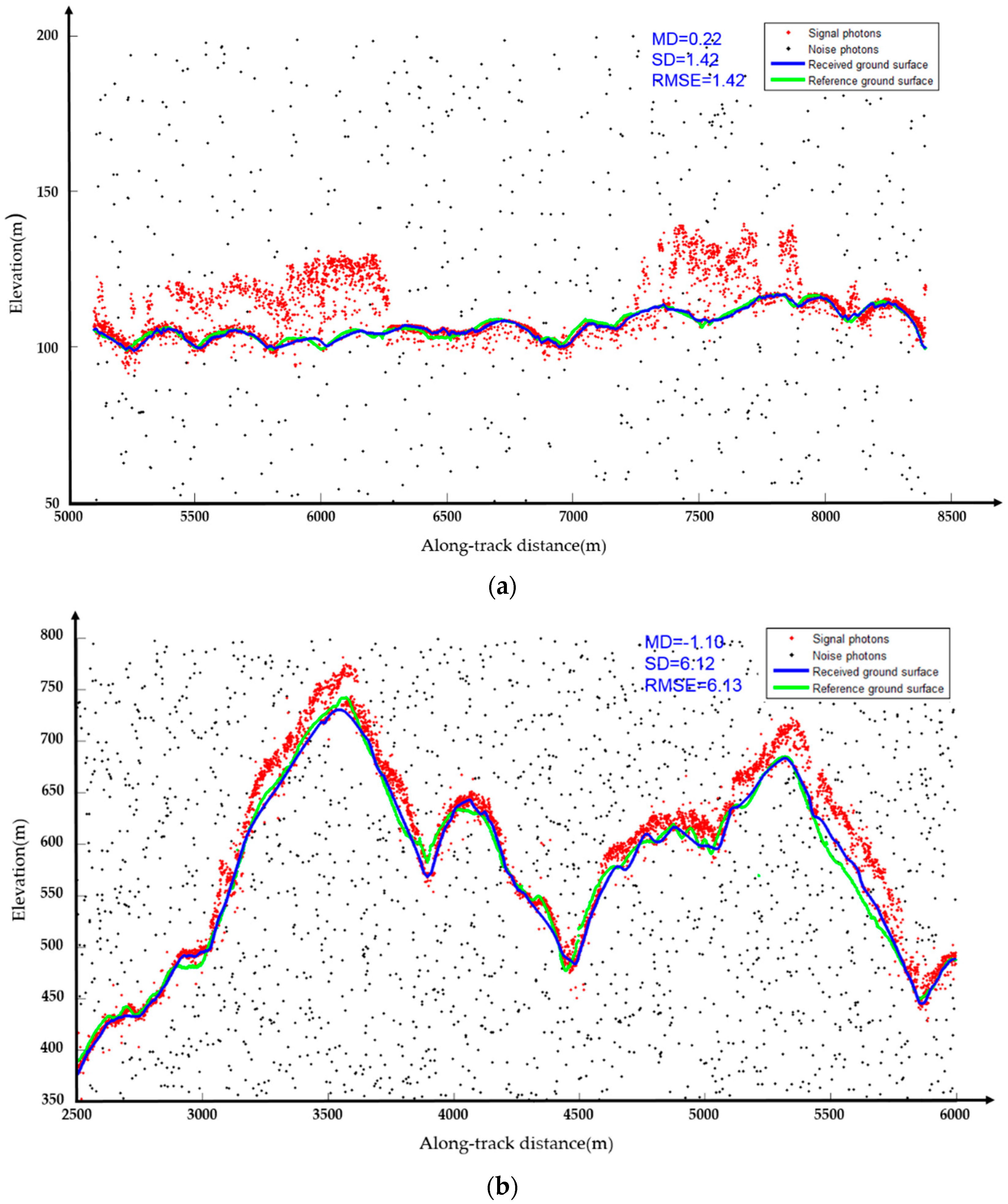

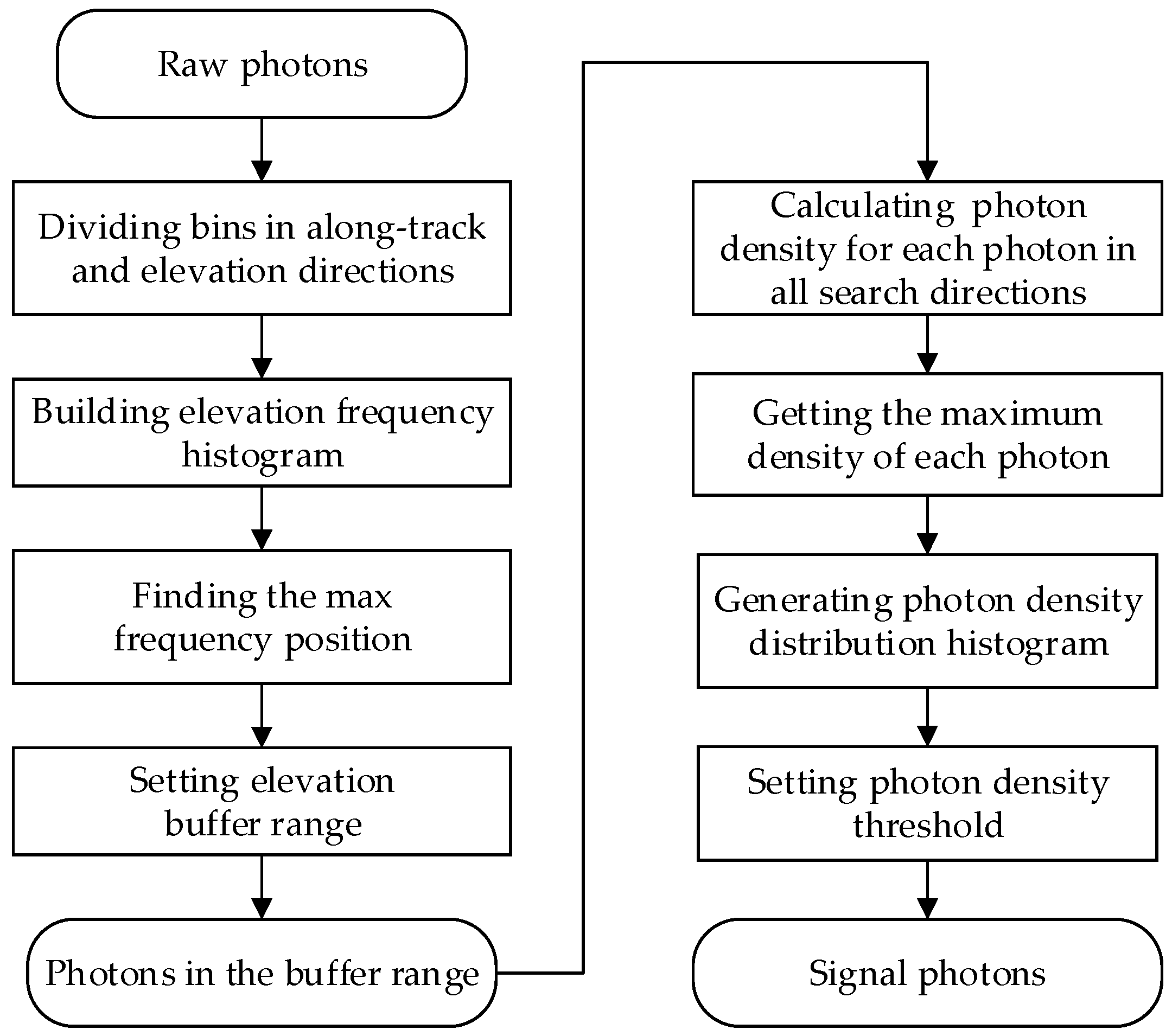

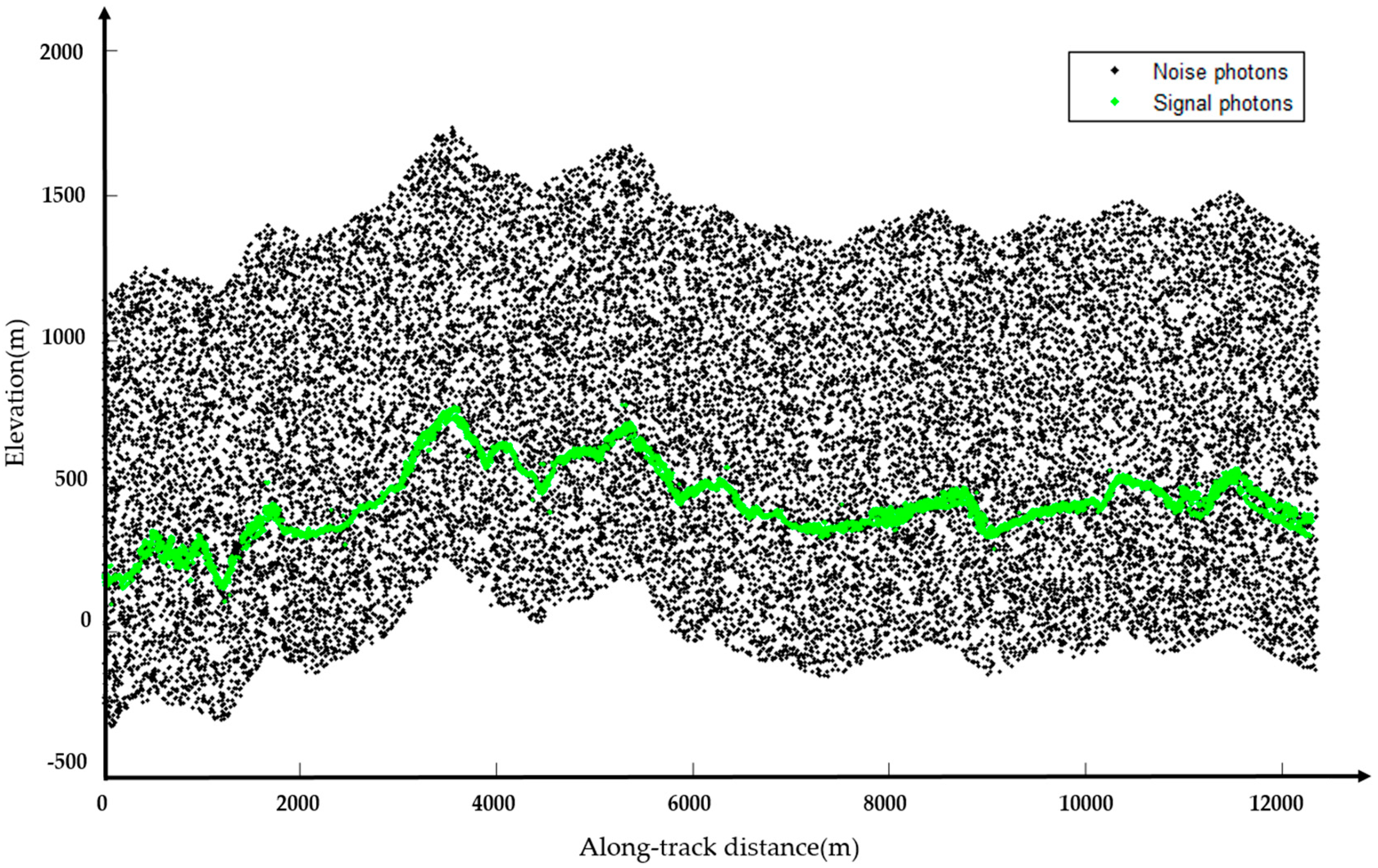

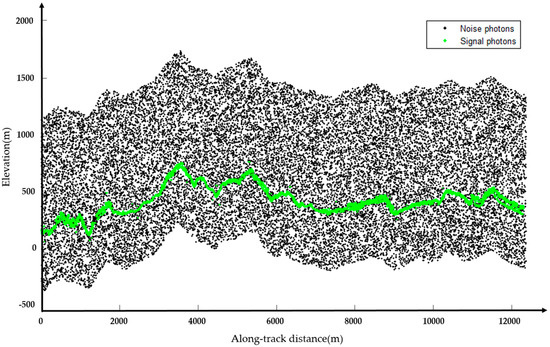

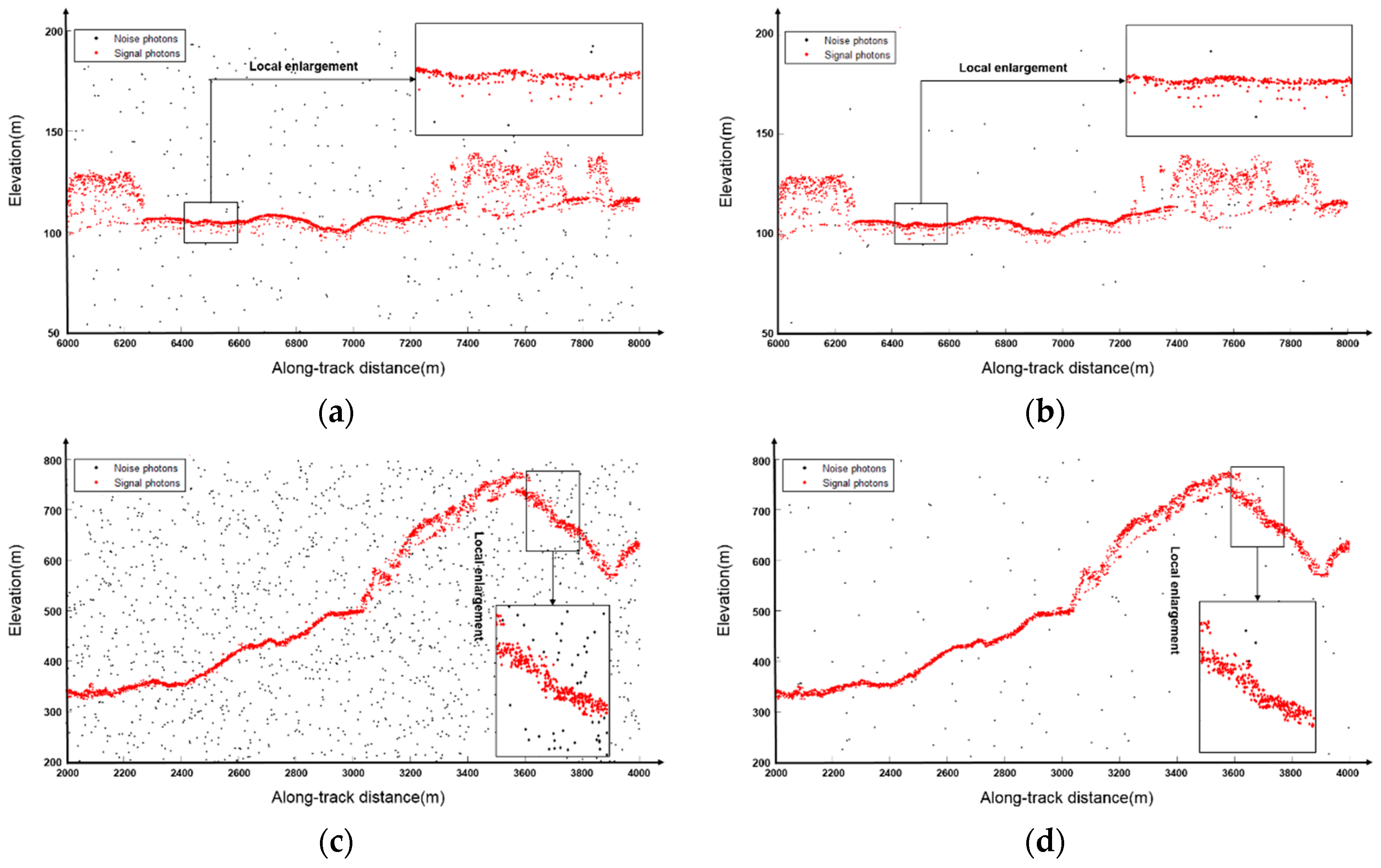

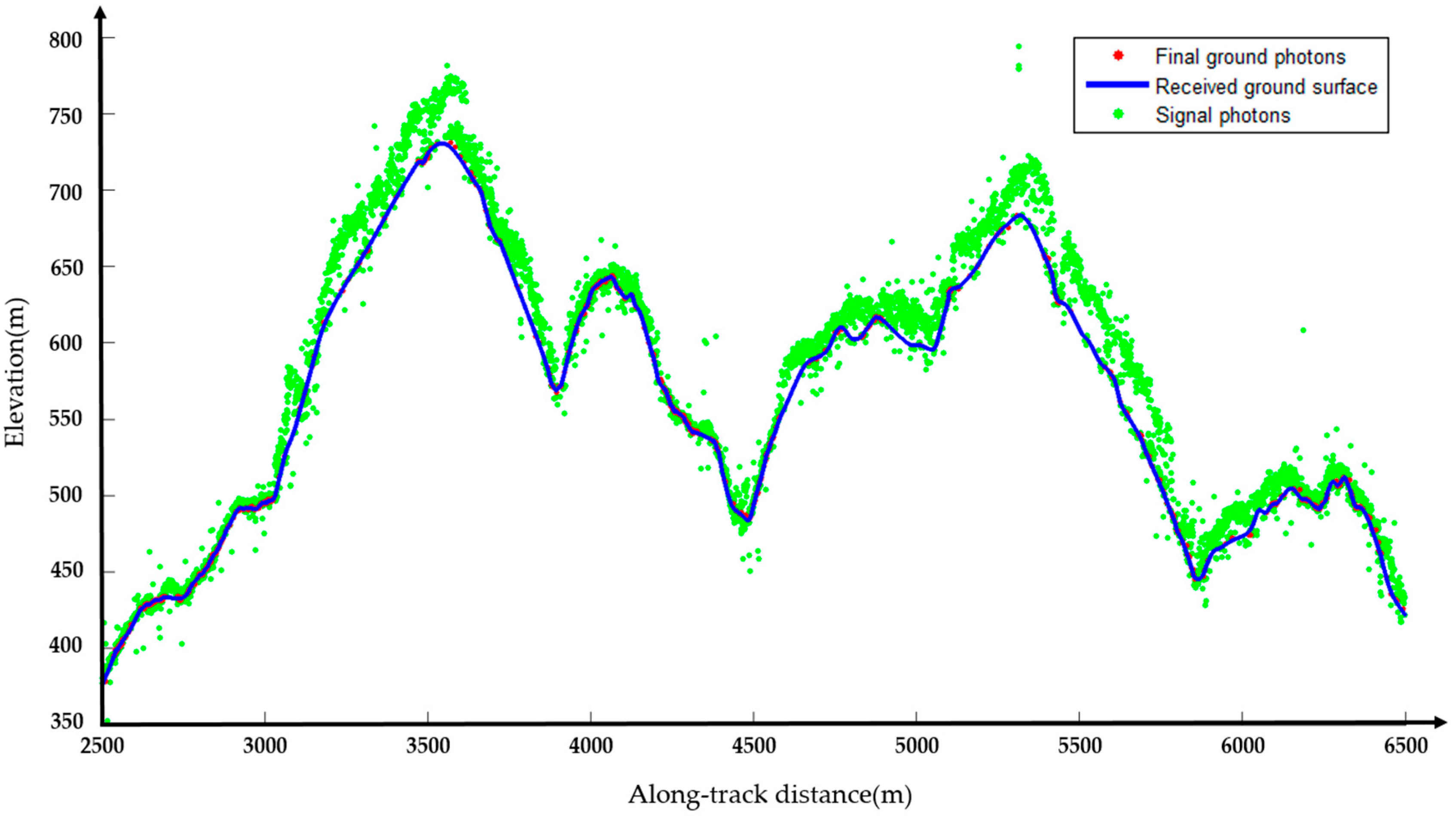

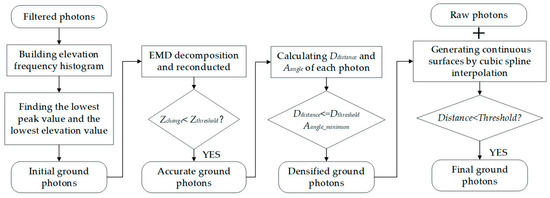

The Ice, Cloud and Land Elevation Satellite-2 (ICESat-2) mission employs a micro-pulse photon-counting LiDAR system for mapping and monitoring the biomass and carbon of terrestrial ecosystems over large areas. In preparation for ICESat-2 data processing and applications, this paper aimed to develop and validate an effective algorithm for better estimating ground elevation and vegetation height from photon-counting LiDAR data. Our new proposed algorithm consists of three key steps. Firstly, the noise photons were filtered out using a noise removal algorithm based on localized statistical analysis. Secondly, we classified the signal photons into canopy photons and ground photons by conducting a series of operations, including elevation frequency histogram building, empirical mode decomposition (EMD), and progressive densification. At the same time, we also identified the top of canopy (TOC) photons from canopy photons by percentile statistics method. Thereafter, the ground and TOC surfaces were generated from ground photons and TOC photons by cubic spline interpolation, respectively. Finally, the ground elevation and vegetation height were estimated by retrieved ground and TOC surfaces. The results indicate that the noise removal algorithm is effective in identifying background noise and preserving signal photons. The retrieved ground elevation is more accurate than the retrieved vegetation height, and the results of nighttime data are better than those of the corresponding daytime data. Specifically, the root-mean-square error (RMSE) values of ground elevation estimates range from 2.25 to 6.45 m for daytime data and 2.03 to 6.03 m for nighttime data. The RMSE values of vegetation height estimates range from 4.63 to 8.92 m for daytime data and 4.55 to 8.65 m for nighttime data. Our algorithm performs better than the previous algorithms in estimating ground elevation and vegetation height due to lower RMSE values. Additionally, the results also illuminate that the photon classification algorithm effectively reduces the negative effects of slope and vegetation coverage. Overall, our paper provides an effective solution for estimating ground elevation and vegetation height from micro-pulse photon-counting LiDAR data. View Full-Text
Keywords: ICESat-2; photon-counting LiDAR; noise removal algorithm; photon classification; EMD; ground elevation; vegetation height ICESat-2; photon-counting LiDAR; noise removal algorithm; photon classification; EMD; ground elevation; vegetation height
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhu, X.; Nie, S.; Wang, C.; Xi, X.; Hu, Z. A Ground Elevation and Vegetation Height Retrieval Algorithm Using Micro-Pulse Photon-Counting Lidar Data. Remote Sens. 2018, 10, 1962.
