# Coordinating a Two-Echelon Supply Chain under Carbon Tax

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Supply Chain Model Description

## 4. Decision Analysis

#### 4.1. The Integrated Supply Chain: A Benchmark

**Proposition**

**1.**

- (a)
- If $t\le \widehat{t}$, we have ${e}^{c\ast}=\frac{k+ty}{2h}$ , ${p}^{c\ast}=\frac{4ah+4ch+4hty+(3k-ty)(k+ty)}{8h}$ and ${\pi}^{c\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{64{h}^{2}}$.
- (b)
- If $t>\widehat{t}$, we have ${e}^{c\ast}=1$, ${p}^{c\ast}=\frac{1}{2}(a+c+h+k)$ and ${\pi}^{c\ast}=\frac{1}{4}{(a-c-h+k)}^{2}$.

#### 4.2. Decentralized Case with a Whole Price Contract (WP)

**Proposition**

**2.**

- (a)
- If $t\le \widehat{t}$, ${e}^{w\ast}=\frac{k+ty}{2h}$, ${w}^{w\ast}=\frac{4ah+4ch+4hty+(3k-ty)(k+ty)}{8h}$, ${p}^{w\ast}=\frac{12ah+4ch+4hty+(7k-ty)(k+ty)}{16h}$, ${\pi}_{r}^{w\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{256{h}^{2}}$ and ${\pi}_{m}^{w\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{128{h}^{2}}$.
- (b)
- If $t>\widehat{t}$, we have ${e}^{w\ast}=1$, ${w}^{w\ast}=\frac{1}{2}(a+c+h+k)$, ${p}^{w\ast}=\frac{1}{4}(3a+c+h+3k)$, ${\pi}_{r}^{w\ast}=\frac{1}{16}{(a-c-h+k)}^{2}$ and ${\pi}_{m}^{w\ast}=\frac{1}{8}{(a-c-h+k)}^{2}$.

**Theorem**

**1.**

#### 4.3. Decentralized Case with a Cost-Sharing Contract (CS)

**Proposition**

**3.**

- (a)
- If $t\le \widehat{t}$, ${e}^{cs\ast}=\frac{k+ty}{2h}$, ${w}^{cs\ast}=\frac{4ah+4ch+4hty+(k+ty)(k-3ty+2(k+ty)\rho )}{8h}$, ${p}^{cs\ast}=\frac{12ah+4ch+4hty+(7k-ty)(k+ty)}{16h}$, ${\pi}_{r}^{cs\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{256{h}^{2}}$ and ${\pi}_{m}^{cs}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{128{h}^{2}}$.
- (b)
- If $t>\widehat{t}$, ${e}^{cs\ast}=1$, ${w}^{cs\ast}=\frac{1}{2}(a+c-h+k+2h\rho )$, ${p}^{cs\ast}=\frac{1}{4}(3a+c+h+3k)$, ${\pi}_{r}^{cs\ast}=\frac{1}{16}{(a-c-h+k)}^{2}$ and ${\pi}_{m}^{cs\ast}=\frac{1}{8}{(a-c-h+k)}^{2}$.

## 5. Coordination with Two Contract Mechanisms

#### 5.1. Coordination by MW Contract

**Proposition**

**4.**

- (a)
- If $t\le \widehat{t}$, we have ${e}^{mw\ast}=\frac{k+ty}{2h}$, ${w}^{mw\ast}=\frac{4ch+{k}^{2}+ty(4h-ty)}{4h}$, ${p}^{mw\ast}=\frac{4ah+4ch+4hty+(3k-ty)(k+ty)}{8h}$, ${\pi}_{r}^{mw\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{64{h}^{2}}$ and ${\pi}_{m}^{mw\ast}=0$.
- (b)
- if $t>\widehat{t}$, we have ${e}^{mw\ast}=1$, ${w}^{mw\ast}=c+h$, ${p}^{mw\ast}=\frac{1}{2}(a+c+h+k)$, ${\pi}_{r}^{mw\ast}=\frac{1}{4}{(a-c-h+k)}^{2}$ and ${\pi}_{m}^{mw\ast}=0$.

#### 5.2. Coordination by MS Contract

**Proposition**

**5.**

- (a)
- If $t\le \widehat{t}$, we have ${e}^{ms\ast}=\frac{k+ty}{2h}$, ${w}^{ms\ast}=\frac{4ch+4hty+(k+ty)(ty(-2+\rho )+k\rho )}{4h}$, ${p}^{ms\ast}=\frac{4ah+4ch+4hty+(3k-ty)(k+ty)}{8h}$, ${\pi}_{r}^{ms\ast}=\frac{{(4ah-4ch-4hty+{(k+ty)}^{2})}^{2}}{64{h}^{2}}$, ${\pi}_{m}^{ms\ast}=0$.
- (b)
- if $t>\widehat{t}$, we have ${e}^{ms\ast}=1$, ${w}^{ms\ast}=c+h\rho $, ${p}^{ms\ast}=\frac{1}{2}(a+c+h+k)$, ${\pi}_{r}^{ms\ast}=\frac{1}{4}{(a-c-h+k)}^{2}$ and ${\pi}_{m}^{ms\ast}=0$.

## 6. Implementing the Contracts (${\mathit{w}}^{\mathit{m}\mathit{w}\mathbf{\ast}}$, ${\mathit{e}}^{\mathit{m}\mathit{w}\mathbf{\ast}}$) and (${\mathit{w}}^{\mathit{m}\mathit{s}\mathbf{\ast}}$, ${\mathit{\rho}}^{\mathit{m}\mathit{s}\mathbf{\ast}}$, ${\mathit{e}}^{\mathit{m}\mathit{s}\mathbf{\ast}}$) with TPT

**Proposition**

**6.**

## 7. Numerical Analysis

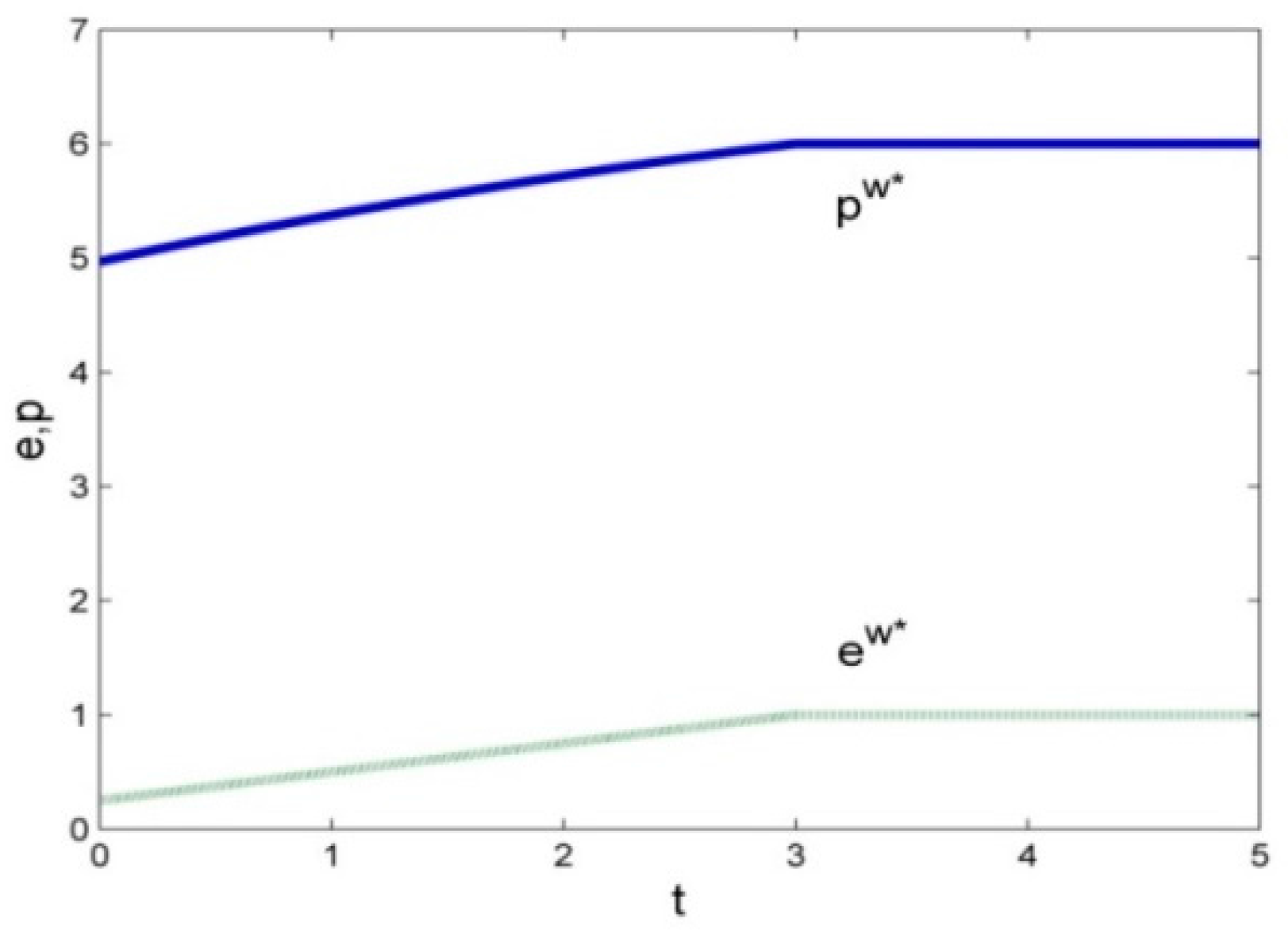

#### 7.1. Impact of $t$ on ${p}^{w\ast}$ and ${e}^{w\ast}$ under the WP Contract

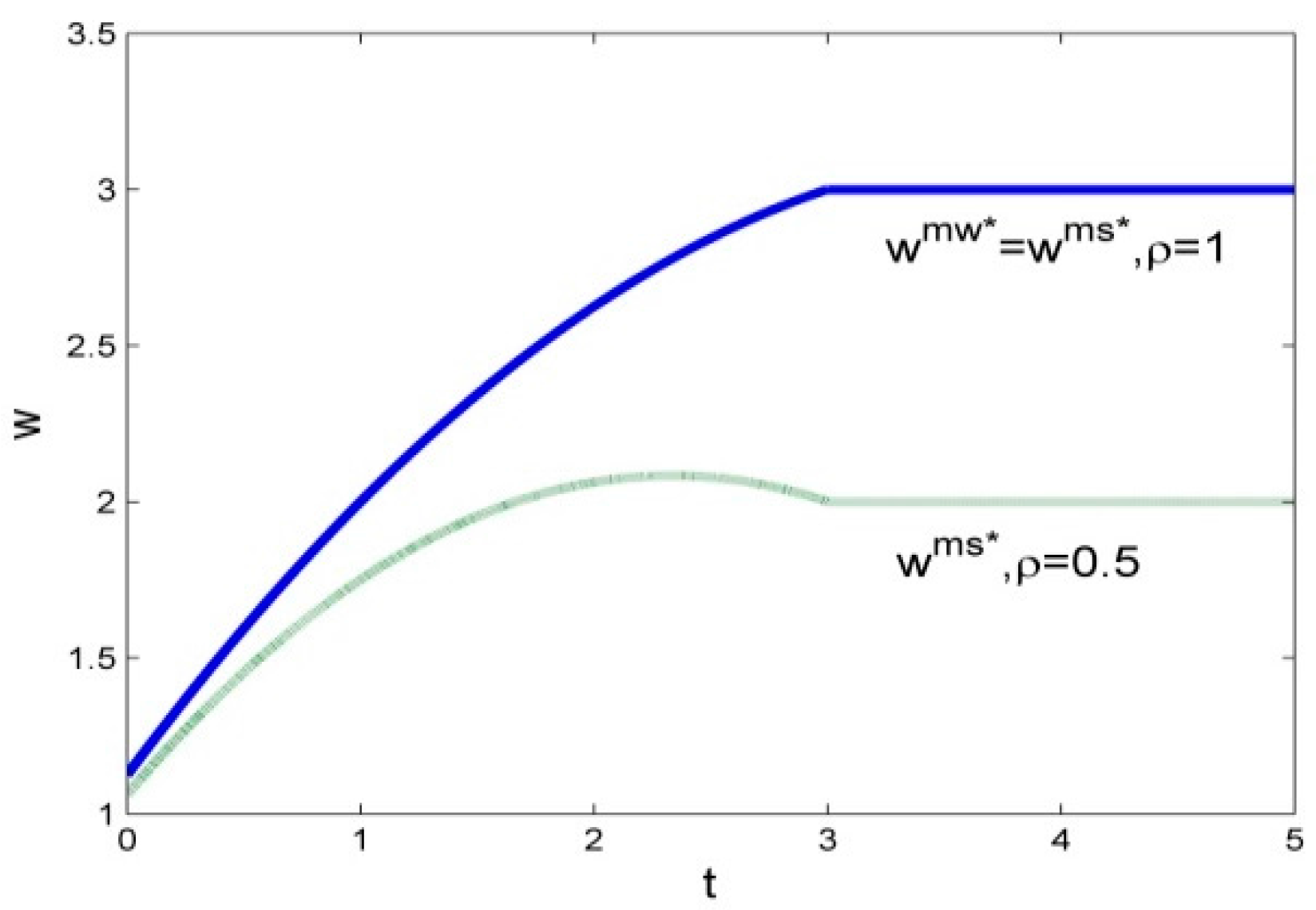

#### 7.2. Impact of $t$ on ${w}^{\ast}$ under the MW and MS Contract

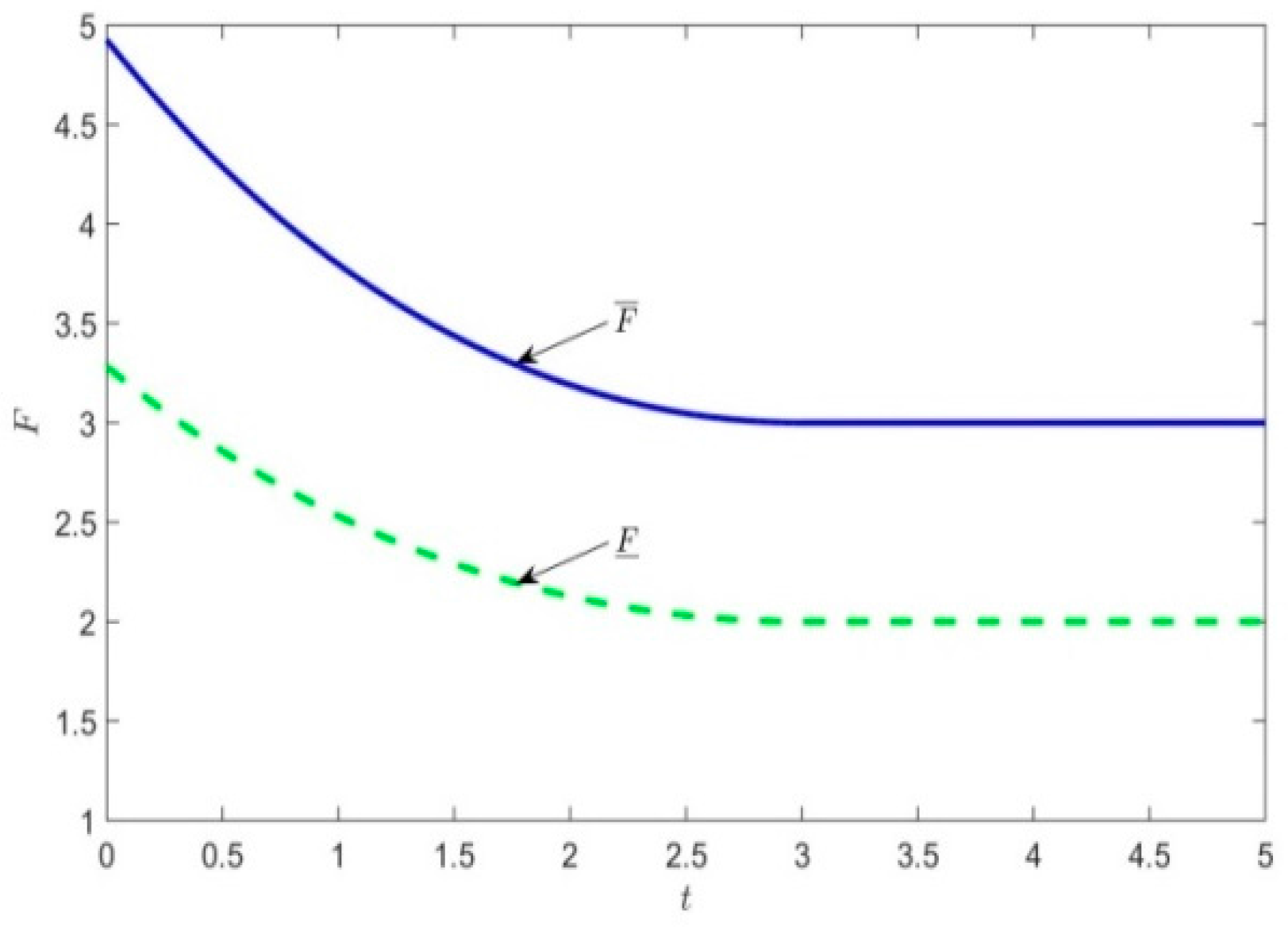

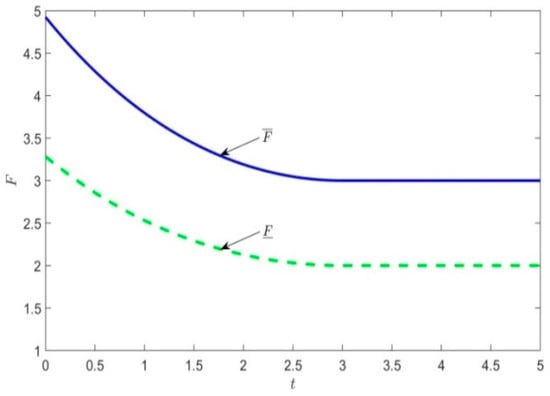

#### 7.3. Win–Win Outcome with the TPT Contract

## 8. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

**Proof of Proposition**

**1.**

**Case**

**1.**

**Case**

**2.**

**Proof of Proposition**

**2.**

**Proof of Proposition**

**3.**

**Proof of Theorem**

**1.**

**Proof of Proposition**

**4.**

**Proof of Proposition**

**5.**

**Proof of Proposition**

**6.**

## References

- Wang, K.; Wei, Y.M.; Huang, Z. Potential gains from carbon emissions trading in China: A DEA based estimation on emission reduction cost savings. Omega
**2015**, 63, 48–59. [Google Scholar] [CrossRef] - Wang, W.J.; Xie, P.C.; Hu, J.L.; Zhao, D.Q. Analysis of relative mitigation cost advantages of carbon tax and ETS for the cement industry. Clim. Chang. Res.
**2016**, 12, 53–60. [Google Scholar] - Pope, J.; Owen, A.D. Emission trading schemes: Potential revenue effects, compliance costs and overall tax policy issues. Energy Policy
**2009**, 37, 4595–4603. [Google Scholar] [CrossRef] - European Commission. Attitudes of European Citizens Towards the Environment. Available online: http://ec.europa.eu/commfrontoffice/publicopinion/archives/ebs/ebs_416_en.pdf (accessed on 15 December 2017).
- Bhaskaran, S.R.; Krishnan, V. Effort, Revenue, and Cost Sharing Mechanisms for Collaborative New Product Development. Manag. Sci.
**2009**, 55, 1152–1169. [Google Scholar] [CrossRef] - Ma, P.; Wang, H.; Shang, J. Contract design for two-stage supply chain coordination: Integrating manufacturer-quality and retailer-marketing efforts. Int. J. Prod. Econ.
**2013**, 146, 745–755. [Google Scholar] [CrossRef] - Hao, G. Sustainable pricing and production policies for two competing firms with carbon emissions tax. Int. J. Prod. Res.
**2015**, 53, 6408–6420. [Google Scholar] - Avi-Yonah, R.S.; Uhlmann, D.M. Combating Global Climate Change: Why a Carbon Tax Is a Better Response to Global Warming than Cap and Trade; Working Paper; University of Michigan Law School: Ann Arbor, MI, USA, 2009. [Google Scholar]
- Yalabik, B.; Fairchild, R.J. Customer, regulatory, and competitive pressure as drivers of environmental innovation. Int. J. Prod. Econ.
**2011**, 131, 519–527. [Google Scholar] [CrossRef] - Absi, N.; Dauzère-Pérès, S.; Kedad-Sidhoum, S.; Penz, B.; Rapine, C. Lot sizing with carbon emission constraints. Eur. J. Oper. Res.
**2013**, 227, 55–61. [Google Scholar] [CrossRef] - Benjaafar, S.; Li, Y.; Daskin, M. Carbon Footprint and the Management of Supply Chains: Insights from Simple Models. IEEE Trans. Autom. Sci. Eng.
**2012**, 10, 99–116. [Google Scholar] [CrossRef] - He, P.; Zhang, W.; Xu, X.; Bian, Y. Production lot-sizing and carbon emissions under cap-and-trade and carbon tax regulations. J. Clean. Prod.
**2015**, 103, 241–248. [Google Scholar] [CrossRef] - Jin, M.; Granda-Marulanda, N.A.; Down, I. The impact of carbon policies on supply chain design and logistics of a major retailer. J. Clean. Prod.
**2014**, 85, 453–461. [Google Scholar] [CrossRef] - Song, J.; Leng, M. Analysis of the Single-Period Problem under Carbon Emissions Policies. In Handbook of Newsvendor Problems; Springer: New York, NY, USA, 2012; pp. 297–313. [Google Scholar]
- Rosič, H.; Jammernegg, W. The economic and environmental performance of dual sourcing: A newsvendor approach. Int. J. Prod. Econ.
**2013**, 143, 109–119. [Google Scholar] [CrossRef] [Green Version] - Choi, T.M. Optimal apparel supplier selection with forecast updates under carbon emission taxation scheme. Comput. Oper. Res.
**2013**, 40, 2646–2655. [Google Scholar] [CrossRef] - Li, S.; Li, X.; Zhang, D.; Zhou, L. Joint Optimization of Distribution Network Design and Two-Echelon Inventory Control with Stochastic Demand and CO
_{2}Emission Tax Charges. PLoS ONE**2017**, 12, e0168526. [Google Scholar] [CrossRef] [PubMed] - Penkuhn, T.; Spengler, T.; Püchert, H.; Rentz, O. Environmental integrated production planning for the ammonia synthesis. Eur. J. Oper. Res.
**1997**, 97, 327–336. [Google Scholar] [CrossRef] - Palak, G.; Ekşioğlu, S.D.; Geunes, J. Analyzing the impacts of carbon regulatory mechanisms on supplier and mode selection decisions: An application to a biofuel supply chain. Int. J. Prod. Econ.
**2014**, 154, 198–216. [Google Scholar] [CrossRef] - Xu, X.; Xu, X.; He, P. Joint production and pricing decisions for multiple products with cap-and-trade and carbon tax regulations. J. Clean. Prod.
**2015**, 112, 4093–4106. [Google Scholar] [CrossRef] - Cachon, G.P.; Lariviere, M.A. Supply Chain Coordination with Revenue-Sharing Contracts: Strengths and Limitations. Manag. Sci.
**2005**, 51, 30–44. [Google Scholar] [CrossRef] - Ingene, C.A.; Parry, M.E. Channel Coordination When Retailers Compete. Mark. Sci.
**1995**, 14, 360–377. [Google Scholar] [CrossRef] - Ding, D.; Chen, J. Coordinating a three level supply chain with flexible return policies. Omega
**2008**, 36, 865–876. [Google Scholar] [CrossRef] - Qi, X.; Bard, J.F.; Yu, G. Supply chain coordination with demand disruptions. Omega
**2004**, 32, 301–312. [Google Scholar] [CrossRef] - Swami, S.; Shah, J. Channel Coordination in Green Supply Chain Management. J. Oper. Res. Soc.
**2013**, 64, 336–351. [Google Scholar] [CrossRef] - Zhang, C.T.; Liu, L.P. Research on coordination mechanism in three-level green supply chain under non-cooperative game. Appl. Math. Model.
**2013**, 37, 3369–3379. [Google Scholar] [CrossRef] - Xu, J.; Chen, Y.; Bai, Q. A two-echelon sustainable supply chain coordination under cap-and-trade regulation. J. Clean. Prod.
**2016**, 135, 42–56. [Google Scholar] [CrossRef] - Zhu, W.; He, Y. Green product design in supply chains under competition. Eur. J. Oper. Res.
**2016**, 258, 165–180. [Google Scholar] [CrossRef] - Yang, H.; Chen, W. Retailer-driven carbon emission reduction with consumer environmental awareness and carbon tax: Revenue-sharing versus Cost-sharing. Omega
**2017**. [Google Scholar] [CrossRef]

Parameters | Description |
---|---|

$a$ | Initial market potential demand |

${p}^{i}$ | Retail price |

${w}^{i}$ | Wholesale price |

${q}^{i}$ | Product quantity |

$k$ | Consumer environmental awareness (CEA) |

$h$ | Cost coefficient of unit product abatement investment |

$c$ | Unit production cost |

$y$ | Initial unit amount of carbon emissions from production process |

${e}^{i}$ | Unit product emission reduction ratio (abatement effort level) |

$t$ | Unit product carbon tax |

${\pi}_{j}^{i}$ | The supply chain member’s profit |

Superscript $i$ | $i\in \{c,w,n,cs,mw,ms\}$ refer to the integrated model, wholesale price contract, without reduce emissions, cost sharing contract, modified wholesale price and modified cost sharing contracts, respectively |

Subscript $j$ | $j\in \{m,r\}$ refer to the manufacturer and the retailer, respectively |
