Sustainability 2015, 7(11), 15319-15341; https://doi.org/10.3390/su71115319

Article
Comparing Potential Unstable Sites and Stable Sites on Revegetated Cut-Slopes of Mountainous Terrain in Korea
1
Department of Landscape Architecture and Urban Planning, Texas A&M University, College Station, TX 77843, USA
2
Department of Landscape Architecture, College of Agriculture & Life Science, Seoul National University, San 56-1 Sillim-Dong, Gwanak-Gu, Seoul 151-743, Korea
3
Interdisciplinary Program in Landscape Architecture, Seoul National University, Seoul 151-743, Korea
4
Department of Landscape Architecture, School of Bio-Resources Science, Dankook University, Cheonan 330-714, Korea
5
Department of Forest Sciences, College of Agriculture and Life Sciences, Seoul National University, Seoul 151-743, Korea
6
Department of Forest Resources, Chungnam National University, Daejeon 305-764, Korea
*
Authors to whom correspondence should be addressed.
Academic Editors: Eric Vaz and Jamal Jokar Arsanjani
Received: 25 August 2015 / Accepted: 12 November 2015 / Published: 18 November 2015

Abstract

:
This study employs a diverse set of variables to explain slope stabilization on stable versus failure-prone revegetated cut-slopes in Korea. A field survey was conducted at potential unstable sites and stable sites using 23 variables. Through a non-parametric test of the field survey results, 15 variables were identified as primary determinants of slope failure. Of these variables, one described physical characteristics (elapsed year); four variables described vegetation properties (plant community, vegetation coverage rate, number of trees, and number of herbs); and 10 variables represented soil properties (porosity, soil hardness, water content, sand ratio and silt ratio of soil texture, tensile strength, permeability coefficient, soil depth, soil acidity, salt concentration, and organic matter). Slope angle, which was mainly considered in previous studies, of variables in physical characteristics was not statistically selected as one of the 15 variables because most of sites were located on steep slopes. The vegetation community, vegetation coverage, and number of trees influence slope stabilization. Vegetation coverage is highly correlated with other soil and vegetation variables, making it a major indicator of slope stabilization. All soil variables were related to slope failure such that subsequent slope failure was related to the method of slope revegetation rather than the environmental condition of the slope. Slope failure did not occur in revegetated slopes that matched the characteristics of the surrounding landscape and contained a large number of native trees. Most soil and vegetation variables showed differing values for whether a revegetated slope is potentially unstable or stable.
Keywords:
ecological restoration; environmental engineering; biotechnical engineering; slope revegetation; slope failure

1. Introduction

Mountains cover approximately 70% of South Korea with the exception of low-lying plains in the western areas. Countries with mountainous terrain such as South Korea, Japan, China, Turkey, Italy, Spain, India, and the USA have tried various techniques and methods to stabilize a slope devastated by road development and urban construction [1]. One of them represents a biotechnical engineering technique in which vegetation is integrated with inert structures such as concrete blocks [2], and is applied in projects such as slope stabilization. Biotechnical stabilization employs the reciprocal mechanics of soil and biological elements—mostly plants—to prevent slope erosion and failure [3]. Such techniques have spread out across China, Japan, Spain, Italy, and the USA [4,5,6,7,8].
Slope revegetation, which is a common method of biotechnical stabilization, has positive effects on slope stability, and facilitates successful restoration when accompanied by appropriate understanding of environmental limitations [2,9,10]. Slope revegetation works have been widely implemented on large and steep slopes in temperate zones [6,11,12]. However, revegetated slopes frequently fail due to heavy rain and drought [13]. The reasons for failure include the elimination of seeds by water running over uncovered and crusted soils and withered plants due to the inappropriate use of commercial species without the consideration of neighboring environments and due to extreme changes in local climate, such as intermittent dry seasons and heavy rainfall [14,15]. Revegetated slopes in Korea have also undergone soil erosion and failure.
Previous studies were indirectly relevant to the issue of stabilization of revegetated slopes. The method of evaluation for slope revegetation has mainly focused on establishing vegetation [16,17], and on numerical modeling of the interactive relationships between erosion and vegetation [18,19,20]. Such studies required long-term monitoring and numerical analysis. Moreover, other studies employed discrimination analysis of slope stability of a natural cut-slope and a slope without revegetation [21], interpretation of vegetation distribution on revegetated slopes [22,23], and interpretation and standardization of partial properties of soil and vegetation [17,24,25,26,27,28]. The use of partial variables of revegetated slopes does not facilitate an overall perspective of stability. Stability assessment via integrated variables encompassing a wide range related to slope stabilization has been required.
The present study compares stable slopes with those at risk of slope failure or erosion via correlation analysis and non-parametric tests on field survey data collected from revegetated cut-slopes.

2. Methods

2.1. Study Sites

The province of Gangwon-do, Korea, was chosen for several reasons. Gangwon-do is categorized as 81.7% mountainous terrain, in which mostly bedrock comprises a granite rock layer (website of Gangwon-do Provincial Office). The slopes in Gangwon-do are at high risk of landslides [29,30]. In addition, most disastrous events related to steep slopes that were investigated in Korea from 1999 to 2011 occurred in Gangwon-do [31]. Stabilizing revegetation can be difficult in failure-prone slopes.
Ten revegetated slopes were selected, which were classified as test or control sites (Figure 1). The five test sites consisted of slopes that appeared to be potentially unstable due to neighboring slope failure, as identified by visual inspection during a field survey in Gangwon-do during 2012. The control sites were known as construction methods with five stable slopes and date of slope revegetation in Gangwon-do, surveyed during 2012. The general warranty period in Korea has been required to manage vegetation establishment and survey slope erosion or failure for two years after revegetation. Even slopes revegetated for two years can show symptoms of failure after the two-year warranty period. Such slopes can be unstable. On the other hand, most revegetated slopes including various vegetation without symptoms of failure or erosion after the two-year warranty period can be typically guaranteed as stable sites in Korea. All of the study sites passed the warranty period of two years of elapsed time since slope revegetation work (ranging from three to nine years).

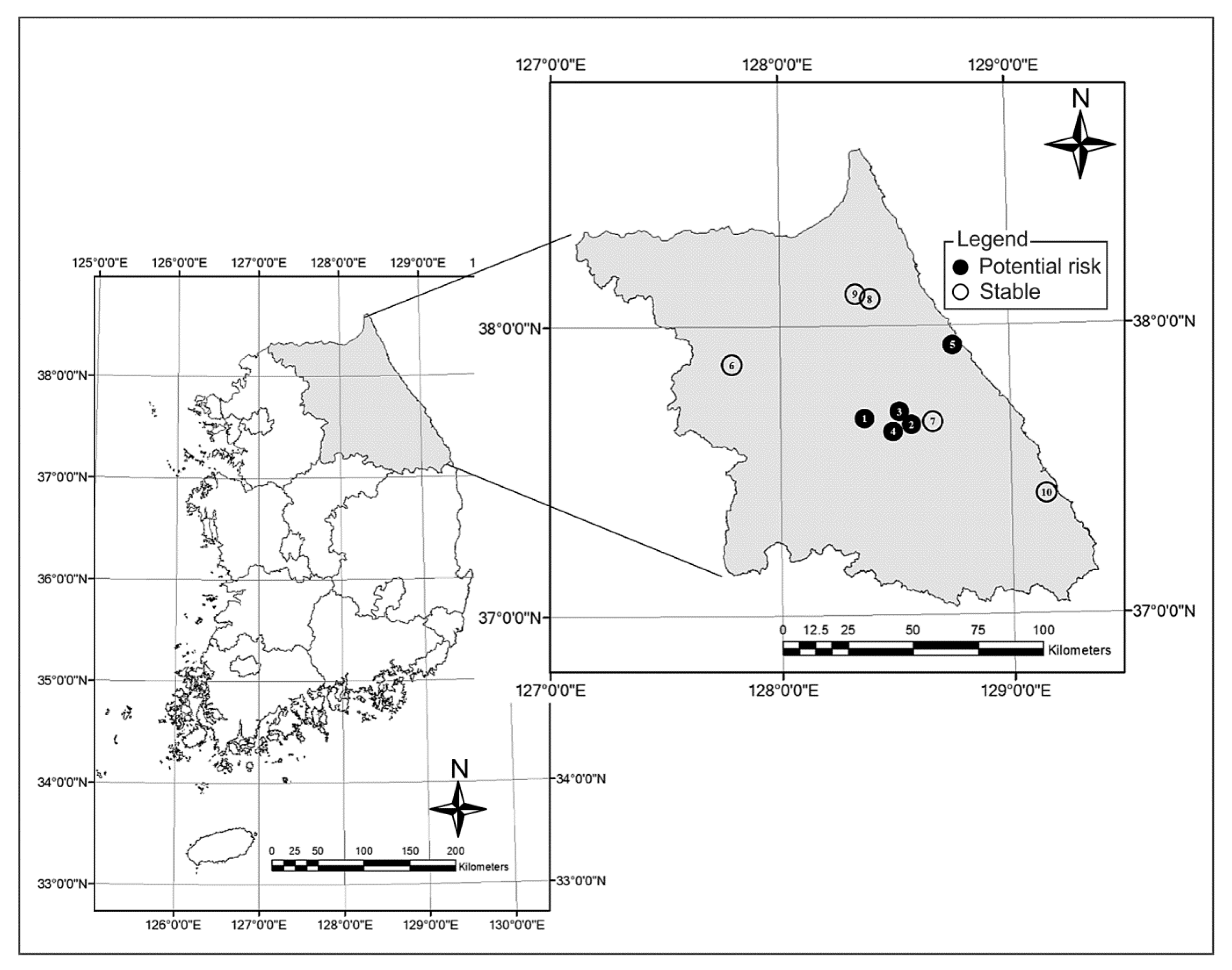

Figure 1. Locations of revegetated slopes in Korea: categorized as stable or potentially unstable with slope failure.
Figure 1. Locations of revegetated slopes in Korea: categorized as stable or potentially unstable with slope failure.
Sustainability 07 15319 g001

2.2. Selection of Variables

Consideration of all the variables gathered from previous studies was not effective because certain variables were inadequate to explain slope failure or had a minor effect on other variables. Representative variables that were highly correlated could be more effective for evaluating slope stabilization. Additionally, explaining a large number of variables would be too costly and resource-intensive. Measurement variables supported by [32] were selected for relevance to failure and soil erosion, and these included slope stability analysis, landslide analysis, and slope revegetation, as shown in Table 1.
Table 1. Variables used in this study.
Table 1. Variables used in this study.
CategoryMajor Variables
Physical characteristicsSlope angle, Slope height, Slope type, Slope width, Aspect, Drainage system, Time since revegetation (years), Ground layer, Seepage water
VegetationNumber of tree species by nomenclature, Number of herb species by nomenclature, Vegetation coverage, Plant community (tree species by nomenclature)
SoilSoil depth, Porosity, Soil acidity, Soil hardness, Water content, Soil texture, Permeability coefficient, Tensile strength, Organic matter, Salt concentration

2.3 Data Collection

A field survey was conducted twice, first from 15 September to 19 October 2012, and second from 21 to 23 June 2013. The second survey was conducted to collect supplementary data for the width and length of a slope. The field survey was conducted on both failure slopes and stable slopes. The survey methods for each variable are summarized in Table 2.
Table 2. Method of measurement for each variable.
Table 2. Method of measurement for each variable.
VariablesMethodReference
Physical characteristics Slope angle (°)
  • Digital PRO 365M clinometer: three measurements at each site
Woo et al. (1996) [22]
Aspect (-)
  • SILVA RANGER compass
  • Classification: north-northeast (N-NE), east-northeast (E-NE), east-southeast (E-SE), south-southeast (S-SE), south-southwest (S-SW), west-southwest (W-SW), west-northwest (W-NW), north-northwest (N-NW)
Jeon et al. (2003) [21]
Slope width (m)
  • KMC-1800 tapeline
  • Straight-line distance of lower section in a slope
Woo et al. (1996) [22]
Slope height (m)
  • KMC-1800 tapeline
  • Straight-line distance from the center of the bottom of a slope to the top of adjacent forests
Woo et al. (1996) [22]
Slope type (no.)
  • Straight (St (1), Concave (凹) (2), Convex(凸) (3), Compound (凹凸) (4)
Jeon et al. (2003) [21]
Ground layer (no.)
  • Classification: Soil (1), Weathered rock (2), Blasted rock (3)
* KCPA (2012) [33]
Seepage water (no.)
  • Examination for whether or not water seepage occurred: No trace (0), Trace (1)
** NEMA (2010) [34]
Elapsed year (no.)
  • Officials were interviewed to determine the number of years elapsed since revegetation work was completed
Jeon et al. (2003), [21] Im and Ma (1999) [35]
Drainage system (no.)
  • Determine whether a revegetated site followed an act, regulation, or notification of drain facilities provided by the government: Not applied (0), Applied (1)
NEMA (2010) [34], *** MOLIT (2009) [36]
VegetationPlant community (no.)
  • Classification: Single heterogeneous layer (1), Single homogeneous layer (2), Multiple heterogeneous layer (3), Multiple homogeneous layer (4)
  • Single heterogeneous layer: a simple layer landscape including either tall trees or shrubs, and an ecologically poor community structure, differing from adjacent environments
  • Single homogenous layer: a simple layer landscape including either tall trees or shrubs, and planting equivalent tree species in harmony with close environments
  • Multiple heterogeneous layer: multi-layered landscape including tall trees, medium-height trees and shrubs, and an ecologically poor community structure, differing from adjacent environments
  • Multiple homogeneous layer: multi-layered landscape including tall trees, medium-height trees and shrubs, and an ecologically superior community structure in harmony with close environments
Lee et al. (2012) [37]
Vegetation coverage (%)
  • Quadrat method (5 m × 5 m), measured three times at each site
Bochet and Garcia-Fayos (2004) [13], MOLIT (2009) [36]
Number of tree species (no.)
  • Quadrat method (5 m × 5 m), measured three times at each site
  • Number of tree species by plant nomenclature
Bochet and Garcia-Fayos (2004) [13], MOLIT (2009) [36]
Number of herb species (no.)
  • Quadrat method (5 m × 5 m), measured three times at each site
  • Number of tree species by plant nomenclature
Bochet and Garcia-Fayos (2004) [13], MOLIT (2009) [36]
SoilPorosity (%)
  • Calculation by values of bulk density and particle density
  • Bulk density: a variable of soil compaction. Measured as the dry weight of soil divided by its volume (**** USDA, 2008)
  • Particle density: the weight of a soil particle per unit volume
  • P = 100 × ( 1 B d P d )
    • where
      • P: Porosity (%)
      • Bd: Bulk density (g/cm2)
      • Pd: Particle density (g/cm2)
Brady and Weil (2007) [38]
Soil hardness (mm)
  • Pocket penetrometer (SHM-1) measured three times
Woo et al. (1996) [22]
Water content (m3/ m3)
  • Gravimetric method
  • Calculation by comparing weights of soil samples before and after drying
Gardner (1968) [39]
Soil texture (%)
  • Measurement of ratio of sand, silt, and clay via the USDA standard
  • Hydrometer method
Shirazi and Boersma (1984) [40]
Tensile strength (kPa)
  • Technique proposed by Nearing et al. (1988)
Nearing et al. (1988) [41]
Permeability coefficient (cm/s)
  • Calculation by constant head method using the flux per hour, length of soil column, and hydraulic head, in accordance with Darcy’s law
Hillel (1972) [42]
Soil depth (cm)
  • Artificial soil used in revegetation was removed from the slope surface down to the ground layer. Removal depth was measured via a tapeline at three locations for each site
MOLIT (2009) [36]
Soil acidity (pH)
  • Measured using a 1:5 solution of soil:water
Rayment and Higginson (1992) [43]
Salt concentration (%)
  • Conversion by electrical conductivity (EC), measured using a 1:5 solution of soil:water
  • Electrical conductivity (ds/m) using the formula: 1 ds/m = 1 ms/cm = 1 mmho/cm = 640 ppm = 640 mg/L = 0.64 g/L = 0.064%
  • SC = EC × 0.064
    • where
      • SC: Salt concentration (%)
      • EC: Electrical conductivity (ds/m)
Rayment and Higginson (1992) [43]
Organic matter (%)
  • Walkley−Black wet oxidation method
Walkley and Black (1934) [44]
Note: * KCPA, Korea Construction Promotion Association; ** NEMA, National Emergency Management Agency; *** MOLIT, Ministry of Land, Infrastructure and Transport; **** USDA, United States Department of Agriculture.
Most of the slope failures following revegetation occurred on a partial and sporadic basis rather than involving an entire slope. The standard selecting failure spots reflected suggestions of MOLIT (2009) [36] and experts who have over a 10-year career in the field of slope revegetation. They were condition of rudimentary plants, composition of simple species, appearance of low viscosity checked by hand-rubbing of revegetated soils and easily shattering them, and non-establishment of wire mesh or fiber net in spite of a steep slope over 45 degrees even if the warranty period is over two years. Such failure spots were deemed to have a high possibility of failure in the near future. A revegetated spot located directly adjacent to a plainly visible failure spot can be understood as a “potential unstable” spot to investigate the reason of failure.
It is worthwhile to compare the variables for “potential unstable” sites with those of stable slopes, since the potential failure sites retain soil and vegetation appearance comparable to stable slopes; this differs from the plainly visible failure spots, which show only exposed soil.
In the soil-sampling method, two steps were followed as disturbed sampling. The first step involved taking soil from the slope surface using a stainless steel can (volume 100 cc) and a trowel in order to examine soil water content and porosity. The trowel was used to gather soil samples of approximately 500 g to examine the other variables. The second step involved determining the location from which to take soil, categorized as a potential unstable spot or stable spot. The potential unstable spots were adjacent to failure spots. The stable spots were locations that had not collapsed following slope revegetation. Three soil samples were obtained from each spot.
The three samples from each site were used to calculate average values for slope angle, physical characteristics, vegetation variables, and soil variables. The data were measured via nominal scales and converted to a ratio scale. Data are commonly normalized to facilitate the statistical analysis of quantitative data originally recorded in differing nominal and ordinal scales. Each variable that satisfied a significant level and showed a high correlation coefficient was discussed in relation to previous studies.
The difference in each variable between potential unstable and stable slopes was also analyzed using the Mann-Whitney U-test (Umw) for non-parametric testing. A variable showing a significant difference could be used to differentiate between the two groups. Otherwise, the variable would not explain the classification for the two groups. The test results for each variable are assessed in relation to previous studies.
For non-parametric testing, most data also used average values for each site, except for soil and vegetation data. Since the soil and vegetation data were independently collected in triplicate within the same site, the raw soil data were used for the analysis. Statistical analysis used SPSS 21.0.

3. Results

3.1. Physical Characteristics

The slope angle was greater than 45° at most sites. The average slope angle was steeper on potential unstable slopes than on stable slopes. In terms of aspect, the potential unstable slopes included one oriented south-southwest, one east-northeast, one east-southeast, and two north-northeast. The stable slopes included two oriented south-southwest, two east-northeast, and one south-southeast (Figure 2).
Potential unstable slopes had higher average values than stable slopes in the distribution of slope angle (Umw = 7.5; p > 0.05, Figure 2a) whereas they had lower average values in slope height (Umw = 12; p > 0.05, Figure 2c), slope width (Umw = 10; p > 0.05, Figure 2d), and elapsed year (Umw = 12.5; p > 0.05, Figure 2h). The aspects of potential unstable slopes were mostly northeast-oriented whereas stable slopes were east-oriented (Umw = 7; p > 0.05, Figure 2b). Straight slope type was predominant in both slopes (Umw = 11.5; p > 0.05, Figure 2e). The ground layers of most potential unstable slopes were soil, while most stable slopes were blasted rock (Umw = 5.5; p > 0.05, Figure 2f). Drainage systems were not installed in most of the potential unstable slopes (Umw = 5; p > 0.05, Figure 2g). No traces of seepage were found in both slopes (Umw = 12.5; p > 0.05). In summary, except for the ground layer, most variables of physical characteristics were not statistically different between potential unstable slopes and stable slopes.

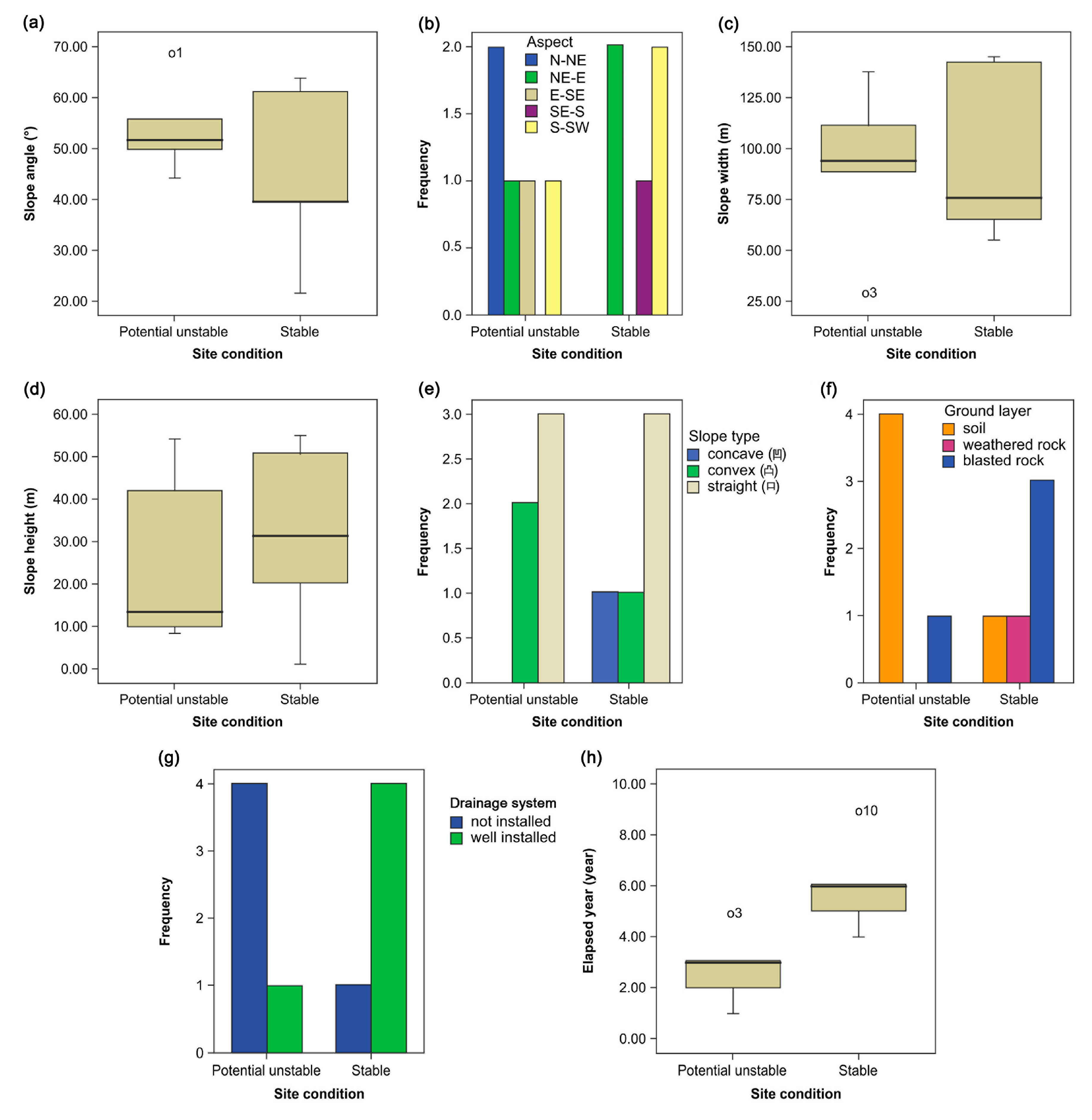

Figure 2. Physical characteristics of potential unstable slopes and stable slopes. (a) Distribution of slope angle; (b) Frequency of aspect; (c) Distribution of slope width; (d) Distribution of slope height; (e) Frequency of slope type; (f) Frequency of ground layer; (g) Frequency of drainage system; (h) Distribution of elapsed year.
Figure 2. Physical characteristics of potential unstable slopes and stable slopes. (a) Distribution of slope angle; (b) Frequency of aspect; (c) Distribution of slope width; (d) Distribution of slope height; (e) Frequency of slope type; (f) Frequency of ground layer; (g) Frequency of drainage system; (h) Distribution of elapsed year.
Sustainability 07 15319 g002
The slope width of the potential unstable slopes ranged from 29.7 m to 138 m (average 92.02 m), and the stable slopes ranged from 55 m to 145.4 m (average 96.78 m). The height of potential unstable slopes ranged from 8.2 m to 54 m (average 25.5 m), and that of stable slopes ranged from 1.1 m to 50.5 m (average 31.54 m). Slope type was classified as convex, concave, or straight. The potential unstable slopes consisted of three straight and two convex slopes, and the stable slopes consisted of three straight, one convex, and one concave slope.
The ground layer was classified as soil, weathered rock, or blasted rock. Potential unstable slopes consisted of four soils and one blasted rock, and stable slopes consisted of one soil, one weathered rock, and three blasted rock.
Traces of seepage were investigated to determine whether there was a correlation between water condition and slope failure; however, no traces were found and all slopes were completely dry. Most potential unstable slopes had been revegetated more than two years previously, but no seepage was traced, indicating that other factors had led to their failure. Seepage flow often ensues when the pores between soils or the hole of a crack in the bedrock become saturated with water and intersect a restrictive layer, which is any soil stratum or layer, including unfractured bedrock, that restricts the vertical movement of water [25].
The elapsed time since previous revegetation of the potential unstable slopes ranged from one to five years, and that of the stable slopes ranged from four to nine years. Slope failure or erosion did not occur in places where drainage facilities were well installed.

3.2. Vegetation Properties

All types of plant communities on the potential unstable slopes were heterogeneous. Most vegetative layers on the potential unstable slopes were simple. On the stable slopes, homogeneous multiple layers were predominant. Vegetation coverage ranged from 15% to 92.67% on the potential unstable slopes, and from 93.67% to 99.67% on the stable slopes (Figure 3).
Plant communities of potential unstable slopes were all heterogeneous and had a simple layer (Umw = 15; p < 0.05, Figure 3a). Potential unstable slopes had lower average values than stable slopes in the distribution of vegetation coverage (Umw = 6; p < 0.05, Figure 3b), number of herb species (Umw = 49.5; p < 0.05, Figure 3c), and number of tree species (Umw = 34.5; p < 0.05, Figure 3d). All vegetation properties were significantly different between potential unstable slopes and stable slopes.

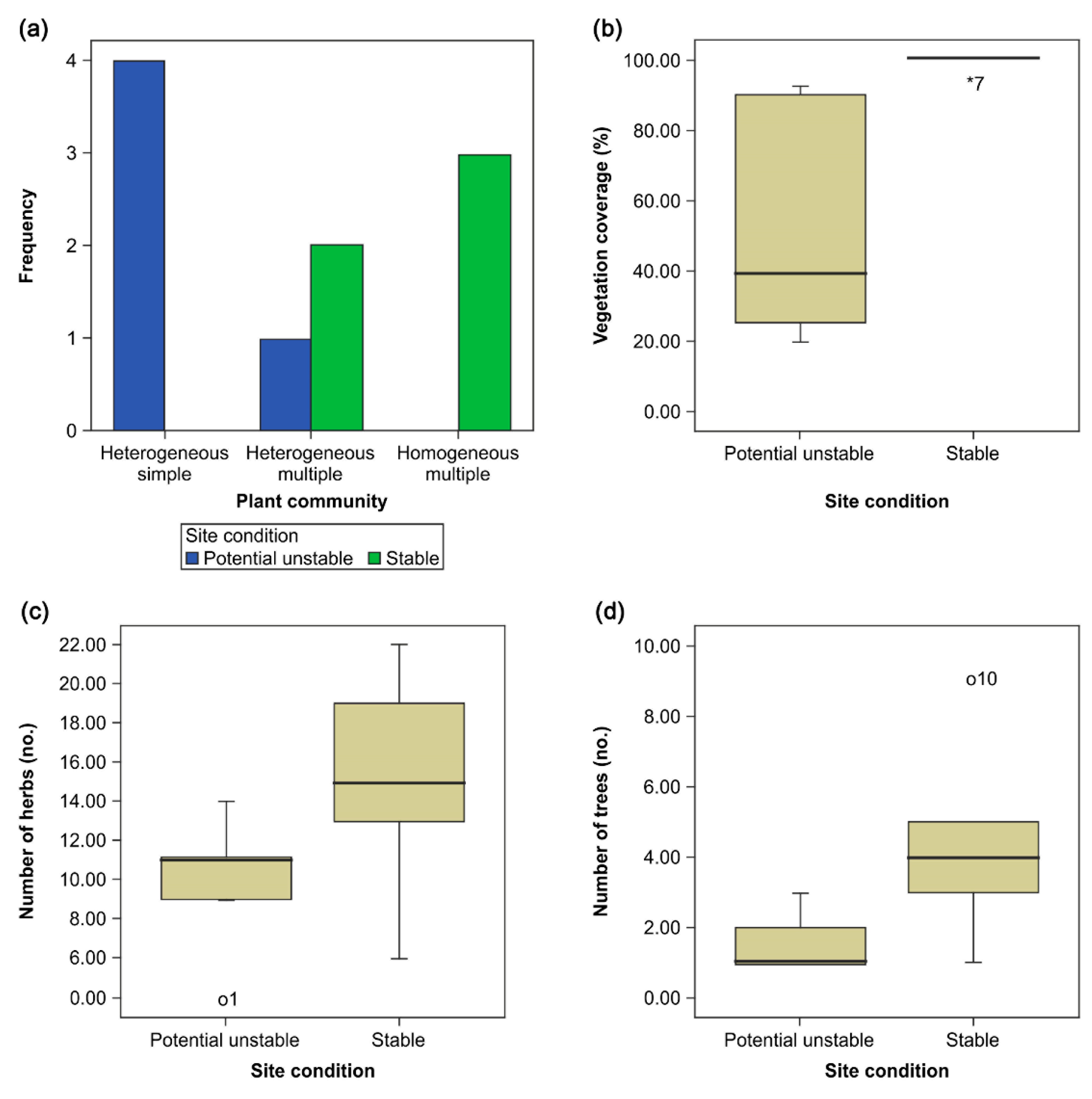

Figure 3. Vegetation properties of potential unstable slopes and stable slopes. (a) Frequency of plant community; (b) Distribution of vegetation coverage; (c) Distribution of number of herb species; (d) Distribution of number of tree species.
Figure 3. Vegetation properties of potential unstable slopes and stable slopes. (a) Frequency of plant community; (b) Distribution of vegetation coverage; (c) Distribution of number of herb species; (d) Distribution of number of tree species.
Sustainability 07 15319 g003
Fifteen species of trees were observed in total, with one to four species on potential unstable slopes, compared with two to ten species on stable slopes. Short-stalked bush clover (Lespedeza cyrtobotrya) was present on seven slopes. Indigo plants (Indigofera pseudotinctoria) were present on five slopes. False acacia (Robinia pseudoacacia), silk trees (Albizia julibrissin), and Manchurian alder (Alnus sibirica) were each present on four slopes (Table 3).
Table 3. Trees at each site.
Table 3. Trees at each site.
CategoryNumber of Tree SpeciesBotanical Name
1Potential risk1Lespedeza cyrtobotrya
2Potential risk3Lespedeza cyrtobotrya, Rubus crataegifolius Bunge, Indigofera pseudotinctoria
3Potential risk4Indigofera pseudotinctoria, Rubus crataegifolius Bunge, Robinia pseudoacacia, Lespedeza cyrtobotrya
4Potential risk1Robinia pseudoacacia
5Potential risk1Lespedeza cyrtobotrya
6Stable4Clerodendrum trichotomum, Prunus sargentii, Lespedeza cyrtobotrya, Robinia pseudoacacia
7Stable6Rhus chinensis, Albizzia julibrissin, Firmiana simplex, Salix koreensis Andersson, Indigofera pseudotinctoria, Alnus sibiroca
8Stable2Albizzia julibrissin, Alnus sibiroca
9Stable4Albizzia julibrissin, Quercus mongolica, Lespedeza cyrtobotrya, Indigofera pseudotinctoria
10Stable10Albizzia julibrissin, Ailanthus altissima, Alnus sibiroca, Morus bombycis, Alnus sibiroca, Lespedeza cyrtobotrya, Indigofera pseudotinctoria, Zanthoxylum piperitum, Rubus crataegifolius Bunge, Robinia pseudoacacia
A total of 59 herb species, small flowering plants, and grasses were observed. There were four to 14 species on the potential unstable slopes and six to 22 species on the stable slopes. The species mugwort (Artemisia princeps var. orientalis), common meadow-grass (Poa pratensis), Japanese hop (Humulus japonicus), jewelweed (Impatiens textori), yomena herb (Aster yomena), wild chrysanthemum (Dendranthema boreale (Makino) Ling ex Kitam), and daisy fleabane (Erigeron annuus) were each present on more than five slopes (Table 4).
Table 4. Herbs at each site.
Table 4. Herbs at each site.
CategoryNumber of Herb SpeciesBotanical Name
1Potential risk4Poa pratensis, Humulus japonicus, Artemisia feddei Lev. et Van., Arundinella hirta
2Potential risk11Aster yomena, Poa pratensis, Persicaria hydropiper, Miscanthus sinensis var. purpurascens, Crepidiastrum sonchifolium, Dendranthema boreale, Metaplexis japonica, Artemisia montana Pampan, Picris hieracioides var. glabrescens, Commelina communis, Solidago virga-aurea var. asiatica
3Potential risk11Chelidonium majus var. asiaticum, Inula britannica var. chinensis, Poa pratensis, Clematis apiifolia, Commelina communis, Humulus japonicus, Impatiens textori, Erigeron annuus, Aster yomena, Dendranthema boreale
4Potential risk14Artemisia princeps var. orientalis, Centaurea cyanus, Aster yomena, Coreopsis drummondii, Coreopsis tinctoria, Silene armeria, Crepidiastrum sonchifolium, Callistephus chinensis, Humulus japonicus, Medicago sativa, Cosmos bipinnatus, Dianthus superbus var. longicalycinus, Impatiens textori, Persicaria hydropiper
5Potential risk9Cosmos bipinnatus, Trifolium repens, Artemisia princeps var. orientalis, Dendranthema boreale, Silene armeria, Dianthus superbus var. longicalycinus, Chenopodium album var. centrorubrum, Setaria viridis
6Stable19Angelica decursiva, Aconitum pseudo-proliferum, Aster ageratoides Turcz. var. ageratoides, Peucedanum terebinthaceum, Crepidiastrum denticulatum, Artemisia princeps var. orientalis, Chenopodium album var. centrorubrum, Potentilla fragarioides var. major, Poa pratensis, Impatiens textori, Erigeron annuus, Persicaria hydropiper, Trifolium repens, Pteridium aquilinum var. latiusculum, Chenopodium ficifolium, Commelina communis, Humulus japonicus, Oenothera biennis, Pilea mongolica
7Stable13Coreopsis drummondii, Lotus corniculatus var. japonicus, Poa pratensis, Echinacea angustifolia, Aster yomena, Dianthus superbus var. longicalycinus, Arundinella hirta, Rubia akane, Geranium sibiricum, Chelidonium majus var. asiaticum, Setaria viridis, Artemisia princeps var. orientalis, Erigeron annuus
8Stable15Artemisia princeps var. orientalis, Lactuca indica var. laciniata, Dendranthema boreale, Impatiens textori, Taraxacum officinale, Prunella vulgaris Linne var. lilacina Nakai, Phragmites communis, Arundinella hirta, Rumex crispus L., Peucedanum terebinthaceum, Humulus japonicus, Coreopsis tinctoria, Silene armeria, Lotus corniculatus var. japonicus
9Stable6Artemisia princeps var. orientalis, Miscanthus sinensis var. purpurascens, Lotus corniculatus var. japonicus, Erigeron annuus, Lespedeza cuneata, Arundinella hirta
10Stable22Dendranthema boreale, Elsholtzia ciliata, Humulus japonicus, Rubia akane, Persicaria hydropiper, Poa pratensis, Stellaria media, Erigeron annuus, Setaria viridis, Boehmeria tricuspis, Aster yomena, Impatiens textori, Metaplexis japonica, Leonurus japonicus Houtt., Oenothera biennis, Oenanthe javanica, Lactuca indica var. laciniata, Artemisia princeps var. orientalis, Achillea millefolium, Aristolochia contorta Bunge, Imperata cylindrica var. koenigii

3.3. Soil Properties

The soil porosity of the potential unstable slopes ranged from 0.417 to 0.55 m3/m3 (average 0.497 m3/m3), and that of the stable slopes ranged from 0.55 to 0.65 m3/m3 (average 0.610 m3/m3) through the analysis as a disturbed sampling (Figure 4). Soil hardness of the potential unstable slopes ranged from 5.867 to 16 mm (average 12.667 mm), and that of the stable slopes ranged from 0.833 to 14.6 mm (average 6.933 mm). Hard or compacted soil reduces root length and leaf area [45,46]. A previous study argued that if the soil hardness is more than 27 mm, root permeability in various ways is difficult; if it is 24 to 27 mm, root development is badly impacted; if it is 20 to 24 mm, plants may suffer impeded root development; if it is 11 to 20 mm, root development is not disturbed; and if it is less than 11 mm, root development does not have any problems with reduced or dried bearing capacity [47]. The other previous study reported that the soil hardness of 11 to 23 mm satisfies the standard for an artificial soil required to revegetate a damaged slope; if it is less than 11 mm or more than 27 mm, the standard is not satisfied; and if it is 23 to 27 mm, the standard may not be satisfied because phreatophyte plants may not grow in such soil condition [36]. All soils have appropriate hardness values for growing plants, as examined in previous studies. The soil water content of the potential unstable slopes ranged from 0.093 to 0.156 m3/m3 (average 0.115 m3/m3), and that of the stable slopes ranged from 0.061 to 0.689 m3/m3 (average 0.327 m3/m3).
Soil texture was classified as sand, silt, or clay. The fractions for the potential unstable slopes were: sand 81%–92.63% (average 88.77%); silt 3%–12.77% (average 6.80%); and clay 3.1%–6.23% (average 4.42%). For the stable slopes, sand content was 76.37%–89.10% (average 82.13%); silt was 6.7%–19.63% (average 13.51%); and clay accounted for 2.6%–6.07% (average 4.35%). The Mann-Whitney U-test gave p-values of 0.001 for sand and silt, both of which indicate a significant difference between the groups due to sand and silt soil textures. For clay, the p-value was 0.771, indicating a non-significant difference between the groups. The percentage of sand at the potential unstable sites was higher than that of the stable sites, whereas the percentage of silt at the potential unstable sites was lower than that of the stable sites.
Based on the technique of [41], the tensile strength of the potential unstable slopes ranged from 1.433 to 1.717 kPa (average 1.519 kPa), compared with 1.537 to 2.043 kPa (average 1.813 kPa) for the stable slopes. The permeability coefficient of the potential unstable slopes ranged from 2.38 × 10−4 to 3.11 × 10−3 cm/s (average 1.34 × 10−3 cm/s), and that of the stable slopes ranged from 1.27 × 10−3 to 8.23 × 10−3 cm/s (average 3.06 × 10−3 cm/s). The soil depth on the potential unstable slopes ranged from 0.2 to 6.2 cm (average 3.58 cm), compared with 0.2 to 16.1 cm (average 9.21 cm) on the stable slopes. In Korea, regarding the spraying measures for revegetation in standard estimation frequently used in constructions, the maximum required soil depth is generally 15 cm [33]. The required soil depth increases with a steeper slope gradient; as the ground layer is composed of more rocks, the soil depth is also increased [36]. The soil depth depends on the ground layer and slope angle.
The soil acidity of the potential unstable slopes ranged from pH 4.58 to 7.41 (average 6.07), and that of the stable slopes ranged from pH 5.01 to 7.77 (average 6.89). The salt concentration of the potential unstable slopes was 0.005%–0.039% (average 0.012%), and that of the stable slopes was 0.011%–0.070% (average 0.034%). The soil organic matter content of the potential unstable slopes ranged from 0.55% to 7.00% (average 2.34%), and that of the stable slopes ranged from 2.99% to 16.40% (average 10.41%). Thus, the average soil organic matter content on the potential unstable slopes was less than that on the stable slopes.
Potential unstable slopes had higher average values than stable slopes in the distribution of soil hardness (Umw = 61; p < 0.05, Figure 4b) and sand ratio (Umw = 35; p < 0.05, Figure 4d) whereas they had lower average values in all the other variables: porosity (Umw = 20; p < 0.05, Figure 4a); water content (Umw = 63; p < 0.05, Figure 4c); silt ratio (Umw = 190; p < 0.05, Figure 4e); clay ratio (Umw = 105.5; p > 0.05, Figure 4f); tensile strength (Umw = 192.5; p < 0.05, Figure 4g); permeability coefficient (Umw = 177; p < 0.05, Figure 4h); soil depth (Umw = 180.5; p < 0.05, Figure 4i); soil acidity (Umw = 171; p < 0.05, Figure 4j); salt concentration (Umw = 196; p < 0.05, Figure 4k); and organic matter (Umw = 209; p < 0.05, Figure 4l). In summary, except for the silt ratio, most variables of soil properties were significantly different between the potential unstable slopes and stable slopes.

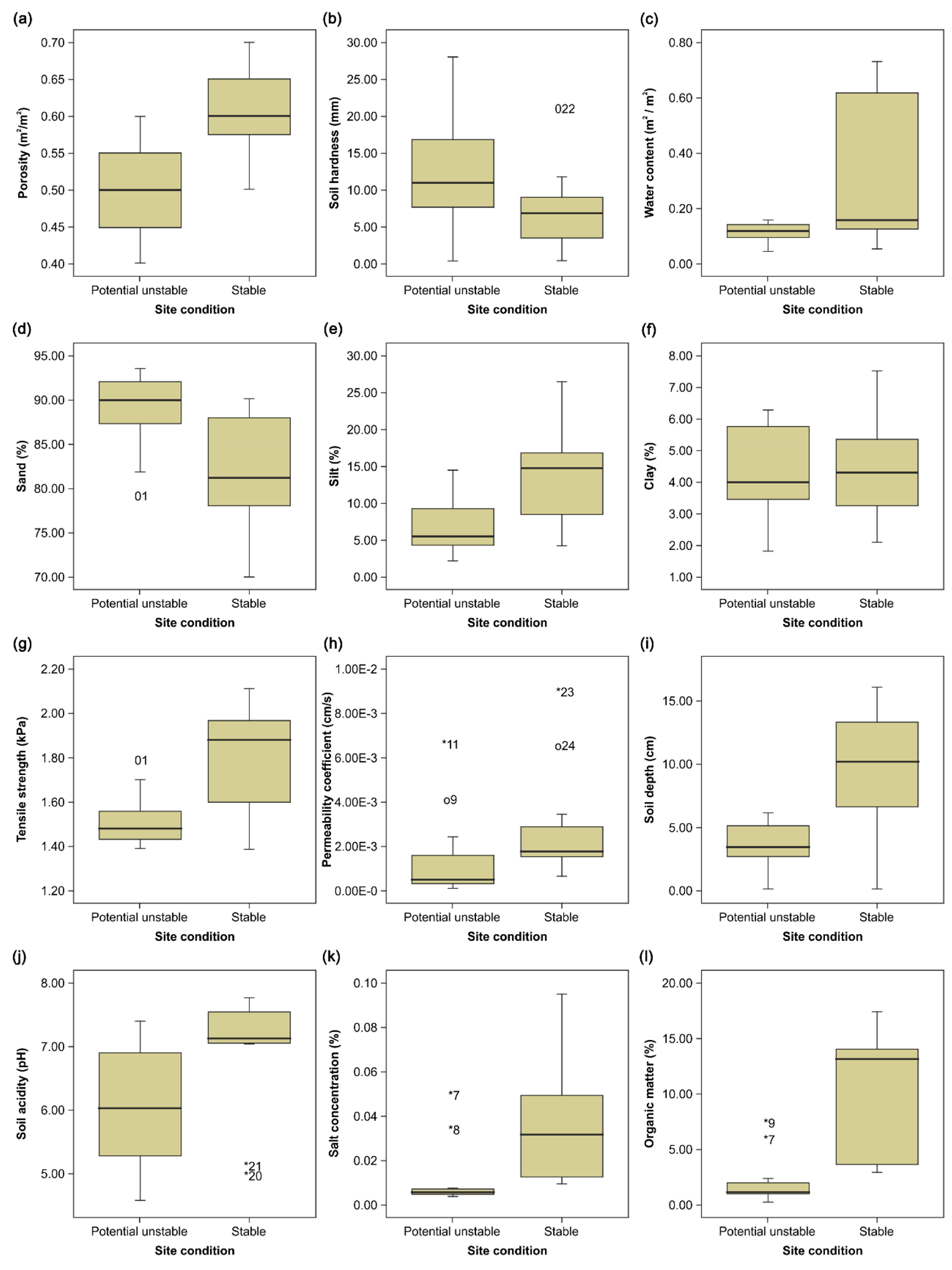

Figure 4. Soil properties of potential unstable slopes and stable slopes. (a) Distribution of porosity; (b) Distribution of soil hardness; (c) Distribution of water content; (d) Distribution of sand ratio; (e) Distribution of silt ratio; (f) Distribution of clay ratio; (g) Distribution of tensile strength; (h) Distribution of permeability coefficient; (i) Distribution of soil depth; (j) Distribution of soil acidity; (k) Distribution of salt concentration; (l) Distribution of organic matter.
Figure 4. Soil properties of potential unstable slopes and stable slopes. (a) Distribution of porosity; (b) Distribution of soil hardness; (c) Distribution of water content; (d) Distribution of sand ratio; (e) Distribution of silt ratio; (f) Distribution of clay ratio; (g) Distribution of tensile strength; (h) Distribution of permeability coefficient; (i) Distribution of soil depth; (j) Distribution of soil acidity; (k) Distribution of salt concentration; (l) Distribution of organic matter.
Sustainability 07 15319 g004

4. Discussion

4.1. Physical Characteristics

Although most of the study sites were located on steep slopes, the risk of failure was greater on the potential unstable slopes because they were more steeply inclined than the stable slopes. Steep inclination is one of the conditions sufficient to cause failure [48]. When the slope angle exceeded approximately 35°, a waterway could be installed or a secondary device could be used to prevent soil sliding down when spraying which could serve as a buffer [49]. In Korea, a physical form of secondary device is typically used when the slope angle exceeds 45° [33]. This is generally intended to prevent failure of revegetation work when a slope is steep and the ground layer consists of weathered or blasted rock. The secondary devices generally use fiber mesh, wire mesh, and gabion blocks. However, even though the failure slopes were steeply inclined, they did not incorporate a physical secondary device. The failed slopes might be used as an inadequate construction method without sufficient consideration to conduct successful revegetation.
The statistical analysis indicated no significant difference between the potential unstable and stable sites in terms of slope width or height. However, slope width and height are negatively associated with vegetation coverage, which indicates that incomplete vegetation cover increases the risk of slope failure [50]. Except for site 4, most slope failures resulted from inappropriate maintenance within the recommended two-year span; thus, the reasons for failure were probably factors other than the height and width of the slopes.
The average elapsed time since revegetation was longer for the stable slopes than the potential unstable sites, meaning that elapsed time satisfied several conditions of non-failure. Particularly, as elapsed time increased, the rate of herbaceous species growth decreased and the rate of arboreal species growth increased [51], as did the vegetation coverage [22]. Thus, the survival of vegetation could help with slope revegetation [52]. Consequently, sufficient elapsed time is needed to stabilize the slope after construction.
Due to the small sample size of the present study, the findings on physical characteristics cannot be generalized to indicate an effect of revegetated-slope failure. However, these results can be utilized as reference data for further studies.

4.2. Vegetation Properties

The plant communities differed between the potential unstable and stable sites. Most stable sites showed a landscape that was homogeneous with adjacent environments, and a vegetative form comprising multiple layers. Except for site 3, plant communities at the potential unstable sites were heterogeneous and simple, with very simple vegetation structures.
Vegetation coverage also differed between the potential unstable and stable sites. Except for sites 3 and 4, the potential unstable sites showed vegetation coverage of less than 40%. Fewer arboreal species existed at locations with very low soil porosity, organic matter content, and vegetation coverage. This was assumed to be the result of difficult soil conditions and ground layers for vegetation in the absence of physically based secondary devices.
The trees present at potential unstable sites were mostly small-sized leguminous plants, whereas the stable sites were more diverse, including tall specimens of Quercus mongolica, Morus bombycis, and Ailanthus altissima. The diversity of tall trees positively affected the accumulation of rich organic content derived from the decomposition of leaf and root matter [38,53]. Accordingly, the soil organic matter content on the stable sites was higher than at the potential unstable sites.
The most dominant species of herbs were Artemisia princeps var. orientalis, followed by Poa pratensis and Humulus japonicus. Impatiens textori, Dendranthema boreale (Makino) Ling ex Kitam, Aster yomena, and Erigeron annuus were also present at five sites. Particularly, Artemisia princeps var. orientalis, Poa pratensis, and Humulus japonicus were the plants of succession from the surroundings. Domination by Artemisia princeps var. orientalis, Poa pratensis, and Humulus japonicas interrupts the invasion of other plant species from the surroundings. As a result, natural landscape restoration would not be achieved, or would otherwise require considerable time [54]. Thus, greater species richness was not always beneficial, and potential dominance by introduced species should be carefully monitored. As shown in site 8, even though five years had elapsed since construction, Artemisia princeps var. orientalis still dominated, slowing the ecological succession.
Previous studies also reported the importance of vegetation for preventing slope failure [5,55]. Many studies in Mediterranean climates such as in Spain and Italy related to the vegetation variables have focused on the growth of herbs and shrubs [56,57]; otherwise, in temperate climates such as in South Korea, China, and Japan attempts were made at introducing tree usage to protect damaged slopes [1,5,58]. However, their studies, regardless of regional areas, found that leguminous, compositae, and graminaceous plants could adapt a revegetated slope well [6]. This study also showed similar results but we suggested that excessive dominance by a specific species such as Artemisia princeps var. orientalis, Poa pratensis, and Humulus japonicus should be avoided. The common response of Korean academia has tempted the growth of diverse plants, although it remains a controversial issue of whether the use of diverse plants is important to protect slope failure [54]. However, since a predominant plant shows a simple layer of plant community, the competitive and symbiotic relationship within ecosystem can be overlooked.
All of the vegetation variables contributed to the difference observed between the potential unstable and stable slopes. Thus, colonization by trees and herbs was assumed to be important for slope stabilization, because the vegetation structure and diverse vegetation communities of the stable slopes mostly comprised multiple layers with high vegetation coverage and a large number of trees and herbs. Thus, the increased number of trees and herbs is preferable for slope stabilization.
Chrysanthemum and leguminous plants dominated the slopes in the investigated area. Particularly, the leguminous plants were symbiotic for nitrogen fixation [59]. Since nitrogen is very important for plant growth, nitrogen fixation by leguminous plants is beneficial for barren areas. Thus, the high ratio of leguminous plants indicates that sufficient nitrogen was supplied to the slopes to benefit plant growth.

4.3. Soil Properties

Analysis of the soil variables indicated significant differences between potential unstable and stable sites. Among the soil variables, tensile strength increased if porosity and water content were high, soil was deep, sand content was low, and silt content was high. Furthermore, soil tensile strength was directly and inversely related to the failure of revegetated slopes; therefore, if soil tensile strength is low, slope failure could occur. Soil tensile strength of revegetated soil has been studied narrowly even though the tensile strength of natural soil has been studied extensively [60,61]. The previous results suggested by Nearing et al. (1988) [41] showed the range of 1.0 kPa–3.0 kPa for soil tensile strength [62,63]. The results of this study also showed the range of 1.433 kPa–2.043 kPa. According to the results of this study, the minimum tensile strength required for slope stability was more than 1.5 kPa. The tensile strength of potential unstable sites was mostly less than 1.5 kPa, whereas all stable sites achieved more than 1.5 kPa.
According to the thresholds identified between the potential unstable sites and stable sites, the soil porosity required for slope revegetation was at least 0.5 m3/m3, and the soil water content was at least 0.12 m3/m3. The soil organic matter content required for slope revegetation was at least 3%, and the potential unstable sites were less than 2.5% whereas the stable sites exceeded 3%. Soil with high porosity contains large volumes of soil organic matter, which helps healthy vegetation growth by supplementing the soil’s bearing capacity, whereas soil with low porosity permeates slowly [38,64]. Bochet and Garcia-Fayos (2004) [13] found that around 1.5% of the organic matter of revegetated soils in embanked northern slopes was shown, whereas the vegetation cover rate was approximately 60%. However, since there were gentle slopes of 45° or less and a lower ratio of sand, it might be difficult to compare those results with the results of this study.
Other variables of soil hardness, soil texture, permeability coefficient, soil depth, soil acidity, and salt concentration showed significant differences between the two slope categories; therefore, they could be important for slope stabilization.
Soil hardness did not affect slope stability as much as it affected plant growth. The evaluation standard for “defective” soil hardness, which is less than 11 mm [36], should be reconsidered because the present study found an average of 6.933 mm for stable sites. Furthermore, a previous study reported that the soil hardness of natural vegetation areas was approximately 5 to 11 mm [65], which suggests that the standard requires amendment.
The ratios of sand and silt were important for soil texture. If the sand ratio was more than 85% and the silt ratio was less than 10%, slope failure occurred. This could be attributed to the low tensile strength of soils with a high sand content. The soil texture of the potential unstable slopes had the highest percentage of sand while having a lower percentage of silt than the stable sites had. The high percentage of sand means low soil organic matter as well as porosity in the soil [38].
The permeability coefficient causes drainage problems and results in the poor growth of plant roots if it is over 10−4 or under 10−7 cm/s, [38]. The soil permeability coefficients of most sites were within the range of 10−2 to 10−3 cm/s, which did not influence plant growth, and thus it was difficult to establish a direct correlation with slope failure.
Steep slopes require a thick layer of revegetated soil to raise the root length of vegetation. The soil depth was thinner on potential unstable slopes than on the stable slopes. The thin layer of soil cannot be enough to grow plants since the ground layer in a damaged slope has inadequate nutrition.
Neither soil acidity (range pH 4.58 to 7.77) nor salt concentration (less than 0.1%) could illuminate the difference between potential unstable and stable sites. Their ranges did not have harmful effects on of plant growth.

5. Conclusions

The integrated variables were utilized to compare potential unstable sites and stable sites for revegetated slope stability, whereas previous studies used partial variables or focused on the relationships alone. As shown in the previous sections, the variables representing physical characteristics had limitations as indicators of slope stabilization because of the small sample size. However, these samples can be regarded as reference data on revegetated slopes for use in further studies.
Most of the revegetated slopes are steep. Previous studies reported that steep slope angle makes vegetation recruitment difficult. However, in the present study, partial stable sites had multi-layered vegetation with revegetated soil of good condition despite the steep slopes of 45° or more.
All the soil variables were related to slope failure. That is, rather than the environmental condition of the slope, the construction method used for slope revegetation is the cause of the subsequent failure. Thus, the use of high-quality soil would prevent the failure of revegetation. Appropriate soil conditions, combined with slope stability, should encourage vegetation growth and overcome barren environments such as steep slopes, the absence of a drainage system, long width and length of a slope, and chronic exposure to sunlight. The soil condition that overcomes barren environments for a long time can be acknowledged as high-quality soil.
As shown in the non-parametric test results, no significant differences were found for physical characteristics even though previous studies used the variables describing physical characteristics to determine potential slope failure. Specifically, a value of 1.5 kPa is suggested as the new standard for soil tensile strength. However, the investigation of additional cases would allow clearer standards to be established. Furthermore, porosity should be greater than 0.5 m3/m3, water content should be greater than 0.12 m3/m3, and organic matter should be greater than 3%. The findings also confirmed that the [36] evaluation standards should be extensively applied.
Soil hardness standards should be partly modified, and other variables should be continuously monitored in relation to plant growth. In addition, except for the number of herbs, the vegetation community, vegetation coverage, and number of trees are factors in slope stabilization. In particular, vegetation coverage is highly correlated with other soil and vegetation variables, making it a major indicator of slope stabilization. Moreover, failure did not occur in revegetated areas that matched the characteristics of the surrounding landscape and that contained a large number of native trees. Therefore, the current herb-oriented strategy for slope revegetation should be reconsidered.
A field survey was conducted of potential unstable sites and stable sites using 23 variables. Non-parametric analysis of the field data identified 15 variables as primary determinants of slope failures. Of these variables, one described physical characteristics (years elapsed since slope revegetation); four described vegetation properties (plant community, vegetation coverage rate, number of trees, and number of herbs); and 10 described soil properties (soil porosity, hardness, water content, sand and silt ratios of soil texture, tensile strength, permeability coefficient, soil depth, pH, salt concentration, and organic matter content). Vegetation and soil variables could be used to determine whether a revegetated slope would be stable in its present state.
Slope revegetation is necessary for restoring the physical, landscape, and ecological functions of a barren site. The structure and function of slope revegetation should be similar to the features of the natural surroundings. Such a form is more likely to facilitate ecologically sound restoration. However, revegetating techniques should be applied to depend on different environments of countries, latitudes, and geomorphological features. For successful ecological restoration, evaluation criteria that provide a more complete ecological stabilization process must be developed. This study did not consider impacts associated with factors such as rainfall or the unpredictable effects of earthquakes. Therefore, additional studies should be conducted on the effects of such factors on slope stability. Future studies may include additional case studies, long-term monitoring, and systematic processes that create a detailed standard for selecting appropriate slope reconstruction and ecological restoration measures and conducting experiments that compare ecological and structural stability.

Acknowledgments

This research was supported by “Development of Climate Change Adaptation and Management Technique, and Supportive System (Korea Ministry of Environment, Project number: 416-111-014)”, “Development of Economic Assessment Technique for Climate Change Impact and Adaptation Considering Uncertainties (Korea Ministry of Environment, Project number: 2014001310010)”, and “the BK 21 Plus Project in 2015 (Seoul National University Interdisciplinary Program in Landscape Architecture, Global leadership program towards innovative green infrastructure)”. This research partially summarizes and reconstructs data from the doctoral dissertation submitted by Sung-Ho Kil. The experiments comply with the current laws of South Korea.

Author Contributions

Sung-Ho Kil designed the research and analyzed the data; Dong-Kun Lee made a substantial contribution to the interpretation of the results; Ho-Gul Kim reviewed the literature and collected the data; Nam-choon Kim, Sangjun Im and Gwan-soo Park wrote and revised the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.W.; Park, C.M.; Rhee, H. Revegetation of decomposed granite roadcuts in korea: Developing digger, evaluating cost effectiveness, and determining dimensions of drilling holes, revegetation species, and mulching treatment. Land Degrad. Dev. 2013, 24, 591–604. [Google Scholar] [CrossRef]
  2. Morgan, R.P.C.; Rickson, R.J. Slope Stabilization and Erosion Control: A Bioengineering Approach; Taylor & Francis: London, UK, 2003. [Google Scholar]
  3. Gray, D.H.; Sotir, R.B. Biotechnical and Soil Bioengineering Slope Stabilization: A Practical Guide for Erosion Control; John Wiley & Sons: Hoboken, NJ, USA, 1996. [Google Scholar]
  4. Ai, Y.; Chen, Z.; Guo, P.; Zeng, L.; Liu, H.; Da, Z.; Li, W. Fractal characteristics of synthetic soil for cut slope revegetation in the Purple soil area of China. Can. J. Soil Sci. 2012, 92, 277–284. [Google Scholar] [CrossRef]
  5. Hosogi, D.; Yoshinaga, C.; Nakamura, K.; Kameyama, A. Revegetation of an artificial cut-slope by seeds dispersed from the surrounding vegetation. Landsc. Ecol. Eng. 2006, 2, 53–63. [Google Scholar] [CrossRef]
  6. Matesanz, S.; Valladares, F.; Tena, D.; Costa-Tenorio, M.; Bote, D. Early Dynamics of Plant Communities on Revegetated Motorway Slopes from Southern Spain: Is Hydroseeding Always Needed? Restor. Ecol. 2006, 14, 297–307. [Google Scholar] [CrossRef]
  7. Muzzi, E.; Roffi, F.; Sirotti, M.; Bagnaresi, U. Revegetation techniques on clay soil slopes in northern Italy. Land Degrad. Dev. 1997, 8, 127–137. [Google Scholar] [CrossRef]
  8. Li, M.; Eddleman, K.E. Biotechnical engineering as an alternative to traditional engineering methods A biotechnical streambank stabilization design approach. Landsc. Urban Plan. 2002, 60, 225–242. [Google Scholar] [CrossRef]
  9. Urbanska, K.M. Safe sites-interface of plant population ecology and restoration ecology. In Restoration Ecology and Sustainable Development; Urbanska, K.M., Webb, N.R., Edwards, P.J., Eds.; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
  10. Golley, F.B. Deep ecology from the perspective of environmental science. Environ. Ethics 1987, 9, 45–55. [Google Scholar] [CrossRef]
  11. Sheldon, J.C.; Bradshaw, A.D. The Development of a Hydraulic Seeding Technique for Unstable Sand Slopes. I. Effects of Fertilizers, Mulches and Stabilizers. J. Appl. Ecol. 1977, 14, 905–918. [Google Scholar] [CrossRef]
  12. Tormo, J.; Bochet, E.; García-Fayos, P. Roadfill Revegetation in Semiarid Mediterranean Environments. Part II: Topsoiling, Species Selection, and Hydroseeding. Restor. Ecol. 2007, 15, 97–102. [Google Scholar] [CrossRef]
  13. Bochet, E.; Garcı, P. Factors Controlling Vegetation Establishment and Water Erosion on Motorway Slopes in Valencia. Restor. Ecol. 2004, 12, 166–174. [Google Scholar] [CrossRef]
  14. Mitchley, J.; Helliwell, D.R.; Buckley, G.P. Vegetation Establishment on Chalk Marl Spoil: The Role of Nurse Grass Species and Fertiliser Application. J. Veg. Sci. 1996, 7, 543–548. [Google Scholar] [CrossRef]
  15. Cerdà, A.; García-Fayos, P. The influence of slope angle on sediment, water and seed losses on badland landscapes. Geomorphology 1997, 18, 77–90. [Google Scholar] [CrossRef]
  16. Lee, B.; Park, J. Effects of Seed Coating and Molding on Seed Germination and Seedling Growth of Rehabilitating Plants in Forest Road Slopes. Korean J. Environ. Ecol. 2006, 20, 436–447. (In Korean) [Google Scholar]
  17. Mola, I.; Jiménez, M.D.; López-Jiménez, N.; Casado, M.A.; Balaguer, L. Roadside Reclamation Outside the Revegetation Season: Management Options under Schedule Pressure. Restor. Ecol. 2011, 19, 83–92. [Google Scholar] [CrossRef]
  18. Thornes, J.B. The ecology of erosion. Geography 1985, 70, 222–235. [Google Scholar]
  19. Kirkby, M.J.; McMahon, M.D.; Shao, J.; Thornes, J.B.; Abrahart, R. MEDALUS soil erosion models for global change. Geomorphology 1997, 24, 35–49. [Google Scholar] [CrossRef]
  20. Las Heras, M.; Díaz-Sierra, R.; Nicolau, J.M.; Zavala, M.A. Evaluating restoration of man-made slopes: A threshold approach balancing vegetation and rill erosion. Earth Surf. Process. Landf. 2011, 36, 1367–1377. [Google Scholar] [CrossRef]
  21. Jeon, K.; Oh, S.; Ma, H. Stability Evaluation of Cut Slope in Forest Roads by Forest Environment Factors. Korea Soc. Environ. Restor. Technol. 2003, 6, 43–51. (In Korean) [Google Scholar]
  22. Woo, B. Articles: A Study on the Selection of Vegetation and Method for the Revegetation on the Highway Slope in Consideration of the Surrounding Environment. J. Korean For. Soc. 1996, 85, 619–633. (In Korean) [Google Scholar]
  23. Zagas, T.; Tsitsoni, T.; Ganatsas, P.; Tsakaldimi, M.; Skotidakis, T.; Zagas, D. Land reclamation and ecological restoration in a marine area. Int. J. Environ. Res. 2010, 4, 673–680. [Google Scholar]
  24. Jeon, G. A Study of Improvement Method and Analysis of Type of Revegetation Measures of Rock Slopes. Korea Soc. Environ. Restor. Technol. 2002, 5, 22–29. (In Korean) [Google Scholar]
  25. Steinfeld, D.E.; Riley, S.A.; Wilkinson, K.M.; Landis, T.D.; Riley, L.E. Roadside Revegetation: An Integrated Approach To Establishing Native Plants; Federal Highway Administration: Washington, DC, USA, 2007. [Google Scholar]
  26. Karim, M.N.; Mallik, A.U. Roadside revegetation by native plant: I. Roadside microhabitats, floristic zonation and species traits. Ecol. Eng. 2008, 32, 222–237. [Google Scholar] [CrossRef]
  27. Kil, S.-H.; Ahn, D.; Koo, M.; Kim, T.; Lee, D.K. A Study on the Vegetation Properties of Slope Areas according to the Soil Hardness. Korea Soc. Environ. Restor. Technol. 2012, 15, 115–127. (In Korean) [Google Scholar] [CrossRef]
  28. Liebenberg, D.; Claassens, S.; van Rensburg, L. Insights and lessons learned from the long-term rehabilitation of an iron ore mine. Int. J. Environ. Res. 2013, 7, 633–644. [Google Scholar]
  29. Lee, S.; Yoon, C.; Yoo, H.; Hong, S.; Kim, K. Development of Landslide-Risk Prediction Model thorough Database Construction. Korean Geotech. Soc. 2012, 28, 23–33. (In Korean) [Google Scholar] [CrossRef]
  30. Kim, H.G.; Lee, D.K.; Park, C.; Kil, S.-H.; Son, Y.; Park, J.H. Evaluating landslide hazards using RCP 4.5 and 8.5 scenarios. Environ. Earth Sci. 2015, 73, 1385–1400. [Google Scholar] [CrossRef]
  31. National Disaster Management Institute (NDMI). GIS-Based Stability Analysis System for Steep Slope; Korean government: Sejong, Korea, 2011. (In Korean)
  32. Kil, S.-H. Development of Stability Evaluation Indicators on Revegetated Cut-slopes of Mountainous Terrain of Korea. Ph.D. Thesis, Seoul National University, Seoul, Korea, 2014. [Google Scholar]
  33. Korea Construction Promotion Association (KCPA). Standard of Construction Estimate; Korean Government: Sejong, Korea, 2012. (In Korean) [Google Scholar]
  34. National Emergency Management Agency (NEMA). Evaluation Standard for Hazard and Risk Assessment on Steep Slope; Korean Government: Sejong, Korea, 2011. (In Korean)
  35. Im, B.J.; Ma, H.S. Effects of forest environmental factors and forest road structures on the stability of forest road in granite areas. J. Korea Soc. Environ. Restor. Rev. Technol. 1999, 2, 83–92. (In Korean) [Google Scholar]
  36. Ministry of Land Infrastructure and Transport (MOLIT). Design and Construction Guidelines for Road-Slope Revegetation; Korean Government: Sejong, Korea, 2009. (In Korean)
  37. Lee, S.W.; Kim, G.H.; Yune, C.Y.; Ryu, H.J.; Hong, S.J. Development of landslide-risk prediction model thorough database construction. J. Korean Geotech. Soc. 2012, 28, 23–33. (In Korean) [Google Scholar] [CrossRef]
  38. Brady, N.C.; Weil, R.R. The Nature and Properties of Soils; Prentice-Hall Inc.: Upper Saddle River, NJ, USA, 1996. [Google Scholar]
  39. Gardner, W.R. Availability and measurement of soil water. In Water Deficits and Plant Growth; Kozlowski, T.T., Ed.; Academic Pres: New York, NY, USA, 1968; pp. 107–135. [Google Scholar]
  40. Shirazi, M.A.; Boersma, L. A unifying quantitative analysis of soil texture. Soil Sci. Soc. Am. J. 1984, 48, 142–147. [Google Scholar] [CrossRef]
  41. Nearing, M.A.; West, L.T.; Bradford, J.M. Consolidation of an unsaturated illitic clay soil. Soil Sci. Soc. Am. J. 1988, 52, 929–933. [Google Scholar] [CrossRef]
  42. Hillel, D. Introduction to Soil Physics; Elsevier Academic Press: Amsterdam, The Netherland, 1982. [Google Scholar]
  43. Rayment, G.E.; Higginson, F.R. Australian Laboratory Handbook of Soil and Water Chemical Method; Inkata Press Pty Ltd.: Melbourne, Australia, 1992. [Google Scholar]
  44. Walkley, A.; Black, I.A. An examination of the Degtjareff method for determining soil organic matter, and a proposed modification of the chromic acid titration method. Soil Sci. 1934, 37, 29–38. [Google Scholar] [CrossRef]
  45. Kelvin, D.; Montagu Brian, J.; Atwell, J.P.C. The position of localized soil compaction determines root and subsequent shoot growth responses. J. Exp. Bot. 2001, 52, 2127–2133. [Google Scholar] [PubMed]
  46. Passioura, J.B. Soil conditions and plant growth. Plant Cell Environ. 2002, 25, 311–318. [Google Scholar] [CrossRef] [PubMed]
  47. Hasegawa, U. Estimation of root depth in slope vegetation. J. Jpn. Soc. Reveg. Technol. 2006, 3, 346–351. [Google Scholar] [CrossRef]
  48. Cano, A.; Navia, R.; Amezaga, I.; Montalvo, J. Local topoclimate effect on short-term cutslope reclamation success. Ecol. Eng. 2002, 18, 489–498. [Google Scholar] [CrossRef]
  49. Gray, D.H.; Leiser, A.T. Biotechnical Slope Protection and Erosion Control; Van Nostrand Reinhold Company Inc.: New York NY, USA, 1982. [Google Scholar]
  50. Jeon, G. A Study on the Revegetation Structural Analysis for Environment Factor of Road Slope. Korea Soc. Environ. Restor. Technol. 2004, 7, 12–20. (In Korean) [Google Scholar]
  51. Lee, M. Articles: Vegetation Succession in the Cut-slope of Forest Road—In Case Study on Chungcheong-do-. J. Korean For. Soc. 2003, 92, 397–408. (In Korean) [Google Scholar] [CrossRef]
  52. Stokes, A.; Spanos, I.; Norris, J.E.; Cammeraat, E. Eco-and Ground Bio-Engineering: The Use of Vegetation to Improve Slope Stability: Proceedings of the First International Conference on Eco-Engineering 13–17 September 2004; Springer Science & Business Media: Berlin, Germany, 2007; Volume 103. [Google Scholar]
  53. Zhang, H.; Chu, L.M. Plant community structure, soil properties and microbial characteristics in revegetated quarries. Ecol. Eng. 2011, 37, 1104–1111. [Google Scholar] [CrossRef]
  54. Kim, N. A Study on the Ecological Restoration Strategies for the Disturbed Landscapes. Korea Soc. Environ. Restor. Technol. 1998, 1, 28–44. (In Korean) [Google Scholar]
  55. Espigares, T.; Moreno-de las Heras, M.; Nicolau, J.M. Performance of Vegetation in Reclaimed Slopes Affected by Soil Erosion. Restor. Ecol. 2011, 19, 35–44. [Google Scholar] [CrossRef]
  56. Cazzuffi, D.; Corneo, A.; Crippa, E. Slope Stabilisation by Perennial “Gramineae” in Southern Italy: Plant Growth and Temporal Performance. Geotech. Geol. Eng. 2006, 24, 429–447. [Google Scholar] [CrossRef]
  57. García-Palacios, P.; Soliveres, S.; Maestre, F.T.; Escudero, A.; Castillo-Monroy, A.P.; Valladares, F. Dominant plant species modulate responses to hydroseeding, irrigation and fertilization during the restoration of semiarid motorway slopes. Ecol. Eng. 2010, 36, 1290–1298. [Google Scholar] [CrossRef]
  58. Wang, Z.-Q.; Wu, L.-H.; Liu, T.-T. Revegetation of steep rocky slopes: Planting climbing vegetation species in artificially drilled holes. Ecol. Eng. 2009, 35, 1079–1084. [Google Scholar] [CrossRef]
  59. Hopkins, W.G.; Hüner, N.P.A. Introduction to Plant Physiology; Wiley: New York NY, USA, 1995; Volume 355. [Google Scholar]
  60. Causarano, H. Factors affecting the tensile strength of soil aggregates. Soil Tillage Res. 1993, 28, 15–25. [Google Scholar] [CrossRef]
  61. Ibarra, S.Y.; McKyes, E.; Broughton, R.S. Measurement of tensile strength of unsaturated sandy loam soil. Soil Tillage Res. 2005, 81, 15–23. [Google Scholar] [CrossRef]
  62. Nearing, M.A.; Parker, S. Detachment of Soil by Flowing Water under Turbulent and Laminar Conditions. Soil Sci. Soc. Am. J. 1994, 58, 1612–1614. [Google Scholar] [CrossRef]
  63. Munkholm, L.J.; Schjønning, P.; Kay, B.D. Tensile strength of soil cores in relation to aggregate strength, soil fragmentation and pore characteristics. Soil Tillage Res. 2002, 64, 125–135. [Google Scholar] [CrossRef]
  64. Iverson, R.M.; Reid, M.E.; Iverson, N.R.; LaHusen, R.G.; Logan, M.; Mann, J.E.; Brien, D.L. Acute sensitivity of landslide rates to initial soil porosity. Science 2000, 290, 513–516. [Google Scholar] [CrossRef] [PubMed]
  65. Park, G.; Song, H.; Kim, N.; Choi, J.; Jeon, G. A Study on Soil Environment in Highway Cutting Slope and Adjacent Natural Vegetation Area. Korea Soc. Environ. Restor. Technol. 2006, 9, 16–22. (In Korean) [Google Scholar]
Back to TopTop
