Assessment of the Energy Recovery Potential of Biomass Obtained from Non-Productive Lands in the Jiu Valley, Romania

Abstract

This work focuses on assessing the potential for energy recovery from biomass obtained from unproductive lands in the Jiu Valley. The main objective of the study is to identify a viable solution for the restoration of degraded land. The research aims to utilise these lands through energy crops; the biomass is then introduced into an anaerobic digestion plant to produce biogas. The novelty of this research consists of the physical transformation of these lands into a living laboratory, intended exclusively for the cultivation and study of biomass. Maize, soybean and sorghum plants were chosen for the study. The biomass was analysed in detail to determine the total solids (TS) and volatile solids (VS) content. In maize, VS ranged from 62.67% by mass to 76.58% by mass. In soybean, VS content was between 35.35% by mass and 36.60% by mass. In sorghum, VS ranged between 35.29% by mass and 38.86% by mass. This research showed that the largest amount of biogas resulted from fresh soybean biomass. Dry biomass, with its high lignin content, significantly reduced the digestion process’s efficiency. The study highlights that it is important to use fresh biomass after an appropriate mechanical pre-treatment to optimise biogas production.

1. Introduction

The European Union adopted the European Green Deal to transform Europe into a climate-neutral and resource-efficient economy. The key objectives of the European Green Deal are climate neutrality, a circular economy, clean industries, a healthy environment, more sustainable agriculture, and climate justice and equity [1,2]. To implement the objectives, new approaches are necessary, changing the methods of production and consumption, such as promoting cleaner, more sustainable, and more energy-efficient industries, to drastically reduce greenhouse gas emissions. These EU initiatives are in synergy with the EU Soil Strategy. The EU Soil Strategy for 2030, as highlighted by refs. [3,4], aims to achieve good soil health by 2050. The strategy also proposes voluntary and legislative actions for the protection, sustainable use, and restoration of soils as the new normal. These actions are all the more justified given that food production will be necessary for a global population that could reach 9.1 billion by 2050 and over 10 billion by the end of the century [5,6]; therefore, the more intelligent use of available land, including abandoned land and fallow land, will be required [7]. At the European level, approximately 60% to 70% of soils are currently in a state of poor health [8], and soil degradation remains a pressing issue. In this context, the challenge for the Jiu Valley is to restore soil health by cultivating unproductive lands affected by mining activities and reintegrating them into the economic circuit as part of the area’s just transition towards a green economy.

European legislation stipulates that biomass should primarily fulfil the role of ensuring food security, and only after this role is secured should biomass be used for energy valorisation. Therefore, it is necessary to identify the potential of marginal lands to improve food security, support bioenergy production, or provide ecosystem services [9]. On the other hand, the supply of biomass as an efficient raw material is important to facilitate the development of the market for advanced bioenergy and biofuel technologies [10].

Identifying a sustainable biomass valuation technology cultivated on these unproductive lands can bring economic benefits to the area and contribute to achieving decarbonisation goals. In this context, research on evaluating the possibilities of using technologies [11,12] for obtaining biogas through the anaerobic digestion of biomass harvested from the Jiu Valley contributes to identifying solutions for restoring the unproductive lands in the Jiu Valley and reintroducing them into the economic circuit. The production of biomass, primarily for energy generation, presents potential economic and environmental benefits [13]. At the same time, cultivating unproductive lands with biomass will stabilise soil and increase the area for carbon dioxide absorption, meeting the requirements of the European Green Deal. Achieving biomass production from unproductive lands will contribute to climate change mitigation, ecological restoration, and biodiversity conservation [14,15,16]. By establishing maize, soybean and sorghum crops, the residents of the Jiu Valley will engage in an activity that helps integrate the unproductive lands into the natural landscape of the area. The choice of maize, soybean, and sorghum as model crops was deliberate. These species are well adapted to the pedoclimatic conditions of the Jiu Valley and are already familiar within the local agricultural tradition, which facilitates their integration into field practices. From an energy perspective, maize is one of the most productive silage crops in Europe and a reference substrate for anaerobic digestion. Soybean, with its protein-rich biomass, supports rapid microbial activity and high methane yields, while sorghum is highly resilient to drought and soil heterogeneity, making it particularly suitable for cultivation on marginal or degraded lands. Taken together, these crops provide complementary characteristics that enable a robust evaluation of both the agronomic feasibility and the bioenergy potential of unproductive lands in mining-affected regions.

Various concerns are identified around the world regarding the experimentation of the conversion of unproductive lands into sustainable energy sources. For example, the FORBIO project can be mentioned, in which the crops Arundo donax and Salix viminalis were experimented on on degraded lands in Germany and Italy, which supported economic feasibility and a reduction in greenhouse gas emissions of about 57% compared to other reference scenarios [17]. In parallel, the analysis carried out by the IEA Bioenergy shows that up to 21 million hectares of marginal lands in the EU can support perennial energy crops, such as miscanthus and grasses, with the potential to produce over 2 EJ/year by 2050 [18]. These crops have been recognised not only for their high energy yield but also for their ability to sequester carbon and improve the properties of affected soils [19].

In addition, anaerobic digestion of biomass obtained from these lands represents a promising technology. Research conducted in countries such as Poland and the United Kingdom has shown the usefulness of this method with parameters regarding soil conditions, climate and plant composition, which emphasises the need to use fresh biomass, with minimal mechanical pre-treatment, in order to maximise biogas yield [20,21].

This study contributes by demonstrating the potential of unproductive mining lands to be transformed into a living laboratory for biomass cultivation and energy recovery. By assessing maize, soybean, and sorghum under real field conditions and linking biomass composition to biogas yields, the research provides practical evidence that marginal lands can support both ecological restoration and renewable energy goals.

2. Materials and Methods

2.1. Living Lab Location and Design

The methodological framework was structured in four sequential steps: cultivation of maize, soybean, and sorghum on mining tailings and adjacent marginal lands; sampling and basic characterisation of the harvested biomass; laboratory-scale anaerobic digestion experiments under mesophilic conditions; and measurement of biogas production and substrate parameters. This integrated workflow provided a direct link between field cultivation, biomass quality, and digestion performance, ensuring that the experimental results reflected both agronomic and energetic perspectives under real environmental conditions.

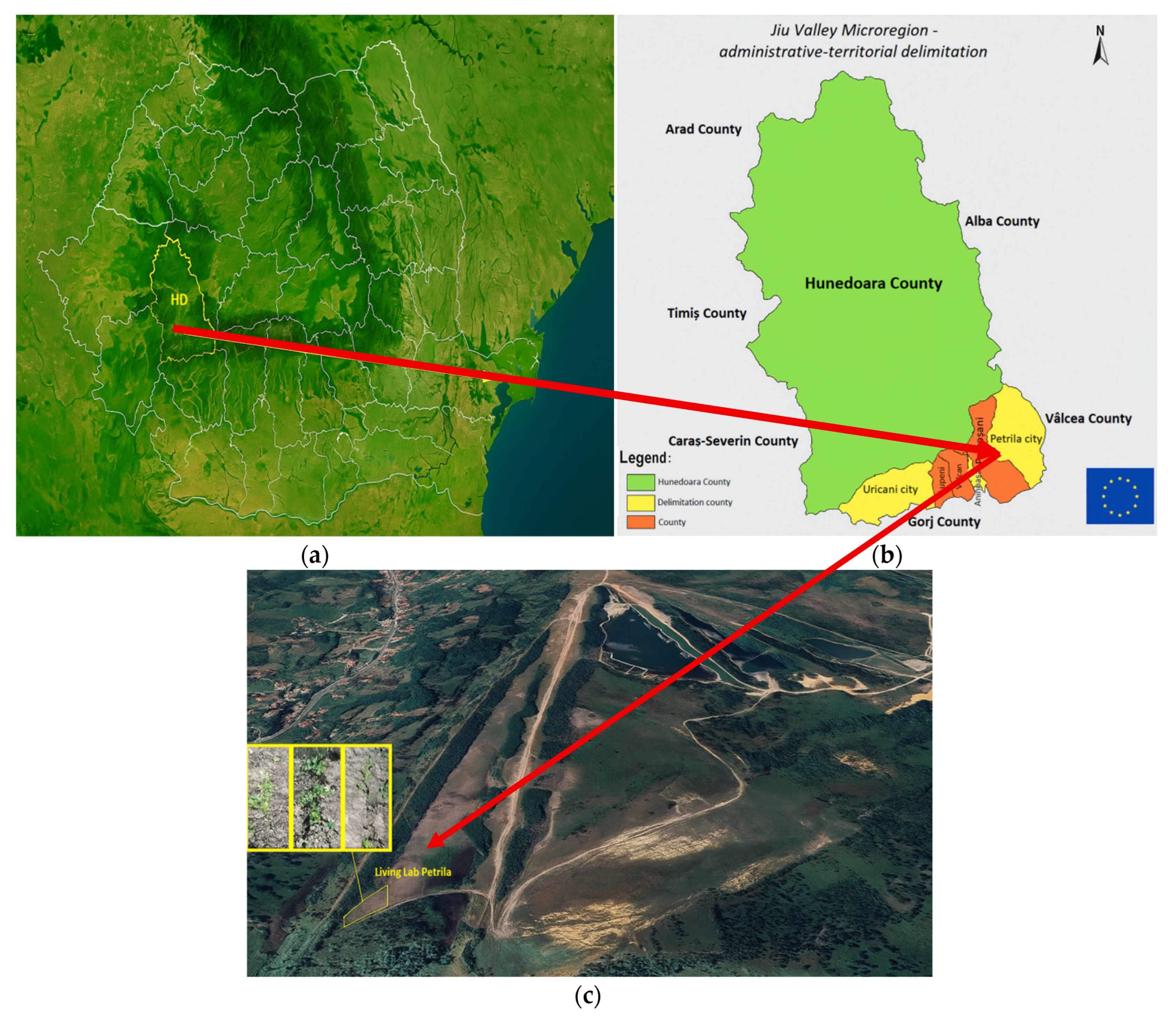

The Living Lab was constructed on a 5.000 m² coal tailings dump. It is located at the former Petrila mine (Branch IV), Jiu Valley, Romania (Figure 1). The area was divided into three main plots, each divided into three experimental units, resulting in a total of nine plots. The design of the nine plots helped to carry out a comparative evaluation of the installed biomass crops and soil improvement treatments. Depending on the bioclimatic conditions, the three biomass species acclimatised to this area were chosen: maize, soybean and sorghum. In the three experimental plots, three plots were chosen to be the control and 6 plots to be cultivated with the aforementioned biomass, and crop rotation was carried out annually. The three control plots were established on unamended soil, without any biomass cultivation, in order to provide a reference for assessing changes induced by the experimental crops. On these control plots, baseline soil properties were monitored throughout the study, including pH, electrical conductivity (EC), organic matter content, nutrient availability (N, P, K), and potential trace metal concentrations. These measurements allowed us to evaluate natural seasonal variations and to distinguish them from the effects generated by biomass cultivation and subsequent treatments. The control plots therefore served as essential benchmarks for interpreting soil dynamics and for validating the analytical results obtained in the experimental plots. The Living Lab concept applied to these unproductive lands can constitute a replicable model of biomass cultivation, with field experimentation, application of amendments and systematic monitoring of agronomic and ecological parameters.

The mine tailings showed low fertility, high heterogeneity and potential contamination with heavy metals. No fertilisers were applied in the first two years; amendments were introduced in the third year. The biomass harvested from the Living Lab was processed to obtain digestate (by anaerobic digestion) and biochar (by pyrolysis). Application rates and mixing proportions were established based on preliminary laboratory analyses, with the aim of optimising nutrient availability and immobilising heavy metals. Soil samples were collected at the beginning of the experiment (2023) and after each harvest season for complete laboratory analyses, allowing for the assessment of the dynamics of soil properties and the effectiveness of the improvement treatments. Maize, sorghum and soybean crops were established on the experimental plots of the unproductive lands in the Jiu Valley in a living lab.

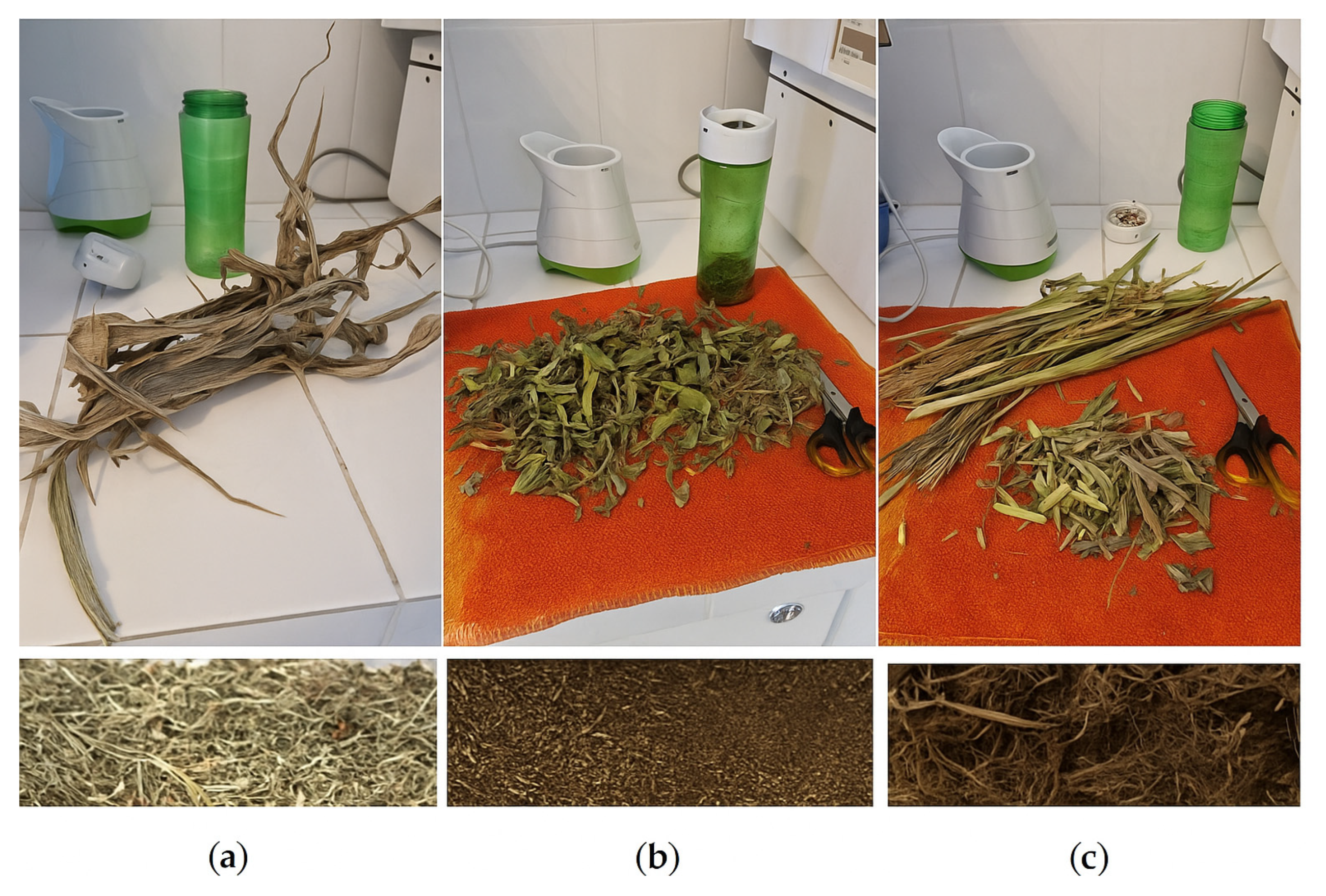

The experimental plots provided biomass (maize. soybean. and sorghum), which was mechanically pre-treated by shredding and grinding to an optimal granulation. The prepared biomass was introduced into the anaerobic digestion system, where a process happens that breaks down complex organic materials into biogas and digestate by different kinds of anaerobic bacteria without oxygen (Figure 2).

To evaluate the suitability of these crops for anaerobic digestion, the biomass composition was analysed. The means and procedures used are specific for determining the content of water (W), dry matter (TS), volatile matter (VS) and mineral matter (A) [17,18,19]. The tools and lab equipment used to measure TS and VS include crucibles, a precise electronic scale (Kern ABT 100-5M, Kern & Sohn GmbH, Balingen, Germany), an oven a muffle furnace (Nabertherm L 5/11, Nabertherm GmbH, Lilienthal, Germany), and desiccators (Kartell S.p.A., Milan, Italy), as shown in Figure 3.

2.2. Theory of Selecting Biomass Samples

In accordance with the principles of standardisation for representativeness and uniformity, biomass samples were collected from maize (Zea mays), soybean (Glycine max) and sorghum (Sorghum bicolor). Since biomass composition differs depending on species, plant fraction and growth stage, subsamples were taken from different anatomical parts (stems, leaves, and pods, panicles) to ensure a balanced representation [1,2]. The collected material was air-dried and subsequently oven-dried at 105 ± 2 °C to constant weight. The samples were then ground and homogenised to a particle size of <2 mm. For each biomass type, three analytical runs were prepared and analysed in parallel. For the selection of the representative sample, the lowest standard deviation among the three sample series was considered to ensure statistical robustness and reproducibility of the results [3,4]. Anaerobic digestion experiments were conducted in duplicate bioreactors for each crop sample, under identical operational conditions, to confirm reproducibility. Therefore, the quartering method was used to obtain analytical fractions, and representative subsamples were stored in airtight containers to prevent rehydration or contamination before calcinations [5]. Using these procedures, it is intended to minimise sampling errors and thus guarantee the reproducibility of thermal and chemical analyses. The biomass samples were prepared for drying and calcinations. In Figure 3, the state of the samples after the drying phase in the drying oven and calcinations is presented. The text continues here (Figure 4 and

Table 1. The values obtained in the laboratory for the determination of total solids (TS).

Cosubstrate			Oven: 20 h at 105 °C					Result	Entry Date BRS	Standard Deviation (SD)
			The Dry Substance (TS)						Average Values
No	Biomass	Sample	Crucible [g]	mWet + Crucible [g]	mWet [g]	mDried+ Crucible [g]	mDried [g]	(TS) % (by Mass)	(TS) % (by Mass)	(SD) % (by Mass)
1	maize	P1	90.7900	91.6000	0.8100	91.4600	0.6700	82.716	78.5046	1.2
		P2	90.2800	91.3900	1.1100	91.2100	0.9300	83.783		1.1
		P3	91.7000	91.1300	1.4200	92.6900	0.9800	69.014		1.6
2	soybean	P4	94.7400	98.8700	4.1300	96.6900	1.9500	47.2155	47.5235	0.7
		P5	97.3700	101.5500	4.1800	99.3100	1.9400	46.4115		0.8
		P6	78.6900	84.3700	5.6800	81.4700	2.7800	48.9437		0.9
3	sorghum	P7	94.7400	98.8700	4.1300	96.6900	1.9500	43.3333	45.2583	1.3
		P8	97.3700	101.5500	4.1800	99.3100	1.9400	47.1660		1.2
		P9	78.6900	84.3700	5.6800	81.4700	2.7800	45.2756		1.4
4	inoculum	P10	90.7623	151.3088	60.5465	115.0553	24.2930	40.1229	40.6772	0.5
		P11	87.6290	143.0318	55.4028	106.9854	19.3564	34.9376		0.6
		P12	95.3392	153.7098	58.3706	122.7565	27.4173	46.9711		0.5

).

Data processing, graphical visualisation, and statistical analyses were performed using OriginPro 2023 (OriginLab Corporation, Northampton, MA, USA) and Microsoft Excel 2021 (Microsoft Corporation, Redmond, WA, USA).

3. Results

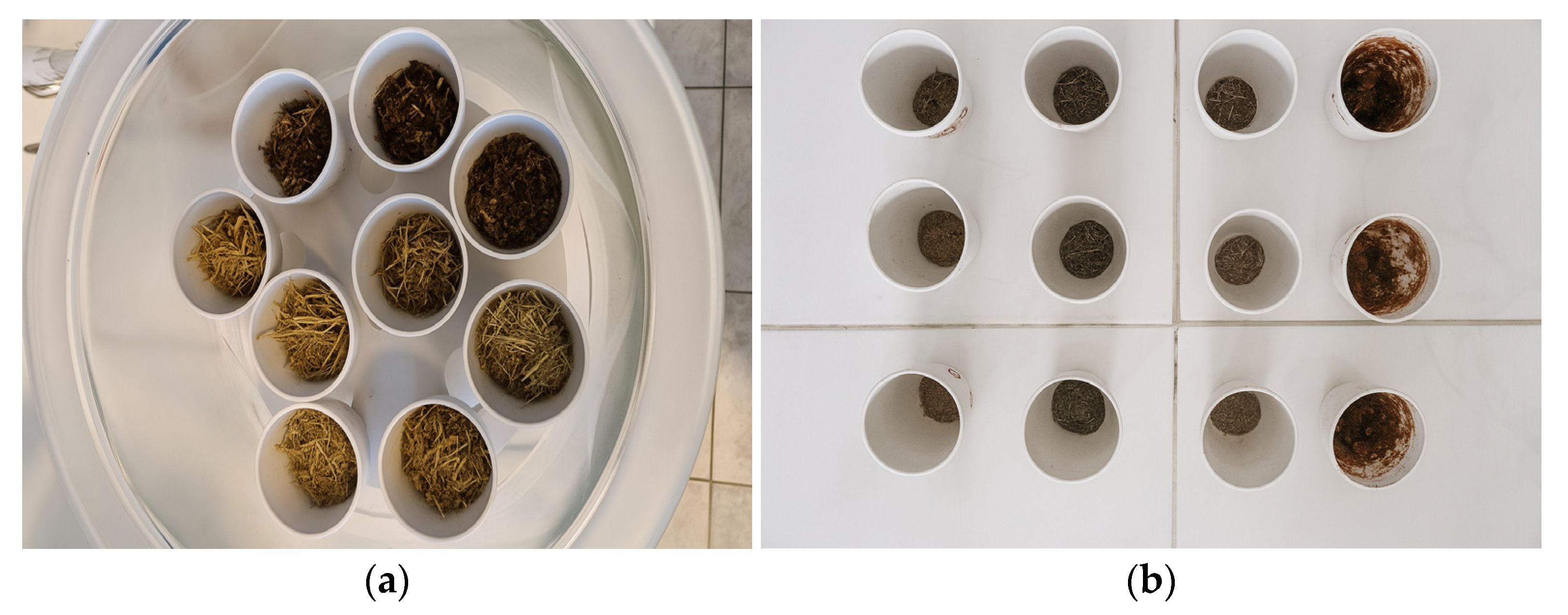

The biomass samples collected in crucibles are weighed to determine the wet sample weight (m_Wet). The samples are then placed in an oven preheated to 105 °C and left for 20 h to remove the water content. These are weighed again to determine the amount of dry sample (m_Dried). The obtained results are summarised in Table 1.

Values are expressed as mean ± SD (same units as the mean; n = 3).

The variability in TS values among maize samples (82.7%, 83.8% and 69.0%) can be explained by differences in plant maturity and uneven soil moisture conditions across the experimental plots.

The dry substance (TS) is calculated as the ratio between the amount of the dried sample (m_Dried) and the initial amount of the wet sample (m_Wet) according to the following Formula (1).

$$\mathrm{T}\mathrm{S} (\%)={\displaystyle \frac{{\mathrm{m}}_{\mathrm{D}\mathrm{r}\mathrm{i}\mathrm{e}\mathrm{d}}}{{\mathrm{m}}_{\mathrm{W}\mathrm{e}\mathrm{t}}}}$$

(1)

where

-

m_Wet = mass of the wet sample (before drying), i.e., the sample as taken, also containing water.

-

m_Dried = mass of the dry sample (after drying at a standard temperature, usually 105 °C, to constant mass).

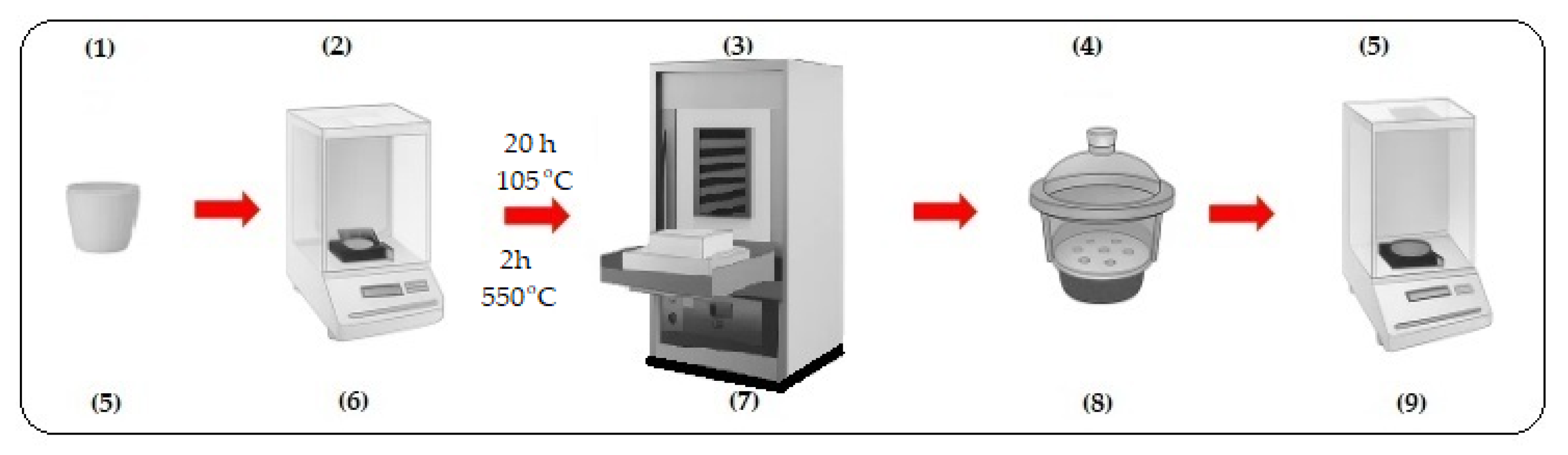

After determining TS, the samples are removed from the oven and allowed to cool to room temperature in desiccators. After weighing, the vessel is placed in a preheated oven at 550 °C (ignition), and after 2 h, the vessel is removed from the oven, cooled to room temperature in desiccators, and weighed. The values recorded from weighing the samples and those calculated are presented in

Table 2. Values measured in the laboratory for the determination (VS).

Cosubstrate			Calciner 550 °C		Result				Entry Date BRS	Standard Deviation (SD)
			Volatile Solids (VS)		Measurements				Average Values (VS)
No	Biomass	Sample	mBurned + Crucible [g]	mBurned [g]	mDried [g]	mWet [g]	mBWet [g]	(VS) % (by Mass)	(VS) % (by Mass)	(SD) % (by Mass)
1	maize	P1	90.8400	0.0500	0.8100	0.6700	0.0500	76.5432	71.9319	0.6
		P2	90.3600	0.0800	1.1100	0.9300	0.0800	76.5766		0.5
		P3	91.8000	0.0900	1.4200	0.9800	0.0900	62.6761		0.7
2	soybean	P4	95.2300	0.4900	4.1300	1.9500	0.4900	35.3511	36.0739	0.4
		P5	97.7800	0.4100	4.1800	1.9400	0.4100	36.6029		0.3
		P6	78.4100	0.7200	5.6800	2.7800	0.7200	36.2676		0.4
3	sorghum	P7	91.4300	0.4100	5.1000	2.2100	0.4100	35.2941	37.1874	0.6
		P8	85.7900	0.4100	4.9400	2.3300	0.4100	38.8664		0.7
		P9	90.2900	0.4000	5.0800	2.3000	0.4000	37.4016		0.6
4	inoculum	P10	94.5029	3.7406	60.5465	24.2930	3.7406	33.9448	37.671	0.2
		P11	88.8898	1.2608	55.4028	19.3564	1.2608	32.6619		0.2
		P12	96.7263	1.3871	58.3706	27.4173	1.3871	44.5947		0.3

.

Values are expressed as mean ± SD (same units as the mean; n = 3).

We calculate the volatile substance (VS) using Formula (2).

$$\mathrm{V}\mathrm{S}(\%)={\displaystyle \frac{{\mathrm{m}}_{\mathrm{D}\mathrm{r}\mathrm{i}\mathrm{e}\mathrm{d}}-{\mathrm{m}}_{\mathrm{B}\mathrm{u}\mathrm{r}\mathrm{n}\mathrm{e}\mathrm{d}}}{m_{Wet}}}$$

(2)

where

-

m_Wet = mass of the wet sample (as taken, with water).

-

m_Dried = mass of the sample dried at 105 °C (total dry matter = TS).

-

m_Burned = mass of the residue remaining after incineration at 550 °C (ash, i.e., the inorganic mineral part).

The volatile substance VS is calculated as a percentage of the wet mass (m_Wet). Using the formulas m_Wet = W + VS + A and m_Wet = TS + W, the following data is obtained (

Table 3. Results regarding biomass composition.

No	Cosubstrate		Water (W)		The Dry Substance (TS)		Volatile Solids (VS)		Ashes (A)		Standard Deviation (SD)
			[g]	% (by Mass)	[g]	% (by Mass)	[g]	% (by Mass)	[g]	% (by Mass)	(SD) % (by Mass)
1	maize	P1	0.1400	17.2840	0.6700	82.7160	0.6200	76.5432	0.0500	6.1728	1.2
		P2	0.1800	16.2162	0.9300	83.7838	0.8500	76.5766	0.0800	7.2072	1.1
		P3	0.4400	30.9859	0.9800	69.0141	0.8900	62.6761	0.0900	6.3380	2.0
2	soybean	P4	2.1800	52.7845	1.9500	47.2155	1.4600	35.3511	0.4900	11.8644	2.2
		P5	2.2400	53.5885	1.9400	46.4115	1.5300	36.6029	0.4100	9.8086	2.0
		P6	2.900	51.0563	2.7800	48.9437	2.0600	36.2676	0.7200	12.6761	2.3
3	sorghum	P7	2.8900	56.6667	2.2100	43.3333	1.8000	35.2941	0.4100	8.0392	2.4
		P8	2.6100	52.8340	2.3300	47.1660	1.9200	38.8664	0.4100	8.2996	2.1
		P9	2.7800	54.7244	2.3300	45.2756	1.9000	37.4016	0.4000	7.8740	2.5
4	inoculum	P10	36.2535	59.8771	24.2930	40.1229	20.5524	33.9448	3.7406	6.17881	2.0
		P11	36.0464	65.0624	19.3564	34.9376	18.0956	32.6619	1.2608	2.2757	2.1
		P12	30.9533	53.0289	27.4173	46.9711	26.0302	44.5947	1.3871	2.3764	1.9

).

The ash fraction (A) was determined according to standard gravimetric methods. After drying the biomass samples at 105 °C to constant weight for TS determination, subsamples were placed in a muffle furnace at 550 °C for 4 h. The remaining inorganic residue was weighed and expressed as a percentage of the initial dry mass.

The analysed biomass is put into a BRS III-Bioreactor Simulator, which has six bioreactors, each holding 2 litres. For each biomass type (maize, soybean, sorghum), anaerobic digestion experiments were performed in at least two independent bioreactor runs under identical conditions, in order to verify reproducibility. Maize samples were tested in the A1 reactor series, soybean in the B1 and B2 series, and sorghum in the C1 and C2 series. This design allowed for a direct comparison between biomass types while maintaining replication within each crop type. Although Figure 5, Figure 6 and Figure 7 illustrate the results from one representative reactor per crop for clarity, replicate runs were conducted, and the results were consistent, confirming the robustness of the data. Each bioreactor has its mixing system, a way to sample biogas, and a system for adding and removing materials. The bioreactors are connected by elastic hoses and data cables to the measurement and data recording unit, which is connected via a cable to an internet network [20,21,22]. Through a PC, laptop, or Smartphone with internet access, a web portal [23,24] is accessed, where a special command and control platform for the used BRS experimental stand can be accessed with a username and password. The useful volume of a bioreactor is 1.8 litres, and the dry substance content in the digester has a maximum of 10%. The hydraulic retention time (HRT) is (20–30) days, from 17 September 2024 to 16 October 2024. The digestion process was monitored for a total of 30 days, until gas production stabilised. Data are presented as mean values ± standard deviation from replicate runs; no further statistical tests were applied due to the exploratory nature of the study. The loading batch, dry substance per loading batch, and water content/loading batch, as well as the mixing recipes for reactor loading, were calculated according to the sample preparation protocol [25,26,27,28].

Values are expressed as mean ± SD (same units as the mean; n = 3).

A maize sample (A1), two soybean samples (B1, B2), and two sorghum samples (C1, C2) were introduced into the bioreactor. In the process, an inoculum (for populating with anaerobic bacteria) was used, taken from the biogas production and valorisation facility in Arad [29,30,31,32].

From the total of 60 biomass samples obtained, 12 were selected to ensure statistical robustness while reducing the number of determinations. The selection was based on objective criteria: the lowest standard deviation among triplicate measurements, in order to minimise variability; balanced representation of anatomical fractions (stems, leaves, pods, panicles); and comparability across experimental runs. Each experimental group (A1, B1, B2, C1, C2) was designed as a sequence of tests under identical operating conditions, where maize, soybean, and sorghum were each introduced into the reactor in parallel. Consequently, the grouping reflects the experimental sequence rather than a separation of biomass types. This approach ensured both representativeness and consistency in evaluating the three biomasses during anaerobic digestion.

Each group (A1, B1, B2, C1, C2) corresponds to a series of anaerobic digestion runs carried out under identical conditions, in which maize, soybean, and sorghum were evaluated in parallel. The presence of all three crops within each group reflects the experimental design and allows for a direct comparison between biomass types under the same operational parameters. (

Table 4. Representative samples that will undergo the calcinations process.

Sample Group	Selected Sample
A1	A1-1—maize
	A1-5—soybean
	A1-8—sorghum
B1	B1-1—maize
	B1-5—soybean
	B1-8—sorghum
B2	B2-1—maize
	B2-5- soybean
	B2-8—sorghum
C1	C1-1—maize
	C1-5—soybean
	C1-8—sorghum
C2	C2-1—maize
	C2-5—soybean
	C2-8—sorghum

)

The average values from Table 3 were used for calculating the bioreactor loading and establishing the mixing recipes. The average values obtained are centralised in

Table 5. Average values of biomass samples.

Cosubstrate			Parameter
			(W)	(TS)	(VS)	(A)	Verification
LOT	Name	Sample	Water	Dry Matter	Volatile Solids	Ashes	(mWet = TS + W)	(mWet = W+VS + A)
			(%) (by Mass)	(%) (by Mass)	(%) (by Mass)	(%) (by Mass)	(%) (by Mass)	(%) (by Mass)
1	Maize		21.4954	78.5046	71.9319	6.5727	100.00	100.00
2	Soybean		52.4765	47.5235	36.0739	11.4497	100.00	100.00
3	Sorghum		54.7417	45.2583	37.1874	8.0709	100.00	100.00
4	Inoculum		59.3228	40.6772	37.0671	3.6100	100.00	100.00

NOTE: Volatile solids (VS) is calculated as a percentage of wet mass (m_Wet).

.

Based on the volatile substance content and the dry substance content, the mixing recipes for loading the bioreactors were calculated [33,34,35].

Thus, based on the VDI 4630-2006 sample preparation protocol, the mixture recipe for bioreactor loading for the maize test was prepared [36,37], and the results are centralised in

Table 6. Bioreactor loading mixture recipe sample A1, A2.

Parameters of the Analysed Sample		Symbol	Value	Unit
Volatile substance content (VSi)		VS1	37.0671	% (by mass)
Dry matter content (TSi)		TS1	40.6772	% (by mass)
Cosubstrate
Maize	% (by mass)	m1	52.8735	g
Volatile substance content (VSi)	50.0045	VS1	26.44	g
Dry matter content (TSi)	95.4993	TS1	50.49	g
Sample Mixture Recipe
Digestate mass (bioreactor loading mass)		md	1800	g
Required VS inoculum relative to digested mass (1.5–2% md)		VSi	36.00	g
Inoculum TS content relative to digested mass		TSi	39.51	g
Required amount of inoculum in the digester (mi)		mi	97.12	g
Necessary VS cosubstrate (VS < 0.5 VSI)		VSs	18.00	g
Dry matter content (TSmd) digester (max. 10% dm)		TSmd	90.00	g
Dry matter content (TSs) co-substrates		TSs	50.49	g
Required cosubstrateTS1 (100%-maize)		TS1	50.49	g
Additional water required		mW	1650.01	g
Input Data BRS
Inoculum concentration relative to digestate mass (% w/w)		Ic	5.39561	% (by mass)
Cosubstrate concentration relative to digestate mass (% w/w)		Sc	2.94	% (by mass)

.

To load the bioreactor with fresh co-substrate, 1800 g of digestate mass was introduced, with the established dry matter content (TSmd) in the digester (max. 10% dm). The hydraulic retention time (HRT = m_d/m_charge) is set between 20% (by mass) and 30% (by mass) [38,39].

The daily organic loading rate (OLR) is 4.58 g/L/day (with VS1 maize). The daily discharge batch of the evacuated digestate mass is 90.00 g. The experimental values recorded in the cloud (bio process control) were graphically represented to highlight the evolution over time of biogas production [40,41,42]. For maize, we only collected data from the A1 bioreactor during the anaerobic digestion process [43]. The data from the second maize bioreactor were excluded due to process failure, which occurred because dried maize biomass with elevated lignin content was used. The high lignin fraction hindered microbial accessibility to cellulose and hemicellulose, resulting in poor substrate degradation and process instability. Similar challenges with lignocellulosic substrates have been reported in anaerobic digestion studies [44,45,46].

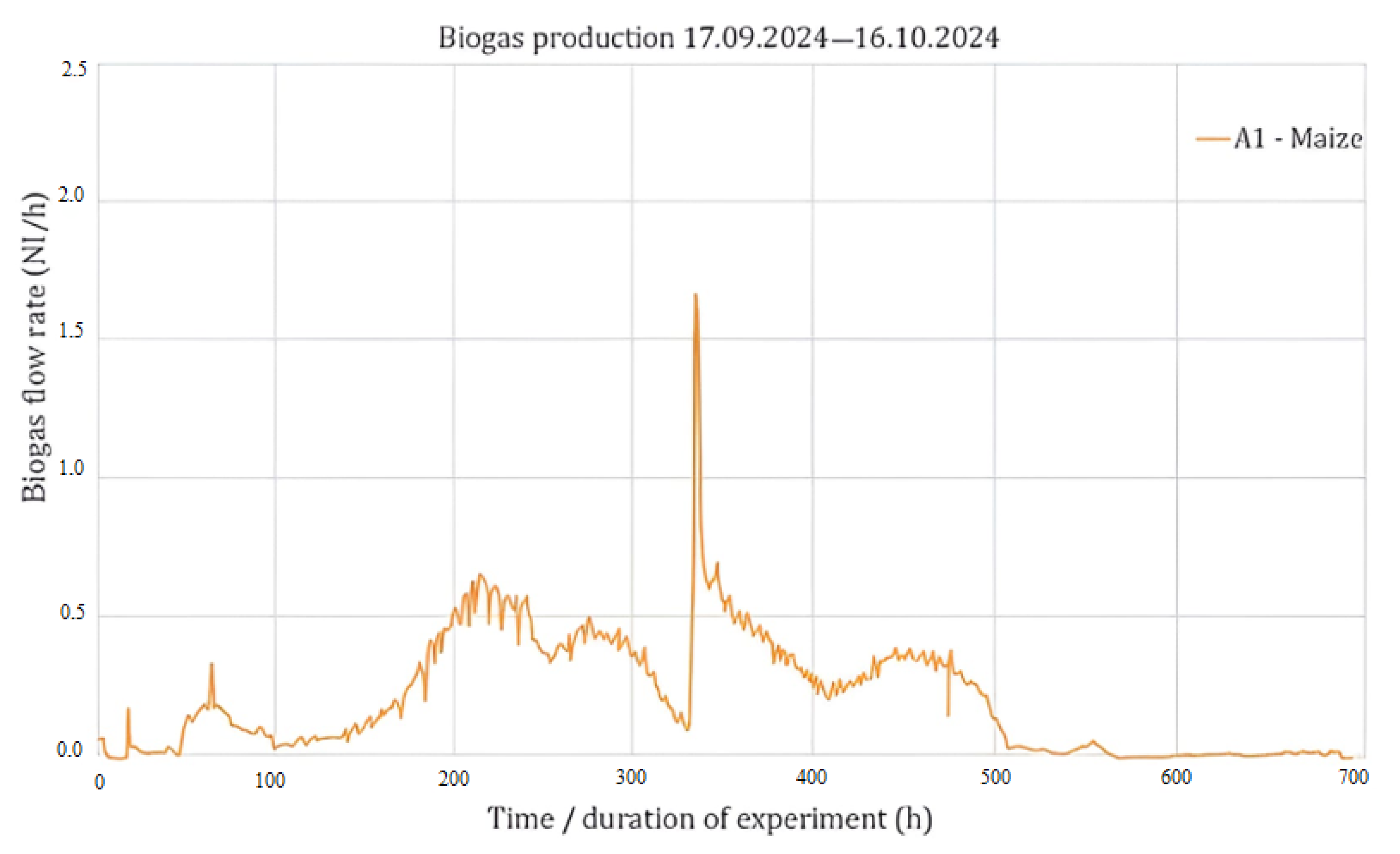

In Figure 5, the graphical representation of the biogas production obtained in the bioreactor where the A1 sample was introduced is shown.

As observed in Figure 5, it is noted that the biogas production was low at the beginning of the experiment because biomass cultivated for one year was used, which was in a dry state with high lignin content [47,48], hindering the digestion of the organic matter contained in the substance.

After approximately 12 days, fresh maize from the new crop was used in the experiment, which is reflected in the stabilised biogas production process.

This effect can be explained by the improved availability of easily degradable substrates (such as soluble sugars and proteins) in the fresh material, which reactivated microbial activity and balanced the digestion process. In contrast, the initial use of dried biomass with higher lignin content led to partial inhibition and slower microbial adaptation. The addition of fresh biomass therefore restored process stability and sustained methane production in the subsequent days.

To prepare the soybean for anaerobic digestion, we developed the mixture recipes for filling the digesters by considering the quantities of volatile substances and dry matter [49,50,51]. The mixture recipe for loading the bioreactor with the soybean samples, B1 and B2, was created using the guidelines from the VDI 4630-2006 sample preparation protocol [52,53].

Table 7. Bioreactor loading mixture recipe, sample B1, B2 soybean.

Parameters of the Analysed Sample		Symbol	Value	Unit
Volatile substance content(VSi)		VSi	37.0671	% (by mass)
Dry matter content (TSi)		TSi	40.6772	% (by mass)
Cosubstrate
Soybean	% (by mass)	m2	54.8064	g
Volatile substance content (VSi)	65.8735	VSi	36.10	g
Dry matter content(TSi)	92.1314	TSi	50.49	g
Sample Mixture Recipe
Digestate mass (bioreactor loading mass)		md	1800	g
Required VS inoculum relative to digested mass (1.5–2% md)		VSi	36.00	g
Inoculum TS content relative to digested mass		TSi	39.51	g
Required amount of inoculum in the digester (mi)		mi	97.12	g
Necessary VS cosubstrate (VS < 0.5 VSI)		VSs	18.00	g
Dry matter content (TSmd) digester (max. 10% dm)		TSmd	90.00	g
Dry matter content (TSs) co-substrates		TSs	50.49	g
Required cosubstrateTS1 (100%-soybean)		TS1	50.49	g
Additional water required		mW	1648.07	g
Input Data BRS
Inoculum concentration relative to digestate mass (% w/w)		Ic	5.39561	% (by mass)
Cosubstrate concentration relative to digestate mass (% w/w)		Sc	3.04	% (by mass)

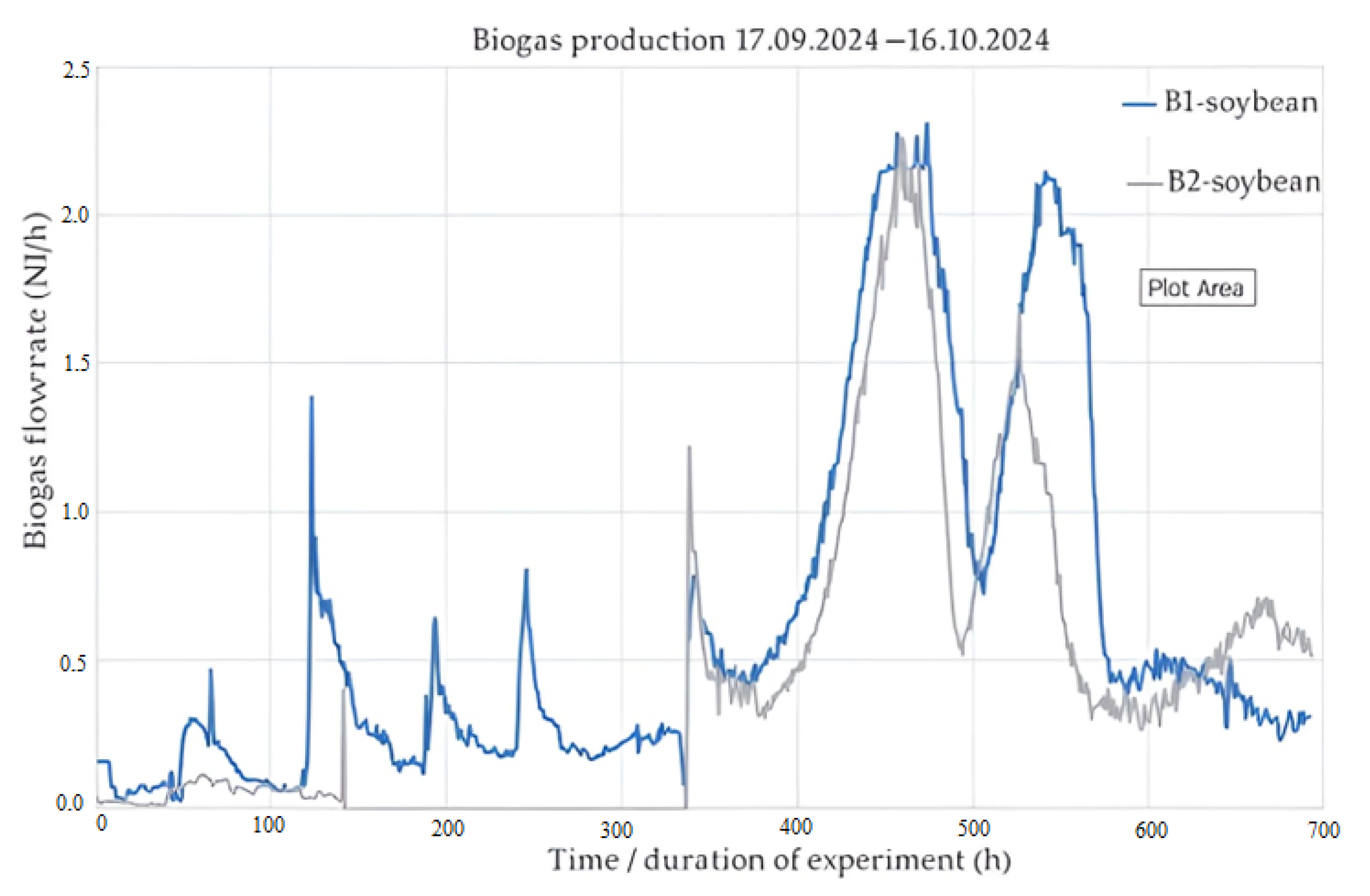

centralises these findings.

The operating parameters of the digester are as follows: the useful volume of the bioreactor is 1.80 litres, the digestate’s mass is 1800 g, and the dry matter content is set at 10% (by mass) [54,55]. The calculation of the digester loading batch was carried out as follows: the hydraulic retention time (HRT) is 20–30 days, the loading batch is 90 g/day, the dry substance on the loading batch was calculated at 9 g, and the water content/loading batch is 81.0 g [56]. The biogas production from the bioreactor that had the B1 and B2 sorghum samples, which was recorded online (bioprocess control), is shown in Figure 6.

The analysis of the obtained experimental data shows that the production of the anaerobic digestion process is low in the first few days. The stabilisation of the process occurs after approximately 10 days, as can be seen from the graphical representation [57,58,59]. The main identified cause that led to low biogas production is the fact that, in the first few days, the bioreactors were loaded with dried soybeans [60,61]. Dried biomass is characterised by a high lignin content, which negatively affects the anaerobic digestion process. Lignin forms a tough layer that makes it hard for the bacteria needed for anaerobic digestion to reach the biodegradable parts of the material, which leads to very little biogas being produced [62,63].

In the second part of the process, the bioreactors were given fresh soy that was ground into smaller pieces, and it was discovered that the fresher the biomass, the better the digestion process worked, leading to more biogas being produced [64,65].

At the same time, it was found that the improvement in biogas production is influenced by the degree of soybean grinding [66]. The finer the grinding/granulation, the more homogeneous the mixture and, consequently, the higher the biogas production [67].

Table 8. Bioreactor loading mixture recipe sample C1, C2 sorghum.

Parameters of the Analysed Sample		Symbol	Value	Unit
Volatile substance content(VSi)		VSi	37.0671	% (by mass)
Dry matter content (TSi)		TSi	40.6772	% (by mass)
Cosubstrate
Sorghum	% (by mass)	m2	53.679	g
Volatile substance content (VSi)	62.2214	VSi	33.40	g
Dry matter content (TSi)	94.0663	TSi	53.49	g
Sample Mixture Recipe
Digestate mass (bioreactor loading mass)		md	1800	g
Required VS inoculum relative to digested mass (1.5–2% md)		VSi	36.00	g
Inoculum TS content relative to digested mass		TSi	39.51	g
Required amount of inoculum in the digester (mi)		mi	97.12	g
Necessary VS cosubstrate (VS < 0.5 VSI)		VSs	18.00	g
Dry matter content (TSmd) digester (max. 10% dm)		TSmd	90.00	g
Dry matter content (TSs) co-substrates		TSs	50.49	g
Required cosubstrateTS1 (100%-sorghum)		TS1	50.49	g
Additional water required		mW	1649.20	g
Input Data BRS
Inoculum concentration relative to digestate mass (% w/w)		Ic	5.39561	% (by mass)
Cosubstrate concentration relative to digestate mass (% w/w)		Sc	2.98	% (by mass)

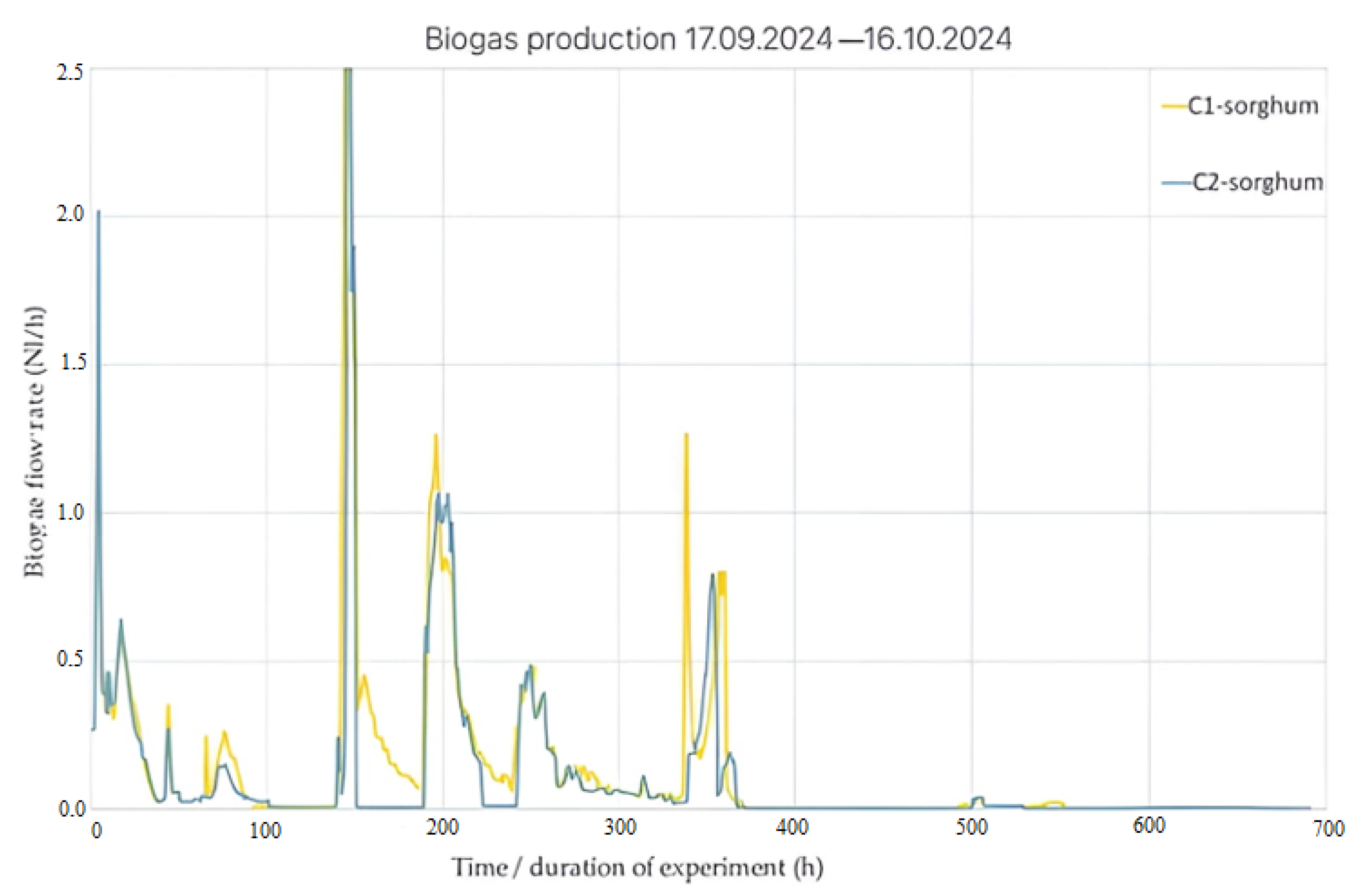

centralises the mixing recipe for the bioreactor loading of the sorghum samples, C1 and C2.

The operating parameters of the digester are the same except for the dry matter/co-substrate loaded into it, which was calculated to be 9 grammes; the organic matter, calculated to be 7.4 g; and the water/co-substrate content, calculated to be 10.89 g. Figure 7 graphically represents the biogas production obtained from the anaerobic digestion of sorghum (samples C1 and C2), which is recorded in the cloud (bioprocess control).

At the beginning of the experiment, the sorghum C1, 2 had the best biogas production, after which the process became unstable. The cause of this effect is that the loading/unloading phase of the bioreactor is very difficult to achieve for co-substrates in the form of biomass or plant residues (straw); thus, over time, it was no longer possible to maintain the optimal concentration of dry substances (TS) and volatile solids (VS) in the bioreactor; therefore, the process was destabilised [68,69]. At the beginning of the experiment, biomass cultivated for one year was used, which was in a dry state with a high lignin content that hindered the digestion of the organic matter contained in the substance [70,71,72,73].

After approximately 12 days, fresh biomass was used in the experiment, which is reflected in the stabilisation of the biogas production process.

To enable a direct comparison of the three crops, the specific methane yields were calculated on a volatile solids basis. The average methane yields obtained were approximately 92 L CH₄/kg VS for soybean, 85 L CH₄/kg VS for maize, and 58 L CH₄/kg VS for sorghum. These values are lower than typical ranges reported in the literature (200–400 L CH₄/kg VS for similar substrates [74,75,76]), which can be explained by the degraded soil conditions, the exploratory scale of the experiment, and the high lignin content of dried biomass. Nevertheless, the results confirm the superior performance of soybean under the specific conditions of the Jiu Valley.

4. Discussion

Anaerobic digestion is a feasible and efficient technology for the energetic valorisation of biomass (maize, sorghum and soybean) cultivated on unproductive lands in the Jiu Valley. The highest biogas production was obtained from soybean (B1, B2), followed by maize (A1) and sorghum (C1, C2). These differences can be explained by their biochemical composition and nutrient balance. Soybean, which provided the highest methane yield in our study, is characterised by a relatively low lignin fraction and a favourable C/N ratio, supporting rapid microbial activity and efficient conversion of volatile solids into biogas. In contrast, maize and especially sorghum contain higher proportions of lignocellulosic material, where lignin acts as a structural barrier limiting enzymatic access to cellulose and hemicellulose, a widely reported constraint to anaerobic digestion efficiency [74,75]. Moreover, the higher C/N ratio of sorghum may lead to nitrogen limitation, while soybean biomass provides a more balanced nutrient availability, preventing ammonia inhibition and ensuring process stability.

Beyond biochemical composition, variability in TS values, particularly for maize (Table 1), reflected the heterogeneity of biomass grown on marginal lands. These differences were linked to local variations in soil water availability and plant maturity, which influenced the moisture content of the harvested material. Similar variability has been reported in previous studies on energy crops cultivated under suboptimal soil conditions [74,76]. This highlights the importance of accounting for field heterogeneity when evaluating biomass quality and biogas potential on degraded lands.

Although soybean showed lower VS percentages (≈35–36%) compared to maize (62–76%) and sorghum, its higher protein and soluble carbohydrate content ensured a favourable C/N ratio, stimulated microbial activity, and accelerated methane production. By contrast, maize and especially sorghum contained higher lignin fractions, limiting microbial accessibility and constraining biogas yields.

Soybean tissues retain more water due to their higher soluble compound content; sorghum accumulates water in stalks and leaves at early maturity; maize biomass, richer in starch and fibre, dries more rapidly. These physiological traits explain observed water differences (Table 3) and their effects on TS, VS, and subsequent biogas potential.

The graphical representations in Figure 5, Figure 6 and Figure 7 further support these interpretations. Soybean (B1, B2) consistently produced the highest methane yields and showed the most stable digestion process, particularly when fresh biomass with fine granulation was used. Maize (A1) reached comparable yields only when fresh biomass was introduced, whereas dried maize biomass with higher lignin content led to process inhibition and reduced stability. Sorghum (C1, C2) generated lower methane yields overall but exhibited greater resilience under marginal conditions, maintaining relatively stable production once fresh biomass was supplied. Additionally, operational constraints influenced digestion performance, as sorghum (C1, C2) initially showed good biogas production, but later became unstable due to difficulties in maintaining optimal TS and VS concentrations in the reactor.

Dry biomass has high lignin content, which hinders microbial access to degradable fractions and reduces biogas production. This limitation can be addressed through pretreatment methods. In our study, only mechanical pre-treatment (grinding and shredding) was applied. This improved substrate homogeneity and microbial accessibility, with finer granulation proving beneficial for enhancing digestion and biogas production. However, mechanical methods alone are limited in breaking down lignocellulosic structures when lignin concentrations are high. Thermal and chemical pre-treatments (e.g., steam explosion, alkaline or oxidative agents) have been shown to significantly improve digestibility [44,45]. Future research should therefore assess the efficiency and economic feasibility of advanced pretreatment strategies, particularly under the local conditions of the Jiu Valley.

An important perspective concerns the climate benefits of substituting fossil fuels with the biogas obtained. Based on the specific methane yields measured in this study (soybean 92 L CH₄/kg VS, maize 85 L CH₄/kg VS, and sorghum 58 L CH₄/kg VS) and considering a methane calorific value of 35.8 MJ/m³, the corresponding energy recovery was estimated at 3.29, 3.04, and 2.08 MJ/kg VS, respectively. When used to replace natural gas, these values translate into avoided greenhouse gas emissions of approximately 0.18, 0.17, and 0.12 kg CO₂ eq/kg VS for soybean, maize and sorghum. Although modest compared with yields reported for crops grown on fertile soils, these results emphasise the dual role of energy crops from marginal lands in both renewable energy production and greenhouse gas mitigation, supporting the objectives of the European Green Deal.

5. Conclusions

This study demonstrates that unproductive mining lands in the Jiu Valley can be converted into valuable resources by cultivating energy crops such as maize, soybean, and sorghum, with their biomass valorised through anaerobic digestion. Among the tested crops, soybean achieved the highest methane yield and process stability due to its favourable biochemical composition, while sorghum showed lower methane yields but greater resilience under marginal soil conditions [77,78,79].

The main limitations of this research are related to the exclusive use of mechanical pretreatment, the variability in biomass yields on degraded soils, and the reduced statistical robustness of the dataset. The exploratory nature of this study and the limited number of replicates did not allow for a full inferential statistical analysis. Future studies will therefore include larger sample sizes and robust statistical approaches to validate the observed trends.

Further research will also address advanced pretreatment methods (thermal, chemical, enzymatic), explore co-digestion strategies, and include economic feasibility assessments. These directions will provide the scientific basis for scaling up biomass-to-biogas systems on marginal lands and for their integration into regional renewable energy and land restoration policies under the European Green Deal.
