Optimizing Spatial Scales for Evaluating High-Resolution CO₂ Fossil Fuel Emissions: Multi-Source Data and Machine Learning Approach

Abstract

High-resolution CO₂ fossil fuel emission data are critical for developing targeted mitigation policies. As a key approach for estimating spatial distributions of CO₂ emissions, top–down methods typically rely upon spatial proxies to disaggregate administrative-level emission to finer spatial scales. However, conventional linear regression models may fail to capture complex non-linear relationships between proxies and emissions. Furthermore, methods relying on nighttime light data are mostly inadequate in representing emissions for both industrial and rural zones. To address these limitations, this study developed a multiple proxy framework integrating nighttime light, points of interest (POIs), population, road networks, and impervious surface area data. Seven machine learning algorithms—Extra-Trees, Random Forest, XGBoost, CatBoost, Gradient Boosting Decision Trees, LightGBM, and Support Vector Regression—were comprehensively incorporated to estimate high-resolution CO₂ fossil fuel emissions. Comprehensive evaluation revealed that the multiple proxy Extra-Trees model significantly outperformed the single-proxy nighttime light linear regression model at the county scale, achieving R² = 0.96 (RMSE = 0.52 MtCO₂) in cross-validation and R² = 0.92 (RMSE = 0.54 MtCO₂) on the independent test set. Feature importance analysis identified brightness of nighttime light (40.70%) and heavy industrial density (21.11%) as the most critical spatial proxies. The proposed approach also showed strong spatial consistency with the Multi-resolution Emission Inventory for China, exhibiting correlation coefficients of 0.82–0.84. This study demonstrates that integrating local multiple proxy data with machine learning corrects spatial biases inherent in traditional top–down approaches, establishing a transferable framework for high-resolution emissions mapping.

1. Introduction

Climate change, driven primarily by excessive CO₂ emissions from fossil fuel combustion, poses a major challenge to global sustainable development [1]. In response, China has committed to achieving carbon neutrality by 2060 [2]. Given this context, accurately estimating the spatial distribution of CO₂ emissions can provide critical data for achieving these targets.

Spatial compilation of CO₂ fossil fuel emissions was initiated in the 1980s. Marland et al. [3] pioneered the approach by allocating global emissions to 1° grids using population distribution, establishing the foundation for spatial emission inventories. Subsequent studies refined these methodologies across global, national, and regional scales [4,5,6,7,8]. Major emission inventories include the Carbon Dioxide Information Analysis Center (CDIAC) [9], Emissions Database for Global Atmospheric Research (EDGAR) [10], Fossil Fuel Data Assimilation System (FFDAS) [8,11], Open-source Data Inventory for Anthropogenic CO₂ (ODIAC) [7], High-Resolution Fossil Fuel CO₂ Emissions for the United States (Vulcan) [12] and Multi-resolution Emission Inventory for China (MEIC) [13]. Two primary methodological paradigms currently exist: top–down and bottom–up approaches [14]. Top–down methods—distinct from atmospheric inversion modeling—refer to spatial proxy-based allocation or downscaling techniques [15]. These approaches disaggregate administrative-level emissions to finer grid using spatial proxies such as population density [4,16] and nighttime light data [17,18]. Conversely, bottom–up approaches integrate activity data from combustion sources (e.g., traffic volumes, power plant fuel consumption) with source-specific emission factors to construct emission distributions [6,12,19,20,21], bypassing proxy reliance. Although bottom–up methods achieve higher accuracy, their implementation is constrained in data-scarce regions due to limited activity and data availability [6,9]. Consequently, developing top–down spatial allocation models that integrate multiple proxies is critical for high-resolution emission estimation where activity data are inaccessible [18,22].

With the advancement of remote sensing, nighttime light imagery has proven effective in quantifying anthropogenic activities [23,24]. Within top–down frameworks, nighttime light data has been extensively employed as a spatial proxy to disaggregate CO₂ fossil fuel emissions from statistical inventories at the administrative division level in China [22]. However, this approach systematically underestimates emissions in industrial zones and peri-urban areas with low nighttime light intensity [12]. Points of interest (POIs) data, which are geospatial labels including geographic coordinates and functional attributes (e.g., commercial, industrial), provide semantic information unobtainable from satellite imagery [25]. As an emerging big data source, POIs demonstrate significant potential for refining CO₂ fossil fuel emission distributions [26,27], effectively compensating for nighttime light limitations in industrial and rural areas [28]. Artificial impervious surfaces, key indicators of built environments, reflect spatial patterns of human settlement and economic activity [29] and serve as primary domains for CO₂ fossil fuel emissions [30]. Early spatial disaggregation models relied on statistical regression assuming linear relationships between spatial proxies and CO₂ fossil fuel emissions [18,24]. Recent studies have begun exploring machine learning to capture non-linear associations [31,32,33], but these efforts face limitations: (1) predominant use of single algorithms without comparative performance assessment, and (2) inadequate quantification of relative variable contributions. Furthermore, most models calibrate proxy–emission relationships at coarse scales (global/national/provincial) and directly apply them to grid-level estimation, neglecting regional heterogeneity. Counties, as fundamental socioeconomic units, provide an optimal scale for modeling such interactions [32].

To address these limitations, this study selected Hubei Province—a pivotal region within China’s Yangtze River Economic Belt and a national low-carbon pilot zone [34,35]—as a case study. We developed a provincial-scale, high-resolution emission estimation framework that integrates multi-source data with machine learning algorithms based on county-level modeling. Nine spatial proxies were integrated: brightness of nighttime light (NTL), population size (POP), residential kernel density (RKD), commercial kernel density (CKD), heavy industrial kernel density (HKD), light industrial kernel density (LKD), agricultural kernel density (AKD), road length (RDL), and impervious surface block count (ISA). The fitted relationships were applied to generate a 1 km resolution CO₂ fossil fuel emissions map for Hubei Province from 2014 to 2017. Spatiotemporal distribution characteristics were analyzed after validation against the MEIC.

The main contributions of this study include the following:

(1)

A spatial estimation model of CO₂ fossil fuel emissions was constructed based on multi-source data and machine learning models for mapping high-resolution CO₂ fossil fuel emissions.

(2)

The model selects multiple variables as model inputs to make the spatial distribution of CO₂ fossil fuel emissions more reasonable.

(3)

This study provides some references for model construction and feature selection for subsequent related studies by comparing multiple machine learning models and feature importance analysis.

(4)

This study validates that localized multi-proxy integration is essential for high-resolution CO₂ fossil fuel emission mapping.

This paper is organized as follows. Section 2 details the study area, data, and methodological framework. Section 3 presents results, discusses implications, and identifies limitations. Section 4 provides conclusion and future research directions.

2. Materials and Methods

2.1. Study Area

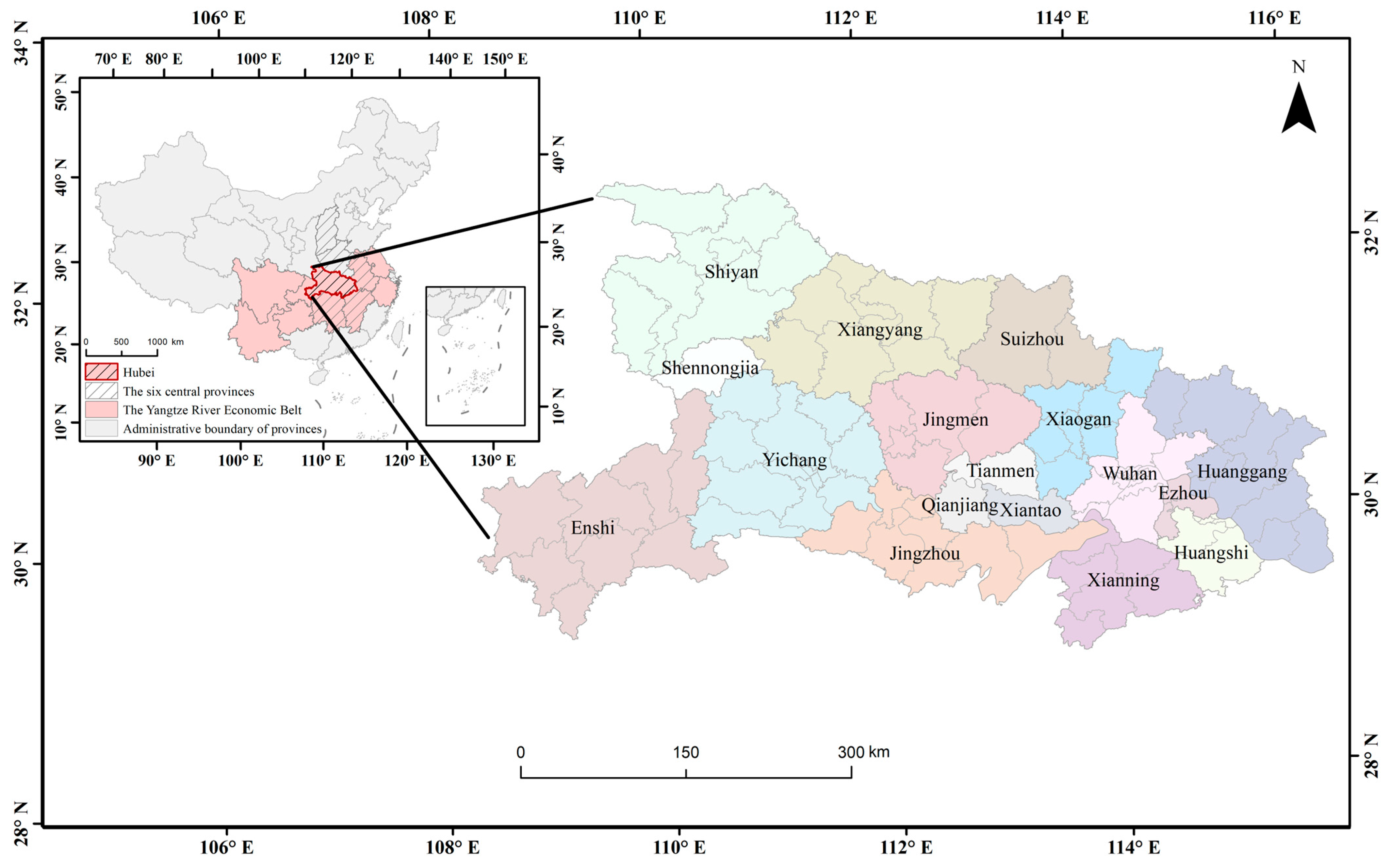

Situated in central China (29°01′53″ N to 33°06′47″ N, 108°21′42″ E to 116°07′50″ E; Figure 1), Hubei Province encompasses 185,900 km² and comprises 17 prefecture-level cities and 103 counties. As a pivotal component of China’s national development strategies, the Yangtze River Economic Belt and Rise of Central China, the province serves as a major transportation hub with a rapidly growing economy. Hubei exhibits diverse topography, ranging from mountains in the west, hills in the east, and flat plains in the central-south. Characterized by a subtropical monsoon climate, the province boasts abundant water resources, biodiversity, and mineral deposits.

2.2. Data and Preprocessing

This study integrates socioeconomic and CO₂ fossil fuel emissions datasets. Eight distinct datasets were utilized (

Table 1. List of datasets and sources used in the study.

Category	Datasets	Format	Time	Sources
Socioeconomic data	Point of interest	Vector (Point)	2014–2017	Baidu Map Services
	Road network	Vector (Polyline)	2014–2017	OpenStreetMap (https://download.geofabrik.de/asia/china.html, accessed on 16 March 2024)
	WorldPop	Raster (1 km)	2014–2017	WorldPop (https://hub.worldpop.org/project/categories?id=3, accessed on 15 March 2024)
	Nighttime light image	Raster (500 m)	2014–2017	Chen et al. [36]
	Impervious surface	Raster (30 m)	2014–2017	PENG CHENG LABORATORY, Gong et al. [37]
CO2 emissions data	County-level CO2 emissions	Table	2014–2017	Carbon Emission Accounts and Datasets (https://www.ceads.net/, accessed on 15 March 2024)
	MEIC-China-CO2 1.4	Raster (0.25°)	2014–2017	Multi-resolution Emission Inventory model for Climate and air pollution research (http://meicmodel.org.cn/#firstPage, accessed on 20 May 2024)
Basic geographic data	Administrative boundaries	Vector (Polygon)	2021	National Catalogue Service for Geographic Information (https://www.webmap.cn/commres.do?method=dataDownload, accessed on 16 March 2024)

). Limited by data availability, the analysis period spans 2014–2017. To ensure spatial consistency, all raster and vector data underwent preprocessing: reprojection to an Alberts Equal Area Conic projection and clipping to Hubei Province’s administrative boundaries.

2.2.1. Administrative Boundary and CO₂ Emissions Data

• Administrative boundary and county-level CO₂ emissions

County-level administrative boundaries for Hubei Province (comprising 103 counties) were sourced from the National Geographic Information Resources Catalogue Service System (NGIRCS), with dataset version updated to 2019. County-level CO₂ fossil fuel emissions data for 2014–2017 were obtained from the Carbon Emission Accounts and Datasets [38], covering 102 counties. Administrative inconsistencies between datasets arising from differing release years necessitated boundary harmonization. We reconciled the county-level administrative map to establish standardized spatial units for subsequent analysis.

• Multi-resolution emission inventory for China

MEIC, developed and maintained by Tsinghua University, integrates multi-source activity data to construct high-resolution anthropogenic emission inventories for China [13]. It provides 0.25° × 0.25° gridded emissions, utilizing dynamic downscaling technology to spatially allocate point (e.g., industrial facilities), line (transport networks), and area (e.g., residential fuel use) sources, thereby reducing spatial allocation uncertainties inherent in traditional inventories. This widely recognized dataset has been extensively adopted in global climate governance research and policy assessments [39].

2.2.2. Remote Sensing Datasets

• Nighttime light data

Although DMSP-OLS and NPP-VIIRS represent widely used nighttime light datasets, their application faces limitations in data quality and temporal coverage. This study utilized the NPP-VIIRS-like NTL data for Hubei Province [36]. This dataset integrates DMSP-OLS (2000–2012) and NPP-VIIRS monthly composites (2013–2018) through cross-sensor calibration, effectively mitigating the blooming effect while enhancing spatial resolution to 500 m and revealing fine-scale nocturnal light variations. To align with analytical consistency and preserve pixel integrity, we resampled the data to 1 km spatial resolution using the nearest-neighbor interpolation method, establishing the brightness of nighttime light (NTL) variable. This approach was chosen to maintain the original pixel values and ensure consistency in spatial heterogeneity with the source datasets.

• Population data

Population data at 1 km × 1 km grid resolution for Hubei Province (2014–2017) were obtained from the WorldPop project, serving as the population size (POP) variable. This dataset employs a Random Forest model incorporating multiple ancillary variables, including topography, climate, land cover, and transportation networks, to generate high-resolution gridded population density estimates, thereby accurately characterizing spatial population distribution patterns across Hubei Province [40].

• Artificial impervious surface data

Impervious surfaces, anthropogenic features like buildings, roads, and infrastructure that prevent water infiltration, serve as key indicators of human settlements. This study utilizes the long-term global impervious surface product (GAIA) developed by Gong et al. [37], which accurately captures spatiotemporal dynamics of land cover impermeability. To comprehensively represent CO₂ emission sources, 30 m resolution impervious surface blocks were aggregated into 1 km × 1 km grids, establishing the impervious surface block count (ISA) variable.

2.2.3. Road Network Data

In 2021, China’s transport sector emitted approximately 960 million tons of CO₂, accounting for 9.1% of national emissions, of which road transport contributed approximately 85% [41]. This study obtained road network data from OpenStreetMap, integrating motorways, primary roads, and secondary roads within Hubei Province. We derived the road length (RDL) spatial proxy to characterize CO₂ fossil fuel emissions from transportation, constructing a 2014–2017 road network database for the province.

2.2.4. Point of Interest Data

Facility categories and locations derived from POI data can effectively reflect the spatial distribution of industrial emissions. POI data were acquired via the Baidu Map API (https://map.baidu.com/, accessed on 20 March 2024). After cleaning and reclassification following the method of Zhang et al. [28], five POI categories were established for Hubei Province: residential, commercial, heavy industry, light industry, and agricultural. Kernel density refers to the density of an element in its surrounding domain. Kernel density estimation (KDE) was employed to analyze spatial concentration patterns of these POI types at 1 km × 1 km grid resolution [25]. This yielded five spatial proxy variables characterizing density distributions: residential kernel density (RKD), commercial kernel density (CKD), heavy industry kernel density (HKD), light industry kernel density (LKD), and agricultural kernel density (AKD).

2.2.5. Multicollinearity Assessment of Spatial Proxies

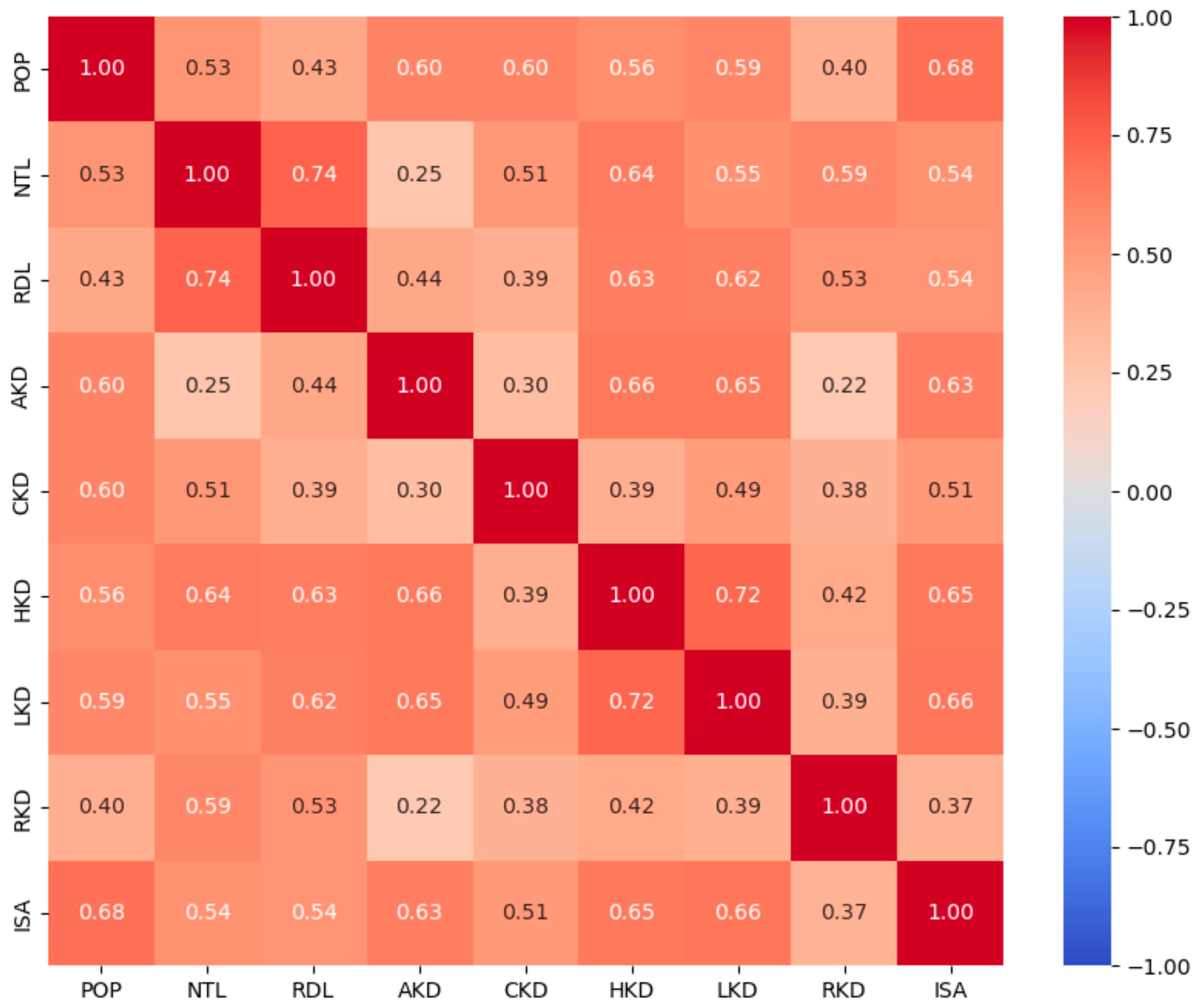

To assess potential multicollinearity among the nine spatial proxies, Pearson correlation coefficients and variance inflation factors (VIFs) were calculated. The correlation matrix revealed coefficients ranging from 0.22 to 0.74, with no correlation exceeding the |0.75| threshold (Figure A1). All VIF values ranged from 1.61 to 4.01, well below the critical threshold of 10 (

Table A1. Variance inflation factors (VIFs) of the spatial proxy.

Spatial Proxy	VIF
Population size	2.84
Brightness of nighttime light	4.01
Road length	2.92
Residential kernel density	1.61
Light industry kernel density	2.94
Heavy industry kernel density	3.39
Commercial kernel density	1.82
Agricultural kernel density	3.23
Impervious surface block count	2.65

). These results confirm the absence of severe multicollinearity among the features.

2.3. Methodology

2.3.1. Overall Work Framework

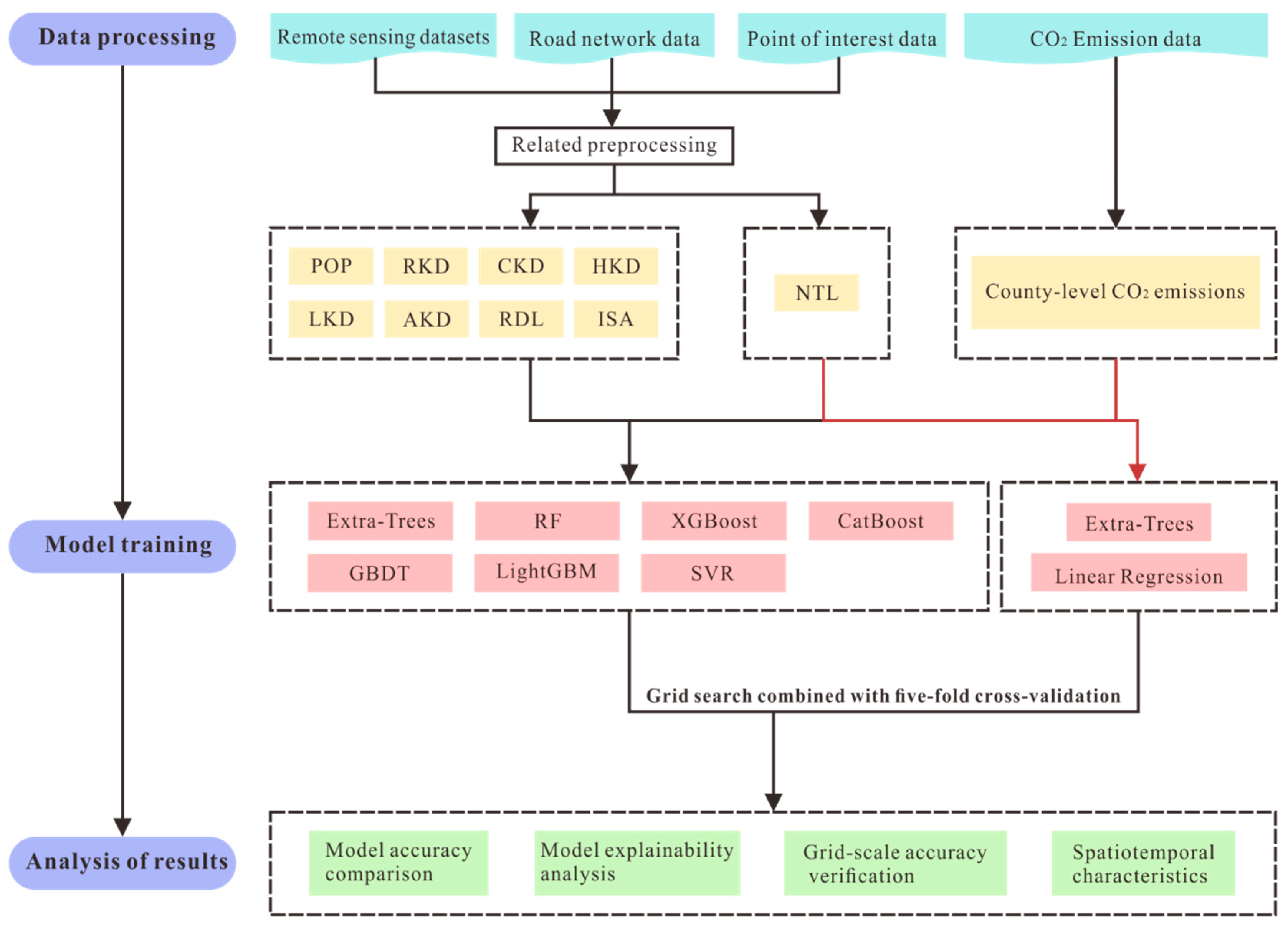

During the training phase, nine 1 km × 1 km raster layers corresponding to the spatial proxies were generated. Pixel values were aggregated to county-level sums, serving as model inputs. County-level CO₂ fossil fuel emissions were designated as the response variable. Six tree-based ensemble models (Extra-Trees, XGBoost, CatBoost, Gradient Boosting Decision Trees, Random Forest, and LightGBM) and Support Vector Regression (SVR) were trained using these nine proxies. For comparison, single proxy models employing only the brightness of nighttime light (NTL) variable were implemented; Extra-Trees and Linear Regression were fitted to predict county-level emissions.

To ensure model performance, several preprocessing and optimization steps were undertaken. Feature scaling disparities within the sample dataset may impair machine learning performance. We therefore normalized all nine independent variables using min-max scaling. The dataset was partitioned into training (80%) and testing (20%) sets. Hyperparameters, which are predetermined parameters that govern model behavior, were selected—those with critical influence on the performance of each algorithm. The search ranges for hyperparameters were determined based on officially recommended settings and preliminary experimental results, to ensure coverage of a reasonable and effective parameter space. Optimization was performed using five-fold Grid Search Cross-Validation (GSCV) [42]. This technique trains models on training data while evaluating performance through cross-validation, ultimately selecting optimal configurations [43]. Final model generalization was assessed on the test set.

During the prediction phase, the nine 1 km × 1 km raster layers served as inputs to the optimal-performance model, forecasting CO₂ distribution weights. These weights were used to disaggregate county-level CO₂ fossil fuel emissions into high-resolution grids, generating 1 km × 1 km emission maps for Hubei Province (2014–2017). The grid-scale validation assessed the plausibility of the spatial allocation of CO₂ emissions. Subsequently, a spatiotemporal trend analysis was performed on the emission patterns. The methodological workflow is illustrated in Figure 2.

2.3.2. Machine Learning Algorithms

Machine learning offers diverse regression algorithms, spanning linear models to complex neural networks. Based on prior studies [31,32,44], we selected several widely used algorithms classified into three categories: Tree-based ensembles, Support Vector Machines (represented by Support Vector Regression), and Linear Models (represented by Linear Regression).

• Tree-based ensembles algorithm

A decision tree employs a tree-structured model that recursively partitions sample data using feature thresholds, assigning output values to leaf nodes based on dataset characteristics [45]. Tree-based ensembles aggregate predictions from multiple decision trees to enhance overall performance and generalization. This ensemble approach improves prediction accuracy, robustness, and scalability, as well as accommodates diverse data relationships. Common implementations include bagging and boosting techniques.

Bagging (Bootstrap Aggregating) exemplifies parallel ensemble learning. This method constructs multiple base models through bootstrap sampling (random selection with replacement) from the original dataset, combining their predictions via averaging or majority voting [46]. Its primary objectives are variance reduction and enhanced prediction stability. This study employs Extra-Trees and Random Forest (RF) as representative bagging implementations. The Extra-Trees algorithm increases model diversity and mitigates overfitting through two key mechanisms: (1) selecting random feature subsets at each node and (2) implementing random splitting thresholds. Random Forest builds numerous decision trees using feature subsets, aggregating predictions by voting or averaging to improve accuracy and robustness.

Boosting represents a sequential ensemble learning method that iteratively enhances model performance by successively training of weak learners and adjusting sample weights based on prior classification errors [47]. This approach focuses on misclassified samples to reduce overall model bias. This study employs four representative boosting algorithms, which are as follows. (1) XGBoost: It builds trees iteratively with parallel processing and regularization, optimizing performance for large-scale and high-dimensional data. (2) CatBoost: The algorithm handles categorical features automatically and imputes missing values through ordered boosting and oblivious trees. (3) Gradient Boosting Decision Trees (GBDT): This method minimizes residuals via gradient descent and iteratively adjusts instance weights to capture complex non-linear relationships. (4) LightGBM: It accelerates training via leaf-wise growth and histogram binning while maintaining accuracy.

• Support Vector Regression

SVR extends Support Vector Machines to regression tasks. It employs kernel functions to model non-linear relationships in high-dimensional feature spaces [48]. The core objective identifies an optimal regression hyperplane minimizing structural risk, where this hyperplane maintains minimal deviation from training observations while satisfying a predefined ε-insensitive boundary. This mechanism thus effectively mitigates overfitting.

• Linear regression

As the simplest supervised learning approach in machine learning, linear regression assumes a linear relationship between the independent and dependent variable, represented by a fitted straight line or hyperplane. In this study, we constructed a linear regression model using the full dataset [49], expressed as:

$$Y=0.0024x$$

(1)

where $Y$ denotes the county-level CO₂ fossil fuel emissions and $x$ represents the total brightness of nighttime light for the same county. Model performance was evaluated via five-fold cross-validation [42].

2.3.3. Performance Metrics and Computational Cost

Accuracy assessment quantifies model predictive performance to guide model selection and optimization, making this an essential step in model development. This study employs two metrics widely adopted in CO₂ emission evaluation: the coefficient of determination (R²) and root-mean-square error (RMSE). R² measures regression fit quality, ranging from 0 to 1, where values approaching 1 indicate superior fit. RMSE quantifies prediction error magnitude, with lower values indicating higher accuracy. Given the study’s context, RMSE units are million tons of CO₂ (MtCO₂). These metrics are defined as:

$${\mathrm{R}}^2={\displaystyle \frac{{\sum }_{i=1}^n{\left(\widehat{y_i}-\overline{y}\right)}^2}{\sum _{i=1}^n{\left(y_i-\overline{y}\right)}^2}}$$

(2)

$$\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}=\sqrt{{\displaystyle \frac{1}{n}}\sum _{i=1}^n{\left(y_i-\widehat{y_i}\right)}^2}$$

(3)

where $y_i$ represents CO₂ fossil fuel emissions for county $i$ from the county-level emission inventory; $\widehat{y_i}$ is the estimated CO₂ fossil fuel emissions for county $i$; $\overline{y}$ denotes the mean CO₂ fossil fuel emissions across all $n$ counties; and $n$ is the total number of counties.

Beyond performance metrics, computational cost constitutes another essential consideration in model evaluation. Training time is defined as the duration required to complete a single training cycle on the full training set using the optimal hyperparameters. Inference time refers to the time taken to generate predictions over the entire test set. Together, these two metrics provide a comprehensive assessment of the model’s operational efficiency in practical applications.

2.3.4. Model Explainability Analysis

Machine learning models are often regarded as “black boxes” due to their complex and non-transparent internal relationships. To interpret model outcomes, this study employs two explainability techniques: permutation feature importance and partial dependence plots. The permutation feature importance method, which is a model-agnostic and non-parametric approach, quantifies feature importance without data distribution assumptions, offering wide applicability and interpretability [50]. Partial dependence plots visualize the marginal effects of individual spatial proxies on CO₂ fossil fuel emission estimates [51].

2.3.5. Spatial Correction of Gridded CO₂ Emissions

A systematic mismatch exists between county-level estimates of CO₂ fossil fuel emissions and corresponding emission inventory data. This discrepancy propagates to gridded emissions during spatial allocation, causing aggregated grid-cell values within a county to deviate from inventory records. To reconcile this, a spatial correction procedure was implemented based on proportional scaling [49]. The correction factor $U_i$ for county $i$ is defined as:

$$U_i=y_i/{\overline{y}}_i$$

(4)

where $y_i$ is the CO₂ emission for county $i$ from the county-level emission inventory, and ${\overline{y}}_i$ is the estimated CO₂ emission for the same county.

The corrected CO₂ emission $y_{i, k}$ for the $k^{\mathrm{t}\mathrm{h}}$ grid cell within county $i$ is then calculated by:

$$y_{i,k}={\overline{y}}_{i,k}\times U_i$$

(5)

where ${\overline{y}}_{i,k}$ is the original estimated CO₂ fossil fuel emissions in the $k^{\mathrm{t}\mathrm{h}}$ grid of county $i$. This scaling ensures that the sum of corrected gridded emissions within each county exactly matches the county-level emission inventory $\sum _k{y}_{i,k}=y_i$ while preserving the original spatial distribution patterns across grids.

2.3.6. Spatial and Temporal Characteristics of CO₂ Fossil Fuel Emissions

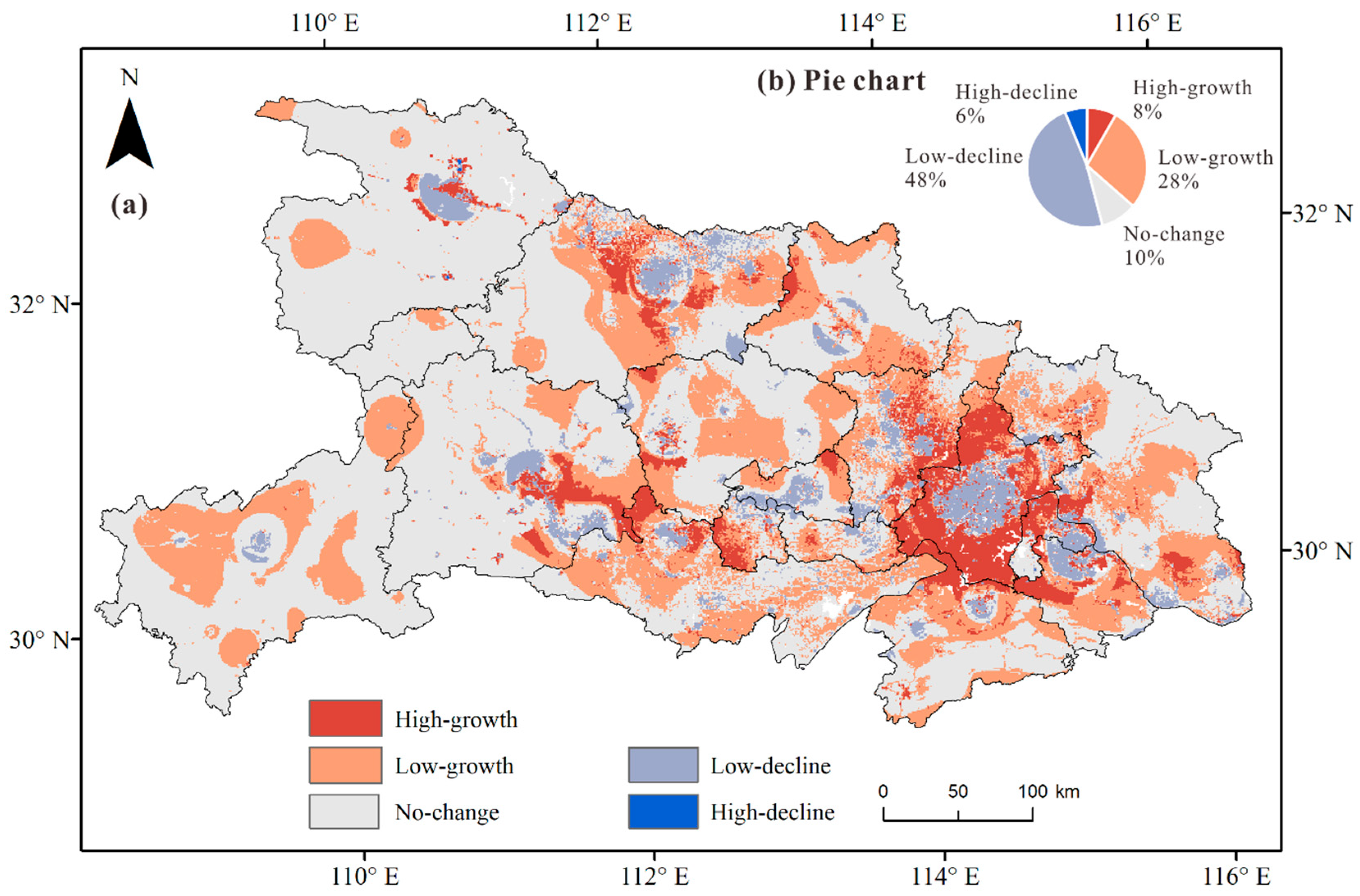

To quantify interannual trends in CO₂ fossil fuel emissions, this study calculated temporal change slopes for 2014–2017 using linear regression [52]. The slope coefficient ($S_{SLOPE}$) is computed as:

$$S_{SLOPE}={\displaystyle \frac{n\times \sum _{i=1}^n{x}_i{C}_i-\sum _{i=1}^n{x}_i\sum _{i=1}^n{C}_i}{n\times \sum _{i=1}^n{x}_i^2-(\sum _{i=1}^n{x}_i{)}^2}}$$

(6)

where $n=4$ represents the 2014–2017 period; $x_i$ is the ordinal number of the year $i$; $C_i$ is the CO₂ fossil fuel emissions for year $i$. A positive $S_{SLOPE}$ indicates increasing emissions, whereas a negative $S_{SLOPE}$ denotes decreasing emissions.

3. Results and Discussion

3.1. Model Performance and Implications

Based on the number of input variables, the models employed in this study were categorized into two groups. The first group comprises models utilizing multiple input variables, including Extra-Trees, CatBoost, XGBoost, GBDT, RF, LightGBM, and SVR. For clarity, these models are denoted by the prefix “MUL-” attached to their original names (e.g., MUL-Extra-Trees, MUL-CatBoost). The second group consists of models that utilize only brightness of nighttime light as the input variable, encompassing Extra-Trees and Linear Regression. Similarly, these models are prefixed with “NTL-” (e.g., NTL-Extra-Trees, NTL-Linear Regression).

Utilizing the normalized training dataset, model hyperparameters were optimized through grid search methodology, with each configuration undergoing multiple training iterations. Model accuracy was subsequently assessed via five-fold cross-validation, incorporating actual county-level CO₂ emissions data. This process culminated in the identification of nine optimal model configurations exhibiting the highest goodness-of-fit. The detailed hyperparameter search ranges and the optimal hyperparameter combinations are cataloged in Appendix A

Table A2. The hyperparameter search ranges and the optimal hyperparameter combinations of the models.

Input Parameter	Model Name	Hyperparameter	Search Range	Optimal Hyperparameters
Multiple spatial proxies	Extra Trees	max_depth: The maximum depth of the tree.	{1, 5, 10, 15, 20, 25, 30}	25
		max_features: The number of features to consider when looking for the best split.	{3, 4, 5, 6, 7, 8, 9}	9
		min_samples_leaf: The minimum number of samples required to be at a leaf node.	{1, 2, 3, 4}	1
		min_samples_split: The minimum number of samples required to split an internal node.	{1, 2, 3, 4}	2
		n_estimators: The number of trees in the forest.	{50, 100, 150, 200, 250}	100
	CatBoost	depth: Controlling the complexity of individual decision trees.	{1, 3, 5, 7, 9}	7
		learning_rate: Used for reducing the gradient step.	{0.01, 0.05, 0.1, 0.15, 0.2}	0.1
		n_estimators: The number of trees in the model.	{50, 100, 150, 200, 250, 300}	300
	XGBoost	learning_rate: Step size shrinkage used in update to prevent overfitting.	{0.01, 0.05, 0.1, 0.15, 0.2, 0.25}	0.15
		max_depth: Maximum depth of a tree.	{1, 2, 3, 4, 5}	2
		n_estimators: The number of trees in the model.	{50, 100, 150, 200, 250, 300, 350, 400, 450, 500}	450
	GBDT	learning_rate: Learning rate shrinks the contribution of each tree.	{0.01, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3}	0.15
		max_depth: Maximum depth of the individual regression estimators.	{1, 2, 3, 4, 5}	4
		n_estimators: The number of boosting stages to perform.	{50, 100, 150, 200, 250, 300, 350, 400}	350
	RF	max_depth: The maximum depth of the tree.	{1, 5, 10, 15, 20, 25, 30}	15
		max_features: The number of features to consider when looking for the best split.	{3, 4, 5, 6, 7, 8, 9}	4
		min_samples_leaf: The minimum number of samples required to be at a leaf node.	{1, 2, 3}	1
		min_samples_split: The minimum number of samples required to split an internal node.	{1, 2, 3, 4}	2
		n_estimators: The number of trees in the forest.	{50, 100, 150, 200, 250, 300}	30
	SVR	C: Regularization parameter.	{0.1, 1.0, 10, 100, 1000}	100
		gamma: Kernel coefficient for ‘rbf’, ‘poly’ and ‘sigmoid’.	{0.01, 0.1, 1.0, 10, 100}	1
		kernel: Specifies the kernel type to be used in the algorithm.	{‘linear’, ‘poly’, ‘rbf’}	rbf
	LightGBM	learning_rate: Boosting learning rate.	{0.01, 0.05, 0.07, 0.1, 0.13, 0.15}	0.07
		max_depth: Maximum tree depth for base learners.	{1, 3, 5, 7, 9}	5
		n_estimators: Number of boosted trees to fit.	{50, 100, 500, 700, 900, 1100, 1300}	1100
		num_leaves: Maximum tree leaves for base learners.	{1, 5, 10, 15, 20}	15
NTL	Extra Trees	max_depth: The maximum depth of the tree.	{1, 5, 10, 15, 20, 25, 30}	5
		min_samples_leaf: The minimum number of samples required to be at a leaf node.	{1, 2, 3, 4}	1
		min_samples_split: The minimum number of samples required to split an internal node.	{1, 2, 3, 4}	4
		n_estimators: The number of trees in the forest.	{50, 100, 150, 200, 250}	50

. The performance metrics and computational cost are summarized in

Table 2. The performance metrics of the five-fold cross-validation and test set and computational cost.

Input Parameter	Model Name	Five-Fold Cross-Validation Performance Metrics		Test Set Performance Metrics		Computational Cost
		R2	RMSE (MtCO2)	R2	RMSE (MtCO2)	Training Time (s)	Inference Time (s)
Multiple spatial proxies	MUL-Extra-Trees a	0.96	0.52	0.92	0.54	0.2780 ± 0.0252	0.0178 ± 0.0023
	MUL-CatBoost	0.96	0.57	0.91	0.58	0.4114 ± 0.1092	0.0026 ± 0.0017
	MUL-XGBoost	0.96	0.58	0.88	0.65	0.3634 ± 0.3054	0.0024 ± 0.0008
	MUL-GBDT	0.94	0.66	0.85	0.74	0.6890 ± 0.0150	0.0016 ± 0.0008
	MUL-RF	0.94	0.67	0.88	0.66	0.3616 ± 0.0194	0.0159 ± 0.0014
	MUL-SVR	0.94	0.70	0.85	0.73	0.0237 ± 0.0071	0.0030 ± 0.0011
	MUL-LightGBM	0.93	0.71	0.89	0.63	0.1786 ± 0.2038	0.0022 ± 0.0004
NTL	NTL-Extra-Trees	0.73	1.43	0.60	1.20	0.0084 ± 0.0148	0.0002 ± 0.0004
	NTL-Linear Regression b	0.41	2.06	N/A	N/A	N/A	N/A

^a The MUL-Extra-Trees model achieved optimal performance. ^b The NTL-Linear Regression model was trained using the entire dataset during five-fold cross-validation (no hold-out test set), as linear regression requires maximal data for coefficient stability. Metrics are only comparable in cross-validation results. Abbreviations: N/A, not available; MtCO₂, million tons of carbon dioxide. Notes: Training and inference times are reported as mean ± standard deviation based on 5 repeated runs. All experiments were conducted on a uniform hardware platform (Intel Core i5-8265U CPU @ 1.60 GHz, 8 GB RAM) to ensure comparability.

. The results demonstrate that the NTL-Extra-Trees model significantly outperformed the NTL-Linear Regression model (Table 2). This indicates a non-linear relationship between brightness of nighttime light and CO₂ fossil fuel emissions (consistent with N. Zhao et al. [53]). Furthermore, machine learning algorithms are better equipped to capture the underlying complex non-linear associations in this relationship. The MUL-Extra-Trees model consistently outperformed both the NTL-Extra-Trees and NTL-Linear Regression models (Table 2). This demonstrates that utilizing brightness of nighttime light as a sole spatial proxy for CO₂ fossil fuel emissions is insufficient, whereas integrating multiple spatial proxies effectively compensates for this limitation.

All seven machine learning models—MUL-Extra-Trees, MUL-CatBoost, MUL-XGBoost, MUL-GBDT, MUL-RF, MUL-LightGBM, and MUL-SVR—delivered consistently high-performance metrics (Table 2). This further validates that machine learning algorithms effectively harness complex non-linear associations between various spatial proxies and CO₂ fossil fuel emissions. Among the seven machine learning models, the six tree-based ensemble methods generally outperformed the support vector regression model (MUL-SVR; Table 2). This indicates that for estimating CO₂ fossil fuel emissions, tree-based ensembles may possess stronger capabilities for identifying complex non-linear relationships between multiple spatial proxies and emission patterns. Collectively, the MUL-Extra-Trees model demonstrated superior performance across both five-fold cross-validation and independent test phases compared to other models. Specifically, it achieved an R² of 0.96 with an RMSE of 0.52 MtCO₂ during cross-validation, and maintained high accuracy on the test set (R² = 0.92, RMSE = 0.54 MtCO₂).

In terms of computational efficiency (Table 2), the models exhibited varying training and inference times. The MUL-SVR model required the shortest training time (0.0237 ± 0.0071 s), while MUL-GBDT incurred the highest training time (0.6890 ± 0.0150 s). All models exhibited very short inference times (≤0.0178 s). Given the requirement for high-precision estimation, the MUL-Extra-Trees model achieved a favorable balance between comprehensive performance and computational efficiency. These results provide practical guidance for future large-scale emission modeling and algorithm selection.

3.2. Dominant Spatial Proxies and Mechanisms

To evaluate feature contributions to model outcomes, permutation feature importance analysis was used. Nine spatial proxy variables were examined: brightness of nighttime light (NTL), population size (POP), residential kernel density (RKD), commercial kernel density (CKD), heavy industry kernel density (HKD), light industry kernel density (LKD), agricultural kernel density (AKD), road length (RDL), and impervious surface block count (ISA).

Permutation feature importance assessments for the seven CO₂ emission estimation models reveal consistent patterns (

Table 3. Permutation feature importance (%) of spatial proxy variables across seven machine learning models.

Variable	MUL-Extra-Trees	MUL-CatBoost	MUL-XGBoost	MUL-GBDT	MUL-RF	MUL-SVR	MUL-LightGBM
NTL	40.70	30.38	34.25	27.96	31.13	38.85	25.63
HKD	21.11	18.99	30.00	31.81	27.70	17.89	42.60
ISA	16.92	11.59	7.33	9.10	18.44	3.98	9.57
POP	8.46	9.79	13.11	12.04	5.64	11.41	8.97
RDL	8.14	11.76	7.87	15.59	10.89	13.40	6.86
LKD	1.81	3.93	1.34	0.79	1.62	3.07	2.11
AKD	1.26	4.02	3.77	1.40	1.13	6.81	1.66
RKD	1.14	6.38	1.22	0.86	2.73	0.93	1.86
CKD	0.46	3.17	1.11	0.46	0.73	3.66	0.74

NTL: brightness of nighttime light; HKD: heavy industry kernel density; ISA: impervious surface block count; POP: population size; RDL: road length; LKD: light industry kernel density; AKD: agricultural kernel density; RKD: residential kernel density; CKD: commercial kernel density. Dominant proxies: NTL ranked first in 5/7 models, and HKD ranked first in MUL-GBDT and MUL-LightGBM. Cumulative importance of top two proxies (NTL + HKD) exceeded 55% in 6 of 7 models. The exception was MUL-CatBoost (49.37%).

). Across all tree-based ensembles and support vector regression, brightness of nighttime light (NTL) and heavy industry kernel density (HKD) consistently emerged as the dominant spatial proxies (NTL ranked first in 5/7 models, HKD ranked first in 2/7 models; Table 3). Cumulative importance of top two proxies (NTL + HKD) exceeded 55% in 6 of 7 models, indicating their dominant role in capturing fundamental emission patterns and spatial heterogeneity across diverse non-linear frameworks.

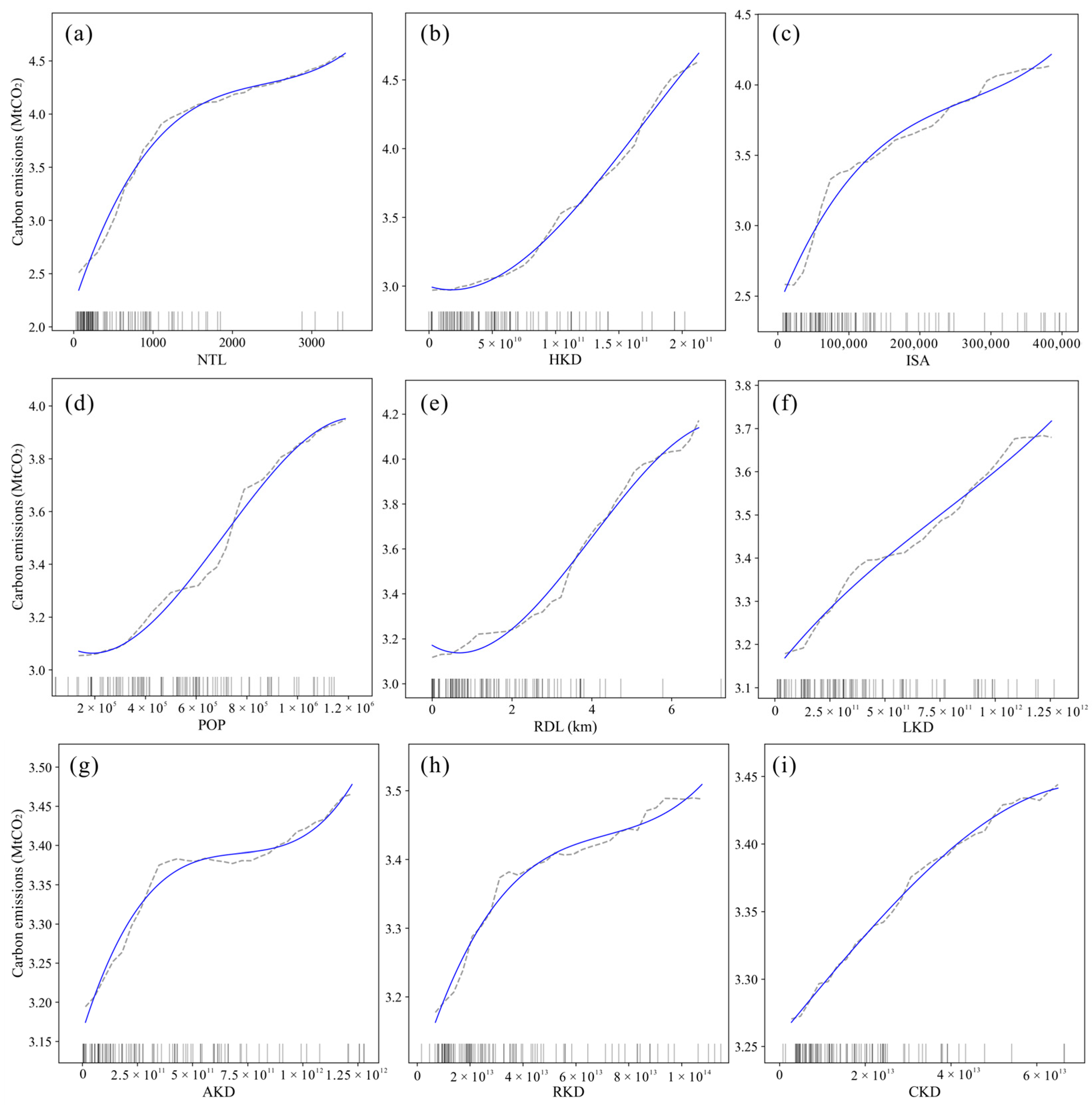

To further investigate the individual contributions of spatial proxies, the highest-performing MUL-Extra-Trees model was selected for partial dependence plots (Figure 3). These plots visualize complex non-linear relationships between each proxy and CO₂ fossil fuel emissions. CO₂ fossil fuel emissions predominantly originate from fossil fuel combustion and human activities. Consequently, they are concentrated in industrial zones and populated areas, with emission levels strongly correlated to anthropogenic intensity [31,32,54]. Figure 3a–i presents the CO₂ fossil fuel emissions with elevated values of each spatial proxy variable in MUL-Extra-Trees model.

3.3. Grid-Scale Spatial Accuracy and Error Sources

3.3.1. Inter-Model Comparison and Validation

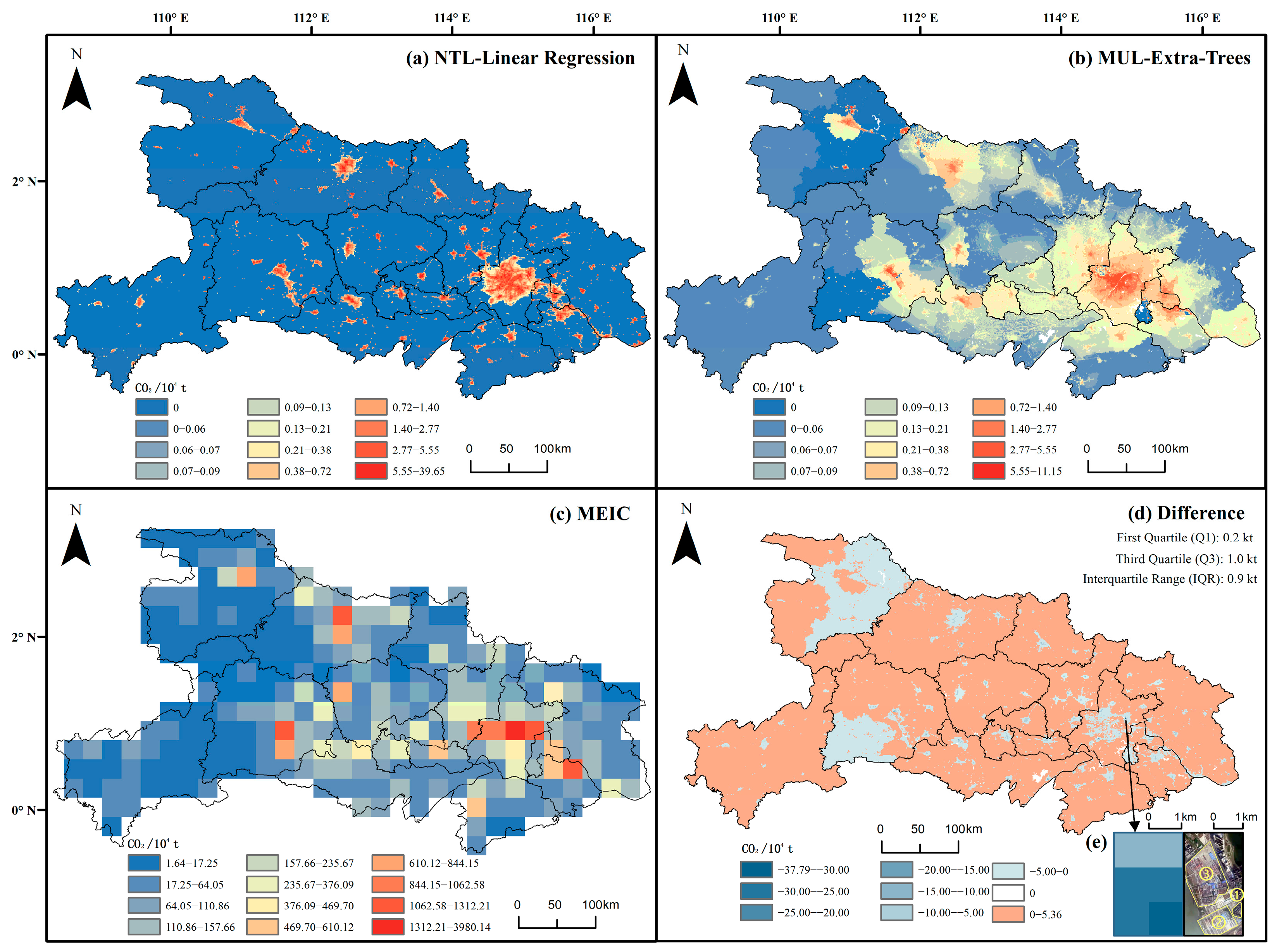

Utilizing both the conventional single spatial proxy linear regression model (NTL-Linear Regression) and the optimal multiple spatial proxies Extra-Trees model (MUL-Extra-Trees), county-level CO₂ fossil fuel emissions data for Hubei Province (2017) were spatially downscaled to a 1 km × 1 km grid. This process incorporated spatial correction to generate a high-resolution (1 km) CO₂ fossil fuel emissions distribution map for Hubei Province in 2017.

To evaluate the similarity in spatial distribution patterns between the NTL-Linear Regression and MUL-Extra-Trees outputs, the Spatial Correlation Coefficient (SCC) was employed [8]. The SCC of 0.59 indicated a strong agreement in their spatial distributions (p < 0.01; Figure 4a,b). However, the two models exhibit significant differences in their capacity to identify potential emission sources corresponding to the spatial locations of residential and heavy industry POIs. The MUL-Extra-Trees model incorporated the kernel density of residential and heavy industry POIs as one of its input features. In contrast, the NTL-Linear Regression model relied on nighttime light data. Consequently, the MUL-Extra-Trees model demonstrates exceptional precision in identifying these two POI types. Throughout the study period, the omission rate for heavy industry point sources remained at 0.00% annually. For residential point sources, omission rates were consistently low at 0.52% (2014), 0.49% (2015), 0.51% (2016), and 0.51% (2017), yielding an average omission rate of 0.51%. In contrast, the NTL-Linear Regression model exhibited substantially higher omission rates for these POI types. For heavy industry point sources, annual omission rates were 34.26% (2014), 37.53% (2015), 35.85% (2016), and 29.92% (2017), yielding a four-year average of 34.39%; residential point sources showed omission rates of 27.17% (2014), 27.30% (2015), 27.33% (2016), and 23.21% (2017), with a corresponding average of 26.25% (

Table 4. Annual omission rates (%) for heavy industry and residential POI categories by model type in Hubei Province, 2014–2017.

Model Type	POI Category	2014	2015	2016	2017
NTL-Linear Regression	Heavy industry	34.26	37.53	35.85	29.92
	Residential	27.17	27.30	27.33	23.21
MUL-Extra-Trees	Heavy industry	0.00	0.00	0.00	0.00
	Residential	0.52	0.49	0.51	0.51

POI omission rate = (Number of omitted POIs/Total POIs for category) × 100%, where POIs are Points of Interest. Heavy industry and residential POI categories were calculated separately.

).

Notably, the estimated range of CO₂ fossil fuel emissions generated by the NTL-Linear Regression model (0–396.0 kilotons of CO₂ [ktCO₂]) substantially exceeds that of the MUL-Extra-Trees model (0–111.500 ktCO₂), with a ratio of maximum values being 3.55:1. This phenomenon likely originates from the NTL-Linear Regression model’s reliance on nighttime light data. In suburban industrial zones and small rural residential settlements, illumination levels frequently fall below sensor detection thresholds. Consequently, CO₂ emissions from these undetected sources are erroneously reallocated to high-intensity urban light areas. This spatial misassignment generates an artificial aggregation pattern, thereby inflating the maximum grid-level emission value to 396.0 ktCO₂.

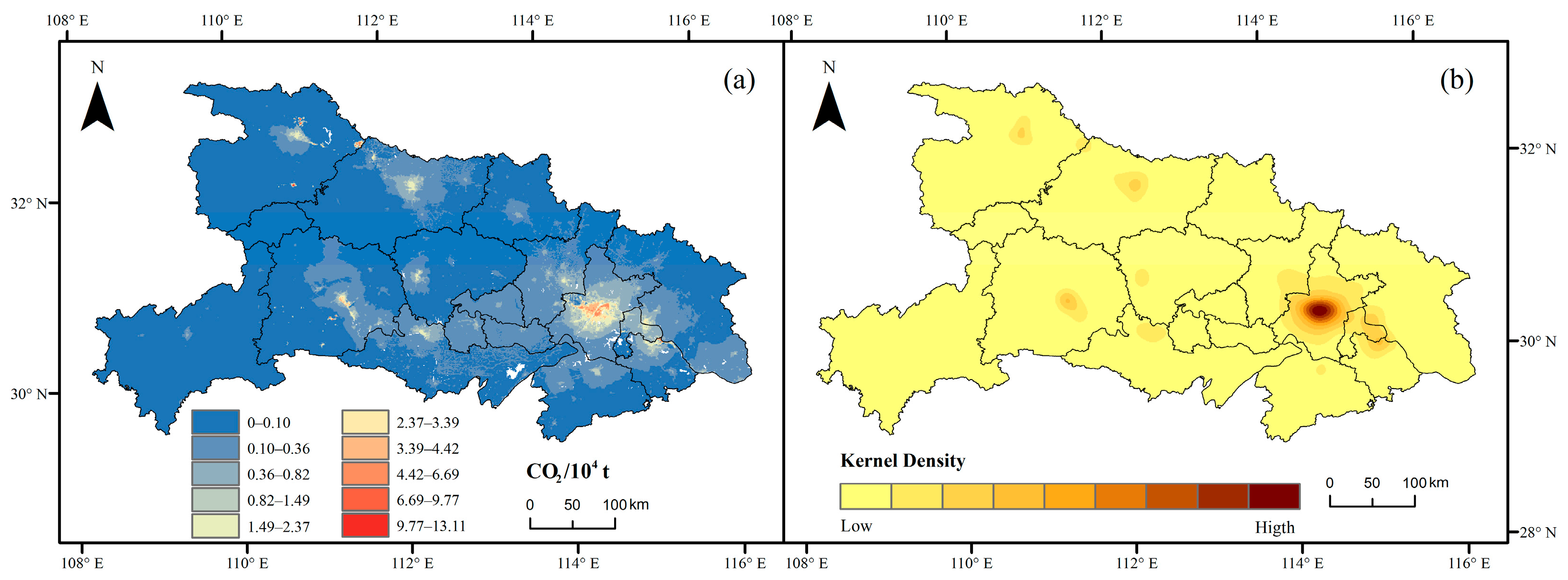

The spatial distribution of CO₂ fossil fuel emissions in Hubei Province (2017) from MEIC is presented in Figure 4c. To quantify the divergence between MUL-Extra-Trees and NTL-Linear Regression model outputs, CO₂ fossil fuel emissions at 1 km resolution were aggregated to 0.25° grids. These estimates were compared against MEIC using two metrics: the Sum of Absolute Differences (SAD) and the Spatial Correlation Coefficient (SCC) [8]. The SAD was employed to quantify deviations between model outputs and reference data (MEIC), operating on the principle of summing absolute differences between corresponding grid cells. Complementarily, magnitude-independent spatial correlation analysis was applied to assess spatial similarity in regional emission patterns. As shown in

Table 5. Comparison of NTL-Linear Regression and MUL-Extra-Trees models against MEIC in Hubei Province (2014–2017).

Model Type	Metric	2014	2015	2016	2017
NTL-Linear Regression	SAD (MtCO2)	2.10	2.05	2.04	2.04
	SCC	0.79	0.79	0.78	0.80
MUL-Extra-Trees	SAD (MtCO2)	2.10	2.04	1.99	2.06
	SCC	0.82	0.82	0.83	0.84

All spatial correlation coefficients were statistically significant (p < 0.01). Abbreviations: SAD, sum of absolute differences; SCC, spatial correlation coefficient; MtCO₂, million tons of carbon dioxide.

(Hubei Province, 2014–2017), SAD values between models differ by less than 0.5% (ΔSAD), indicating comparable total emissions. However, the MUL-Extra-Trees model consistently exhibits higher SCC values (0.82–0.84) than the NTL-Linear Regression model (0.78–0.80), demonstrating its greater similarity in spatial distribution patterns to MEIC.

Furthermore, a difference map between was generated at 1 km grid scale by subtracting NTL-Linear Regression results from MUL-Extra-Trees outputs, showing their spatial discrepancies (Figure 4d). Overall, regions where MUL-Extra-Trees estimates exceeded those of NTL-Linear Regression were predominantly located in suburban areas of counties with low-intensity nighttime light. Conversely, areas with lower MUL-Extra-Trees estimates were concentrated in urban cores exhibiting high-intensity nighttime light. At 1 km grid scale, differences between two model estimates predominantly ranged from 0.2 to 1.0 ktCO₂. This urban-suburban divergence is consistent with findings of Gurney et al. [12], who demonstrated that satellite-driven emission inventories (e.g., ODIAC, which utilizes nighttime lights data) systematically overestimate emissions in urban cores whereas underestimate the contributions from suburban and rural areas. Consequently, models relying solely on nighttime lights as a proxy (e.g., NTL-Linear Regression) tend to overestimate emissions in high-brightness urban areas while underestimating emissions in dimly lit or unlit regions, such as suburban areas.

In Figure 4e, three areas near Pingjiang Avenue in Xinzhou District, Wuhan (marked with yellow circles) exhibit significantly lower CO₂ fossil fuel emission estimates from the MUL-Extra-Trees model compared with NTL-Linear Regression outputs. The emission discrepancy in the range of −377.9 to −300.0 ktCO₂ emissions is primarily concentrated at two locations: Yangluo passenger station and residential area (①), and Yangluo Port (②). The grid cell containing Wuhan International Container Transport Co., Ltd., Wuhan, China. (③) predominantly displayed differences of −300.0 to −250.0 ktCO₂. These transportation hubs, residential areas, and container transshipment centers exhibit exceptionally high brightness of nighttime light. Consequently, the NTL-Linear Regression model overestimates CO₂ fossil fuel emissions at these sites based on nighttime light intensity. In contrast, the MUL-Extra-Trees model integrates multiple spatial proxies, resulting in reduced emission allocations for these areas.

3.3.2. Case Study Analysis of Spatial Error Mechanisms

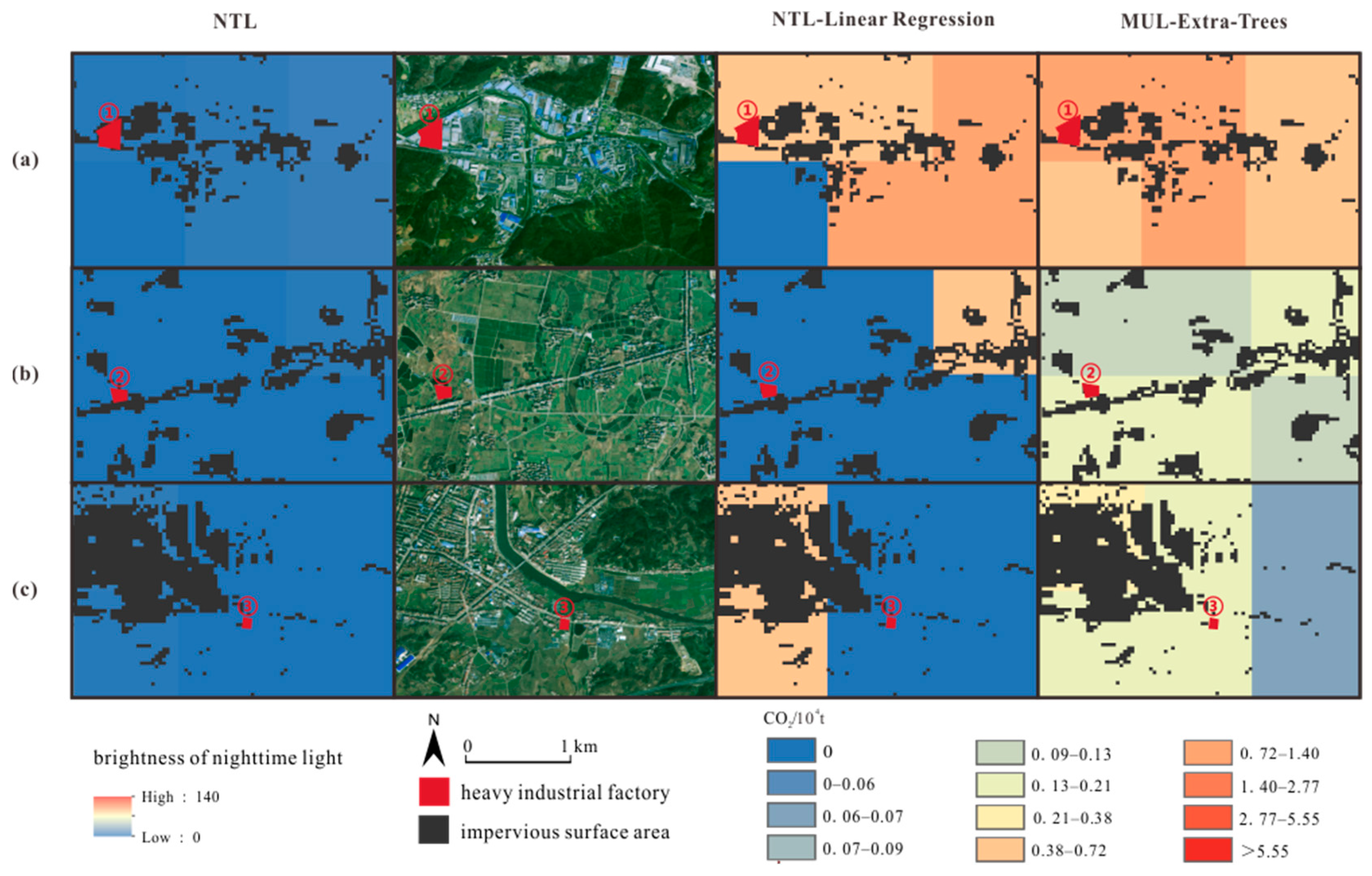

To further investigate discrepancies in the spatial distribution of CO₂ fossil fuel emissions between the MUL-Extra-Trees and NTL-Linear Regression models, three representative areas were selected based on urbanization gradients: (1) Xicheng Development Zone, Zhangwan District, Shiyan City (Figure 5a), representing industrialized urban development; (2) Yanjiahe Town, Macheng City, Huanggang City (Figure 5b), exemplifying remote rural landscapes; and (3) Hongshan Town, Suixian County, Suizhou City (Figure 5c), characterizing urban-rural transition interfaces.

Cement kilns require continuous 24 h operation [55]; however, their enclosed production processes and remote siting result in minimal nighttime light emissions. In Figure 5a, location ① (Gaoqiang Cement Plant, Shiyan, China) exhibits higher CO₂ fossil fuel emissions allocated by the MUL-Extra-Trees model compared to the NTL-Linear Regression model within its grid cell. Locations ② (Jiacheng Cement Products Factory, Macheng, China) in Figure 5b and ③ (Suizhou Culvert U-shaped Trough Mingwang Cement Products General Factory, Suizhou, China) in Figure 5c show zero nighttime light values. Consequently, the NTL-Linear Regression model allocated no emissions to these grids, whereas the MUL-Extra-Trees model, incorporating multiple spatial proxies, assigned higher CO₂ emissions to both cement production facilities.

Furthermore, in Figure 5a–c, black areas denote impervious surfaces. Particularly in Figure 5b, which depicts a remote rural area, these impervious surfaces delineate the distribution of rural residential settlements. Where impervious surfaces exist with zero nighttime light values and an absence of heavy industrial facilities, the NTL-Linear Regression model allocated no CO₂ fossil fuel emissions to these grids. This approach overlooks the potential emissions associated with non-industrial, low-light human activities prevalent in rural residential areas. In contrast, the MUL-Extra-Trees model integrates multiple spatial proxies. Crucially, it mainly leverages the positive correlation between CO₂ emissions and impervious surface block counts within each grid cell (Figure 3c). Therefore, in areas such as the rural settlements lacking nighttime light signals and heavy industry, the MUL-Extra-Trees model can still assign emissions mainly based on the presence of these impervious surface block counts.

3.4. Spatial and Temporal Characteristics of CO₂ Fossil Fuel Emissions

As illustrated in Figure 6a, CO₂ fossil fuel emissions in Hubei Province exhibit distinct spatial agglomeration patterns, forming a multi-nodal distribution centered on Wuhan. The primary emission hotspot is concentrated in the Wuhan core, whereas secondary emission clusters are dispersed across other county-level urban centers (Figure 6b).

Temporally, we examined changes in municipal-level CO₂ fossil fuel emissions across three dimensions, which are total emissions, emission density (tons per km²), and emission intensity (including per capita emissions and emissions per unit of 100 million Yuan gross domestic product [GDP]) in Hubei Province from 2014 to 2017 (Figure 7). Total CO₂ fossil fuel emissions increased slightly by 1%, and emission density (tons per km²) rose by 2%, likely linked to urban expansion. Concurrently, per capita emissions decreased by 4%, and emissions per unit GDP exhibited a significant reduction of 26% (Figure 7). Detailed municipal data are presented in

Table 6. Municipal-level changes in socioeconomic and emission indicators (2014–2017).

Name	ΔPopulation (%)	ΔGDP (%)	ΔCO2 Fossil Fuel Emissions (%)	ΔPer Capita Emissions (%)	ΔPer Unit GDP Emissions (%)
Wuhan	5.37	33.18	1.35	−3.81	−23.90
Huangshi	0.87	21.41	0.65	−0.22	−17.10
Shiyan	1.34	35.93	−8.69	−9.90	−32.83
Yichang	0.76	23.15	−5.05	−5.77	−22.90
Xiangyang	0.96	29.90	−6.97	−7.85	−28.38
Ezhou	1.71	31.94	1.42	−0.28	−23.13
Jingmen	0.43	26.98	−5.49	−5.89	−25.57
Xiaogan	1.10	28.60	−2.55	−3.62	−24.23
Jingzhou	−1.78	29.83	−3.53	−1.78	−25.70
Huanggang	1.25	30.10	−3.58	−4.77	−25.89
Xianning	1.84	28.06	1.48	−0.36	−20.76
Suizhou	1.22	29.34	−8.14	−9.25	−28.98
Enshi	1.31	30.92	−9.27	−10.44	−30.70
Xiantao	−2.14	30.13	−6.42	−4.37	−28.09
Qianjiang	1.11	24.37	0.96	−0.15	−18.82
Tianmen	−0.63	31.45	−7.32	−6.74	−29.50
Shennongjia	0.13	26.04	−11.89	−12.00	−30.09

Provincial average growth rates (2014–2017): population = 1.5%, GDP = 34%. Data sources: Hubei Statistical Yearbook 2015 [56] and Hubei Statistical Yearbook 2018 [57].

. During the 2014–2017 period, Hubei Province experienced modest population growth (1.5%) alongside substantial GDP expansion (34%) (Table 6), suggesting a potential partial transition toward lower-carbon economic restructuring. Furthermore, from 2014 to 2017, CO₂ fossil fuel emissions decreased across 54% of Hubei Province’s areas, increased in 36% of regions, and remained stable in the remaining 10% (Figure 8a,b).

The fine-scale spatiotemporal patterns revealed above provide valuable insights for supporting climate policy formulation, particularly in optimizing carbon quota allocation and decarbonization pathways for Hubei Province. The significant spatial clustering of emissions (Figure 6a,b)—evident in the presence of primary and secondary hotspot clusters—suggests that carbon quota distribution could be optimized based on emission density and efficiency within jurisdictions. This approach moves beyond traditional city-level aggregate data toward a more equitable and spatially refined allocation mechanism. Furthermore, identifying regions with pronounced emission growth trends (Figure 8a) enables the implementation of forward-looking, targeted mitigation measures, such as promoting clean energy in specific industrial zones. Such precise interventions can optimize the province’s carbon neutrality pathway. This high-resolution perspective is essential for translating macro-level climate goals into locally actionable strategies.

3.5. Limitations and Future Work

Although this study demonstrates the effectiveness of the MUL-Extra-Trees model in estimating the spatial distribution of CO₂ fossil fuel emissions, several limitations warrant consideration. First, this study selected nine spatial proxies for CO₂ fossil fuel emission estimation. However, additional variables, such as the Normalized Difference Vegetation Index (NDVI), vehicle classification, building footprints, and GDP, could serve as viable spatial proxies [12,32,58]. Nevertheless, data availability constraints and feature engineering considerations precluded their incorporation.

Second, although the MUL-Extra-Trees model demonstrates good performance in spatial allocation accuracy of CO₂ fossil fuel emissions, inherent limitations in POI data constrain its practical applications. Heavy industrial POI data effectively identifies plant locations, including small-scale facilities; however, it fails to differentiate production scales. Future research should integrate remote sensing data to extract plant-scale information. POI datasets, typically generated since 2010, exhibit limited availability in numerous countries. This scarcity constrains the model’s temporal applicability and geographical generalizability.

Third, the model trained in this study at the county level was directly applied to 1 km grids. Although this downscaling process helps to obtain high-resolution emission estimates, it can introduce scale effects, particularly the modifiable areal unit problem (MAUP). The MAUP implies that statistical relationships established at the county scale may break down at the grid scale due to aggregation bias and the neglect of spatial heterogeneity within counties. The present approach assumes scale invariance in the relationship between spatial proxies and CO₂ fossil fuel emissions—a necessary yet oversimplified assumption. Although the model demonstrates robust performance at the county level, the scale transfer may lead to biases in grid-level estimates, the magnitude of which remains unquantified. Future research should focus on calibrating and validating the downscaling process through multi-scale modeling or the incorporation of finer-grained data (e.g., point-source emissions) to systematically mitigate scale effects.

Finally, though the machine learning model employed in this study builds upon previous results of related research, individual models inherently possess limited capacity for comprehending variable features. A pragmatic approach is to retain the predictive outputs from all high-performing individual models and integrate them collectively within an ensemble framework.

4. Conclusions

This study aimed to overcome key limitations in the top–down estimation of high-resolution CO₂ fossil fuel emissions. Specifically, it addresses two critical issues: (1) the inability of conventional linear regression models to capture complex non-linear relationships between emissions and spatial proxies; (2) the frequent inadequacy of nighttime light data in representing emissions in both industrial zones and rural areas. To overcome these challenges, the study integrated nighttime light, POIs, and road network data to develop nine spatial proxies. Seven machine learning algorithms were subsequently implemented: six tree-based ensembles (namely Extra-Trees, CatBoost, XGBoost, Gradient Boosting Decision Trees, Random Forest, and LightGBM) and SVR. This process established estimation models for CO₂ fossil fuel emissions across Hubei Province, incorporating the multiple spatial proxies. Validation confirmed that the Extra-Trees model with multiple spatial proxies (MUL-Extra-Trees) delivered optimal performance. Interpretability analysis and grid-scale validation were subsequently conducted. Finally, we analyzed spatiotemporal patterns of CO₂ fossil fuel emissions across Hubei Province during the 2014–2017 period.

The multiple proxies machine learning approach substantially outperformed the single proxy NTL-Linear Regression model in estimation accuracy. The MUL-Extra-Trees model achieved exceptional performance, with R² = 0.96 (RMSE = 0.52 MtCO₂) under five-fold cross-validation and R² = 0.92 (RMSE = 0.54 MtCO₂) on the independent test set. Interpretability analysis revealed that the brightness of nighttime light and heavy industry kernel density demonstrated high importance in constructing the CO₂ fossil fuel emissions estimation model. Furthermore, the MUL-Extra-Trees model developed in this study demonstrated enhanced spatial alignment with human activity patterns (as represented by POI data), particularly refined spatial allocation patterns of CO₂ fossil fuel emissions in industrial areas and rural settlements with low or zero nighttime lighting. The spatial correlation with MEIC reached 0.82–0.84, indicating high consistency with ground-truth emission patterns. CO₂ fossil fuel emissions in Hubei Province exhibited multinodal spatial pattern centered on Wuhan. Moreover, during the 2014–2017 period, municipal CO₂ emission intensity per unit GDP decreased by 26% while GDP grew by 34%, with 64% of regions exhibiting stable or declining emissions, suggesting potential progress in low-carbon economic transition.

This study confirms that the MUL-Extra-Trees model effectively captures non-linear relationships between multiple spatial proxies and CO₂ fossil fuel emissions while demonstrating high accuracy in spatial distribution estimation. This validation study, conducted in Hubei Province as a pilot region, demonstrates that the multiple spatial proxies machine learning framework represents a viable approach for spatial estimation of CO₂ fossil fuel emissions. Moreover, the high-resolution emission maps generated by the proposed framework provide critical scientific support for advancing regional sustainable development. By enabling the accurate monitoring and attribution of CO₂ fossil fuel emissions, the findings can directly guide evidence-based policy-making aimed at balancing economic growth with environmental protection. The capability to precisely identify emission hotspots and trends is essential for optimizing carbon quota allocation, guiding low-carbon transitions in key sectors, and ultimately steering regional development toward a more sustainable and resilient pathway. Future research should extend this methodology to broader regions to further verify its generalization capacity.
