Carbon and Water Footprint Assessment of a Pea Snack

by
Josemi G. Penalver
1,2,
Maria Jose Beriain
1,2,
Paloma Vírseda
1,2 and
Maite M. Aldaya
1,3,*
1
Institute for Sustainability & Food Chain Innovation (IS-FOOD), Public University of Navarra (UPNA), Jerónimo de Ayanz Building, Arrosadia Campus, 31006 Pamplona, Spain
2
Agronomy, Biotechnology and Food Department, Public University of Navarra (UPNA), Arrosadia Campus, 31006 Pamplona, Spain
3
Science Department, Public University of Navarra (UPNA), Arrosadia Campus, 31006 Pamplona, Spain
*
Author to whom correspondence should be addressed.
Sustainability 2025, 17(13), 5913; https://doi.org/10.3390/su17135913
Submission received: 19 May 2025 / Revised: 18 June 2025 / Accepted: 25 June 2025 / Published: 26 June 2025

Abstract

The agri-food sector in Navarra, Spain, is exploring alternative protein sources like pea protein due to concerns regarding the environmental impacts and allergenic properties of traditional options like soy. This study aimed to evaluate a pea-based snack using carbon footprint and water footprint methodologies to assess the environmental performance of pea extrusion. The carbon footprint of the pea snacks was found to be 0.12 kg of CO2e per 100 g of packaged product. The water footprint was 174 L per 100 g of packaged product, with the blue water footprint accounting for the largest share (52%), followed by green (47%) and grey (1%) water footprints. Strategies such as minimizing ingredient loss and switching to renewable electricity could potentially reduce greenhouse gas emissions by 17% and green water consumption by 3%. Regarding alternative protein matrices, pea extrusion utilized 225 L of water per 150 g of extrudate, primarily as green water, demonstrating a lower dependence on blue and grey water compared to soy-based alternatives, suggesting its suitability for blue water-scarce regions. The carbon and water footprint assessments highlight the potential of pea protein as a regionally suitable, low-impact alternative to soy in terms of both carbon and water use.

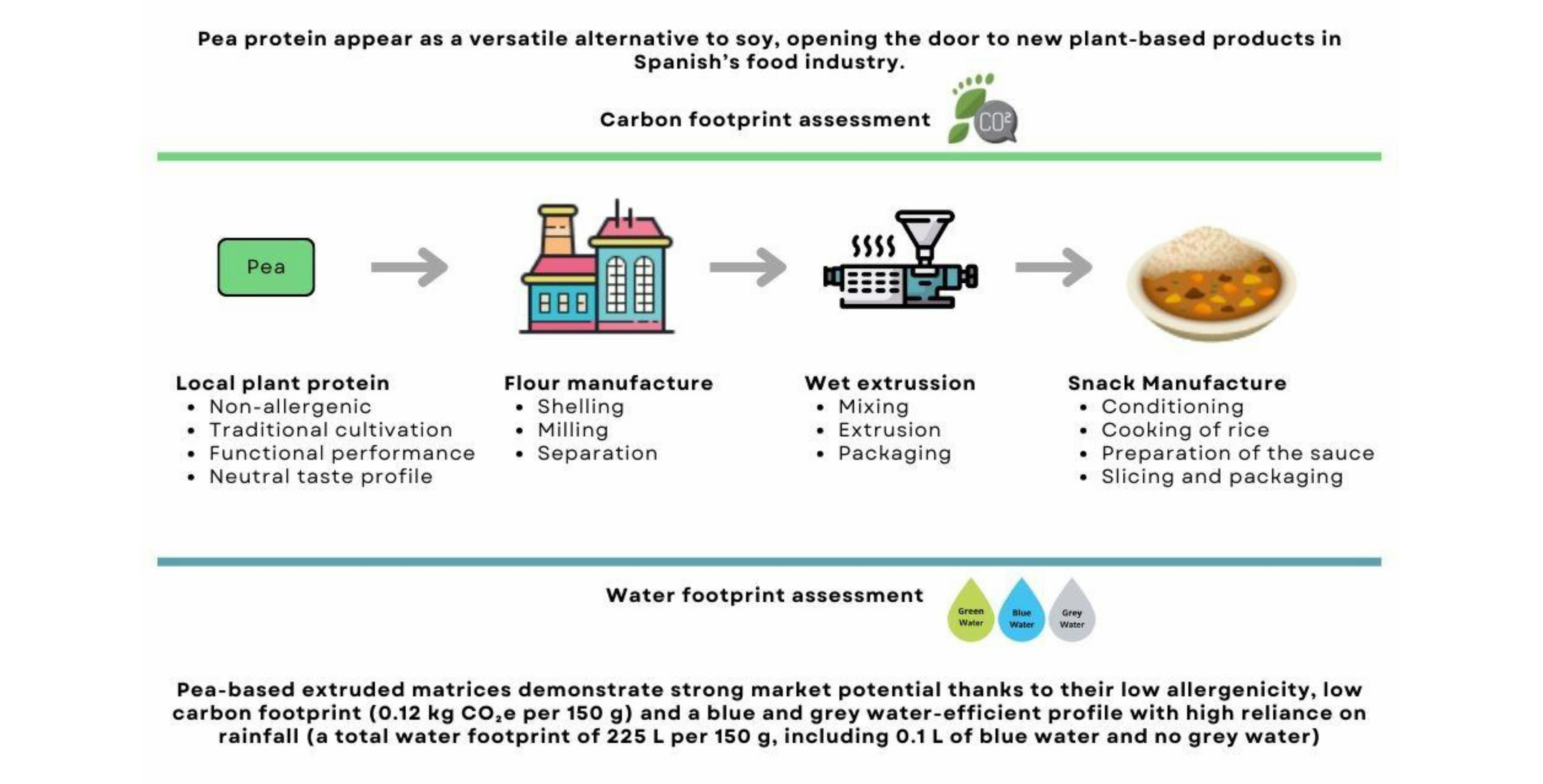

Graphical Abstract

1. Introduction

The growing need to transition toward more sustainable and health-conscious food systems has placed increasing pressure on the agri-food sector to develop innovative solutions. In this context, the agri-food industry in Navarra, Spain, plays a strategic role due to its economic relevance and potential to lead sustainable transformation [1]. In the Chartered Community of Navarra, water is predominantly allocated to agriculture (51%), followed by the livestock sector (21%) and industry (16%). Smaller amounts go toward forestry (10%), human consumption (2%), and tourism (less than 1%) [2]. This heavy reliance on water resources places immense pressure on local ecosystems, especially as global demand for food continues to rise. Moreover, food production systems worldwide are responsible for approximately 30% of anthropogenic greenhouse gas emissions, with animal protein production identified as one of the most environmentally impactful activities [3]. This has prompted research into innovative approaches, such as the application of circular economy principles to the agri-food sector. These principles aim to minimize resource waste while developing high-value food ingredients and products [4]. One area of particular interest is the development of plant-based products that minimize environmental impacts while meeting evolving consumer expectations.
Soy has traditionally been a key protein source in plant-based food formulations due to its high protein content, favourable amino acid profile, and functional versatility [5]. However, despite these advantages, soy production is associated with several environmental concerns, including deforestation, particularly in the Amazon, loss of biodiversity, and increased greenhouse gas emissions [6]. Furthermore, soy is one of the most common food allergens [7], limiting its use for sensitive populations. In Navarra, soy-based vegan products have been previously developed [8,9], yet alternative proteins are gaining attention. Pea protein, in particular, has emerged as a promising alternative. Its cultivation is well-established in the region of Navarra, and it offers several advantages, including a neutral taste profile [10], the absence of major allergens [11], and desirable functional properties [12]. Focusing on Navarra’s crop production, this study examines the opportunities for local crops, such as peas, to reduce environmental impacts while fostering regional resilience and supporting traditional agriculture. Local protein sources will be compared to facilitate decisions on which crop should be backed and how its effective development can be ensured.
Despite increasing interest in sustainable food innovation, there is still a lack of data on the environmental performance of alternative pea-based protein products. To ensure that new developments align with sustainability goals, robust environmental assessments are essential, particularly in identifying the life cycle stages with the highest environmental burden. This study aims to contribute to the sustainability of the agri-food production system in Navarra by evaluating a pea-based product prototype, specifically, a pea-based snack with rice and curry sauce, developed under the ALISSEC project. This project, led by the Agrifood Cluster of Navarra (NAGRIFOOD), was part of the ALPES IV challenge (“Personalized and Sustainable Food”) under the S3 Strategy, funded by the Government of Navarra during the 2021–2024 period.
The environmental assessment focused on two widely recognized indicators: carbon footprint (CF) and water footprint (WF). These methodologies enabled the identification of life cycle stages with the highest greenhouse gas emissions and water consumption, facilitating the development of a targeted improvement plan. In doing so, this research not only supports environmentally responsible decision-making in product development but also adds market value through measurable sustainability benefits. The integration of carbon and water footprint assessments into product innovation represents a critical step in aligning regional food production with global environmental objectives.

2. Materials and Methods

2.1. Definition of Boundaries

The production and processing of the product were carried out across several locations in the region of Navarra, Spain, reflecting a decentralized agri-food value chain. The product manufacturing process begins with pea cultivation in Cirauqui, followed by the milling process at Caparroso, which includes shelling, grinding, and separation to produce pea concentrate. The concentrate is then sent to Tudela for wet extrusion, involving mixing, extrusion, and packaging to form snacks. Finally, preparation and cooking take place in Esquiroz, including conditioning, the cooking of rice, the preparation of sauce, assembly, and the packaging of the final product. A description of the process, inputs, and outputs can be found in Figure 1.
The present product is categorized as a snack, being a prepared meal that offers a vegetable-based analogue to a traditional chicken and rice with curry sauce dish. The carbon footprint and water footprint of pea snacks for the 2020/2021 period were analysed from cradle to factory gate (i.e., from the production of raw materials to the assembly and packaging of the product). The functional unit of the study is the production of 100 g of pea snacks with rice and curry. When first-hand data were unavailable, the scientific literature and reputable institutional sources were utilized to complete the calculations. The contributions of concrete, steel, and vehicle construction have been excluded, as their impact on the water footprint is considered minimal, according to Jefferies et al. [13].

2.2. Data Sources

The activity data were provided by members of the project consortium. These data were sourced from consumption invoices, vehicle mileage logs, and questionnaires completed by farmers. The used crop was dry peas, grown in Cirauqui, Navarra, Spain. The sowing took place on 29 November 2020, and the harvest was completed on 4 July 2021. Information on the cultivation process was obtained by direct survey of the farmers. The specific information on the cultivation requirements can be found in Supplementary Text S1. Climatic data for estimating the water requirements of crops during the 2020/2021 agricultural year were obtained from the MeteoNavarra database [14]. The data were collected from the meteorological stations closest to the crop locations. The electricity consumption used came from the mix of the contracted marketing company: EDP CLIENTES S.A.U., Oviedo, Spain.
Relevant data can be found in the Supplementary Material: Supplementary Table S1 provides conversion factor sources for the different energy sources used during the snacks’ production. Supplementary Tables S2 and S3 include information on ingredients, origins, and factors used in the calculation of the carbon and water footprint. Supplementary Table S4 details packaging materials, origins, factor sources, and their role in footprint calculations.

2.3. Carbon Footprint Methodology

The carbon footprint refers to the total greenhouse gas (GHG) emissions, either directly or indirectly, caused by an individual, organization, event, or product. The main GHGs include carbon dioxide (CO2), methane (CH4), nitrous oxide (N2O), hydrofluorocarbons (HFCs), perfluorocarbons (PFCs), sulfur hexafluoride (SF6), and nitrogen trifluoride (NF3). However, CO2 is the GHG with the greatest impact on global warming, and therefore GHG emissions are typically measured in terms of this gas. The metric ton of CO2 equivalent (t CO2e) is the universal unit of measurement used to calculate the atmospheric warming potential or global warming potential (GWP) of each of these GHGs, expressed relative to the GWP of one unit of CO2 [15].
The calculation of GHG emissions was carried out following the methodology outlined by MITECO [15] and other international standards, including the GHG Protocol [16], ISO 14067 [17], and IPCC [18]. First, an inventory was compiled to account for all emissions generated during each phase of the production process. The carbon footprint was calculated by multiplying the activity data that generates an emission (quantity) by the emission factor of the activity, which is typically expressed in tons of CO2e per unit of activity.
GHG emissions = Quantity × Emission factor
Emission factors related to the carbon footprint corresponding to each greenhouse gas-emitting activity were extracted from MITECO [15], ADEME [19], and other internationally recognized sources.

2.4. Water Footprint Methodology

The water footprint of a product is defined as the total volume of freshwater used, both directly and indirectly, for its production [20]. The estimation considers water consumption and pollution across different stages of the production chain. The water footprint is divided into three components: green, blue, and grey.
The blue water footprint refers to the volume of surface and groundwater consumed during the production of a good or service. Consumption encompasses the volume of freshwater used and subsequently evaporated or incorporated into the product. It also includes water extracted from one catchment area and returned to another or to the sea, as well as water withdrawn but not returned to the original catchment area.
The green water footprint represents the volume of rainwater consumed during production processes. This is particularly relevant for agricultural and forestry products, where it accounts for the evapotranspiration of precipitation (from fields and plantations) and water incorporated into harvested crops or wood.
The grey water footprint is defined as the volume of freshwater required to assimilate the pollutant load, considering natural background concentrations and existing water quality standards. It is calculated as the volume of water needed to dilute contaminants to maintain the water quality above agreed standards.
The green, blue, and grey water footprint components were calculated using the methodology outlined in the Water Footprint Assessment Manual by Hoekstra et al. [20]. Operational (direct) and supply chain (indirect) water footprints were differentiated within the analysis.
For estimating green and blue water evapotranspiration during crop growth, the CROPWAT model, developed by the Food and Agriculture Organization of the United Nations [21] and based on the methodology described by Allen et al. [22], was used. Crop evapotranspiration estimated in millimetres was converted to cubic metres per hectare by applying a factor of 10. The green component of the water footprint for a crop (WFgreen, m3/t) was calculated by dividing the green water use of the crop (WUgreen, m3/ha) by the crop yield (Y, t/ha). The blue component (WFblue, m3/t) was calculated similarly:
W F g r e e n = W U g r e e n Y
W F b l u e = W U b l u e Y
The grey water footprint (WFgrey, m3/year) associated with nitrogen (N) was calculated by dividing the nitrogen load (NL, kg/year) by the difference between the maximum allowable concentration (Cmax, mg/L) and the natural background concentration (Cnat, mg/L):
W F g r e y = N L C m a x C n a t
The diffuse nitrogen load to freshwater (NL) was estimated for each crop using a soil nitrogen balance method, as described by the Spanish Ministry of Agriculture, Fisheries, and Food [23] and Aldaya et al. [24]. Six nitrogen inputs were considered: mineral fertilization, the application of manure, other organic fertilizers, seeds, atmospheric deposition, and biological nitrogen fixation. Outputs included nitrogen removed via crop harvest, the removal of crop residues (e.g., straw or plant material), annual growth of woody crops (e.g., wood and roots), the burning of crop residues, volatilization from fertilization, and gaseous soil losses.
The natural background concentration was determined based on water in its natural state, free from anthropogenic alterations. According to Royal Decree 817/2015 [25], the threshold for a good to very good status was used as the reference for the river Ega (R-T17, a highly influential river in the Mediterranean environment). For environmental quality standards, a distinction was made between surface and groundwater. In accordance with the European Nitrates Directive [26], a value of 37.5 mg NO3/L was applied for groundwater, while for surface water, the maximum allowable concentration was established by Royal Decree 47/2022 [27] as the threshold between good and moderate status.
Runoff data were obtained using the SIMPA model [28], which evaluates water resources under natural conditions. The percentages of surface and groundwater runoff for the agricultural areas studied were extracted. Runoff values were validated using flow rate data from monitoring stations operated by the Ebro River Basin Authority [29].
The grey water footprint and estimated water contamination levels were cross-checked with water quality reports from monitoring stations maintained by the Government of Navarra. For food industry processes, wastewater treatment is managed by the Mancomunidad of Pamplona Region and the Mancomunidad of La Ribera.

3. Results

3.1. Carbon Footprint of Pea Snacks with Rice and Curry Sauce

The carbon footprint of the pea snacks with rice and curry sauce was 0.12 kg of CO2e per 100 g of packaged product.
The primary sources of emissions were attributed to the ingredients, accounting for 75% of the total emissions (Figure 2). Greenhouse gas emissions generated by natural gas ranked second, representing 11% of total emissions. Indirect emissions related to electricity use contributed 8%, while emissions associated with the production of packaging accounted for 7% of the product’s total emissions (0.0079 kg CO2e/100 g).
The carbon footprint analysis of the ingredients in the pea snack identified rice as the primary emitter of greenhouse gases, accounting for 53% of the total emissions associated with the ingredients. The second-largest contributor to the carbon footprint was the extruded pea, at 18%, highlighting waste management (crop residues are incorporated back into the soil) and fertilizer use as the main emission sources of the pea cultivation phase; this ingredient is followed by sunflower oil (10%) and curry (7%). Specific results per ingredient can be found in Figure 3. The detailed information regarding ingredients, origins, and factors utilized in the calculation of the carbon footprint is available in Supplementary Table S3.

3.2. Water Footprint of Pea Snacks with Rice and Curry Sauce

The water footprint of the pea snack was 174 L of water per 100 g of packaged product, with the blue water footprint representing the largest share (52%), followed by the green water footprint (47%) and the grey water footprint (1%) (Figure 4). Similar to the carbon footprint, the primary water consumer was the ingredients, accounting for 98% of the total water use. A distant second was the packaging, with 2% of the total water usage.
Among the ingredients of the pea snack, rice again emerged as the primary water consumer, accounting for 54% of the total water usage associated with the ingredients. It was followed by the extruded pea (28%) and sunflower oil (13%). Regarding the pea production analysed in Navarra, the water footprint is composed almost entirely of green water (150 L/100 g). Regarding nitrogen-related impacts, due to the high efficiency of nitrogen’s application in the pea cultivation system, the resulting grey water footprint is practically negligible according to the nitrogen balance assessment. Specific results per ingredient can be found in Figure 5. The detailed information regarding ingredients, origins, and factors utilized in the calculation of the water footprint is available in Supplementary Table S2.

3.3. Result Comparison with Previous Studies

In the literature there is a wide variation in the reported carbon footprints of different patties types; however, the product under evaluation (the pea snack with rice and curry sauce) follows a manufacturing process that includes conditioning, cooking of rice, preparation and addition of sauce, trimming, and packaging adapted to the product. This product is highly complex, and to ensure a more reliable comparison with other products in the literature, we will use impact data from the vegetable protein base, calling it pea extrusion, as a comparative raw material, similar to that used for plant-based, hybrid, or meat patties. An amount of 150 g of product will be used as a reference unit. Due to data collection limitations and to ensure comparability with other studies, the impact of raw materials’ transport was not considered, and packaging was excluded from product comparisons wherever possible.
The pea extruded product developed exhibits the lowest carbon footprint, following patties made from soybean flour, beans, and rice, as well as a mixed patty (50% beef and 50% plant-based—soybean, beans, and rice) produced in Navarra (Table 1). Although the carbon footprint is relatively low, there is still room for improvement.
In terms of water footprint, the pea snacks developed show the highest water footprint of the plant based products, due to the cultivation requirements of pea in Navarra. Following are the plant-based soy patties, both those made from soy alone (Canada and China origin) and those made from soy flour (USA origin), beans, and rice (Spain origin). The differences found between the vegan plant-based analogues of Table 2 are specifically marked by the production systems used in their country of origin and the agro-climatic conditions of these countries.
It is worth noting that the pea extrudate has a blue and grey water footprint close to 0%, as the green water footprint accounts for almost 100%. In contrast, the plant-based soy patties exhibit a higher blue and grey water footprint: 18% and 7% (33 and 13 L/150 g), respectively, for the patty made from soy flour, beans, and rice; and 4% and 26% (7 and 42 L/150 g), respectively, for the soy-based patty.
These results suggest that the cultivation techniques described in the methodology and their geographical location are quite good at avoiding GHG emissions compared to the soybean production considered in the literature. Furthermore, although the product’s total water footprint is higher than its vegan counterparts, it is worth noting that its blue and grey water footprint is lower, due to the production systems considered in the countries of origin of this raw material.
The water quality criteria outlined in the 2023 Surface Water Quality Network report, published by the Government of Navarra, indicates that the Tierra Estella area, located in the Ega river basin, has a very good water quality assessment, with no risk of nitrate overconcentration. While this may not be a concern in this case, it is an important factor to consider for future comparisons between pea and soybean production in Navarra, to ensure efficient water use based on geographical location. In regions facing drought risks (blue water vulnerability) or high nitrate concentrations in natural water bodies (grey water vulnerability), such as in the Ebro basin in Southern Navarra [24], choosing crops that rely primarily on green water, like peas, can help protect vulnerable water resources, even if the overall water footprint is higher.

4. Discussion

4.1. Recommendations for Improvement

Once the carbon and water footprint of the pea snacks has been calculated, the activities that emit the most greenhouse gases and use more water have been analysed, and potential alternatives have been examined, the following proposed measures are presented as recommendations to reduce these emissions and water uses:
-
Reduction of waste: Strategies are proposed to minimize waste throughout the entire flow chart of the curry sauce and pea snacks product. The development of waste tracking and control programs could be considered to identify areas where continuous improvements in production efficiency can be made.
-
Use of renewable electricity: It is recommended to contract renewable electricity services, as this type of energy emits almost no GHGs. At the time of the study, only 25% of the energy used in the food manufacturing phase was self-generated by solar panels. The remaining energy depended on external sources
To estimate the reductions, this improvement plan assumes that the activity level (consumption) will remain at the same level as in the base year of 2021. Therefore, the reductions will be the result of efficiency improvements.
The proposed measures to reduce waste throughout the value chain of the snacks, as well as the implementation of renewable electric energy in both the extrusion and production processes, could decrease the carbon footprint of the snacks by 17%, reducing emissions to 0.10 kg of CO2e per 100 g of product instead of the original 0.12 kg of CO2e (Table 3).
In terms of the water footprint, these same measures would result in a 3% reduction in the consumption of green water (Table 4).

4.2. Implications of the Study

As evidenced by the numerous articles previously discussed on the environmental evaluation of meat analogue products, the search for sustainable food products has gained considerable momentum. Plant-based products have emerged as a diverse range of alternatives with reduced environmental impacts. While animal-based foods offer essential nutrients, their production often comes at a high environmental cost. In contrast, hybrid (combining animal and plant proteins) and fully plant-based food products offer a promising path forward [36]. These products are primarily made from legumes, which are already a key component of traditional Spanish cuisine [37], and aim to reduce overall meat consumption while maintaining taste and consumer acceptance [36].
Parallel to the lines of research focused on developing new plant-based products and studying their environmental interactions, the Spanish government provides support through the newly approved “Law on the Prevention of Food Losses and Food Waste.” This law mandates food chain agents to minimize productive losses during food production and seeks to promote the re-integration of agri-food waste and by-products into the food chain. Recent studies have already explored ways to apply this new law within Navarre’s agri-food sector by revaluing agricultural by-products [38,39]. This publication contributes by demonstrating the benefits of applying these policies, specifically in waste reduction during the production chain of food products. Future studies should aim to further achieve the reduction of food and ingredient waste in industrial stages.
In the short term, no subsidies have been identified to support practices that enhance a product’s environmental responsibility. However, it is noteworthy that such measures also increase the economic profitability of the process by minimizing raw material costs [40]. Thus, at this point of supply chain improvement, the interplay between policy and private business interests becomes intertwined.

4.3. Limitations of the Study

Although this study’s scope is limited to the local production of ingredients, the main limitation has been data availability regarding the origin and transportation of raw ingredients produced outside the Navarrese region. This impact was excluded from the analysis due to the high uncertainty derived from the lack of information on the origin of the ingredients and how transportation is carried out.
It should be noted that our study focuses on plant protein sources, and we compare two crops: pea and soybean. Traditionally, pea cultivation has been one of Spain’s strengths in the European context [41]. In contrast, soybeans are commonly produced abroad. The data indicates that Spain imports, on average, nearly 6 million metric tons of soybean and soybean products annually, with most originating from Argentina, followed by other American countries like Brazil or the United States [42]. Given this information, previous studies by Domínguez-Lacueva [8] estimated the greenhouse gas emissions impact that such transoceanic ingredient transportation could entail. They determined that the impact on the final plant-based product is minimal (less than 0.01 kg CO2e per 150 g of product). Regarding the water footprint, it is generally not significantly affected by the transport phase, except when biofuels are involved in the process, which is not common [20]. Considering this, we believe our study’s results are not significantly compromised by the absence of raw material transportation data.
Data on the recharge of fluorinated gases in pea storage chambers is also unavailable. While this could significantly influence the carbon footprint, we can assume the impact assigned to peas would be highly diluted due to the large diversity and quantity of agricultural products typically stored in the respective facilities (company data).
Regarding fertilizer production. The present study solely considered the downstream effects of fertilizers’ application, such as nitrogen migration. To approximate the magnitude of this data gap on our study’s results, we estimated the carbon and water footprints of a similar nitrogen–phosphorus–potassium (NPK) fertilizer (15-15-15, meaning 15% N, 15% P2O5, 15% K2O) from 2011 [43]. According to the carbon footprint factor of this fertilizer and the water use associated with the energy consumed for its production (assuming the energy mix of the Navarra-based companies studied), we determined the following: For the water footprint, the impact is minimal and negligible (less than 0.000001 L per kg of pea). For the carbon footprint, the impact per kilogram of pea could increase by approximately 0.07 kg CO2e. However, this value becomes even more diluted considering the ingredient proportions of the studied snack, adding only 0.0062 kg CO2e to the total carbon footprint. This leads one to conclude that the findings of the present article remain reliable.

5. Conclusions

The results emphasize the potential of pea protein as a sustainable alternative to soy-based vegan products in Navarra. While soy is widely used in the type of product analysed, pea protein offers several key advantages that make it a viable option for the region’s food production. These advantages include its ability to be locally cultivated, revaluing traditional agricultural culture. Additionally, pea protein does not pose a risk of triggering common allergens, as with soy, making it an appealing choice for a broader range of consumers.
The environmental assessment also suggests that removing crop residues from the field or minimizing the use of fertilizers can significantly contribute to lowering the greenhouse gas emissions associated with pea production, although the final impact on the developed snack would hardly be noticeable. Moreover, while the green water footprint of pea-based extrusion is higher than that of soy-based alternatives, it is important to note that pea cultivation relies less on blue and grey water, making it a preferable choice in areas that face water scarcity or contamination risks. In particular, regions with limited access to freshwater resources can benefit from using peas as a primary crop rather than soy, as it can help conserve valuable water resources.
Regarding the developed product, it has been determined that the carbon footprint of the pea snacks is 0.12 kg of CO2e per 100 g of packaged product, while the water footprint reaches 174 L of water per 100 g of packaged product. The blue water footprint represents the largest share (52%), followed by the green water footprint (47%) and the grey water footprint (1%). To further reduce the environmental impact of similar pea-based products, several strategic measures have been proposed. These include minimizing ingredient losses throughout the entire value chain (from production to consumption), as well as transitioning to renewable electricity sources for manufacturing processes. By implementing these strategies, it is estimated that greenhouse gas emissions could be reduced by 17%, while green water consumption could decrease by 3%. Actions such as conducting environmental impact assessments for production processes, along with the proposed impact reduction strategies, can contribute to global efforts to mitigate climate change, conserve natural resources, and promote food security.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/su17135913/s1. The following supporting information can be found in the Supplementary Material section, annexed at the end of the chapter. Supplementary Text S1: Data on plot and farming systems. Supplementary Table S1: Conversion factors for the different energy sources used during the snack production. Supplementary Table S2: Ingredients, origins, and factors used in the calculation of the water footprint. Supplementary Table S3: Ingredients, origins, and factor sources used in the calculation of the carbon footprint. Supplementary Table S4: Packaging materials, origins, factor sources and parts of the packaging used in the calculation of the carbon and water footprint. References [44,45,46,47,48,49,50,51] are cited in the supplementary materials.

Author Contributions

Visualization: M.M.A.; conceptualization, writing the draft, review, editing and contribution to the finalization of the paper: J.G.P., M.M.A. and M.J.B.; methodology and calculations: J.G.P. and M.M.A.; funding acquisition, project administration: M.J.B. and P.V. All authors have read and agreed to the published version of the manuscript.

Funding

This project has been funded by the Government of Navarra through the programme for the Implementation of Strategic R&D Projects for the period 2021–2024. This funding is part of Navarra’s contribution to the AGROALNEXT Complementary Agri-Food Plan, which is included in Component 17 Investment 1 of the Recovery, Transformation, and Resilience Plan (ALISSEC Project 0011-1411-2021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of this study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

ALISSEC projectDesign of Healthy and Sustainable Food and Ingredients from the Circular Economy
CFCarbon Footprint
CmaxMaximum Allowable Concentration
CnatNatural Background Concentration
CO2eCO2 Equivalents
GWPGlobal Warming Potential
GHGGreenhouse Gas
KcCrop Coefficient
NLDiffuse Nitrogen Load to Freshwater
PGIProtected Geographical Indication
SDGSustainable Development Goals
WFWater Footprint
WUWater Use
YCrop Yield

References

  1. ICEX Spain. Navarra Is One of the Leading Agrifood Clusters in Spain. Community of Navarre. Available online: https://www.investinspain.org/en/regions/navarra/industrias-destacadas (accessed on 20 May 2025).
  2. Spanish Ministry of the Environment, Rural and Marine Affairs. Huella hídrica en España, Sostenibilidad y Territorio; Spanish Ministry of the Environment, Rural and Marine Affairs: Madrid, Spain, 2011. Available online: https://www.chj.es/Descargas/ProyectosOPH/Consulta%20publica/PHC-2015-2021/ReferenciasBibliograficas/UsosdelAgua/MARM,2011c.Huella%20hidrica%20de%20Espana%5B1%5D.pdf (accessed on 1 January 2025).
  3. FAO. El Trabajo de La FAO Sobre El Cambio Climático, Conferencia de las Naciones Unidas Sobre el Cambio Climático 2018; Food and Agriculture Organization of the United Nations: Rome, Italy, 2018; Available online: http://www.fao.org/3/CA2607ES/ca2607es.pdf (accessed on 1 January 2024).
  4. European Commission. A New Circular Economy Action Plan; Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions; European Commission: Brussels, Belgium, 2020; Available online: https://eur-lex.europa.eu/resource.html?uri=cellar:9903b325-6388-11ea-b735-01aa75ed71a1.0017.02/DOC_1&format=PDF (accessed on 1 January 2024).
  5. Fresán, U.; Mejia, M.A.; Craig, W.J.; Jaceldo-Siegl, K.; Sabaté, J. Meat Analogs from Different Protein Sources: A Comparison of Their Sustainability and Nutritional Content. Sustainability 2019, 11, 3231. [Google Scholar] [CrossRef]
  6. Dreoni, I.; Matthews, Z.; Schaafsma, M. The Impacts of Soy Production on Multi-Dimensional Well-Being and Ecosystem Services: A Systematic Review. J. Clean. Prod. 2022, 335, 130182. [Google Scholar] [CrossRef]
  7. Boukid, F.; Rosell, C.M.; Castellari, M. Pea Protein Ingredients: A Mainstream Ingredient to (Re)formulate Innovative Foods and Beverages. Trends Food Sci. Technol. 2021, 110, 729–742. [Google Scholar] [CrossRef]
  8. Domínguez-Lacueva, P. The Water Footprint and Carbon Footprint of a Burger and Its Analogues of Plant Origin. Master’s Thesis, Public University of Navarre, Pamplona, Spain, 2022. [Google Scholar]
  9. Janardhanan, R.; González-Diez, M.; Ibañez, F.C.; Beriain, M.J. Comparison of High Hydrostatic Pressure Processed Plus Sous-Vide Cooked Meat-Based, Plant-Based and Hybrid Patties According to Fat Replacement. Foods 2022, 11, 3678. [Google Scholar] [CrossRef]
  10. Lefranc-Millot, C.; Teichman-Dubois, V. Protein from Vegetable Sources: A Focus on Pea Protein. In Novel Proteins for Food, Pharmaceuticals and Agriculture: Sources, Applications and Advances; Hayes, M., Ed.; Wiley: Hoboken, NJ, USA, 2018; pp. 197–216. [Google Scholar] [CrossRef]
  11. Krefting, J. The Appeal of Pea Protein. J. Ren. Nutr. 2017, 27, e31–e33. [Google Scholar] [CrossRef]
  12. Shanthakumar, P.; Klepacka, J.; Bains, A.; Chawla, P.; Dhull, S.B.; Najda, A. The Current Situation of Pea Protein and Its Application in the Food Industry. Molecules 2022, 27, 5354. [Google Scholar] [CrossRef]
  13. Jefferies, D.; Muñoz, I.; Hodges, J.; King, V.J.; Aldaya, M.; Ercin, A.E.; Canals, L.M.I.; Hoekstra, A.Y. Water Footprint and Life Cycle Assessment as Approaches to Assess Potential Impacts of Products on Water Consumption. Key Learning Points from Pilot Studies on Tea and Margarine. J. Clean. Prod. 2012, 33, 155–166. [Google Scholar] [CrossRef]
  14. MeteoNavarra (Meteorología y climatología de Navarra). Datos climatológicos. In Informe de Huella de Carbono de la Mancomunidad de la Comarca de Pamplona 2021. Suministro de agua potable; MeteoNavarra: Pamplona, Spain, 2021; Available online: http://meteo.navarra.es/estaciones/mapadeestaciones.cfm (accessed on 20 November 2024).
  15. MITECO. Calculadoras Huella de Carbono. Ministry for Ecological Transition and the Demographic Challenge. Available online: https://www.miteco.gob.es/es/cambio-climatico/temas/mitigacion-politicas-y-medidas/calculadoras.html (accessed on 20 November 2024).
  16. GHG Protocol. Estándar Corporativo de Contabilidad y Reporte, revised ed.; Greenhouse Gas Protocol, World Business Council for Sustainable Development, World Resources Institute: Geneva, Switzerland, 2005; Available online: http://www.ghgprotocol.org/ (accessed on 20 November 2024).
  17. ISO 14067; Greenhouse Gases—Carbon Footprint of Products—Requirements and Guidelines for Quantifification. International Organization for Standardization (ISO): Geneva, Switzerland, 2018.
  18. IPCC. Actualización de 2019 a las Directrices del IPCC de 2006 para los Inventarios Nacionales de Gases de Efecto Invernadero; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2019; Available online: https://www.ipcc-nggip.iges.or.jp/public/2019rf/index.html (accessed on 20 November 2024).
  19. ADEME. Base Empreinte. Base Carbone V23.1. French Agency for Ecological Transition. Available online: https://base-empreinte.ademe.fr/ (accessed on 20 November 2024).
  20. Hoekstra, A.Y.; Chapagain, A.K.; Aldaya, M.M.; Mekonnen, M.M. Manual de Evaluación de la Huella Hídrica: Establecimiento del Estándar Mundial; Earthscan: London, UK, 2011; Available online: https://www.waterfootprint.org/resources/TheWaterFootprintAssessmentManual_Spanish.pdf (accessed on 20 November 2024).
  21. FAO. CROPWAT 8.0; Food and Agriculture Organization of the United Nations: Rome, Italy, 2023; Available online: https://www.fao.org/land-water/databases-and-software/cropwat/es/ (accessed on 20 November 2024).
  22. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Evapotranspiración del Cultivo Guías para la Determinación de los Requerimientos de agua de los Cultivos; Estudio FAO Riego y Drenaje, n.º 56; Food and Agriculture Organization of the United Nations: Rome, Italy, 1998. [Google Scholar]
  23. MAPA. Balance del Nitrógeno en la Agricultura Española: Metodología y Resultados. Año 2016; Ministerio de Agricultura, Pesca y Alimentación: Madrid, Spain, 2018. Available online: https://www.chj.es/es-es/medioambiente/planificacionhidrologica/Documents/Plan-Hidrologico-cuenca-2021-2027/Documentos-iniciales/Referencia%20bibliografica/MAPA,2018_BNAE_2016_BalanceNitrogeno.pdf (accessed on 20 November 2024).
  24. Aldaya, M.; Rodriguez, C.; Fernandez, A.; Merchan, D.; Beriain, M.J.; Llamas, R. Grey Water Footprint as an Indicator for Diffuse Nitrogen Pollution: The Case of Navarra, Spain. Sci. Total Environ. 2020, 698, 134338. [Google Scholar] [CrossRef]
  25. BOE. Real Decreto 817/2015, de 11 de Septiembre, por el que se Establecen los Criterios de Seguimiento y Evaluación del Estado de las Aguas Superficiales y las Normas de Calidad Ambiental. Boletín Oficial del Estado, 12 September 2015; No. 219. Available online: https://www.boe.es/eli/es/rd/2015/09/11/817 (accessed on 20 November 2024).
  26. CEE. Directiva 91/676/CEE del Consejo, de 12 de Diciembre de 1991, Relativa a la Protección de las Aguas Contra la Contaminación Producida por Nitratos Utilizados en la Agricultura. European Commission. 1991. Available online: https://eur-lex.europa.eu/legal-content/ES/TXT/?uri=celex:31991L0676 (accessed on 20 November 2024).
  27. BOE. Real Decreto 47/2022, de 18 de Enero, Sobre Protección de las Aguas Contra la Contaminación Difusa Producida por los Nitratos Procedentes de Fuentes Agrarias. Boletín Oficial del Estado, 20 January 2022; No. 17. Available online: https://www.boe.es/diario_boe/txt.php?id=BOE-A-2022-860 (accessed on 20 November 2024).
  28. MITECO. Evaluación de Recursos Hídricos en Régimen Natural. (Modelo SIMPA)—Periodo 1980/81-2005/06. Ministerio para la Transición Ecológica y el Reto Demográfico. Available online: https://www.miteco.gob.es/es/cartografia-y-sig/ide/descargas/agua/simpa-serie-corta.html (accessed on 20 November 2024).
  29. CHE. Sistema Automático de Información Hidrológica. Confederación Hidrográfica del Ebro. Available online: http://www.saihebro.com/saihebro/index.php?url=/principal (accessed on 20 November 2024).
  30. Tang, M.; Miri, T.; Soltani, F.; Onyeaka, H.; Al-Sharify, Z.T. Life Cycle Assessment of Plant-Based vs. Beef Burgers: A Case Study in the UK. Sustainability 2024, 16, 4417. [Google Scholar] [CrossRef]
  31. Saget, S.; Porto Costa, M.; Santos, C.S.; Vasconcelos, M.; Styles, D.; Williams, M. Comparative Life Cycle Assessment of Plant and Beef-Based Patties, Including Carbon Opportunity Costs. Sustain. Prod. Consum. 2021, 28, 936–952. [Google Scholar] [CrossRef]
  32. Chaudhary, A.; Tremorin, D. Nutritional and Environmental Sustainability of Lentil Reformulated Beef Burger. Sustainability 2020, 12, 6712. [Google Scholar] [CrossRef]
  33. Mekonnen, M.M.; Hoekstra, A.Y. A Global Assessment of the Water Footprint of Farm Animal Products. Ecosystems 2012, 15, 401–415. [Google Scholar] [CrossRef]
  34. Casado, R.R.; Novo, P.; Garrido, A. La Huella Hídrica de la Ganadería Española. Papeles Agua Virtual; Fundación Marcelino Botín: Santander, Spain, 2008; Available online: https://www.fundacionbotin.org/89%20dguuytdfr276ed_uploads/Observatorio%20Tendencias/PUBLICACIONES/MONOGRAFIAS/PAV/PAV4.pdf (accessed on 20 November 2024).
  35. Ercin, A.E.; Martinez-Aldaya, M.; Hoekstra, A.Y. The Water Footprint of Soy Milk and Soy Burger and Equivalent Animal Products. Ecol. Indic. 2012, 18, 392–402. [Google Scholar] [CrossRef]
  36. Baune, M.C.; Jeske, A.L.; Profeta, A.; Smetana, S.; Broucke, K.; Van Royen, G.; Gibis, M.; Weiss, J.; Terjung, N. Effect of Plant Protein Extrudates on Hybrid Meatballs—Changes in Nutritional Composition and Sustainability. Future Foods 2021, 4, 100081. [Google Scholar] [CrossRef]
  37. Vaz Patto, M.C.; Amarowicz, R.; Aryee, A.N.A.; Boye, J.I.; Chung, H.J.; Martín-Cabrejas, M.A.; Domoney, C. Achievements and Challenges in Improving the Nutritional Quality of Food Legumes. Crit. Rev. Plant Sci. 2015, 34, 105–143. [Google Scholar] [CrossRef]
  38. Fernandez-Pan, I.; Horvitz, S.; Ibañez, F.C.; Arroqui, C.; Beriain, M.J.; Virseda, P. Extra-Virgin Olive Oil Enriched with Lycopene: From Industrial Tomato By-Products to Consumer. Food Sci. Nutr. 2024, 12, 5815–5823. [Google Scholar] [CrossRef]
  39. Penalver, J.G.; Aldaya, M.M.; Muez, A.M.; Martin-Guidal, A.; Beriain, M.J. Carbon and Water Footprints of the Revalorisation of Glucosinolates from Broccoli By-Products: Case Study from Spain. Food Bioprod. Process. 2025, 151, 211–221. [Google Scholar] [CrossRef]
  40. Goenaga, I.; García-Rodríguez, A.; Goiri, I.; Leon-Ecay, S.; De Las Heras, J.; Aldai, N.; Insausti, K. Vegetable By-Products as Alternative and Sustainable Raw Materials for Ruminant Feeding: Nutritive Evaluation and Their Inclusion in a Novel Ration for Calf Fattening. Animals 2023, 13, 1391. [Google Scholar] [CrossRef]
  41. Eurostat. Dry Pulses in EU Agriculture—Statistics on Cultivation, Production and Economic Value. European Commission. 2016. Available online: https://ec.europa.eu/eurostat/statistics-explained/SEPDF/cache/54636.pdf (accessed on 16 June 2025).
  42. Foreign Agricultural Service—United States Department of Agriculture. Spain Soybean and Products Market Outlook. Report Number: SP2023-0018. 2023. Available online: https://apps.fas.usda.gov/newgainapi/api/Report/DownloadReportByFileName?fileName=Spain%20Soybean%20and%20Products%20Market%20Outlook_Madrid_Spain_SP2023-0018.pdf (accessed on 16 June 2025).
  43. Fertilizers Europe. Carbon Footprint Reference Values. 2011. Available online: https://www.researchgate.net/profile/Prem-Baboo/post/Can_anybody_suggest_CED_and_a_CO2-eq_emission_factors_for_Vinasse_fertilizer/attachment/59d634dc79197b80779927e4/AS%3A381587746246658%401467989016955/download/carbon_footprint_web_V4.pdf (accessed on 16 June 2025).
  44. Hardy, L.; Garrido, A.; Sirgado, L.J. Análisis y Evaluación de las Relaciones Entre el Agua y la Energía en España; Fundación Marcelino Botín: Santander, Spain, 2010; Available online: https://crcc.es/wp-content/uploads/2012/02/Hardy-y-Garrido.-2010An%C3%A1lisis-de-lar-relaci%C3%B3n-agua-energ%C3%ADa.pdf (accessed on 24 May 2025).
  45. Macknick, J.; Newmark, R.; Heath, G.; Hallett, K.C. Operational Water Consumption and Withdrawal Factors for Electricity Generating Technologies: A Review of Existing Literature. Environ. Res. Lett. 2012, 7, 045802. [Google Scholar] [CrossRef]
  46. Mekonnen, M.M.; Gerbens-Leenes, P.W.; Hoekstra, A.Y. The Consumptive Water Footprint of Electricity and Heat: A Global Assessment. Environ. Sci. Water Res. Technol. 2015, 1, 285–297. [Google Scholar] [CrossRef]
  47. Mekonnen, M.M.; Hoekstra, A.Y. The Green, Blue and Grey Water Footprint of Crops and Derived Crop Products. Hydrol. Earth Syst. Sci. 2011, 15, 1577–1600. [Google Scholar] [CrossRef]
  48. Zubieta, L. Huella Hídrica de los Principales Cultivos en Navarra. Master’s Thesis, Public University of Navarre, Pamplona, Spain, 2019. [Google Scholar]
  49. MCP. Informe de Huella de Carbono de la Mancomunidad de la Comarca de Pamplona 2021; Suministro de Agua Potable; Mancomunidad de la Comarca de Pamplona: Pamplona, Spain, 2021. [Google Scholar]
  50. CarbonCloud. Technical Report—Climate Footprint of Turmeric Powder; CarbonCloud: Gothenburg, Sweden, 2023; Available online: https://apps.carboncloud.com/climatehub/product-reports/id/177399502556 (accessed on 20 November 2024).
  51. Schyns, J.F.; Booij, M.J.; Hoekstra, A.Y. The Water Footprint of Wood for Lumber, Pulp, Paper, Fuel and Firewood. Adv. Water Resour. 2017, 107, 490–501. [Google Scholar] [CrossRef]

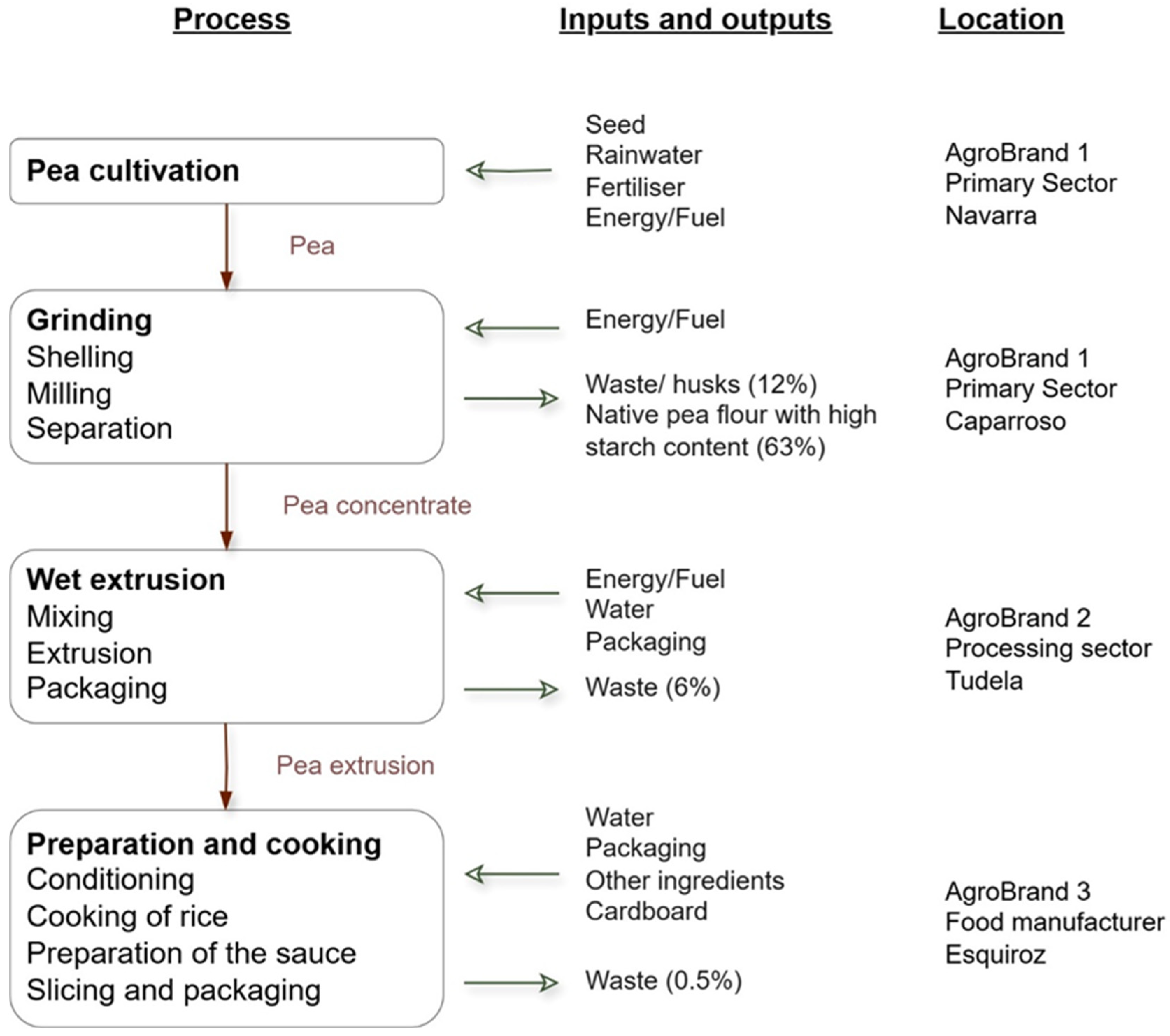

Figure 1. Flow chart of the curry sauce and pea snacks, including the main process, upstream (inputs) and downstream (outputs) processes, and the production site for each stage.
Figure 1. Flow chart of the curry sauce and pea snacks, including the main process, upstream (inputs) and downstream (outputs) processes, and the production site for each stage.
Sustainability 17 05913 g001
Figure 2. Flow chart of the curry sauce and pea snacks and the production site for each stage.
Figure 2. Flow chart of the curry sauce and pea snacks and the production site for each stage.
Sustainability 17 05913 g002

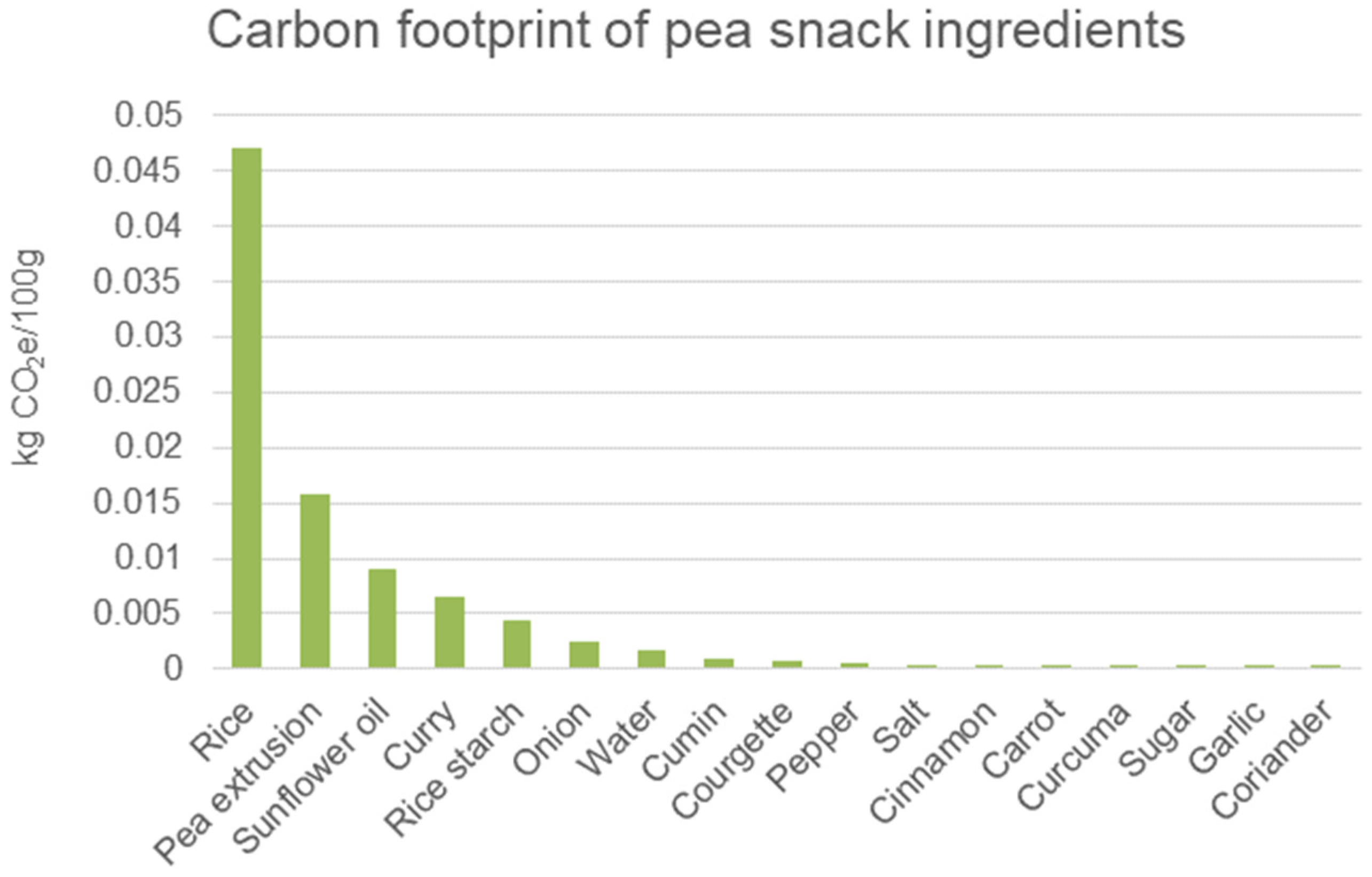

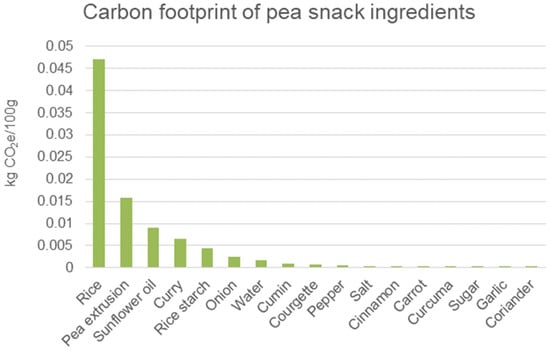

Figure 3. Carbon footprint of pea snack ingredients (kg CO2e per 100 g of packaged product).
Figure 3. Carbon footprint of pea snack ingredients (kg CO2e per 100 g of packaged product).
Sustainability 17 05913 g003

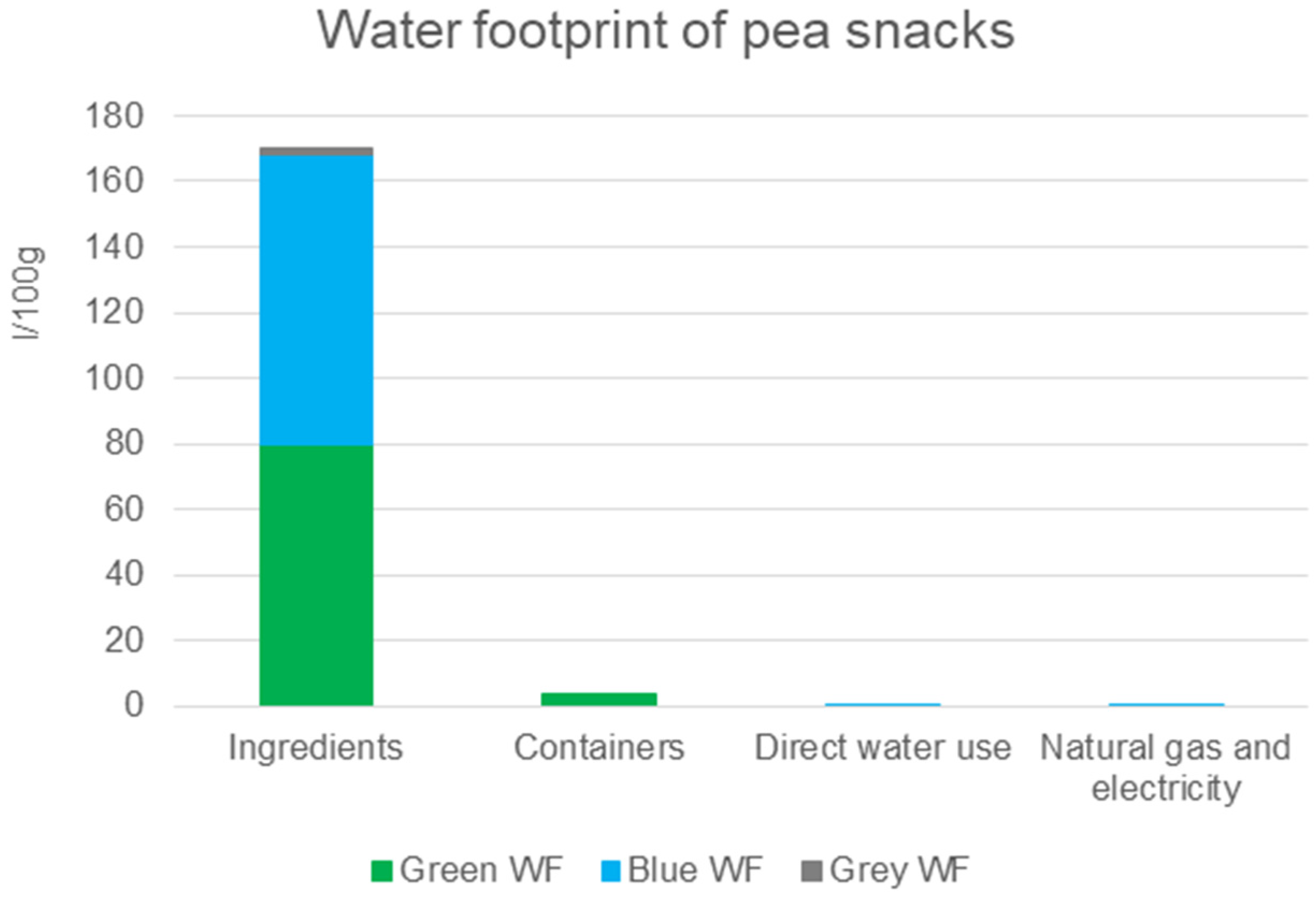

Figure 4. Green water footprint (green WF), blue water footprint (blue WF), and grey water footprint (grey WF) of pea snacks (l of water per 100 g of packaged product).
Figure 4. Green water footprint (green WF), blue water footprint (blue WF), and grey water footprint (grey WF) of pea snacks (l of water per 100 g of packaged product).
Sustainability 17 05913 g004

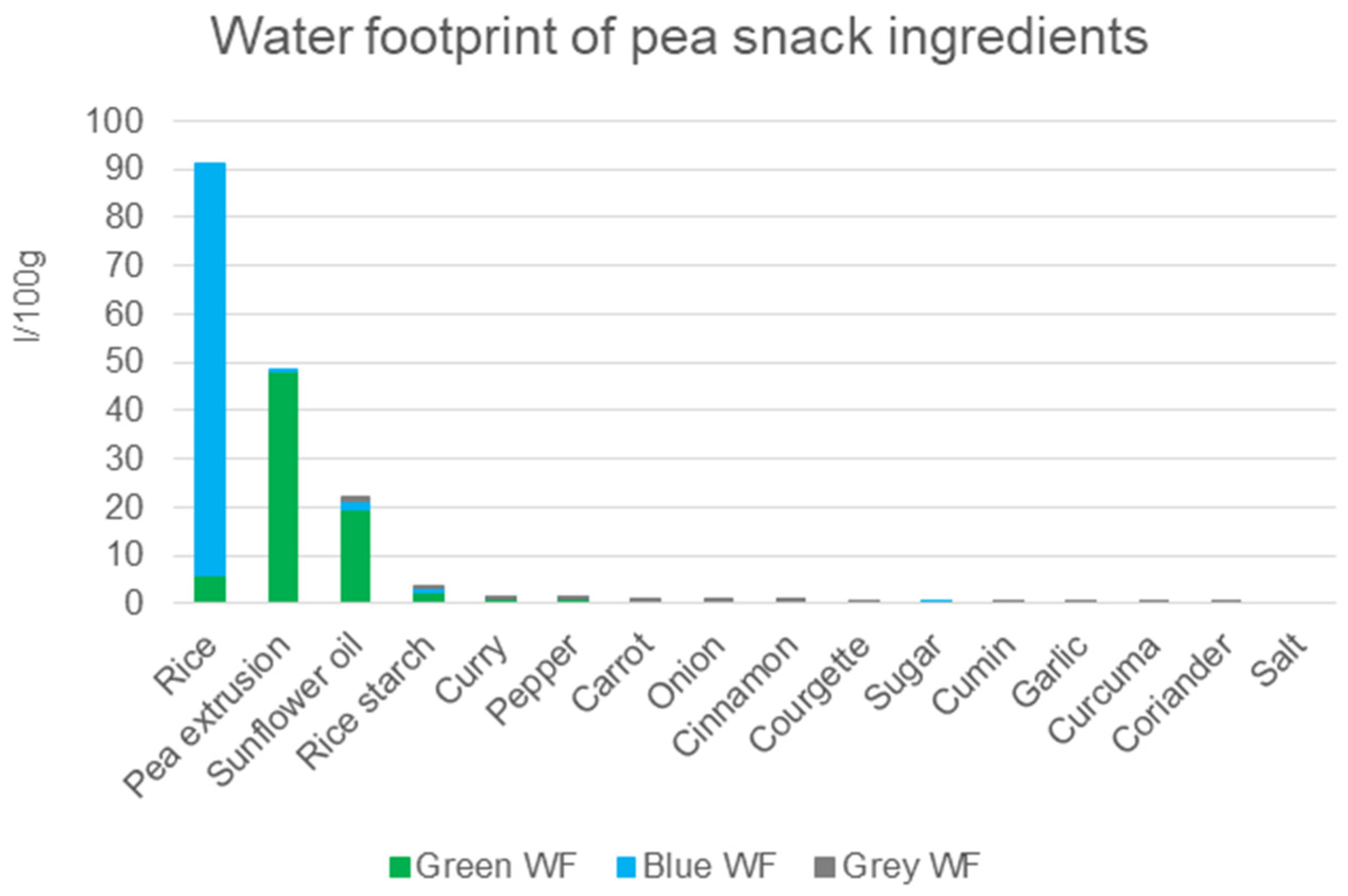

Figure 5. Green water footprint (green WF), blue water footprint (blue WF), and grey water footprint (grey WF) of pea snack ingredients (l of water per 100 g of packaged product).
Figure 5. Green water footprint (green WF), blue water footprint (blue WF), and grey water footprint (grey WF) of pea snack ingredients (l of water per 100 g of packaged product).
Sustainability 17 05913 g005
Table 1. Comparison of the results of this study with the carbon footprint of previous studies. It does not include the carbon footprint of transport.
Table 1. Comparison of the results of this study with the carbon footprint of previous studies. It does not include the carbon footprint of transport.
Productkg CO2e/ProductSourceOther
Beef7.2Tang et al. (2024) [30]UK, approximation without transport or packaging
6.6Saget et al. (2021) [31]Brazil, packaging and transport included
4.5Saget et al. (2021) [31]Ireland, packaging and transport included
2.09Domínguez-Lacueva (2022) [8]PGI Veal from Navarra, Without raw material transportation.
Kg CO2e/150 g
Mixed-Chaudhary & Tremorin (2020) [32]Reduces ~33% of CF
1.09Domínguez-Lacueva (2022) [8]Navarra, Without raw material transportation.
Kg CO2e/150 g
Plant-based0.56Tang et al. (2024) [30]UK, approximation without transport or packaging, 5:4:1 mixture ratio of soy protein isolate, vital wheat gluten, and corn starch.
0.16Domínguez-Lacueva (2022) [8]Navarra. Soybean, bean, rice flour. Without raw material transportation.
Kg CO2e/150 g
Pea snack 10.14Current researchPea flour. Without raw material transportation.
Kg CO2e/150 g
1 Pea extrudate after wet extrusion without curry sauce and rice.
Table 2. Comparison of the results of this study with the water footprint of previous studies (L/150 g of product).
Table 2. Comparison of the results of this study with the water footprint of previous studies (L/150 g of product).
ProductL/150 g of ProductSourceOther
Beef4027Mekonnen & Hoekstra (2012) [33]Spain
2617Casado et al. (2008) [34]Spain
3871Domínguez-Lacueva (2022) [8]PGI, Veal from Navarra
Mixed-Chaudhary & Tremorin (2020) [32]Reduces ~33% of WF
2075Domínguez-Lacueva (2022) [8]Navarra
Plant-based158Ercin et al. (2012) [35]Soybeans
184Domínguez-Lacueva (2022) [8]Navarra. Soybean, bean, rice flour
225Current researchPea flour 1
1 Pea extrudate after wet extrusion without curry sauce and rice.
Table 3. Percentage reduction of greenhouse gas (GHG) emissions projected for each year compared to the previous year according to the different emission sources.
Table 3. Percentage reduction of greenhouse gas (GHG) emissions projected for each year compared to the previous year according to the different emission sources.
Proposed MeasureGHG Emissions 2021
(kg CO2e/100 g of Products)
GHG Emissions After Measures’ Implementation (kg CO2e/100 g of Product)Reduced GHG Emissions (kg CO2e)Snack’s Carbon Footprint 2021Snack’s Carbon Footprint After Implementation of MeasuresCarbon Footprint Reduction (%)
Reduction of waste0.0100.010.120.1017
Renewable electricity service contracting0.0100.01
Table 4. Percentage reduction in water use planned for each year compared to the previous year according to the different emission sources.
Table 4. Percentage reduction in water use planned for each year compared to the previous year according to the different emission sources.
Proposed MeasureWater Use 2021
(L/100 g of Products)
Water Use After Implementation of Measures (L/100 g of Products)Reduced Water Use (L)Snack’s Water Footprint 2021Snack’s Water Footprint After Implementation of MeasuresWater Footprint Reduction (%)
Reduction of waste5051741693
Renewable electricity service contracting000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

G. Penalver, J.; Beriain, M.J.; Vírseda, P.; M. Aldaya, M. Carbon and Water Footprint Assessment of a Pea Snack. Sustainability 2025, 17, 5913. https://doi.org/10.3390/su17135913

AMA Style

G. Penalver J, Beriain MJ, Vírseda P, M. Aldaya M. Carbon and Water Footprint Assessment of a Pea Snack. Sustainability. 2025; 17(13):5913. https://doi.org/10.3390/su17135913

Chicago/Turabian Style

G. Penalver, Josemi, Maria Jose Beriain, Paloma Vírseda, and Maite M. Aldaya. 2025. "Carbon and Water Footprint Assessment of a Pea Snack" Sustainability 17, no. 13: 5913. https://doi.org/10.3390/su17135913

APA Style

G. Penalver, J., Beriain, M. J., Vírseda, P., & M. Aldaya, M. (2025). Carbon and Water Footprint Assessment of a Pea Snack. Sustainability, 17(13), 5913. https://doi.org/10.3390/su17135913

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
