A New Concept of Hybrid Maglev-Derived Systems for Faster and More Efficient Rail Services Compatible with Existing Infrastructure

1
Mechanical Engineering Department, Universidad Politécnica de Madrid, 28006 Madrid, Spain
2
Rete Ferroviaria Italiana S.p.a., 00161 Rome, Italy
3
Nevomo Poland Sp. z o.o., 02-305 Warsaw, Poland
4
IronBox srl, 31027 Spresiano, Italy
5
GESTE Engineering SA, 1020 Renens, Switzerland
6
Italferr S.p.a., 00155 Rome, Italy
*
Author to whom correspondence should be addressed.
Sustainability 2025, 17(11), 5056; https://doi.org/10.3390/su17115056 (registering DOI)
Submission received: 27 March 2025 / Revised: 26 May 2025 / Accepted: 27 May 2025 / Published: 30 May 2025

Abstract

:
Magnetic levitation (maglev) technology offers significant advantages for rail transport, including frictionless propulsion, reduced noise, and lower maintenance costs. However, its widespread adoption has been limited due to the need for a dedicated infrastructure incompatible with conventional rail networks. The MaDe4Rail project, funded by Europe’s Rail Joint Undertaking (ERJU), explores Maglev-Derived Systems (MDSs) as means to integrate maglev-inspired solutions into existing railway corridors with minimal modifications. This paper focuses on the so-called “hybrid MDS” configuration, which refers to levitating systems that can operate on existing rail infrastructure. Unlike current maglev systems, which require dedicated tracks, the proposed MDS system is designed to operate on conventional rail tracks, allowing for its compatibility with traditional trains and ensuring the interoperability of lines. In order to identify the most viable solution, two different configurations have been analysed. The evaluated scenario could benefit from the introduction of hybrid MDSs based on magnetic levitation, where a group of single vehicles, also called pods, is used in a virtual coupling configuration. The objective of this case study is to increase the capacity of traffic on the existing railway line by significantly reducing travel time, while maintaining a similar energy consumption to that of the current conventional trains operating on this line. Simulation results indicate that the hybrid MDS can optimise railway operations by taking advantage of virtual coupling to improve traffic flow, reducing travel times and energy consumption with the optimisation of the aerodynamic drag. The system achieves a balance between increased speed and energy efficiency, making it a viable alternative for future rail transport. An initial cost–benefit analysis suggests that the hybrid MDS could deliver substantial economic advantages, positioning it as a promising solution for enhancing European railway networks with minimal infrastructure investment.

1. Introduction

Magnetic levitation offers unique opportunities for guided transport systems. Developed in the 20th century, maglev technology allows vehicles to be lifted and propelled without direct contact, using magnetic forces and electromagnetic linear motors along dedicated tracks. This technology offers several advantages over conventional rail and represents a significant step forward in transport. A key advantage is the ability to reach much higher speeds due to the elimination of rolling resistance and catenaries, making maglev an attractive alternative to air travel for fast connections between cities [1]. In addition, the travel experience is smoother and quieter due to reduced vibration and noise. Another advantage is that the lack of mechanical friction reduces the wear and tear on components in comparison to conventional trains. Finally, maglev systems are energy efficient, contributing to lower operating costs and a reduced environmental footprint [2].
Maglev technology has been successfully tested and implemented in various locations worldwide since the 1980s, with commercial operations dating back to the 1980s [3]. These applications range from high-speed intercity connections [4] to urban transport solutions. However, despite its advantages, maglev has not been widely adopted on a global scale. One of the primary challenges is the need for dedicated infrastructure, which is generally incompatible with existing railway networks. This poses a significant barrier, particularly in regions like Europe, where well-established urban environments and extensive rail infrastructure make large-scale construction projects complex and costly. Additionally, land availability is limited, and infrastructure planning is complicated by the involvement of multiple stakeholders across different sectors. These factors make the introduction of disruptive transport solutions particularly challenging within the European Union [5].
In response to these challenges, the MaDe4Rail project [6] was launched under the ERJU initiative [7]. The objective of the project is to explore innovative transport solutions inspired by maglev technology, known as Maglev-Derived Systems (MDSs), and to evaluate their feasibility in Europe from a technical and economic standpoint. The MDS refers to transport systems that utilise core maglev principles, such as linear motors and magnetic levitation, which may function as standalone systems or, ideally, be integrated within existing railway networks. This aspect of interoperability is central to the MaDe4Rail project, as one of its main objectives is to assess whether MDSs could operate alongside conventional rail systems in Europe.
One of the main advantages of MDSs is the potential to utilise existing railway corridors by upgrading them with maglev-inspired technology. The project aims to develop technical solutions that would enable their integration with the current infrastructure while requiring minimal modifications and civil engineering work. Ideally, this would allow hybrid operations where MDSs and traditional rail services could coexist on the same routes.
As part of its research, MaDe4Rail conducted a Technology Readiness Assessment (TRA) to evaluate the maturity of MDS-related technologies. Following this, a Multi-Criteria Analysis (MCA) was performed to identify the most suitable MDS configurations for their potential deployment on existing railway lines. Two key configurations were proposed: the “upgraded rail vehicle” and the “hybrid MDS”.
The “upgraded rail vehicle” concept involves a track–vehicle system that minimises infrastructure modifications, allowing for the local retrofitting of tracks and the adaptation of existing trains by incorporating linear motor components. This approach enhances the propulsion and braking performance, particularly on steep gradients and low-adhesion conditions, and enables electrification in specific areas, such as marshalling yards. Results of this type of MDS vehicle have recently been presented in the publication [8].
The “hybrid MDS” configuration, on the other hand, consists of levitating transport systems designed to be compatible with existing railway infrastructure. This configuration uses Linear Synchronous Motors (LSMs) installed in the middle of the track for propulsion and braking and U-shaped sliders providing levitation directly on the existing rails or levitation beams that run parallel to the track on both sides to provide both guidance and levitation.
This paper focuses on the so-called “hybrid MDS” configuration, which refers to levitating systems that can operate on existing rail infrastructures, and aims to analyse the feasibility of its application in a specific-use case with a high potential. Unlike current maglev systems, which require dedicated tracks, the proposed MDS is designed to operate on conventional rail tracks (with some adaptations), allowing compatibility with traditional trains and ensuring the interoperability of lines. This study examines how the MDS could improve railway operations in passenger services using a group of pods in a virtual coupling configuration, potentially replacing traditional train sets that currently provide transport services in an existing regional railway line.
The objective of this case study is to increase the capacity of traffic on the existing railway line by significantly reducing travel times, while maintaining a similar energy consumption to that of the current conventional trains operating on this line. In order to identify the most viable solution, two different configurations have been analysed. The decrease in travel time is achieved through increased speeds, enabled by an additional cant in curves, which is made possible by the tilting capability of the new vehicle using magnetic levitation technology. Maintaining energy efficiency despite higher speeds is accomplished by optimising the aerodynamic drag of the pods. This optimisation is further enhanced through virtual coupling, which allows the pods to travel in closer proximity. The resulting slipstream effect and improved airflow between the pods contribute to a reduction in aerodynamic resistance, ultimately leading to a lower energy consumption.
Simulation results demonstrate that the hybrid MDS, especially when combined with virtual coupling technology, can significantly reduce travel times. In the best-case scenario, the total journey time was reduced by approximately 25%, dropping from 5.4 h to under 4 h. In terms of energy consumption, the MDS convoys showed an increase of 10% to 17% compared to conventional trains. However, this increase is compensated by the higher average speeds and greater operational flexibility of the system. Moreover, the further aerodynamic optimisation of the pods could reduce the energy use to levels comparable with traditional trains, while still delivering a superior performance. This improvement is largely attributed to the elimination of rolling resistance, enhanced curve handling through increased cants, and aerodynamic benefits from virtual coupling, achieving a balance between increased speed and energy efficiency, making it a viable alternative for future rail transport.
From an economic perspective, configuration A proved to be the more viable option in the case study, while configuration B, although technically advantageous, did not provide a favourable cost–benefit outcome in this context, suggesting that its feasibility should be assessed in other scenarios where a higher investment may be justified.
Finally, this study also addressed compatibility and integration challenges related to energy and signalling systems.
The structure of this paper is as follows. Section 2 presents a review of current propulsion technologies and the application of Linear Induction Motors in railway systems. Section 3 explores key aspects of the MDS implementation, including interoperability considerations. Section 4 describes the operational scenario under evaluation. Section 5 outlines the simulations performed to assess technical feasibility, while Section 6 focuses on the economic assessment. Finally, Section 7 includes the industrial roadmap and Section 8 presents the conclusions drawn from this study.

2. State of the Art

The MaDe4Rail project aims to demonstrate the potential and viability of the hybrid MDS concept based on magnetic levitation, which is a completely new concept under development.
The hybrid concept in this context is used for vehicles that can run on the traditional rail infrastructure under certain conditions, normally at low speeds or when stopping at stations, and in certain circumstances levitating, normally at higher speeds, when conventional rolling resistance affects them more.
Levitation will be used for both suspension and vehicle guidance, while traction is envisaged with linear motors.
However, although this technology as a whole is novel and there are no direct references with which it can be compared, there are references to the basic technologies in which suspension and guidance and propulsion are referred to. Next, the state of the art of each of these will be analysed.

2.1. Suspension and Guidance

Suspension and guidance are very closely related. Electromagnetic Suspension (EMS) and Electrodynamic Suspension (EDS) are the most used technologies.
EMS uses magnetically attractive forces between the guideway and the onboard electromagnets installed below the guideway, for accomplishing levitation. There are several systems developed with this technology. EMS has been widely used in technical applications, such as the German Transrapid magnetic levitation train operating in Shanghai [9], and some low-speed magnetic levitation systems in the world, such as, for example, systems in Korea [10] or Chinese urban maglev systems [11] in China. For low-speed systems, it is not necessary to have a special guidance system on board or in the infrastructure, but for high-speed maglev systems Electromagnetic Suspension must be used in the lateral direction. EMS needs proprietary infrastructure and is so far not compatible with existing railway infrastructures. On the other hand, EDS employs a magnetic repulsive force for accomplishing levitation. Onboard magnets, when moving forward with the vehicle over the guideway consisting of inductive coils or conducting sheets, generate repulsive force due to interactions of onboard magnets with the currents induced in the guideway coils. This repulsive force provides the required levitation to the vehicle.
The main reference of EDS is the Chuo Shinkansen [12]. For EDS, although the suspension is simple, it does not work well at low speeds, so wheels or a special gear are needed either directly under the body or on both sides of the car. It also requires specific infrastructure adaptions to be integrated into an existing railway infrastructure.
When comparing the two systems, EDS seems to be more flexible and useful for railway-compatible systems, although, as of today, EDS systems remain energy intense for operative use and have material compatibility challenges for infrastructure integration due to the use of conductive materials, such as aluminium. But the main inconvenience of these two technologies is that they require a specific infrastructure where the track is a T-shaped beam that supports the vertical suspension and lateral guidance system, being incompatible with traditional railways.
On the other hand, the technology with the greatest potential for use in hybrid MDSs is passive levitation.
The first ones are the electrodynamic systems based on permanent magnets, which consist of a modified form of the conventional EDS system. It is a passive levitation system [13] based on the principle of magnetic repulsion. It uses permanent magnets at room temperature, arranged in the form of a Halbach array. Unlike a conventional EDS system, this system does not require any super-cooled magnets, neutralising any cryogenic requirements. However, the system requires auxiliary wheels to accelerate the vehicle until it acquires some initial take-off speed, after which it starts levitating.
The second one is the ferromagnetic passive levitation system [14], a technology based on the coupling of a U-shaped magnetic slider which integrates passive permanent magnets with a ferromagnetic rail (Figure 1). The magnets are configured on the movable elements to provide vertical support. It is based on permanent magnets at room temperature and provides the levitation force both in static conditions as well as in dynamic conditions. The system can also be integrated with the guidance system.

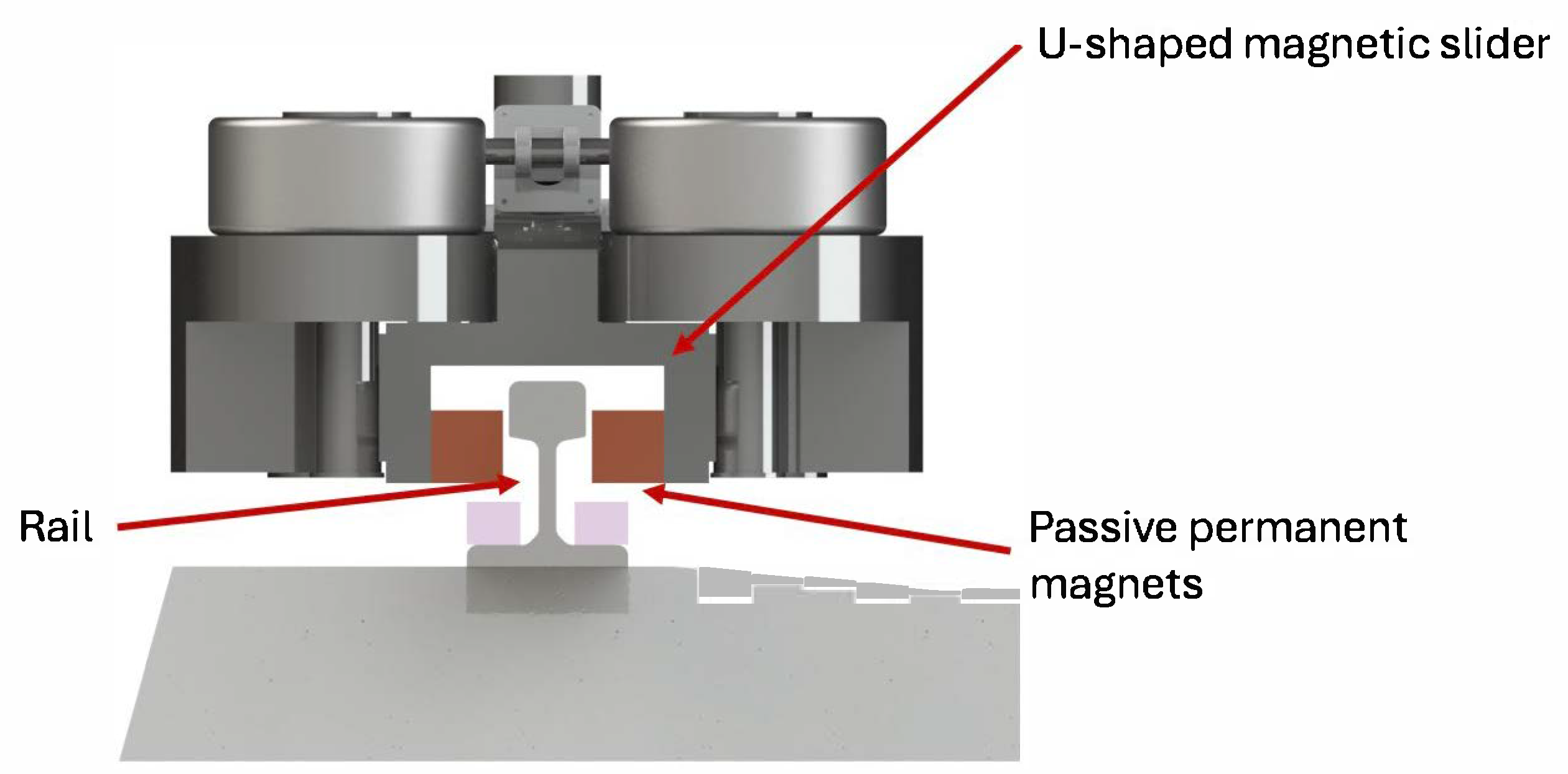

Ferromagnetic passive levitation technology can operate on a standard rail form with auxiliary integration systems for low- to medium-speed applications, or it requires a specific integration infrastructure for high-speed applications. Its benefit as a suspension system is the possibility to have a high levitation efficiency if compared to the other available technologies and the use of low-cost steel guideways.

2.2. Propulsion

Linear motors are the key technology most commonly used for propulsion.
On the one hand, a Linear Induction Motor (LIM) is an asynchronous electric machine that usually is made of two parts—an active part that is a winding (usually three-phase) that generates the electromagnetic field and the reaction plate where the eddy currents are generated. The active part in most cases is mounted on the vehicle.
On the other hand, a Linear Synchronous Motor (LSM) possesses a high force density along with a high efficiency and high-power factor as compared to Linear Induction Motors. Since it is a doubly excited motor, it incorporates a DC (Direct Current) excitation source in its structure. To make the system contactless, generally permanent magnets are used for DC excitation and are fitted in the translator. The translator forms the onboard part and moves with the vehicle. The distributed stator windings are laid on the tracks and energised with the help of ground converters, which gives it a long stator configuration. The excitation of stator windings generates a moving flux that moves at a synchronous speed. DC magnets fitted on the translator generate a constant flux. When both fluxes interact, a magnetic locking is produced that impels the translator to move at a synchronous speed.
The application of linear motors to railways was first proposed over a century ago, initially for conventional vehicles with steel wheels on steel rails. This system involved motors mounted on the vehicle, along with additional structures attached to the track to support the motor functions. A detailed historical progression of this technology and its systems is provided in reference [15].
Some of the earliest practical applications of linear motors in railways include the Linear Induction Motor Research Vehicle (LIMRV) [16] and the air-supported RTV31 [17] and the Aerotrain S44 [18].
The advancement of liner motor technology accelerated with the introduction of pure maglev systems. Extensive research and development efforts in Germany led to the Transrapid system, which became commercially operational in Shanghai in 2004. Transrapid vehicles incorporate EMS and utilise a long primary LSM for both traction and braking [9].
In Japan, Linimo is the first commercial application of a HSST (High-Speed Surface Transport) system for an urban maglev that uses EMS and a short primary LIM [19]. Japan has also made substantial progress in developing a high-speed maglev system utilising EDS with superconducting magnets and a long primary LIM for traction and braking [20]. Similarly, the Incheon Airport line in South Korea [10] used a short primary LIM.
At present, linear motors are a well-known technology, and several projects have demonstrated that the technology is fully operational on separate tracks. However, conventional rail-compatible systems are still under development. The LIM is generally not preferred over the LSM for speeds above 300 km/h due to its lower efficiency, higher eddy current losses, lower power density, and lower power factor.
Linear motors are used as a service brake and for emergency braking but also in combination with mechanical braking for redundancy.
From the state-of-the-art analysis, it is clear, after examining the current state of the art, that existing systems are not designed to operate on a shared infrastructure and therefore lack interoperability.
However, it is possible to use technology that allows the development of the idea of the project as a whole.

3. Hybrid MDS Technological Basis

This section contains the main aspects to be considered for the hybrid MDS implementation, including a description of the proposed technology for both the vehicle and infrastructure and the main implications of the linear motor implementation and all the aspects of interoperability that are mainly related to the compatibility of the hybrid MDS with the existing track infrastructure and the signalling system.
For the technological basis of the following assessments, the vehicle propulsion system will be the Linear Synchronous Motor, while the levitation and guidance will either be based on U-shaped sliders on existing rails or on additional levitation beams that are installed parallel to the conventional rails. The proposed solution is based on the NEVOMO MagRail concept [21] and the IRONLEV technology [22].

3.1. Propulsion, Levitation, and Guidance Systems

The requirement of an interoperable infrastructure is of the utmost importance for the hybrid MDS concept. While conventional full maglev systems require a purpose-built infrastructure, hybrid MDS solutions offer the flexibility for mixed operations of the conventional railway rolling stock alongside MDS vehicles without a new and dedicated linear infrastructure.
The system introduced in this paper entails the implementation of a hybrid MDS based on maglev technology on existing railway lines. In this scenario, MDS vehicles will utilise the existing infrastructure and coexist with conventional trains on the same lines. Magnetic systems will be responsible for propulsion, guidance, and levitation.

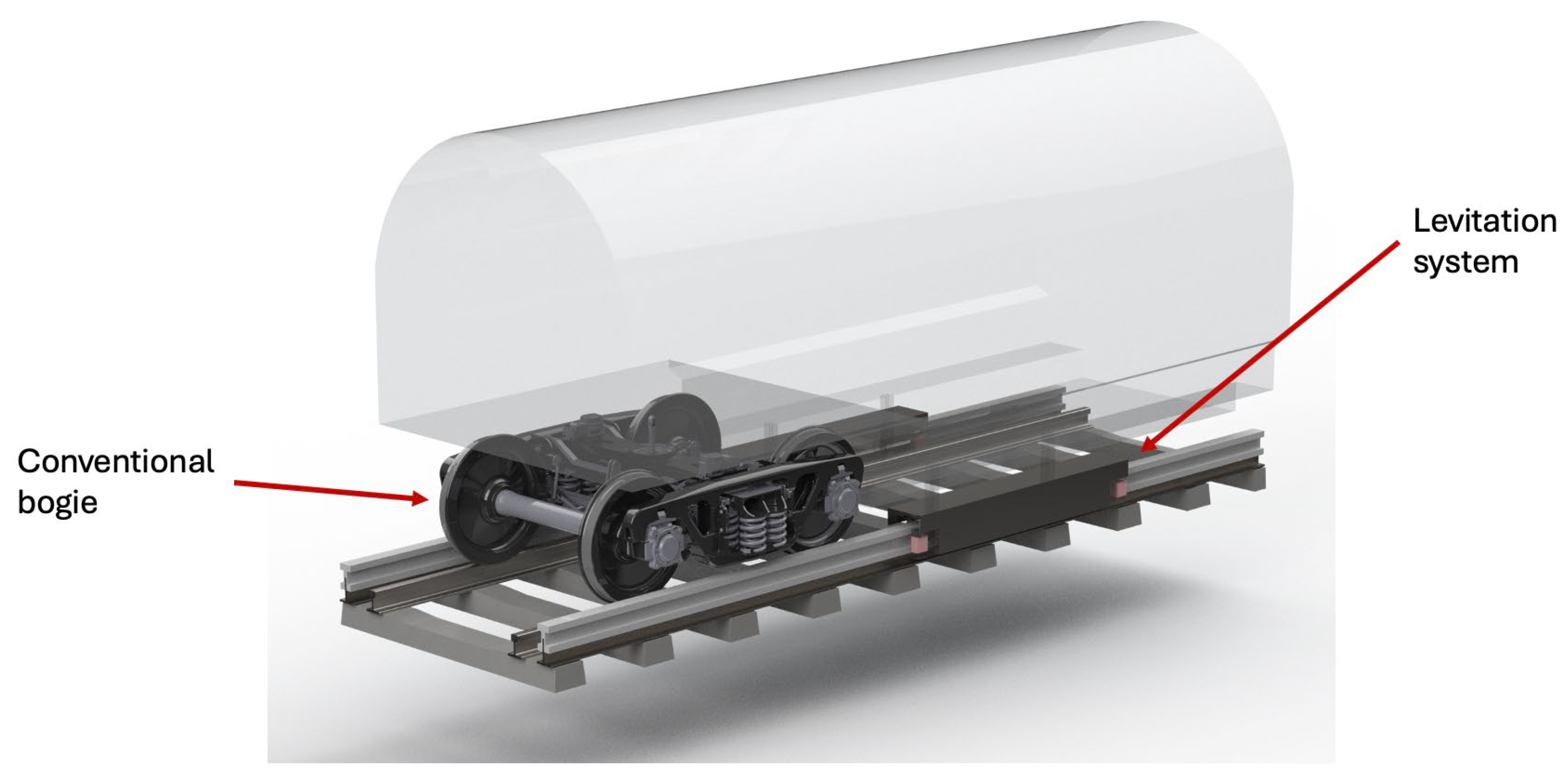

The fundamental unit of the maglev rolling stock will be a single vehicle, also called a pod, similar in size to a standard coach, with a passenger capacity of approximately 70 seats. These pods can be combined into “platoons”, comprising two or more virtually coupled vehicles, without mechanical connections.
While the MDS pods can operate on wheels like conventional trains, using bogies similar to those found on traditional rail vehicles when operating without levitation, they begin to levitate slightly above the rails when operating in a corridor designed for levitation. The suspension and guidance systems of MDS pods require the implementation of a levitation system based on permanent magnet arrangements of onboard sliders, as shown in Figure 2. These sliders, connected to the vehicle structure, ensure that the pods follow the track profile and provide the necessary levitation and guidance forces.
In order to ensure lateral confinement and centring, lateral stabilisation systems are essential, in addition to magnetic levitation systems. These systems are only operational when the pod is in levitation mode and are integrated on the levitation sliders, interacting with the ferromagnetic rails to ensure centring and stabilisation.

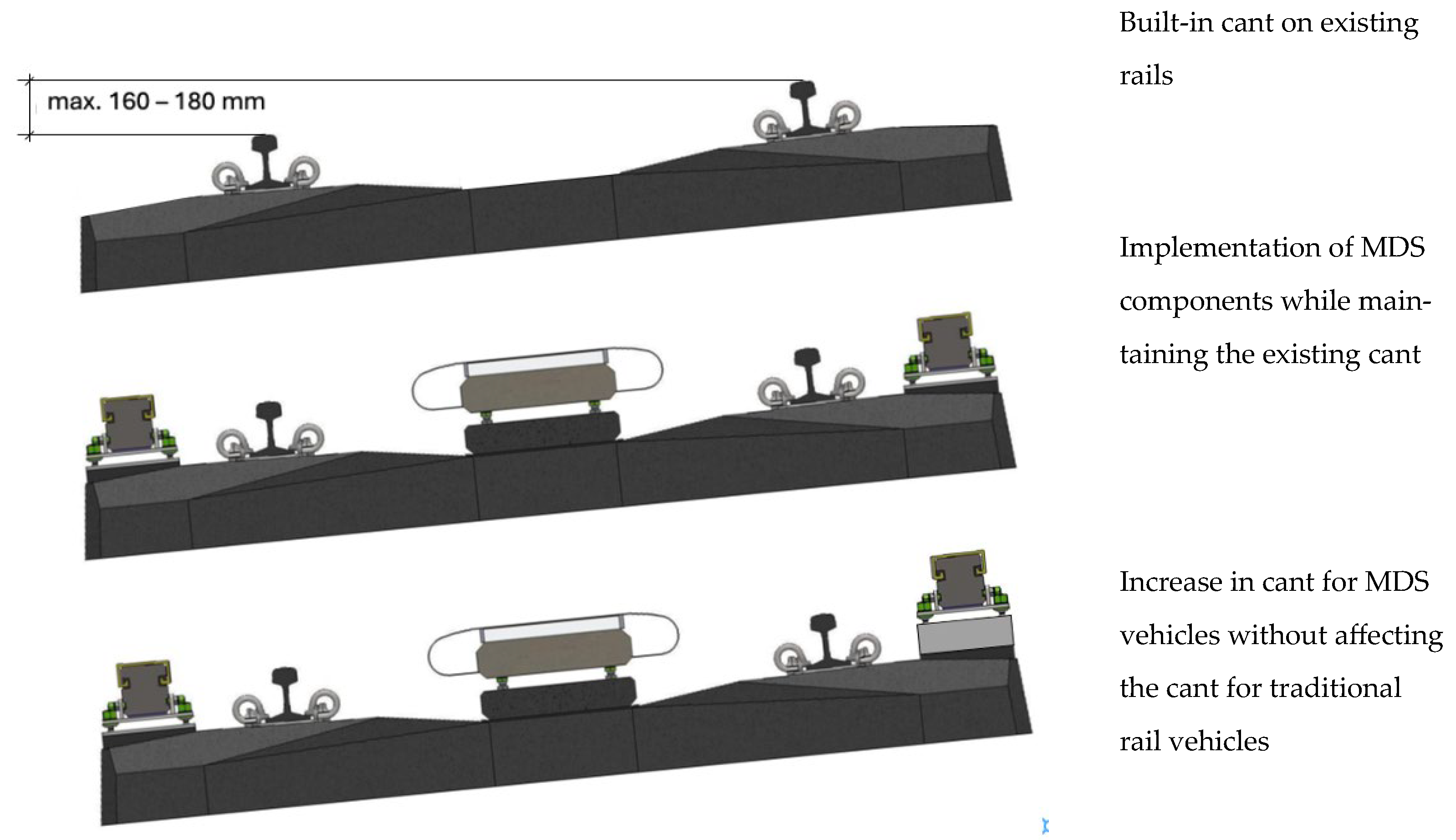

Adapting the infrastructure appropriately to meet the specific needs is crucial to harnessing the positive effects of the new system. Consequently, the infrastructure comprises a conventional (existing) railway line supplemented with additional components to provide propulsion and levitation. In this way, the infrastructure equipped with such MDS components will be always interoperable with conventional vehicles, as shown in Figure 2, and will not create obstructions in conventional railway operations.
The new system needs additional components to provide the needed energy for the linear motor. The deployment of the power electronics subsystems especially contains grid and motor power converters, section switches, cables for power and communications, and the centre for motor control. The levitation system will use passive levitation and needs no additional energy provided by the infrastructure.

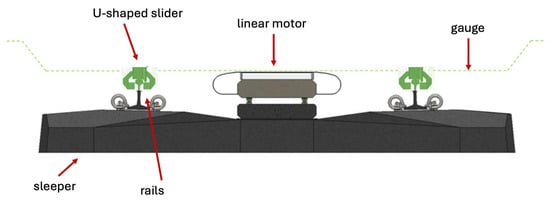

Two configurations have been considered. Configuration A, also called the “series configuration”, involves the analysis that will evaluate the implementation of the existing line with minimum MDS technology, reducing investment costs for the modernisation of the infrastructure.
This intervention will lead to evaluating the applicability of the new technology on the basis of the minimum achievable requirements: a LSM for propulsion; U-shaped sliders on existing rails for levitation; and the existing line alignment (Figure 3). In the cross-section, conventional elements such as the sleeper, the rails, and the linear motor appear, including the levitation system formed by the U-shaped slider, represented in green and in direct contact with the rail. The configuration must be designed in such a manner that the UIC structure gauge is respected (green dashed line is the structure gauge). In this configuration, the levitation and guidance system are based on the principle of magnetic induction between materials with different permeabilities (ferromagnetic levitation), through the interaction of a U-shaped slider with a ferromagnetic rail. The existing standard rail will be used and no additional equipment will be needed on the trackside. The movable part is made of appropriately arranged permanent magnets in a U-shaped ferromagnetic profile. The rail is made of a material with a high magnetic permeability, such as iron. The interaction between the slider and the rail generates a vertical force that suspends the load.
To enhance passenger comfort at higher speeds, the pods will feature a tilting angle of 6° through a mechanism using magnetic forces that compensates for the track’s cant in curves. The “series” configuration will allow the MDS to integrate seamlessly with the existing infrastructure.
On the other hand, configuration B, also called the “parallel configuration”, involves an analysis that will evaluate the implementation of the existing line with magnetic levitation technology, with all the technological and/or infrastructural upgrade interventions necessary for the system to function optimally and with the maximum attainable performance.

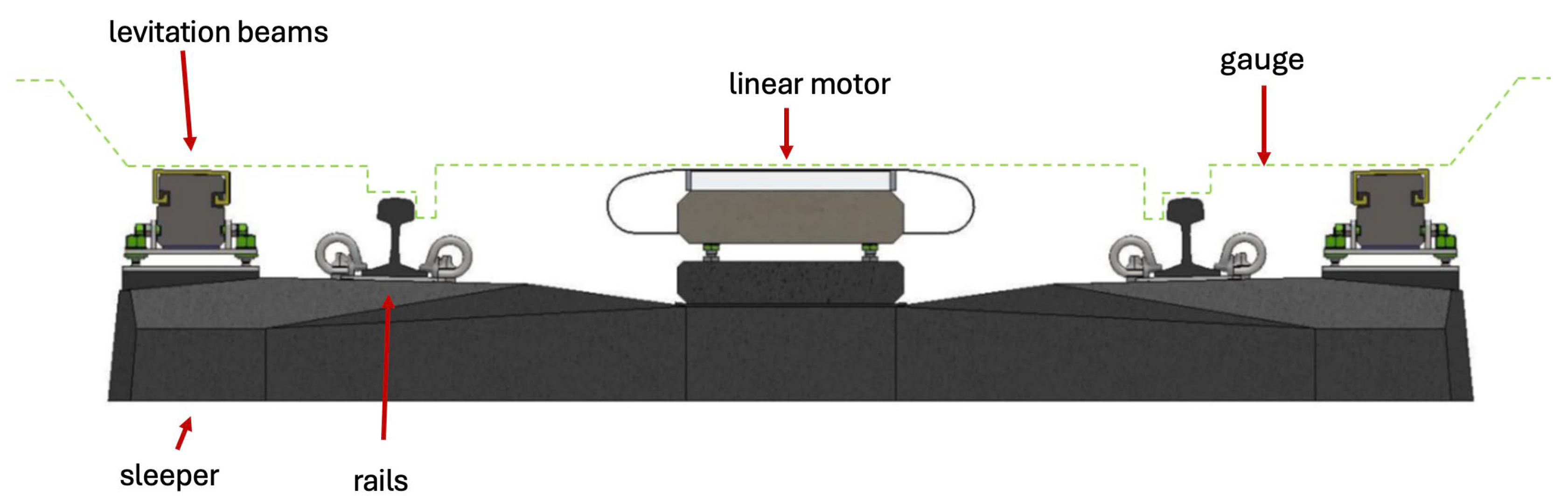

Figure 4 shows a cross-section where the main components can be seen. In this cross-section, next to the conventional elements like the sleeper and rails, the linear motor is between the rails and additional levitation beams outside the rails.
This configuration introduces levitation beams that run parallel to the track on both sides, and these will provide both guidance and levitations to newly designed pods with sliders that will adapt to the levitation beams. It would allow for different configurations of the cant: standard rails will maintain the existing integrated cant for traditional trains, while parallel levitation beams will allow MDS pods to travel at higher speeds on bends thanks to an additional integrated cant.
For this configuration, a key element in the operation of MDS vehicles on existing infrastructure in the event of a potential infrastructure enhancement is the necessity for a supplementary cant to attain elevated velocities, whilst concurrently ensuring the interoperability with conventional trains on the same tracks. The TSI (Technical Specification of Interoperability) 1299/2014 [23] specifies the permissible cant, which is limited to a maximum of 160 mm (or 180 mm for tracks exclusively utilised by passenger services). In cases where a greater cant is required to attain elevated velocities, the installation of MDS components can be implemented in a manner that exclusively affects vehicles operating in high-speed levitation mode, as illustrated in the subsequent stage of Figure 5, allowing the built-in cant to remain consistent for all vehicles operating on wheels and standard rails, but vehicles in levitation mode can benefit from a higher cant, built-in under the additional levitation beams outside the standard rails.
In both configurations, the propulsion system is based on an LSM, where the vehicle’s propulsion system (mover) is energetically passive, consisting of NdFeB (Neodymium Iron Boron) permanent magnets arranged on a steel core, whilst the stator is installed in between the existing rails fixed to the sleepers or slab track. The vehicle movement is controlled from the linear motor side. An electric power command and control system, based on sections and segments of the linear motor stator, enables the precise vehicle position control on the track with an accuracy of up to 5 cm.

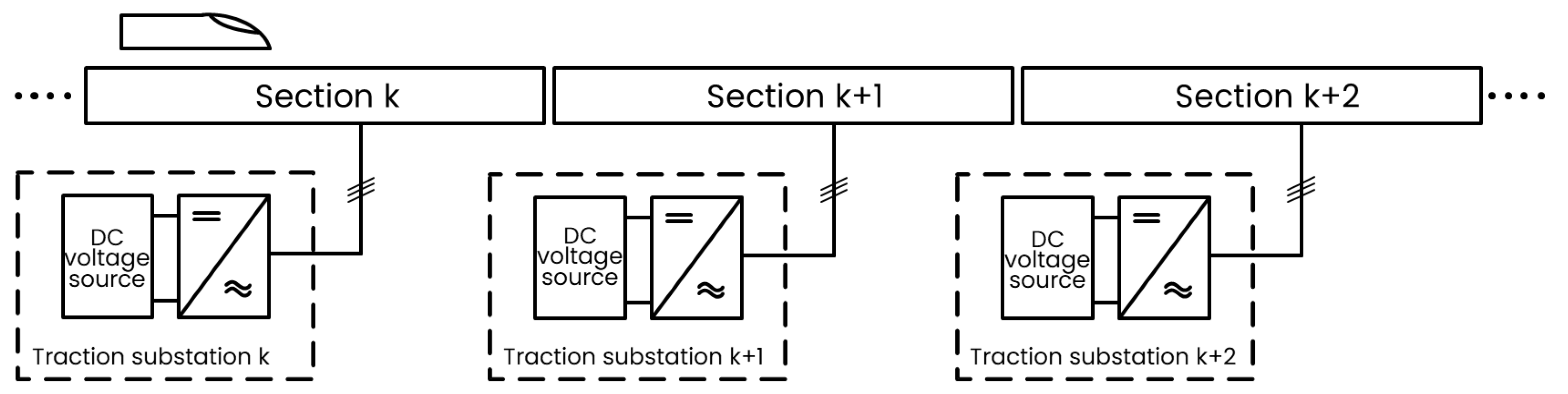

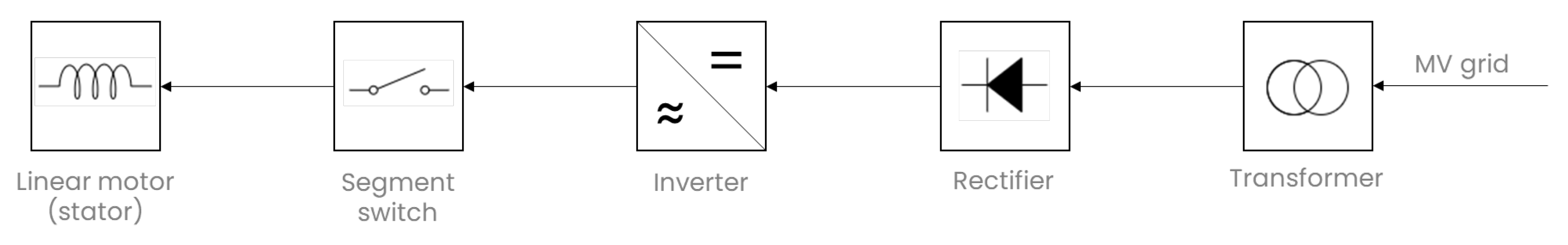

Inverter stations are used to deliver needed power to the linear motor. A schematic drawing in Figure 6 depicts the architecture of the power supply chain from the MV (medium-voltage) grid to the stator.
To improve the efficiency of the drive system, the stator is divided into shorter segments called sections. This division allows for the use of smaller converters that supply energy only to specific sections, i.e., the sections where the vehicle is present. A separate substation with a power electronic converter supplies each section. This division is shown in Figure 7.
In each section, one vehicle can be moved individually. Section lengths define the minimum distance between vehicles; for example, in stations or areas with a lower speed and higher density, the sections are shorter than on open network lines with bigger distances between vehicles. Each section requires its own inverter station, so the length of the section is determined based on a specific operational–economic analysis for each use case.

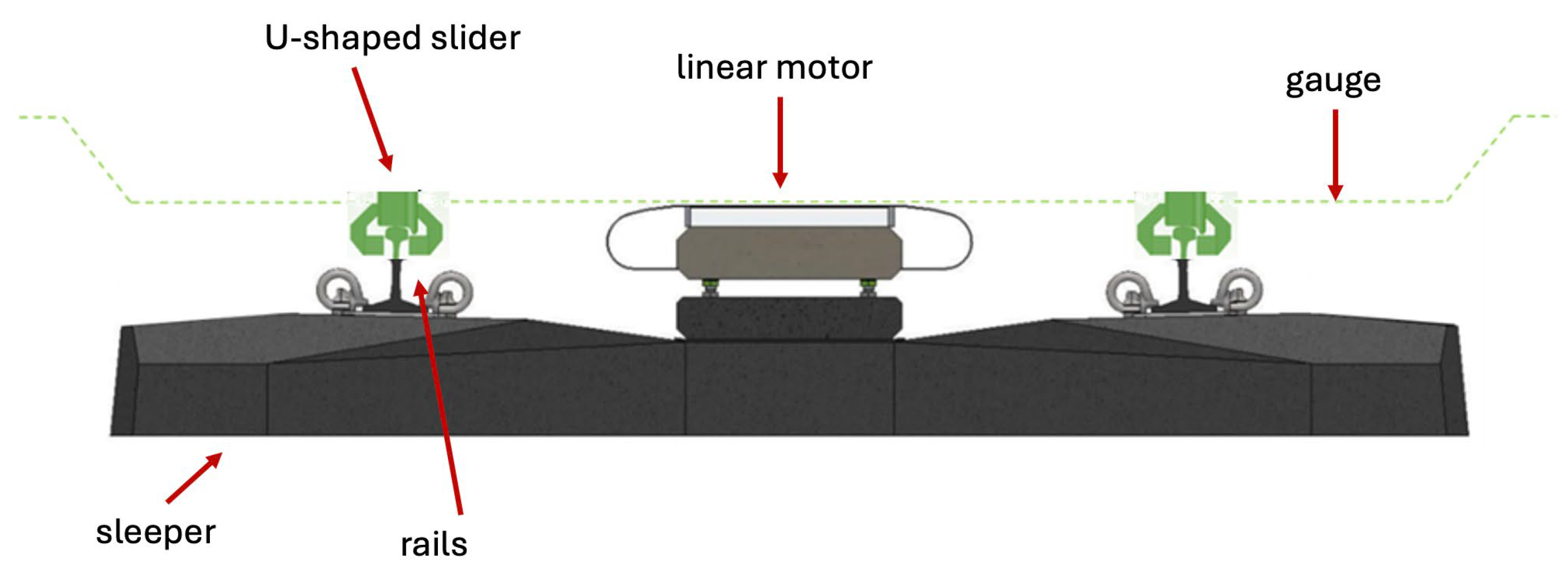

Thus, the propulsion system consists of a stator installed between the existing rails attached to the sleepers or slab track, a mover equipped with permanent magnets attached to the vehicles, a control centre to command the linear motor, and reversing stations in the infrastructure to supply the necessary power to the linear motor.

3.2. Interoperability Needs and the Compatibility of the MDS with the Existing Signalling System

The primary interferences identified in the project between the MDS technology and the existing signalling system are the compatibility between signalling components on the track and MDS components, such as the linear motor, and the electromagnetic (EM) interferences generated by the linear motor on the signalling components. This issue is the same as that analysed for the case of the upgraded MDS presented in [8].
On the other hand, in Europe, most modern lines are equipped with the European Train Control System (ETCS) and European Railway Traffic Management System (ERTMS), Level 2, which represents state-of-the-art railway signalling technology. The signalling system is based on several consolidated concepts, including the utilisation of a train detection system (TDS) for the identification of trains along the line, the deployment of a Eurobalise for the verification of the train positioning along the designated route, and the integration of radio communications. The use of the TDS on the line depends on the type of signalling applied. If the signalling also uses a TDS for the location of the train along the line, then it is essential to verify its compatibility with the MDS vehicles.
The integration of MDS vehicles within the existing infrastructure may potentially impact the operation of the signalling system and must be compatible with it. For the specific hybrid MDS configuration A, the use of magnetic sliders for the levitation on the existing rails interferes with the axle counters. In this case, the problem can be solved using track circuits instead of axle counters.
Another possibility can be the adoption of a TDS that implement the safe localization of the train using other sensors, like, for example, onboard sensors that detect digitally encoded location flags on the guideway.
Existing balises will be used for conventional vehicles, while virtual balises will be used for MDS vehicles. This type of approach, however, requires that there is a signalling system that safely identifies the presence of the train without the use of a traditional TDS. In this case, possible alternatives include new field devices that use new sensors connected to the interlocking for the train detection in the ETCS Level 2 scenario or adopting ETCS moving blocks (also called ETCS Level 3) without a TDS.
Finally, a second source of EM interference is produced by the levitation system. In this study, a passive magnetic levitation system has been evaluated. Based on the magnetic simulations performed, no influence is expected from the EM field generated by the sliders on the balises which are in the middle of the track; however, the influence of the field on the track circuit should be studied more in detail in further research.
Furthermore, a high-level analysis of the hazards arising from the implementation of the hybrid MDS has been carried out, and the hazards identified have been classified into four groups: derailment, collision, fire, and electrocution. Particular examples are as follows. In the case of collision, the collision with the system equipment in the gauge is particularly important. In the case of fire, the fire may result from the overheating of the magnets responsible for the traction of the rolling stock. And in the case of electrocution, the accidental breakage of a segment of the winding that makes up the linear motor can lead to the electrocution of train passengers. A more detailed analysis of the risk analysis carried out can be found in [24].

4. Operational Scenario to Be Evaluated and Context Analysis

As previously mentioned, hybrid MDSs comprise levitating transport systems designed to be compatible with existing railway infrastructure. The considered case study aims to evaluate the possibility to retrofit existing regional lines as an alternative to building new HSR (High-Speed Railway) lines.
The use case is proposed on a typical regional line with passenger traffic services, where the implementation of a hybrid MDS in an existing line is proposed as an alternative to the construction of a new HSR line.
For the close to 550 km line considered in the case study, conventional intercity services take almost 6 h. The objective is to carry out a comparative analysis of the capacity of the line comparing the journey times and energy consumption between a conventional intercity regional train (referred to simply as an IRT in the remainder of the paper) travelling on that line and a convoy of pods based on MDS technology with the same passenger capacity.
The considered operational scenario provides an overview of how a maglev line operates, using pods connected by means of virtual coupling forming a platoon as rolling stock and employing a mixed operation of traditional train and maglev technology with MDS pod movements governed by the GOA4 (Grade of Automation 4) at a maximum speed of 220 km/h with an acceleration of at least 1.5 m/s2 and an operational deceleration of 1.5 m/s. A single pod can have up to 70 passenger seats.
Two scenarios have been considered, one for configuration A and the other for configuration B mentioned above.
This use case compares a conventional intercity regional train (IRT) with four coaches to a set of four pods operating in a hybrid MDS configuration with virtual coupling. Both run on the same railway line, but the pods benefit from increased speeds in curves due to the additional cant, enabled by vehicle tilting. This feature enhances passenger comfort while reducing the cant deficiency, allowing for higher speeds.
Table 1 and Figure 8 present the main characteristics of the analysed line.
The analysis focuses on comparing the travel time and energy consumption between a conventional train and an equivalent pod configuration in terms of transport capacity, taking advantage of the advantages of MDS technology. The four pods are considered virtually coupled when they arrive at stations simultaneously without delays. The choice of four pods aligns with station platform constraints, ensuring they occupy the same space as the IRT.
This use case could benefit from the hybrid MDS with magnetic levitation, using a virtually coupled pod system. The objective is to significantly reduce travel time while maintaining an energy consumption similar to conventional trains.
The reduction in travel time is achieved by the increase in the speed in curves, facilitated by an additional cant developed through vehicle tilting. Depending on the configuration, this cant can be introduced either physically, by adding a built-in cant under the levitation beams, or directly through magnetic levitation. Energy efficiency is maintained despite the increased speed by minimising the aerodynamic drag. Virtual coupling allows pods to travel closer together, taking advantage of the slipstream effects to reduce aerodynamic resistance and energy consumption.
To estimate potential speed increases in curves, the pilot line was analysed using a stepwise approach. Initially, speeds were calculated based on the existing cant and allowed cant deficiency to establish current performance limits. Then, potential speed increases were evaluated for two configurations.
For configuration A, the levitation system utilises existing rails, maintaining a built-in cant while introducing vehicle tilting (maximum 6°) to enhance passenger comfort. This approach minimises investment costs but limits speed increases to passenger acceptance levels of tilting technology.
For configuration B, additional levitation beams enable independent cant optimisation for levitating and the conventional rolling stock. This requires a greater investment but allows for a greater built-in cant for levitating trains without affecting conventional rail operations.
Velocity calculations for configuration B followed two steps. First, speeds were restricted by regulations on built-in cants, cant deficiency, and transition curve constraints. Then, based on other transport systems, new values were proposed to highlight the system’s potential. Maximum speeds were determined for each curve by applying the highest permissible cant deficiency to the given infrastructure.
For configuration A, speed increases rely on tilting mechanisms, similar to existing tilting trains like Pendolino (Italy), X2000 (Sweden), and ICE-T (Germany). Excessive tilting can cause passenger discomfort, so tilting angles must be carefully managed.
For configuration B, the use of levitation beams allows for optimised cant values. The maximum MDS cant is achieved by combining the built-in cant from the levitation beams with a slight vehicle tilt of 1°, balancing speed enhancements with passenger comfort.
This approach ensures a thorough evaluation of the potential benefits of MDS technology in improving intercity rail services.

4.1. Virtual Coupling

In recent years, the railway sector has focused its efforts on increasing the capacity and flexibility of lines by improving the current railway operation. Research has focused on increasing capacity by reducing the headway or the distance between trains. Moreover, railway traffic control and signalling systems based on moving-block systems (MBSs) have been developed, such as the Communication-Based Train Control (CBTC) system [25], which is mainly used in urban and Automated People Mover (APM) railway lines, and the ETCS Level 3 [26] for main and commuter lines.
Virtual coupling in railways offers a transformative alternative to traditional mechanical coupling by enabling trains to operate in a more flexible, efficient, and intelligent manner. One of its most significant advantages is the ability to reduce headway by replacing physical connections with real-time digital communication [27], allowing trains to travel closer together safely. In [28], a multi-state train-following model was developed for describing VC procedures conducting a comparative capacity analysis with other signalling systems. The results indicated that VC has a superior capacity to MBSs, and it was estimated that VC could reduce the distance between trains by 64% for the ETCS Level 2 and by 43% for the ETCS Level 2 with moving blocks.
Another key benefit is the operational flexibility it introduces [29]. With virtual coupling, trains can be dynamically coupled or decoupled while in motion or at stations, without requiring manual intervention. This capability supports more responsive and adaptive train formations, allowing operators to adjust train lengths based on passenger demand or service requirements. It also facilitates the integration of different types of rolling stock within the same convoy, enhancing the versatility of rail operations.
Energy efficiency is also improved through virtual coupling. By coordinating the movement of trains digitally, it becomes possible to optimise spacing and speed profiles, which reduces aerodynamic drag—especially when trains travel in a close formation.
From a safety and automation perspective, virtual coupling relies on advanced train control systems such as the CBTC or ETCS Level 3.
Finally, virtual coupling is a scalable solution that aligns with the future of smart mobility. It enables modular train concepts, where units can split or merge en route, and supports mixed traffic operations involving both passenger and freight services. Its integration with digital signalling and traffic management systems positions it as a cornerstone technology for next-generation rail networks.
Thus, although VC is not specific to MDSs; the use of VC undoubtedly provides great advantages that can be used to improve the performance of MDSs.
While current moving canton systems, such as the CBTC or ETCS Level 3, use the Absolute Distance Braking Mode (ADBM) concept, VC is based on the principle of the Relative Distance Braking Mode (RDBM).
The ADBM is based on the concept that two consecutive trains running on the same track must always be separated by a sufficient margin to ensure that each train can reduce its speed and will be able to stop before reaching the last known position on the track of the immediately preceding trainset, regardless of the current speed and braking curve of the preceding trainset.
On the other hand, RDBM concepts have been widely applied in control systems for road traffic, autonomous vehicles, and platoon cars. The RDBM system is similar to the on-road mode of operation, where vehicles drive at a safe distance from the vehicle in front and the driver reacts to the brake lights of the vehicle in front, which is far shorter than the required braking distance for a full stop. This idea is fundamental to vehicle platooning and autonomous vehicles.
In the RDBM, it is assumed that two consecutive vehicles are in motion, and depending on their braking speeds, the safety margin between them can be reduced. Thus, if the first train (leader) is running at speed v l and braking with deceleration a l and the second is running at speed v f and braking with deceleration a f , the position of the follower s f can be calculated as indicated in Equation (1) for the ADBM and RDBM.
ADBM s f = s l d m i n + v l 2 2 a l RDBM s f = s l d m i n + v l 2 2 a l v f 2 2 a f
where d m i n is the minimum distance to be maintained by the two trains in all circumstances. For the simulation, we will consider d m i n = 10   m .

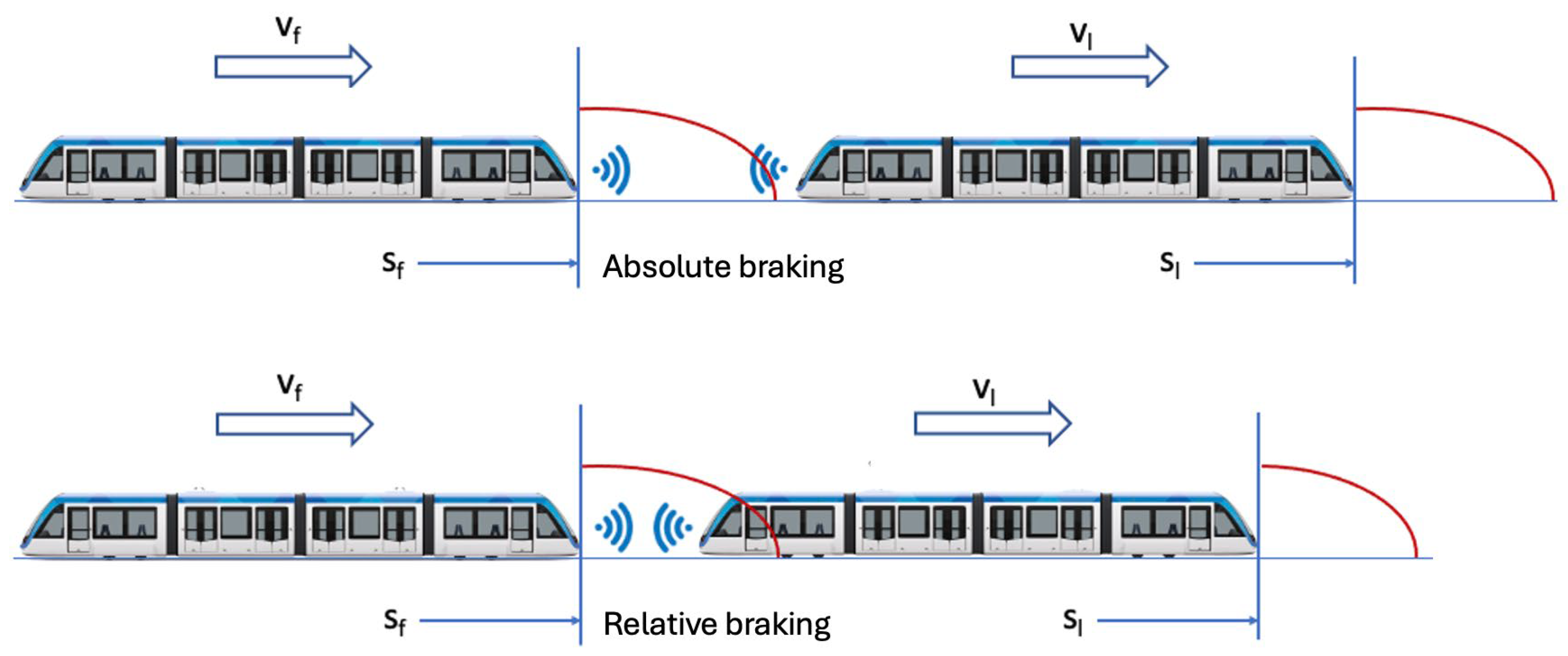

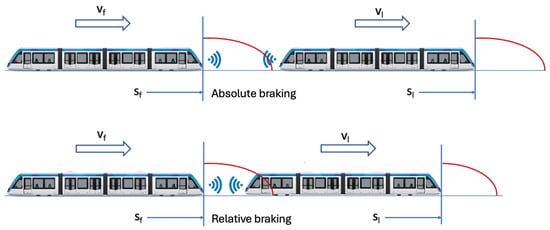

Figure 9 shows a schematic and differences between the ADBM and RDBM concepts, showing how in the case of the RDBM the distance between trains is smaller than with the ADBM.

4.2. Simulation Model

The model defining the train motion of this work is based on the principles of longitudinal train dynamics (LTD). Hence, the train is considered a point mass with one degree of freedom, where the traction/brake system, rolling resistances, air intake, aerodynamic drag, and slope and curve resistances are applied. This simulation model has been included and explained in detail in references [28,29] and corresponds to the following equations:
s ˙ = v
v ˙ = A B   v C   v 2 F e + F / M + w
F ˙ = u F τ
where s (m) and v (m/s) denote the position and train speed; u (N) is the controlled driving/braking force; F (N) is the integrated driving/braking force; F e ( N ) is the resistance force due to the track; τ is the inertial lag of the longitudinal dynamics; M (kg) is the train’s mass; A (N) is a term that includes the rolling resistance plus the bearing resistance; B (Ns/m) is a coefficient related to the air intake; C (Ns2/m2) is the aerodynamic coefficient, which depends on the driving speed and the distance between pods as explained in the next section; and w (m/s2) represents the uncertainty contemplated in the robust control in terms of acceleration as, for example, in the estimation of the aerodynamic drag.

4.3. Aerodynamic Drag in Virtual Coupling Configurations

As shown in the next figures, due to the proximity of trains in virtual coupling, the airflow between trains can significantly affect factors such as the air resistance during train operations, thus affecting the train dynamics. Therefore, building an accurate model for train drag in virtual coupled convoys plays a crucial role in achieving the smooth tracking control of the trains in the virtual coupling. The effects of virtual coupling are very relevant as there is a reduction in drag which results in a lower energy consumption.
The computational domain has been defined to leave a space of 8 × L t r a i n between the inlet and the train and   10 × L t r a i n between the last train and the output. In the vertical direction, a space of 5 × H t r a i n has been left. The mesh is an adaptive mesh with a finer resolution near the train walls, with a size of h t r a i n = 7.5   mm , and a coarser resolution far from the trains, with a size of h c o a r s e = 200 × h t r a i n , while between trains the same linear interpolation as from the last train to the output is used.
The presented simulations have been carried out in OpenFOAM [31] using a steady finite volume method for compressible flow. The velocity boundary conditions are no slip on the train surface and moving wall on the ground (matching the train speed), while the rest of the domain uses a zero gradient. For pressure, a zero gradient is applied throughout the domain except at the outlet, which is used as a reference. Turbulence has been modelled using the SST κ ω   model with a boundary layer model when necessary, with a turbulence intensity of 5%, a turbulent mixing length equal to 7% of the train height, and wall functions applied on the train and ground surfaces. This model and these values are commonly used in aerodynamic models for railway vehicles, as can be seen, for example, in [32]. In all simulations, y +   remains below the critical values for the turbulence model with the given mesh.

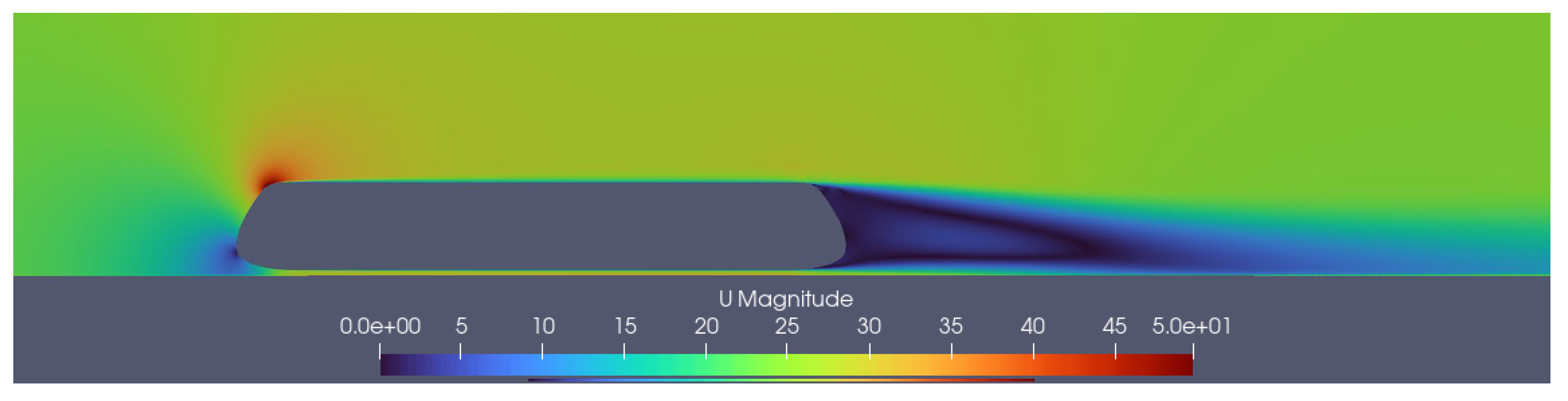

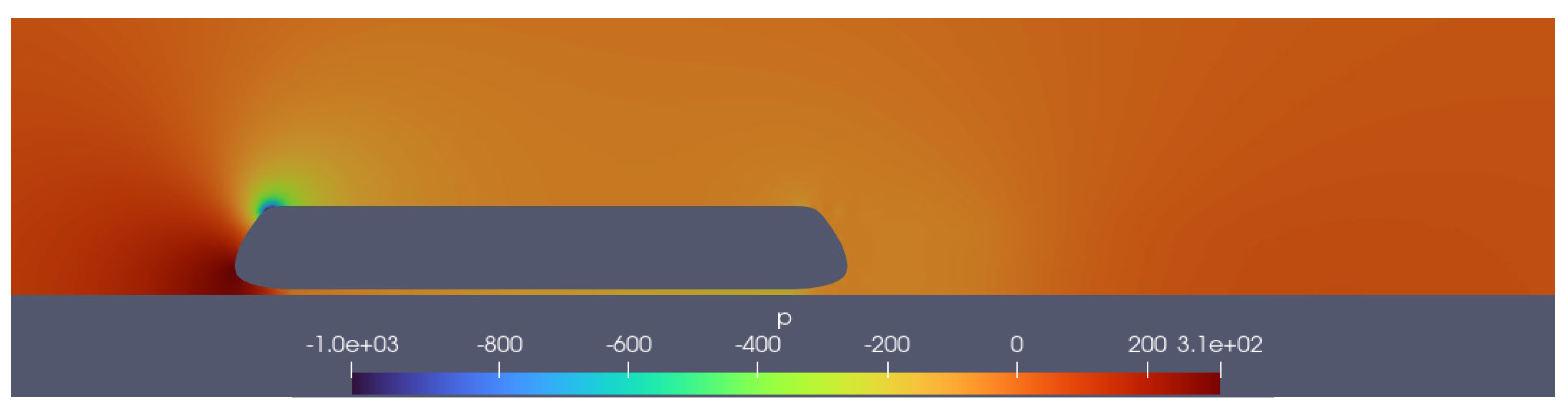

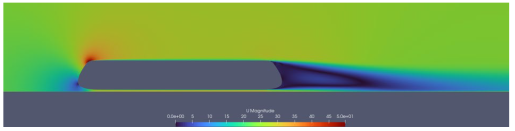

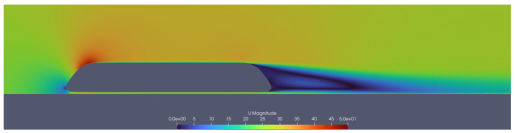

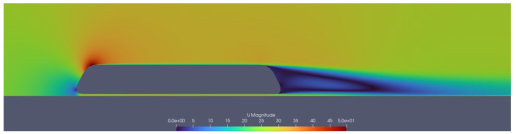

Figure 10, which represents the flow velocity, and Figure 11, which includes the pressure distribution, show the results of the CFD (Computer Fluid Dynamics) calculations for a single pod configuration, where the grey area represents the pod. This CDF analysis obtained an aerodynamic drag coefficient Cx of 0.31. This is the coefficient of an individual pod and is the one to which the trains of a convoy tend to be asymptotic when the separation between units is sufficiently high.

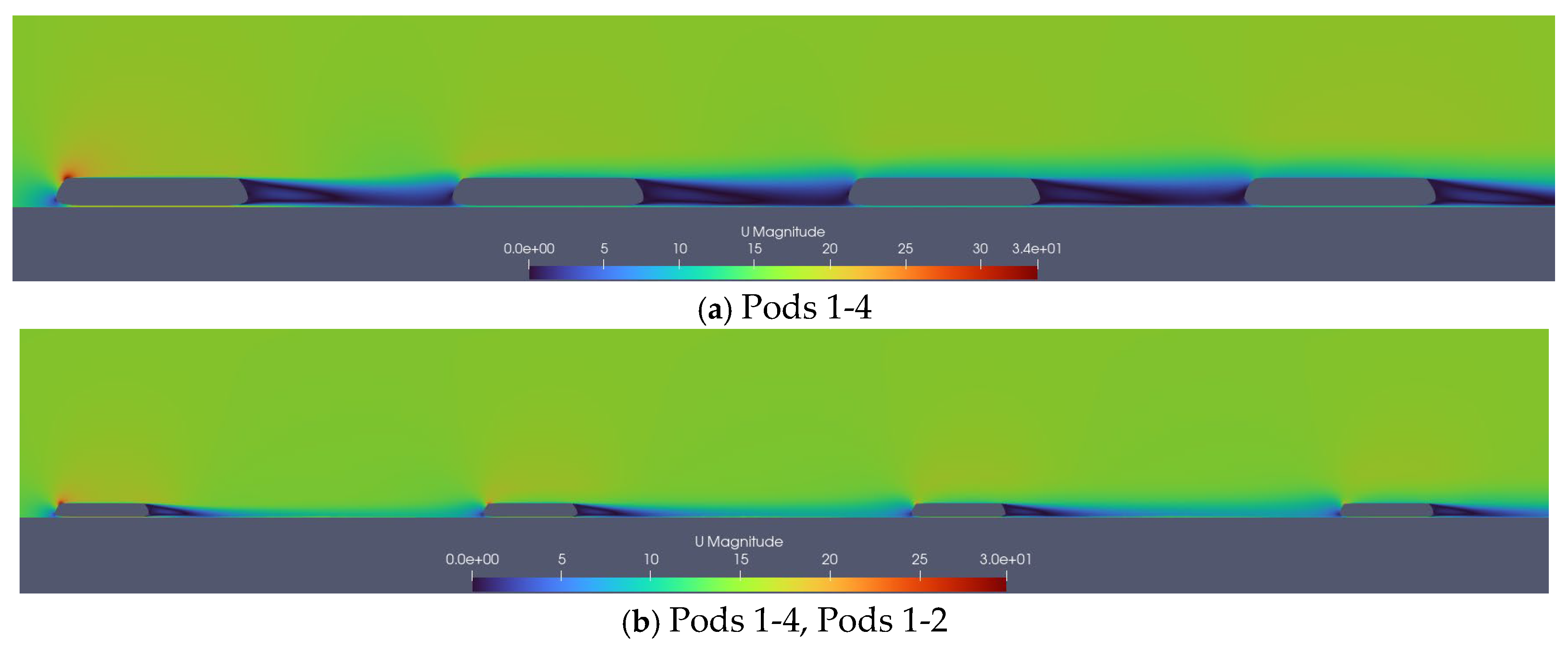

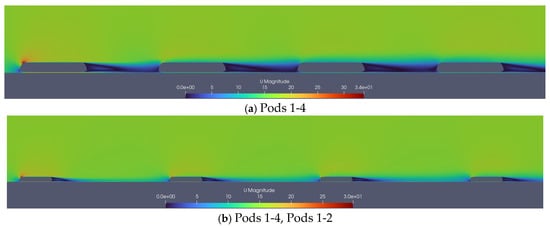

On the other hand, Figure 12 shows results for a four-pod configuration, which is the one used in this use case to compare it with the IRT.
Calculations for both relative braking (virtual coupling) and absolute braking (ERTMS L3) have been included. This figure shows that the airflow depends on the separation between pods, showing that when, for the same speed, the separation between pods is greater, the slipstream effect is lower, which translates into a lower drag reduction and, therefore, a higher energy consumption than when the pods are closer together, as in the case of the VC. This means that when the pods are closer together, as in the case of VC, the drag coefficient of the follower is lower.
Different CFD simulations have been carried out for different speeds of circulation and for different separations between pods, with the result that the dimensionless Cx coefficient depends on the driving speed and the distance between pods, so that, as a final result, a 3D function has been obtained for each pod to obtain its value.

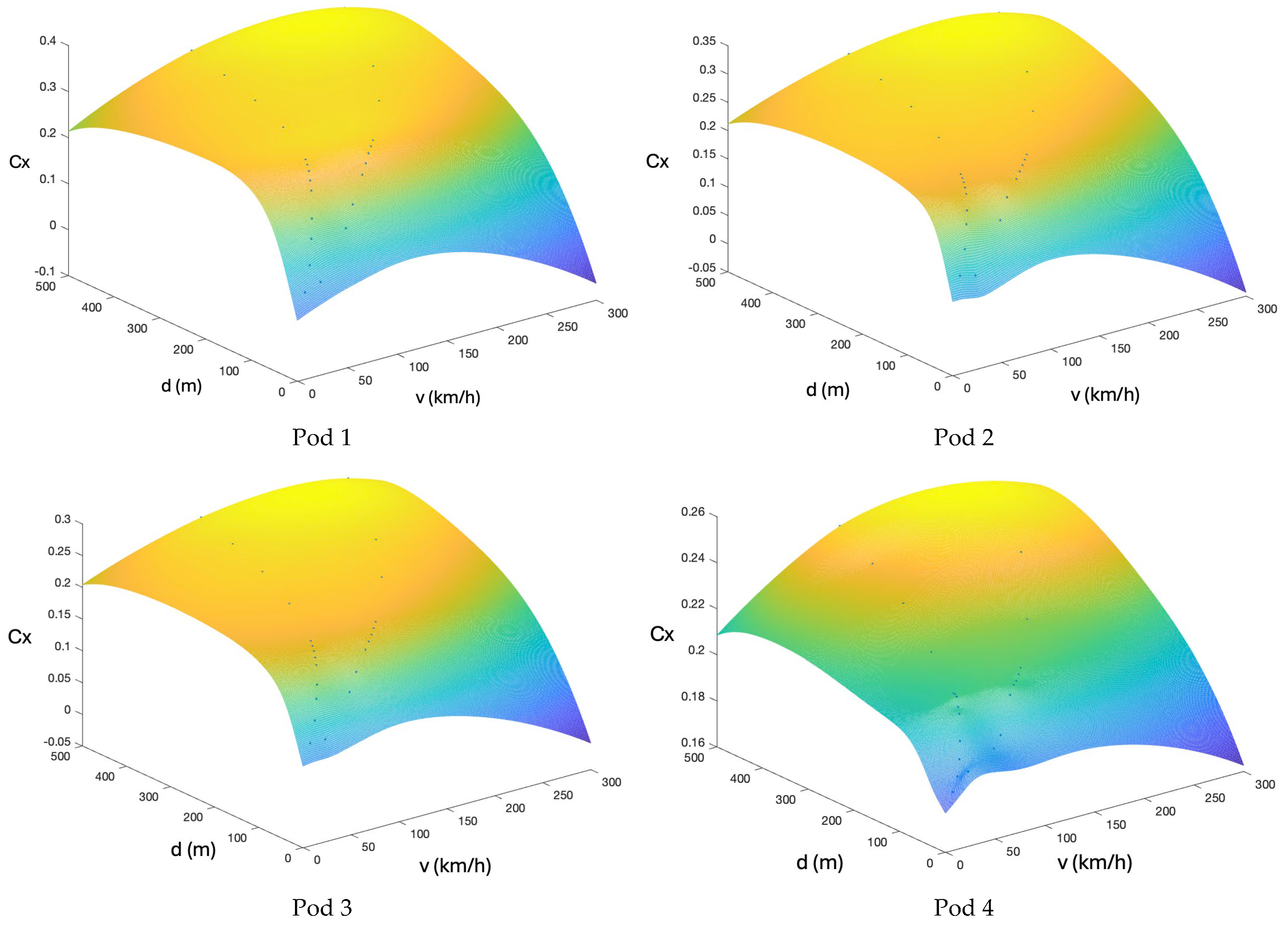

Figure 13 shows the Cx functions obtained for each of the four pods, representing the variation in Cx as a function of the distance between pods and of the driving speed.
These Cx results have been used to establish the coefficient C in Equation (3) as a function of the pod’s speed and the distance between pods, and these are the results that will be used in the simulations carried out in the following subsection.
Finally, it is necessary to mention that, although 2D simulations have significant limitations due to their inability to capture the intrinsically three-dimensional flow characteristics of train aerodynamics—including wake dynamics and geometric details—the aim of the present parametric study is to identify general trends rather than to obtain precise aerodynamic drag values. While more accurate and detailed investigations require three-dimensional simulations, for this conceptual design study, a 2D analysis has been considered sufficient. In any case, the drag coefficients obtained are of the order of magnitude of those corresponding to rail vehicles of these characteristics [32]. In addition, in order to abate this possible source of error in the estimation of the Cx that could affect the controller used for VC, the controller has considered a 10% uncertainty in this value, as mentioned in Section 4.4.

4.4. MPC Controller Design

The use of a Model Predictive Control (MPC) strategy for virtual coupling in railways is highly advantageous due to its ability to handle multi-variable systems with constraints in a predictive and adaptive manner [30]. MPC can anticipate future train dynamics based on a model of the system and optimise control actions accordingly, ensuring safe and efficient spacing between virtually coupled trains. This is particularly important in high-speed or mixed-traffic environments, where maintaining precise inter-vehicle distances while minimising energy consumption and ensuring passenger comfort is critical. Moreover, MPC’s flexibility allows it to incorporate real-time data and adapt to disturbances, making it ideal for the dynamic and safety-critical nature of railway operations.
Considering a convoy composed of a leader and n followers (three in our case), all of them have a length of L. The superscript indicates the pod, with 0 for the leader and i, where i = 1, , n, for the followers.
A decentralised VC control problem is considered with independent controllers for the leader and each follower.
With the proposed control strategy, the leader will track a given speed curve, and the followers will guarantee a safe minimum distance between pods and the string stability of the VC. For the followers, we design a robust MPC controller that ensures safety and control efficiency while considering the parameter uncertainties.
When using a decentralised control architecture, the leader can operate under any control and signalling method. Therefore, the leader can use any conventional control method based on Automatic Train Control (ATC) or the ETCS.
For simplicity, for the leading train, we use a driving mechanism based on an ATC system that tracks a given speed curve. This speed curve is obtained using a Dynamic Programming (DP) approach. Because the role of the leader is to set the convoy’s movement policy, we use the DP approach to precompute the reference behaviour of the leader. Then, the result of the DP establishes the general policy followed by the train’s convoy. In this paper, we use a policy with an optimal speed profile that finds the maximum velocity permitted by the speed limitations imposed by the line operation, thereby satisfying the speed constraints at all times. A detailed explanation of the implementation of this DP approach can be found in [28].
For the controller design for the followers, a robust MPC approach is used in which an uncertainty in the Cx estimation is introduced in the dynamics. The MPC optimises over a finite time horizon but implements only the current time window of the finite horizon optimisation problem solution.
The complete formulation of the optimisation problem used to construct the MPC controllers of the leader and the followers can be found in reference [29].
In general terms, as specified in (5), the MPC optimisation problem minimises a cost function during the prediction horizon H p subject to three types of constraints: the states should follow the dynamic Equations (2)–(4), as specified by (6); the speeds should respect the speed limits, as specified by (7); and the force u k , which is the solution of the optimisation problem, must respect the maximum traction and braking capabilities of the train (8). In the follower’s case, a fourth type of constraint (9) is added, in which the follower should respect the RDBM with respect to the train that is moving in front.
m i n u k   k H p c o s t ( s k , v k , u k , w k )
subject to:
s k + 1 v k + 1 F k + 1 = D y n a m i c ( s k , v k , F k , w k )
v k v l i m i t s
u k u l i m i t s
d i s t a n c e k R D B M ( s k , v k )

4.5. Analysed Configurations

As mentioned above, the two configurations considered, A and B, will be compared with respect to a conventional train, given that the objective of this work is to compare the performance of a pod convoy with an intercity regional train (IRT) running on the same line and with the same passenger transport capacity. The IRT consists of four mechanically connected coaches, while the convoy consists of four virtually coupled pods.
Table 2 shows the main characteristics and main parameters for the IRT.
And for an individual pod, Table 3 presents the characteristics that have been considered.
For each configuration, A and B, two different alternatives have been considered in terms of the traction capacity of the MDS pod:
  • A maximum acceleration of 0.75 m/s2: This acceleration leads to a maximum tractive effort of 35 kN. This option has been limited to 1500 kW of power. In order to be able to implement acceptable virtual coupling conditions, a maximum braking deceleration of 1.2 m/s2 was set, leading to a maximum braking effort of 52.32 kN. This maximum deceleration is also justified as a way of establishing a braking capacity similar to that originally proposed (of 1.5 m/s2) but within the usual maximum deceleration margins for conventional trains,
  • A maximum acceleration of 1.5 m/s2: This acceleration leads to a maximum tractive effort of 71 kN. This option has been limited to a power of 2263 kW. The maximum braking deceleration is 1.5 m/s2, which leads to a maximum braking effort of 71 kN.
These values are summarised in Table 4.
As previously mentioned, the model defining the vehicle motion of this work is based on the principles of LTD. The parameters considered for the rolling resistances are summarised in Table 5. The A, B, and C values are typical values for a conventional rail vehicle, while the A and B values for the pod have been obtained from the magnetic drag calculations performed in [33].
The value of coefficient C is calculated from the following expression (10):
C = 1 2   ρ   S   C x
where ρ   k g / m 3 is the air density, S m 2 is the frontal area of the vehicle, and   C x is the drag coefficient depending on the velocity and the distance between pods and is obtained from the functions represented in Figure 13.

5. The Performance Analysis of the Proposed Solution

The objective of this section is to evaluate and demonstrate the benefits of the proposed technology under a theoretical pilot line designed for intercity regional services.

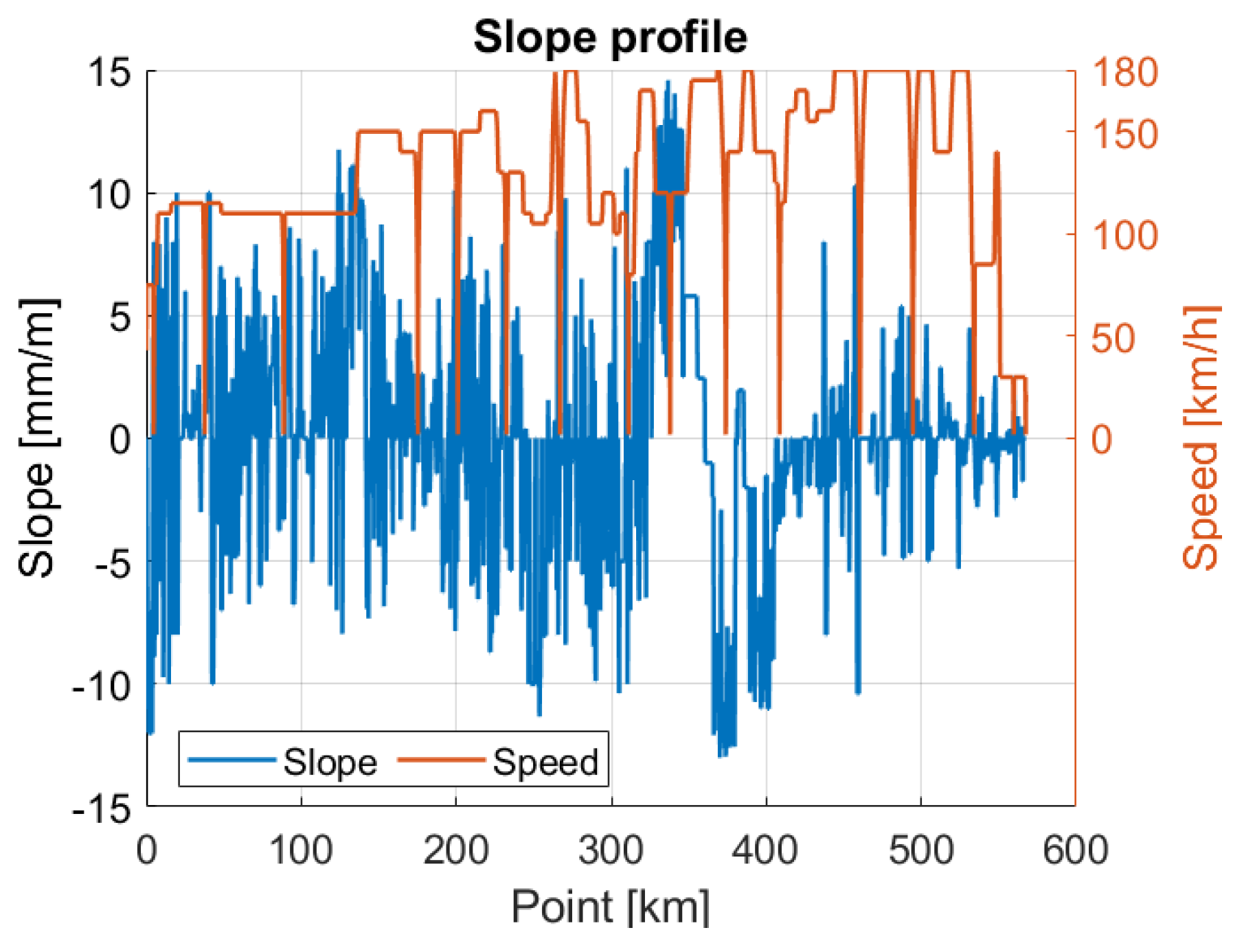

Figure 14 presents the line characteristics with two simulation scenarios, one for each configuration, A and B, for the regional line with a maximum allowed speed of 220 km/h.

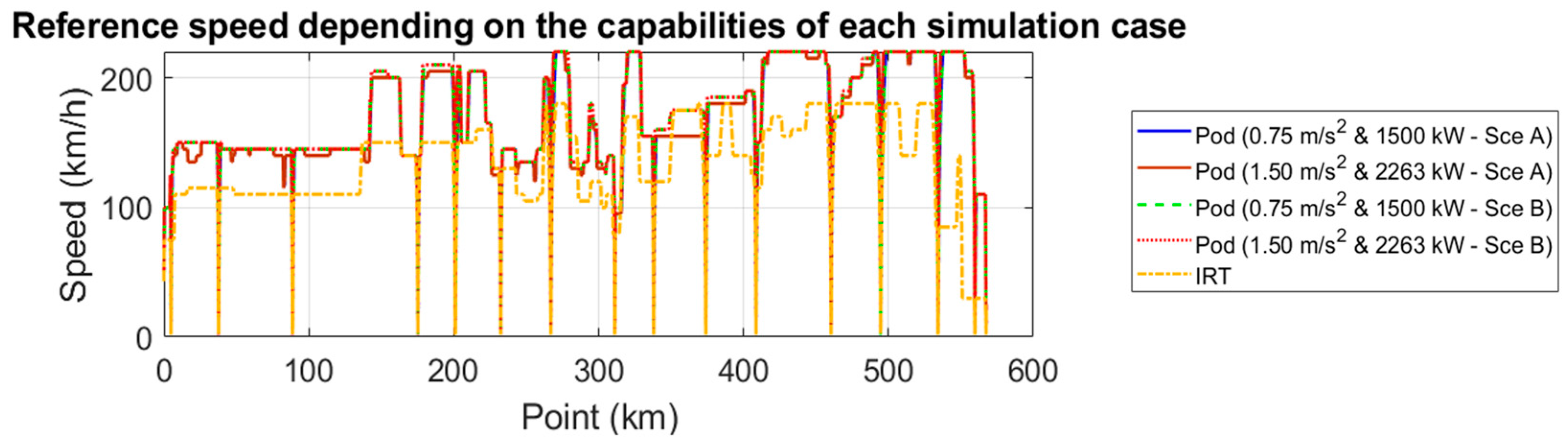

Figure 14 presents the reference limit speeds for the two scenarios (A and B) and the IRT as a reference. It can be seen that the maximum speed profile of Scenario B is slightly more stable than Scenario A in some sections, maintaining the maximum speed for a longer time. Slightly higher maximum speeds are also reached at some points along the line. The IRT profile is the one with the lowest speeds.
In summary, the difference between the two scenarios is that in Scenario B the infrastructure is optimised to achieve sections of the line with higher speeds than in Scenario A. However, the maximum speed of the line is also 220 km/h.
The simulations were carried out by dividing the line into three sections. The first comprises stops 1 to 3, the second from stops 3 to 9, and the third from stop 9 to the end of the line.
The behaviour of the different vehicles on the line has been simulated using the model presented in the previous section. The following figures show the obtained results. Only the first pod of each convoy is plotted for each simulation, and no follower pods are included for clarity.

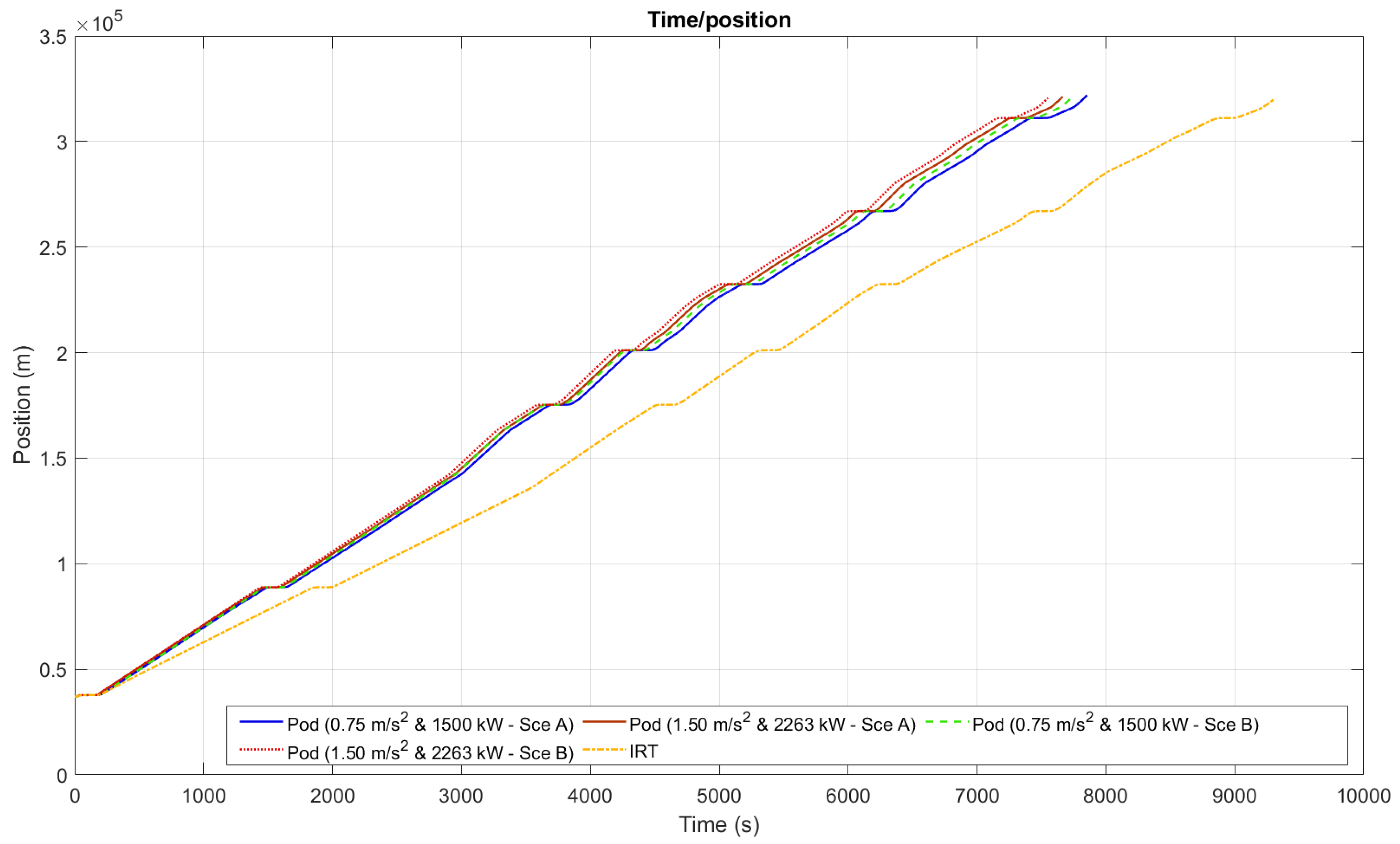

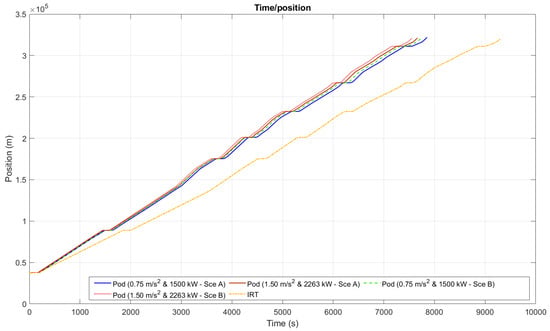

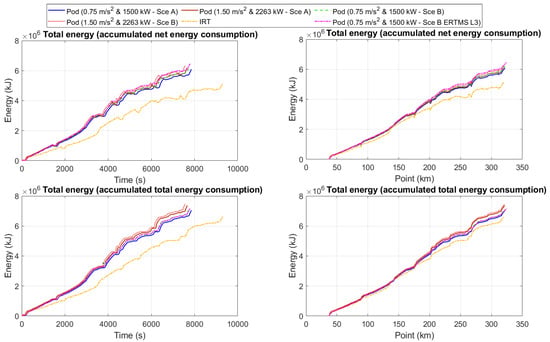

Figure 15 shows the plot of the travel time versus the vehicle position on the railway line (only for the second sector, stops 3 to 9). It shows how, for the same route and with the same stops, the IRT is much slower and takes more time to complete the journey. In contrast, the different pod configurations achieve a similar performance, reducing the total travel time from 5.39 h with the IRT to times ranging from 3.96 to 4.13 h depending on the pod traction capacity configuration considered, achieving an average reduction in travel time of 25%.

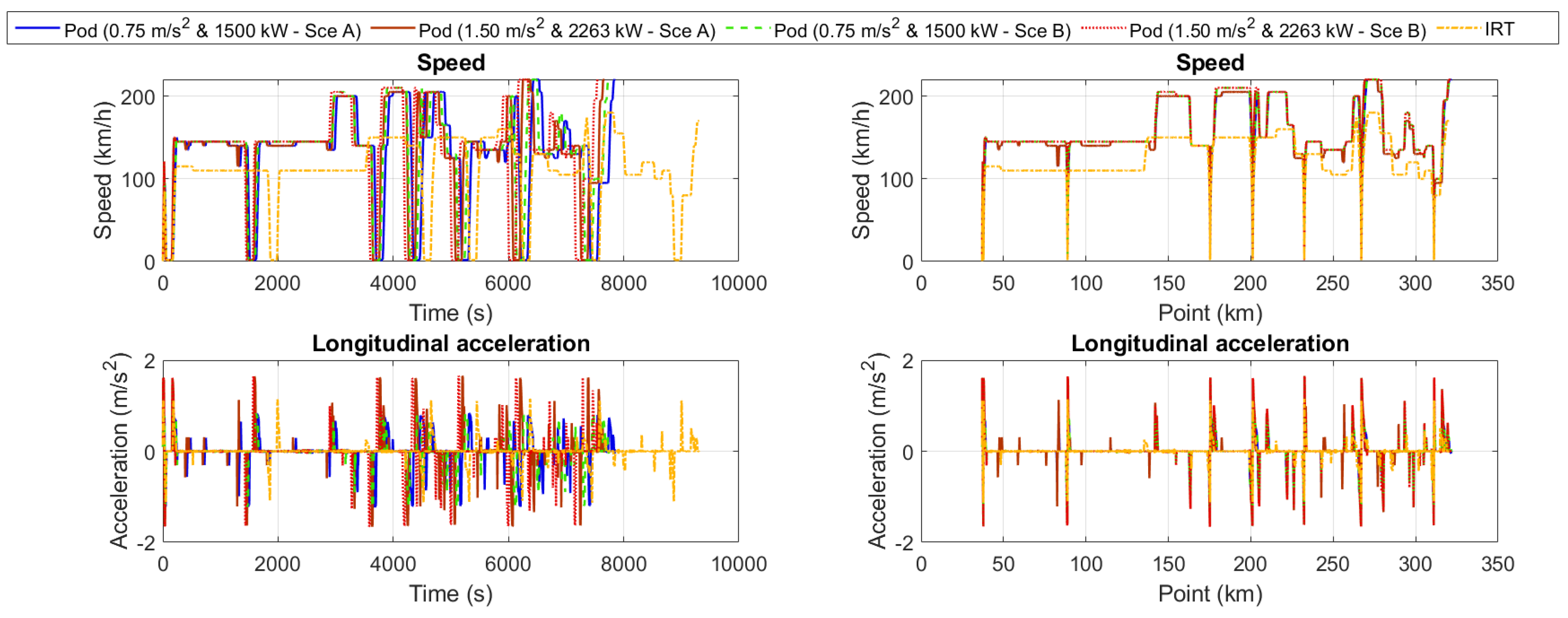

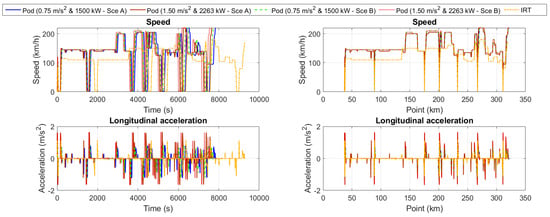

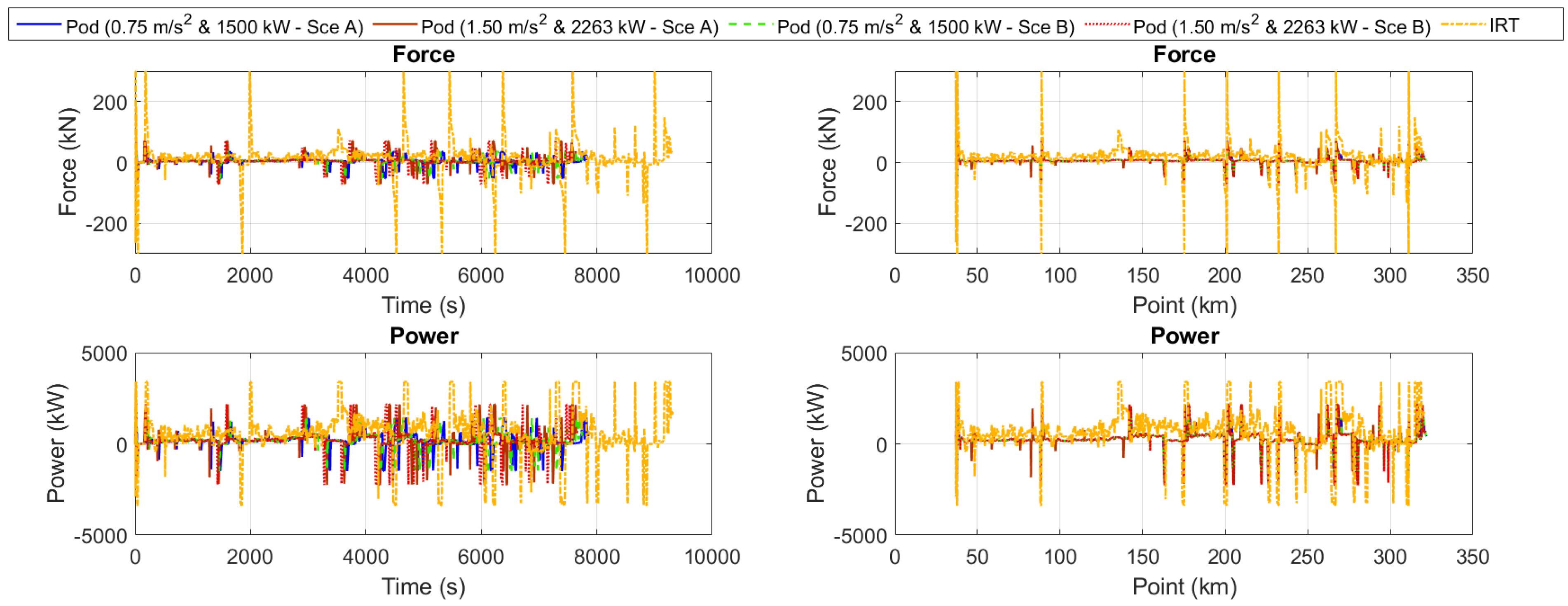

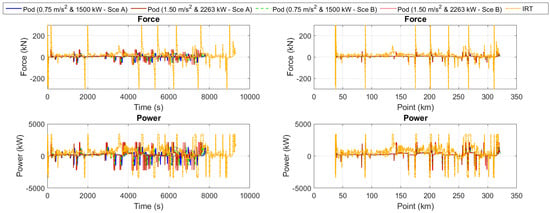

Figure 16 shows the speed and longitudinal acceleration of individual vehicles at each point of the journey. On the left-hand side, it is shown as a function of the journey time and on the right-hand side, as a function of the kilometre point.

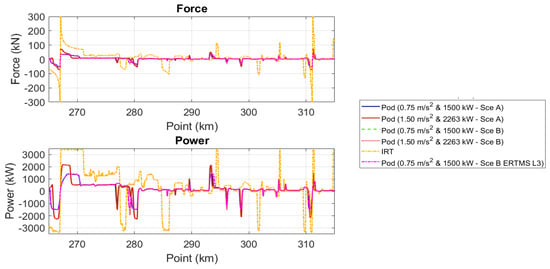

The simulated section is the one between stations 3 and 9, which involves six stops (not counting the departure station).

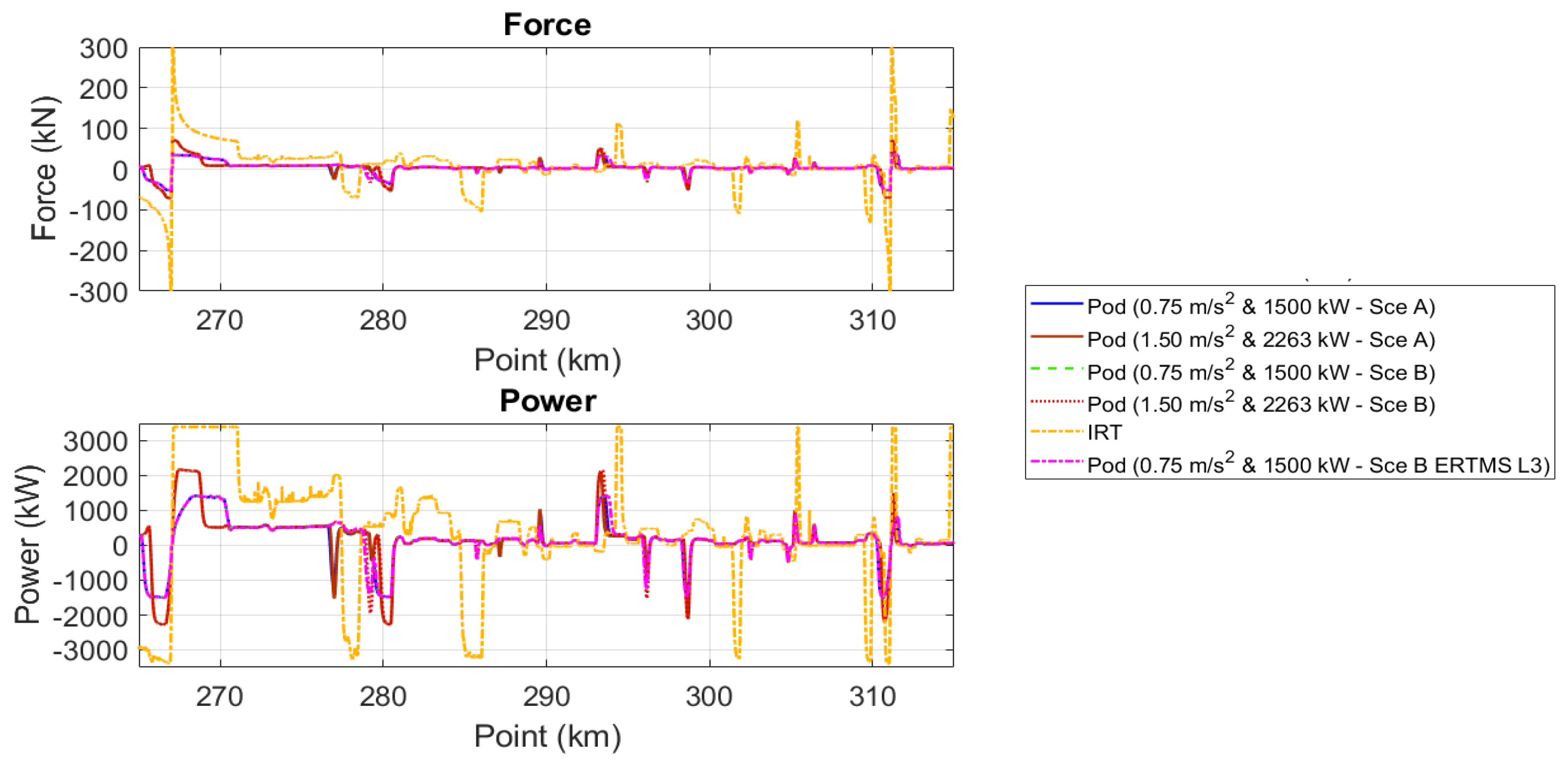

Figure 16 also shows an improvement of all pod simulation scenarios with respect to the IRT and again visualises how pod configurations need considerably less time to complete the route.
Figure 17 presents the traction/braking requirements in terms of force and power for the different traction capacity configurations. Here, the same trend can be seen again.
For greater clarity, Figure 18 shows force and power plots zoomed in between kilometres 265 and 315 km (i.e., the section between stations 8 and 9). It can be seen that the IRT reaches 300 kN and 3400 kW and that the pods reach forces and powers according to the maximum allowed for each simulation case. As expected, the highest traction and braking capacities are used during changes in speed and remain relatively low during cruise speed sections.
It can also be seen that for most of the journey the vehicle is travelling at cruising speeds and that maximum traction and power capacities are only required during acceleration and braking manoeuvres. This higher traction and power capacity of the train means that the more powerful pod configurations allow for shorter journey times, but, as they are only used in very specific areas of the route, the final travel times are very similar for all pod configurations.
Finally, and in order to have elements to evaluate the use of this technology, Figure 19 is included, where the energy consumption during the whole journey is evaluated. Two values have been calculated, one for a system without regenerative braking and the other with regenerative braking, considering an efficiency of 85%. Figure 19 shows the energy consumed in each simulation case. This figure compares the energy consumption of the IRT with the different MDS configurations considered. This chart presents the accumulated energy consumption along the line under study and as a function of the journey time. For simplicity, only the energy consumption results between stops 3 and 9 are shown. The consumption curves for the pods include the total energy of the four pods that make up the convoy, which are compared with the consumption curve of the IRT with an equivalent passenger transport capacity. “Total energy” refers to the energy consumed if no energy recovery is considered, while “net energy” refers to the net energy consumed if a recovery efficiency of 85% is considered.
Table 6 shows the main results in terms of travel times. This table compares the travel time needed by the conventional IRT vehicle compared to the different MDS convoy configurations that have been analysed. In this table, the “absolute value” column indicates the total travel time (in h), and the “time reduction” column indicates the time difference in hours between the pod convoy and the IRT. Finally, the “reduction (%)” column indicates the percentage change in travel time.
In terms of journey time, the results show how, for the same route and with the same stops, the IRT is much slower and takes longer to complete the journey. In contrast, the different capsule configurations achieve similar performances, reducing the total journey time from 5.39 h with the IRT to times ranging from 3.96 to 4.13 h depending on the capsule configuration considered, achieving an average journey time reduction of 25%. This is due to the increased running speed achieved by the extra cant implemented using magnetic levitation technologies and is one of the main contributions demonstrated by this use case.
However, when comparing the energy consumption of the different configurations, the IRT consumes less energy than the pod convoy. This result is logical since they run at lower speeds and, even if the journey takes longer, the main component conditioning energy consumption is aerodynamic drag, which depends on the square of the speed.

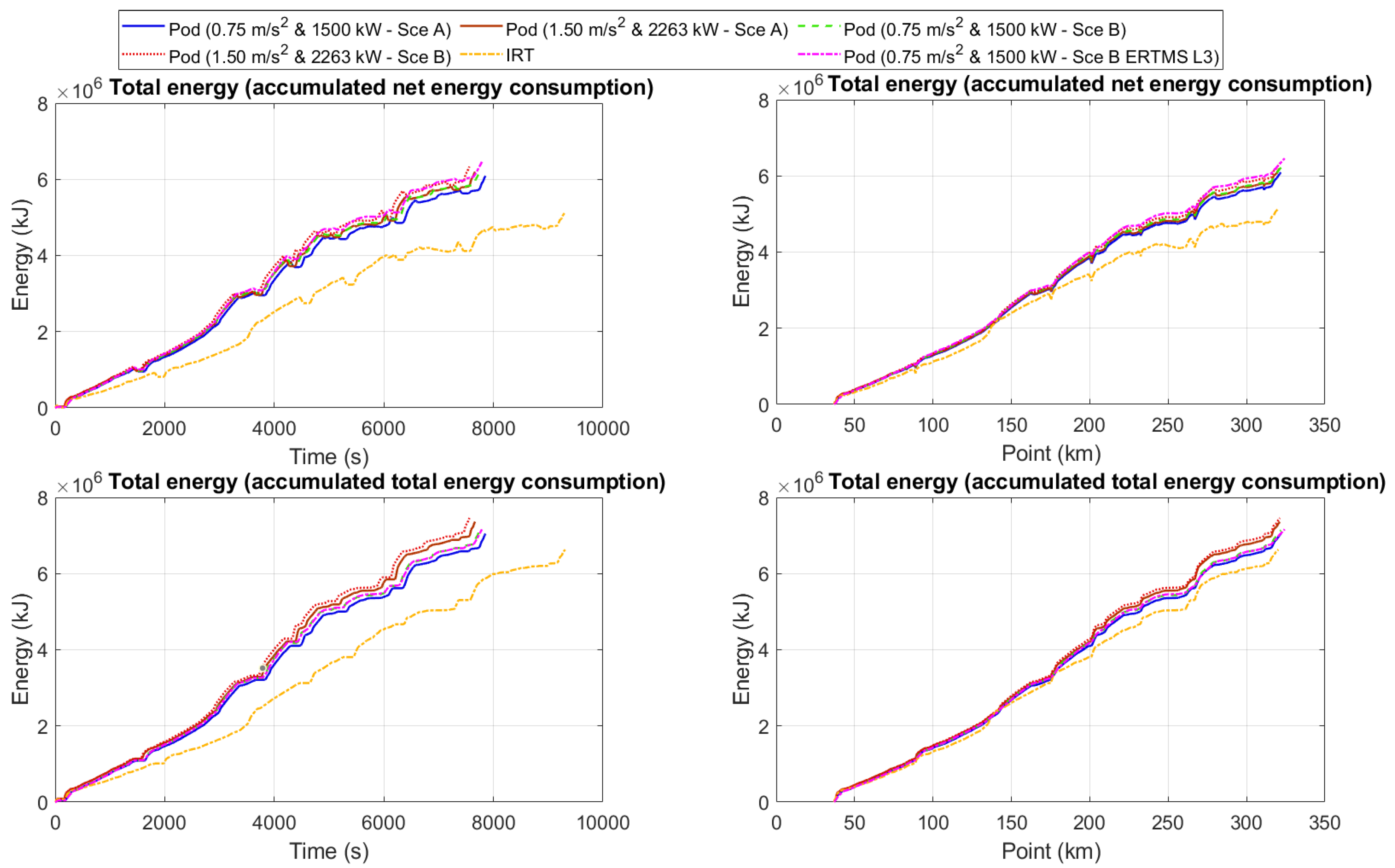

The results of these analyses are shown in Table 7. This table shows the main results in terms of energy consumption, considering or not considering braking energy recovery, taking the IRT vehicle as a reference and comparing it with the different MDS convoy configurations. In this table, the columns “GJ” and “kWh” represent the total energy consumed (in different units), while the columns “Increase (kWh)” and “Increase (%)” represent the consumption variations in absolute and percentage terms.
The results show an increase in the power consumption of the pod convoy by 10–17% compared to the IRT. Of the pod’s configurations, the lowest consumption is Scenario A, with virtual coupling and a traction capacity of 0.75 m/s2, while the highest consumption occurs in the scenario with the higher performance (Scenario B and 1.5 m/s2).
However, it is worth noting the great advantage of virtual coupling from the operational point of view. While for a conventional train, the length remains constant at all times of the operation, in a pod convoy the number of pods can be adjusted according to the demand at a given time slot, so that in low-demand considerations the convoy could be formed by one or two pods, reducing, then, the energy consumption to a quarter or a half. In this case, the new proposal is clearly more advantageous than the traditional fixed trainset solution.
On the other hand, to see the beneficial effect of virtual coupling on the consumption reduction, a simulation has also been produced for the Scenario B configuration, with 0.75 m/s2 for the absolute braking (ERTMS L3), where the pods run at a greater distance from each other.
If the results are compared with the brake energy recovery, although this use case is not very relevant because not many braking situations occur, the results are more favourable for the conventional rail vehicle, probably due to its higher mass.
Finally, since the main factor influencing consumption is aerodynamic drag, a better aerodynamic design will undoubtedly result in a lower energy consumption.
In this use case, and in order to compare configurations of conventional vehicles and pods that are as similar as possible, we have chosen to use pods with the same aerodynamic characteristics and the same front end as the IRT, so that there is no doubt that the improvement in the aerodynamics of the pods will significantly reduce the energy consumption.
As an estimation, Table 8 shows how by optimising the aerodynamics of the pod, it is possible to obtain Cx reductions that imply a reduction in the consumption of the pod convoy up to 19%, which would allow it to achieve a consumption practically equal to that of the IRT, but with the increase in the average speed and the consequent decrease in travel time being very significant (25%).
Finally, when comparing the ERTMS L3 with virtual coupling, from the table data, it is also possible to estimate the improvement in the energy consumption due to the use of VC instead of the ERTMS L3, which is 9%, due to the aerodynamic optimisation caused by the slipstream effect when the vehicles drive closer together.
Consequently, the results show that the considered proposals are of great interest and show potential for applications.

6. Economic Cost–Benefit Analysis

This section aims to perform a cost–benefit analysis (CBA) of the selected use case in order to assess its socio-economic impact. This study focuses on evaluating the specific socio-economic impact of implementing the MDS under study. To achieve this, a comparative analysis between a reference scenario (the IRT running on the existing line) and the two proposed configurations (A-series and B-parallel) was conducted considering various economic performance indicators, such as the economic net present value (ENPV), benefit–cost ratio (B/C), and internal rate of return (IRR).
The CBA was conducted following the European Commission (EC) guidelines [34,35]. The abbreviation m EUR is used to refer to millions of euros [36].
More detailed information for this analysis can be found in [37].

6.1. Design Inputs for the CBA

In order to conduct a CBA and facilitate a comparison between the reference Scenario and the project scenario, a number of assumptions have been made regarding different modes of transport (rail and road).
In terms of rail traffic, a total of over 150 services per day, corresponding to approximately 28,000 train-km, are presumed to be replaced by MDS convoys in the project scenarios.
Overall, it is estimated that the total number of pod-km provided on an average weekday (considering both directions) will amount to approximately 275,000 pod-km per day.
The abbreviation m EUR is used to refer to millions of euros.

6.1.1. Investment Costs—CAPEX

For both scenarios, the implementation of a linear motor is required along the whole line and in the specific MDS tracks at the stations, because the new operated MDS vehicles will not have an onboard propulsion system for reaching the travel speed. The Scenario A configuration (a hybrid MDS based on maglev with a “series” configuration) will use the existing rails for the levitation function; therefore, additional levitation beams are not needed.
The hardware costs per kilometre for the linear motor in the considered configuration for this study are estimated by Nevomo experts to a target price in line with the market of 3.25 m EUR-km for a single track, including the active stator with all fixtures and cablings, power electronics like inverters, transformers and segment switches, and the control system. For Scenario B, the cost of the levitation beam components is estimated at 2.2 m EUR-km for a single track. Additional planning and deployment costs of 0.25 m EUR-km are also part of the installation of the linear motor and 0.20 m EUR-km for the levitation beams.
Changes in the vehicle command and control system, signalling system, and telecommunication system are estimated by CCS (command and control system) technology developers at 50,000 EUR-km to the complete the double-track line, and the CCS costs are estimated to be EUR 57.2 m.
On the vehicle side, both scenarios involve the use of newly designed lightweight pods capable of carrying 70 people and achieving speeds of up to 220 km/h.
For the new pod, the costs for the interior, structure, and general technical equipment are taken directly from a standard HSR vehicle, adjusting the value per offered seat, assuming this will also be the comparable standard for the new pod design. Since the pods will not have an engine or an onboard propulsion system, these costs were excluded. The estimated cost per pod, including the vehicle structure, technical equipment, and interiors, is EUR 2.51 m. Since the bogies will be equipped with magnets for the propulsion and levitation systems, their cost will be significantly higher than those of standard bogies. Therefore, a different estimation was required. Based on experiences with the prototype at the Nevomo test facility and the costs of regular passenger coach bogies, the estimated cost is EUR 1.5 m for a set of two bogies for one pod. As a result, the total estimated cost per pod, including its structure, technical equipment, interiors, and MDS bogies, amounts to EUR 4.51 m. In summary, when all these costs are taken into account, the cost per seat is estimated to be well below that of a conventional high-speed train. In the use case, the rolling stock leads to an investment of EUR 682 m for 170 pods, which would be able to replace the existing trains and provide services accommodating both existing and induced demand.

6.1.2. Operational and Maintenance Costs—OPEX

A rate of 2.5% of the infrastructure investment costs has been considered for infrastructure maintenance, resulting in additional annual costs of 91.6 m EUR/year.
Similarly, the maintenance and depreciation costs for the rolling stock have been estimated to be 2.5% of the rolling stock investment costs, considering the necessity to maintain the rolling stocks in optimal conditions, resulting in a total cost of 17.05 m EUR/year.
For the maintenance, depreciation, and operational costs of traditional trains used for regional services, a value of 12.44 EUR train-km was used, based on the values of operational costs for trains ranging from 161 to 480 offered seats obtained from the service contract of Trenitalia for the provision of regional services in the proximity of the analysed line [38]. This value was divided into five cost items, based in percentages (Personnel on Board: 36%, Rolling Stock Depreciation: 18%, Maintenance: 26%, Inspection and Cleaning: 11%, and Energy: 9%).
These approximate values were used to obtain the additional operational costs for MDS pods. The values were divided by the number of seats for a train traditionally used for regional services in order to estimate a cost per seat. For the MDS scenario, the Personnel on Board cost was excluded considering the expected Grade of Automation of the pods (i.e., GOA 4). Additionally, the Maintenance and Rolling Stock Depreciation costs were also excluded, considering the abovementioned assumption that they account for a yearly cost of 2.5% of the investment costs for the rolling stock. Finally, the energy cost per km was incremented by 15%, considering the simulations’ results that suggest the energy consumption will increase between 10% and 17% for the MDS scenario. Thus, this analysis resulted in a total cost of 0.41 EUR/pod-km. With the estimated number of pod-km required to cover all existing services on the line, the total operating costs amount to 33.5 m EUR/year.

6.1.3. Direct Benefits and Externalities

The main direct benefits obtained for the use case are related to travel time savings. Two different types of travel time savings were estimated, one referred to as Railway to MDS, which estimated the difference between the travel time with current services along the line and the estimated travel time with MDS services in the project scenario for existing railway users, and one referred to as Road to MDS, which estimated the difference between the travel time through road transportation and the estimated travel time with MDS services for new induced users.
The Railway to MDS travel time saving represents the input to estimate both the demand attracted by the system at the expense of the road through an elasticity factor and the direct benefits for existing railway users. The travel time was estimated for each of the services that would be replaced by the MDS, using the simulations performed in this paper and current traffic constraints.
The Road to MDS travel time saving corresponds to the difference between the current travel time by car between different Origin/Destination (O/D) pairs and the estimated time to connect the same O/D pairs with MDS services. These travel time saving values were used to estimate the direct benefits for new users, through the induced demand.
Related to externalities, one of the objectives of the intervention is to increase the modal share of rail transport, with the objective of enhancing public transportation, being one of the estimated impacts is the reduction in accidents between vehicles and other types of road users, such as pedestrians. The marginal cost of accidents for cars is 0.02 EUR/vehicle-km. This value is based on the data in [39] and is determined as the average marginal cost of accidents for cars in Italy on both urban and non-urban roads, equal to 0.02 EUR/vehicle-km, actualized to 2024.
One of the key impacts related to the modal shift from private cars to the railway system is the reduction in urban congestion. The externality cost related to congestion arises from delays caused by increased traffic, where additional vehicles reduce the speed of others, leading to longer travel times. The marginal cost of urban congestion is 0.27 EUR/vehicle-km, actualized to the year 2024. This value is based on data in [39].
Finally, the reduction in noise emissions is a function of the variation in the distance travelled by each mode of transport. However, the negative impact of noise pollution is correlated with many factors, particularly the proximity and density of receptors relative to the source as well as the time of day and the activities being carried out. For calculating the marginal cost of noise emissions, a value of 0.02 EUR/vehicle-km has been assumed for car noise emissions, while the marginal cost of rail noise emissions is assumed to be 1.07 EUR/train-km. These values are derived from [39], actualized to 2024.
Related to externalities, CO2 emissions reductions have been considered by calculating the balance between the increase in the energy consumption based on the analysis performed in previous sections and the saved energy consumption from the road (106 million of vehicle-m/year).
The CO2 emission factor that has been applied in the calculation is 0.2, which considers the resources of the electricity production in Italy. The air pollution reduction has been considered by calculating both the contribution related to the on-site combustion of internal combustion engines and that related to non-exhaust emissions from the road vehicles. The non-exhaust contribution from road vehicles is associated with abrasion phenomena, including the combined wear of tyres, brakes, and road surfaces.

6.2. Economic Cost–Benefit Analysis Results

Table 9 summarises all the different costs used for the CBA.
In accordance with the European Commission guidelines [34,35], the following values for the ENVP, B/C, and IRR were derived in Table 10.
Essentially, configuration A shows positive economic returns, while configuration B exhibits a B/C ratio lower than one.

6.3. Sensitivity Analysis

The sensitivity analysis allows for evaluating the impacts of uncertainty and identifying the project’s “critical” variables. The analysis is conducted by modifying the values associated with each individual variable and evaluating the effect of such a change on the ENPV and other analysed indicators. For this study, a sensitivity analysis was conducted on the main variables considered in the CBA. Specifically, the variables analysed are investment costs, operation and maintenance costs, and shift demands. The analysis was carried out individually on each variable to assess its impact on the overall results.
Since the results obtained for the economic performance indicators are positive for one use case and negative for the other, a sensitivity analysis was performed by applying ranges of variation in both directions that improve or worsen the results. As shown in the following tables, for the positive outcome configurations, it is possible to calculate the decrease in the main economic performance indicators (ENPV and B/C ratio) by individually increasing the CAPEX and OPEX by 10%, 20%, and 30% and decreasing the shift demand by 10%, 20%, and 30%. On the other hand, for the negative result configuration, it is possible to calculate the increase in the main economic performance indicators (ENPV and B/C ratio) by individually decreasing the investment costs and the operation and maintenance costs by 10%, 20%, and 30% and by increasing the shift demand by 10%, 20%, and 30%.
Table 11 and Table 12 show the results of the sensitivity analysis for configurations A and B.
As shown in the tables above, the results reveal trends in the different use cases. Configuration A shows that even with parameter changes, the ENPV remains positive and the B/C ratio is greater than one, indicating a resilience to cost or demand fluctuations. In configuration B, decreases in the CAPEX and OPEX and increases in the demand shift result in an augmentation of the B/C ratio, which can become greater than one.
Therefore, this study concludes that the implementation of a hybrid MDS presents a significant opportunity to upgrade regional rail services currently limited by lower speeds, making them less attractive for travellers. The analysis indicates that the introduction of a hybrid MDS based on maglev could result in substantial travel time reductions, leading to significant benefits. Configuration A showed a positive economic evaluation, with a benefit–cost (B/C) ratio greater than one, demonstrating that even with minimal infrastructure changes, the integration of MDS technology offers significant gains.
However, in configuration B, the benefits do not fully cover the costs, particularly those associated with civil works, such as the installation of additional levitation beams for levitation. In this case, costs exceed expected benefits, highlighting the need for the further evaluation of similar lines in different geographical contexts. This would allow for more detailed studies to assess the solution’s efficiency under varying conditions.

6.4. Stakeholder’s Acceptance

Finally, the MaDe4Rail project conducted a broad market consultation to ensure that the MDSs meet market needs and that the phased approach developed is accepted by the railway industry. The project conducted a series of four workshops in October 2023, where more than 20 use cases were developed based on the MDS characteristics. In April 2024, a second market consultation was carried out with the aim of verifying the identified 20 use cases with the railway industry to obtain feedback on them and to verify the proposed phased approach with the railway industry as a basis for the MDS roadmap for the EU. A total of two workshops were held with 34 participants from a wide range of market players.
The majority of participants (70%) came directly from the railways, either from infrastructure managers (56%) or from railway undertakings (14%). Overall, the entire value chain participated in the workshops. This allowed for a holistic view and a broader discussion with the market.
Overall, 90% of the participants were positive and complementary to the use cases presented, with only 10% raising concerns. The feedback showed a high level of market agreement with the use cases identified, reinforcing maglev as a complementary technology solution for rail. Reference [40] contains the results of these workshops. The main positive comments relate to the operational efficiency and improvements, environmental impact, infrastructure efficiency, and technological advances and improvements. Conversely, the main concerns relate to operational risks, regulatory risks, and maintenance issues.

7. Industrial Roadmap

As a result of the MaDe4Rail project, an industrial roadmap was outlined to provide an overview of the key steps and milestones required to achieve the commercial readiness for the MDS.
The initial objectives of MaDe4Rail were the identification and conceptual design of technical enablers and core technologies supporting the MDS and the definition of a common system architecture, as well as the identification of potential technologies and subsystems that could be re-adapted to the railway system itself, with benefits in terms of an increased performance, reduced costs, and operational impacts. This should propose the design of a prototype of a sample vehicle for an identified use case according to the technical and economic evaluation study.
It is important to note that the technology readiness level (TRL) of the MDS is currently low because it is at the feasibility and conceptual design level, so the project deliverable aimed for a TRL2.
The industrial roadmap outlined a strategy for developing MDS technologies for rail applications and aims to develop the various maglev-derived solutions through research, modelling, development, engineering, system integration, testing, and validation activities.
The industrial roadmap included the identified technical open points and technical enablers necessary for their implementation, as well as the key steps identified to develop each one of them. More detailed information on the industrial roadmap can be found in reference [40]. The main identified technical open points can be summarised in Table 13.
In parallel to the technological solutions, the development and implementation of regulations and standards is an essential stage in the development of MDSs. These frameworks ensure the safety, reliability, and interoperability of the systems, facilitating their integration into existing railway infrastructures. Some identified activities for this phase are included in Table 14.
Based on the results of the MaDe4Rail project, Europe’s Rail JU launched in May 2025 as a new call by [41], which aims to further evaluate and propose solutions on the open technical issues of maglev-derived technologies.
This call includes the advanced design concept of technical enablers and basic technologies supporting Maglev-Derived Systems (TRL3) to address the identified open issues and the testing of the full functionality, performance, and safety of an MDS in a laboratory environment up to a relevant environment (TRL5/6), including the assessment of the technical and economic feasibility based on the test results and the identification of the gaps and the potential topics for standardisation in the field of safety and security, considering the impact on existing regulations, in particular the Railway Technical Specification for Interoperability. Finally, a detailed architectural concept (TRL5) of a full-scale fully automated magnetic levitation system will be proposed, including detailed technical, safety, and performance requirements.

8. Conclusions

This paper focuses on the so-called “hybrid MDS” configuration, which refers to levitating systems that can operate on the existing rail infrastructure. Unlike current maglev systems, which require dedicated tracks, the proposed MDS is designed to operate on conventional rail tracks (with some adaptations), allowing their compatibility with traditional trains and ensuring the interoperability of lines.
This paper demonstrates the potential of an MDS as a viable alternative for improving rail transport in Europe, especially on regional lines where the optimisation of journey times and energy efficiency are required. The implementation of a hybrid MDS based on magnetic levitation represents an innovative solution that improves the functionality of existing railway lines without the need for a completely new infrastructure, minimising investments and facilitating its application in environments with space limitations.
The proposed MDS hybrid pods can run on conventional bogies when operating without levitation but levitate slightly above the rails when operating on a corridor designed for levitation. Consequently, adapting the infrastructure appropriately to meet the specific needs is crucial to exploit the positive effects of the new system. In this way, infrastructure equipped with these MDS components will always be interoperable with conventional vehicles and will not create obstructions to conventional rail operations.
Two configurations have been considered, both with an LSM for propulsion. Configuration A, also called the “series configuration”, uses U-shaped slides on the existing rails for guidance and levitation directly connected to the existing rails on the line alignment. While configuration B, also called the “parallels configuration”, introduces additional levitation beams in the infrastructure that run parallel to the track on both sides and that will provide both guidance and levitation. These levitation beams can allow an additional integrated cant which allow MDS pods to travel at higher speeds.
The main advantage of configuration A is that it involves less intervention on the infrastructure and therefore lower costs, but it does not involve an increase in speed as it uses the same route with the same speed limiting cant as the conventional line.
On the other hand, configuration B is more costly as it is necessary to complement the infrastructure with the levitating beams, but it allows for a substantial reduction in travel time as it is possible to travel at higher speeds through the curves thanks to the additional cant produced by the levitating beams.
The results obtained in the simulations indicate that the hybrid MDS configuration, combined with the use of virtual coupling, allows for a significant reduction in travel time compared to conventional trains. A decrease in the total travel time of approximately 25% has been observed, reaching values under 4 h in the best simulated scenario, compared to 5.4 h for the conventional train. This improvement is largely due to the possibility of reaching higher operating speeds thanks to the elimination of rolling resistance, the increase in the cant in curves, and the aerodynamic optimisation provided by the virtual coupling.
In terms of energy consumption, the results show an increase for MDS convoys of between 10% and 17% compared to the conventional train. However, this increase is compensated by the higher average speed and operational flexibility of the MDS. In addition, the results suggest that the aerodynamic optimisation of the pods could significantly reduce this consumption, achieving levels similar to those of conventional trains but with much greater operational efficiency.
From an economic point of view, the cost–benefit analysis carried out indicates that configuration A presents a positive result, with a B/C ratio of 1.31 and an ENPV of EUR 1124.11 m. This suggests that, even with minimal infrastructure modifications, the MDS offers significant benefits in terms of an improved vehicle performance, increased speed, and reduced travel time. However, configuration B, which requires higher investments due to the installation of additional levitation beams, does not show a favourable cost–benefit ratio in this case study, indicating the need to evaluate its application in different contexts to determine its economic feasibility.
Another key aspect identified is the compatibility of the MDS with existing energy and signalling systems and the risk and safety issues. It has been determined that the ferromagnetic levitation system can interfere with axle counters used in train detection, although this problem could be solved by using track circuits or alternative sensors. In addition, the adoption of moving block systems in railway signalling could facilitate the integration of the MDS without affecting the operation of conventional trains. Existing balises will be used for conventional vehicles while virtual balises must be used for MDS vehicles. In conclusion, the research presented confirms the technical and economic viability of the hybrid MDS as an efficient option for the modernisation of rail transport in Europe. The combination of magnetic levitation with virtual coupling makes it possible to improve the efficiency of the railway system, offering a balance between speed, energy consumption, and implementation costs. In the future, it will be essential to continue with additional studies on the aerodynamic optimisation of the pods, the adaptability of the system to different railway environments, and the integration with signalling and traffic control technologies.

Author Contributions

Conceptualization, J.F., M.A.V.-S. and D.P.; methodology, J.F., M.A.V.-S., G.F., G.C. and A.N.; formal analysis, J.F., M.A.V.-S., D.P., S.A., G.F., G.C. and A.N.; investigation, J.F., M.A.V.-S., M.S.-W., L.A.P., G.C. and A.N.; validation, J.F., M.A.V.-S. and P.P.; writing—original draft preparation, J.F., M.A.V.-S. and D.P.; writing—review and editing, J.F., G.C. and A.N.; supervision, J.F. All authors have read and agreed to the published version of the manuscript.

Funding

The results described here are part of the project MaDe4Rail, HORIZON-ER-JU-2022-FA7-02, which is funded by the European Commission through Europe’s Rail Joint Undertaking under the Horizon Europe Programme with the grant agreement no. 101121851.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the paper.

Acknowledgments

The authors are grateful to the Ministry of Science and Innovation—State Research Agency for the support of Grant PID2021-124761OB-I00 whose theoretical results have been applied in the development of Section 5 of this paper.

Conflicts of Interest

Authors Giuseppe Carcasi and Angela Nocita were employed by the company Rete Ferroviaria Italiana (RFI), Author Michael Schultz-Wildelau was employed by the company Nevomo Poland Sp. z o.o., Author Pietro Proietti was employed by the company Italferr S.p.a., and Author Lorenzo A. Parrotta y was employed by the company IronBox srl. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Funded by the European Union. Views and opinions expressed herein are those of the author(s) only and do not necessarily reflect those of the European Union or Europe’s Rail Joint Undertaking. Neither the European Union nor Europe’s Rail Joint Undertaking can be held responsible for them.

Abbreviations

The following abbreviations are used in this manuscript:
ADBMAbsolute Distance Braking Mode
APMAutomated People Mover
ATCAutomatic Train Control
B/CBenefit–cost
CBACost–benefit analysis
CBTCCommunication-Based Train Control
CCSCommand and control system
CFDComputer Fluid Dynamics
DCDirect Current
DPDynamic Programming
ECEuropean Commission
EDSElectrodynamic Suspension
EMIElectromagnetic interference
EMSElectromagnetic Suspension
ENPVEconomic net present value
ERJUEurope’s Rail Joint Undertaking
ERTMSEuropean Rail Traffic Management System
ETCS European Train Control System
GOA Grade of Automation
HSR High-Speed Railway
HSST High-Speed Surface Transport
IRTIntercity regional train
LIMLinear Induction Motor
LIMRVLinear Induction Motor Research Vehicle
LSMLinear Synchronous Motor
LTDLongitudinal train dynamics
MBS Moving-block system
MCAMulti-Criteria Analysis
MDSMaglev-Derived Systems
MPCModel Predictive Control
MVMedium-voltage
NdFeB Neodymium Iron Boron
O/DOrigin/Destination
RDBMRelative Distance Braking Mode
TDSTrain detection system
TRATechnology Readiness Assessment
TRLTechnology readiness level
TSITechnical Specification of Interoperability
VCVirtual coupling

References

  1. Yaghoubi, H. The Most Important Maglev Applications. J. Eng. 2013, 2013, 537986. [Google Scholar] [CrossRef]
  2. Lai, Q.; Liu, J.; Wang, Y.; Xu, H.; Guo, S.; Ju, M. Energy-efficient operation of medium-speed maglev through integrated traction and train control. IET Intell. Transp. Syst. 2024, 18, 409–431. [Google Scholar] [CrossRef]
  3. Han, H.-S.; Kim, D.-S. Magnetic Levitation; Springer: Dordrecht, The Netherlands, 2016; Volume 13. [Google Scholar] [CrossRef]
  4. Liu, Z.; Stichel, S.; Berg, M. Overview of Technology and Development of Maglev and Hyperloop Systems. 2022. Available online: https://www.diva-portal.org/smash/get/diva2:1631263/FULLTEXT01.pdf (accessed on 27 May 2025).
  5. Vuchic, R.V.; Casello, J.M. An Evaluation of Maglev Technology and Its Comparison with High Speed Rail. Transp. Quart. 2022, 56, 33–50. [Google Scholar]
  6. MaDe4Rail. MaDe4Rail: Maglev Derived Systems for Rail. Available online: https://www.rfi.it/en/Network/in-europe/MaDe4Rail.html (accessed on 4 October 2024).
  7. EU-Rail. Europe’s Rail Joint Undertaking. Available online: https://rail-research.europa.eu/ (accessed on 4 October 2024).
  8. Felez, J.; Vaquero-Serrano, M.A.; Liu, W.Z.; Casanueva, C.; Schultz-Wildelau, M.; Coquery, G.; Proietti, P. Maglev Derived Systems: An Interoperable Freight Vehicle Application Focused on Minimal Modifications to the Rail Infrastructure and Vehicles. Machines 2024, 12, 863. [Google Scholar] [CrossRef]
  9. Witt, M.; Herzberg, S. D502 TRANSRAPID-Transport Technology for the Mobility of the Future. In Proceedings of the International Symposium on Seed-up and Service Technology for Railway and Maglev Systems: STECH, Tokyo, Japan, 19–22 August 2003; Volume 2003, pp. 441–446. [Google Scholar] [CrossRef]
  10. Shin, B.C.; Kim, W.J.; Park, D.Y.; Baik, S.H.; Beak, J.G.; Kang, H.S. Recent Progress of Urban Maglev Program in Korea. In Proceedings of the 21st International Conference on Magnetically Levitated Systems and Linear Drive, Daejeon, Republic of Korea, 10–13 October 2011. [Google Scholar]
  11. Fu, J.; Lin, H.; Chen, X.; Huang, M. The Impact of Changsha Maglev Line on Land-Side Transportation of Changsha Huanghua International Airport. In Proceedings of the 17th COTA International Conference of Transportation Professionals, Shanghai, China, 7–9 July 2017. [Google Scholar]
  12. Barbosa, F.C. High Speed Intercity and Urban Passenger Transport Maglev Train Technology Review: A Technical and Operational Assessment. In Proceedings of the 2019 Joint Rail Conference, Snowbird, UT, USA, 10–12 April 2019; American Society of Mechanical Engineers: New York, NY, USA, 2019. [Google Scholar] [CrossRef]
  13. Post, R.F.; Ryutov, D.D. The Inductrack: A simpler approach to magnetic levitation. IEEE Trans. Appl. Supercond. 2000, 10, 901–904. [Google Scholar] [CrossRef]
  14. Ironbox. Magnetic Suspension or Levitation for Vehicles. 2015. Available online: https://www.google.com/patents/sitemap/en/Sitemap/B60/B60L/B60L_13.html (accessed on 26 May 2025).
  15. Powell, J.P. The Use of Linear Motor Technology to Increase Capacity in Conventional Railway Systems. Ph.D. Thesis, Newcastle University, Newcastle upon Tyne, UK, 2016. Available online: http://theses.ncl.ac.uk/jspui/handle/10443/4468 (accessed on 4 October 2024).
  16. Chi, C.C.; D’Sena, G.O. High-Speed Dynamic Performance of the Linear Induction Motor Research Vehicle; Society of Automotive Engineers: Warrendale, PA, USA, 1975. [Google Scholar] [CrossRef]
  17. Bailey, M.R. The Tracked Hovercraft Project. Trans. Newcom. Soc. 1993, 65, 129–145. [Google Scholar] [CrossRef]
  18. Patin, P. L’Aérotrain: Un essai réussi mais non transformé. Cult. Tech. 1989, 19, 76–83. [Google Scholar]
  19. Yasuda, Y.; Fujino, M.; Tanaka, M.; Syunzo, I. The first HSST Maglev Commercial Train in Japan. In Proceedings of the 18th International Conference on Magnetically Levitated Systems and Linear Drives, Shanghai, China, 26–28 October 2004. [Google Scholar]
  20. Lee, H.-W.; Kim, K.-C.; Lee, J. Review of maglev train technologies. IEEE Trans. Magn. 2006, 42, 1917–1925. [Google Scholar] [CrossRef]
  21. Nevomo. Magrail: The Next Generation of High-Speed Railways. Available online: https://www.nevomo.tech/en/magrail/ (accessed on 12 February 2025).
  22. Ironlev. Ironlev Levitation Technology. Available online: https://www.ironlev.com/transport (accessed on 12 February 2025).
  23. EUR-Lex. Commission Regulation (EU) No 1299/2014 on the Technical Specifications for Interoperability Relating to the ‘Infrastructure’ Subsystem of the Rail System in the European Union. Available online: https://eur-lex.europa.eu/legal-content/EN/ALL/?uri=CELEX%3A32014R1299 (accessed on 12 February 2025).
  24. MaDe4Rail. D3.1: Hazard Identification and Risk Assessment. 2024. Available online: https://www.rfi.it/content/dam/rfi/innovazione-e-tecnologie/progetti/horizon/deliverables/2024-31-05_MaDe4Rail_D3.1_DITS_V1.0_1.pdf (accessed on 14 May 2025).
  25. IEEE. IEEE 1474.1-2004 Standard for Communications-Based Train Control (CBTC). Performance and Functional Require-ments. Available online: https://standards.ieee.org/ieee/1474.1/3552/ (accessed on 7 October 2024).
  26. Furness, N.; van Houten, H.; Bartholomeus, M.; Arenas, L. ERTMS Level 3: The Game-Changer; IRSE: London, UK, 2023. [Google Scholar]
  27. Felez, J.; Kim, Y.; Borrelli, F. A Model Predictive Control Approach for Virtual Coupling in Railways. IEEE Trans. Intell. Transp. Syst. 2019, 20, 2728–2739. [Google Scholar] [CrossRef]
  28. Quaglietta, E.; Wang, M.; Goverde, R.M.P. A multi-state train-following model for the analysis of virtual coupling railway operations. J. Rail Transp. Plan. Manag. 2020, 15, 100195. [Google Scholar] [CrossRef]
  29. Vaquero-Serrano, M.A.; Felez, J. A decentralized robust control approach for virtually coupled train sets. Comput. Aided Civ. Infrastruct. Eng. 2023, 38, 1896–1915. [Google Scholar] [CrossRef]
  30. Felez, J.; Vaquero-Serrano, M.A. Virtual Coupling in Railways: A Comprehensive Review. Machines 2023, 11, 521. [Google Scholar] [CrossRef]
  31. Weller, H.G.; Tabor, G.; Jasak, H.; Fureby, C. A tensorial approach to computational continuum mechanics using object-oriented techniques. Comput. Phys. 1998, 12, 620–631. [Google Scholar] [CrossRef]
  32. Chen, G.; Li, X.; Zhang, L.; Liang, X.; Meng, S.; Zhou, D. Numerical analysis of the effect of train length on train aerodynamic performance. AIP Adv. 2022, 12, 025201. [Google Scholar] [CrossRef]
  33. MaDe4Rail. D7.2: Technical Feasibility Study. 2024. Available online: https://www.rfi.it/content/dam/rfi/innovazione-e-tecnologie/progetti/horizon/deliverables/2024-12-13_Made4Rail_D7.2_ITF_V2.0_Public.pdf (accessed on 16 May 2025).
  34. European Commission. Guide to Cost-Benefit Analysis of Investment Projects for Cohesion Policy 2014–2020; European Union: Maastricht, The Nederlands, 2015. [Google Scholar]
  35. European Commission. Economic Appraisal Vademecum 2021–2027 General Principles and Sector Applications. 2021. Available online: https://ec.europa.eu/regional_policy/en/information/publications/guides/2021/economic-appraisal-vademecum-2021-2027-general-principles-and-sector-applications (accessed on 7 October 2024).
  36. Eurostat. Tutorial: Table Title Guidelines—Standard Items. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php?title=Tutorial:Table_title_guidelines_-_standard_items&oldid=373924 (accessed on 7 October 2024).
  37. MaDe4Rail. D7.3 Cost-Benefit and Financial Analysis. 2024. Available online: https://www.rfi.it/content/dam/rfi/innovazione-e-tecnologie/progetti/horizon/deliverables/2025-02-24_MaDe4Rail_D7.3_ITF_V2.0_Public.pdf (accessed on 4 October 2024).
  38. Eunews. Tav: In Italia Costa 61 Milioni al Chilometro, in Spagna 10, e in Giappone 9. Available online: https://www.eunews.it/2014/02/03/tav-in-italia-costa-61-milioni-al-chilometro-in-spagna-10-e-in-giappone-9/ (accessed on 13 May 2025).
  39. van Essen, H.; Davide, F.; Kareen, E.B.; Cuno, B.; Lisanne van, W.; Arno, S.; Riccardo, P.; Marco, B.; Daniel, S.; Silvia, M.; et al. Handbook on the External Costs of Transport; Version 2019-1.1; European Union: Maastricht, The Nederlands, 2019. [Google Scholar] [CrossRef]
  40. MaDe4Rail. D7.4: Roadmap for Maglev-Derived Systems. 2024. Available online: https://www.rfi.it/content/dam/rfi/innovazione-e-tecnologie/progetti/horizon/deliverables/2024-09-30_MaDe4Rail_D7.4_RFI_V2.0_Public%201.pdf (accessed on 14 May 2025).
  41. EU-RAIL JU Call Proposals 2025-01 (HORIZON-JU-ER-2025-01). Further Technological Development of Maglev-Derived Systems. Available online: https://ec.europa.eu/info/funding-tenders/opportunities/portal/screen/opportunities/topic-details/horizon-er-ju-2025-fa7-01 (accessed on 15 May 2025).
Figure 1. Passive levitation system section view.
Figure 1. Passive levitation system section view.
Sustainability 17 05056 g001
Figure 2. Example of custom rails adopted in combination with traditional wheeled systems.
Figure 2. Example of custom rails adopted in combination with traditional wheeled systems.
Sustainability 17 05056 g002
Figure 3. An example symbolic picture of the MDS components.
Figure 3. An example symbolic picture of the MDS components.
Sustainability 17 05056 g003
Figure 4. A schematic of the components of the hybrid MDS.
Figure 4. A schematic of the components of the hybrid MDS.
Sustainability 17 05056 g004
Figure 5. Implementing additional cant for MDS vehicles.
Figure 5. Implementing additional cant for MDS vehicles.
Sustainability 17 05056 g005
Figure 6. The power line from the MV grid to the linear motor stator.
Figure 6. The power line from the MV grid to the linear motor stator.
Sustainability 17 05056 g006
Figure 7. The linear motor stator division into the sections.
Figure 7. The linear motor stator division into the sections.
Sustainability 17 05056 g007
Figure 8. Pilot line characteristics and main parameters: speed limitations and vertical alignment with slopes.
Figure 8. Pilot line characteristics and main parameters: speed limitations and vertical alignment with slopes.
Sustainability 17 05056 g008
Figure 9. ADBM and RDBM concepts [30].
Figure 9. ADBM and RDBM concepts [30].
Sustainability 17 05056 g009
Figure 10. The flow velocity (m/s) for a single pod composition.
Figure 10. The flow velocity (m/s) for a single pod composition.
Sustainability 17 05056 g010
Figure 11. The pressure distribution (m2/s2) for a single pod composition.
Figure 11. The pressure distribution (m2/s2) for a single pod composition.
Sustainability 17 05056 g011
Figure 12. The flow velocity at 15 m/s for a composition of four pods, (a) with relative braking and (b) with absolute braking.
Figure 12. The flow velocity at 15 m/s for a composition of four pods, (a) with relative braking and (b) with absolute braking.
Sustainability 17 05056 g012
Figure 13. The Cx variation for the different pods.
Figure 13. The Cx variation for the different pods.
Sustainability 17 05056 g013
Figure 14. Line characteristics with two simulation scenarios.
Figure 14. Line characteristics with two simulation scenarios.
Sustainability 17 05056 g014
Figure 15. Time/position diagram for the different trains (stops 3–9).
Figure 15. Time/position diagram for the different trains (stops 3–9).
Sustainability 17 05056 g015
Figure 16. The speed and longitudinal acceleration for the different trains (stops 3–9).
Figure 16. The speed and longitudinal acceleration for the different trains (stops 3–9).
Sustainability 17 05056 g016
Figure 17. The traction/braking force and power for the different trains (stops 3–9).
Figure 17. The traction/braking force and power for the different trains (stops 3–9).
Sustainability 17 05056 g017
Figure 18. The traction/braking force and power zoomed in between kilometres 265 and 315 km.
Figure 18. The traction/braking force and power zoomed in between kilometres 265 and 315 km.
Sustainability 17 05056 g018
Figure 19. Energy consumption analysis (only stops 3–9).
Figure 19. Energy consumption analysis (only stops 3–9).
Sustainability 17 05056 g019
Table 1. Pilot line characteristics and main parameters.
Table 1. Pilot line characteristics and main parameters.
ParameterValue
Number of stops:16
Length:550 km
Maximum speed: 180 km/h
Max gradient:15‰
Table 2. The IRT to be compared with the new vehicles.
Table 2. The IRT to be compared with the new vehicles.
ParameterValue
Mass:268 ton
Length:110 m (4 coaches)
Normal acceleration:1.1 m/s2
Maximum speed:180 km/h
Power: 3400 kW
Traction/brake maximum force:±300 kN
Table 3. Pod’s main characteristics.
Table 3. Pod’s main characteristics.
ParameterValue
Mass:44 ton
Length:28 m
Maximum speed:220 km/h
Table 4. Pod’s configurations for traction capacities.
Table 4. Pod’s configurations for traction capacities.
Normal
Acceleration (m/s2)
Maximum
Traction Force (kN)
Power (kW)Maximum
Deceleration (m/s2)
Maximum Braking Force (kN)
0.753515001.252.32
1.57122631.571
Table 5. Pod’s configurations.
Table 5. Pod’s configurations.
CoefficientIRTPod
A (N)1789.7920.3
B (N/(m/s))100.1814.1
C (N/(m/s)2)8.32Variable, depending on the speed and distance
Table 6. Travel time analysis.
Table 6. Travel time analysis.
SimulationScenarioTravel Time
Absolute Value (h)Time Reduction (h)Reduction (%)
IRTCurrent line5.390.00.0
Pod 0.75 m/s2A—V Coupling4.131.323.4
B—V Coupling4.071.324.5
B—ERTMS L34.341.019.4
Pod 1.50 m/s2A—V Coupling4.021.425.3
B—V Coupling3.961.426.5
Table 7. Energy consumption analysis.
Table 7. Energy consumption analysis.
SimulationScenarioEnergy ConsumptionEnergy Consumption (85% Recovery)
GJkWhIncrease (kWh)Increase (%)GJkWhIncrease (kWh)Increase (%)
IRTCurrent line13.93862.30.00.010.42879.20.00.0
Pod 0.75 m/s2A (Virtual Coupling)15.44268.4406.010.513.23673.0793.827.6
B (V irtual Coupling)15.74361.5499.212.913.63769.6890.430.9
B (ERTMS L3)17.14739.2876.922.713.83825.6946.432.9
Pod 1.50 m/s2A (V irtual Coupling)16.04432.7570.414.813.43730.9851.729.6
B (V irtual Coupling)16.34526.6664.217.213.83829.1949.933.0
Table 8. Reduction in drag coefficient depending on the shape of the pod.
Table 8. Reduction in drag coefficient depending on the shape of the pod.
Estimated Reduction in Energy Consumption Due to AerodynamicsCx%
Sustainability 17 05056 i0010.31-
Sustainability 17 05056 i0020.289.6
Sustainability 17 05056 i0030.2519%
Table 9. Different costs used for the CBA.
Table 9. Different costs used for the CBA.
ConceptCost CategoryConfiguration A (m EUR)Configuration B (m EUR)
Investment CostsInfrastructure MDS components:
linear motor
39503950
Infrastructure MDS components:
parallel levitation beams
2860
Infrastructure (track alignment, consisting of level crossings elimination)1543
Infrastructure (signalling)5757
Infrastructure studies0.10.1
Unexpected costs141222
Rolling stock, including levitation components682682
Vehicle operational costsPersonnel on Board0.00.0
Inspection and Cleaning17.1617.16
Energy16.3416.34
Operation and Maintenance CostsRolling Stock Operation and Maintenance−51.9−51.9
Infrastructure Maintenance MDS91.6153.1
Direct Benefits and ExternalitiesTravel Time Saving70208020
Vehicle Operation Cost Saving14801480
Externalities15501550
Table 10. Economic performance indicator results summary.
Table 10. Economic performance indicator results summary.
Use CaseENPV [m EUR]B/CIRR
Configuration A1124.111.314.67%
Configuration B−1343.870.78 1.39%
Table 11. Sensitive analysis results for hybrid MDS—configuration A.
Table 11. Sensitive analysis results for hybrid MDS—configuration A.
ENPVB/C
ValueDiff.%ValueDiff.%
CAPEX01124.110%1.310%
10%821.06−27%1.21−7.82%
20%518.00−54%1.12−14.50%
30%214.94−81%1.05−20.28%
OPEX01124.110%1.310%
10%1069.77−5%1.29−1.50%
20%1015.43−10%1.28−2.95%
30%961.10−15%1.26−4.36%
Shift demand−30%−308.26−127%0.91−30.49%
−20%169.20−85%1.05−20.33%
−10%646.65−42%1.18−10.16%
01124.110%1.310%
Table 12. Sensitive analysis results for hybrid MDS—configuration B.
Table 12. Sensitive analysis results for hybrid MDS—configuration B.
ENPVB/C
ValueDiff.%ValueDiff.%
CAPEX−30%89.94−107%1.0231.11%
−20%−388.00−71%0.9218.79%
−10%−865.94−36%0.848.59%
0−1343.870%0.780%
OPEX −30%−965.11−28%0.836.69%
−20%−1091.36−19%0.814.36%
−10%−1217.62−9%0.792.13%
0−1343.870%0.780%
Shift demand0−1343.870%0.780%
10%−866.42−36%0.8610.16%
20%−388.96−71%0.9420.33%
30%88.50−107%1.0130.49%
Table 13. Technical open points identified in MaDe4Rail.
Table 13. Technical open points identified in MaDe4Rail.
Geometric compatibilityIn order to introduce MDS technologies into existing railway infrastructure, components must adhere to specific geometric clearance requirements and ensure that there is no physical interference between the linear motor, levitation, and guidance technologies (both on board and on the ground) and trackside equipment, such as balises, power supply cables for linear motor, rail fastenings, switches and check rails, and level crossings.
Electromagnetic compatibility Certain components of the signalling system using axle counters or track circuits may experience side effects or malfunctions due to the introduction of electromagnetic fields generated by the linear motor and/or levitation and guidance components (including those generated by passing MDS vehicles).
Interlockings, CCS, and traffic management systemsCurrent interlocking systems are not compatible with the MDS configurations analysed due to the integration of the linear motor and virtual balises in the CCS as a tool to identify the position of the MDS vehicle (synchronous linear motor case) to manage movement dynamics and train interactions. Key challenges include the need to adapt command, control, and signalling systems and protocols.
Track Infrastructure adaptationThe introduction of MDS technologies might require significant adjustments to track infrastructure elements, especially sleepers, switches, and related components.
Impact on maintenanceThe installation of linear motors and levitation systems between the rails will significantly alter the traditional track maintenance regimes. It will require a thorough re-evaluation of current maintenance procedures.
Electrical SubstationThe development of new electrical substations for the MDS is crucial to ensure the efficiency and reliability of these technologies. Current substations, primarily designed for conventional railway networks (mostly in DC), present discrepancies concerning the specific energy requirements of maglev systems.
Coexistence of sliders and traditional bogies on MDS vehicles: To ensure hybrid operations, particularly on existing lines without modifying switches or on low-speed segments (e.g., stations), it may be necessary for MDS vehicles to be equipped with both sliders and traditional bogies.
Table 14. Regulation and standardisation identified issues.
Table 14. Regulation and standardisation identified issues.
Identification of safety requirementsIdentify the characteristics of the technologies that needs to be tested in terms of safety and define standard testing procedures to ensure safety and interoperability with the railway system.
Regulatory developmentDevelop solutions for identified regulatory gaps and requirements, engage with regulatory bodies and certification entities, and develop/adapt draft regulations to cover additional components and operating schemes related specifically to MDSs.
Standardisation effortsIntroduce MDS requirements to existing standardisation bodies, develop interoperability standards and define certification processes to ensure MDSs meet all necessary safety and performance criteria.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Felez, J.; Vaquero-Serrano, M.A.; Portillo, D.; Antunez, S.; Carcasi, G.; Nocita, A.; Schultz-Wildelau, M.; Parrotta, L.A.; Fasano, G.; Proietti, P. A New Concept of Hybrid Maglev-Derived Systems for Faster and More Efficient Rail Services Compatible with Existing Infrastructure. Sustainability 2025, 17, 5056. https://doi.org/10.3390/su17115056

AMA Style

Felez J, Vaquero-Serrano MA, Portillo D, Antunez S, Carcasi G, Nocita A, Schultz-Wildelau M, Parrotta LA, Fasano G, Proietti P. A New Concept of Hybrid Maglev-Derived Systems for Faster and More Efficient Rail Services Compatible with Existing Infrastructure. Sustainability. 2025; 17(11):5056. https://doi.org/10.3390/su17115056

Chicago/Turabian Style

Felez, Jesus, Miguel A. Vaquero-Serrano, David Portillo, Santiago Antunez, Giuseppe Carcasi, Angela Nocita, Michael Schultz-Wildelau, Lorenzo A. Parrotta, Gerardo Fasano, and Pietro Proietti. 2025. "A New Concept of Hybrid Maglev-Derived Systems for Faster and More Efficient Rail Services Compatible with Existing Infrastructure" Sustainability 17, no. 11: 5056. https://doi.org/10.3390/su17115056

APA Style

Felez, J., Vaquero-Serrano, M. A., Portillo, D., Antunez, S., Carcasi, G., Nocita, A., Schultz-Wildelau, M., Parrotta, L. A., Fasano, G., & Proietti, P. (2025). A New Concept of Hybrid Maglev-Derived Systems for Faster and More Efficient Rail Services Compatible with Existing Infrastructure. Sustainability, 17(11), 5056. https://doi.org/10.3390/su17115056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
