Comparative Life Cycle Assessment of Sustainable Aviation Fuel Production from Different Biomasses
Abstract
:1. Introduction

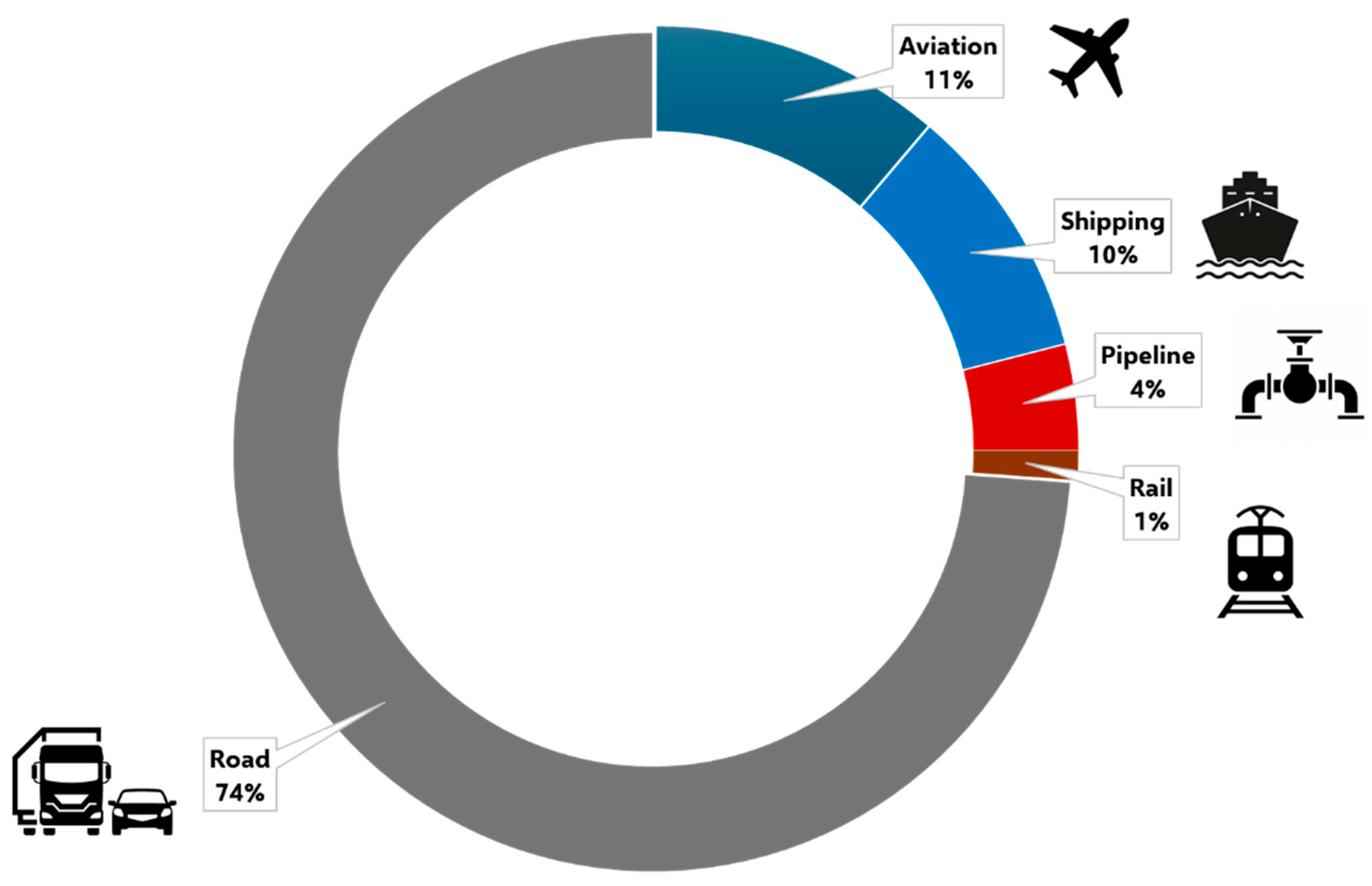

1.1. Background

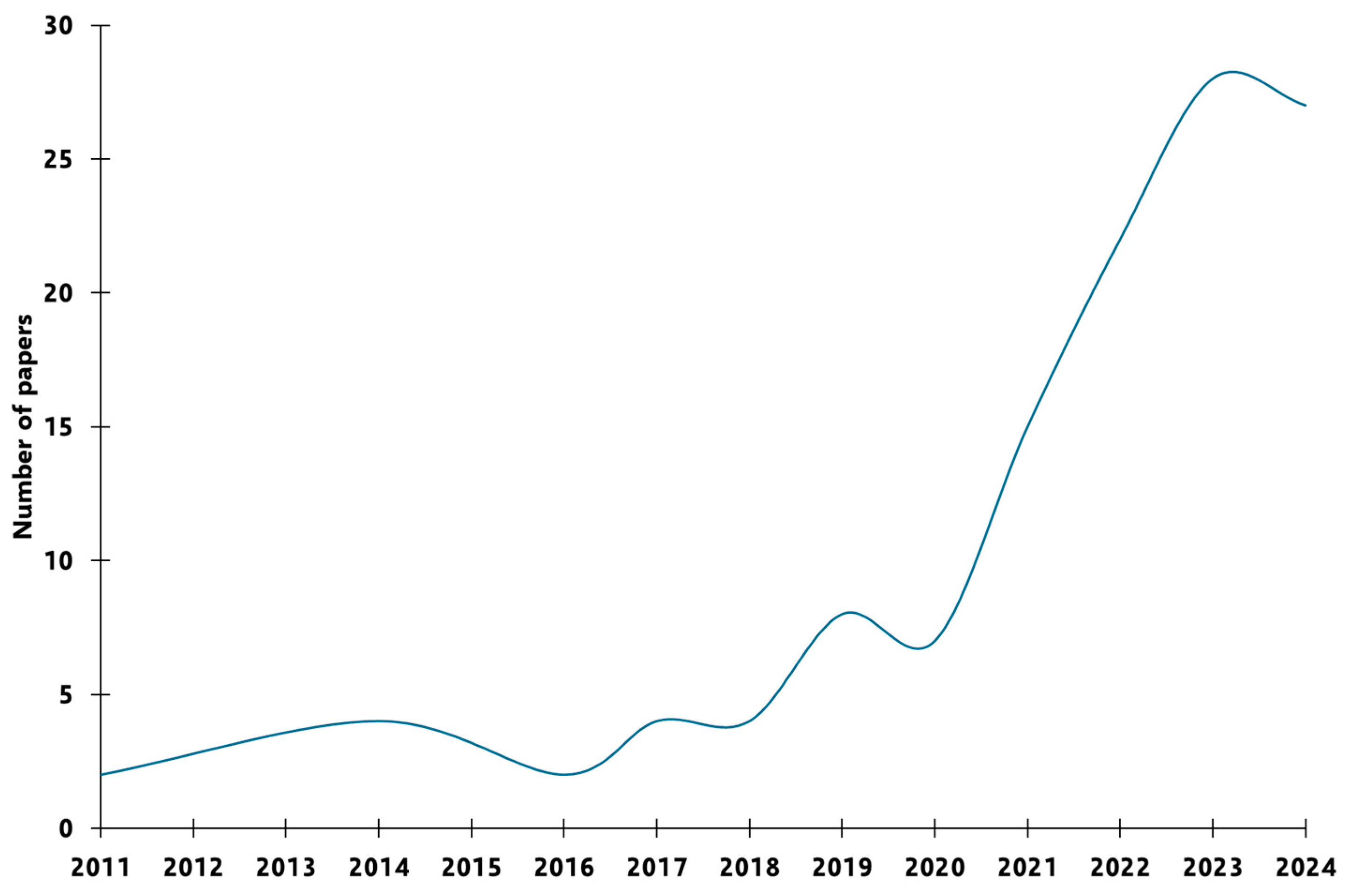

1.2. Originality and Literature Gap
1.3. Aim of the Study
2. Sustainable Aviation Fuels and Certified Production Routes
3. Materials and Methods
Life Cycle Assessment
- (1)
- Goal and Scope Definition
- Feedstocks: Soybean, Palm, Rapeseed, and Camelina, considering a cradle-to-gate process, starting from the biomass cultivation stage to SAF-HEFA conversion.
- Non-food feedstock: This group includes Jatropha curcas L., a tropical plant that is not used for food purposes because of its toxicity. It grows wild on marginal land without the need for inputs during the cultivation stage. Therefore, given the absence of inputs for the cultivation phase, the production process of SAF HEFA from Jatropha is from gate to gate, starting from the oil extraction stage and continuing until its conversion.
- Waste: This group includes Waste Cooking Oil (WCO) and Tallow. Since they are considered waste, their system boundary starts from the oil processing stage resulting from the production processes and continues until the conversion stage to SAF HEFA. Again, the process is considered from gate to gate, given the absence of initial production stages.
- (2)
- Life Cycle Inventory (LCI)
- Soybeans are mainly grown in the United States and Latin America. For this analysis, a large-scale crop from the United States was considered as a reference point. Agricultural practices, soil conditions, and climate can vary greatly among these regions, thus affecting the overall emissions associated with Soybean production.
- Rapeseed is commonly grown in cold climates and is an important crop in Europe. Therefore, data on its European cultivation were used. Different climatic conditions and European farming practices may result in differences in emissions compared to other regions of the world.
- Camelina is a plant grown in several regions of the world, including Europe, the United States, and Canada. This widespread geographic distribution of cultivation led to the use of an average of data regarding camelina production in these regions to obtain the inventory data.
- For palm oil, a precise place of origin was not specified, but the reference data came from ANL and CCR, and an average was calculated. It can be assumed that Palm is mainly grown in Malaysia, where it is a significant crop. Palm oil cultivation is often associated with environmental concerns, such as deforestation and greenhouse gas emissions, depending on practices in the region.
- For Jatropha, the data refer to its cultivation in India, where semi-arid conditions favor high yields. However, it is cultivated in different parts of the world, and emissions may vary depending on the region of cultivation and the agricultural practices adopted.
- For WCO and Tallow, data came from the United States, where they were collected from commercial kitchens and restaurants. However, the generation of these wastes can occur worldwide, and specific emissions may depend on the waste collection and treatment practices in each region.
- (3)
- Life Cycle Impact Assessment
- Atmospherical Effects: Global Warming Potential (GWP); Stratospheric Ozone Depletion (SOD); Ionizing Radiation (IR); Ozone Formation, Human Health (OFHH); Fine Particulate Matter Formation (FPMP); Ozone Formation, Terrestrial Ecosystems (OFTE); Terrestrial Acidification Potential (TAP);
- Eutrophication: Freshwater Eutrophication Potential (FEP) and Marine Eutrophication Potential (MEP);
- Toxicity: Terrestrial Ecotoxicity (TEC); Freshwater Ecotoxicity (FEC); Marine Ecotoxicity (MEC); Human Carcinogenic Toxicity (HCT); Human Non-Carcinogenic Toxicity (HNCT);
- Abiotic Resources: Land Use (LU); Mineral Resources Scarcity (MRS); Fossil Resources Scarcity (FRS), Water Consumption (WC).
- (4)
- Interpretation: Sensitivity Analysis
- Scenario 1 (S1): This is where 20% of the electricity used in biomass extraction processes is replaced with renewable electricity, in particular, electricity from solar panels. This scenario therefore assumes that extraction plants are partially powered by renewable energy, thus reducing dependence on fossil fuels.
- Scenario 2 (S2): In this scenario, not only is 20% of the electricity replaced with solar energy but the methane used in production processes is also replaced with biomethane. Biomethane is a sustainable alternative to fossil-derived methane and is produced from organic waste materials through anaerobic digestion [56]. This part of the analysis aimed to explore the combined effect of integrating renewable electricity and a sustainable fuel source.
4. Results and Discussions
4.1. Life Cycle Impact Assessment

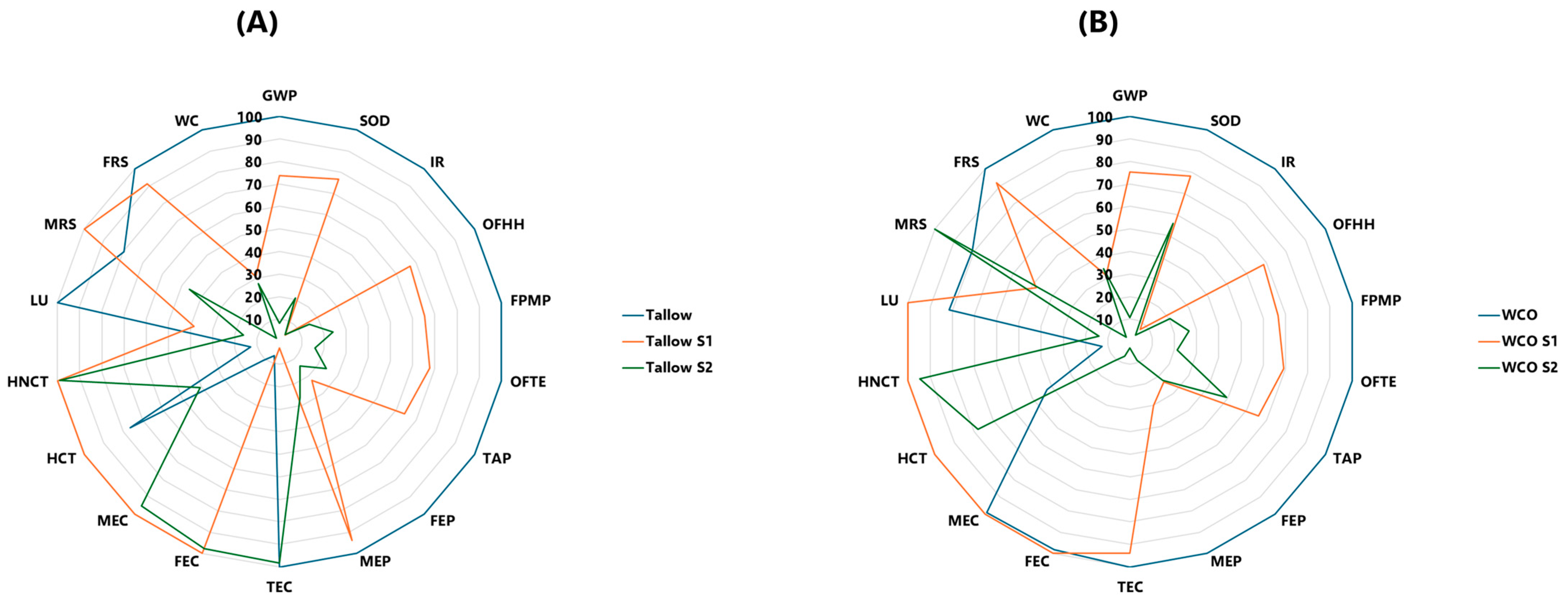

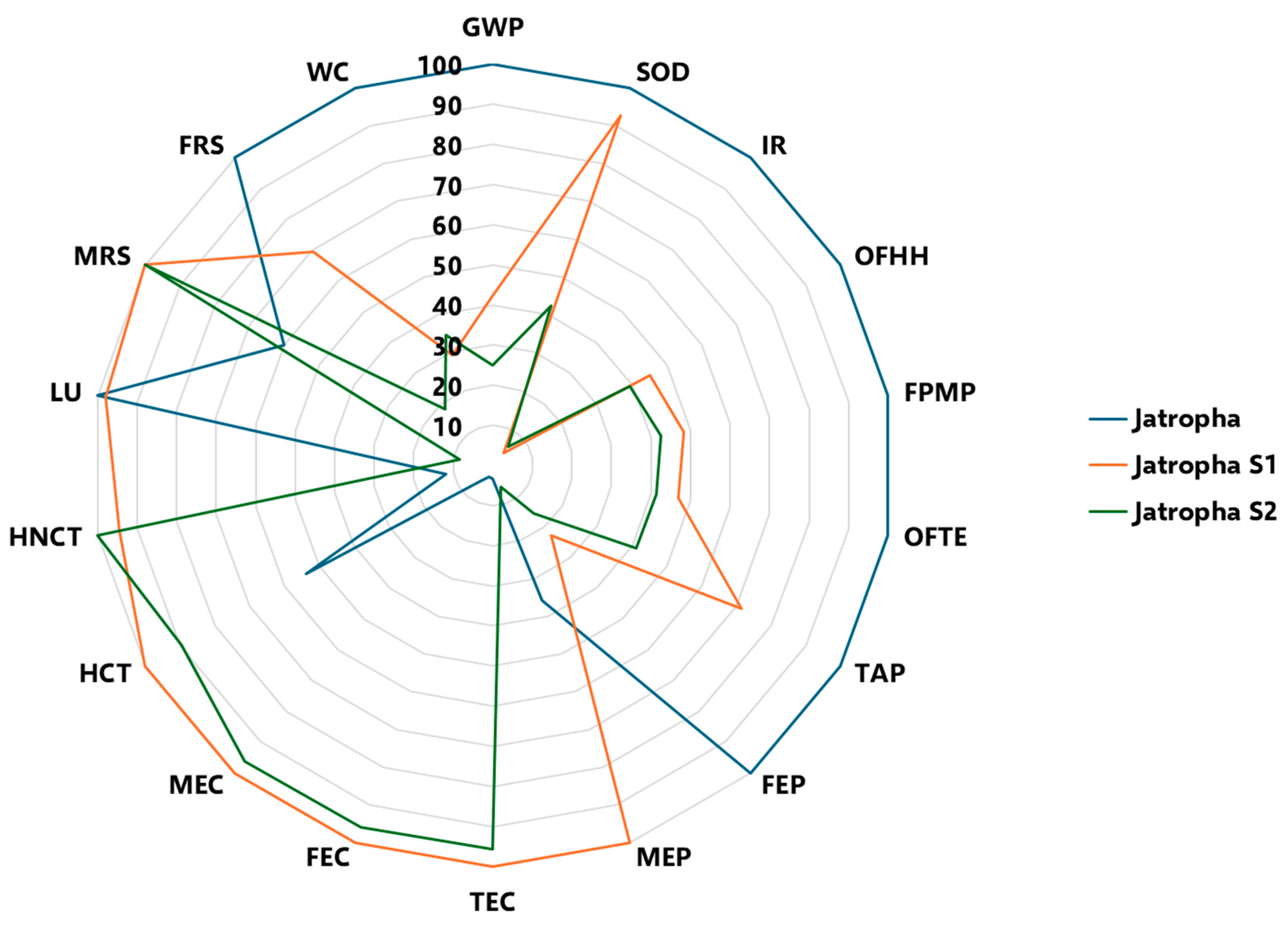

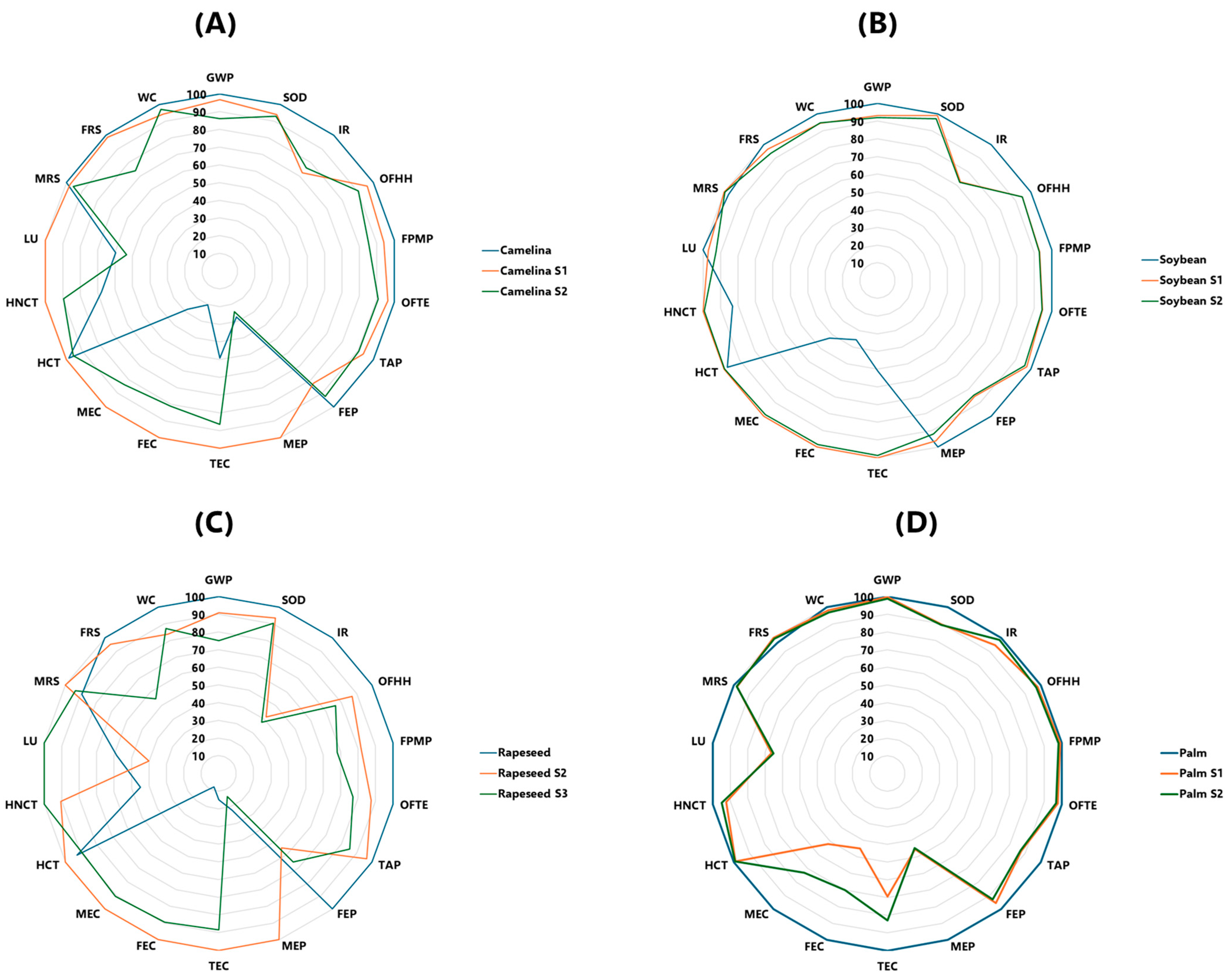

4.2. Sensitivity Analysis
5. Conclusions and Future Perspectives
- Considering a trade-off between energy yield and environmental impacts, the two potentially most favorable biomasses for SAF production could be Camelina and Palm, as they show minimal environmental impacts in 4 and 7 out of 18 impact categories, respectively, with yields of 98% and 68%.
- Soybean appears to be the least sustainable precursor due to the large number of inputs for its production.
- SAF production from biomass could reduce GWP compared to fossil fuel by 2.8–3.6 times (WCO), 1.27–1.66 times (tallow), 4.6–5.8 times (Palm), 3.4–4.3 times (Jatropha), 1.05–1.32 times (Rapeseed), and 4.36–5.5 times (Camelina), demonstrating the good environmental impact of these pathways.
- By using a share of solar energy and a renewable vector such as biomethane, environmental impacts are reduced for all biomasses considered in 12–13 impact categories, except toxicity categories. However, while issues related to the extraction of raw materials to produce photovoltaic panels remain, the benefits still outweigh the environmental impacts.
- Producing SAF from waste biomass could be an environmentally compatible option, as they would produce rather low environmental impacts, in the order of 5.13 g CO2 eq/MJ for Tallow and 3.12 g CO2 eq/MJ for WCO. Moreover, being waste biomass, they would not compete with the agri-food sector, as would be the case if SAFs were produced from Rapeseed, Camelina, Palm, etc. However, part of the energy would have to come from sustainable energy vectors, although, as in the case of Jatropha, there are still problems with the rather low yields of these precursors.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- International Energy Agency (IEA). Tracking Aviation. 2024. Available online: https://www.iea.org/energy-system/transport/aviation (accessed on 7 June 2024).
- Ritchie, H.; Rosado, P.; Roser, M. Breakdown of Carbon Dioxide, Methane, and Nitrous Oxide Emissions by Sector. 2023. Available online: https://ourworldindata.org/emissions-by-sector (accessed on 10 June 2024).
- International Energy Agency (IEA). Global CO2 Emissions from Transport by Sub-Sector in the Net Zero Scenario, 2000–2030. 2023. Available online: https://www.iea.org/energy-system/transport (accessed on 13 June 2024).
- European Commission. Reducing Emissions from Aviation. 2024. Available online: https://climate.ec.europa.eu/eu-action/transport/reducing-emissions-aviation_en (accessed on 4 June 2024).
- Ritchie, H. What Share of Global CO2 Emissions Comes from Aviation? 2024. Available online: https://ourworldindata.org/global-aviation-emissions (accessed on 8 June 2024).
- Preston, H.; Lee, D.S.; Hooper, P.D. The inclusion of the aviation sector within the European Union’s Emissions Trading Scheme: What are the prospects for a more sustainable aviation industry? Environ. Dev. 2012, 2, 48–56. [Google Scholar] [CrossRef]
- Savastano, M.; Samo, A.H.; Channa, N.A.; Amendola, C. Toward a conceptual framework to foster green entrepreneurship growth in the agriculture industry. Sustainability 2022, 14, 4089. [Google Scholar] [CrossRef]
- Klöwer, M.; Allen, M.R.; Lee, D.S.; Proud, S.R.; Gallagher, L.; Skowron, A. Quantifying aviation’s contribution to global warming. Environ. Res. Lett. 2021, 16, 104027. [Google Scholar] [CrossRef]
- Terrenoire, E.; Hauglustaine, D.A.; Cohen, Y.; Cozic, A.; Valorso, R.; Lefèvre, F.; Matthes, S. Impact of present and future aircraft NOx and aerosol emissions on atmospheric composition and associated direct radiative forcing of climate. Atmos. Chem. Phys. 2022, 22, 11987–12023. [Google Scholar] [CrossRef]
- Eurostat. Air Transport Statistics. 2022. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php?title=Air_transport_statistics (accessed on 4 June 2024).
- Oliver Wyman. Global Fleet and MRO Market Forecast 2023–2033. 2024. Available online: https://www.oliverwyman.com/content/dam/oliver-wyman/v2/publications/2023/feb/Fleet-and-MRO-Forecast-2023-2033.pdf (accessed on 4 June 2024).
- Intergovernmental Panel on Climate Change (IPCC). Climate Change 2022 Mitigation of Climate Change Working Group III Contribution to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change. ISBN 978-92-9169-160-9. Available online: https://www.ipcc.ch/report/ar6/wg3/downloads/report/IPCC_AR6_WGIII_FullReport.pdf (accessed on 8 June 2024).
- European Commission. Sustainable Aviation Fuels–ReFuelEU Aviation; European Commission: Brussels, Belgium, 2020; Available online: https://ec.europa.eu/info/law/better-regulation/have-your-say/initiatives/12303-ReFuelEU-Aviation-Sustainable-Aviation-Fuels (accessed on 8 June 2024).
- Kourkoumpas, D.S.; Sagani, A.; Hull, A.; Hull, A.; Karellas, S.; Grammelis, P. Life cycle assessment of an innovative alcohol-to-jet process: The case for retrofitting a bioethanol plant for sustainable aviation fuel production. Renew. Energy 2024, 228, 120512. [Google Scholar] [CrossRef]
- Mofijur, M.; Hazrat, M.A.; Rasul, M.G.; Mahmudul, H.M. Comparative Evaluation of Edible and Non-edible Oil Methyl Ester Performance in a Vehicular Engine. Energy Procedia 2015, 75, 37–43. [Google Scholar] [CrossRef]
- Tanzil, A.H.; Brandt, K.; Wolcott, M.; Zhang, X.; Garcia-Perez, M. Strategic assessment of sustainable aviation fuel production technologies: Yield improvement and cost reduction opportunities. Biomass Bioenergy 2021, 145, 105942. [Google Scholar] [CrossRef]
- Rogachuk, B.E.; Okolie, J.A. Comparative assessment of pyrolysis and gasification-Fischer Tropsch for sustainable aviation fuel production from waste tires. Energy Convers. Manag. 2024, 302, 118110. [Google Scholar] [CrossRef]
- Akter, H.A.; Masum, F.H.; Dwivedi, P. Life cycle emissions and unit production cost of sustainable aviation fuel from logging residues in Georgia, United States. Renew. Energy 2024, 228, 120611. [Google Scholar] [CrossRef]
- Deuber, R.d.S.; Bressanin, J.M.; Fernandes, D.S.; Guimarães, H.R.; Chagas, M.F.; Bonomi, A.; Fregolente, L.V.; Watanabe, M.D.B. Production of Sustainable Aviation Fuels from Lignocellulosic Residues in Brazil through Hydrothermal Liquefaction: Techno-Economic and Environmental Assessments. Energy 2023, 16, 2723. [Google Scholar] [CrossRef]
- Therasme, O.; Kumar, D. Environmental life cycle assessment of aviation fuel production from woody biomass resources. In Sustainable Biorefining of Woody Biomass to Biofuels and Biochemicals; Woodhead Publishing: Saxton, UK, 2024; pp. 337–349. [Google Scholar] [CrossRef]
- Marangon, B.B.; Castro, J.d.S.; Assemany, P.P.; Machado, N.A.; Calijuri, M.L. Wastewater-grown microalgae biomass as a source of sustainable aviation fuel: Life cycle assessment comparing hydrothermal routes. J. Environ. Manag. 2024, 360, 121164. [Google Scholar] [CrossRef] [PubMed]
- Pre-Consulting. LCA Software for Informed Changemakers. 2024. Available online: https://simapro.com/ (accessed on 8 June 2024).
- IATA. Fact Sheet 2 Sustainable Aviation Fuel: Technical Certification. 2022. Available online: https://www.iata.org/contentassets/d13875e9ed784f75bac90f000760e998/saf-technical-certifications.pdf (accessed on 9 June 2024).
- Shahriar, F.M.D.; Khanal, A. The current techno-economic, environmental, policy status and perspectives of sustainable aviation fuel (SAF). Fuel 2022, 325, 124905. [Google Scholar] [CrossRef]
- Stone, M.L.; Webber, M.S.; Mounfield, W.P.; Bell, D.C.; Christensen, E.; Morais, A.R.C.; Li, Y.; Anderson, E.M.; Heyne, J.S.; Beckham, G.T.; et al. Continuous hydrodeoxygenation of lignin to jet-range aromatic hydrocarbons. Joule 2022, 6, 2324–2337. [Google Scholar] [CrossRef]
- Lin, J.K.; Nurazaq, W.A.; Wang, W.C. The properties of sustainable aviation fuel I: Spray characteristics. Energy 2023, 283, 129125. [Google Scholar] [CrossRef]
- D1655-22A; Standard Specification for Aviation Turbine Fuels. ASTM International: West Conshohocken, PA, USA, 2022. Available online: https://cdn.standards.iteh.ai/samples/113803/1f6c7234c07e4f078f1bc1396e6831a5/ASTM-D1655-22a.pdf (accessed on 9 June 2024).
- ASTM D4054-22; Standard Practice for Evaluation of New Aviation Turbine Fuels and Fuel Additives. ASTM International: West Conshohocken, PA, USA, 2022. [CrossRef]
- ASTM D7566-22; Standard Specification for Aviation Turbine Fuel Containing Synthesized Hydrocarbons. ASTM International: West Conshohocken, PA, USA, 2022. [CrossRef]
- European Union Aviation Safety Agency (EASA). European Aviation Environmental Report. 2022. Available online: https://www.easa.europa.eu/eco/eaer/topics/sustainable-aviation-fuels/figures-and-tables (accessed on 9 June 2024).
- Cabrera, E.; de Sousa, J.M.M. Use of Sustainable Fuels in Aviation—A Review. Energies 2022, 15, 2440. [Google Scholar] [CrossRef]
- HORIZON 2020—WORK PROGRAMME 2014–2015. General Annexes. Extract from Part 19—Commission Decision C (2014)4995. Technology Readiness Levels (TRL). Available online: https://ec.europa.eu/research/participants/data/ref/h2020/wp/2014_2015/annexes/h2020-wp1415-annex-g-trl_en.pdf (accessed on 25 July 2024).
- Braun, M.; Grimme, W.; Oesingmann, K. Pathway to net zero: Reviewing sustainable aviation fuels, environmental impacts and pricing. J. Air Transp. Manag. 2024, 117, 102580. [Google Scholar] [CrossRef]
- Wardana, I.N.G. Combustion characteristics of Jatropha oil droplet at various oil temperatures. Fuel 2010, 89, 659–664. [Google Scholar] [CrossRef]
- Jasiński, R.; Przysowa, R. Evaluating the Impact of Using HEFA Fuel on the Particulate Matter Emissions from a Turbine Engine. Energies 2024, 17, 1077. [Google Scholar] [CrossRef]
- Faber, J.; Király, J.; Lee, D.; Owen, B.; O’Leary, A. Potential for Reducing Aviation Non-CO2 Emissions through Cleaner Jet Fuel; CE Delft: Delft, The Netherlands, 2022. [Google Scholar]
- Grimme, W. The Introduction of Sustainable Aviation Fuels—A Discussion of Challenges, Options and Alternatives. Aerospace 2023, 10, 218. [Google Scholar] [CrossRef]
- IRENA. Reaching Zero with Renewables: Biojet Fuels; International Renewable Energy Agency: Abu Dhabi, United Arab Emirates, 2021; Available online: https://www.irena.org/-/media/Files/IRENA/Agency/Publication/2021/Jul/IRENA_Reaching_Zero_Biojet_Fuels_2021.pdfì (accessed on 8 June 2024).
- Almena, A.; Siu, R.; Chong, K.; Thornley, P.; Röder, M. Reducing the environmental impact of international aviation through sustainable aviation fuel with integrated carbon capture and storage. Energy Convers. Manag. 2024, 303, 118186. [Google Scholar] [CrossRef]
- Ahlström, J.; Jafri, Y.; Wetterlund, E.; Furusjö, E. Sustainable aviation fuels—Options for negative emissions and high carbon efficiency. Int. J. Greenh. Gas Control 2023, 125, 103886. [Google Scholar] [CrossRef]
- Rojas-Michaga, M.F.; Michailos, S.; Cardozo, E.; Akram, M.; Hughes, K.J.; Ingham, D.; Pourkashanian, M. Sustainable aviation fuel (SAF) production through power-to-liquid (PtL): A combined techno-economic and life cycle assessment. Energy Convers. Manag. 2023, 292, 117427. [Google Scholar] [CrossRef]
- ISO 14040; Environmental Management—Life Cycle Assessment—Principle and Framework. International Organisation for Standardisation (ISO): Geneva, Switzerland, 2006. Available online: https://www.iso.org/standard/37456.html (accessed on 8 June 2024).
- ISO 14044; Environmental Management—Life Cycle Assessment—Requirements and Guidelines. International Organisation for Standardisation (ISO): Geneva, Switzerland, 2006. Available online: https://www.iso.org/standard/38498.html (accessed on 8 June 2024).
- International Civil Aviation Organization (ICAO). CORSIA SUPPORTING DOCUMENT. CORSIA Eligible Fuels—Life Cycle Assessment Methodology. 2022. Available online: https://www.icao.int/environmental-protection/CORSIA/Documents/CORSIA_Eligible_Fuels/CORSIA_Supporting_Document_CORSIA%20Eligible%20Fuels_LCA_Methodology_V5.pdf (accessed on 7 June 2024).
- Stratton, R.W.; Wong, M.; Hileman, J.I. Life Cycle Greenhouse Gas Emissions from Alternative Jet Fuels; MIT and Partnership for Air Transportation and Emissions Reduction: Cambridge, MA, USA, 2010; Available online: https://web.mit.edu/aeroastro/partner/reports/proj28/partner-proj28-2010-001.pdf (accessed on 10 June 2024).
- Seber, G.; Malina, R.; Pearlson, M.N.; Olcay, H.; Hileman, J.I.; Barrett, S.R. Environmental and economic assessment of producing hydroprocessed jet and diesel fuel from waste oils and tallow. Biomass Bioenergy 2014, 67, 108–118. [Google Scholar] [CrossRef]
- Wernet, G.; Bauer, C.; Steubing, B.; Reinhard, J.; Moreno-Ruiz, E.; Weidema, B. The Ecoinvent Database Version 3 (Part I): Overview and Methodology. Int. J. Life Cycle Assess. 2016, 21, 1218–1230. [Google Scholar] [CrossRef]
- Colomb, V.; Ait, S.A.; Mens, C.B.; Gac, A.; Gaillard, G.; Koch, P.; Mousset, J.; Salou, T.; Tailleur, A.; van der Werf, H.M.G. AGRIBALYSE®, the French LCI Database for agricultural products: High-quality data for producers and environmental labeling. OCL-Oilseeds Fats 2015, 22, D104. [Google Scholar] [CrossRef]
- Nemecek, T.; Bengoa, X.; Rossi, V.; Humbert, S.; Lansche, J.; Mouron, P. Methodological Guidelines for the Life Cycle Inventory of Agricultural Products; World Food LCA Database; Quantis and Agroscope: Lausanne and Zurich, Switzerland, 2019. [Google Scholar]
- Firman, L.R.; Ochoa, N.A.; Marchese, J.; Pagliero, C. Designing of spiral wound nanofiltration multistage process for oil concentration and solvent recovery from soybean oil/n-hexane miscella. Chem. Eng. Res. Des. 2020, 164, 46–58. [Google Scholar] [CrossRef]
- Huijbregts, M.A.J.; Steinmann, Z.J.N.; Elshout, P.M.F.; Stam, G.; Veronese, F.; Vieira, M.; Zijp, M.; Hollander, A.; van Zelm, R. ReCiPe2016: A harmonized life cycle impact assessment method at midpoint and endpoint level. Int. J. Life Cycle Assess 2017, 22, 138–147. [Google Scholar] [CrossRef]
- Wolf, M.A.; Pant, R.; Chomkhamsri, K.; Sala, S.; Pennington, D. International Reference Life Cycle Data System (ILCD) Handbook–Towards More Sustainable Production and Consumption for a Resource-Efficient Europe. JRC Reference Report, EUR 24982 EN. European Commission–Joint Research Centre; Publications Office of the European Union: Luxembourg, 2012; Available online: https://eplca.jrc.ec.europa.eu/uploads/JRC-Reference-Report-ILCD-Handbook-Towards-more-sustainable-production-and-consumption-for-a-resource-efficient-Europe.pdf (accessed on 11 June 2024).
- Acero, A.P.; Rodríguez, C.; Ciroth, A. LCIA Methods: Impact Assessment Methods in Life Cycle Assessment and Their Impact Categories; GreenDelta: Berlin, Germany, 2014. [Google Scholar]
- Bare, J. TRACI 2.0: The tool for the reduction and assessment of chemical and other environmental impacts 2.0. Clean Technol. Environ. Policy 2011, 13, 687–696. [Google Scholar] [CrossRef]
- Yao, W.; Chen, X.; Luo, W.; van Tooren, M.; Guo, J. Review of uncertainty-based multidisciplinary design optimization methods for aerospace vehicles. Progress. Aerosp. Sci. 2011, 47, 450–479. [Google Scholar] [CrossRef]
- Ardolino, F.; Parrillo, F.; Arena, U. Biowaste-to-biomethane or biowaste-to-energy? An LCA study on anaerobic digestion of organic waste. J. Clean. Prod. 2018, 174, 462–476. [Google Scholar] [CrossRef]
- Kurzawska-Pietrowicz, P. Life Cycle emission of selected Sustainable Aviation Fuels—A review. Transp. Res. Proc. 2023, 75, 77–85. [Google Scholar] [CrossRef]
- Budsberg, E.; Crawford, J.T.; Morgan, H.; Chin, W.S.; Bura, R.; Gustafson, R. Hydrocarbon bio-jet fuel from bioconversion of poplar biomass: Life cycle assessment. Biotechnol. Biofuels 2016, 9, 170. [Google Scholar] [CrossRef] [PubMed]
- Zhu, X.; Xiao, J.; Wang, C.; Zhu, L.; Wang, S. Global warming potential analysis of bio-jet fuel based on life cycle assessment. Carbon Neutrality 2022, 1, 25. [Google Scholar] [CrossRef]
- European Commission. Study on Actual GHG Data for Diesel, Petrol, Kerosene, and Natural Gas; European Commission: Brussels, Belgium, 2015; Available online: https://energy.ec.europa.eu/system/files/2015-08/Study%2520on%2520Actual%2520GHG%2520Data%2520Oil%2520Gas%2520Executive%2520Summary_0.pdf (accessed on 8 June 2024).
- Chataut, G.; Bhatta, B.; Joshi, D.; Subedi, K.; Kafle, K. Greenhouse gases emission from agricultural soil: A review. J. Agric. Food Res. 2023, 11, 100533. [Google Scholar] [CrossRef]
- Rubio, C.; Paz, S.; Gutiérrez, Á.J.; González-Weller, D.; Martín, R.; Hardisson, A. Human Exposure to Potentially Toxic Elements from the Consumption of Soybean Beverages Commercialized in Spain. J. Food Prot. 2024, 84, 932–937. [Google Scholar] [CrossRef] [PubMed]
- Maestri, D.M.; Labuckas, D.O.; Meriles, J.M.; Lamarque, A.L.; Zygadlo, J.A.; Guzmán, C.A. Seed composition of soybean cultivars evaluated in different environmental regions. J. Sci. Food Agric. 1998, 77, 494–498. [Google Scholar] [CrossRef]
- Wolf, R.; Cavins, J.; Kleiman, R.; Black, L. Effect of temperature on soybean seed constituents: Oil, protein, moisture, fatty acids, amino acids, and sugars. J. Am. Oil Chem. Soc. 1982, 59, 230–232. [Google Scholar] [CrossRef]
- Cure, J.; Patterson, R.; Raper, C.; Jackson, W. Assimilate distribution in soybeans as affected by photoperiod during seed development 1. Crop Sci. 1982, 22, 1245–1250. [Google Scholar] [CrossRef]
- Poudel, S.; Adhikari, B.; Dhillon, J.; Reddy, K.R.; Stetina, S.R.; Bheemanahalli, R. Quantifying the physiological, yield, and quality plasticity of Southern USA soybeans under heat stress. Plant Stress 2023, 9, 100195. [Google Scholar] [CrossRef]
- U.S. Energy Information Administration. What is U.S. Electricity Generation by Energy Source? 2024. Available online: https://www.eia.gov/tools/faqs/faq.php?id=427&t=3 (accessed on 26 July 2024).
- Haryati, Z.; Subramaniam, V.; Noor, Z.Z.; Hashim, Z.; Loh, S.K.; Aziz, A.A. Social life cycle assessment of crude palm oil production in Malaysia. Sustain. Prod. Consum. 2022, 29, 90–99. [Google Scholar] [CrossRef]
- Stolz, P.; Frischknecht, R.; Wambach, K.; Sinha, P.; Heath, G.L.B.-S.-F. Life cycle assessment of current photovoltaic module recycling. In IEA PVPS Task 12, International Energy Agency Power Systems Programme, Report IEA-PVPS T12; IEA PVPS Task; IEA: Paris, France, 2017; Volume 13, ISBN 978-3-906042-69-5. [Google Scholar]
- Silitonga, A.S.; Masjuki, H.H.; Mahlia, T.M.I.; Ong, H.C.; Atabani, A.E.; Chong, W.T. A global comparative review of biodiesel production from Jatropha Curcas using different homogeneous acid and alkaline catalysts: Study of physical and chemical properties. Renew. Sustain. Energy Rev. 2013, 24, 514–533. [Google Scholar] [CrossRef]
- Ong, H.C.; Mahlia, T.M.I.; Masjuki, H.H.; Norhasyima, R.S. Comparison of palm oil, Jatropha curcas and Calophyllum inophyllum for biodiesel: A review. Renew. Sustain. Energy Rev. 2011, 15, 3501–3515. [Google Scholar] [CrossRef]
- Brusseau, M.L.; Artiola, J.F. Chemical Contaminants. In Environmental and Pollution Science; Academic Press: Cambridge, MA, USA, 2019; pp. 175–190. [Google Scholar] [CrossRef]
- Maus, V.; Giljum, S.; da Silva, D.M.; Gutschlhofer, J.; da Rosa, R.P.; Luckeneder, S.; Gass, S.L.B.; Lieber, M.; McCallum, I. An update on global mining land use. Sci. Data 2022, 9, 433. [Google Scholar] [CrossRef] [PubMed]
Process Name | Biomass/Precursor | Certification Type and Blending Limit | Technology Readiness Level |
---|---|---|---|
Biomass gasification and Fischer Tropsch | Cereals, lignocellulosic materials, and waste | FT-SPK (+50%) | 7–8 |
Hydroprocessed Esters and Fatty Acids (HEFA) or Hydrotreated Vegetable Oil (HVO) | Animal and vegetable fat | HEFA-SPK (+50%) | 8–9 |
Direct sugars to hydrocarbons (DSHC) | Lignocellulosic sugars | HFS-SIP (+10%) | 7–8 |
Biomass gasification and FT with aromatics | Cereals, lignocellulosic materials, and waste | FT-SPK/A (+50%) | 6–7 |
Alcol to Jet (ATJ) | Starchy cereals, lignocellulosic sugars | ATJ-SPK (+50%) | 7–8 |
Catalytic Hydrothermolysis Jet (CTJ) | Animal and vegetable fat | CHJ, CH-SK (+50%) | 6 |
HEFA from algae | Microalgae | HC-HEFA-SPK (+10%) | 5 |
Fog co-processing | fats and oils | FOG (+5%) | - |
Fischer Tropsch co-processing | Fischer Tropsch biocrude | FT (+5%) | - |
Input/output | Unit | Feedstock | Source | ||||||
---|---|---|---|---|---|---|---|---|---|
Jatropha | Camelina | Palm | Soybean | Rapeseed | WCO | Tallow | |||
Cultivation | |||||||||
INPUT | |||||||||
Nitrogen | kg | - | 0.04 | 0.01 | 0.05 | 0.05 | - | - | Ecoinvent v3.9 |
Phosphoric acid | - | 0.02 | 0.01 | 0.19 | 0.01 | - | - | Agrybalize 4 | |
Potassium oxide | - | 0.02 | 0.01 | 0.30 | 0.02 | - | - | Ecoinvent v3.9 | |
Calcium carbonate | - | - | - | - | 0.01 | - | - | ||
Herbicide | - | 0.01 | 0.01 | 0.02 | 0.0003 | - | - | WFLDB | |
Insecticide | - | 0.0004 | 0.0001 | - | - | ||||
Diesel | - | 0.03 | 0.004 | 0.31 | 0.02 | - | - | Ecoinvent v3.9 | |
Gasoline | - | - | - | 0.07 | - | - | - | Agrybalize 4 | |
Methane | - | - | - | 0.02 | - | - | - | Ecoinvent v3.9 | |
LPG | - | - | - | 0.02 | - | - | - | ||
Electricity | MJ | - | - | - | 0.94 | - | - | - | |
OUTPUT | |||||||||
Flour | kg | 2.76 | 1.02 | 1.46 | 2.09 | 1.05 | - | - | |
Extraction | |||||||||
INPUT | |||||||||
N-Hexane | kg | 0.004 | 0.001 | - | 0.001 | 0.01 | - | - | Ecoinvent v3.9 |
Methane | 0.03 | 0.01 | - | 0.04 | 0.02 | 0.03 | 0.16 | ||
Fuel | - | 0.01 | - | 0.001 | - | - | - | ||
Carbon | - | - | - | 0.03 | - | - | - | ||
Gas | - | - | - | 0.01 | - | - | - | ||
Diesel | - | - | 0.0003 | - | - | - | - | ||
Electricity | MJ | 0.70 | 0.10 | 0.002 | 0.33 | 0.22 | 0.15 | 0.63 | |
OUTPUT | - | ||||||||
Flour | kg | - | 0.63 | - | 1.65 | 0.57 | - | - | |
Methane | - | - | 0.0008 | - | - | - | - | ||
Heat | - | - | 0.0004 | - | - | - | - | ||
Crude oil | - | - | 0.03 | - | - | - | - | ||
Conversion | |||||||||
INPUT | |||||||||
Hydrogen | kg | 0.001 | 0.01 | - | 0.01 | 0.003 | - | - | Ecoinvent 3.9 |
Methane | 0.002 | 0.05 | 0.002 | 0.03 | 0.07 | 0.09 | 0.09 | ||
Phosphoric acid | - | - | 0.00001 | - | - | - | - | ||
Sodium hydroxide | - | - | 0.000002 | - | - | - | - | ||
Nitrogen | - | - | 0.000004 | - | - | - | - | ||
Electricity | MJ | 0.005 | 0.11 | 0.01 | 0.09 | 0.15 | 0.22 | 0.22 | |
OUTPUT | |||||||||
Propane mixture | kg | 0.002 | 0.03 | - | 0.03 | - | - | - | |
Nafta | 0.001 | 0.01 | - | 0.01 | 0.01 | - | - | ||
BTL Fuel | - | - | 0.03 | - | - | - | - | ||
Steam | MJ | - | - | 0.06 | - | - | - | - |
Impact Categories | Unit | WCO | Soybean | Tallow | Palm | Jatropha | Rapeseed | Camelina |
---|---|---|---|---|---|---|---|---|
Atmospherical effects | ||||||||
GWP | g CO2 eq | 2.94 × 101 | 3.91 × 102 | 6.35 × 101 | 1.81 × 101 | 2.40 × 101 | 7.93 × 101 | 1.91 × 101 |
SOD | g CFC11 eq | 1.36 × 10−5 | 3.77 × 10−4 | 2.92 × 10−5 | 2.18 × 10−5 | 1.04 × 10−5 | 8.36 × 10−5 | 1.22 × 10−5 |
IR | kBq Co-60 eq | 2.26 × 10−4 | 4.20 × 10−3 | 5.18 × 10−4 | 1.20 × 10−4 | 4.37 × 10−4 | 4.41 × 10−4 | 2.35 × 10−4 |
OFHH | g NOx eq | 3.59 × 10−2 | 7.63 × 10−1 | 7.83 × 10−2 | 2.87 × 10−2 | 3.91 × 10−2 | 8.69 × 10−2 | 3.29 × 10−2 |
FPMP | g PM2.5 eq | 6.54 × 10−3 | 1.16 × 10−1 | 1.44 × 10−2 | 4.50 × 10−3 | 8.00 × 10−3 | 1.19 × 10−2 | 5.01 × 10−3 |
OFTE | g NOx eq | 3.62 × 10−2 | 7.68 × 10−1 | 7.90 × 10−2 | 2.90 × 10−2 | 3.98 × 10−2 | 8.84 × 10−2 | 3.32 × 10−2 |
TAP | g SO2 eq | 7.00 × 10−2 | 2.23 × 100 | 1.53 × 10−1 | 6.43 × 10−2 | 7.76 × 10−2 | 2.10 × 10−1 | 7.19 × 10−2 |
Eutrophication | ||||||||
FEP | g P eq | 1.16 × 10−3 | 5.59 × 10−2 | 2.62 × 10−3 | 1.66 × 10−3 | 2.12 × 10−3 | 3.23 × 10−3 | 1.72 × 10−3 |
MEP | g N eq | 1.63 × 10−4 | 3.88 × 10−2 | 3.56 × 10−4 | 5.24 × 10−4 | 1.56 × 10−4 | 5.34 × 10−4 | 8.85 × 10−5 |
Toxicity | ||||||||
TEC | g 1.4-DCB | 5.70 × 10−1 | 7.90 × 101 | 1.29 × 100 | 2.21 × 100 | 1.29 × 100 | 4.05 × 100 | 3.64 × 100 |
FEC | 5.27 × 10−4 | 1.42 × 10−1 | 1.16 × 10−3 | 7.67 × 10−3 | 6.32 × 10−4 | 3.28 × 10−3 | 6.65 × 10−4 | |
MEC | 6.42 × 10−4 | 5.11 × 10−2 | 1.43 × 10−3 | 1.51 × 10−3 | 1.02 × 10−3 | 2.92 × 10−3 | 2.34 × 10−3 | |
HCT | 1.98 × 10−3 | 9.33 × 10−2 | 4.23 × 10−3 | 4.80 × 10−3 | 1.26 × 10−3 | 7.11 × 10−3 | 1.63 × 10−3 | |
HNCT | 1.39 × 10−2 | 2.29 × 10 0 | 3.15 × 10−2 | 1.03 × 10−1 | 3.14 × 10−2 | 1.23 × 10−1 | 1.70 × 10−2 | |
Abiotic resources | ||||||||
LU | m2a crop eq | 1.83 × 10−3 | 7.57 × 10−2 | 4.14 × 10−3 | 1.61 × 10−3 | 3.15 × 10−3 | 4.76 × 10−3 | 1.42 × 10−3 |
MRS | g Cu eq | 4.04 × 10−2 | 1.18 × 100 | 8.71 × 10−2 | 5.58 × 10−2 | 2.75 × 10−2 | 8.08 × 10−2 | 1.64 × 10−2 |
FRS | g oil eq | 2.43 × 101 | 2.13 × 102 | 5.15 × 101 | 7.02 × 100 | 1.21 × 101 | 4.08 × 101 | 2.01 × 101 |
WC | m3 | 1.73 × 10−4 | 7.80 × 10−3 | 3.94 × 10−4 | 1.96 × 10−4 | 3.20 × 10−4 | 7.34 × 10−4 | 1.09 × 10−4 |
Feedstock | Starting Biomass (kg) | Invested Energy (MJ) | Energy Density (MJ/kg) | Yields (%) |
---|---|---|---|---|
Camelina | 1.02 | 0.21 | 0.98 | 98% |
Rapeseed | 1.05 | 0.37 | 0.95 | 95% |
WCO | 1.36 | 0.37 | 0.74 | 74% |
Palm | 1.46 | 0.02 | 0.68 | 68% |
Soybean | 2.09 | 1.36 | 0.47 | 47% |
Jatropha | 2.76 | 0.70 | 0.36 | 36% |
Tallow | 3.45 | 0.85 | 0.29 | 29% |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
D’Ascenzo, F.; Vinci, G.; Savastano, M.; Amici, A.; Ruggeri, M. Comparative Life Cycle Assessment of Sustainable Aviation Fuel Production from Different Biomasses. Sustainability 2024, 16, 6875. https://doi.org/10.3390/su16166875
D’Ascenzo F, Vinci G, Savastano M, Amici A, Ruggeri M. Comparative Life Cycle Assessment of Sustainable Aviation Fuel Production from Different Biomasses. Sustainability. 2024; 16(16):6875. https://doi.org/10.3390/su16166875
Chicago/Turabian StyleD’Ascenzo, Fabrizio, Giuliana Vinci, Marco Savastano, Aurora Amici, and Marco Ruggeri. 2024. "Comparative Life Cycle Assessment of Sustainable Aviation Fuel Production from Different Biomasses" Sustainability 16, no. 16: 6875. https://doi.org/10.3390/su16166875
APA StyleD’Ascenzo, F., Vinci, G., Savastano, M., Amici, A., & Ruggeri, M. (2024). Comparative Life Cycle Assessment of Sustainable Aviation Fuel Production from Different Biomasses. Sustainability, 16(16), 6875. https://doi.org/10.3390/su16166875
