Slope Failure Risk Assessment Considering Both the Randomness of Groundwater Level and Soil Shear Strength Parameters

1
Faculty of Civil Engineering and Mechanics, Kunming University of Science and Technology, Kunming 650500, China
2
Kunming Prospecting Design Institute, China Nonferrous Metals Industry Co., Ltd., Kunming 650051, China
3
Yunnan Key Laboratory of Geotechnical Engineering and Geohazards, Kunming 650051, China
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(9), 7464; https://doi.org/10.3390/su15097464
Submission received: 9 April 2023 / Revised: 26 April 2023 / Accepted: 28 April 2023 / Published: 1 May 2023
(This article belongs to the Special Issue Advances in Rock Mechanics and Geotechnical Engineering)

Abstract

:
Conducting research on slope failure risk assessment is beneficial for the sustainable development of slopes. There will be various failure modes considering both the randomness of the groundwater level and soil shear strength parameters. Based on the integrated failure probability (IFP), the traditional failure risk analysis needs to count all failure modes, including the failure probability (Pf) and failure risk coefficient (C), one-by-one. A new slope failure risk assessment method that uses the sum of the element failure risk to calculate the overall failure risk is proposed in this paper and considers both the randomness of the groundwater level and soil shear strength parameters. The element failure probability is determined by their location information and failure situation; the element failure risk coefficient is determined by their area. It transforms the complex overall failure risk problem into a simple element failure risk problem, which simplifies the calculation process and improves the calculation efficiency greatly. The correctness is verified with the systematic analysis of a classical case. The results show that the slope failure probability and failure risk are greatly increased from 1.40% to 3.30% and 0.829 m2 to 2.094 m2 with rising groundwater level, respectively.

1. Introduction

There are many factors that induce slope instability, among which the influences of the mechanical parameters of soil mass and groundwater are particularly important [1]. Due to long-term geological actions, such as sedimentation, post-sedimentation, chemical weathering, and physical denudation, the mechanical parameters of natural soil show certain spatial variability, which affects both the safety performance and failure mode of a slope. However, these effects are often ignored in practical engineering [2,3]. Groundwater mainly affects the safety performance from two aspects: one is making the seepage field change, affecting the stability performance; and the other is reducing shear strength parameters, affecting the safety performance [4]. Generally, the groundwater level inside the slope is not a certain value and is influenced by various uncertain factors. Therefore, it is essential to establish a failure risk analysis model of soil slopes that considers both the spatial variability and the stochasticity of the groundwater level so as to simulate the slope more in line with the real situation and achieve sustainable development of the slope.
In recent years, the slope reliability problem under consideration of spatial variability has received widespread attention by researchers. Using the limit equilibrium method (LEM), the probability density function (PDF) curve and cumulative probability density function (CDF) curve of the safety factor can be acquired directly by first assuming the sliding surface. However, the LEM only takes the one-dimensional spatial variability of the soil material into account and ignores the impact outside the sliding surface on the slope reliability. In addition, the LEM does not consider the constitutive relation of the soil, so the stress–strain relationship cannot be acquired [5,6,7,8,9,10,11]. Using the finite element method (FEM) without assuming the sliding surface, the constitutive relation and spatial variability of materials can be fully considered so as to obtain more reasonable calculation results compared with the LEM [12]. In addition, the FEM can analyze the stress–strain development and progressive slope failure process, but the calculation cost is high [12,13,14,15,16]. Using the limit analysis method (LAM), the range of true solutions and corresponding failure modes can be acquired efficiently and accurately with the upper bound method (UBM) and lower bound method (LBM) [17,18,19,20,21,22,23,24]. Chen Zhaohui et al. combined the stochastic FEM and LAM, taking the spatial variability into account for the slope reliability analysis, and gave the strict frequency distribution range of the safety factor [25]. Peng Pu et al. carried out a study on element failure probability and used affinity propagation (AP) cluster analysis to obtain the failure modes of soil slope [26]. The above research greatly promotes the application prospect of the LAM in slope reliability analysis; however, it is not always reasonable to use only the failure probability to evaluate the slope. For example, there are two failure modes of a slope, corresponding to shallow landslide (Pf1, C1) and deep landslide (Pf2, C2). Pf1 is larger than Pf2, but C1 is smaller than C2, so which failure mode has greater impact? To fully consider the impact of Pf and C, researchers proposed the concept of slope failure risk (R) [27,28]. However, whether we use the LEM or FEM to calculate the slope failure risk, the failure modes of the slope need to be identified and counted first, and there is lower computational efficiency with large sample calculations. Zhang Xiaoyan et al., using the slope safety factor and velocity field information to calculate the element failure probability (EFP), provide a new idea for the calculation of slope failure risk [29].
Currently, the groundwater level is usually defaulted at a certain value, and the limit state function does not contain the groundwater level as a stochastic variable. However, due to the stochastic distribution of soil particles and pores inside the slope, the seepage field is uncertain. In addition, because of the uncertainty of the supply by precipitation, surface runoff, underground confluence, and the discharge by evaporation and pumping, the groundwater level is uncertain. It is well known that the groundwater level is directly related to the seepage field, so the stochastic groundwater level will lead to the uncertainty of the seepage field. In recent years, the research about the seepage field mainly focused on the change in the permeability coefficient and paid less attention to the stochastic groundwater level, which leads to the change in the seepage field [30,31]. In addition, autocorrelation functions, such as exponential, Gaussian, logarithmic, and triangular, are frequently applied to characterize the spatial variability of soil mass [32]. In view of this, a slope failure risk assessment method that considers both the randomness of the groundwater level and soil shear strength parameters is proposed in this paper to achieve sustainable development.

2. Methodologies

2.1. Stable Seepage Field of Slope with Stochastic Groundwater Level

In this paper, a slope failure risk assessment that considers both the randomness of the groundwater level and soil shear strength parameters is carried out. Figure 1 shows the stochastic groundwater level model for soil slopes, which includes the velocity of the triangular element, the model of the groundwater level distribution, the shear strength parameters’ calculation, and the pore water pressure calculation. The soil mass is discretized by the triangular element, so the three nodes of the element e have horizontal velocity u i e vertical velocity v i e , cohesive force c i e , friction angle φ i e , and pore water pressure p i e , of which   i = ( 1 , 2 , 3 ) and   e = ( 1 , , N e ) . In addition, there is discontinuity between element a and element b. Nodes ① and ② belong to element a; Nodes ② and ④ belong to element b.
Similar to the literature [33], it is assumed that the stochastic groundwater level H w follows a truncated normal distribution, where H w m i n is the left-truncated tail of the stochastic groundwater level, H w m a x is the right-truncated tail of the stochastic groundwater level, and H w m e a n is the mean value of the stochastic groundwater level. In addition, this article makes the following assumptions: (1) the seepage field is a saturated and stable seepage field; (2) excess pore water pressure along with the effect on the soil shear strength parameters caused by a sudden rise or drop of groundwater level are not considered; (3) above the phreatic line, the pore water pressure is p = 0 ; and (4) below the phreatic line, the pore water pressure is p = γ h , of which γ is the volume weight of water, and h is the vertical distance from the point on the phreatic line that is on the same equipotential line as the calculation point to the calculation point. The two-dimensional stable seepage equation is used for the seepage analysis [31]. The specific equation is as follows:
k x 2 H w x 2 + k y 2 H w y 2 = 0
where k x and k y are the permeability coefficient in the x and y direction, respectively; and H w is the stochastic groundwater head function at each point within the soil.

2.2. Stochastic Field of Parameter Spatial Variability

Considering that slope reliability is sensitive to autocorrelation length and insensitive to the form of the autocorrelation function [34,35], this paper selects the exponential autocorrelation function with a simpler mathematical expression for research, which can be expressed with the following equation [35]:
ρ [ ( x a , y a ) ; ( x b , y b ) ] = exp [ 2 ( x a x b L h ) 2 ( y a y b L v ) ]
where x a , y a , x b , and y b are the coordinate components of the spatial coordinates; and L h and L v are the fluctuation range in the x and y direction, respectively.
Due to the existence of certain mutual correlations between soil parameters and certain autocorrelations of the soil parameters themselves thus involving the discrete process of the associated non-Gaussian fields, this paper adopts a method similar to that of the literature [35] using the midpoint method of Cholesky decomposition for the stochastic field generation, and for the exponential autocorrelation functions, the associated logarithmic stochastic field of the soil materials is as follows:
c i e = exp ( u ln c + σ ln c c i e D )
φ i e = exp ( u ln φ + σ ln φ φ i e D )
where c i e and φ i e are the soil cohesion and internal friction angle of nodes i upon element e in the non-Gaussian stochastic field, respectively; c i e D and φ i e D are the soil cohesion and internal friction angle of nodes i upon element e in the Gaussian stochastic field, respectively; σ ln c = ln ( 1 + ( σ c 2 / u c 2 ) ) ; σ ln φ = ln ( 1 + ( σ φ 2 / u φ 2 ) ) ; u ln c = ln u c σ ln c 2 / 2 ; u ln φ = ln u φ σ ln φ 2 / 2 ; u c and σ c are the mean and standard deviation of the log-normal distribution of c , respectively; u φ and σ φ are the mean and standard deviation of the log-normal distribution of φ , respectively; u ln c and σ ln c are the mean and standard deviation of the corresponding normal variable of ln c , respectively; and u ln φ and σ ln φ are the mean and standard deviation of the corresponding normal variable of ln φ , respectively.

2.3. Stochastic Programming Model

Sloan et al. [20] discretized the soil mass with triangular elements (as shown in Figure 1) and constructed the kinematically admissible velocity fields (KAVF). It is easy to discern from the UBM that the KAVF is one-to-one, corresponding to the external load, where the minimum is infinitely close to the limit load; therefore, the UBM can be understood for solving the minimization problem. On the basis of previous studies [20,26,29,36], the stochastic programming model that considers both the randomness of the groundwater level and soil shear strength parameters established in this paper is as follows:
{ Z = k m 1 M i n i m i z e :   k γ = W e + W d W e p W d p S u b j e c t   t o :   a e 1 u e a e 2 χ e = 0 a d 1 u d a d 2 χ d = 0 a b u b = 0 W G = 1 ; χ e 0 ; χ d 0
where Z is the limit state function; k m and k γ are the safety factor and volume weight overload factor, respectively; χ e and χ d are the plastic multiplier of finite element e and node d, respectively; a e 1 , a e 2 and a d 1 , a d 2 are the plastic flow constraint matrix of the finite element e and velocity discontinuity d, respectively; u e = [ u 1 e v 1 e u 2 e v 2 e u 3 e v 3 e ] T , of which u i e and v i e are the horizontal and vertical velocity components of nodes i upon element e, respectively; u d = [ u 1 d v 1 d u 2 d v 2 d u 3 d v 3 d u 4 d v 4 d ] T , of which u i d and v i d are the horizontal and vertical velocity components of nodes i upon velocity discontinuity d, respectively; a b = [ cos θ sin θ sin θ cos θ ] , of which θ is the rotation angle; u b = [ u 1 b v 1 b K K u j b v j b ] , of which u j b and v j b are the horizontal and vertical velocity components on the boundary, respectively; W e and W d are the internal power of finite element e and velocity discontinuity d, respectively; W e p and W d p are the external power of finite element e and velocity discontinuity d, respectively; and W G is the external power of self-weight [20].

3. Solution Strategy

The a e 2 , a d 2 , W e , W d , W e p , and W d p matrices in Equation (5) are all associated with the groundwater level as well as the shear strength parameters. Currently, there is no better method for solving this kind of problem; in view of this, on the basis of the Monte Carlo simulation, an iterative method is proposed for solving this issue. The detailed implementation process is as follows:
(1)
Assuming that the stochastic groundwater level follows a truncated normal distribution, which is generated with the Monte Carlo simulation method:
{ H w ( T w ) = R a n d o m ( N o r m a l , μ w , σ w , 1 , N w ) H w m i n H w ( T w ) H w m a x
where H w ( T w ) is the T w th groundwater level; T w = ( 1 , , N w ) , N w is the number of groundwater level; and μ w and σ w are the mean and standard deviation of the groundwater level, respectively.
(2)
Assuming that the autocorrelation functions of the soil materials are exponential type, using Equations (3) and (4), the midpoint method of Cholesky decomposition for the stochastic field generation c e ( T m ) and φ e ( T m ) , of which T m = ( 1 , , N m ) ; N m is the number of random fields for the shear strength parameters.
In this paper, the slope is allowed to reach the limit state by means of capacitive overload, and the capacitive overload factor of the slope when taking the parameters’ spatial variability into account under the effect of the stochastic groundwater level is as follows:
k γ ( T m , T w ) = γ c ( c e ( T m ) , φ e ( T m ) , H w ( T w ) ) γ a
where k γ ( T m , T w ) is the capacitive overload factor; γ c ( c e ( T m ) , φ e ( T m ) , H w ( T w ) ) is the capacity of the soil in the ultimate state, which is related to c e ( T m ) , φ e ( T m ) , and H w ( T w ) ; and γ a is the actual capacity of the soil.
The slope safety factor when taking the parameters’ spatial variability into account under the effects of the stochastic groundwater level is as follows:
k m ( T m , T w ) = c e ( T m ) c e ( T m ) = φ e ( T m ) φ e ( T m )
where k m ( T m , T w ) is the safety factor; and c e ( T m ) and φ e ( T m ) are the cohesion and internal friction angle of finite element e in the T m th non-Gaussian stochastic field after the strength reduction, respectively.
(3)
The stochastic number of T w groundwater levels generated in step (1) is substituted into the stable seepage field calculation equation to obtain the pore water pressure p 1 e ( T w ) , p 2 e ( T w ) , p 3 e ( T w ) ;   e = ( 1 , , N e ) ; T w = ( 1 , , N w ) .
(4)
From T w = 1 to T w = N w cycles, repeat p 1 e ( T w ) , p 2 e ( T w ) , p 3 e ( T w ) , all the finite element nodes’ pore water pressure values are successively replaced with the stochastic programming model for the slope reliability analysis; in each cycle from T w = 1 to T w = N w ; c e ( T m ) , φ e ( T m ) from T m = 1 to T m = N m cycles, the number of N m stochastic fields are brought into Equation (5) and use the dual simplex method to obtain N w × N m numbers of capacity overload factors [ k γ ( T m , T w ) ] while, at the same time, use the bisection method to obtain N w × N m numbers of the slope safety factor [ k m ( T m , T w ) ] . Figure 2 shows the specific numerical solution flow.
(5)
Calculation of the slope safety factor and plot the related curve.

4. Reliability Index for Slope

The traditional IFP uses the threshold value of the safety factor to determine whether the slope will fail or not and then conducts the slope reliability analysis accordingly [28]. Based on the IFP, the slope failure function is as follows:
I ( T m , T w ) = { 0 ,   if   k m ( T m , T w ) 1   1 ,   if   k m ( T m , T w ) < 1
where I ( T m , T w ) is the failure function of the slope corresponding to the T m th stochastic field under T w th groundwater level acts.
According to the Equation (8) slope failure function, the IFP under T w th groundwater level acts can be acquired as follows:
P f I F P ( T w ) = T m = 1 N m I ( T m , T w ) N m × 100 %
where P f I F P ( T w ) is the IFP of the slope under T w th groundwater level acts.
Further, the IFP of the slope is as follows:
P f I F P = T w = 1 N w P f I F P ( T w )
where P f I F P is the IFP of the slope under all potential groundwater level acts.
The integrated failure risk (IFR) of the slope under T w th groundwater level acts is as follows:
R I F P ( T w ) = P f I F P ( T w ) C
where R I F P ( T w ) is the IFR of the slope under T w th groundwater level acts, and C is the area of the slope failure mode.
Based on the IFP, the IFR of the slope is calculated as follows [27,28]:
R I F P = T w = 1 N w R I F P ( T w )
where R I F P is the IFR of the slope.
The Equation (13) default is that only one failure mode exists when conducting the slope failure risk analysis, which is contrary to the fact that slopes have multiple failure modes, considering both the randomness of the groundwater level and soil shear strength parameters. For that reason, Huang et al. [37] gave a calculation equation, which considered all failure modes of the slope simultaneously as follows:
R k I F P ( T w ) = P f k I F P ( T w ) C k
where R k I F P ( T w ) is the IFR of the kth failure mode of the slope under T w th groundwater level acts; P f k I F P ( t w ) is the IFP of the kth failure mode of the slope under T w th groundwater level acts; and C k is the area of the kth slope failure mode.
The IFR of the slope is as follows:
R I F P = T w = 1 N w k = 1 N R k I F P ( T w )
Compared with Equations (13) and (15), it can perform both single and multiple failure mode slope risk assessments; however, both the LEM and FEM require prior work on complex failure mode classification. Zhang Xiaoyan et al. [29] proposed a new concept of EFP on the basis of the UBM. They used the slope safety factor and the KVAF to judge the failure elements. The failure function, considering the stochasticity of the groundwater level and spatial variability of soil material, is as follows:
I e ( T m , T w ) = { 0   if   k m ( T m , T w ) 1   0   if   u c e ( T m , T w ) = 0   and   k m ( T m , T w ) < 1 1   if   u c e ( T m , T w )   >   0   and   k m ( T m , T w ) < 1
where I e ( T m , T w ) is the failure function of the element e corresponding to the T m th stochastic field under T w th groundwater level acts, and   u c e ( T m , T w )   is the velocity of the element e corresponding to the T m th stochastic field under T w th groundwater level acts.
u c e ( T m , T w ) = ( i = 1 3 u i e ( T m , T w ) 3 ) 2 + ( i = 1 3 v i e ( T m , T w ) 3 ) 2
where   u i e ( T m , T w )   is the horizontal velocity component of nodes i upon element e corresponding to the T m th stochastic field under T w th groundwater level acts, and v i e ( T m , T w )   is the vertical velocity component of nodes i upon element e corresponding to the T m th stochastic field under T w th groundwater level acts.
According to the slope element failure function in Equation (16), the slope element failure probability (EFP) under T w th groundwater level acts is as follows:
P f e E F P ( T w ) = T m = 1 N m I e ( T m , T w ) N m × 100 %
where P f e E F P ( T w ) is the EFP under T w th groundwater level acts.
The slope EFP under all potential groundwater level acts is as follows:
P f e E F P = T w = 1 N w T m = 1 N m I e ( T m , T w ) N w × N m × 100 %
The element failure risk (EFR) of the slope under T w th groundwater level acts is as follows:
R e E F P ( T w ) = P f e E F P ( T w ) C e
where R e E F P ( T w ) is the failure risk of element e under T w th groundwater level acts, and C e is the area of element e.
The element failure risk (EFR) of the slope under all potential groundwater level acts is as follows:
R e E F P = T w = 1 N w R e E F P ( T w )
where R e E F P is the failure risk of element e under all potential groundwater level acts.
The IFR based on the EFP of the slope under T w th groundwater level acts is calculated in the following equation [20]:
R E F P ( T w ) = e = 1 N e R e E F P ( T w )
where R E F P ( T w ) is the IFR under T w th groundwater level acts.
The IFR based on the EFP of the slope under all potential groundwater level acts is calculated in the following equation:
R E F P = T w = 1 N w R E F P ( T w )
where R E F P is the IFR under all potential groundwater level acts.
A new slope failure risk assessment under consideration of the stochastic groundwater level involves EFP and C e . The EFP can be easily obtained by solving the stochastic programming model, and C e is the area of element e, which is constant compared to C k .

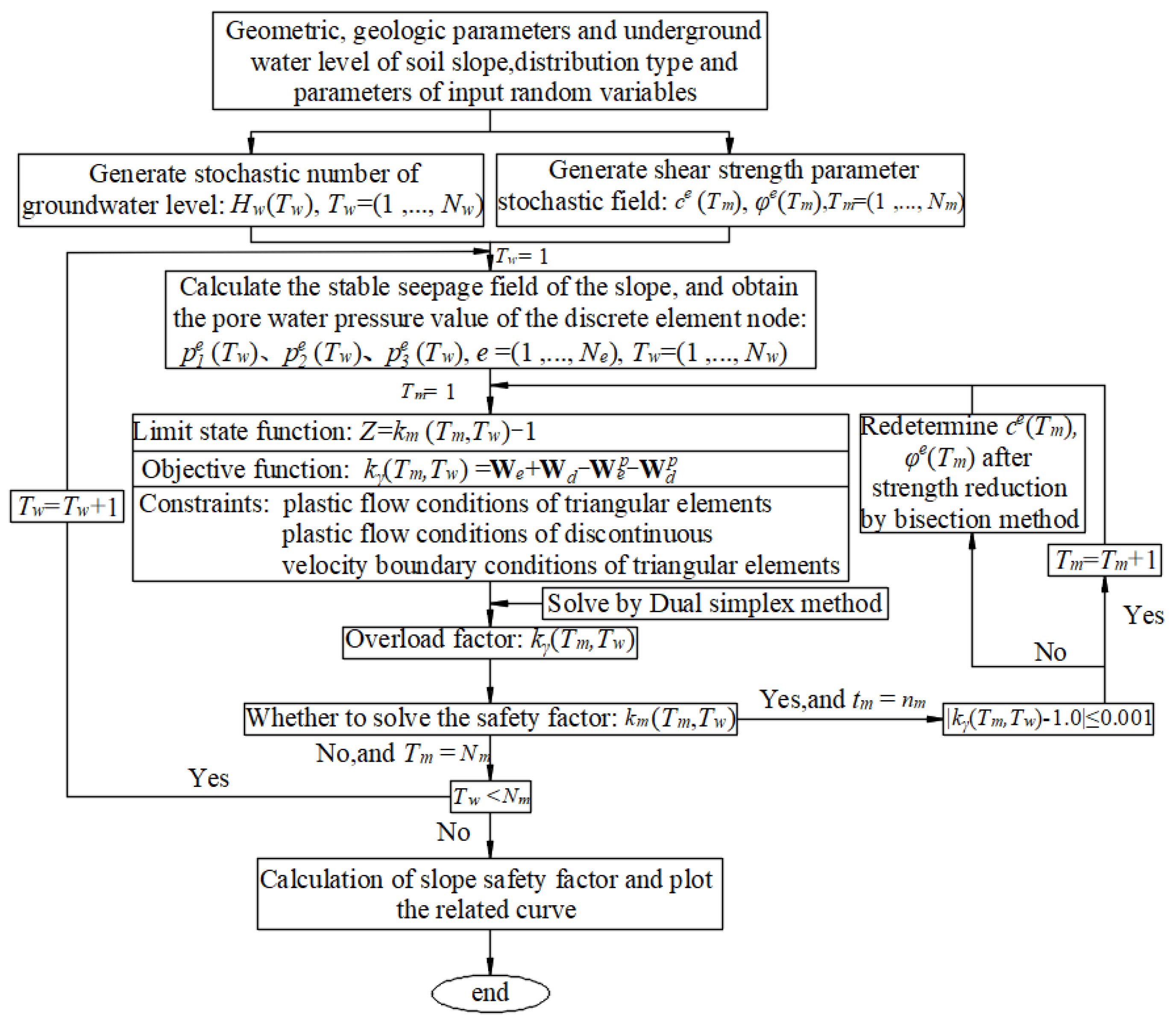

According to the solution strategy of the stochastic programming model, the N w × N m slope safety factors k m ( T m , T w ) can be easily acquired. Using statistical knowledge, the mean and standard deviation of the slope safety factor can be calculated as follows:
μ k ( T w ) = T m = 1 N m k m ( T m , T w ) N m
μ k = T w = 1 N w T m = 1 N m k m ( T m , T w ) ( N w × N m )
σ k ( T w ) = T m = 1 N m ( k m ( T m , T w ) μ k ( T w ) ) N m 1
σ k = T w = 1 N w T m = 1 N m ( k m ( T m , T w ) μ k ) N w × N m 1
where T w = ( 1 , , N w ) ; μ k ( T w ) and σ k ( T w ) are the mean and standard deviation of the slope safety factor under T w th groundwater level acts, respectively; and μ k and σ k are the mean and standard deviation of the slope safety factor under all potential groundwater level acts, respectively.

5. Calibration and Application

The UBM program is compiled, and a classic slope calculation example is calculated and analyzed. Comparing the result with the calculation result of the LEM, we verified the correctness of the calculation method.

5.1. Numerical Simulations

Figure 3 shows the homogeneous slope calculation model. The height is 5 m, the width of the top is 10 m, and the ratio is 1:2. Li Dian qing et al. have calculated the failure probability of the slope [35] but have not conducted systematic research on the slope failure risk. In view of this, on the basis of the method proposed in this paper, the slope failure risk is studied. Using the triangular element to discretize the slope, 989 finite elements, 2967 nodes, and 1536 discontinuities are acquired. In addition, there are three pore water pressure monitoring points: P1 (5,5), P2 (10,5), and P3 (15,5). The set soil volume weight γ is 20.0 kN/m3, and the permeability coefficient is K = 5 × 10 7 m / s , both of which are determined values. See Table 1 for the other calculation parameters [26].

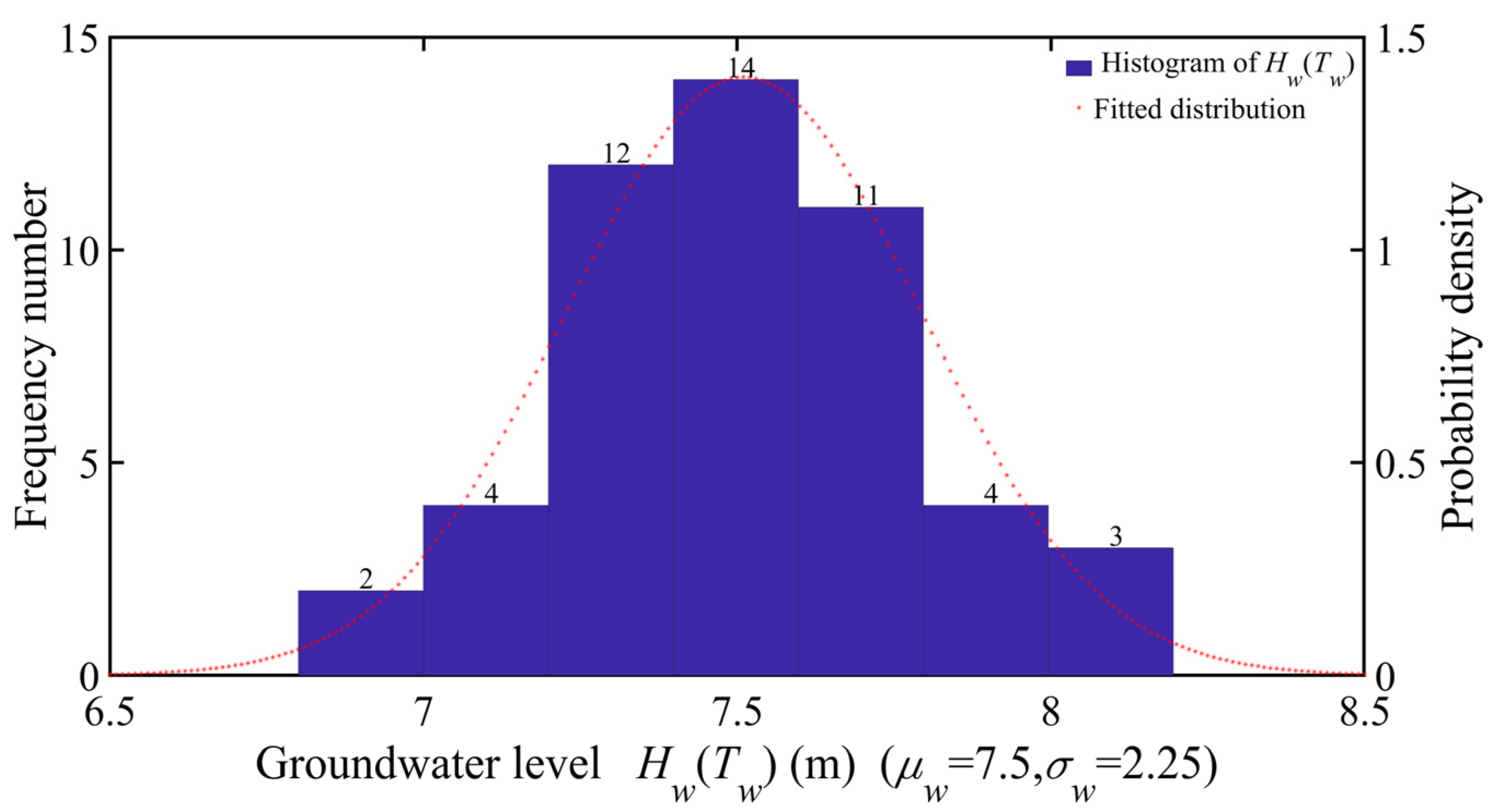

The mean and standard deviation of the stochastic groundwater level is 7.5 m and 2.25, respectively, on the basis of the measured groundwater in many projects. The upper boundary of the groundwater level is 8.5 m. The lower boundary of the groundwater level is 6.5 m. The quantity of the stochastic groundwater levels is 50. The groundwater level at the right slope toe is 5 m. According to Equation (6), 50 stochastic numbers of groundwater levels are generated, and their distribution is shown in Figure 4. The stochastic number distribution of the groundwater is relatively close to the mean value of the groundwater level, and relatively small near the relatively high and low groundwater levels.

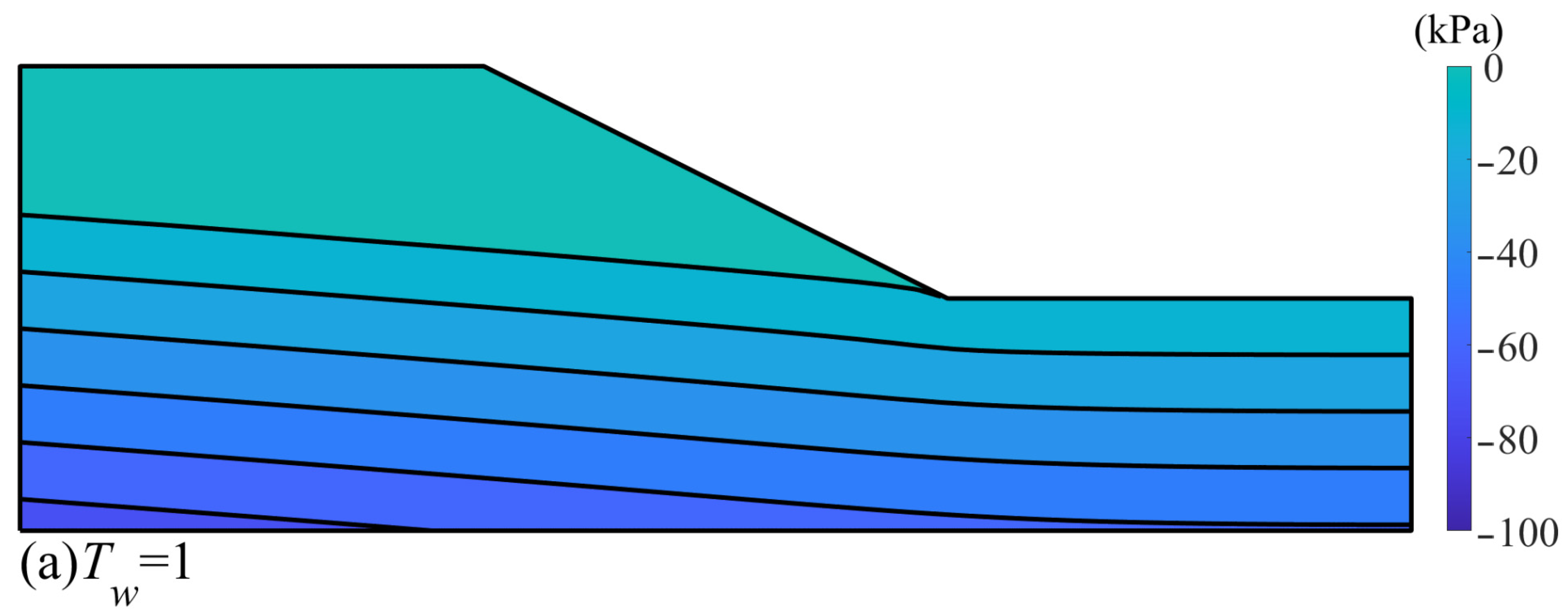

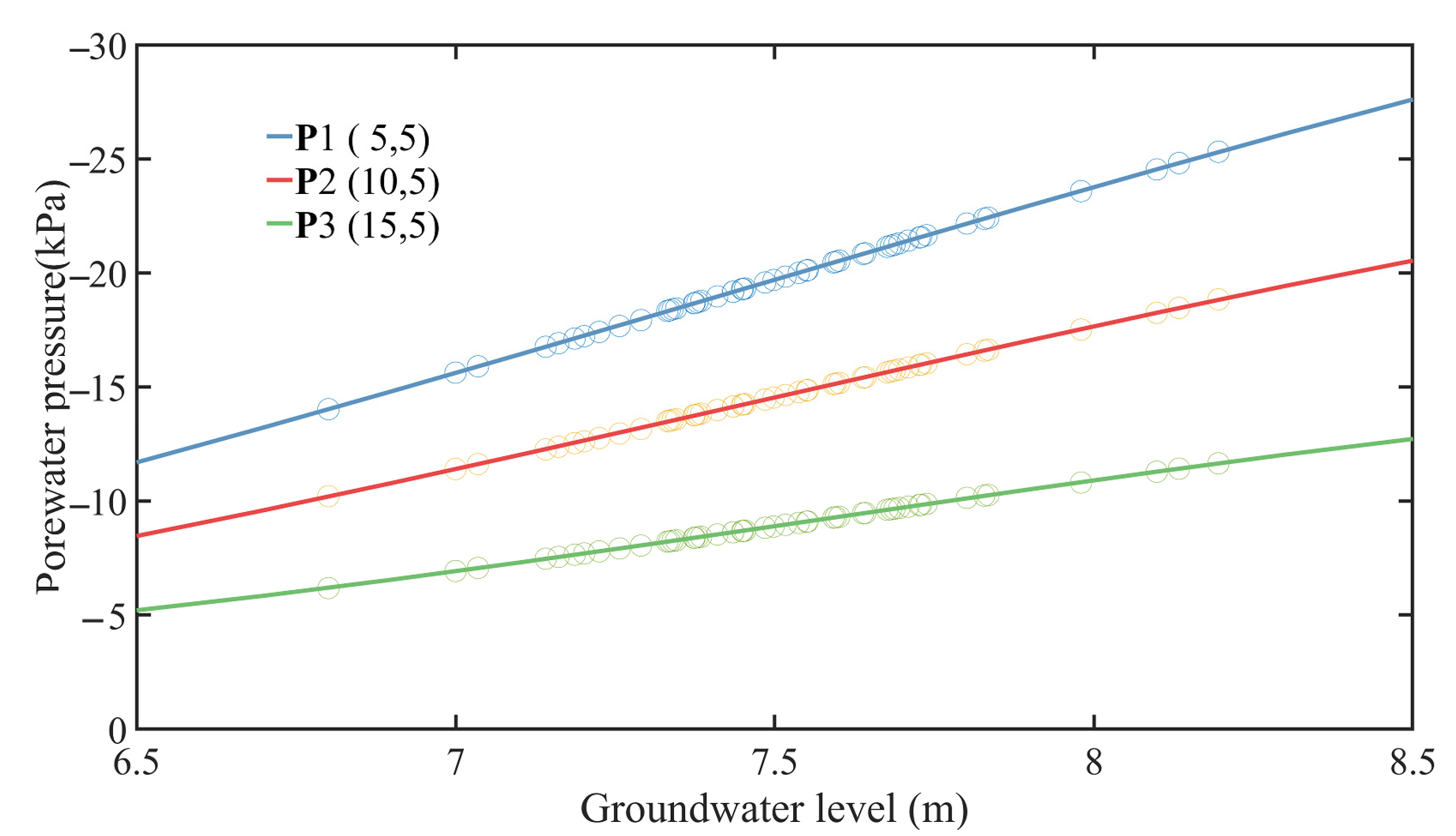

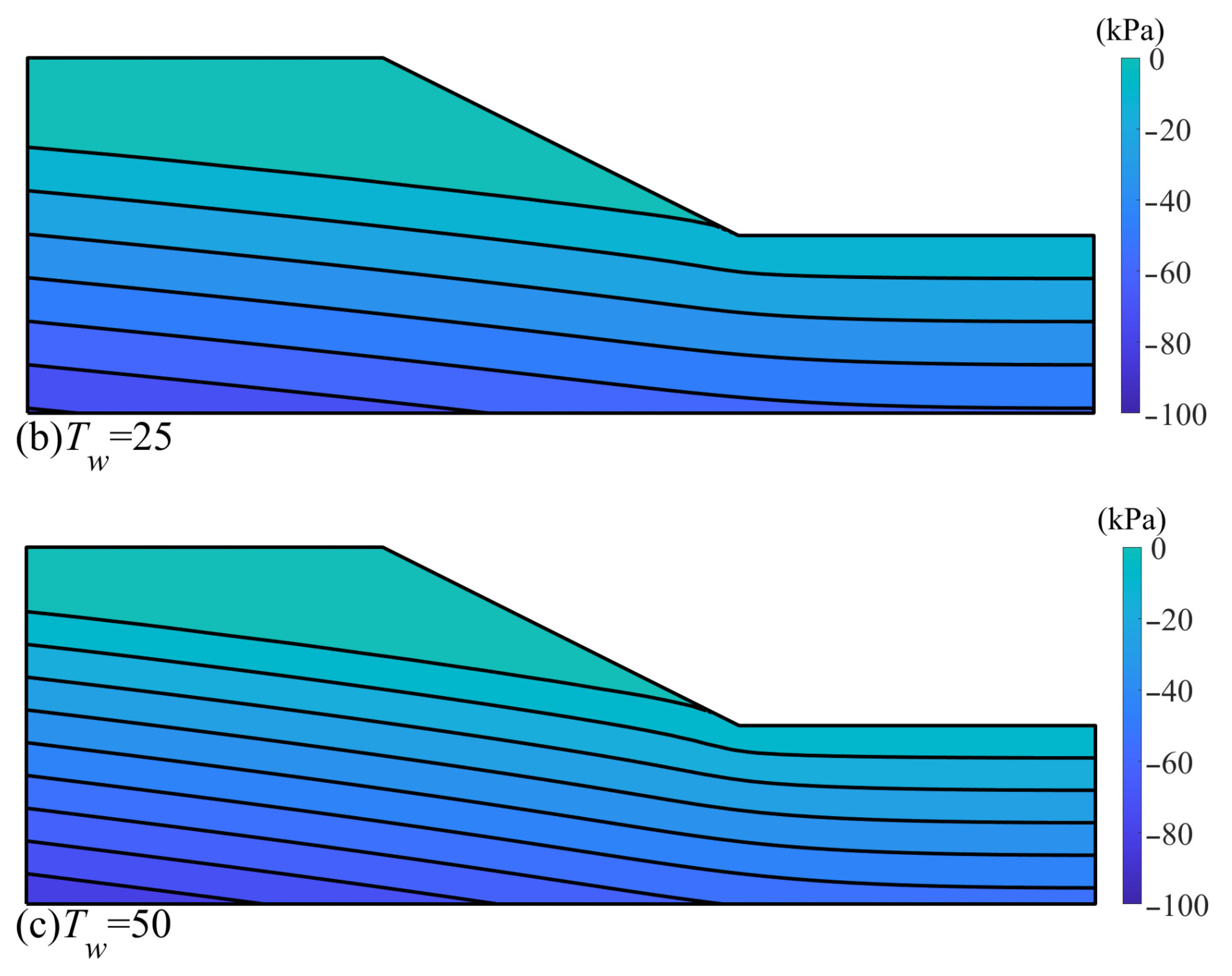

Figure 5a–c shows the slope stable seepage fields when T w = 1 (Hw = 6.8006 m), T w = 25 (Hw = 7.4848 m), and T w = 50 (Hw = 8.1951 m), respectively. It can be observed that the contours of the pore water pressure become steeper, and the saturated area inside the slope increases as the groundwater level rises. Figure 6 shows the key points pore water pressure. Under the same groundwater level act, the pore water pressure decreases gradually as the coordinates of the key points move to the right. At P1, the mean and standard deviation of the pore water pressure are −19.77 kPa and 2.31 kPa, respectively. At P2, the mean and standard deviation of the pore water pressure are −14.59 kPa and 1.78 kPa, respectively. At P3, the mean and standard deviation of the pore water pressure are −8.94 kPa and 1.13 kPa, respectively.
Assuming that the autocorrelation functions of the soil materials are exponential type, we used the midpoint method of Cholesky decomposition for the stochastic field generation. The quantity of the stochastic fields of the soil parameters is 2000; according to Equations (3) and (4), 2000 stochastic fields of the slope shear strength parameters are generated. Figure 7a,b shows the stochastic fields of c e ( 500 ) and φ e ( 500 ) , respectively. The maximum value of soil cohesion and internal friction angle are 18.9084 kPa and 23.3219°, respectively; The minimum value of soil cohesion and internal friction angle are 3.1696 kPa and 9.5851°, respectively. In addition, soil cohesion has a certain negative correlation with internal friction angle in space.

5.2. Main Results of the Research

This paper selects low, medium, and high groundwater levels ( T w = 1 , T w = 25 , and T w = 50 ) for comparative analysis to verify the effectiveness of the calculation method. Table 2 shows the calculation results of the reliability index comparison between the UBM and LEM under three groundwater level acts: T w = 1 , T w = 25 , and T w = 50 . Figure 8 shows the distribution characteristics of the slope safety factor under three groundwater level acts. Figure 9 shows the distribution histograms of the slope safety factor under three groundwater level acts.
The calculation results show the following:
(1)
When T w = 1 , T w = 25 , and T w = 50 , the mean of the slope safety factors with the UBM is larger than that of the LEM, but the error is small, which conforms to the features of the upper bound solution. In addition, the slope safety factors acquired with the UBM and LEM methods decrease as the groundwater level rises. The slope failure probability increases acquired with the UBM and LEM decrease as the groundwater level rises. On the basis of the upper bound theorem, the slope safety factor acquired with the UBM must be greater than the real solution. Therefore, the UBM will slightly underestimate the failure slope probability.
(2)

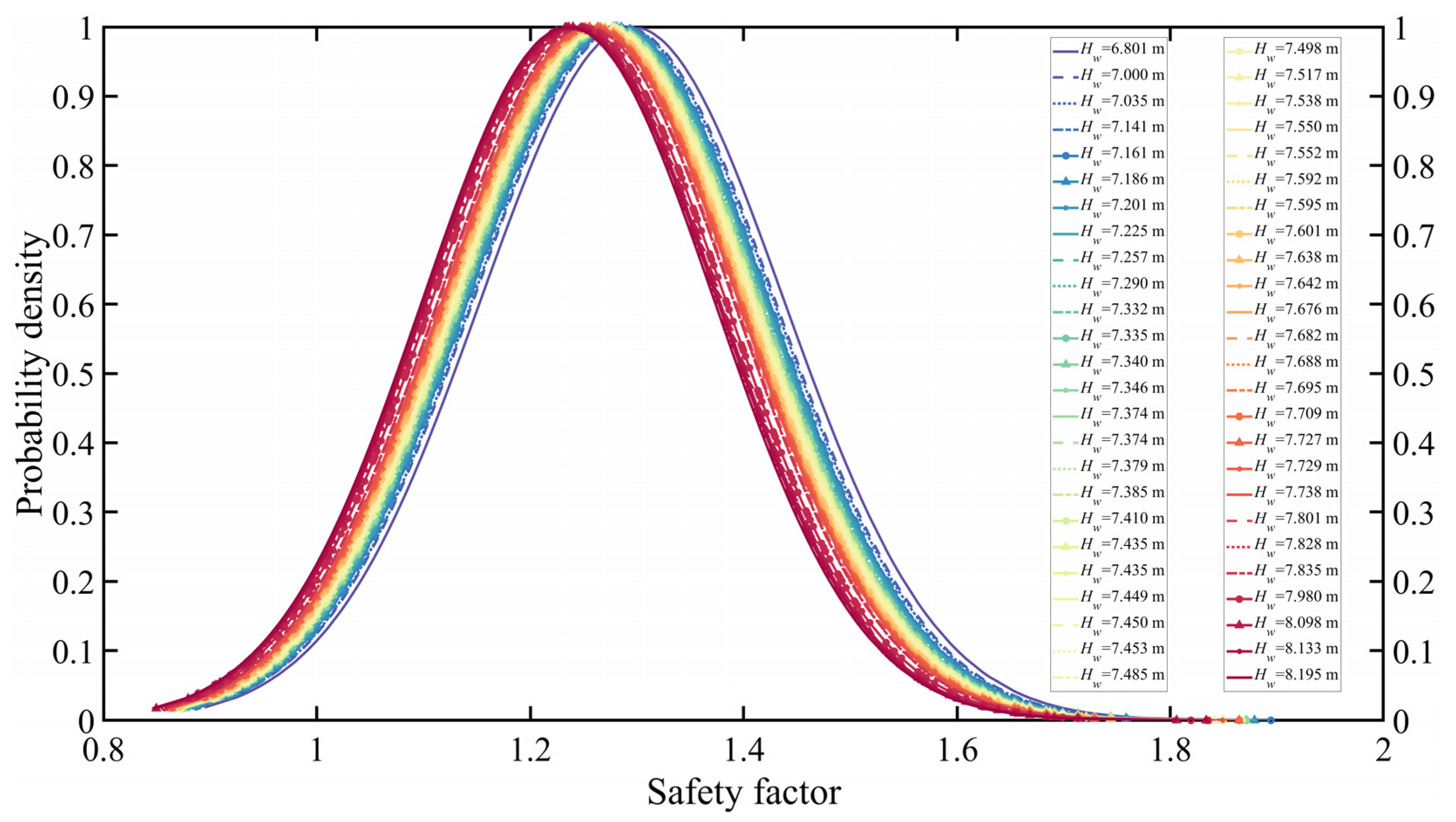

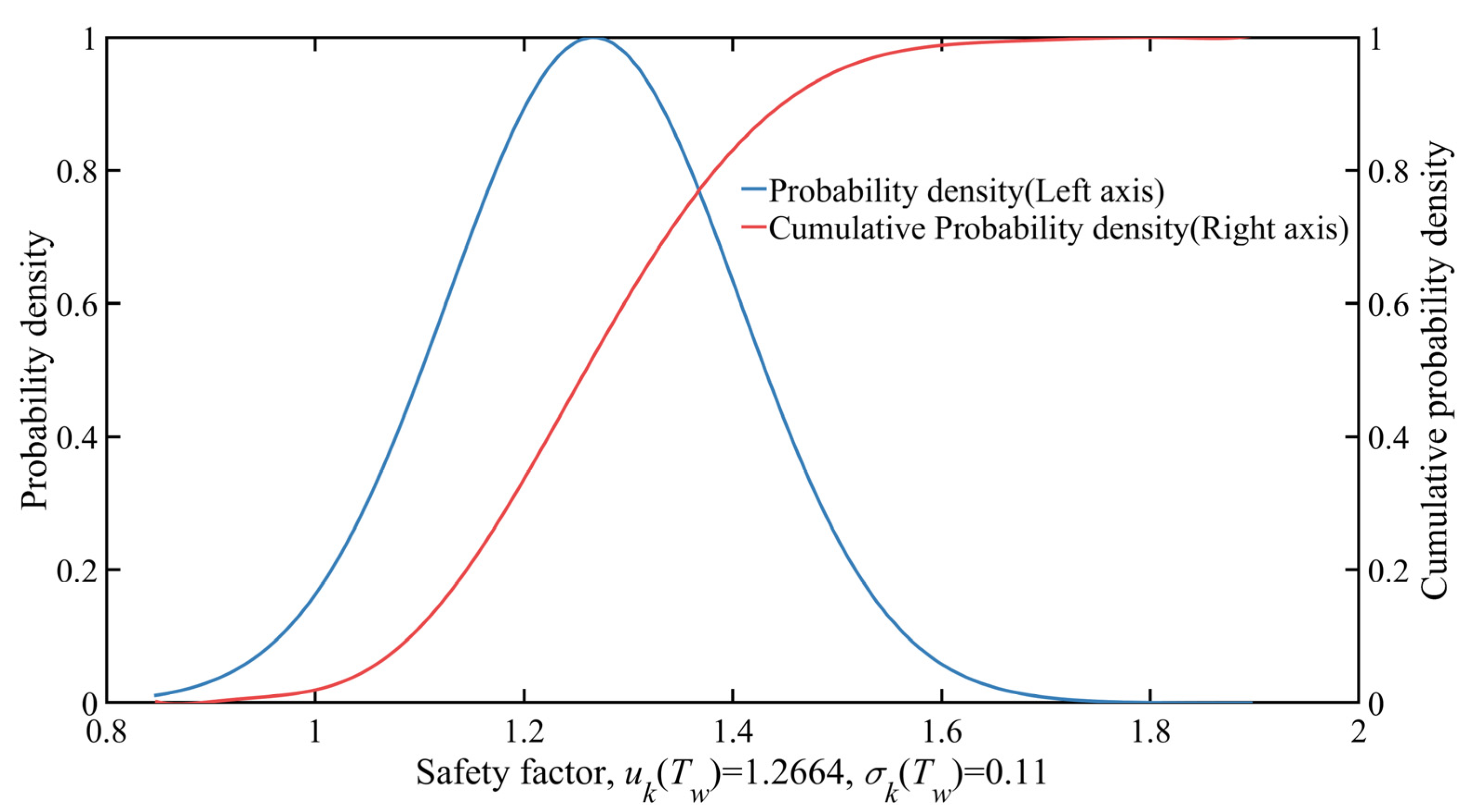

Figure 8a,b shows the PDF and CDF curves of the slope safety factors acquired with the UBM and LEM under three groundwater level acts, T w = 1 , T w = 25 , and T w = 50 , respectively. It is not difficult to see that the PDF and CDF curves of the slope safety factors acquired with the UBM and LEM are very close with small errors. In addition, the PDF and CDF curves gradually move to the left as the groundwater level rises.
(3)
Figure 9a–c are the distribution histograms of the slope safety factors acquired with the UBM under the three groundwater level acts, T w = 1 , T w = 25 , and T w = 50 , respectively. It is not difficult to see that the distribution of the slope safety factors is similar to the stochastic groundwater levels.
On the basis of the stochastic programming model and solution strategy, the quantity of 100,000 slope safety factors was acquired. Figure 10 and Figure 11 are the number of 50 PDF and CDF curves of the slope safety factors, respectively. Figure 12 reflects the mean and standard deviation of the slope safety factors versus the groundwater level. Figure 13 shows the PDF and CDF curves of the slope safety factors under all potential groundwater level acts acquired. The following rules can be acquired through analysis:
(1)
The distribution of the slope safety factors is consistent with the normal distribution. The mean of the slope safety factors tends to decrease as the groundwater level rises. The PDF and CDF curves of the slope safety factors gradually move to the left as the groundwater level rises. In addition, the standard deviation of the slope safety factor tends to decrease as the groundwater level rises. The range of the PDF curve and the trend of the CDF curve of the slope safety factors gradually narrow and steepen, respectively.
(2)
A polynomial fit is used to acquire the quantitative equation of the mean and standard deviation of the slope safety factors and groundwater level as follows:
u k ( T w ) = 0.0439 H w + 1.5963
σ k ( T w ) = 0.0039 H w + 0.1685
(3)
The quantity of 100,000 slope safety factors was acquired from 2000 stochastic fields under 50 groundwater level acts to perform the statistical analysis of all the acquired data; under 50 groundwater level acts, the mean and standard deviation of the slope safety factors are 1.2664 and 0.11, respectively.
Based on 100,000 Monte Carlo simulations of the slope, the LEM default is that only one failure mode exists (as shown in the LEM sliding surface in Figure 14). The biggest advantage of the UBM compared with the LEM in this paper is that all slope failure modes can be captured according to the failure information of the elements (as shown in the pink failure area in Figure 14) and then the reliability index for the slope can be calculated. Similar to the method in reference 37, the failure areas were used to classify the failure modes; there are six failure modes of the slope under 50 groundwater level acts (as shown in Figure 14). Table 3 lists the failure risk of the above six slope failure modes. Table 4 lists the failure risk corresponding to the failure modes when T w = 1 , T w = 25 , and T w = 50 . The results show that failure modes 1 and 2 have a small failure area that belongs to a shallow landslide, and the failure area is between 28.68 and 58.91 m2 (failure times is 997). Failure modes 5 and 6 have a large failure area that belongs to a deep landslide, and the failure area is between 89.17 and 119.38 m2 (failure times is 160). Failure modes 3 and 4 are between a shallow landslide and a deep landslide, and the failure area is between 58.91 and 89.04 m2 (failure times is 989). When the groundwater level is T w = 1 , the slope has only five failure modes; when the groundwater level is T w = 25 and T w = 50 , the fifth failure modes occur. The phreatic line moves up, correspondingly, and the saturated area inside the slope increases as the groundwater level rises, thus increasing the probability of the failure mode.

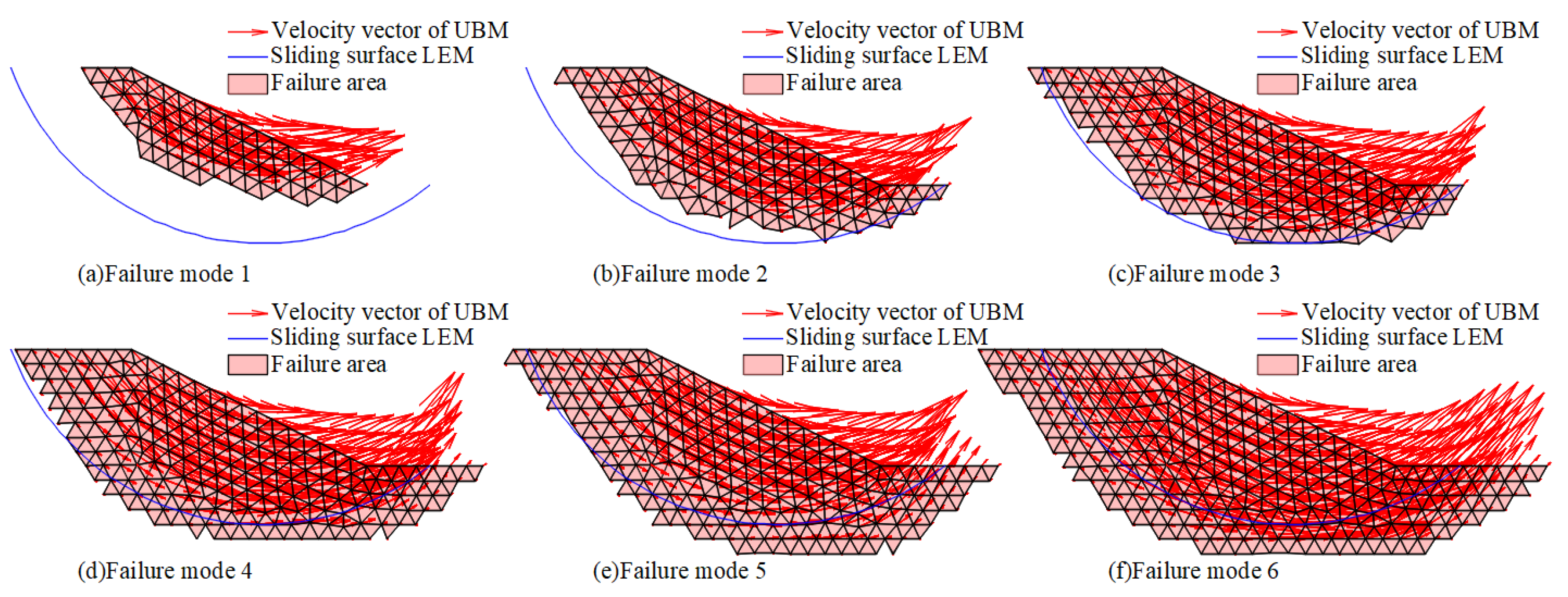

The failure mode acquired with the LEM is only consistent with failure mode 3 in this paper. The main reason is that, when the LEM is adopted to calculate the slope safety factor, the initial slip surface is assumed in advance, then a constantly repeated search based on the mean of the shear parameters to acquire the critical slip crack surface is performed, and then the slope safety factor is calculated based on the unique critical slip surface. Thus, a difference exists between the critical slip surface obtained with the LEM and the actual slip surface. The UBM constructs a stochastic programming model through finite elements, and then uses the method of stochastic mathematical programming to search the instability area of the slope, so the result is more in line with the real situation. The calculation indicates that the traditional LEM will ignore some failure modes and may miscalculate the slope failure risk, considering both the randomness of the groundwater level and soil shear strength parameters. The UBM can ignore the constitutive relation of the materials and acquire the slope safety factor and failure modes. Its applicability and calculation efficiency are both high.
Table 5 is the statistical table of the slope failure risk acquired with the three methods. The LEM default is that only one failure mode exists when T w = 1 , T w = 25 , and T w = 50 ; the slope failure risk according to the LEM with Equation (12) is 1.121 m2, 1.593 m2, and 2.325 m2, respectively. All failure modes can be acquired with the UBM. When T w = 1 , T w = 25 , and T w = 50 , the slope failure risk according to the UBM with Equation (14) and the UBM Equation (22) are 0.829 m2, 1.302 m2, and 2.094 m2, respectively. It should be noted that Equation (14) has a difference calculation principle from Equation (22). All slope failure modes are required to be counted when Equation (14) is used to calculate the slope failure risk; the EFP for all elements is easy to acquire by solving Equation (5), and the element area is fixed when using Equation (22) to calculate the slope failure risk. From the calculation principle, the proposed method will simplify the calculation process and make the calculation more efficient.
The EFP of the slope under T w th groundwater level acts when T w = 1 , T w = 25 , and T w = 50 obtained with Equation (18) is shown in Figure 15. The EFP of the slope under all potential groundwater level acts obtained with Equation (19) is shown in Figure 16. It can be observed that the groundwater level influences the EFP of the slope. The white area in the figure is the non-failure element, and the blue area is the failure element. In addition, according to the theory of EFP, the darker the color, the greater the EFP.
The EFR of the slope under T w th groundwater level acts when T w = 1 , T w = 25 , and T w = 50 obtained with Equation (20) is shown in Figure 17. The EFR of the slope under all potential groundwater level acts obtained with Equation (21) is shown in Figure 18. It can be observed that the groundwater level influences the EFR of the slope. When T w = 1 , the frequency of EFR between 0 and 0.00062 m2 is 675, the frequency of EFR between 0.00062 and 0.00124 m2 is 36, the frequency of EFR between 0.00124 and 0.00186 m2 is 58, the frequency of EFR between 0.00186 and 0.00248 m2 is 69, the frequency of EFR between 0.00248 and 0.00310 m2 is 140, the frequency of EFR between 0.00310 and 0.00372 m2 is 11, and the slope failure risk is 0.829 m2. When T w = 25 , the frequency of EFR between 0 and 0.00082 m2 is 670, the frequency of EFR between 0.00082 and 0.00164 m2 is 32, the frequency of EFR between 0.00164 and 0.00246 m2 is 54, the frequency of EFR between 0.00246 and 0.00328 m2 is 56, the frequency of EFR between 0.00328 and 0.00410 m2 is 165, the frequency of EFR between 0.00410 and 0.00492 m2 is 12, and the slope failure risk is 1.302 m2. When T w = 50 , the frequency of EFR between 0 and 0.00150 m2 is 666, the frequency of EFR between 0.00150 and 0.00300 m2 is 41, the frequency of EFR between 0.00300 and 0.00450 m2 is 48, the frequency of EFR between 0.00450 and 0.00600 m2 is 62, the frequency of EFR between 0.00600 and 0.00750 m2 is 158, and the frequency of EFR between 0.00750 and 0.00900 m2 is 14. Under all potential groundwater level acts, the frequency of EFR between 0 and 0.04820 m2 is 674, the frequency of EFR between 0.04820 and 0.09640 m2 is 30, and the frequency of EFR between 0.09640 and 0.14460 m2 is 57. The frequency of EFR between 0.014460 and 0.19280 m2 is 59, the frequency of EFR between 0.19280 and 0.24100 m2 is 157, the frequency of EFR between 0.24100 and 0.28892 m2 is 12, and the slope failure risk is 2.094 m2. The element failure risk comprehensively reflects the contribution of the EFP and the element failure risk coefficient, which can make a quantitative judgment on the slope failure risk of each part. The slope failure risk is 1.332 m2, obtained by the sum of all element failure risks. It is observed that the slope failure risk assessment method proposed in this paper can avoid the screening and statistical work of failure modes compared with the failure risk calculation results in Table 3.

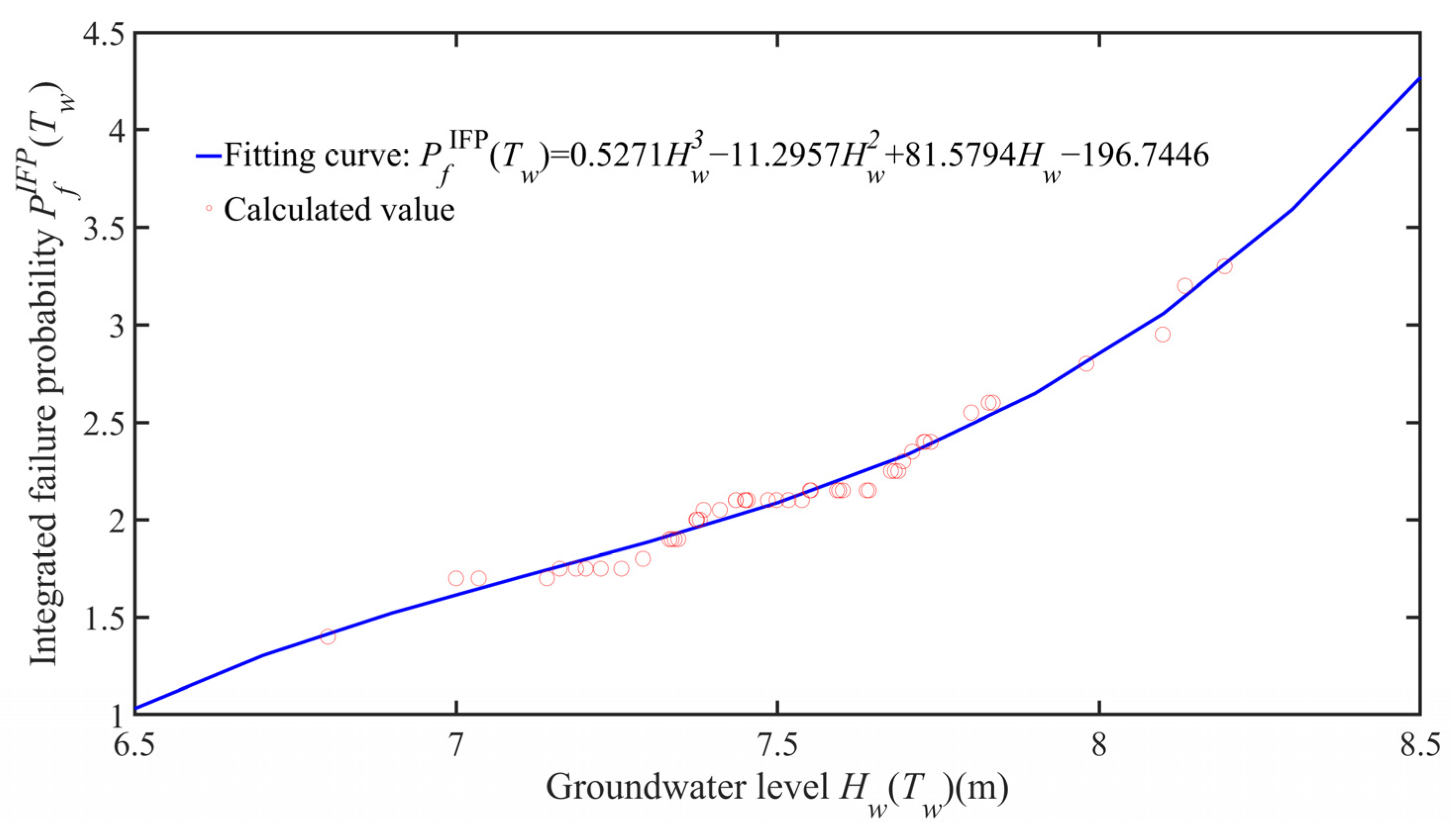

The safety performance decreases, and the IFP of the slope increases from 1.40% to 3.30% with the gradual increase in the groundwater level. Through cubic polynomial fitting, the IFP of the slope versus the groundwater level acquired (as shown in Figure 19) is as follows:
P f I F P ( T w ) = 0.5271 H w 3 11.2957 H w 2 + 81.5794 H w 196.7446

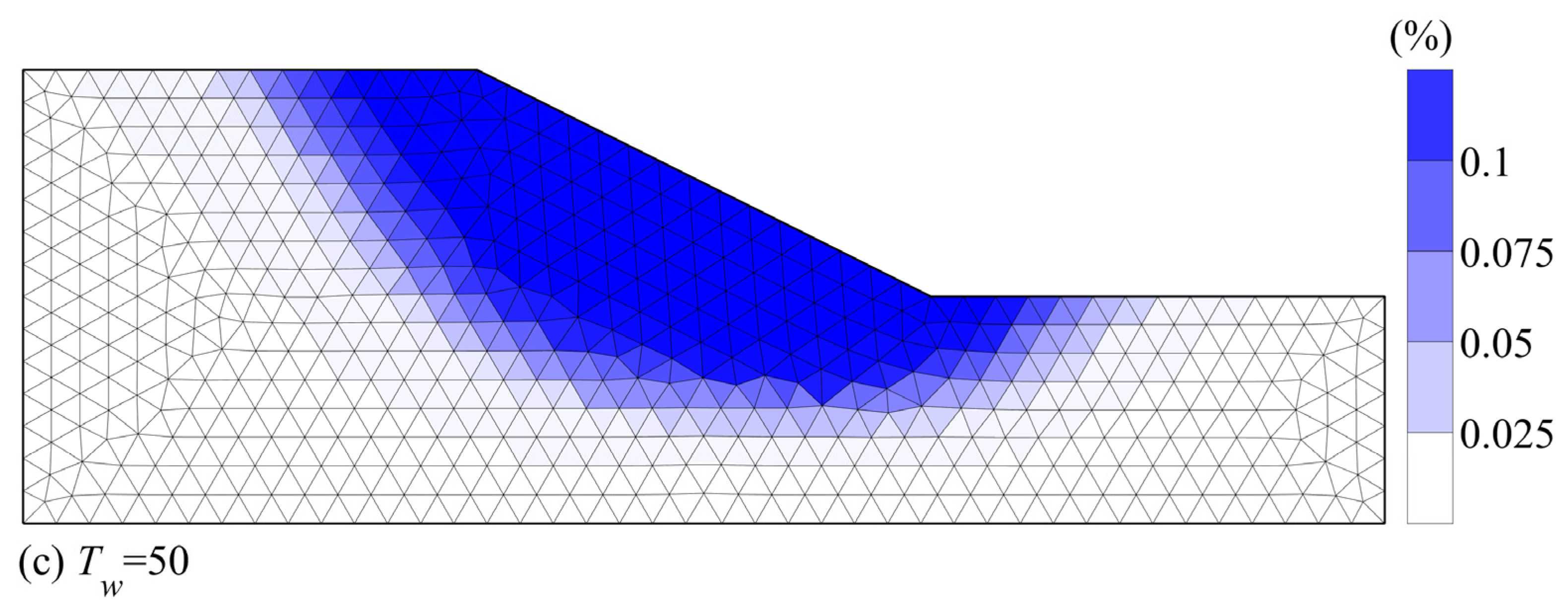

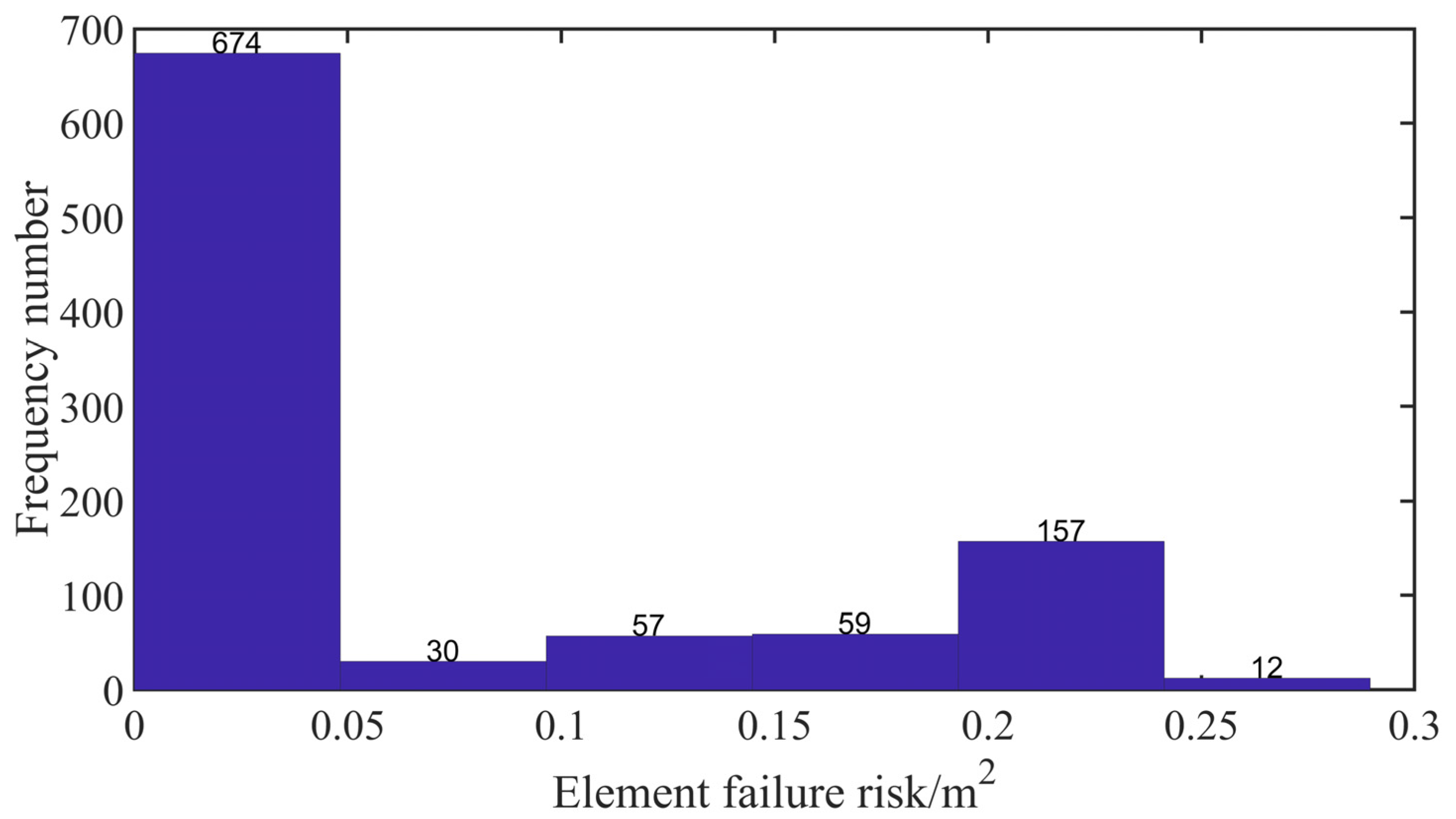

The EFR of the slope increases from 0.829 m2 to 2.094 m2 with the gradual increase in the groundwater level. Through cubic polynomial fitting, the EFR of the slope versus the groundwater level acquired (as shown in Figure 20) is as follows:
R E F P ( T w ) = 0.1251 H w 3 2.4622 H w 2 + 16.6665 H w 37.9602

6. Conclusions

A slope failure risk assessment method that considers both the randomness of the groundwater level and soil shear strength parameters is proposed in this paper. The corresponding calculation program is compiled. The major conclusions are the following:
(1)
When the randomness of the groundwater level and soil shear strength parameters are considered comprehensively, the traditional LEM will ignore multiple failure modes and may miscalculate the slope failure risk. However, all failure modes can be acquired with the UBM for seeking the minimum value of the KAVF. Thus, the result is more consistent with the real situation. In addition, the traditional LEM only judges the slope stability by the safety factor, which only reflects the degree of the IPF. The EFP is used to calculate the EFR of the slope, which cannot only reflect the degree of the IFP but, also, the slope failure risk can be accurately acquired. It should be noted that this calculation method can greatly reduce the calculation cost.
(2)
The IFP and EFR of the slope are increasing from 1.40% to 3.30% and 0.829 m2 to 2.094 m2 with the rise of the groundwater level, respectively. Based on the EFP, the proposed method can accurately obtain the EFR of the slope under each groundwater level act by using the element’s location information and failure situation. This will provide engineers with realistic reference values for the slope reinforcement design to achieve sustainable development.
(3)
Groundwater level and earthquakes are two important causes of slope instability and failure. However, this study does not consider the impact of earthquakes on slope reliability. Therefore, relevant studies on seismic slope stability will be carried out in the future. In addition, according to the upper bound theory, the upper bound solution is inevitably greater than the true solution. Therefore, the failure probability will be underestimated when using the UBM for slope reliability analysis. To solve this problem, there is a necessity to study the slope reliability calculation method on the basis of the lower bound theory in future research work. The solution of slope failure probability with the UBM and LBM can be obtained at the same time, so the interval range of the real failure probability can be accurately judged, and the reliability index of the slope can be quantified more accurately.

Author Contributions

Conceptualization, P.P., Z.L., X.Z., W.L., S.S. and H.X.; methodology, P.P.; software, Z.L.; validation, W.L.; formal analysis, Z.L.; investigation, Z.L.; resources, W.L.; data curation, W.L.; writing—original draft preparation, Z.L.; writing—review and editing, P.P.; visualization, H.X.; supervision, W.L. and Z.L.; project administration, S.S. and Z.L.; funding acquisition, X.Z. and Z.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China grant number 12162018 and 12262016; the Research Foundation of Science and technology plan project of Yunnan Provincial Department of Science and Technology grant number 202201AT070283 and 202305AD160064.

Institutional Review Board Statement

Not applicable for studies not involving humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dai, F.; Lee, C.; Ngai, Y. Landslide risk assessment and management: An overview. Eng. Geol. 2002, 64, 65–87. [Google Scholar] [CrossRef]
  2. Li, D.-Q.; Yang, Z.-Y.; Cao, Z.-J.; Zhang, L.-M. Area failure probability method for slope system failure risk assessment. Comput. Geotech. 2018, 107, 36–44. [Google Scholar] [CrossRef]
  3. Liu, X.; Li, D.-Q.; Cao, Z.-J.; Wang, Y. Adaptive Monte Carlo simulation method for system reliability analysis of slope stability based on limit equilibrium methods. Eng. Geol. 2020, 264, 105384. [Google Scholar] [CrossRef]
  4. Wang, L.; Wu, C.; Li, Y.; Liu, H.; Zhang, W.; Chen, X. Probabilistic Risk Assessment of unsaturated Slope Failure Considering Spatial Variability of Hydraulic Parameters. KSCE J. Civ. Eng. 2019, 23, 5032–5040. [Google Scholar] [CrossRef]
  5. Malkawi, A.I.H.; Hassan, W.F.; Abdulla, F.A. Uncertainty and reliability analysis applied to slope stability. Struct. Saf. 2000, 22, 161–187. [Google Scholar] [CrossRef]
  6. Zhao, H.-B. Slope reliability analysis using a support vector machine. Comput. Geotech. 2008, 35, 459–467. [Google Scholar] [CrossRef]
  7. Ching, J.; Phoon, K.-K.; Hu, Y.-G. Efficient Evaluation of Reliability for Slopes with Circular Slip Surfaces Using Importance Sampling. J. Geotech. Geoenviro. Eng. 2009, 135, 768–777. [Google Scholar] [CrossRef]
  8. Tang, X.-S.; Li, D.-Q.; Chen, Y.-F.; Zhou, C.-B.; Zhang, L.-M. Improved knowledge-based clustered partitioning approach and its application to slope reliability analysis. Comput. Geotech. 2012, 45, 34–43. [Google Scholar] [CrossRef]
  9. Cho, S.E. First-order reliability analysis of slope considering multiple failure modes. Eng. Geol. 2013, 154, 98–105. [Google Scholar] [CrossRef]
  10. Ji, J.; Zhang, W.; Zhang, F.; Gao, Y.; Lü, Q. Reliability analysis on permanent displacement of earth slopes using the simplified Bishop method. Comput. Geotech. 2020, 117, 103286. [Google Scholar] [CrossRef]
  11. Wang, W.; Li, D.-Q.; Liu, Y.; Du, W. Influence of ground motion duration on the seismic performance of earth slopes based on numerical analysis. Soil Dyn. Earthq. Eng. 2021, 143, 106595. [Google Scholar] [CrossRef]
  12. Griffiths, D.V.; Huang, J.; Fenton, G.A. Influence of Spatial Variability on Slope Reliability Using 2-D Random Fields. J. Geotech. Geoenviron. Eng. 2009, 135, 1367–1378. [Google Scholar] [CrossRef]
  13. Shen, H.; Abbas, S.M. Rock slope reliability analysis based on distinct element method and random set theory. Int. J. Rock Mech. Min. Sci. 2013, 61, 15–22. [Google Scholar] [CrossRef]
  14. Li, D.-Q.; Jiang, S.-H.; Cao, Z.-J.; Zhou, W.; Zhou, C.-B.; Zhang, L.-M. A multiple response-surface method for slope reliability analysis considering spatial variability of soil properties. Eng. Geol. 2015, 187, 60–72. [Google Scholar] [CrossRef]
  15. Wang, M.-Y.; Liu, Y.; Ding, Y.-N.; Yi, B.-L. Probabilistic stability analyses of multi-stage soil slopes by bivariate random fields and finite element methods. Comput. Geotech. 2020, 122, 103529. [Google Scholar] [CrossRef]
  16. Dyson, A.P.; Tolooiyan, A. Comparative Approaches to Probabilistic Finite Element Methods for Slope Stability Analysis. Simul. Model. Pract. Theory 2020, 100, 102061. [Google Scholar] [CrossRef]
  17. Lysmer, J. Limit Analysis of Plane Problems in Soil Mechanics. J. Soil Mech. Found. Div. 1970, 96, 1311–1334. [Google Scholar] [CrossRef]
  18. Li, Z.; Chen, Y.; Guo, Y.; Zhang, X.; Du, S. Element Failure Probability of Soil Slope under Consideration of Random Groundwater Level. Int. J. Géoméch. 2021, 21, 04021108. [Google Scholar] [CrossRef]
  19. Sloan, S.W. Lower bound limit analysis using finite elements and linear programming. Int. J. Numer. Anal. Methods Géoméch. 1988, 12, 61–77. [Google Scholar] [CrossRef]
  20. Sloan, S.; Kleeman, P. Upper bound limit analysis using discontinuous velocity fields. Comput. Methods Appl. Mech. Eng. 1995, 127, 293–314. [Google Scholar] [CrossRef]
  21. Li, Z.; Hu, Z.; Zhang, X.; Du, S.; Guo, Y.; Wang, J. Reliability analysis of a rock slope based on plastic limit analysis theory with multiple failure modes. Comput. Geotech. 2019, 110, 132–147. [Google Scholar] [CrossRef]
  22. Kim, J.; Salgado, R.; Yu, H.S. Limit Analysis of Soil Slopes Subjected to Pore-Water Pressures. J. Geotech. Geoenviron. Eng. 1999, 125, 49–58. [Google Scholar] [CrossRef]
  23. Li, Z.; Zhou, Y.; Guo, Y. Upper-Bound Analysis for Stone Retaining Wall Slope Based on Mixed Numerical Discretization. Int. J. Géoméch. 2018, 18, 04018122. [Google Scholar] [CrossRef]
  24. Liu, W.; Xu, H.; Sui, S.; Li, Z.; Zhang, X.; Peng, P. Lower Bound Limit Analysis of Non-Persistent Jointed Rock Masses Using Mixed Numerical Discretization. Appl. Sci. 2022, 12, 12945. [Google Scholar] [CrossRef]
  25. Chen, Z.H.; Lei, J.; Huang, J.H.; Cheng, X.H.; Zhang, Z.C. Finite element limit analysis of slope stability considering spatial variability of soil strengths. Chin. J. Geotech. Eng. 2018, 40, 985–993. [Google Scholar] [CrossRef]
  26. Peng, P.; Li, Z.; Zhang, X.Y.; Shen, L.F.; Xu, Y. Research on element failure probability and failure mode of soil slope. Eng. Mech. 2022, 39, 1–15. [Google Scholar] [CrossRef]
  27. Silva, F.; Lambe, T.W.; Marr, W.A. Probability and Risk of Slope Failure. J. Geotech. Geoenviron. Eng. 2008, 134, 1691–1699. [Google Scholar] [CrossRef]
  28. Cassidy, M.J.; Uzielli, M.; Lacasse, S. Probability risk assessment of landslides: A case study at Finneidfjord. Can. Geotech. J. 2008, 45, 1250–1267. [Google Scholar] [CrossRef]
  29. Zhang, X.Y.; Zhang, L.X.; Li, Z. Reliability analysis of soil slope based on upper bound method of limit analysis. Rock Soil Mech. 2018, 39, 1840–1850. [Google Scholar] [CrossRef]
  30. Zuo, Z.; Zhang, L.; Cheng, Y.; Wang, J.; He, Y. Probabilistic back analysis of unsaturated soil seepage parameters based on Markov chain Monte Carlo method. Rock Soil Mech. 2013, 34, 2393–2400. [Google Scholar]
  31. Wang, X.; Xia, X.; Zhang, X.; Gu, X.; Zhang, Q. Probabilistic Risk Assessment of Soil Slope Stability Subjected to Water Drawdown by Finite Element Limit Analysis. Appl. Sci. 2022, 12, 10282. [Google Scholar] [CrossRef]
  32. Cho, S.E.; Park, H.C. Effect of spatial variability of cross-correlated soil properties on bearing capacity of strip footing. Int. J. Numer. Anal. Methods Géoméch. 2010, 34, 1–26. [Google Scholar] [CrossRef]
  33. Shadabfar, M.; Huang, H.; Kordestani, H.; Muho, E.V. Reliability Analysis of Slope Stability Considering Uncertainty in Water Table Level. ASCE-ASME J. Risk Uncertain. Eng. Syst. Part A Civ. Eng. 2020, 6, 04020025. [Google Scholar] [CrossRef]
  34. Li, K.S.; Lumb, P. Probabilistic design of slopes. Can. Geotech. J. 1987, 24, 520–535. [Google Scholar] [CrossRef]
  35. Li, D.Q.; Jiang, S.H.; Zhou, C.B.; Phoon, K.K. Reliability analysis of slopes considering spatial variability of soil parameters using non-intrusive stochastic finite element method. Chin. J. Geotech. Eng. 2013, 35, 1413–1421. [Google Scholar]
  36. Zhou, J.; Qin, C. Stability analysis of unsaturated soil slopes under reservoir drawdown and rainfall conditions: Steady and transient state analysis. Comput. Geotech. 2022, 142, 104541. [Google Scholar] [CrossRef]
  37. Huang, J.; Lyamin, A.; Griffiths, D.V.; Krabbenhoft, K.; Sloan, S. Quantitative risk assessment of landslide by limit analysis and random fields. Comput. Geotech. 2013, 53, 60–67. [Google Scholar] [CrossRef]
Figure 1. Stochastic groundwater level model for soil slope.
Figure 1. Stochastic groundwater level model for soil slope.
Sustainability 15 07464 g001
Figure 2. Specific numerical solution flow for slope.
Figure 2. Specific numerical solution flow for slope.
Sustainability 15 07464 g002
Figure 3. Homogeneous slope calculation model.
Figure 3. Homogeneous slope calculation model.
Sustainability 15 07464 g003
Figure 4. Stochastic groundwater levels distribution histogram.
Figure 4. Stochastic groundwater levels distribution histogram.
Sustainability 15 07464 g004
Figure 5. Steady seepage fields of slope: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Figure 5. Steady seepage fields of slope: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Sustainability 15 07464 g005aSustainability 15 07464 g005b
Figure 6. The key points pore water pressure.
Figure 6. The key points pore water pressure.
Sustainability 15 07464 g006
Figure 7. Stochastic fields of the slope shear strength parameters: (a) cr (500); (b) φr (500).
Figure 7. Stochastic fields of the slope shear strength parameters: (a) cr (500); (b) φr (500).
Sustainability 15 07464 g007
Figure 8. Distribution characteristics of the slope safety factors: (a) PDF curve of the safety factor; (b) CDF curve of the safety factor.
Figure 8. Distribution characteristics of the slope safety factors: (a) PDF curve of the safety factor; (b) CDF curve of the safety factor.
Sustainability 15 07464 g008
Figure 9. Distribution histograms of the slope safety factors: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Figure 9. Distribution histograms of the slope safety factors: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Sustainability 15 07464 g009
Figure 10. PDF curve of the slope safety factors.
Figure 10. PDF curve of the slope safety factors.
Sustainability 15 07464 g010
Figure 11. CDF curve of the slope safety factors.
Figure 11. CDF curve of the slope safety factors.
Sustainability 15 07464 g011
Figure 12. Slope safety factors versus groundwater level: (a) uk (Tw); (b) σk (Tw).
Figure 12. Slope safety factors versus groundwater level: (a) uk (Tw); (b) σk (Tw).
Sustainability 15 07464 g012
Figure 13. PDF and CDF curves of the slope safety factors under all potential groundwater level acts.
Figure 13. PDF and CDF curves of the slope safety factors under all potential groundwater level acts.
Sustainability 15 07464 g013
Figure 14. Schematic diagram results of the slope failure modes: (a) Failure mode 1; (b) Failure mode 2; (c) Failure mode 3; (d) Failure mode 4; (e) Failure mode 5; (f) Failure mode 6.
Figure 14. Schematic diagram results of the slope failure modes: (a) Failure mode 1; (b) Failure mode 2; (c) Failure mode 3; (d) Failure mode 4; (e) Failure mode 5; (f) Failure mode 6.
Sustainability 15 07464 g014
Figure 15. EFP of the slope under Twth groundwater level acts: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Figure 15. EFP of the slope under Twth groundwater level acts: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Sustainability 15 07464 g015aSustainability 15 07464 g015b

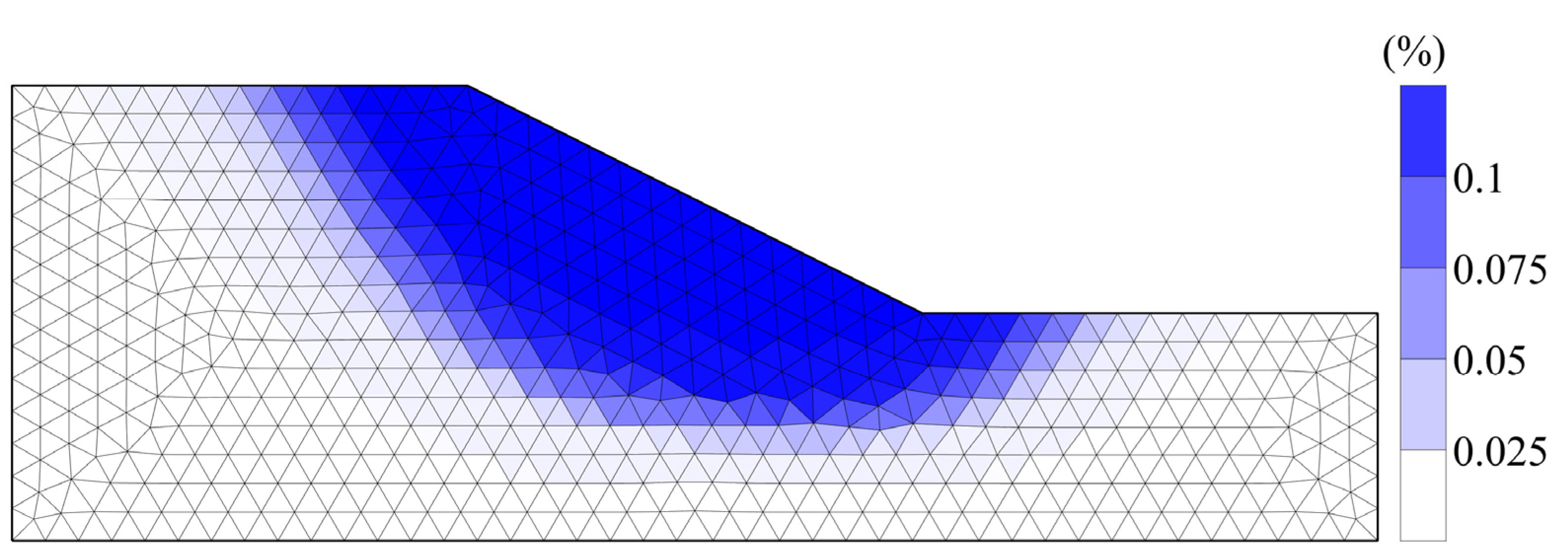

Figure 16. EFP of the slope under all potential groundwater level acts.
Figure 16. EFP of the slope under all potential groundwater level acts.
Sustainability 15 07464 g016
Figure 17. EFR of the slope under Twth groundwater level acts: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Figure 17. EFR of the slope under Twth groundwater level acts: (a) Tw = 1; (b) Tw = 25; (c) Tw = 50.
Sustainability 15 07464 g017
Figure 18. EFR of the slope under all potential groundwater level acts.
Figure 18. EFR of the slope under all potential groundwater level acts.
Sustainability 15 07464 g018
Figure 19. IFP of the slope versus the groundwater level (Unit: %).
Figure 19. IFP of the slope versus the groundwater level (Unit: %).
Sustainability 15 07464 g019
Figure 20. EFR of the slope versus the groundwater level (Unit: m2).
Figure 20. EFR of the slope versus the groundwater level (Unit: m2).
Sustainability 15 07464 g020
Table 1. Statistics of the soil parameters.
Table 1. Statistics of the soil parameters.
Shear ParameterMeanCorrelation of VariationDistribution TypeFluctuation RangeCorrelation Coefficient
c(kPa)100.3LognormalLh = 40 m
Lv = 4 m
ρc,φ = −0.5
φ(°)300.2Lognormal
Table 2. Calculation results of the reliability index.
Table 2. Calculation results of the reliability index.
Groundwater LevelMethodMeanStandard DeviationFailure Probability (%)
Tw = 1UBM1.29560.14201.40
LEM1.29230.14881.90
Tw = 25UBM1.26780.13942.10
LEM1.26220.14612.70
Tw = 50UBM1.23570.13653.30
LEM1.23100.14324.65
Table 3. Failure risk of the slope.
Table 3. Failure risk of the slope.
Failure ModeFailure Area (m2)Failure TimesFailure Probability (%)Failure Risk (m2)
Mode 128.68–43.702460.2460.097
Mode 243.81–58.917510.7510.384
Mode 358.91–73.967680.7680.508
Mode 474.21–89.042210.2210.180
Mode 589.17–103.70880.0880.081
Mode 6106.71–119.38720.0720.081
Sum/21462.1461.332
Table 4. Failure risk of the slope when T w = 1 , T w = 25 , and T w = 50 .
Table 4. Failure risk of the slope when T w = 1 , T w = 25 , and T w = 50 .
Groundwater LevelFailure ModeFailure TimesFailure Probability (%)Failure Risk (m2)
Tw = 1Mode 130.150.057
Mode 2130.650.334
Mode 3100.500.342
Mode 410.050.038
Mode 610.050.057
Tw = 25Mode 150.250.096
Mode 2140.700.366
Mode 3160.800.528
Mode 450.250.210
Mode 510.050.045
Mode 610.050.056
Tw = 50Mode 180.400.160
Mode 2190.950.490
Mode 3241.200.793
Mode 4110.550.445
Mode 520.100.091
Mode 620.100.115
Table 5. Failure risk statistical table of the slope (Unit: m2).
Table 5. Failure risk statistical table of the slope (Unit: m2).
MethodLEM with Equation (12)UBM with Equation (14)UBM with Equation (22)
Groundwater
Tw = 11.121 0.829 0.829
Tw = 251.593 1.302 1.302
Tw = 502.325 2.094 2.094
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Peng, P.; Li, Z.; Zhang, X.; Liu, W.; Sui, S.; Xu, H. Slope Failure Risk Assessment Considering Both the Randomness of Groundwater Level and Soil Shear Strength Parameters. Sustainability 2023, 15, 7464. https://doi.org/10.3390/su15097464

AMA Style

Peng P, Li Z, Zhang X, Liu W, Sui S, Xu H. Slope Failure Risk Assessment Considering Both the Randomness of Groundwater Level and Soil Shear Strength Parameters. Sustainability. 2023; 15(9):7464. https://doi.org/10.3390/su15097464

Chicago/Turabian Style

Peng, Pu, Ze Li, Xiaoyan Zhang, Wenlian Liu, Sugang Sui, and Hanhua Xu. 2023. "Slope Failure Risk Assessment Considering Both the Randomness of Groundwater Level and Soil Shear Strength Parameters" Sustainability 15, no. 9: 7464. https://doi.org/10.3390/su15097464

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
