Review

A Review of the Combined Effect of Fibers and Nano Materials on the Technical Performance of Mortar and Concrete

1
Department of Civil Engnieering, College of Engineering, Tishk International University, Erbil 44001, Iraq
2
Department of Civil Engineering, Cyprus International University (CIU), Nicosia 99258, Cyprus
3
Department of Highway and Bridge Engineering, Technical Engineering College, Erbil Polytechnic University, Erbil 44001, Iraq
4
Department of Civil Engineering, College of Engineering, Nawroz University, Duhok 42001, Iraq
5
CERIS, Instituto Superior Técnico, Universidade de Lisboa, Av. Rovisco Pais, 1049-001 Lisbon, Portugal
6
Department of Civil Engineering, College of Engineering, Prince Sattam Bin Abdulaziz University, Alkharj 16273, Saudi Arabia
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(6), 3464; https://doi.org/10.3390/su14063464
Submission received: 29 December 2021 / Revised: 1 March 2022 / Accepted: 3 March 2022 / Published: 16 March 2022
(This article belongs to the Special Issue Towards Advanced Sustainable Recycled Materials and Technology)

Abstract

:
Nowadays, both nanomaterials and fibers have tremendous application in various industries, and they are a significant research area in the construction industry particularly. Thus, it is critical to have a comprehensive review to show the simultaneous impact of fibers and nanomaterials on the technical performance of different types of main construction materials such as mortar and concrete. The current work accomplishes this by providing a comprehensive review of the relevant literature on various nanomaterials and fibers through using a literate experimental database of conducted studies that have at least a type of fiber with one nanomaterial in the same mix. Accordingly, the collected data were analyzed, and they were compared to their control mixes in which no fiber and nanomaterials were used. The study majorly focuses on the effects of fibers and nanomaterials on fresh and hardened properties of produced mixes in terms of density, workability, mechanical and durability performance with consideration of microstructure and electrical resistivity as well. The study outcome provides a systematic knowledge and thorough guide to selecting and combining different fibers with nanoparticles to improve concrete/mortar performance effectively, in which not only the optimum percentage for the use of both fiber and nanomaterials are identified, but also is helpful to promote further research.

1. Introduction

In the construction industry, using resources economically and efficiently has become the goal of all in the present era. On the other hand, high emissions of carbon dioxide and the increasing complexity of the physical environment in the construction industry have been the major driving forces behind the production of innovative construction materials. As a result, significant advancements in the physical, mechanical and durability of the materials used in this area are on the horizon.
One of the directions that is being considered is using different types of fibers in construction materials, namely concrete and mortar. The resulting composite material is called a fiber-reinforced cementitious composite [1] and is used in the production of high-end hybrid composite materials for infrastructural and civil applications [2].
The majority of fibers used in the engineering industry fall into four categories: natural, glass, metallic and polymers. Fibers have shown positive effect on cost reduction (e.g., Poly-propylene fibers (PPF) [3]), environmental impact (e.g., natural fibers [4]), mechanical properties (e.g., polyvinyl alcohol (PVA) [5,6,7], steel fiber (SF) [8], carbon fiber (CF) [9] and basalt fiber (BF) [10]), high strength-to-weight ratio (e.g., steel and carbon fiber). Aside from that, all conducted studies agree that fibers have a negative impact on workability.
Concerning the use of nanomaterials, the ancient method of property modification of cementitious mixes evolved into methods that involve using nanoparticles throughout the matrix of the cementitious composites. Nanotechnology is the study, manipulation and reorganization of matter on the nanoscale scale, or fewer than 100 nanometers [11,12,13]. Nano concrete, on the other hand, is concrete made with nanomaterials or containing nanomaterials with a particle size of fewer than 500 nanometers [14,15,16]. In general, using nanoparticles (most of them) in cementitious mixes improves the fresh [17,18] and mechanical properties [16,19,20,21,22,23,24] due to densifying the mix, durability [11,20,25,26,27] by a significantly increase in the hydration rate [17] and electrical resistivity [28].
As a result, it can be confirmed that, in the production of a high-performance and durable construction material, each of the different types of fibers and nanomaterials play an important role. Accordingly, there are many studies on the use of nanomaterials and fibers individually. In addition, there are also a few studies on the effect of simultaneous usage of both fiber and nanomaterials in the cementitious composite mixes. As shown in the literature, although there are not many studies on the synergic effects of the two materials, there is not a comprehensive literature review study on this path to show their performance when they are used together as well as also their limitation. Thus, in this pioneer review, the influence of different types and contents of fibers and nanomaterials on the fresh, hardened (durability and mechanical) properties of cementitious composites were explored in detail. Only the experimental studies concerning simultaneous usage of nanomaterials and fibers were considered. Apart from addressing the simultaneous impact of using nanomaterials and fibers, this study shows the limitations and future research needs as a baseline and framework for ongoing studies.

2. Materials and Methods

As mentioned above, the major aim of the conducted study is to evaluate the combined effect of fibers and nanomaterials on the technical performance of different types of main construction materials such as paste, mortar and concrete. Owing to it, a systematic database that tends to identify and evaluate the literature regarding the use of fibers and nanomaterials used in the same mix was used. The credibility of the relevant articles was assessed by looking at their titles, abstracts, materials and methodology. The non-relevant studies were then eliminated, especially those that did not use fibers and nanomaterials simultaneously. Accordingly, data of 55 studies were collected, analyzed and compared to their control mixes in which no fiber and nanomaterials were used. The content of the used fibers for all the mixes is in volume percentage in a volume of 1 m3, while the content percentage of the nanomaterials for weight of the binder was considered. As shown in Table 1, 13 different types of fiber with 10 types of nanomaterials were covered by the conducted research of this review. Based on the data collected from the studies, nano-silica has a lion share (36 studies) of use with different types of fibers due to its remarkable effect on the strength development of cement-based materials. Moreover, studies on using SF and polypropylene fibers were performed mostly by the conducted research of this review. In other words, most of the studies focused on either NS and different types of fiber or SF with different types of nanomaterials. In order to compare the results reliably, for each studied parameter, only the studies that have the same methodology were considered. Additionally, most of the selected studies considered the mass ratio for the mix compositions, namely fibers and nanomaterials.
As mentioned above, different types of fibers and nanomaterials were used. Their physical and mechanical properties are different as well, which may affect the scored results. To identify the mentioned matter, the properties and content of used fibers are summarized in Table 2. Moreover, there is the same considerations regarding the type, content, particle size and specific surface area of the used nanomaterials. Thus, the mentioned parameters are summarized in Table 3. Some materials shown in Table 1 were not considered in Table 2 and Table 3 due to the fact that there was not much reliable information regarding the properties of these materials.
The fresh property of the mixes such as slump, L box, V funnel, air content and fresh density was considered for all the different types of composites. About 40% of the conducted studies [29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45] considered slump, and three studies [31,43,46,47,48,49] conducted followability and L box. In addition, each of the V funnel methods by two studies [31,47] and air content were studied by one study [50]. Regarding fresh density, there was not any detailed study in the reviewed literature. In order to figure out the combined effects of nanomaterials and fibers on the hardened property of cementitious composites, mechanical property durability and microstructure were considered. Additionally, most of the studies are focused on mechanical and fresh properties. Attempts to show the combined effect of fiber and nanomaterials on the durability of the construction materials are very scarce. Based on the collected data shown in Table 1, it can be concluded that Nano silica has been used in a wide range compared to other nanomaterials. The structure of the review is divided into six major sections. For each specific section, a type of fiber was considered such as BF, SF, PPF, PVA and glass fiber (GF), respectively. The last section specified the other types of fibers that were not covered such as with carbon fiber, coconut fiber, coir fiber, hemp fiber and linen fiber. Each section focuses on using a fiber with different types of nanomaterials. With consideration of the type, property and content of the used nano and fiber, the scored results of the studies for each particular test were analyzed and compared.

3. The Performance of Construction Materials Made with Different Types of Fibers and Nano Materials

As mentioned before, apart from the research gap, the structure of this study was made in a way to find the synergic effect of different types (physical and mechanical properties) of fibers and nanomaterials on the performance (fresh and hardened states) of the main construction materials such as cement paste, mortar and concrete. For each of the Section 3.1, Section 3.2, Section 3.3, Section 3.4, Section 3.5 and Section 3.6, the individual effect of each fiber and nanomaterials on the performance of construction materials was briefly studied. Then, the main focus was made on their synergic effect.

3.1. Basalt Fiber and Nanomaterials

BF is known for improving flexural behavior of reinforced concrete, besides a considerable elastic behavior facing exposure to elevated temperatures. Despite their remarkable independent performance, some studies were conducted to show the combined effect of using BF and NS together on the mechanical and durability properties of mortar and concrete [29,44,51,52,53,54,55,56]. The addition of NS and BF together adversely affects workability; this observation is in agreement with previous studies [29,44], which shows that the slump of concrete reduces with an increasing of the BF and NS content. Nevertheless, this reduction can be offset with the use of supplementary cementitious materials (SCM) such as fly ash [44]. For instance, by using each of the NS and BF independently, slump was reduced by 12% and 20%, respectively. While adding NS and BF together with the same dosage, the slump was reduced by only 22%. The available studies have not discussed this matter. However, this may be related to the fact that the NS particles may disperse the fibers (it may avoid agglomeration of fibers). In addition, the same facts can be seen for fresh density. A study [44] showed that the fresh density of concrete reduces with the incorporation of BF, and there is not a significant change with the use of NS. Nevertheless, the results show that with the use of both NS and BF, the fresh density slightly increases.

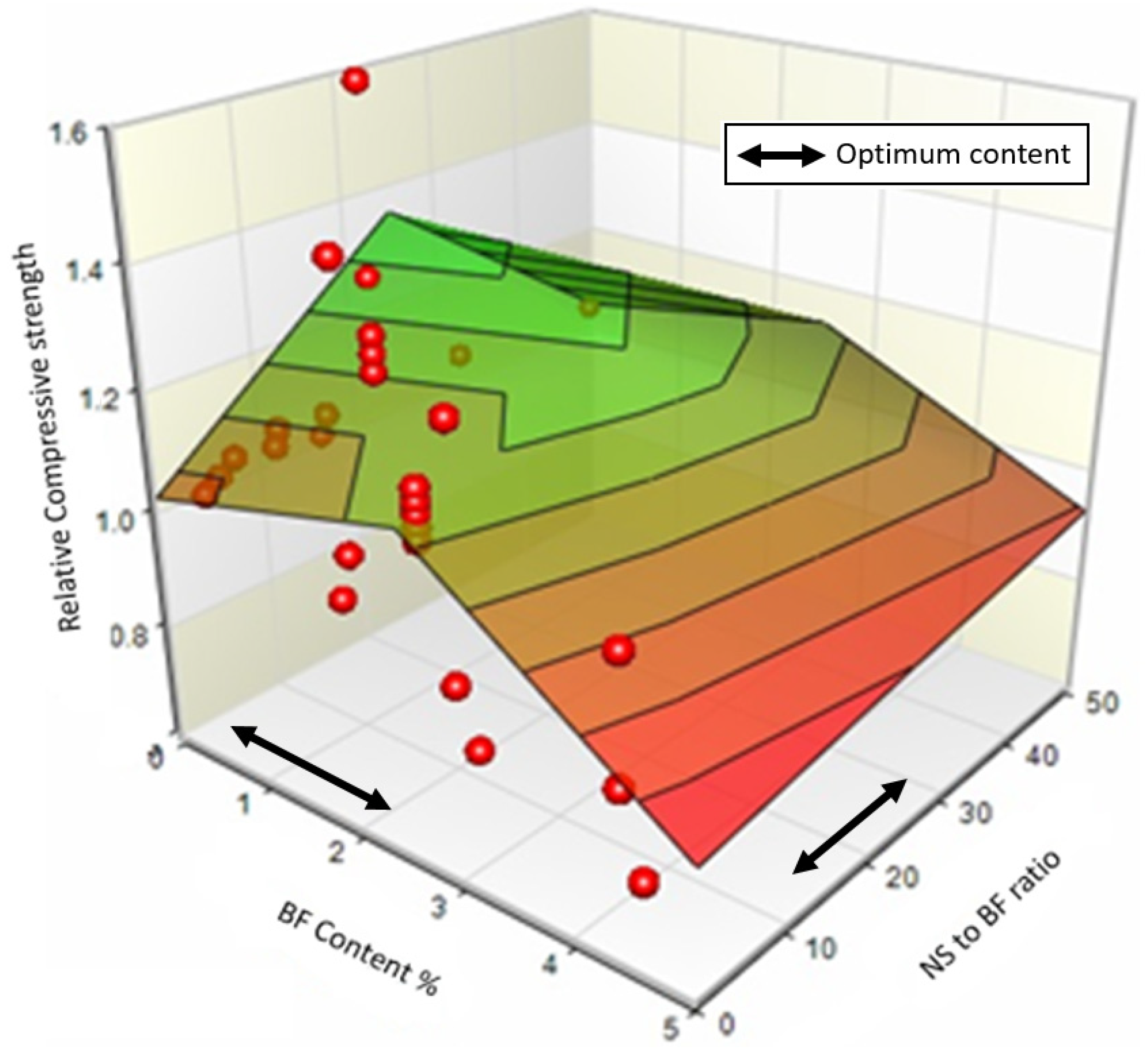

According to studies [44,51,52,53,54,55], as shown in Figure 1, the optimum compressive strength of concrete can be obtained by using 0.037–2% of BF and with a ratio of NS to BF between 15 to 30. Moreover, using recycled aggregate and BF without NS reduces the compressive strength up to 30%, while the addition of NS by 6% enhances compressive strength up to 16%. The same trend was observed for axial compressive strength [29]. In addition, flexural strength can be greatly affected by adding BF and NS to the cementitious mixes. For example, outputs of studies [29,51,52,54,55,56] show that the proportion of fiber and NS in the mixes is the most effective factor in improving flexural strength in which it can be improved up to 30% by using 0.1–1% of BF while the ratio of NS/BF is in between 6 to 10 (see Figure 2). Nevertheless, increasing the content of NS by more than 3% adversely affects the flexural strength as shown in Figure 2. Regarding the three-dimension figures, the NS/BF was considered in order to show the synergic effect of both materials (BF and NS) in the same mix. For example, Figure 1 shows for constant basalt fiber content what will happen if we change the NS/BF ratio. Regarding the NS content, it can be found by multiplying the BF content by NS/BF content.

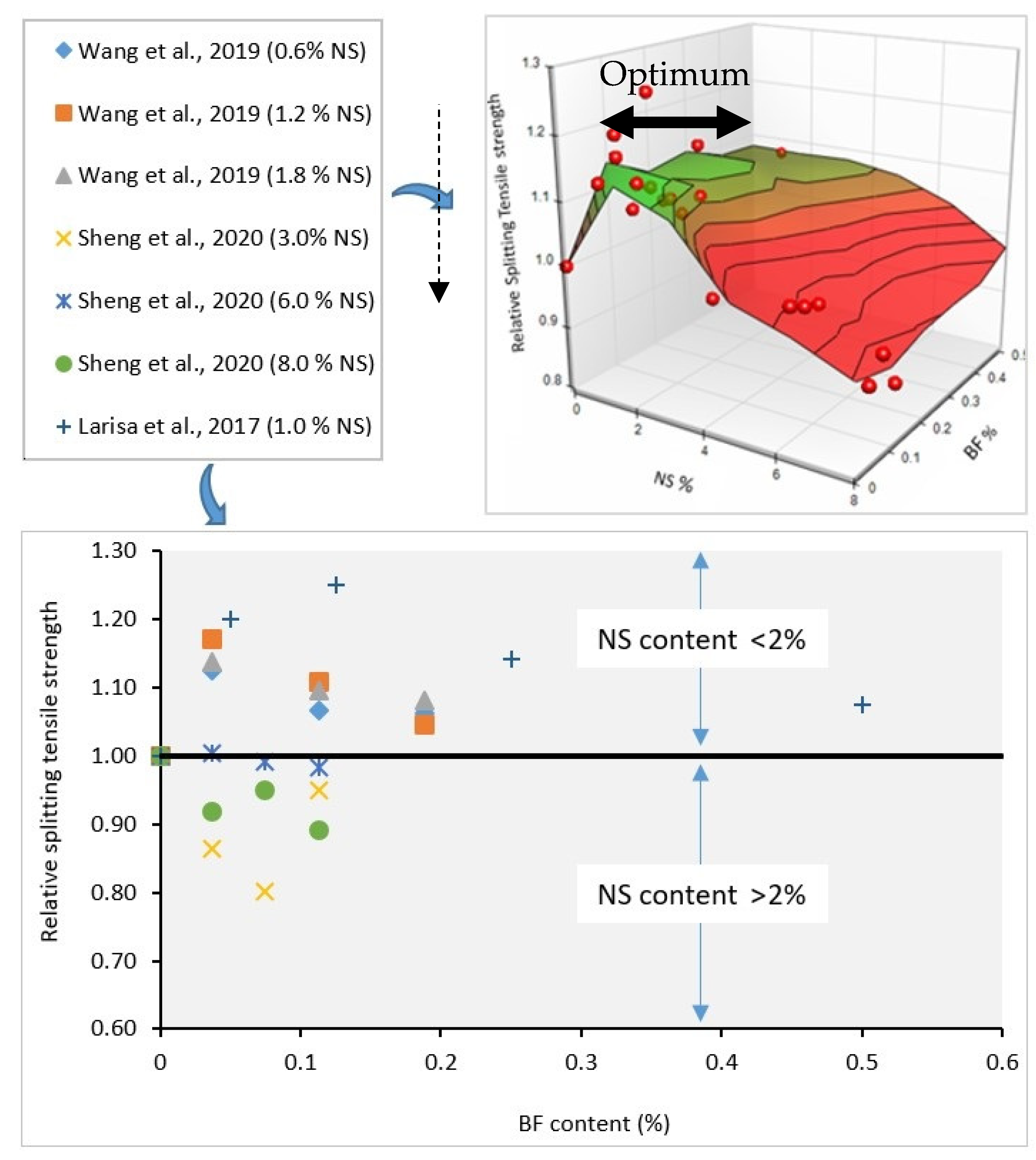

The simultaneous impact of NS and BF on splitting tensile was studied by [29,51,57]. As shown in Figure 3, the optimum value of splitting tensile strength can be obtained by using 0.6–1.8% of NS with 0.037 to 0.25% of BF. Using more than 2% of NS adversely affects the tensile strength of concrete/mortar (Figure 3). This reduction in flexural and splitting tensile strength may be due to the reason that an excessive dosage of NS in the mix causes agglomeration of the nanoparticles on the fibers which led to pulling out of the fiber, due to a reduction in the bond between the matrix and the fiber.
In terms of durability, conducted studies are not sufficient to identify the influence of using BF and nanomaterials on cementitious composites. However, studies [44,56] stated that using BF and NS together improves corrosion resistance and electrical resistivity remarkably in comparison to the control mixes. Using carbon nanotube (CNT) with BF exceeds the frost resistance of the unmodified basalt fiber reinforced concrete by 1.5 times [58]. The addition of NS to the BF reinforced matrix improves the drying shrinkage resistance, and the highest enhancement regarding shrinkage resistance was reported when both PPF and BF were used together with NS [52]. Likewise, due to densifying the cementitious matrix, the addition of NS to BF reinforced mortar remarkably reduces the passing charge and improves the salt-frost scaling [52]. A study [52] concludes that the addition of NS for BF reinforced mortar reduces the intensity of the transition zone as the increase by adding fiber leads to a remarkable reduction in permeability. The performance of the heat-rain test is not satisfactory with the addition of nano clay (NC) to BF reinforced concrete [59].
The microstructure of the mixes containing NS and BF was studied by [29,44,53,56,60], as shown in Figure 4. Based on the SEM figures, it can be shown that the bond between the cement matrix and the BF is the fundamental guarantee for the enhancement of the fibers, and when the interface layer between the cement matrix and BF is looser (see Figure 4a,b), the fiber cannot effectively play the role of network support. Bonding improves with the addition of NS to the BF contained mix. When nanomaterials are combined with BF, more energy is required to debond the fiber, resulting in a considerable increase in toughness (Figure 4c). A study [56] used the boiling method to evaluate the corrosion resistance of NS modified BF reinforced concrete. It was observed that the surface of the fiber, boiled with the addition of NS, remains smooth and flat with minor inclusions of new growths relative to fibers without NS (see Figure 4d).
In addition, the concentration of OH in the matrix reduces as a result of the reaction of NS particles with Ca(OH)2 (CH) in the matrix prior to the BF to create C-S-H gel, which leads to improved binding of various ions, as supported by a study [61] as well. Moreover, as stated by a study [44], with the addition of fly ash with BF and NS, some of the fly ash particles remain unreacted (see Figure 4f), and at the same time, micro cracks are appearing as shown in Figure 4e.
The use of basalt fiber with other nanomaterials is very scarce. CNT, NC, nano metakaolin (NMK) and nano alumina were investigated with BF by studies [58,59,62,63]. It was observed that compressive strength reduced or slightly increased with the addition of these nanomaterials. Overall, the addition of CNT, NC, NMK and nano alumina to BF reinforced mixes improves the flexural strength remarkably. The highest flexural strength has been recorded with the addition of 0.1% CNT and 0.2% BF together relative to using any of them separately. In contrast to CNT and nAl2O3, the addition of BC with BF adversely affected splitting tensile strength.

3.2. Steel Fiber and Nanomaterials

SF is the most popular type of fiber used as concrete reinforcement. The incorporation of steel fibers (both long and short) improves the durability and mechanical properties of hardened concrete, namely the flexural strength, toughness, impact strength, resistance to fatigue, vulnerability to cracking and spalling. Most of the covered research used SF with NS [30,39,52,54,64,65,66,67,68,69], and was distantly followed by SF with each NC [70], nCaCO3 [43,49], NMK [68], nFe [36] and RNCB [71]. Considering that fibers increase the concrete mixture viscosity by absorbing the cement paste, an increase in the volume of fibers may create some issues for the concrete workability, thus further adding a superplasticizer—SP—becomes necessary for increasing the slump. On the other hand, a high specific surface area of the ultra-fine nanomaterials with their rate of pozzolanic reaction plays an important role in the workability reduction in the fiber-reinforced cementitious composites. As illustrated in Figure 5, increasing the dosage of NS slightly affects workability if the SF content was not exceeding 0.5%. Nevertheless, for the same dosage of the SF addition of nFe and NC reduces the workability [36,70]. However, very limited data are available on the effect of the combined usage of fiber and nanomaterials on the air content of concrete/mortar. Due to the small particle size of nanomaterials, an air content decrease compared to ordinary mixes and the opposite can be seen with the addition of fiber. For example, with SF, the addition of NC can decrease the air content from 6.8% to 5.3% as stated by [70]. Moreover, the NS particles can absorb part of the free water in the concrete and decrease the plastic shrinkage of concrete because of the large specific surface area of the nanoparticles. However, excessive amounts of nSiO2 absorb a large amount of water. Therefore, the concrete shrinkage could be increased by an excessive amount of NS [66,72].

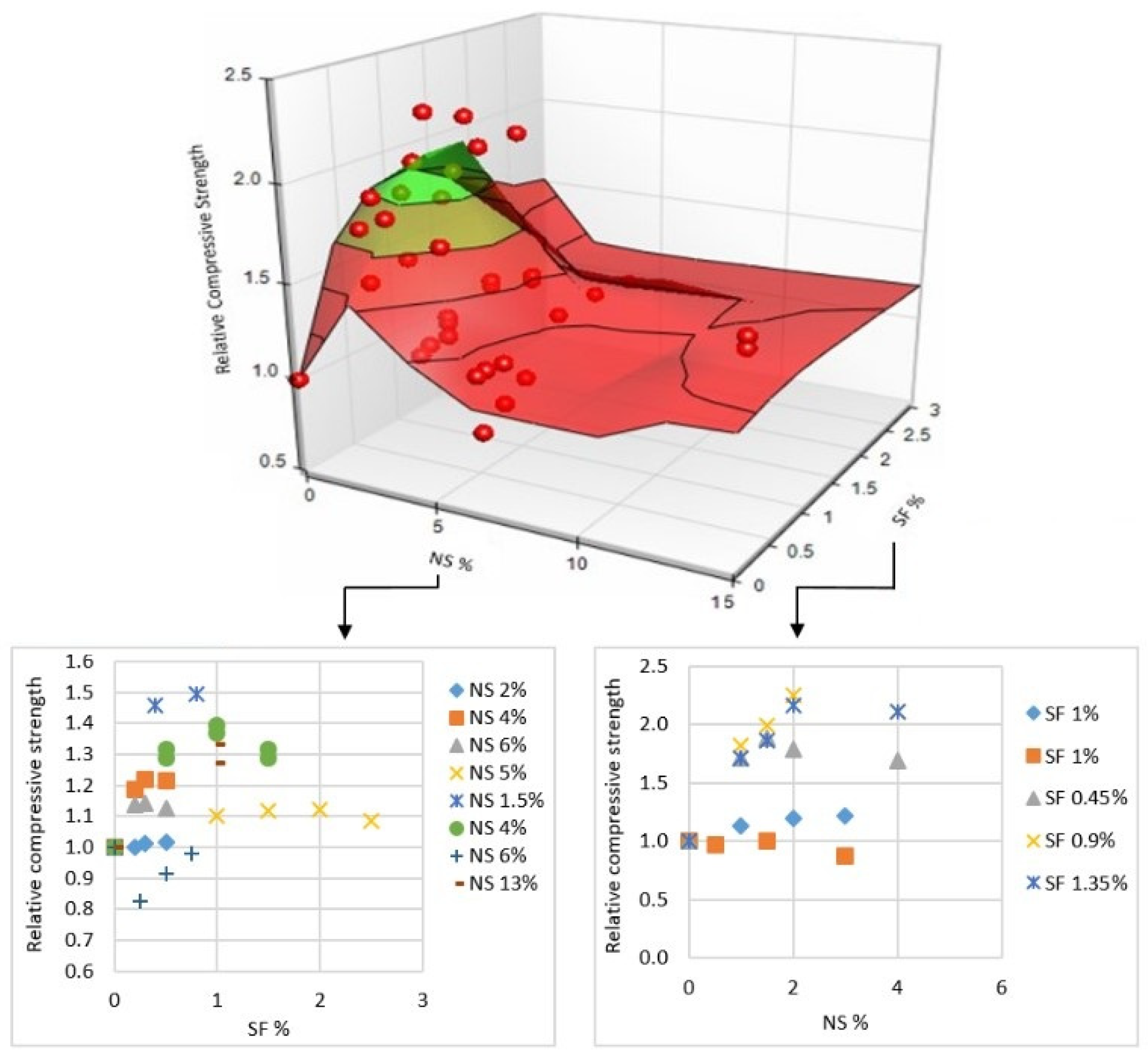

Using NS up to 4% with SF remarkably affects the compressive strength increment. As illustrated in Figure 6, the optimum value of compressive strength can be obtained by the incorporation of 1–3% of NS with 0.5–1.5% of SF. Using SF more than 1.5% reduces its effectiveness, and the same fact can be seen with the use of NS more than 5% (compressive strength reduces up to 17%). This may belong to the formation of local weakness areas due to uneven dispersion of NS particles in the mixture [67]. This shows that each of the nanomaterials positively affects compressive strength up to different dosages as shown in Figure 7. For instance, using 2% of SF with each 2% nFe and 3% nCaCO3 can be considered optimum content. Moreover, hybrid usage of SF and CF is more preferred with RNCB compared to the sole use of SF.

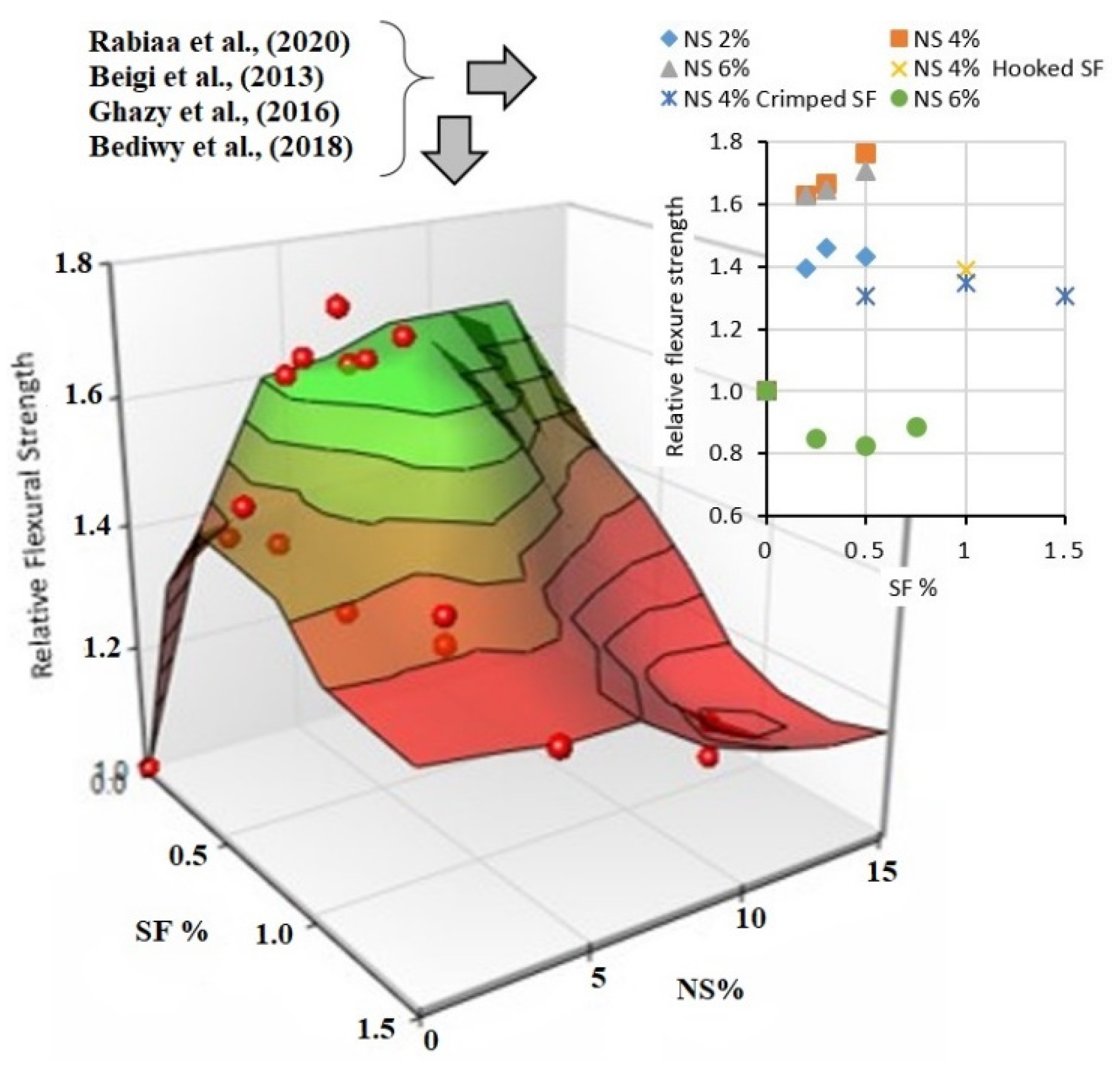

Flexural strength can be influenced by the addition of nanomaterials to SF reinforced cementitious composites. As shown in Figure 8, the optimum value of flexural strength can be achieved by the incorporation of 2–5% of NS with 0.2–0.5% of SF. Same as compressive strength, increasing the dosage of SF and NS more than 0.5% and 5% respectively, will adversely affect the performance of cementitious composites. Moreover, adding the same incorporation ratio of NS for mixtures made with SF and basalt fiber, flexural strength adversely affected the SF contained mix [54]. In contrast, with the use of pellets’ basalt fibers, flexural strength remarkably improved [54]. Overall, the fibers and matrix have strong bonding that increases the force of fiber bridging which correspondingly improves the strength [68,72]. Flexural strength of 2% SF reinforced ultra high performance concrete—UHPC—can be slightly improved by using nCaCO3 up to 3.2% [30]. The improvement in flexural behavior was much greater while the RNCB was used with SF as shown in Figure 9 [49,71]. The hybrid use of CF and SF was not as effective on flexural strength as compressive strength (see Figure 9). Moreover, using hooked SF with 6% NMK was much more effective for flexural strength enhancement relative to crimpled SF due to higher bridging competency in the matrix [68].
Furthermore, the simultaneous impact of SF and NS on splitting tensile strength was studied by [30,39,68,73]. As shown in Figure 10a, the observed results conclude that increasing SF and NS inversely affects splitting tensile strength. In other words, the tensile strength of cementitious composites can be improved in two cases, either with low NS and high SF content or with high NS and low SF content. The highest value of tensile strength can be obtained using 6% of NS and 0.3% SF, but this content of NS as aforementioned adversely affects compressive and flexural strength. Owing to that, the optimum splitting tensile strength can be obtained with 2–3% NS and 1% of SF.

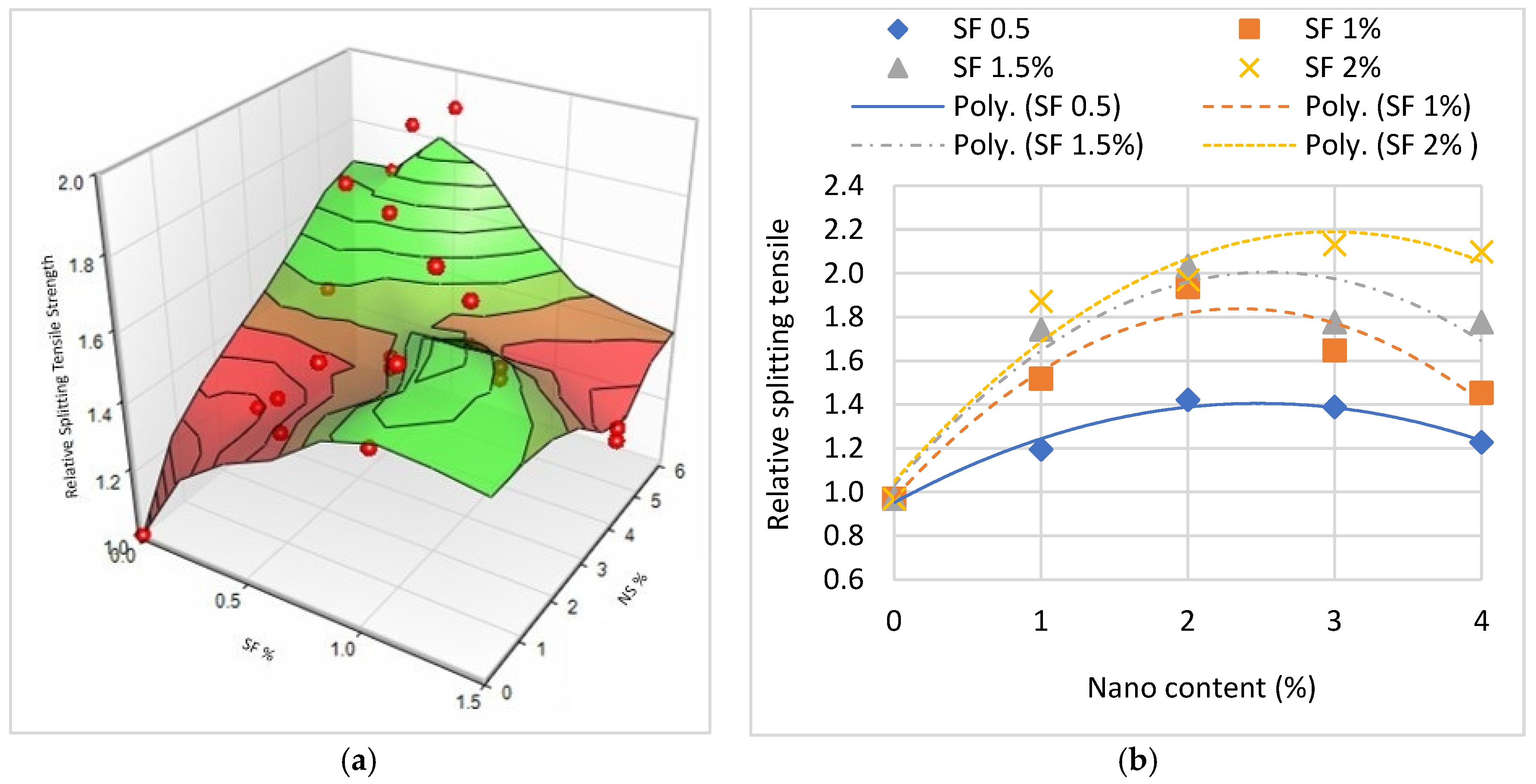

As shown in Figure 10b, using 3% nFe with 2% SF recorded the optimum splitting tensile strength as stated by [36]. Moreover, up to 1% hooked SF with 6% NMK obtained the highest splitting tensile strength. Nevertheless, SF of more than 1% is not much more effective with NMK due to the formation of the pores by fiber agglomeration. Moreover, using nFe more than 3% with SF will serve in the tensile strength increment. Furthermore, it can be concluded that nano-silica particles have a more momentous impact on the splitting tensile strength compared to the nano metakaolin particles due to the fact that nano-silica is more amorphous than nano metakaolin, and the silicon dioxide (SiO2) percentage in NS is higher than that in metakaolin [68].
Regarding durability performance of the cementitious mix, a limited number of research projects investigated the combined impact of nanomaterials and SF. Overall, the addition of nanomaterials, due to their filling and pozzolanic effects, in concrete leads to a denser structure with less porosity and water absorption [30,49,52,71]. For example, based on the water absorption test that indirectly evaluates the concrete porosity, the SF addition, beyond the optimum content (based on mechanical properties), increases the porosity and permeability due to facilitating bridging between pores [30,69,73], and facilities the diffusion of CO2 [66]. Thus, it can be said that a small amount of SF resulted in no degradation in the permeation properties, whereas higher SF dosages would lead to a clear growth in the water absorption and sorptivity of the concrete [41], and increase the resistance to CO2 diffusion. Accordingly, the addition of nanomaterials, particularly NS, to SF reinforced concrete remarkably reduces the porosity, water absorption, cracking, freez-thaw and carbonation depth [30,49,52,66,73]. Nevertheless, using NS more than 5% and SF more than 0.9% adversely influences the durability performance.
The microstructure of SF reinforced concrete/mortar containing nanomaterials specimens at 28 days was studied by studies [36,49,69]. Without the addition of nanomaterial, in the mix of SF reinforced UHPC adhesive, failure was observed with obvious cracking space between the actual fiber and the matrix interface (see Figure 11a). On the other hand, the addition of nFe up to 2%, due to uniform distribution and enhancing the compactness, decreases micro-cracks considerably for magnesium potassium phosphate cement mortar [36] (see Figure 11b). Backscattered electron microscopy (BSEM) examinations were performed for illustrating the microstructure of nCaCO3 contained and SF reinforced UHPC by a study [49], and the results show that when 3.2% of nCaCO3 was used, the fiber-matrix interface was well bonded. However, some disconnected pores with sizes in the range from 2 to 20 mm were observed (see Figure 11c). Moreover, the microstructure of the hardened cement paste containing NS appeared quite dense and compact with relatively fewer capillary pores as compared to the plain cement paste without NS; moreover, the bond filure mode changed to cohesive filure (see Figure 11c) [69]. Furthermore, an excessive amount of nanomaterials results in agglomeration of the nanoparticles ( see Figure 11e as 6.4% n-CaCO3 used), increasing the porosity ( see Figure 11f as 5% nFe used) which is accompanied with lower bond strength.

3.3. Polypropylene Fiber and Nanomaterials

Polypropylene as synthetic fibers attracted researchers due to their lower cost and weight, resistance against corrosion and acids, excellent toughness and enhanced shrinkage cracking resistance [74,75]. Besides their usage independently, nanomaterials and polypropylene PPF are used together in the cementitious mixes. Most of the conducted research used PPF with NS [35,39,40,42,45,46,52,53,64,73], and was distantly followed by PPF with nTiO2 [40] and nAl2O3 [35]. Workability was found to be reduced as both nAl2O3 and NS content increased in the PPF reinforced mixes [35,45,73]. As illustrated in Figure 12a, introducing NS was much more effective in the slump reduction relative to the PPF fiber addition in which the reduction is gradual while the content of PPF increases. On the contrary, the fall in slump values is steeper as the NS content increases. The obvious reduction in the slump value with the introduction of NS may be attributed to the high pozzolan activity which leads to the formation of gels that have water retention capacities and a high surface area (see Table 3) that increases the water absorption of the mix in the fresh state [35]. Moreover, it can be noted with the addition of the same content of PPF, incorporating nAl2O3 causes more of a reduction in the slump value compared to a NS addition with the same dosage (see Figure 12b). Same as the other fibers, workability reduction is directly proportional to the addition of PPF as well as the mixing procedure that may let microbubbles enter the zone between fibers and cement paste which slightly increases the water absorption in the hardened state of the mix [35]. It can be concluded that reduction in workability is not too much while up to 0.25% PPF was used with 2% and 1% of NS and nAl2O3. Moreover, using PPF with Ns and nAl2O3 improves the stability better than SF and GF [73].

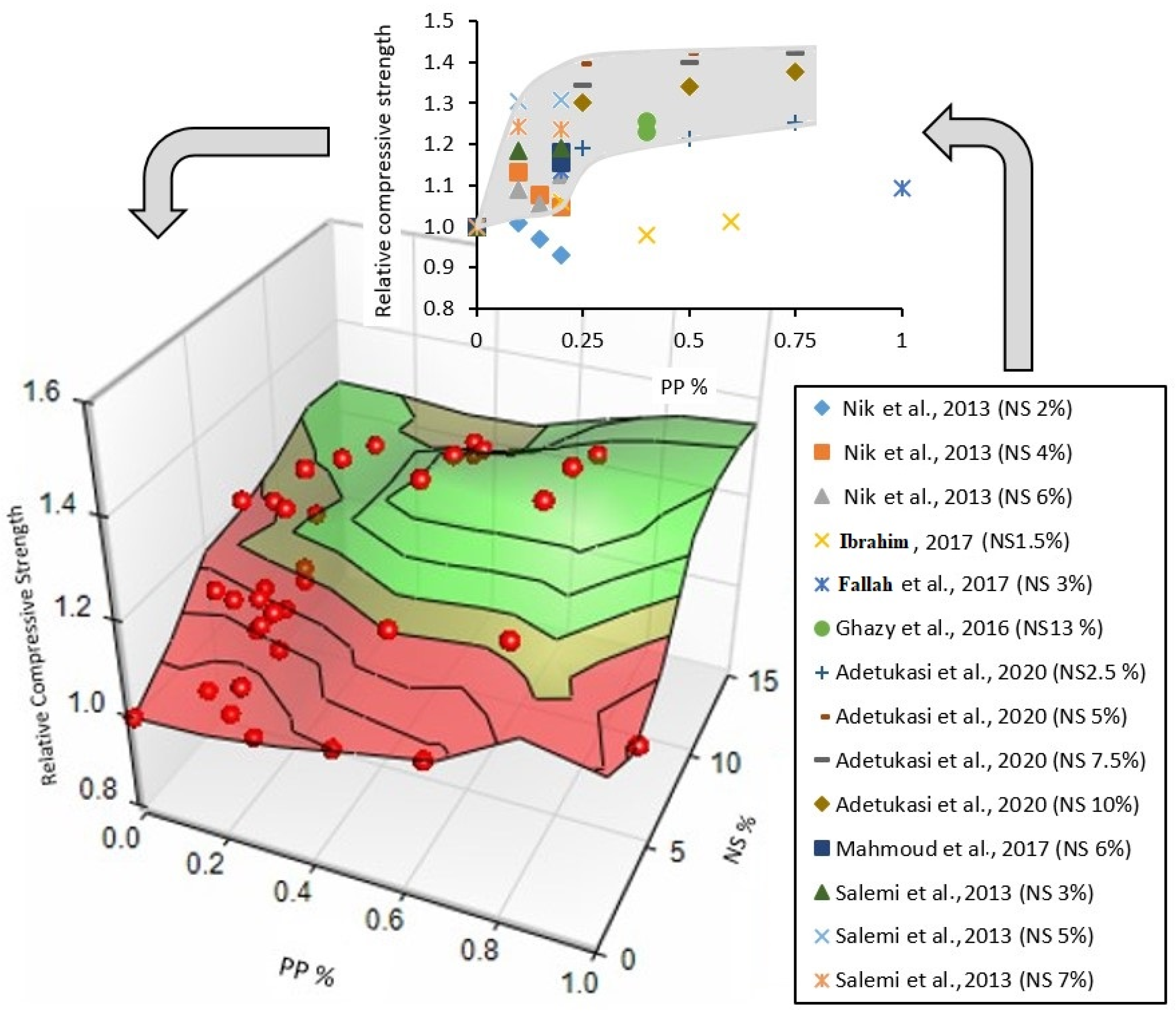

As illustrated in Figure 13, the addition of PPF alone will not make any positive effect on compressive strength. Meanwhile, with an increment of the NS dosage, the influence appears in a positive manner. In fact, 5% of NS can be considered as optimum content if it has been used with 0.6–0.8% of PPF. Observably, the pozzolan and filling effect of nSiO2 can be noted in reinforcing the fiber zone and cement matrix, in which the PPF does not have a significant effect on compressive strength. In addition, NS led to a reduction in the wall effect between PPF and its surrounding matrix. Consequently, a harder bond formed between PPF and the matrix that improved compressive strength [46].

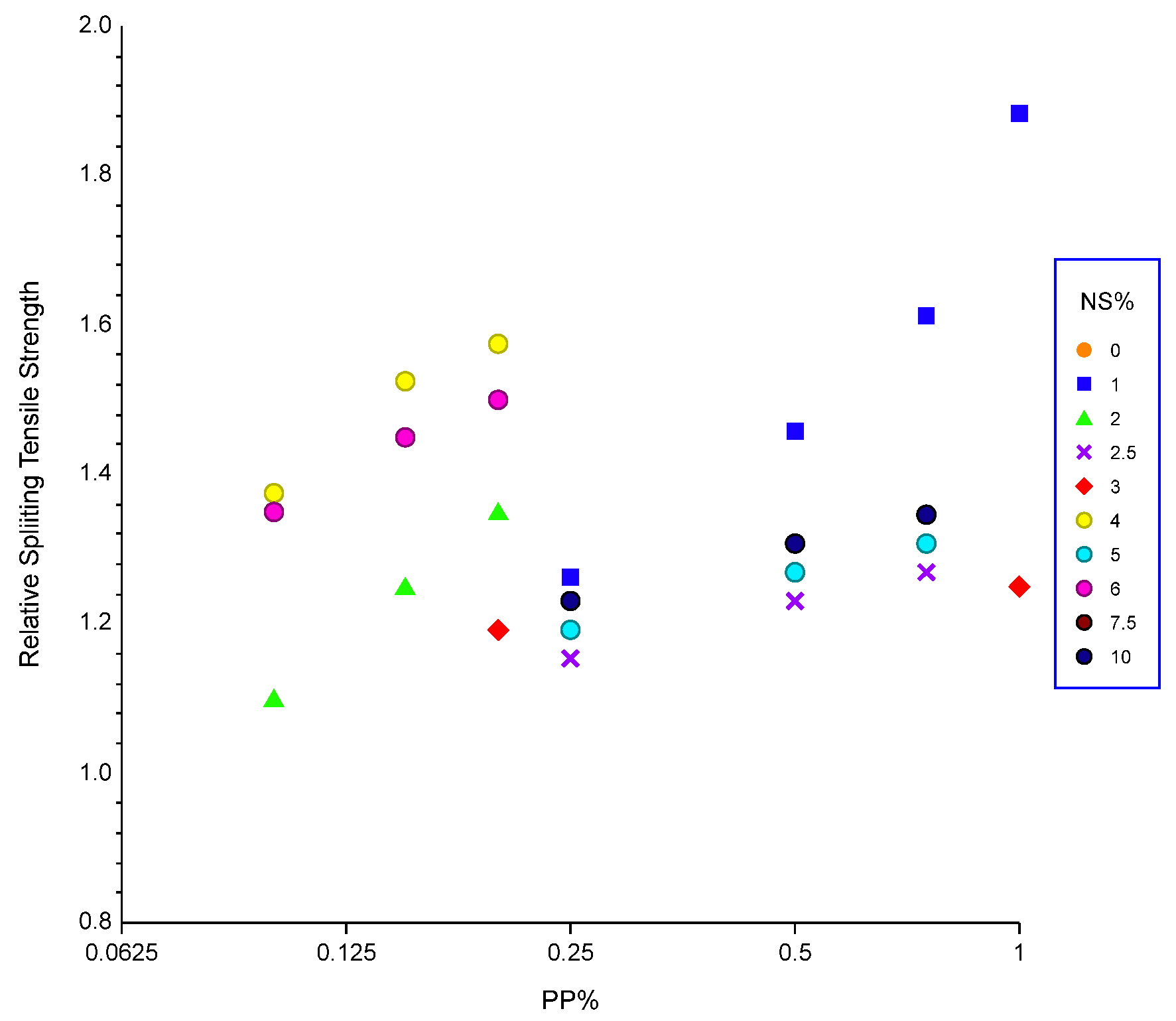

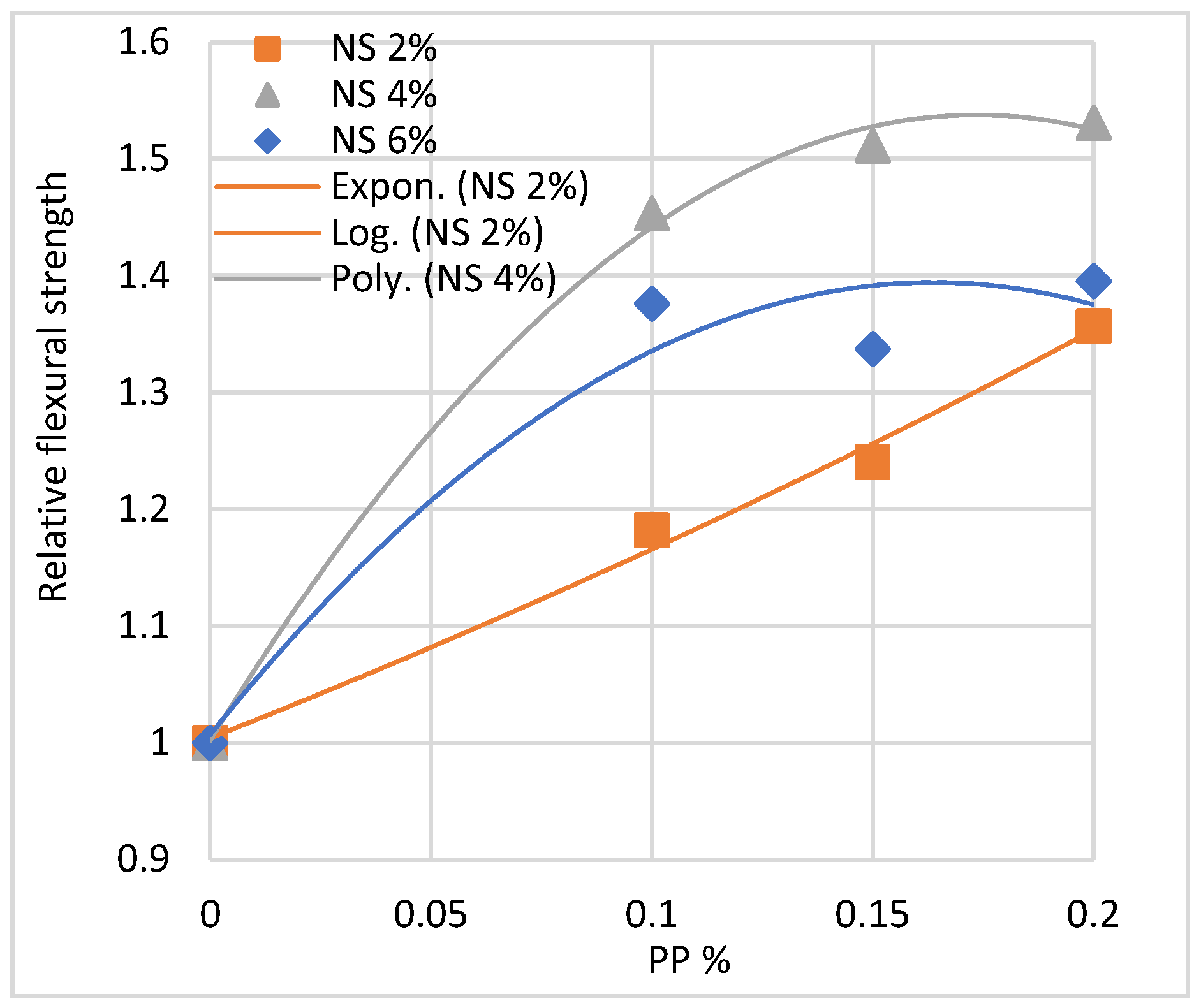

The impact of utilizing NS [46,52,73] and nTiO2 [40] on the flexural strength of PPF reinforced cementitious mixes was studied. A study [73] reports that using NS up to 4% with PPF up to 0.15% enhances the flexural strength of normal strength self-compacting concrete (SCC) in which the scored relative flexural strength reached up to 1.53 (Figure 14). Moreover, a study [46] used 1% of NS with up to 1% PPF; the relative flexural strength of the SCC was enhanced up to 2.37. It can be concluded that with a low dosage of NS, up to 1%, increasing the content PPF can improve the flexural strength, but for a higher dosage of NS content (>1%), the increase in PPF will not be effective. Any further increase in the content of NS and nTiO2 caused an adverse impact on the flexural strength which can be ascribed to the formation of micro-cracks which influence the flexural strength [40,46,52,73]. Moreover, using other higher elastic modulus fibers with PPF simultaneously will not be effective in enhancing the flexural strength as stated by a study [52]. According to the findings of studies [42,45,46,73], the addition of NS improves the tensile strength of the cementitious mixes. As illustrated in Figure 15, while PPF was used, the low dosage of nano particles is more effective in tensile strength improvement. While a low dosage of NS as 1% used showed that the tensile strength improves dramatically with an increasing dosage of PPF. Nevertheless, with a high content of nano as 3, 5, 6 or 7%, varying the content of PPF slightly improves the tensile strength. According to a study [46], this can be attributed to an increase in nanoparticles provides a harder bond between PPF and the matrix, but because of the smooth surface of PPF, a hard bond between PPF and its surrounding matrix does not change its failure mode to rupture; i.e., PPF still de-bonded from the surrounding matrix. Moreover, the ductility and crack-arresting effect of PPF serves in tensile strength improvement [45].
On one hand, the addition of nano-particles to the cementitious mixes improves density and reduces the porosity and water absorption [45,73,76]. Moreover, the type and fineness of the particles play a significant role in their performance. On the other hand, the PPF addition increases the interface in concrete and results in the increase in the void content in concrete [40,77] that leads to a reduction in density and increasing porosity. Thus, if a proper incorporation ratio of the PPF is not used, it may adversely affect the durability. A study [40] stated that in concrete containing both PPF and NS, the chloride penetration was reduced that can be attributed to the low density and the increased void content of this concrete. This reduction can be compensated if another fiber, with low dosage, such as MP [42] or BF [52], was used with NS contained PPF reinforced mixes. A study [42] stated that the optimum percentage of each of the two types of fibers together with that of nano-silica has lower water absorption in comparison with the plain concrete, the one containing the optimum percentage of nano-silica, and the one containing only the optimum percentage of either of the two fibers. Moreover, due to the small specific gravity of PPF, shrinkage reduced significantly in the Nano and fiber reinforced mortars with hybrid fibers 0.6% BF and 0.4% PPF [52]. Moreover, chloride ion penetration remarkably reduced in the case of using PPF with NS for SCC [73] or PPF and BF with NS for mortar mixes [52]. The microstructure of the nanomaterials and PPF reinforced cementitious mixes has not been studied sufficiently. The presence of active nano-silica produces calcium silicate hydrate that improves the microstructure of fiber-reinforced concrete against chloride ion penetration and reduces the associated corrosion in concrete [73]. At the same time, the smooth surface of PPF prevents formation of a hard bond between PPF and their surrounding matrix. Utilizing nano-silica resulted in the improvement in bond properties at the interface between the fiber and the matrix according to a study [46]. Moreover, as shown in Figure 16, studies [42,45] show that a density increase is associated with an increasing content of NS but a decrease with an increasing content of PPF.
Considering the microstructural analysis of the compositions, which is shown in Figure 17, the PPF was dominantly de-bonded from its surrounding matrix, and some PPF was even ruptured. It can be inferred that the improvement in the interface between PPF and the matrix did not change the failure mode of PPF [46].

3.4. PVA Fiber and Nanomaterials

Six conducted studies that used PVA fibers and nanomaterials together are considered in this study. Nanomaterials and PVA fibers greatly affect the workability of cementitious composites. The free water of the mix is absorbed by PVA fiber due to its good hydrophilic properties [32,33]. Moreover, using finer sand size adversely affects workability and mechanical performance due to its higher tendency for absorbing water which results in insufficient water for hydration [33]. The effect of NS on workability reduction is more than nCaCO3 [78], and is less than NC [41] for the cementitious composites. Nevertheless, for 3D printing PVA mortar, the addition of multi-walled carbon nanotubes (MWCNT)s has no detectable effect on the buildability, such as stacking stability, shape ability, and integrity [48]. As shown in Figure 18, according to studies [41,78], increasing the dosage of NS adversely affects the workability with the presence of PVA in the mortar mixes.

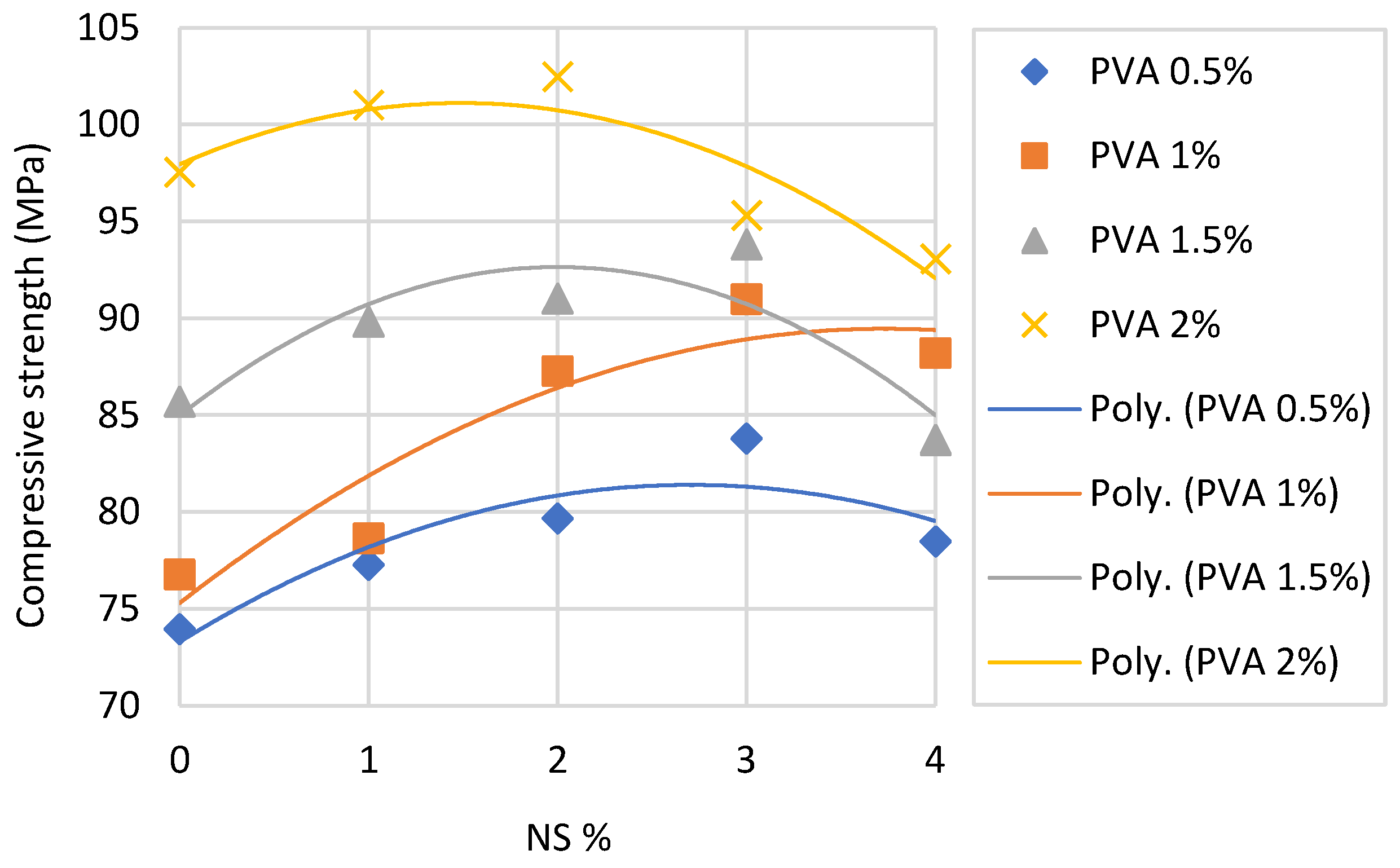

As illustrated in Figure 19, the addition of PVA without nanoparticles positively affects compressive strength of engineered cementitious composites (ECC) [47]. The highest compressive strength was obtained with the use of 2% of PVA and 2% of NS in the same mix. The incorporation beyond 2% of NS and 1.5% of PVA in the reinforced ECC and mortar may not improve compressive strength anymore [41,47]. This can be attributed to the agglomeration of the high dosage of nanoparticles in the mix which led to weakening the bond between the aggregates or fibers with the matrix.

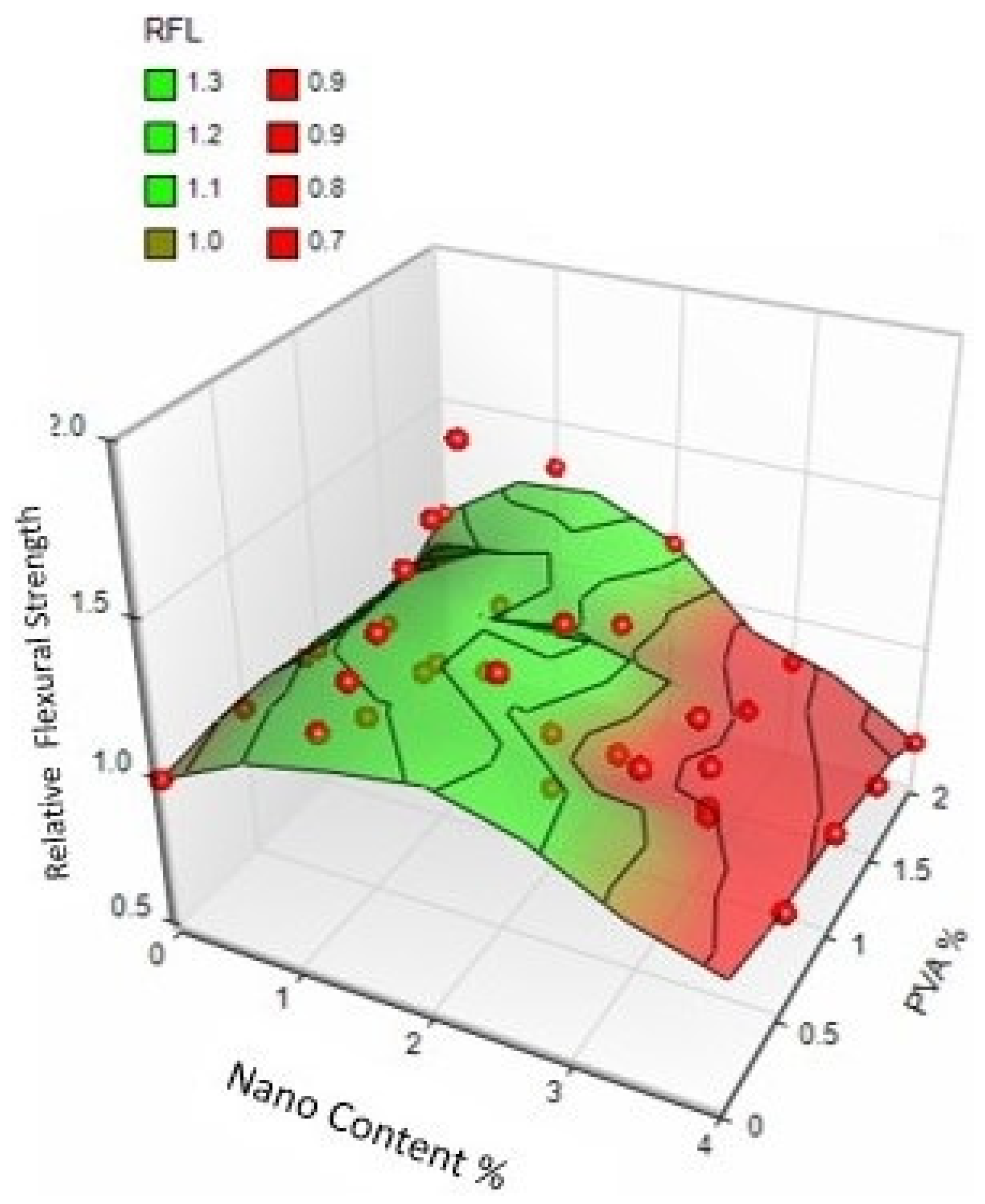

The flexural strength of PVA reinforced NS and nCaCO3 contained cementesious composites was investigated by studies [33,41,47]. As shown in Figure 20, the optimum flexural strength can be obtained by the use of 1–2% of NS with 1–1.5% of PVA. Moreover, it can be noted that the enhancement effect of the PVA becomes weaker on flexural strength when the dosage of NS exceeds 2%. This may be attributed to formation bundant ettringite which could lose strength caused by the internal stress [79]. Similar to compressive strength, the mixture of NC had lower flexural strength than that of NS [41]. Furthermore, in the mix of ECC, the presence of NS increases the density of the ITZ between PVA and the matrix that leads to a reduction in stress at the crack tips to less than the bridging stress across the crack. Consequently, more energy is required to de-bond the fiber, which subsequently leads to an increase in the flexural capacity of the ECC [47]. In addition, a study [48] states that using MWCNT in the 3D printing PVA can achieve the mechanical properties and 3D printing requirements if in the range of 0.01–0.05% was used. Inappropriately, tensile performance of PVA reinforced cementitious mixes containing nanomaterials was not studied by any of the conducted studies.
In studies [47,78], the durability performance of PVA reinforced nano contained cementitious mixes was considered. It can be concluded that the addition of NS and nCaCO3 to the PVA reinforced mix resulted in difficult CO2 diffusion which enhances carbonation resistance. More reduction in carbonation depth was scored while PVA fiber and nanomaterials were used relative to using nano or the fiber solely in the mix. For instance, without using PVA fiber with the addition of 2% of NS and nCaCO3, the reduction was determined as 20% and 11.7%, while with the fiber, the reduction increases to 23.4% and 12.8%, respectively. In addition, using any amounts of NS or nCaCO3 less than 2% with PVA fiber remarkably improves durability of the cementitious composites in terms of permeability resistance, cracking resistance as well as freezing-thawing resistance. However, the improvement of nSiO2 on durability is much better than that of nCaCO3. A study [47] states that the combined effect of PVA fiber and NS quantity on resisting shrinkage is greater compared to the effect of PVA fiber alone. This could be interpreted as a result of an improved matrix–fiber interaction, which improves the area of contact by densifying the ITZ in these regions [41,47].
The addition of NS rather than decreasing porosity and densifying the mix (see Figure 21) also increased the bonding strength between the fiber and composite matrix [41,47,78]. Consequently, most PVA fibers were fractured instead of pull-out occurring during tension by adding NS [41]. According to a study [78], as illustrated in Figure 21, the generated C-H-S gel in the NS contained mix is higher relative to the nCaCO3 contained PVA reinforced mix. The C-S-H gel has an obvious influence on bond performance and ITZ enhancement in the mix. Therefore, as aforementioned, NS is more fulfilled with PVA reinforced cementitious composites relative to nCaCO3 in terms of serving the durability.
In the printing mortar, some microscopic fibers are released from the PVA fiber during the mixing process as shown in Figure 22 [48]. Therefore, the dispersed fiber with the carbon nanotube in the mix enhances the hardened property resulting in a higher bridging effect on the micro-cracks.

3.5. Glass Fiber and Nanomaterials

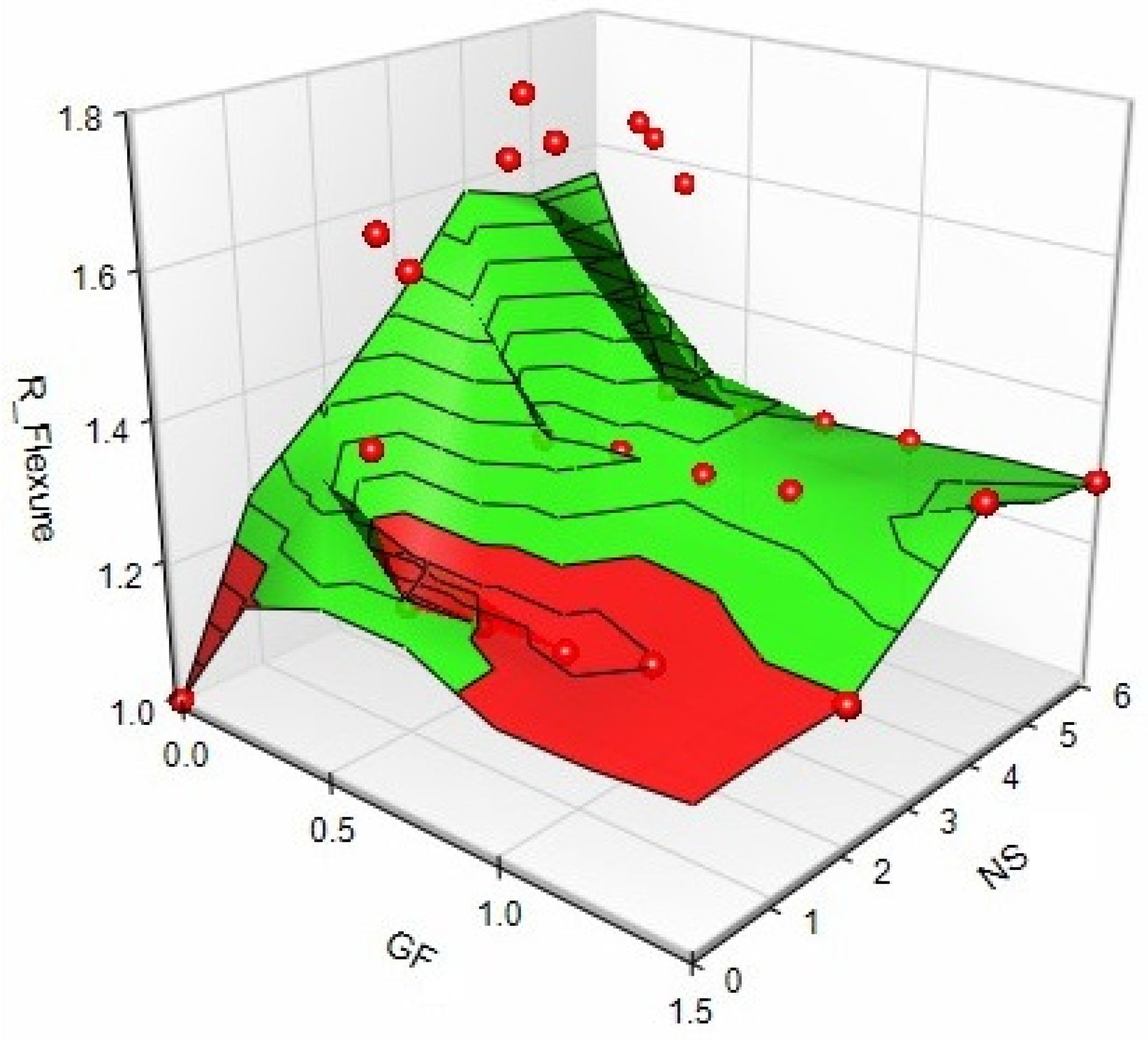

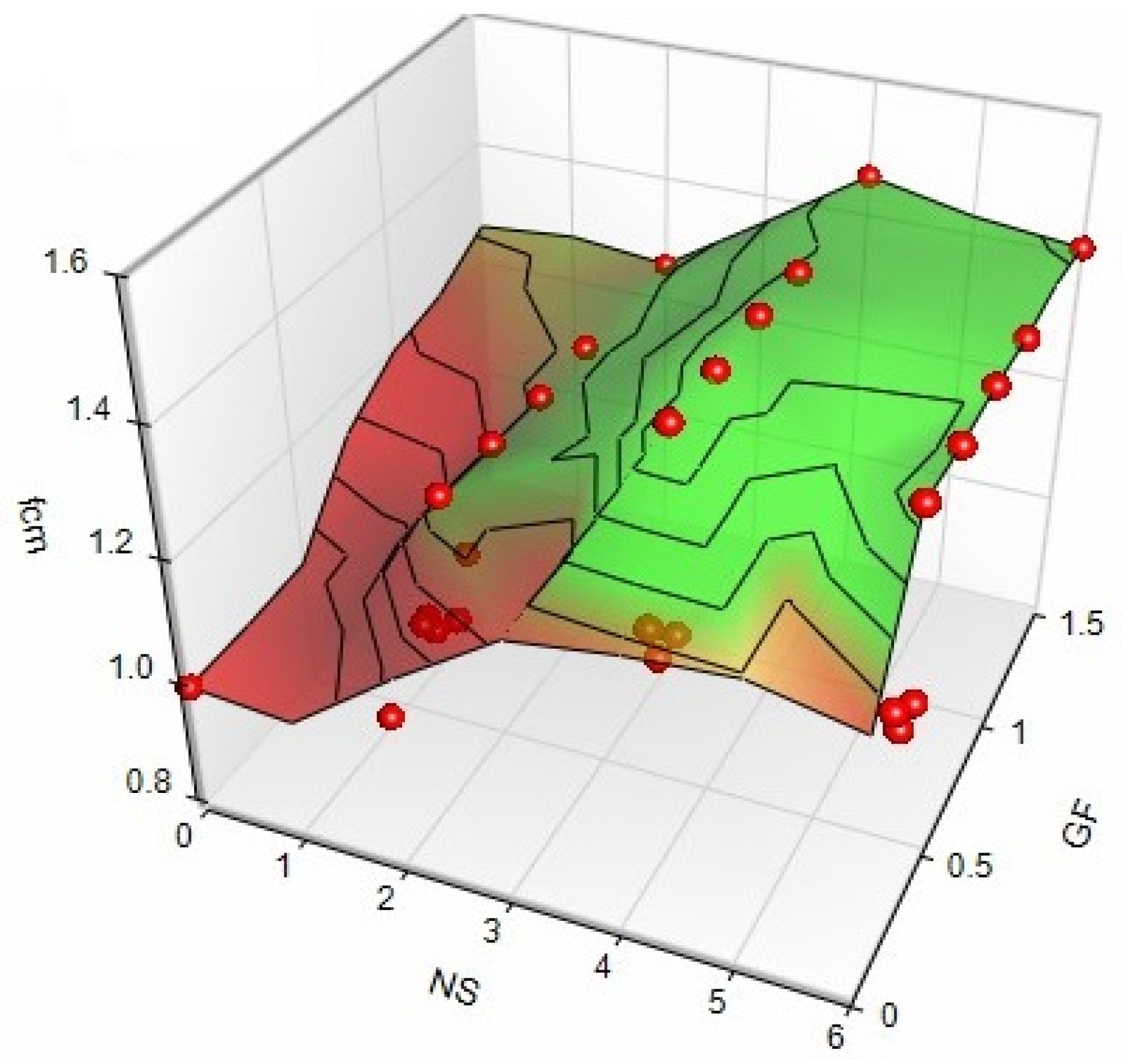

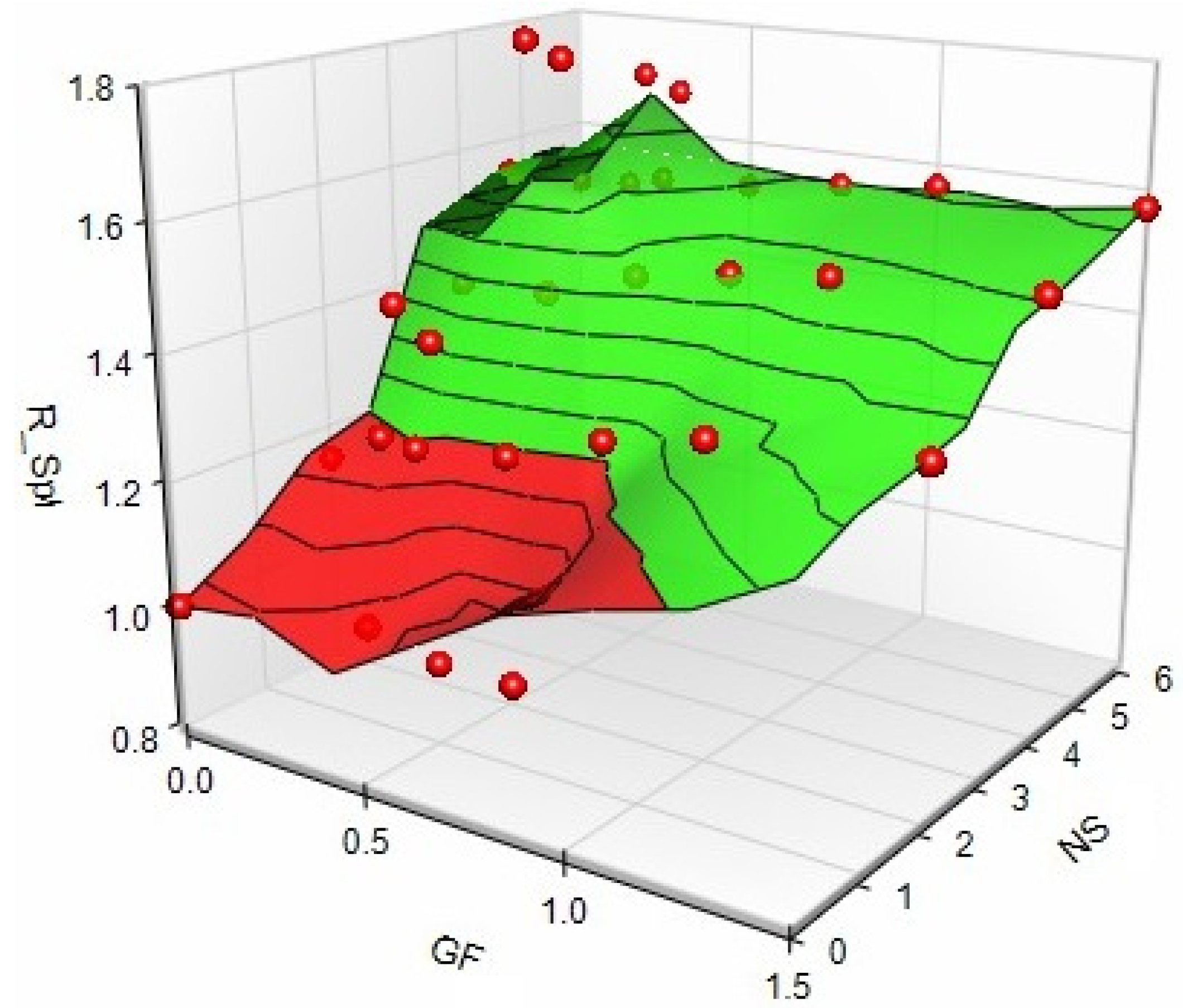

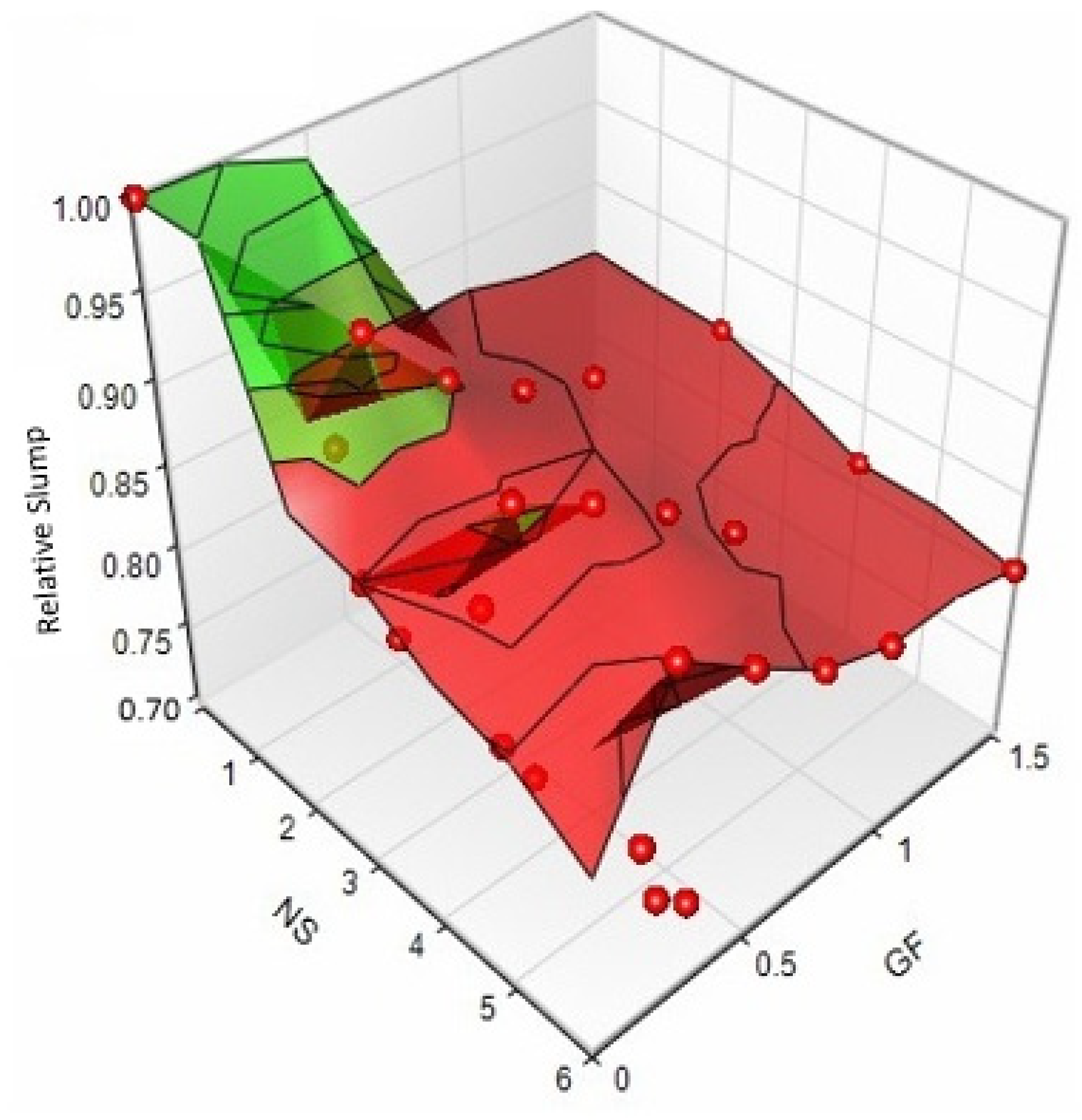

The simultaneous impact of using nanomaterials and GF on mechanical property and durability performance of cementitious composites was not studied by studies [31,39,43,64,73,80]. Evidently, the addition of nanomaterials and/or fibers adversely affects the workability and would lead to an excessively high SP dosage. Relative slump reduction is illustrated in Figure 23; increasing the dosage of each of NS and GF adversely influences the workability [31,39,73]. Moreover, for printing 3D mortar, the addition of NC and GF significantly enhanced the shape retention ability. However, using NC with GF and carbon fiber showed better shape retention relative to using SF. At the same time, it should be noted that high workability is not desired for extrusion and 3D printing because a high workability could lead to an excessive drop in height and the belly cross-section after the subsequent layer is deposited [43]. The adverse effect of simultaneous usage of nanoparticles and GF on workability can be ascribed to increasing the locking probability and water absorption. On the other side, its property leads to improvement in the internal strength and enhances the compressive strength according to studies [31,39,64] as shown in Figure 24. Moreover, improving the friction and internal collisions between aggregates and fibers can be the reason for the strength increment [81]. Figure 24 illustrates that optimum compressive strength can be obtained with usage 0.75–1.5% of GF with NS greater than 3%. However, the addition NS beyond 3% may not adversely affect the GF reinforced cementitious mixes as has been noted with other fibers, but as shown in Figure 23, the workability reduction is large. The relative flexural strength is shown in Figure 25. The combined use of GF and NS in all mixed designs of normal and lightweight SCC concrete increased the 28-day flexural strength remarkably [31,73]. This significant enhancement can be ascribed as that of the NS particles, with their pozzolanic and filler effect, improving the properties of the cement paste contact area with fibers and aggregates and increasing the adhesion of the contact areas [80]. Meanwhile, the tensile strength improvement of nano contained GF reinforced concrete can be noted evidently as shown in Figure 26. From the results, it can be noticed that, with an increasing GF dosage, the tensile strength slightly increases [31,73] or decreases [39], while, with addition of NS to the GF reinforced mixture, the splitting tensile strength improves greatly. This increment may belong to the stress transformation from the matrix to the fibers [31], or the presence of a larger contact area between fibers and the matrix which results in higher friction [73]. The positive effect of NS on increasing tensile strength was also mentioned in previous studies [82]. Thus, as illustrated in Figure 26, the optimum tensile strength can be obtained by using GF more than 0.25% up to 1% with NS between 2 to 3%. Furthermore, in the light weight concrete, the influence of the NS addition to the GF reinforced concrete is higher in comparison to normal weight concrete. This can be attributed to improved hardness of the lightweight aggregate through reducing the cavities and improving the contact surface between the matrix and the aggregate, in which the cracking is usually started and passed through the lightweight aggregates [31].
Most corrosive substances, which are adversely affecting the long-term performance, are penetrating the concrete through water [31]. As aforementioned, the use of NS in all mixed designs reduced the water absorption percentage of cementitious composites due to the NS tendency for filling the fine holes in the silicate gel structure of the mix. According to the obtained outcomes of studies [31,73], the addition of GF without NS adversely affects the water absorption of the concrete specimens, whereas, with introducing NS to the mix, the water absorption greatly decreases as shown in Figure 27. Besides, it can be noted that the varying influence of NS on water absorption reduction is not significant with increasing the dosage more than 2%, even while the content reaching to 6% water absorption increment commenced. Therefore, the optimum percentage of NS as 2% can be considered with GF reinforced concrete mixes.
In addition, the associated corrosion in the cementitious composites is directly proportional to the reduction in chloride ion penetration. A study [73] states that chloride ion penetration of GF reinforced normal strength SCC concrete can be reduced up to 20% by utilizing NS up to 4% (see Figure 28). This can be attributed to the improvement in the microstructure of the concrete as shown in Figure 29 which results from calcium silicate hydrate production [31].
The electrical resistivity is an auxiliary tool to investigate the corrosion probability of buried rears in concrete. A study [31] states that the presence of GF has a little contrary effect on the electrical resistivity of the test specimens while using NS up to 6% with GF and improves the electrical resistivity progressively (Figure 30). This can be attributed to the pozzolanic behavior of NS that by increment of the hydration process fills the spaces in the mix of the concrete.

3.6. Other Fibers and Nanomaterials

Despite the aforementioned fibers, other types of fibers are used by the conducted research of this review as shown in Table 1. Regarding the influence on the workability, the addition of nanoparticles due to high surface area and addition of fibers due to absorbing more cement paste to wrap around leads to an increase in the viscosity and a decrease in the slump of a concrete mixture [83]. Therefore, with increasing the dosage of the fibers and nanoparticles simultaneously, the workability reduces significantly. This statement is verified by increasing the content of coir fiber and NS [37], carbon fiber CF and graphene nanoplatelet filler GNP [34], CF and recycled nano carbon black (RNCB) [71], CF and nano calcium carbonate [43], linen fiber and nano metakaolin [84], macropolymeric fibers MPF and NS [42], coconut fibers and NS [85], forta-ferro fiber and NS [30], carbon nano fiber CNF and carbon nano tube CNT [86]. The workability of concrete is reduced with addition of CF up to 50% [71]. Due to the adverse effect of using recycled carbon fiber or RNCB on the workability, for compensating the required workability, the amount of the utilized SP must be doubled or more [34,71]. However, according to a study [87], for the workability and consistency of the concrete containing fibers, the slump test is not a suitable indicator as the mixture may exhibit low slumps while having sufficient workability and consistency. Therefore, a study [43] recommends demand of SP as a better parameter that reflects the fibers and nanomaterials on workability.
Regarding the effect of the combined usage of fibers and nanoparticles on the density of the produced mixes, the following conclusions can be drawn. The specific gravity of the used fiber and nanomaterials plays an important role in the reduction or increment of the density in the produced mix. A study [30] states that the addition of steel and forta-ferro fibers improves density. While according to studies [37,88], Coir, polypropylene and macro-polymeric (MP) hemp fabric (HF) fibers are reducing the density. Moreover, using NS with the fibers cannot compensate the reduction in density with Coir, PP and MP fibers, due to the lightweight nature of the nanoparticles relative to the replaced cement particles [37,42], while NS with steel and forta-ferro fibers reduces the density increment [30], and nano clay up to 1% increases density with HF fiber [88,89].
Regarding the compressive strength, a study [34] states that using each carbon fiber or GNP solely does not affect the compressive strength of mortar remarkably. On the contrary, when both GNP and fibers are used, the worsening of mechanical strength increases and becomes 12% lower for virgin carbon fiber VCF and 19% lower for recycled carbon fiber RCF additions. The addition of nCaCO3 to CF reinforced extrudable high strength concrete was studied by a study [43]. It is being concluded that with up to 4% nCaCO3 with a constant 0.5% of CF, the compressive improves by 12%, while using CF without nCaCO3 slightly increased the compressive strength. In terms of compressive strength improvement, according to a study [71], using carbon fiber is better with recycled nano carbon black RNCB rather than SF. Moreover, a hybrid of 0.6% SF and 0.5% CF with RNCB scored the best performance of compressive and flexural strength as illustrated in Figure 31a,b. Moreover, the use of WWE fiber with RNCB slightly improves the compressive and flexural strength, but hybrid usage of WWE and CF with RNCB improves the flexural strength, and the compressive strength reduces to lower than the control specimen. Thus, as shown in Figure 31, the optimum flexural and compressive strength can be obtained using 0.6% SF and 0.5 with 10% RNCB. Moreover, using CF of more than 0.5%, the electrical resistivity significantly decreased with and without SF (Figure 32). The addition of GNP to mortars containing carbon or SF decreases the flexural strength and electrical resistivity [34].
Other types of fibers such as forta-ferro [30], nano cellulose [90], coir [37], coconut [85] and flax [91] fibers are used with NS in the composite mixes (Table 4). Increasing the content of NS with the constant content of 0.5% of forta-ferro reduces workability and increases splitting tensile strength. Up to 2% of NS, the compressive strength improved. Moreover, the porosity and water absorption increase due to fiber addition; these increments can be compensated by increasing content of NS to the mix [30]. The performance of nano cellulose fiber with NS was experimented by a study [90]. The results show that with increasing the amount of NS with a low content of nano cellulose fiber (0.35%) obtained the maximum compressive strength. Moreover, (0.75%) nano celluloFse with up to 1.5% of NS works effectively in terms of tensile strength enhancement. It can be ascribed to the combination of NS with the fiber that affected the hydration reaction due to the existence of single dispersed nano cellulose fibers, in which it works as extra nucleation spots for the hydrates and enhance the activity of the NS. A study [37] shows that the use of coir fiber with NS causes an acceptable reduction in slump flow relative to the other fibers. Additionally, besides the increment of the dosage of NS up to 3.7%, the fiber usage up to 0.2% enhances compressive strength to the maximum, while the water to binder ratio to its minimum (0.42) and fly ash to its maximum (64 kg/m3) were used. As shown in Table 4, the increase in the dosage of coir fiber adversely affects the abrasion resistance of the concrete; however, a decrease in the water binder ratio and increase in NS content reduce the loss in weight of the concrete. This can be attributed to the outcome that the coir fibers are not able to fill the voids completely. From the observations in a study [85], it can be concluded that as the percentage of NS in the concrete increases, with the same 1% content of coconut fiber, the loss in the workability also increases as compared to the conventional concrete sample. On the other hand, with 0.5% of NS, the compressive strength reaches to its maximum effect, and any further usage of nano will reduce that effect. Moreover, a study [91] reports that usage of Flax fiber with NS significantly improves flexural strength of geopolymer composites and reduces the degradation of the flax fiber. With 10 layers of flax fiber, 1% of NS scored the optimum results in terms of flexural strength and density of the geoplymer composite mixes. This may be due to densifying of the mix while NS has a low specific weight relative to fly ash and enhancing the adhesion of the fiber with the sounded matrix.
Despite the aforementioned types of nanomaterials and fibers, Table 5 depicts the simultaneous usage of other types of nanomaterials and Fibers. A study [84] found that when perlite was added to nano metakaolin contained and linen fiber reinforced cementitious composites, the flexural strength, density and thermal conductivity reduce remarkably. Thus, the use of a natural fiber such as linen, which has a porous core, with perlites in the production of lightweight material is beneficial in terms of heat transfer and energy consumption. Another study [71] found that usage of recycled carbon nano black with waste wire erosion as fiber remarkably improves compressive and flexural strength as well as electrical conductivity. However, the use of carbon fiber with WWE may triple the cost of the mixes. On the other hand, the compressive strength reduces, but the electrical conductivity and impact energy improve tremendously, which may serve in the smart concrete production [71]. Calcined nano clay with hemp fibers were used together in cement composites by [88,89,92]. A study [88] concludes that increasing the dosage of NC reduces dry density, and more than 1% of NC increases the porosity of the mix. With 2.5% of HF, using 1% of NC can be considered as an optimum ratio in terms of enhancing the flexural strength and reducing the porosity due to achieving a better fiber/matrix interface. The same phenomena were supported by the experimental outcomes of a study [89], in which by increasing the content of HF from 2.5 to 6.9%, the flexural strength scored an obvious improvement (Table 6). When NC was introduced to HF [92] and flax fiber [93], the natural fibers experienced less degradation; accordingly, the durability of the natural fiber reinforced mixes improved. Furthermore, the sequence of implemented studies by [88,89,92,94] recommends the use of 6.9% of NaOH treated HF with 1% of NC, and any further usage in the NC tends to reduce its positive effect on physical, mechanical, durability and thermal properties.

4. Conclusions

In this pioneer review study, the impact of simultaneous usage of nano and fibers was studied in the various mixes. A variety of nano materials with different types of fibers was investigated for their contributions to the fresh, mechanical and durability performance of the produced mixes. The analyses of obtained data from conducted studies provide crucial insights into the role of the in tandem usage of nanoparticles with fibers in comparison to the control mixes. Accordingly, the following conclusions were drawn from the extensive review of the literature.
Using NS in SF and PVA reinforced mixes does not reduce workability as much as nFe and NC. However, NS is much more active in the workability reduction relative to nAl2O3 and nCaCO3 in PPF and PVA reinforced mixes. Generally, the addition of fibers and nanoparticles, either separately or in combination, decreases the workability of the cementitious mixes. Some SCMs may aid in the partial control of the decrement.
The use of BF in combination with nanomaterials such as NC, NMK and CNT has not resulted in a significant increase in compressive strength. While combining NS and BF heightened compressive strength, with NS to BF ratios ranging from 15 to 30. Using NS up to and above 3% in combination with SF (0.5–1.5%), PPF (0.6–0.8%), GF (0.75–1.5%) and coir fiber (0.2%) will lead to optimal compressive strength. In addition, compressive strength will be compromised by NS dosages of more than 2% with forta-ferro and PVA fiber, as well as 0.5%, 1.5% and 5% with coconut, cellulose and SF, respectively. Moreover, without nano materials, adding PPF will not improve compressive strength; similarly, adding NS with coconut fiber above 1%, PVA and SF above 1.5% would not improve compressive strength. While using CF without nanomaterials enhanced compressive strength marginally, however, using up to 4% nCaCO3 raised compressive strength greatly. Finally, hybrid usages of SF and CF, CF and WWE fiber with RNCB improved compressive strength and flexural strength remarkably.
The addition of nanomaterials such as NS, CNT, NC, NMK and nAl2O3 to BF reinforced mixtures significantly improves flexural strength. Beyond CNT, 0.1% and 3% NS with BF reduce flexural strength, but optimum flexural strength is achieved with 0.2% BF with CNT and a NS/BF ratio of 6–10. Additionally, the optimum value of flexural strength can be achieved by incorporation of 2–5% and 1–2% of NS with 0.2–0.5% of SF and 1–1.5% PVA, respectively. The addition of nanomaterials such as NS, CNT, NC, NMK and nAl2O3 to BF reinforced mixtures significantly improves flexural strength. Beyond CNT, 0.1% and 3% NS with BF reduce flexural strength, but optimum flexural strength is achieved with 0.2% BF with CNT and a NS/BF ratio of 6–10. Moreover, the addition of NS for PVA fiber-reinforced mixed up to 2% improves flexural strength; however, NS with PP should not exceed 1%.
The addition of Nano materials causes the fibers to rapture rather than pull out as the specimens are fractured. Usage of GNP with each SF or SF reduces flexural strength and electrical resistivity. Aside from improving flexural strength, nanomaterials also help to prevent natural fiber degradation in the cementitious mixes.
When nanomaterials with fibers are used, it takes more energy to debond the fiber, resulting in a higher flexural capacity. Excessive amounts of nanomaterials in the mix, on the other hand, produce agglomeration of nanoparticles on the fibers, resulting in fiber pullout due to a weakening of the matrix-fiber link. Higher elastic modulus fibers with PPF concurrently will not be beneficial in boosting flexural strength, but a combination of SF and CF with RNCB scored the best flexural strength performance.
The addition of nanomaterials to GF reinforced mixes significantly improves flexural and splitting tensile performance. Unlike CNT and nAl2O3, adding NC to BF had a negative impact on splitting tensile strength. While PPF is utilized, a modest dose of nano particles is more beneficial in improving tensile strength. The optimum value of splitting tensile strength can be obtained by using 0.6–1.8% of NS with 0.037 to 0.25% of BF, as well as 2–3% NS with 1% of SF, 3% nFe with 2% SF, 1% SF with 6% NMK and 0.25–1% GF with 2–3% NS.
Regarding the durability properties, data were not sufficient. Nevertheless, the following statement can be seen: (i) using BF, with NS improves corrosion and electrical resistivity, with CNT improving frost resistance, with PPF and NS improving shrinkage resistance dramatically; (ii) plastic shrinkage, porosity, water absorption, cracking, freez-thaw and carbonation depth and chloride ion penetration are all reduced when Nano materials and fibers are used together. However, an excessive amount of each nano or fiber causes agglomeration, which has a negative impact on each of the characteristics stated; (iii) carbonation resistance due to difficult CO2 diffusion improves with the addition of nanomaterials such as NS to fiber-reinforced mixes; (iv) in terms of permeability resistance, cracking resistance and freezing-thawing resistance, combining either of NS or nCaCO3 less than 2% with PVA fiber significantly increases the cementitious composites’ durability.
Based on the collected data, it can be said that studies regarding the durability properties and life cycle assessment, cost and toxicity of concrete containing both fiber and nanomaterials are very scarce as well as their microstructure. Because of its pozzolan and filling effect, most researchers focused on using NS with fibers. In many domains of technical and durability performance, there is a pressing need to investigate additional nanomaterials with fibers.

Author Contributions

Conceptualization, T.H. and R.K.; methodology, T.H. and R.K.; software, T.H. and R.K.; validation, R.K., M.M. and R.A.; formal analysis, T.H. and R.K.; investigation, T.H. and R.K.; resources, T.H. and R.K.; data curation, T.H.; writing—original draft preparation, T.H.; writing—review and editing, R.K., M.M. and R.A.; visualization, R.K.; supervision, M.M. and R.K.; project administration, R.K.. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Acronyms

PPFPolypropylene fiber
PVAPolyvinyl alcohol
NSNano silica
HFHemp fabric
nCaCO3Nano calcium carbonate
CNTCarbon nano tube
NMKNano metakaolin
SFSteel fiber
GFGlass fiber
NCNano clay
nTiO2Nano titanium dioxide
GNPGraphene nan oplatelets
BFBasalt fiber
CFCarbon fiber
SCMSupplementary cementitious material
nFeNano Iron
nAl2O3Nano aluminium oxid
RNCBRecycled nano carbon black

References

  1. Shafei, B.; Kazemian, M.; Dopko, M.; Najimi, M. State-of-the-Art Review of Capabilities and Limitations of Polymer and Glass Fibers Used for Fiber-Reinforced Concrete. Materials 2021, 14, 409. [Google Scholar] [CrossRef] [PubMed]
  2. Dehkordi, M.T.; Nosraty, H.; Shokrieh, M.M.; Minak, G.; Ghelli, D. The influence of hybridization on impact damage behavior and residual compression strength of intraply basalt/nylon hybrid composites. Mater. Des. 2013, 43, 283–290. [Google Scholar] [CrossRef]
  3. López-Buendía, A.M.; Romero-Sánchez, M.D.; Climent, V.; Guillem, C. Surface treated polypropylene (PP) fibres for reinforced concrete. Cem. Concr. Res. 2013, 54, 29–35. [Google Scholar] [CrossRef]
  4. de Brito, J.; Kurda, R. The past and future of sustainable concrete: A critical review and new strategies on cement-based materials. J. Clean. Prod. 2021, 281, 123558. [Google Scholar] [CrossRef]
  5. Liu, F.; Xu, K.; Ding, W.; Qiao, Y.; Wang, L. Microstructural characteristics and their impact on mechanical properties of steel-PVA fiber reinforced concrete. Cem. Concr. Compos. 2021, 123, 104196. [Google Scholar] [CrossRef]
  6. Xu, H.; Shao, Z.; Wang, Z.; Cai, L.; Li, Z.; Jin, H.; Chen, T. Experimental study on mechanical properties of fiber reinforced concrete: Effect of cellulose fiber, polyvinyl alcohol fiber and polyolefin fiber. Constr. Build. Mater. 2020, 261, 120610. [Google Scholar] [CrossRef]
  7. Si, W.; Cao, M.; Li, L. Establishment of fiber factor for rheological and mechanical performance of polyvinyl alcohol (PVA) fiber reinforced mortar. Constr. Build. Mater. 2020, 265, 120347. [Google Scholar] [CrossRef]
  8. Liew, K.; Akbar, A. The recent progress of recycled steel fiber reinforced concrete. Constr. Build. Mater. 2020, 232, 117232. [Google Scholar] [CrossRef]
  9. Wang, Y.; Zhang, S.; Luo, D.; Shi, X. Effect of chemically modified recycled carbon fiber composite on the mechanical properties of cementitious mortar. Compos. Part B Eng. 2019, 173, 106853. [Google Scholar] [CrossRef]
  10. Bheel, N. Basalt fibre-reinforced concrete: Review of fresh and mechanical properties. J. Build. Pathol. Rehabil. 2021, 6, 1–9. [Google Scholar] [CrossRef]
  11. Safiuddin, M.; Gonzalez, M.; Cao, J.; Tighe, S.L. State-of-the-art report on use of nano-materials in concrete. Int. J. Pavement Eng. 2014, 15, 940–949. [Google Scholar] [CrossRef]
  12. Olafusi, O.S.; Sadiku, E.R.; Snyman, J.; Ndambuki, J.M.; Kupolati, W.K. Application of nanotechnology in concrete and supplementary cementitious materials: A review for sustainable construction. SN Appl. Sci. 2019, 1, 1–8. [Google Scholar] [CrossRef] [Green Version]
  13. Sanchez, F.; Sobolev, K. Nanotechnology in concrete—A review. Constr. Build. Mater. 2010, 24, 2060–2071. [Google Scholar] [CrossRef]
  14. Balaguru, P.; Chong, K. Nanotechnology and concrete: Research opportunities. In Proceedings of the ACI Session on Nanotechnology of Concrete: Recent Developments and Future Perspectives, Denver, CO, USA, 7 November 2006; pp. 15–28. [Google Scholar]
  15. Gay, C.; Sanchez, F. Performance of carbon nanofiber–cement composites with a high-range water reducer. Transp. Res. Rec. 2010, 2142, 109–113. [Google Scholar] [CrossRef]
  16. Norhasri, M.M.; Hamidah, M.; Fadzil, A.M. Applications of using nano material in concrete: A review. Constr. Build. Mater. 2017, 133, 91–97. [Google Scholar] [CrossRef]
  17. Nazar, S.; Yang, J.; Thomas, B.S.; Azim, I.; Rehman, S.K.U. Rheological properties of cementitious composites with and without nano-materials: A comprehensive review. J. Clean. Prod. 2020, 272, 122701. [Google Scholar] [CrossRef]
  18. Roussel, N. Thixotropy: From measurement to casting of concrete. In Understanding the Rheology of Concrete; Elsevier: Amsterdam, The Netherlands, 2012; pp. 286–295. [Google Scholar]
  19. Morsy, M.; Alsayed, S.; Aqel, M. Hybrid effect of carbon nanotube and nano-clay on physico-mechanical properties of cement mortar. Constr. Build. Mater. 2011, 25, 145–149. [Google Scholar] [CrossRef]
  20. Bautista-Gutierrez, K.P.; Herrera-May, A.L.; Santamaría-López, J.M.; Honorato-Moreno, A.; Zamora-Castro, S.A. Recent progress in nanomaterials for modern concrete infrastructure: Advantages and challenges. Materials 2019, 12, 3548. [Google Scholar] [CrossRef] [Green Version]
  21. Muzenski, S.; Flores-Vivian, I.; Sobolev, K. Ultra-high strength cement-based composites designed with aluminum oxide nano-fibers. Constr. Build. Mater. 2019, 220, 177–186. [Google Scholar] [CrossRef]
  22. Xing, X.; Xu, J.; Bai, E.; Zhu, J.; Wang, Y. Response surface research of the preparation of nano-Fe2O3 cement-based composite. Mater. Rep. 2018, 32, 1367–1372. [Google Scholar]
  23. Mutuk, H.; Mutuk, T.; Gümüş, H.; Oktay, B.M. Shielding behaviors and analysis of mechanical treatment of cements containing nanosized powders. Acta Phys. Pol. A 2016, 130, 172–174. [Google Scholar] [CrossRef]
  24. Barbhuiya, G.H.; Moiz, M.A.; Hasan, S.D.; Zaheer, M.M. Effects of the nanosilica addition on cement concrete: A review. Mater. Today: Proc. 2020, 32, 560–566. [Google Scholar] [CrossRef]
  25. Li, G.; Cui, H.; Zhou, J.; Hu, W. Improvements of nano-TiO2 on the long-term chloride resistance of concrete with polymer coatings. Coatings 2019, 9, 323. [Google Scholar] [CrossRef] [Green Version]
  26. Li, G.; Hu, W.; Cui, H.; Zhou, J. Long-term effectiveness of carbonation resistance of concrete treated with nano-SiO2 modified polymer coatings. Constr. Build. Mater. 2019, 201, 623–630. [Google Scholar] [CrossRef]
  27. Forood Torabian Isfahani, E.R.; Lollini, F.; Li, W.; Bertolini, L. Effects of Nanosilica on Compressive Strength and Durability Properties of Concrete with Different Water to Binder Ratios. Adv. Mater. Sci. Eng. 2016, 2016, 845–3567. [Google Scholar] [CrossRef] [Green Version]
  28. Piro, N.S.; Mohammed, A.S.; Hamad, S.M. Multiple Analytical Models to Evaluate the Impact of Carbon Nanotubes on the Electrical Resistivity and Compressive Strength of the Cement Paste. Sustainability 2021, 13, 12544. [Google Scholar] [CrossRef]
  29. Wang, Y.; Hughes, P.; Niu, H.; Fan, Y. A new method to improve the properties of recycled aggregate concrete: Composite addition of basalt fiber and nano-silica. J. Clean. Prod. 2019, 236, 117602. [Google Scholar] [CrossRef]
  30. Hasan-Nattaj, F.; Nematzadeh, M. The effect of forta-ferro and steel fibers on mechanical properties of high-strength concrete with and without silica fume and nano-silica. Constr. Build. Mater. 2017, 137, 557–572. [Google Scholar] [CrossRef]
  31. Ghanbari, M.; Kohnehpooshi, O.; Tohidi, M. Experimental study of the combined use of fiber and nano silica particles on the properties of lightweight self compacting concrete. Int. J. Eng. 2020, 33, 1499–1511. [Google Scholar]
  32. Zhang, P.; Wang, K.; Wang, J.; Guo, J.; Hu, S.; Ling, Y. Mechanical properties and prediction of fracture parameters of geopolymer/alkali-activated mortar modified with PVA fiber and nano-SiO2. Ceram. Int. 2020, 46, 20027–20037. [Google Scholar] [CrossRef]
  33. Ling, Y.-F.; Zhang, P.; Wang, J.; Shi, Y. Effect of sand size on mechanical performance of cement-based composite containing PVA fibers and nano-SiO2. Materials 2020, 13, 325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Belli, A.; Mobili, A.; Bellezze, T.; Tittarelli, F.; Cachim, P. Evaluating the self-sensing ability of cement mortars manufactured with graphene nanoplatelets, virgin or recycled carbon fibers through piezoresistivity tests. Sustainability 2018, 10, 4013. [Google Scholar] [CrossRef] [Green Version]
  35. Salemi, N.; Behfarnia, K. Effect of nano-particles on durability of fiber-reinforced concrete pavement. Constr. Build. Mater. 2013, 48, 934–941. [Google Scholar] [CrossRef]
  36. Feng, H.; Lv, L.; Pang, Y.; Wang, Z.; Gao, D.; Zhang, Z. Experimental study on the effects of the fiber and nano-Fe2O3 on the properties of the magnesium potassium phosphate cement composites. J. Mater. Res. Technol. 2020, 9, 14307–14320. [Google Scholar] [CrossRef]
  37. Gupta, M.; Kumar, M. Effect of nano silica and coir fiber on compressive strength and abrasion resistance of concrete. Constr. Build. Mater. 2019, 226, 44–50. [Google Scholar] [CrossRef]
  38. Lumingkewas, R.H.; Yuwono, A.H.; Hadiwardoyo, S.P.; Saparudin, D. The Compressive Strength of Coconut Fibers Reinforced Nano Concrete Composite; Materials Science Forum; Trans Tech Publications: Shenzhen, China, 2019; pp. 105–110. [Google Scholar]
  39. Ibrahim, K. The effect of fibers type and content on nano silica concrete Nsc. J. Mech. Civ. Eng. 2017, 14, 27–34. [Google Scholar] [CrossRef]
  40. Zhang, M.-h.; Li, H. The Resistance to Chloride Penetration of Concrete Containing Nano-Particles for Pavement. In Testing, Reliability, and Application of Micro-and Nano-Material Systems IV; International Society for Optics and Photonics: Belengham, WA, USA, 2006; p. 61750. [Google Scholar] [CrossRef]
  41. Ling, Y.; Zhang, P.; Wang, J.; Taylor, P.; Hu, S. Effects of nanoparticles on engineering performance of cementitious composites reinforced with PVA fibers. Nanotechnol. Rev. 2020, 9, 504–514. [Google Scholar] [CrossRef]
  42. Fallah, S.; Nematzadeh, M. Mechanical properties and durability of high-strength concrete containing macro-polymeric and polypropylene fibers with nano-silica and silica fume. Constr. Build. Mater. 2017, 132, 170–187. [Google Scholar] [CrossRef]
  43. Chu, S.; Li, L.; Kwan, A. Development of extrudable high strength fiber reinforced concrete incorporating nano calcium carbonate. Addit. Manuf. 2021, 37, 101617. [Google Scholar] [CrossRef]
  44. Bakar, A.A. Effects of Nano Silica and Basalt Fibers on Fly Ash Based Geopolymer Concrete; North Dakota State University: Fargo, ND, USA, 2018. [Google Scholar]
  45. Adetukasi, A.; Fadugba, O.; Adebakin, I.; Omokungbe, O. Strength characteristics of fibre-reinforced concrete containing nano-silica. Mater. Today Proc. 2021, 38, 584–589. [Google Scholar] [CrossRef]
  46. Mastali, M.; Dalvand, A. The impact resistance and mechanical properties of fiber reinforced self-compacting concrete (SCC) containing nano-SiO2 and silica fume. Eur. J. Environ. Civ. Eng. 2018, 22, 1–27. [Google Scholar] [CrossRef]
  47. Mohammed, B.S.; Achara, B.E.; Nuruddin, M.F.; Yaw, M.; Zulkefli, M.Z. Properties of nano-silica-modified self-compacting engineered cementitious composites. J. Clean. Prod. 2017, 162, 1225–1238. [Google Scholar] [CrossRef]
  48. Sun, X.; Wang, Q.; Wang, H.; Chen, L. Influence of multi-walled nanotubes on the fresh and hardened properties of a 3D printing PVA mortar ink. Constr. Build. Mater. 2020, 247, 118590. [Google Scholar] [CrossRef]
  49. Wu, Z.; Shi, C.; Khayat, K.H. Multi-scale investigation of microstructure, fiber pullout behavior, and mechanical properties of ultra-high performance concrete with nano-CaCO3 particles. Cem. Concr. Compos. 2018, 86, 255–265. [Google Scholar] [CrossRef]
  50. Shalby, O.B.; Elkady, H.M.; Nasr, E.A.R.; Kohail, M. Assessment of mechanical and fire resistance for hybrid nano-clay and steel fibres concrete at different curing ages. J. Struct. Fire Eng. 2019, 11, 189–203. [Google Scholar] [CrossRef]
  51. Sheng, Z.L.; Duan, Y.F.; Xia, D.T.; Thierry, O. Effect of Nanomaterials on Mechanical Properties of Fiber Reinforced Concrete; Key Engineering Materials; Trans Tech Publications: Shenzhen, China, 2020; pp. 59–69. [Google Scholar]
  52. Ghazy, A.; Bassuoni, M.T.; Maguire, E.; O’Loan, M. Properties of fiber-reinforced mortars incorporating nano-silica. Fibers 2016, 4, 6. [Google Scholar] [CrossRef] [Green Version]
  53. Mahmoud, K.; Ghazy, A.; Bassuoni, M.T.; El-Salakawy, E. Properties of nanomodified fiber-reinforced cementitious composites. J. Mater. Civ. Eng. 2017, 29, 04017173. [Google Scholar] [CrossRef]
  54. Bedwiy, A.; Bassuoni, M.T.; El-Salakawy, E. Post-Cracking Behavior of Cementitious Composite Incorporating Nano-Silica and Basalt Fiber Pellets. In Proceedings of the International Conference on Durability of Concrete Structures, Leeds, UK, 18–20 July 2018. [Google Scholar]
  55. Azzam, A.; Bassuoni, M.; Shalaby, A. Nano-Modified Cementitious Composites with High Volume Supplementary Cementitious Materials Incorporating Basalt Fiber Pellets. In Proceedings of the Fifth International Conference on Sustainable Construction Materials and Technologies, London, UK, 14–17 July 2019. [Google Scholar]
  56. Larisa, U.; Solbon, L.; Sergei, B. Fiber-reinforced concrete with mineral fibers and nanosilica. Procedia Eng. 2017, 195, 147–154. [Google Scholar] [CrossRef]
  57. Ghadikolaeea, M.R.; Korayem, A.H. Asghar Habibnejad Korayem c, Development of the mechanical properties of basalt fiberreinforced cementitious composite using nano-silica. In Proceedings of the 2nd International Congress on Engineering, Technology and Innovation, Darmstadt, Germany, 24–26 April 2020. [Google Scholar]
  58. Saraykina, K.; Shamanov, V. Nanostructured BasaltfiberConcrete Exploitational Characteristics; IOP Conference Series: Materials Science and Engineering; IOP Publishing: Chelyabinsk, Russia, 2017; p. 012016. [Google Scholar]
  59. Girgin, Z.C. Effect of slag, nano clay and metakaolin on mechanical performance of basalt fibre cementitious composites. Constr. Build. Mater. 2018, 192, 70–84. [Google Scholar] [CrossRef]
  60. Tanzadeh, J. Laboratory evaluation of self-compacting fiber-reinforced concrete modified with hybrid of nanomaterials. Constr. Build. Mater. 2020, 232, 117211. [Google Scholar]
  61. Khaloo, A.; Mobini, M.H.; H osseini, P. Influence of different types of nano-SiO2 particles on properties of high-performance concrete. Constr. Build. Mater. 2016, 113, 188–201. [Google Scholar] [CrossRef]
  62. Mohammadyan-Yasouj, S.E.; Ghaderi, A. Experimental investigation of waste glass powder, basalt fibre, and carbon nanotube on the mechanical properties of concrete. Constr. Build. Mater. 2020, 252, 119115. [Google Scholar] [CrossRef]
  63. Niaki, M.H.; Fereidoon, A.; Ahangari, M.G. Experimental study on the mechanical and thermal properties of basalt fiber and nanoclay reinforced polymer concrete. Compos. Struct. 2018, 191, 231–238. [Google Scholar] [CrossRef]
  64. Nik, A.S.; Omran, O.L. Estimation of compressive strength of self-compacted concrete with fibers consisting nano-SiO2 using ultrasonic pulse velocity. Constr. Build. Mater. 2013, 44, 654–662. [Google Scholar]
  65. Zhang, P.; Zhao, Y.-N.; Li, Q.-F.; Zhang, T.-H.; Wang, P. Mechanical properties of fly ash concrete composite reinforced with nano-SiO 2 and steel fibre. Curr. Sci. 2014, 1529–1537. [Google Scholar]
  66. Zhang, P.; Li, Q.; Chen, Y.; Shi, Y.; Ling, Y.-F. Durability of steel fiber-reinforced concrete containing SiO2 nano-particles. Materials 2019, 12, 2184. [Google Scholar] [CrossRef] [Green Version]
  67. Lam, T.Q.K.; Do, T.M.D.; Ngo, V.; Nguyen, T.C. Increased plasticity of nano concrete with steel fibers. Инженернo-Стрoительный Журнал 2020, 1, 27–34. [Google Scholar]
  68. Rabiaa, E.; Mohamed, R.; Sofi, W.; Tawfik, T.A. Developing Geopolymer Concrete Properties by Using Nanomaterials and Steel Fibers. Adv. Mater. Sci. Eng. 2020, 2020, 5186091. [Google Scholar] [CrossRef]
  69. Elboghdadi, A.S.; Elkady, H.M.; Salem, H.M.; Farahat, A.M. Combined Effect of Nano Silica and Steel Fiber on Compressive Strength and Water Permeability of Concrete. Int. J. Mod. Eng. Res. 2015, 5, 27–34. [Google Scholar]
  70. Elkady, H.M.; Yasien, A.M.; Elfeky, M.S.; Serag, M.E. Assessment of mechanical strength of nano silica concrete (NSC) subjected to elevated temperatures. J. Struct. Fire Eng. 2019, 10, 90–109. [Google Scholar] [CrossRef]
  71. Dehghanpour, H.; Yilmaz, K.; Ipek, M. Evaluation of recycled nano carbon black and waste erosion wires in electrically conductive concretes. Constr. Build. Mater. 2019, 221, 109–121. [Google Scholar] [CrossRef]
  72. Sanchez, F.; Ince, C. Microstructure and macroscopic properties of hybrid carbon nanofiber/silica fume cement composites. Compos. Sci. Technol. 2009, 69, 1310–1318. [Google Scholar] [CrossRef]
  73. Beigi, M.H.; Berenjian, J.; Omran, O.L.; Nik, A.S.; Nikbin, I.M. An experimental survey on combined effects of fibers and nanosilica on the mechanical, rheological, and durability properties of self-compacting concrete. Mater. Des. 2013, 50, 1019–1029. [Google Scholar] [CrossRef]
  74. Alhozaimy, A.; Soroushian, P.; Mirza, F. Mechanical properties of polypropylene fiber reinforced concrete and the effects of pozzolanic materials. Cem. Concr. Compos. 1996, 18, 85–92. [Google Scholar] [CrossRef]
  75. Banthia, N.; Gupta, R. Influence of polypropylene fiber geometry on plastic shrinkage cracking in concrete. Cem. Concr. Res. 2006, 36, 1263–1267. [Google Scholar] [CrossRef]
  76. Berra, M.; Carassiti, F.; Mangialardi, T.; Paolini, A.; Sebastiani, M. Effects of nanosilica addition on workability and compressive strength of Portland cement pastes. Constr. Build. Mater. 2012, 35, 666–675. [Google Scholar] [CrossRef]
  77. Toutanji, H.; McNeil, S.; Bayasi, Z. Chloride permeability and impact resistance of polypropylene-fiber-reinforced silica fume concrete. Cem. Concr. Res. 1998, 28, 961–968. [Google Scholar] [CrossRef]
  78. Zhang, P.; Li, Q.; Wang, J.; Shi, Y.; Zheng, Y.; Ling, Y. Effect of Nano-particle on Durability of PVA Fiber Reinforced Cementitious Composite. Sci. Adv. Mater. 2020, 12, 249–262. [Google Scholar] [CrossRef]
  79. Liu, X.; Chen, L.; Liu, A.; Wang, X. Effect of nano-CaCO3 on properties of cement paste. Energy Procedia 2012, 16, 991–996. [Google Scholar] [CrossRef] [Green Version]
  80. Ho, C.M.; Tsai, W.T. Effect of Elevated Temperature on the Strength and Ultrasonic Pulse Velocity of Glass Fiber and Nano-Clay Concrete. In Advanced Materials Research; Trans Tech Publications: Zurich, Switzerland, 2011; pp. 1532–1539. [Google Scholar] [CrossRef]
  81. Abbas, A.-A. The effect of steel fiber on some mechanical properties of self compacting concrete. Am. J. Civ. Eng. 2013, 1, 102–110. [Google Scholar]
  82. Mukharjee, B.B.; Barai, S.V. Influence of nano-silica on the properties of recycled aggregate concrete. Constr. Build. Mater. 2014, 55, 29–37. [Google Scholar] [CrossRef]
  83. Chen, B.; Liu, J. Contribution of hybrid fibers on the properties of the high-strength lightweight concrete having good workability. Cem. Concr. Res. 2005, 35, 913–917. [Google Scholar] [CrossRef]
  84. Shoukry, H.; Kotkata, M.; Abo-EL-Enein, S.; Morsy, M.; Shebl, S. Thermo-physical properties of nanostructured lightweight fiber reinforced cementitious composites. Constr. Build. Mater. 2016, 102, 167–174. [Google Scholar] [CrossRef]
  85. Lumingkewas, R.H. Development of Materials for Construction with Low Environmental Impact Made with Low Content of Cement and with Natural Fibers; Université de Bretagne Sud: 2015. Available online: https://tel.archives-ouvertes.fr/tel-01321478 (accessed on 20 September 2021).
  86. Yazdani, N.; Mohanam, V. Carbon nano-tube and nano-fiber in cement mortar: Effect of dosage rate and water-cement ratio. Int. J. Mater. Sci. 2014, 4, 45–52. [Google Scholar] [CrossRef]
  87. Sassani, A.; Ceylan, H.; Kim, S.; Arabzadeh, A.; Taylor, P.C.; Gopalakrishnan, K. Development of carbon fiber-modified electrically conductive concrete for implementation in Des Moines International Airport. Case Stud. Constr. Mater. 2018, 8, 277–291. [Google Scholar] [CrossRef]
  88. Hakamy, A.; Shaikh, F.; Low, I.M. Microstructures and mechanical properties of hemp fabric reinforced organoclay–cement nanocomposites. Constr. Build. Mater. 2013, 49, 298–307. [Google Scholar] [CrossRef]
  89. Hakamy, A.; Shaikh, F.; Low, I.M. Effect of calcined nanoclay on microstructural and mechanical properties of chemically treated hemp fabric-reinforced cement nanocomposites. Constr. Build. Mater. 2015, 95, 882–891. [Google Scholar] [CrossRef] [Green Version]
  90. El-Feky, M.S.; Youssef, P.; El-Tair, A.M.; Ibrahim, S.; Serag, M. Effect of nano silica addition on enhancing the performance of cement composites reinforced with nano cellulose fibers. AIMS Mater. Sci. 2019, 6, 864–883. [Google Scholar] [CrossRef]
  91. Assaedi, H.; Alomayri, T.; Shaikh, F.; Low, I.-M. Influence of nano silica particles on durability of flax fabric reinforced geopolymer composites. Materials 2019, 12, 1459. [Google Scholar] [CrossRef] [Green Version]
  92. Hakamy, A.; Shaikh, F.; Low, I.M. Effect of calcined nanoclay on the durability of NaOH treated hemp fabric-reinforced cement nanocomposites. Mater. Des. 2016, 92, 659–666. [Google Scholar] [CrossRef]
  93. Aly, M.; Hashmi, M.; Olabi, A.; Messeiry, M.; Hussain, A.; Abadir, E. Effect of nano-clay and waste glass powder on the properties of flax fibre reinforced mortar. ARPN J. Eng. Appl. Sci. 2011, 6, 19–28. [Google Scholar]
  94. Assaedi, H.; Shaikh, F.; Low, I.M. Effect of nanoclay on durability and mechanical properties of flax fabric reinforced geopolymer composites. J. Asian Ceram. Soc. 2017, 5, 62–70. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Relative compressive strength of mixes containing BF and NS [44,51,52,53,54,55].
Figure 1. Relative compressive strength of mixes containing BF and NS [44,51,52,53,54,55].
Sustainability 14 03464 g001
Figure 2. Relative flexural strength of mixes containing BF and NS [29,51,52,54,55,56].
Figure 2. Relative flexural strength of mixes containing BF and NS [29,51,52,54,55,56].
Sustainability 14 03464 g002
Figure 3. Relative splitting tensile strength of NS contained BF reinforced concrete [29,51,57].
Figure 3. Relative splitting tensile strength of NS contained BF reinforced concrete [29,51,57].
Sustainability 14 03464 g003
Figure 4. SEM of Nano modified basalt fiber reinforced cementitious mixes. (a) Basalt fiber reinfoced concrete without nanomaterials [60]; (b) Basalt fiber reinfoced concrete without nanomatreials [29]; (c) 3% NS conatined basalt fiber reinforced concrete [29]; (d) 1% NS with basalt fiber boiled in calcium hydoxide [56]; (e) Microcracks on geopolymer concrete [44]; (f) Unreacted fly ash on geopolymer concrete [44].
Figure 4. SEM of Nano modified basalt fiber reinforced cementitious mixes. (a) Basalt fiber reinfoced concrete without nanomaterials [60]; (b) Basalt fiber reinfoced concrete without nanomatreials [29]; (c) 3% NS conatined basalt fiber reinforced concrete [29]; (d) 1% NS with basalt fiber boiled in calcium hydoxide [56]; (e) Microcracks on geopolymer concrete [44]; (f) Unreacted fly ash on geopolymer concrete [44].
Sustainability 14 03464 g004

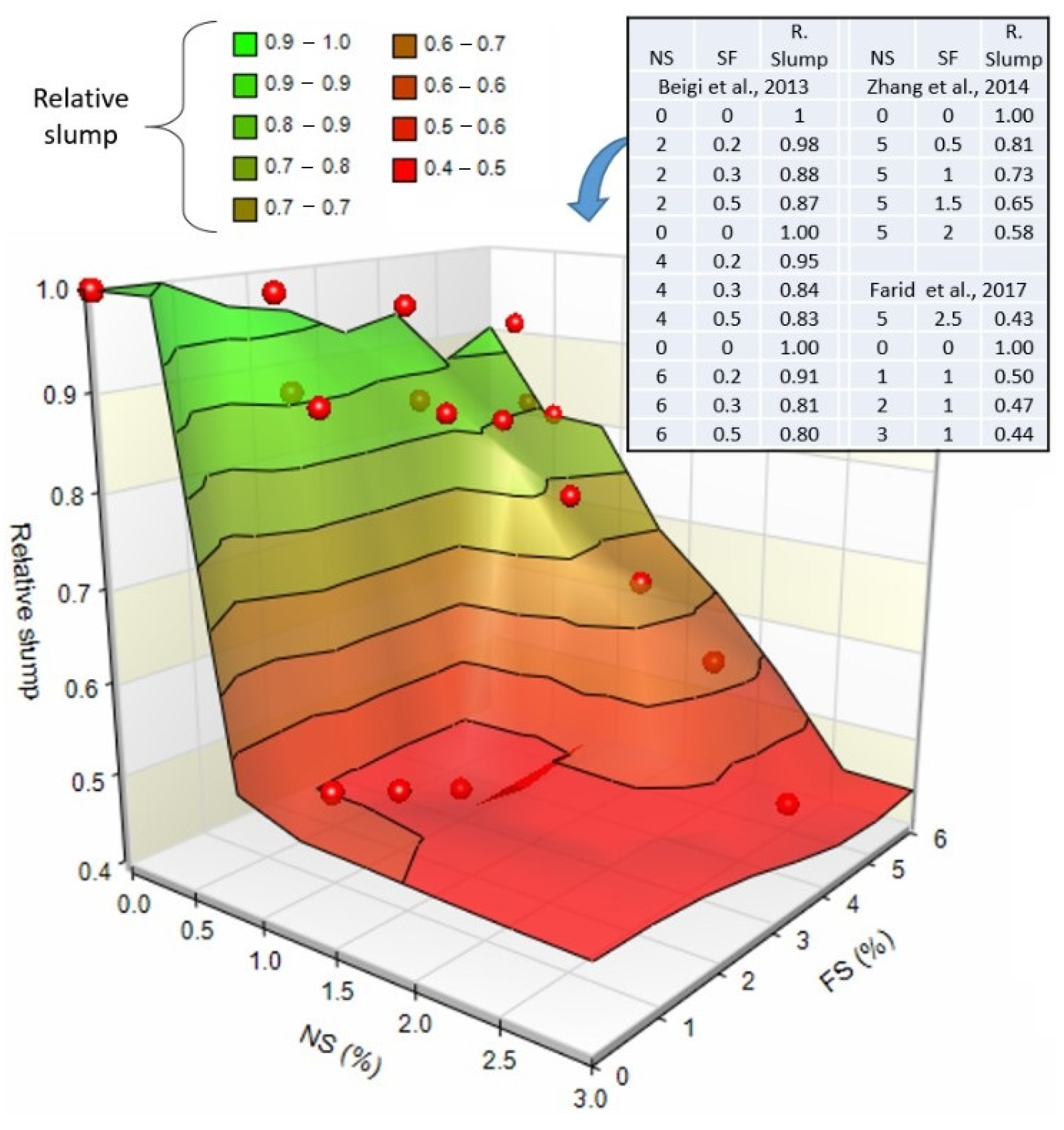

Figure 5. Relative slump of SF reinforced NS contained composites [65,73].
Figure 5. Relative slump of SF reinforced NS contained composites [65,73].
Sustainability 14 03464 g005
Figure 6. Compressive strength of Nano silica modified and BF reinforced cementitious composites.
Figure 6. Compressive strength of Nano silica modified and BF reinforced cementitious composites.
Sustainability 14 03464 g006
Figure 7. Relative compressive strength of SF reinforced composites incorporating different nanomaterials [36,49,71].
Figure 7. Relative compressive strength of SF reinforced composites incorporating different nanomaterials [36,49,71].
Sustainability 14 03464 g007
Figure 8. Relative flexural strength of SF reinforced and NS contained cementitious composites [52,54,68,73].
Figure 8. Relative flexural strength of SF reinforced and NS contained cementitious composites [52,54,68,73].
Sustainability 14 03464 g008
Figure 9. Relative flexural strength of SF and CF reinforced cementitious composites containing nCaCO3 and RNCB [49,71].
Figure 9. Relative flexural strength of SF and CF reinforced cementitious composites containing nCaCO3 and RNCB [49,71].
Sustainability 14 03464 g009
Figure 10. Relative splitting tensile strength of cementitious composites reinforced with SF and (a) NS [52,54,68,73], (b) nFe [36].
Figure 10. Relative splitting tensile strength of cementitious composites reinforced with SF and (a) NS [52,54,68,73], (b) nFe [36].
Sustainability 14 03464 g010
Figure 11. Microstructure of cementitious composites contained nanomaterials and SF: SF reinforced (a) without nanomaterial [49], (b) with 2% nFe [36], (c) with 6.4% nCaCO3 [49], (d) with 1.5% NS [69], (e) with 6.4% nCaCO3 [49], (f) 5% nFe [36].
Figure 11. Microstructure of cementitious composites contained nanomaterials and SF: SF reinforced (a) without nanomaterial [49], (b) with 2% nFe [36], (c) with 6.4% nCaCO3 [49], (d) with 1.5% NS [69], (e) with 6.4% nCaCO3 [49], (f) 5% nFe [36].
Sustainability 14 03464 g011aSustainability 14 03464 g011b

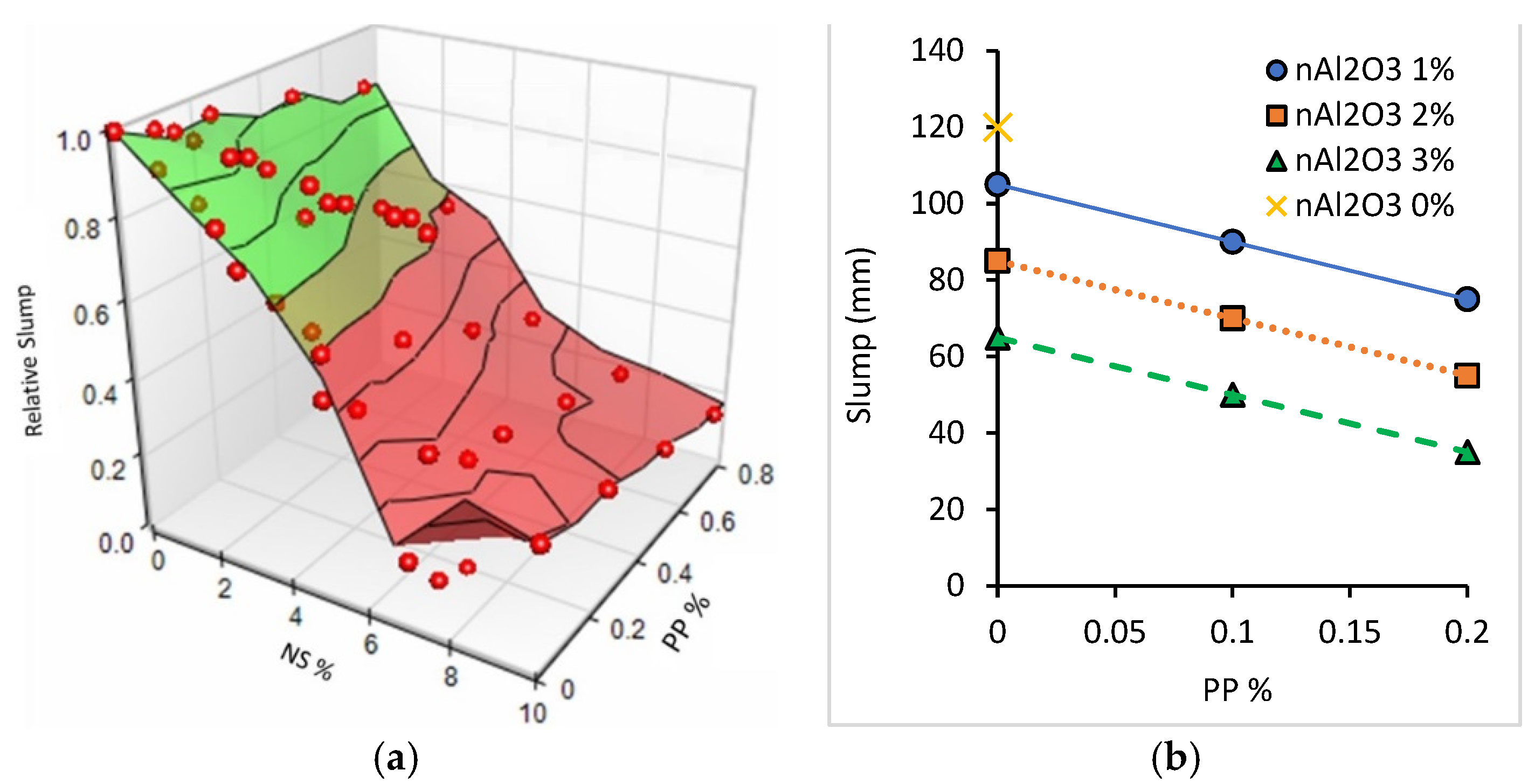

Figure 12. Slump of PPF reinforced cementitious composites containing (a) NS [35,45,73] and (b) nAl2O3 [35].
Figure 12. Slump of PPF reinforced cementitious composites containing (a) NS [35,45,73] and (b) nAl2O3 [35].
Sustainability 14 03464 g012
Figure 13. Relative compressive strength of PPF reinforced NS contained cementitious composites [35,39,42,52,53].
Figure 13. Relative compressive strength of PPF reinforced NS contained cementitious composites [35,39,42,52,53].
Sustainability 14 03464 g013
Figure 14. Relative flexural strength of NS and PP contained SCC [73].
Figure 14. Relative flexural strength of NS and PP contained SCC [73].
Sustainability 14 03464 g014
Figure 15. Relative splitting tensile strength of PP reinforced and NS contained mixes [42,45,46,73].
Figure 15. Relative splitting tensile strength of PP reinforced and NS contained mixes [42,45,46,73].
Sustainability 14 03464 g015

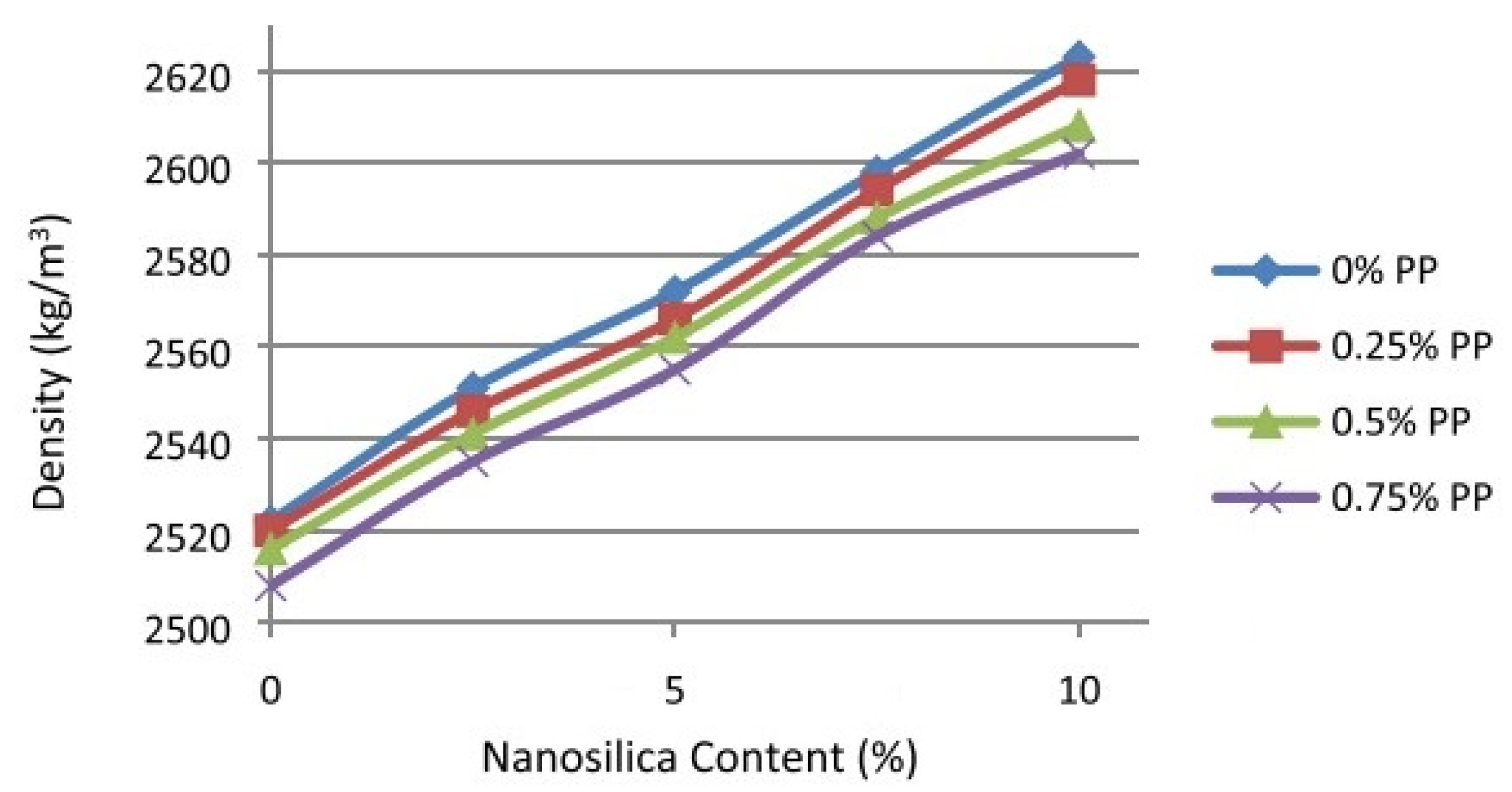

Figure 16. Effect of the use of NS and PPF on density of cementitious composites [45].
Figure 16. Effect of the use of NS and PPF on density of cementitious composites [45].
Sustainability 14 03464 g016
Figure 17. SEM of PP reinforced NS contained concrete [46].
Figure 17. SEM of PP reinforced NS contained concrete [46].
Sustainability 14 03464 g017
Figure 18. Relative Slump of PVA reinforced NS contained cementitious composites [41,78].
Figure 18. Relative Slump of PVA reinforced NS contained cementitious composites [41,78].
Sustainability 14 03464 g018
Figure 19. Compressive strength of PVA reinforced NS contained ECC [47].
Figure 19. Compressive strength of PVA reinforced NS contained ECC [47].
Sustainability 14 03464 g019
Figure 20. Relative flexural strength of PVA reinforced Nano material contained cementesious composites [33,41,47].
Figure 20. Relative flexural strength of PVA reinforced Nano material contained cementesious composites [33,41,47].
Sustainability 14 03464 g020
Figure 21. Micro structure of PVA reinforced cementitious composite (a) without NS [41], (b) with NS [41], (c) with NS [32], (d) with nCaCO3 [32].
Figure 21. Micro structure of PVA reinforced cementitious composite (a) without NS [41], (b) with NS [41], (c) with NS [32], (d) with nCaCO3 [32].
Sustainability 14 03464 g021
Figure 22. PVA reinforced and carbon nanotube contained printing mortar [48].
Figure 22. PVA reinforced and carbon nanotube contained printing mortar [48].
Sustainability 14 03464 g022
Figure 23. Relative Slump value of NS contained and GF reinforced cementitious composites.
Figure 23. Relative Slump value of NS contained and GF reinforced cementitious composites.
Sustainability 14 03464 g023
Figure 24. Relative compressive strength of GF reinforced NS contained cementitious composites.
Figure 24. Relative compressive strength of GF reinforced NS contained cementitious composites.
Sustainability 14 03464 g024
Figure 25. Relative flexural strength of GF reinforced and NS contained cementitious composites.
Figure 25. Relative flexural strength of GF reinforced and NS contained cementitious composites.
Sustainability 14 03464 g025
Figure 26. Relative splitting tensile strength of GF reinforced and NS contained cementitious composites.
Figure 26. Relative splitting tensile strength of GF reinforced and NS contained cementitious composites.
Sustainability 14 03464 g026

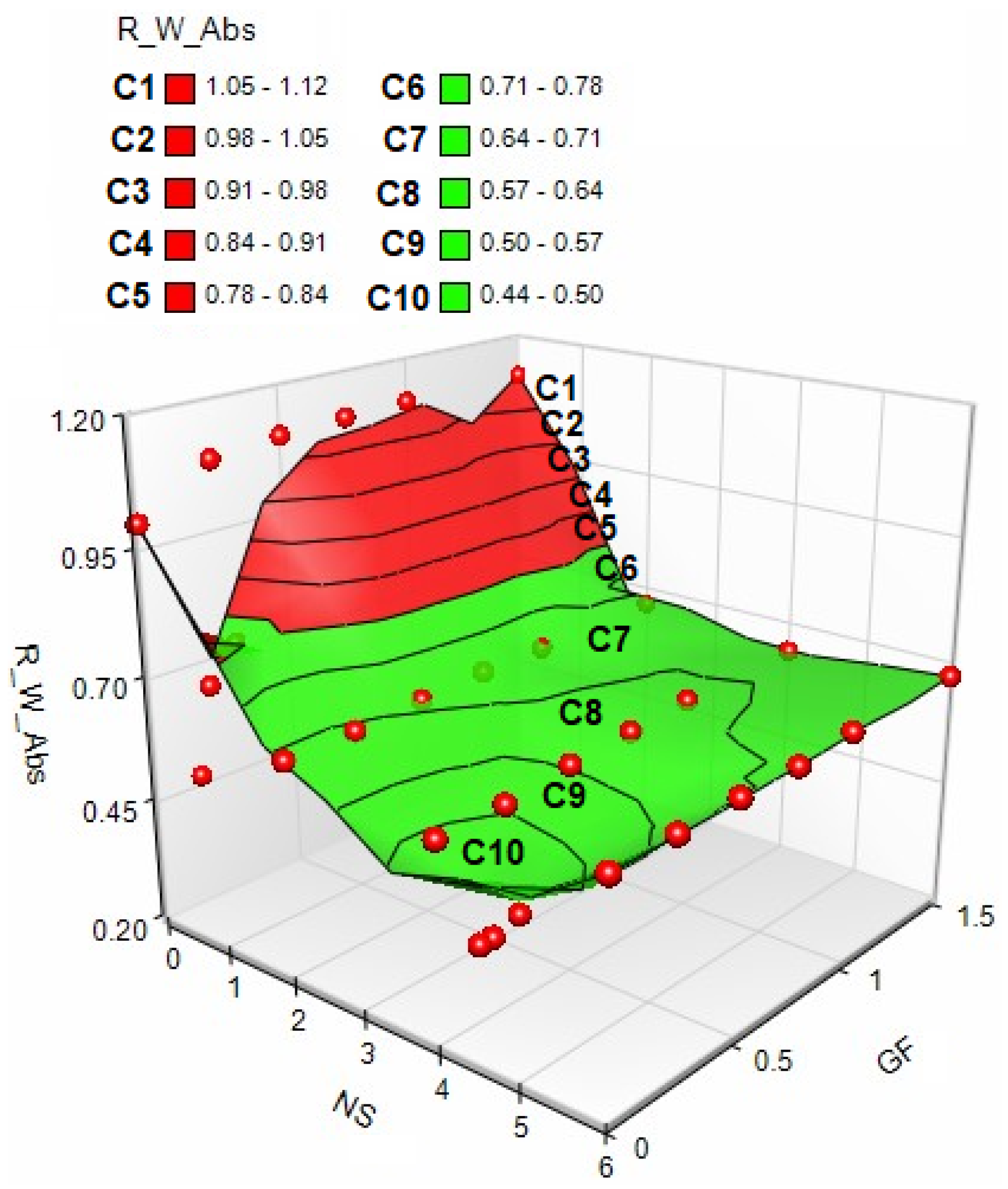

Figure 27. Relative water absorption of GF reinforced and NS contained cementitious composites.
Figure 27. Relative water absorption of GF reinforced and NS contained cementitious composites.
Sustainability 14 03464 g027
Figure 28. Resist chloride ion penetration test result of NS contained GF reinforced SCC concrete [73].
Figure 28. Resist chloride ion penetration test result of NS contained GF reinforced SCC concrete [73].
Sustainability 14 03464 g028
Figure 29. SEM of 1.5% GF and 4% NS contained concrete mix [31].
Figure 29. SEM of 1.5% GF and 4% NS contained concrete mix [31].
Sustainability 14 03464 g029
Figure 30. Relative electrical resistivity of NS contained GF reinforced lightweight SCC concrete [31].
Figure 30. Relative electrical resistivity of NS contained GF reinforced lightweight SCC concrete [31].
Sustainability 14 03464 g030
Figure 31. Relative (a) compressive and (b) flexural strength of RNCB contained SF and CF reinforced cementitious composite [71].
Figure 31. Relative (a) compressive and (b) flexural strength of RNCB contained SF and CF reinforced cementitious composite [71].
Sustainability 14 03464 g031
Figure 32. Relative electrical resistivity of RNCB contained SF and CF reinforced cementitious composites [71].
Figure 32. Relative electrical resistivity of RNCB contained SF and CF reinforced cementitious composites [71].
Sustainability 14 03464 g032
Table 1. Percentage of investigations using different types of nanomaterials and fibers simultaneously.
Table 1. Percentage of investigations using different types of nanomaterials and fibers simultaneously.
Nanomaterials
NO. 12345678910
Materials *NSNCnFenCaCO3nTiO2nAl2O3CNTGNPNMKRNCB
Fibers1BF164----4-2-
2BF + PPF4---------
3PPF15-2-22----
4PVA9--2--2---
5SF20224----22
6GF72-2------
7CF---2--22-2
8SF + CF---------2
9Linen F- ------2-
10HF-7--------
11Coconut F2---------
12Coir F2---------
13Flax F22--------
* BF—basalt fiber; PPF—polypropylene fiber; PVA—polyvinyl alcohol; SF—steel fiber; GF—glass fiber; CF—carbon fiber; HF—emp fabric; NS—nano silica; NC—nano clay; nFe—nanoIron; nCaCO3—nano calcium carbonate; nTiO2—nano titanium dioxide; nAl2O3—nano aluminium oxid; CNT—carbon nano tube; GNP—graphene nan oplatelets; RNCB—recycled nano carbon black; NMK—nanometakaolin.
Table 2. Properties and content of used fibers based on the selected studies (55 studies).
Table 2. Properties and content of used fibers based on the selected studies (55 studies).
Fiber Type *Length (mm)DiameterElasticity Modulus (GPa)Tensile Strength (GPa)Elongation at Break (%)Specific Density (g/cm3)Content
(mm)% of Total Volume
BF3–360.013–0.0765–1152.3–4.82.9–3.32.65–3.050.0377–4.5
PPF12–200.019–0.923.5–100.35–0.815–250.9–0.910.1–1.2
PVA12–Sep0.02–0.44.1–4.31.4–1.66.5–151.3–1.320.2–2.0
SF13–500.2–2.42000.8–2.850.5–3.57.850.2–2.5
GF12.25.40.01–0.0270–772.42–3.52.60.2–1.5
CF60.007230–3802.5–40.5–1.51.6–1.70.1–0.5
HF-0.002738–580.59–0.861.61.372.5–6.9
Coconut F200.1–0.4-0.1510-251.12–1.151
Coir F20–500.452.80.21271.5381.66–5.34
* The acronyms of the fiber types are defined in Table 1.
Table 3. Content, particle size and specific surface area of the used nanomaterials based on the selected studies (55 studies).
Table 3. Content, particle size and specific surface area of the used nanomaterials based on the selected studies (55 studies).
Type of Nano Material *Content wt% of CementParticle Size (nm)Specific Surface Area (m2/g)
Ns0.6–105–3545–280
NC0.1–7.56–1010–750
NFe1–450-
NCaCO31.6–6.415–150180
NTiO21–515240 ± 50
NAl2O31–3<100 nm-
CNT0.1–0.29.5250–300
NMK2–620380
RNCB3–10-80–90
* The acronyms of the nanomaterials are defined in Table 1.
Table 4. Durability and Mechanical performance of NS and other fibers conatined composites mixes.
Table 4. Durability and Mechanical performance of NS and other fibers conatined composites mixes.
Ref.Nano ContentFiber Type Fiber ContentR.SlR. FcR. FlR. STR. W AR. PorosityR. AR
[30]0FF011-1.001.001.00-
1FF0.50.751.07-1.131.181.18-
2FF0.50.591.14-1.151.041.05-
3FF0.50.471.10-1.181.051.04-
[90]0N Cel011-1.00---
1N Cel0.35 0.83-1.26---
1N Cel0.55 1.07-0.96---
1N Cel0.75 1.13-1.04---
1.5N Cel0.35 1.07-1.19---
1.5N Cel0.55 1.16-1.10---
1.5N Cel0.75 0.94-1.55---
2N Cel0.35 1.22-1.22---
2N Cel0.55 0.94-1.26---
2N Cel0.75 1.02-1.26---
[37]0.0Coir011----1
2.4Coir0.10.961.43----0.85
2.4Coir0.20.91.48----0.93
2.4Coir0.30.81.28----1.03
3.7Coir0.10.871.48----0.83
3.7Coir0.20.961.54----0.90
3.7Coir0.30.911.35----0.93
[85]0Coconut 011.00-----
0.5Coconut 11.011.57-----
1Coconut 10.901.41-----
1.5Coconut 10.781.42-----
2Coconut 10.671.12-----
[91]0Fl0--1.00----
0.5Fl 4.1--6.09----
1Fl 4.1- 6.54----
2Fl 4.1--6.33----
3Fl 4.1--5.87----
Table 5. Relative compressive, flexural, capillary, thermal conductivity and electrical resistance of Nano contained and fiber reinforced mixes.
Table 5. Relative compressive, flexural, capillary, thermal conductivity and electrical resistance of Nano contained and fiber reinforced mixes.
Ref.Nano TypeNano ContentFiber TypeFiber ContentR. FcR. FlR. CaR. TCR. ER
[84]NK10LF2-111
NK10LF1.7-0.958.570.831
NK10LF1.6-0.9010.430.658
NK10LF1.37-0.8216.570.538
NK10LF1.1-0.7419.430.444
NK10LF0.9-0.6622.000.324
NK10LF0.7-0.625.710.244
NK10LF0.6-0.5534.140.160
[71]RNCB0WWE01.001.00--1.000
RNCB6WWE0.0051.181.42--0.075
RNCB6WWE0.011.311.54--0.069
RNCB6WWE + CF0.01 + 0.20.951.52--0.017
RNCB6WWE + CF0.015 + 0.20.901.45--0.006
Table 6. Relative Dry density, flexural strength and porosity of NC contained HF reinforced cementitious mixes.
Table 6. Relative Dry density, flexural strength and porosity of NC contained HF reinforced cementitious mixes.
Ref.Nano ContentFiber TypeFiber ContentR. DDR. FlR. Por
[88]0HF0.01.001.001.00
1HF2.50.961.800.97
2HF2.50.931.481.09
3HF2.50.921.361.13
[89]0HF0.01.001.001.00
1HF6.90.923.741.19
2HF6.90.913.561.25
3HF6.90.893.391.28
[92]0HF0.0-1.001.00
1HF6.9-2.791.37
2HF6.9-2.621.43
3HF6.9-2.461.484
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hussein, T.; Kurda, R.; Mosaberpanah, M.; Alyousef, R. A Review of the Combined Effect of Fibers and Nano Materials on the Technical Performance of Mortar and Concrete. Sustainability 2022, 14, 3464. https://doi.org/10.3390/su14063464

AMA Style

Hussein T, Kurda R, Mosaberpanah M, Alyousef R. A Review of the Combined Effect of Fibers and Nano Materials on the Technical Performance of Mortar and Concrete. Sustainability. 2022; 14(6):3464. https://doi.org/10.3390/su14063464

Chicago/Turabian Style

Hussein, Twana, Rawaz Kurda, Mohammad Mosaberpanah, and Rayed Alyousef. 2022. "A Review of the Combined Effect of Fibers and Nano Materials on the Technical Performance of Mortar and Concrete" Sustainability 14, no. 6: 3464. https://doi.org/10.3390/su14063464

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
