Human-induced climate change is causing dangerous and widespread disruption in nature and is affecting the lives of billions of people around the world, despite efforts to reduce the risks. The people and ecosystems least able to cope are being hardest hit, according to scientists in the latest Intergovernmental Panel on Climate Change report [1
]. For cities, some aspects of climate change may be amplified, including heat, flooding from heavy precipitation events, and sea level rise in coastal cities [2
]. The world has recorded the hottest decade on record (2010–2020) with 2019 being the second warmest year on record [3
]. Implementing nature-based solutions on a larger scale would increase climate resilience and contribute to multiple Green Deal objectives. Blue green (as opposed to grey) infrastructures are “no regret” solutions and provide environmental, social, and economic benefits and help build climate resilience [4
]. According to the European Environment Agency, cities have the potential to become a major driving force for a green and just recovery after the COVID-19 pandemic [5
]. The challenge is now how to integrate these measures in our cities and to assume directive roles in their implementation [6
In 2018, an estimated 55.3% of the world’s population lived in urban settlements. By 2030, urban areas are projected to house 60% of people globally [7
]. All these people will be directly affected by the impacts of climate change. One of the solutions that has been suggested to make cities more resilient is the urban green infrastructure (UGI) [8
]. Urban green and blue spaces and green infrastructure are very effective to combat the effects of climate change and to tackle water and heat risks. A common method to evaluate such contributions is to measure the ecosystem services (ES) provided by the vegetation or water bodies present in urban green and blue spaces (UGBS) that constitute the UGI [9
]. Examples of urban ecosystem services are air purification, carbon storage, noise reduction, run-off retention, cooling, and recreation [10
Urban communities are the most affected by changes in the microclimate as a result of climate change. There are examples resilience scorecards that help communities to become resilient [11
], or scorecards that aim to assess disaster resilience on the city scale, such as the he United Nations Office for Disaster Risk Reduction (UNDRR) Scorecard [12
], or scorecards with sets of indicators that assist communities to perform a self-evaluation, such as the Resilience Performance Scorecard [13
]. Labdaoui et al. developed the Street Walkability and Thermal Comfort index (SWTCI) [14
], which includes shade.
Most cities do know, on a city scale, which neighborhoods have less trees, are densely populated, have less parks, and are less green, or in which neighborhoods lush front yards and an abundance of urban green spots are present. At the level of the street, cities in general do not have much insight regarding which climate adaptation measures are present. In a changing climate that more often causes heat waves, for example, it would be crucial to know in which street the climate adaptation measures are present and are more or less ready for the impacts of climate change, and which streets are not. In the streets that do not have climate adaptive measures, local government should invest in the implementation of climate adaptation measures.
An instrument such as a scorecard that assesses the climate adaptive measures at the street level and attaches climate adaptation labels to street segments and streets, is accurate and is easy to use by residents and communities to self-assess streets and neighborhoods, would be very valuable to identify the least adaptive streets and raise awareness about climate adaptation among the members of the community. In the literature, no such scorecard or instrument was found that systematically assess the presence of climate adaptation measures at street segments or entire streets. This paper therefore proposes a new method to assess climate adaptation measures at the street level, which has been proven to be very successful in scoring measures and labeling streets after testing in two districts in two different Dutch cities. With this method, we hope to equip communities and local government units with a new method to assess climate adapttationmeasures in their locality.

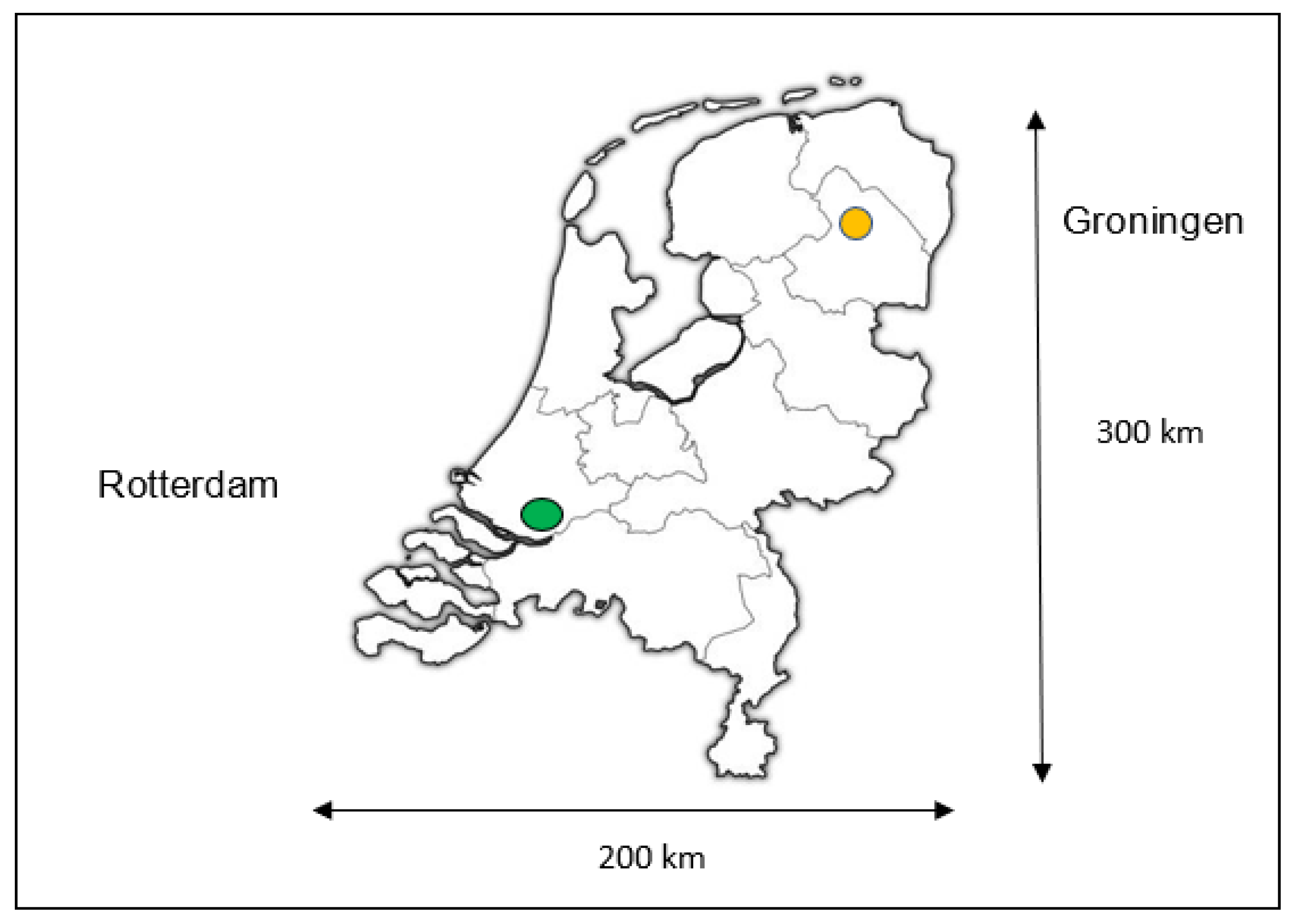

Two districts in two Dutch cities were selected as the pilot area, namely the Hillesluis district in the city of Rotterdam and the Paddepoel district in the city of Groningen (Figure 5
). The cities are located at a distance of 245 km with the same level of development. The two districts were both living labs in the project Citizen Participation in climate adaptation. Both neighborhoods were selected by officers from the local government because they can both be characterized as vulnerable to the effects of climate change and are also socio-economic vulnerable areas. The Paddepoel district was also chosen by the IMPETUS project as a pilot area to conduct measurements. The two cities differ from each other in both size, location, and population characteristics. Rotterdam is an important port city and the second largest city in the Netherlands with a population of around 655,000, located in the Randstad urban area in the Western part of the country. The Hillesluis district is located at the South Bank of the river Maas, which cuts the city in half. In Hillesluis, blue-collar workers that were employed in the port, before containerization created a lot of unemployment, used to live. Since the 1970s, migration changed the population district. Today, Hillesluis has a number of socio-economic problems and city data show that the area is vulnerable to the effects of climate change because the neighborhood is densely populated and lacks green spaces. The city of Groningen is much smaller and is the seventh largest city, and is located in the Northern part of the country. The city of Groningen is the capital of the Province of Groningen, which is characterized by less densely populated neighborhoods. Both neighborhoods consist of about 50% social housing units, 25% private landlords, and 25% owner-occupied. The Paddepoel district was constructed in 1950–1980 with mostly single-family dwellings, while Hillesluis was constructed in 1920–1930, and the area is characterized by multifamily dwellings.
3.1. Rotterdam, Hillesluis District
The Hillesluis district is located on the southern part of the city of Rotterdam and has a population of around 12,050 residents with a population density of 14,433 [45
] residents per square kilometer in 2020. The district is characterized by small streets and a high population density. The narrow streets are alternated by green spaces. The district was constructed between 1920 and 1930 for workers in the port of Rotterdam. Renovation projects have replaced some of the older apartment blocks with newer housing units, but around 70 % of the housing stock date back before 1945.
The districts consists mostly of multifamily dwellings and are predominantly social housing (47%) or rental units (27%), with 25% owner-occupied. The population is relatively younger and lower educated compared with other parts of the city with a lower average household income. Around 73% of the population has a non-Western background. About half of the households (47%) are single-person households [46
In the Hillesluis district, 21 streets were assessed with a total of 42 street segments. The scores per street segment were categorized and a corresponding label (Figure 2

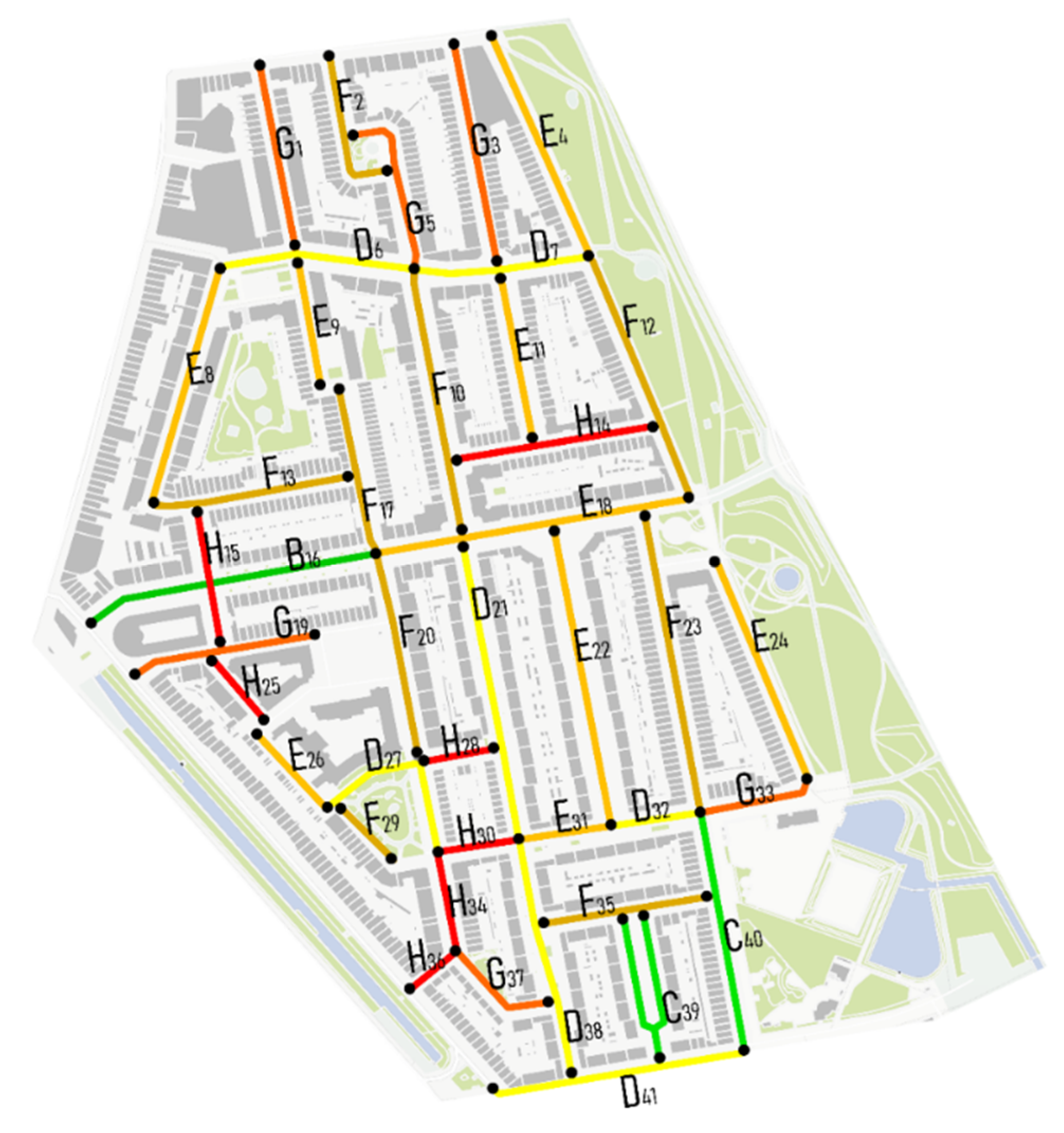

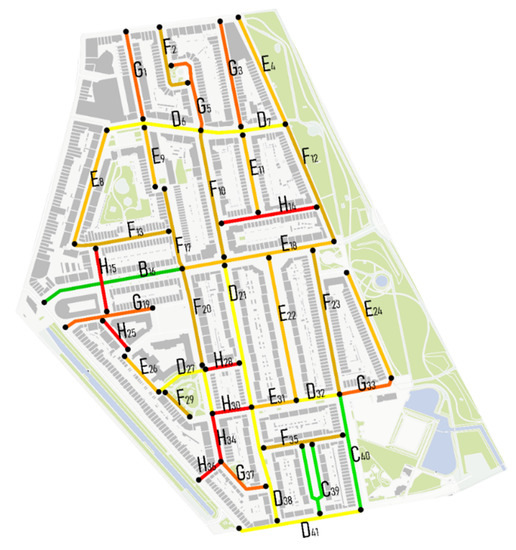

) was given to each street segment and is visualized in Figure 6
. The span of the distribution ranges between the lowest score of 3, which corresponds with the lowest climate-adaptiveness label H, and the highest score of 63, which corresponds with climate-adaptiveness label B. The average segment score in Paddepoel was 42, which corresponds to label climate-adaptiveness label D in Table 2
3.2. Hillesluis District Green Category Climate Adaptation Facilities and Measures
In total, 21 streets in the Hillesluis district were assessed with a total of 42 street segments. The scores of the green category of each street segment are presented in Table 3
The assessment of the streets shows that all streets in the Hillesluis district had trees, except for three street segments. Just four street segments in the Hillesluis district scored the highest score for trees. The average score for trees was 20, which is half of the maximum score of 40. When we look at the green walls score, just five street segments fall in the lowest 1–25% green walls category.
In the façade garden/front yard category, nine street segments did not have any façade garden and/or front yard. Out of the remaining 43 street segments, 20 segments fell into the category of 1–50% façade garden and two street segments fell into the category of 50–100% façade garden. In 10 street segments, front yards were present, although six fell in the lowest category of 1–25% front yard and only four street segments fell in the category 50–75% green front yards.
3.3. Hillesluis District Blue Category
The scores of the blue category of each street segment are presented in Table 4
. No rain barrels were observed in the Hillesluis district at all, and no permeable pavement in the street or sidewalk was observed. No bioswales were present either. Just three street segments had surface water within 50 m distance away from the street segment. Only three street segments scored 6 points out of a total of a maximum of 16 points.
3.4. Hillesluis District Grey Category
The scores of the grey category of each street segment are presented in Table 5
. Most of the street segments had shaded areas from trees (one point), but none of the streets had artificial shaded areas (two points). Only 9 segments out of 42 segments did not have any shade at all.
In none of the streets were open unpaved (green) areas observed that were located lower than the level of the paved areas so as to provide infiltration capacity. Neither were unpaved areas observed that were located higher than street level.
In all 42 street segments, designated parking spaces were present (deduction of two points), contributing to urban heat stress.
In 26 street segments, one driving lane was present while in 16 street segments, two way driving lanes were present (deduction of one point per driving lane).
None of the streets scored the maximum 7 points. In total, 18 street segments scored two deduction points, 20 streets scored three deduction points, and 4 street segments scored four deduction points.
3.5. Total Score Hillesluis District
When we look closer at the total score of the individual street segments in the Hillesluis district, it can be seen that the maximum score is 58 in Westerbeekstraat, segment 2, and the lowest score in Zaadakkerstraat, segment 1 (see Table 6

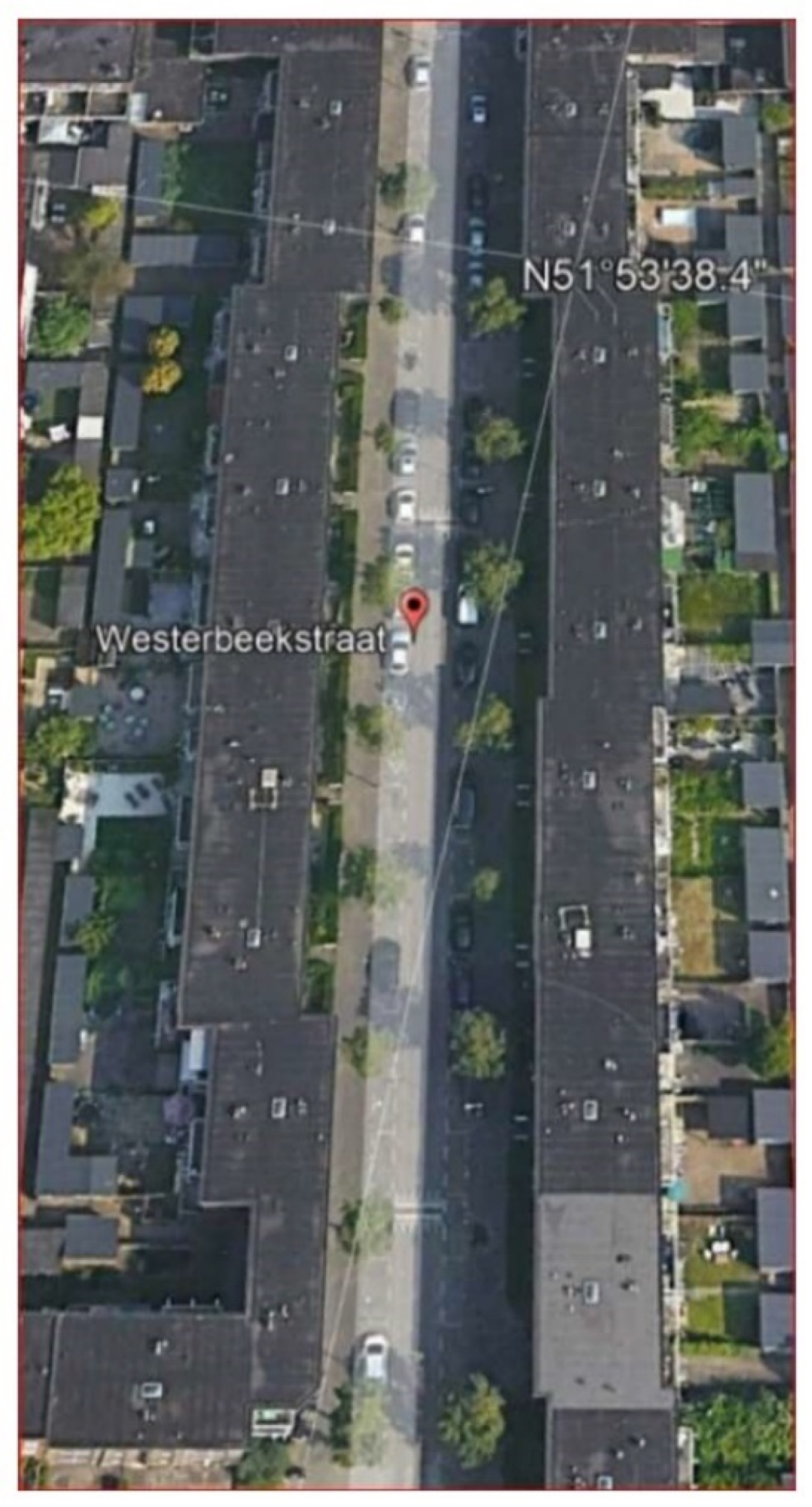

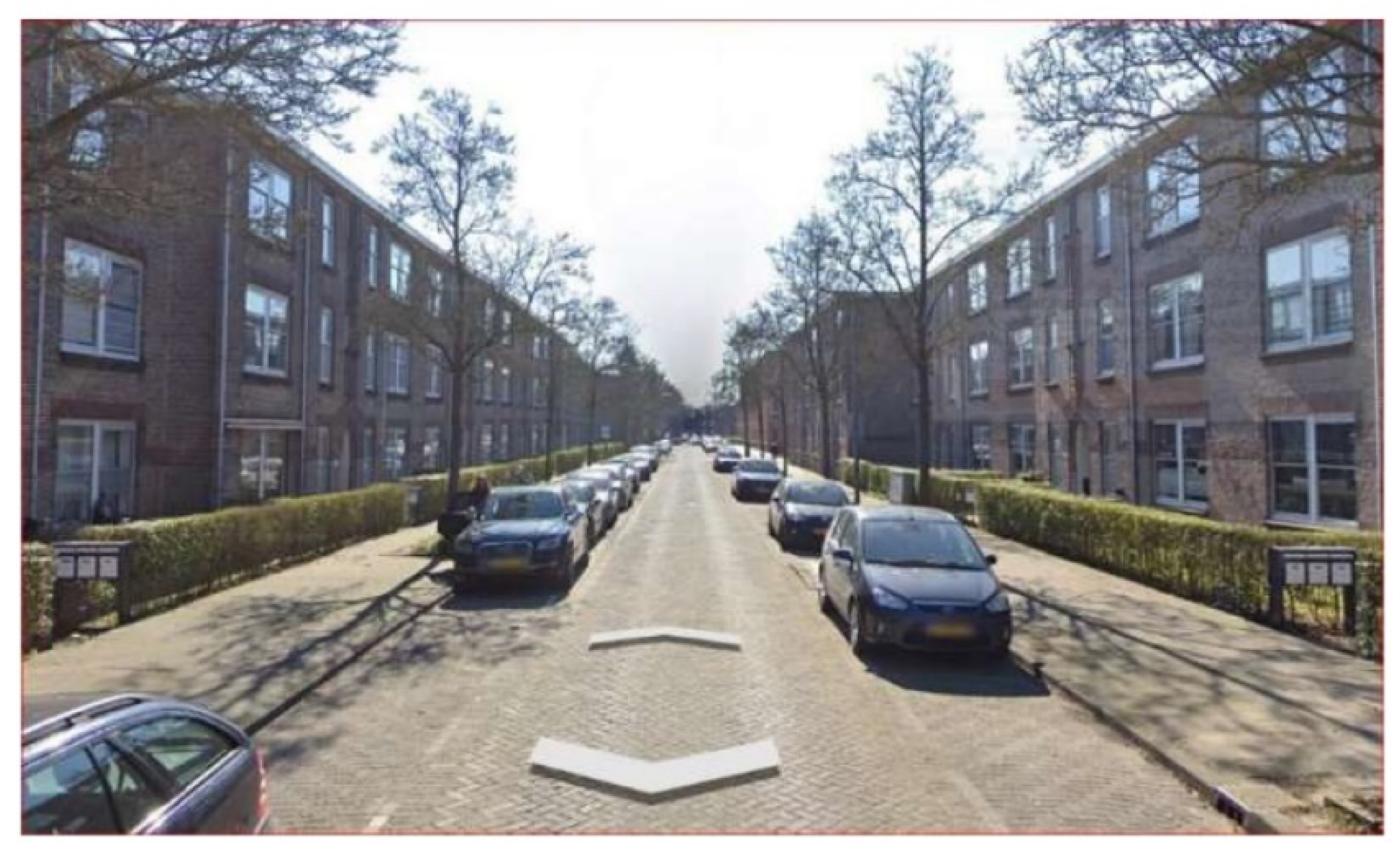

The highest score in the Hillesluis district was observed in Westerbeekstraat, segment 2 (Figure 7
and Figure 8
). Westerbeekstraat segment 2, scored 58 points for trees, which is just below the maximum of 40 points, as well as zero points for green walls, fourteen points for green front yards (75–100%), zero points for green strips, zero points for climate adaptive roofs, and zero points for green parking lots. In the blue category, Westerbeekstraat, segment 2, does not score any points for the presence of rain barrels, permeable streets or pavements, or nearby surface water. In the grey category, Westebeekstraat, segment 2, scored one point for shadows from canopy, zero points for green areas, and a deduction of two points for the presence of (soil-sealed) parking spaces and a deduction of 1 point for a (soil-sealed) driving lane.

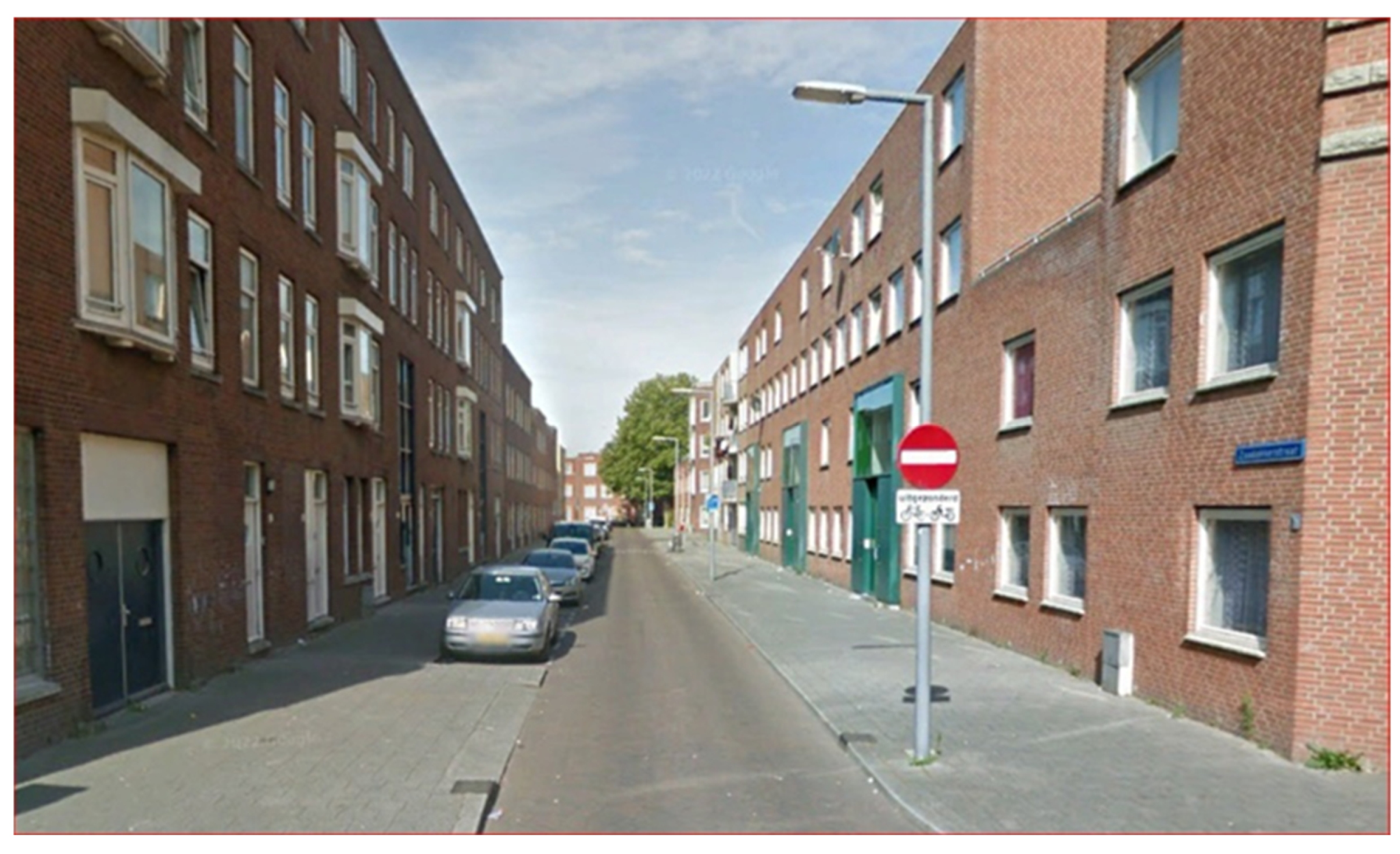

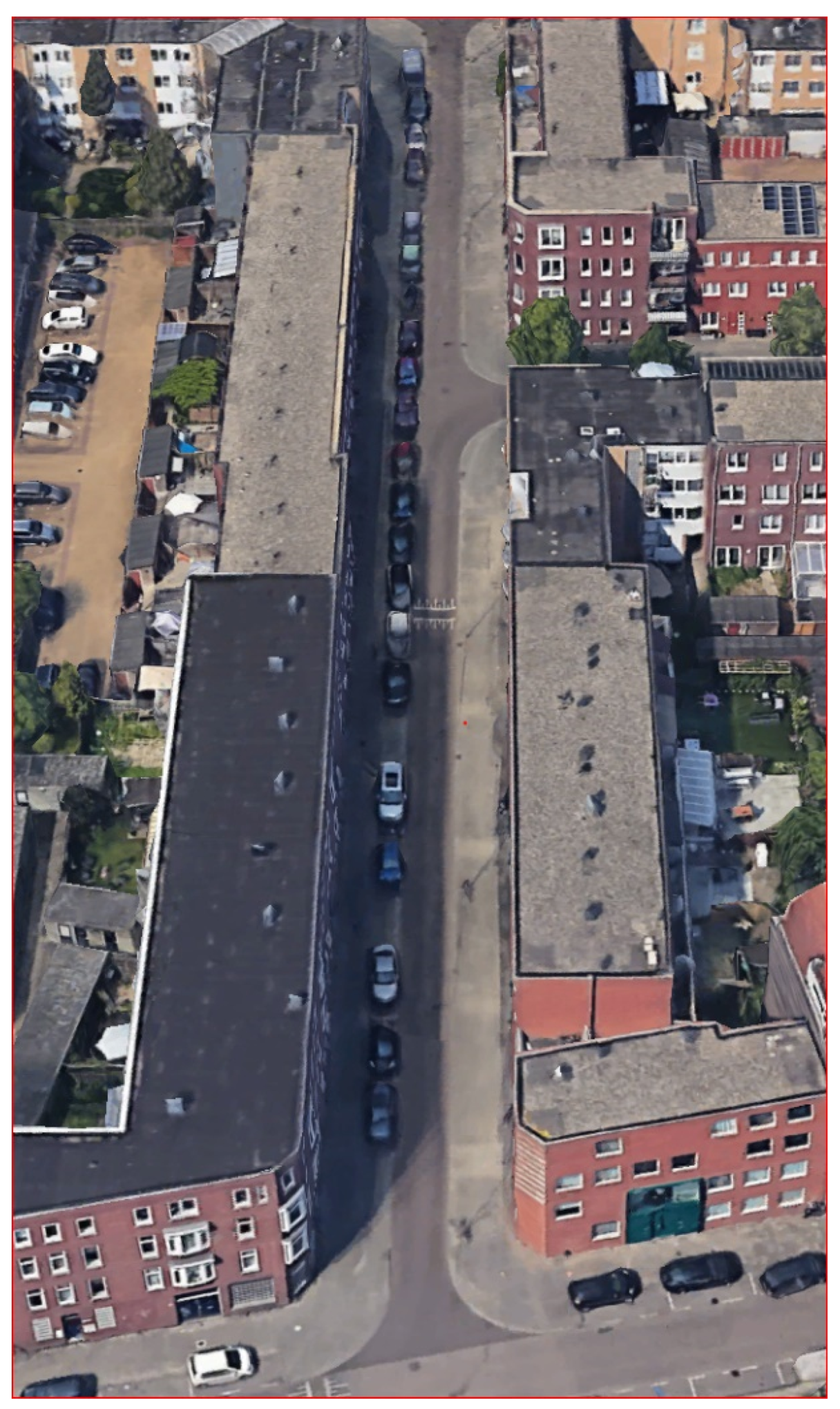

The lowest score in the Hillesluis district, of three points, was Zeeuwsestraat, but as this street was very short, about 35 m, with only four housing units, the next street with the lowest score will be discussed here. The street with the second lowest score, of five points, was observed in Zaadakkerstraat (Figure 9
and Figure 10
Zaadakkerstraat scored just three points for trees. Zero points for green walls, five points for façade gardens (1–50%), zero points for green strips, zero points for climate adaptive roofs, and zero points for green parking lots.
In the blue category, Zaadakkerstraat did not score any points for the presence of rain barrels, permeable streets or pavements, or nearby surface water.
In the grey category, Zaadakkerstraat scored zero points for shadows from canopy, zero points for green areas, and a deduction of two points for the presence of (soil-sealed) parking spaces and a deduction of one point for one (soil-sealed) driving lane.
3.6. Groningen, Paddepoel North District
The Paddepoel North district is located in the northern part of the city of Groningen and had a population of about 6000 persons in 2020 and a population density of 9009 residents per square kilometer [49
]. The district is characterized by 30% single family dwellings and 70 % multifamily dwellings [49
]. The district is characterized by single family dwellings with front yards, typical Dutch row houses, and green and multifamily dwellings of up to typically four floors with green lawns. Most of the district was constructed between 1950–1980 and a small portion of the housing units were constructed in the recent years of 2010–2020 [50
About half of the total housing stock is owned by a social housing corporation (53%), a quarter is owner occupied, and (25%) and a quarter of the housing stock is rented out by private owners (22%) [50
]. Around 22% of the population has a non-Western background. About 70% of the households are single-person households [49
In the Paddepoel North district, 21 streets were assessed with a total of 45 street segments. The average score per segment was 47. The results of the segments are presented in Table 7

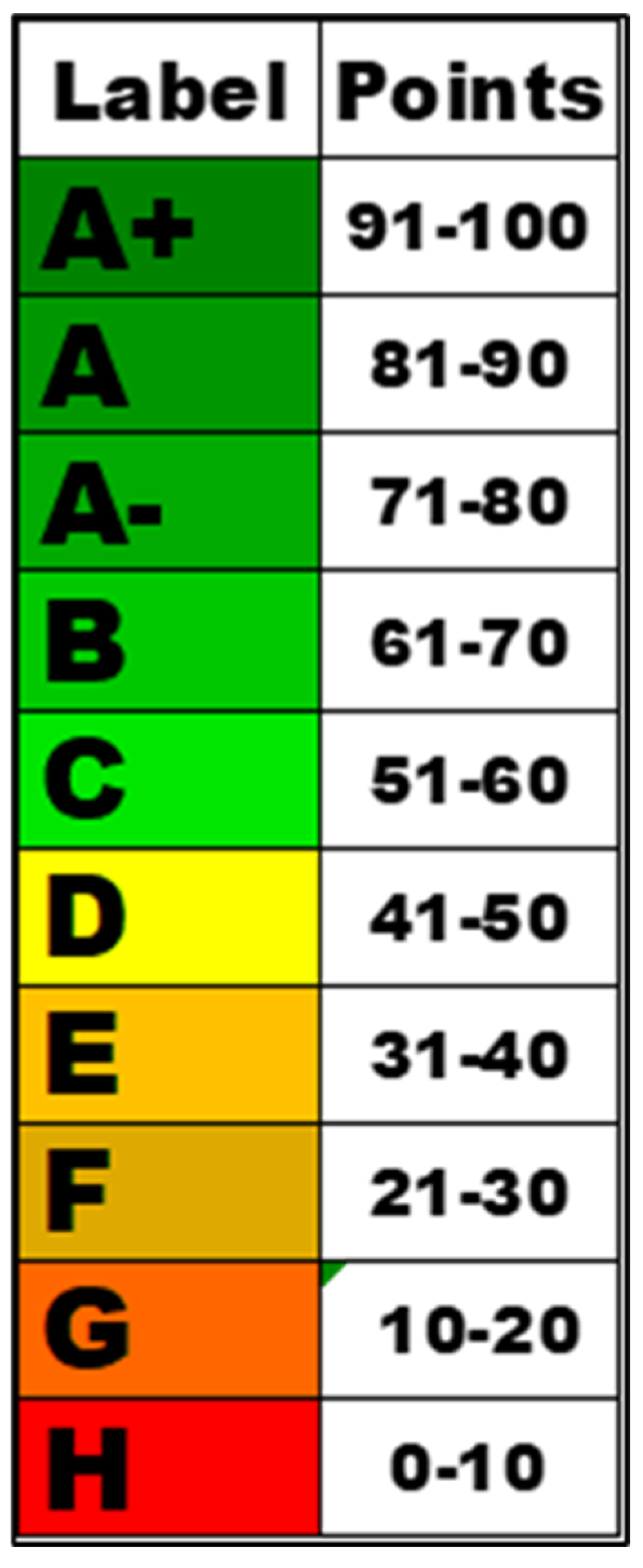

. The scores per street segment were categorized and a corresponding label (Figure 2
) was given to each street segment and was visualized in a map.
In the Paddepoel district, 17 streets were assessed with a total of 45 street segments. The results of the assessment are presented in Map 2.
The span of the distribution ranged between the lowest score of 22, which corresponds with climate adaptiveness label F, and the highest score of 70, which corresponds with climate adaptiveness label B. The average segment score in Paddepoel is 47, which corresponds with label climate adaptiveness label D. The total scores for each segment are presented in Table 7

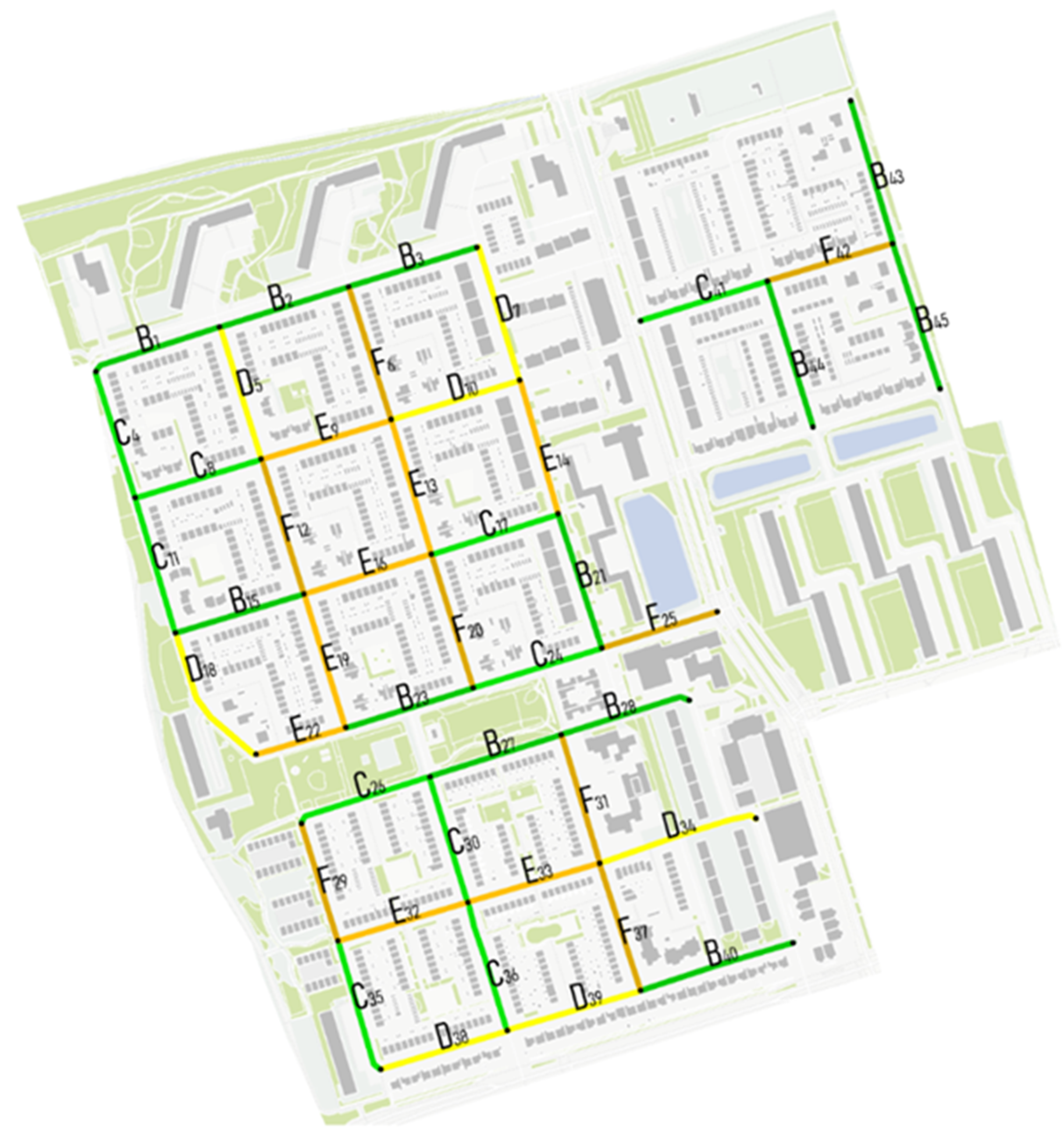

and are visualized in Figure 11
3.7. Paddepoel District Green Category
In total, 17 streets were assessed in the Paddepoel North district, with a total of 45 street segments. The scores of the green category of each street segment are presented in Table 8
The assessment of the streets show that all streets in the Paddepoel North district had trees, except for one street segment, Capellastraat segment 2. Eleven street segments in the Paddepoel North district scored the highest score for trees. The Paddepoel North district scored on average 26 points, which is about 65% of the maximum score of 40. When we look at the green walls score, just two street segments fell in the lowest 1–25% green walls category.
In the façade garden/front yard category, one street segment had a 1–50% score for the façade garden. All other streets in the Paddepoel North district had front yards; 22 out of 45 street segments had a 75–100% score for front yards, indicating that the front yard potential was fully used.
3.8. Paddepoel District Blue Category
The scores of the blue category of each street segment are presented in Table 9
. One rain barrel was observed in Kometenstraat, segment 2. No permeable pavement in the street or sidewalk was observed. No bioswales were present as well. Nine street segments had surface water within 50 m away from the street segment. Eight street segments scored six points out of a total of maximum 16 points, and one street segment scored seven 7 points.
3.9. Paddepoel District Grey Category
The scores of the grey category of each street segment are presented in Table 10
. Most of the street segments had shaded areas from trees (one point), but none of the streets had artificial shaded areas (two points). Only 7 segments out of 45 segments did not have any shade at all.
In only two street were segments of open unpaved (green) areas observed, which were located lower than the level of the paved areas to provide infiltration capacity. No unpaved areas were observed that located higher than the street level.
In only nine street segments were designated parking spaces present (deduction of two points), contributing to urban heat stress. While in the other 36 street segments, no parking lots were observed in the street itself. In all 45 street segments, two driving lanes were observed (deduction of one point per driving lane).
None of the streets scored the maximum of seven points. In total, 32 street segments scored 1 deduction point, 6 streets scored 2 deduction points, and 5 street segments scored 3 deduction points.
3.10. Total Score Paddepoel District
When we looked closer at the total score of the individual street segments in the Paddepoel North district, we could see that the maximum score was 70, for Morgensterlaan, segment 2, and the lowest score was in Capellastraat, segment 1 (see Table 11

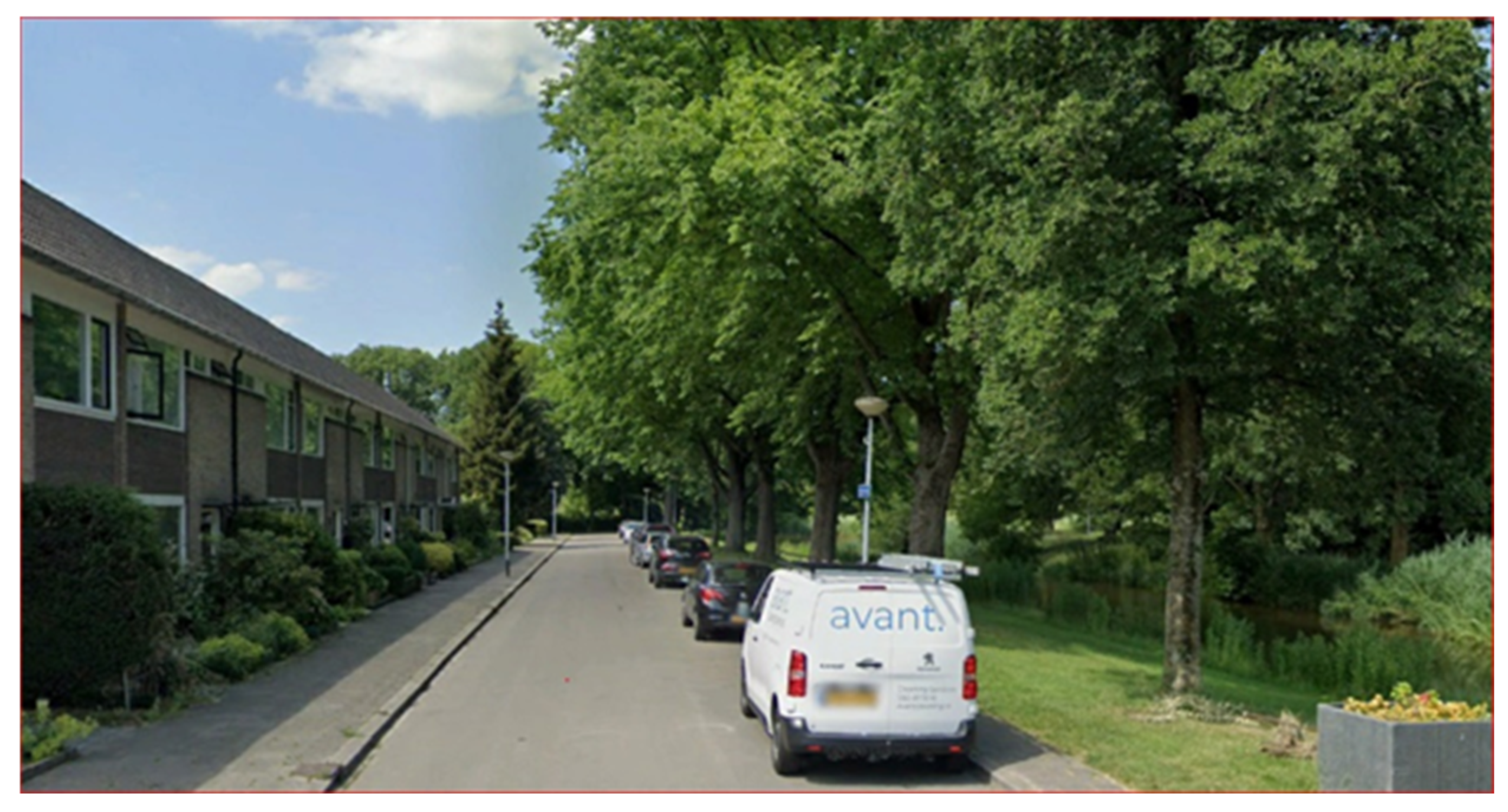

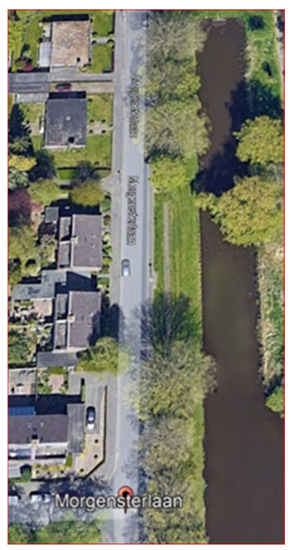

The highest score in the Paddepoel North district was observed in Morgensterlaan, segment 2. Morgensterlaan, segment 2, scored 35 points for trees, which was just below the maximum of 40 points. There were 0 points awarded for green walls, 16 points for green front yards (75–100%), 13 points for green strips, 1 point for climate adaptive roofs, and 0 points for green parking lots.
In the blue category, Morgensterlaan, segment 2, did not score any points for the presence of rain barrels, permeable streets, or pavement. The street scored six points for nearby surface water within 50 m.
In the grey category, Morgensterlaan, segment 2, scored one point for shadow from canopy and zero points for green areas. No deduction for the presence of (soil-sealed) parking spaces and a deduction of two points for the presence of two (soil-sealed) driving lanes were scored (Figure 12
and Figure 13

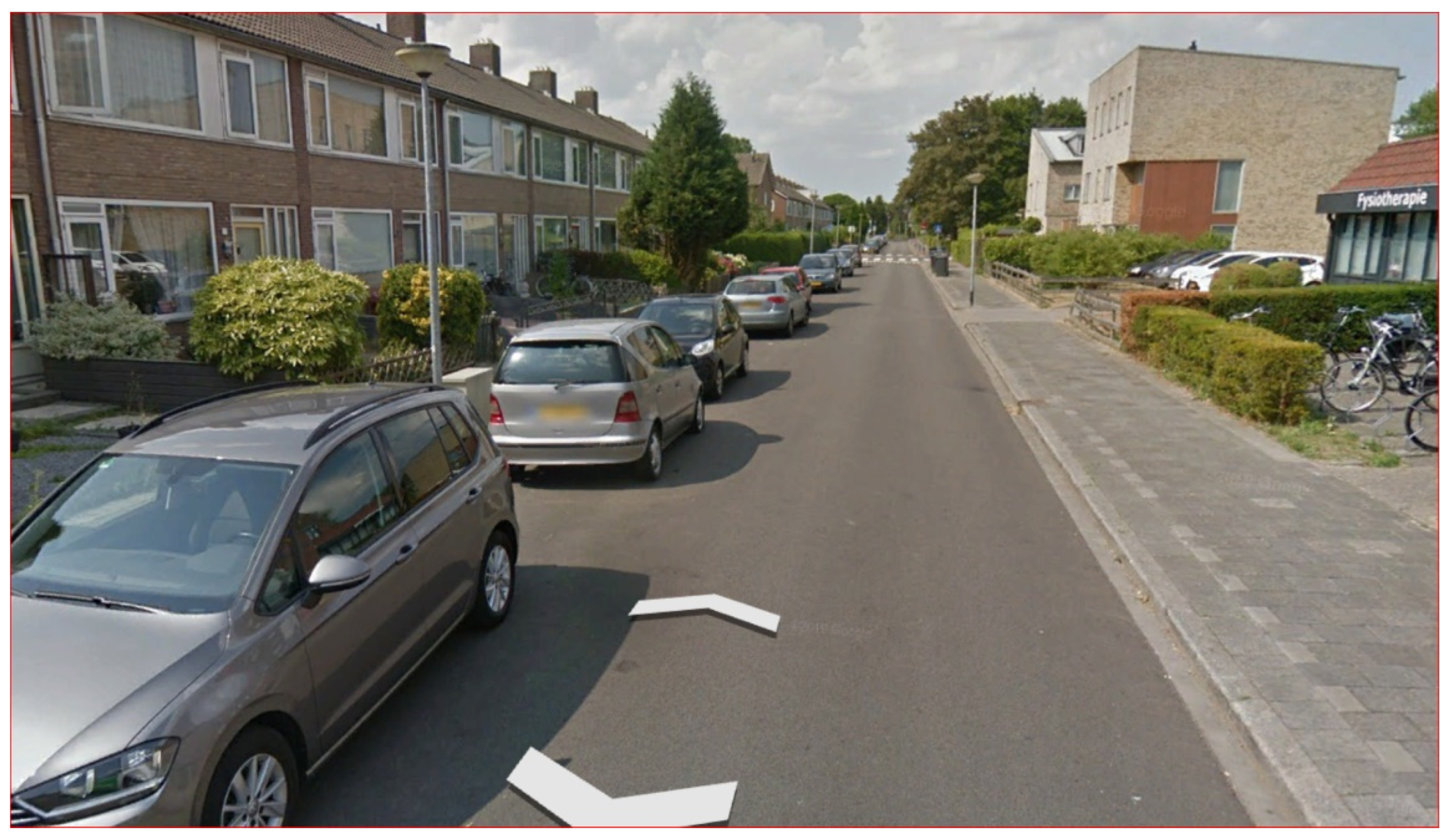

The lowest score in the Paddepoel North district, of 22 points, was in Capellastraat segment 1. Capellastraat segment 1, scored only nine points for trees, and zero points for green walls, fourteen points for green front yards (50–75%), zero points for green strips, zero points for climate adaptive roofs, and zero points for green parking lots.
In the blue category, Capellastraat, segment 1, did not score any points for the presence of rain barrels, permeable streets or pavements, or nearby surface water.
In the grey category, Capellastraat, segment 1, scored 1 point for shadow from a canopy, zero points for green areas, no deduction for the presence of (soil-sealed) parking spaces, and a deduction of two point for each (soil-sealed) driving lane (Figure 14
The aim of the study was to create a tool, a score card, that was relatively easy to use by community members and stakeholders that could assess the presence of climate adaptive measures in streets and give insight into the level of climate adaptation for a street segment or an entire street. At the neighborhood level, studies have already shown that there is a mismatch between demand and supply of ecosystem services in neighborhoods and values for different ecosystem services for cooling and run-off retention and air purification [9
]. These studies do not assess and score climate adaptation measures for an entire street. The objective was therefore to come up with a scorecard that can label a street segment or an entire street with a score of 1–100 and a label from A+++ to G, similar to the new EU energy labels for selected appliances, which were effective as of 1 March 2021 [53
The method that was used in this research enabled the assessment of the presence of climate adaptive measures in different street segments. The results show that the scorecard method generated a clear numerical distinction between streets and street segments that contain climate adaptive measures and streets that do not have such climate adaptive measures.

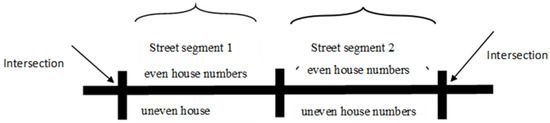

As streets vary in length and longer streets tend to differ in terms of the date of construction for the housing units and building style, it is more effective to work with street segments as the unit of analysis. Other research in other fields of study also use street segments as units of analysis, such as virtual street audits of front yards [18
] or streetscapes studies [8
], or studies related to crime behavior [17
] or walking speed [18
]. To make the analysis of different streets segments comparable, a conversation factor was used to recalculate the values for a 100 m street length. This recalculation of values for 100 m of street length was not discussed in other literature, but it was effective to compare the street segments.

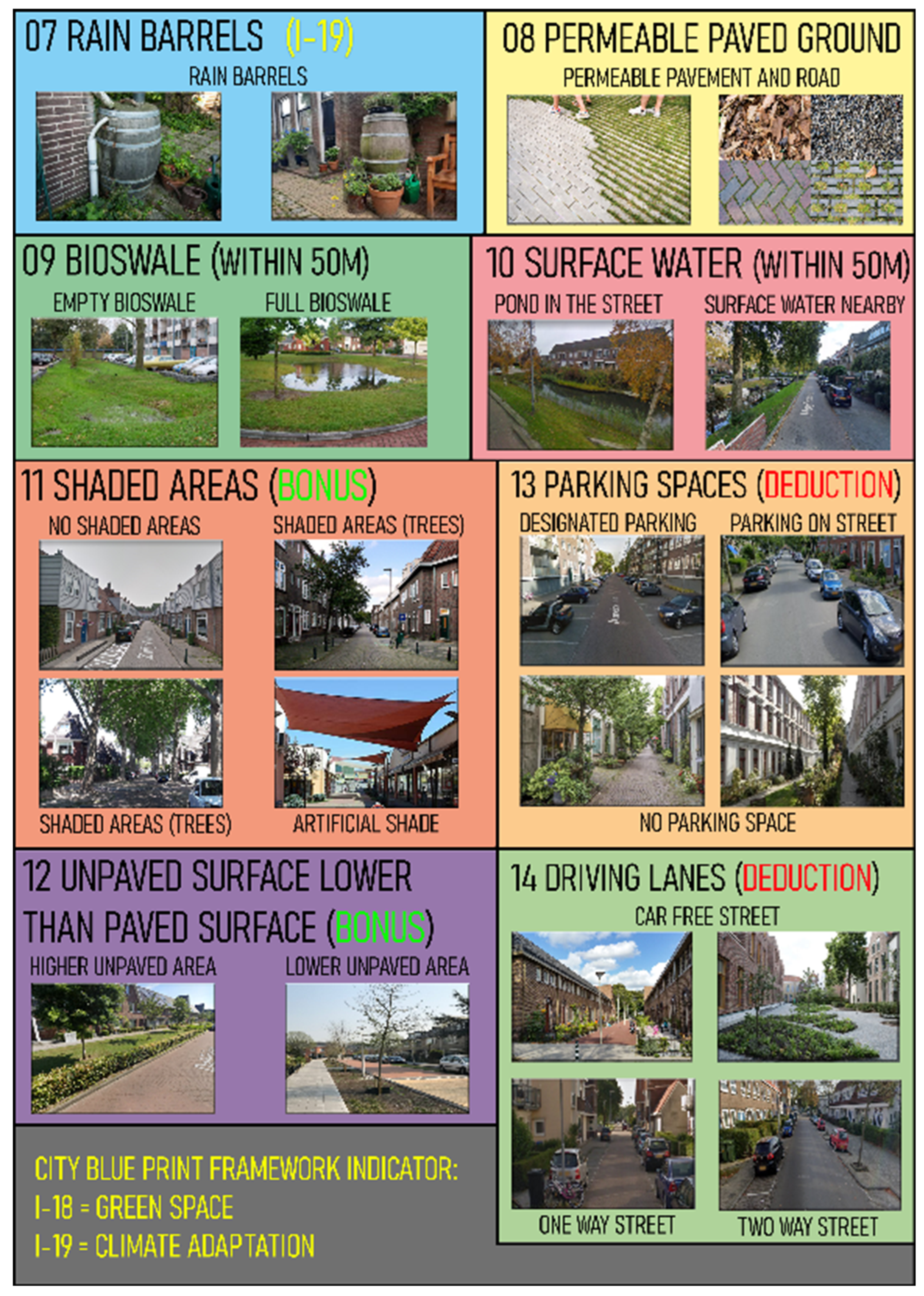

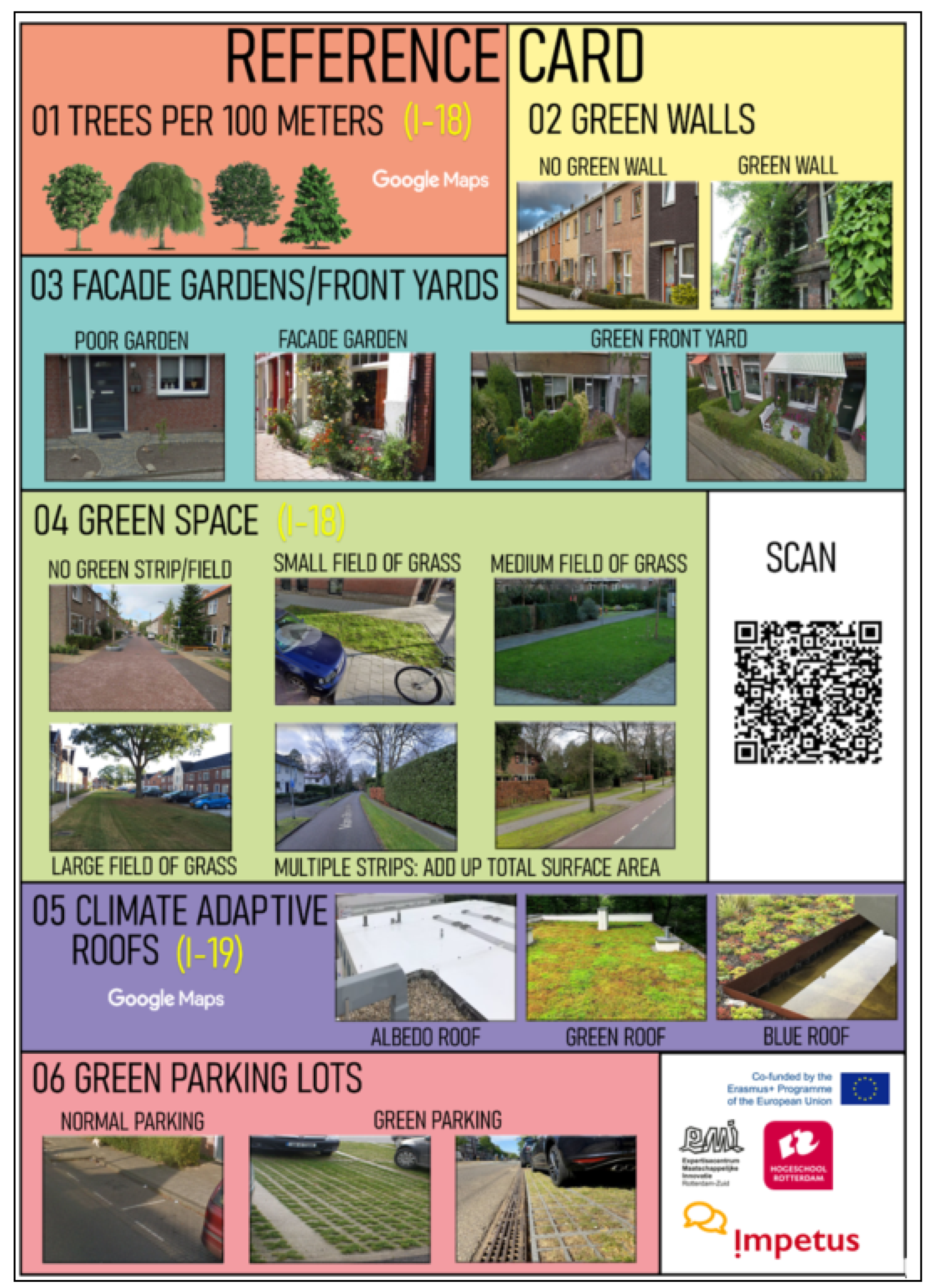

A literature review was undertaken and the most important climate adaptation measures were selected. The selected measures are not complete as many other climate adaptation measures were found in the literature and on websites about green and blue measures 6. The selection of climate adaptation measures was based on the most common measures that are present in Dutch streets and cities. The contribution of urban green infrastructure (UGI) to human well-being has been demonstrated in several studies.
The first selected climate adaptation measure was urban trees, as they represent a large portion of urban tree canopy and provide a significant amount of ecosystem services for mitigation of the negative environmental impact [20
], and they improve the outdoor human thermal comfort and indoor environment [23
]. Front yards in private residence play an important role in the soil sealing problem of cities worldwide [27
]. The impervious cover of front yards contributes to the problems of the urban heat island effect and urban floods, and makes urban neighborhoods less pleasant. Private gardens play an important role as urban green spaces, and can improve the microclimate and address the impacts of climate change—specifically the urban heat island (UHI) effect. Green strips constitute similar benefits as front yards.
Climate adaptive roofs are green roofs, roofs with a high albedo (highly reflective roofs, which absorb less heat [38
]), and blue roofs. Green roofs were chosen as an upcoming adaptive measure that can easily be recognized on Google maps, because, from above, plants/grass and other greenery can be spotted. Green parking spaces are an upcoming climate adaptive measure and they differ from regular parking spaces because they allow the water to infiltrate and contribute significantly to reducing runoff [39
]. If parking lots are made of porous paving materials, between the tiles of parking spots there are often patches of grass [44
]. Rain barrels or rain water tanks store water and relieve some stress on the sewage system during heavy precipitation. Rain barrels delay the time that it takes for water to flow into the system. Water from a roof connected to a rain barrel does not flow immediately into the sewage system, and rain water harvesting can be used as a remedial measure and can help in flood reduction [41
]. Water-permeable pavements are porous or laid so as to allow voids, have an open structure, or are made of partially pervious materials. They allow water to pass through or around them into the soil; rainwater can infiltrate into the ground, groundwater is replenished, and sewerage systems are relieved [44
]. A bioswale is an adaptive measure that has the ability to store water during heavy rain and redirects surface water to groundwater [42
]. The surface water nearby functions as natural water storage. If the surface water is located nearby and is lower than the street level, water can be channeled into the surface water with natural gravity, and is an important adaptive measure in times of heavy precipitation. If unpaved areas are present, they provide an additional storage capacity for precipitation and may provide cooling facilities through natural vegetation. Paved surfaces, however, especially parking lots, occupy a significant proportion of the horizontal surface area in cities. The low albedo of many of these parking lots contribute to the urban heat island (UHI) and affect the local microclimate around them. Parking spaces heat up during the day and contribute to a higher temperature. At night, these warm surfaces contribute to the urban heat island effect. Similarly, impermeable “grey” driving lanes with a low permeability similarly to the grey parking spaces occupy a significant proportion of the horizontal surface area in cities. At night, these warm surfaces contribute to the urban heat island effect [44
The weight that was given to the different climate adaptive measures is based on their perceived impact to address the impacts of climate change and address heat stress and water management problems. After testing the scorecard with different weights, the maximum score for the urban trees measure was set at 40. Three different categories were given a different number of points. The maximum score for urban trees was 40 points, or 40% of the maximum score. Green walls is a less common adaptive measure and this was given a maximum of 4 points or 4% weight. Façade gardens/front yards were given a maximum of 16 points or 16% weight. Green strips were given 13 points, or 13% weight. Climate adaptive roofs were given 2 points, or 2% weight. Green parking places were given 2 points or 2% weight. Rain barrels were given one point or 1% weight. Permeable pavements were given 3 points, or 3% weight. Bioswale was given 6 points or 6% weight. Surface water was given 6 points or 6% weight. Shaded areas/artificial shade were given 2 points 2%. There was a deduction of 2 points for the presence of designated parking areas, or 2% weight, and a deduction of 1 point per soil sealed driving lane or 2% of the weight.
The weight that was given to the climate adaptation measures was mainly given after testing several times with different weights for each factor. An important criterium for the future successful application of the scorecard is easy assessment and the scorecard should be able to distinguish adaptive from none adaptive streets. (Large) Trees are an important factor for reducing heat stress and water storage in roots and leaves. After testing, the maximum score and weight for trees was set at 40%. Façade gardens and front yards are also an important factor in climate adaptation and provide a lot of ecosystem services. The weight was set at 16% after testing. Similarly, the weight for green strips was set at 13%. The other climate adaptive measures were set at lower weights.
The feedback from the community members that participated in the climate adaptation training in Rotterdam was that the scorecard method gave them insights into the lack of adaptation measures in their street and neighborhood, as well as the lack of ecosystem services in their outdoor living environment. The community members mentioned that the scorecard method enabled them to better understand climate change and the local effects, as well as the actions they could take themselves to address the effects of climate change in their locality with simple measures, such as green yards, more facade gardens, planting trees, and increasing the infiltration capacity. They could also see which streets are greener and are better prepared for the effects of climate change, which, according to the community members, puts them in a better position and leaves them better prepared to discuss these issues with the local government.
A weakness of this method is that after the comparative study between the two districts in Groningen and Rotterdam, it became clear that some measures were not present at all in the two districts. In the green category, these were climate adaptive roofs and green parking lots. In the blue category, these were rain barrels, permeable streets and sidewalks, bioswales, and surface water. For the scorecard 2.0, these adaptive measures could be left out of the scorecard. Bio swales and other climate adaptation measures can be linked to climatescan [53
] during future climatecafes [54
] and city scan activities [55
]. The three categories, namely green, blue, and grey measures, could be omitted in scorecard 2.0 as the distinction between the categories was not relevant for the scorecard. Another weakness is that the weights of the different measures was not based on the geospatial data analysis, but through ocular inspection. Although, for the purpose of this scorecard, namely creating awareness and being easy to use by stakeholders in the community, this suffices.
The scores—numerical values—are non-dimensional and the scores are interpreted by the user. A reference card with reference pictures has been provided in order to reduce the chance of different interpretations. Different users of the method may interpret climate adaptive measures, for example the height of the trees, differently, which could lead to inaccurate scoring. However, as the scores were non-dimensional, and the scores were mainly used for comparing the different streets with each other in other to identify adaptation gaps, this might not impose a serious problem.
The objective of this study was to test a method that assesses the presence of climate adaptive measures in street segments and streets, and to provide a score between 1 and 100 that indicates to what degree the street is climate adaptive. Based on the score, a label can be given between A+++ and G, so that residents and decision makers are aware which streets are adaptive and which streets have an adaptation potential. In the Paddepoel North district in the city of Groningen, 17 streets were assessed, composed of 45 street segments with an average climate adaptiveness score of 47. In the Hillesluis district in the city of Rotterdam, 21 streets were assessed, composed of 21 streets with an average score of 29 points. The climate adaptive measures that were observed in the street segments were tabulated and each climate adaptive measure was given a weight based on the perceived ecosystem service of the measure. Based on the adaptive measures multiplied by the weight, a score for a street segment could be given. Each score corresponds with a climate adaptation label.
The results show that the method is useful to score street segments and to attach labels to streets segments and entire streets, so that residents that live in these communities are aware of the level of adaptation of their street. Similarly, local governments and other stakeholders know which streets score low and which streets have a larger adaptation “potential”.
The study developed and tested a new method to label the level of adaptation of street segments and entire streets, so that streets can be compared with each other. The method was proven to be relatively simple and useful for street assessments, as the assessment was done after a short training with several community groups in the Hillesluis district in Rotterdam. The method can easily be duplicated and used by local governments and community groups in order to have better insight into the level of climate adaptation of their street. Labels for entire streets can be used to encourage residents to take action and expand the number of climate adaptation measures in their own street.
