Study on the Hydration and Microstructure of B and B/Na Ion-Doped Natural Hydraulic Lime Composed with Silica Fume/Fly Ash

by
Yanbo Zhang
,
Ze Liu
*,
Jixiang Wang
,
Conghao Shao
,
Jiaxing Li
and
Dongmin Wang
School of Chemical and Environmental Engineering, China University of Mining & Technology, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(17), 10484; https://doi.org/10.3390/su141710484
Submission received: 13 July 2022 / Revised: 14 August 2022 / Accepted: 19 August 2022 / Published: 23 August 2022
(This article belongs to the Special Issue Environmental Interface Chemistry and Pollution Control)
Browse Figures
Review Reports Versions Notes

Abstract

:
Natural hydraulic lime (NHL) has drawn much attention due to its environmentally friendly nature. The characteristics of both hydraulic and pneumatic components make it a potential substitute for Portland cement in surface decoration and ancient building restoration. In this study, both doping and mixing with supplementary cementitious materials were investigated. Two types of NHL3.5 were fabricated through calcination at 1200 °C with B and B/Na doping, respectively. It is noted that B ion doping is beneficial to the early compressive strength of the specimens, and B/Na doping is beneficial to the later compressive strength of the specimens. The observed outcome is that the compressive strengths of B and coupled B/Na doped NHL3.5 are higher than the blank sample due to the appearance of α’-C2S. Thereafter, the blank and doping NHL were incorporated with fly ash and silica fume. The incorporation of fly ash and silica fume could enhance the early and late hydration rate. Of the two, silica fume shows more pozzolanic effect in the early age. In the supplementary cementitious materials dosed group, pozzolanic dominates the hydration process.

1. Introduction

Hydraulic lime (HL) [1], one of the most historic cementitious materials, has recently drawn wide attention in both the restoration of ancient buildings and relics and the field of architecture. Traced back to the ancient Roman and Greek periods, people used lime-based cementitious materials (LCMs) as the main building binder [2,3]. It was not until the appearance of Portland cement and its promotion in the 18th century that lime-based cementitious materials were phased out of history [4]. In recent years, with the development of the concept of “green building materials”, LCMs have gradually regained the focus of researchers worldwide. Compared with the calcination temperature of 1250~1450 °C for cementitious materials, the calcination temperature of HL is lower, usually 800~1200 °C, which greatly reduces the carbon emission in the production process [5,6]. HL also absorbs CO2 from the air during the hardening process, which further reduces energy consumption and carbon emissions. At the same time, the choice of raw materials for the preparation of hydraulic lime is wider: marl [7], chalk [8], ginger nut [6], even dolomite [9] and other low-grade silica-calcium minerals that cannot meet the calcination conditions of the cement industry can be used as the main raw materials for natural hydraulic lime (NHL), which enhances the comprehensive utilization of minerals. Additionally, due to the wide range of raw materials, NHL’s production conditions and application methods can be adapted to local conditions and reduce transportation costs to a certain extent. In conclusion, NHL has great potential for application in the construction field of ancient building restoration [10] and surface decorative mortars [11], coatings, etc. However, there are some problems in the application of hydraulic lime, such as cracking and salt petering [12]. In the field of ancient building restoration, the long early setting time and low mechanical strength of hydraulic lime also seriously restrict its practical application [13]. The key to solving these problems is to improve the hydration activity of NHL materials and to conduct more in-depth research on the hydration mechanism and the working performance mechanism.
The main components of NHL include the gaseous hard component calcium hydroxide (Ca(OH)2) and the hydraulic component (2CaO-SiO2, C2S). As reported, there are five types of polymorphs in C2S, named α, α’H, α’L, β, and γ, respectively [14]. Where α, α’H, and α’L phase are considered with high hydraulic reactivity, the instability at room temperature strongly restricts its application [15]. With respect to β phase, it is the main crystalline phase of C2S in cement clinker and commercial NHL [16]. At the same time, γ phase is commonly considered the most stable polymorph and hardly shows hydraulic reactivity [17]. Doping with impurity ions is one of the methods commonly used to improve the hydraulic activity of C2S. Na+, Fe3+, K+, Mg2+, and other minor ions can be doped onto the C2S crystal to replace Ca2+ or [SiO4]4−, which hinders the transformation of C2S into a rhombohedral crystal system during the cooling process [18,19].
It is well known that supplementary cementitious materials (SCMs) have a wide range of applications in the cement and hydraulic lime industry [20]. According to BSEN459:1-2010, NHLs can be referred as HLs when SCMs are added. SCMs have the following advantages: (i) reduced clinker usage; (ii) improved workability of the binder; (iii) pozzolanic activity can improve the mechanical strength of the matrix, etc. [21,22]. The commonly used SCMs are blast furnace slag (BFS) [23], fly ash (FA) [24], silica fume (SF) [25], and metakaolin (MK) [26]. In recent decades, the development of composite cement properties and microstructures has been a high research priority.
In this study, the NHL containing highly active α and α’-C2S was prepared by first mixing limestone and diatomite according to the calcium-silica component requirements of BSEN459:1-2010 [27] for NHL3.5, then doping with a small amount of stabilizer (B, B/Na ions), followed by calcination and digestion. Then the fabricated NHL was complexed with FA and SF in different proportions and prepared as pastes with a fixed w/c ratio of 0.55. The hydration mechanism, microstructural changes, and mechanical properties of HL-based cementitious materials under the composite effect of dynamic material of SCMs and ion doping were investigated. In this paper, ion doping and SCMs were used together, and the hydration reaction difference of C2S with different crystal forms was explored. The early hydration reaction speed of NHL was improved and the application of NHL was expanded.

2. Materials and Methods

2.1. Materials

The NHL used in this study was fabricated in the laboratory. The raw materials used to prepare it are limestone from Liaoning Province and diatomite from Jilin Province, China. SCMs are fly ash and silica fume from Shanxi Province, China.
The chemical composition of raw materials is shown in Table 1. The raw materials were heated to 1000 °C to determine the loss on ignition (L.O.I) of raw materials, and the L.O.I of limestone at 1000 °C was 43.09 wt%, corresponding to a CaCO3 content of about 97.9%. Meanwhile, the content of MgO is about 3 wt%, which, according to XRD results (Figure 1), mainly corresponds to dolomite (CaMg(CO3)2) in the raw material. According to the calculation, the Cementation Index (CI) value of the final product was 0.85 when adding 12% diatomite, which theoretically allows the production of natural hydraulic lime with high hydraulic properties.
CI = 2.8 × % SiO 2 + 1.1 × % Al 2 O 3 + 0.7 × % Fe 2 O 3 % CaO + 1.4 × % MgO
In this experiment, fly ash (FA) and silica fume (SF) were used as SCMs, where FA is mainly composed of CaO, Al2O3, Fe2O3, and other oxides. The content of CaO in FA is about 2.88%, indicating that it is low-calcium silicon FA. SF is acknowledged as highly reactive pozzolanic material, and its activity is mainly derived from the amorphous SiO2, which accounts for 92.7% of the total content.

2.2. Preparation

According to the component requirements of BSEN459-1:2010 for NHL3.5, the Ca(OH)2 content should not be less than 25%. Thus, the designed NHL3.5 consists of 75% C2S and 25% Ca(OH)2. First, 12 wt% diatomite was mixed with 88 wt% limestone as the calcined raw materials, added to 1.5 wt% B2O3, and 1.5 wt% B2O3 and Na2CO3 (in qual mass ratio) were mixed as stabilizers, respectively, and the mixture was ball-milled for 30 min until the particle size reached below 0.4 mm. As can be seen from Figure 2, the mixed powder was put into the muffle furnace, calcined at 1200 °C, with a heating rate of 5 °C/min and a holding time of 120 min. Then, 30% water by weight of the calcined product was weighed and mixed with the calcined product until the f-CaO was completely converted to Ca(OH)2, which could be observed through the exothermic condition, and was dried at 80 °C after digestion for approximately 20 min. The final product was obtained after 30 min of grinding. The granularity of the final product reached 0.2 mm, the residual value of the sieve did not exceed 2% of the total mass of the sieved material, and the residual value of the sieve of 0.09 mm did not exceed 15% of the total mass of the sieved material.
Referring to the cement net test methods GBT1346-2011, 500 g of prepared NHL were added into the net paste mixer, water was added at a water-binder ratio of 0.55, the mixer was started and mixed at low speed for 120 s and then stopped for 15 s, and the slurry on the blade and pot wall was scraped into the pot and mixed at high speed for 120 s. It was poured into a 30 × 30 × 30 mm mold for molding. The molding temperature was 20 °C and the humidity was 60%. After 48 h, the demolded specimens were placed in the same environment and continued to cure to specific ages. At specific ages, the mechanical properties of the specimens were determined. Meanwhile, the hydration process was terminated by grounding into powder and soaking in ethanol. Before microscopic characterization, the samples were dried in a vacuum oven at 65 °C for 24 h. The mixture ratio is shown in Table 2.

2.3. Test Methods

The components of raw materials were measured by PANalytical Axios XRF (X-ray Fluorescence Spectrometer, PANalytical, Almelo, The Netherland). Smatlab X-ray diffraction (XRD, Rigaku Corporation, Tokyo, Japan) was used to determine the mineral composition of the raw material and specimens, with 40 kV and 40 mA, CuKa1 radiation. Furthermore, 10°/min and 1°/min increment and 1 s·step-1 sweep from 10° to 80° 2 h were adapted, respectively. Meanwhile, the Rietveld method was used for XRD data analysis to quantify the mineral phase content.
Tam Air 08 isothermal calorimeter (TA Instrument, New Castle, DE, USA), was used to determine the hydration heat of specimens. At 20 °C, the specimens were weighed and placed in 20 mL of ampoule according to the proportion, and water was added to them according to the W/B ratio of 0.55. They were stirred quickly and put into the calorimeter.
Fourier transform infrared spectroscopy (FT-IR) spectra were carried out in the range of 400–4000 cm−1 to determine chemical bonding and crystal structure changes. Microscopic morphology and structure were determined by scanning electron microscope (SEM, Hitachi Regulus8100, Tokyo, Japan). The pore structure of the matrix is characterized by AutoPore IV 9500 Mercury intrusion porosimetry (MIP, Micromeritics Instrument, Norcross, GA, USA) in 30,000 psi. The mechanical properties of the specimens were measured on the same test machine (SANS CMT5105, Shenzhen, China) at a loading rate of 2400 ± 200 N/s.

3. Results

3.1. Mineral Content and Crystal Structure

For quantitative analysis, 20% rutile was mixed into the specimens as an internal calibrator. The XRD identified the five main mineral phases: portlandite, α’-C2S, β-C2S, rutile (used as an internal standard), calcite, and magnesite, as shown in Table 3. The GSAS software was used to make a refined fit to the test data. The final fitting results are shown in Figure 3. The fit difference Rwp of each specimen is less than 10%, which indicates a good matching result. The main error is from α’-C2S and β-C2S, and the characteristic peaks of the two phases overlapped extensively.
According to the results of quantitative analysis, the content of magnesite is about 3.27~4.31%. It is in accordance with BS EN459-1 that the free MgO content of NHL should be less than 7%, and, after mixing with SCMs, the content of magnesite in the system will be further reduced. At the same time, Mg ions will participate in constituting other crystalline phases and amorphous phases in the system. The content of magnesite in all three types of NHL prepared in this experiment did not exceed the regulation, and magnesite did not affect the system significantly in the short term.
From Figure 3, it can be seen that in the undoped sample, the diffraction peaks of C2S are mainly β phase, and in the B-doped sample there is an obvious crystalline transformation, and the diffraction peaks of α’-C2S appear obviously at about 2θ = 33°. In addition, the diffraction peak at 2θ = 33° tends to shift to a higher angle [28], which may be attributed to the replacement of small radius B ions with large radius Si ions in the doping process, and thus the size of α’-C2S is reduced [29]. As can be seen from the composition of the specimens in Figure 3d, the content of C2S increases slightly after the incorporation of the stabilizer.
When B ions were doped, the C2S crystalline phase in the prepared NHL was α’-phase with a content of 42.4 wt%, while 6.94 wt% of β-phase C2S was also present in the system, and when B/Na ions were doped, the content of α’-C2S decreased to 38.56 wt%, whereas the content of the amorphous phase increased. This phenomenon is in agreement with the results of Chen, L. et al. [30]. Similarly, Álvarez-Pinazo et al. attributed this mainly to the presence of excess dopant in the belite as well as cell defects [31]. Additionally, the Na ions are said to have an antagonistic effect with B ions and stabilize more C2S into β phase.
In addition to their stabilizing effect on belite, B and Na ions are often used as mineralizing agents in the cement industry. Their addition can enhance the burnability of cement, lower the phase formation temperature of C2S, C3S, etc. [32,33], and improve the calcination effect. Therefore, after doping with minor ions, the denseness of calcination products rises and the crystal structure of CaO becomes more stable, which may affect its reaction with water and thus adversely affect its long-term stability [34]. It is inclined to be not easily pulverized during the digestion process, which is objectively manifested by the rise in particle size of NHL, as shown in Figure 4. So the influence of doping ions can be concluded as doping B ion is more beneficial to the formation of α’-C2S, while doping B/Na ions lowered the content of α’-C2S. Mean, while B/Na ion doping shows more mineralization effect which led to the decrease in the content of portlandite and an increase in the particle size of the sample.
It can be seen from Figure 5 that the characteristic bands near 842 cm−1, 900 cm−1, 1000 cm−1 in the undoped samples correspond to the stretching vibrations of the Si-O bond and can be identified as β-C2S [35]. Meanwhile, new bands near 746 cm−1 and 1245 cm−1 can be observed in the doped samples, corresponding to the bending and stretching vibrations of [BO3]3−. According to the research, the structure of α’-C2S stabilized by B ion can be defined as Ca2−xBx(SiO4)1−x(BO4)x, where the x is determined by the dosage of B ions as well as the ion types and quantity of raw material [36].
Na+ ion is considered an efficient dopant to stabilize β-C2S. It is generally agreed that Na+ ion can replace Ca2+ in equivalent molar amounts in C2S crystal [37]. For the samples with complex doping of B and Na ions, the characteristic spectra are similar to those of the single doped B ion specimens. Both [BO3]3− as well as [BO4]5− were present in the specimens. In the calcination process, due to the existence of different types of mineral phases, such as quartz phase, calcium oxide, calcite, etc., Na and B ions may occur in different degrees of solid solution with each mineral phase, which leads to the unequal doping of B and Na for C2S [38].
The results of Rietveld refined cell parameters are shown in Table 4. The variation of the cell parameters of β-C2S and α’-C2S also shows that the cell volumes of β-C2S and α’-C2S appear to be reduced to different degrees in the single-doped specimens and the complex-doped specimens. The cell volume of β-C2S is smaller in the single-doped specimens than in the complex-doped samples, while the cell volume of α’-C2S is smaller in the complex-doped samples. This is mainly due to the replacement of the large radius Si and Ca ions with the smaller radius B and Na ions. The different doping rates of B and Na atoms in β-C2S and α’-C2S cause different degrees of cell distortion. This result is also consistent with the FT-IR results.

3.2. Hydration Heat

The effect of doping and SCMs on the hydration characteristics of NHL was further investigated. Meanwhile, 10% and 20% FA and SF were added to the three types of NHL, respectively. Generally, the hydration process could be divided into four periods: (I) Initial reaction, (II) Inducing period, (III) Acceleration period, and (IV) Deceleration period. During the first period of mixed powder contact with water, the Ca(OH)2 and C2S dissolve and release a lot of heat [39]. Then the C2S reacted with water and generated C-S-H gel layers which next act as a diffusion barrier coated with unreacted particles and restricted the hydration and pozzolanic reaction. Similar processes also occurred on the surface of SCMs particles [40]. Comparing the hydration exothermic curves of three specimens, NHL, B1.5, and BNa1.5, it is known that doping with B and Na ions significantly enhanced the hydration exothermic rate of the specimens. As can be seen from Figure 6, the exothermic rate curve of the blank group showed a continuous decay trend, and there was no obvious exothermic peak even till 160 h. Compared with the single doped B specimens, the exothermic peak of the coupled B and Na group appeared later, and its exothermic peak appeared at about 120 h, followed by a slow decay, and the continuous exotherm still appeared at 220 h of hydration. This phenomenon is consistent with the strength development mode, which further indicates that the single-blended B has higher early strength, while the coupled B and Na have higher late strength.
From Figure 6a, it can be seen that an obvious exothermic peak appeared at about 40 h after the incorporation of SF, and the peak intensity increased with the increase of SF mixing amount, which is due to the pozzolanic reaction of SF which generates a large amount of C-(A)-S-H gel and releases a large amount of heat. There is a slight decrease in the exothermic rate after the incorporation of fly ash, which indicates that FA is less involved in the early stage of hydration, while the relatively lower NHL content is another reason for the slower exotherm [41]. A similar phenomenon was also apparent in D. Zhang’s study [42]. For the B-doped composite modified hydraulic lime, a significant increase in the hydration rate was observed for both specimens, relative to the blank group. As shown in Figure 6c, for the SF-doped specimens, an obvious exothermic peak appeared around 40 h, which can be identified as the exothermic peak generated by the pozzolanic reaction of SF after comparison with the blank group, which also indicates that the exotherm of pozzolanic reaction dominates the hydration in this stage. Thereafter, the exothermic curve gradually decreased, and at about 100 h, the curve of the SF-doped group was similar to the exothermic rate curve of the B1.5 specimen, indicating that the hydration of C2S dominated at this stage and lasted until 160 h. In this group, the exothermic rate of the F1B1.5 specimen with 10% FA incorporation was higher than that of the B1.5 specimen (the exothermic rate curve became significantly steeper during the acceleration period), which may be attributed to: (i) The doping ions promoted the pozzolanic reaction of FA. (ii) The incorporation of FA increases the nucleation sites in the paste, which facilitates the nucleation growth of C-(A)-S-H gel. (iii) The “dilution effect” increases the contact between C2S and water, so it can fully engage in the hydration reaction, which also leads to the enhancement of the heat of hydration [43]. When 20% FA was added, the clinker and calcium hydroxide content in the system is further reduced, which caused a further decline in the exothermic rate. The pattern of the coupled B and Na doping group is similar to that of B doping single. In this group, the exothermic peak of SF-doped specimens appeared later at about 80 h. In general, SF promotes the early exotherm of the specimens due to the high pozzolanic activity, while the relatively early low pozzolanic activity of FA declined the hydration rate of the specimens. This is in agreement with the early mechanical strength.

3.3. Mechanical Properties

The pozzolanic reaction consumes a large amount of Ca(OH)2 in the system, and the resulting C-(A)-S-H gel is similar to the hydration products of C2S. The decrease in alkalinity reduces the hydration rate of C2S, but the C-(A)-S-H gel induces the hydration reaction of C2S in the long age, and the Ca(OH)2 produced by the hydration reaction of C2S also promotes the secondary pozzolanic reaction of SCMs, so the incorporation of SCMs delays the hydration reaction of C2S in the early age, but promotes C2S reaction from two aspects in the long age.
It is noticeable that the doping significantly increased the compressive strength of the specimens. At the early stage of curing, the compressive strength of the B-doped specimens was higher, reaching 18 MPa at 21 d, which was 5 MPa higher than that of the coupled B/Na-doped specimens and much higher than that of the undoped specimens, which was 1.6 MPa. After 21 d, the strength growth of the B-doped specimens slowed down, while the strength of the coupled specimens accelerated, reaching 22.1 MPa at 60 d. The above results indicated that the B-doped specimens were more favorable to the early strength of the specimens, while the coupled B/Na was more favorable to the later strength of the NHL.
For the blank group experiments, the incorporation of SF significantly enhanced the early strength of NHL, as shown in Figure 7. In the high alkalinity environment, amorphous SiO2 with high activity within SF can react with Ca(OH)2 more quickly to form C-(A)-S-H gel; thus, the early strength of the mortar developed better. The strength of the specimen with 20% silica fume reached 14.8 MPa at 28 d. However, at the late stage of curing, the strength of the specimen showed significant inversion shrinkage and severe cracking at 60 d, making its strength untestable. This could be attributed to the quick early hydration of the specimen. During the hydration process, the free water in the pore decreases continuously with the reaction and produces partial minor shrinkage, while the hydration products bond the unhydrated particles into a shelf structure, and refill the cracks and pore structure, forming a relatively stable structure to resist part of the shrinkage stress [44]. Meanwhile, the curing condition is also one of the reasons for cracking. Some researchers use water curing or steam curing to reduce the water loss rate of cementitious materials, thus reducing the loss of structural water. At the same time, in the environment with high humidity, a small amount of calcium hydroxide will also dissolve in water and repair the possible micro cracks. The C-S-H gel is more evenly dispersed. This curing method is often used for the cementitious materials with high hydration speed to avoid cracks [45].
Due to the low early strength of NHL, it is not sufficient to resist the stresses due to shrinkage, thus producing cracks on the surface of the specimens, as shown in Figure 7d. The early strength of the FA-doped specimens in the blank group was lower compared to that of the specimens in the SF-doped group. The low early activity of FA is mainly related to its structure, which is a spherical particle covered with a glass layer that hinders the dissolution of the internal Si and Al phases. However, its strength is still slightly higher than that of the specimens without FA, which is mainly due to the interfiling of FA and lime particles, making the accumulation denser. In fact, at the initial stage, in addition to the degree of hydration, the filling effect and the surface properties of the particles also affect the strength of the specimens. The strength of the FA incorporated specimens continued to increase in the later stages of curing, as shown in Figure 7a. This is mainly due to the pozzolanic effect of FA of enhancing the strength of the specimens at the later stage [46]. In addition, the specimens in the FA dosed group were more structurally intact and did not show obvious cracks. On the one hand, the specimens in the early FA dosed group hydrated more slowly, thus the self-shrinkage was weaker and the shrinkage stress was low; on the other hand, the filling of FA between the particles optimized the structure of the specimens. In general, the SF-dosed specimens possessed higher early strength, but the mechanical properties deteriorated later due to self-shrinkage; the FA-dosed specimens had lower early strength but avoided microcracks in the specimens, and the pozzolanic effect of FA enhanced the mechanical properties of the specimens later. FA is considered to help reduce the cracking of cementitious materials.
After the doping of NHL, its composite modification with FA and SF resulted in some new effects on the specimens. First, for the specimens in the single B-doped group, the composite modification further improved the early mechanical properties of the specimens. The strengths of the specimens incorporated with 10% and 20% SF reached 32.9 MPa and 26.1 MPa at 28 d. The strengths of the specimens incorporated with 10% and 20% FA were 22.9 MPa and 23.2 MPa at 28 d, which were much higher than those of the blank group.
Two main types of hydration processes exist in this experiment. On the one hand, there is more α’-C2S in the doped specimens, and its faster hydration rate at the early stage produces part of the C-(A)-S-H gel; on the other hand, the dissolution and polymerization process of Si and Al phases in FA generates another part of C-(A)-S-H. These two processes together determine the strength of the composite modified specimens, as Equations (2a–c) show.
α’-2CaO·SiO2 + nH2O → mCaO·SiO2·kH2O + (2 − m)Ca(OH)2
xCa(OH)2 + SiO2 + nH2O → mCaO·SiO2·(x + n)H2O
xCa(OH)2 + Al2O3 + nH2O → mCaO·Al2O3·(x + n)H2O
These two hydration processes are not completely independent. In some previous studies, there are two main explanations for the interaction between the two processes. One explanation suggests that the promotion of alkalinity has a facilitated effect on the activity of fly ash [47]. The hydration process of the paste is accompanied by an increase in pH, and the increase in pH accelerates the erosion of the SCMs, thus more Si and Al phases are dissolved, which enhances the pozzolanic reaction. Another explanation is that the presence of SCMs has a facilitated effect on the hydration of C2S [48]. A.M. Sharar et al. [49]. suggested that Ca(OH)2 covers the surface of C2S during hydration, which has a hindering effect on hydration. In contrast, the pozzolanic reaction consumes Ca(OH)2, thus increasing the hydration activity of C2S. It should be noted that both promotion mechanisms may exist simultaneously in the hydration process.
Finally, for the B-doped activation group, although some inversion of strength still occurred in the SF-doped specimens at the late stage of hydration, the inversion was improved relative to the blank group specimens, as can also be seen in Figure 7d, where the cracks on the surface of the S2B1.5 specimens were significantly reduced.
In general, SF with high volcanic ash activity can significantly promote the early hydration of NHL, while the effect of FA is not obvious at the early age and even reduces the early strength of NHL at 20% more incorporation. However, the effect of FA on the doped sample can significantly enhance the early performance of the matrix, owing to the interaction of the two hydration mechanisms. In addition, doping can avoid the inversion shrinkage problem caused by SF to some extent, which has a more positive effect on the mechanical properties of the binder.

3.4. Phase Analysis of Binders

As can be seen in Figure 8a, no significant change in the characteristic peak of β-C2S in the undoped NHL was observed due to the low early hydration activity of β-C2S, and similar results were observed after the incorporation of FA. After the incorporation of SF, the characteristic peak of Ca(OH)2 showed a significant decrease due to the high early pozzolanic activity and the characteristic peak of C-S-H gel was observed at 28 d, while the characteristic peak of β-C2S did not show significant changes.
For the specimens doped by single B, the characteristic peaks of Ca(OH)2 in the non-SCMs-dosed and FA-dosed specimens increased with the curing time, while the characteristic peaks of α’-C2S showed an obvious decline, and by 28 d the characteristic peaks of α’-C2S showed an extremely weak “shoulder peak”, as shown in Figure 8b. This indicates a faster hydration rate of α’-C2S in ion-doped binder. It should be noted that the growth of Ca(OH)2 can reflect the degree of hydration of the matrix to some extent, which is applicable to both cement and NHL systems, as demonstrated in many studies [50,51]. The FA-dosed specimen (F2B1.5) showed a more significant increase in Ca(OH)2 characteristic peak intensity in 28 d compared with the un-doped specimen (B1.5), and this phenomenon supports the conclusion that FA has a facilitating effect on α’-C2S hydration. The Ca(OH)2 peak and α’-C2S peak of SF-dosed specimens both weakened along the curing time, which proved that the pozzolanic effect had a greater influence on the hydration of the SF dosed specimens. The experimental phenomenon of the coupled B/Na doped group was similar to that of the single B doped group.

3.5. TG Analysis

To further study the variation of the internal composition of the specimens with the degree of hydration, the variation law of chemically bound water and Ca(OH)2 in the specimens at different ages was analyzed by TG. As can be seen from Figure 9 and Figure 10 the weight loss of the specimen can be divided into four stages: −30–105 °C, 105–400 °C, 400–500 °C, and 500–800 °C. Where the weight loss below 105 °C is the evaporation of free water, 105–400 °C can be identified as C-(A)-S-H gel to remove chemically bound water, 400–500 °C is the dehydration of Ca(OH)2, and 500–800 °C is the decomposition of CaCO3 [52,53].
The bound water content of all specimens increased with the extension of the curing time, and the bound water content of the doped specimens was higher than that of the blank group. At 7 d, the bound water content of single-doped B > coupled B/Na > blank group, while the strength of coupled B/Na was slightly higher than that of single-blended B at 28 d. This is consistent with the result that single-doped B specimens have higher early strength and coupled B/Na has higher late strength. This is consistent with the result that single-doped B has higher early strength and coupled B/Na has higher late strength. In the composite modified NHL coupled with SCMs, the binding water was partly derived from the hydration of C2S and partly from the pozzolanic reaction, and the FA, due to its low activity and the substitution of clinker, led to a decrease in the binding water content after the FA incorporation, but in the doped group, the binding water of the FA specimens was significantly increased compared to the blank group, which again indicated that the doping had a facilitating effect on the pozzolanic activity. The higher pozzolanic activity of SF significantly enhanced the bound water in the specimens.
The variation of Ca(OH)2 content then verifies the combined interaction of the two hydration mechanisms for the composite modified materials. For the doping samples only, the Ca(OH)2 content increases with age, which corresponds to the hydration of C2S, which reacts with water to produce Ca(OH)2 in addition to the C-(A)-S-H gel. In contrast, for the composite modified system, the variation of Ca(OH)2 content is the result of the competition between the two hydration mechanisms. For all SF-dosed samples, the Ca(OH)2 content showed a decreasing trend with time, in which the Ca(OH)2 content at 28 d: blank group < coupled B/Na doped < single-B doped group, which is due to the fact that the activated SiO2 and Al2O3 would react with Ca(OH)2 to form C-(A)-S-H gel. As for the doped specimens, the faster hydration of α’-C2S to produce Ca(OH)2 delayed the decrease of total Ca(OH)2. The decrease in overall Ca(OH)2 content then indicates that the strength of the pozzolanic reaction in the SF-doped composite modified NHL is greater than the hydration of C2S. The Ca(OH)2 content of FA-dosed composite modified NHL, on the other hand, increases slightly with the curing time, indicating that the hydration of C2S is stronger than the pozzolanic reaction during its hydration.

3.6. Microstructure

The microscopic morphology of 28 d specimens was analyzed by SEM as shown in Figure 11.
For the blank specimens without the addition of SCMs, the surface is dominated by a flocculent gel that grows on the surface of the particles. This flocculent gel structure is relatively loose, as shown in Figure 11a, and this type of gel is mainly generated at the early stage of hydration of C2S. After ion doping, due to the higher degree of hydration, C-(A)-S-H grows and covers the surface of C2S particles, forming more widely distributed and dense gel, which is mainly needle-like with a mutual interweaving condition. The gel forms a “bridge” structure that connects particles to particles and supports the specimen, as shown in Figure 11b. For the specimens mixed with FA, two different types of gel were found. The surface of the FA particles is covered with a dense structured bulk gel, as shown in Figure 11c. Similar gel was found in Pengkun Hou’s study on FA-Cement as a result of the pozzolanic reaction of FA [54]. The outside of this gel layer is covered with needle-like gel, which is generated due to the hydration of C2S. For the SF-dosed specimens, the percentage of gel generated by the pozzolanic reaction is higher due to the higher pozzolanic activity of SF, as seen in Figure 11d, where the generated gel mainly appears plate-like. Furthermore, some petal-like gel was also found, and this gel was found to be similarly shaped in the morphological study by Xu, S. et al. [55] on the hydration products of NHL, which were mainly generated by the hydration of C2S, and the morphology of the gel was related to the water-ash ratio and the degree of hydration.

3.7. Pore Structure

The change of porosity of the specimen also reflects the different hydration degrees, and the pore size distribution of a typical specimens cured for 28 d is shown in Figure 12.
The measured pores can be classified into four types according to their pore size: gel micropores (<4.5 nm); mesopores (4.5–50 nm); medium capillaries (50–100 nm); and large capillaries (>100 nm) [56]. From Figure 12a, it can be seen that the pore size of the blank NHL specimen is dominated by large capillary pores of about 700 nm, and the distribution of small pore size increases after doping, which shows that the number of large capillary pores larger than 100 nm decreases, while the number of medium-sized capillary pores within 0.01–0.1 μm increases, which indicates the increase of the dense degree of the doping matrix structure. The degree of denseness of the specimens can be judged according to the distribution of pore size: BNa1.5 > B1.5 > NHL, which is consistent with the law of compressive strength. After the addition of SCMs, there is a further reduction in the porosity of the matrix, as shown in Figure 12b. After the incorporation of FA, the number of large capillary pores was reduced due to secondary hydration and filling, while the number of mesopores around 10 nm was increased. While the samples doped with SF showed a significant decrease in the large capillary pore size, mainly concentrated around 280 nm, the content of gel micropores and mesopores increased significantly, indicating that the structural denseness was significantly improved.

4. Conclusions

The effects of ion doping and SCMs on the mechanical strength of NHL were mainly investigated. The hydration rate, mineral phase evolution pattern, and microstructure of the material under the composite action were also investigated. On this basis, the hydration mechanism under the composite action was elaborated. The conclusions were obtained as follows:
Both single-doped B and couple-doped B/Na can stabilize α’-C2S, the stabilization effect of single-doped B on α’-C2S is higher than that of couple-doped B/Na, and doping causes a decrease in the volume of α’-C2S crystals. In addition, ion doping leads to the decrease of Ca(OH)2 content in clinker and the increase of the amorphous phase, where the effect of complex B/Na doping is higher than that of single B doping.
Doping and the incorporation of FA and SF are able to enhance the mechanical strength of the specimens. The mechanical properties were further improved under the coupling effect. As far as doping is concerned, B doping is beneficial to the early strength of the specimens, and couple-B/Na doping is beneficial to the later strength of the specimens. After incorporation of SF, the high pozzolanic activity of SF significantly improved the early strength of the specimens, but the effect on undoped activated specimens leads to late cracking of the specimens and deterioration of the late strength. Doping can improve the degree of late cracking of the specimens. FA can effectively improve the late strength of the specimens, while for the doping group, FA incorporation specimens exhibit higher strength at an earlier period.
The composite modified lime strength is mainly related to the pozzolanic effect and α’-C2S hydration. Doping significantly enhanced the hydration rate of the binder, with the single doped B group showing higher early hydration activity and the later hydration of the coupled B/Na, which was mainly dependent on the hydration of α’-C2S in the specimens. The pozzolanic effect of SF is higher than the hydration of α’-C2S in the couple-doped modification, while the pozzolanic reaction degree of FA is lower than the hydration of α’-C2S. The hydration of the matrix can be further promoted by the synergistic effect. Under the synergistic hydration, the gel in the material coexisted with the pozzolanic-generated gel and the C2S-generated gel, and the gel generated by the pozzolanic effect is denser in structure, which reduces the porosity of the material.

Author Contributions

Conceptualization, Y.Z. and J.L.; methodology, J.W. and D.W.; data curation, Y.Z. and C.S.; writing—original draft preparation, Y.Z. and Z.L.; writing—review and editing, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China, grant number 5207020965.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arizzi, A.; Cultrone, G. Mortars and plasters—How to characterise hydraulic mortars. Archaeol. Anthr. Sci. 2021, 13, 144. [Google Scholar] [CrossRef]
  2. Elsen, J.; Mertens, G.; Snellings, R. Portland Cement and Other Calcareous Hydraulic Binders: History, Production and Mineralogy. In Advances in the Characterization of Industrial Minerals; Mineralogical Society of Great Britian and Ireland: Twickenham, UK, 2011; pp. 441–479. [Google Scholar]
  3. Artioli, G.; Secco, M.; Addis, A. The Vitruvian Legacy: Mortars and Binders Before and After the Roman World; Mineralogical Society of Great Britian and Ireland: Twickenham, UK, 2019; pp. 151–202. [Google Scholar]
  4. Hall, C. On the history of Portland cement after 150 years. J. Chem. Educ. 1976, 53, 222–223. [Google Scholar] [CrossRef]
  5. Han, T.H.; Ponduru, S.A.; Cook, R.; Huang, J.; Sant, G.; Kumar, A. A Deep Learning Approach to Design and Discover Sustainable Cementitious Binders: Strategies to Learn From Small Databases and Develop Closed-form Analytical Models. Front. Mater. 2022, 8, 574. [Google Scholar] [CrossRef]
  6. Jia, Q.Q.; Chen, W.W.; Tong, Y.M.; Guo, L.Q. Strength, hydration, and microstructure properties of calcined ginger nut and natural hydraulic lime based pastes for earthen plaster restoration. Constr. Build. Mater. 2022, 323, 126606. [Google Scholar] [CrossRef]
  7. Hughes, D.C.; Jaglin, D.; Kozlowski, R.; Mucha, D. Roman cements-Belite cements calcined at low temperature. Cem. Concr. Res. 2009, 39, 77–89. [Google Scholar] [CrossRef]
  8. Kalagri, A.; Miltiadou-Fezans, A.; Vintzileou, E. Design and evaluation of hydraulic lime grouts for the strengthening of stone masonry historic structures. Mater. Struct. 2010, 43, 1135–1146. [Google Scholar] [CrossRef]
  9. Yang, F.W.; Zhang, B.J.; Ma, Q.L. Study of Sticky Rice-Lime Mortar Technology for the Restoration of Historical Masonry Construction. Acc. Chem. Res. 2010, 43, 936–944. [Google Scholar] [CrossRef]
  10. Ruegenberg, F.; Schidlowski, M.; Bader, T.; Diekamp, A. NHL-based mortars in restoration: Frost-thaw and salt resistance testing methods towards a field related application. Case Stud. Constr. Mater. 2021, 14, e00531. [Google Scholar] [CrossRef]
  11. Bauerova, P.; Reiterman, P.; Davidova, V.; Vejmelkova, E.; Storkanova, M.K.; Keppert, M. Lime Mortars with Linseed Oil: Engineering Properties and Durability. Rev. Romana Mater. 2021, 51, 239–246. [Google Scholar]
  12. Silva, B.A.P.; Pinto, A.P.F.; Gomes, A. Influence of natural hydraulic lime content on the properties of aerial lime-based mortars. Constr. Build. Mater. 2014, 72, 208–218. [Google Scholar] [CrossRef]
  13. Maravelaki-Kalaitzaki, P.; Bakolas, A.; Karatasios, I.; Kilikoglou, V. Hydraulic lime mortars for the restoration of historic masonry in Crete. Cem. Concr. Res. 2005, 35, 1577–1586. [Google Scholar] [CrossRef]
  14. Stankeviciute, M.; Siauciunas, R.; Miachai, A. Impact of α-C2SH calcination temperature on the mineral composition and heat flow of the products. J. Therm. Anal. 2018, 134, 101–110. [Google Scholar] [CrossRef]
  15. Wang, Q.; Manzano, H.; Guo, Y.; Lopez-Arbeloa, I.; Shen, X. Hydration Mechanism of Reactive and Passive Dicalcium Silicate Polymorphs from Molecular Simulations. J. Phys. Chem. C 2015, 119, 19869–19875. [Google Scholar] [CrossRef]
  16. Morsli, K.; de la Torre, A.G.; Cuberos, A.J.M.; Zahir, M.; Aranda, M.A.G. Preparation and characterization of alkali-activated white belite cements. Mater. Constr. 2009, 59, 19–29. [Google Scholar]
  17. Alonso, C.; Fernandez, L. Dehydration and rehydration processes of cement paste exposed to high temperature environments. J. Mater. Sci. 2004, 39, 3015–3024. [Google Scholar] [CrossRef]
  18. Gawlicki, M. Effect of stabilizers on beta-C2S hydration. Cem. Wapno Beton 2008, 13, 147. [Google Scholar]
  19. Huang, L.; Yang, Z. Sinterization and hydration of synthesized cement clinker doped with sulfates. J. Therm. Anal. 2019, 138, 973–981. [Google Scholar] [CrossRef]
  20. Zhang, D.; Zhao, J.; Wang, D.; Xu, C.; Zhai, M.; Ma, X. Comparative study on the properties of three hydraulic lime mortar systems: Natural hydraulic lime mortar, cement-aerial lime-based mortar and slag-aerial lime-based mortar. Constr. Build. Mater. 2018, 186, 42–52. [Google Scholar] [CrossRef]
  21. Uchima, J.S.; Restrepo-Baena, O.J.; Tobon, J.I. Mineralogical evolution of portland cement blended with metakaolin obtained in simultaneous calcination of kaolinitic clay and rice husk. Constr. Build. Mater. 2016, 118, 286–293. [Google Scholar] [CrossRef]
  22. Wang, S.D.; Chen, C.; Gong, C.C.; Chen, Y.M.; Lu, L.C.; Cheng, X. Setting and hardening properties of alite-barium calcium sulfoaluminate cement with SCMs. Adv. Cem. Res. 2015, 27, 147–152. [Google Scholar]
  23. Lin, K.-H.; Yang, C.-C. Effects of types and surface areas of activated materials on compressive strength of GGBS cement. Mag. Concr. Res. 2021, 74, 582–593. [Google Scholar] [CrossRef]
  24. Cheng, Z.; An, J.; Li, F.; Lu, Y.; Li, S. Effect of fly ash cenospheres on properties of multi-walled carbon nanotubes and polyvinyl alcohol fibers reinforced geopolymer composites. Ceram. Int. 2022, 48, 18956–18971. [Google Scholar] [CrossRef]
  25. Lu, D.; Shi, X.M.; Zhong, J. Interfacial nano-engineering by graphene oxide to enable better utilization of silica fume in cementitious composite. J. Clean. Prod. 2022, 354, 131381. [Google Scholar] [CrossRef]
  26. Alelweet, O.; Pavia, S. Pozzolanic and hydraulic activity of bauxite for binder production. J. Build. Eng. 2022, 51, 104186. [Google Scholar] [CrossRef]
  27. Grilo, J.; Faria, P.; Veiga, R.; Silva, A.S.; Silva, V.; Velosa, A. New natural hydraulic lime mortars–Physical and microstructural properties in different curing conditions. Constr. Build. Mater. 2014, 54, 378–384. [Google Scholar] [CrossRef] [Green Version]
  28. Diouri, A.; Boukhari, A.; Aride, J.; Puertas, F.; Vazquez, T. Elaboration of alpha L ’-C2S form of belite in phosphatic clinker. Study of hydraulic activity. Mater. Constr. 1998, 48, 23–32. [Google Scholar] [CrossRef] [Green Version]
  29. Elhoweris, A.; Galan, I.; Glasser, F.P. Stabilisation of α′ dicalcium silicate in calcium sulfoaluminate clinker. Adv. Cem. Res. 2020, 32, 112–124. [Google Scholar] [CrossRef]
  30. Li, C.; Wu, M.X.; Yao, W. Effect of coupled B/Na and B/Ba doping on hydraulic properties of belite-ye’elimite-ferrite cement. Constr. Build. Mater. 2019, 208, 23–35. [Google Scholar] [CrossRef]
  31. Álvarez-Pinazo, G.; Cuesta, A.; García-Maté, M.; Santacruz, I.; Losilla, E.; De la Torre, A.; León-Reina, L.; Aranda, M. Rietveld quantitative phase analysis of Yeelimite-containing cements. Cem. Concr. Res. 2012, 42, 960–971. [Google Scholar] [CrossRef] [Green Version]
  32. Segata, M.; Marinoni, N.; Galimberti, M.; Marchi, M.; Cantaluppi, M.; Pavese, A.; De la Torre, G. The effects of MgO, Na2O and SO3 on industrial clinkering process: Phase composition, polymorphism, microstructure and hydration, using a multidisciplinary approach. Mater. Charact. 2019, 155, 109809. [Google Scholar] [CrossRef] [Green Version]
  33. Fernandes, W.; Torres, S.; Kirk, C.; Leal, A.; Filho, M.L.; Diniz, D. Incorporation of minor constituents into Portland cement tricalcium silicate: Bond valence assessment of the alite M1 polymorph crystal structure using synchrotron XRPD data. Cem. Concr. Res. 2020, 136, 106125. [Google Scholar] [CrossRef]
  34. Abdelatif, Y.; Gaber, A.A.M.; Fouda, A.S.; Alsoukarry, T. Evaluation of Calcium Oxide Nanoparticles from Industrial Waste on the Performance of Hardened Cement Pastes: Physicochemical Study. Processes 2020, 8, 401. [Google Scholar] [CrossRef] [Green Version]
  35. Gualtieri, A.F.; Viani, A.; Montanari, C. Quantitative phase analysis of hydraulic limes using the Rietveld method. Cem. Concr. Res. 2006, 36, 401–406. [Google Scholar] [CrossRef]
  36. Cuesta, A.; Losilla, E.R.; Aranda, M.A.; Sanz, J.; De la Torre, G. Reactive belite stabilization mechanisms by boron-bearing dopants. Cem. Concr. Res. 2012, 42, 598–606. [Google Scholar] [CrossRef]
  37. Guo, P.; Wang, B.; Bauchy, M.; Sant, G. Misfit Stresses Caused by Atomic Size Mismatch: The Origin of Doping-Induced Destabilization of Dicalcium Silicate. Cryst. Growth Des. 2016, 16, 3124–3132. [Google Scholar] [CrossRef]
  38. Lai, G.C.; Nojiri, T.; Nakano, K. Studies of the Stability of Beta-Ca2SiO4 Doped by Minor Ions. Cem. Concr. Res. 1992, 22, 743–754. [Google Scholar] [CrossRef]
  39. Haustein, E.; Kuryłowicz-Cudowska, A.; Łuczkiewicz, A.; Fudala-Książek, S.; Cieślik, B.M. Influence of Cement Replacement with Sewage Sludge Ash (SSA) on the Heat of Hydration of Cement Mortar. Materials 2022, 15, 1547. [Google Scholar] [CrossRef]
  40. Wang, D.; Zhang, Q.; Feng, Y.; Chen, Q.; Xiao, C.; Li, H.; Xiang, Y.; Qi, C. Hydration and Mechanical Properties of Blended Cement with Copper Slag Pretreated by Thermochemical Modification. Materials 2022, 15, 3477. [Google Scholar] [CrossRef]
  41. Amin, M.S.; Abo-El-Enein, S.A.; Rahman, A.A.; Alfalous, K.A. Artificial pozzolanic cement pastes containing burnt clay with and without silica fume Physicochemical, microstructural and thermal characteristics. J. Anal. Calorim. 2012, 107, 1105–1115. [Google Scholar] [CrossRef]
  42. Zhang, D.; Zhao, J.; Wang, D.; Wang, Y.; Ma, X. Influence of pozzolanic materials on the properties of natural hydraulic lime based mortars. Constr. Build. Mater. 2020, 244, 118360. [Google Scholar] [CrossRef]
  43. Yoon, S.; Choi, W.; Jeon, C. Hydration properties of mixed cement containing ground-granulated blast-furnace slag and expansive admixture. J. Mater. Cycles Waste Manag. 2022, 24, 1878–1892. [Google Scholar] [CrossRef]
  44. Hasan, M.F.; Lateef, K.H. Effect of MK and SF on the concrete mechanical properties. Mater. Today Proc. 2021, 42, 2914–2919. [Google Scholar] [CrossRef]
  45. Kim, M.J.; Oh, T.; Yoo, D.Y. Influence of curing conditions on the mechanical performance of ultra-high-performance strain-hardening cementitious composites. Arch. Civ. Mech. Eng. 2021, 21, 104325. [Google Scholar] [CrossRef]
  46. Muthadhi, A.; Dhivya, V. Investigating Strength Properties of Geopolymer Concrete with Quarry Dust. ACI Mater. J. 2017, 114, 355–363. [Google Scholar] [CrossRef]
  47. Yang, L.; Zhao, P.; Liang, C.; Chen, M.; Niu, L.; Xu, J.; Sun, D.; Lu, L. Characterization and adaptability of layered double hydroxides in cement paste. Appl. Clay Sci. 2021, 211, 106197. [Google Scholar] [CrossRef]
  48. Poussardin, V.; Paris, M.; Tagnit-Hamou, A.; Deneele, D. Potential for calcination of a palygorskite-bearing argillaceous carbonate. Appl. Clay Sci. 2020, 198, 105846. [Google Scholar] [CrossRef]
  49. Sharara, A.; El-Didamony, H.; Ebied, E.; El-Aleem, A. Hydration characteristics of β-C2S in the presence of some pozzolanic materials. Cem. Concr. Res. 1994, 24, 966–974. [Google Scholar] [CrossRef]
  50. Lv, Y.J.; Yang, L.B.; Wang, J.L.; Zhan, B.J.; Xi, Z.M.; Qin, Y.M.; Liao, D. Performance of ultra-high-performance concrete incorporating municipal solid waste incineration fly ash. Case Stud. Constr. Mater. 2022, 17, e01155. [Google Scholar] [CrossRef]
  51. Rojo-Lopez, G.; Gonzalez-Fonteboa, B.; Martinez-Abella, F.; Gonzalez-Taboada, I. Rheology, durability, and mechanical performance of sustainable self-compacting concrete with metakaolin and limestone filler. Case Stud. Constr. Mater. 2022, 17, e01143. [Google Scholar] [CrossRef]
  52. Silva, A.S.; Cruz, T.; Paiva, M.J.; Candeias, A.; Adriano, P.; Schiavon, N.; Mirão, J.A.P. Mineralogical and chemical characterization of historical mortars from military fortifications in Lisbon harbour (Portugal). Environ. Earth Sci. 2011, 63, 1641–1650. [Google Scholar] [CrossRef]
  53. Ubbrìaco, P.; Traini, A.; Manigrassi, D. Characterization of FDR fly ash and brick/lime mixtures. J. Therm. Anal. 2008, 92, 301–305. [Google Scholar] [CrossRef]
  54. Li, P.; Ma, Z.; Li, X.; Lu, X.; Hou, P.; Du, P. Effect of Gypsum on Hydration and Hardening Properties of Alite Modified Calcium Sulfoaluminate Cement. Materials 2019, 12, 3131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Xu, S.; Wang, J.; Sun, Y. Effect of water binder ratio on the early hydration of natural hydraulic lime. Mater. Struct. 2015, 48, 3431–3441. [Google Scholar] [CrossRef]
  56. Yang, Y.; Yan, Z.; Zheng, L.; Yang, S.; Su, W.; Li, B.; Ji, T. Interaction between composition and microstructure of cement paste and polymeric carbon nitride. Constr. Build. Mater. 2022, 335, 127464. [Google Scholar] [CrossRef]
Sustainability 14 10484 g001 550

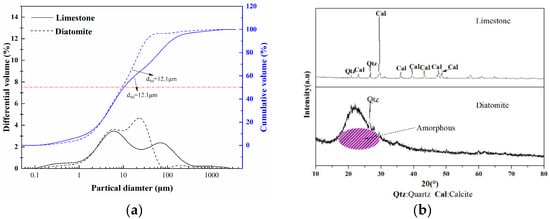

Figure 1. (a) Particle size diameter distribution of raw material, (b) XRD patterns of the raw materials.
Figure 1. (a) Particle size diameter distribution of raw material, (b) XRD patterns of the raw materials.
Sustainability 14 10484 g001
Sustainability 14 10484 g002 550

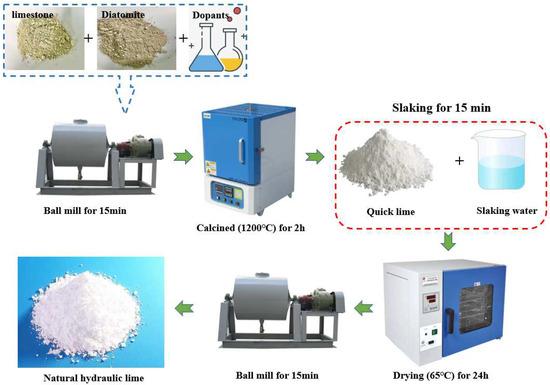

Figure 2. Schematic diagram of preparation process of natural hydraulic lime.
Figure 2. Schematic diagram of preparation process of natural hydraulic lime.
Sustainability 14 10484 g002
Sustainability 14 10484 g003 550

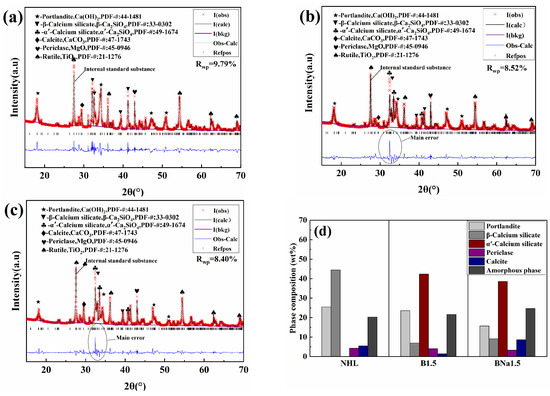

Figure 3. XRD fitting pattern of (a) NHL, (b) B1.5, and (c) BNa1.5; (d) mineral phase composition of the sample by Rietveld method.
Figure 3. XRD fitting pattern of (a) NHL, (b) B1.5, and (c) BNa1.5; (d) mineral phase composition of the sample by Rietveld method.
Sustainability 14 10484 g003
Sustainability 14 10484 g004 550

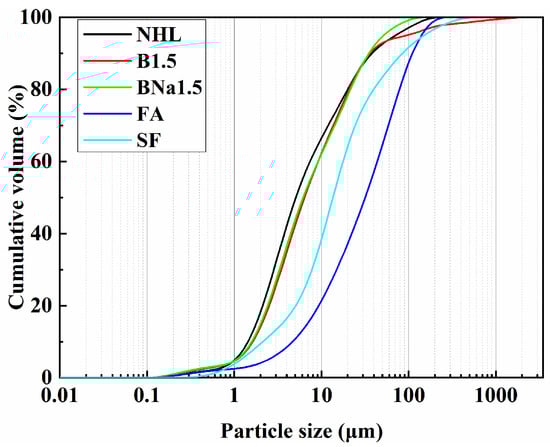

Figure 4. NHL, FA, and SF particle size distribution.
Figure 4. NHL, FA, and SF particle size distribution.
Sustainability 14 10484 g004
Sustainability 14 10484 g005 550

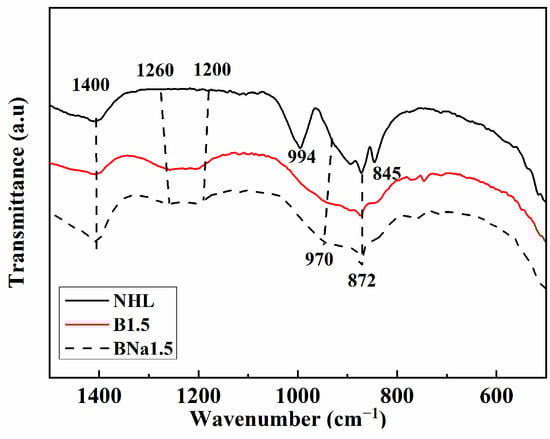

Figure 5. FT-IR spectra of laboratory-prepared NHL.
Figure 5. FT-IR spectra of laboratory-prepared NHL.
Sustainability 14 10484 g005
Sustainability 14 10484 g006a 550Sustainability 14 10484 g006b 550

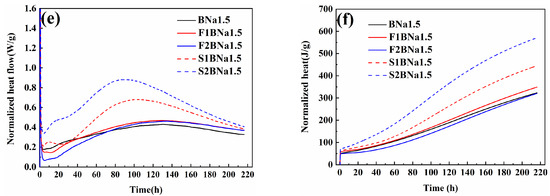

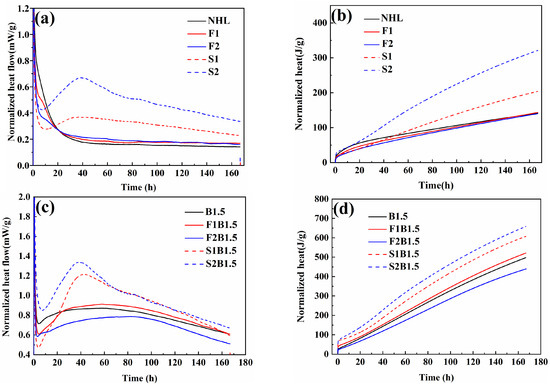

Figure 6. (a) Heat release rate curves of the blank group, (b) cumulative heat release of blank group; (c) heat release rate curves of B doping group; (d) cumulative heat release of B doping group; (e) the heat release rate curves of B/Na doping group; and (f) the cumulative heat release of B/Na doping group.
Figure 6. (a) Heat release rate curves of the blank group, (b) cumulative heat release of blank group; (c) heat release rate curves of B doping group; (d) cumulative heat release of B doping group; (e) the heat release rate curves of B/Na doping group; and (f) the cumulative heat release of B/Na doping group.
Sustainability 14 10484 g006aSustainability 14 10484 g006b
Sustainability 14 10484 g007 550

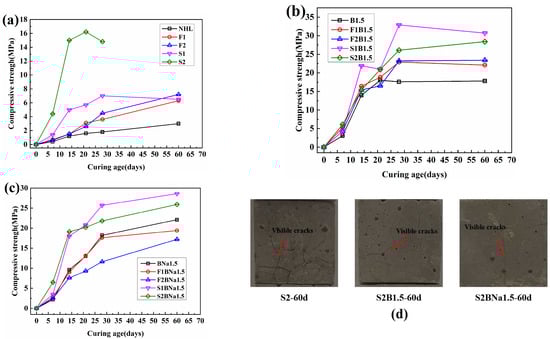

Figure 7. (a) Blank group, (b) B doping group, (c) B/Na doping group compressive strength, and (d) surface crack of the samples.
Figure 7. (a) Blank group, (b) B doping group, (c) B/Na doping group compressive strength, and (d) surface crack of the samples.
Sustainability 14 10484 g007
Sustainability 14 10484 g008 550

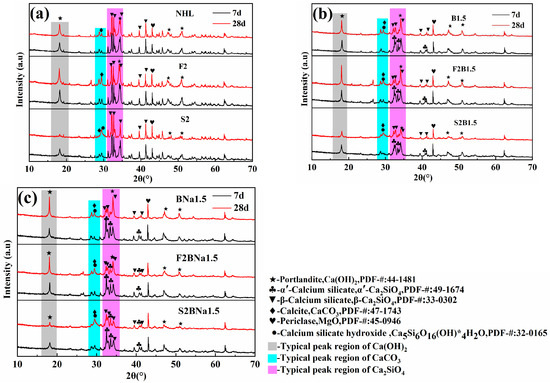

Figure 8. XRD of each sample curing for 7 d and 28 d: (a) blank series; (b) B-doped blank series; (c) B/Na-doped blank series.
Figure 8. XRD of each sample curing for 7 d and 28 d: (a) blank series; (b) B-doped blank series; (c) B/Na-doped blank series.
Sustainability 14 10484 g008
Sustainability 14 10484 g009 550

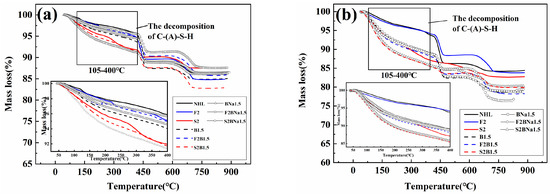

Figure 9. TG curves of the samples curing (a) 7 d; (b) 28 d.
Figure 9. TG curves of the samples curing (a) 7 d; (b) 28 d.
Sustainability 14 10484 g009
Sustainability 14 10484 g010 550

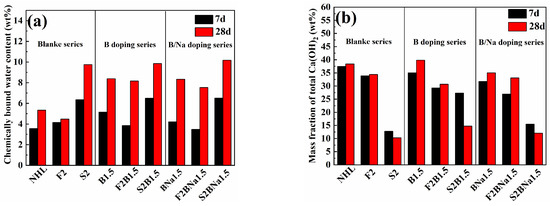

Figure 10. (a) Chemically bound water content of the samples at 7 d and 28 d; (b) total Ca(OH)2 content in samples at 7 d and 28 d.
Figure 10. (a) Chemically bound water content of the samples at 7 d and 28 d; (b) total Ca(OH)2 content in samples at 7 d and 28 d.
Sustainability 14 10484 g010
Sustainability 14 10484 g011 550

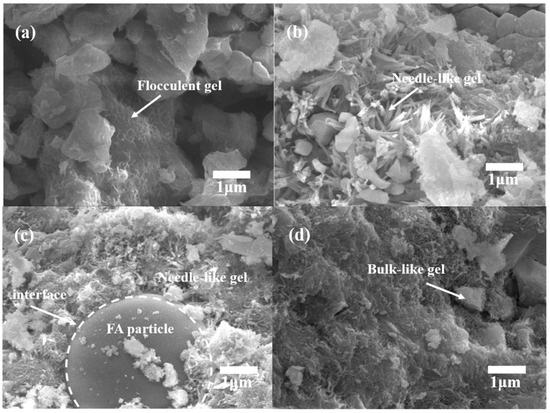

Figure 11. Micromorphology of samples at 28 d: (a) NHL, (b) B1.5, (c) F1B1.5, and (d) S2B1.5.
Figure 11. Micromorphology of samples at 28 d: (a) NHL, (b) B1.5, (c) F1B1.5, and (d) S2B1.5.
Sustainability 14 10484 g011
Sustainability 14 10484 g012 550

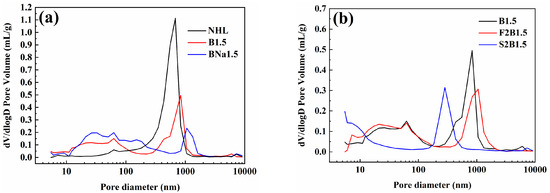

Figure 12. Pore structure distribution of typical samples cured for 28 d: (a) doped samples; (b) samples mixed with FA or SF.
Figure 12. Pore structure distribution of typical samples cured for 28 d: (a) doped samples; (b) samples mixed with FA or SF.
Sustainability 14 10484 g012
Table
Table 1. Chemical components of the raw materials (wt%).
Table 1. Chemical components of the raw materials (wt%).
MaterialsCaOSiO2Al2O3Fe2O3MgOSO3OthersL.O.I
limestone48.333.610.810.733.000.050.3843.09
Diatomite0.3286.202.031.930.260.290.828.14
Fly ash2.8850.5426.865.950.740.525.936.59
Silica fume0.1892.700.140.040.640.590.844.87
Table
Table 2. Mixture mass (g) ratio of the materials in the experiment.
Table 2. Mixture mass (g) ratio of the materials in the experiment.
SampleNHLB1.5BNa1.5FASF
BlankNHL500
F1450 50
F2400 100
S1450 50
S2400 100
B-ion dopingB1.5 500
F1B1.5 450 50
F2B1.5 400 100
S1B1.5 450 50
S2B1.5 400 100
B/Na dopingBNa1.5 500
F1BNa1.5 45050
F2BNa1.5 400100
S1BNa1.5 450 50
S2BNa1.5 400 100
Table
Table 3. ICCD-PDF and ICSD collection codes for all phases used for Rietveld refinements.
Table 3. ICCD-PDF and ICSD collection codes for all phases used for Rietveld refinements.
PhaseSpace GroupICSD CodePDF Code
α’-C2SPnma8109749-1674
β-C2SP121/N196333-0302
PortlanditeP-3M11547144-1481
RutileP42/mnm916121-1276
CalciteP322117478-2315
PericlaseFm-3m986345-0946
Table
Table 4. Lattice parameters of β-C2S and α’-C2S modified by the Rietveld method (Å).
Table 4. Lattice parameters of β-C2S and α’-C2S modified by the Rietveld method (Å).
Samplesβ-C2Sα’-C2S
VabcVabc
NHL345.745.516.769.32
B1.5337.965.506.649.27345.086.845.469.25
BNa1.5345.685.516.759.31344.916.855.459.24
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, Y.; Liu, Z.; Wang, J.; Shao, C.; Li, J.; Wang, D. Study on the Hydration and Microstructure of B and B/Na Ion-Doped Natural Hydraulic Lime Composed with Silica Fume/Fly Ash. Sustainability 2022, 14, 10484. https://doi.org/10.3390/su141710484

AMA Style

Zhang Y, Liu Z, Wang J, Shao C, Li J, Wang D. Study on the Hydration and Microstructure of B and B/Na Ion-Doped Natural Hydraulic Lime Composed with Silica Fume/Fly Ash. Sustainability. 2022; 14(17):10484. https://doi.org/10.3390/su141710484

Chicago/Turabian Style

Zhang, Yanbo, Ze Liu, Jixiang Wang, Conghao Shao, Jiaxing Li, and Dongmin Wang. 2022. "Study on the Hydration and Microstructure of B and B/Na Ion-Doped Natural Hydraulic Lime Composed with Silica Fume/Fly Ash" Sustainability 14, no. 17: 10484. https://doi.org/10.3390/su141710484

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
