# Determining Optimal Locations of Postal Access Points Based on Simulated Annealing

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Materials and Methods

#### 3.1. Research Background

#### 3.2. Data Preparation and Methodology for Calculating the Postal Service Accessibility

^{®}i7, 10th generation of processor, with 6 cores, 16 GB of RAM memory and NVIDIA

^{®}GeForce

^{®}Mx330 graphical card with 2 GB GDDR5 video memory.

#### 3.3. Brute-Force Search Algorithm

#### 3.4. Simulated Annealing

For given searchable network with known mutual road distances and corresponding house numbers, find a solution of placing P postal offices in such way that sum of all distances for all house numbers to nearest postal office is minimal.

Algorithm 1: Pseudo code for the SA algorithm. |

$x:=generateRandominitialSolution()$ |

$f\left(x\right)$ := $costFunction\left(x\right)$ |

$t$ := $setInitialTemperature()$ |

for$i$ := 0 to $k$ do |

${x}_{new}$ := $generateNeighbor\left(x\right)$ |

$f\left({x}_{new}\right)$ := $costFunction\left({x}_{new}\right)$ |

$\mathsf{\Delta}f\left(x\right):=f\left(x\right)-f\left({x}_{new}\right)$ |

if $\mathsf{\Delta}f\left(x\right)<0$ then |

$x:={x}_{new}$ |

$\Delta f\left(x\right):=f\left({x}_{new}\right)$ |

else |

if $random\left(0,1\right)<\mathrm{exp}\left(\frac{-\Delta f\left(x\right)}{t}\right)$ then |

$x:={x}_{new}$ |

end if |

end if |

$t:=decreaseTemperature\left(t\right)$ |

end for |

return$x$ |

**costFunction1**(earlier described). Starting temperature is set to the initial value. At each iteration, new neighbor ${x}_{new}$ is generated, and if it has a lower evaluated value, it becomes $x$. If ${x}_{new}$ does not become $x$ due to the evaluation, the change can appear with probability calculated by $\mathrm{exp}(-\frac{\Delta f\left(x\right)}{t})$. After iteration, the temperature is decreased by multiplying the current temperature by $\alpha $. This process is known as cooling. Parameter $\alpha $ can be calculated as:

## 4. Results

## 5. Discussion

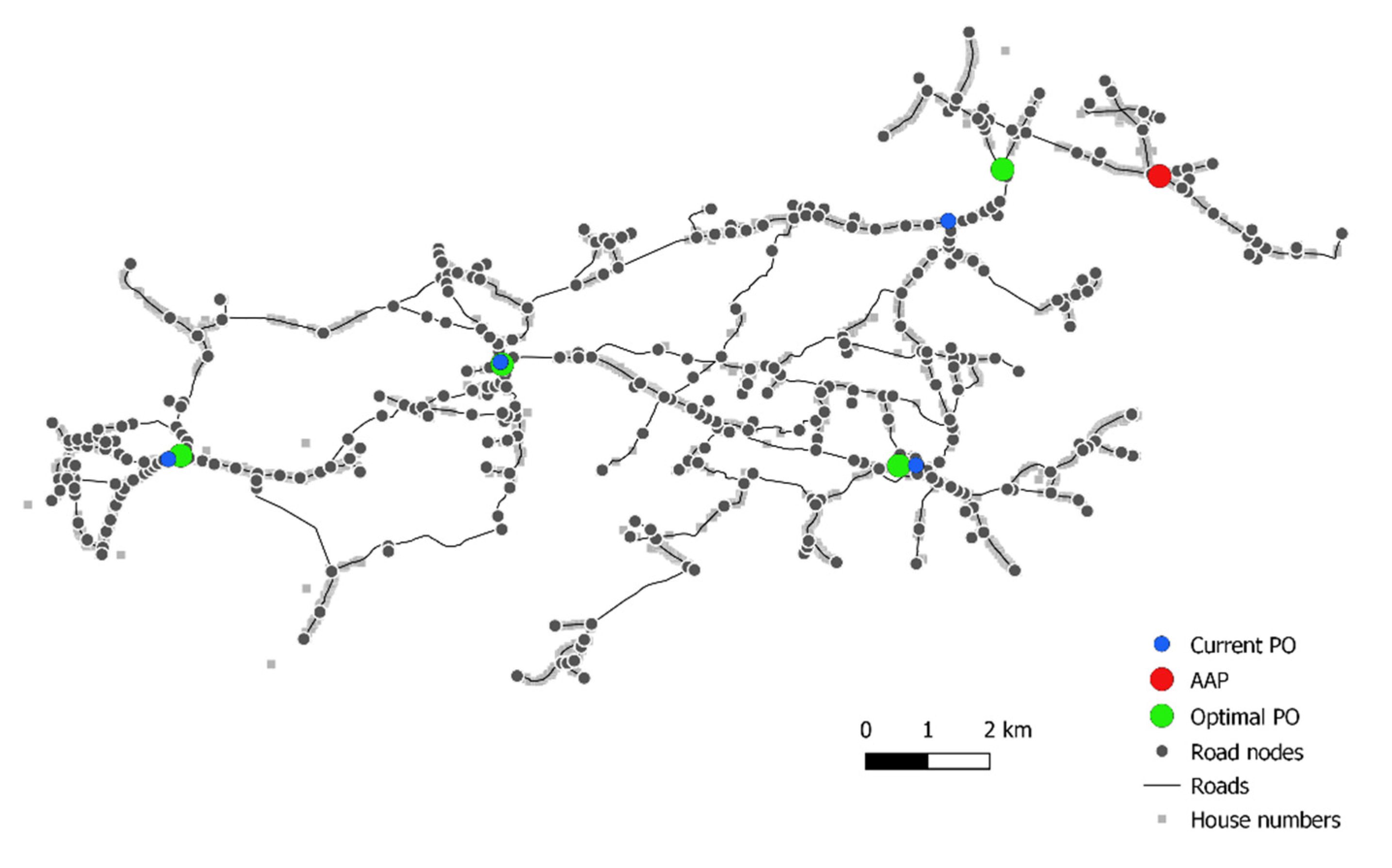

#### Alternative Access Point (AAP) Scenario

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Universal Postal Union. Postal Development Report 2021. Taking Stock of a New Reality. UPU DIRCAB.STRAT. October 2020. Available online: https://www.upu.int/en/Publications/2IPD/Postal-Development-Report-2021 (accessed on 10 July 2022).
- WIK Consult. User Needs in the Postal Sector and Evaluation of the Regulatory Framework; Publications Office of the European Union: Luxembourg City, Luxembourg, 2021. [Google Scholar] [CrossRef]
- European Regulators Group for Postal Services. ERGP (16) 36, Report on Universal Services in Light of Changing Postal End Users’ Needs. 2016. Available online: https://ec.europa.eu/docsroom/documents/20672?locale=en (accessed on 20 April 2022).
- Belgian Institute for Postal and Telecommunication (BIPT). Communication by the BIPT Council of 13 February 2017 Regarding an Overall Analysis about Postal Needs in Belgium; BIBT: Brussels, Belgium, 2017. [Google Scholar]
- McKinsey & Company. The Endgame for Postal Networks: How to Win in the Age of e-Commerce. 2019. Available online: https://www.mckinsey.com/industries/travel-logistics-and-infrastructure/our-insights/the-endgame-for-postal-networks-how-to-win-in-the-age-of-e-commerce (accessed on 1 April 2022).
- Directive 2008/6/EC of the European Parliament and of the Council of 20 February 2008 Amending Directive 97/67/EC with Regard to the Full Accomplishment of the Internal Market of Community Postal Services. 2008. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32008L0006 (accessed on 15 April 2022).
- Gracin, J.; Stipetić, A. Designing Postal Network Units. Promet-Traffic Transp.
**2009**, 21, 387–394. [Google Scholar] [CrossRef] [Green Version] - Milutinović, J.; Marković, D.; Stanivuković, B.; Švadlenka, L.; Dobrodolac, M. A Model for Public Postal Network Reorganization Based on DEA and Fuzzy Approach. Transport
**2020**, 35, 401–418. [Google Scholar] [CrossRef] - Šarac, D.; Kopić, M.; Mostarac, K.; Kujačić, M.; Jovanović, B. Application of Set Covering Location Problem for Organizing the Public Postal Network. Promet-Traffic Transp.
**2016**, 28, 403–413. [Google Scholar] [CrossRef] [Green Version] - Blagojević, M.; Šelmić, M.; Macura, D.; Šarac, D. Determining the number of postal units in the network—Fuzzy approach, Serbia case study. Expert Syst. Appl.
**2013**, 40, 4090–4095. [Google Scholar] [CrossRef] - Bouliane, J.; Laporte, G. Locating Postal Relay Boxes Using a set Covering Algorithm. Am. J. Math. Manag. Sci.
**1992**, 12, 65–74. [Google Scholar] [CrossRef] - Lee, J.-H.; Moon, I. A hybrid hub-and-spoke postal logistics network with realistic restrictions: A case study of Korea Post. Expert Syst. Appl.
**2014**, 41, 5509–5519. [Google Scholar] [CrossRef] - Yu, H.; Sun, X.; Solvang, W.D.; Laporte, G. Solving a Real-World Urban Postal Service System Redesign Problem. Sci. Program.
**2021**, 2021, 1–17. [Google Scholar] [CrossRef] - Christiaanse, S. Rural facility decline: A longitudinal accessibility analysis questioning the focus of Dutch depopulation-policy. Appl. Geogr.
**2020**, 121, 102251. [Google Scholar] [CrossRef] - Jaag, C.; Finger, M. What future for the post office network? Compet. Regul. Netw. Ind.
**2017**, 18, 153–174. [Google Scholar] [CrossRef] - Hamilton, C. Changing Service Provision in Rural Areas and the Possible Impact on Older People: A Case Example of Compulsory Post Office Closures and Outreach Services in England. Soc. Policy Soc.
**2015**, 15, 387–401. [Google Scholar] [CrossRef] - Ellison, G.; Piggott, L.; Sutter, J.; Jones, S. The social value of the post office network. Report for: Department for Business. In Energy and Industrial Strategy; London Economics: London, UK, 2016. [Google Scholar]
- Unterberger, M.; Vešović, P.; Mostarac, K.; Šarac, D.; Ožegović, S. Three-dimensional Corporate Social Responsibility Model of a Postal Service Provider. Promet-Traffic Transp.
**2018**, 30, 349–359. [Google Scholar] [CrossRef] - Bruno, G.; Cavola, M.; Diglio, A.; Piccolo, C.; Pipicelli, E. Strategies to reduce postal network access points: From demographic to spatial distribution criteria. Util. Policy
**2021**, 69, 101189. [Google Scholar] [CrossRef] - Bruno, G.; Cavola, M.; Diglio, A.; Laporte, G.; Piccolo, C. Reorganizing postal collection operations in urban areas as a result of declining mail volumes—A case study in Bologna. J. Oper. Res. Soc.
**2020**, 72, 1591–1606. [Google Scholar] [CrossRef] - Šelmić, M.; Nikolić, M.; Čupić, A. Postboxes Quantitative Optimization Model. Sustainability
**2020**, 12, 1945. [Google Scholar] [CrossRef] [Green Version] - Zhang, F.; Johnson, D.M.; Sutherland, J.W. A GIS-based method for identifying the optimal location for a facility to convert forest biomass to biofuel. Biomass-Bioenergy
**2011**, 35, 3951–3961. [Google Scholar] [CrossRef] - Perpiñá, C.; Alfonso, D.; Pérez-Navarro, A.; Peñalvo, E.; Vargas, C.; Cárdenas, R. Methodology based on Geographic Information Systems for biomass logistics and transport optimisation. Renew. Energy
**2009**, 34, 555–565. [Google Scholar] [CrossRef] - Comber, A.; Brunsdon, C.; Hardy, J.; Radburn, R. Using a GIS—Based Network Analysis and Optimisation Routines to Evaluate Service Provision: A Case Study of the UK Post Office. Appl. Spat. Anal. Policy
**2008**, 2, 47–64. [Google Scholar] [CrossRef] - Higgs, G.; Langford, M. Investigating the validity of rural–urban distinctions in the impacts of changing service provision: The example of postal service reconfiguration in Wales. Geoforum
**2013**, 47, 53–64. [Google Scholar] [CrossRef] - Mostarac, K.; Kavran, Z.; Bešenić, V. Application of geographic information system for the postal network analysis. Perner’s Contacts
**2021**, 16, 1–12. [Google Scholar] [CrossRef] - Mostarac, K.; Kavran, Z.; Rakić, E. Accessibility of Universal Postal Service According to Access Points Density Criteria: Case Study of Bjelovar-Bilogora County, Croatia. Promet-Traffic Transp.
**2019**, 31, 173–183. [Google Scholar] [CrossRef] - Mostarac, K.; Kavran, Z.; Feletar, P. Application of catchment area method for determining post office accessibility: Case study bjelovar-bilogora county. Geoadria
**2019**, 24, 53–70. [Google Scholar] [CrossRef] - Trubint, N. A GIS Application to Explore Postal Retail Outlet Locations. Promet-Traffic Transp.
**1970**, 24, 161–168. [Google Scholar] [CrossRef] [Green Version] - Mohammad, A.; Saleh, O.; Abdeen, R.A. Occurrences Algorithm for String Searching Based on Brute-force Algorithm. J. Comput. Sci.
**2006**, 2, 82–85. [Google Scholar] [CrossRef] [Green Version] - Kirkpatrick, S.; Gelatt, C.D.; Vecchi, M.P. Optimization by Simulated Annealing. Sci. New Ser.
**1983**, 220, 671–680. [Google Scholar] [CrossRef] [PubMed] - Golden, B.L.; Skiscim, C.C. Using simulated annealing to solve routing and location problems. Nav. Res. Logist. Q.
**1986**, 33, 261–279. [Google Scholar] [CrossRef] - Qarebagh, A.J.; Sabahi, F.; Nazarpour, D. Optimized Scheduling for Solving Position Allocation Problem in Electric Vehicle Charging Stations. In Proceedings of the 27th Iranian Conference on Electrical Engineering (ICEE), Yazd, Iran, 30 April–2 May 2019; pp. 593–597. [Google Scholar] [CrossRef]
- Nikam, V.B.; Arora, A.; Lambture, D.; Zaveri, J.; Shinde, P.; More, M. Optimal Positioning of Small Cells for Coverage and Cost Efficient 5G Network Deployment: A Smart Simulated Annealing Approach. In Proceedings of the 2020 IEEE 3rd 5G World Forum (5GWF), Bangalore, India, 10–12 September 2020; pp. 454–459. [Google Scholar] [CrossRef]
- Gou, Y.; Wang, Y.; Wang, Q. Multi-base Buoys Passive Localization Research Based on Simulated Annealing Algorithm. In Proceedings of the 18th International Conference on Automation and Computing (ICAC), Loughborough, UK, 7–8 September 2012; pp. 1–5. [Google Scholar]
- Li, J.; Li, L.; Yu, F.; Ju, Y.; Ren, J. Application of Simulated Annealing Aarticle Awarm Optimization in Underwater Acoustic Positioning Optimization. In Proceedings of the OCEANS 2019–Marseille, Marseille, France, 17–20 June 2019; pp. 1–4. [Google Scholar] [CrossRef]
- Ji, C.; Chen, Q.; Song, C. Improved Particle Swarm Optimization Geomagnetic Matching Algorithm Based on Simulated Annealing. IEEE Access
**2020**, 8, 226064–226073. [Google Scholar] [CrossRef] - Feng, X.; Zhang, J.; Chen, J.; Wang, G.; Zhang, L.; Li, R. Design of Intelligent Bus Positioning Based on Internet of Things for Smart Campus. IEEE Access
**2018**, 6, 60005–60015. [Google Scholar] [CrossRef] - Sangaiah, A.K.; Khanduzi, R. Tabu search with simulated annealing for solving a location–protection–disruption in hub network. Appl. Soft Comput.
**2021**, 114, 108056. [Google Scholar] [CrossRef] - Ghaffarinasab, N.; Motallebzadeh, A.; Jabarzadeh, Y.; Kara, B.Y. Efficient simulated annealing based solution approaches to the competitive single and multiple allocation hub location problems. Comput. Oper. Res.
**2018**, 90, 173–192. [Google Scholar] [CrossRef] - Andriansyah, A.; Prasanti, N.; Sastra, H.Y. Simulated Annealing Algorithm for Solving Pickup and Delivery Problem with LIFO, Time Duration and Limited Vehicle Number. In OP Conference Series: Materials Science and Engineering, Proceedings of the 4th International Conference on Ergonomics & 2nd International Conference on Industrial Engineering, Kuala Terengganu, Malaysia, 27–28 August 2019; IOP Publishing: Bristol, UK; Volume 697. [CrossRef]
- Deng, A.M.; Chao, M.A.O.; Zhou, Y.T. Optimizing Research of an Improved Simulated Annealing Algorithm to Soft Time Windows Vehicle Routing Problem with Pick-up and Deliver. Encycl. Syst. Eng.—Theory Pract.
**2009**, 29, 186–192. [Google Scholar] [CrossRef] - Catay, B. A New Saving-Based Ant Algorithm for the Vehicle Routing Problem with Simultaneous Pickup and Delivery. Expert Syst. Appl.
**2010**, 37, 6809–6817. [Google Scholar] [CrossRef] - Montane, F.A.; Galvao, R.D. A Tabu Search Algorithm for the Vehicle Routing Problem with Simultaneous Pick-Up and Delivery Service. In Encyclopedia of Computers & Operations Research; Elsevier: Rio de Janeiro, Brazil, 2019; Volume 33, pp. 595–619. [Google Scholar]
- Yu, V.F.; Susanto, H.; Yeh, Y.-H.; Lin, S.-W.; Huang, Y.-T. The Vehicle Routing Problem with Simultaneous Pickup and Delivery and Parcel Lockers. Mathematics
**2022**, 10, 920. [Google Scholar] [CrossRef] - Du, M.; Zhao, S. An Equity Evaluation on Accessibility of Primary Healthcare Facilities by Using V2SFCA Method: Taking Fukuoka City, Japan, as a Case Study. Land
**2022**, 11, 640. [Google Scholar] [CrossRef] - De Mello-Sampayo, F. Spatial interaction model for healthcare accessibility: What scale has to do with it. Sustainability
**2020**, 12, 4324. [Google Scholar] [CrossRef] - Luo, J.; Chen, G.; Li, C.; Xia, B.; Sun, X.; Chen, S. Use of an E2SFCA Method to Measure and Analyse Spatial Accessibility to Medical Services for Elderly People in Wuhan, China. Int. J. Environ. Res. Public Health
**2018**, 15, 1503. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hu, W.; Li, L.; Su, M. Modeling Health Seeking Behavior Based on Location-Based Service Data: A Case Study of Shenzhen, China. ISPRS Int. J. Geo-Inf.
**2022**, 11, 295. [Google Scholar] [CrossRef] - Javaid, M.A. Understanding Dijkstra’s Algorithm; SSRN: Los Angeles, CA, USA, 2013. [Google Scholar] [CrossRef]

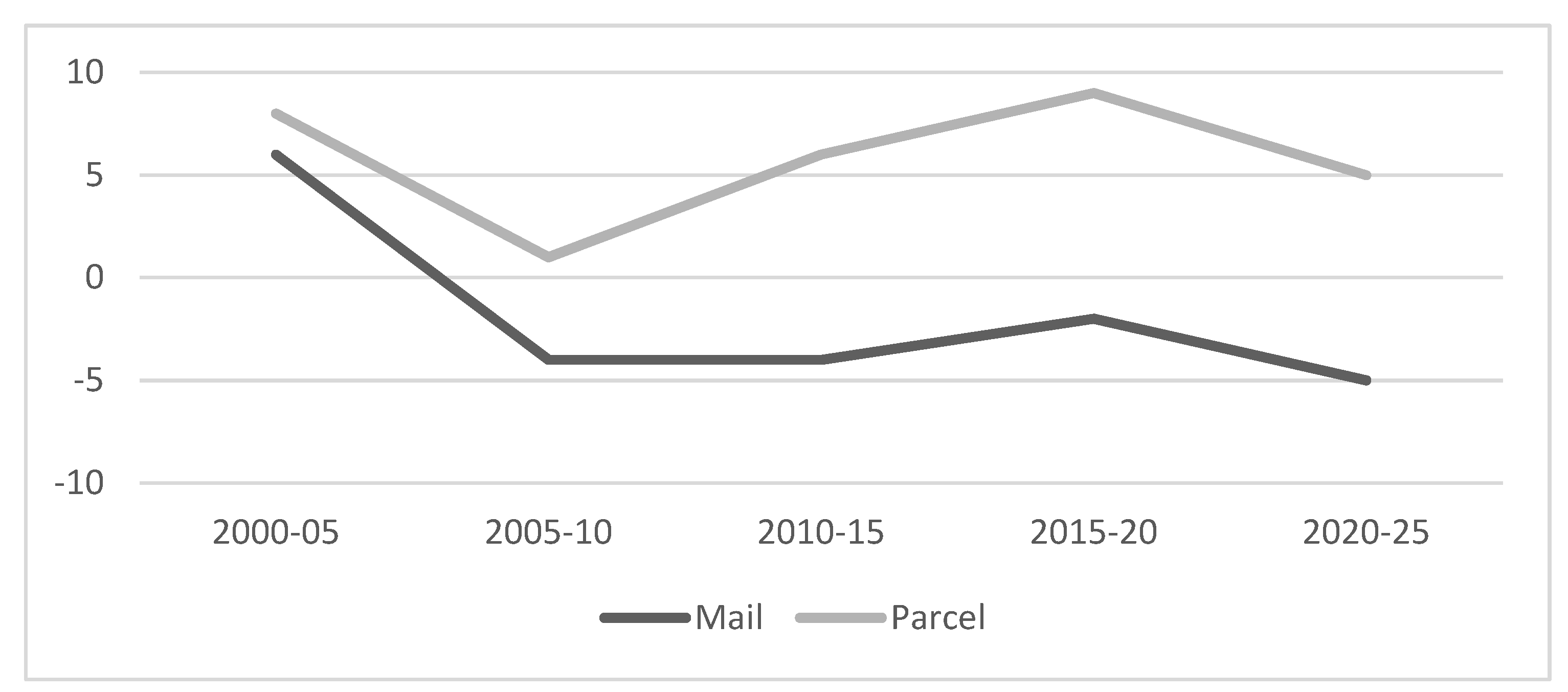

**Figure 1.**Letter and parcel ratio volumes by 2025 (compound annual growth rate, %) Authors according to [5].

**Figure 2.**Reasons for sending or receiving mail over the period of the next 5–10 years (% of respondents) Authors according to [2].

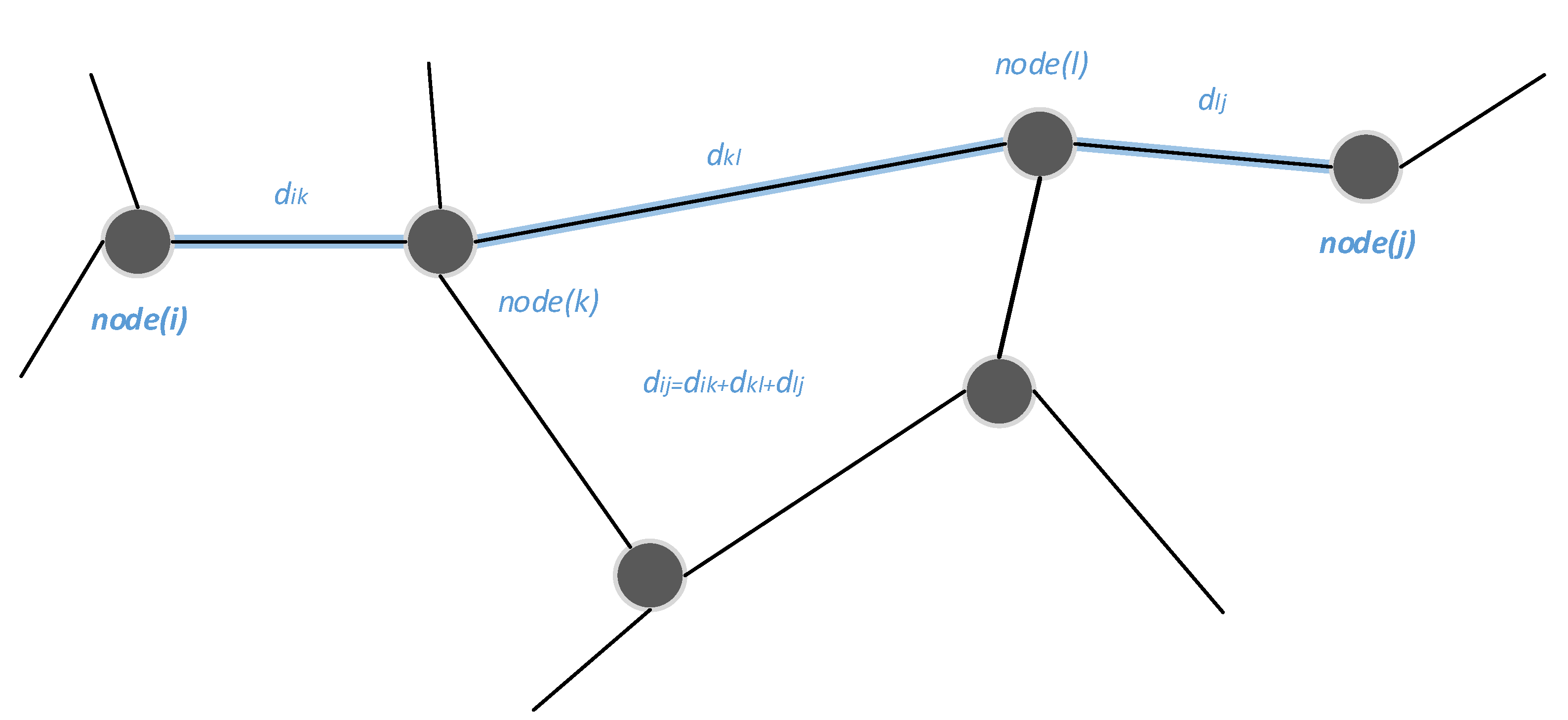

**Figure 4.**The optimal distances between two road nodes presented as the sum of partial distances over the optimal path.

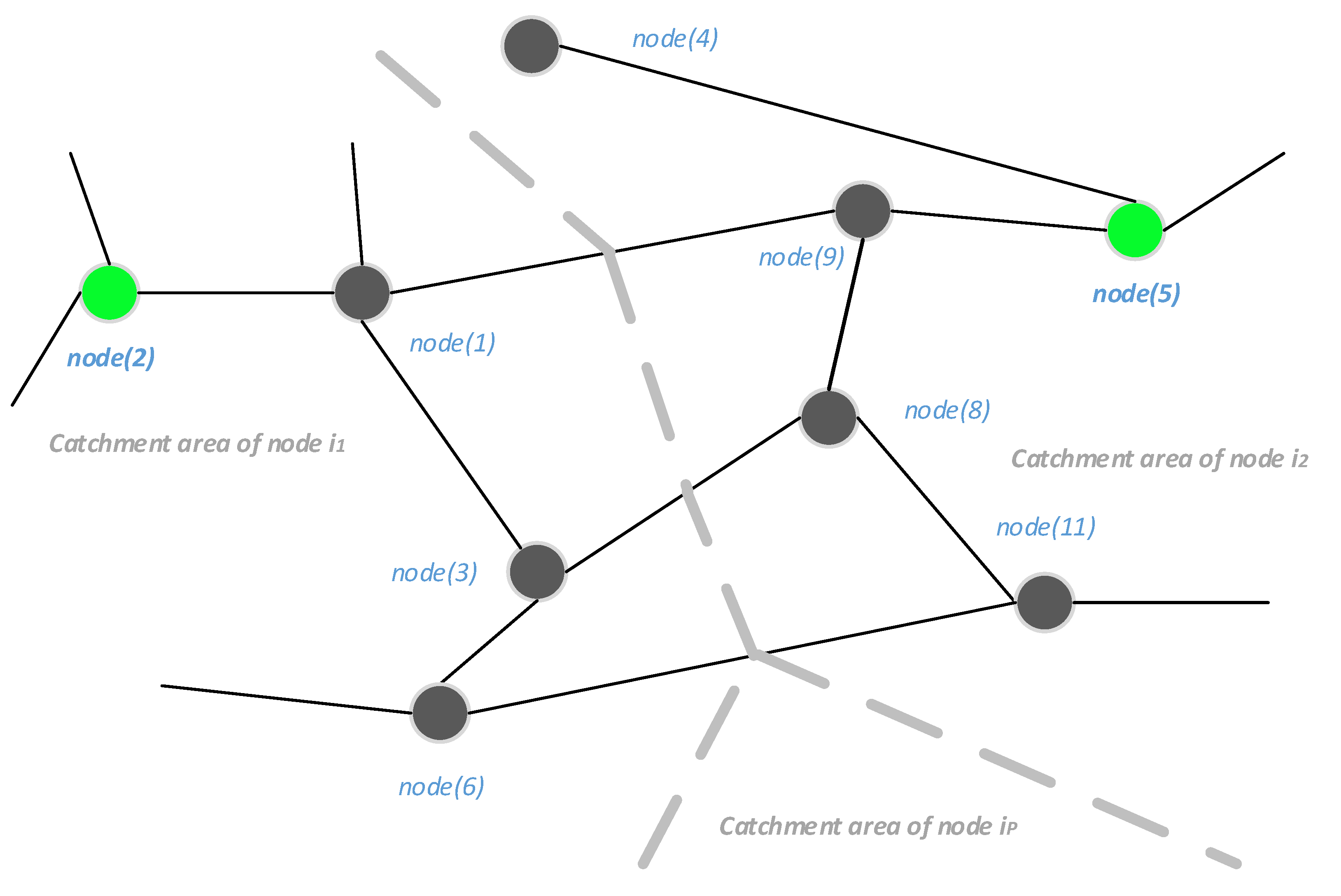

**Figure 6.**An example catchment area for one possible solution for positioning $P=3$ postal offices and $N=13$ road nodes; the borders of the catchment areas are presented with dashed lines.

**Table 1.**The number sof combinations without repetitions for different $HN$ (house numbers) and $N$ (number of road nodes).

No of Post Offices, P | $\mathbf{Number}\mathbf{of}\mathbf{Combinations},{\mathit{C}}_{\mathit{P}}\left(\mathit{H}\mathit{N}\right)$ | $\mathbf{Number}\mathbf{of}\mathbf{Combinations},{\mathit{C}}_{\mathit{P}}\left(\mathit{N}\right)$ |
---|---|---|

1 | 3408 | 365 |

2 | 5,805,528 | 66,430 |

3 | 6,591,209,456 | 8,038,030 |

4 | 5,610,767,049,420 | 727,441,715 |

5 | 3,819,810,207,245,136 | 52,521,291,823 |

No of Post Offices, P | Solutions | Sum of All Distances |
---|---|---|

1 | 114 | 304.63 |

2 | 19, 103 | 197.80 |

3 | 15, 64, 89 | 143.00 |

4 | 15, 37, 65, 89 | 111.00 |

5 | 15, 37, 57, 89, 308 | 93.87 |

Solution [Nodes] | Sum of All Distance | Percentage % |
---|---|---|

[37, 58, 90] | 156.12 | 9.17 |

[16, 37, 58] | 183.72 | 28.47 |

[16, 37, 90] | 206.75 | 44.58 |

[16, 58, 90] | 261.56 | 82.91 |
