Research on Greenhouse Gas Emission Characteristics and Emission Mitigation Potential of Municipal Solid Waste Treatment in Beijing
Abstract
:1. Introduction
2. Materials and Methods

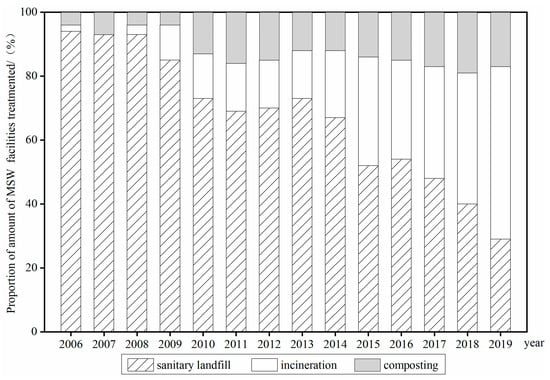

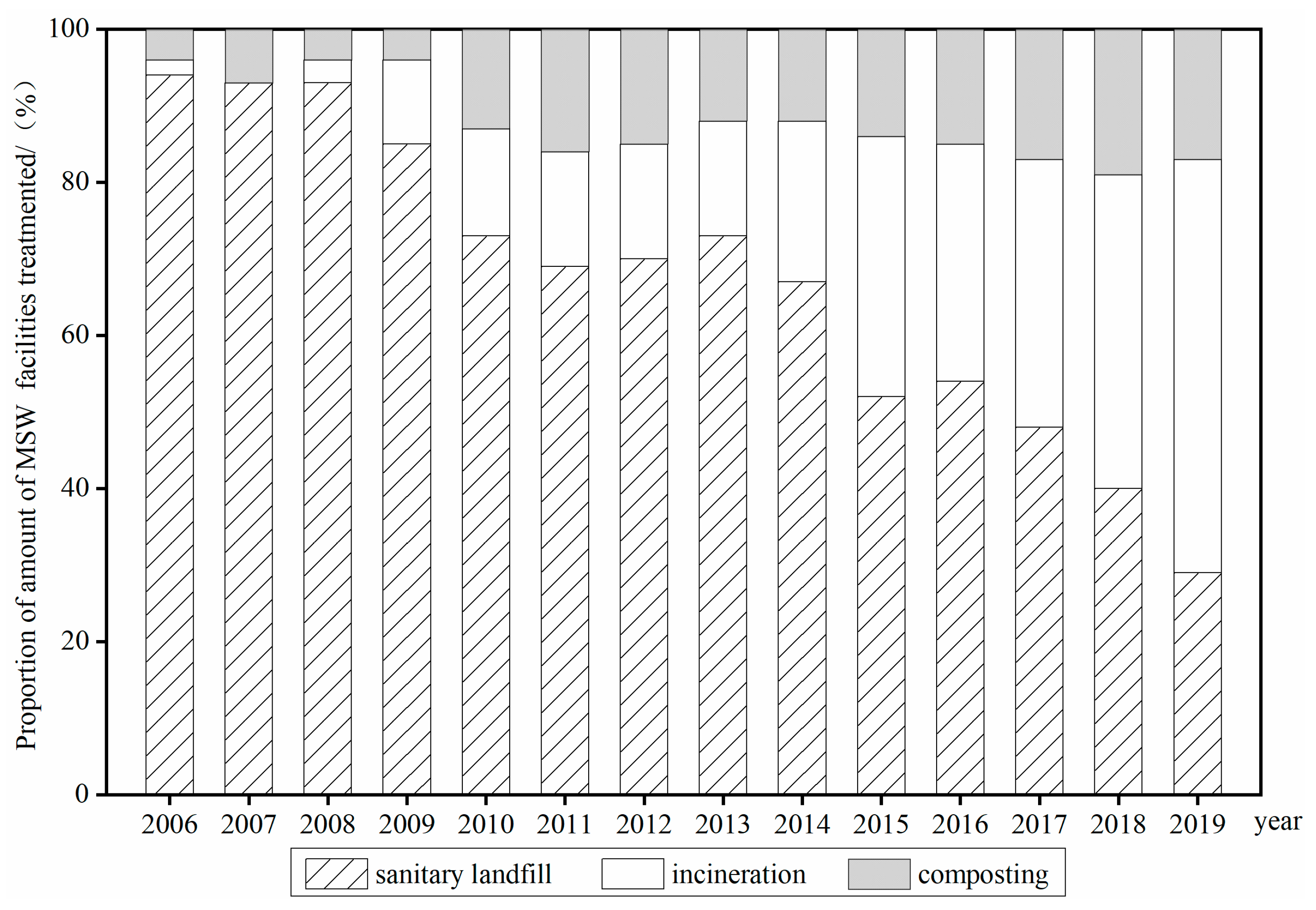

2.1. Overview of MSW Treatment in Beijing
2.2. Methodology for Accounting GHG Emissions from MSW Treatment
2.2.1. Sanitary Landfill
2.2.2. Incineration
2.2.3. Composting

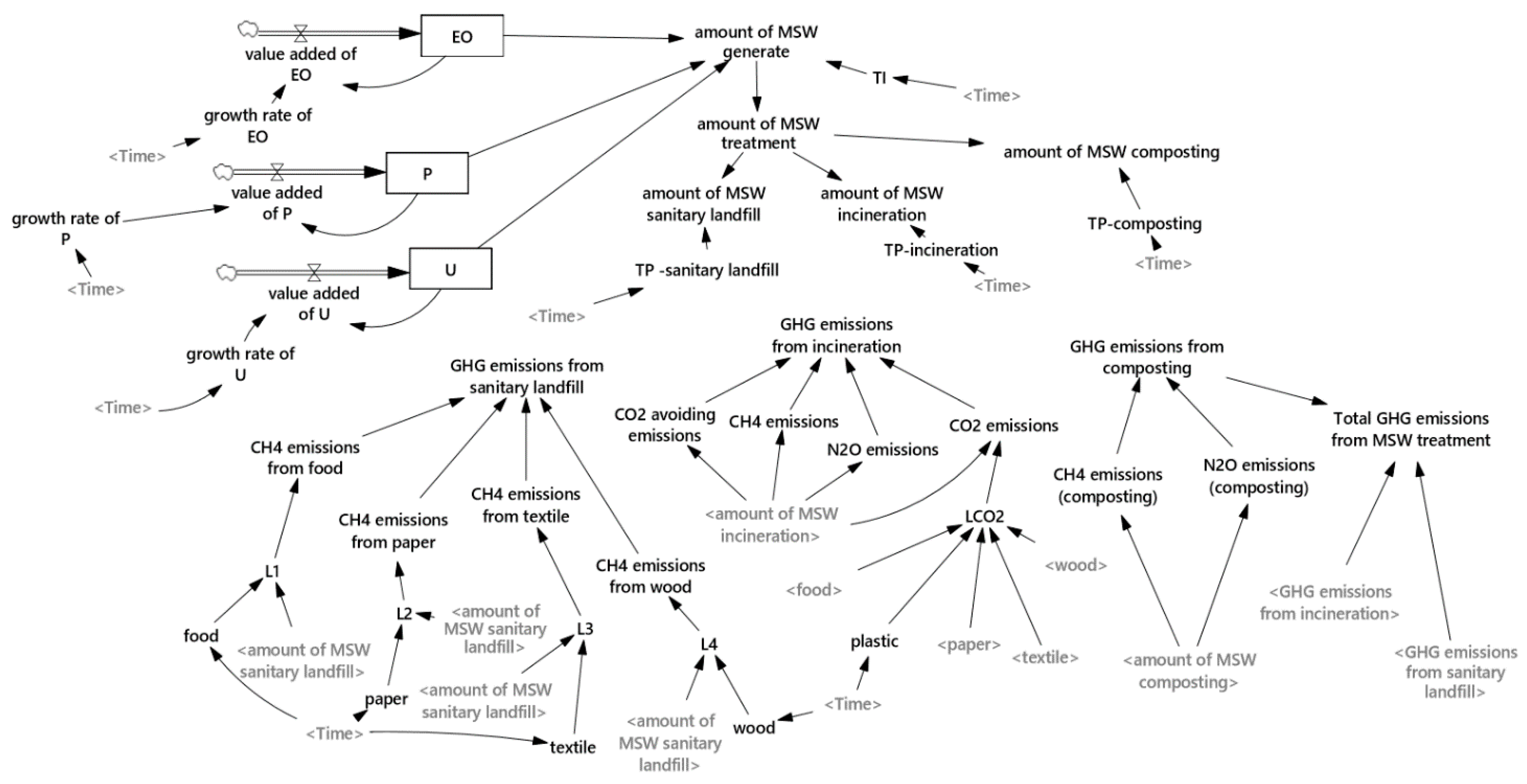

2.3. Analysis Method of GHG Emission Influencing Factors of MSW Treatment
2.4. Scenario Assumptions
2.5. Data Source
3. Results

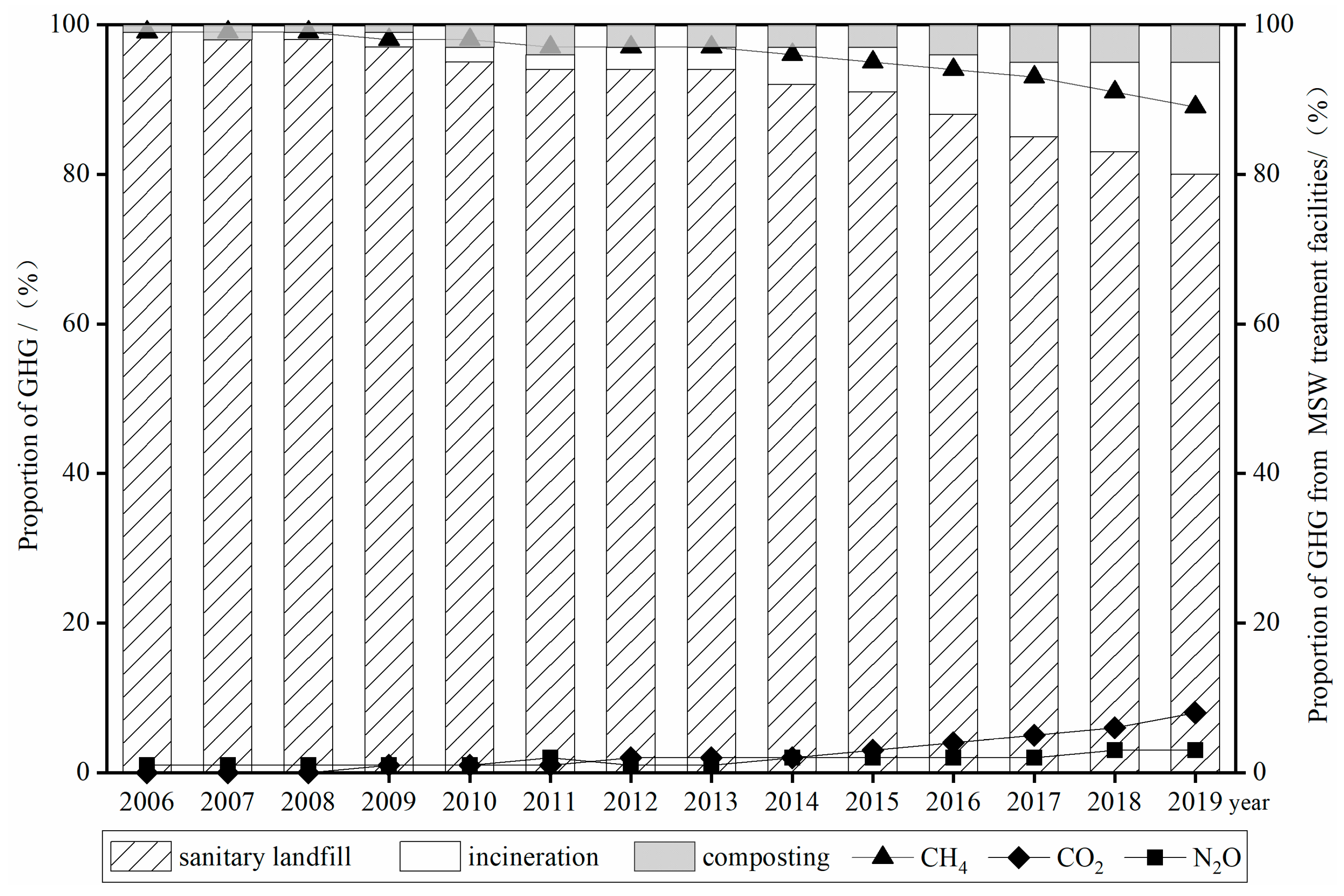

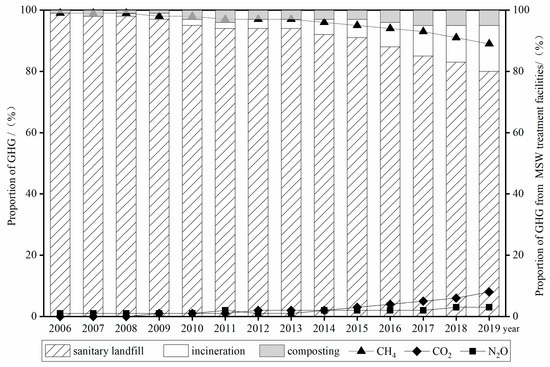

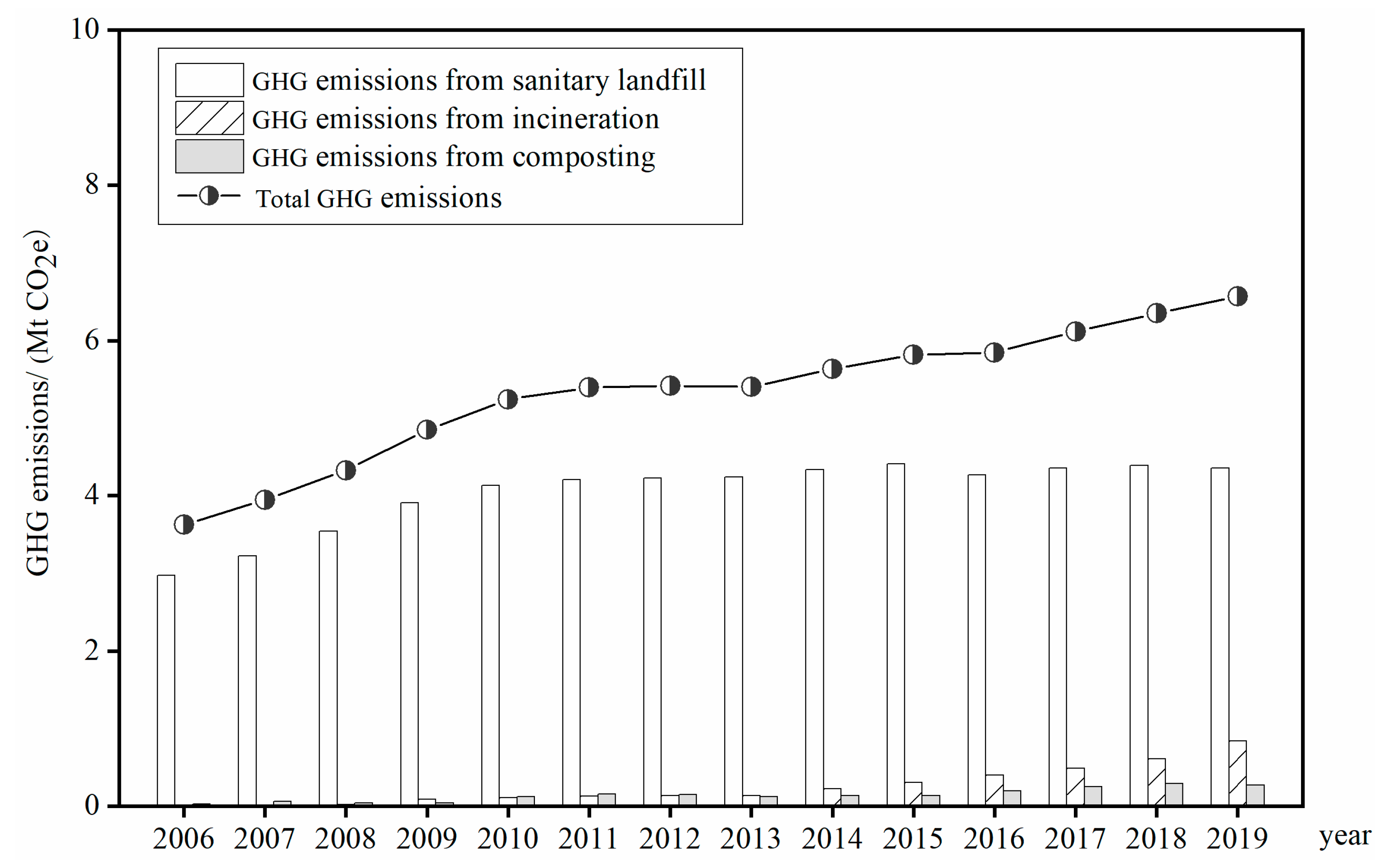

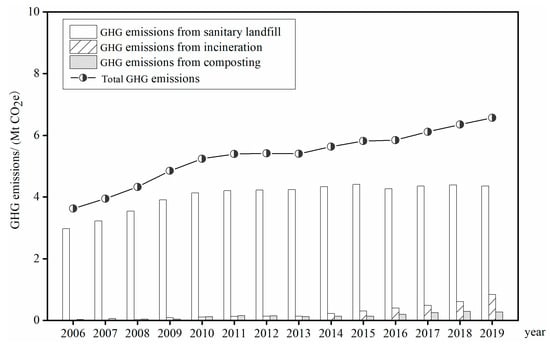

3.1. GHG Emission Characteristics from MSW Treatment in Beijing

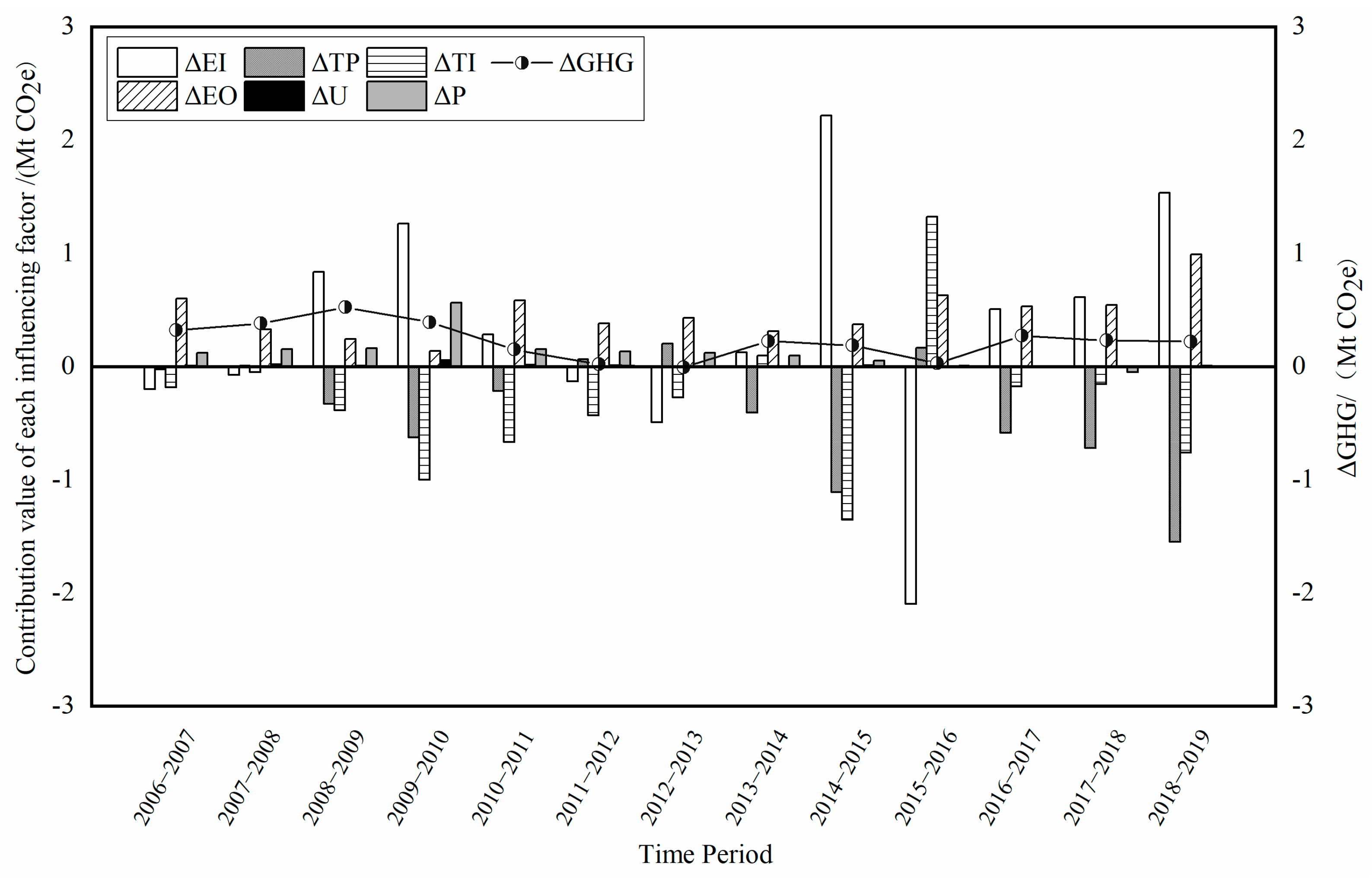

3.2. Analysis of GHG Emission Influencing Factors of MSW Treatment

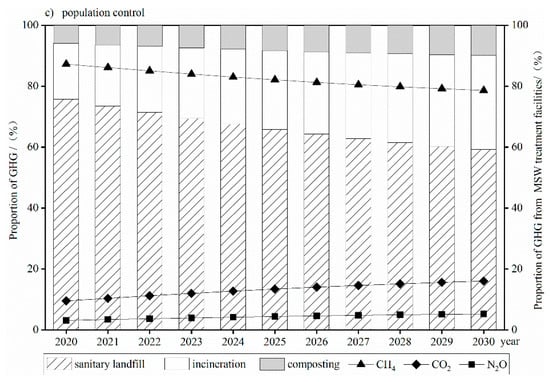

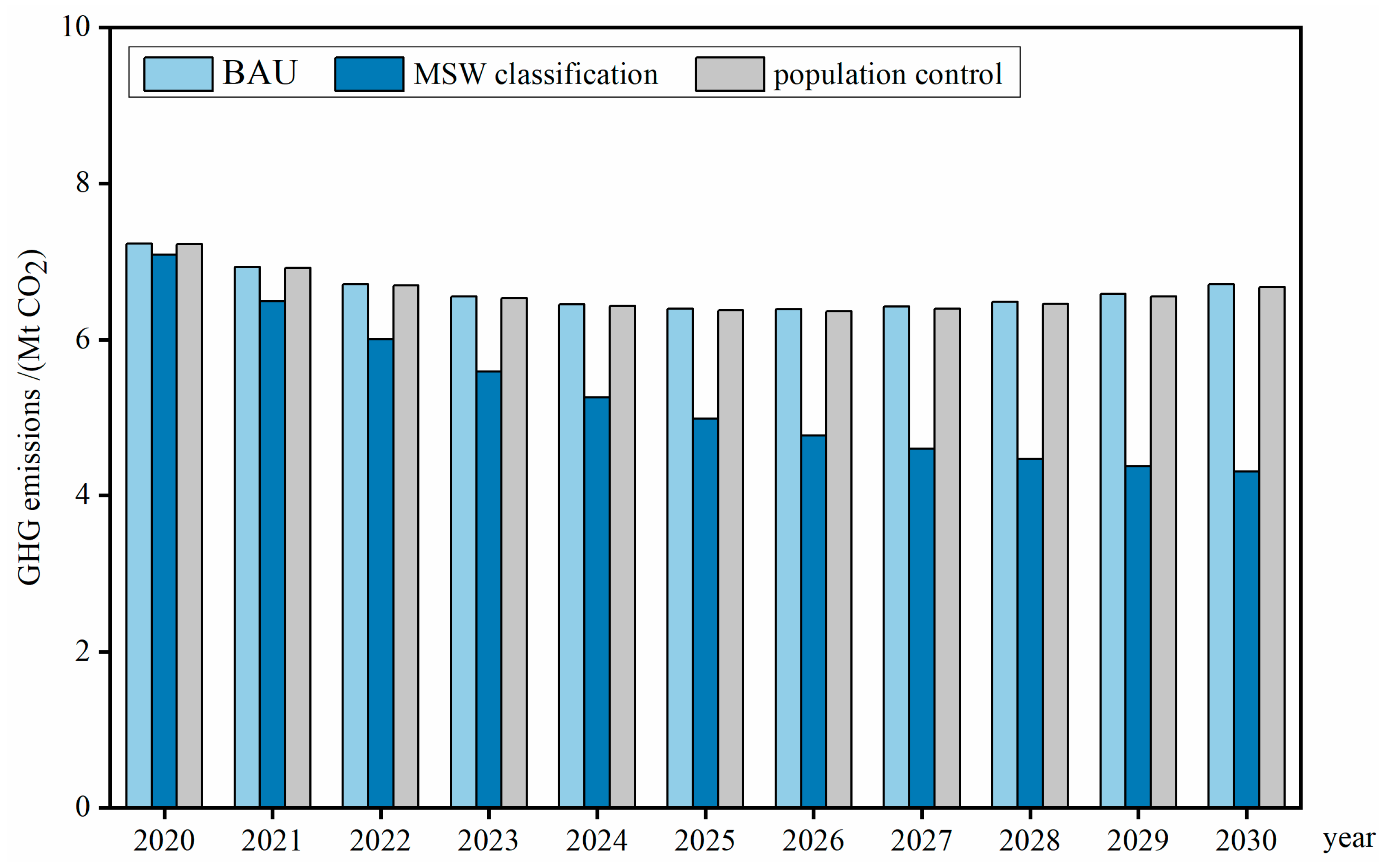

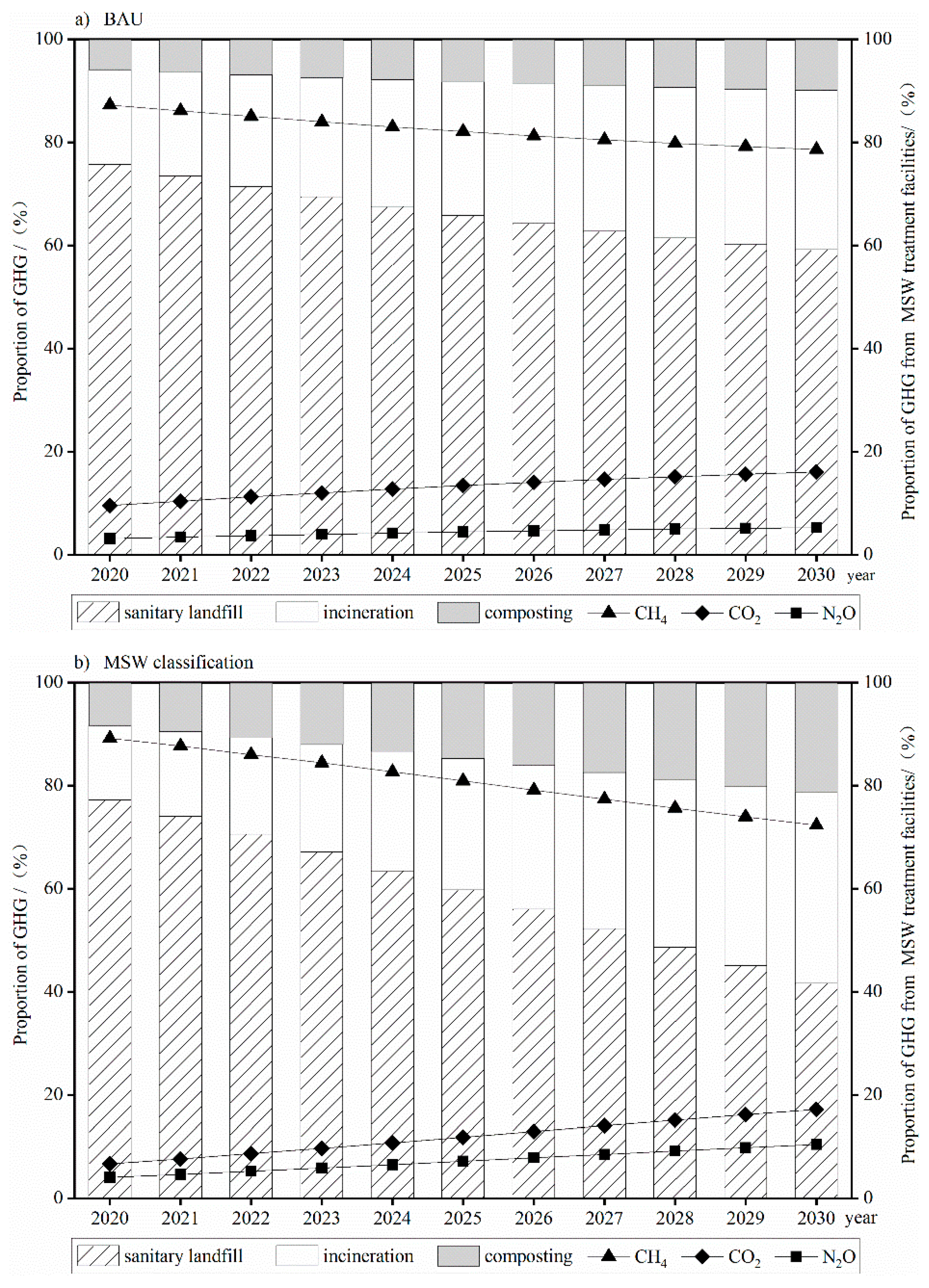

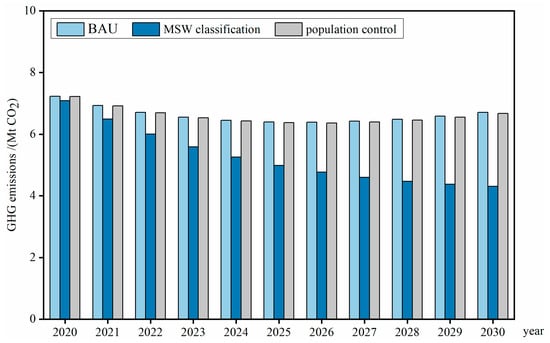

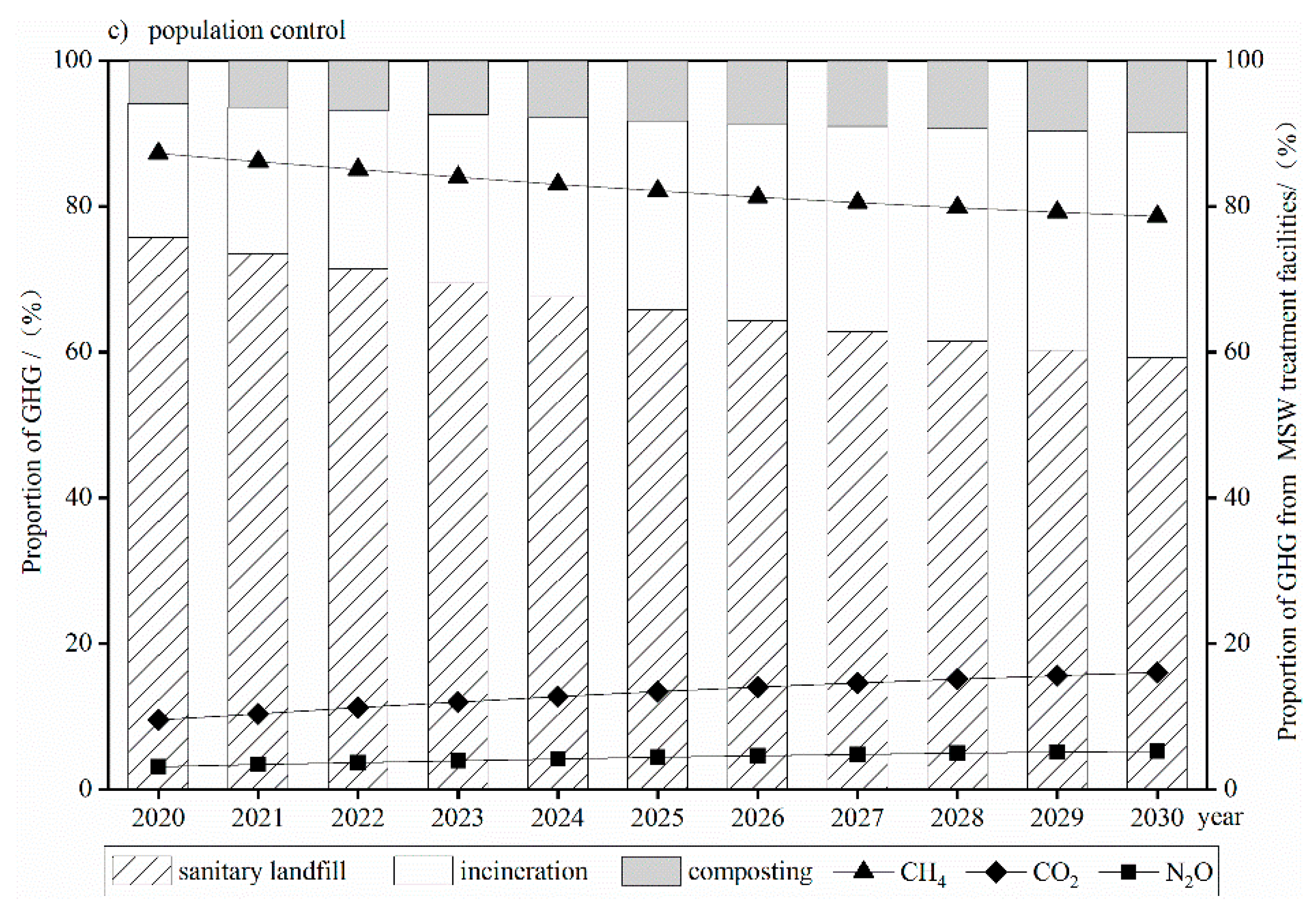

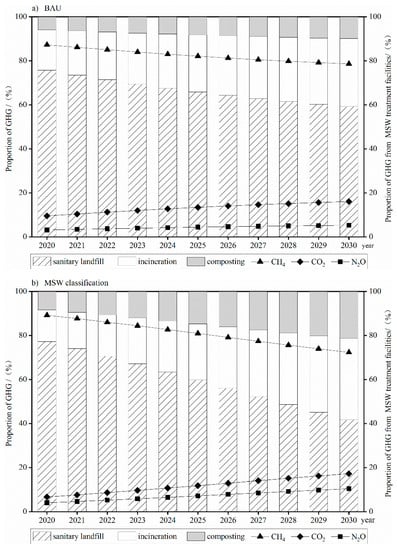

3.3. Analysis of GHG Mitigation Potential of MSW Treatment
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
Year | P | UP | GDP | G | G sanitary landfill | G incineration | G composting |
---|---|---|---|---|---|---|---|
2006 | 1601 | 1333 | 8117.8 | 497.7 | 468.3 | 9.8 | 19.6 |
2007 | 1676 | 1380 | 9846.8 | 575.3 | 535.1 | 1.0 | 39.1 |
2008 | 1771 | 1439 | 11,115.0 | 641.6 | 598.8 | 15.7 | 27.0 |
2009 | 1860 | 1492 | 12,153.0 | 644.4 | 548.1 | 68.7 | 27.6 |
2010 | 1962 | 1686 | 14,113.6 | 613.7 | 445.4 | 89.1 | 79.3 |
2011 | 2019 | 1740 | 16,251.9 | 623.2 | 429.6 | 94.5 | 99.2 |
2012 | 2069 | 1784 | 17,879.4 | 633.1 | 443.2 | 94.7 | 95.3 |
2013 | 2115 | 1825 | 19,800.8 | 667.0 | 489.9 | 97.8 | 79.2 |
2014 | 2152 | 1858 | 21,330.8 | 730.8 | 488.6 | 156.1 | 86.2 |
2015 | 2171 | 1878 | 23,014.6 | 622.4 | 325.8 | 209.4 | 87.3 |
2016 | 2173 | 1880 | 25,669.1 | 872.6 | 472.8 | 272.5 | 126.0 |
2017 | 2171 | 1878 | 28,014.9 | 924.8 | 438.0 | 326.5 | 159.2 |
2018 | 2154 | 1863 | 30,320.0 | 975.7 | 393.8 | 399.7 | 181.6 |
2019 | 2154 | 1865 | 35,371.3 | 1011.2 | 292.0 | 548.9 | 170.0 |
Year | Food | Paper | Plastic | Textile | Wood | Total Moisture Content |
---|---|---|---|---|---|---|
2006 | 63.40 | 11.10 | 12.70 | 2.50 | 1.80 | - |
2007 | 66.20 | 10.70 | 12.30 | 1.60 | 2.30 | - |
2008 | 66.20 | 10.90 | 13.10 | 1.20 | 3.30 | 62.9 |
2009 | 63.20 | 12.60 | 15.30 | 1.20 | 3.20 | 62.14 |
2010 | 66.00 | 11.00 | 12.30 | 1.50 | 3.80 | 62.93 |
2011 | 58.96 | 15.87 | 16.78 | 1.34 | 2.50 | 61.58 |
2012 | 53.96 | 17.64 | 18.67 | 1.55 | 3.08 | 59.16 |
2013 | 54.58 | 18.40 | 18.20 | 1.15 | 2.78 | 59.07 |
2014 | 53.89 | 17.67 | 18.70 | 1.05 | 3.08 | 59.18 |
2015 | 53.22 | 19.60 | 19.59 | 0.72 | 2.83 | 58.74 |
2016 | 56.84 | 18.33 | 18.77 | 1.00 | 0.61 | 58.3 |
2017 | 53.96 | 17.64 | 18.67 | 1.55 | 3.08 | 57.86 |
2018 | 50.65 | 20.98 | 21.62 | 0.47 | 3.53 | 58.18 |
2019 | 49.85 | 22.17 | 21.45 | 0.98 | 3.43 | - |
References
- Wang, Z.; Geng, L. Carbon emissions calculation from municipal solid waste and the influencing factors analysis in China. J. Clean. Prod. 2015, 104, 177–184. [Google Scholar] [CrossRef]
- Kang, Y.; Yang, Q.; Bartocci, P.; Wei, H.; Liu, S.S.; Wu, Z.; Zhou, H.; Yang, H.; Fantozzi, F.; Chen, H. Bioenergy in China: Evaluation of domestic biomass resources and the associated greenhouse gas mitigation potentials. Renew. Sustain. Energy Rev. 2020, 127, 109842. [Google Scholar] [CrossRef] [PubMed]
- Ministry of Ecology and Environment of the People’s Republic of China. Climate Change 2007 Synthesis Report [R/OL]. (November 2007). Available online: http://www.cma.gov.cn/2011xzt/2013zhuant/20131028/2013102804/201310/P020131025333266503942.pdf (accessed on 1 April 2022).
- United States Environmental Protection Agency (USEPA). Global Anthropogenic Non-CO2 Greenhouse Gas Emissions: 1990–2030. 2012. Available online: www.epa.gov/sites/production/files/2016-05/documents/epa_global_nonco2_projections_dec2012.pdf (accessed on 1 April 2022).
- Hoornweg, D.; Sugar, L.; Trejos Gómez, C.L. Cities and greenhouse gas emissions: Moving forward. Environ. Urban. 2011, 23, 207–227. [Google Scholar] [CrossRef]
- Amoo, O.M.; Fagbenle, R.L. Renewable municipal solid waste pathways for energy generation and sustainable development in the Nigerian context. Int. J. Energy Environ. Eng. 2013, 4, 42. [Google Scholar] [CrossRef] [Green Version]
- Marshall, R.E.; Farahbakhsh, K. Systems approaches to integrated solid waste management in developing countries. Waste Manag. 2013, 33, 988–1003. [Google Scholar] [CrossRef]
- Yang, D.; Liu, B.; Ma, W.; Guo, Q.; Li, F.; Yang, D. Sectoral energy-carbon nexus and low-carbon policy alternatives: A case study of Ningbo, China. J. Clean. Prod. 2017, 156, 480–490. [Google Scholar] [CrossRef]
- Yang, D.; Xu, L.; Gao, X.; Guo, Q.; Huang, N. Inventories and reduction scenarios of urban waste-related greenhouse gas emissions for management potential. Sci. Total Environ. 2018, 626, 727–736. [Google Scholar] [CrossRef]
- Ministry of Ecology and Environment of the People’s Republic of China. First Biennial Update on Climate Change in the People’s Republic of China [R/OL]. (December 2006). Available online: http://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/201904/P020190419522735276116 (accessed on 1 April 2022).
- Ministry of Ecology and Environment of the People’s Republic of China. Second Biennial Update on Climate Change in the People’s Republic of China [R/OL]. (December 2018). Available online: http://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/201907/P020190701765971866571.pdf (accessed on 1 April 2022).
- Bian, R.; Zhang, T.; Zhao, F.; Chen, J.; Liang, C.; Li, W.; Sun, Y.; Chai, X.; Fang, X.; Yuan, L. Greenhouse gas emissions from waste sectors in China during 2006–2019: Implications for carbon mitigation. Process Saf. Environ. Prot. 2022, 161, 488–497. [Google Scholar] [CrossRef]
- Yu, G.T. A Preliminary Study on the Development of Methane Emission Inventory in Urban Domestic Waste in China. J. Environ. Eng. 1997, S1, 41–49. [Google Scholar]
- Weitz, K.A.; Thorneloe, S.A.; Nishtala, S.R.; Yarkosky, S.; Zannes, M. The impact of municipal solid waste management on greenhouse gas emissions in the United States. J. Air Waste Manag. Assoc. 2002, 52, 1000–1011. [Google Scholar] [CrossRef]
- Kumar, S.; Gaikwad, S.A.; Shekdar, A.V.; Kshirsagar, P.S.; Singh, R.N. Estimation method for national methane emission from solid waste landfills. Atmos. Environ. 2004, 38, 3481–3487. [Google Scholar] [CrossRef]
- United States Environmental Protection Agency (USEPA). Inventory of U.S. Greenhouse Gas Emissions and Sinks: 1990–2017. 2019. Available online: https://www.epa.gov/ghgemissions/inventory-us-greenhouse-gas-emissions-and-sinks-1990-2017 (accessed on 1 April 2022).
- Institute for Environmental Protection and Research (ISPRA). Italian Greenhouse Gas Inventory 1990–2014; National Inventory Report 2016; ISPRA: Rome, Italy, 2016. [Google Scholar]
- Liu, Y.; Chen, S.; Chen, A.J.Y.; Lou, Z. Variations of GHG emission patterns from waste disposal processes in megacity Shanghai from 2005 to 2015. J. Clean. Prod. 2021, 295, 126338. [Google Scholar] [CrossRef]
- Kumar, A.; Sharma, M.P. GHG emission and carbon sequestration potential from MSW of Indian metro cities. Urban Clim. 2014, 8, 30–41. [Google Scholar] [CrossRef]
- Nabavi-Pelesaraei, A.; Bayat, R.; Hosseinzadeh-Bandbafha, H.; Afrasyabi, H.; Chau, K.W. Modeling of energy consumption and environmental life cycle assessment for incineration and landfill systems of municipal solid waste management-A case study in Tehran Metropolis of Iran. J. Clean. Prod. 2017, 148, 427–440. [Google Scholar] [CrossRef]
- Devadoss, P.S.M.; Agamuthu, P.; Mehran, S.B.; Santha, C.; Fauziah, S.H. Implications of municipal solid waste management on greenhouse gas emissions in Malaysia and the way forward. Waste Manag. 2021, 119, 135–144. [Google Scholar] [CrossRef]
- Wang, D.; He, J.; Tang, Y.T.; Higgitt, D.; Robinson, D. Life cycle assessment of municipal solid waste management in Nottingham, England: Past and future perspectives. J. Clean. Prod. 2020, 251, 119636. [Google Scholar] [CrossRef]
- Hong, J.; Li, X.; Zhaojie, C. Life cycle assessment of four municipal solid waste management scenarios in China. Waste Manag. 2010, 30, 2362–2369. [Google Scholar] [CrossRef] [PubMed]
- Yao, X.; Guo, Z.; Liu, Y.; Li, J.; Feng, W.; Lei, H.; Gao, Y. Reduction potential of GHG emissions from municipal solid waste incineration for power generation in Beijing. J. Clean. Prod. 2019, 241, 118283. [Google Scholar] [CrossRef]
- Domingos, H.A.; De Melo Faria, A.M.; Fuinhas, J.A.; Marques, A.C. Renewable energy and greenhouse gas emissions from the waste sectors of European Union member states: A panel data analysis. Environ. Sci. Pollut. Res. 2017, 24, 18770–18781. [Google Scholar] [CrossRef]
- Pérez, L.E.; Ziegler-Rodríguez, K.; Pérez, A.T.E.; Vásquez, Ó.C.; Vázquez-Rowe, I. Closing the gap in the municipal solid waste management between metropolitan and regional cities from developing countries: A life cycle assessment approach. Waste Manag. 2021, 124, 314–324. [Google Scholar] [CrossRef]
- Yang, N.; Zhang, H.; Chen, M.; Shao, L.M.; He, P.J. Greenhouse gas emissions from MSW incineration in China: Impacts of waste characteristics and energy recovery. Waste Manag. 2012, 32, 2552–2560. [Google Scholar] [CrossRef] [PubMed]
- Havukainen, J.; Zhan, M.; Dong, J.; Liikanen, M.; Deviatkin, I.; Li, X.; Horttanainen, M. Environmental impact assessment of municipal solid waste management incorporating mechanical treatment of waste and incineration in Hangzhou, China. J. Clean. Prod. 2017, 141, 453–461. [Google Scholar] [CrossRef]
- Magazzino, C.; Mele, M.; Schneider, N. The relationship between municipal solid waste and greenhouse gas emissions: Evidence from Switzerland. Waste Manag. 2020, 113, 508–520. [Google Scholar] [CrossRef]
- Cherubini, F.; Bargigli, S.; Ulgiati, S. Life cycle assessment (LCA) of waste management strategies: Landfilling, sorting plant and incineration. Energy 2009, 34, 2116–2123. [Google Scholar] [CrossRef]
- Beijing Municipal Commission of Urban Management. Summary of Beijing Municipal Solid Waste Treatment Facilities [DB/OL]. 23 October 2020. Available online: http://csglw.beijing.gov.cn/sy/sycxfw/xxcx/shljxxcx/201912/t20191203_804494.html (accessed on 1 April 2022).
- Lima, R.M.; Santos, A.H.M.; Pereira, C.R.S.; Flauzino, B.K.; Pereira, A.C.O.; Nogueira, F.J.; Valverde, J.A.R. Spatially distributed potential of landfill biogas production and electric power generation in Brazil. Waste Manag. 2018, 74, 323–334. [Google Scholar] [CrossRef] [PubMed]
- Chen, C.C.; Liu, C.L.; Li, Z.; Wang, H.H.; Zhang, Y.; Wang, L. Uncertainty Analysis for Evaluating Methane Emissions from Municipal Solid Waste Landfill in Beijing. Environ. Sci. 2012, 33, 208–215. [Google Scholar] [CrossRef]
- Intergovernmental Panel on Climate Change (IPCC). Climate Change 2014: Mitigation of Climate Change: Contribution of Working Group III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK, 2014. [Google Scholar]
- Xin, C.; Zhang, T.; Tsai, S.B.; Zhai, Y.M.; Wang, J. An empirical study on greenhouse gas emission calculations under different municipal solid waste management strategies. Appl. Sci. 2020, 10, 1673. [Google Scholar] [CrossRef] [Green Version]
- Wang, L.; Li, Y. Greenhouse gas (GHG) emissions and its influencing factors in Beijing municipal solid waste incineration power plant. Chin. J. Environ. Eng. 2017, 11, 6490–6496. [Google Scholar]
- Wang, Y.B.; He, Y.P. Research on the influence mechanism of greenhouse gas emissions from urban waste treatment. J. Xi’an Jiao Tong Univ. 2018, 38, 60–70. [Google Scholar]
- Ang, B.W. The LMDI approach to decomposition analysis: A practical guide. Energy Policy 2005, 33, 867–871. [Google Scholar] [CrossRef]
- Xiao, S.; Dong, H.; Geng, Y.; Fujii, M.; Pan, H. Greenhouse gas emission mitigation potential from municipal solid waste treatment: A combined SD-LMDI model. Waste Manag. 2021, 120, 725–733. [Google Scholar] [CrossRef] [PubMed]
- Kaya, Y. Impact of carbon dioxide emission control on GNP growth: Interpretation of proposed scenarios. In IPCC Response Strategies Working Group Memorandum; IPCC: Geneva, Switzerland, 1989. [Google Scholar]
- Wang, Y.; Xie, Y.J.; Liu, R.; Zhang, H. Population prediction and resource allocation in megacities from the optimum population perspective: A case study of Beijing, Shanghai, Guangzhou and Shenzhen. Acta Geogr. Sin. 2021, 76, 352–366. [Google Scholar]
- National Bureau of Statistics of China. The China City Statistical Yearbook (2006–2019) [DB/OL]. Available online: http://www.stats.gov.cn/tjsj/ndsj/ (accessed on 1 April 2022).
- Yu, Y.; Zhang, W. Greenhouse gas emissions from solid waste in Beijing: The rising trend and the mitigation effects by management improvements. Waste Manag. Res. 2016, 34, 368–377. [Google Scholar] [CrossRef]
- Cheng, W. Comparative analysis of physical composition and characteristics of domestic waste in urban and rural areas of Beijing. Recycl. Resour. Circ. Econ. 2020, 13, 17–22. [Google Scholar]
- Municipal Commission of Urban Management. Beijing Environmental Health Development Overview (2019); Municipal Commission of Urban Management: Beijing, China, 2020; p. 65. [Google Scholar]
- Yaman, C.; Anil, I.; Alagha, O. Potential for greenhouse gas reduction and energy recovery from MSW through different waste management technologies. J. Clean. Prod. 2020, 264, 121432. [Google Scholar] [CrossRef]
- Jeswani, H.K.; Smith, R.W.; Azapagic, A. Energy from waste: Carbon footprint of incineration and landfill biogas in the UK. Int. J. Life Cycle Assess. 2013, 18, 218–229. [Google Scholar] [CrossRef]
- Lou, Z.; Wang, M.; Zhao, Y.; Huang, R. The contribution of bio-waste disposal on odor emission from landfills. J. Air Waste Manage. Assoc. 2015, 65, 479–484. [Google Scholar] [CrossRef]
- Kang, Y.; Yang, Q.; Wang, L.; Chen, Y.; Lin, G.; Huang, J.; Yang, H.; Chen, H. China’s changing city-level greenhouse gas emissions from municipal solid waste treatment and driving factors. Resour. Conserv. Recycl. 2022, 180, 106168. [Google Scholar] [CrossRef]
- Liao, N.; Bolyard, S.C.; Lü, F.; Yang, N.; Zhang, H.; Shao, L.; He, P. Can waste management system be a Greenhouse Gas sink? Perspective from Shanghai, China. Resour. Conserv. Recycl. 2022, 180, 106170. [Google Scholar] [CrossRef]
- Juárez-Hernández, S. Energy, environmental, resource recovery, and economic dimensions of municipal solid waste management paths in Mexico city. Waste Manag. 2021, 136, 321–336. [Google Scholar] [CrossRef]
Model | Area | Time | Found |
---|---|---|---|
MB | China (1997) | 1990–1994 | Methane emissions were approximately 2.4 million to 3.2 million tons, and the share of landfilled MSW will directly affect the accuracy of the emissions inventory. |
LCA | U.S.A. (2002) | 1974–1997 | GHG emissions from MSW management were estimated to be 72 million tons CO2e in 1974, and 1600 million tons CO2e in 1997. |
MB, TM | India (2004) | 1980–1999 | The proposed triangular model landfill methane emission calculation method was more realistic and could be well used for estimation, and the methane emissions varied between 119.01 Gg in 1980 and 400.66 Gg in 1999. |
LandGEM 3.02 | India (2014) | 2001–2020 | An amount of 88.44% of the total greenhouse gas emissions were CH4 and the rest were CO2. |
FOD | Italy (2016) | 1990–2014 | The CH4 emission in 2017 was 107.7 Mt. |
FOD | U.S.A. (2017) | 1990–2014 | CH4 emissions from landfills decreased by 71.8 Mt CO2e from 1990 to 2017. |
LCA | Nottingham, England (2019) | 2001–2017 | GHG emissions from MSW management were reduced by 0.21–1.08 t CO2e due to improvements in waste collection, treatment and material recovery, and waste prevention. |
FOD | Malaysia (2021) | 2016 | GHG emissions released from solid waste disposal sites (SWDS) were 6.89 Mt CO2e in 2016, and are projected to increase to 9.99 Mt CO2e in 2030. |
FOD | Shanghai, China (2021) | 2005–2015 | Landfills accounted for 81.88% of total GHG emissions from 2005 to 2015, and incineration had lower emission intensity than landfills and composting. |
LCA | Tehran, Iran (2021) | - | Daily GHG emissions from incineration and landfills were estimated at 4499.07 and 92,170.30 kg CO2e. |
FOD | China (2022) | 2006–2019 | Total GHG emissions from the waste sector increased from just under 110 Mt CO2e in 2006, to 356 Mt CO2e in 2019. |
Type | Food Waste | Paper | Textile | Wood |
---|---|---|---|---|
DOCi | 0.15 | 0.40 | 0.24 | 0.43 |
Ki | 0.18 | 0.06 | 0.06 | 0.03 |
Type | Food Waste | Paper | Plastic | Textile | Wood |
---|---|---|---|---|---|
dmj | 0.62 | 0.31 | 0.32 | 0.52 | 0.28 |
CFj | 0.50 | 0.46 | 0.78 | 0.61 | 0.53 |
FCFj | 0.11 | 0.09 | 0.68 | 0.52 | 0.18 |
Factors | Definition |
---|---|
EIi | GHG emission intensity, which is the GHG emissions per unit of MSW treated in MSW treatment method i. |
TPi | MSW treatment pattern, which is the proportion of MSW treatment i, to total MSW treatment. |
TI | MSW treatment intensity, which is the amount of MSW treatment per unit of GDP. |
EO | Economic output, which is GDP per capita per year. |
U | Urbanization ratio, which is the ratio of urban population to total population size. |
P | Population size, which is the population size, indicating the effect of population size on GHG emissions from MSW treatment. |
Scenario | Factors | Scenario Assumptions |
---|---|---|
BAU scenario | EI, TP, TI, EO, U, P | According to the Beijing Urban Master Plan (2016–2035), assume economic output growth rate of 5%, and population size increase of 100,000 per year. According to the current situation of Beijing’s MSW treatment capacity and the 14th Five-Year Plan for the Development of MSW Separation and Treatment Facilities, assume an incineration rate of 65%, sanitary landfill rate of 15%, and composting rate of 20% for 2020–2030, and with no change in urbanization rate and GHG emission intensity. |
Classification of MSW scenario | EI | According to the Beijing Urban Management Development Plan for the 14th Five-Year Period, assume 30% reduction in food entering sanitary landfill and incineration plants. According to the target of 37.5% MSW recycling rate, assume 7.5% reduction in paper. |
TP | According to the Beijing Urban Management Development Plan for the 14th Five-Year Period, assume an incineration rate of 70%, sanitary landfill rate of 0% and composting rate of 30%, with no change in GHG emission intensity. | |
TI | Reduction of MSW intensity (TI) by 7.5% from the original base in 2020–2030. | |
EO, U, P | Consistency with the BAU scenario. | |
Population control scenario | P | According to the literature study, Beijing has a proper population of 21.52 million people [41], assume with no change in population size. |
EI, TP, TI, EO, U | Consistency with the BAU scenario. |
Time Period | R (EI) | R (TP) | R (TI) | R (EO) | R (U) | R (P) |
---|---|---|---|---|---|---|
2006–2010 | 112.63 | −60.34 | −100.03 | 80.71 | 5.44 | 61.59 |
2011–2019 | 193.63 | −313.62 | −180.89 | 359.93 | 3.18 | 37.77 |
2006–2019 | 149.06 | −174.25 | −136.40 | 206.29 | 4.43 | 50.88 |
